USER MANUAL TTC1004 ELECTROLUX

CONTENTS 1. SAFETY INFORMATION3 2. SAFETY INSTRUCTIONS4 3. PRODUCT DESCRIPTION 6 4. CONTROL PANEL 6 5. PROGRAMMES 7 6. SETTINGS9 7. OPTIONS12 8. BEFORE FIRST USE 13 9. DAILY USE 14 10. HINTS AND TIPS 16 11. CARE AND CLEANING17 12. TROUBLESHOOTING19 13. PRODUCT INFORMATION SHEET22 14. ADDITIONAL TECHNICAL INFORMATION23

WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time. Welcome to Electrolux. Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com/webselfservice Register your product for better service: www.registerelectrolux.com Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.

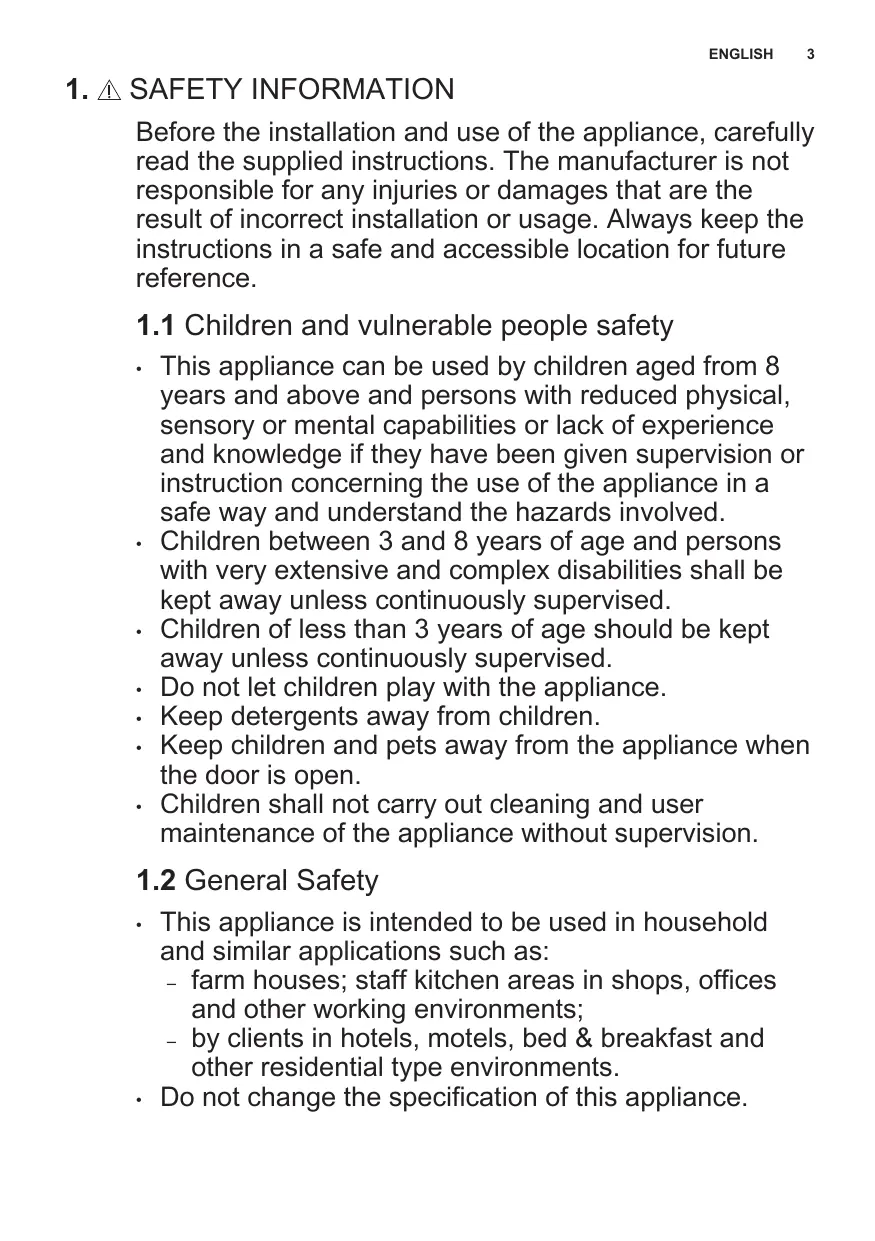

SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety •

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised. Children of less than 3 years of age should be kept away unless continuously supervised. Do not let children play with the appliance. Keep detergents away from children. Keep children and pets away from the appliance when the door is open. Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety •

This appliance is intended to be used in household and similar applications such as: – farm houses; staff kitchen areas in shops, offices and other working environments; – by clients in hotels, motels, bed & breakfast and other residential type environments. Do not change the specification of this appliance.

The operating water pressure (minimum and maximum) must be between 0.5 (0.05) / 8 (0.8) bar (MPa) Obey the maximum number of 12 place settings. If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard. Put the cutlery in the cutlery basket with the sharp ends pointing down or put them in the cutlery drawer in a horizontal position with the sharp edges down. Do not leave the appliance with the open door unattended to avoid stepping accidentally onto it. Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket. Do not use high pressure water sprays and/or steam to clean the appliance. If the appliance has ventilation openings in the base, they must not be covered e.g. by a carpet. The appliance is to be connected to the water mains using the new supplied hose-sets. Old hose sets must not be reused.

2. SAFETY INSTRUCTIONS 2.1 Installation

2.2 Electrical connection

WARNING! Only a qualified person must install this appliance. • • • • • •

Remove all the packaging. Do not install or use a damaged appliance. Follow the installation instructions supplied with the appliance. Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear. Do not install or use the appliance where the temperature is less than 0 °C. Install the appliance in a safe and suitable place that meets installation requirements.

WARNING! Risk of fire and electric shock. • •

The appliance must be earthed. Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply. Always use a correctly installed shockproof socket. Do not use multi-plug adapters and extension cables. Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. Do not pull the mains cable to disconnect the appliance. Always pull the mains plug. This appliance complies with the E.E.C. Directives. UK and Ireland only. This appliance is fitted with a 13 A mains plug. If it is necessary to change the mains plug fuse, use only a 13 A ASTA (BS 1362) fuse.

2.3 Water connection • •

Do not cause damage to the water hoses. Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear. Ensure that there are no visible water leaks during and after the first use of the appliance. The water inlet hose has a safety valve and a sheath with an inner mains cable.

If the water inlet hose is damaged, immediately close the water tap and disconnect the mains plug from the mains socket. Contact the Authorised Service Centre to replace the water inlet hose.

Do not sit or stand on the open door. Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging. Do not drink and play with the water in the appliance. Do not remove the dishes from the appliance until the programme is complete. Some detergent may remain on the dishes. The appliance can release hot steam if you open the door while a programme operates. Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

To repair the appliance contact an Authorised Service Centre. Use original spare parts only.

2.6 Disposal WARNING! Risk of injury or suffocation. • • • WARNING! Dangerous voltage.

Disconnect the appliance from the mains supply. Cut off the mains cable and discard it. Remove the door catch to prevent children and pets to get closed in the appliance.

4.1 Indicators Indicator

Description Salt indicator. It is on when the salt container needs refilling. Rinse aid indicator. It is on when the rinse aid dispenser needs refill‐ ing. End indicator. It is on when the programme is completed.

5. PROGRAMMES The numbering of the programmes in the table (P1, P2, etc.) reflects their sequence on the control panel.

The order of the programmes in the table may not reflect their sequence on the control panel.

Degree of soil Type of load

Normal soil Crockery and cutlery

All Crockery, cut‐ lery, pots and pans

Prewash Wash from 45 °C to 70 °C Rinses Dry

Mixed soil Crockery, cut‐ lery, pots and pans

Heavy soil Crockery, cut‐ lery, pots and pans

Fresh soil Crockery and cutlery

Degree of soil Type of load

1) This programme offers the most efficient use of water and energy consumption for crock‐ ery and cutlery with normal soil. This is the standard programme for test institutes. 2) The appliance senses the degree of soil and the quantity of items in the baskets. It auto‐ matically adjusts the temperature and quantity of water as well as the wash duration. 3) This programme is suitable for washing a load with mixed soil. Place items with heavy soil in the lower basket and with normal soil in the upper basket. The pressure and tempera‐ ture of the water in the lower basket are higher than in the upper basket. 4) This programme is designed to wash heavily soiled items with high water pressure and at a high temperature. 5) This programme controls the temperature of the water to provide special care for delicate items, glassware in particular. 6) This programme is suitable for washing a load or a half load with fresh or light soil in a short time. 7) With this programme, you can quickly rinse off food remains from the dishes and prevent odours forming in the appliance. Do not use detergent with this programme.

1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.

5.2 Information for test institutes To receive the necessary information for conducting performance tests (e.g. according to EN60436), send an email to:

In your request please include the product number code (PNC) found on the rating plate. For any other questions regarding your dishwasher please refer to the service book provided with your appliance.

info.test@dishwasher-production.com

6. SETTINGS 6.1 Programme selection mode and user mode When the appliance is in programme selection mode it is possible to set a programme and to enter user mode.

Press and hold RESET until the appliance is in programme selection mode.

How to enter user mode

Settings available in the user mode: • The level of water softener according to the water hardness. • Activation or deactivation of the rinse aid empty notification. • The level of rinse aid according to the required dosage. • Activation or deactivation of the acoustic signal for the end of a programme. • Activation or deactivation of AirDry. As the appliance stores the saved settings, there is no need to configure it before every cycle.

How to set the programme selection mode The appliance is in programme selection mode when the display shows the programme number P1. After activation, the appliance is in programme selection mode by default. If not, set the programme selection mode the following way:

Make sure the appliance is in programme selection mode. To enter the user mode, press and hold simultaneously

indicators , , , and the display is blank.

6.2 The water softener The water softener removes minerals from the water supply, which would have a negative effect on the washing results and on the appliance. The higher the content of these minerals, the harder your water is. Water hardness is measured in equivalent scales. The water softener should be adjusted according to the hardness of the water in your area. Your local water authority can advise you on the hardness of the water in your area. It is important to set the right level of the water softener to assure good washing results.

Water softener level

Water softener level

1) Factory setting. 2) Do not use salt at this level.

Regardless of the type of detergent used, set the proper water hardness level to keep the salt refill indicator active. Multi-tabs containing salt are not effective enough to soften hard water.

How to set the water softener level Make sure the appliance is in user mode. 1. Press

The indicators are off.

The indicator still flashes. The display shows the current setting: e.g.

2. Press repeatedly to change the setting. 3. Press on/off to confirm the setting.

6.3 The rinse aid empty notification

notifying to refill rinse aid. If the drying results are satisfactory while using multitablets only, it is possible to deactivate the notification for refilling rinse aid. However, for best drying performance, always use rinse aid. If standard detergent or multi-tablets without rinse aid are used, activate the notification to keep the rinse aid refill indicator active.

How to deactivate the rinse aid empty notification Make sure the appliance is in user mode. 1. Press

The indicators are off.

The indicator still flashes. The display shows the current setting. –

= the rinse aid empty notification is deactivated.

= the rinse aid empty notification is activated.

The rinse aid helps to dry the dishes without streaks and stains. It is automatically released during the hot rinse phase.

6.4 The rinse aid level

When the rinse aid chamber is empty, the rinse aid indicator is turned on

It is possible to set the released quantity of rinse aid between level 1 (minimum

2. Press to change the setting. 3. Press on/off to confirm the setting.

quantity) and level 6 (maximum quantity). Level 0 deactivates the rinse aid dispenser and no rinse aid is released.

2. Press to change the setting. 3. Press on/off to confirm the setting.

Factory setting: level 4.

How to set the rinse aid level

AirDry improves the drying results with less energy consumption.

Make sure the appliance is in user mode. 1. Press

The indicators are off.

The indicator continues to flash. The display shows the current

setting: e.g. = level 4. – The levels of rinse aid range from 0A to 6A where level 0A means rinse aid is not used. 2. Press repeatedly to change the setting. 3. Press on/off to confirm the setting.

During the drying phase, the door opens automatically and remains ajar.

6.5 Acoustic signals

CAUTION! Do not try to close the appliance door within 2 minutes after automatic opening. This can cause damage to the appliance. If, afterwards, the door is closed for another 3 minutes, the running programme ends.

Acoustic signals sound when a malfunction of the appliance occurs. It is not possible to deactivate these acoustic signals. There is also an acoustic signal that sounds when the programme is completed. By default this acoustic signal is deactivated but it is possible to activate it.

How to activate the acoustic signal for the end of programme Make sure the appliance is in user mode. 1. Press

The indicators are off.

still flashes. The indicator The display shows the current setting.

= the acoustic signal is deactivated.

= the acoustic signal is activated.

AirDry is automatically activated with all programmes excluding Rinse & Hold (if applicable). To improve the drying performance refer to the XtraDry option or activate AirDry. CAUTION! If children have access to the appliance, it is advised to deactivate AirDry as opening the door may pose a danger.

How to deactivate AirDry Make sure the appliance is in user mode. 1. Press

The indicators are off.

The indicator still flashes. The display shows the current setting. – = AirDry is deactivated. –

= AirDry is activated.

to change the setting. 2. Press 3. Press on/off to confirm the setting.

6.7 My Favourite This option allows to set and save the most frequently used programme. It is possible to save only 1 programme. A new setting cancels the previous one.

It is also possible to set applicable options together with the programme. 2. Press and hold indicator is on.

How to set the My Favourite programme Press . • The My Favourite indicator is on. • The display shows the number and the duration of the programme. • If options are saved together with the programme, the indicators related to the options are on.

How to save the My Favourite programme 1. Set the chosen programme.

7. OPTIONS Desired options must be activated every time before you start a programme. It is not possible to activate or deactivate options while a programme is running. Not all options are compatible with each other. If you select non compatible options, the appliance automatically deactivates one or more of them. Only the indicators of the still active options are on. If an option is not applicable to a programme, the related indicator is off or it flashes quickly for a few seconds and then goes out. Activating options can affect the water and energy consumption as well as the programme duration.

7.1 XtraDry Activate this option to boost the drying performance. XtraDry is a permanent option for all programmes other than ECO. It is automatically activated in next cycles. This configuration can be changed at any time. Every time ECO is activated, XtraDry is off and needs to be chosen manually. Activating XtraDry deactivates Time Manager and vice versa.

How to activate XtraDry Press . The related indicator is on. The display shows the updated programme duration.

7.2 Time Manager The Time Manager allows to reduce the duration of a selected programme by approximately 50%.

ENGLISH The washing results are the same as with the normal programme duration. The drying results can decrease. This option increases the pressure and the temperature of the water. The washing and the drying phases are shorter.

How to activate Time Manager Press . The related indicator is on. The display shows the updated programme duration.

By default, Time Manager is off, but it is possible to activate it manually. This option cannot be combined with XtraDry.

8. BEFORE FIRST USE 1. Make sure that the current level of the water softener agrees with the hardness of the water supply. If not, adjust the level of the water softener. 2. Fill the salt container. 3. Fill the rinse aid dispenser. 4. Open the water tap. 5. Start a programme to remove any processing residuals that can still be inside the appliance. Do not use detergent and do not load the baskets. After starting a programme, it may take up to 5 minutes for the appliance to recharge the resin in the water softener. It seems that the appliance is not working. The washing phase starts only after this procedure is completed. The procedure is repeated periodically.

3. Fill the salt container with dishwasher salt (until it is full).

4. Carefully shake the funnel by its handle to get the last granules inside. 5. Remove the salt around the opening of the salt container.

8.1 The salt container CAUTION! Use rough salt designed for dishwashers only. Fine salt increases the risk of corrosion. The salt is used to recharge the resin in the water softener and to assure good washing results in daily use.

How to fill the salt container 1. Turn the cap of the salt container counterclockwise and remove it. 2. Put 1 litre of water in the salt container (only for the first time).

6. Turn the cap of the salt container clockwise to close the salt container. CAUTION! Water and salt can come out of the salt container when you fill it. After you fill the salt container, immediately start the shortest programme to prevent corrosion. Do not put dishes in the baskets.

A B CAUTION! Only use rinse aid designed specifically for dishwashers. 1. Open the lid (C). 2. Fill the dispenser (B) until the rinse aid reaches the marking ''MAX''. 3. Remove the spilled rinse aid with an absorbent cloth to prevent excessive foam formation. 4. Close the lid. Make sure that the lid locks into position. Fill the rinse aid dispenser when the indicator (A) is clear.

9. DAILY USE 1. Open the water tap. 2. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode. • If the salt indicator is on, fill the salt container. • If the rinse aid indicator is on, fill the rinse aid dispenser. 3. Load the baskets. 4. Add the detergent. 5. Set and start a programme suitable for the type of load and the degree of soil.

9.1 Using the detergent

A B CAUTION! Only use detergent specifically designed for dishwashers. 1. Press the release button (A) to open the lid (C). 2. Put the detergent, in powder or tablets, in the compartment (B). 3. If the programme has a prewash phase, put a small quantity of detergent on the inner part of the appliance door. 4. Close the lid. Make sure that the lid locks into position.

9.2 Setting and starting a programme Starting a programme 1. Keep the appliance door ajar. 2. Press the on/off button to activate the appliance. Make sure that the appliance is in programme selection mode.

3. Press repeatedly until the display shows the number of the chosen programme. The display shows the programme number for

approximately 3 seconds and then shows the programme duration. • To select the My Favourite programme, press . The indicators of the options related to the My Favourite programme are on. 4. Set the applicable options. 5. Close the appliance door to start the programme. •

Starting a programme with delay start 1. Set a programme. 2. Press repeatedly until the display shows the desired delay time (from 1 to 24 hours). The indicator is on. 3. Close the appliance door to start the countdown. During the countdown, it is possible to increase the delay time but not to change the programme and options. When the countdown is completed, the programme starts.

Opening the door while the appliance operates Opening the door while a programme is running stops the appliance. It may affect the energy consumption and the programme duration. After closing the door, the appliance continues from the point of interruption. If the door is opened for more than 30 seconds during the drying phase, the running programme ends. It does not happen if the door is opened by AirDry function.

Cancelling the delay start while the countdown operates When you cancel the delay start you have to set the programme and options again.

Press and hold RESET until the appliance is in programme selection mode.

Cancelling the programme Press and hold RESET until the appliance is in programme selection mode. Make sure that there is detergent in the detergent dispenser before you start a new programme.

End of the programme When the programme is complete, the display shows 0:00. The indicator on.

All buttons are inactive except for the on/off button. 1. Press the on/off button or wait for the Auto Off function to automatically deactivate the appliance. If you open the door before the activation of Auto Off, the appliance is automatically deactivated. 2. Close the water tap.

The Auto Off function This function decreases energy consumption by deactivating automatically the appliance when it is not operating. The function comes into operation: • 5 minutes after the completion of the programme. • After 5 minutes if the programme has not started.

10. HINTS AND TIPS 10.1 General Follow the hints below to ensure optimal cleaning and drying results in daily use and to help you protect the environment. • • • •

Remove larger residues of food from the dishes into the waste bin. Do not pre-rinse dishes by hand. When needed, select a programme with a prewash phase. Always use the whole space of the baskets. Make sure that items in the baskets do not touch or cover each other. Only then can the water completely reach and wash the dishes. You can use dishwasher detergent, rinse aid and salt separately or you can use the multi-tablets (e.g. ''All in 1''). Follow the instructions on the packaging. Select a programme according to the type of load and the degree of soil. ECO offers the most efficient use of water and energy consumption.

Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance. In areas with hard and very hard water we recommend to use plain dishwasher detergent (powder, gel, tablets containing no additional agents), rinse aid and salt separately for optimal cleaning and drying results. At least once a month run the appliance with the use of appliance cleaner which is particularly suitable for this purpose. Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes. Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

10.3 What to do if you want to stop using multi-tablets Before you start to use separately detergent, salt and rinse aid do the following procedure. 1. Set the highest level of the water softener. 2. Make sure that the salt and rinse aid containers are full. 3. Start the shortest programme with a rinsing phase. Do not add detergent and do not load the baskets. 4. When the programme is completed, adjust the water softener according to the water hardness in your area. 5. Adjust the released quantity of rinse aid. 6. Activate the rinse aid empty notification.

10.4 Loading the baskets • • • • • • • • • •

Use the appliance to wash dishwasher-safe items only. Do not wash in the appliance items made of wood, horn, aluminium, pewter and copper. Do not wash in the appliance items that can absorb water (sponges, household cloths). Remove large food residues from dishes. Soak cookware with burnt-on food before washing it in the appliance. Put hollow items (cups, glasses and pans) with the opening facing downwards. Make sure that glasses do not touch each other. Put light items in the upper basket. Make sure that the items do not move freely. Put cutlery and small items in the cutlery basket. Make sure that the spray arms can move freely before you start a programme.

10.5 Before starting a programme

Before you start the selected programme, make sure that:

10.6 Unloading the baskets

The filters are clean and correctly installed. The cap of the salt container is tight. The spray arms are not clogged. There is enough salt and rinse aid (unless you use multi-tablets). The arrangement of the items in the baskets is correct. The programme is suitable to the type of load and the degree of soil.

The correct quantity of detergent is used.

1. Let the tableware cool down before you remove it from the appliance. Hot items can be easily damaged. 2. First remove items from the lower basket, then from the upper basket. After the programme is completed, water can still remain on the inside surfaces of the appliance.

11. CARE AND CLEANING WARNING! Before maintenance, deactivate the appliance and disconnect the mains plug from the main socket. Dirty filters and clogged spray arms decrease the washing results. Make a check regularly and, if necessary, clean them.

11.1 Cleaning the filters The filter system is made of 3 parts.

2. Remove the filter (C) out of filter (B). 3. Remove the flat filter (A).

1. Turn the filter (B) counterclockwise and remove it.

4. Wash the filters.

CAUTION! An incorrect position of the filters can cause bad washing results and damage to the appliance.

11.2 Cleaning the spray arms Do not remove the spray arms. If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object. 5. Make sure that there are no residues of food or soil in or around the edge of the sump. 6. Put back in place the flat filter (A). Make sure that it is correctly positioned under the 2 guides.

11.3 External cleaning • • •

Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents.

11.4 Internal cleaning • •

• 7. Reassemble the filters (B) and (C). 8. Put back the filter (B) in the flat filter (A). Turn it clockwise until it locks.

Carefully clean the appliance, including the rubber gasket of the door, with a soft damp cloth. To maintain the performance of your appliance, use a cleaning product designed specifically for dishwashers at least once a month. Carefully follow the instructions on the packaging of the product. Do not use abrasive products, abrasive cleaning pads, sharp tools, strong chemicals, scourer or solvents. Using short-duration programmes regularly can cause grease and limescale buildup inside the appliance. Run long-duration programmes at least twice a month to prevent the buildup.

12. TROUBLESHOOTING WARNING! Improper repair of the appliance may pose a danger to the safety of the user. Any repairs must be performed by qualified personnel.

to contact an Authorised Service Centre. Refer to the below table for information on possible problems. With some problems, the display shows an alarm code.

The majority of problems that may occur can be solved without the need Problem and alarm code

Possible cause and solution

You cannot activate the appliance.

The programme does not start.

The appliance does not fill with water. The display shows

The appliance does not drain the water. The display shows

The anti-flood device is on. • The display shows

The appliance stops and starts more times during operation.

Make sure that the mains plug is connected to the mains socket. Make sure that there is no damaged fuse in the fuse box. Make sure that the appliance door is closed. If the delay start is set, cancel the setting or wait for the end of the countdown. The appliance recharges the resin inside the water softener. The duration of the procedure is approxi‐ mately 5 minutes. Make sure that the water tap is open. Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority. Make sure that the water tap is not clogged. Make sure that the filter in the inlet hose is not clog‐ ged. Make sure that the inlet hose has no kinks or bends. Make sure that the sink spigot is not clogged. Make sure that the filter in the outlet hose is not clog‐ ged. Make sure that the interior filter system is not clog‐ ged. Make sure that the drain hose has no kinks or bends. Close the water tap and contact an Authorised Serv‐ ice Centre. It is normal. It provides optimal cleaning results and energy savings.

Problem and alarm code

Possible cause and solution

The programme lasts too long.

If the delay start option is set, cancel the delay set‐ ting or wait for the end of the countdown. Activate the Time Manager option to reduce the pro‐ gramme duration. Activating options can increase the programme dura‐ tion.

The remaining time in the display increases and skips nearly to the end of the programme duration.

This is not a defect. The appliance is working cor‐ rectly.

Small leak from the appli‐ ance door.

The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable). The appliance door is not centred on the tub. Adjust the rear foot (if applicable).

The appliance door is diffi‐ cult to close.

Rattling or knocking sounds from the inside of the appliance.

The appliance is not levelled. Loosen or tighten the adjustable feet (if applicable). Parts of the tableware are protruding from the bas‐ kets.

The tableware is not properly arranged in the bas‐ kets. Refer to basket loading leaflet. Make sure that the spray arms can rotate freely.

The appliance trips the cir‐ • cuit-beaker.

The amperage is insufficient to supply simultaneous‐ ly all the appliances in use. Check the socket amper‐ age and the capacity of the meter or turn off one of the appliances in use. Internal electrical fault of the appliance. Contact an Authorised Service Centre.

Refer to "Before first use", "Daily use", or "Hints and tips" for other possible causes. Once you have checked the appliance, deactivate and activate the appliance. If

the problem occurs again, contact an Authorised Service Centre. For alarm codes not described in the table, contact an Authorised Service Centre.

12.1 The washing and drying results are not satisfactory Problem

Possible cause and solution

Poor washing results.

Refer to "Daily use", "Hints and tips" and the basket loading leaflet. Use more intensive washing programmes. Clean spray arm jets and the filter. Refer to "Care and Cleaning".

Possible cause and solution

Poor drying results.

Tableware has been left for too long inside the closed appliance. There is no rinse aid or the dosage of rinse aid is not sufficient. Adjust the rinse aid level to a higher level. Plastic items may need to be towel dried. For the best drying performance, activate XtraDry and AirDry. We recommend to always use rinse aid, even in combination with multi-tablets.

There are whitish streaks or • bluish layers on glasses and dishes. •

The released quantity of rinse aid is too high. Ad‐ just the rinse aid level to a lower level. The quantity of detergent is too high.

There are stains and dry wa‐ • ter drops on glasses and dishes. •

The released quantity of rinse aid is not sufficient. Adjust the rinse aid level to a higher level. The quality of the rinse aid can be the cause.

For the best drying performance, activate XtraDry and AirDry . The programme does not have a drying phase or has a drying phase with low temperature. The rinse aid dispenser is empty. The quality of the rinse aid can be the cause. The quality of the multi-tablets can be the cause. Try a different brand or activate the rinse aid dis‐ penser and use rinse aid and multi-tablets together.

The interior of the appliance is wet.

This is not a defect of the appliance. Humid air con‐ densates on the appliance walls.

Unusual foam during wash‐ ing.

Use the detergent designed specifically for dish‐ washers. There is a leak in the rinse aid dispenser. Contact an Authorised Service Centre.

Traces of rust on cutlery.

There are residues of deter‐ gent in the dispenser at the end of the programme.

Odours inside the appliance. •

There is too much salt in the water used for wash‐ ing. Refer to "The water softener". Silver and stainless steel cutlery were placed to‐ gether. Avoid putting silver and stainless steel items close together. The detergent tablet got stuck in the dispenser and was not completely washed away by water. Water cannot wash away the detergent from the dispenser. Make sure that the spray arm is not blocked or clogged. Make sure that items in the baskets do not impede the lid of the detergent dispenser from opening. Refer to "Internal cleaning".

Possible cause and solution

Limescale deposits on the • tableware, on the tub and on • the inside of the door. • • • • • Dull, discoloured or chipped tableware.

The level of salt is low. Check the salt indicator. The cap of the salt container is loose. Your tap water is hard. Refer to "The water soft‐ ener". Use salt and set regeneration of the water softener even when multi-functional tablets are used. Refer to "The water softener". If lime scale deposits still remain, clean the appli‐ ance with appliance cleaners which are particularly suitable for this purpose. Try a different detergent. Contact the detergent manufacturer. Make sure that only dishwasher-safe items are washed in the appliance. Load and unload the basket carefully. Refer to bas‐ ket loading leaflet. Place delicate items in the upper basket. For washing delicate items and glassware, select the dedicated programme. Refer to "Pro‐ grammes".

Refer to "Before first use", "Daily use" or "Hints and tips" for other possible causes.

13. PRODUCT INFORMATION SHEET Trade Mark

Rated capacity (standard place settings)

Energy efficiency class

Energy consumption in kWh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. The actual energy consumption will depend on how the appliance is used.

Energy consumption of standard cleaning cycle (kWh)

Power consumption in off mode (W)

Power consumption in left-on mode (W)

Water consumption in litres per year, based on 280 standard cleaning cycles. The actual water consumption will depend on how the appliance is used

ENGLISH Drying efficiency class on a scale from G (least efficient) to A (most efficient)

A The ‘standard programme’ is the standard cleaning cycle to which the information in the label and the fiche relates. This pro‐ gramme is suitable to clean normally soiled tableware and is the most efficient programme in terms of combined energy and wa‐ ter consumption. It is indicated as "Eco" programme.

ECO Programme time of standard cleaning cycle (min)

Duration of the left-on mode (min)

Sound power level (db(A) re 1pW)

Built in appliance Y/N Yes

bar (minimum and maximum)

Cold water or hot water 2)

max 60 °C Water supply pressure Water supply

1) Refer to the rating plate for other values. 2) If the hot water comes from alternative source of energy (e.g. solar panels), use the hot water supply to decrease energy consumption.

15. ENVIRONMENTAL CONCERNS Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of

appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
