USER MANUAL SOMG1310X SCHOLTES

3.2 Anomalies & solutions

For nearly a century SchoItès has been developing state of the art products to the service of each chef.

Because cooking is a passion, our technology offers you a wide range of options and invites you to explore your culinary creativity.

We hope you will enjoy using your new appliance and we thank you for your trust.

Content

1 - Product description

1.1 Description of the oven
1.2 Control panel

2 - Modes & Use

2.1 Settings
2.2 Using your oven

3 - Cleaning & maintenance

3.1 Cleaning & care
3.2 Anomalies and solutions
3.3 Acrylamide in foodstuffs
3.4 Technical data

Before using your product, please read the installation and safety instructions. The safety instructions must be read carefully. The manufacturer cannot be held responsible for injury or damage that results from improper installation or improper use of the device.

1.PRODUCT DESCRIPTION

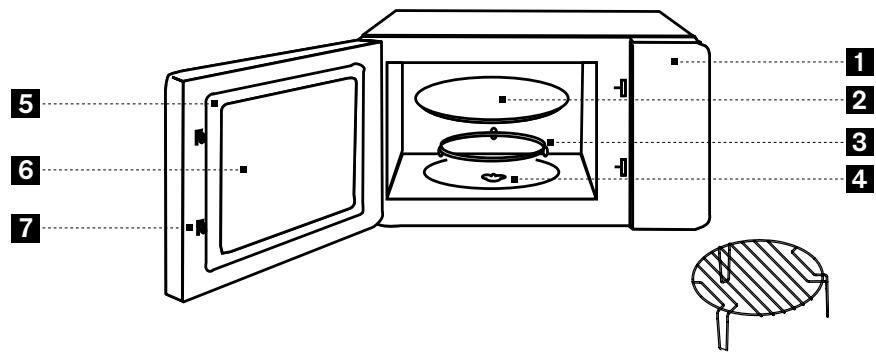

1.1 Combi Microwave/grill oven

Please remove the device and all accessories from the carton and microwave oven cavity. Grill support: do not use with the microwave function, to be placed on the glass tray.

1. Control panel
2. Glass tray
3. Turntable ring assembly
4. Turntable shaft
5. Door assembly
6. Observation window
7. Safety interlock system

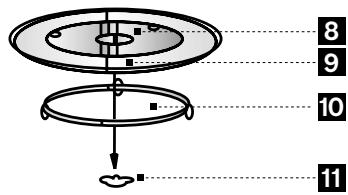

Turntable installation

1. Hub (inderside)
2. Glass tray
3. Turntable ring assembly
4. Turntable shaft

Never place the glass tray upside down. The glass tray should never be restricted. Both glass tray and turntable ring assembly must always be used during cooking. All food and containers of food are always placed on the glass tray for cooking. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

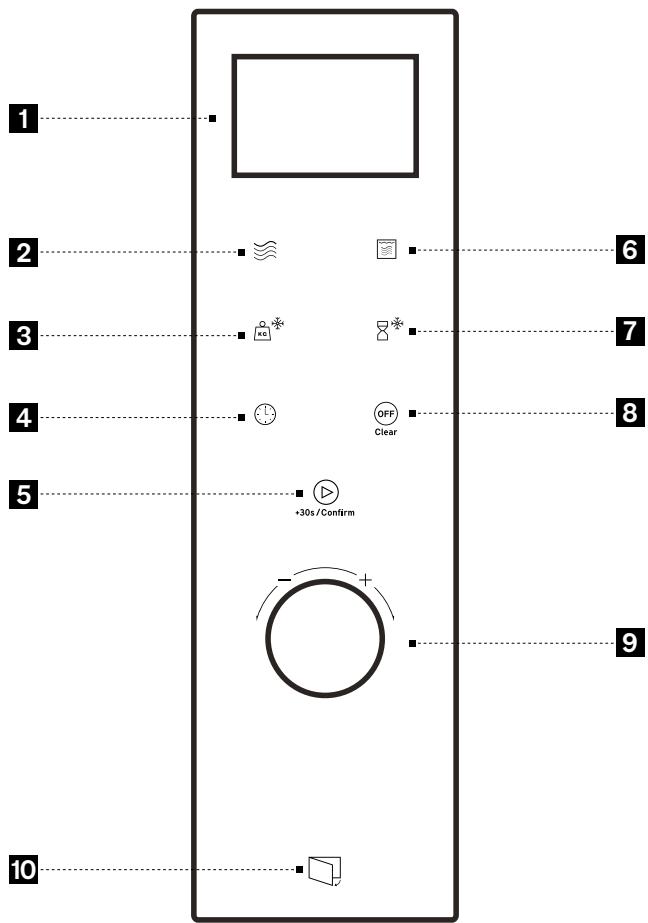

1.2 Control Panel

1. Display
2. Microwave function
3. Defrost by weight
4. Clock/Kitchen timer
5. Start/Speed cooking/Validation
6. Combi Grill microwave function
7. Defrost by time
8. Stop / cancel (long press> 3s to activate the keypad lock)
9. Adjustment knob
10. Door opening

Note : The type and number of accessories delivered with the device may vary.

Microwave key enables you to select microwave power.

Combi microwave grill key allows you to select combined cooking with microwave and grill.

Defrost by weight key enable you to optimize defrost results according to the food's weight.

Defrost by time key adjust parameters to optimize defrost according to the time you get.

The clock key allows you to set the time or to use an independent timer. The off/clear key enables you to erase your settings or to stop your cooking. If you press it > 3s it will activate the child lock function.

The start/speed cooking/validation key allows you to start your cooking. It also allows to start a 30s cooking time or to increase the cooking by steps of 30s.

The adjustment knob allows you to set power, time, or weight.

The door key is for automatic opening of the door.

2. MODES & USE

2.1 Settings

2.1.1 Setting the time

When you switch on your oven for the first time, or after a power cut, the display flashes "0:00" and the buzzer will ring once.

Press the key twice: the hour figures flash. Turn the adjustment knob to set the hours: input time should be within 0- -23. Press key to confirm and the minutes will flash. Turn again the knob to set the minutes: input time should be within 0- -59. Press the to validate.

2.1.2 Setting independent timer

Press the key, the screen will display "00:00". Turn the adjustment knob to set your timer (maximum time is 95 minutes). Press to launch your timer. When the time is elapsed, the buzzer will ring 5 times.

Note: Independent timer cannot be used during cooking.

2.1.3 Setting child lock

In stand-by mode press key for >3 seconds. The screen will display To quit the lock state, press again key for >3 seconds. The lock is released.

2.2 Using your oven

Operating principle

The microwaves used for cooking are electromagnetic waves. They are commonly found in our environment in the form of radio waves, lights and infrared rays. Their frequency is around 2450MHz range.

Their characteristics:

they are reflected by metals
they pass through all other materials
they are absorbed by the molecules of water, fat and sugar.

When food is exposed to microwaves, their molecules start to move quickly, which makes food heat up.

Microwaves can penetrate about 2.5cm into food.

If the food is thicker, the inaccessible parts are cooked thanks to the transmission of heat, similar to conventional cooking.

2.2.1 Microwave cooking

Press the key once and 900w will display. To adjust the microwave power, press the ey repeatedly or turn the adjustment knob (if you turn to the right the power will decrease to 720/450/270/90). Press ey to confirm the setting.

Turn the adjustment knob to select your cooking time (maximum cooking time is 95 minutes). Press key to start cooking.

Microwave power	Affichage (W)
High	900W To cook all vegetables and soups. To heat all liquids
Medium High	720W To reheat all your fresh or frozen cooked meals. To heat prepared and frozen meals
Medium	450W To cook fish and poultry. To finish programs begun with the «fast cook» setting such as beans, lentils or milk-based dishes
Medium Low	270W To finish delicate cooking or to cook very slowly
Low	90W For defrosting meat, fish, bread and delicate foods

2.2.2 Grill or combi grill cooking

Press key once, the screen displays "G". To adjust the power press key repeatedly or turn the adjustment knob: G/C1 or C2 will display. Press key to confirm the setting.

Turn the adjustment knob to select your cooking time (maximum cooking time is 95 minutes). Press key to start cooking.

Grill and microwave and grill combination function:

Program	Display	Microwave Power	Grill Power
Grid	G	0%	100%
Combi 1	C-1	55%	45%
Combi 2	C-2	36%	64%

Note: After half of the cooking time has elapsed the oven sounds twice to remind you to turn the food. Turn the food and press key to continue your cooking. Without any action the oven will continue cooking process.

2.2.3 Defrost by weight

Press key, the screen displays "dEF1"; Turn the adjustment knob to select the food weight. You can select between 100g and 2000g. Press key to start defrosting.

Note : When the cooking time has elapsed by half, the oven will beep twice to indicate that the food needs to be turned to improve the defrosting result.

Please turn the food and then press key to restart cooking. Without action, the oven will continue the cooking process.

2.2.4 Defrost by time

Press key, the screen displays "dEF2"; Turn the adjustment knob to select the time. Maximum time is 95 minutes. Press key to start defrosting.

Note : When the cooking time has elapsed by half, the oven will beep twice to indicate that the food needs to be turned to improve the defrosting result.

Please turn the food and then press key to restart cooking. Without action, the oven will continue the cooking process.

2.2.5 Multi-stage cooking

You can set a maximum of 2 stages to combine your cooking. If one stage is defrosting it should be put automatically at the 1st stage. The buzzer will ring once after each stage and the next stage will start.

Example: if you want to defrost the food for 5 minutes, then to cook with med-high microwave power for 7 minutes proceed as follow:

Press key once, the screen will display "dEF2". Set the time for 5 minutes with the adjustment knob.

press key once the screen will display 900W. Set the microwave power to 720W by pressing once more key or by turning the adjusting knob.

Press to confirm your setting and turn the adjustment knob to set the cooking time for 7 minutes.

Press key to stary cooking.

2.2.6 Auto program

Your oven offers you 8 automatic cooking modes.

Menu	Weight	Power
A1: Pizza	200g	C-2
	400g
A2: Meat	250g	100% microwave
	350g
	450g
A3: Vegetable	200g	100% microwave
	300g
	400g
A4: Pasta	50g (with 450g of cold water)	80% microwave
	100g (with 800g of cold water)
A5: Potatoes	200g	100% microwave
	400g
	600g
A6: Fish	250g	80% microwave
	350g
	450g
A7: Beverage	1 cup (about 120ml)	100% microwave
	2 cups (about 240ml)
	3 cups (about 360ml)
A8: Popcorn	50g	100% microwave
	100g

In stand by mode turn the adjusting knob to the right to choose the recipe. Press key to confirm. Then turn again the adjusting knob to set the food's weight. Press key to start cooking.

2.2.7 Speedy cooking

This program enables you to access directly to quick reheating.

In stand-by mode press key to cook with 900 watts microwave power level for 30 seconds. Each press on the key will increase the time by 30 seconds (maximum cooking time is 95 minutes).

You can also, in stand-by mode turn the adjusting knob on the left side to choose a cooking time. After adjusting the cooking time press key to start full power microwave (900 watts).

During combination cooking and defrost by time program, press step of 30 seconds the cooking time.

Note : This function is not available when you use auto-program or defrost by

3. CLEANING &

MAINTENANCE

3.1 Cleaning & care

Be sure to unplug the appliance from the power supply.

Clean the cavity of the oven after use with a slightly damp cloth.

Clean the accessories in the usual way with soapy water.

The door frame and seal and neighbouring parts should be cleaned carefully with a damp cloth when they are dirty.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since that can scratch the surface, which may result shattering of the glass.

Cleaning tip: for easier cleaning of the cavity walls place half a lemon in a bowl, add 30ml water and heat on full microwave power (900 watts) for 10 minutes. Wipe the oven using a soft, dry cloth.

3.2 Anomalies & solutions

Trouble shooting	Normal
Interference between microwave oven and television	Radio and television reception may interfere when the microwave is in use. This phenomenon can also occur with small household appliances such as mixers, vacuum cleaners and electric fans. This is normal.
Dim lighting	During low power cooking, the light intensity may decrease. This is normal.
Steam build up on the door, hot air coming out of the ventilation grilles	During cooking, steam may escape from the food. Most of the heat is dissipated through the ventilation grilles. However, a part can be deposited on nearby cold parts, such as the oven door. This is normal. porte
The oven accidentally started without food inside.	It is forbidden to start the microwave oven without food inside. This is very dangerous.

Trouble	Possible cause	Solution / information
The device does not start.	The cable is not connected correctly.	Remove the cable. Wait 10 seconds and reconnect the device.
	The fuse is blown or the circuit breaker has cut the power.	Replace the fuse or restart the circuit breaker (repaired by a professional)
	The power outlet is defective.	Test the plug using another device.
The oven does not heat up.	The door is not closed properly.	Please close the door properly.

3.3 Acrylamide in foodstuffs

Which foods are affected?

Acrylamide is mainly found in seeds and potatoes heated to high temperatures, such as fries, crisps, toasted breads, rolls, breads and other fine bakery products (cookies, gingerbread, speculoos).

Tips for reducing acrylamide strength

General	Try to reduce the cooking time. Cook food until lightly browned. Large, thick pieces contain less acrylamide.
Dry cupcakes, oven fried	Bake at 200°C max in traditional mode or 180°C in fan mode. Egg white and yolk reduce the formation of acrylamide.Distribute them evenly on the baking sheet and on a single layer. Cook at least 400 g per plate, so that the fries do not dry out.

3.4 Technical data

Model :	SOMC1310X
Rated Voltage :	230 V ~ 50 Hz
Rated input power (microwave) :	1450 W
Rated output power (microwave) :	900 W
Rated input power (grill) :	1000 W
Oven capacity:	25 L
Turntable Diameter:	315 mm
External dimensions :	594 x 403 x 382 mm
Net weight :	17,8 kg

DISPOSAL

European Directive 2012/19 / EU on Waste Electrical and Electronic Equipment (WEEE), requires that used household appliances must not be disposed of in the normal municipal waste stream. Used devices must be collected separately to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed-out bin symbol is affixed on all products to remind of the obligations of separate collection. Consumers should contact the local authorities or their retailer regarding the procedure to follow for the removal of their device.

Information on the meaning of the conformity marking C E

The CE marking indicates that the product meets the main requirements of European Directives 2014/35 / CE (Low Voltage), 2014/30 / CE (Electromagnetic Compatibility), 2011/65 / EU (Reduction of the use of certain dangerous substances in EEE).

The warranty does not cover wearing parts of the product, nor problems or damage resulting from:

1. surface deterioration due to normal wear and tear of the product;
2. defects or deterioration due to contact of the product with liquids and due to corrosion caused by rust or the presence of insects;
3. any unauthorized incident, abuse, misuse, modification, disassembly or repair;
4. any improper maintenance operation, use not in accordance with the instructions concerning the product or connection to an incorrect voltage;
5. any use of accessories not supplied or not approved by the manufacturer.The warranty will be void if the product nameplate and / or serial number is removed.
