USER MANUAL DKD1145S DE DIETRICH

Fridge-Freezer Réfrigérateur-Congélateur DKD 1145 S Dear Customer, You have just acquired a DE DIETRICH fridge and we would like to thank you. Our research teams have created this new generation of appliances for you. Their quality, design, features and technological advances make them exceptional products, and reveal our unique know-how. Your new DE DIETRICH fridge will blend harmoniously into your kitchen and will perfectly combine food preservation performance and ease of use. We wanted to offer you a product of excellence. In the DE DIETRICH product range, you will also find a wide choice of hobs, ovens, microwaves, hoods, dishwashers, cookers, freezers, that you can coordinate with your new DE DIETRICH fridge. Visit our website www.dedietrich-electromenager.com, where you will find our latest innovations as well as useful and complementary information. DE DIETRICH Setting New Values As part of our commitment to constantly improving our products, we reserve the right to make changes to them based on technical advances to their technical and functional features and appearance.

Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation.

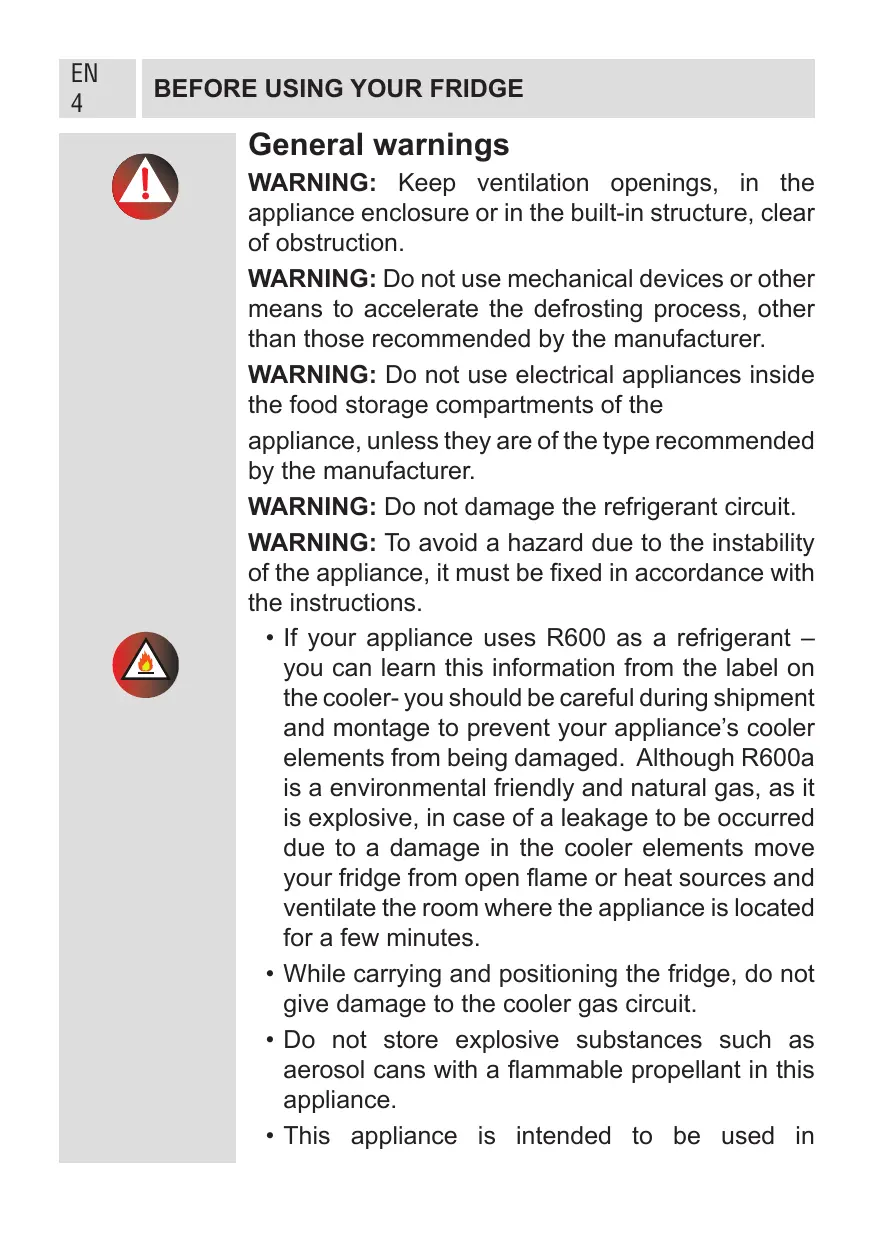

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability

of the appliance, it must be fixed in accordance with the instructions.

• If your appliance uses R600 as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and montage to prevent your appliance’s cooler elements from being damaged. Although R600a is a environmental friendly and natural gas, as it is explosive, in case of a leakage to be occurred due to a damage in the cooler elements move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.
• While carrying and positioning the fridge, do not give damage to the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in

BEFORE USING YOUR FRIDGE

household and similar applications such as; -- staff kitchen areas in shops, offices and other working environments -- farm houses and by clients in hotels and other residential type environments -- bed and breakfast type environments -- catering and similar non-retail applications

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, service agent or similar qualified persons in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a grounded socket rated at 16 Amps. If there is no such socket in your house, please have it installed by an qualified electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similar qualified persons in order to avoid a hazard.

BEFORE USING YOUR FRIDGE

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.
• Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes. Notes:
• Please read the instruction manual carefully before installing and using your appliance. We are not responsible of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.

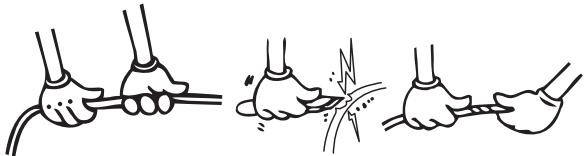

• Do not pull, bend or damage the cord.

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them to hang over the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat icecream and ice cubes immediately after you take them out of the freezer department!
• Do not re-freeze the frozen goods after being melted. This may cause health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.

BEFORE USING YOUR FRIDGE

Installing and operating your fridge Before starting to use your fridge, you should pay attention to the following points:

• Operating voltage for your fridge is 220-240 V at 50Hz.
• Mains cord of your fridge has a grounded plug. This plug should be used with a grounded receptacle that has a 16 ampere fuse minimum. If you don’t have a receptacle confirming with this, please have it done by a qualified electrician.
• We do not take the responsibility of the damages that occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed to direct sunlight.
• Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.
• Your fridge should never be used outdoors or left under the rain.
• When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.
• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.
• The adjustable front legs should stabilized in an appropriate height to allow your fridge operate in a stable and proper way. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.
• Install the distance adjustment plastic (the part with black vanes at the rear) by turning it 90° as shown in the figure to prevent the condenser from touching the wall.

BEFORE USING YOUR FRIDGE

Before Using your Fridge

• When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.
• Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool. Information about NO FROST Technology No-Frost fridges differ from other static fridges in their operating principle. In normal fridges, the humidity entering the fridge in the door openings and the humidity of the food causes freezing in the freezer compartment. To defrost the snow and ice in the freezer compartment, you should turn off the fridge, take the food that needs to be kept in a constant temperature off the fridge, and remove the ice gathered in the freezer compartment periodically. The situation is completely different in no-frost fridges. Dry and cold air is blown to the fridge and freezer compartments homogeneously from several points via a blower fan. Cold air dispersed homogeneously even between the shelves cools all your food equally and uniformly, thus prevents humidity and freezing. Therefore your no-frost fridge allows you ease of use, besides its huge volume and stylish appearance.

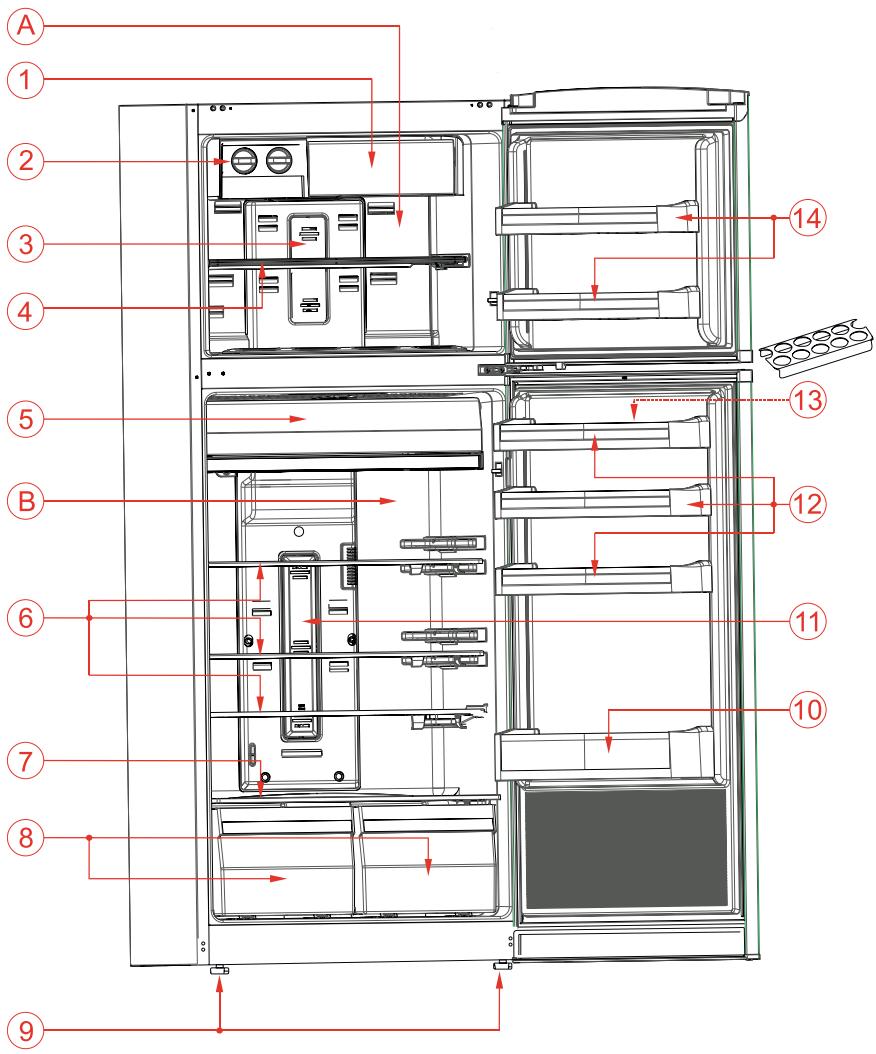

PARTS AND PIECES OF YOUR FRIDGE

The purpose of this presentation is informing you about the parts of your appliance. The parts may vary depending on the model of the appliance.

PARTS AND PIECES OF YOUR FRIDGE

A) Freezer compartment B) Fridge compartment

1) Quick freezing shelf

3) Freezer lamp and its cover

4) Freezer compartment shelf

5) Chilled room shef

6) Fridge compartment shelves

10) Fridge compartment door bottle shelf

11) Fridge compartment lamp and its cover

12) Fridge compartment door shelves

14) Freezer compartment door shelves

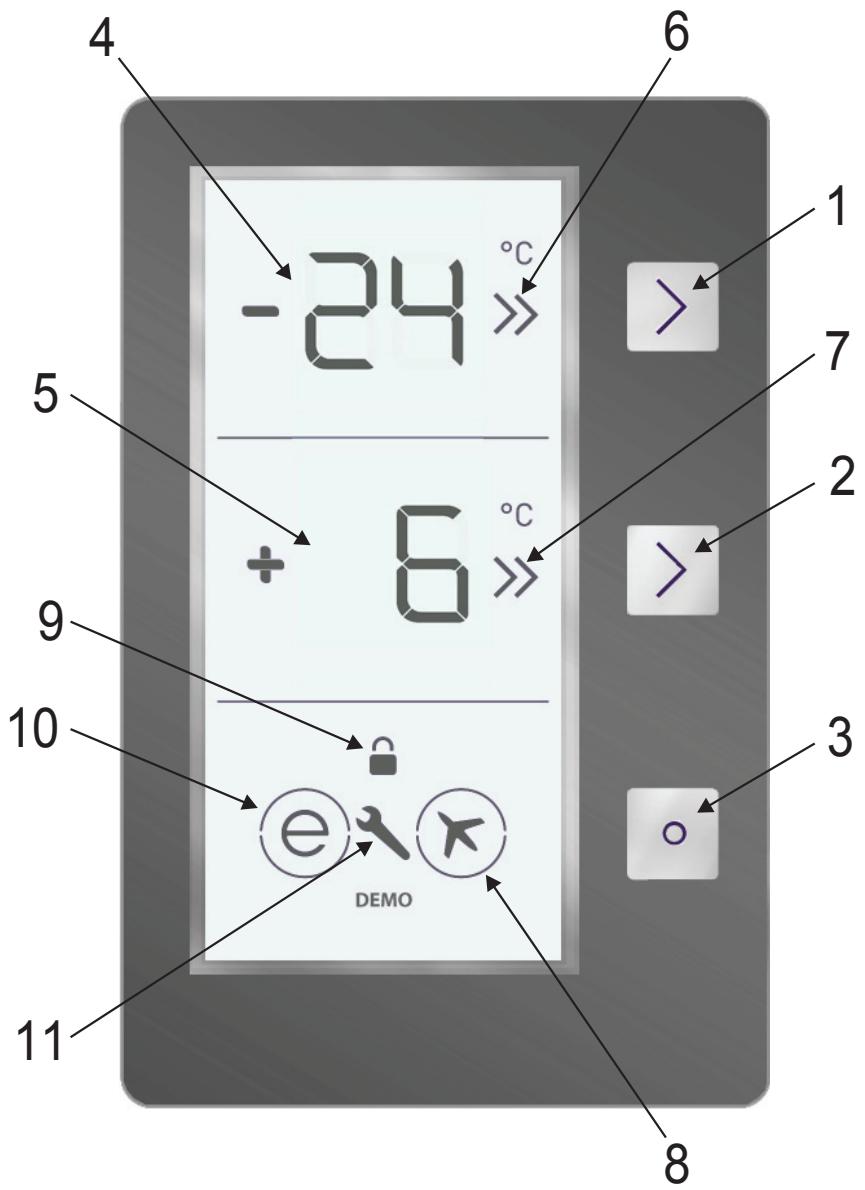

The purpose of this presentation is informing you about the parts of your appliance. The parts may vary depending on the model of the appliance.

1. It enables the setting value of freezer to be modified and super

freeze mode to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24 °C, SF.

2. It enables the setting value of cooler to be modified and super cool

mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C, SC.

3. It enables the modes (economy, holiday…) to be activated if desired.

4. It is freezer set value screen.

5. It is cooler set value screen.

6. It is super freeze indicator

7. It is super cooling indicator

8. It is holiday mode symbol

9. It is child-lock symbol

10. It is economy mode symbol

11. It is alarm symbol

USAGE INFORMATION Operating your fridge Super freeze mode How would it be used?

• Press freezer set button until SF letters will be seen on the screen. Buzzer will sound beep beep. Mode will be set.
• Freezer temperature segment will show "SF". During this mode ;
• Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.
• Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same operation of selecting. Note:
• Maximum amount of fresh food (in kilograms) to be frozen within 24 hours is shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, set the appliance to active SF mode 3 hours before you put the fresh food into the freezer.
• At the end of this period, the fridge will release an audible alarm notifying that it is ready. Super Freeze mode will be automatically cancelled after 24 hours or when freezer sensor temperature drops beneath -32 °C. Super cool mode How would it be used?
• Press cooler set button until SC letters will be seen on the screen. Buzzer will sound beep beep. Mode will be set.
• Cooler temperature segment will show "SC". During this mode:
• Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues.
• Economy and Holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation USAGE INFORMATION of selecting. Note: Super Cool mode will be automatically cancelled after 4 or 6 hours depending on the environmental temperature or when the refrigerator sensor reaches a sufficiently low temperature. Economy mode How would it be used?
• Push "mode button" till a circle appears around economy symbol.
• If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times. When mode is set, buzzer will sound beep beep.
• Freezer and refrigerator temperature segments will show "E".
• Circle of economy symbol and E will light till mode finishes. During this mode;
• Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.
• Holiday mode can be selected after cancelling the economy mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button. Holiday mode How would it be used?
• Push "mode button" till a circle appears around plane symbol.
• If no pressed any button for 1 sec. Mode will be set. Circle will blink 3 times. When mode is set, buzzer will sound beep beep.
• Freezer temperature segment will show "H".
• Circle of plane symbol and H will light till mode finishes.

USAGE INFORMATION During this mode;

• Freezer may be adjusted. When holiday mode will be cancelled , the selected setting values will proceed.
• Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.
• Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.
• Holiday mode should be activated when the cooler will not be used for a long period of time. By doing this, you will be using your fridge in a more economic manner. The cooler must be completely emptied before vacation mode is activated. Drink cool mode When would it be used?
• This mode is used to cool the drinks within adjustable time. How would it be used?
• Press freezer button for 3 seconds.
• dc letters will be seen on freezer screen and the 05 blinks on cooler screen.
• Press cooler button to adjust the time (05 - 10 - 15 - 20 25 - 30 minutes).
• When you select the time the numbers will blink 3 times on screen and sound beep beep.
• If no button is pressed within 2 seconds the time will be set.
• The countdown starts from the adjusted time minute by minute.
• The rest time blinks on the screen.
• To cancel this mode press freezer set button for 3 seconds. Note: You must adjust the time according to the temperature of the bottles before you put them in.
• For example, you can set the time as “5 minutes” in the USAGE INFORMATION beginning. After this time, if the cooling is insufficient, you might set another 5 or 10 minutes.
• While using this mode, you must check the temperature of the bottles regularly. When the bottles are cool enough, you must take them out of the appliance.
• In the event that you leave the bottles in when the Drink Cool mode is on, they might explode. Screen saver mode How to use?
• This mode will be activated when you press on mode button for 5 seconds.
• If pressed on no button in 5 seconds when he mode is active, lights of the control panel will go off.
• If you press any button when lights of control panel are off, the current settings will appear on the screen, and then you can maket he adjustment as you want. If you neither cancel screen saver mode nor press on any button in 5 seconds, the control panel will go off again.
• To cancel screen saver mode press on mode button for 5 seconds again.
• When screen saver mode is active you can also activate child lock.
• If you do not press any button for 5 seconds after activating child lock, the lights of the control panel will go off. Then, you can view the previous settings and that child lock symbol is active when you pres any button, and you can cancel child lock as is described in the instruction of that mode. Function of Child lock When would it be used? To prevent children from playing with the buttons and changing the settings you have made, child lock is available in the appliance. Activating Child Lock Press on Freezer and Cooler buttons simultaneously for 5 seconds.

USAGE INFORMATION Deactivating Child Lock

• Press on Freezer and Cooler buttons simultaneously for 5 seconds. Note: Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged. Freezer temperature settings
• Initial temperature value for Freezer Setting Indicator is -18°C.
• Press freezer set button once.
• When you first push this button, the last set value will blink on screen.
• Whenever you press on this button, lower temperature will be set. (-16°C, -18°C, -20°C, -22°C, -24°C , superfreeze)
• When you push the freezer set button until superfreeze symbol appears on the Freezer Setting Indicator, and if you do not push any button in 1 seconds Super Freeze will flash.
• If you continue to press, it will restart from -16°C.
• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Cooler temperature settings
• Initial temperature value for Cooler Setting Indicator is +4°C.
• Press cooler button once.
• When you first push this button, the last value appears on the setting indicator of the cooler.
• Whenever you press on this button, lower temperature will be set. (+8°C, +6°C, +5°C, +4°C, +2°C, supercool)
• When you push the cooler set button until supercool symbol appears on the Cooler Setting Indicator, and if you do not push any button in 1 seconds Super Cool will flash.
• If you continue to press, it will restart from +8°C.

• The temperature value selected before Holiday Mode, Super Freeze Mode, Super Cool Mode or Economy Mode is activated will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value. Freezer Partition Refrigerator Compartment -18°C 4°C For regular use and best performance. -20°C,-22°C or -24°C 4°C Recommended when environmental temperature exceeds 30°C.

4°C Must be used when you wish to freeze food in a short period of time. 2°C These temperature settings must be used when the environmental temperature is high or if you think the refrigerator compartment is not cool enough becuse the door is being opened frequently.

Must be used when the refrigerator compartment is overloaded with food or when there is food to be cooled instantly. -18°C, -20°C,-22°C or -24°C -18°C, -20°C,-22°C or -24°C Remarks Warnings about temperature adjustments

• Your temperature adjustments will not be deleted when an energy breakdown occurs.
• It is not recommended that you operate your fridge in environments colder than 10°C in terms of its efficiency.
• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.
• Do not pass to another adjustment before completing an adjustment.
• Your fridge should be operated up to 24 hours according to the ambient temperature without interruption after being plugged in to be completely cooled. Do not open doors of your fridge frequently and do not place much food inside it in this period.
• A 5 minute delaying function is applied to prevent damage to the compressor of your fridge, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the

USAGE INFORMATION information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness. Climate Class Ambient Temperature oC

Between 10 and 32 (°C) Accessories Icemaker

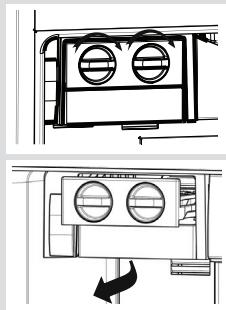

• Fill the icebox part of the icemaker with water and place it back.
• You can take your ice approximately 2 hours later.
• Without displacing the icebox, turn the icebox arm to the right until all the ice cubes are discharged to the ice bucket.
• You can serve taking the ice bucket out or you can save ice there. The ice bucket is only for saving ice. Do not use it for making ice by putting water in it. Otherwise, it can be broken. Quick Freezer Compartment

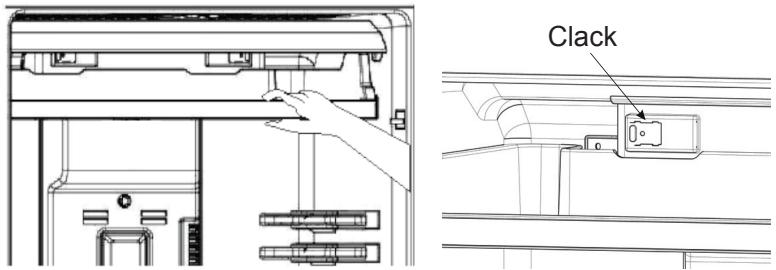

• Use Quick freezer compartment for freezing fresh foods. In this way, you can enable the foods which you want to freeze to be frozen more rapidly and prevent their contact with already frozen foods. * When the food is frozen, you can place them to the other shelves in the freezing compartment by taking them from the quick freezer shelf.
• To open the Quick freezer compartment door, you can hold it and push forward by moving on the rails and you can close it by pulling it back in the same way.
• Before closing the upper door of your fridge, make sure that the cover of the quick freezer is closed. Otherwise, it cannot perform its quick freezing function.

USAGE INFORMATION Chilled Room Compartment Clack Keeping food in the Chiller compartment instead of the freezer or refrigerator compartment allows food retain freshness and flavour longer, while preserving its fresh appearance. When chiller tray becomes dirty, remove it and wash it with water. (Water freezes at 0°C, but foods containing salt or sugar freeze at temperature lower than that) Normally people use the chiller compartment for raw fish, lightly pickled, rice, etc... Please, do not put foods you want to freeze or ice trays in order to make ice. Fresh dial In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity rate will be controlled and endurance life will be increased. If you see any condensation on glass shelf, you must open this klape which is on behind of shelf. Visual and text descriptions on the accessories section may vary according to the model of your appliance.

CLEANING AND MAINTENANCE

• Make sure to unplug the fridge before starting to clean it.

• Do not wash your fridge by pouring water.

• You can wipe the inner and outer sides of your appliance with a soft cloth or a sponge using warm and soapy water.

• Remove the parts individually and clean with soapy water. Do not wash in washing machine.

• Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

• The condenser (the back part with black wings) should be cleaned using a vacuum cleaner or a dry brush at least once a year. This will help your fridge to operate more efficiently and will enable you to save energy.

CLEANING AND MAINTENANCE

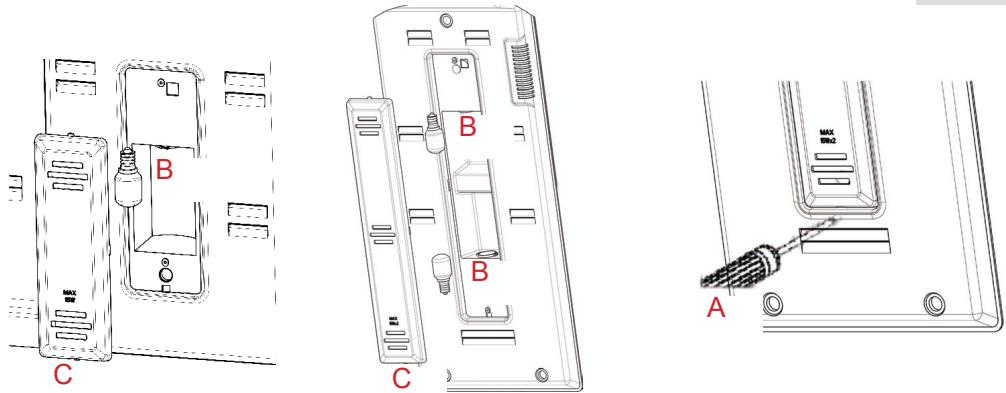

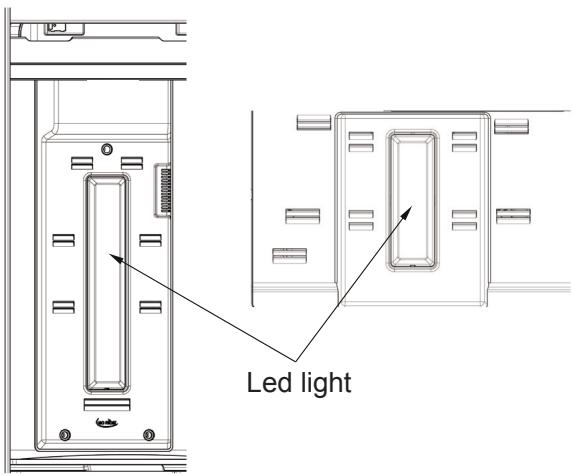

Replacing the bulb To replace the bulb in freezer and fridge compartments;

1. Unplug the unit from the power supply,

2. Remove the refrigerator light cover with a minus screw driver, and

take out the cover.(A)

3. Change the present light bulb with a new one of not more than 15

4. Replace the light cover and after waiting 5 minutes plug the unit.(C)

Replacing The Light Led (If the illumination is occured via LED strip) Please call the service man. Led light

Where to place in the

• For normal operating conditions, adjusting the temperature value of the cooler partition of the fridge to +4°/ +6°C will be enough.
• Food should be placed to the fridge in closed containers or covered with appropriate material.
• Hot food and beverages should be cooled to room temperature before being placed in the fridge.
• Vegetables and fruits: can be to the vegetable bin directly without being wrapped.

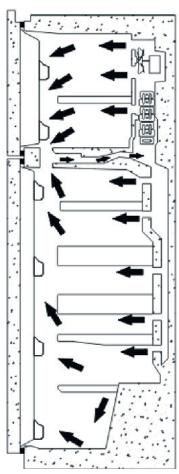

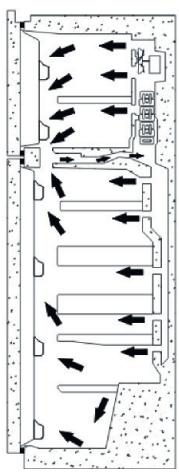

• Fridge air duct distributes cold air to the fridge compartment. Avoid preventing the air flow by covering the front of the ducts with food. Do not thrust packed food or containers to the lamp or door of the fridge compartment. Important Note:
• Cover the liquid and stews when you put them on fridge. Otherwise, the humidity amount inside the fridge increases. And, this causes the fridge to operate more. Covering the food and beverages also allow you to protect their taste and flavor.
• Potatoes, onion and garlic shouldn’t be kept in the fridge. Some suggestions on the placing and storing of your food in the fridge compartment are supplied below. Storing time Where to place in the fridge department 1 week In the Crisper (without being wrapped) Meat and fish 2 to 3 days Covered with plastic folio and bags or in a meat box (on the glass shelf) Fresh cheese 3 to 4 days In the special door shelf Butter and Margarine 1 week In the special door shelf Bottled product, Milk and Yoghurt Until the expiry date recommended by the producer In the special door shelf 1 month In the egg shelf Food Vegetables and fruits Eggs Cooked food All shelves

• For normal operating conditions, adjusting the temperature value of the freezer partition of the fridge to -18 / -20 oC will be enough.
• The freezer is used for storing deep frozen or frozen foods for a long time or for producing ice.
• Do not put fresh and hot foods to the shelves of the freezer door in order to freeze them. Only use it for storing frozen foods.
• Do not put fresh and hot foods close to frozen foods because the frozen foods can melt.
• In order to freeze the food you cook at home (which needs to be frozen) more quickly, use the quick freezer shelf, because the quick freezer compartment has higher capacity of freezing.
• While freezing a fresh food (e.g. Meat, fish and minced meat), divide them into little portions that you can use once.
• While freezing fresh foods; the maximum amount of food that can be frozen within 24 hours is shown on the label of the appliance (as kg).
• For an ideal appliance capacity that will enable you to reach the maximum freezing capacity, rotate the freezer compartment thermostat knob to MAX position 24 hours before you place fresh foods in the freezer compartment.
• After placing fresh foods in the freezer compartment, waiting for 24 hours with the knob at MAX position is generally enough. After 24 hours, you do not need to adjust the freezer compartment knob to the MAX position.
• Caution; While freezing a small amount of food, you do not need to adjust the freezer compartment knob to the MAX position. This will help you to save energy.
• To store the frozen foods; you should carefully obey the instructions on the packages of frozen foods, if there is no instruction on foods they should be stored maximum for 3 months as of the date of purchasing.
• When you purchase frozen foods; please make sure that the food is frozen on appropriate temperatures and their package is safe.
• Frozen foods should be carried in appropriate storage boxes and be placed in the freezer compartment of the appliance as soon as possible.
• If there are moisture and abnormal swelling marks on the package of a frozen food, it was probably stored in an inappropriate temperature and its content deteriorated.

• The expiry date of a frozen food depends on the room temperature, thermostat setting, the frequency of opening the door of your fridge, the type of food, the time passing while carrying it from shop to the house. Always follow instructions on the package and do not exceed storing period. Important Note:
• Cover the liquid and stews when you put them on fridge. Otherwise, the humidity amount inside the fridge increases. And, this causes the fridge to operate more. Covering the food and beverages also allow you to protect their taste and flavour.
• If you put the frozen foods taken out from the deep freezer compartment of your fridge to the fridge compartment one day before, they will help the fridge to cool. So you can save energy. If you put the material in the deep freeze to an open area, energy loss occurs. Notes:
• Some spices in cooked food (aniseed, basil, dill, vinegar, spice mix, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, bologna sausage etc.) may have a foul taste when stored for a long time. Therefore, frozen food should be spiced just a little or spice should be added after the food is thawed.
• The storing time for the food depends on the oil used. Margarines, veal fat, olive oil and butter are suitable, peanut oil and lard are not suitable.
• Cooked food in liquid form should be frozen in plastic containers, other food should be frozen wrapped in plastic foil or in plastic bags. Some suggestions on the placing and storing of your food in the freezer compartment are supplied page 27, 28 and 29.

Fish and Meat Preparation Storage Duration (months) Thawing period at room temperature -hours- Beef Steak Packed for freezing in convenient portions 6-10 1-2 Lamb Meat Packed for freezing in convenient portions 6-8 1-2 Calf Roast Packed for freezing in convenient portions 6-10 1-2 Calf Cubes In small pieces 6-10 1-2 Sheep Cubes In pieces 4-8 2-3 Minced meat In convenient portions, packaged without being spiced 1-3 2-3 Offal (piece) In pieces 1-3 1-2 Sausage/Salami Must be packed even if it is film-coated Chicken and turkey Packed for freezing in convenient portions 7-8 10-12 Goose / Duck Packed for freezing in convenient portions 4-8

Deer - Rabbit - Boar Portions of 2.5 kg and with no bones 9-12 10-12

Until it is well thawed 4-8 Until it is well thawed 2-4 Until it is well thawed Freshwater fish (Trout, Carp, Northern Pike, Cat, Fish) Lean fish (Sea Bass, Turbot, Sole) Fatty fish (Bonito, Mackerel, Blue Fish, Anchovy) It should be washed and dried after it is well cleaned inside and scaled, the tail and head parts should be cut off where necessary. Until thawed Crustaceans Cleansed and put into bags 4-6 Until it is well thawed Caviar In its package, inside an aluminum or plastic cup 2-3 Until it is well thawed Snail In salty water, inside an aluminum or plastic cup

Until it is well thawed

Vegetables and Fruits Preparation Storage Duration (months) Thawing period at room temperature -hours- Cauliflower Remove the leaves, divide the core into parts and keep it waiting in water containing a little amount of lemon

It may be used in frozen form Green Beans, French Beans Wash them and cut into small pieces.

It may be used in frozen form Shell and wash them

It may be used in frozen form Wash them and cut into small pieces 6-9 It may be used in frozen form Cabbage In a cleaned fashion 6-8

Eggplant Cut it into pieces of 2cm after washing it

Separate plates from each other Corn Clean it and pack it with its cob or in grains

It may be used in frozen form Carrot Clean them and cut into slices

It may be used in frozen form Pepper Remove the stem, divide it into two and separate the seeds

It may be used in frozen form Spinach Washed 6-9

Slice it by peeling its rind

(In freezer) 5 Divide it into half and remove the seeds 4-6 (In freezer) 4 Wash and clean them

Cooked fruits Inside a cup with addition of 10% of sugar

Plums, Cherries, Sour Cherries Wash them and remove the stems

5-7 Peas Mushrooms and Asparagus Apple and Pear Apricot and Peach Strawberry and Raspberry

Packaged (Homogenised) Milk Preparation In its own package Storage Duration (months) 2-3 Homogenised Milk only They may be left in their original packages for short time storage. They should also be wrapped in plastic folio for long term storage. Cheese (except white cheese) In the form of slices 6-8 Butter, Margarine In its own package

Egg (*) Egg White Storage Conditions

30 gr of it Equals to one egg yolk. Egg mixture (White-Yolk) It is mixed very well, a pinch of salt or sugar is added to prevent it from getting too thick

50 gr of it Equals to one egg yolk. Egg Yolk It is mixed very well, a pinch of salt or sugar is added to prevent it from getting too thick

20 gr of it Equals to one egg yolk. In a closed cup Dairy Products and Pastries (*) Should never be frozen with its shell. Albumen and yolk should be frozen individually or completely mixed. Storage Duration (months) Thawing period at room temperature (hours) Thawing duration in the oven (minutes) Bread 4-6 2-3 4-5 (220-225 °C) Biscuits 3-6

SHIPMENT AND REPOSITIONING

• Original package and foam may be kept for retransportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation. Carry your fridge in the upright position. Repositioning the Door
• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorized Service to have the opening direction changed.

Check Warnings; Your fridge warns you if the temperatures for cooler and freezer are in improper levels or when a problem occurs in the appliance. Warning codes are displayed in the Freezer and Cooler Indicators. ERROR TYPE MEANING

"Failure Warning" WHY ? WHAT TO DO ? There is/are some Call Service for part(s) Out of order assistance as soon as or there is a failure possible. in cooling process

1. Do not freeze the

foods that are thaw and use in short time period.

Freezer comp. Not Cold enough This caution will be seen especially after long term of power failure

temperature to colder values or set the super freeze , until the compartment gets to normal temperature.

3. Do not put fresh food

until this failure is off.

LF and LC Refrigerator comp. Not Cold enough not cold enough Ideal temperature for Ref. Compartment is +4 oC. If you see this warning your foods have risk of spoiling. It is the combination of LF and LC Error type

1. Set the refrigerator

temperature to colder values or set the super cooling mode until the compartment gets to normal temperature.

2. Do not open the door

much until this failure is off. You will see this failure when first starting the appliance. It will be off after the compartments gets normal temperature

LOPO Refrigerator comp. too Cold Low voltage Warning The foods starts to freeze because of the too much cold temperature When the power supply gets lower than 170 V the appliance gets to steady position.

refrigerator temperature values This not a failure. This prevents any damages on the compressor. This warning will off after the voltage gets required level If your fridge is not operating;

• Is there any electrical fault?
• Is the plug is placed properly in the socket outlet?
• Is the fuse of the socket outlet that the plug is plugged or the main fuse blown?
• Is the temperature setting is on correct level?
• Is there any fault in the socket outlet? Examine this by plugging your fridge into a socket outlet which you are sure that is working. If your fridge is not cooling enough;
• Is the temperature setting is on correct level?
• Is the door of your fridge opened frequently and left open for a long while?
• Is the door of fridge closed properly?
• Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
• Is your fridge filled excessively?
• Is there adequate distance between your fridge and the rear and side walls?
• Is the ambient temperature between the values specified in the operating manual? If the food in your refrigerator compartment is over cooled
• Is the temperature adjustment right? (Is the refrigerator temperature setting level is SC?)
• Are there many food recently put inside the freezer compartment? If so, your fridge may over cool the food inside the refrigerator compartment as it will operate longer to cool these food.

BEFORE CALLING SERVICE

If your fridge is operating too loudly; To maintain the set cooling level, compressor may be activated from time to time. Noises from your fridge at this time are normal and due to its function. When the required cooling level is reached, noises will be decreased automatically. If the noises persist;

• Is your appliance stable? Are the legs adjusted?
• Is there anything behind your fridge?
• Are the shelves or dishes on the shelves vibrating? Re-place the shelves and/or dishes if this is the case.
• Are the items placed on your fridge vibrating? Normal Noises; Cracking (Ice cracking) Noise:
• During automatic defrosting.
• When the appliance is cooled or warmed (due to expansion of appliance material). Short cracking: Heard when the thermostat switches the compressor on/off. Compressor noise (Normal motor noise): This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated. Bubbling noise and splash: This noise is caused by the flow of the refrigerant in the tubes of the system. Water flow noise: Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting. Air Blowing Noise (Normal fan noise): This noise can be heard in NoFrost fridge during normal operation of the system due to the circulation of air. If humidity builds up inside the fridge;
• Are all food packed properly? Are the containers dried before placing them in the fridge?
• Are the fridge doors opened frequently? Humidity of the room gets in the fridge when the doors are opened. Humidity build up will be faster when you open the doors more frequently, especially if the humidity of the room is high.
• Building up of water drops on the rear wall after automatic defrosting is normal. (in Static Models)

BEFORE CALLING SERVICE

If the doors are not opened and closed properly;

• Do the food packages prevent closing of the door?
• Are the door compartments, shelves and drawers placed properly?
• Are door gaskets broken or torn?
• Is your fridge on a level surface? If the edges of fridge cabinet that the door joint contact are warm; Especially in summer (hot weather), the surfaces that the joint contact may get warmer during the operation of the compressor, this is normal. IMPORTANT NOTES:
• Compressor protection thermal fuse will be blown after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilized yet. Your fridge will start after 4 or 5 minutes, there is nothing to worry about.
• The cooling unit of your refrigerator is hidden in the rear wall. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor in specified intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.
• If you will not use your fridge for a long time (e.g. in summer holidays), unplug it. After defrosting, clean your fridge and leave the door open to prevent humidity and smell.
• If the problem persists after you have followed all the instructions above, please consult to the nearest Authorized Service.
• The appliance you have purchased is designed for home type use and can be used only at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer use the appliance in a way that does not comply with these features, we emphasize that the producer and the dealer shall not be responsible for any repair and failure within the guarantee period. Comformity Information
• This equipment is designed for use at an ambient tem-perature within the 16°C - 32°C range.
• The appliance is designed in compliance with the IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

TIPS FOR SAVING ENERGY

1– Install the appliance in a coll, well vantilated room , but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate. 2– Allow ward food and drinks to cool down outside the appliance. 3– When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy. 4– When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste. 5– When placing food and drinks, open the appliance door as briefly as possible. 6– Keep close the covers of any different temrepature compartment in the appliance (crisper, chiller ...etc ). 7– Door gasket must be clean and pliable. Replace gaskets if worn.
