USER MANUAL FP-7113 PANASONIC

Operating Instructions (For Copy & Network Scan Functions) Digital Imaging Systems

Model No. DP-8020E / 8020P / 8016P

Internet Fax

WORKIO

Before operating this machine, please carefully read this manual, and keep this documentation in a safe place for future reference.

(Illustration shows optional accessories that may not be installed on your machine.)

English

Copy

• Copy up to Ledger size originals.
• Capable of copying text/photos/halftone originals.

Scan/File

• Monochrome scanner capability. (For DP-8020E/8020P* only)
• Scanning resolution up to: 600 dpi

Fax/Email

• Plain Paper High-speed Super G3 compatible Fax with JBIG compression when optional Fax Communication Board (DA-FG180) is installed. (For DP-8020E/8020P* only)
  Quick-Scan
• Quick Memory Transmission
• Email Function capability.

Print

• Printer controller standard, printer resolution 300 or 600 dpi.

Application Software

• Quick Image Navigator
  Network Scanner
• Utilities (Network Status Monitor, Address Book Editor, Network Configuration Editor)
• Panafax Desktop when optional Fax Communication Board is installed.

* DP-8020P is not available for USA and Canada.

The following operating instruction manuals are included on the CD for this machine, please use the correct manual when an operator intervention is necessary.

Use the information provided on the enclosed CD whenever a Copy & Network Scan Function requires intervention.

For example: How to make copies, add paper, replace the toner bottle, etc.

Use the information provided on the enclosed CD for an explanation of how to use as a Network Printer, Network Scanner, Edit Directory Dialling Feature, Device Settings, Network Status Monitor, and/or Document Management System.

Multi-Tasking Job Table

2nd Job\Current Job	Copy	Network Scanning Internet Fax		GDI/PCL/PS Printing		Facsimile (Sending)		Facsimile (Receiving)
		Storing Document	Transmission	Receiving Data	Printing Received Data	Storing Document	Memory Transmission	Memory Receiving	Printing Received Memory Data
Copy
Copy	-	-	●	●	△	-	●	●	△
Network Scanning, Internet Fax
Storing Document	-	-	●	●	●	-	●	●	●
GDI/PCL/PS Printing
Receiving Data	●	●	●	●*	●	●	●	●	●
Printing Receive Document	☆	●	●	●	☆	●	●	●	☆
Facsimile (Sending)
Storing Document	-	-	●	●	●	-	●	●	●
Memory Transmission	●	●	●	●	●	●	-	-	●
Facsimile (Receiving)
Memory Receiving	●	●	●	●	●	●	-	-	●
Printing Received Memory Data	☆	●	●	●	☆	●	●	●	☆

• Accepts and executes the 2nd Job.
  : Accepts and executes the 2nd Job (Copy) only if the Current Job is interrupted.
  Accepts the 2nd Job and executes the 2nd Job after the Current Job is completed.
  -: Not applicable.

NOTE

*: HDD (DA-HD18) and additional 16MB (minimum) Image memory are required.

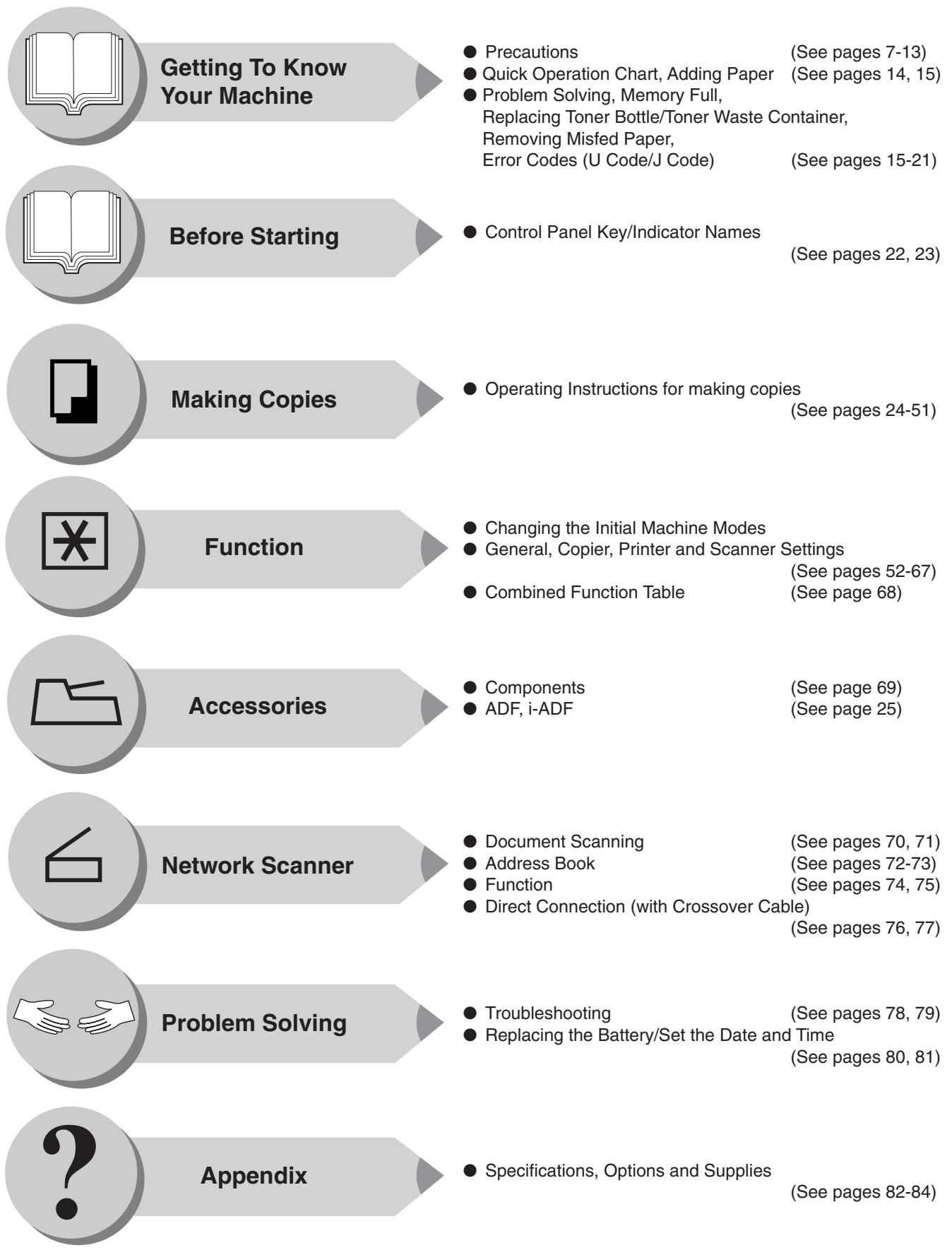

Operating Instructions Outline

The following Symbols/Icons are used throughout this operating instructions manual.

Place original(s) on the ADF/i-ADF

Place original on the Platen (Book)

Place original on the Platen (Sheet)

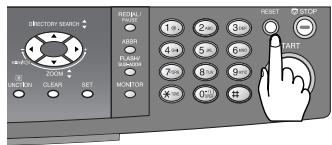

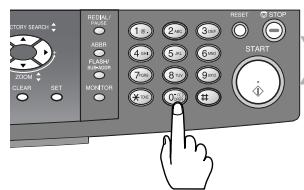

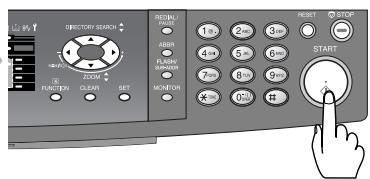

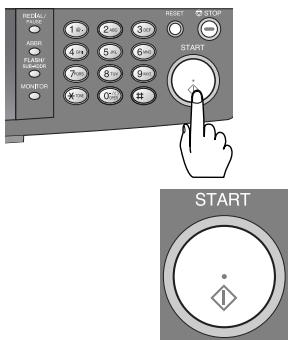

Press any Hard Key on the Control Panel

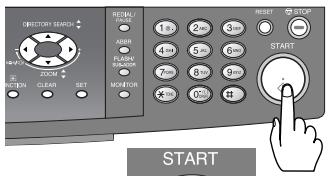

Press Hard Key

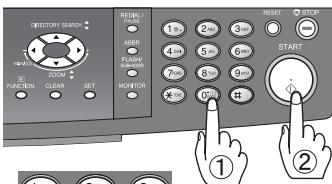

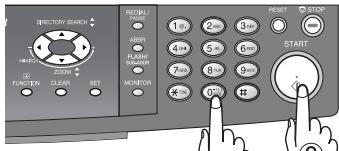

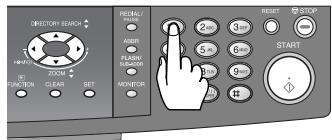

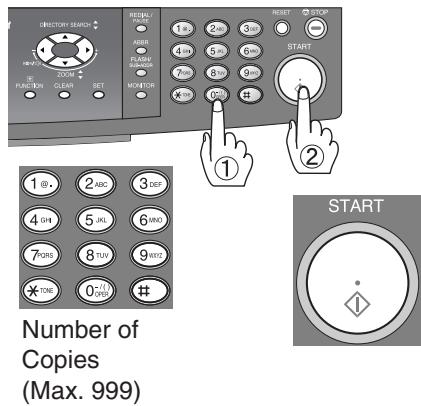

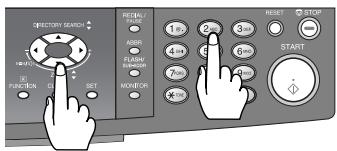

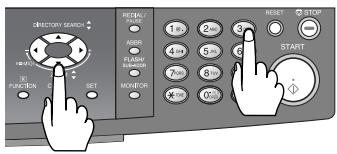

Input numbers

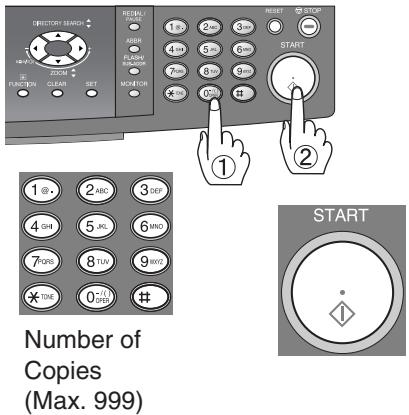

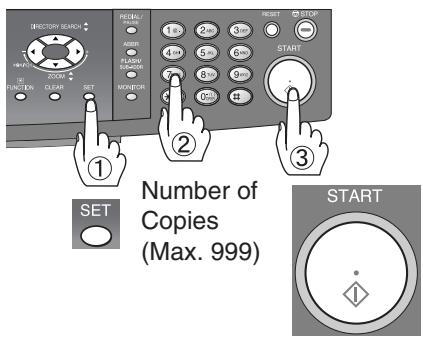

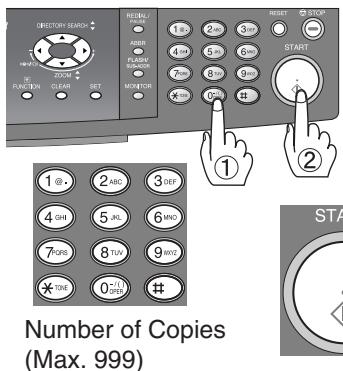

Number of Copies, etc.

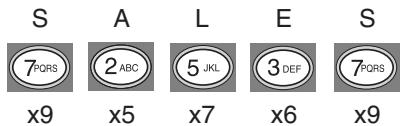

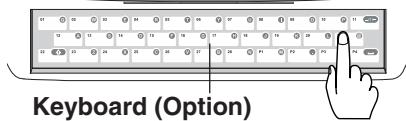

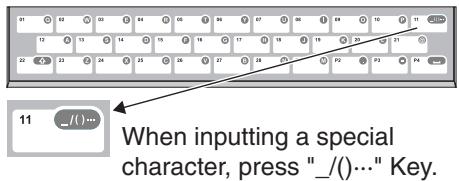

Input text with a Keyboard (Option)

5
Go to next step
Go to next step (below)

Getting to know your machine Before starting

When making copies

When setting the machine modes

Accessories

When scanning document(s)

Problem solving

Appendix

Getting to Know Your Machine

Useful Office Functions/Operating Instructions 2

Multi-Tasking Job Table 2

Operating Instructions Outline 3

Symbols/Icons 4

Safety Information 7

Precautions 11

OperationChart 14

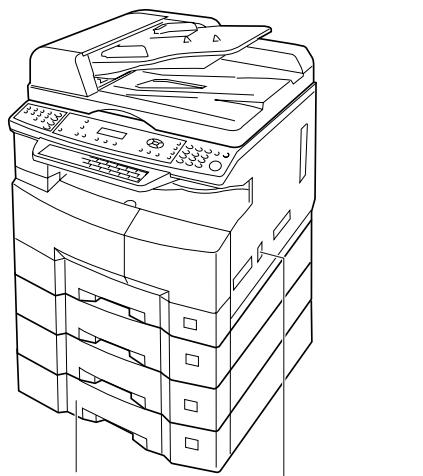

Quick Operation Chart 14

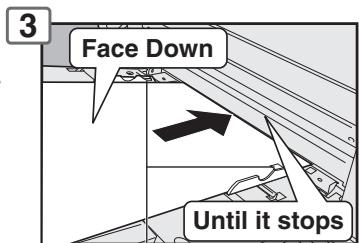

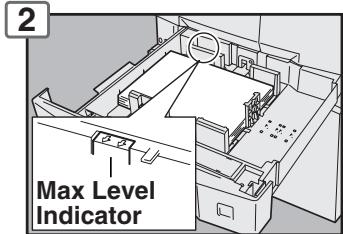

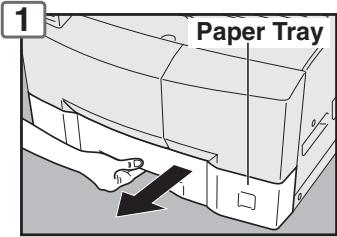

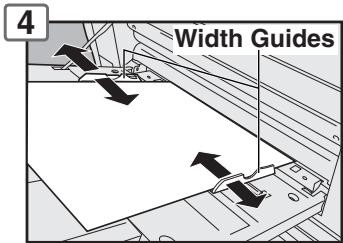

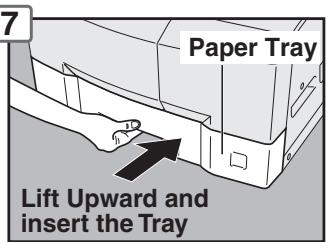

Adding Paper 14
■ Problem Solving 15
- Toner Level Check Operation 15
Memory Full 15

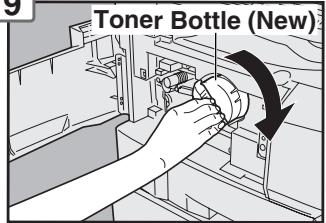

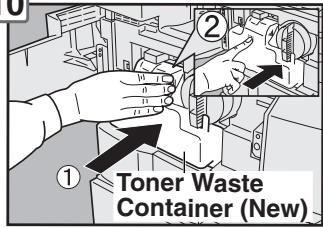

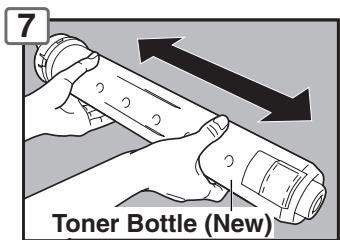

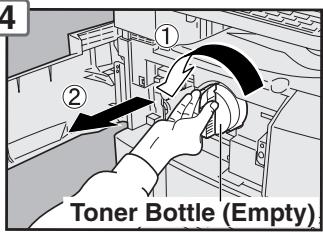

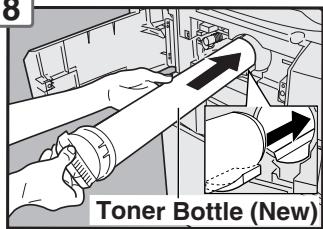

Replacing Toner Bottle/Toner Waste Container 16

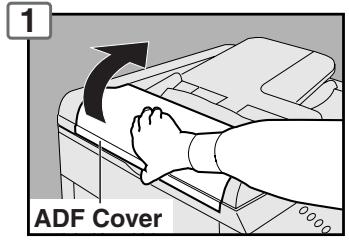

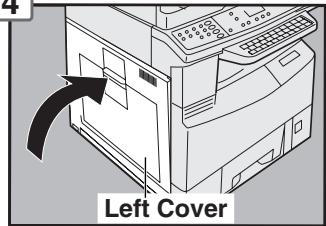

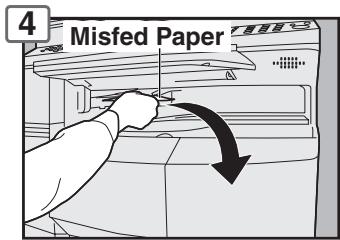

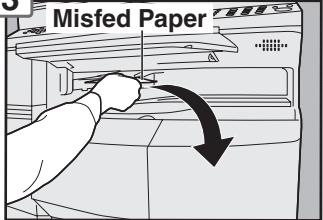

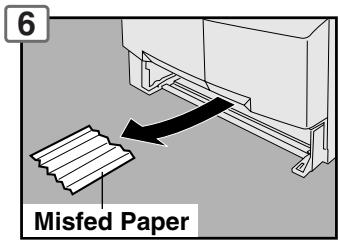

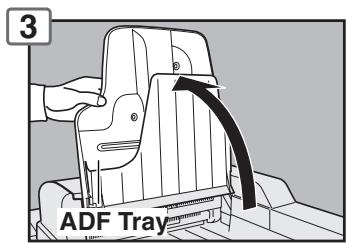

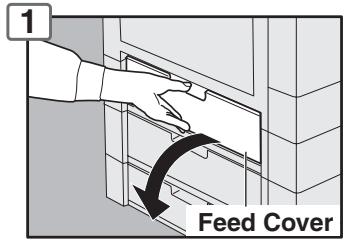

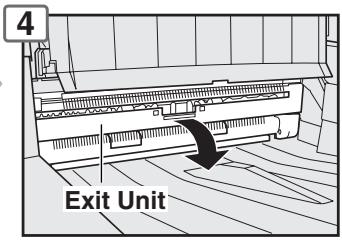

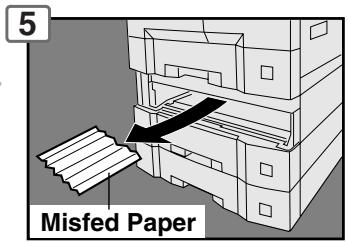

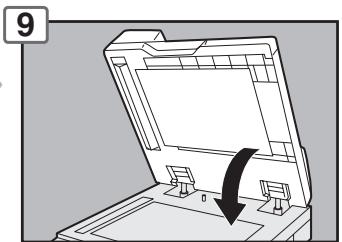

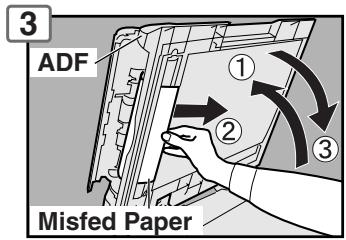

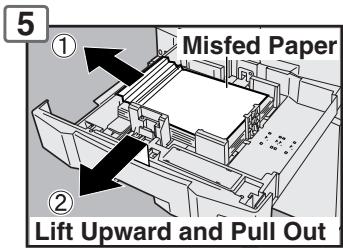

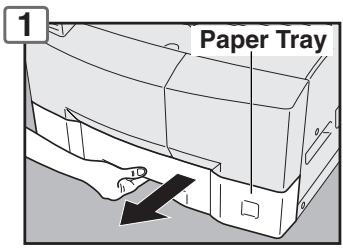

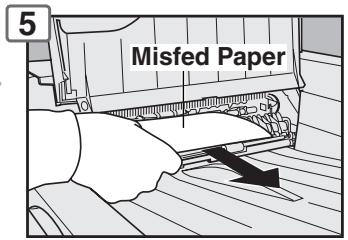

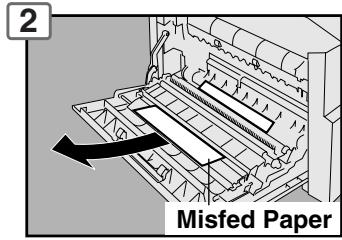

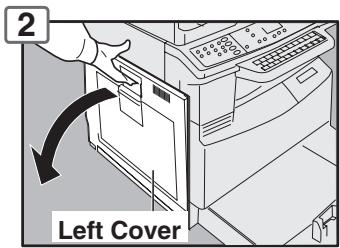

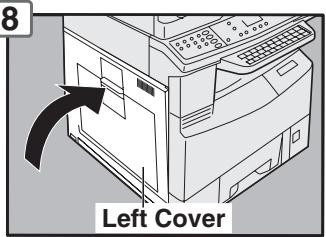

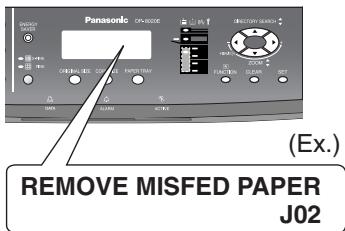

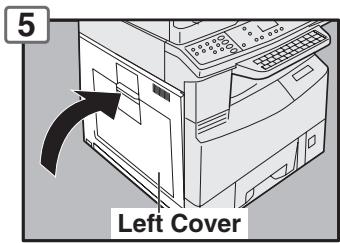

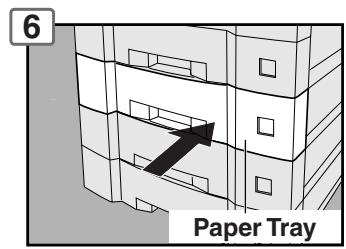

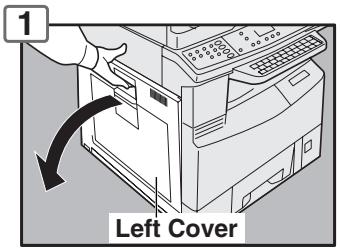

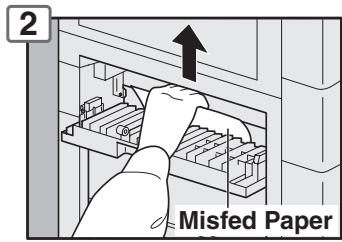

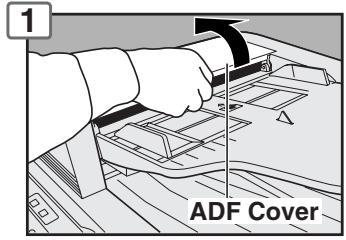

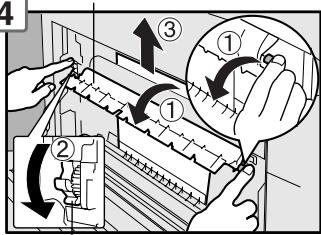

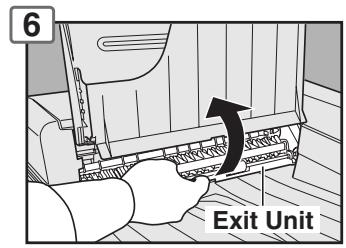

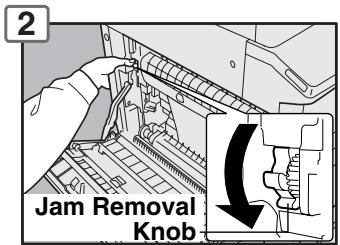

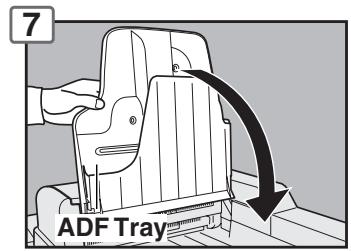

Removing Misfed Paper 16

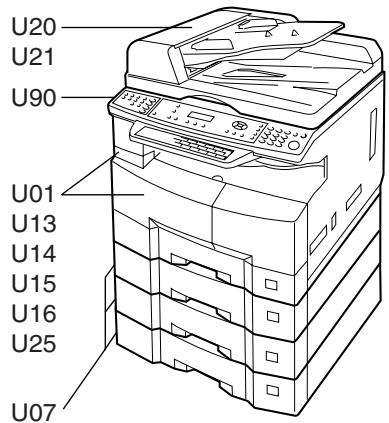

User Error Codes (U Code) 20
Jam Error Codes (J Code) 21

Before Starting

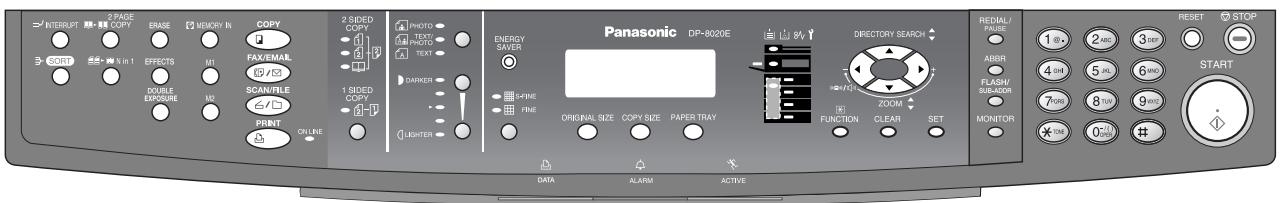

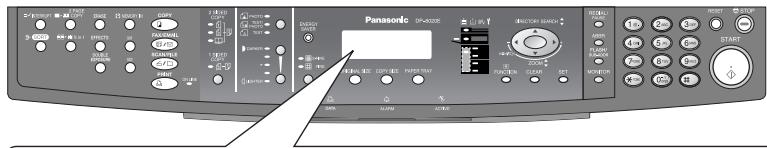

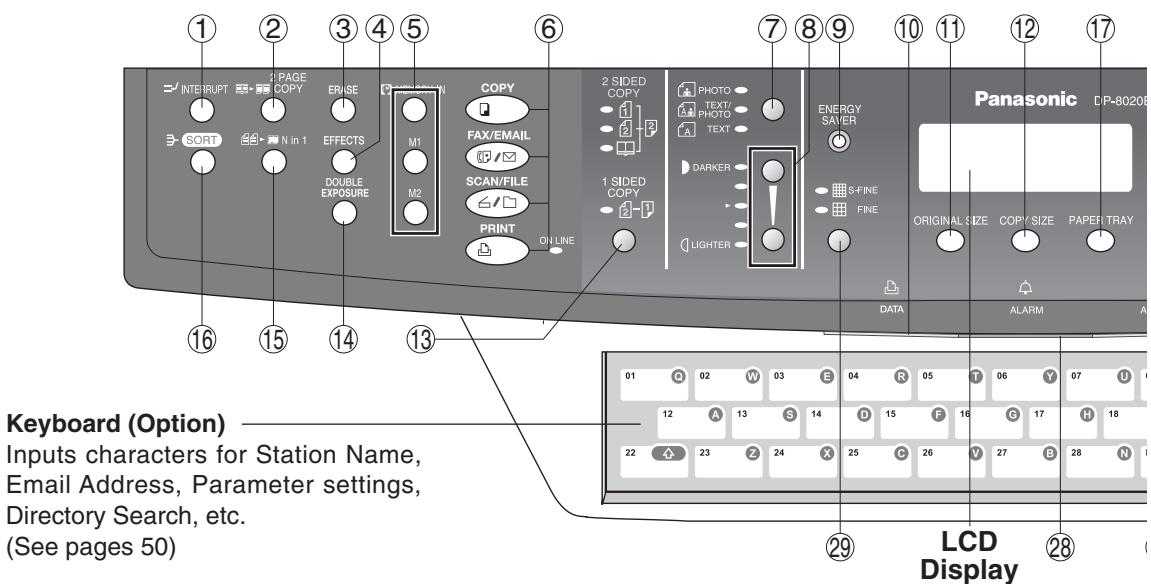

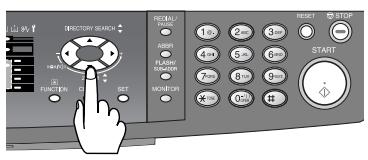

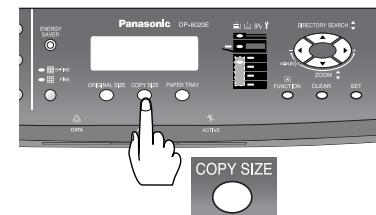

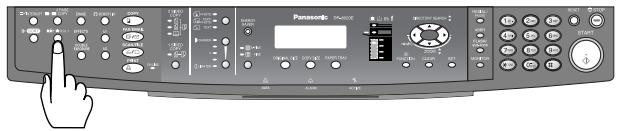

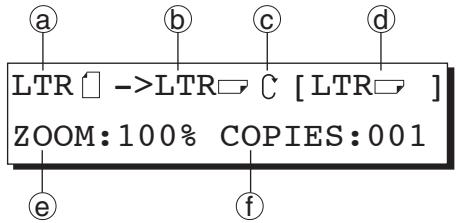

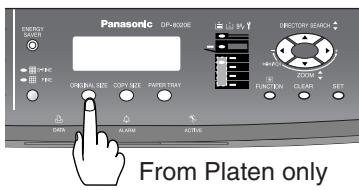

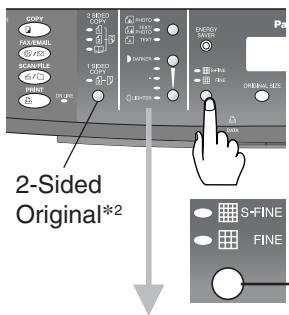

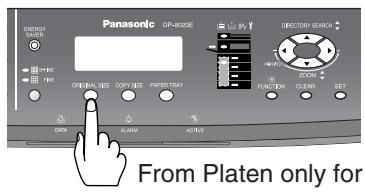

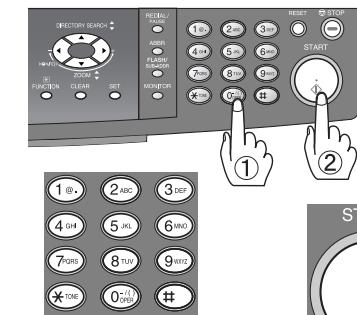

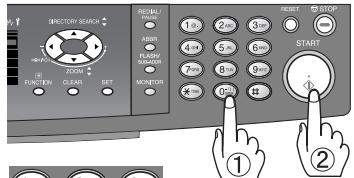

Control Panel 22

Making Copies

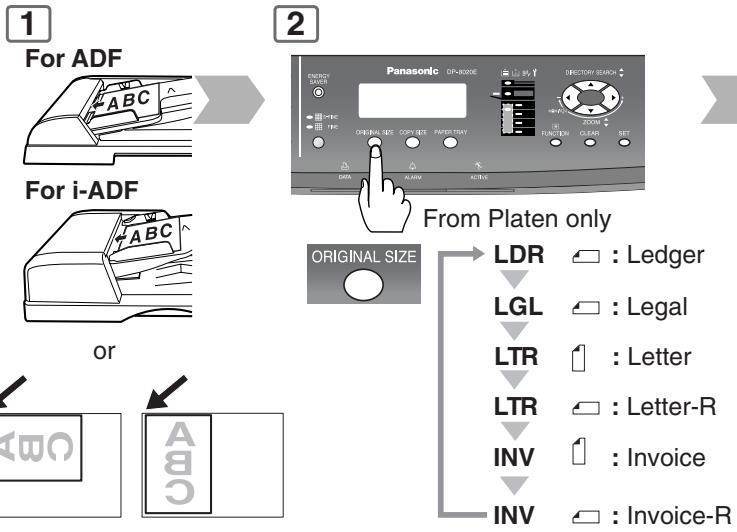

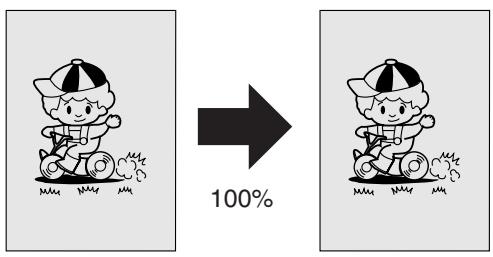

Basic Copy Copying the Same Size Originals (1:1) 24

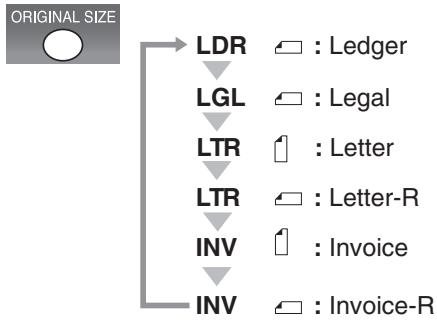

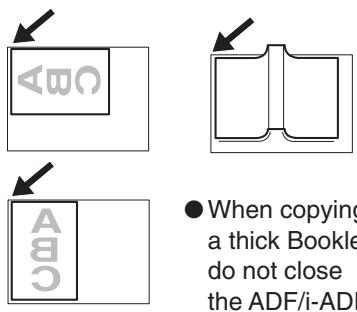

Position of the Original(s) 24

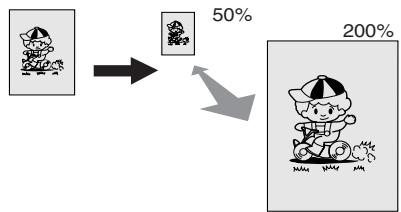

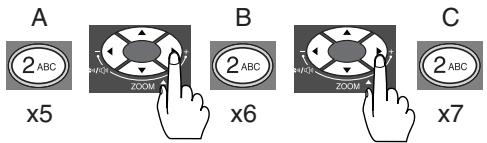

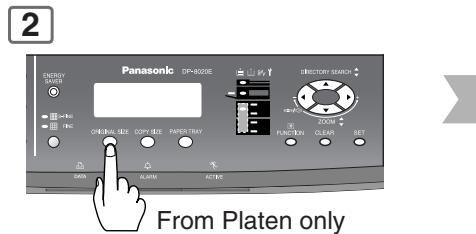

■ Copying with Preset or Variable Zoom Ratios 24

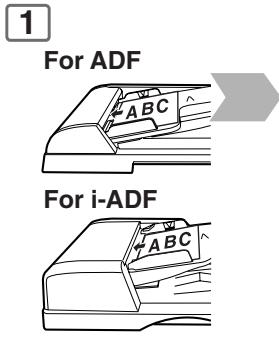

Using the ADF/i-ADF (Option) 25

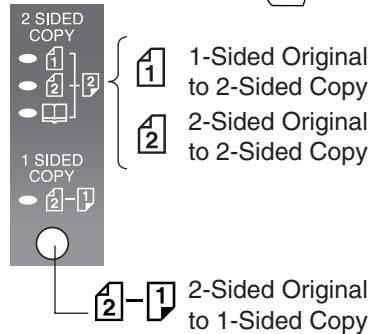

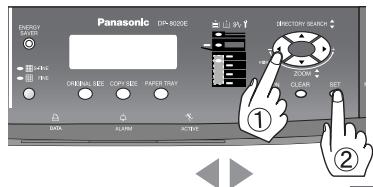

Creative Features 1 2 Copy, 2 2 Copy, 2 1 Copy (DP-8020E with optional i-ADF) 26

2 2 Copy (DP-8020E with optional ADF)

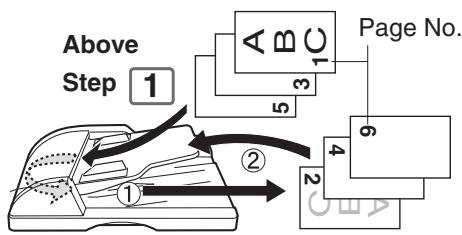

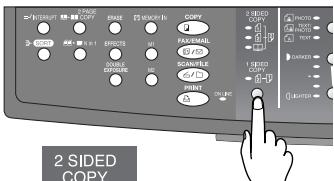

2 1 Copy (DP-8020E/8020P*/8016P with optional ADF) 28

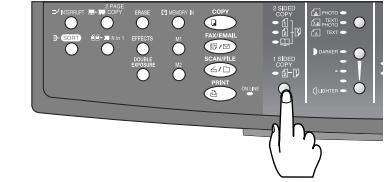

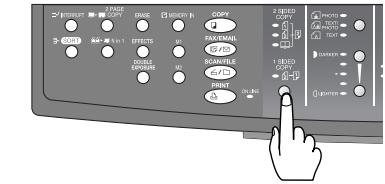

Book 2 Copy (DP-8020E only) 30
N in 1. 32
2 Page Copy 34

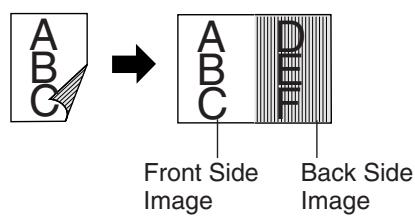

Double Exposure 36

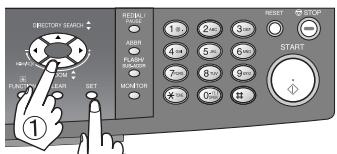

Erase (Margin/Edge) 38
Erase (Book) 38
■ Effects (Centering/Image Repeat) 40
Sort 42

Other Features Skyshot Mode (Digital/Manual Skyshot Mode) 44

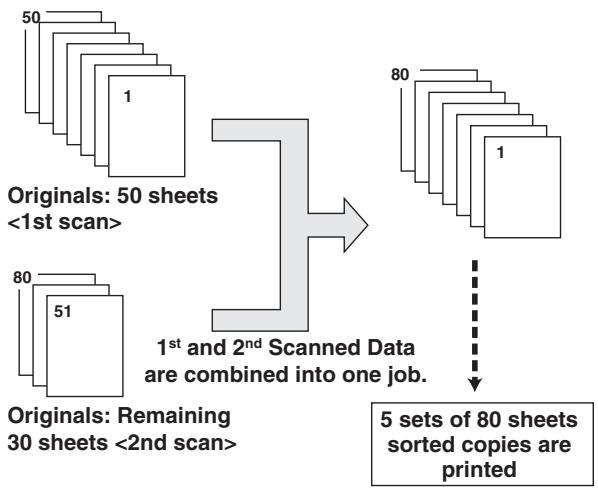

■ Job Build and SADF Mode 46

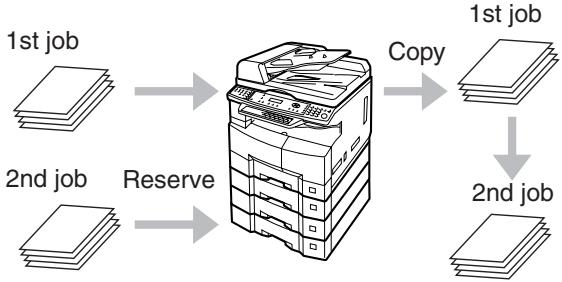

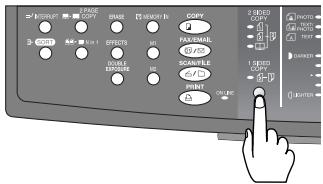

■ Concurrent Copying 46
Interrupt Mode 48

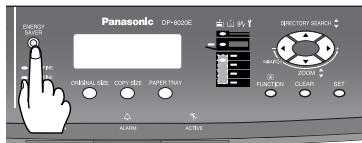

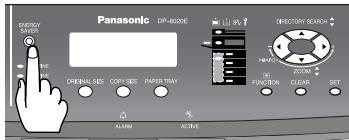

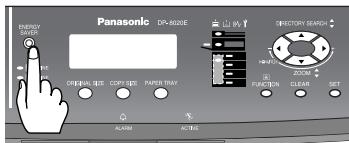

■ Energy Saver (Power Saver Mode, Sleep/Shutdown Mode) 48

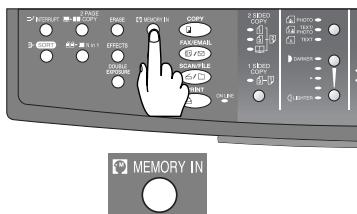

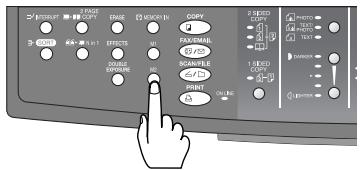

Job Memory 48
Completion Notice 50

Table of Contents

Function

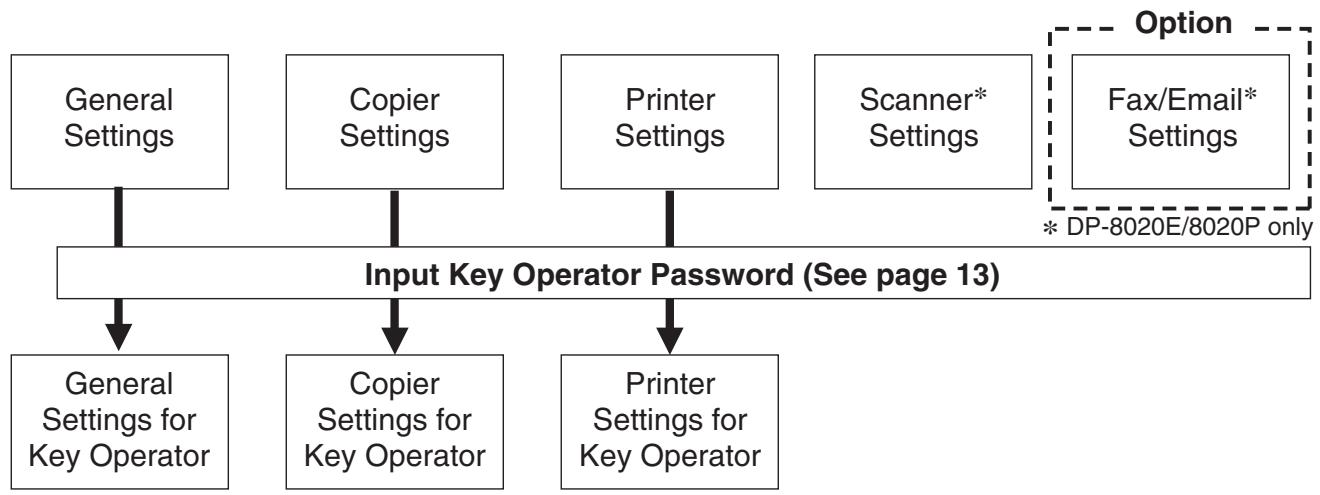

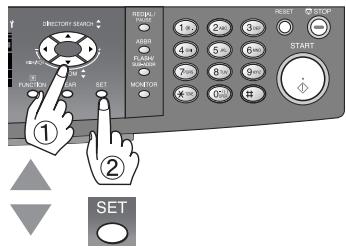

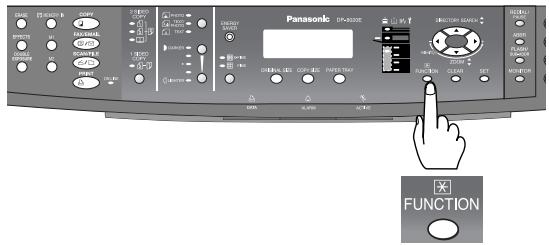

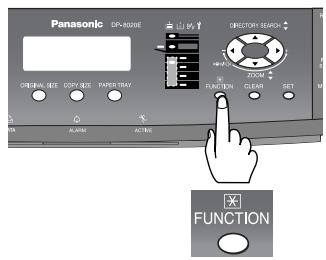

Using Function Modes to Change the Initial Machine Modes 52
Procedure 52
■ General Settings 54

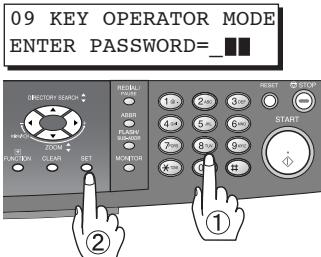

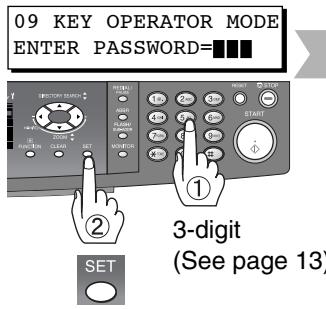

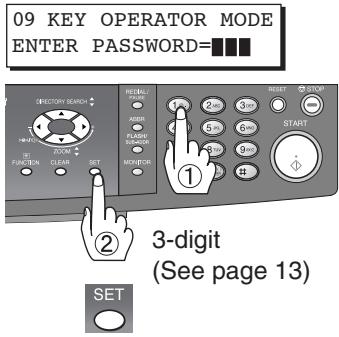

■ General Settings (For Key Operator) 54
■ Copier Settings 57
■ Copier Settings (For Key Operator) 58
■ Printer Settings 59
■ Printer Settings (For Key Operator) 60
■ Scanner Settings (Scan Parameters) 61

For Example 62

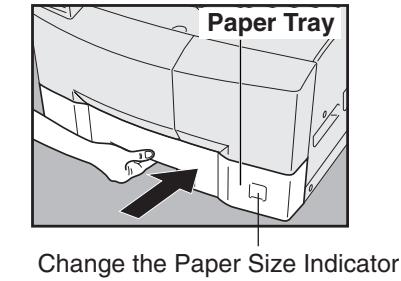

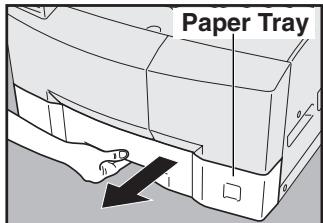

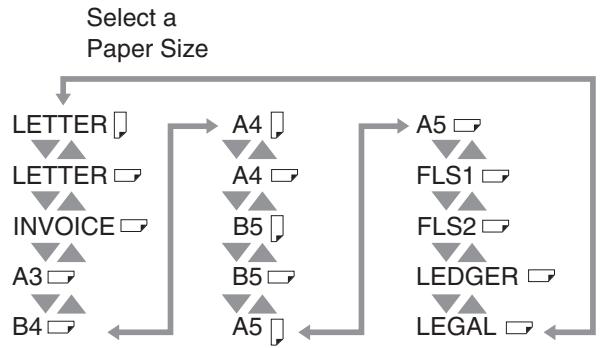

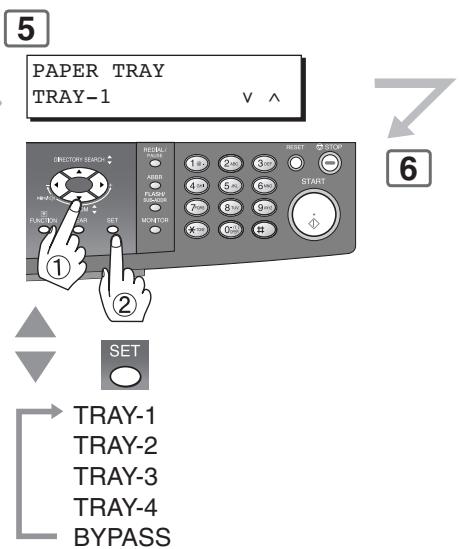

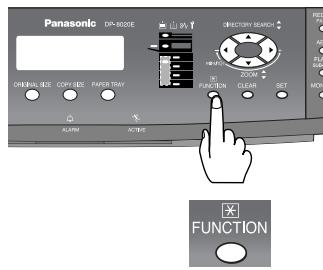

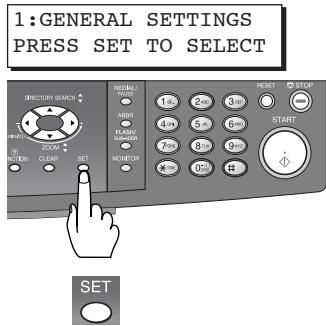

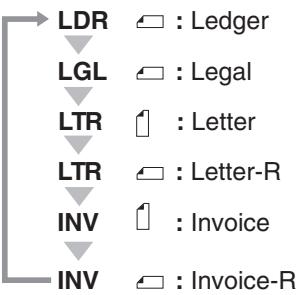

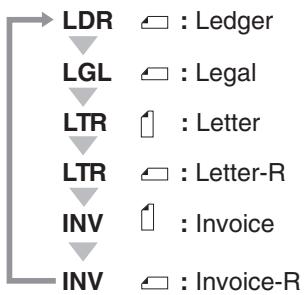

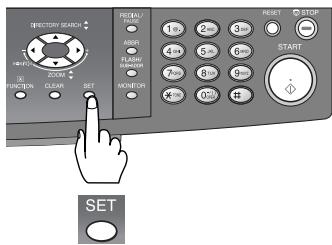

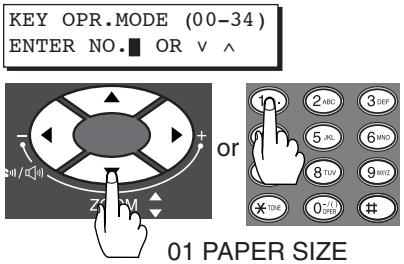

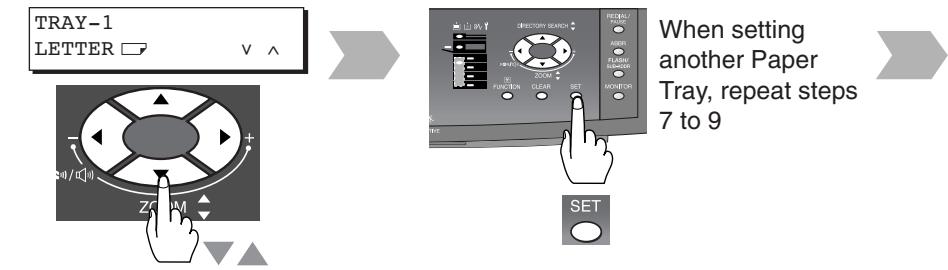

Changing the Paper Size (Paper Tray) 62

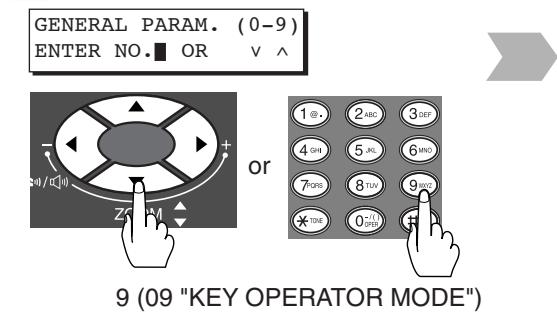

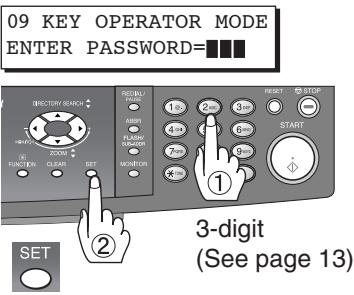

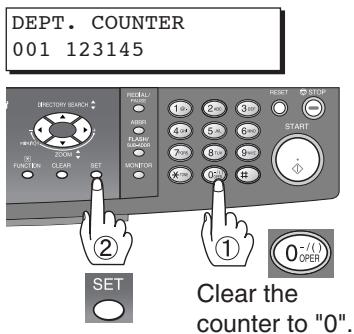

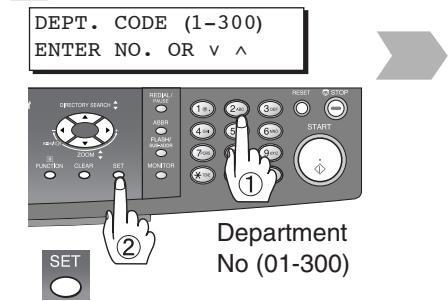

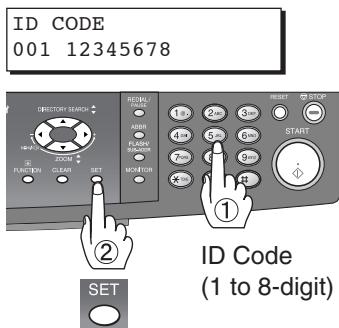

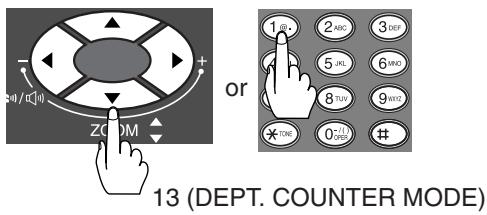

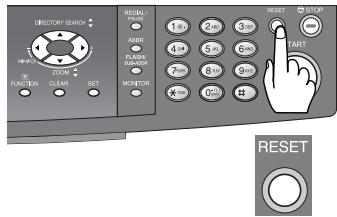

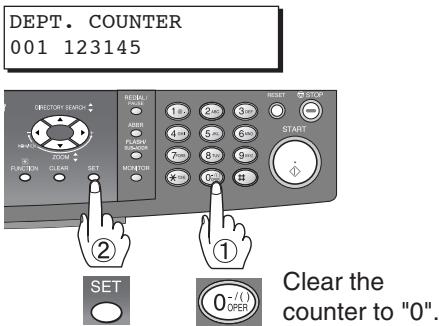

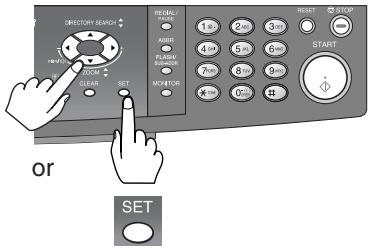

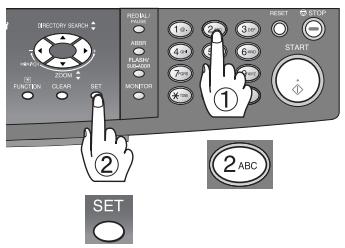

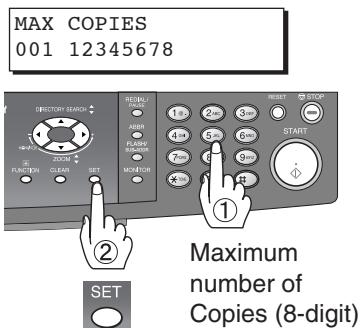

Department Counter 64

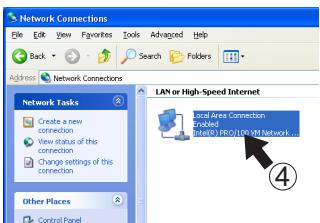

■ Network Settings 66

Combined Function Table 68

Accessories

Components 69

Network Scanner

Document Scanning 70

■ Document Scanning 70
Address Book 72

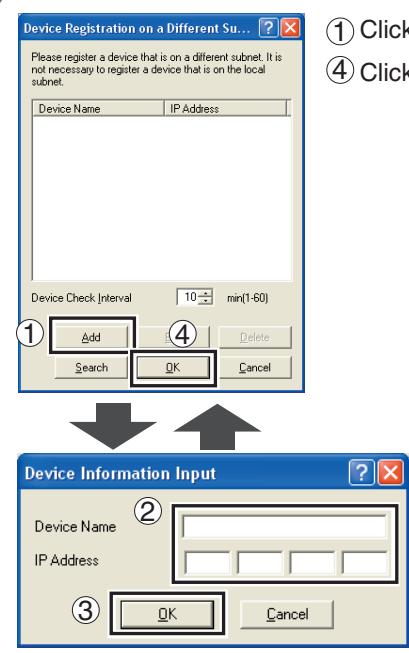

■ Adding your PC's IP Address 72
Function 74

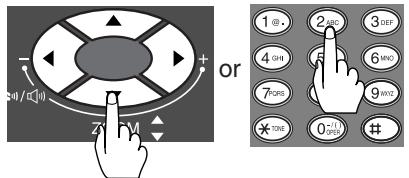

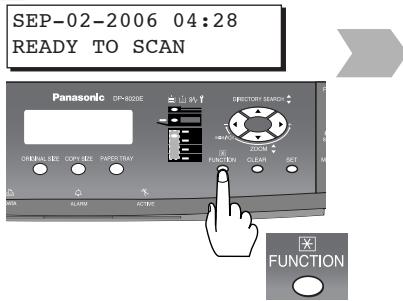

■ Scan Parameters (Scanner Settings) 74
■ Select Mode 74

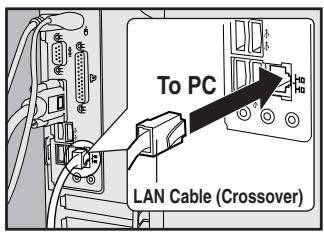

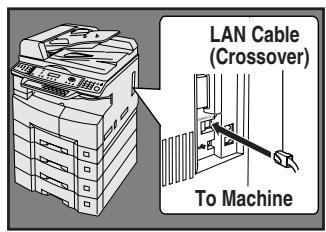

Direct Connection (with Crossover Cable) 76

■ Direct Connection (with Crossover Cable) 76

Problem Solving

Troubleshooting 78

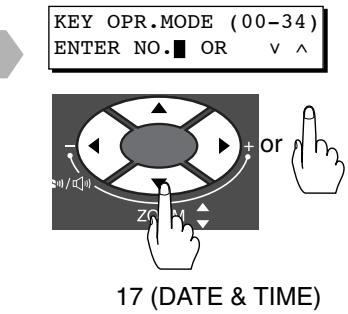

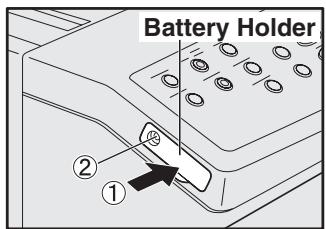

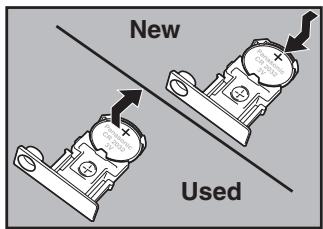

Replacing the Battery/Set the Date and Time 80

Appendix

Specifications 82

DP-8020E/8020P/8016P (For Copier) 82
■ Network Scanner (DP-8020E/8020P Only) 83
ADF (DA-AS181) Option/i-ADF (DA-AR202) (DP-8020E Only) 83
■ 2nd/4th Paper Tray (DA-DS184), 3rd Paper Tray (DA-DS185) (Option) (3rd, and 4th Paper Tray for DP-8020E/8020P only) 83

Options and Supplies 84

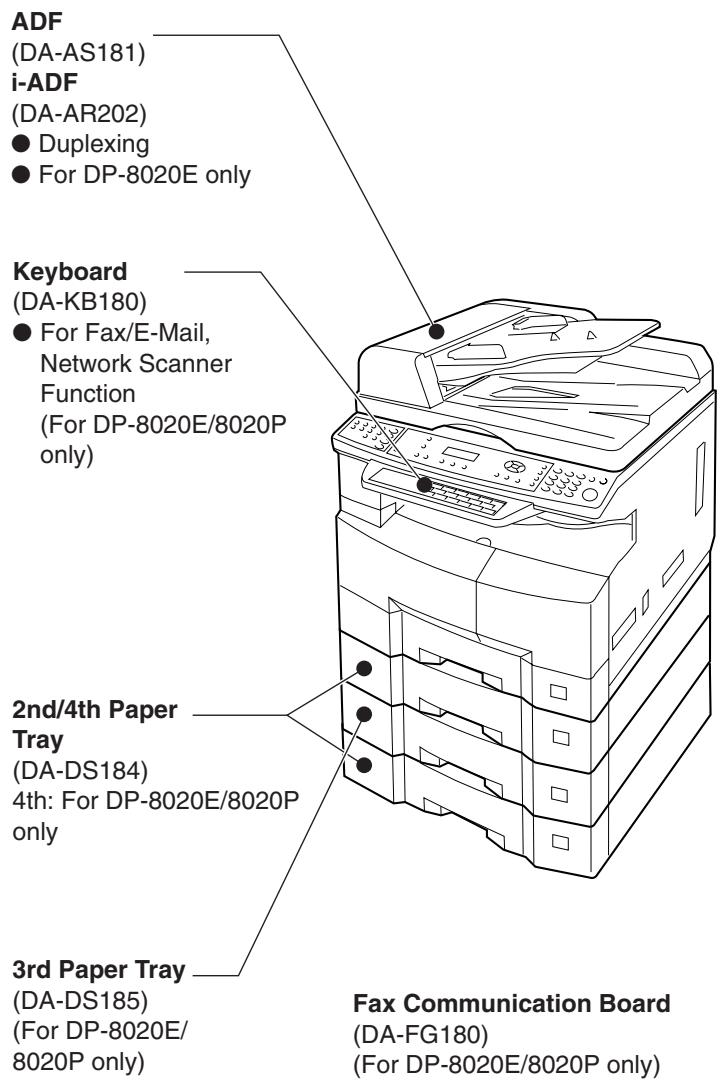

■ Options 84
Supplies 84

For Your Safety

To prevent severe injury and loss of life, read this section carefully before using the Panasonic DP-8020E/8020P/8016P to ensure proper, and safe operation of your machine.

This section explains theWarnings and Cautions used in this Operating Instructions manual.

WARNING Denotes a potential hazard that could result in serious injury or death.

CAUTION Denotes hazards that could result in minor injury or damage to the machine.

This section also explains the graphic symbols used in this Operating Instructions manual.

These symbols are used to alert operators to a specific operating procedure that must not be performed.

These symbols are used to alert operators to a specific operating procedure that must be emphasized in order to operate the machine safely.

This symbol is used to alert operators to a heated surface that may cause burns and requires close attention.

WARNING

Power and Ground Connection Cautions

Ensure that the plug connection is free of dust. In a damp environment, a contaminated connector can draw a significant amount of current that can generate heat, and eventually cause fire if left unattended over an extended period of time.

Always use the power cord provided with your machine. When an extension power cord is required, always use a properly rated cord.

120 V/12 A

If you use a cord with an unspecified current rating, the machine, or plug may emit smoke, or become hot to the touch.

Do not attempt to repair, pull, bend, chafe, or otherwise damage the power cord. Do not place a heavy object on the cord. A damaged cord can cause fire, or electric shocks.

Never touch a power cord with wet hands. Danger of electric shock exists.

If the power cord is damaged, or insulated wires are exposed, contact your authorized Panasonic dealer for a replacement. Using a damaged cord can cause fire, or electric shocks.

Stop operation immediately if your machine emits smoke, excessive heat, unusual noise or smell, or if water is spilt onto the machine. These conditions can cause fire. Immediately switch Off and unplug the machine, and contact your authorized Panasonic dealer.

Do not disconnect, or reconnect the machine while the power switch is in the On position. Disconnecting a live connector can cause arcing, consequently deforming the plug and cause fire.

When disconnecting the machine, grasp the plug instead of the cord. Pulling on a cord forcibly can damage it, and cause fire, or an electric shock.

When the machine is not used over an extended period of time, switch it Off and unplug it. If an unused machine is left connected to a power source for a long period, degraded insulation can cause electric shocks, current leakage or fire.

Be sure to switch Off, and unplug the machine before accessing the interior of the machine for cleaning, maintenance or fault clearance. Access to a live machine's interior can cause an electric shock.

Once a month, unplug the machine and check the power cord for the following. If you notice any unusual condition, contact your authorized Panasonic dealer.

The power cord is plugged firmly into the receptacle.
- The plug is not excessively heated, rusted, or bent.
The plug and receptacle are free of dust.
The cord is not cracked or frayed.

Operating Safeguards

Do not touch areas where these caution labels are attached to, the surface may be very hot and may cause severe burns.

Do not place any liquid container such as a vase, or coffee cup on the machine. Spilt water can cause fire or shock hazard.

Do not place any metal parts such as staples or clips on the machine. If metal and flammable parts get into the machine, they can short-circuit internal components, and cause fire or electric shocks.

If debris (metal or liquid) gets into the machine, switch Off and unplug the machine immediately. Contact your authorized Panasonic dealer. Operating a debris-contaminated machine can cause fire or electric shock.

Never open or remove machine covers that are secured with screws unless specifically instructed in the "Operating Instructions". A high voltage component can cause electric shocks.

Do not try to alter the machine configuration or modify any parts. An unauthorized modification can cause smoke or fire.

Consumable Safeguards

Never dispose of toner, toner bottles, or a toner waste container into an open flame. Toner remaining in the cartridge/bottle can cause an explosion, burns and/or injuries.

Keep button batteries/stamp out of the reach of children. If a button battery/stamp is swallowed accidentally, get medical treatment immediately.

CAUTION

Installation and Relocation Cautions

Do not place the machine near heaters or volatile, flammable, or combustible materials such as curtains that may catch fire.

Do not place the machine in a hot, humid, dusty or poorly ventilated environment. Prolonged exposure to these adverse conditions can cause fire or electric shocks.

Place the machine on a level and sturdy surface that can withstand a weight of 95 lb (43.3 kg) (DP-8020E) / 93 lb (42.3 kg) (DP-8020P/8016P). If tilted, the machine may tip-over and cause injuries.

When relocating the machine, contact your authorized Panasonic dealer.

When moving the machine, be sure to unplug the power cord from the outlet. If the machine is moved with the power cord attached, it can cause damage to the cord which could result in fire or electric shock.

Operating Safeguards

Do not place a magnet near the safety switch of the machine. A magnet can activate the machine accidentally, resulting in injuries.

Do not use a highly flammable spray or solvent near the machine. It can cause fire.

When copying a thick original, do not use excessive force to press it against the platen glass. The glass may break and cause injuries.

Never touch a labelled area found on or near the heat roller. You can get burnt. If a sheet of paper is wrapped around the heat roller, do not try to remove it yourself to avoid injuries or burns. Switch Off the machine immediately, and contact your authorized Panasonic dealer.

Do not use conductive paper, e.x.: folding paper, carbonic paper and coated paper. When a misfed paper jam occurs, they can cause a short-circuit and fire.

Do not place any heavy objects on the machine. An off-balance machine can tip-over or the heavy object can fall, causing damage and/or injuries.

Keep the room ventilated when using the machine for an extended period of time to minimize the ozone density in the air.

When copying with the platen cover open, do not look directly at the exposure lamp. Direct eye exposure can cause eye fatigue or eye injury.

Pull out paper trays slowly to prevent injuries.

When removing misfed paper, make sure that no pieces of torn paper are left in the machine. A piece of paper remaining in the machine can cause fire. If a sheet of paper is wrapped around the heat roller, or when clearing a misfed paper that is difficult or impossible to see, do not try to remove it by yourself. Doing so can cause injuries or burns. Switch Off the machine immediately, and contact your authorized Panasonic dealer.

If accessing the inner components of the machine to clear misfed paper, etc., exercise care not to touch heated areas, or you may get burned.

Others

■ When clearing a paper jam or other fault, follow the appropriate procedure given in the Operating Instructions.

For Your Safety

CAUTION

Consumable Safeguards

Be sure to use the specified type of batteries only.

Ensure that batteries are installed with correct polarity. Incorrectly installed batteries can burst or leak, resulting in spillage or injuries.

Others

The machine has a built-in circuit for protection against lightning-induced surge current. If lightning strikes in your neighborhood, maintain ample distance from the machine, and do not touch the machine until the lightning has stopped.
If you notice flickering or distorted images or noises on your audio-visual units, your machine may be causing radio interference. Switch it Off and if the interference disappears, the machine is the cause of the radio interference. Perform the following procedure until the interference is corrected.
- Move the machine and the TV and/or radio away from each other.
- Reposition or reorient the machine and the TV and/or radio.
- Unplug the machine, TV and/or radio, and replug them into outlets that operate on different circuits.
- Reorient the TV and/or radio antennas and cables until the interference stops. For an outdoor antenna, ask your local electrician for support.
Use a coaxial cable antenna.

CAUTION

Denotes hazards that could result in minor injury or damage to the machine.

• TO REDUCE THE RISK OF SHOCK OR FIRE, USE ONLY NO. 26 AWG OR LARGER TELEPHONE LINE CABLE.
• DISCONNECT ALL POWER TO THE MACHINE BEFORE COVER(S) ARE OPENED. CLOSE THE COVER(S) BEFORE THE MACHINE IS RE-ENERGIZED.

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

DO NOT USE THIS PRODUCT NEAR WATER, FOR EXAMPLE, NEAR A BATH TUB, WASH BOWL, KITCHEN SINK OR LAUNDRY TUB, IN A WET BASEMENT OR NEAR A SWIMMING POOL.
- AVOID USING A TELEPHONE (OTHER THAN A CORDLESS TYPE) DURING AN ELECTRICAL STORM. THERE MAY BE A REMOTE RISK OF ELECTRIC SHOCK FROM LIGHTNING.
DO NOT USE THE TELEPHONE TO REPORT A GAS LEAK IN THE VICINITY OF THE LEAK. SAVE THESE INSTRUCTIONS.

Precautions

Laser Safety

LASER SAFETY

This unit employs a laser. Only qualified service personnel should attempt to service this device due to possible eye injury.

CAUTION:

USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

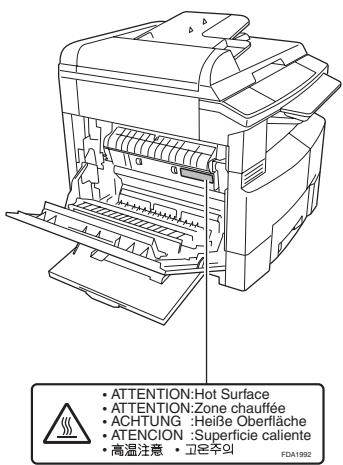

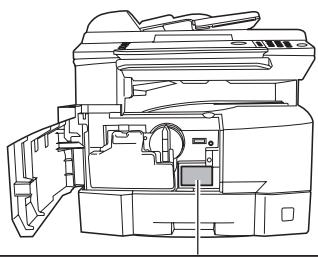

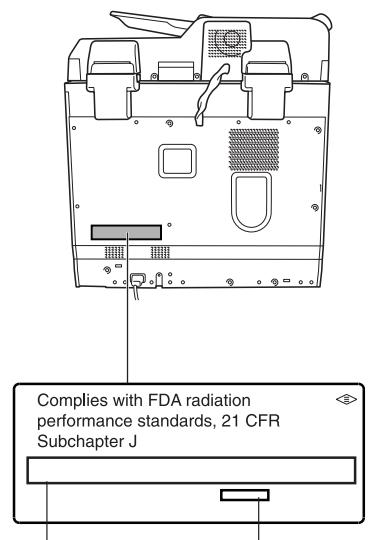

Caution Label

Manufacturer's Name Factory ID and Address

CAUTION CLASS 3B INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED.
AVOID EXPOSURE TO THE BEAM. ATTENTION: Rovnementement laser classe 3B invisible en cas d'ouverture et de défaut

de sccurié.

EXPOSITION DANGEREUSE AU FAISCEAU.

This product has a fluorescent lamp that contains a small amount of mercury. It also contains lead in some components.

Disposal of these materials may be regulated in your community due to environmental considerations.

For disposal or recycling information please contact your local authorities, or the Electronics Industries Alliance:

http://www.eiae.org.

Installation

The maximum power consumption is 1.3kW

A properly wired (grounded), dedicated, 12 A, 120 V AC outlet is required. Do not use an extension cord.

The power cord on this machine must be used to disconnect the main power.

Please ensure that the machine is installed near a wall outlet and is easily accessible.

Supplies

Store the Toner and paper in cool areas with low humidity.

Use high quality 16 - 24 lb (60 - 90 g/m²) (Sheet Bypass: 15 - 34 lb (55 - 133 g/m²)) paper.
- For optimum performance, it is recommended that only Panasonic Brand supplies are used in the machine.
- Certain types of transparency film may not be compatible and may damage your machine. Consult with an authorized Panasonic dealer for advice regarding non-standard paper types. (Panasonic has tested "3M PP2500" transparency film and found it to be compatible.)
- Panasonic recommends using high quality 16 - 24 lb (60 - 90 g/m²) paper, using an inferior paper may cause excessive paper curl, requiring you to empty out the Output Tray more often to avoid paper jams.

■ Use of other than genuine Panasonic supplies can damage the machine. This may void the warranty of the machine and supplies. Be sure to use only genuine Panasonic Toner designed for the machine.

The machine should not be installed in areas with the following conditions:

• Extremely high or low temperature and humidity.

The machine should be installed under the following ambient conditions:

Temperature: 50 - 86^ (10 - 30°C)

Relative humidity: 30 - 80%

In areas with chemical fume concentration.
- With unstable or uneven conditions (floors, etc.).
Direct exposure to sunlight or fluorescent light.
In areas of high dust concentration.
- Directly in the air conditioning flow.
In areas of poor ventilation.
In areas with extreme vibration.

Illegal Copies

It is unlawful to make copies of certain documents.

Copying certain documents may be illegal in your country. Penalties of fines and/or imprisonment may be imposed on those found guilty. The following are examples of items that may be illegal to copy in your country.

• Currency
  Bank notes and checks
  Bank and government bonds and securities
  Passports and identification cards
  Copyright material or trademarks without the consent of the owner
  Postage stamps and other negotiable instruments

This list is not inclusive and no liability is assumed for either its completeness or accuracy. In case of doubt, contact your legal counsel.

Notice:

Install your machine near a supervised area to prevent illegal copies from being made.

Others

Panasonic is not responsible for data loss and any consequence caused by computer virus infection or external shocks.

Handling

■ Do not turn the Power Switch Off, or open the Front Cover during copying/printing.

Sleep/Shutdown Mode Notice

• The following functions will not work if the Sleep/Off Mode setting is set to the Shutdown mode. When using any of the following functions, we recommend that you leave the Sleep/Off Mode in the initial factory default setting (Sleep mode).

• Turn OFF the Power Switch on the Right Side of the machine.

• Printer Function (Local Parallel Port and Network Connections)
• Internet Fax/Email Function
• Facsimile Function (Option)

When the LAN cable is not connected and DHCP Default is "Yes"

Key Operator Password

• The Initial Machine Modes can be checked or changed with the Function Modes, however, these modes require the Key Operator Password.

■User Authentication

The User Authentication works for this machine under the management of the Windows Server. As a result, users must be authenticated before they can use the functions of the machine (copying, faxing, scanning, and printing). The supported authentication protocol is NTLM v2.

Users

• Users login to this machine using their Windows account (user name and password).

System Administrator

• The system administrator can manage user account by using Windows Server.
• User authentication can be set independently for each function (copying, faxing, scanning, and printing).

Dept. (Departmental) Code

When the Department Counter function is set up, the Dept. (Department) Code input screen is displayed on the LCD Display. A registered Department Code (1 to 8-digit) is required to gain access to each secured function, or the secured Copy/Fax/Scanner function(s) cannot be used. Please consult with the Key Operator regarding the Department Code(s) for the desired function.

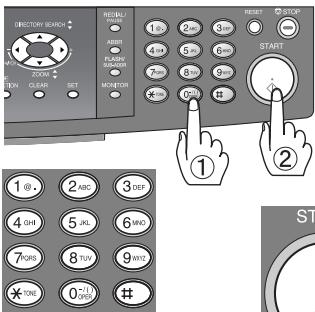

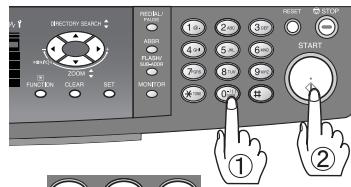

Procedures :

① Input a registered department code (1 to 8-digit).

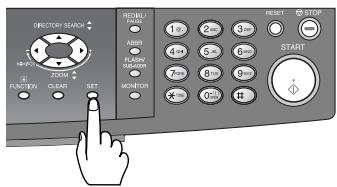

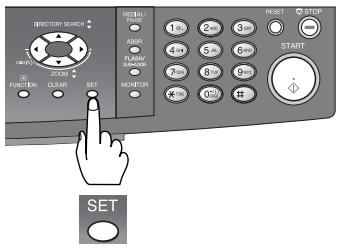

② Press the SET or START key.

Maximum Copies Limitation

After setting the maximum allowed number of copies for each department, consult with your Key Operator when the total copy count reaches the designated limit and the "DEPT.MAXIMUM COPIES HAS BEEN REACHED" message appears on the LCD.

Power Switch

If you are not going to use the copier for long periods of time, turn OFF the Power Switch on the Right Side of the machine.

If the Hard Disk Drive Unit (DA-HD18) is installed, to prevent a Scan Disk Function from being performed (similar to Windows OS when the power is abruptly interrupted), it is important to follow the step sequence below when turning OFF the Power Switch on the machine.

1. If the machine is in the "ENERGY Saver (Shutdown Mode)" you may turn the Power Switch on the Right Side of the machine to the OFF position. If it is not in the "ENERGY Saver (Shutdown Mode)", continue to step 2 below.
2. Press "FUNCTION" and "ENERGY Saver" keys simultaneously first. The Energy Saver Key will light.
3. Turn the Power Switch on the Right Side of the machine to the OFF position.

Auto Reset Time

As the initial setting for Auto Reset Time is 1 minute, the selected operation mode goes back to default operation mode after 1 minute. If you wish to change the Auto Reset Time, consult with your Key Operator.

Quick Operation Chart

Adding Paper

Turn the Power Switch to the ON position

From Platen

From ADF/i-ADF (Option)

Original Guides Tray
Adjust to the (Max. 50 Letter
original's width size originals)
Hold the guides by the center when
adjusting the width

Original Guides
INV: Invoice, LTR: Letter
LGL: Legal, LDR: Ledger

If set to other function mode (DP-8020E/8020P only)

Face Down

• If the original is not positioned properly, a portion of the original may not be copied.

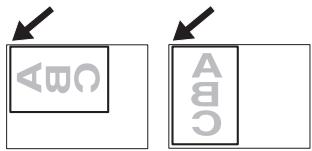

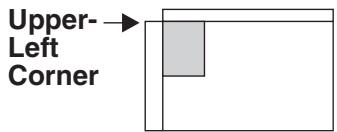

• For originals smaller than Invoice size, position the original within the Invoice area and select Invoice.

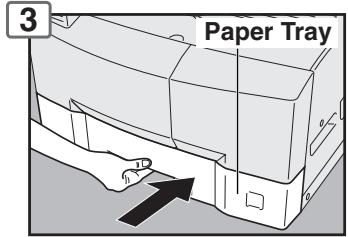

- Adding Paper (Paper Tray)

The following steps are for Paper Tray-1, use the same procedures for other optional Paper Trays.

NOTE:
To change the paper size, refer to page 62.

Load Paper: Face Up
Paper Weight: 16 - 24 lb (60 - 90 g/m²)
Paper Capacity: 550 Sheets (20 lb (80g / m^2)

NOTE:
Load the paper properly, and ensure that it does not exceed the Max. Level indicator.

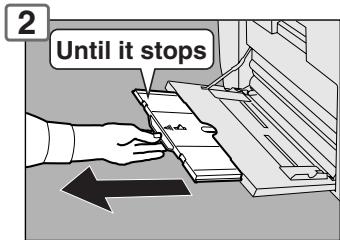

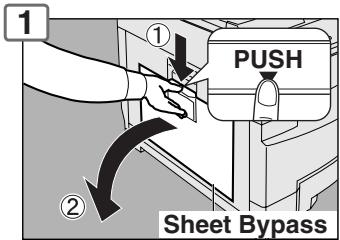

Adding Paper (Sheet Bypass)

Copying on Special Paper, etc.

Adjust the width guides. Incorrect adjustment may cause the paper to wrinkle, misfed, or skew.

Upper Limit Guides

Load Paper

(Do not exceed limit guides)

Paper Weight: 15-34 lb (55 - 133 g/m²)
Paper Capacity: 50 sheets/20 lb (80 g/m²)
To add paper to the Sheet Bypass, remove the leftover paper from the tray, and align it with the additional paper, then load them together onto the tray.

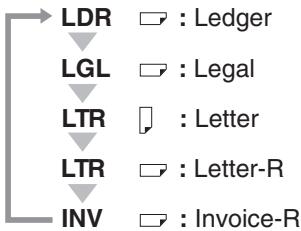

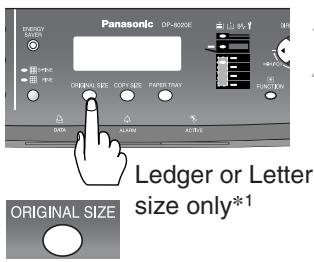

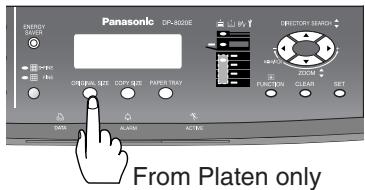

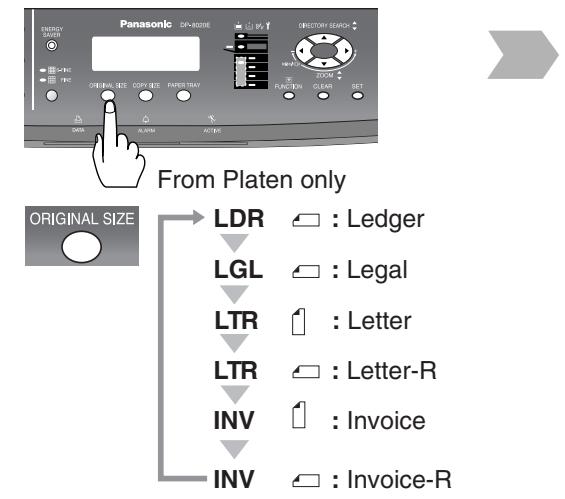

ORIGINAL SIZE
From Platen only

Select desired settings (See pages 24-51)

Reduction/ Enlargement only

Number of Copies (Max. 999)

N in 1 (See page 32)

Interrupt (See page

Sort (See page 42)

2 Page Copy (See page 34)

Erase (See page 38)

Effects (See page 40) Double Exposure (See page 36)
2-Sided/Original Copy (See pages 26-31)
2-Sided Copy: DP-8020E only

Zoom Mode

(See page 25)
Type of Original
Manual Exposure

Problem Solving

Adding Paper

Replacing Toner Bottle/Toner Waste Container (See page 16)

Checking Toner

(See below)

Removing Misfed Paper

(See page 16)

U## (User Error Code)

(See page 20)

J## (Jam Error Code)

(See page 21)

E## (Machine Error Code)

(Call your Service provider)

REPLACE DRUM UNIT

(Call your Service provider)

- Toner Level Check Operation

When "CHECKING TONER PLEASE WAIT" message appears, the machine is checking the toner level, and no operation through control panel is accepted.

Memory Full

If the memory overflows while scanning originals, the message "MEMORY FULL CONTINUE? 1:YES 2:NO" will appear on the LCD. If this occurs, follow the instructions on the LCD. If this occurs frequently, adding optional memory is recommended, consult with an authorized Panasonic dealer.

Problem Solving

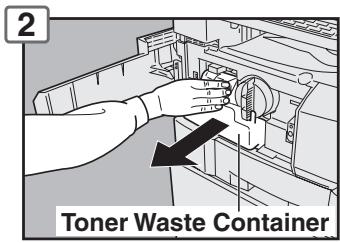

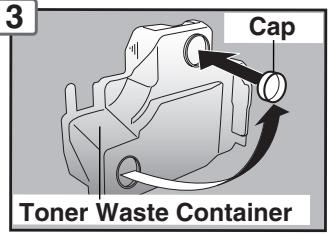

- Replacing Toner Bottle/Toner Waste Container

ATTENTION

For optimum copy quality use the recommended Panasonic Toner. Store Toner Bottle in a cool dark place. Do not unseal the Toner Bottle unless you are ready to use it.

NOTE:

Do not reuse the toner from the Toner Waste Container.

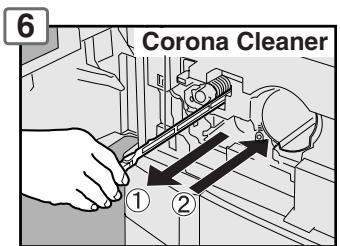

Slide the Corona Cleaner in and out, 3 or 4 times slowly, then return the Corona Cleaner Handle to the original position.

Shake it well

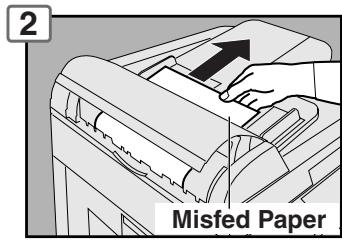

- Removing Misfed Paper (Paper Exit Area) (J46)

REMOVE MISFED PAPER J46

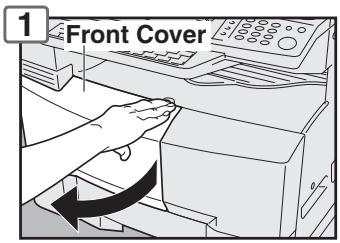

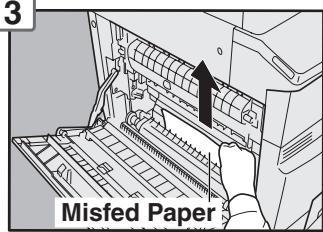

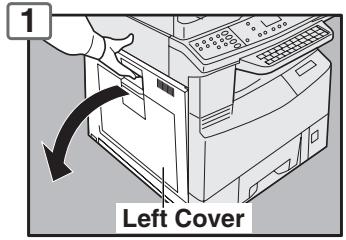

- Removing Misfed Paper (Paper Transport/Fusing Area) (J01, J30, J31, J33, J45, J48, J95)

REMOVE MISFED PAPER J48

ATTENTION

• Do not scratch or touch the surface of the OPC Drum (Green) with bare hands. The OPC Drum is sensitive to light. To prevent optical exposure problems, do not expose the OPC Drum to direct sunlight or bright light.

3

4

5

6

8

9

10
Close the Front Cover.

3

4

3

Heat Roller Cover
4

- ATTENTION: Hot Surface
- ATTENTION: Zone chauffée
- ACHTUNG : Heiße Oberfläche
- ATENTION : Superficie caliente
高温注意·고운주의

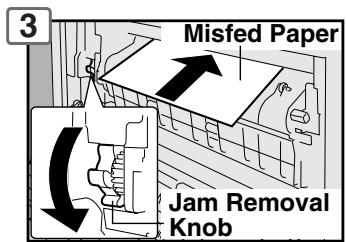

Jam Removal Knob
7

8

5

Problem Solving

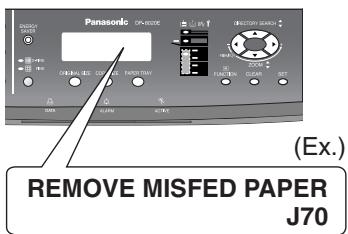

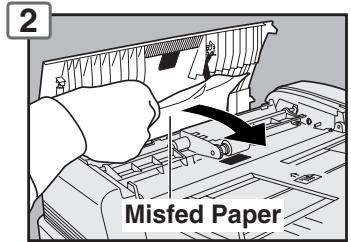

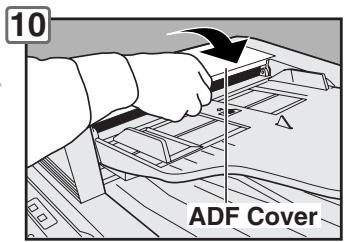

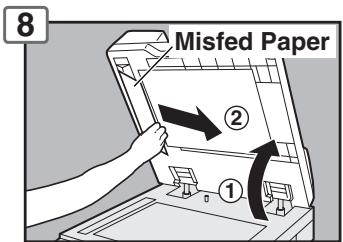

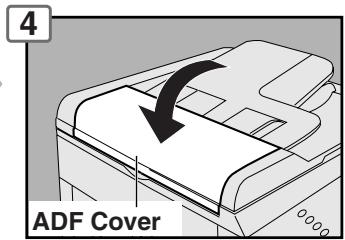

• Removing Misfed Paper (ADF: Option for DP-8020E/8020P/8016P) (J70, J71, J79, J92, J93)

• Removing Misfed Paper (i-ADF: Option for DP-8020E) (J70, J71, J72, J73, J76, J78, J79, J92, J93)

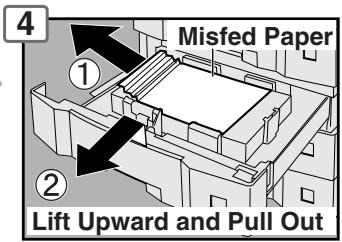

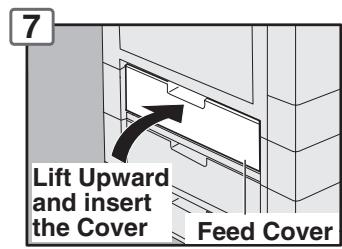

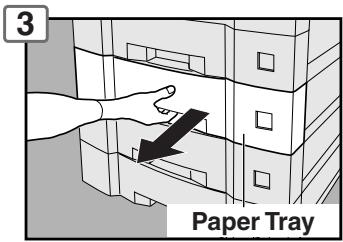

• Removing Misfed Paper (2nd/3rd/4th Paper Tray: Option) (J02, J03, J04, J07, J08, J09, J12, J13, J14, J22, J23, J24)

6

6

Problem Solving

• Removing Misfed Paper (J19, J32, J82, J85, J87: ADU for DP-8020E only)

EX. REMOVE MISFED PAPER J82

• User Error Codes (U Code)

Code	Check Points	Code	Check Points
U01	Front and/or Left Cover is open.	U20	ADF Cover is open.
U07	Feed Cover is open. (See page 18)
U13	Low Toner, or Out of Toner.	U21	ADF/i-ADF was opened while scanning from ADF/i-ADF.
U14	Toner Waste Container is full.
U15	Toner Waste Container is incorrectly installed.	U25	Toner hardened inside the Toner Bottle. Remove the Toner Bottle, and shake it well.
U16	Developer Unit is incorrectly installed.
	Call your Service Provider.	U90	Battery requires replacement. (See page 80)

Note: • Do not pull Misfed Paper from the front, it may cause damage.

• Jam Error Codes (J Code)

Code	Check Points	Code	Check Points
J00	①Remove paper from the Sheet Bypass.	J30,	Remove misfed Paper.
	②Open, and close the Left Cover (as illustrated in Steps 1 and 5 above).	J31,	(See page 16)
		J33,	*J95: Check the paper size in the paper tray.
		J45,	(See page 62)
J01	Pull the paper tray out, and remove the jammed paper from the standard paper tray (Tray-1)	J46,
	(See page 16)	J48,
		J95*
J02,	Pull the paper tray out, and remove the jammed paper from the optional paper trays (Tray-2 to 4)	J19,	Removing misfed Paper.
J03,		J32,	(See page 20)
J04	(See page 18)
J07,	Remove misfed paper.	J82,
J08,	(See page 18)	J85,
J09,		J87
J12,		J70,	Removing misfed Paper
J13,		J71,	(See page 18)
J14,		J72,
J22,		J73,
J23,		J76,
J24		J78,
		J79,
		J92,
	*Cause with 2nd/3rd/4th Paper Tray.	J93

NOTE: The J## Code indicates the most probable Jam location. If the jam message reappears after the jam is cleared, paper is most likely jammed at other location(s). Check the Jam Error Codes Table above for other check points, and remove all misfed paper.
Make sure that the Jam Error Code, and Misfed Indicator disappears after removing the misfed paper.
- The Jam Error Code, and Misfed Indicator will not disappear if the paper is still jammed in the machine. Check again, and remove all misfed paper.

No.	Icon	Contents	No.	Icon	Contents
1	BREAKUP	INTERRUPT KeyInterrupts other copy job while making copies.(See page 48)	2	2PAGE COPY COPY(See page 34)	2 PAGE COPY KeySelects 2 Page Copy mode.(See page 34)
3	ERASE	ERASE KeySelects Edge, Book or Margin mode.(See page 39)	6	COPYTo use the unit as a photocopier.	COPY KeyTo use the unit as a photocopier.
4	EFFECTS	EFFECTS KeySelects Image Repeat or Centering mode.(See page 40)		FAX/EMAIL(See page 40)	FAX/EMAIL KeyUsed to select the FAX/ EMAIL communication.
5	MEMORY IN	MEMORY KeysSelects Job Memory mode.(See pages 48, 49)		SCAN/FILEGoD(See page 49)	SCAN/FILKeyTo use the Scan/File function (See pages 70-75)PRINT KeyTo use the unit as a Printer.
7	PHOTO TEXT/PHOTO TEXT	Original Mode Select Keys/IndicatorsSelects original mode.(See pages 25 and 70)	8	DARKERLIGHTER(See page 25 and 70)	LIGHTER/DARKER Key/IndicatorsTo adjust the Manual Exposure.(See pages 25 and 70)
9	ENERGY Saver	Energy Saver KeySaves power while the machine is not in use.(See page 48)	10	DATA打印 DataThe LED Flashes/ light in GREEN when receiving/printing data.
11	ORIGINAL SIZE	ORIGINAL SIZE KeyTo select an original size.	12	COPY SIZETo select a copy size.
13	2-sided COPY1-sided COPY1-sided COPY	DUPLEX KeySelects a 2-Sided or 1-Sided copy.(See pages 27-31)2-Sided Copy: DP-8020E only	14	DOUBLE EXPOSUREO	DOUBLE EXPOSURE KeySelects Double Exposure mode.(See page 37)
15	N in 1N in 1	N in 1 KeySelects N in 1 copy mode.(See page 33)	16	SORTO	SORT KeySelects Electric Sort mode.(See page 42)

LCD Display (Copy Function)

@ Original Size
Copy Size
Rotating Paper Size
Paper Size in Paper Tray
(€)Zoom Ratio
1 Number of Copies

Used for Fax, Internet Fax, and Email Functions. (except for the ABBR Key, see page 50.)

No.	Icon	Contents	No.	Icon	Contents

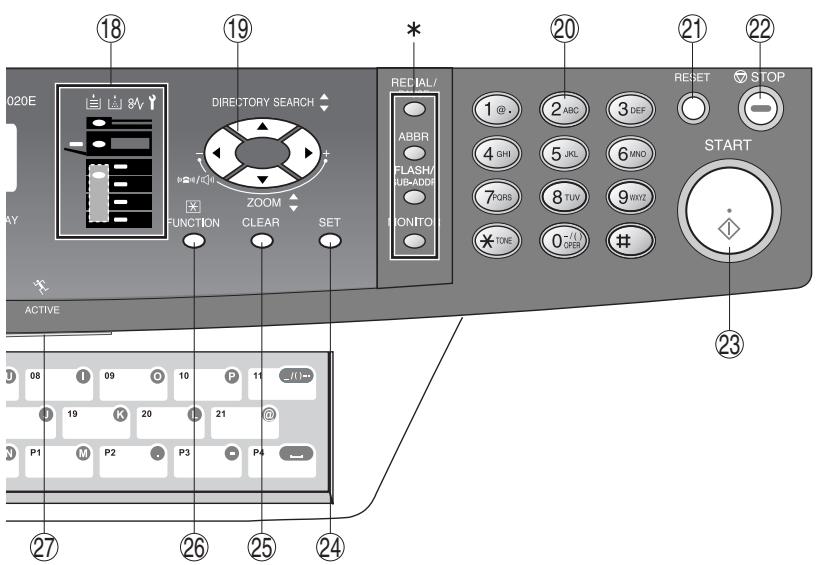

17	PAPER TRAY	PAPER TRAY Key Selects the paper tray.	18	Warning Indications When unit is used as a photocopier. Add Paper (See page 14) Replace Toner Bottle (See page 16) Remove misfed paper (See pages 16-21) Call Service For DP-8016P)

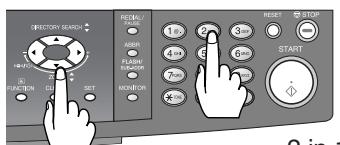

19	ZOOM	Cursor Key To select the zoom ratio, etc.
20	1	Keypad Sets copy quantities, etc.

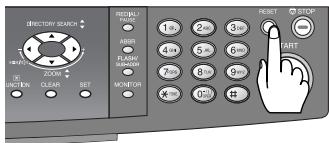

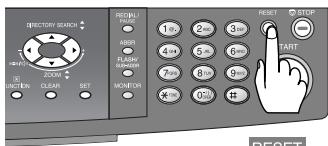

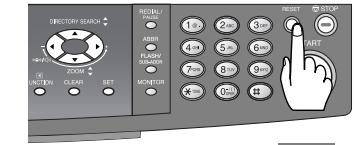

	2	RESET Key Reset all features to the initial power-on state of the active function.	22	STOP Key Stops the jobs. (Copy, Scan, etc.)

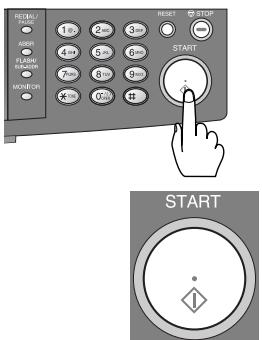

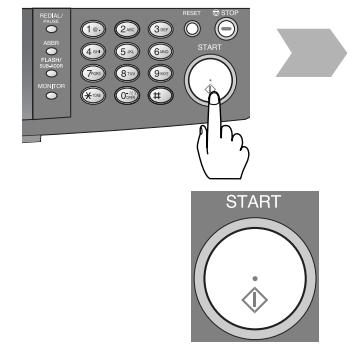

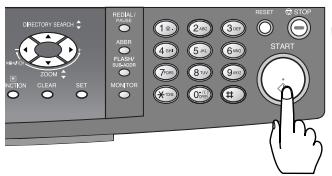

23	START	START Key Starts the jobs. (Copy, Scan, etc.)	24	SET Key Sets the parameter(s) of Function settings.
25	CLEAR	CLEAR Key Cleared the copy quantities, etc.	26	FUNCTION Key Used for changing the paper size, initial function values (default values) and key operator settings.
27	ACTIVE	ACTIVE LED (GREEN) Flashes when machine is in operation.	28	ALARM LED (RED) Lights/Flashes when trouble occurs.
29	S-FINE	Sets scanning resolution. (See page 70)		Lights: When the machine stops due to the following condition(s): ● No paper in the selected tray or toner has run out. ● Paper has misfed, etc. Flashes: When the machine alerts of the following condition(s): ● No paper in the Tray. (Tray not selected) ● Toner is getting low, etc.

NOTE:

To adjust the brightness of the LCD display, press and while holding down the CLEAR Key, keep pressing the ORIGINAL SIZE or COPY SIZE Key until the desired brightness is achieved.

ORIGINAL SIZE : Dimmer

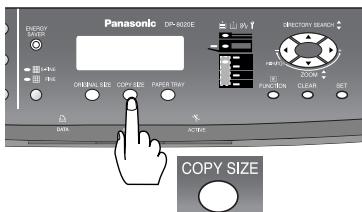

■ Copying the Same Size Originals (1:1)

Copy size is automatically selected.

Position of the Original(s)

For ADF/i-ADF* (Face Up)

• Feeds originals automatically Up to 50 Letter/Invoice size (20 lb (80g / m^2) ) (Up to 30 Legal/Ledger size)

• ADF for DP-8020E/8020P/ 8016P i-ADF for DP-8020E only

For Platen (Face Down)

Original Guides

• When copying a thick Booklet, do not close the ADF/i-ADF.

INV: Invoice, LTR: Letter
LGL: Legal, LDR: Ledger

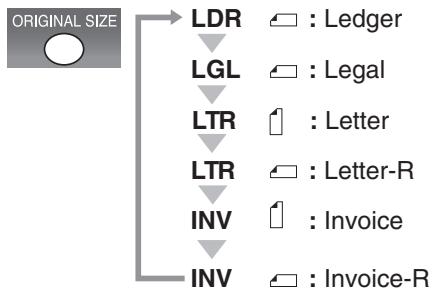

■ Copying with Preset or Variable Zoom Ratios

Preset Ratios (ex: Enlargement)
Variable Zoom Ratios

Copies with variable zoom ratios from 50% to 200% in 1% increments.

3

Select type of Original(s)

PHOTO :Mainly Photo

TEXT/PHOTO: Text and Photo combined

TEXT :Mainly Text

Adjust the Contrast Press DARKER or LIGHTER

Key (5 levels)

4

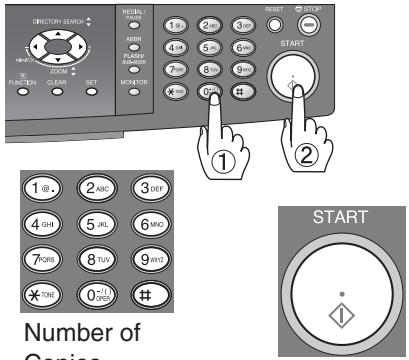

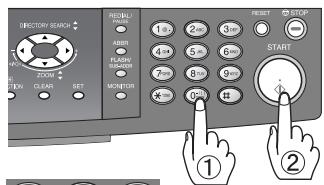

Number of

Copies

(Max. 999)

Using the ADF/i-ADF (Option)

Originals that cannot be used

Inappropriate Originals

Post Cards, Drawing Papers, Labelling Papers, Heavyweight Papers, Thin Art Papers, Film Thermal Papers
- Paper with a smooth surface such as glossy and coated papers
Transparencies
- Originals with a Lead Edge that is ripped, creased, folded, punched, or glued.
- Mixed width size Originals (except a combination of Ledger and Letter)
- Paste-ups
Pressure sensitive or carbon backed papers
Paper with excessive curl
Stapled originals
- Freshly printed copies from a laser printer
- Originals with fresh White-Out (Liquid paper correction fluid)

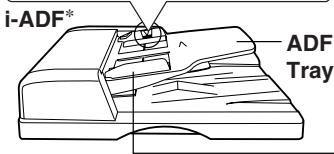

Set the originals up to the Upper Limit Indicator (A)

Original Guides

Adjust to the original's width

• ADF for DP-8020E/8020P/8016P i-ADF for DP-8020E only

3

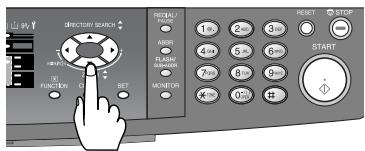

For Preset Ratios

For Variable Zoom Ratios

Up to 200% in 1%

Down to 50% in 1%

4

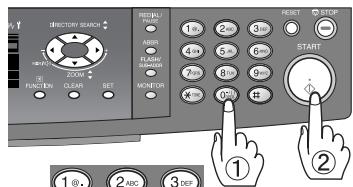

Number of Copies

(Max.999)

1 2 Copy, 2 2 Copy, 2 1 Copy (DP-8020E with optional i-ADF)

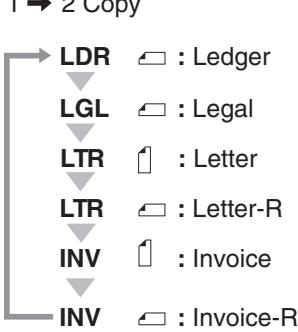

1 2 Copy
1-Sided
2-Sided Copy

2-Sided
2-Sided Copy

2 2 Copy

2-Sided
1-Sided Copy

2 1 Copy

1 For i-ADF
2

(1 2 Copy only)

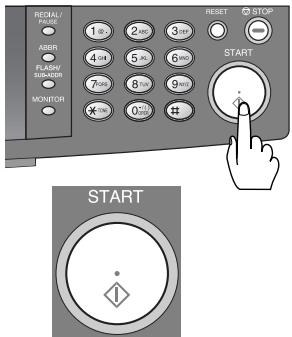

Steps 6 to 9 for 1 2 Copy from Platen:

ANOTHER ORIGINAL? 1:YES 2:NO

6

1: YES Go to next step.

NOTE: If “2: NO” is selected, the machine will start copying only one side of the original(s).

Next Original

3

4

Bind Position (Select within 10 sec.) (For 1 2 Copy, 2 1 Copy)

Long Edge

Short Edge

5

Number of Copies (Max. 999)

From Platen only.

8
9

The following steps, illustrate how to make multiple copies when the Sort Mode is selected. (See page 42)

ANOTHER ORIGINAL? 1:YES2:NO

1: YES Continues to copy another original, repeat steps 1 and 5-② to step 8.
2: NO Starts making copies.

10

Exits this mode.

2 → 2 Copy (DP-8020E with optional ADF)

2 1 Copy (DP-8020E/8020P*/8016P with optional ADF)

Copying 2 2 or 2 1 Copy with optional ADF (not i-ADF)

2 2 Copy 2-Sided 2-Sided Copy

2-Sided 2-Sided Copy

2 → 1 Copy 2-Sided → 1-Sided Copy

NOTE: If the memory overflows while scanning originals, all scanned data will be cancelled. If this occurs, restart from Step 1.

1 For ADF only

Odd Number Pages

Long Edge

Originals

Short Edge

Originals

2

1

向上

中

Place the reverse side of the original(s) of step 1 in the order and direction of ejection.

Step
5 Reverse Side

Even Number Pages

Long Edge Originals

(Select within 10 sec.)

(For 2 1 Copy only)

Long Edge

Short Edge

4

Number of

Copies

(Max. 999)

5

6

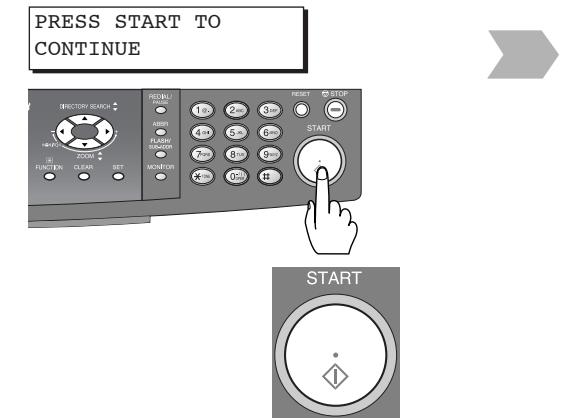

PRESS START TO CONTINUE

7

NOTE: If the page count for the Back side does not match the page count for the Front side (i.e. page double-fed) of the 2-Sided originals, a "TOTAL PAGE MISMATCH" will be displayed and all scanned data will be cancelled. If this occurs, restart from Step 1 and Step 4-② to Step 6.

8

Exits this mode.

Book 2 Copy (DP-8020E only)

Book 2-Sided Copy

The book format and page order can be set in the Copier Settings, Parameter No.

14 (BOOK 2 DEFAULT). (See page 58)

(Book Format: Flipping)

(Page Order: L → R)

For Book Format is Flipping:

Original Size: Ledger, Letter-R

Select Ledger or Letter-R size*

The following steps, illustrate how to make multiple copies when the Sort Mode is selected. (See page 42)

ANOTHER ORIGINAL? 1:YES 2:NO

1: YES

Continues to copy another original, repeat steps 1 and 4-

2: NO

Starts making copies.

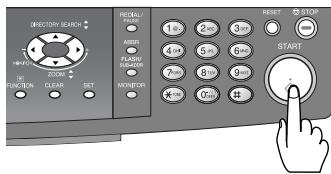

For Book Format is Facing:

Original Size: Ledger, Letter-R

Select Ledger or Letter-R size*

Next Original (page)

(Book Format: Facing)

Blank Page
(Page Order: L → R)

NOTE: * If the selected original size is not corrected, book original will not be copied correctly as sample images.

• If the memory overflows while scanning originals, this machine will indicate the error message and stop.

3

Select Book Original to 2-Sided Copy*

4

Number of Copies (Max. 999)

5

For Sort Mode only

6

Exits this mode.

NOTE: * The copy size will be automatically selected. If the selected paper size is not set into the paper tray(s), set paper on the Sheet Bypass (see page 14) or select another copy size with COPY SIZE Key (See page 25).

3

Select Book Original to 2-Sided Copy*

4

Number of Copies (Max. 999)

5

or
6

1: YES

Continues to Copy another page, proceed to step 6

2: NO

Starts making copies

The following steps, illustrate how to make multiple copies when the Sort Mode is selected. (See page 42)

8

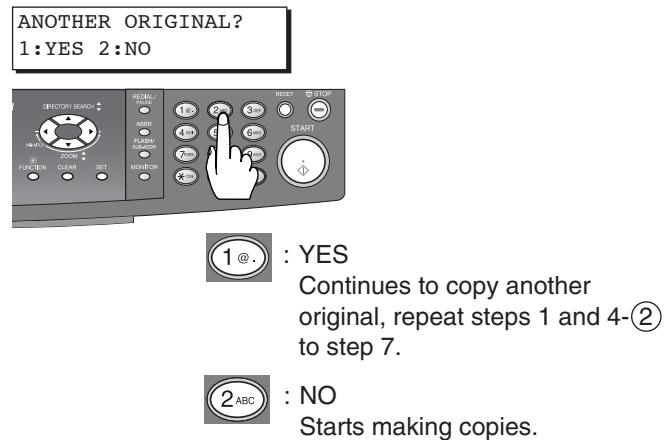

ANOTHER ORIGINAL? 1:YES 2:NO

1: YES Continues to copy another original, repeat steps 1 and 4-② to step 8.

2: NO Starts making copies.

9

Exits this mode.

N in 1

From two/four 1-Sided originals, side by side, to 1-Sided pages.

2 in 1 Copy

4 in 1 Copy

NOTE:

If the original's Orientation is incorrect when N in 1 copy mode is used, the copy sequence may not reproduce properly. If this occurs, change the N in 1 default Orientation in the Copier Settings, Parameter No. 05 (N in 1 DEF.) (See page 57)

Portrait

Landscape

1 For ADF

For i-ADF
or

2

5

4 in 1

2 in 1

1:2in1?

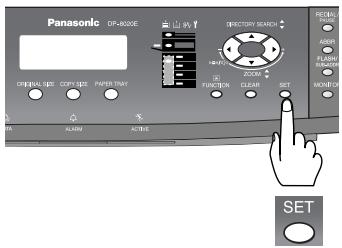

PRESS SET TO SELECT

or

4 in 1

2:4in12

PRESS SET TO SELECT

8
Next Original
9

PRESS START TO CONTINUE

Combination for N in 1 copy operation.

Mode	2 in 1
Originals	1	2	-		1	2
Layout	1	2	2	1	2	1
				2	1	2

3 For Preset Ratios

For Variable Zoom Ratios

Up to 200% in 1%

Down to 50% in 1%

4

6
7 Step 7 to 11 for Platen only

ANOTHER ORIGINAL? 1:YES 2:NO

1: YES Go to next step.

NOTE: If "2: NO" is selected, the machine will start copying one side of the scanned original.

11

10 For 4 in 1 Copy

ANOTHER ORIGINAL? 1:YES 2:NO

ANOTHER ORIGINAL? 1:YES 2:NO

1: YES Continues to copy another original, repeat steps 1 and 6-② to step 9 (10: 4 in 1).
2: NO Starts making copies.

12

(1) Select "1: YES".
② Repeat steps 8 and 9.
③ Select "1: YES".
④ Repeat steps 8 and 9.

Mode	4 in 1
Originals	1	2	3	4			-	2	3	4			1	2	3	4		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	0	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20	21	22	23	24	25	26	27	28	29	30	31	32	33	34	35	36	37	38	39	40	41	42	43	44	45	46	47	48	49	50	51	52	53	54	55	56	57	58	59	60	61	62	63	64	65	66	67	68	69	70	71	72	73	74	75	76	77	78	79	80	81	82	83	84	85	86	87	88	89	90	91	92	93	94	95	96	97	98	99	100	101	102	103	104	105	106	107	108	109	110	111	112	113	114	115	116	117	118	119	120	121	122	123	124	125	126	127	128	129	130	131	132	133	134	135	136	137	138	139	140	141	142	143	144	145	146	147	148	149	150	151	152	153	154	155	156	157	158	159	160	161	162	163	164	165	166	167	168	169	170	171	172	173	174	175	176	177	178	179	180	181	182	183	184	185	186	187	188	189	190	191	192	193	194	195	196	197	198	199	200	201	202	203	204	205	206	207	208	209	210	211	212	213	214	215	216	217	218	219	220	221	222	223	224	225	226	227	228	229	230	231	232	233	234	235	236	237	238	239	240	241	242	243	244	245	246	247	248	249	250	251	252	253	254	255	256	257	258	259	260	261	262	263	264	265	266	267	268	269	270	271	272	273	274	275	276	277	278	279	280	281	282	283	284	285	286	287	288	289	290	291	292	293	294	295	296	297	298	299	300	301	302	303	304	305	306	307	308	309	310	311	312	313	314	315	316	317	318	319	320	321	322	323	324	325	326	327	328	329	330	331	332	333	334	335	336	337	338	339	340	341	342	343	344	345	346	347	348	349	350	351	352	353	354	355	356	357	358	359	360	361	362	363	364	365	366	367	368	369	370	371	372	373	374	375	376	377	378	379	380	381	382	383	384	385	386	387	388	389	390	391	392	393	394	395	396	397	398	399	400	401	402	403	404	405	406	407	408	409	410	411	412	413	414	415	416	417	418	419	420	421	422	423	424	425	426	427	428	429	430	431	432	433	434	435	436	437	438	439	440	441	442	443	444	445	446	447	448	449	450	451	452	453	454	455	456	457	458	459	460	461	462	463	464	465	466	467	468	469	470	471	472	473	474	475	476	477	478	479	480	481	482	483	484	485	486	487	488	489	490	491	492	493	494	495	496	497	498	499	500	501	502	503	504	505	506	507	508	509	510	511	512	513	514	515	516	517	518	519	520	521	522	523	524	525	526	527	528	529	530	531	532	533	534	535	536	537	538	539	540	541	542	543	544	545	546	547	548	549	550	551	552	553	554	555	556	557	558	559	560	561	562	563	564	565	566	567	568	569	570	571	572	573	574	575	576	577	578	579	580	581	582	583	584	585	586	587	588	589	590	591	592	593	594	595	596	597	598	599	600	601	602	603	604	605	606	607	608	609	610	611	612	613	614	615	616	617	618	619	620	621	622	623	624	625	626	627	628	629	630	631	632	633	634	635	636	637	638	639	640	641	642	643	644	645	646	647	648	649	650	651	652	653	654	655	656	657	658	659	660	661	662	663	664	665	666	667	668	669	670	671	672	673	674	675	676	677	678	679	680	681	682	683	684	685	686	687	688	689	690	691	692	693	694	695	696	697	698	699	700	701	702	703	704	705	706	707	708	709	710	711	712	713	714	715	716	717	718	719	720	721	722	723	724	725	726	727	728	729	730	731	732	733	734	735	736	737	738	739	740	741	742	743	744	745	746	747	748	749	750	751	752	753	754	755	756	757	758	759	760	761	762	763	764	765	766	767	768	769	770	771	772	773	774	775	776	777	778	779	780	781	782	783	784	785	786	787	788	789	790	791	792	793	794	795	796	797	798	799	800	801	802	803	804	805	806	807	808	809	810	811	812	813	814	815	816	817	818	819	820	821	822	823	824	825	826	827	828	829	830	831	832	833	834	835	836	837	838	839	840	841	842	843	844	845	846	847	848	849	850	851	852	853	854	855	856	857	858	859	860	861	862	863	864	865	866	867	868	869	870	871	872	873	874	875	876	877	878	879	880	881	882	883	884	885	886	887	888	889	890	891	892	893	894	895	896	897	898	899	900	901	902	903	904	905	906	907	908	909	910	911	912	913	914	915	916	917	918	919	920	921	922	923	924	925	926	927	928	929	930	931	932	933	934	935	936	937	938	939	940	941	942	943	944	945	946	947	948	949	950	951	952	953	954	955	956	957	958	959	960	961	962	963	964	965	966	967	968	969	970	971	972	973	974	975	976	977	978	979	980	981	982	983	984	985	986	987	988	989	990	991	992	993	994	995	996	997	998	999	1000

2 Page Copy

Copying two facing pages or a Ledger size original on two separate Letter size sheets.

Page Order: L→R
Starts copying from the Left page

Page Order: R→L
Starts copying from the Right page

NOTE:

The page order can be set in the Copier Settings, Parameter No. 16 (2 PAGE MODE DEF.)

(See page 58)

Default Page Order: L→R

1

Platen

Example: Ledger size original

2

6

The following steps, illustrate how to make multiple copies when the Sort Mode is selected. (See page 42)

ANOTHER ORIGINAL? 1:YES 2:NO

1: YES Continues to copy another original, repeat steps 1 and 5-②.
2: NO Starts making copies.

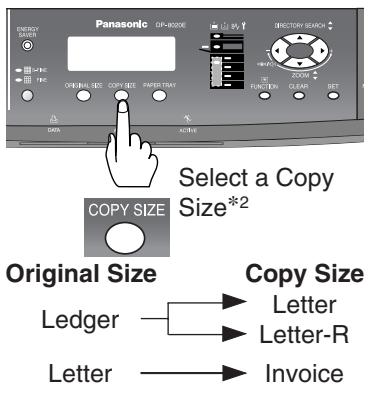

3

4

5

6

Number of Copies (Max. 999)

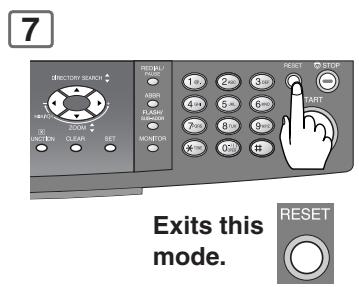

7

Exits this mode.

NOTE: *1 If the selected original size is not corrected, the book original image will not be copied correctly.

^*2 A copy size will be automatically selected. If the selected copy size paper is not set into the paper tray(s), set paper on the Sheet Bypass (see page 14) or select another copy size using the COPY SIZE Key (see page 25).

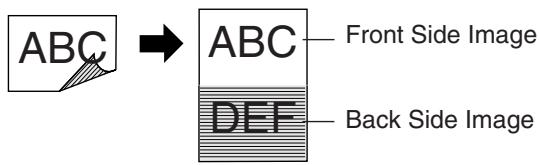

Double Exposure

From 2-Sided originals to 1-Sided copies (side-by-side image).

Original Size:

Letter or Invoice

Copy Size:

Letter-R

ex. Invoice

NOTE:

When copying portrait original, set the Portrait in the Copier settings, "1:ORIENTATION of Parameter No. 05 N in 1 DEF." (See page 57)

ex. Invoice-R

Copy Size: Letter

NOTE:

When opening the Platen Cover or optional ADF/i-ADF

• An incorrect position detection of the original may occur when a strong light shines on the glass during this mode.
• An incorrect exposure may occur when there is a black line at the edge of the original or an image which the machine interprets as a black pattern in this mode.
• The final copy may be affected if colored background original(s) do not have a white edge or if it is less than 2 ~mm wide.

The default setting of Digital Skyshot Mode should be set to "OFF" in the Copier Settings, Parameter No. 07 (DIGITAL SKYSHOT).

1

Front Side of Original

Original Size:

Letter or Invoice size only

ANOTHER ORIGINAL? 1:YES 2:NO

5

1: YES

NOTE

If "2: NO" is selected, the machine will start copying only scanned original.

9

Exits this mode.

2

3

4

6
Back Side of Original

7
8

The following steps, illustrate how to make multiple copies when the Sort Mode is selected. (See page 42)

ANOTHER ORIGINAL? 1:YES 2:NO

1: YES Continues to copy another original, repeat steps 1 and 4-② to step 7.

2: NO Starts making copies.

Erase (Margin/Edge)

Margin

Shifts image to left, right, top or bottom.*

Edge

Creates a blank edge.*

NOTE:

• Shift position of Margin and blank edge value can be changed with Copier Setting Mode. (See page 57)

1 For ADF

For i-ADF

or

2

6 For Margin

For Edge

ERASE Key
changes from
flashing to
continuous lit status.

Erase (Book)

Book

Eliminates dark inner binding shadows.

1

2

6

5-99mm

3

This Key will flash.

4

ERASE MODE (1-3)
ENTER NO. OR v^

or
: MARGIN

:EDGE

5

1:MARGIN?
PRESS SET TO SELECT

2:EDGE?
PRESS SET TO SELECT

or

6

7

1
Number of
Copies
(Max. 999)

8

Exits this mode.

3

4

ERASE MODE (1-3)
ENTER NO. OR

01
: Book

5

3:BOOK?
PRESS SET TO SELECT

6

7

Number of
Copies
(Max. 999)

8

Exits this mode.

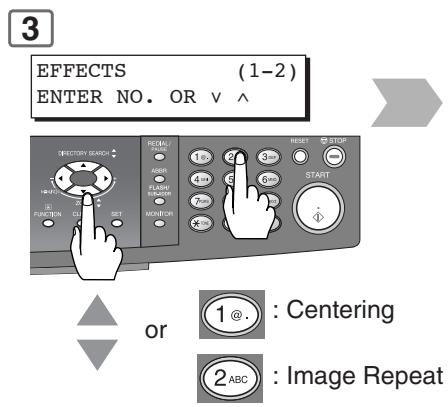

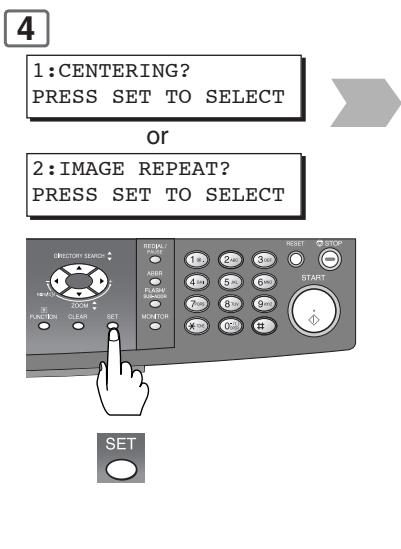

■ Effects (Centering/Image Repeat)

Centering

Copy image can be centred automatically on selected paper.

1
Open the ADF or Platen Cover

2

Image Repeat

Creates continuous copy image on one sheet. Minimum original size: 20 × 20 mm .

The dotted line can be set to "None" or "Print" by the Copier Settings, Parameter No. 15 (IMAG. REPEAT DOT.) (See page 58).

NOTE:

• The final copy may be affected if colored background original(s) do not have a white edge or if it is less than 2 ~mm wide. The default setting of Digital Skyshot Mode should be set to "OFF" in the Copier Settings, Parameter No. 07 (DIGITAL SKYSHOT).
• Remove the originals from the ADF before selecting the Centering, and Image Repeat mode.
  An incorrect position detection of the original may occur when a strong light shines onto the glass during the Centering, and Image Repeat mode.
  Also an image which the copier interprets as a black pattern in the Centering, and Image Repeat modes.

6

NOTE: Tray-2, 3 and 4 are options. (See page 69)

Sort

Sort

Multiple copy sets are sorted automatically.

Rotate-Sort

Multiple copy sets are sorted automatically and are stored on the Output Tray in alternate direction (rotate). Initial Sort-Rotate Mode is "1:OFF", this setting can be selected within the Copier's General Settings. (See page 54)

(Available Letter size paper only)

Non-Sort

Copy is stored on the Output Tray.

NOTE

Initial Sort Mode settings can be selected within the Copier Settings, Parameter No. 10 (SORT PRIORITY ADF) or Parameter No. 11 (SORT PRIOR. GLASS). (See pages 57 and 58)

Initial Sort Priority Setting:

For ADF: 2:Sort; For Platen: 1:Non-Sort

1 For ADF

For i-ADF

or

2

—Lights

Sort mode is selected.

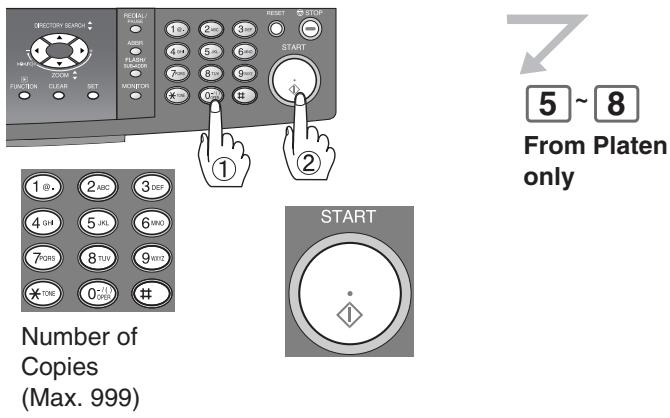

Steps 5 to 8 from Platen only

5

ANOTHER ORIGINAL? 1:YES 2:NO

1: YES

Go to next step

NOTE

If "2: NO" is selected, the machine will start copying one side of the original(s).

6

Next Original

3

4

7

8

Skyshot Mode

Skyshot allows copying a manuscript without generating dark borders even if the Platen Cover or ADF is opened.

Two types of Skyshot modes can be selected;

Digital Skyshot Mode : The scanning area (size) is not pre-determined.

Manual Skyshot Mode: The scanning area (size) is pre-registered into memory (M1 and M2) in advance.

Digital Skyshot Mode

The default setting of Digital Skyshot Mode is "NORMAL". This default setting can be changed in the Copier Settings. (See page 57)

NOTE

The default setting of Digital Skyshot Mode is "NORMAL". In this setting, the unit scans once. If there are black areas around the borders in the copies, set the Digital Skyshot Mode to "QUALITY" to soften the dark borders. In this setting, the unit scans twice.

OFF : NONE

NORMAL : Default setting (usually select this mode).

QUALITY: For better definition, select the Quality mode.

• The final copy may be affected if colored background original(s) do not have a white edge or if it is less than 2mm wide. The default setting of Digital Skyshot Mode should be set to "OFF" in the Copier Settings, Parameter No. 07 (DIGITAL SKYSHOT).

1
Open the ADF more than 45 degrees wide.

Manual Skyshot Mode

Enable the Copier Settings, Parameter No. 08 (MANUAL SKYSHOT) first. (See page 57)

NOTE

• Other jobs requiring memory cannot be performed, while M1 and M2 buttons are being used for the Skyshot mode.

From Platen

1

2

3

NOTE

An incorrect position detection of the original may occur when a strong light shines onto the glass during digital skyshot mode.
- An incorrect exposure may occur when there is a black line at the edge of the original or an image which the machine interprets as a black pattern in the digital skyshot mode.

2

Custom size*

or

* Default M1/M2 size can be changed by Function mode. (See page 58)

3

(Max. 999)

■ Job Build and SADF Mode

Special originals (like thin paper, etc.) can be fed from the ADF Tray and copied continuously using the Job Build and SADF Mode.

NOTE: Set the Copier Settings, Parameter No. 12 (SADF DEFAULT) to "OFF" position in advance. (See page 59) Thin paper: minimum 15 lb (55g / m^2)

For ADF
For i-ADF

Select desired settings

Example: To make 5 sets of sorted copies of 80 sheets of originals. (Letter size)

For ADF
For i-ADF

Place the first 50 sheets of originals on the ADF Tray.

Select desired settings

Concurrent Copying

The next copy job can be reserved even if the current copy job is not completed.

(Requires the optional Hard Disk Drive and Image Memory (See page 69) to be installed)

For ADF
For i-ADF

or

Select desired settings

NOTE

• Job Build and SADF function cannot be combined with 2 1 and 2 2 .
• Concurrent Copying function cannot be used when the Job Build and SADF function are set to the "ON" position in the Copier Settings, Parameter No. 12 (SADF DEFAULT). (See page 59)

3
Number of Copies
(Max.999)

4
For ADF
For i-ADF

Place the next original within 5 sec. of last ejected original.

Starts the printing process.

3

Select the Sort mode
Lights
Sort mode is selected.

4
Number of
Copies
(Max.999)
(ex. 5)

5
For ADF
For i-ADF
Place the next original within 5 sec. of last

ejected original. (30 sheets)

Starts the printing process. (ex. 5 sets of 80 sheet sorted copies)

3

Number of
Copies
(Max.999)

- Next Jobs can be reserved (up to 12 jobs).

Starts making a copy

4

When starting the printing process:

Set the next copy job, repeat steps 1 to 3.

Next original(s) will be scanned.

5
When the 1st copy job is completed, next original(s) will be automatically printed.

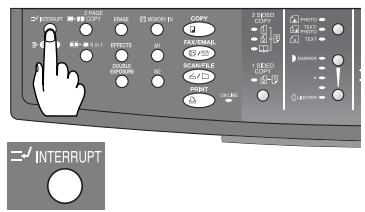

Interrupt Mode

This mode interrupts the current running copy job and allows other copy jobs to be processed.

1

Other Job

For ADF

For i-ADF

(See pages 24-43)

■ Energy Saver (Power Saver Mode, Sleep/Shutdown Mode)

These modes save power while the machine is not in use.

Power Saver Mode

To enter

Automatically enters the Power Saver Mode after 10 minutes from the last job.*

Flashes : Power Saver Mode

Sleep/Shutdown Mode

Automatically enters the Sleep/ Shutdown Mode after 10 minutes from the last job.*

Lights : Sleep/Shutdown Mode

NOTE

• To adjust the default Sleep/Shutdown Mode timer, see page 54.

Job Memory

Two Copy Jobs can be stored in Memory (M1 to M2) for recall at a later time.

Set up the copy job to be stored. (See pages 24-43)

To store a job in memory

1

To exit

or Any Key

To exit

NOTE

• JOB MEMORY mode will not be deleted even if the power switch is turned Off.
• When using the manual skyshot mode, the M1 and/or M2 are turned On and other job requiring memory cannot be used.

3
4
Other Job is completed

5

6

Modes	Power Consumption	Warm Up Time	Unavailable Functions
Standby	Approx. 120 W	—	——
Power Saver	Approx. 19.5 W	Approx. 30 sec.	——
Sleep	Approx. 8.5 W	Approx. 30 sec.	——
Shutdown	Approx. 1.6 W	Approx. 30 sec.	• Printer Function (Local USB and Network Connection) • Internet Fax/Email Function • Facsimile Function (If the LAN Cable is not connected, and the "DHCP DEFAULT" is set to "VALID", while in this mode (Shutdown), the machine will not answer an incoming Fax call) (See page 55)

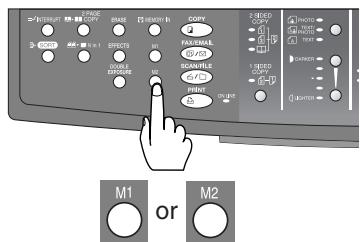

To recall a job stored in memory

1

2

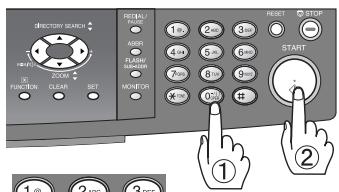

3

When the original size is not shown on the LCD display after selected M1 or M2, select original size with the Original Size Key.

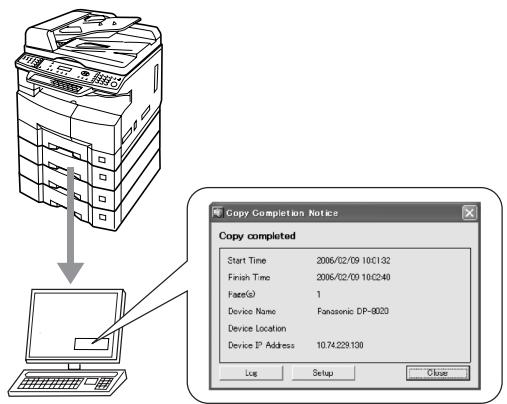

Completion Notice

If Completion Notice is set, you will be notified on your computer when copying is completed.

Before using this function, install the Panasonic Document Management System (Communications Utility), and the Printer Driver (with Job

Status Utility) on your computer, and then configure each software referring to Setting up the Scanner

Configuration using the

Communications Utility, and Setting up the Completion Notice. (See Page 72)

1

Communications Utility Icon

Job Status Utility Icon

Confirm that the Communications Utility, and the Job Status Utility icons are displayed on the task bar of your PC.

• If they are not, click Start button, and then select [All Programs] -> [Panasonic] -> [Panasonic Document Management System]

• Communications Utility to activate the Communications Utility icon, and/or select [All Programs] -> [Panasonic] -> [Job Status Utility] -> [Job Status Utility] to activate the Job Status Utility icon.

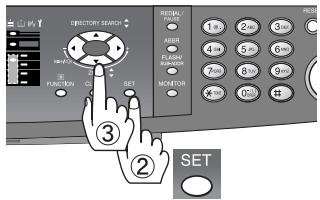

Select a Station (PC's Address)

4-1

ABBR
DIRECTORY search
ONE-TOUCH

ABBR [ ] ENTER ABBR No.

4-1

DIRECTORY search

ENTER LETTER(S)

4-1

<10> PANA
10.74.252.63

NOTE

• "ONE-TOUCH" is available when the optional Keyboard (DA-KB180) is installed.
• This Completion Notice is available only when connected to the Network. To reset the Completion Notice, press COPY key and FUNCTION key simultaneously.

2
For ADF

For i-ADF

or

3
and

Press COPY key and FUNCTION key simultaneously

COMPLETION NOTICE SELECT DESTINATION

4-1

4-2
ABBR No. (2-digit)

4-2
① Enter letter(s)

(See page 70)

5

6

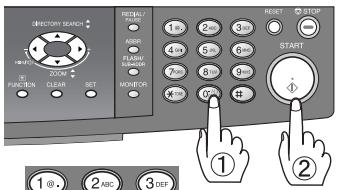

Number of

Copies
(Max. 999)

Copy Job Completed Notice will be displayed on your PC.

Using Function Modes to Change the Initial Machine Modes

General Settings:

Changing the Initial Machine Modes

• Power On Default Mode, Key Operator Mode, etc. (See page 54)

For Key Operator:

Paper Size, Department Counter, Network TCP/IP settings, etc.

(See pages 54 - 56)

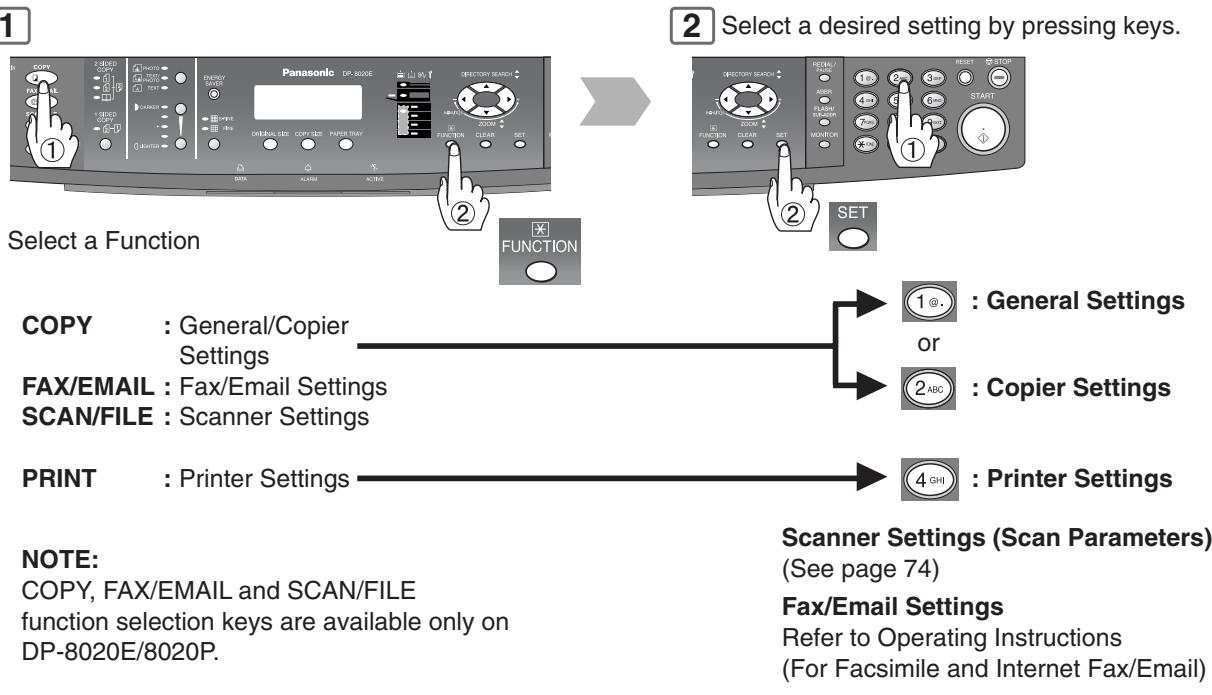

Procedure

1

NOTE

• Please refer to the appropriate operating instructions manual for function settings on options.
• Function setting is accessible only when the machine is in Ready Mode.
• Fax/Email Settings are only available when optional Fax Communication Board is installed. (See page 69)

Copier Settings:

Changing the Initial Copier Modes

• Default function of each copy mode. (See pages 57 and 58)
  For Key Operator: Original mode, Contrast, etc. (See pages 58 and 59)

Printer Settings:

Changing the Initial Printer Modes

• Default function of each print mode. (See page 59)
  For Key Operator: Job completion time, Page protection, Error page print, Spool function, PS configuration, Font list print, Mailbox data handling, etc. (See page 60)
• Normally, you do not need to set the Printer Settings. Special Printer Settings may be required when printing text data directly to the printer from the MS-DOS command prompt.

Scanner Settings:

Changing the Initial Scanner Modes
- Original mode, Compression mode, Resolution, etc. (See page 61)

Fax/Email Settings:

Changing the Initial Fax/Email Modes Refer to Operating Instructions (For Facsimile & Internet Fax/Email).

3

Select a mode with the Cursor Key or Keypad

When selecting the Key Operator Mode: (Ex: General Settings)

4

Setting the desired Function Parameter(s).

① Select a setting with the Keypad.
② Confirm a setting with the SET Key.

5

Exits this Function Mode

4

Input the Key Operator Password (3-digit) (See page 13)

5

Set the desired Function Parameter(s).

① Select a mode with the Cursor Key or Keypad.
② Select a setting with the Keypad.
③ Confirm a setting with the SET Key.

6

Exits this Function Mode

General Settings

No.	Modes	Function	Initial Setting
00	POWER ON DEFAULT	Selects the default operation mode. 1: COPY / 2:FAX / 3:PRINTER / 4:SCANNER (Fax is option, see page 69)	1: COPY
01	SORT MEMORY USAGE	Selects whether to display the amount of sort memory used on the control panel. 1:OFF / 2:DISPLAY	1: OFF
02	DEPT. COUNTER	Displays the Total Copy usage and copy limit of the selected department.	Consult your authorized Panasonic dealer
03	SORT-ROTATE	Selects the rotate-sort mode. 1:OFF / 2:ON (Available for Letter size paper only)	1:OFF
07	MANUAL ADD TONER	Adds toner manually. PRESS SET TO SELECT
09	KEY OPERATOR MODE	Inputs the key operator password. ENTER PASSWORD = ■■■

NOTE: When inputting the above General Settings numbers, there is no need to input the "0" for the first digit, input only the second number of the two digit display.

The following Parameter Settings require the input of the Key Operator Password:
■ General Settings (For Key Operator)

No.	Modes	Function	Initial Setting
00	GENERAL LIST	Prints the general settings list, and meter count readings.PRESS SET TO PRINT
01	PAPER SIZE	Selects the Paper Tray and sets the Paper Size.(See page 62)1:TRAY-1 / 2:TRAY-2 / 3:TRAY-3 / 4:TRAY-4(TRAY-2 to 4 are option)LETTER ➔ LETTER ➔ INVOICE ➔ A3 ➔ B4 ➔ A4 ➔ A4 ➔ B5 ➔ B5 ➔ A5 ➔ A5 ➔ FLS1 ➔ FLS2 ➔ LEDGER ➔ LEGAL ➔	3:1 min.
03	AUTO RESET TIME	Selects the Control Panel reset time.1:OFF / 2:30 sec / 3:1 min. / 4:2 min. / 5:3 min. /6:4 min.
04	ENERGY Saver MODE	Sets the Energy Saver mode and time.1:INVALID / 2:POWER Saver / 3:SLEEP /4:SHUTDOWNPower Saver mode timer: 1-240 min.Sleep/Shutdown mode timer: 1-240 min.	3:SLEEP10 min.
05	ENERGY Saver TIME	Sets the Energy Saver Timer (Sleep or Shutdown mode).Start (ON) : 00:00 End (OFF) : 00:00Input the Start and End time with Cursor Keys and Keypad. Once you set the above timer, the set timer repeats everyday.	Start00:00End00:00
06	LANGUAGE DEFAULT	Selects the default message language for the display.1:A-ENGLISH / 2:C-FRENCH / 3:SPANISH	1:A-ENGLISH
07	SPECIAL TRAY 1	Selects the paper tray to use for special paper.1:NONE / 2:TRAY-1 / 3:TRAY-2 / 4:TRAY-3 /5:TRAY-4 / 6:BYPASS(Only available when optional TRAY-2 and 3/4are installed. see page 69)	1:NONE
08	SPECIAL TRAY 2	Selects the paper tray to use for special paper.1:NONE / 2:TRAY-1 / 3:TRAY-2 / 4:TRAY-3 /5:TRAY-4 / 6:BYPASS(Only available when optional TRAY-2 and 3/4 are installed. see page 69)	1:NONE
09	KEY/TOUCH BEEP	Selects the default key sound level.1:OFF / 2:SOFT / 3:LOUD	2:SOFT
10	BYPASS SET BEEP	Selects whether to sound a Beep when paper is set on the Sheet Bypass.1:INVALID / 2:VALID	1:INVALID
11	ORIG. SET BEEP ADF	Selects whether to sound a Beep when paper is placed on the ADF.1:INVALID / 2:VALID	2:VALID
12	PAPER OUT ROTATE	Machine will automatically rotate the image to accommodate the orientation of the paper in another Tray and print when the selected Tray is empty.1:OFF / 2:ON	1:OFF
13	DEPT. COUNTER MODE	Monitors the copy usage of each department.1:TOTAL COUNTER2:DEPT. COUNTER3:DEPARTMENT LIST	Consult your authorized Panasonic dealer
16	LANGUAGE PRIORITY	Selects whether to enable the language selection menu to display when the machine comes out of the Energy Saver Mode, or when the RESET button is pressed once.1:OFF / 2:ON	1:OFF
17	DATE & TIME	Sets the date and time.(Month, Day, Year, Time)Input the date and time with Cursor Keys and Keypad.
18	DAYLIGHT TIME	Set Daylight Time according to your local regulation.1: OFF : Daylight Time is not applied2: MAR 2nd : From 2 a.m. on the 2nd Sunday of March to 2 a.m. on the 1st Sunday of NovemberThe date setting shown above reflects the New Regulation starting in 2007. In 2006, the Daylight Time will end on the Last Sunday of October.3: APR 1st : From 2 a.m. on the 1st Sunday of April to 2 a.m. on the Last Sunday of October	2: MAR 2nd
19	IP ADDRESS (DHCP)*1,*2	Displays the IP Address which was reserved by DHCP server.
20	SUBNET MASK(DHCP)*1,*2	Displays the Subnet Mask Address which was reserved by DHCP server.
21	DEF. G/W IP(DHCP)*1,*2	Displays the Gateway IP Address which was reserved by DHCP server.
22	DHCP DEFAULT*3	Selects whether to enable the DHCP.1:INVALID / 2:VALID	2:VALID

NOTE

1 When setting other than DHCP server Network settings, Parameter No. 22 (DHCP DEFAULT) should be set to "INVALID" first, then setup Parameters No.19 to 21.
2 When Parameters No. 19 to 23 (except 22) are set, cycle the power by turning the Power Switch on the Right Side of the machine OFF and ON.
*3 When not connecting to LAN, the setting of DHCP should be on INVALID. When the setting of DHCP is on VALID, and the machine is in Shutdown Mode, the machine will not answer an incoming Fax call.

■ General Settings (For Key Operator) (Continued)

No.	Modes	Function	Initial Setting
23	DNS SERVER ADDR.*2	Selects whether to enable the DNS Server, and sets its settings for Internet Fax/Email Function.1:INVALID2:VALID1:HOST NAME / 2:DOMAIN NAME /3:PRI. DNS SERVER (IP ADDRESS1) /4:SEC. DNS SERVER (IP ADDRESS2)	2:VALID
24	MAC ADDRESS	Indicates the MAC address.
25	HARD DISK FORMAT*4	Formats the hard disk.PRESS SET TO START
26	HARD DISK ERR CHK*4	Selects the provision for the hard disk error check.PRESS SET TO START
27	ABBR GROUP ID	Inputs the Group ID for the address book.0-99	0
28	COMMUNITY NAME(1)*5	Selects whether to change the Community Name(1) SNMP Enable read only	public
29	COMMUNITY NAME(2)*5	Selects whether to change the Community Name(2) SNMP Enable read/write	public
30	DEVICE NAME*5	Inputs the device name when required.(For Status Monitor/EtherTalk Machine Name)
31	DEVICE LOCATION*5	Inputs the device location when required.(For Status Monitor)
33	USER AUTH*6	Set the User Authentication Mode.COPY1:INVALID / 2:VALIDFAX1:INVALID / 2:VALIDPRINTER1:INVALID / 2:VALIDSCANNER1:INVALID / 2:VALID	INVALIDINVALIDINVALID
34	AUTH DOMAIN	Inputs the Authentication Domain NameDomain Name: Up to 15 charactersDNS Domain Name: Up to 60 characters.

NOTE 4 Available only when the optional Hard Disk Drive Unit is installed.
5 When Parameters No. 28 to 31 are set, cycle the power by turning the Power Switch on the Right Side of the machine OFF and ON.
*6 About the User Authentication, See Operating Instructions "For User Authentication".

Copier Settings

No.	Modes	Function	Initial Setting
00	MARGIN DEFAULT	Selects the margin shift value.1:POSITION / 2:VALUE<sub>Sub-Function>1:LEFT / 2:RIGHT / 3:TOP / 4:BOTTOMProcedure:Select "1:POSITION" and select a Margin position then, select "2:VALUE" and input a shift value with Keypad.	1:LEFT10 mm
01	EDGE DEFAULT	Selects the edge width.1:EQUAL RATE (X & Y) / 2:INDIVIDUALProcedure:Select "1:EQUAL RATE (X & Y)" or "2:INDIVIDUAL" then, input a edge value with Keypad.EQUAL RATE (X & Y): same edge value INDIVIDUAL: different edge values (X and Y)	1:EQUAL RATE(X & Y)5 mm
02	BOOK MARGIN DEF.	Selects the book void width.5 - 99 mm	20 mm
03	FRAME MARGIN	Select whether to set the frame margin.1:INVALID / 2:VALID	1:INVALID
04	2-SIDED MODE DEF.	Selects the default duplex priority mode.1:OFF / 2:1→2 / 3:2→2 / 4:BOOK→2	1:OFF
05	N in 1 DEF.	Selects the N in 1 default mode.Procedure: Select a Function(ex: ORIENTATION) then, select a Sub-Function (ex: PORTRAIT)1:ORIENTATIONSelect from the following original sizes:Ledger (□), Legal (□), Letter (□),Letter-R (□), Invoice (□) or Invoice-R (□).<Sub-Function>1:PORTRAIT / 2:L-SCAPE2:LAYOUT<Sub-Function>1:2 in 1 / 2:4 in 1<Sub-Function: 2in1>1:L→R / 2:R→L<Sub-Function: 4in1>1:12/2:13/3:21/4:31344342	1:ORIENTATION<sub>Sub-Function>For Ledger/Letter-R/Invoice2:L-SCAPEFor Legal/Letter1:PORTRAIT2:LAYOUT1:2 in 1<sub>R</sub>
06	N in 1 WITH FRAME	Selects whether to enable the edge deletion.1:INVALID / 2:VALID	1:INVALID
07	DIGITAL SKYSHOT	Selects the default digital skyshot mode.1:OFF / 2:NORMAL / 3:QUALITY	2:NORMAL
08	MANUAL SKYSHOT	Selects whether to enable the Manual Skyshot.1:OFF / 2:M1 ON / 3:M2 ON / 4:M1,M2 ON	1:OFF
09	AUTO EXPOSURE	Selects whether the auto exposure is enabled.1:INVALID / 2:VALID	2:VALID
10	SORT PRIORITY ADF	Selects the sort priority when using the ADF.1:NON-SORT / 2:SORT	2:SORT
11	SORT PRIOR. GLASS	Selects the sort priority when using the Platen. 1:NON-SORT / 2:SORT	1:NON-SORT
12	1→2 BINDING DEF.	Selects the binding location for 1→2 Copy. 1:LONG EDGE / 2:SHORT EDGE	1:LONG EDGE
13	2→1 BINDING DEF.	Selects the binding location for 2→1 Copy. 1:LONG EDGE / 2:SHORT EDGE	1:LONG EDGE
14	BOOK → 2 DEFAULT	Selects the page layout of the Book→2 copy. 1:BOOK FORMAT <Sub-Function> 1:FACING / 2:FLIPPING 2:PAGE ORDER <Sub-Function> 1:L→R / 2:R→L	1:BOOK FORMAT 2:FLIPPING 2:PAGE ORDER 1:L→R
15	IMAG. REPEAT DOT.	Selects whether to print the dotted line. 1:NONE / 2:PRINT	2:PRINT
16	2 PAGE MODE DEF.	Selects the page order of 2 page copy. 1:L→R / 2:R→L	1:L→R
19	KEY OPERATOR MODE	Inputs the key operator password. ENTER PASSWORD =■■■

The following Parameter Settings require the input of the Key Operator Password:

Copier Settings (For Key Operator)

No.	Modes	Function	Initial Setting
00	COPY SETTING LIST	Prints the copier settings list.PRESS SET TO PRINT
01	ORIGINAL (HOME)	Selects the halftone default setting.1:TEXT / 2:TEXT/PHOTO / 3:PHOTO	2:TEXT/PHOTO
02	TEXT CONTRAST	Selects the default contrast setting for the Text mode.1-5	3
03	T/P CONTRAST	Selects the default contrast setting for the Text/Photo mode.1-5	3
04	PHOTO CONTRAST	Selects the default contrast setting for the Photo mode.1-5	3
05	MAX. COPY SETTING	Select the maximum number of copies allowed per job.1-999	999
06	M1,SIZE	Inputs the frequently used size in job memory 1.Procedure:Input X size (5 - 432) and press SET Key then, input Y size (5 - 297) with Keypad.	70 x 160 mm
07	M2,SIZE	Inputs the frequently used size in job memory 2.Procedure:Input X size (5 - 432) and press SET Key then, input Y size (5 - 297) with Keypad.	95 x 220 mm
08	MEM. FULL ACTION	Selects the action to take during memory full condition.1:PRINT / 2:CANCEL	1:PRINT
09	TONER SAVE (TEXT)	Selects the Toner Save Level to use for the Text mode.1:NONE / 2:LEVEL1 / 3:LEVEL2	1:NONE
10	TONER SAVE (T/P)	Selects the Toner Save Level to use for the Text/Photo mode. 1:NONE / 2:LEVEL1 / 3:LEVEL2	1:NONE
11	TONER SAVE (PHOTO)	Selects the Toner Save Level to use for the Photo mode. 1:NONE / 2:LEVEL1 / 3:LEVEL2	1:NONE
12	SADF DEFAULT	Selects whether the Job Build and SADF Mode is enabled. 1:OFF / 2:ON	1:OFF

■ Printer Settings

No.	Modes	Function	Initial Setting
00	NUMBER OF PRINTS	Sets the default number of prints. 1-999	1
01	PAPER SIZE	Sets the default paper size setting. LETTER / INVOICE / FLS1 / FLS2 / A3 / B4 / A4 / B5 / A5 / LEDGER / LEGAL	LETTER
02	PAPER TRAY	Sets the default Paper Tray selection. AUTO / BYPASS / TRAY-1 / TRAY-2 / TRAY-3 / TRAY-4	Auto
03	PRINT DIRECTION	Sets the default print orientation setting. 1:PORTRAIT / 2:L-SCAPE	1:PORTRAIT
04	PRINT DATA	Determines the provision of the print data. PRESS SET TO PRINT
05	2-SIDED PRINT	Selects whether the 2-Sided print setting is enabled. 1:OFF / 2:ON	1:OFF
06	BIND POSITION	Sets the default bind position. 1:LONG EDGE / 2:SHORT EDGE	1:LONG EDGE
07	RESOLUTION	Sets the default resolution setting. 1:300dpi / 2:600dpi / 3:1200dpi	2:600dpi
08	FONT (PCL)*1	Sets the default PCL font. 0-99	0
09	SYMBOL TABLE (PCL)*1	Sets the default PCL symbol table. 0-35	11
10	PITCH (PCL)*1	Sets the default PCL pitch. 0.44-99.99	10.00
11	POINT SIZE (PCL)*1	Sets the default PCL point size. 4.00-999.75	12.00
12	LINES/PAGE (PCL)*1	Sets the default PCL lines/page. 5-128	60
13	RETURN CHARACTER (PCL)*1	Sets the default PCL return character. 1:CR / 2:CR+LF	1:CR
14	MUTUAL A4/LETTER	Selects whether the mutual size A4/LETTER is enabled. 1:OFF / 2:ON	1:OFF
15	MAILBOX MEMORY*2	Indicates the mailbox memory status. PRESS SET TO SELECT
19	KEY OPERATOR MODE	Inputs the key operator password. ENTER PASSWORD = ■■■

1 Available only when the optional Printer Controller Module is installed.
2 Available only when the optional Hard Disk Drive Unit is installed.

The following Parameter Settings require the input of the Key Operator Password:

■ Printer Settings (For Key Operator)

No.	Modes	Function	Initial Setting
00	PRINTER SETTINGS	Prints the printer settings.PRESS SET TO PRINT
01	COMPLETION TIME	Sets the job completion time setting.1-999SEC	180SEC
02	PAGE PROTECTION	Selects whether to enable automatic compression when the received data exceeds the page memory capacity.(This is accomplished by reducing resolution, and/or deleting pixels to fit the data onto the available page memory, then print it out.)When the setting is in the "OFF" position, upon exceeding the page memory capacity, the print job is deleted and an Error message is displayed.1:OFF / 2:ON	1:OFF
03	ERROR PAGE PRINT	Selects whether to print the error page.1:OFF / 2:ON	2:ON
04	SPOOL FUNCTION	Selects whether to enable the spool function.1:OFF / 2:ON	2:ON
05	TEXT PRINT	Selects whether to print the text page only.1:OFF / 2:ON	2:ON
06	PS CONFIGURATION*1	Prints the PS configuration page.PRESS SET TO PRINT
07	FONT LIST PRINT (PCL)*2	Prints the PCL font list.PRESS SET TO PRINT
08	FONT LIST PRINT (PS)*1	Prints the PS font list.PRESS SET TO PRINT
09	MAILBOX DATA HOLD*3	Selects the automatic holding time frame for the mailbox data.Infinity / 1 DAY / 2 DAYS / 3 DAYS / 4 DAYS / 5 DAYS / 6 DAYS / 7 DAYS	7 DAYS
10	DELETE MAILBOX*3	Selects whether to delete All the mailbox data or only the data Before the time frame selected in the "09 Mailbox Data Hold" setting.1:ALL / 2:BEFORE
11	PRINT QUEUE DEL	Selects whether to disable the Key Operator's Password (authorization) requirement to delete the print queue.1:FREE / 2:KEY OP. (Operator)	2:KEY OP.
12	APPLETALK ZONE*1	Inputs a AppleTalk zone name.

1 Available only when the optional Multi Page Description Language Controller Module is installed.
2 Available only when the optional Printer Controller Module is installed.
*3 Available only when the optional Hard Disk Drive Unit is installed.

Scanner Settings (Scan Parameters)

No.	Modes	Function	Initial Setting
00	SCANNER SETTINGS	Prints the scanner settings.PRESS SET TO PRINT
01	ORIGINAL MODE	Selects the default Halftone setting for the originals.1:TEXT / 2:TEXT/PHOTO / 3:PHOTO	2:TEXT/PHOTO
02	COMPRESSION MODE	Selects the default compression mode setting.1:MH / 2:MR / 3:MMR / 4:JBIG	4:JBIG
03	RESOLUTION	Sets the default resolution setting.1:STANDARD / 2:FINE / 3:S-FINE	3:S-FINE
04	BIND POSITION	Selects the default bind position of 2-Sided original.*1 (See below)1:LONG EDGE / 2:SHORT EDGE	1:LONG EDGE
05	FILE TYPE/NAME	Selects the default File Type format.1:TIFF / 2:PDF	1:TIFF
06	CHANGE KEYBOARD	Selects the Keyboard Type when One Touch Sheet is changed on the Keyboard*21:QWERTY / 2:QWERTZ / 3:AZERTY	1:QWERTY

1 When scanning the 2-Sided original, use the optional i-ADF.
2 When the optional Keyboard (DA-KB180) is installed.

Long Edge

Short Edge

Changing the Paper Size (Paper Tray)

The Paper Trays are designed to accommodate Invoice, Letter, and Legal Size paper.

1

2

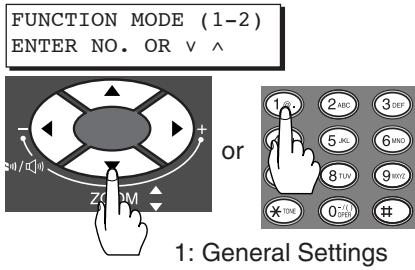

3

6

Select a Paper Tray

1:TRAY-1
2:TRAY-2
3:TRAY-3
4:TRAY-4

NOTE: TRAY-2, 3, 4 are options

(See page 69)

8

12

13

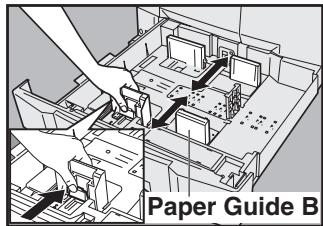

Paper Guide B Adjustment

14

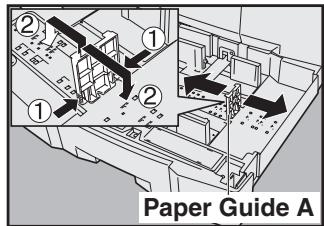

Paper Guide A Length Adjustment

NOTE

It is recommended that the paper guide B is fixed in place with a screw, consult your authorized Panasonic dealer for details on how to fasten the guide.

4

5

9

11

15

Department Counter

The Department Counter feature can limit the number of copies, administer counters and Identification Code numbers for each department. (Maximum Number of Departments: 300)

Contact your authorized Panasonic dealer to enable the Department Counter feature.

1

2

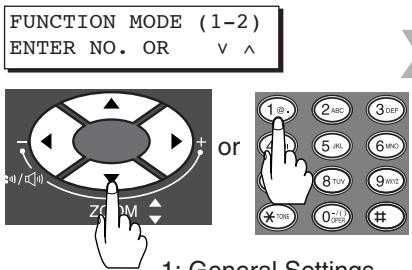

3
1: General Settings

6
KEY OPR. MODE(00-34)
ENTER NO. OR V^
7

13 DEPT. COUNTER MODE 1: TOTAL COUNTER

10

11

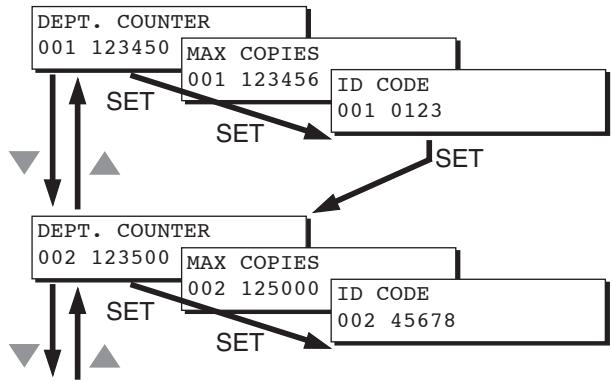

For Department Counter

Next Department

4

5

6

8

9
For Department Counter

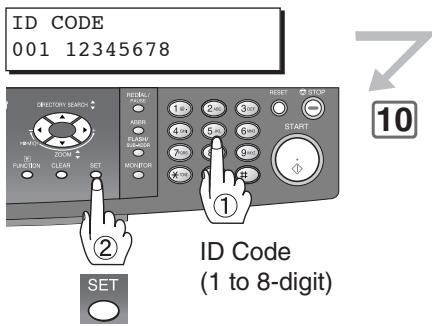

For ID (Identification) Code

10

For Maximum Copies

For ID (Identification) Code

12

Network Settings

When the Parameter No. 22 (DHCP DEFAULT) is set to "INVALID", the Key Operator must administer the Network settings manually. Enter these required Network Setting: Parameter No. 19 (TCP/IP ADDRESS), 20 (TCP/IP SUBNET MSK) and 21 (TCP/IP G/W ADDR.), in the same manner as shown in the following example.

1
2

Same procedure as steps 2 to 5 above.

6
10

Turn the Power Switch on the Right Side of the machine OFF and ON.

3

KEY OPR. MODE (00-34)
ENTER NO. OR V^

4

22 DHCP DEFAULT 2:VALID

5

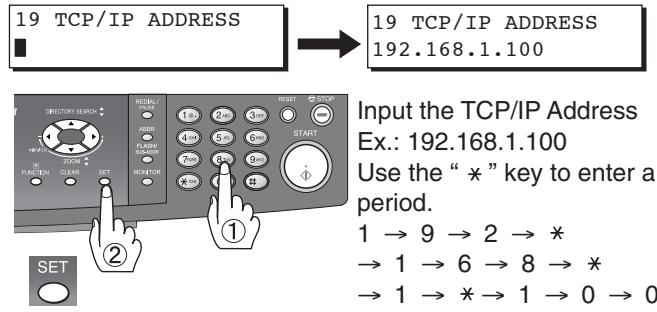

Select 19 (TCP/IP ADDRESS)

(4 times)

7

Input the Subnet Mask same procedure as in step 6.

8

21 TCP/IP G/W ADDR.

Input the Gateway Address same procedure as in step 6.

9

10

Next SelectionsFirst Selections

1 ↑2

2 ↑1

2 ↑2

Book ↑2

2 Page

N in 1

Sort/Rotate-Sort

Non-Sort

Zoom

Edge

Book

Margin

Image Repeat

Centering

Interrupt*

Manual Skyshot

Digital Skyshot

Double Exposure

1 → 2

A

A

A

A

A

◎

◎

◎

◎

◎

◎

◎

◎

A

◎

A

A

◎

A

2 → 1*

A

A

A

A

A

A

◎

◎

◎

◎

◎

◎

◎

×

×

A

A

×

×

2 → 2*

A

A

A

A

A

A

◎

◎

◎

◎

◎

◎

◎

×

×

A

A

×

×

Book → 2

A

A

A

A

A

A

◎

◎

◎

◎

◎

◎

◎

×

×

A

A

◎

×

2 Page

A

A

A

A

A

A

◎

◎

◎

◎

◎

◎

◎

×

×

A

A

◎

×

N in 1

◎

A

A

A

A

A

◎

◎

◎

◎

◎

◎

◎

×

×

A

A

◎

×

Sort/Rotate-Sort

◎

◎

◎

◎

◎

◎

A

A

◎

◎

◎

◎

◎

◎

A

A

◎

◎

◎

Non-Sort

◎

◎

◎

◎

◎

◎

A

A

◎

◎

◎

◎

◎

◎

A

A

◎

◎

◎

Zoom

◎

A

A

A

◎

◎

◎

◎

A

◎

◎

◎

◎

◎

A

A

◎

◎

◎

Edge

◎

◎

◎

◎

◎

◎

◎

◎

◎

A

◎

◎

A

×

A

A

◎

◎

◎

Book

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

A

◎

A

×

A

A

◎

◎

◎

Margin

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

A

A

×

A

A

◎

◎

◎

Image Repeat

A

A

A

A

A

A

◎

◎

◎

×

×

×

A

A

A

A

◎

A

Centering

◎

A

A

A

A

A

◎

◎

◎

×

×

×

A

A

A

A

◎

A

Interrupt

◎

◎

◎

◎

◎

◎

/

/

◎

◎

◎

◎

◎

◎

R

×

◎

◎

Manual Skyshot

×

×

×

×

×

×

/

/

◎

◎

◎

◎

×

×

◎

×

×

A

Digital Skyshot

◎

×

×

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

◎

A

/

A

Double Exposure

×

×

×

×

×

×

◎

◎

◎

◎

◎

◎

×

×

◎

A

×

A

: Possible Combined Functions.
X: Unavailable Combined Functions.
A: Next Selection is Carried Out.
R : When the same function is selected twice, the second selection is ignored.
: Functional combination that cannot be performed.

NOTE: * While making copies with the 2 1 or 2 2 Copy using the optional ADF (DA-AS181), the Interrupt mode cannot be selected.

The DP-8020E/8020P/8016P is a digital photocopier which can produce images with great clarity.

Furthermore, its copying functionality can also be greatly enhanced by the addition of the following options and supplies.

We hope you find that the wide ranging capabilities will make your office-place more productive and efficient.

■ Options

Image Memory

(DA-SM16B/64B/28B)

16/64/128 MB
To increase the memory capacity for electronic sorting.

Hard Disk Drive (HDD) Unit

(DA-HD18)

This option also requires at least 16 MB of optional Sorting Image Memory (DA-SM16B)
For PS Printing (for Fonts), Security Print/Mailbox, Account Management

For DP-8020E/8020P only:

For Concurrent Copy, Electronic Sorting Memory, PS/PCL Print Job Spooling

Expansion Board

(DA-EM600)

• Expansion F-ROM (8 MB)

Printer Controller Module

(DA-PC820)

Printer Controller for PCL6*

Multi Page Description Language

Controller Module

(DA-MC820) (For DP-8020E/8020P only)

Printer Controller for PS*/PCL6

Supplies

Part Name	Part No.	Remarks
Toner	DQ-TUJ10K	Toner
Verification Stamp	DZHT000027	X-Stamp for Fax Option

NOTE

• PCL6 is a Page Description Language of the Hewlett-Packard Company.
  PS is a Page Description Language of the Adobe Cooperation.
• Contact your authorized Panasonic dealer for details on options combination.

■ Document Scanning

When Panasonic Document Management System is installed and configured on your PC, document(s) can be scanned from the machine to your PC.

Direct Connection

(with Crossover Cable, see page 76)

• Document Scanning directly from the Machine to your PC using Windows "My Network Places" or "Network Neighborhood".

NOTE:

USB Port is used for printing only, and is not available for local scanning.

NOTE

If the PC's address (IP Address) is not shown on the LCD of the machine, register the PC's address with the Communications Utility software. (See page 72)

• When entering letter(s), use either of the following methods.

With Keypad

ex.SALES

ex. ABC

• To delete a Character / Symbol, press [CLEAR].
• To enter a space, press [MONITOR].

With Keyboard

When optional Keyboard (DA-KB180) is installed:

1

For ADF
For i-ADF*1

or

*1 When scanning the 2-Sided original, use the optional i-ADF.

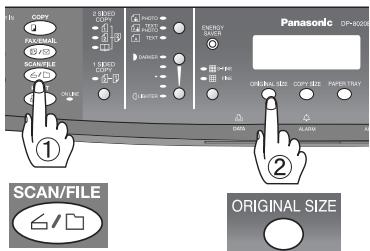

2

Original Size

(From Platen only)

When selecting the scanning resolution/contrast:

*2 When scanning the 2-Sided original, select bind position of original. (See page 27)

S-FINE:600x600dpi

FINE : 300 x 300 dpi

When the TEXT mode is selected

as follows and S-FINE and FINE

are not selected : 150 x 150 dpi

Select type of Original(s)

PHOTO :Mainly Photo

TEXT/PHOTO : Text and Photo

combined

TEXT :Mainly Text

Adjust the Manual Exposure

Press DARKER or LIGHTER

Key (5 steps)

When adding a file name or selecting the compression format. (See page 74)

4

SCANNING DOCUMENT
PAGES=001 00%

When using ADF/i-ADF

• Skip to step 8

From Platen only

ANOTHER ORIGINAL? 1:YES 2:NO

or

1: YES

Go to next step

2: NO

Skip to step 8

Select a Station (PC's Address)

ABBR

3-1

3-2
ABBR No.
(2-digit)

ABBR [ ]

ENTER ABBR No.

[01]SALES

10.74.252.66

3-3
4

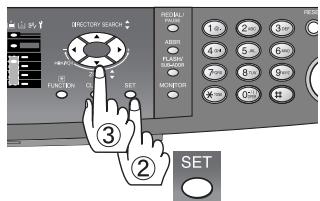

DIRECTORY search

3-1
DIRECTORY search

3-2

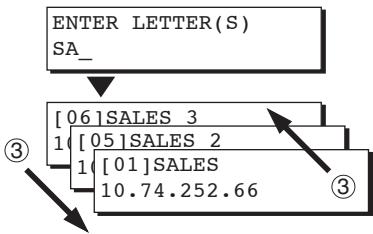

① Enter letter(s)

3-3
4

ONE-TOUCH*

3-1

<10> PANA

10.74.252.63

3-2

NOTE

"ONE-TOUCH" is available when the optional Keyboard (DAKB180) is installed.

4
5

Next Original

6

7

ANOTHER ORIGINAL? 1:YES 2:NO

8

DATA IS BEING TRANSFERRED TO PC

1:YES

Continues to scan another original(s), repeat steps 5 and 6.

2:NO

No next original.

TRANSFER COMPLETED

Adding your PC's IP Address

If the Scanner Configuration is not set with the Communications Utility of Panasonic Document Management System software, setup the Communications Utility software by following the steps below.

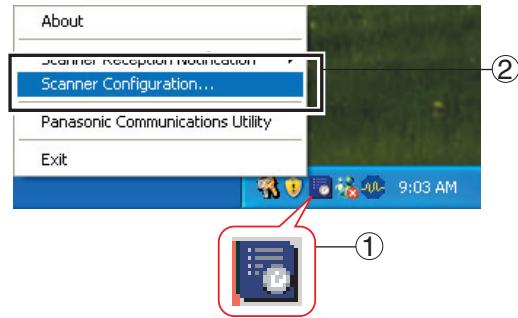

1
Right-Click "Panasonic Communications Utility" icon on the Task Bar, and then select "Scanner Configuration...".

2

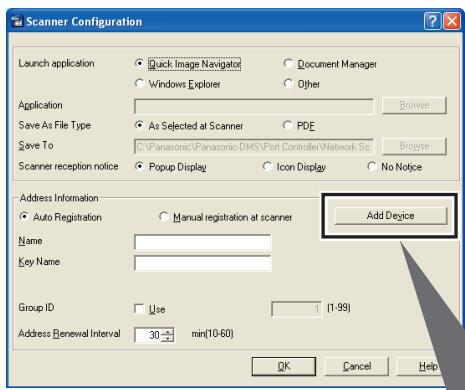

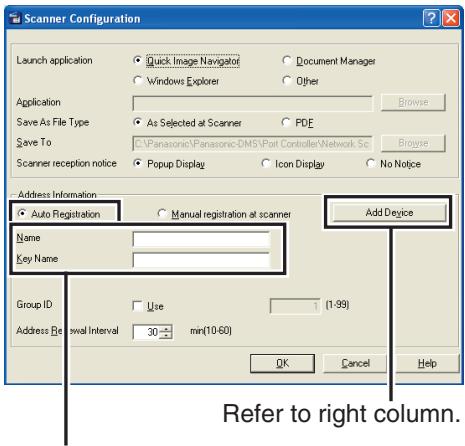

You can change the Name, and Key Name in this window.
Check "Auto Registration", and then enter the Name and Key Name to be saved into the machine. (Max. 15 characters)

3

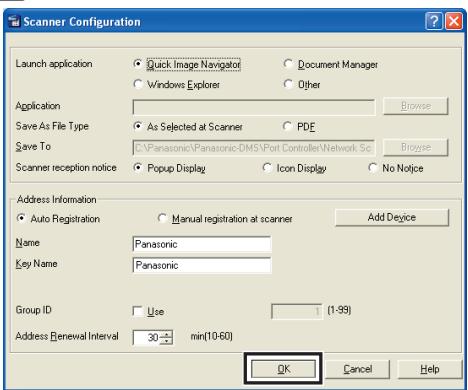

Click "OK".

Click "Add Device" if your PC address information is registered on the machines located on a different subnet.

② Enter the machine's Device Name, and IP Address.
③ Click "OK".

■ Scan Parameters (Scanner Settings)

1

2

3

or
1: SET MODE

7

Refer to Function settings on page 61.

-Prints Scanner Settings List,

Sets Original Mode,

Sets Compression Mode,

Sets Resolution,

Sets Bind Position,

Sets File Type/Name

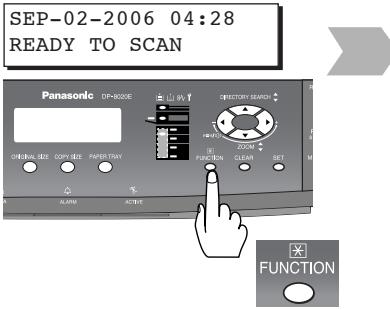

■ Select Mode

When adding a file name or selecting a compression format before scanning document(s).

1

2

3

2: SELECT
MODE

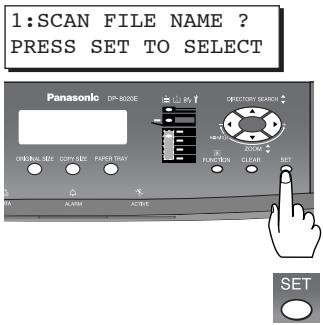

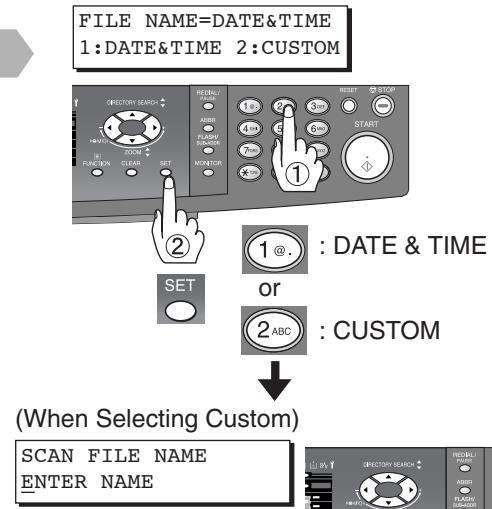

For Scan File Name

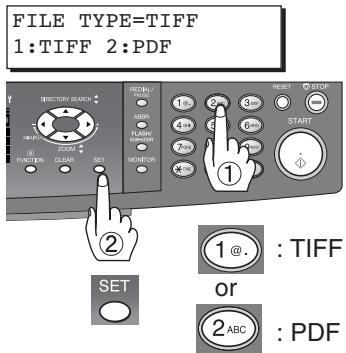

6

7

8
① Enter a File Name
(See page 70)

4

1:SET MODE?
PRESS SET TO SELECT

5

SET MODE (1-2) ENTER NO. OR V^

or
2

6

2:SCAN PARAMETERS? PRESS SET TO SELECT

4

2:SELECT MODE?
PRESS SET TO SELECT

5

SELECT MODE (1-2)
ENTER NO. OR v ^

or

or

: Scan File Name

Compression

For Compression

6

2:COMPRESSION? PRESS SET TO SELECT

7

COMPRESSION:JBIG 3:MMR4:JBIG

: MH

:MMR

:MR

:JBIG

Direct Connection (with Crossover Cable)

1

Turn OFF* the Power Switch (Machine and the PC).

Connect a Crossover LAN Cable between your machine and the PC.

(Right Side of Machine)

NOTE: Do not use Standard LAN Cable.

(Rear Side of PC)

5

Turn OFF* and ON the Power Switch (Machine and the PC).

Input your PC's IP Address into the Address Book in the machine (see page 72) or into the Panasonic Document Management System software (refer to the enclosed CD).

7

Scan the document(s) to your PC. (See page 70)

NOTE:

• If the Hard Disk Drive Unit (DA-HD18) is installed, see page 13.

3

Turn On the Power Switch (Machine and the PC).

4

Input the Network Address (Machine and your PC).

IP and Gateway Address* IP: 192.168.0.1 (Machine) 192.168.0.2 (Your PC)

Subnet Mask: 255.255.255.0 (Machine & the PC)

• How to input the network address: For your Machine: See page 66 For your PC: See below

5

NOTE:

• If you use the DHCP server, select to disable the DHCP server. Machine: See page 55 Your PC: Consult your System Administrator.

For more detailed information, refer to Windows OS operating instructions manual.

For Windows 2000

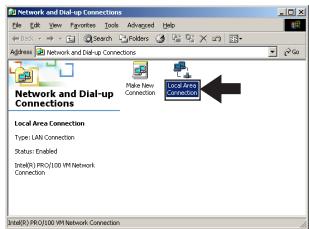

① Right click "My Network Places" and select "Properties".

② Right click "Local Area Connection" and select "Properties".

③ Select "Internet Protocol (TCP/IP)".

④ Click "Properties".

⑦ Click "OK".

(5) Select "Use the following IP address" then, Input IP Address and the Subnet Mask.

⑥ Click "OK".

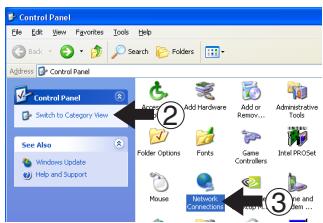

For Windows XP

① Open the Control Panel.

② Select "Switch to Classic View", if using the Category View Mode.

③ Select "Network Connections".

④ Right click "Local Area Connection Enabled ......." and select "Properties".

⑤ Select the "Internet Protocol (TCP/IP)".
⑥ Click "Properties".
⑨ Click "CLOSE".

⑦ Select "Use the following IP address" then, Input IP Address and the Subnet Mask.
⑧ Click "OK".

"OK" will be changed to "CLOSE".

Check

Action

Unit Does Not Operate

Does the display light?

Does the Energy Saver key flash (or light) and the display is turned OFF? (See page 48)

Does any of the U## codes and messages appear on the display? (U01, U07, U13, U14....etc.)

Does the Add Paper indicator and message appear on the display?

Does the Misfed Paper indicator, message and J## codes appear on the display?

Does E#-## codes and messages appear on the display?

The machine would not accept the next job during operation, instructed job would not be accepted for a long time period or job would not be completed.

Check if the Power Switch (Main Power Switch on the Right Side of the machine) is turned ON and if the power cord is plugged into the AC outlet.

Press Energy Saver key on the control panel.

Perform actions in accordance with each message.

Add paper. (See page 14)

Remove the misfed paper. (See pages 16 - 21)

Turn the Power Switch on the Right Side of the machine to the OFF and ON position. If the error code does not clear, call your Service provider.

Turn the Power Switch on the Right Side of the machine to the OFF and ON position.

Light Copies

Does the exposure indicator say "LIGHTER"?

Does the Add Toner indicator and message appear on the display?

Press the "DARKER" button.

Replace the Toner Bottle. (See pages 16, 17)

Check

Action

Marked Copies

Is the machine's Platen Glass or Platen Sheet dirty?

Is the original an OHP film or a dark original?

If a dark vertical line of 0.8-1.2 inch (2-3 cm) in width is printed.

Clean the Platen Glass or Sheet.

Cover the original with a sheet of white paper before copying or lighten the exposure setting.

① Clean the Corona Wire of the Drum Unit. (See page 16)

② Check the copies. If a dark vertical line is remained, repeat above step to clean the Corona Wire became dark vertical line is erased.

If the measures outlined above do not solve the problem, call your Service provider.

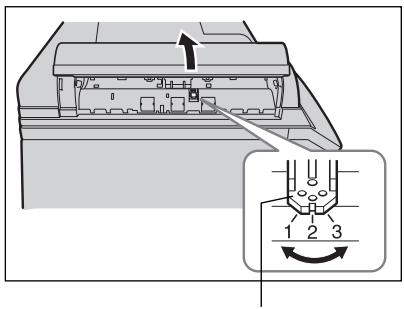

Adjusting the Double Feed Switch (For DA-AS181)

■ When original(s) do not feed correctly, adjust the position of the Double Feed Switch as follows:

Position of Switch

Double Feed Switch

Normal Operation

Original does not feed.

Several originals are fed at one time

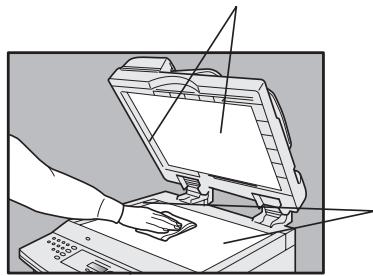

Machine Care

As a rule, clean weekly.

Platen Sheet
Platen (Glass)

Platen Glass/Platen Sheet

① Wipe marks off with a cloth and a neutral detergent.
② Wipe again with a dry cloth.

The machine has an internal battery (Product No.: CR2032) which maintains the date and time.

In the event the battery requires replacement, the following message will be displayed.

REPLACE BATTERY

U90

1

Turn the Power Switch on the Right Side of the machine to the OFF position. If the Hard Disk Drive Unit (DA-HD18) is installed, see page 13.

2

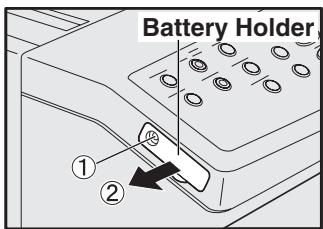

① Remove 1 Screw.
② Remove the Battery Holder.

Set the Date and Time continues steps 6 to 13.

When setting the Date and Time, start from step 6.

6

10

11

Notice: California only:

This product contains a CR Coin Cell Lithium Battery which contains

Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

NOTE

• The service life of the battery is approximately 1 year under normal use.

3

^ + side of battery should be facing upwards.

(Observe the polarity, see

CAUTION! below)

4

① Reinstall the Battery Holder.

② Install 1 Screw.

5

Turn the Power Switch on the Right Side of the machine to the ON position.

6

7

FUNCTION MODE (1-2)
ENTER NO. OR

1: General Settings

8

9

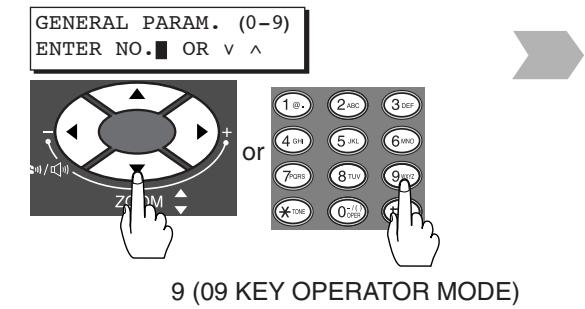

GENERAL PARAM. (0-9)
ENTER NO. OR V ^

9 (09 "KEY OPERATOR MODE")

12

Move the cursor ( ) under the Month/Date/Year/ Time that you wish to change, then input the new data using the Keypad.

13

CAUTION

denotes hazards that could result in minor injury or damage to the machine.

THIS PRODUCT CONTAINS A LITHIUM BATTERY. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE. "IMPROPER USE OR REPLACEMENT MAY CAUSE OVERHEATING, RuptURE OR EXPLOSION RESULTING IN INJURY OR FIRE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS OF YOUR LOCAL SOLID WASTE OFFICIALS AND LOCAL REGULATIONS"

DP-8020E/8020P/8016P (For Copier)

Type	Desk Top
Platen Type	Fixed
Acceptable Originals	Sheets, Books (max. Ledger size)
Copying Method	Laser Indirect Electro Static
Fusing Method	Heat Roller, and Pressure Roller
Imaging Method	Dry-Type Dual Components Imaging
Resolution	Max. 600 dpi
Operation Panel	LCD Display
Copy Size	Ledger - Invoice via Paper Tray and Bypass
Void Area	Max. 0.2" (5 mm)
Warm Up Time	Approx. 30 seconds (68°F/20°C)
First Copy Time	Less than 6.9 seconds (Letter, from 1st Tray)
Multi-Copy Speed	DP-8020E/8020P*: 20 cpm (Letter size) DP-8016P: 16 cpm (Letter size) (From 1st Tray)
Enlargement Ratios	Preset: 121%, 129%, 155%, 200% Variable: from 101% to 200% in 1% increments
Reduction Ratios	Preset: 79%, 77%, 65%, 61%, 50% Variable: from 99% to 50% in 1% increments
Paper Feed	Standard Paper Tray (550 sheets) + Sheet Bypass (50 Sheets) Optional Paper Trays (550 sheets x 3) (3rd and 4th Paper Trays are for DP-8020E/8020P* only)
Paper Weight	Paper Tray: 16 - 24 lb (60 - 90 g/m²) Bypass: 15 - 34 lb (55 - 133 g/m²) ADU: 17 - 24 lb (64 - 90 g/m²) (DP-8020E)
Quantity Selector	Max. 999 sheets (Output Tray capacity is 250 sheets/Letter size)
Electrical Consumption	AC 120V, 60Hz, 12A
Power Consumption	Max. 1.3 kW
Dimensions (W)(D)(H)	22.0 x 21.9 x 18.1 in (558 x 557 x 460 mm)
Mass (Weight)	DP-8020E: 95 lb (43.3 kg) DP-8020P*/8016P: 93 lb (42.3 kg)
Operating Environment	Temperature: 50 - 86 °F (10 - 30 °C); Relative Humidity: 30 - 80% (However, the humidity should be 70 % or less at a temperature of 86 °F (30 °C), and the temperature should be 80 °F (27 °C) or less at a humidity level of 80 %.)

• DP-8020P is not available for USA and Canada.

Network Scanner (DP-8020E/8020P* Only)

Scanning Type	CCD Image Sensor (ADF/Platen)
Scanning Speed (w/o Transmission Time)	19 sheets/minute (Letter)
Resolution (dpi/Monochrome)	Standard (150x150) / Fine (300x300) / SuperFine (600x600)
Max Scanning Area (Platen)	11 x 17 in
Max Scanning Area (ADF)	11 x 17 in
Duplex Scan	No
Scanning Mode	Text, Text/Photo, Photo
Scale	Bi-level / 256-level Gray Scale
Compression Format	MH, MR, MMR, JBIG
File Format	Multi-page TIFF, PDF
Send to Station (PC)	Yes (Single Address only)
Send to Station (FTP)	Yes (Single Address only)
Send to Station (Printer)	N/A
Pop up Notification	Yes
Protocol	LPR, TCP/IP
Applicable OS	Windows 98 / Me / NT 4.0 / 2000 / XP

ADF (DA-AS181) Option/i-ADF (DA-AR202) (DP-8020E Only)

Tray Capacity	Letter, Invoice : 50 sheets (20 lb) Ledger, Legal : 30 sheets (20 lb)
Original Size	Invoice/Letter/Legal/Ledger
Paper Weight	14 – 28 lb (50 - 110 g/m2)
Electrical Requirements	Supplied from the machine
Dimensions (W)(D)(H)	DA-AS181: 22.0 x 19.7 x 4.4 in (558 x 501 x 112 mm) DA-AR202: 21.7 x 21.7 x 5.3 in (552 x 520 x 135 mm)
Mass (Weight)	DA-AS181: 11.0 lb (5.0 kg) DA-AR202: 20.5 lb (9.3 kg)

■ 2nd/4th Paper Tray (DA-DS184), 3rd Paper Tray (DA-DS185) (Option) (3rd, and 4th Paper Tray for DP-8020E/8020P* only)

Paper Size	Invoice/Letter/Legal/Ledger
Paper Weight	16 – 24 lb (60 - 90 g/m2)
Electrical Requirements	Supplied by the machine
Dimensions (W)(D)(H)	22.0 x 21.2 x 5.0 in (558 x 538 x 128 mm)
Mass (Weight)	DA-DS184 : 19.8 lb (9.0kg) DA-DS185 : 20.7 lb (9.4kg)

• Specifications are subject to change without notice.

■ Options

Part Name	Part No.	Remarks
Automatic Document Feeder	DA-AS181	Also referred as ADF
Inverting Automatic Document Feeder	DA-AR202	Also referred as i-ADF (For DP-8020E only)
2nd/4th Paper Tray	DA-DS184	4th Paper Tray (For DP-8020E/8020P* only)
3rd Paper Tray	DA-DS185	3rd Paper Tray (For DP-8020E/8020P* only)
Plain Stand	DA1D18A	For Standard 1 Tray Configuration
Plain Stand	DA1D18B	For 2 Paper Tray Configuration
Plain Stand	DA1D18C	For 3 & 4 Paper Trays Configuration
Platen Cover	DA-UC200
Image Memory (16 MB)	DA-SM16B	For Electronic Sorting
Image Memory (64 MB)	DA-SM64B	For Electronic Sorting
Image Memory (128 MB)	DA-SM28B	For Electronic Sorting
Expansion Flash Memory Card, 4 MB	UE-410047	Additional Page Memory for Fax Communication Board (DP-8020E/8020P* only)
Expansion Flash Memory Card, 8 MB	UE-410048	Additional Page Memory for Fax Communication Board (DP-8020E/8020P* only)
8 MB Expansion Board	DA-EM600	Additional Expansion for PCL and PS printing
Printer Controller Module	DA-PC820	Printer Controller for PCL6
Multi Page Description Language Controller Module	DA-MC820	Printer Controller for PCL6/PS3 (For DP-8020E/8020P* only)
Hard Disk Drive Unit	DA-HD18
Keyboard	DA-KB180	For Fax/Internet Fax/Scanning (DP-8020E/8020P* only)
Fax Communication Board	DA-FG180	G3 Fax/Tel Communication (DP-8020E/8020P* only)
Accounting Software	DA-WA10	For Accounting function

Supplies

Part Name	Part No.	Remarks
Toner	DQ-TUJ10K	Toner
Verification Stamp	DZHT000027	X-Stamp for Fax Option

• DP-8020P is not available for USA and Canada.

memo

IMPORTANT INFORMATION

When requesting information, supplies or service always refer to the model and serial number of your machine. The model and serial number plate (Main Name Plate) is located on the rear side of machine. For your convenience, space is provided below to record information you may need in the future.

Model No.

Serial No.

Date of Purchase

Dealer

Address

Telephone Number ( )

Supplies Telephone Number ( )

Service Telephone Number ( )

The following trademarks and registered trademarks are used throughout this manual:

Microsoft, Windows, Windows NT, Windows Server, Outlook & Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the USA and other countries. Adobe, Acrobat Reader & Adobe logo are either registered trademarks or trademarks of Adobe Systems Incorporated.

All other trademarks identified herein are the property of their respective owners.

PEERLESSPage™ is a trademark of the PEERLESS Systems Corporation; and, PEERLESSPrint® and Memory Reduction Technology® are registered trademarks of PEERLESS Systems Corporation; and, COPYRIGHT © 2002 PEERLESS Systems Corporation.

Universal Font Scaling Technology (UFST) and all typefaces have been licensed from Monotype Imaging.

Agfa® and the Agfa rhombus are registered trademarks of Agfa-Gevaert N.V. registered in the U.S. Patent and Trademark Office and may be registered in other jurisdictions. Monotype® is a registered trademark of AMT registered in the U.S. Patent and Trademark Office and may be registered in other jurisdictions. ColorTune® is a registered trademark of Agfa-Gevaert N.V. registered in the U.S. Patent and Trademark Office and may be registered in other jurisdictions. Profile Tool KitTM, Profile StudioTM and Profile OptimizerTM are trademarks of AMT and may be registered in certain jurisdictions. Copyright © 2005 Monotype Imaging Inc. All rights reserved.

Novell and NetWare are registered trademarks of Novell, Inc. in the United States and other countries.

PCL is either trademark or registered trademark of Hewlett-Packard Company and/or its subsidiaries.

Adobe, PostScript and PostScript 3 are either registered trademarks or trademark of Adobe Systems Incorporated in the United States and/or other countries.

This equipment contains a number of programs licensed under the terms of the GNU General Public License/GNU Lesser General Public License and other open software. For more details and applicable license terms thereof, please refer to the relevant information in the CD attached herewith.

As an ENERGY STAR® Partner, Panasonic has determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

This voluntary program specifies certain energy consumption and usage standards.

This product will automatically "power down" after a specified period of non-use. The use of this ENERGY STAR® compliant product will reduce energy consumption and ultimately benefit the environment.

The default functions can be adjusted depending on your office requirements. Please ask your authorized Panasonic dealer for more details.

WARRANTY

PANASONIC DIGITAL DOCUMENT COMPANY MAKES NO WARRANTYS, GUARANTEES OR REPRESENTATIONS, EXPRESSED OR IMPLIED, TO CUSTOMER WITH RESPECT TO THIS PANASONIC MACHINE, INCLUDING BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

PANASONIC DIGITAL DOCUMENT COMPANY ASSUMES NO RISK AND SHALL NOT BE SUBJECT TO LIABILITY FOR ANY DAMAGE, INCLUDING, BUT NOT LIMITED TO DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSS OF PROFITS SUSTAINED BY THE CUSTOMER IN CONNECTION WITH THE USE OR APPLICATION OF THIS PANASONIC MACHINE. SEE YOUR DEALER FOR DETAILS OF DEALER'S WARRANTY.

Notice: California only:

This product contains a CR Coin Cell Lithium Battery which contains

Perchlorate Material - special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

For Service, Call:

Panasonic Digital Document Company

Unit of Panasonic Corporation of North America

One Panasonic Way

Secaucus, New Jersey 07094

http://panasonic.co.jp/pcc/en/

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario L4W 2T3

http://www.panasonic.ca

K0906-1906 (01)

PJQMC0703ZB

September 2006

Published in Japan
