USER MANUAL DFP58T94A INDESIT

Precautions and advice, 3-4

General safety

Disposal

Saving energy and respecting the environment

Installation and Assistance, 5-6

Positioning and levelling

Connecting the water and electricity supplies

Advice regarding the first wash cycle

Technical data

Description of the appliance, 7

Overall view

Control panel

DFP 58T94

Loading the racks, 8-9

Lower rack

Cutlery basket

Upper rack

Adjusting the upper rack

Start-up and use, 10

Starting the dishwasher

Measuring out the detergent

Wash cycles, 11

Table of wash cycles

Special wash cycles and Options, 12

Rinse aid and refined salt, 13

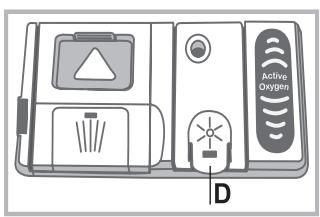

Measuring out the rinse aid

Measuring out the refined salt

Care and maintenance, 14

Shutting off the water and electricity supplies

Cleaning the dishwasher

Preventing unpleasant odours

Cleaning the sprayer arms

Cleaning the water inlet filter

Cleaning the filters

Leaving the machine unused for extended periods

Troubleshooting, 15

Product Fiche
Brand	INDESIT
Model	DFP 58T94
Rated capacity in standard place settings (1)	14
Energy efficiency class on a scale from A+++ (low consumption) to D (high consumption)	A++
Energy consumption per year in kWh (2)	265.0
Energy consumption of the standard cleaning cycle in kWh	0.93
Power consumption of the off-mode in W	0.5
Power consumption of the left-on mode in W	5.0
Water consumption per year in litres (3)	2520.0
Drying efficacy class on a scale from G (low efficacy) to A (high efficacy)	A
Programme time for standard cleaning cycle in minutes	190
The duration of the left-on mode in minutes	10
Noise in dB(A) Re 1pW	44
Built-in model	No
NOTES
1) The information on the label and fiche relates to the standard cleaning cycle, this programme is suitable to clean normally soiled tableware and it is the most efficient programme in terms of combined energy and water consumption. The standard cleaning cycle corresponds to the Eco cycle.
2) Based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption depends on how the appliance is used.
3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.

This appliance was designed and manufactured in compliance with international safety standards. The following information has been provided for safety reasons and should therefore be read carefully.

Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine.

Please read these instructions carefully: they contain important information on installation, use and safety.

This appliance is designed for domestic use or similar applications, for example:

• staff kitchen areas in shops, offices and other work environments;
  -farmhouses;
• use by guests in hotels, motels and other residential settings;
• bed & breakfasts.

General safety

• The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, or by inexperienced people who are not familiar with the product, unless supervision or instructions on how to use it are provided by someone who assumes responsibility for their safety.
• An adult must supervise children at all times to prevent them from playing with the appliance.
• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.
• The appliance must be used by adults only to wash domestic crockery in accordance with the instructions in this manual.
• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms.
• Do not touch the appliance when barefoot.
• When unplugging the appliance always pull the plug from the mains socket. Do not pull on the cable.
• The water supply tap must be shut off and the plug should be removed from the electrical socket before cleaning or maintaining the appliance.
• If the appliance breaks down, do not under any circumstances touch the internal parts in an attempt to perform the repair work yourself.
• Do not lean or sit on the open door of the appliance: this may cause the appliance to overturn.
• The door should not be left open as it may create

a dangerous obstacle.

• Keep detergent and rinse aid out of reach of children.
• The packaging material should not be used as a toy for children.

Disposal

• Disposal of packaging material: observe local legislation so that the packaging may be reused.
• The European Directive 2012/19/EU relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the re-using and recycling rate of the materials inside the machine, while preventing potential damage to the environment and public health. The crossed-out dustbin symbol is marked on all products to remind the owners of their obligations regarding separated waste collection.

For further information relating to the correct disposal of household appliances, owners may contact the relevant public authority or the local appliance dealer.

Saving energy and respecting the environment

Saving water and energy

• Only begin a wash cycle when the dishwasher is full. While waiting for the dishwasher to be filled, prevent unpleasant odours using the Soak cycle (see Wash cycles).

• Select a wash cycle that is suited to the type of crockery and to the soil level of the crockery using the Table of wash cycles:

• for dishes with a normal soil level use the Eco wash cycle, which ensures low energy/water consumption levels.

• If the load is smaller than usual activate the Half Load option* (see Start-up and use).
• If your electricity supply contract gives details of electricity-saving time bands, run wash cycles when electricity prices are lower. The Delayed Start button * (see Start-up and use) helps you organise the wash cycles accordingly.

Phosphate-free and chlorine-free detergents containing enzymes

• We strongly recommend that you use detergents that do not contain phosphates or chlorine, as these products are harmful to the environment.
• Enzymes provide a particularly effective action at temperatures around 50^ . As a result detergents containing enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the same results as a normal 65^ wash cycle.
• To avoid wasting detergent, use the product in appropriate quantities based on the manufacturer's recommendations, the hardness of the water, the soil level and the quantity of crockery to be washed. Even if they are biodegradable, detergents contain substances which may alter the balance of nature.

If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back.

Positioning and levelling

1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.
2. Arrange the dishwasher so that its sides or back panel are in contact with the adjacent cabinets or the wall. This appliance can also be recessed under a single worktop (see the Assembly Instruction sheet.)
3. Position the dishwasher on a level sturdy floor. If the floor is uneven, the front feet of the appliance should be adjusted until it reaches a horizontal position. If the appliance is levelled correctly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.
   4^ . To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8mm . Turn the spanner in a clockwise direction to increase the height and in an anticlockwise direction to decrease it (see Building-in Instruction sheet attached to the documentation.)

Connecting the water and electricity supplies

A Connection to the water and electricity supplies should only be performed by a qualified technician.
The dishwasher should not stand on the water hoses or electricity supply cable.
A The appliance must be connected to the water supply network using new hoses.

Never use old or second hand hose sets. Do not reuse hoses from any previously installed dishwasher.

The water inlet and outlet hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation.

Connecting the water inlet hose

• To a suitable cold water connection point: before attaching the hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a 3/4 gas threaded connection.
• To a suitable hot water connection point: your dishwasher may be supplied with hot water from the mains supply (if you have a central heating system with radiators) provided that it does not exceed a temperature of 60^ .

A Screw the hose to the tap as described for connection to a cold water supply.
A If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance.)
The water pressure must be within the values indicated in the Technical Data table (see adjacent information.)

The hose should not be bent or compressed.

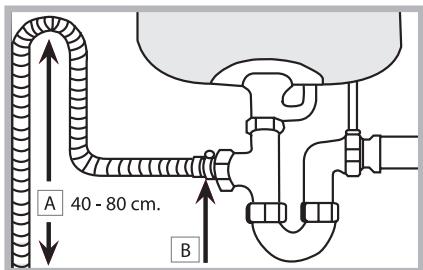

Connecting the water outlet hose

Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4cm .

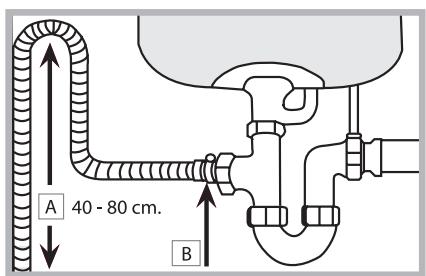

The outlet hose must be at a height ranging from 40 to 80~cm from the floor / surface where the dishwasher rests (A).

Before connecting the water outlet hose to the sink drain, remove the plastic plug (B).

Anti-flooding protection

To ensure floods do not occur, the dishwasher:

• is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.

Some models are also equipped with the supplementary safety device New Acqua Stop*, which guarantees anti-flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstances should the water inlet hose be cut, as it contains live electrical parts.

Electrical connection

Before inserting the plug into the electrical socket, make sure that:

• The socket is earthed and complies with current regulations.
• the socket can withstand the maximum load of the appliance, which is indicated on the data plate located on the inside of the door (see Description of the appliance);
• The power supply voltage falls within the values indicated on the data plate on the inside of the door.
• The socket is compatible with the plug of the appliance. If this is not the case, ask an authorised technician to replace the plug (see Assistance); do not use extension cables or multiple sockets.

Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.
The cable should not be bent or compressed.
If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order to prevent all potential hazards (see Assistance.)

• Only available in selected models.

Anti-condensation strip*

After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form.

Advice regarding the first wash cycle

After the installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack, if any. Immediately before the fist washing, completely fill the salt dispenser with water and add only then approximately 1 kg of salt (see chapter entitled Rinse aid and refined salt). The water may overflow: this is normal and is not a cause for concern. Select the water hardness value (see chapter entitled Rinse aid and refined salt). - After the salt has been poured into the machine, the LOW SALT indicator light* switches off.

A If the salt container is not filled, the water softener and the heating element may be damaged as a result.

Assistance

Before contacting Assistance:

• Check whether the problem can be resolved using the Troubleshooting guide (see Troubleshooting).
• Restart the programme to check whether the problem has ceased to exist.
• If the problem persists, contact the Authorised Technical Assistance Service.

A Never use the services of unauthorised technicians.

Please have the following information to hand:

• The type of malfunction.
• The appliance model (Mod.).
  The serial number (S/N).

This information can be found on the appliance data plate (see Description of the appliance).

The machine has a buzzer/set of tones (depending on the dishwasher model) to inform the user that a command has been implemented: power on, cycle end etc.

The symbols/indicator lights/LEDs on the control panel/ display may vary in colour and may have a flashing or fixed light (depending on the dishwasher model).

The display provides useful information concerning the type of wash cycle, drying/wash-cycle phase, remaining time, temperature etc etc.

Technical data
Dimensions	width 60 cm height 85 cm depth 60 cm
Capacity	14 standard place-settings
Water supply pressure	0,05 ÷ 1MPa (0.5 ÷ 10 bar) 7,25 – 145 psi
Power supply voltage	See appliance data plate
Total absorbed power	See appliance data plate
Fuse	See appliance data plate
CE	This dishwasher conforms to the following European Community Directives: -2006/95/EC (Low Voltage) -2004/108/EC (Electromagnetic Compatibility) -2009/125/EC (Comm. Reg. 1016/2010) (Ecodesign) -97/17/EC (Labelling) -2012/19/EU Waste Electrical and Electronic Equipment (WEEE)

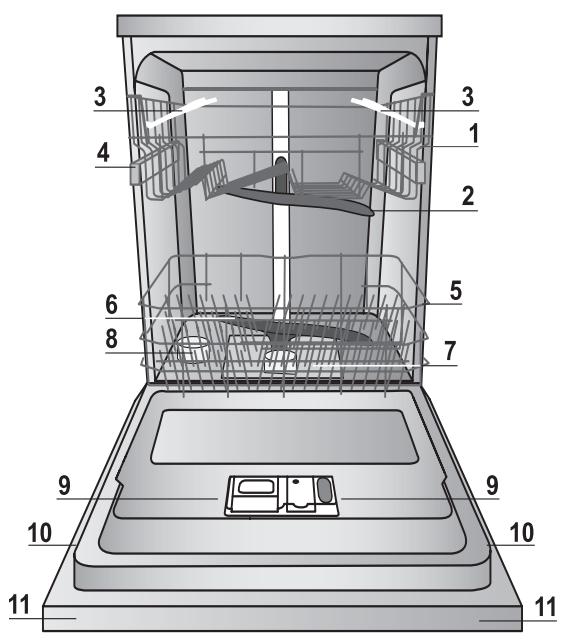

Overall view

1. Upper rack
2. Upper sprayer arm
3. Tip-up dispensers
4. Rack height adjuster
5. Lower rack
6. Lower sprayer arm
7. Washing filter
8. Salt dispenser

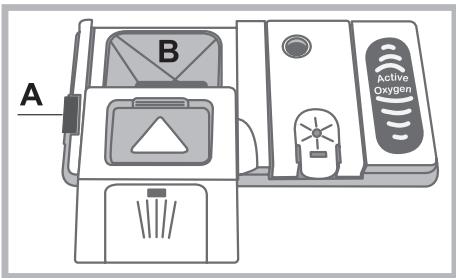

9. Detergent dispenser, rinse-aid dispenser and Active Oxygen device*
10. Data plate
11. Control panel***

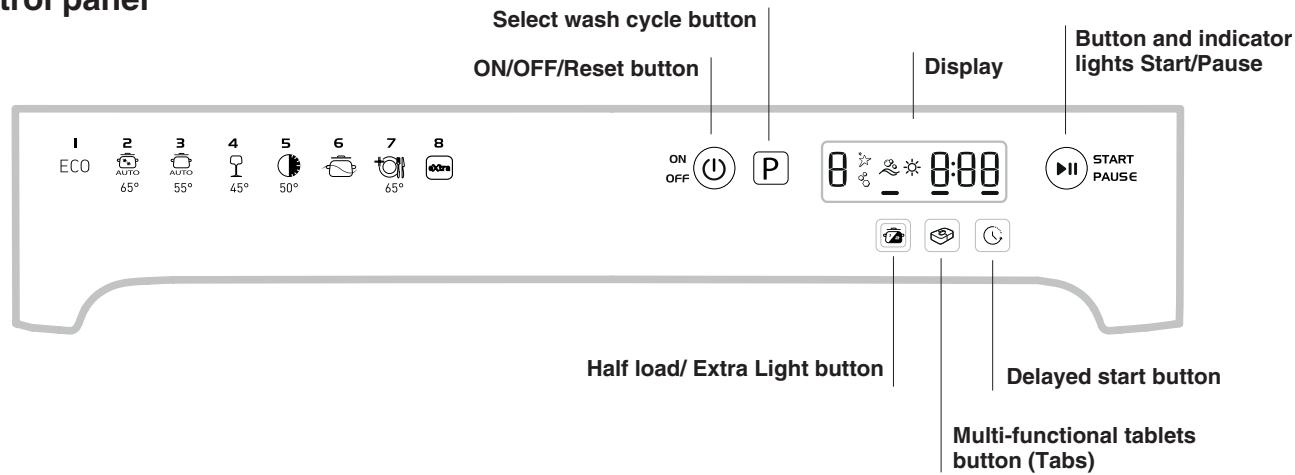

Control panel

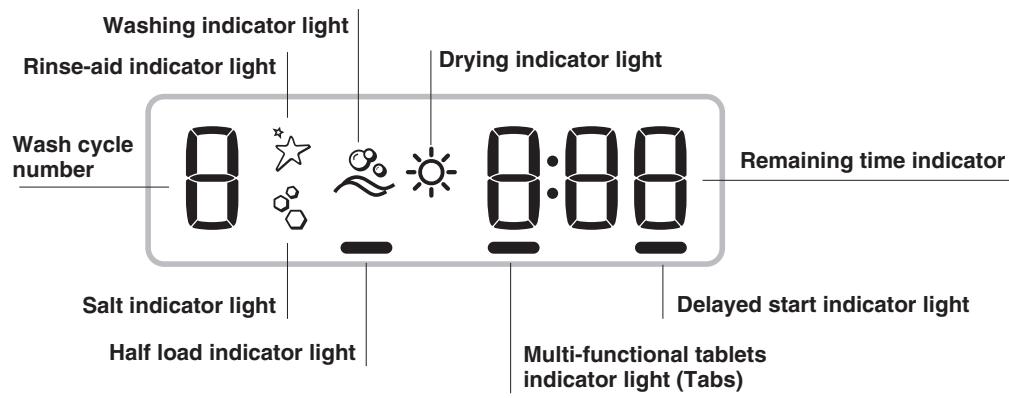

Display

*** Only in completely built-in models.
* Only available in selected models.

The number and type of wash cycles and options may vary depending on the dishwasher model.

Tips

Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and containers. No preventive rinsing is needed under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Make sure that the lids, handles, trays and frying pans do not prevent the sprayer arms from rotating. Place any small items in the cutlery basket.

Since plastic dishes and non-stick frying pans usually retain more water drops, their drying will be not so good as that of ceramic or stainless-steel dishes.

Lightweight items such as plastic containers should be placed in the upper rack and arranged so that they cannot move.

After loading the appliance, make sure that the sprayer arms can rotate freely.

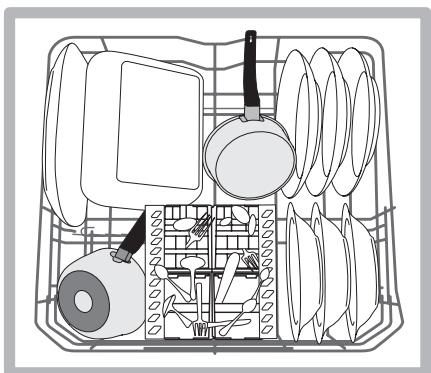

Lower rack

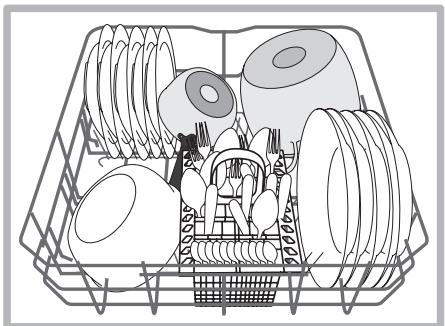

The lower rack can hold pans, lids, dishes, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides.

Very soiled dishes and pans should be placed in the lower rack because in this sector the water sprays are stronger and allow a higher washing performance.

*Only available in selected models with different numbers and positions.

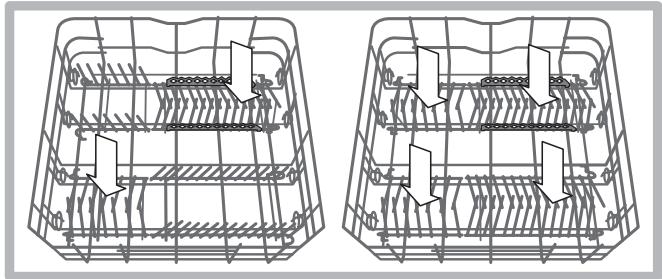

Several dishwasher models are fitted with tip-up sectors*. They can be used in a vertical position when arranging dishes or in a horizontal position (lower) to load pans and salad bowls easily.

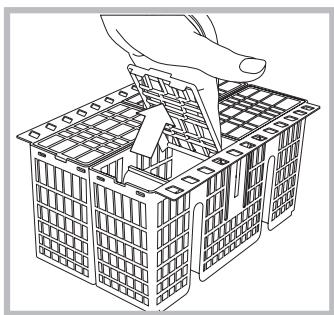

Cutlery basket

The basket is equipped with top grilles for improved cutlery arrangement. The cutlery basket should be positioned only at the front of the lower rack

Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards or they must be positioned horizontally in the tip-up compartments on the upper rack

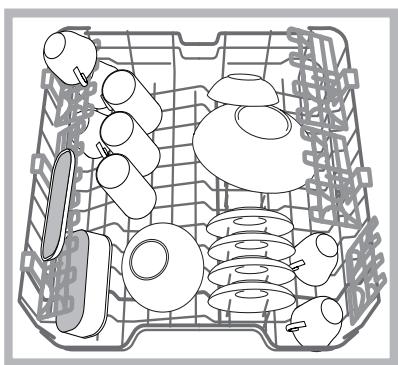

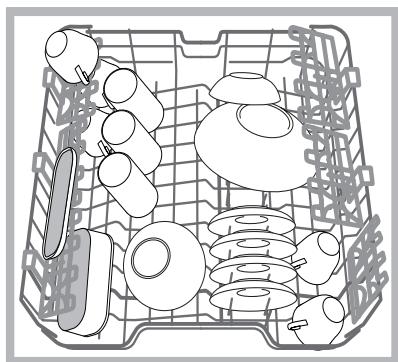

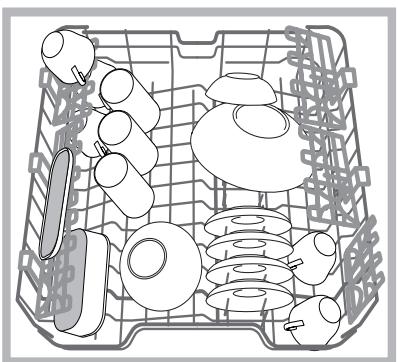

Upper rack

Load this rack with delicate and lightweight crockery such as glasses, cups, saucers and shallow salad bowls.

Several dishwasher models are fitted with tip-up sectors*. They can be used in a vertical position when arranging tea/ dessert saucers or in a lower position to load bowls and food containers.

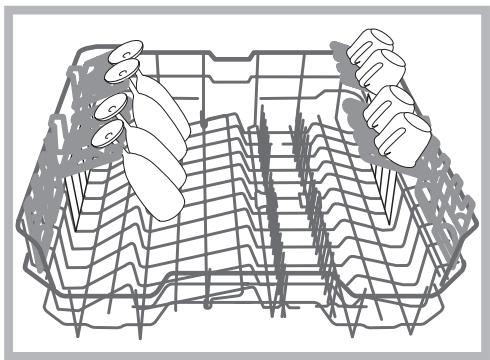

Tip-up compartments with adjustable position

The side tip-up compartments can be positioned at three different heights to optimize the arrangement of crockery inside the rack.

Wine glasses can be placed safely in the tip-up compartments by inserting the stem of each glass into the corresponding slots.

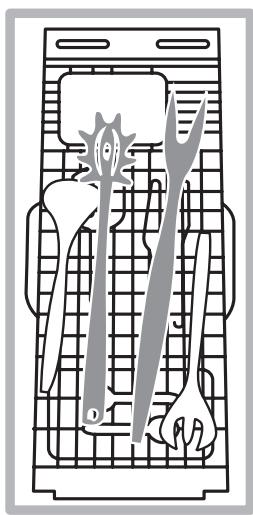

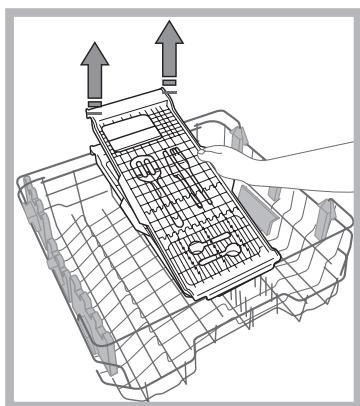

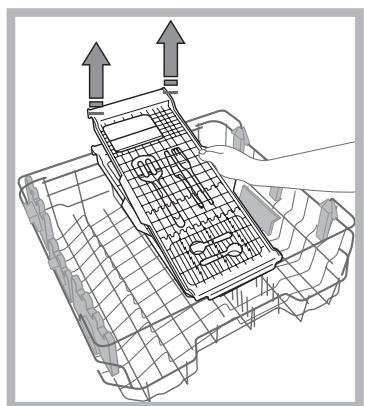

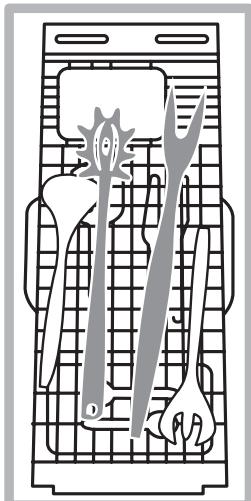

Cutlery tray*

Some dishwasher models are fitted with a sliding tray which can be used to hold serving utensils or small cups. For optimum washing performance avoid positioning bulky crockery directly below the tray. The cutlery tray can be removed (see Figure).

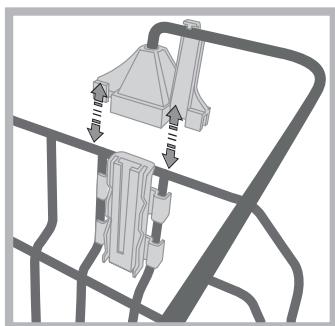

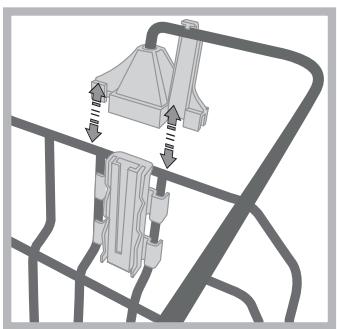

Before loading the tray, make sure the supports are properly coupled to the upper rack (see Figure).

The upper rack can be adjusted for height based on requirements: high position to place bulky crockery in the lower rack and low position to make the most of the tip-up compartments/sectors by creating more space upwards.

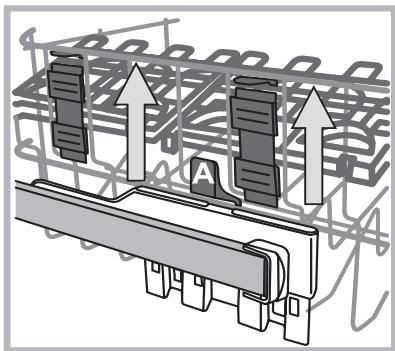

Adjusting the height of the upper rack

In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower position.

The height of the upper rack should be adjusted WHEN THE RACK IS EMPTY.

NEVER raise or lower the rack on one side only.

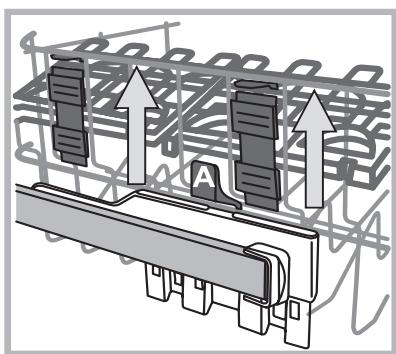

If the rack is equipped with a Lift-Up device (see figure), lift it up by holding its sides. To restore the lower position, press the levers (A) at the sides of the rack and follow the rack down.

Unsuitable crockery

Wooden crockery and cutlery.
- Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
- Parts in synthetic material which do not withstand high temperatures.
Copper and tin crockery.
- Crockery soiled with ash, wax, lubricating grease or ink.

The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

Damage to glass and crockery

Caused by:

• Type of glass and glass production process.
  Chemical composition of detergent.
  Water temperature of rinse cycle.

Tips:

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery.

• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

• Only available in selected models.

Starting the dishwasher

1. Turn the water tap on.
2. Press the ON/OFF button.
3. Open the door and pour in a suitable amount of detergent (see below).
4. Load the racks (see Loading the racks) and shut the door.
5. Select the wash cycle in accordance with the type of crockery and its soil level (see Table of wash cycles) by pressing the P button.
6. Select the wash options* (see Special wash cycles and options.)
7. Start the cycle by pressing the Start/Pause button: The wash indicator light goes on and the time left to the end of the cycle appears on the display together with the wash-cycle number.
8. At the end of the cycle, the display shows END. Switch off the appliance by pressing the ON/OFF button, shut off the water tap and unplug the appliance from the electricity socket.

9. Wait a few minutes before removing the crockery to avoid getting burnt. Unload the racks, beginning with the lower level.

10. The machine will switch off automatically during long periods of inactivity in order to minimise electricity consumption.

AUTO WASH CYCLES*: some models of dishwasher are equipped with a special sensor which can be used to assess the level of soiling and automatically select the most efficient and economic wash cycle accordingly. The duration of the auto wash cycles may vary due to the operation of the sensor.

Changing a wash cycle in progress

If a mistake was made in the wash-cycle selection process, it is possible to change the cycle provided that it has only just begun: Once the wash cycle has started, in order to change the wash cycle switch off the machine by pressing and holding the ON/OFF/Reset button. Switch it back on using the same button and select the desired wash cycle and options.

Adding extra crockery

Press the Start/Pause button and open the door, taking care to avoid the escaping steam. Then place the crockery inside the dishwasher. Press the Start/Pause button: The cycle will start again after a long beep has been emitted.

A If the delayed start has been set, at the end of the countdown the wash cycle will not start. It will stay in Pause mode.
Press the Start/Pause button to pause the machine; the wash cycle is stopped.

At this stage the wash cycle cannot be changed.

Accidental interruptions

If the door is opened during the wash cycle or there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or the electricity supply restored.

• Only available in selected models.

Measuring out the detergent

A good wash result also depends on the correct amount of detergent being used. Exceeding the stated amount does not result in a more effective wash and increases environmental pollution.

Based on how soiled the items are, the amount can be adjusted to individual cases using powder or liquid detergent.

In the case of normally soiled items, use approximately either 35 gr (powder detergent) or 35 ml (liquid detergent). If tablets are used, one tablet will be enough.

If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

For good washing results also follow the instructions shown on the detergent box.

For further questions please ask the detergent producers' Advice Offices.

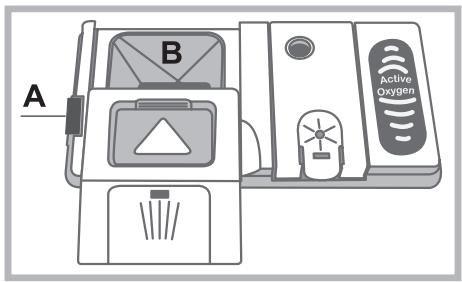

To open the detergent dispenser use the opening device "A".

Introduce the detergent into the dry dispenser "B" only. Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the Table of wash cycles to add the proper quantity. Compartment B comprises a level showing the maximum quantity of liquid or powder detergent that can be added to each cycle.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the wash cycle.

If all-in-one detergents are used, we recommend using the TABS option, because it adjusts the cycle so that the best washing and drying results are always achieved.

Only use detergent which has been specifically designed for dishwashers.

DO NOT USE washing-up liquid.

Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended.

The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option.

To achieve the best results from each washing and drying cycle, powder detergent, liquid rinse aid and salt should be used.

Wash-cycle data is measured under laboratory conditions according to European Standard EN 50242.

Based on the different conditions of use, the wash-cycle duration and data can change.

The number and type of wash cycles and options may vary depending on the dishwasher model.

Wash Cycle	Drying	Options	Wash Cycle Duration	Water Consumption (l/cycle)	Energy Consumption (kWh/cycle)
1. Eco	Yes	Delayed start – Tabs – Half Load	03:10'	9,0	0,93
2. Auto Intensive AUTO	Yes	Delayed start – Tabs – Half Load	02:00' - 03:10'	14,0 - 15,5	1,50 - 1,80
3. Auto Normal AUTO	Yes	Delayed start – Tabs – Half Load	01:30' - 02:30'	14,5 - 16,0	1,20 - 1,35
4. Delicates	Yes	Delayed start – Tabs – Half Load	01:40'	11,0	1,10
5. Rapid 30'	No	Delayed start – Tabs	00:30'	9,0	0,50
6. Prewash	No	Delayed start – Half Load	00:12'	4,5	0,01
7. Hygiene	Yes	Delayed start	01:20'	10,0	1,25
8. Extra eXtra	No	Delayed start – Extra Light (half load)	01:00'	11	n.a.

Instructions on wash-cycle selection and detergent dosage

1. The ECO wash cycle is the standard cycle to which the energy label data refers. It can be used to wash crockery with a normal soil level and is the most efficient cycle in terms of energy and water consumption for this type of crockery. 29 gr/ml + 6 gr/ml** - 1 Tab (**Quantity of pre-washing detergent)
2. Heavily soiled dishes and pans (not to be used for delicate items). 35 gr/ml - 1 Tab
3. Normally soiled pans and dishes. 29gr / ml + 6gr / ml^** - 1 Tab
4. Cycle for delicate items, which are more sensitive to high temperatures 35 gr/ml - 1 Tab
5. Fast cycle to be used for slightly dirty dishes (ideal for 2 place settings) 25 gr/ml - 1 Tab
6. Pre-wash while awaiting completion of the load with the dishes from the next meal. No detergent.
7. High-temperature disinfecting cycle. Ideal to clean crockery and feeding bottles. 30 gr/ml - 1 Tab
8. Large crockery. (Do not use on delicate items) 35 gr/ml - 1 Tab

Standby consumption: Left-on mode consumption: 5,0 W - Off mode consumption: 0.5 W n.a. - not applicable

Notes:

Optimum performance levels when using the "Rapid" cycle can be achieved by respecting the specified number of place settings.

To reduce consumption even further, only run the dishwasher when it is full.

Note for Test Laboratories: for information on comparative EN testing conditions, please send an email to the following address: [e-mail]

Special wash cycles and Options

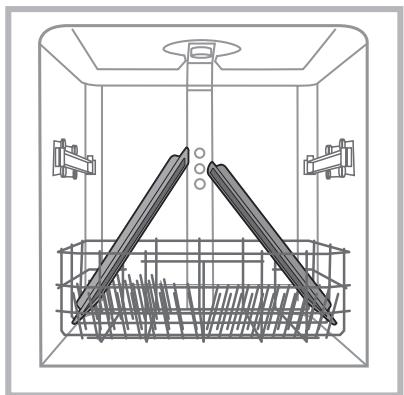

Wash cycle EXTRA

EXTRA makes it possible to carry out a heavy-duty wash cycle of large crockery up to a max height of 53cm: baking pans, oven grids, dripping pans, hob grids, large saucepans, serving dishes, pizza dishes, stainless-steel hood filters. Remove the upper rack to load bulky crockery.

Release the two locks (right and left) and pull out the rack. When the upper rack is fitted, the locks must be always closed.

In order for the water to reach the crockery everywhere, arrange it as shown in the Figure.

The cycle can also be used on large delicate crockery using the option Extra Light (see Wash Options).

Do not start the dishwasher without the upper rack using wash cycles other than EXTRA.

To carry out the wash cycle Extra and Extra with the Light* option pour the detergent directly into the tub and not into the dispenser.

Wash options*

The OPTIONS may only be set, changed or reset after the wash cycle has been selected and before the Start/Pause button has been pressed.

Only the options which are compatible with the type of wash cycle set may be selected. If an option is not compatible with the selected wash cycle (see Table of wash cycles), the corresponding symbol flashes rapidly 3 times.

If an option is selected which is not compatible with another (previously selected) option, it will flash 3 times and switch off, while the most recently selected option will remain active.

To deselect an option which has been set by mistake, press the corresponding button again.

Half load/Extra light

The button has two functions: HALF LOAD and EXTRA LIGHT.

• Select the wash cycle and press the HALF LOAD/ GHT button; the indicator light will go on.

Press the HALF LOAD/EXTRA LIGHT button again to deselect this option.

Half Load

If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. The amount of detergent can be halved.

Extra Light

Compatible with the wash cycle EXTRA only.

This option makes EXTRA suitable to large delicate crockery and items. This option includes no drying phase.

A Make sure the crockery and items are dishwasher-safe.

Multi-functional tablets (Tabs)

This option optimises washing and drying results.

When using multi-functional tablets, press the MULTIFUNCTIONAL TABLETS button; the corresponding symbol will light up. If the button is pressed again, the option will be deselected.

The "Multi-functional tablets" option results in a longer wash cycle.

The use of tablets is only recommended for models having this option and it is not recommended with wash cycles which do not specify the use of multi-functional tablets.

Delayed start

It is possible to delay the start time of the cycle by a period of time between 1 and 24 hours:

1. Select the desired wash cycle and any other options required; press the DELAYED START button. The indicator light will go on. Use the same button to select when the wash cycle will start (h01, h02 etc.)
2. Confirm the selection using the START/PAUSE button to start the countdown.
3. Once this time has elapsed, the DELAYED START indicator light goes off and the wash cycle begins.

To deselect the DELAYED START option, press the DELAYED START button until the text OFF appears.

The Delayed Start function cannot be set once a wash cycle has started.

A Only use products which have been specifically designed for dishwashers.

Do not use table/industrial salt or washing-up liquid.

Follow the instructions given on the packaging.

If using a multi-functional product it is not necessary to add any rinse aid. However, we recommend that you add salt, especially if you live in an area where the water is hard or very hard. (Follow the instructions given on the packaging).
If you do not add salt or rinse aid, the LOW SALT and LOW RINSE AID indicator lights will stay lit.

Measuring out the rinse aid

Rinse aid makes it easier for the crockery to dry, as water runs off the surfaces more readily and therefore does not leave streaks or marks. The rinse aid dispenser should be filled:

• When the LOW RINSE AID indicator light* on the control panel is illuminated, a reserve supply of rinse aid is still available for 1-2 cycles;

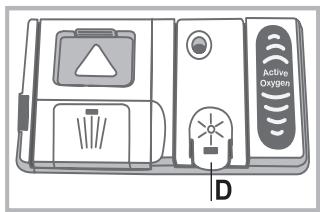

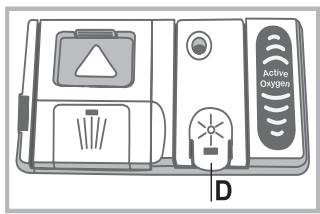

1. Open the dispenser “D” by pressing and pulling up the tab on the lid;
2. Carefully introduce the rinse aid as far as the maximum reference notch of the filling space - avoid spilling it. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.

NEVER pour the rinse aid directly into the appliance tub.

Rinse-aid quantity setting

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid. Switch the dishwasher on and off using the ON/OFF button.

Press the Start/Pause button 3 times; switch on the machine using the ON/OFF button and access the adjustment menu - the rinse-aid indicator light is lit (set to factory level).

Select the level of rinse-aid supply using the P wash-cycle button P. (0 to 4 max.)

Press the ON/OFF button to save the setting.

If the rinse-aid level is set to ZERO, no rinse aid will be supplied. The LOW RINSE AID indicator light will not go on if you run out of rinse aid.

• If there are streaks on the crockery, set a low number (1-2).
• If there are drops of water or limescale marks, set a high number (3-4).

Setting water hardness

Every dishwasher is equipped with a water softener which, by using refined salt designed specially for this type of appliance, supplies water without limescale which is then used to wash the crockery.

This dishwasher has a setting that helps reduce pollution and optimises washing performance in accordance with the water

hardness level in your area. Ask your local water supplier for this information.

• Switch the dishwasher on and off using the ON/OFF button. Hold down the Start/Pause button for min. 3 seconds; switch on the machine using the ON/OFF button and access the adjustment menu - the salt indicator light is lit.
• Select the desired level (1 to 5^ max. based on the dishwasher model) using the P button

(water softener set to medium level).

Press the ON/OFF button to save the setting.

Even if using multi-functional tablets, fill the salt dispenser.

Water Hardness Table				Average salt dispenser capacity duration**
level	°dH	°F	mmol/l	months
1	0 - 6	0 - 10	0 - 1	7 months
2	6 - 11	11 - 20	1,1 - 2	5 months
3	12 - 17	21 - 30	2,1 - 3	3 months
4	17 - 34	31 - 60	3,1 - 6	2 months
5*	34 - 50	61 - 90	6,1 - 9	2/3 weeks
For values between 0°F and 10°F, we do not recommend the use of salt. * a setting of 5 may increase cycle duration. ** 1 wash cycle per day.

(^ dH) = hardness measured in German degrees - ^ f = hardness measured in French degrees - mmol/l = millimoles per litre)

Measuring out the refined salt

In order to obtain the best possible results from a wash cycle, make sure that the salt dispenser is never empty.

Refined salt removes limescale from the water, thus avoiding the formation of deposits on crockery.

The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:

• When the green float cannot be seen by simply looking at the cap of the salt dispenser;

• When the LOW RINSE AID indicator light on the control panel is illuminated ;

• Remove the lower rack and unscrew the cap (anticlockwise).

• The first time you do this: fill the water tank right up to its edge.

1. Position the funnel (see figure) and fill the salt dispenser up to the edge (approximately 1kg ). It is normal for a little water to leak out.
2. Remove the funnel* and wipe any salt residues away from the opening; rinse the cap under running water and then screw

it on, the head facing downwards so as to let the water flow out of the four slots (star-shaped arrangement) in the lower part of the cap (cap with green float*).

It is advisable to perform this procedure every time you add salt to the dispenser.

Make sure the cap is screwed on tightly so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair).

When necessary, measure out the salt before a wash cycle so that any saline solution which has leaked out of the salt dispenser is removed.

• Only available in selected models.

Shutting off the water and electricity supplies

• Turn off the water tap after every wash cycle to avoid leaks.
• Always unplug the appliance when cleaning it and when performing maintenance work.

Cleaning the dishwasher

• The external surfaces of the machine and the control panel can be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.
• Any marks on the inside of the appliance may be removed using a cloth dampened with water and a little vinegar.

Preventing unpleasant odours

Always keep the door of the appliance ajar in order to avoid moisture from forming and being trapped inside the machine.
- Clean the seals around the door and detergent dispensers regularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours.

Cleaning the sprayer arms

Food residue may become encrusted onto the sprayer arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

The two sprayer arms may both be removed.

To remove the upper sprayer arm, turn the plastic locking ring in an anti-clockwise direction. The upper sprayer arm should be replaced so that the side with the greater number of holes is facing upwards.

The lower sprayer arm can be removed by pressing on the side tabs and pulling it upwards.

Cleaning the water inlet filter*

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

A Clean the water inlet filter at the tap outlet regularly.

• Turn off the water tap.
• Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water.
• Re-place the filter and screw the water hose back into position.

Cleaning the filters

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They should be cleaned if you wish to achieve the best results in every wash.

Clean the filters regularly.
A The dishwasher should not be used without filters or if the filter is loose.

• After several washes, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

• Turn the cylindrical filter C in an anti-clockwise direction and pull it out (fig. 1).

• Remove the cup filter B by exerting a slight pressure on the side flaps (fig. 2);
• Slide out the stainless-steel plate filter A. (fig. 3).
• Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (fig.4).

After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

Leaving the machine unused for extended periods

• Disconnect the appliance from the electricity supply and shut off the water tap.
• Leave the door of the appliance ajar.

• When you return, run a wash cycle when the dishwasher is empty.

• Only available in selected models.

Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance.

Problem:	Possible causes / Solutions:
The dishwasher does not start or cannot be controlled.	• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program. • The appliance has not been plugged in properly. • The dishwasher door has not been shut properly.
The door won't close.	• The lock was released. Strongly push the door until a “clacking” noise is heard.
No water drains out from the dishwasher.	• The dishwasher cycle has not yet finished. • The water inlet hose is bent (see Installation). • The drain duct is blocked. • The filter is clogged up with food residues.
The dishwasher makes excessive noise.	• The dishes are rattling against each other or against the sprayer arms. • Excessive foam presence: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (see Start-up and use).
The dishes and glasses are covered in a white film or limescale deposits.	• The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt). • The lid on the salt dispenser is not closed properly. • The rinse aid has been used up or the dosage is too low.
The dishes and glasses are streaked or have a bluish tinge.	• The rinse aid dosage is too high.
The crockery has not been dried properly.	• A wash cycle without a drying programme has been selected. • The rinse aid has been used up or the dosage is too low (see Rinse aid and salt). • The rinse aid dispenser setting is not high enough. • The crockery is made from non-stick material or plastic.
The dishes are not clean.	• The racks are overloaded (see Loading the racks). • The crockery has not been arranged well. • The sprayer arms cannot move freely. • The wash cycle is too gentle (see Wash cycles). • Excessive foam presence: the detergent has not been measured out correctly or it is not suitable for use in dishwashers. (see Start-up and use). • The lid on the rinse aid compartment has not been shut correctly. • The filter is dirty or blocked (see Care and maintenance). • The refined salt level is low (see Rinse aid and salt).
The dishwasher does not take any water in - Tap shut-off alarm. (indicator light ON/OFF flashing; H2O displayed; F 6 appears after a few seconds).	• There is no water in the mains supply. • The water inlet hose is bent (see Installation.) • Turn on the tap and the appliance will start after a few minutes. • The appliance stopped because no action was taken when the beep sounded*. Switch off the machine using the ON/OFF button, turn on the tap and switch the machine back on after a few seconds by pressing the same button. Re-program the appliance and restart the wash cycle.

Français, 16

Sommaire

aillll llll j jiall jll lla jia

Jaaal

iJy jI y Jy Jy Jy

Aa

（jlaal jn jn jnaa Jbaw jagll jaaa aee bja 100
g oJoooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJooJyJOOJJ
. JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI JALI

#

:dsLusly Jld

JSLWll calssil Jlpsiswyl kwlal Jsly jls lgs

（）

akwali 1i i 1aasssll aaiy

Aaill aelwll Aoy Jail akwll 1

A

i 1

JIS

.(Mod.) jjbj

· (S / N)

jlll lalalall

1

65 65

i 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

a

AR

1.1523 1.1523

a

4 all

.

80 40 20 20

.(A) j1j111111111111111111111111111

e 1

.(B)

Jiee

jJ jIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJIJ

i 1

jieell jidjoo

*New Acqua Stop

Jzj jzj jzjj jzjj jzjj

15

e 1

y

1 1

a

aag aull jall jall jall jall plal yj jlll

JL

（j51

a

llal. 1aall co laal gao aai all jai al .jai al

jlll 1 (ailll l) j

A

Jusss

A

jE jE EEE

(1011)

A

Aio aolil 1aill gie 1lll 12 y

Ee 1

y jolal no 21 y aalil l aag jolll .1

a

jil jialaiai iaglll jiei jiee e 1y

Jaaa Jaaa aai jia jiaai jiaai jiaai

ED = 2GD = 1

A

pabi piisiw yiyy .alaoiwal g ayayali pabi jai bji pisiw y

a a a a a a a a a a a a a a a a a a a a a a a a a

Jssu juii jusll

J 1

slll lal gaiiaagaiyaii aai yai iayaiyai jilw yai sllll A
ailll lal gaiiaai gaiyaiyai iayaiyai jilw yai yai slll yai yai yai

jla j 1000000000000000000000000000000000000000000000000

1ie jie wll i yLaiy giall 8i

1234567890

a 100000000000000000000000000000000000000000000000000000

aiee

.

waii. 1y

ailliiill

ailll alalll lalil y gill aellll alall alal

1

abial oal (gulSll sjjll

abill 0j0clll 0j0

:

aaii iiai ieiiei i aiee e 1

jIbI Juei

aegd gaae aee

J

joo jui ju jy jy

bll lgl gagg

aee aee eae ee eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae

J 1

Aaill aill

*

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

( k + 1) ( k + 1) · ( k + 1) ( k + 1) · ( k + 1)

J 1000 all J22 J
Sglll a j 000gol .(Kj/1)

a

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

piaiuiie iie oioa cly aayaiyai yaiyaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai ayaiyai

小 ad = 1 - x

abw yjglalbpa.END aylll alaas

jglll wlaa cawl gall jgaa Jai (jia) (jia) jge bina

g y 9.

Jaa 15

A

Jlalil Jue aisla cdo gao jn jn ci: *aagaiogjgl Jue Cg 1
Lisilagjgl jizy g hui y giuaa piai al dsiu w jay jaiy uay o jay
aicnilagjgl Jusll Cg Ds. ellil la g aiaiaig aiele jiy Jusll s
jauillall Jue bnnr jn jns

Jd Jd

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

aLia) gil aLia

a 111111111111111111111111111111111111111111

A

A

aaiiie 111 111 111 111 111 111 111 111 111 111 111 111 111

Tab 1-35 aglll a jolj gilgill gillgill

Tab 1-25 (Jusuaa)

Aebio 1oA y. Aylil l a gll no jyblal ayu Jbiil eli Jull lo.6

Tab 1-30. aclulal alj j giljlll lilll llll llll llll

Tab 1-35 (a)

0.5: 12ai yai yaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyaiyai

biy- -biy

ba 1jia ci jj g jg

J (Ldl) 100

aee

joo joo (o o o) jol jol o o jol jol jol jol jol jol

J 1

a111 1

ailll aolllal algall al gll

ailll lalgall 1 1 1 j bial gll i j

jlll lcll 5 jol o jolll lglal j j b

(Half Load)

Jaii o jay Jaij

aill 1gogolglll

jbjzai, 15 jzaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy

iioie yiaill jil iai pial .jgall cuae gai. jgall ciill

.(h01.h02)

Jillll llll 1111 1111 1111 1111 1111 2

Jzj 1234567890

J

jssssssssssssssssssssssssssssssssssssssssss

OFF

Jss

= 1

"30 30

gall lgl 1

Loie 1 y Jlal 1 Lue aisla Jiaaiy jy clln no jsi dIguiy jno

Aiiio 05

1 1

:JlJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJg

[e-mail]

a

i 1

jill gil gil 53 jll

a 11 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J. J.

CiaIgall oJc aIaIall clllal 4s JIwI
calal y1/laill jydiuWbI Jauie ayIaIylo Iaill y
calal /eJyJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJrJ rjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRjRj RzIaII Cabiill zo JyogcEgBd Bnall Aila Jaii
Lae aySlco yol Gc yol *5 1) ygeall gswll 22 - P JJI pIaIyU (yIbI
. (bwgl cyIgwl gl cl lcl Iaio bio
. . (bwgl cyIgwl gl cl Iaio bio
.

الإستعمال	الإستعمال
	***الإستعمال	= fH°\( \ddot{0} \)gslawlal\( \ddot{a} \)sul\( \ddot{a} \)	= dH°\( \ddot{0} \)gslawlal\( \ddot{a} \)sul\( \ddot{a} \)	alltheissss
الإستعمال	mmol/I\( \text{ملاoverview}= \)\text{الإستعمال}	\( \text{d} \text{h} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{b} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{c} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{t} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{c} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{e} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{a} \text{d} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{a} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{a} \text{d} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{d} \text{d} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{a} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{a} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{d} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{c} \text{d} \text{d}\right)

aJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJgJ

#

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

s* sall aie oclall caiill laol jaiai laoi .
alil (kay) eialll gwrll 1
.(aclll blae
yolal: gll iill gll y.2
.1
gjzjg jol (pull jaij) * gll gip jaij .3
j1 slal all .(p51 1 Jdla lo) glal
.1

eclallll 11111111111111111111111111111111111111111111111111111111111

A

1 1

a 1

ailll ola aal l 1n nlll 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 11 1

gl 4 jzj zai all gbe iill "D" e jgal .1

S BCD = S COD + S BDO - S BOC

alua gaaal aolc giaa jiaaall abaal sala aalbly 2

aai jia aaiy wu y kui la i (di) dii 1j. uill gai

jL 3

.3juljglz jg a 12i oolal cbiil sla y

oJELIJI 1000

scllallcbillolaojusbinaikayagaiilglilijecolalaljrljSiplll
calalypa gcalaly/1julilln jplzduyla JbciaIlaJSLaJxu y
calaly/1julilln jplzduylaJxu
jllpalsiyabslalljxuuyg 3Jusill calay/Jusill jlljxu
cbillolaojusg cgsiabll aiaJgiiand Jcai/1jxu
.(caal/ syl/syioo lcbuspi)excllall
P(0Jusll OJrjP plzduybxcllallcbillsALBjgjj (4)

j 1

oLw yjll p jl 1e 1e xel wall abill oLo gwiue bni pi 1d LOW RINSE xel wall abill oLo gwiue a 1d xel wall abill .xel wall abill oLo ayck Cgiil 1d AID

(2)1) 1aia aie buaaiy aie gilglaie bglaae i dgy 13
le buaaiy aie aiau kll cui jill ciaxc glall naa aiaa eiala ciis 13
.(4)3) iaia

plai o gla 1

yill 1o aldiu yil clll 0j o jol 1w e i sla J
yill aull lll jol jol jol jol jol jol jol jol

jagglll jia 1c xue ly 1c! 0a jybl Juae aylo g jia
gabio glall jue g jiu e peLiuy Juaell jai jao jia y

jLd1 1

a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

A

jlll jls l, jilla jn nn jn jilal Jnne aia Sla paae 1

a 1111111111111111111111111111111111111

(2) all yj 1c aia jg jai B g jall jilal .2 (3) .A glall jai jiall jilal .3 Jll dJy JJJ .4 .4

y11 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

A

.

LjzLgai jglal ybj

Jusie 1slo jsi laa Jusie oos Jusie y iagil plisisi sic .

bao o jia cui jub gjio

g 1

ylll llll lccs 15 clal aiaa

Auc jai bii ie lae ygill je jglal

glslj

y 1

Jlall 111y 111y jll jll jll

e

aaii iiaii aiei iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii iiaii

j:jjjjjj j 1000000000000000000000000000000000000000000000000

1

4j jS2g Sj j 1 g 1 g 1 g

iiS oaii i jy bai ai jg yj g j

0yjgldoaogaoiao

Sos

:iluJusLj

（）

（）

yj yj yj yj yj yj yj yj yj yj

.

A

:dydu 4u10oal1 jyj cLulil

J5

.(Mod.)

(S / N)

i j 1

（）

jglcuaa jglge jyjgaa

a a a a a a a a a a a a a a a a a a a a a a a a a

（1）jglgoJgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUgUg

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

y j 250

aai aai jai jai jai jai jai jai jai

s sssssssssssssssssssssssssssssssssssssssssssssssssssssssss

8 1 1

a 15

glial 45 y 4)

（.jai 1o jio jiao

g j 1

A

A

sLs uLs y Lla 1a 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u 1u

i 1

aJy 1 J 1 aJy 1 J 1 aJy 1 J

J

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J

i 1

JUUL

jia jia jia jia jia jia jia

ggl 4

:Jy

Auiu ciui yj suiy Egi

5 = 90^

i 1

Sdaii 1y j y iia 1y j g j

jdi ydi ydi jdi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi ydi

35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35 35

g 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

1r 1

aai oiiig oiiisai ggi oglua jilds by jzbiy bi ygau juiu dus

Ais oaii "A" oiiis jy aiy gj oy jz jy jy

g uuuu u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u u uu

1 1

11K 5k 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

TABS 1j j 100000000000000000000000000000000000000000000000000000000000000000000

A

a

jdy. 125 s g gauu u dali y jdu yuui yuuyu u dy

J 1

.1

（）ON/OFF 2

（1）（20 1j）

j 4

aik j 1000000000000000000000000000000000000000000000000000000000000000000000

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

J 8.8

j 9

A

g 10000000000000000000000000000000000000000000000000000000000000000000

1J 1

1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

（）

JyI JyI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI yI

A

A

a

22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 22 1

02jy sio 12u yuaia la

EN 50242

i 1

A

مarseille الحير سالم (الإستعمال) (الترجمة)	مarseille الحير (الإستعمال)	الإستعمال	الإستعمال	الترجمة	الإستعمال
0,93	9,0	03:10'	-الإستعمال-Tالترجمة-الصDocs	ب四是	ال ADS . 1
1,50 - 1,80	14,0 - 15,5	02:00' - 03:10'	-الإستعمال-Tالترجمة-الصDocs	ب四是	AUTO . 2
1,20 - 1,35	14,5 - 16,0	01:30' - 02:30'	-الإستعمال-Tالترجمة-الصDocs	ب四是	AUTO . 3
1,10	11,0	01:40'	-الإستعمال-Tالترجمة-الصDocs	ب四是	الإستعمال ص扼اني . 4
0,50	9,0	00:30'	-ال,en blocس��作-الصDocs	ب四是	03 مصحيى . 5
0,01	4,5	00:12'	-ال,en blocس��作-الصDocs	ب四是	بعبيع بعبيع . 6
1,25	10,0	01:20'	-ال,en blocس��作-الصDocs	ب四是	بعبيع بعبيع . 7
مarseille نادان	11,0	01:00'	(ال,en blocس��作-الصDocs-ال,en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال(en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال=en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال/en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال,en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال-en blocس��作-الصDocs-ال,en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال,en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال,en blocس��作-الصDocs-ال,en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال.En blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال.En blocس��作-الصDocs-ال,en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-الreen blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-الreen blocس��作-الصDocs-الreen blocس��作-الصDocs-الreen blocس��作-الصDocs-الreen blocس��作-الصDocs-الreen blocس��作-الصDocs-الreen blocs操作-الصDocs-الreen blocs操作-الصDocs-الreen blocs操作-الصDocs-الreen blocs操作-الصDocs-الreen blocs操作-الصDocs-الreen blocs操作-الصDocs-الreen blocs操作-الصDocs-الreen blocs操作-الصDocs-الreen blocs操作-الصDocs-الreen blocs操作-الصDocs-الreen blocs的操作	10:30'	10:30'	10:30'	10:30'	10:30'
1,20 - 1,35	14,5 - 16,0	01:30' - 02:30'	14,5 - 16,0	01:30' - 02:30'	14,5 - 16,0
1,10	11,0	01:40'	11,0	11,0	11,0
0,50	9,0	00:30'	05,5	05,5	05,5
0,01	4,5	00:12'	00:12'	00:12'	00:12'
1,25	10,0	01:20'	10,0	10,0	10,0
مarseille نادان	11,0	01:00'	(ال,en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocس��作-الصDocs-ال'en blocs操作-الصDocs-ال'en blocs操作-الصDocs-ال'en blocs操作-الصDocs-ال'en blocs操作-الصDocs-ال'en blocs操作-الصDocs-ال'en blocs操作-الصDocs-ال'en blocs操作-الصDocs-ال'en blocs操作-الصDocs-ال'en blocs操作-الصDocs-ال'en blocs操作-الصDocs-ال'en blocs的操作	(ENGLISH)	ENGLISH
مarseille نادان	11,0	01:00'	(ENGLISH)	ENGLISH	ENGLISH

Lai gaiyai yai yai kaii 1 ay jay gao bao lai gai aai iai yai yai jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay jay j

.

j 3. juii

Jilao gao jilai jia jial

J 1

S

EXTRA (j)HALF LOAD:

(Su)LIGHT

S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S S

1 1j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

j 3
i 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i j 1
i

J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

02j5 jgl Jua yao aia baa

A

15 15

a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

LOW kaii sla gie jki aai i Ss oda la ai A (C) p s Csi Ss oda) *LOW RINSE AID g (C) p s Ss) *SALT .Jia dai j

Sos oJg oJd

s j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j jj

s (c) s s oL) LOW RINSE AID 4s aS 1-2 s s s s s s s s s s s s s s s s s s s s s
