USER MANUAL IC-M25EURO ICOM

This service manual describes the latest technical information for the IC-M25 and IC-M25EURO VHF TRANSCEIVER, at the time of publication.

To upgrade quality, any electrical or mechanical parts and internal circuits are subject to change without notice or obligation.

MODEL NAMEVERSION NAMEVERSION NUMBERTX OUTPUT POWER
IC-M25USA#015W/1W
EXP#025W/1W
CHN#035W/1W
IC-M25EUROEUR#055W/1W
UK#065W/1W
FRG#075W/1W (1W/0.5W)
HOL#085W/1W
AUS#095W/1W
IC-M25USA-01#115W/1W
EXP-01#125W/1W
CHN-01#135W/1W
IC-M25EUROEUR-01#155W/1W
UK-01#165W/1W
FRG-01#175W/1W (1W/0.5W)
HOL-01#185W/1W
AUS-01#195W/1W
IC-M25USA-02#215W/1W
EXP-02#225W/1W
CHN-02#235W/1W
IC-M25EUROEUR-02#255W/1W
UK-02#265W/1W
FRG-02#275W/1W (1W/0.5W)
HOL-02#285W/1W
AUS-02#295W/1W

ORDERING PARTS

Be sure to include the following four points when ordering replacement parts:

  1. 10-digit Icom part number
  2. Component name
  3. Equipment model name and unit name
  4. Quantity required

1110003491 S.IC TA31136FNG IC-M25 MAIN UNIT 5 pieces

8820001210 Screw 2438 screw IC-M25EURO Top cover 10 pieces

Addresses are provided on the inside back cover for your convenience.

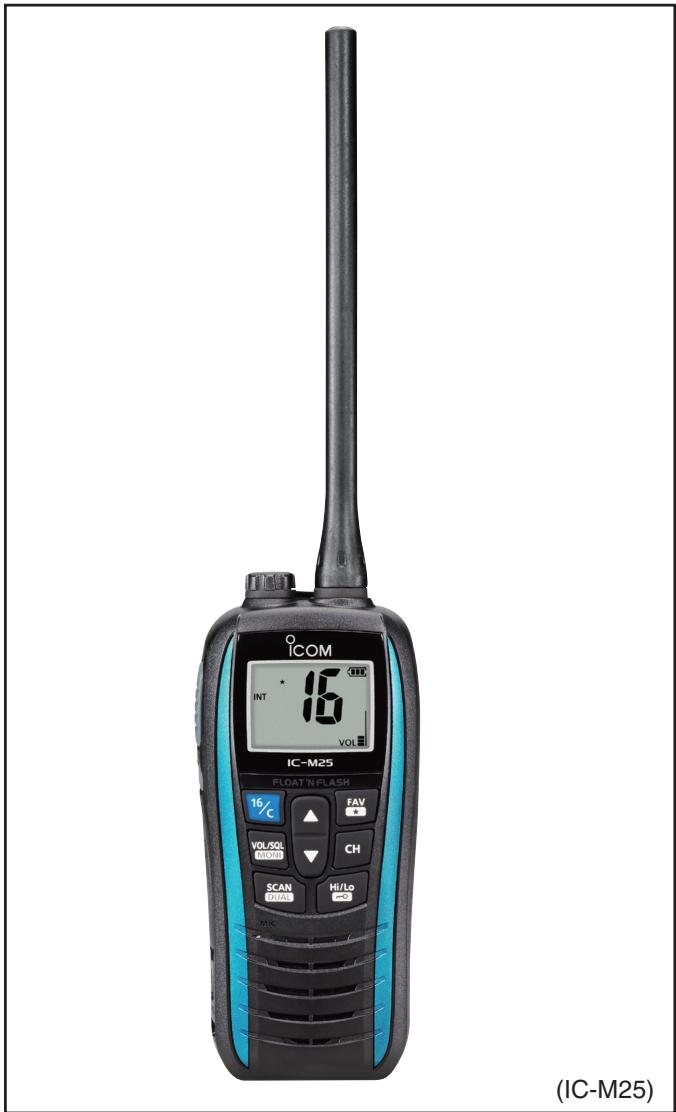

ICOM IC-M25EURO - ORDERING PARTS - 1

CAUTION

DO NOT reverse the polarities of the power supply when connecting the transceiver.

DO NOT apply an RF signal of more than 20 dBm (100 mW) to the antenna connector. This could damage the transceiver's front-end.

REPAIR NOTES

  1. Make sure that the problem is internal before disassembling the transceiver.
  2. DO NOT open the transceiver until the transceiver is disconnected from its power source.
  3. DO NOT force any of the variable components. Turn them slowly and smoothly.
  4. DO NOT short any circuits or electronic parts. An insulated tuning tool MUST be used for all adjustments.
  5. DO NOT keep power ON for a long time when the transceiver is defective.
  6. DO NOT transmit power into a Standard Signal Generator or a Sweep Generator, otherwise the RF power may damage them.
  7. ALWAYS connect a 30 dB to 40 dB attenuator between the transceiver and a Deviation Meter or Spectrum Analyzer, when using such test equipment.
  8. READ the instructions of the test equipment thoroughly before connecting it to the transceiver.

TABLE OF CONTENTS

SECTION 1 SPECIFICATIONS

SECTION 2 INSIDE VIEWS

SECTION 3 DISASSEMBLY INSTRUCTION

SECTION 4 BATTERY PACK REPLACEMENT

SECTION 5 CIRCUIT DESCRIPTON

5-1 RECEIVER CIRCUITS 5-1
5-2 TRANSMITTER CIRCUITS 5-2
5-3 FREQUENCY SYNTHESIZER CIRCUITS 5-3
5-4 VOLTAGE BLOCK DIAGRAM 5-3

SECTION 6 ADJUSTMENT PROCEDURES

6-1 PREPARATION 6-1
6-2 FREQUENCY ADJUSTMENT 6-2
6-3 RECEIVE ADJUSTMENT 6-3
6-4 TRANSMIT ADJUSTMENT 6-3

SECTION 7 PARTS LIST
SECTION 8 MECHANICAL PARTS
SECTION 9 BOARD LAYOUTS
SECTION 10 BLOCK DIAGRAM
SECTION 11 VOLTAGE DIAGRAM

GENERAL

IC-M25 (Except [CHN])

Frequency coverage (MHz):

TX 156.025-157.425

RX 156.050-163.275

Mode: FM (16K0G3E)

  • Power supply voltage: 3.7 V DC nominal (negative ground)

  • Current drain (approximately):

TX (5 W/1.0 W) 2.3 A/0.9 A

Maximum audio (internal SP) 0.30 A

Maximum audio (external SP) 0.20 A

Frequency stability: ±10 ppm

  • Operating temperature

-20°C to +60°C (-4°F to +140°F)

  • Dimensions (projections not included):

56.6 (W) × 134.2 (H) × 30.5 (D) mm,

2.2 (W) × 5.3 (H) × 1.2 (D) inch

Weight: 220 g, 7.8 oz (approximately)

(including the supplied antenna and belt clip)

IC-M25EURO/IC-M25 only [CHN]

Frequency coverage (MHz):

TX 156.000-161.450

[EUR], [FRG], [UK] and [CHN]

[HOL]

156.025-157.425

[AUS]

RX 156.000-163.425

[EUR], [FRG], [HOL], [UK] and [CHN]

156.300-162.025

[AUS]

Mode:

FM (16K0G3E)

  • Power supply voltage:

3.7 V DC nominal (negative ground)

  • Current drain (approximately):

TX (5.0 W/1.0 W/0.5 W*)

2.3 A/0.9 A/0.7 A*

*For only [FRG]

Maximum audio (internal SP) 0.30 A

Maximum audio (external SP) 0.20 A

Frequency stability:

±1.5 kHz

[EUR], [FRG], [HOL], [UK] and [CHN]

± 10 ppm [AUS]

King temperature:

-15°C to +55°C

-10^ to +55^

[EUR], [FRG], [HOL], [UK] and [CHN]

[AUS]

  • Dimensions (projections not included):

56.6 (W) × 134.2 (H) × 30.5 (D) mm,

2.2 (W) × 5.3 (H) × 1.2 (D) inch

Weight (approximately):

220 g, 7.8 oz (including the supplied antenna and belt clip)

TRANSMITTER

IC-M25 (Except [CHN])

Output power: 5 W (approximately)/1 W

  • Modulation system: Variable reactance frequency modulation

Maximum frequency deviation:

±5kHz

  • Adjacent channel power:

70 dB

  • Spurious emissions: -68 dBc typical

  • Residual modulation: 40 dB

Audio frequency response:

+1 dB to -3 dB of 6 dB octave from 300-3000 Hz

IC-M25EURO/IC-M25 only [CHN]

  • Output power: 5 W (approximately)/1 W/0.5 W*

*For only [FRG]

  • Modulation system: Variable reactance frequency modulation

Maximum frequency deviation:

±5kHz

  • Adjacent channel power:

70 dB

  • Spurious emissions:

0.25 W [EUR], [FRG], [HOL], [UK] and [CHN]

0.25 W typical [AUS]

  • Residual modulation: 40 dB

Audio frequency response:

+1 dB to -3 dB of 6 dB octave from 300-3000 Hz

RECEIVER

IC-M25 (Except [CHN])

  • Sensitivity : 0.25 V( -12dB ) typical (at 12 dB SINAD)

  • Squelch sensitivity: 0.25 V (-12dB) typical (at threshold)

  • Intermodulation: 70 dB typical

Spurious response: 70 dB typical

  • Adjacent channel selectivity:

70 dB typical

Audio output impedance:

12Ω (internal speaker)

4 Ω (external speaker)

Audio output power: Internal SP 0.55 W typical

(at 10% distortion)

External SP

0.30 W typical

IC-M25EURO/IC-M25 only [CHN]

  • Sensitivity : -6 dBμ emf typical (at 20 dB SINAD)

  • Squelch sensitivity: -6dB emf typical (at threshold)

  • Intermodulation: 68 dB [EUR], [FRG], [HOL], [UK] and [CHN] 65 dB [AUS]

  • Spurious response: 70 dB [EUR], [FRG], [HOL], [UK] and [CHN]

65 dB [AUS]

  • Adjacent channel selectivity:

70 dB [EUR], [FRG], [HOL], [UK] and [CHN]

65 dB [AUS]

Audio output impedance:

12Ω (internal speaker)

4 Ω (external speaker)

  • Audio output power: Internal SP 0.55 W typical (at 1 kHz)

(at 10% distortion)

External SP 0.20 W

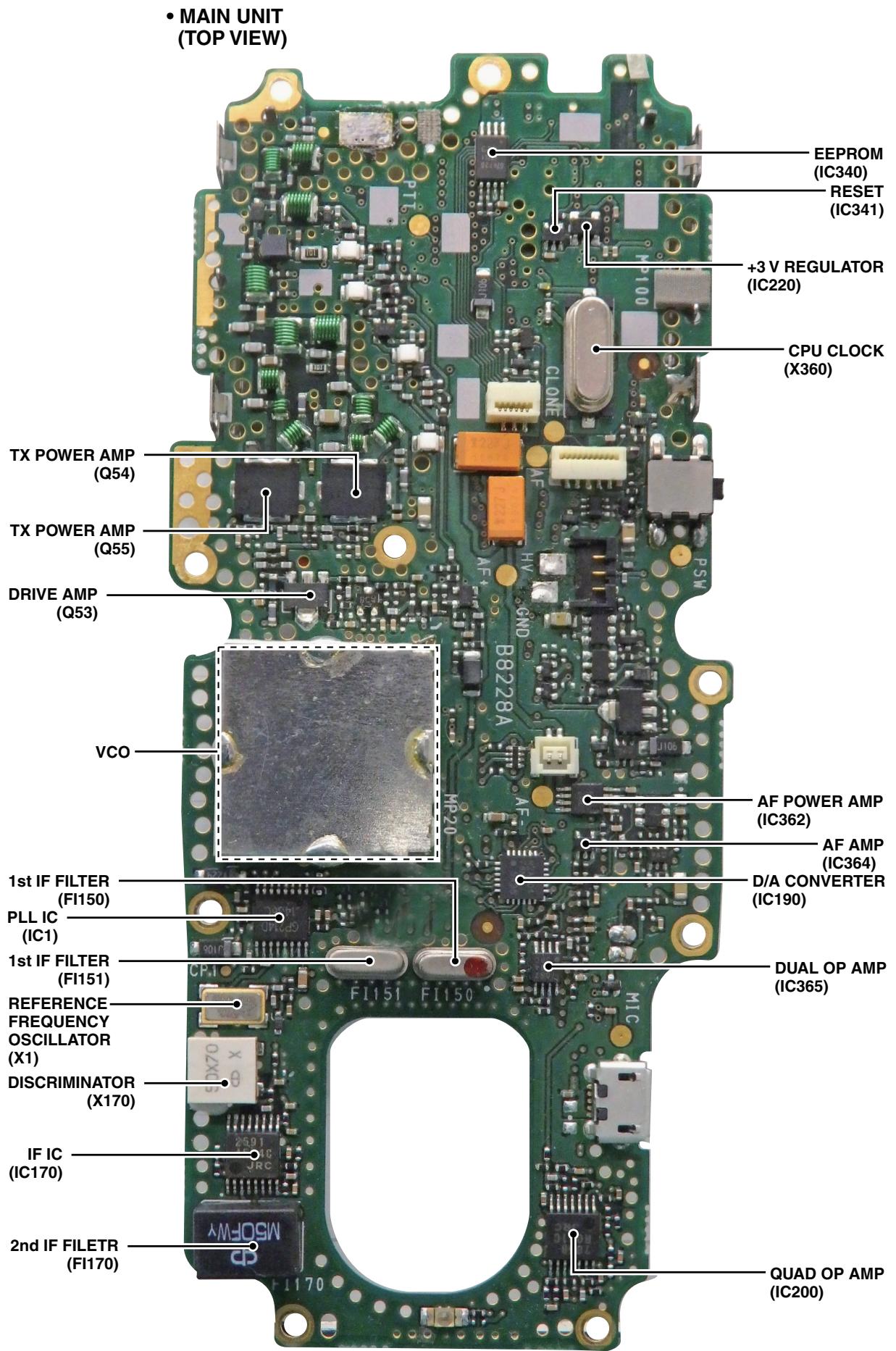

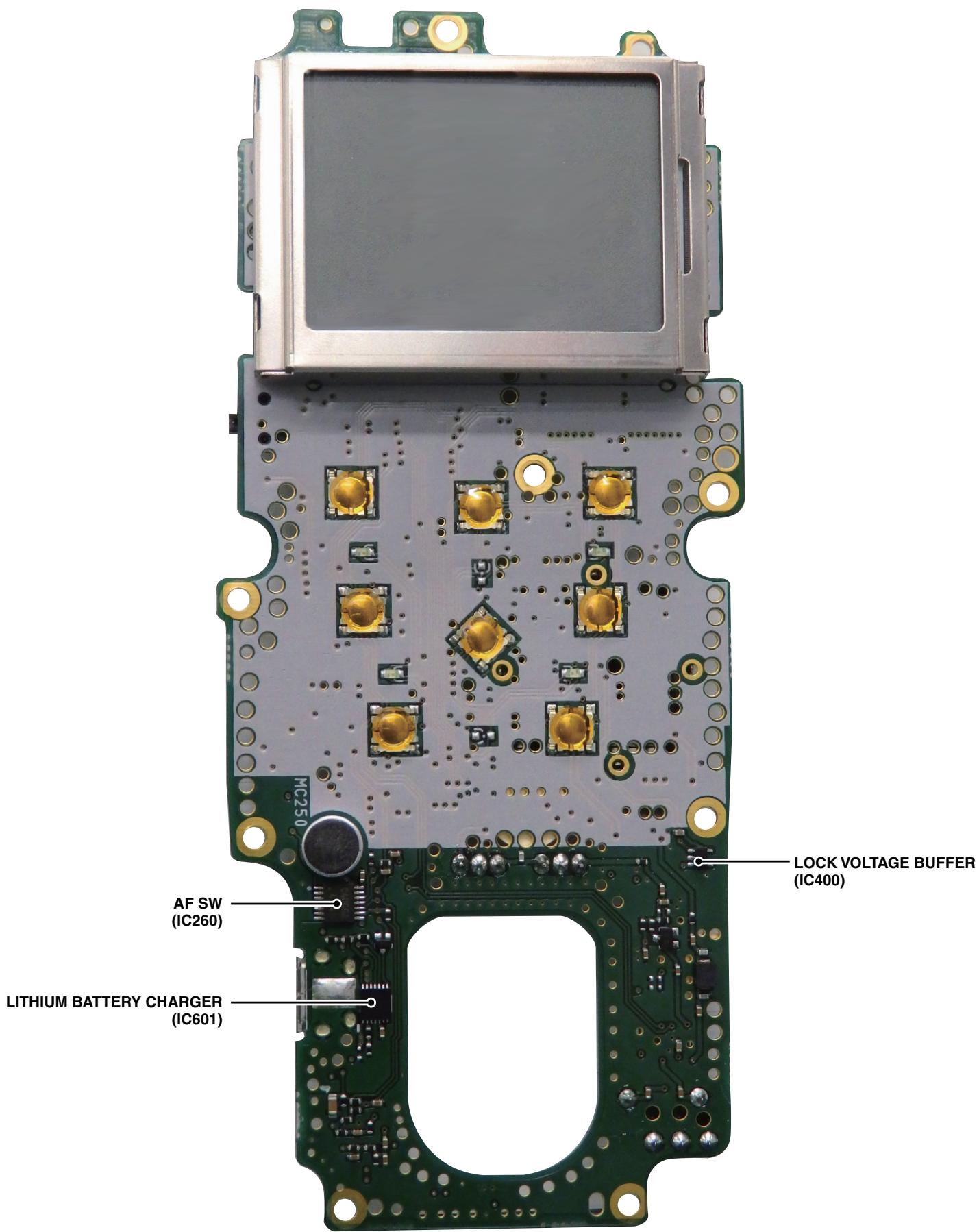

  • MAIN UNIT (TOP VIEW)

ICOM IC-M25EURO - IC-M25EURO/IC-M25 only [CHN] - 1

ICOM IC-M25EURO - IC-M25EURO/IC-M25 only [CHN] - 2

SECTION 3 DISASSEMBLY INSTRUCTION

1. Removing the MAIN UNIT

1) Remove the 6 screws from the rear panel.

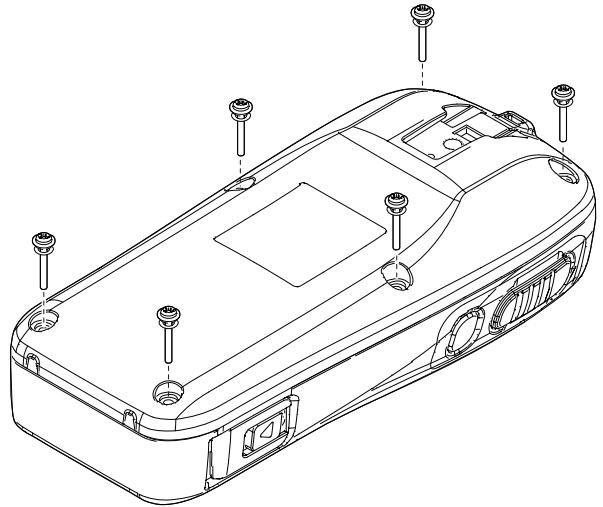

ICOM IC-M25EURO - Removing the MAIN UNIT - 1

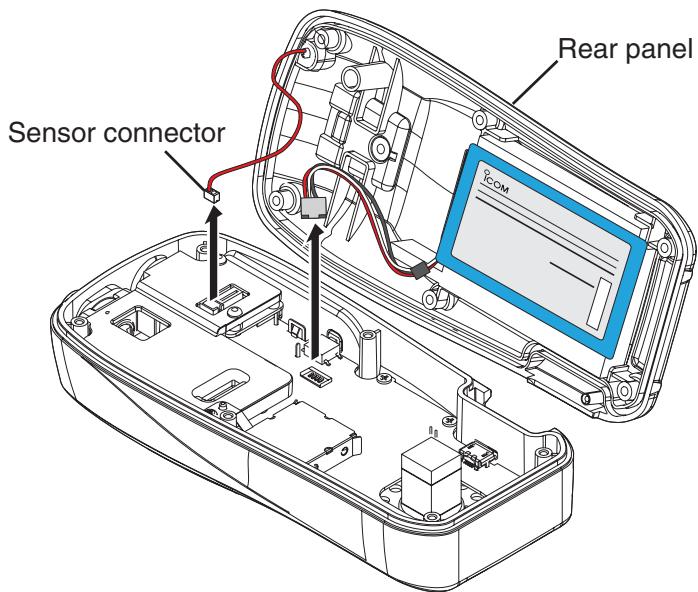

2) Carefully separate the rear panel, and turn it over in order to disconnect the battery connector and the sensor connector.

ICOM IC-M25EURO - Removing the MAIN UNIT - 2

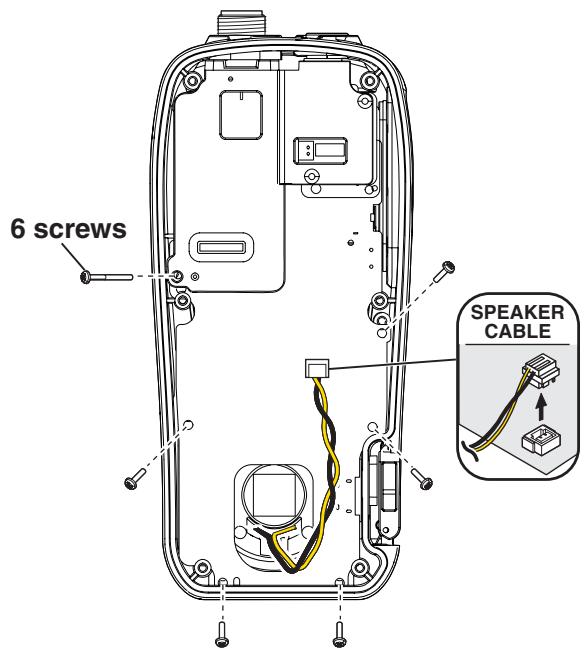

3) Remove the 6 screws from the MAIN UNIT.
4) Disconnect the speaker cable from the MAIN UNIT.

ICOM IC-M25EURO - Removing the MAIN UNIT - 3

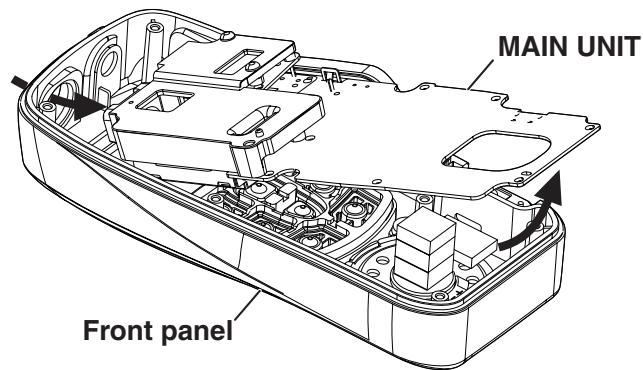

5) Lift the MAIN UNIT with CHASSIS out of the front panel.

ICOM IC-M25EURO - Removing the MAIN UNIT - 4

2. Removing the CHASSIS

1) Remove the solder from the antenna connector conductor.
2) Disconnect the FFC from the MAIN UNIT.

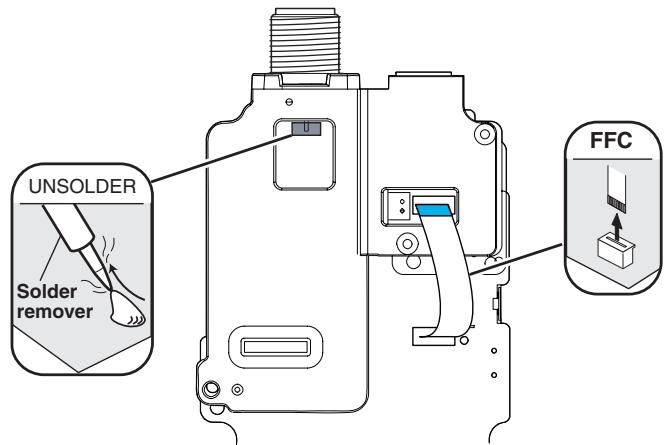

ICOM IC-M25EURO - Removing the CHASSIS - 1

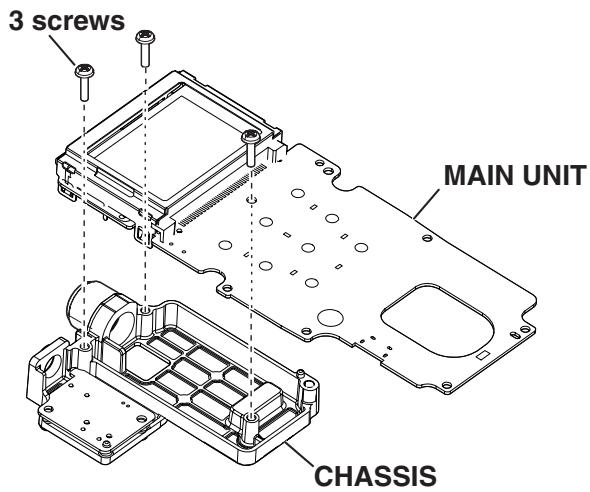

3) Remove the 3 screws from the MAIN UNIT, and then remove the CHASSIS.

ICOM IC-M25EURO - Removing the CHASSIS - 2

SECTION 4 BATTERY PACK REPLACEMENT

NOTE:

  • Before the disassembly, dry the transceiver if it is wet.
  • Dispose the old battery pack according to the laws in your area.

1. Removing the old battery pack

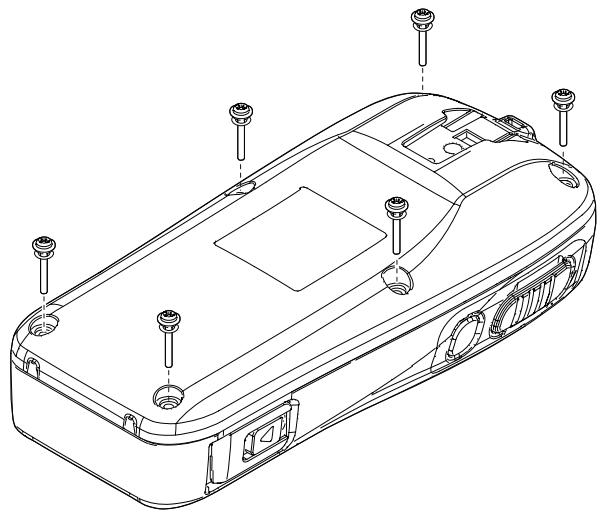

1) Remove the 6 screws from the rear panel.

ICOM IC-M25EURO - Removing the old battery pack - 1

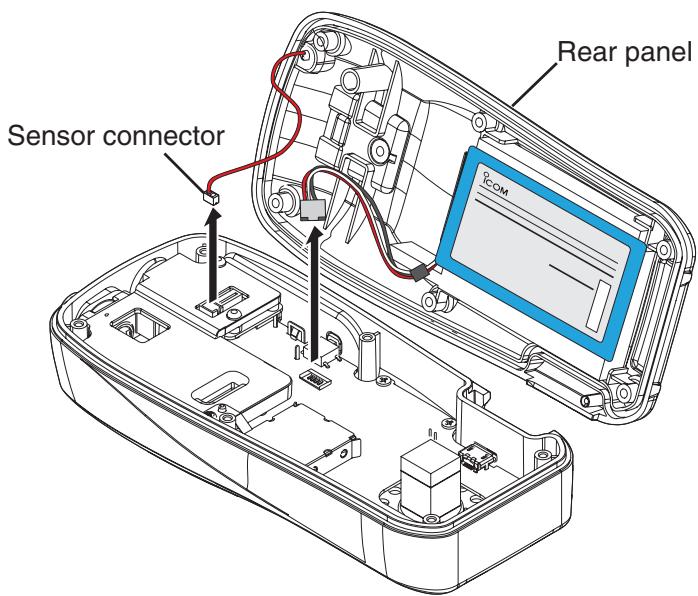

2) Carefully separate the rear panel and turn it over in order to disconnect the battery connector and the red sensor connector.

ICOM IC-M25EURO - Removing the old battery pack - 2

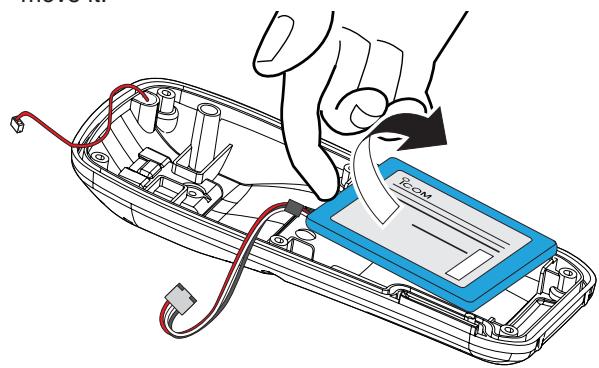

3) Pull the old battery pack off the rear panel.

  • If the double-sided tape is adherent to the rear panel, remove it.

ICOM IC-M25EURO - Removing the old battery pack - 3

2. Installing the new battery pack

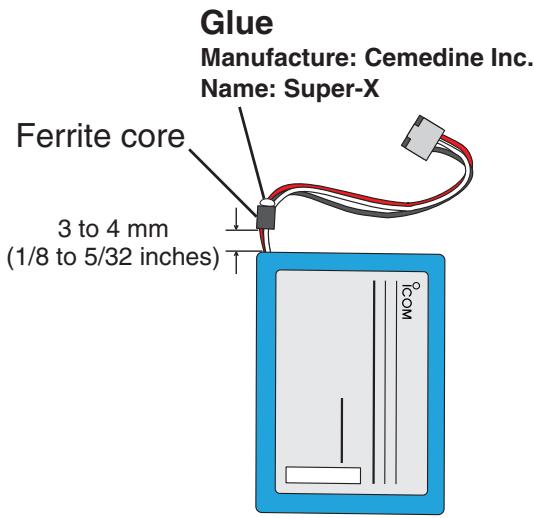

1) Glue the ferrite core to fix its position.

ICOM IC-M25EURO - Installing the new battery pack - 1

2) Separate the double-sided tapes, which are supplied with the battery pack.

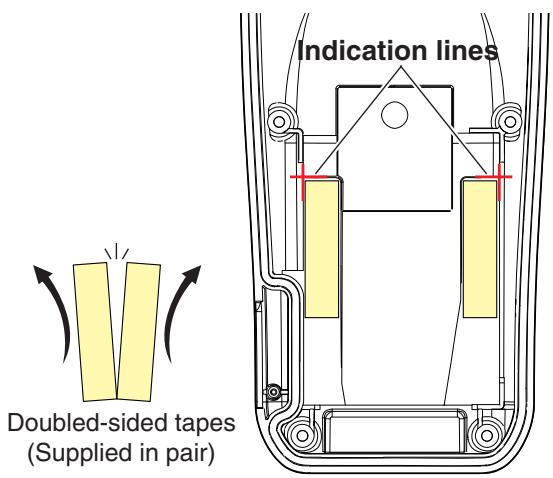

3) Apply the double-sided tapes in the position as shown below, and then peel the protect sheets.

ICOM IC-M25EURO - Installing the new battery pack - 2

4) Apply the new battery pack in the position on the rear panel as shown below.

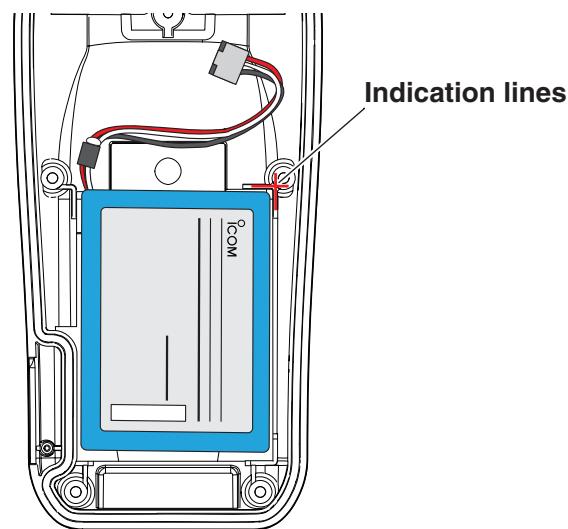

ICOM IC-M25EURO - Installing the new battery pack - 3

5) Re-assemble the transceiver.

5-1 RECEIVER CIRCUITS

RF CIRCUITS

The RF circuits consist of RF filters, antenna switch, RF amplifier (RF AMP) and so on. The received signal is extracted and amplified in the RF circuits.

- ANTENNA SWITCHING CIRCUIT

The RF signal from the antenna is passed through the LPF (L81, L82, C83-C86 and C89), antenna SW (D52, D90, L90, C90 and C91) and 2-staged tuned BPF (D92, D93, L92, L93, C95, C97-C100 and C117), and then applied to the RF AMP (Q90).

RF AMPLIFIER

The filtered RX signal is amplified by the RF AMP (Q90) and passed through another 2-staged BPF (D130, D131, L96, L97, C109, C110 and C112-L115) to remove unwanted signals. The filtered signal is applied to the 1st mixer (Q150).

RF CIRCUITS

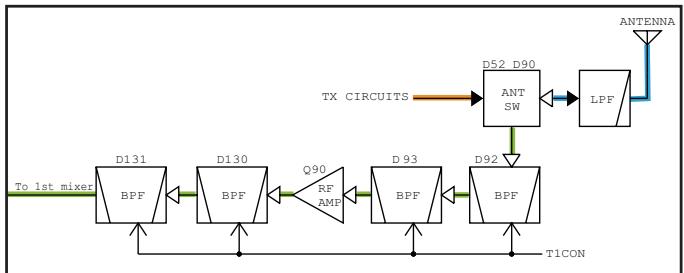

ICOM IC-M25EURO - RF CIRCUITS - 1

1ST IF CIRCUITS

The RX signal is mixed with the 1st LO signal at the 1st mixer (Q150), resulting in the 21.7 MHz 1st IF signal. The converted 1st IF signal is filtered by the crystal filters (FI150 and F151) to remove unwanted out-of-band signals.

The filtered 1st IF signal is amplified by the 1st IF AMP (Q151), and then applied to the IF demodulate IC (IC170, pin 16).

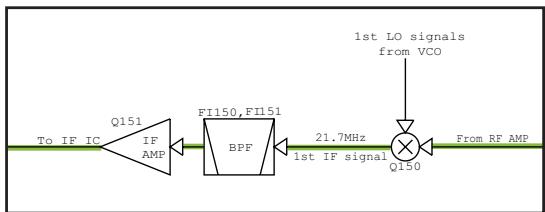

- 1ST IF CIRCUITS

ICOM IC-M25EURO - - 1ST IF CIRCUITS - 1

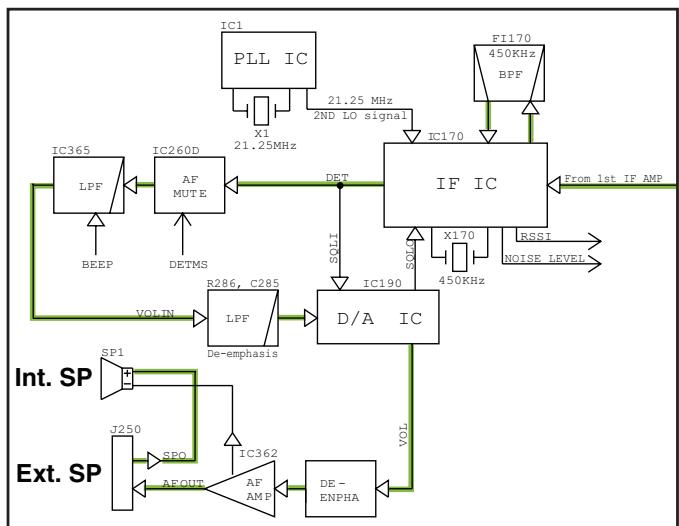

2ND IF AND DEMODULATOR CIRCUITS

IC170 is an IF IC which contains the 2nd local oscillator, 2nd mixer, limiter and quadrature detector in its package.

The 21.25 MHz reference frequency signal from the PLL IC (IC1, pin 9) is applied to the IF IC (IC170, pin 2) as the 2nd LO signal, and it is mixed with 21.7 MHz 1st IF signal from the 1st IF AMP (Q151), resulting in the 450 kHz 2nd IF signal. The 450 kHz 2nd IF signal is output from the pin 3 of IC170.

The 2nd IF signal is filtered by the external ceramic filter (FI170) which extracts the 450kHz signal, and then applied to the internal quadrature detector.

The demodulated AF signal is output from the pin 9.

The quadrature detector is a frequency demodulator which uses a discriminator (X170) as a phase delayer.

SQUEELCH CIRCUIT

A portion of AF signal from the IF IC is adjusted in level by the D/A converter (IC190), and then applied to the noise amplifier (IC170, R174-R176, C179 and C180).

Only noise components (approximately 30kHz signal) are amplified by the noise amplifier, and then rectified by the internal noise detector to be converted into DC voltage, which represents the noise level. The voltage is output from the pin 14 of IC170, and then applied to the A/D port of the CPU (IC360, pin 33).

The CPU (IC360) compares the applied voltage and squelch reference level to control the audio signal ON/OFF (emits/ mutes).

RX AF CIRCUITS

The demodulated AF signal from the IF demodulate IC (IC170, pin 9) is passed through the AF mute SW (IC260D) and LPF (IC365). The filtered AF signal is de-emphasized by R286 and C285 to obtain -6 dB/octave of frequency response, and then applied to the D/A converter (IC190) to be adjusted in level. The level-adjusted AF signal is amplified by the AF AMP (IC364) and AF power amplifier (IC362), and then applied to the speaker (CHASSIS: SP1).

2ND IF, DEMODULATOR AND RX AF CIRCUITS

ICOM IC-M25EURO - 2ND IF, DEMODULATOR AND RX AF CIRCUITS - 1

5-2 TRANSMITTER CIRCUITS

TX AF CIRCUITS

The AF signal from the microphone (MIC signals) is passed through the MIC mute SW (IC260A), amplified by MIC AMP (IC200B), and then applied to the D/A converter (IC190), through another MIC mute SW (IC260C).

The level-adjusted MIC signal is pre-emphasized by R201 and C385 to obtain +6 dB/octave of frequency response, and then passed through the limiter (IC200A) to prevent over deviation. The amplitude-limited MIC signal is filtered by the splatter filter (IC200D), which removes 3 kHz and higher signals, and then applied to the VCO (Q21, Q22, D22 and D23) for frequency modulation.

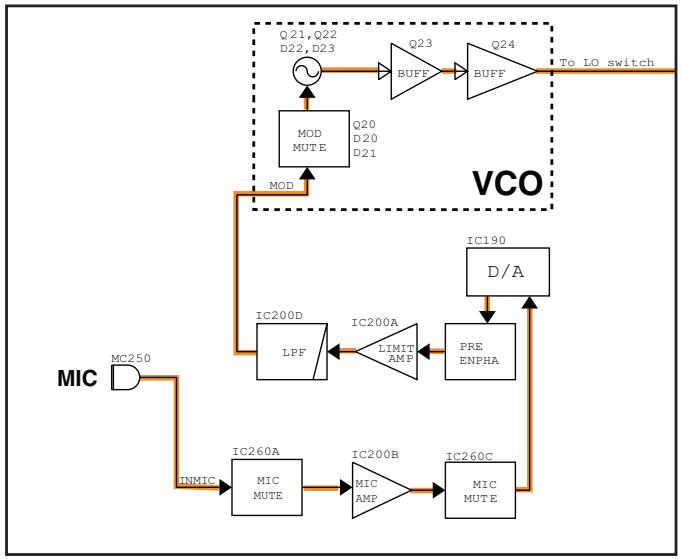

ICOM IC-M25EURO - TX AF CIRCUITS - 1
TX AF AND MODULATION CIRCUITS

TX AMPLIFIERS

The frequency-modulated signal from the VCO (Q21, Q22, D22 and D23) is passed through the buffers (Q23 and Q24) and LO SW (D50), and then sequentially amplified by the buffer AMP (Q50) and pre-drive AMP (Q53).

The amplified signal is split by the power splitter (L100, L101, R463, C445 and C446) and applied to the power AMPs (Q54 and Q55). The amplified signals are combined at the power combiner (L107, L108, R465, C457 and C458) to obtain the TX output power.

The amplified TX signal is passed through the ANT SW (D52) and LPF (L81, L82, C83-C86 and C89), and then applied to the antenna.

APC CIRCUIT

A portion of TX output signal is rectified by D91 to produce the DC voltage which represents the TX power level.

The APC AMP (IC50) compares the voltage and TX power setting voltage from the D/A converter (IC190). The resulted voltage from the APC AMP controls the gain of both driver AMP (Q53) and power AMPs (Q54 and Q55), to keep the TX output power constant.

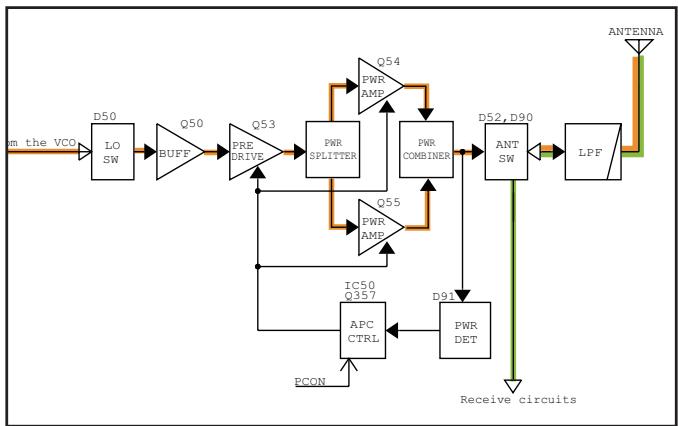

ICOM IC-M25EURO - APC CIRCUIT - 1
-TX AMPLIFIERS AND APC CIRCUIT

5-3 FREQUENCY SYNTHESIZER CIRCUITS VCO

While transmitting, the oscillation frequency of the VCO (Q21, Q22, D22 and D23) is determined by the value of D22, D23, L22, C26 and C27, adding modulation signal to D20 modulates the oscillating signal.

The generated signal is passed through the buffers (Q23 and Q24), and then applied to the pre-drive AMP (Q53), through the LO SW (D50) and buffer (Q50).

While receiving, the generated signal is passed through the buffers (Q23 and Q24), and then applied to the 1st mixer (Q150), through the LO SW (D51).

PLL

IC1 is a PLL IC which contains the pre-scaler, programmable counter, phase comparator and charge pump in its package.

The 21.25 MHz reference frequency signal is fed from X1.

The loop filter is composed by R10, R22, C11, C13 and C24.

EQUIPMENTGRADE AND RANGEEQUIPMENTGRADE AND RANGE
Cloning softwareADJ-M25/M25EURO (Revision 1.0 or later)CablesOPC-478UC and OPC-1655
RF power meter(50 Ω terminated)Measuring range: 0.1–6 WFrequency range: 100–300 MHzSWR: Less than 1.2 : 1Frequency counterFrequency range: 0.1–300 MHzFrequency accuracy: ±1 ppm or betterInput level: Less than 1 mW
Standard signal generator (SSG)Frequency range: 0.1–300 MHzOutput level: -20 dBμ to 90 dBμ(-127 to -17 dBm)

CONNECTION

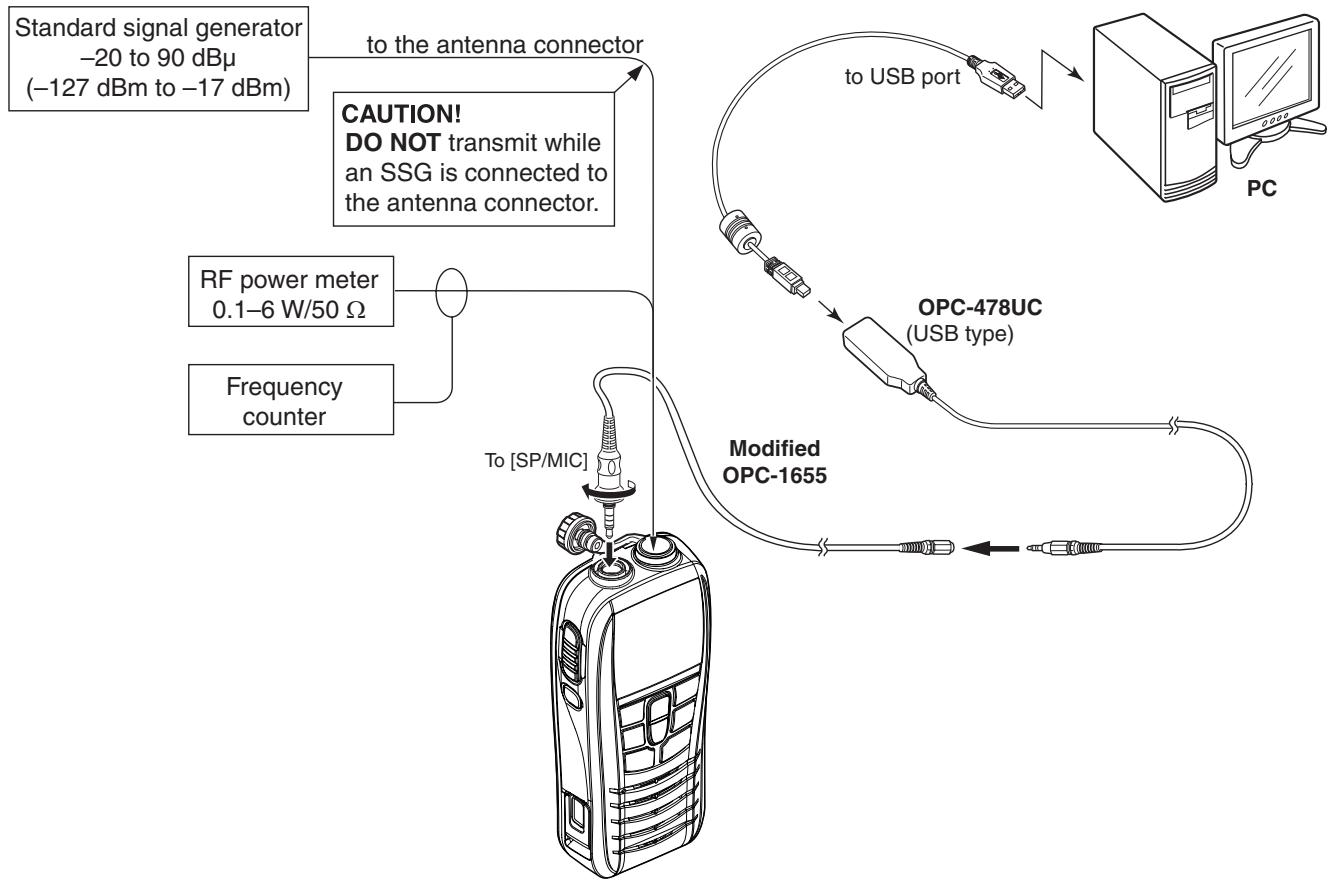

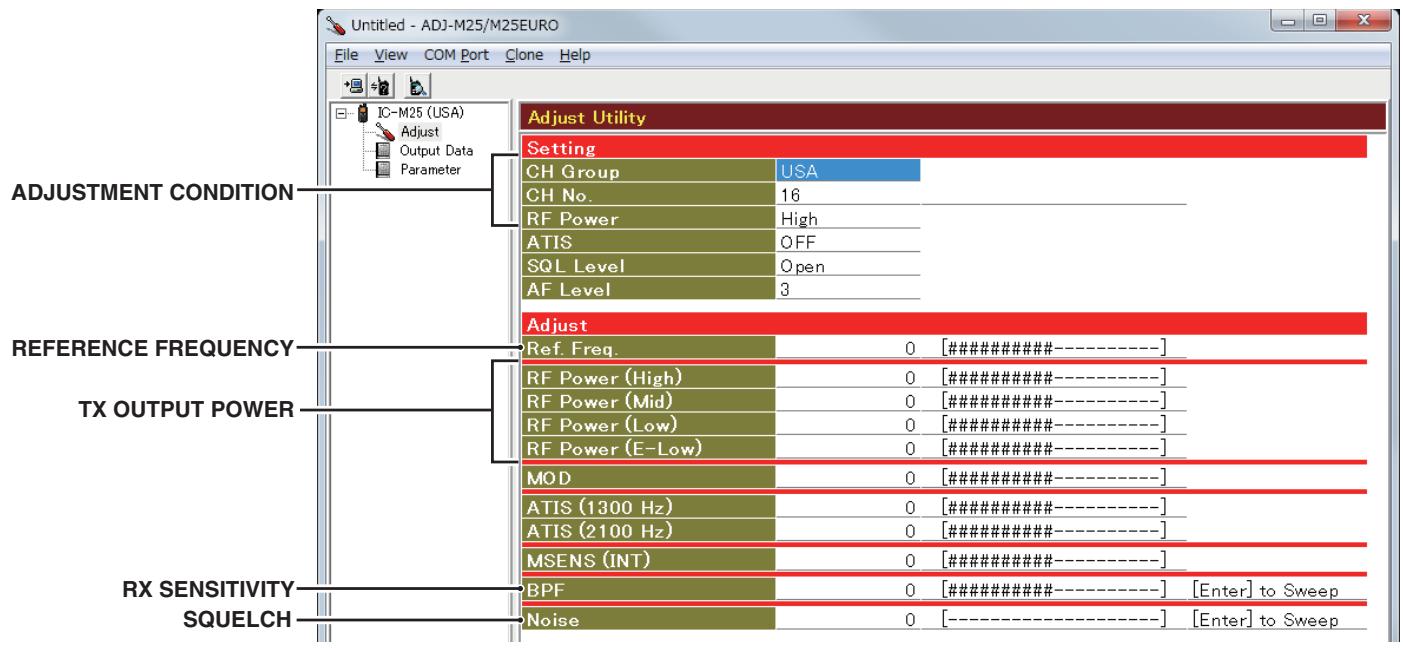

ICOM IC-M25EURO - CONNECTION - 1

ICOM IC-M25EURO - CONNECTION - 2

6-2 FREQUENCY ADJUSTMENTS

1) Select an adjustment item using []/[] on the PC's keyboard.
2) Set or modify the adjustment value as specified using [ ] / [ ] on the PC's keyboard, and then push [ENTER].

ADJUSTMENTTRANSCEIVER'S CONDITIONOPERATIONADJUSTMENT ITEMVALUE
PLL LOCK VOLTAGE VERIFICATION1• CH.: 16 • Receiving1) Connect an RF power meter to the antenna connector.[LVIN] (On the "I/O Check screen")1.65 V ±0.5 V
2• CH.: 16 • Transmitting2) Click the [Update (F5)] button to check on the "I/O Check screen" as below.1.70 V ±0.5 V
REFERENCE FREQUENCY1• CH.: 16 • Transmitting• Loosely couple a frequency counter to the antenna connector.[Ref. Freq.]156.800000 MHz (±500 Hz)

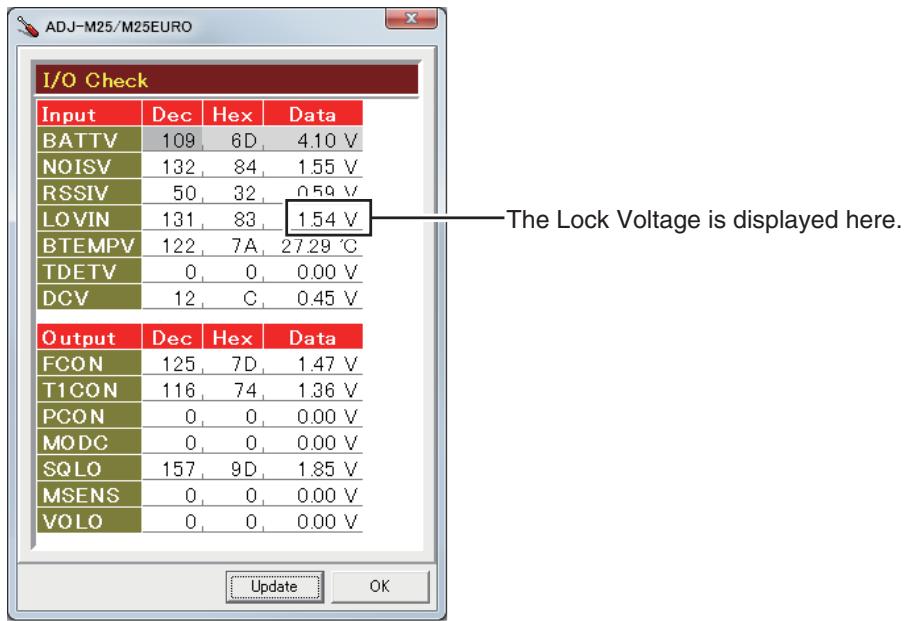

I/O Check screen
ICOM IC-M25EURO - 6-2 FREQUENCY ADJUSTMENTS - 1
(The values shown above are exsample only.
Each transceiver has own values.)

6-3 RECEIVE ADJUSTMENTS

1) Select an adjustment item using []/[] on the PC's keyboard.
2) Set or modify the adjustment value as specified using [←]/[→] on the PC's keyboard, and then push [ENTER].

ADJUSTMENTTRANSCEIVER'S CONDITIONOPERATIONADJUSTMENT ITEMVALUE
RX SENSITIVITY1NOTE: When "RX SENSITIVITY" is re-adjusted, "SQUELCH" must be re-adjusted too.
• CH.: 16 • Receiving• Connect an SSG to the antenna connector and set it as; Frequency: 156.800 MHz Level†: +30 dBμ (-77 dBm) Modulation: 1 kHz Deviation: ±3.0 kHz[BPF]Push [ENTER] on [BPF]. (Automatic adjustment)
SQUELCH1NOTE: When "RX SENSITIVITY" must be adjusted before "SQUELCH." And when "RX SENSITIVITY" is re-adjusted, "SQUELCH" must be re-adjusted too.
• CH.: 16 • Receiving• Connect an SSG to the antenna connector and set it as; Frequency: 156.800 MHz Level†: -4 dBμ (-111 dBm) Modulation: 1 kHz Deviation: ±3.0 kHz[Noise]Push [ENTER] on [Noise]. (Automatic adjustment)

†The output level of the standard signal generator (SSG) is indicated as the SSG's open circuit.

6-4 TRANSMIT ADJUSTMENTS

1) Select an adjustment item using []/[] on the PC's keyboard.
2) Set or modify the adjustment value as specified using [←]/[→] on the PC's keyboard, and then push [ENTER].

ADJUSTMENTTRANSCEIVER'S CONDITIONOPERATIONADJUSTMENT ITEMVALUE
TX OUTPUT POWER (High)1• CH.: 16 • Transmitting• Connect an RF power meter to the antenna connector.[RF Power (High)]4.5 W
(L_High)*2[RF Power (L_High)]2.5 W
(Low)3[RF Power (Low)]0.75 W
(E_Low)*4[RF Power (E_Low)]0.45 W

*For only [FRG] version.

[MAIN UNIT]

REF NO.PARTS NO.DESCRIPTIONM.H/V LOCATION
IC11130016080S.ICGP214D <SEI>B39.6/11.3
IC501110008890S.ICNJU7056F3-TE2-#ZZZHT105.1/20.3
IC1701110007320S.ICNJM2591V-TE1-#ZZZBB17.7/8.9
IC1901110007550S.ICR2A20178NPB43.6/33.4
IC2001110008830S.ICNJU7058V-TE2-#ZMZHB10.7/38.4
IC2201180004720S.REGS-1335J30-M5T1U3B104.6/38.7
IC2601130015760S.ICTC74VHC4066AFK(EK)T31.9/41.1
IC3401130016621S.ICGT24C128B-2ZLI-TR <MSK>B110.9/29.9
IC3411110008930S.ICNJU7704F3-03A-TE1-#ZZZHB103.8/35.8
IC3601140017430S.ICUPD78F0338GC-9EB-A (FX-3723A)T105.7/34.5
IC3621110007610S.ICTPA0211DGNRB50.9/39.5
IC3641110008890S.ICNJU7056F3-TE2-#ZZZHB46.7/39.3
IC3651110008940S.ICNJU7057RB1-TE2-#ZMZHB35.2/35.8
IC4001110008890S.ICNJU7056F3-TE2-#ZZZHT36.0/5.2
IC6011190004140S.ICAPM8600FB-7 <TKC>T22.0/37.6
Q201590004070S.TRALDTC144EET1G <SLVJ>B50.9/15.0
Q211530004011S.TRAKTC3770U-C-RTK/PB58.0/15.2
Q221530004011S.TRAKTC3770U-C-RTK/PB59.0/11.7
Q231530002381S.TRA2SC4215-Y(TE85LF)B55.7/19.6
Q241530002381S.TRA2SC4215-Y(TE85LF)B60.9/21.6
Q251530002381S.TRA2SC4215-Y(TE85LF)B52.2/21.6
Q501530004011S.TRAKTC3770U-C-RTK/PB69.2/18.8
Q531560001910S.FETRD01MUS2B-T113B69.4/13.2
Q541560001701S.FETRD07MUS2B-T214B79.5/9.3
Q551560001701S.FETRD07MUS2B-T214B79.5/17.4
Q901580000751S.FET3SK294(TE85LF)B94.6/20.0
Q1501580000731S.FET3SK293(TE85LF)B69.7/27.9
Q1511530002601S.TRA2SC4215-O(TE85RF)T28.1/8.8
Q2211590005220S.TRALDTA114YET1G <SLVJ>B61.0/35.6
Q2221590005220S.TRALDTA114YET1G <SLVJ>B63.0/35.6
Q2241590003800S.TRAKTC811U-GR-RTK/PB55.3/42.8
Q2251520000910S.TRA2SB1132L-R-AB3-R <SLVJ>B59.2/43.3
Q2301550000090S.FETRSQ035P03TRB49.9/45.5
Q2311590003800S.TRAKTC811U-GR-RTK/PB45.8/46.0
Q2401590004230S.TRALMUN5213DW1T1G <SLVJ>T95.2/29.0
Q2501590004070S.TRALDTC144EET1G <SLVJ>B63.7/41.8
Q2511510001100S.TRA2SA1832-GR(TE85RF)B86.3/43.9
Q3501590004100S.TRALDTC144TET1G <SLVJ>B91.6/32.8
Q3511590004050S.TRALDTA144EET1G <SLVJ>T107.5/20.9
Q3531550000090S.FETRSQ035P03TRB66.8/40.4
Q3541590004070S.TRALDTC144EET1G <SLVJ>B77.0/37.6
Q3571590004070S.TRALDTC144EET1G <SLVJ>T104.2/22.8
Q3621590004070S.TRALDTC144EET1G <SLVJ>B61.1/8.2
Q3651590004050S.TRALDTA144EET1G <SLVJ>T106.4/16.1
Q3661590004070S.TRALDTC144EET1G <SLVJ>B55.8/40.5
Q6031590004070S.TRALDTC144EET1G <SLVJ>T27.9/36.8
Q6061550000090S.FETRSQ035P03TRB63.4/40.5
Q6081550000410S.FETSSM3J35FS(TE85LF)B77.4/42.5
Q6091590004230S.TRALMUN5213DW1T1G <SLVJ>B78.3/39.9
D11750001770S.VAR1SV323(TPH3F)B29.9/11.0
D31750001810S.DIOL1SS400T1G <SLVJ>B42.8/14.7
D201750002920S.DIOKDS114E-RTK/PAB48.3/14.1
D211750002920S.DIOKDS114E-RTK/PAB50.2/16.7
D221750003330S.VARBBY58-02V H6327 <RYOYO>B58.3/8.3
D231750003330S.VARBBY58-02V H6327 <RYOYO>B59.5/8.3
D501750002780S.DIORN142GT2RB68.3/23.0
D511750002780S.DIORN142GT2RB68.3/24.1
D521750000581S.DIO1SV307(TPH3F)B105.7/8.0
D901750002920S.DIOKDS114E-RTK/PAB104.6/16.2
D911790001670S.DIORB706F-40T106T99.6/15.8
D921750003270S.VARBB174X <RYO>B102.5/19.5
D931750003270S.VARBB174X <RYO>B98.5/20.4
D1301750003270S.VARBB174X <RYO>B90.7/23.3
D1311750003270S.VARBB174X <RYO>B86.3/25.7
D2001790001670S.DIORB706F-40T106T102.1/15.9
D3501750001180S.DIOKDS122 RTK/PB94.0/33.3
D3531750002170S.DIODB2S3140OLB105.4/14.5
D3561750001810S.DIOL1SS400T1G <SLVJ>B46.6/42.7
D3571790001860S.VAREZJZOV80100B78.0/21.4
D3581750001850S.DIOLDAN222T1G <SLVJ>B65.8/43.1
D6091750001810S.DIOL1SS400T1G <SLVJ>B61.0/40.6
D6101750002110S.DIOLRB551V-30T1G <SLVJ>B62.6/44.3
D6131790001810S.VARAVR-M1005C080MTABBB78.8/42.9
FI1502030000350MON21R15AB (FL-368)
FI1512030000481MON21R15AB (FL-399A)
FI1702020002410CERLTM450FW <JJE>
X16050011740S.XTACR-766 XRCMK 21.250 MHzB31.4/6.9
X1706070000310S.DISJTBM450CX70 <JJE>B25.6/6.1
X3606050013200S.XTACR-911(HC49U/SM 4.9152 MHz <SKD>B92.3/39.2
L16200003711S.COINLV25T-2R7J-PFT24.4/5.0
L206200011021S.COIELJRF 82NJFB *0B50.1/20.9
L216200002861S.COINLV25T-4R7J-PFB48.9/9.5
L226200009910S.COIC6342A-88NG-AB53.6/10.4
L236200011031S.COIELJRF R10JFB *0B57.5/19.9
L246200011031S.COIELJRF R10JFB *0B59.6/20.2
L256200011031S.COIELJRF R10JFB *0B52.6/19.6

Eqv. = This component is equivalent to the REF No. component listed above, and may be substituted on parts orders and repairs.

[MAIN UNIT]

REF NO.PARTS NO.DESCRIPTIONM.H/V LOCATION
L266200011021S.COIELJRF 82NJFB *0B68.6/26.0
L506200011031S.COIELJRF R10JFB *0B70.6/20.2
L516200011021S.COIELJRF 82NJFB *0B71.2/16.6
L536200006981S.COIELJRE R10GFA *0B70.5/10.0
L556200012680S.COI0.30-1.3-5TL 20N <COMO>B84.5/11.8
L566200012390S.COI0.30-0.92-3TR 5.8N <COMO>B87.1/10.5
L576200012680S.COI0.30-1.3-5TL 20N <COMO>B89.6/9.6
L586200003711S.COINLV25T-2R7J-PFB102.3/9.7
L806200012470S.COI0.30-1.7-7TL 45.3N <COMO>B99.0/8.3
L816200012770S.COI0.26-1.1-7TR 24N <COMO>B110.4/9.3
L826200012780S.COI0.30-1.4-6TL 27.2N <COMO>B110.9/12.3
L906200012470S.COI0.30-1.7-7TL 45.3N <COMO>B106.2/11.9
L926200007750S.COILQW2BHNS6NJO3LB102.0/16.6
L936200007750S.COILQW2BHNS6NJ03LB98.2/17.4
L966200007750S.COILQW2BHNS6NJ03LB92.3/22.3
L976200007750S.COILQW2BHNS6NJ03LB84.0/24.3
L986200003680S.COILQH31MNR82M03LB62.5/28.6
L996200011001S.COIELJRF 56NJFB *0B72.8/10.0
L1006200010991S.COIELJRF 47NJFB *0B74.7/12.9
L1016200010991S.COIELJRF 47NJFB *0B74.7/13.8
L1026200007901S.COIELJRF 22NJFB *0B75.9/9.4
L1036200007901S.COIELJRF 22NJFB *0B75.9/17.4
L1046200012680S.COI0.30-1.3-5TL 20N <COMO>B85.0/20.5
L1056200012390S.COI0.30-0.92-3TR 5.8N <COMO>B84.0/17.7
L1066200012680S.COI0.30-1.3-5TL 20N <COMO>B87.2/18.1
L1076200012470S.COI0.30-1.7-7TL 45.3N <COMO>B94.1/11.0
L1086200012470S.COI0.30-1.7-7TL 45.3N <COMO>B94.6/14.8
R17510001730S.THEERTJOEP 473JB39.5/17.8
R27030012480S.RESERJ2RKF 1003X (100K)B41.6/17.0
R37030005050S.RESERJ2GEJ 103 X (10K)B33.4/12.2
R47030005240S.RESERJ2GEJ 473 X (47K)B32.2/11.8
R57030005050S.RESERJ2GEJ 103 X (10K)B34.7/8.2
R67030005240S.RESERJ2GEJ 473 X (47K)B53.7/15.1
R77030005000S.RESERJ2GEJ 471 X (470)B52.8/14.2
R107030008370S.RESERJ2GEJ 561 X (560)B39.4/7.6
R207030004980S.RESERJ2GEJ 101 X (100)B48.6/20.6
R227030005040S.RESERJ2GEJ 472 X (4.7K)B41.5/8.0
R237030004990S.RESERJ2GEJ 221 X (220)B49.4/13.7
R247030005090S.RESERJ2GEJ 104 X (100K)B49.8/17.8
R257030005090S.RESERJ2GEJ 104 X (100K)B48.6/17.0
R267030005290S.RESERJ2GEJ 682 X (6.8K)B58.4/16.9
R277030005210S.RESERJ2GEJ 822 X (8.2K)B60.1/13.4
R287030004980S.RESERJ2GEJ 101 X (100)B58.5/13.4
R307030005070S.RESERJ2GEJ 683 X (68K)B56.5/16.8
R317030004990S.RESERJ2GEJ 221 X (220)B57.9/18.7
R327030007270S.RESERJ2GEJ 151 X (150)B58.4/19.9
R337030007350S.RESERJ2GEJ 393 X (39K)B59.1/22.0
R347030008280S.RESERJ2GEJ 271 X (270)B53.9/19.2
R357030007350S.RESERJ2GEJ 393 X (39K)B53.9/21.3
R367030005710S.RESERJ2GEJ 121 X (120)B58.6/26.8
R477030009140S.RESERJ2GEJ 272 X (2.7K)T30.0/6.1
R507030005120S.RESERJ2GEJ 102 X (1K)B67.0/22.1
R527030007290S.RESERJ2GEJ 222 X (2.2K)B70.2/23.0
R537030004980S.RESERJ2GEJ 101 X (100)B70.7/21.8
R547030005530S.RESERJ2GEJ 100 X (10)B69.5/21.5
R557030007300S.RESERJ2GEJ 332 X (3.3K)B69.4/20.6
R567030007570S.RESERJ2GEJ 122 X (1.2K)B67.0/18.5
R577030005590S.RESERJ2GEJ 680 X (68)B67.0/19.4
R657030005100S.RESERJ2GEJ 154 X (150K)T102.2/23.0
R667030005070S.RESERJ2GEJ 683 X (68K)T103.2/20.6
R677030005310S.RESERJ2GEJ 124 X (120K)T103.2/19.0
R687030004980S.RESERJ2GEJ 101 X (100)T105.4/17.6
R697030005090S.RESERJ2GEJ 104 X (100K)B67.0/15.7
R707030005100S.RESERJ2GEJ 154 X (150K)B68.8/16.8
R717030004970S.RESERJ2GEJ 470 X (47)B70.0/16.2
R737030005050S.RESERJ2GEJ 103 X (10K)B75.9/6.2
R747030005720S.RESERJ2GEJ 563 X (56K)B74.7/7.6
R757030004980S.RESERJ2GEJ 274 X (270K)B96.3/18.3
R767030000260S.RESMCR10EZHJ 100 (101)B101.9/13.1
R807030005080S.RESERJ2GEJ 823 X (82K)B114.6/12.6
R817030005090S.RESERJ2GEJ 104 X (100K)T99.7/20.6
R917030005110S.RESERJ2GEJ 224 X (220K)B101.5/20.9
R937030005050S.RESERJ2GEJ 103 X (10K)B99.7/22.8
R947030005110S.RESERJ2GEJ 224 X (220K)B99.7/21.2
R957030005310S.RESERJ2GEJ 124 X (120K)B96.5/20.7
R967030005700S.RESERJ2GEJ 274 X (270K)B96.3/18.3
R977030004990S.RESERJ2GEJ 221 X (220)B94.1/21.8
R1037030005050S.RESERJ2GEJ 103 X (10K)B97.4/20.7
R1047030005090S.RESERJ2GEJ 104 X (100K)B90.2/20.5
R1057030005110S.RESERJ2GEJ 394 X (39K)B89.4/25.3
R1077030005110S.RESERJ2GEJ 224 X (22K)B88.2/25.7
R1097030005530S.RESERJ2GEJ 154 X (150K)B71.4/26.8
R1107030008400S.RESERJ2GEJ 182 X (1.8K)B64.0/27.1
R1117030005080S.RESERJ2GEJ 823 X (82K)B72.3/26.8
R1127030008010S.RESERJ2GEJ 123 X (12K)B72.3/25.2
R1137030005530S.RESERJ2GEJ 100 X (10)B97.3/21.9
R1157030006610S.RESERJ2GEJ 394 X (39K)B67.9/27.4
R1207030007290S.RESERJ2GEJ 222 X (2.2K)B70.2/25.1
R12170300055220S.RESERJ2GEJ 223 X (22K)B71.4/26.8
R1227030005100S.RESERJ2GEJ 154 X (150K)B71.4/26.8
R12570300050530S.RESERJ2GEJ 152 X (1.5K)B42.7/26.6
R1537030004990S.RESERJ2GEJ 221 X (220)T35.7/11.0
R1547030005090S.RESERJ2GEJ 104 X (100K)T29.8/9.0
R1557030007290S.RESERJ2GEJ 222 X (2.2K)T29.4/11.1
R1567030005000S.RESERJ2GEJ 471 X (47K)B29.4/10.2
R1707030009280S.RESERJ2GEJ 391 XB26.5/10.8

M. = Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[MAIN UNIT]

REF NO.PARTS NO.DESCRIPTIONM.H/V LOCATION
R1717030009140S.RES ERJ2GEJ 272 X (2.7K)B23.2/10.5
R1727030005000S.RES ERJ2GEJ 471 X (470)B21.0/11.9
R1737030005030S.RES ERJ2GEJ 152 X (1.5K)B16.3/5.6
R1747030005230S.RES ERJ2GEJ 334 X (330K)B14.6/11.9
R1757030005600S.RES ERJ2GEJ 273 X (27K)B16.7/12.4
R1767030005120S.RES ERJ2GEJ 102 X (1K)B17.9/13.1
R1927030009280S.RES ERJ2GEJ 391 XB48.2/32.7
R1937030005000S.RES ERJ2GEJ 471 X (470)B44.8/29.7
R1947030005090S.RES ERJ2GEJ 104 X (100K)B47.7/31.4
R2017030007290S.RES ERJ2GEJ 222 X (2.2K)B14.1/41.4
R2027030005090S.RES ERJ2GEJ 104 X (100K)B15.3/39.8
R2037030005110S.RES ERJ2GEJ 224 X (220K)B12.8/41.6
R2047030005040S.RES ERJ2GEJ 472 X (4.7K)B11.9/42.5
R2067030008290S.RES ERJ2GEJ 183 X (18K)T9.4/41.1
R2077030007350S.RES ERJ2GEJ 393 X (39K)B11.2/41.6
R2127030005030S.RES ERJ2GEJ 152 X (1.5K)T7.9/39.9
R2137030005100S.RES ERJ2GEJ 154 X (150K)T7.9/38.3
R2147030007340S.RES ERJ2GEJ 153 X (15K)T6.7/37.7
R2267030005040S.RES ERJ2GEJ 472 X (4.7K)B54.3/40.8
R2277030005050S.RES ERJ2GEJ 103 X (10K)B57.9/46.6
R2287030008300S.RES ERJ2GEJ 184 X (180K)B53.9/44.5
R2307030005230S.RES ERJ2GEJ 334 X (330K)B46.7/44.0
R2317030007280S.RES ERJ2GEJ 331 X (330)B45.8/44.0
R2357030010010S.RES ERJ2RKF 334 X (330K)B64.2/43.0
R2367030010020S.RES ERJ2RKF 1503X (150K)B64.0/45.4
R2407030004990S.RES ERJ2GEJ 221 X (220)T94.7/27.2
R2427410001270EXB28V821JXB54.8/32.7
R2517030008280S.RES ERJ2GEJ 271 X (270)B80.9/43.2
R2527030005060S.RES ERJ2GEJ 333 X (33K)B41.2/44.3
R2537030007300S.RES ERJ2GEJ 332 X (33K)B16.9/37.4
R2557030005700S.RES ERJ2GEJ 274 X (270K)B15.1/36.5
R2567030008290S.RES ERJ2GEJ 183 X (18K)B15.4/38.6
R2577030005040S.RES ERJ2GEJ 472 X (4.7K)B16.9/35.6
R2587030005040S.RES ERJ2GEJ 472 X (4.7K)B18.1/36.0
R2607030005110S.RES ERJ2GEJ 224 X (220K)T11.6/39.7
R2617030005720S.RES ERJ2GEJ 563 X (56K)T12.5/39.7
R2627030005240S.RES ERJ2GEJ 473 X (47K)T12.5/40.9
R2637030008290S.RES ERJ2GEJ 183 X (18K)B35.8/36.5
R2647030005090S.RES ERJ2GEJ 104 X (100K)B31.4/39.9
R2657030005090S.RES ERJ2GEJ 104 X (100K)T36.1/37.9
R2707030005120S.RES ERJ2GEJ 102 X (1K)B41.2/45.2
R2717030011650S.RES ERJ2GEJ 243X (24K)B33.0/38.3
R2727030005090S.RES ERJ2GEJ 104 X (100K)B35.7/39.4
R2737030005220S.RES ERJ2GEJ 223 X (22K)B35.7/38.5
R2767030008300S.RES ERJ2GEJ 184 X (180K)B38.7/36.6
R2777030005090S.RES ERJ2GEJ 104 X (100K)B38.3/35.3
R2787030005120S.RES ERJ2GEJ 102 X (1K)B37.1/39.1
R2797030005040S.RES ERJ2GEJ 152 X (1.5K)B38.0/39.1
R2837030005090S.RES ERJ2GEJ 104 X (100K)B48.0/48.0
R2867030008010S.RES ERJ2GEJ 123 X (12K)B39.3/38.5
R2907030007060S.RES ERJ2GEJ 684X (680K)B40.9/36.9
R2917030005090S.RES ERJ2GEJ 104 X (100K)B39.5/34.5
R2927030005090S.RES ERJ2GEJ 104 X (100K)B44.5/38.4
R2937030008010S.RES ERJ2GEJ 123 X (12K)B46.6/41.0
R2947030005040S.RES ERJ2GEJ 472 X (4.7K)B48.2/40.9
R2957030005040S.RES ERJ2GEJ 472 X (4.7K)B49.2/42.1
R3007030005290S.RES ERJ2GEJ 682 X (6.8K)T9.9/38.3
R3407030005090S.RES ERJ2GEJ 104 X (100K)B106.3/29.8
R3417030005050S.RES ERJ2GEJ 103 X (10K)B105.7/36.3
R3437030005050S.RES ERJ2GEJ 103 X (10K)B89.8/44.1
R3517030005120S.RES ERJ2GEJ 102 X (1K)B89.8/34.0
R3527030007340S.RES ERJ2GEJ 153 X (15K)B93.3/31.5
R3537030005120S.RES ERJ2GEJ 102 X (1K)B93.3/30.6
R3617410001130S.ARR EXB28V102JXT115.7/31.8
R3717030005170RES ERJ2GEJ 474 X (470K)T103.1/45.5
R3727030007310RES ERJ2GEJ 155 X (1.5M)T106.3/45.5
R3737030005160RES ERJ2GEJ 105 X (1M)T104.7/45.5
R3747030006610RES ERJ2GEJ 394 X (390K)T104.0/44.1
R3767030005090RES ERJ2GEJ 104 X (100K)T10.7/40.6
R3777030005080RES ERJ2GEJ 823 X (82K)B9.1/41.9
R3787030005080RES ERJ2GEJ 823 X (82K)B7.4/41.9
R3797030005080RES ERJ2GEJ 823 X (82K)B6.4/39.8
R3807030005050RES ERJ2GEJ 474 X (470K)T30.6/36.3
R3817030005050RES ERJ2GEJ 474 X (470K)B5.5/40.6
R3827030009140RES ERJ2GEJ 272 X (2.7K)T100.5/19.0
R3837030008010RES ERJ2GEJ 123 X (12K)T101.0/20.2
R3847030007290RES ERJ2GEJ 222 X (2.2K)B85.4/42.4
R3867030005050RES ERJ2GEJ 104 X (10K)T115.7/35.4
R3877030005700RES ERJ2GEJ 274 X (270K)B69.1/42.3
R3887030005170RES ERJ2GEJ 103 X (10K)B67.9/43.0
R3897030005050RES ERJ2GEJ 103 X (10K)B67.9/43.0
R4017030005090RES ERJ2GEJ 104 X (100K)T102.6/21.8
R4027030005060RES ERJ2GEJ 333 X (33K)B43.3/40.3
R4037030005050RES ERJ2GEJ 103 X (10K)B42.2/39.1
R4047030004980RES ERJ2GEJ 101 X (100)B41.3/39.1
R4107030005120RES ERJ2GEJ 102 X (1K)T99.3/17.8
R4117030005120RES ERJ2GEJ 102 X (1K)T100.9/17.8
R4127030005050RES ERJ2GEJ 103 X (10K)B5.2/36.9
R4137030005050RES ERJ2GEJ 823 X (82K)B6.4/36.5
R4147030005050RES ERJ2GEJ 103 X (10K)B6.4/38.2
R4157030005240RES ERJ2GEJ 473 X (47K)B5.2/36.0
R4307030005700RES ERJ2GEJ 274 X (270K)B47.7/46.4
R4317030005120RES ERJ2GEJ 102 X (1K)B47.7/44.8
R4327030005040RES ERJ2GEJ 472 X (4.7K)B44.5/39.3
R4337030005090RES ERJ2GEJ 104 X (10K)B38.2/33.7
R4347030005080RES ERJ2GEJ 823 X (82K)B37.0/33.6
R4357030008010RES ERJ2GEJ 123 X (12K)B35.4/33.6
R4507030007280RES ERJ2GEJ 331 X (33K)B43.5/45.2

Eqv. = This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.

[MAIN UNIT]

REF NO.PARTS NO.DESCRIPTIONM.H/V LOCATION
R4527030007290S.RES ERJ2GEJ 222 X (2.2K)B43.9/46.4
R4577030005050S.RES ERJ2GEJ 103 X (10K)B32.2/34.0
R4587030005040S.RES ERJ2GEJ 472 X (4.7K)B32.2/35.6
R4597030005040S.RES ERJ2GEJ 472 X (4.7K)B31.3/35.6
R4607030004970S.RES ERJ2GEJ 470 X (47)B38.7/15.0
R4617030004990S.RES ERJ2GEJ 221 X (220)B61.2/11.5
R4627030010040S.RES ERJ2GEJ-JPWB61.2/9.7
R4637030004980S.RES ERJ2GEJ 101 X (100)B75.9/13.4
R4647030004980S.RES ERJ2GEJ 101 X (100)B75.5/18.6
R4657030003320S.RES ERJ3GEYJ 101 V (100)B91.0/13.9
R4667030005050S.RES ERJ2GEJ 103 X (10K)B75.0/17.4
R4677030005720S.RES ERJ2GEJ 563 X (56K)B73.8/17.0
R4687030004990S.RES ERJ2GEJ 221 X (220)T94.7/26.3
R4777030005050S.RES ERJ2GEJ 103 X (10K)T102.8/17.8
R4787030005050S.RES ERJ2GEJ 103 X (10K)B41.6/46.4
R4797030007340S.RES ERJ2GEJ 153 X (15K)B99.9/10.5
R6077030014270S.RES ERJ2RKF3300X (330)T17.5/38.3
R6087030014260S.RES ERJ2RKF1801XT19.1/38.3
R6097030005050S.RES ERJ2GEJ 103 X (10K)T28.5/38.7
R6347030005050S.RES ERJ2GEJ 103 X (10K)T115.1/37.5
R6417030010010S.RES ERJ2RKF 334 X (330K)T28.3/40.3
R6427030010020S.RES ERJ2RKF 1503X (150K)B28.3/41.9
R6477030005050S.RES ERJ2GEJ 103 X (10K)B60.2/39.1
R6507030005160S.RES ERJ2GEJ 105 X (1M)B79.7/43.3
R6597030004980S.RES ERJ2GEJ 101 X (100)B3.4/29.8
C24030017460SCER C1005 JB 1H 102K-TB31.0/12.1
C34030017440SCER C1005 CH 1H 221J-TB33.1/11.0
C44030017640SCER C1005 CH 1H 150J-TB31.9/10.6
C54030017670SCER C1005 CH 1H 390J-TB35.9/8.3
C64030017460SCER C1005 JB 1H 102K-TB53.3/16.3
C74030018860SCER C1005 JB 0J 105K-TB39.9/14.6
C84030017350SCER C1005 CH 1H 020B-TT26.6/5.1
C94030017350SCER C1005 CH 1H 020B-TT22.2/5.1
C114550007480STAN F930J106MAABMAB36.7/5.2
C124030017460SCER C1005 JB 1H 102K-TT20.8/5.6
C134030016930SCER C1005 JB 1A 104K-TB40.3/7.6
C154030017690SCER C1005 JB 1E 103K-TT38.5/7.3
C184030016930SCER C1005 JB 1A 104K-TB41.5/7.1
C194030017650SCER C1005 CH 1H 270J-TB35.4/9.8
C204030017460SCER C1005 JB 1H 102K-TB48.6/22.2
C214030017610SCER C1005 CH 1H 090C-TB49.5/22.2
C224030017610SCER C1005 CH 1H 090C-TB50.4/22.2
C244550008150STAN F921V224MAAB43.3/5.5
C254030017460SCER C1005 JB 1H 102K-TB49.3/7.4
C264030018070SCER C1005 CH 1H 300J-TB49.4/12.1
C274030017660SCER C1005 CH 1H 330J-TB48.2/12.1
C284030017460SCER C1005 JB 1H 102K-TB48.5/15.8
C304030017460SCER C1005 JB 1H 102K-TB48.6/18.6
C314030017460SCER C1005 JB 1H 102K-TB60.1/17.8
C324030017550SCER C1005 CH 1H 1R5B-TB56.6/13.6
C334030017460SCER C1005 CH 1H 221J-TB59.9/14.6
C344030017550SCER C1005 CH 1H 1R5B-TB58.6/9.9
C354030017460SCER C1005 JB 1H 102K-TB61.1/14.6
C364030017460SCER C1005 JB 1H 102K-TB56.5/17.7
C374030017340SCER C1005 CH 1H 010B-TB56.1/15.5
C384030017460SCER C1005 JB 1H 102K-TB58.2/22.0
C394030017630SCER C1005 CH 1H 120J-TB57.3/22.0
C404030017640SCER C1005 CH 1H 150J-TB60.7/19.3
C414030017460SCER C1005 JB 1H 102K-TB54.8/21.8
C424030017380SCER C1005 CH 1H 050B-TB56.1/21.8
C434030017400SCER C1005 CH 1H 220J-TB51.0/19.9
C444030017460SCER C1005 JB 1H 102K-TB56.5/26.8
C504030017460SCER C1005 JB 1H 102K-TB71.4/23.5
C514030017620SCER C1005 CH 1H 100C-TB68.2/21.2
C524030017460SCER C1005 JB 1H 102K-TB67.0/21.2
C534030017460SCER C1005 JB 1H 102K-TB67.0/20.3
C544030017640SCER C1005 CH 1H 150J-TB71.2/18.2
C554030017650SCER C1005 CH 1H 270J-TB70.0/17.1
C564030016790SCER C1005 JB 1E 103K-TT102.3/20.6
C574030016790SCER C1005 JB 1E 103K-TT106.0/22.5
C584030016930SCER C1005 JB 1A 104K-TT102.3/19.0
C594030017730SCER C1005 JB 1H 471K-TT107.3/19.4
C604030017460SCER C1005 JB 1H 102K-TT105.0/16.4
C614030017460SCER C1005 JB 1H 102K-TB67.6/36.8
C624030017460SCER C1005 JB 1H 102K-TB77.1/21.4
C634030017690SCER C1005 JB 1E 103K-TB68.9/8.7
C654030017420SCER C1005 CH 1H 470J-TB72.5/11.2
C674030017730SCER C1005 JB 1H 471K-TB81.7/13.4
C684030017420SCER C1005 CH 1H 470J-TB82.9/13.0
C694030017420SCER C1005 CH 1H 470J-TB69.8/8.7
C704030018020SCER C1608 CH 1H 910J-TB87.6/8.1
C714030007060SCER C1608 CH 1H 270J-TB92.9/7.9
C724030006860SCER C1608 JB 1H 102K-T ATEXB95.8/8.5
C734030017460SCER C1005 JB 1H 102K-TB103.5/11.9
C744030017460SCER C1005 JB 1H 102K-TB102.8/7.5
C774030016930SCER C1005 JB 1A 104K-TB67.0/17.3
C784030016930SCER C1005 JB 1A 104K-TB74.7/6.7
C804030017460SCER C1005 JB 1H 102K-TB107.9/9.4
C814030017390SCER C1005 CH 1H 180J-TB96.7/7.0
C824030017390SCER C1005 CH 1H 180J-TB101.6/7.1
C834030017400SCER C1005 CH 1H 220J-TB108.3/8.1
C844030018120SCER C1005 CH 1H 220J-TB108.6/9.9
C854030018120SCER C1005 CH 1H 220J-TB108.6/9.9
C864030017610SCER C1005 CH 1H 190C-TB113.7/12.6
C894030017590SCER C1005 CH 1H 070C-TB112.8/12.6
C904030017610SCER C1005 CH 1H 090C-TB106.3/9.4
C914030017620SCER C1005 CH 1H 100C-TB105.9/15.5
C944030017380SCER C1005 CH 1H 050B-TB103.9/17.9
C954030017400SCER C1005 CH 1H 220J-TB100.6/19.9

M. = Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S.=Surface mount

[MAIN UNIT]

REF NO.PARTS NO.DESCRIPTIONM.H/V LOCATION
C1004030017360S.CER C1005 CH 1H 030B-TB99.7/16.6
C1014030017580S.CER C1005 CH 1H 060C-TB97.0/19.5
C1024030016790S.CER C1005 JB 1E 103K-TB94.1/23.6
C1034030017420S.CER C1005 CH 1H 470J-TB94.1/22.7
C1044030016790S.CER C1005 JB 1E 103K-TB95.7/21.9
C1094030017460S.CER C1005 JB 1H 102K-TB90.6/21.7
C1104030017660S.CER C1005 CH 1H 330J-TB89.6/24.1
C1114030016790S.CER C1005 JB 1E 103K-TB88.7/24.1
C1124030017560S.CER C1005 CH 1H 2R5B-TB89.3/21.3
C1134030017540S.CER C1005 CH 1H R75B-TB88.4/22.3
C1144030017420S.CER C1005 CH 1H 470J-TB87.8/24.1
C1154030017340S.CER C1005 CH 1H 010B-TB85.5/24.4
C1164030017360S.CER C1005 CH 1H 030B-TB73.6/26.5
C1174030017370S.CER C1005 CH 1H 3R5B-TB100.2/17.8
C1194030017420S.CER C1005 CH 1H 470J-TB67.9/29.1
C1204030016970S.CER C1005 JB 1E 223K-TB66.1/28.2
C1224030016790S.CER C1005 JB 1E 103K-TB68.6/25.1
C1314030018120S.CER C1005 CH 1H 110J-TB67.0/27.4
C1324030017460S.CER C1005 JB 1H 102K-TB39.9/15.5
C1334030017460S.CER C1005 JB 1H 102K-TT27.8/6.1
C1544030017460S.CER C1005 JB 1H 102K-TB57.8/28.6
C1554030017360S.CER C1005 CH 1H 030B-TT36.2/23.1
C1564030017460S.CER C1005 JB 1H 102K-TT32.8/9.1
C1574030016970S.CER C1005 JB 1E 223K-TT31.6/8.9
C1594030016790S.CER C1005 JB 1E 103K-TT24.8/7.7
C1604030018240S.CER C1005 JB 1H 562K-TT26.5/10.9
C1704030017460S.CER C1005 JB 1H 102K-TB24.4/11.2
C1714030017420S.CER C1005 CH 1H 470J-TB22.0/10.1
C1744030017460S.CER C1005 JB 1H 102K-TB19.8/12.4
C1764030017460S.CER C1005 JB 1H 102K-TB22.2/12.3
C1794030017450S.CER C1005 JB 1H 271K-TB15.8/12.4
C1804030017450S.CER C1005 JB 1H 271K-TB14.6/12.8
C1814030016930S.CER C1005 JB 1A 104K-TB17.9/12.2
C1824030018860S.CER C1005 JB 0J 105K-TT17.4/7.7
C1924030017490S.CER C1608 JB 1A 105K-TB49.1/31.0
C1934030016790S.CER C1005 JB 1E 103K-TB48.0/35.8
C2004030016790S.CER C1005 JB 1E 103K-TT12.2/37.5
C2024030016930S.CER C1005 JB 1A 104K-TT9.4/39.5
C2054030016960S.CER C1005 JB 1E 183K-TT7.0/39.9
C2064030017460S.CER C1005 JB 1H 102K-TT6.7/36.8
C2074030016930S.CER C1005 JB 1A 104K-TT8.3/36.8
C2244550007480S.TAN F930J106MAABMAB55.9/46.6
C2254030018900S.CER C1005 JB 0J 474K-TB54.3/45.7
C2274030018860S.CER C1005 JB 0J 105K-TB106.0/41.6
C2294030017460S.CER C1005 JB 1H 102K-TB102.3/41.5
C2304030018860S.CER C1005 JB 0J 105K-TB102.3/40.6
C2314030018860S.CER C1005 JB 0J 105K-TB44.6/44.0
C2514030019560S.CER GRM21BB31C106KE15LB42.7/48.1
C2524030017460S.CER C1005 JB 1H 102K-TB41.2/43.4
C2544030016930S.CER C1005 JB 1A 104K-TB16.6/39.0
C2554030016930S.CER C1005 JB 1A 104K-TB88.2/44.2
C2564030018890S.CER C1005 JB 0J 224K-TB84.7/41.2
C2574030016790S.CER C1005 JB 1E 103K-TB13.9/35.7
C2604030018910S.CER C1608 JB 0J 475K-TT12.1/41.9
C2614030016930S.CER C1005 JB 1A 104K-TT36.7/35.6
C2624030016790S.CER C1005 JB 1E 103K-TT34.5/38.8
C2634030016790S.CER C1005 JB 1E 103K-TB39.9/36.2
C2644030018090S.CER C1005 JB 1E 822K-TB34.4/38.9
C2654030017430S.CER C1005 CH 1H 101J-TB37.5/37.9
C2664030017030S.CER C1005 JB 1A 273K-TB38.9/39.7
C2834030016930S.CER C1005 JB 1A 104K-TB49.8/48.0
C2854030016930S.CER C1005 JB 1A 104K-TB39.8/39.7
C2864520000020S.NIO NOJC227M006RWJVB77.8/31.8
C2874520000020S.NIO NOJC227M006RWJVB83.2/29.9
C2884030017920S.CER C1005 JB 1A 473K-TB51.8/43.4
C2894030018090S.CER C1005 JB 1E 822K-TB34.4/38.9
C2904030018900S.CER C1005 JB 0J 474K-TB48.3/42.1
C3404030016790S.CER C1005 JB 1E 103K-TB106.7/31.0
C3414030017420S.CER C1005 JB 1A 683K-TB101.9/35.4
C3604030016790S.CER C1005 JB 1E 103K-TT98.2/25.7
C3614030016950S.CER C1005 JB 1A 473K-TT109.1/44.9
C3634030016950S.CER C1005 JB 1A 473K-TT111.8/44.9
C3644030016950S.CER C1005 JB 1A 473K-TT112.6/43.4
C3654030016950S.CER C1005 JB 1H 821K-TB8.7/42.8
C3704030017780S.CER C1005 JB 1H 472K-TB6.8/41.0
C3714030017400S.CER C1005 CH 1H 683K-TB5.2/39.4
C3724030016790S.CER C1005 JB 1E 103K-TT99.0/35.0
C3734030018890S.CER C1005 JB 0J 474K-TT96.2/35.4
C3744030018900S.CER C1005 JB 0J 474K-TT104.9/44.3
C3754030018900S.CER C1005 JB 0J 474K-TT106.7/44.3
C3764030017740S.CER C1005 JB 1H 821K-TB8.7/42.8
C3784030016950S.CER C1005 JB 1A 473K-TB115.5/38.7
C3794030017420S.CER C1005 CH 1H 470J-TB5.2/39.4
C3804030017460S.CER C1005 JB 1A 104K-TT99.2/19.3
C3824030018860S.CER C1005 JB 1H 220J-TB39.4/36.3
C3834030018860S.CER C1005 JB 1A 105K-TB31.4/41.7
C3854030016790S.CER C1005 JB 1E 103K-TB14.5/42.6
C3864030018900S.CER C1005 JB 0J 474K-TT107.8/44.3
C3894550007480S.TAN F930J106MAABMAB98.3/29.2
C4004030017860S.CER C1005 JB 0J 105K-TB4.0/36.5
C4014030018890S.CER C1608 JB 0J 475K-TB33.9/13.3
C4024030016930S.CER C1005 JB 1A 104K-TB5.2/37.8
C4044030018860S.CER C1005 JB 1E 105K-TB39.4/33.3
C4364030018860S.CER C1005 JB 1A 105K-TB43.3/38.6
C4374030018900S.CER C1005 JB 0J 474K-TT34.9/36.5
C4384030016790S.CER C1005 JB 1E 103K-TB34.2/33.2
C4404030016930S.CER C1005 JB 1A 104K-TB33.3/33.2
C4414030017460S.CER C1005 JB 1H 102K-TB61.2/10.6
C4424030017390S.CER C1005 CH 1H 180J-TB72.4/8.8
C4434030017650S.CER C1005 CH 1H 270J-TB73.8/8.8
C4444030017460S.CER C1005 JB 1H 102K-TB73.8/10.9
C4454030017390S.CER C1005 CH 1H 180J-TB74.3/9.7
C4464030017630S.CER C1005 CH 1H 120J-TB76.8/13.4
C4474030017410S.CER C1005 CH 1H 240J-TB75.9/11.8
C4484030017540S.CER C1005 CH 1H 562J-TB75.5/10.6

Eqv. = This component is equivalent to the REF No. component listed above, and
may be substituted on parts orders and repairs.

[MAIN UNIT]

REF NO.PARTS NO.DESCRIPTIONM.H/V LOCATION
C4504030017500S.CERC1005 CH 1H 560J-TB75.0/15.0
C4514030017730S.CERC1005 JB 1H 471K-TB82.3/21.6
C4524030017420S.CERC1005 CH 1H 470J-TB83.2/21.6
C4534030006860S.CERC1608 JB 1H 102K-T ATEXB91.6/9.4
C4544030018020S.CERC1608 CH 1H 910J-TB83.5/15.3
C4554030007060S.CERC1608 CH 1H 270J-TB89.3/15.9
C4564030006860S.CERC1608 JB 1H 102K-T ATEXB91.6/16.1
C4574030007010S.CERC1608 CH 1H 100D-TB92.4/13.9
C4584030007030S.CERC1608 CH 1H 150J-TB94.8/6.6
C4614030016930S.CERC1005 JB 1A 104K-TB73.8/17.9
C4624030016930S.CERC1005 JB 1A 104K-TT12.8/10.8
C4634030016930S.CERC1005 JB 1A 104K-TT12.8/7.6
C4644030016930S.CERC1005 JB 1A 104K-TB41.7/40.3
C4654030019560S.CERGRM21BB31C106KE15LB77.5/24.0
C4664030019560S.CERGRM21BB31C106KE15LB86.3/15.1
C4674030017690S.CERC1005 CH 1H 121J-TB16.0/36.5
C6064030021240S.CERC1005 JB 1C 105K-TB23.6/37.8
C6074030016930S.CERC1005 JB 1A 104K-TT19.1/37.0
C6124030018860S.CERC1005 JB 0J 105K-TT115.5/39.6
C6134030016950S.CERC1005 JB 1A 473K-TT110.9/44.9
C6144030017400S.CERC1005 CH 1H 220J-TB72.7/43.0
C6154030019560S.CERGRM21BB31C106KE15LB74.8/43.0
C6164030017420S.CERC1005 CH 1H 470J-TB71.5/42.7
J2516510021901S.CONBM02B-ASRS-TF(LF)(SN)B54.9/36.3
J2526510022692S.CON06FLT-SM2-TB(LF)(SN)(M)B87.3/32.1
J6016510030040S.CONCSS5005-4R11FB23.0/42.8
J6036510030990S.CONBM03B-AUHKS-GA-TB(LF)(SN)B72.0/39.4
J6046510025142S.CON10FLT-SM2-TB(LF)(SN)(M)B82.0/39.0
DS2405040003060S.LEDSML-512WWT86T94.8/5.5
DS2415040003060S.LEDSML-512WWT86T105.2/5.5
DS2425040003510S.LEDLNJ426W83RAT54.4/35.7
DS2435040003510S.LEDLNJ426W83RAT54.4/17.7
DS2445040003510S.LEDLNJ426W83RAT66.5/14.9
DS2455040003510S.LEDLNJ426W83RAT66.5/38.5
DS2465030003980LCDTJ3901TF <VHK>B3.0/26.7
DS2525040003960S.LEDSML-S13UT T68
MC2507700002900MICEM6027P-38C33-G <HOR>
S12260003300S.SWIEVQPQHB55T72.4/39.6
S22260003300S.SWIEVQPQHB55T71.0/26.7
S32260003300S.SWIEVQPQHB55T57.8/26.7
S42260003300S.SWIEVQPQHB55T48.9/17.9
S52260003300S.SWIEVQPQHB55T48.9/35.5
S62260003300S.SWIEVQPQHB55T60.7/14.9
S72260003300S.SWIEVQPQHB55T72.4/13.8
S82260003300S.SWIEVQPQHB55T60.7/38.5
S92230001071S.SWIJPM1990-2712ECB79.8/47.7
EP26910014690S.BEAMPZ1608S221A-TB67.9/10.0
EP36910014690S.BEAMPZ1608S221A-TB87.6/12.5
EP86910021240S.BEAMMZ1005A152ETB58.4/17.8
EP106910014690S.BEAMPZ1608S221A-TB80.6/22.1
EP3608930092270LCDSRCN-3723-SP-N-W (SHJ)

M. = Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)

[MIC UNIT]

REF NO.PARTS NO.DESCRIPTIONM.H/V LOCATION
C4104030017620S.CERC1005 CH 1H 100C-TB11.7/20.7
C4114030017420S.CERC1005 CH 1H 470J-TB11.6/11.9
J2506450002460CONHSJ1594-010160
J6076510025142S.CON10FLT-SM2-TB(LF)(SN)(M)B11.2/8.1
J6086510009351CONB2B-ZR(LF)(SN)
S2502260001900SWISW-149 (SKHLLDA010)
W18900014801CABOPC-1573-1(P0.5N10L50)<TJM>
EP46910018460S.BEAMMZ1005Y102C-TB14.5/11.4
EP56910024660S.BEAMPZ2012S102ATB11.7/14.1
EP66910018460S.BEAMMZ1005Y102C-TB8.2/11.9
EP76910024660S.BEAMPZ2012S102ATB13.9/19.9
EP86910018460S.BEAMMZ1005Y102C-T1B9.9/5.2
MPZ2012S102

Eqv. = This component is equivalent to the REF No. component listed above, and may be substituted on parts orders and repairs.
M. = Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
S = Surface mount

[CHASSIS PARTS]

REF NO.ORDER NO.DESCRIPTIONQTY.
MP182100311303723 FRONT PANEL ASSEMBLY[USA]
82100311303723 FRONT PANEL ASSEMBLY[EXP]
82100311003723 FRONT PANEL ASSEMBLY (A)[EUR]
82100311003723 FRONT PANEL ASSEMBLY (A)[UK]
82100311003723 FRONT PANEL ASSEMBLY (A)[FRG]
82100311003723 FRONT PANEL ASSEMBLY (A)[HOL]
82100311003723 FRONT PANEL ASSEMBLY (A)[AUS]
82100311103723 FRONT PANEL (B) ASSEMBLY WT[USA-01]
82100311103723 FRONT PANEL (B) ASSEMBLY WT[EXP-01]
82100310803723 FRONT PANEL (B) A WT[EUR-01]
82100310803723 FRONT PANEL (B) A WT[UK-01]
82100310803723 FRONT PANEL (B) A WT[FRG-01]
82100310803723 FRONT PANEL (B) A WT[HOL-01]
82100310803723 FRONT PANEL (B) A WT[AUS-01]
82100311203723 FRONT PANEL (A) ASSEMBLY BU[USA-02]
82100311203723 FRONT PANEL (A) ASSEMBLY BU[EXP-02]
82100310903723 FRONT PANEL (A) A BU[EUR-02]
82100310903723 FRONT PANEL (A) A BU[UK-02]
82100310903723 FRONT PANEL (A) A BU[FRG-02]
82100310903723 FRONT PANEL (A) A BU[HOL-02]
82100310903723 FRONT PANEL (A) A BU[AUS-02]
J316910021491ANT CONNECTOR 106-1 <SSC>1
W28920001430CAB-11851
EP10800014740BP-282 EU1
MP88930083240COIL SPRING (AM)1
MP989300922003723 SHAFT M5K1
MP1081100108303723 USB COVER1
MP1189300921503723 USB SEAL (TOP)1
MP1289300920903723 RELEASE BUTTON1
MP1389300922303723 SPRING M5K1
MP148850003421SEALING WASHER (AA)-1 (TOT)1
MP1588300034403285 ANT NUT1
MP1689300920803723 MIC CAP1
MP1789300920703723 CAP HOLDER1
MP1889300780103168 MIC SEAL (TOT)1
MP2182100309403723 REAR PANEL1
MP2289300921403723 MAIN SEAL (TOP)1
MP2488200015103062 SCREW6
MP258930063690O-RING (BA) (TOP)6
MP3180100234603723 CHASSIS1
MP338810009511PHBT M2 X 4 NI-ZC3 (3.6-4.0)5
MP428810008751PHBT M2 X15 NI-ZK31
MP438810009181BT M2 X 5 NI-ZC35
MP4889300309201301 SHEET1
MP508930071260O-RING (BL) (TOP)1
MP5189300921903723 DETECTION PIN (M5K)1
MP578930057950DOUBLE SIDE TAPE (AH)2
MP588930085980SHIELD TAPE (Z)1
MP598930092640THERMAL SHEET (CW) TC300CAS10 (10X15)1
MP608930092180THERMAL SHEET (CT) TC200CAS (5X14.5)1
MP6189300923803723 EARTH SPRING Y1355[EUR]
89300923803723 EARTH SPRING Y1355[UK]
89300923803723 EARTH SPRING Y1355[FRG]
89300923803723 EARTH SPRING Y1355[HOL]
89300923803723 EARTH SPRING Y1355[EUR-01]
89300923803723 EARTH SPRING Y1355[UK-01]
89300923803723 EARTH SPRING Y1355[FRG-01]
89300923803723 EARTH SPRING Y1355[HOL-01]
89300923803723 EARTH SPRING Y1355[EUR-02]
89300923803723 EARTH SPRING Y1355[HOL-02]
89300923803723 EARTH SPRING Y1355[FRG-02]
89300923803723 EARTH SPRING Y1355[HOL-02]

[MAIN UNIT]

REF NO.ORDER NO.DESCRIPTIONQTY.
J251*6510021901BM02B-ASRS-TF (LF) (SN)1
J252*651002269206FLT-SM2-TB (LF) (SN) (M)1
J601*6510030040CSS5005-4R11F1
J603*6510030990BM03B-AUHKS-GA-TB (LF) (SN)1
J604*651002514210FLT-SM2-TB (LF) (SN) (M)1
DS2465030003980TJ3901TF <VKHK>1
MC2507700002900EM6027P-38C33-G <HOR>1
S1*2260003300EVQPQHB551
S2*2260003300EVQPQHB551
S3*2260003300EVQPQHB551
S4*2260003300EVQPQHB551
S5*2260003300EVQPQHB551
S6*2260003300EVQPQHB551
S7*2260003300EVQPQHB551
S8*2260003300EVQPQHB551
S9*2230001071JPM1990-2712EC1
EP3608930092270SRCN-3723-SP-N-W (SHJ)1
MP20*85100149402601 VCO CASE Y6411
MP2185100149502601 VCO COVER Y6421
MP1008930085111SHIELD SONGE (CX)-11
MP36082100309903723 REFLECTOR M5K1
MP36189300921603723 LCD HOLDER Y13501
MP36389300922403723 WHITE SHEET1
MP3658930085120SHIELD TAPE (Y)1
MP3668930083320SPONGE (LH)1

[MIC UNIT]

REF NO.ORDER NO.DESCRIPTIONQTY.
J2506450002460HSJ1594-0101601
J607*651002514210FLT-SM2-TB (LF) (SN) (M)1
J6086510009351B2B-ZR (LF) (SN)1
S2502260001900SW-149 (SKHLLDA010)1
W18900014801OPC-1573-1 (P0.5N10L50)1

[ACCESSORIES]

REF NO.ORDER NO.DESCRIPTIONQTY.
EP1(Optional)FA-SC59V1
EP25930002030BC-217SA <SLVJ>[USA]
5930002040BC-217SE <SLVJ>[EXP]
5930002040BC-217SE <SLVJ>[EUR]
5930002040BC-217SE <SLVJ>[FRG]
5930002040BC-217SE <SLVJ>[HOL]
5930002050BC-217SV <SLVJ>[AUS]
5930002030BC-217SA <SLVJ>[USA-01]
5930002040BC-217SE <SLVJ>[EXP-01]
5930002040BC-217SE <SLVJ>[EUR-01]
5930002040BC-217SE <SLVJ>[FRG-01]
5930002040BC-217SE <SLVJ>[HOL-01]
5930002050BC-217SV <SLVJ>[AUS-01]
5930002030BC-217SA <SLVJ>[USA-02]
5930002040BC-217SE <SLVJ>[EXP-02]
5930002040BC-217SE <SLVJ>[EUR-02]
5930002040BC-217SE <SLVJ>[FRG-02]
5930002040BC-217SE <SLVJ>[HOL-02]
5930002050BC-217SV <SLVJ>[AUS-02]
EP66910018620BLACK HANDY STRAP <TOM>1
MP2(Optional)MB-1331

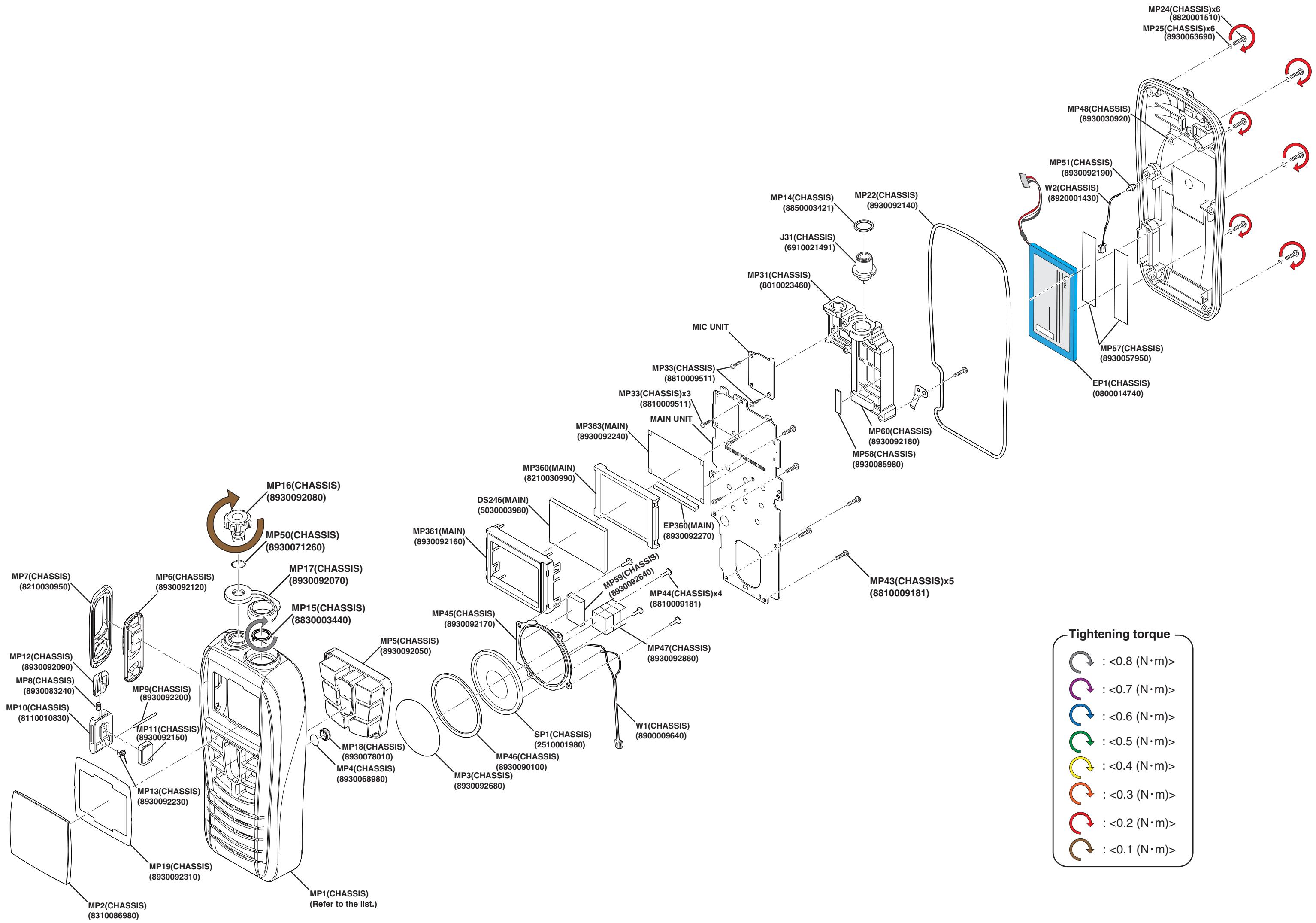

ICOM IC-M25EURO - 6-4 TRANSMIT ADJUSTMENTS - 1

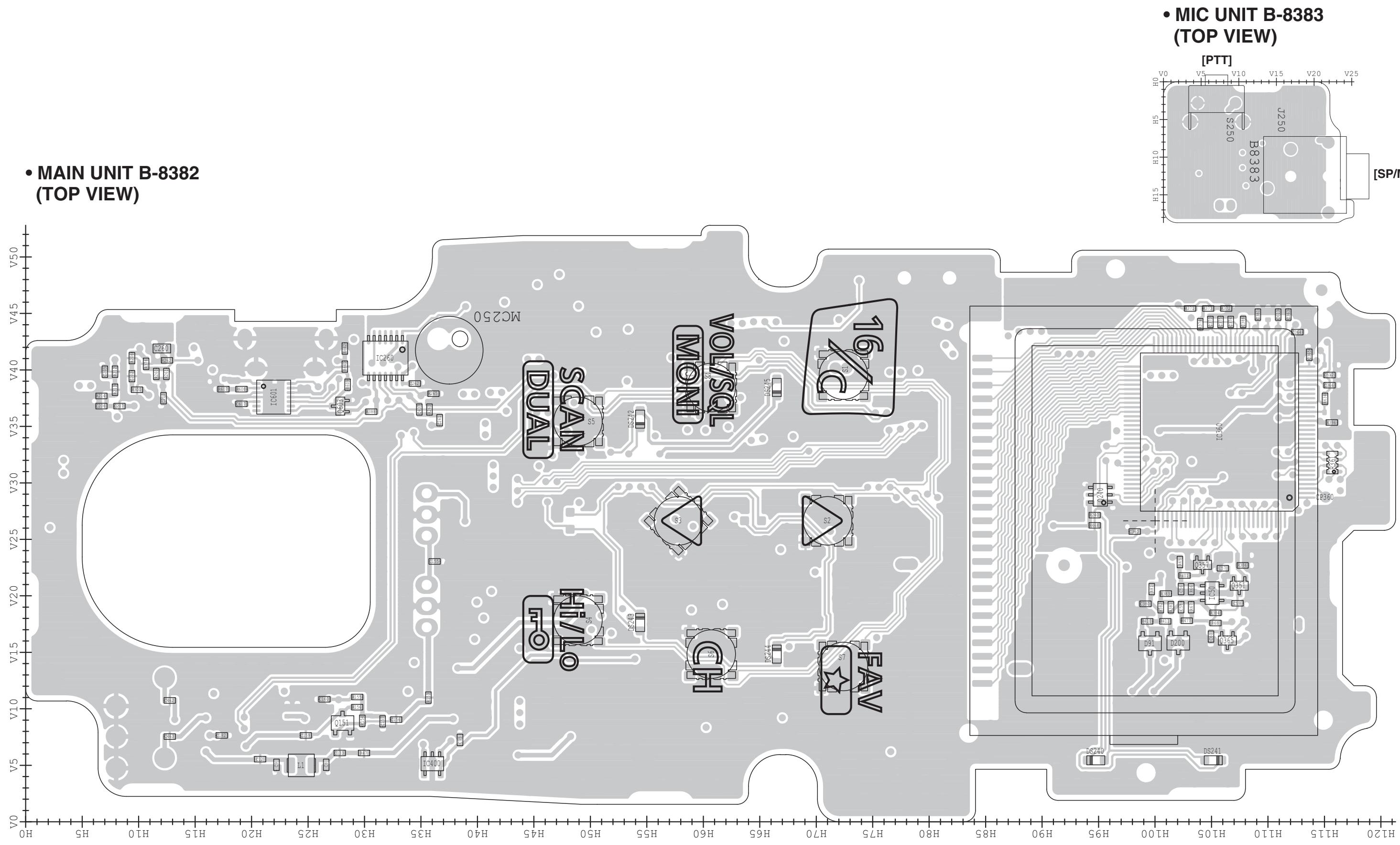

ICOM IC-M25EURO - 6-4 TRANSMIT ADJUSTMENTS - 2

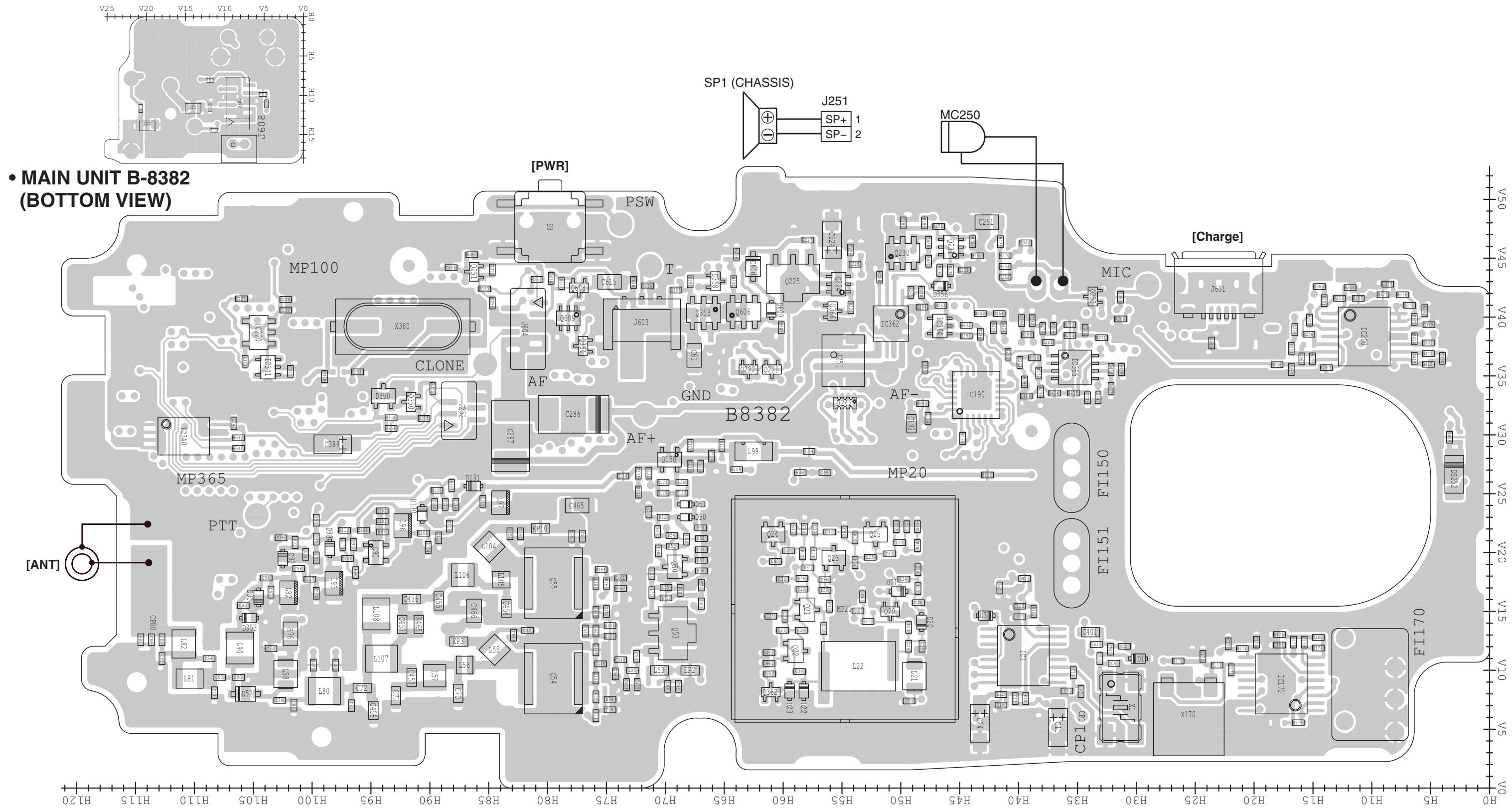

ICOM IC-M25EURO - 6-4 TRANSMIT ADJUSTMENTS - 3
- MIC UNIT B-8383 (BOTTOM VIEW)

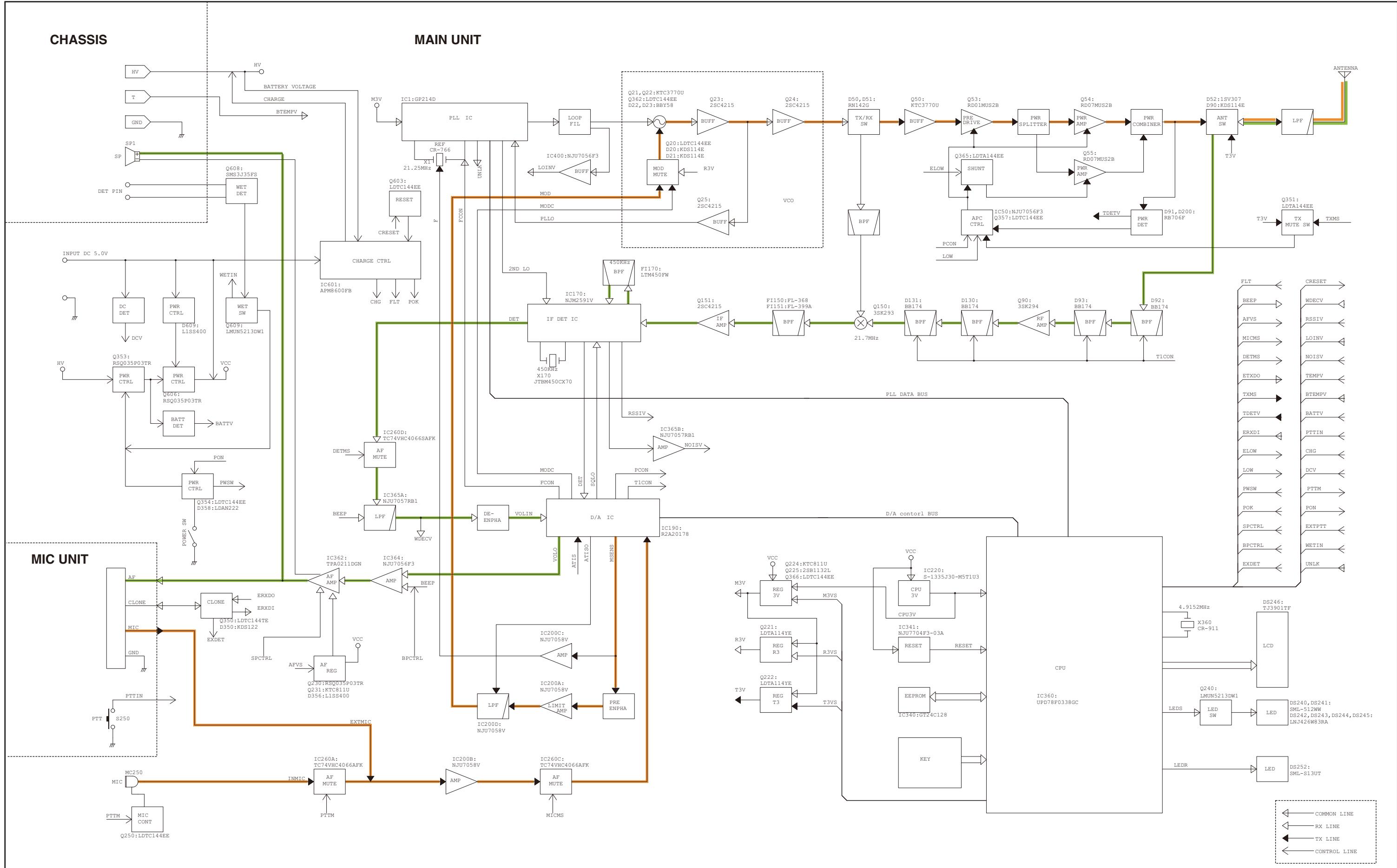

ICOM IC-M25EURO - 6-4 TRANSMIT ADJUSTMENTS - 4

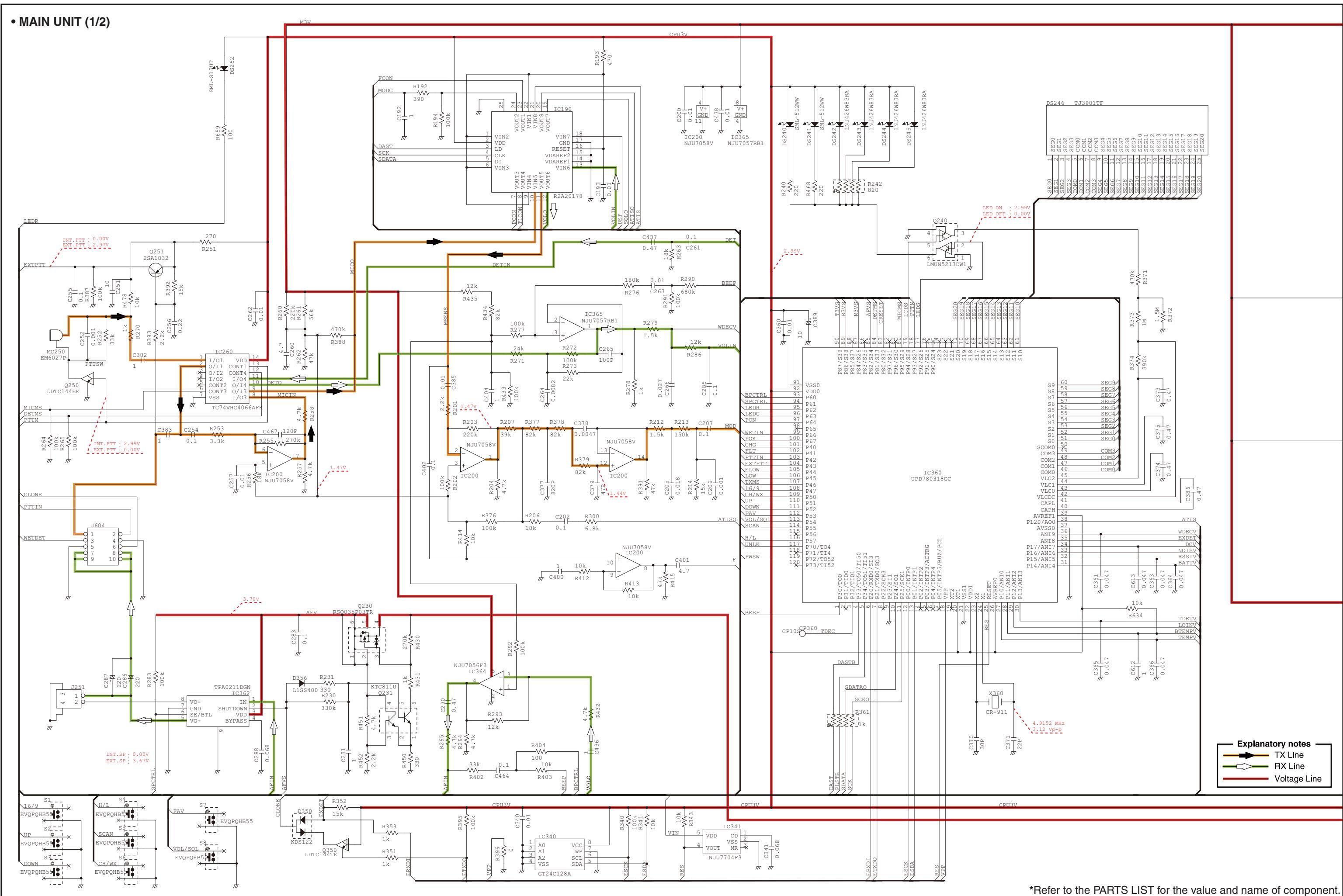

ICOM IC-M25EURO - 6-4 TRANSMIT ADJUSTMENTS - 5

MAIN UNIT (2/2)

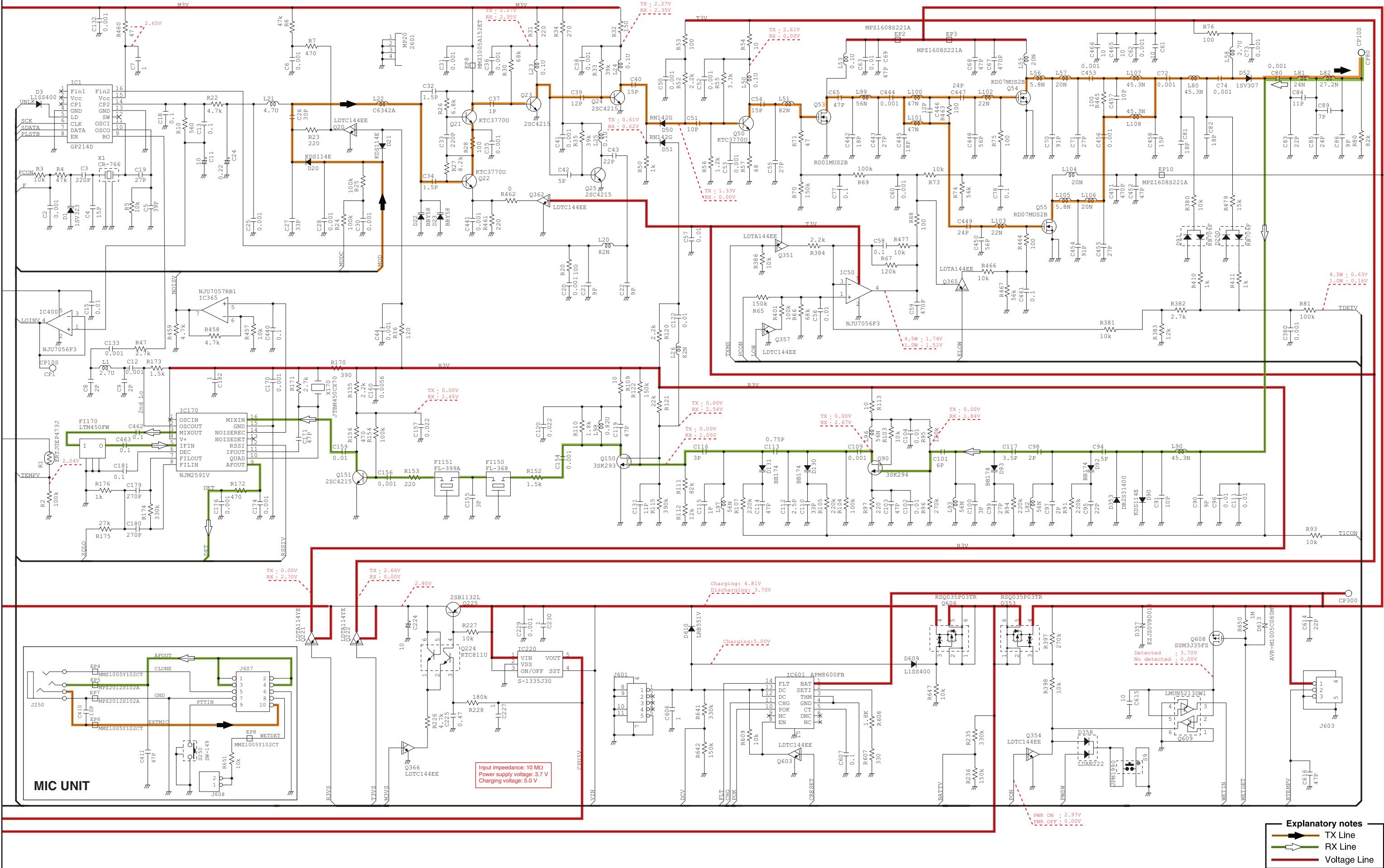

ICOM IC-M25EURO - 6-4 TRANSMIT ADJUSTMENTS - 6
*Refer to the PARTS LIST for the value and name of component.

Icom Inc.

1-1-32, Kamiminami, Hirano-ku, Osaka 547-0003, Japan

Phone: +81 (06) 6793 5302

Fax : +81 (06) 6793 0013

12421 Willows Road NE, Kirkland, WA 98034, U.S.A.

Glenwood Centre #150-6165

Highway 17A Delta, B.C., V4K 5B8, Canada

Icom (Australia) Pty. Ltd.

Unit 1/103 Garden Road, Clayton VIC 3168 Australia Phone: +61 (03) 9549-7500 Fax: +61 (03) 9549-7505

URL : http://www.icom.net.au

E-mail: sales@icom.net.au

Icom New Zealand

39C Rennie Drive, Airport Oaks, Auckland, New Zealand

Phone: +64 (09) 274 4062

URL : http://www.icom.co.nz

E-mail: inquiries@icom.co.nz

Icom Brazil

Rua Itororo, 444 Padre Eustaquio Belo Horizonte MG,

CEP: 30720-450 Brazil

Phone: +55 (31) 3582 8847

E-mail: sales@jcombrazil.com

Fax: +64 (09) 274 4708

Icom (Europe) GmbH

Communication Equipment

65812 Bad Soden am Taunus, Germany

Phone: +49 (6196) 76685-0 Fax: +49 (6196) 76685-50

URL : http://www.icomeurope.com

E-mail:info@icomeurope.com

Icom Spain S.L

Ctra. Rubi, No. 88 Bajos A 08174, Sant Cugat del Valles, Barcelona, Spain

Phone: +34 (93) 590 26 70 Fax: +34 (93) 589 04 46

URL : http://www.icomspain.com

E-mail: icom@icomspain.com

Icom (UK) Ltd.

Blacksole House, Altira Park, Herne Bay, Kent CT6 6GZ, UK

Phone: +44 (0) 1227 741741

URL : http://www.icomuk.co.uk

E-mail: info@icomuk.co.uk

Icom France s.a.s.

Zac de la Plaine

6F No.68, Sec. 1 Cheng-Teh Road, Taipei, Taiwan, R.O.C.

Phone: +886 (02) 2559 1899 Fax: +886 (02) 2559 1874

URL : http://www.asia-icom.com

E-mail: sales@asia-icom.com

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : ICOM

Model : IC-M25EURO

Category : Marine VHF Radio
