GE2620 - Microwave Oven BRANDT - Free user manual and instructions

USER MANUAL GE2620 BRANDT

Dear Customer, You have just purchased a BRANDT microwave oven and we would like to thank you. We have placed in this appliance all our passion and know-how to meet at best your need. Innovation and performance: we designed it to be always easy to use. In the line of BRANDT products, you will also find a wide range of ovens, hobs, ventilation hoods, electronic cookers, dishwashers, washing machine, refrigerators and freezers that can be coordinated with your new BRANDT microwave oven. Of course, in a permanent wish to satisfy as best as possible your expectations toward our products, our after-sales service is at your disposal and at your listening to answer to all your questions and suggestions. (contact details at this end of this booklet) You can also visit our website www.brandt.com where you will find all our products, as well as additional and useful information. BRANDT As part of our commitment to constantly improve our products, we reserve the right to make technical, functional or esthetical properties modifications linked to their technological development. Caution : Before installing and using your appliance, please read carefully this installation and user’s guide to quickly familiarize yourself with its functioning.

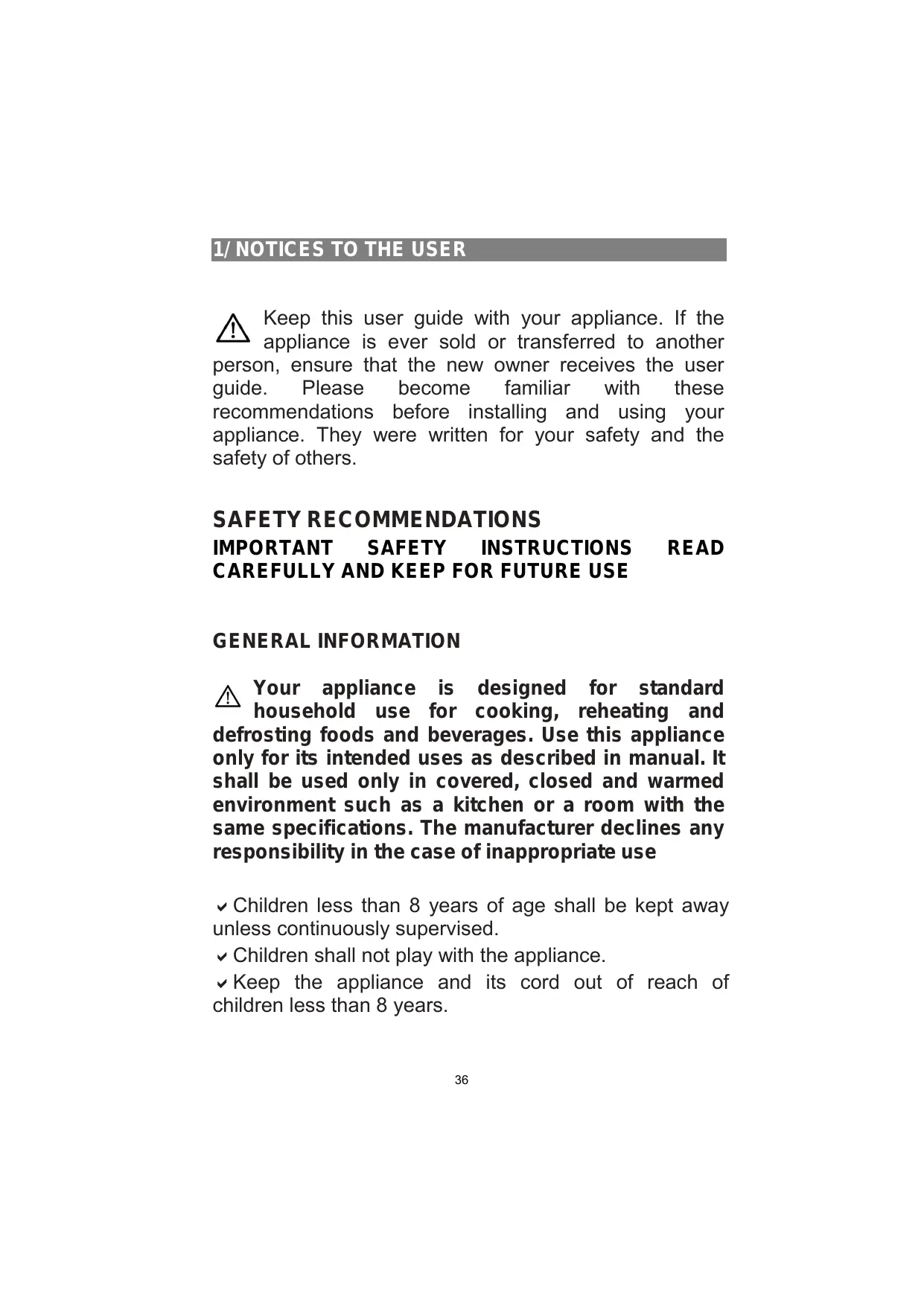

1/ NOTICES TO THE USER

Keep this user guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives the user guide. Please become familiar with these recommendations before installing and using your appliance. They were written for your safety and the safety of others. SAFETY RECOMMENDATIONS IMPORTANT SAFETY INSTRUCTIONS

CAREFULLY AND KEEP FOR FUTURE USE

READ GENERAL INFORMATION Your appliance is designed for standard household use for cooking, reheating and defrosting foods and beverages. Use this appliance only for its intended uses as described in manual. It shall be used only in covered, closed and warmed environment such as a kitchen or a room with the same specifications. The manufacturer declines any responsibility in the case of inappropriate use Children less than 8 years of age shall be kept away unless continuously supervised. Children shall not play with the appliance. Keep the appliance and its cord out of reach of children less than 8 years.

INSTALLATION Install or locate this oven only in accordance with the installation instructions provided See the section INSTALLING YOUR APPLIANCE This appliance must not be placed in a cabinet Do not obstruct any of the vents of your appliance If this equipment is covered or touching flammable material, including curtains, drapes items with a similar nature there is a risk of fire during the use Keep cord away from heated surface, and do not cover any events on the oven. The appliance is not intended to be operated by means of an external timer or separate remote-control system USE The appliance and its accessible parts become hot during use. Young children should be kept away. Liquids and other foods should not be heated in sealed containers because they may explode. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

The temperature of accessible surfaces may be high when the appliance is operating. Do not place anything on the appliance during operation. Ensure that the cookware is suitable for use in a microwave oven. Always use oven mitts to remove dishes from the oven. Some dishes absorb the heat of foods and, therefore, are very hot. For the microwave and microwave + circular heating functions, the use of metallic cookware is not recommended. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. To avoid damaging your appliance, never operate it while empty or without the turn-table. In the case of small quantities (a sausage, a croissant, etc.) place a glass of water next to the food. Heating beverages in the microwave oven can cause sudden and/or delayed splattering of boiling liquid, so precautions must be taken when handling their containers. The contents of baby bottles and baby food jars should be shaken or stirred and their temperature checked before consumption avoid burns. Never heat a baby bottle with the nipple on (risk of explosion. It is recommended that you avoid heating eggs in their shells and whole hard-boiled eggs in the microwave oven because they run the risk of explosion, even after cooking is complete.

Do not use aluminium cooking foil to cover food. Do not cover part of the oven with aluminium foil. While heating food items in plastic or paper containers, monitor the microwave’s contents for there is a risk of spontaneous combustion. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames. The cookware not recommended by the manufacturer may result in hazardous situations and injuries Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven CLEANING Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous. Turn the oven off and remove the power plug from the wall socket before cleaning This appliance generates microwave energy and is equipped with a high voltage circuit, do not remove the cover It is hazardous for anyone other than a competent person to remove a cover :

• Remove the protective cover of the device may result in exposure to microwave energy.

• Remove the protective cover of the device, even if it is disconnected, may cause an electric shock on contact with the high-voltage circuit Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised This appliance should be cleaned regularly and any food deposits removed Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass For your safety, steam cleaner is not to be used. The seal and frame of the door must be regularly examined to ensure that they have not deteriorated. If these areas are damaged, discontinue use of the appliance and have a specialised technician check it. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced. When unplugging the power cord, do not pull on the cord itself but pull on the plug. The supply cord cannot be replaced. If the supply cord is damaged, the appliance should be scrapped. IMPROPER USE The manufacturer assumes no liability for improper use. Use this appliances only for the uses described in this manual. Observe general instructions and safety listed in this chapter.

This microwave oven is not intended for drying food or clothes. Similarly, it is not intended for heating slippers, heating pads, sponges, damp cloth and other similar items. It is not intended either to sterilization. These uses can destroy your appliance and lead to a dangerous situation. This device is intended for home use in private homes. Its use in common areas such as local professionals or pause office or workshop, local camping, hotel, etc.. does not respond to an intended use as defined by the manufacturer. Model: CE3620X Power supply: 230V~50Hz Rated input power (microwave): 1550W Rated output power (microwave): 900W Rated input power (grill): 1200W Rated input power (convection): 1750W Oven capacity: 36L Turntable diameter: 36cm External dimensions (H*W*D): Net weight: 420 * 527 * 501 mm 27kg

OPERATING PRINCIPLE The micro-waves used for cooking are electro-magnetic waves. They are commonly found in our environment in the form of radio-electric waves, light or infrared rays. Their frequency is in the 2450 MHz range. Their behaviour:

• They are reflected by metals.
• They travel through all other materials.
• They are absorbed by water, fat and sugar molecules. When food is exposed to micro-waves, its molecules begin moving rapidly, which causes heating. The penetration depth of waves into the food is approximately 2.5 cm; if the food is thicker, the core of the food will be cooked by conduction, as in traditional cooking.

PROTECTING THE ENVIRONMENT

It is valuable to note that the microwaves trigger within the food causes a simple phenomenon and that they are not thermal harmful to one’s health. This appliance’s packing materials are recyclable. Recycle them and play a role in protecting the environment by disposing of them in municipal containers provided for this purpose. Your appliance also contains various recyclable materials. Thus it is stamped with this logo to indicate to you that used appliances should be mixed with other waste. The recycling of appliances organised by your manufacturer will take place under the best conditions, in compliance with European directive 2002/96/CE concerning electrical and electronic equipment waste. Consult your city hall or your retailer to find the drop-off points for used appliances that is nearest to your home. We thank you for your help in protecting the environment.

2/ INSTALLING YOUR APPLIANCE

In case of doubt, consult your electrician installer. BEFORE HOOK-UP

Ensure that your appliance has not suffered any damage during transport (deformed seal or door, etc...). If you see any kind of damage, before doing anything else, contact your retailer. The electrical connections are made before the appliance is installed in its housing. Electrical safety must be provided by a correct build-in. During installations and maintenance operations, the appliance must be unplugged from the electrical grid. In order to easily locate the reference information for your appliance, we recommend that you note these data on the “After-Sales Service Department and Customer Relations” page. The power plug or any other power cut device must stay immediately accessible for an emergency stop. ELECTRICAL CONNECTION If the oven presents any anomaly, unplug the appliance or disconnect the connexion to the sector. Ensure that: - the electrical installation has efficient voltage. - the electrical wires are in good condition. - the diameter of the wires complies with the installation requirements. - your electrical installation is equipped with 20-ampere thermal-sensitive protection. If the plug cord is damaged, it must be replaced by the manufacturer, its aftersale service, or a similar qualified person to avoid any danger.

Warning: We cannot be held responsible

for any accident resulting from an inexistent, defective or incorrect ground lead.

UTENSILS See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can refer to the tables below.

Materials you can use in microwave oven Ustensiles Observations Aluminium foil Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls Browning Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch dish (5mm) above the turntable. Incorrect usage may cause the turntable to break. Dinnerware Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes. Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes. Oven Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to cooking escape. bags Paper Use for short–term cooking/warming only. Do not leave oven unattended while cooking. plates and cups Paper Use to cover food for reheating and absorbing fat. Use with supervision for a short-term towels cooking only. Parchment Use as a cover to prevent splattering or a wrap for steaming. paper Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled “Microwave Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package. Plastic Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow wrap plastic wrap to touch food. Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven Ustensiles Aluminum tray Food carton with metal handle Metal or metaltrimmed utensils Metal twist ties Paper bags Plastic foam Wood Observations May cause arcing. Transfer food into microwave-safe dish. May cause arcing. Transfer food into microwave-safe dish. Metal shields the food from microwave energy. Metal trim may cause arcing. May cause arcing and could cause a fire in the oven. May cause a fire in the oven. Plastic foam may melt or contaminate the liquid inside when exposed to high temperature. Wood will dry out when used in the microwave oven and may split or crack.

DESCRIPTION OF YOUR APPLIANCE

Remove the microwave and all the accessories from the carton box and from the inside of the microwave.

Names of the pieces and accessories of your microwave

A. Rotary knob programme selection : allows you to choose the microwave, grill or convection function. B. Rotary knob : allows you to set the time, the weight or the temperature. C. Digital screen facilitates the programming by posting the functions, the time or the planned weight, the clock and the food categories. D. Auto programme : select the type of dish to cook and its weight : the appliance sets automatically the power and the cooking time. E. Defrost : programme the defrost according to the weight of the food. F. Steam : a direct access to the steam cooking. G. Stop Tray : a press of the F and E buttons simultaneously allows you to keep the turntable stationary. Ideal for use of large rectangular plates. H. Memories 1 2 3 : allow to access directly to the 3 pre-programmed operations.

I. Cancel : can stop or cancel a programme which is in operation.

J. Validation/Start : this pad allows to validate and to start the cooking. K. Clock : a simultaneous press of the H and I buttons allows you to set the clock.

Hub (underside) a. Never place the glass tray upside down. The glass tray should never be restricted. b. Both glass tray and turntable ring assembly must always be used during cooking. c. If the glass cracks or breaks, contact your nearest authorized service center. Glass tray Turntable shaft Turntable ring assembly

INSTALLATION ON A COUNTERTOP

Remove all packing material and accessories and set to one side. Examine the oven for any damage such as impact, scratch or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film on the microwave oven cabinet surface if it is covered. Do not remove the light brown Mica slab that is attached on the right side in the oven cavity because it protects the magnetron. INSTALLATION

2. Electrical connection

• Your installation must be protected by a 16 Amp thermal protection.
• It is mandatory to use a plug with a ground terminal and connected in accordance with current safety regulations.
• In you electrical connection, provide a device that is acessible by the installer who is able to separate the appliance from the main power and the contact opening is at least 3 mm at all of the poles.

1. Select a level surface that provide enough

open space for the intake and/or outlet vents (no built in). The microwave oven must be placed on a surface located at least 34 inches (85 cm) above the ground. The back of the appliance should be placed against a wall. (1) Leave a minimum space of 12 inches (30cm) above the oven. (2) Do not remove the legs from the bottom of the oven. (3) Blocking the air intake and/or air outlet grille openings can damage the oven. The left side must be open. (4) Place your appliance as far as possible from your televisions or radios. Microwave oven can interfere with your others appliances. 0cm

WARNING: Do not install microwave

oven above a hob or others appliances which produce heat. If it installed near or above a heat source, the microwave oven can be damaged and the warranty will be void. The accessible surface may be hot during the functioning of the microwave oven. 30cm 20cm 20cm min85cm

OPERATION INSTRUCTION When the microwave oven is switching on, the oven will display “0:00” and the bell will ring once. Clock setting Display

1. Press simultaneously the Memories and Cancel buttons,

the hour figures flash.

2. Turn the right rotary knob to set the hour, it must be between

3. Press the Validation/Start button to confirm.

4. Turn the right rotary knob to set the minutes, it must be

5. Press Validation/Start to finish the clock setting, “:” flashes

and the time appears on the screen. Cooking function Display

1. Turn the left rotary knob to select the desired function:

microwave, grill or convection. The microwave displays successively 900, 700, 550, 350, 200, G1, G2, G3, C1, C2, C3.

2. Turn the right rotary knob to set the cooking time. The

maximum time setting should be 95 minutes.

3. Press the Validation/Start button to start the cooking.

For convection function, you should skip the step 3 but follow the steps as below:

4. Turn the right rotary knob to adjust the temperature of cooking

( from 50°C to 230°C).

5. Press theValidation/Start button to start the cooking.

Microwave cooking Table of microwave power Turn Power

1st position 2 position 3rd position 4th position 5th position 900W 700W 550W 350W 200W Display For example: If you want to cook during 10 minutes at 550W, set the microwave as indicated below.

1. Turn the left rotary knob until to obtain the position 550W.

2. Turn the right rotary knob to adjust the cooking time. The

maximum time is 95 minutes.

3. Press the Validation/Start button to start the cooking.

Grill cooking Display Description

100% Grill 80% Grill + 20% Microwave 40 % Grill + 60% Microwave Display For example: If you want to cook during 10 minutes in function G1, set the microwave as indicated below.

1. Turn the left rotary knob until to obtain the position G1.

2. Turn the right rotary knob to adjust the cooking time.

3. Press the Validation/Start button to start the cooking.

Convection cooking Display Description

100% Convection (CH) 80% CH + 20% Microwave 60 % CH + 40% Microwave Convection cooking with preheat. Convection cooking enables to cook your food like in a traditional oven. The microwave function can be combined to the convection cooking to decrease the cooking time (C2 and C3). It is recommended to preheat the microwave at the right temperature before to introduce food inside. Display For example: If you want to cook during 1 hour in function C2 at 180°C, set the microwave as indicated below.

1. Turn the left rotary knob until to obtain the position C2.

2. Turn the right rotary knob to adjust the cooking time.

3. Press the Validation/Start button to confirm.

4. Turn the right rotary knob to adjust the desired temperature.

5. Press the Validation/Start button to start the cooking.

Do not preheat your microwave with the fan + microwave cooking functions because it can damage the appliance. Preheat with the function C1 and then you can change the function cooking. Note: In case of use of the microwave in convection cooking position + microwave, do not use metallic container.

Multifunction cooking It is possible to programme the sequence of several programmes. If one of these programmes is Defrost, it should be planed in the first position. The auto-programmes cannot be present in a sequence. For example: If you want to defrost a 200g food during 5 minutes and then cook with a power of 700W during 1min40, set the microwave as indicated below. Programming of a sequence Display

2. Turn the right rotary knob to adjust the weight.

3. Turn the left rotary knob twice to select the desired microwave

4. Turn the right rotary knob to adjust the cooking time.

5. Press the Validation/Start button to launch the sequence.

Auto menu Weight Time 400g 600g 800g 1000g 10’00” 13’30” 16’00” 20’00” A1 RED MEAT (microwave + convection) Use a plate adapted to microwave and to high temperatures. Take out the meat from refrigerator 1 hour before cooking. Put the plate on the turntable. After cooking, out of the microwave, let rest the meat 10 min packed in a aluminum foil. 1200g 400g A2 WHITE MEAT (microwave + convection) 600g (pork,veal) 800g Use a plate adapted to microwave and to high temperatures 1000g See advices for “Red meat” 1200g 150g A3 FISHES (microwave) 250g Use a plate adapted to microwave, add 2 to 3 water spoonful, lemon 300g juice or white wine. 400g Cover with an adapted lid or cling film and put on the turntable. 600g 500g A4 POULTRY (microwave + convection) 750g (whole chicken or parts) 1000g Prick the skin to avoid the projections. 1200g At the end of cooking, let rest the poultry 5 min in the microwave. 1500g 300g A5 PREPARED DISHES (microwave + grill) 450g To warm prepared dishes and brown prepared frozen food, use a plate 600g adapted to microwave and to high temperatures. 750g Do not cover. 1000g 200g A6 VEGETABLES (microwave) 300g To cook fresh vegetables, add in an adapted container: 400g - 2 water tablespoonful for 200g 500g - ½ dl beyond 600g 200g A7 PIZZA (grill + microwave) 300g Put the pizza in the craquine plate and place it on the grill rack. 400g 500g 600g A8 PIE (convection + microwave) Place the craquine plate on the grille rack after the beep which indicates that the oven is at the right temperature. A9 CAKES (convection + microwave) Place the cake tin on the grille rack after the beep which indicates that the oven is at the right temperature.

23’00” Autoprogramme cooking For the A1 programme A preheat is necessary Display

1. Press the Auto programme button once.

2. Turn the right rotary knob to adjust the weight.

The time defined by the auto programme appears.

3. Press the Validation/Start button to start the preheat. It is

indicated by the post of Att. When the temperature is reached (around 10 min), a beep is emit. Place the food in the cavity and press the Validation/Start button to start the cooking. The cooking time begins to count. For the programmes from A2 to A7 Display

1. Press the Auto programme button until that the chosen

programme appears (for instance A6 with vegetables logo).

2. Turn the right rotary knob to adjust the weight.

The time defined by the auto programme appears.

3. Press the Validation/Start button to confirm.

At the end of the cooking, the bell will ring 2 times. For the A8 and A9 programmes There is no weight selection Display

1. Press the Auto programme button 8 or 9 times to obtain the

desired programme. (8 times for a tart/pie and 9 times for a cake)

2. The defined time of 35:00 appears for the A8 programme and

23:00 for the A9 programme. You can also adapt the cooking time from 0 to 95 min by turning the right rotary knob.

3. Press the Validation/Start button to confirm.

Cooking with the Craquine plate and the PIZZA auto programme The “PIZZA” auto programme associated to the CRAQUINE plate enables to heat up and to glaze most of frozen and fresh preparations made with pastry, while providing the crisp as in a traditional oven. With this PIZZA auto programme, you will save time and energy.

• The PIZZA auto programme, used with its plate enables the simultaneous functioning of the grill and the microwave.
• The CRAQUINE plate, equipped with a particular coating, absorbs the microwaves from the bottom. It distributes the heat under the food to heat up and to give the desired color and crisp. You can use your plate apart from the auto programme by choosing the convection + grill functions to cook nuggets, potatoes, breaded fish, vegetables galette… For the A7 programme Put your pizza in the CRAQUINE plate and place it on the grill rack Display

1. Press the Auto programme button 7 times.

2. Turn the right rotary knob to adjust the weight.

The time defined by the auto programme appears.

3. Press the Validation/Start button to start the cooking.

• Place correctly the CRAQUINE plate on the grill rack
• Remove food from their packaging of origin (metal, plastic) before reheating in the PIZZA auto programme.
• Well protect hands to take out the plate because it reaches high temperatures.
• All food with a peel or a wrapping such as potatoes or sausages, have to be drilled before cooking.
• The filled or stuffed foods should not be tasted too quickly (eg: puff pastry), as they may be warm outside and hot inside.
• The cooking or preheat of eggs in PIZZA function is forbidden.
• As in a traditional cooking, check the food colouring. Remarks
• Do not use the CRAQUINE plate in a traditional oven, neither on hobs (gas, electric or others) nor on other surface generating a high heat.
• Do not let any utensil in the hot CRAQUINE plate, the reached temperature can damage it.
• After use, do not put the CRAQUINE plate on a surface sensitive to the heat.

Memorization function 3 Memories are available. You can either create/modify a memory by pressing memorized programme by pressing briefly during 2 seconds, either use a

1. Press on the button

during 2 seconds. Then, you can access to the Memory1. M1 flashes. Press a second time to access to the Memory 2, then a third time to access to the Memory 3.

2. Programme the cooking of your choice. (Refer to the Cooking

3. Press on the button

to confirm. Remark: Cooking in Auto Menu function can not be selected as a memorization procedure. For example: to register the programme in Memory 2: cook the food at 550W in microwave function during 10 minutes, follow the different steps below. Programming of the memory function Display

1. Press on the button

during 2 seconds, then once briefly. You can access to the Memory 2. M2 flashes.

2. Turn the left rotary knob 3 times to select the desired

3. Turn the right rotary knob to set the cooking time.

1. Press briefly on the button

. You will access to the Memory 1.

2. Press a second time to access to the Memory 2, then a third

time to access to the Memory 3.

3. Press the Validation/Start button to launch the programme.

Programming of the fast cooking Display At a standstill, press the Validation/Start button to start the cooking with 100% of the microwave power during 30 seconds. Each additional press increases the time of 30 seconds until 95 minutes maximum. In microwave, grill and convection functions, each press on the Validation/Start button increases the time of 30 seconds. During the cooking in Auto Menu and Defrost depending on weight functions, the time cannot be increase by pressing the Validation/Start button. Programming of the quick defrost Display

1. Press on the button

2. Turn the right rotary knob to select the food weight.

The time is adjusted automatically according to the weight.

3. Press on the Validation/Start button to launch the programme.

Defrost advices The defrost of frozen food in your microwave oven enables to save time considerably. To defrost, use the “Automatic defrost” function or the “microwave” function with 200W power. What you have to know: The small pieces of meat or fish can be cooked immediately after the defrost. It is normal that large pieces such as roast beef or entire fish are slightly frozen. We advice to plan a rest time at least equal to the defrost time in order to obtain a homogeneous temperature. A food covered by ice crystals will defrost slower: in this case, it is necessary to increase the defrost time. Remember to remove the metal links of the wrapping. For most of food, it is recommended to remove them from their packaging. At mid-defrost, it is necessary to turn, mix or separate the pieces which are in block. If you defrost meats or fishes whose size prevents the rotation of the tray, use the “stop-tray” function, in this case, turn and return the food regularly. Defrost meat and fish in a saucer inverted in another plate in order to let the juice flow which, in contact with the food, can prompt a cooking start. Never refroze a food before cooking. The times are calculated from frozen food at -20°C, they are provided for informational purposes, and can vary according to the thickness, the form, the size and the food conditioning.

Use of the steam function Display

1. Press on the button

2. Turn the right rotary knob to select the cooking time

By default, the duration is 1 minute

3. Press on the Validation/Start button to launch the programme.

Steam cooking advices

PLATE FOR STEAM COOKING

The steam cooking plate is specially designed for microwaves. With the steam plate, you can have an authentic steam cooking for your food, and this simply in the microwave. During this process, foods are not cooked directly by the waves because they are isolated by the stainless steel wall of the container. The waves’ role is to bring the water to the boil in the glass part of the plate. The formed steam is spread and cooks foods. The food’s nutrients and taste are preserved. SAFETY RECOMMENDATIONS RELATIVE TO THE STEAM PLATE For your safety: The steam plat become very hot during cooking. Risk of burn ! Never use alcohol. Risk of explosion ! After cooking, open carefully the steam plate. Hot steam can escape. Risk of scalding ! Cause of damages: Never use the steam plate without putting water. The microwave and the steam plate could be damaged. If you use the plate in another microwave, check that the cavity is not too small. If it is the case, never use the steam plate. Sparks can occur and damage the microwave. Never use a damaged steam plate. If the transparent silicone seal is missing on the perforated stainless steel plate, or if the steam plate is deformed, sparks can occur. The microwave will be damaged.

INTRODUCTION OF FOOD IN THE PLATE

1. Pour water in the glass container (see quantities below). (1.)

2. Install the perforated stainless steel plate on the glass container. (2.)

3. Put the foods in the perforated stainless steel plate. (2.)

4. In the case of a two levels cooking, place the perforated tray above the

5. Close the steam plate with the stainless steel cover. (4.)

AFTER THE STEAM COOKING

During cooking, steam can escape from the steam plate. This steam condenses inside the microwave. When the appliance is cold, wipe the inside of the microwave with a soft duster. When you take off the food from the microwave, check that this one has finished its cycle, or, by default, stop cooking. In the opposite case, and if you operate your microwave empty, you risk to cause an overheating and to damage the appliance. Water quantity: Total cooking time: until 20 min 250 ml water until 45 min 500 ml water The water should not evaporate completely during cooking, add more if necessary. Cooking time: The cooking time is not depending on the quantity, but on the nature, on the quality and on the size of foods. The indicated duration in the tables is indicative. Use the indicated sizes as a point of reference. If you want to prepare smaller pieces, the cooking time has to be reduced. Extend it for bigger pieces.

Minimum amount of water VEGETABLES Green been (5 cm in length) Cauliflowers (floret) Broccoli small (floret) Carrots (fine cut) Brussels cabagges (whole) Leek (slice) Pumpkin (2-3 cm cubes) Chicory (cut in two) Potatoes with skin in quarters Spinach MEATS Pork medallion (3 cm of thickness) White poultry (3 cm of thickness) FISHES Salmon steaks (2 cm of thickness) Whole trout Fish fillet (2 cm of thickness) Unpeeled prawn Sole roll EGGS Hard-boiled eggs (medium size) Sof-boiled eggs (medium size) DESSERTS Stewed fruit (apple, pear…) in slice Whole filled apples 500 ml 500 ml 250 ml 500 ml 500 ml 250 ml 250 ml 500 ml 500 ml

1. Press simultaneously on the Defrost and Keep warm

buttons. The indicator switches on.

2. Press again the 2 buttons simultaneously to restart the

rotation of the tray. General remarks : - At any time, turn the right rotary knob to adjust the cooking time. - If you open the door during cooking, it is necessary to press Validation/Start to continue cooking. - When you press a button, the appliance emits a beep. If the beep is not emit it means that the appliance has not detected your push.

4/ CARING FOR AND CLEANING YOUR APPLIANCE

/ CARING FOR AND CLEANING YOUR APPLIANCE

It is recommended that you regularly clean your oven and remove any food build-up on the inside and outside of the appliance. Use a damp, soapy sponge. If the appliance is not cleaned regularly, its surface could become damaged, permanently affecting the appliance’s lifespan and possibly causing a safety hazard. If the door or door hinge are damaged, the oven should not be used until it has been repaired by an authorised person. Do not cute the foods directly in the plate in order to preserve this coating. To clean this plate, a sponge, hot water and a liquid detergent are enough; neither use a metallic sponge nor a scouring powder. The plate can be cleaned in the dishwasher. To preserve your appliance, we recommend you to ise Clearit cleaning product. Profesional expertise serving individuals. Do not clean the appliance with a steam cleaner. Clearit offers you professional products and solutions designed for the daily care of your household appliances and kitchens. They are on sale at your regular retailer, along with a complete line of accessories and consumable products. The use of abrasive products, alcohol or thinner is not recommended; they may damage the appliance. In the event of odour or caked-on dirt, boil water with lemon juice and vinegar in a cup for two minutes and clean the insides with a bit of dishwashing liquid. Tip: To clean more easily the inside of the appliance that can be dirtied by the foods: Put a half-lemon in a bowl, add 300 ml of water and place in the microwaves at the full power during 10 min. Then, clean it with a soft and humid cloth. The table can be removed to facilitate cleaning. To do this, handle it by the access zones provided for this purpose. If you remove the turning gear, do not let water penetrate into the motor axle hole. Don’t forget to return the turning gear, wheel guide and turntable. Maintenance of the CRAQUINE plate The inside is covered with a non-stick coating; so it is not necessary to oil the plate before use.

5/ TROUBLESHOOTING If you have doubts about the proper functioning of your appliance, this does not necessarily mean it is broken. In any event, check the following items: You observe that ... What should you do? The appliance does not start. Check the electrical connection of your appliance. Ensure that your oven’s door is fully closed. The appliance is noisy. The turntable does not rotate properly. Clean the wheels and the rolling area under the turntable. Ensure that the wheels are properly positioned. You see steam on the window. Wipe the condensation away with a cloth. Food is not heated during a microwave Ensure that the cookware is suitable for microwave programme ovens and that the power level is appropriate. The appliance is creating sparks. The bulb doesn't work. Thoroughly clean the appliance: remove grease, cooking particles, etc. Remove any metal items from the walls of the oven. Never use metal items with the grid. Call the brand's authorized technician to replace the bulb

Warning: Be careful, this appliance is equipped with a high tension circuit. Do

not make yourself any repairing inside the oven.

• SERVICE CALLS Any repairs that are made to your appliance must be handled by a qualified professional authorised to work on the brand. When you call, mention your appliance’s “Service” reference, as well as its serial number “Nr”. This information appears on the manufacturer’s nameplate which can be found stuck behind the oven. CE3620X1 Numéro de série Serial number Type Type

Puissance du gril Input power of grill 1200W Puissance de chaleur tournante Input power of circulating heating 1750W To communicate: we will personally respond to all your comments, suggestions, and proposals. Service consommateurs BP 9526

Operating proficiency testing according to CEI/EN/NF 60705 standards. The international Electrotechnical Commission, SC.59K, has established a standard relative to comparative performance tests conducted on various microwaves. We recommend the following for this appliance: Test Load Approx. time Power Containers/ recommendations Egg custard (12.3.1) 1000g 16min 550W Pyrex 227 on the grill rack Sponge cake (12.3.2) 475g 7min 700W Pyrex 827 on the turntable Defrosting Meat (13.3) 500g 10min Defrost Meat on the grill rack Potato gratin (12.3.4) 1100g 30min
