Read these instructions carefully before using your microwave oven, and keep it carefully.

If you follow the instructions, your oven will provide you with many years of good service. SAVE THESE INSTRUCTIONS CAREFULLY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY GB

Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

MWA 121.1 X/HA Rated Voltage:

Rated Input Power (Microwave):

20 L Turntable Diameter:

External Dimensions: Net Weight:

594x343.5x388mm Approx. 14.85Kg

IMPORTANT SAFETY INSTRUCTIONS

WARNING To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

Avvertenza: Non riscaldare liquidi ed altri alimenti in

1. Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode. Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy. Warning: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use. Warning: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the

temperatures generated. (only for grill series)

Only use utensils suitable for use in microwave ovens. The oven should be cleaned regularly and any food deposits should be removed. Read and follow the specific:”PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames. Do not overcook food. Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven. Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven. Install or locate this oven only in accordance with the installation instructions provided. Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not store or use this appliance outdoors. Do not use this oven near water, in a wet basement or near a swimming pool. The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get hot during use. Keep cord away from heated surface, and do not cover any events on the oven. Do not let cord hang over edge of table or counter. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container. The appliance is not intended for use by persons (including children) with reduced physical , sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. The microwave oven shall not be placed in a

cabinet unless it has been tested in a cabinet.

The appliances are not intended to be operated by means of an external timer or separate remotecontrol system. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Accessible parts may become hot during use. Young children should be kept away. Steam cleaner is not to be used. Surface of a storage drawer can get hot. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven. Only use the temperature probe recommended for this oven.(for ovens provided with a facility to use a temperature-sensing probe.) During the first use there is a particular smell due to production oils to protect some components.

37. Keep the appliance and its cord out of reach of children less than 8 years.

38. This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -by clients in hotels, motels and other residential type environments; -farm houses; -bed and breakfast type environments. 39. WARNING: The appliance and its accessible parts become hot during use.Care should be taken to avoid touching heating elements Children less than 8 years of age shall be kept away unless continuously supervised.

GB This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

GB DANGER UTENSILS WARNING Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question. 2. Cook on maximum power for 1 minute. 3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking. 4. Do not exceed 1 minute cooking time.

cAUTION Electric Shock Hazard

Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

Be sure to unplug the appliance from the power supply.

1. Clean the inside of the oven after using with a slightly damp cloth. 2. Clean the accessories in the usual way in soapy water. 3. The door frame and seal and neighboring parts must be cleaned carefully with a damp cloth when they are dirty.

See the instructions on “Materials you can use in microwave oven or to be avoided in microwave oven.”

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

Materials you can use in microwave oven

Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.

Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch

(5mm) above the turntable. Incorrect usage may cause the turntable to break.

Microwave-safe only. Follow manufacturer’s instructions. Do not use cracked or chipped dishes.

Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.

Heat-resistant oven glassware only. Make sure there is no metallic trim.

Do not use cracked or chipped dishes.

Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape.

Paper plates and cups Use for short–term cooking/warming only. Do not leave oven unattended while cooking.

Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.

Use as a cover to prevent splattering or a wrap for steaming.

Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled “Microwave

Safe”. Some plastic containers soften, as the food inside gets hot. “Boiling bags” and tightly closed plastic bags should be slit, pierced or vented as directed by package.

Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

Microwave-safe only (meat and candy thermometers).

Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks Aluminum tray

May cause arcing. Transfer food into microwave-safe dish.

Food carton with metal handle

May cause arcing. Transfer food into microwave-safe dish.

Metal shields the food from microwave energy. Metal trim may cause arcing.

May cause arcing and could cause a fire in the oven.

May cause a fire in the oven.

Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.

Wood will dry out when used in the microwave oven and may split or crack.

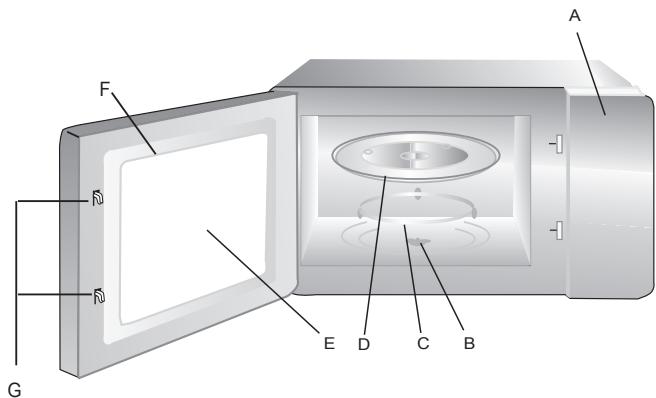

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories: Glass tray 1 Turntable ring assembly 1 Instruction Manual 1

Installation and connection

This appliance is only intended for domestic use.

This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard. Please observe the special installation instructions. The appliance can be installed in a 60cm wide wallmounted cupboard(at lease 55cm deep and 85cm off the floor). The appliance is fitted with a plug and must only be connected to a properly installed earthed socket. The mains voltage must correspond to the voltage specified on the rating plate. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at lease 3mm. Adapters,multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

Never place the glass tray upside down. The glass tray should never be restricted.

Both glass tray and turntable ring assembly must always be used during cooking. All food and containers of food are always placed on the glass tray for cooking. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

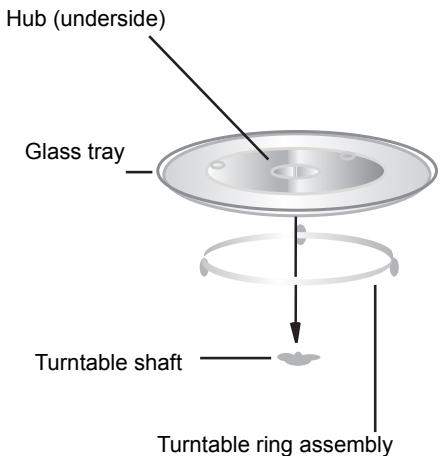

Turntable ring assembly

The accessible surface may be hot during operation.

OPERATION INSTRUCTION

1.Clock Setting When the microwave oven is electrified, the oven will display “0:00”, buzzer will ring once. ” once. “00:00” displays. 1) Press “ ” to adjust the hour figures, the input time

”, the minute figures will flash.

” to adjust the minute figures, the input time

” to choose 80% microwave power.

” to finish clock setting. “:” will flash.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press “ ”, the oven will go back to the previous status automatically.

” to confirm, and the screen displays

” to adjust the cooking time until the oven

should be within 0--59.

” to start cooking .

1) In waiting state, Press “

with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.

2) In microwave cooking or time defrost state, each press of “ ” can increase 30 seconds of cooking time.

2. Microwave Cooking

3) In waiting state, turn “

100% microwave power, then press “

“P100”. Press “ turn “

” to choose the power you want, and “P100”,

“P80” “P50”, “P30” or “P10” will display for each added press. Then press “ turn “

should be within 0--23(24-hour).

” left to set cooking time with

4. Defrost By Weight

” to set cooking time from 0:05 to 95:00.

” again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

” to select the weight of food from 100 to

” to start defrosting.

” twice, and the oven will

” to select the defrost time. The MAX time is

” to start defrosting.

The defrost power is P30 , and it will not be changed.

6. Kitchen Timer (1) Press “ ” twice, LED will display 00:00, timer indicator will light. (2) Turn “

” to enter the correct time.(The maximum

cooking time is 95 minutes.)

(3) Press “ ” to confirm setting, timer indicator will be lighted. (4) When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times. If the clock be set (24-hour system), LED will display the current time. Note: The kitchen Time is differ from 24-hour system. Kitchen Timer is a timer. 7. Inquiring Function (1) In states of microwave, grill and combination cooking, press “ ” , the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state; (2) In cooking state, press “ ” to inquire the time and the time will display for 3 seconds.

” right to choose the menu, and “A-1” to “A-

2) Press “ 3) Turn “ chart.

” to choose the default weight as the menu

” to start cooking. Example: If you want to use “Auto Menu” to cook fish for 350g. 1) Turn “ ” clockwise till “A-4” display. 2) Press “ 3) Turn “ 4) Press “

” to select the weight of fish till “350” display. ” to start cooking.

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section. Example:

If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

” twice, and the oven will display

“dEF2”. 2) Turn “ 3) Press “ “P100”. 4) Press “

80% microwave power.

” to confirm, and the screen displays

” to adjust the cooking time till the oven

” to start cooking, and buzzer wwill sound

once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

10. Lock-out Function for Children Lock: In waiting state, press “ ” for 3 seconds, there will be a long beep denoting entering the childrenlock state and current time will display if the time has been set, otherwise, the LED will display “ ”. Lock quitting: In locked state, press “

seconds, there will be a long “beep” denoting that the lock is released.

50g(with 450 ml cold water)

100g(with 800 ml cold water)

GB Microwave oven interfering TV reception

Radio and TV reception may be interfered when microwave oven operating.

It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.

In low power microwave cooking, oven light may become dim. It is normal.

Steam accumulating on door, hot air out of vents

In cooking, steam may can out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.

Oven started accidentally with no food in.

It is forbidden to run the unit without any food inside.

It is very dangerous.

(1) Power cord not plugged in tightly

Unplug. Then plug again after 10 seconds.

(2) Fuse blowing or circuits breaker works.

Replace fuse or reset circuits breaker

(repaired by professional personnel of your company)

(3) Trouble with outlet

Test outlet with other electrical appliances.

(4) Door not closed well

Glass turntable makes noise when microwave oven operates

(5) Dirty roller rest and oven bottom

Refer to “Maintenance of Microwave” to clean dirty parts.

Oven cannot be started

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Installation Instruction

GB Please Read the Manual carefully Before

Installation Please Note Electrical connection

The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap at least 3mm. The fitted cabinet must not have a back wall behind the appliance. Minimum installation ventilation slots and suction holes. Note: Do not trap or bend the power cable.

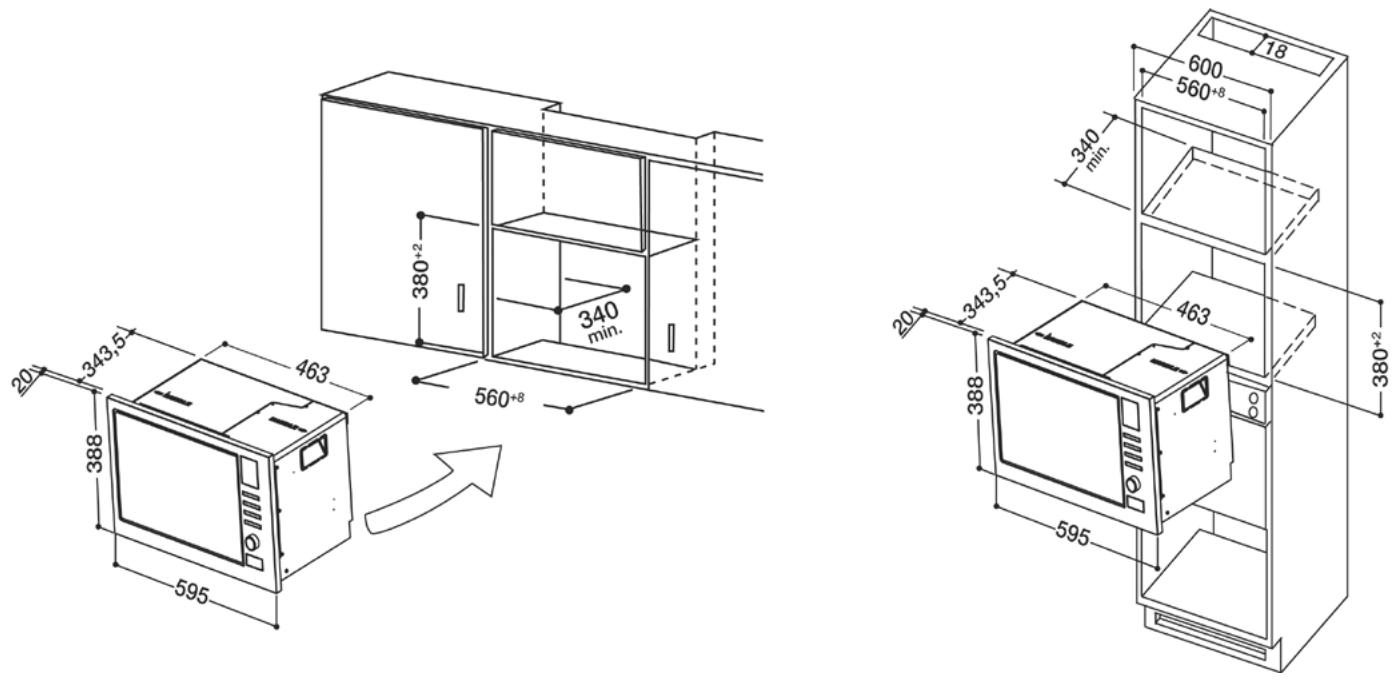

a. Built-in furniture

B.Prep are the cabi inet

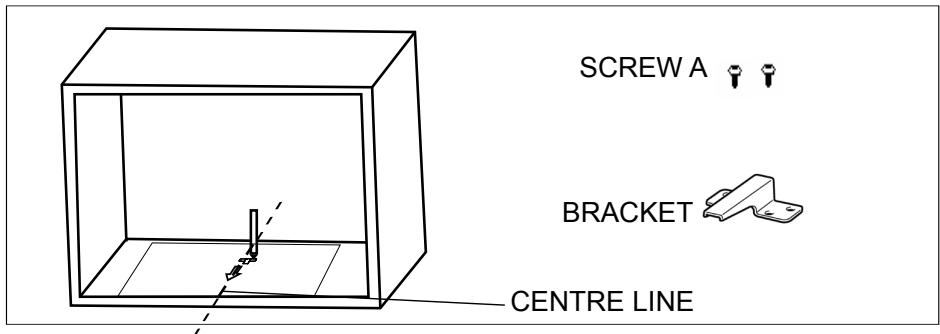

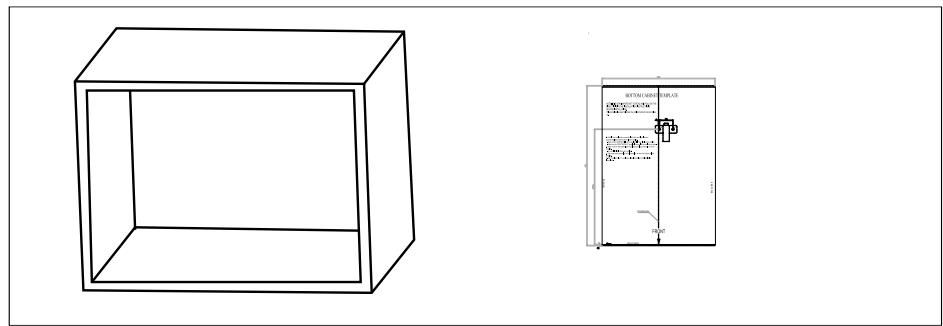

1. Read the instruction on the BOTTOM CANINET TEMPLATE , put the template on the bottom plane of cabinet.

RIGHT EDGE LEFT EDGE

CENTER LINE FRONT EDGE

2. Make the marks on the bottom plane of cabinet according to marks"a" of of the template

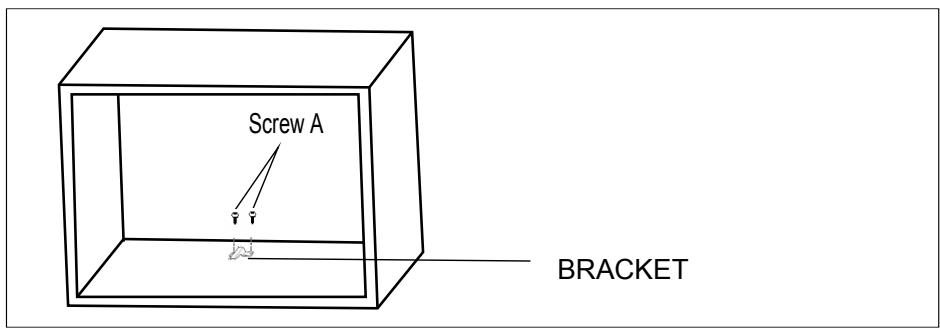

3. Remove the bottom cabinet template and fix the bracket with screw A.

Screw A BRACKET C .Install the oven

Screw B Installation Hole

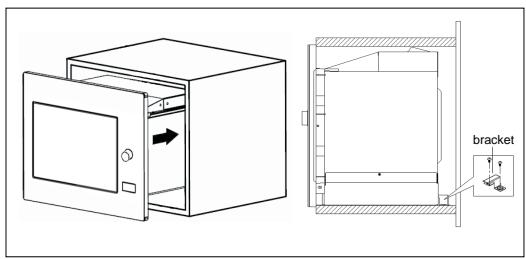

4. Install the oven to the cabinet

- Make sure the back of the oven is locked by bracket. - Do not trap or kink the power cord.

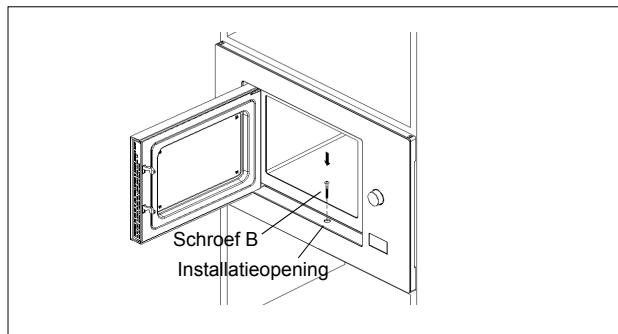

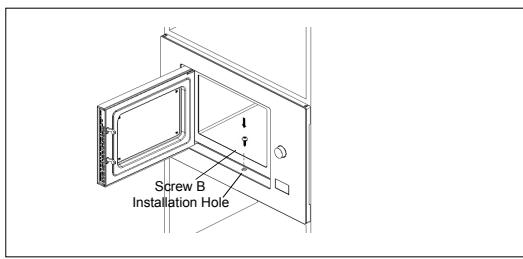

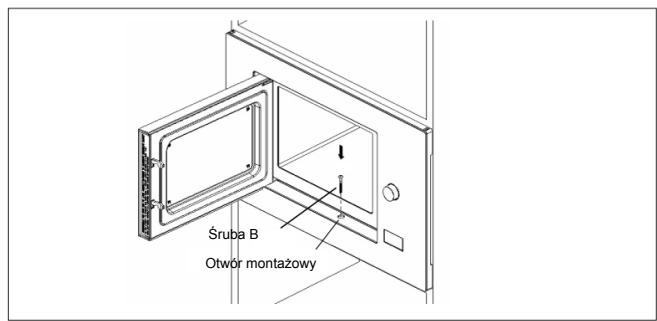

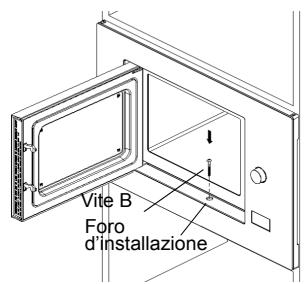

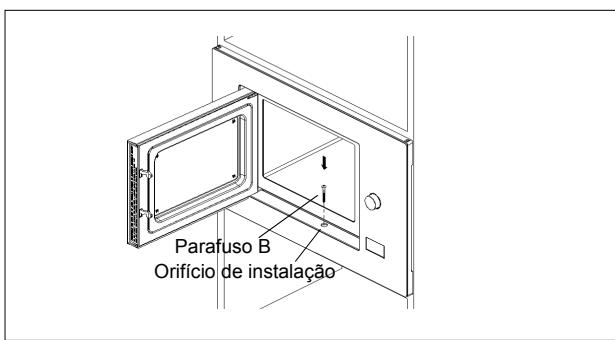

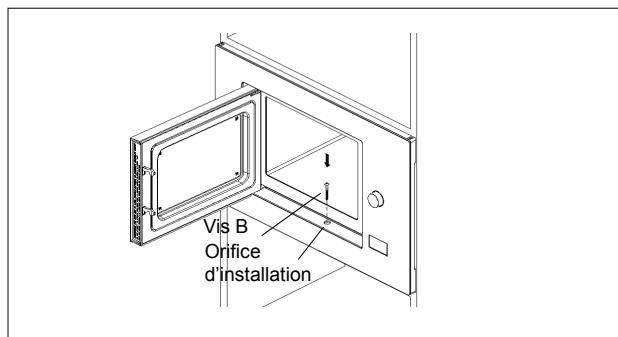

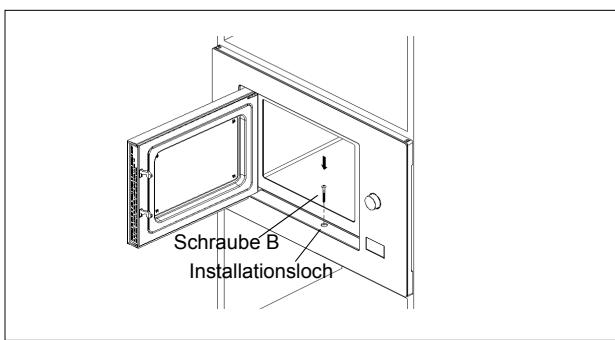

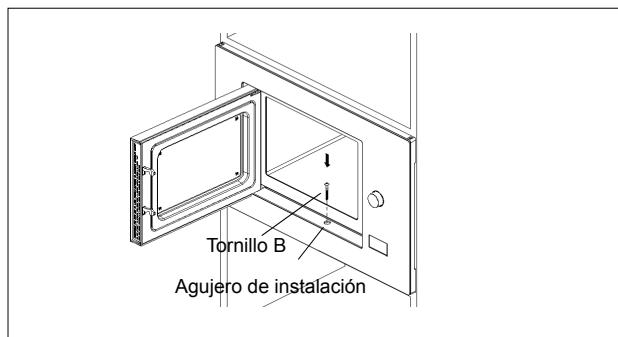

5. Open the door, fix the oven to the cabinet with Screw B, at the installation hole.
