USER MANUAL EKF6772AOX ELECTROLUX

FOUR A POSER

ESO930 MANUEL D'UTILISATION Instruction Book ESO930 Oven PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE AND KEEP FOR FUTURE REFERENCE. WARNINGS This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years. The appliance is not intended to be operated by means of an external timer or separate remote-control system. The temperature of accessible surfaces may be high when the appliance is operating. Regarding the instructions for cleaning surfaces in contact with food, refer to the section “Cleaning and Maintenance”. The door or the outer surface may get hot when the appliance is operating. The surfaces are liable to get hot during use. Do not place the appliance in or near hot gas or electric burner, or permit to touch a heated oven or mini oven. The rear surface of appliance shall be placed against a wall.

3.2 mm

3.2 mm

IMPORTANT SAFETY INSTRUCTIONS

To protect against electric shock, do not immerse the cord, plug or any part of the oven in water or other liquids. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces. The use of accessories not recommended by the manufacturer may cause injuries. Turn off and unplug the oven from the mains socket when not in use and before cleaning. Allow to cool before cleaning or handling. Always grasp the plug, but never pull the cord. Do not cover any part of the oven with metal foil. This will cause overheating of the oven. To avoid burns, use extreme caution when removing tray/rack or disposing of hot grease. A fire may occur if the oven is covered or touching flammable materials such as curtains, drapes or wooden panels when in operation. Do not store any items on top of the oven when in operation. Do not place any of the following materials in the oven: paper, cardboard, plastic, or other similar products. Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use. Always wear oven gloves (not supplied) or use the supplied rack/tray handle when inserting or removing items from the hot oven. Do not use the oven outdoors. Do not use the oven for any use other than intended use. Oversize foods and metal utensils must not be inserted in the oven as they may cause a risk of fire or electric shock. The appliance must be used in a well-ventilated room. Always grip the oven door handle in the centre. The ends of the door handle may be hot! HOT HOT

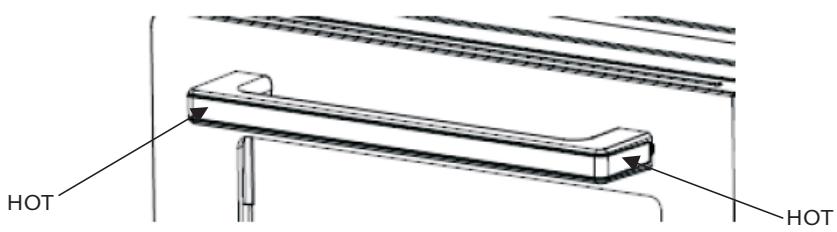

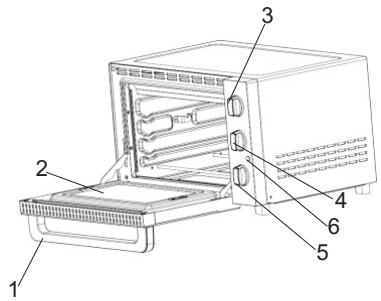

1. Door handle

2. Door

3. Temperature control knob

Adjust the thermostat to the desired temperature.

4. Function selection knob

Select cooking function by turning this knob to the desired setting.

5. Timer control knob with bell signal

Set cooking time up to 120 minutes. The oven will automatically turn off at the end of the cooking time. To turn off the oven, turn this knob to the 0 position. You can also set the knob to the On position for continuous cooking without timer).

Remove all packaging materials and wipe the outside of the appliance with a damp cloth. Wash the accessories in warm soapy water. Dry thoroughly before using Place the oven on a stable flat surface, making sure that there is at least 12 cm of space on the top and at the sides for proper ventilation. Be sure that no other appliances are plugged into the same circuit with the oven. It is recommended that you operate the oven at the highest temperature (230°C) on the function for approximately 15 minutes to eliminate any packing residue or oil that have been used for packing and shipping. A small amount of smoke and odour may be smelt in your oven during this trial run. This is normal. OPERATION General instructions Slide the rack to the desired height according to the food to be cooked. Oil from food may drip when cooking; in this case place the food on the tray. Make sure that you

3.2 mm

always use an ovenproof container and never use plastic or cardboard containers in the oven. Set the temperature as suggested by your recipe or as desired. Securely shut the oven door and set the cooking time to start cooking. Upper and lower heating with fan / Upper and lower heating The functions are ideal for use when cooking baked potatoes, roasting meat and vegetables, ready meals, casseroles, stews, bread, cakes and desserts.

1. Place food on the baking tray and slide onto the middle position in the oven. Close the oven door.

3.2 mm

2. Turn the function selection knob to

3. Select suitable temperature by turning the temperature control knob.

4. Turn the timer control knob to the required cooking time.

Upper heating with fan The function is ideal for use when toasting bread and grilling chicken, sausage, pork chops and bacon.

1. Place food on the baking rack and slide onto the top position in the oven.

2. Place the baking tray below to collect grease and fat. Close the oven door

3.2 mm

3. Turn the function selection knob to.

4. Select suitable temperature by turning the temperature control knob.

5. Turn the timer control knob to the required cooking time.

Upper heating + Rotisserie with fan / Upper and lower heating + Rotisserie

1. Slide the tray onto the bottom position in the oven.

2. Place food to be cooked on the rotisserie skewer by inserting the rotisserie skewer directly through

the centre of the food.

3. Place two skewer clamps into the food and secure the skewer clamps with two thumbscrews.

4. Insert the pointed end of the rotisserie skewer into the drive socket

located on the right hand side of the oven wall. Drive socket

5. Make sure the square end of the rotisserie skewer rests on

the rotisserie skewer support located on the left hand side of the oven wall.

6. Close the oven door and turn the function selection knob to

7. Select suitable temperature by turning the temperature control knob.

8. Turn the timer control knob to the required cooking time.

3.2 mm

WARNING:

If the cooking time is less than 5 minutes, you must turn the timer control knob past the 20 minutes then back to the desired cooking time. This will ensure a safe and accurate timer setting.

3.2 mm

After cooking After you finish cooking, turn the timer control knob to the 0 position. Slowly open the oven door and then remove the cooked food. CAUTION: Cooked food and baking tray or rack can be very hot; handle with care. To remove rotisserie skewer, please always use rotisserie skewer handle. Remove the rotisserie skewer by placing the hooks of the rotisserie skewer handle under the grooves on the either side of the rotisserie skewer. Lift the left side of the rotisserie skewer first by lifting it up and out. Then pull the rotisserie skewer out of the drive socket and carefully remove the roast from the oven. Take the roast off the rotisserie skewer and place on cutting board or platter.

3.2 mm

CLEANING AND MAINTENANCE

Unplug the appliance from the mains socket and allow it to cool completely before cleaning. Clean the outside of the appliance with a slightly damp cloth. Dry it thoroughly. Do not immerse the appliance in water. Wash the accessories in warm soapy water. Rinse and dry them thoroughly before use. Never use abrasive or chemical cleaning agents. Surfaces in contact with food should be cleaned regularly to avoid cross contamination from different types of food, the use of warm clean water with a mild detergent is advisable when dealing with surfaces that come into contact with food. Correct food hygiene practices should always be followed at all times to avoid possibility of food poisoning /cross contamination. SPECIFICATIONS Ratings: 220-240V~ 50-60Hz 1500W DISPOSAL As a responsible company we care about the environment. As such we urge you to follow the correct disposal procedure for the appliance, packaging materials and if applicable, batteries. This will help conserve natural resources and ensure that it is recycled in a manner that protects health and the environment. You must dispose of this appliance and its packaging according to local laws and regulations. Because this appliance contains electronic components and may contain batteries, the appliance and its accessories must be disposed of separately from household waste when the appliance reaches its end of life. Contact your local authority to learn about disposal and recycling. The appliance and if applicable, batteries should be taken to your local collection point for recycling. Some collection points accept appliance free of charge. We apologize for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development. ELECTROLUX 23 / 11 / 2018

3.2 mm

3.2 mm

DESCRIPTION DU PRODUIT

3484 E ESO930 02 01 1218 Share more of our thinking at www.electrolux.com electrolux.com/shop
