USER MANUAL CS-XE12QKEW PANASONIC

Operating Instructions Air Conditioner Operating Instructions Air Conditioner Thank you for purchasing Panasonic Air Conditioner. Installation instructions attached. Before operating the unit, read these operating instructions thoroughly and keep them for future reference. Multi Split CS-E7QKEW CS-E9QKEW CS-E12QKEW CS-E15QKEW CS-E18QKEW CS-E21QKEW CS-E24QKEW Outdoor Unit Single Split E series 12-21 Italiano CS-XE7QKEW CS-XE9QKEW CS-XE12QKEW CS-XE18QKEW Model No. Indoor Unit INVERTER DELUXE XE series English 2-11 Provide maximum comfort, clean air and optimise energy saving ECONAVI and AUTO COMFORT Equipped with the human activity sensor, the air conditioner ensures to deliver cool or warm air to you, and keeps the room consistently comfortable with minimum energy consumption. Furthermore, the sunlight sensor detects the sunlight intensity and helps control heating/cooling temperatures to provide optimum comfort. See “To learn more...” for details. nanoe-G Deactivates harmful micro-organisms such as viruses, bacteria, etc. to keep air clean. It also deactivates viruses and bacteria on the filter to keep inside of the unit clean. Multi air conditioner system Indoor units Multi air conditioner systems save space by letting you connect multiple indoor units to a single outdoor unit.

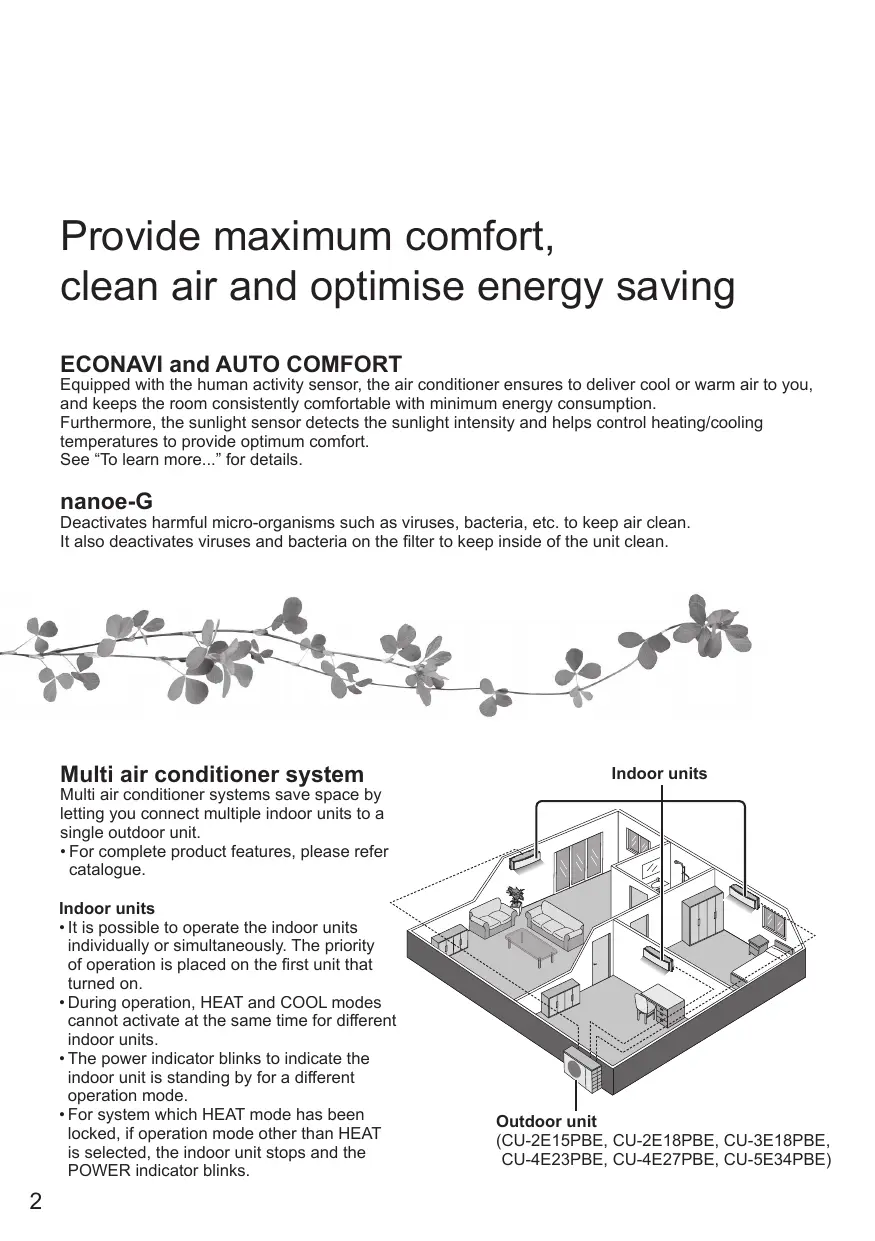

• For complete product features, please refer catalogue. Indoor units
• It is possible to operate the indoor units individually or simultaneously. The priority of operation is placed on the first unit that turned on.
• During operation, HEAT and COOL modes cannot activate at the same time for different indoor units.
• The power indicator blinks to indicate the indoor unit is standing by for a different operation mode.
• For system which HEAT mode has been locked, if operation mode other than HEAT is selected, the indoor unit stops and the POWER indicator blinks.

Outdoor unit (CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE) Quick guide Table of contents

1 Pull out the back cover of remote control 2 Insert AAA or R03 batteries (can be used ~ 1 year) 3 Close the cover

SET CHECK CLOCK

Basic operation 1 Select the desired mode AUTO HEAT FAN SPEED AIR SWING MILD DRY

OFF/ON DRY Cleaning instructions ................ 10 Accessories RESET To learn more... ......................8-9 Information................................ 62 3 Confirm

How to use...............................6-7 Troubleshooting ....................... 11 2 Set the time

Clock setting 1 Press CLOCK SET Safety precautions ...................4-5 English Inserting the batteries

• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control holder × 2 COOL 2 Start/stop the operation AUTO COMFORT

• Please note that the OFF indication is on to start. TEMP POWERFUL/ AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

3 Select the desired temperature

• Selection range: 16 °C ~ 30 °C.
• Operating the unit within the recommended temperature may save energy. HEAT : 20 °C ~ 24 °C. COOL: 26 °C ~ 28 °C. DRY : 1 °C ~ 2 °C lower than room temperature.
• To dim or restore the unit’s indicator brightness, press and hold for 5 seconds.
• Use remote control within 8 m from the remote control receiver of the indoor unit. The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subject to change without notice for future improvement.

Safety precautions To prevent personal injury, injury to others or property damage, please comply with the following: Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below: WARNING This sign warns of death or serious injury. CAUTION This sign warns of injury or damage to property. The instructions to be followed are classified by the following symbols: This symbol denotes an action that is PROHIBITED. These symbols denote actions COMPULSORY. Power supply Indoor unit Air inlet WARNING Indoor unit and outdoor unit This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Please consult authorised dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire. Confirm with authorised dealer or specialist on usage of any specified refrigerant type. Using refrigerant type other than the specified may cause product damage, burst and injury etc. Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire. Do not insert your fingers or other objects into the air conditioner indoor or outdoor unit, rotating parts may cause injury. Do not touch the outdoor unit during lightning, it may cause electric shock. Do not expose yourself directly to cold air for a long period to avoid excess cooling. Do not sit or step on the unit, you may fall down accidentally. Air outlet Remote control Remote control Do not allow infants and small children to play with the remote control to prevent them from accidentally swallowing the batteries. Air inlet Outdoor unit Air outlet Power supply Do not use a modified cord, joint cord, extension cord or unspecified cord to prevent overheating and fire.

This equipment must be earthed to prevent electrical shock or fire. Prevent electric shock by switching off the power supply and unplug: - Before cleaning or servicing, - When extended non-use, or - During abnormally strong lightning activity. CAUTION Indoor unit and outdoor unit Do not wash the indoor unit with water, benzine, thinner or scouring powder to avoid damage or corrosion at the unit. Do not use for preservation of precise equipment, food, animals, plants, artwork or other objects. This may cause quality deterioration, etc. Do not use any combustible equipment in front of the airflow outlet to avoid fire propagation. Do not expose plants or pet directly to airflow to avoid injury, etc. Do not switch ON the indoor unit when waxing the floor. After waxing, aerate the room properly before operating the unit. Do not install the unit in oily and smoky areas to prevent damage to the unit. Do not dismantle the unit for cleaning purpose to avoid injury. Do not step onto an unstable bench when cleaning the unit to avoid injury. Do not place a vase or water container on the unit. Water may enter the unit and degrade the insulation. This may cause an electric shock. Do not open window or door for long time during COOL/DRY mode operation. Prevent water leakage by ensuring drainage pipe is: - Connected properly, - Kept clear of gutters and containers, or - Not immersed in water After a long period of use or use with any combustible equipment, aerate the room regularly. After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down. English Do not touch the sharp aluminium fin, sharp parts may cause injury. Safety precautions To prevent overheating, fire or electric shock:

• Do not share the same power outlet with other equipment.
• Do not operate with wet hands.
• Do not over bend the power supply cord.
• Do not operate or stop the unit by inserting or pulling out the power plug. If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard. It is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD) to prevent electric shock or fire. To prevent overheating, fire or electric shock:
• Insert the power plug properly.
• Dust on the power plug should be periodically wiped with a dry cloth. Stop using the product if any abnormality/ failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire/electric shock) Examples of abnormality/failure
• The ELCB trips frequently.
• Burning smell is observed.
• Abnormal noise or vibration of the unit is observed.
• Water leaks from the indoor unit.
• Power cord or plug becomes abnormally hot.
• Fan speed cannot be controlled.
• The unit stops running immediately even if it is switched on for operation.
• The fan does not stop even if the operation is stopped. Contact your local dealer immediately for maintenance/repair. Remote control Do not use rechargeable (Ni-Cd) batteries. It may damage the remote control. To prevent malfunction or damage of the remote control:
• Remove the batteries if the unit is not going to be used for a long period of time.
• New batteries of the same type must be inserted following the polarity stated. Power supply Do not disconnect the plug by pulling the cord to prevent electric shock.

How to use POWER (Green) TIMER Single Multi AUTO COMFORT NANOE-G POWERFUL QUIET (Green) (Blue) (Orange) (Orange) (Orange) Single split system Multi split system (Green) Indicator ECONAVI To optimise energy saving MODE To select operation mode AUTO - For your convenience HEAT - To enjoy warm air COOL - To enjoy cool air DRY - To dehumidify the environment MILD DRY COOLING Single Multi To improve humidity and moisture level

• This operation reduces air dryness and provides you with a comfortable living environment during COOL mode only.
• When vertical airflow direction is set to AUTO, it stops at lower position to avoid cold air contact. However, you can adjust the louver direction manually.
• Function not applicable. POWERFUL/ QUIET To switch between powerful & quiet Remote control display Sunlight sensor and remote control receiver AUTO HEAT COOL DRY QUIET NORMAL FAN SPEED AIR SWING MILD DRY ECONAVI OFF/ON POWERFUL// AIR SWING

QUIET FAN SPEED

POWERFUL: To reach temperature quickly

SET CHECK CLOCK

Press to restore the remote control to default setting. Not used in normal operations. Single QUIET Press and hold for approximately 10 seconds to show temperature setting in °C or °F. RESET POWERFUL

• This operation stops automatically after 20 minutes. Multi • Press the button again or turn OFF the unit to stop this operation. QUIET: To enjoy quiet operation Human activity sensor FAN SPEED (Remote control display)

• This operation reduces airflow noise.
• For AUTO, the indoor fan speed is automatically adjusted according to the operation mode. Use when remote control is misplaced or a malfunction occurs. Raise the front panel:

1. Press the button once to use in AUTO mode.

2. Press and hold the button until you hear 1 beep, then release to use in forced

3. Repeat step 2. Press and hold the button until you hear 2 beeps, then release to

use in forced HEAT mode.

• Press the button again to turn off. See “To learn more...” for details. To set the timer 2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset times. To purify the air

• nanoe-G starts automatically when the unit is turned on with OFF/ON .
• Can be activated even when the unit is turned off. In this condition, the unit will operate as a fan with AUTO fan speed and louver swing.
• This operation cannot be performed or Multi will be stopped if other indoor unit is activating HEAT mode. To deactivate viruses/bacteria on the filter NANOE-G POWER

• After the unit is turned off, the nanoe-G in-filter deactivation may activate up to 150 minutes. Turning on the unit cancels this operation.
• To disable this operation in the future, press and NANOE-G hold until a short beep sound is heard. This will not disable the nanoe-G to purify the air.
• To restore the nanoe-G in-filter deactivation, press and NANOE-G hold until a long beep sound is heard. AIR SWING To adjust airflow direction (Remote control display)

• Keeps the room ventilated.
• In COOL/DRY mode, if AUTO is set, the louver swings left/right and up/down automatically.
• In HEAT mode, if AUTO is set, the horizontal louver is fixed at the predetermined position. The vertical louver swings left/right after the temperature rises.
• Do not adjust the louver by hand.

OFF English 1 Select ON or OFF timer

• Each time pressed: Example: OFF at 22:00 How to use AUTO COMFORT OFF Cancel 2 Set the time

• To cancel ON or OFF timer, press or OFF to select respective then press CANCEL.
• If timer is cancelled manually or due to power failure, you can restore the timer again by pressing or OFF to select respective SET then press

• The nearest timer setting will be displayed and will activate in sequence.
• When ON Timer is set, the unit may start earlier (up to 35 minutes) before the actual set time in order to achieve the desired temperature on time.
• Timer operation is based on the clock set in the remote control and repeats daily once set. For clock setting, please refer to Quick guide. Note ECONAVI POWERFUL/ QUIET

• Can be activated in all modes and can be cancelled by pressing the respective button again. ECONAVI POWERFUL/ QUIET AUTO COMFORT

• Cannot be selected at the same time.
• Cannot be activated during MILD DRY COOLING.

To learn more... Single Multi Single split system Multi split system Operation mode AUTO : During operation mode selection the POWER indicator blinks. Single • Unit selects operation mode every 10 minutes according to setting temperature and room temperature.

• Unit selects operation mode every 3 hours according to setting temperature, outdoor temperature and room temperature. HEAT : Unit takes a while to warm up. The POWER indicator blinks during this operation. COOL: Use curtains to screen off sunlight and outdoor heat to reduce power consumption during COOL mode. DRY : Unit operates at low fan speed to give a gentle cooling operation.
• For system which HEAT mode has been locked, if operation mode other than HEAT is selected, the indoor unit stops and the POWER indicator blinks. Multi nanoe-G in-filter deactivation Depending on the unit’s accumulated operation time, nanoe-G in-filter deactivation may activate only once a day after the unit turned off. To remove the moisture left in the internal parts, the fan will operate for 30 minutes with louver opened slightly. This process only applicable when the unit is operated in COOL/DRY mode before turned off. Then, nanoe-G deactivates viruses/bacteria on the filter for 2 hours with fan stopped and louver closed. Do not turn off the power supply during this operation. After power failure, this operation will not resume. The unit will start to initialise (for approximately 1 minute) The human activity sensor and the sunlight sensor will start to detect. When manual AIR SWING is selected, the ECONAVI and AUTO COMFORT operations will be cancelled. Human activity sensor operation ECONAVI ; Detecting human presence and activity, the unit controls room temperature to save energy. Mode COOL/DRY HEAT Human Low activity Normal activity High activity Absent +2 °C +1 °C Set temperature -2 °C -2 °C AUTO COMFORT ; Detecting human presence and activity, the unit controls room temperature to keep human comfortable consistently. Mode Human Low activity Normal activity High activity Absent +2 °C COOL/DRY HEAT +1 °C +0.3 °C Set temperature -1 °C -2 °C Set Fan Speed +1 tap* +1 tap -2 °C ”0HGLXP)DQ ECONAVI and AUTO COMFORT Precise control of temperature during low activity to maximise energy saving. Mode COOL/DRY

Human Set temperature Low activity ECONAVI and AUTO COMFORT take advantage of the human nature that human being takes time to feel the temperature rise during low activity level; the unit adjusts temperature to maximise energy saving without sacrificing the comfort.

• During low activity, fan speed 1 tap up for first 15 minutes or until set temperature is reached. ** During human absence, maximum fan speed for COOL/DRY mode is medium fan. The human activity sensor will also scan for area of heat source and movement in a room. Detection area 120º Sunlight Sensor operation ECONAVI ; Detecting sunlight intensity, the unit adjust temperature to save energy. ECONAVI is activated, the unit maintains set Ambient condition temperature until a high Mode sunlight intensity is detected. The sunlight sensor detects +1 °C COOL/DRY sunlight intensity during Set weather or day/night temperature changes, and the unit adjusts HEAT -1 °C -1 °C temperature. English

• Based on area activeness horizontal airflow direction louver will adjust either fix at predetermined position or swing left/right periodically.
• The human activity sensor performance is influenced by indoor unit location, movement speed, temperature range, etc.
• The human activity sensor may: - mistakenly detect an object with heat source & movement similar to human, such as pets, etc. - mistakenly detect as non-heat source & movement if a human stays motionless for certain period of time.
• Do not place large objects near the sensor and keep away heating units or humidifier from the sensor’s detection area. They may cause sensor malfunction.

• In a room without window or with thick curtain, the sunlight sensor will judge as cloudy/night. Operation conditions Use this air conditioner under the following temperature range. DBT: Dry bulb temperature / WBT: Wet bulb temperature Single split outdoor unit CU-E7QKE, CU-E9QKE, CU-E12QKE, CU-E15QKE, CU-E18QKE,

CU-E21QKE, CU-E24QKE

Max. COOL Min. Max. HEAT Min. Indoor Outdoor

DBT WBT DBT WBT

°C (temperature) Multi split outdoor unit CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE,

CU-4E27PBE, CU-5E34PBE

Max. COOL Min. Max. HEAT Min. Indoor Outdoor

DBT WBT DBT WBT

Cleaning instructions To ensure optimal performance of the unit, cleaning has to be carried out at regular intervals. Dirty unit may cause malfunction and you may see nanoe-G indicator blinks or error code “H99”. Please consult authorised dealer.

• Switch off the power supply and unplug before cleaning.
• Do not touch the aluminium fin, sharp parts may cause injury.
• Do not use benzine, thinner or scouring powder.
• Use only soap ( pH 7) or neutral household detergent.
• Do not use water hotter than 40 °C. Indoor unit Indoor unit Front panel Human activity sensor Aluminium fin Air filters nanoe-G Generator nanoe-G Generator Wipe the unit gently with a soft, dry cloth. Human activity sensor Do not hit or violently press or poke it with a sharp object. This can lead to damage and malfunction. Front panel Wash gently and dry. Remove the front panel 2 Pull out Every 2 weeks
• Clean with dry cotton bud.
• Do not touch during operation. Air filters Every 2 weeks
• Wash/rinse the filters gently with water to avoid damage to the filter surface.
• Dry the filters thoroughly under shade, away from fire or direct sunlight.
• Replace any damaged filters. Remove air filter Attach air filter 1 Raise Close it securely Insert into the unit 1 Insert at both sides 2 Close down 3 Press both ends of the front panel 4 For CS-XE18QKEW, CS-E18QKEW, CS-E21QKEW, CS-E24QKEW: Press at center of the front panel.

For seasonal inspection after extended non-use

• Checking of remote control batteries.
• No obstruction at air inlet and air outlet vents.
• Use Auto OFF/ON button to select COOL/ HEAT operation. After 15 minutes of operation, it is normal to have the following temperature difference between air inlet and air outlet vents: COOL: ≥ 8 °C HEAT: ≥ 14 °C For extended non-use
• Activate HEAT mode for 2~3 hours to remove moisture left in the internal parts thoroughly to prevent mould growth.
• Turn off the power supply and unplug.
• Remove the remote control batteries. Troubleshooting The following symptoms do not indicate malfunction. Symptom Cause Check the following before calling for servicing. Symptom Check Operation in HEAT/COOL mode is not working • Set the temperature correctly. efficiently.
• Close all doors and windows.
• Clean or replace the filters.
• Clear any obstruction at the air inlet and air outlet vents. Noisy during operation.
• Check if the unit has been installed at an incline.
• Close the front panel properly.
• Insert the batteries correctly. Remote control does not work. (Display is dim or transmission signal is weak.) • Replace weak batteries. The unit does not work.
• Check if the circuit breaker is tripped.
• Check if timers have been set. The unit does not receive the signal from the
• Make sure the receiver is not obstructed. remote control.
• Certain fluorescent lights may interfere with signal transmitter. Please consult authorised dealer.

TURN OFF POWER SUPPLY AND

UNPLUG then please consult authorised dealer under the following conditions:

• Abnormal noise during operation.
• Water/foreign particles have entered the remote control.
• Water leaks from Indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes unnaturally warm.
• Switches or buttons are not functioning properly. Cleaning instructions / Troubleshooting

• Condensation effect due to cooling process.
• Refrigerant flow inside the unit.
• This may be due to damp smell emitted by the wall, carpet, furniture or clothing. Indoor fan stops occasionally during automatic • This helps to remove the surrounding odour. fan speed setting. Airflow continues even after operation has
• Extraction of remaining heat from the indoor unit stopped. (maximum 30 seconds). Operation is delayed a few minutes after
• The delay is a protection to the unit’s compressor. restarting. Outdoor unit emits water/steam.
• Condensation or evaporation occurs on pipes. TIMER indicator is always on.
• The timer setting repeats daily once set. POWER indicator blinks during HEAT mode
• The unit is in defrost mode (and AIR SWING is set to with no warm air supply (and louver is closed). AUTO). Indoor fan stops occasionally during heating
• To avoid unintended cooling effect. operation. POWER indicator blinks before the unit is
• This is a preliminary step in preparation for the switched on. operation when the ON timer has been set. Cracking sound during operation.
• Changes of temperature caused the expansion/ contraction of the unit. During COOL/DRY mode, the indoor unit
• The system has locked to operate in HEAT model only. stops and POWER indicator blinks. English Mist emerges from indoor unit. Water flowing sound during operation. The room has a peculiar odour. The unit stops and the TIMER indicator blinks. Use remote control to retrieve error code. 1 Press for 5 seconds TIMER

3 Press for 5 seconds to quit checking SET

SET CHECK CLOCK

RESET 2 Press until you hear beep sound, then write down the error code 4 Turn the unit off and reveal the error code to authorised dealer

• For certain errors, you may restart the unit for limited operation with 4 beeps when operation starts.

Unité extérieure (CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE)

SET CHECK CLOCK

3 Confirmez RESET FAN SPEED AIR SWING MILD DRY ECONAVI

QUIET FAN SPEED

DRY Informations .................................62 Accessoires

SET CHECK CLOCK

FAN SPEED AIR SWING MILD DRY ECONAVI OFF/ON AUTO COMFORT POWERFUL// AIR SWING

QUIET FAN SPEED

POWERFUL Système Monosplit Multiple (Jaune)

SET CHECK CLOCK

SET CHECK CLOCK

RESET Unidad exterior (CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE)

SET CHECK CLOCK

QUIET FAN SPEED

DRY Información ................................... 62 Accesorios RESET

SET CHECK CLOCK

FAN SPEED AIR SWING MILD DRY ECONAVI OFF/ON POWERFUL// AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

DBT WBT DBT WBT

DBT WBT DBT WBT

SET CHECK CLOCK

SET CHECK CLOCK

SET CHECK CLOCK

QUIET FAN SPEED

DRY Informationen............................ 62 Zubehör Grundlegender Betrieb POWERFUL// AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

SET CHECK CLOCK

RESET 2 Pfeiltaste drücken, Unità esterna (CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE)

SET CHECK CLOCK

QUIET FAN SPEED

SET CHECK CLOCK

FAN SPEED AIR SWING MILD DRY ECONAVI OFF/ON POWERFUL// AIR SWING

QUIET FAN SPEED

POWERFUL/ QUIET NORMAL

SET CHECK CLOCK

RESET -2 °C ”9HQWLODWRUHPHGLR

DBT WBT DBT WBT

°C (temperatura) Unità esterna Split multipla CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE,

CU-4E27PBE, CU-5E34PBE

Max. FREDDO Min. Max. CALDO Min. Interna Esterna Italiano CU-E7QKE, CU-E9QKE, CU-E12QKE, CU-E15QKE, CU-E18QKE,

CU-E21QKE, CU-E24QKE

Max. FREDDO Min. Max. CALDO Min.

DBT WBT DBT WBT

SET CHECK CLOCK

RESET Free-multi systeem Binnenunits Buitenunit (CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE, CU-4E27PBE, CU-5E34PBE)

SET CHECK CLOCK

Informatie.................................. 62 Accesoires 3 Bevestig CANCEL

FAN SPEED AIR SWING MILD DRY ECONAVI

QUIET FAN SPEED

SET CHECK CLOCK

Single Split-systeem Meerdere Multi Split-systeem QUIET (Oranje) (Groen) Indicator FAN SPEED AIR SWING MILD DRY ECONAVI OFF/ON POWERFUL// AIR SWING

QUIET FAN SPEED

SET CHECK CLOCK

Enkele AUTO COMFORT NANOE-G OFF POWERFUL Knop Auto OFF/ON AUTO OFF/ON

Single Split-systeem Meerdere Multi Split-systeem Multi-split buitendeel CU-2E15PBE, CU-2E18PBE, CU-3E18PBE, CU-4E23PBE,

CU-4E27PBE, CU-5E34PBE

Max. KOELEN Min. Max. VERWARMEN Min. Binnen Buiten

DBT WBT DBT WBT

°C (temperatuur) Meer weten...

Nederlands CU-E7QKE, CU-E9QKE, CU-E12QKE, CU-E15QKE, CU-E18QKE,

CU-E21QKE, CU-E24QKE

Max. KOELEN Min. Max. VERWARMEN Min.

OMSTANDIGHEDEN WAARIN U

HULP MOET INROEPEN

SET CHECK CLOCK

RESET Information/Informations/Información Informationen/Informazioni/Informatie English Information for Users on Collection and Disposal of Old Equipment and Used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information. [Information on Disposal in other Countries outside the European Union] These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal. Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Panasonic Corporation Website: http://panasonic.net/ © Panasonic Corporation 2013 Printed in Malaysia Authorised representative in EU Panasonic Testing Centre Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, Germany F569453 FS0813-0
