Product type	Twin stroller with convertible bassinets
Brand	ABC
Model	COBRA - COBRA PLUS
Total weight	18.5 kg
Recommended age	From birth (with bassinet) to 3 years
Maximum weight per child	15 kg (bassinet: 9 kg)
Number of children	2 maximum
Handlebar	Telescopic, height-adjustable
Front wheels	Swivel and lockable
Canopy	With magnetic viewing window
Seat position	Adjustable to 3 positions
Leg rest	Height-adjustable
Safety belt	5-point, with crotch strap
Parking brake	Yes, foot-operated
Car seat compatibility	ABC Design "Risus", Maxi Cosi Cabrio/Citi/Pebble, Römer Baby-Safe plus SHR, Cybex Aton
Bassinet compatibility	Bassinet for Zoom ABC Design
Safety standard	EN 1888:2012
Cover maintenance	Machine washable cold, delicate detergent
Lubrication	Silicone oil or silicone spray
Shopping basket	Maximum load 5 kg

Frequently Asked Questions - COBRA - COBRA PLUS ABC

From what age can I use the COBRA stroller?

The stroller is suitable from 6 months in seat mode. With the bassinet (optional), it is suitable from birth up to 3 years, with a maximum weight of 15 kg per child.

What is the maximum weight supported by the stroller?

The maximum total weight for both children is 15 kg each, i.e. 30 kg in total. The shopping basket supports up to 5 kg.

How to assemble the front and rear wheels?

For the rear wheels, push them into the housing until they click. For the front wheels, insert the wheel blocks onto the fork until they click. To remove, use the lever or the designated button.

How to engage the parking brake?

Lower the lever on the rear wheels to apply the brake. Lift it to release. Always apply the brake before placing or removing a child.

Which car seats are compatible with this stroller?

The compatible car seats are: ABC Design "Risus", Maxi Cosi Cabrio/Citi/Pebble, Römer Baby-Safe plus SHR and Cybex Aton. Only use accessories approved by the manufacturer.

How to fold the COBRA PLUS stroller?

Before folding, remove the seat or bassinet. Pull the two unlocking rings on the handlebar upward, press the secondary lock on the left rear wheel, then fold the handlebar forward.

How to maintain the fabric cover?

The cover can be hand washed or machine washed cold with a delicate detergent. Do not expose the stroller to prolonged sunlight to avoid fading.

Can I use the stroller for jogging?

No, this product is not suitable for jogging or rollerblading. It is designed for everyday use on flat terrain.

How to adjust the handlebar height?

Lift the button on the handlebar, adjust to the desired height, then release the button to lock the position.

What to do in case of rust or loose parts?

Regular maintenance is recommended. Oil the moving parts with silicone oil. Tighten the closure parts. Traces of rust due to lack of maintenance or exposure to salt are not covered by the warranty.

USER MANUAL COBRA - COBRA PLUS ABC

Instructions for use - EN (04-06)

NB: Keep these instructions for future reference!

BHIMAHNE: He BbI6paCbBaTb, COXpaHtB dJa npOteHnB DaJIbHeJWeM!

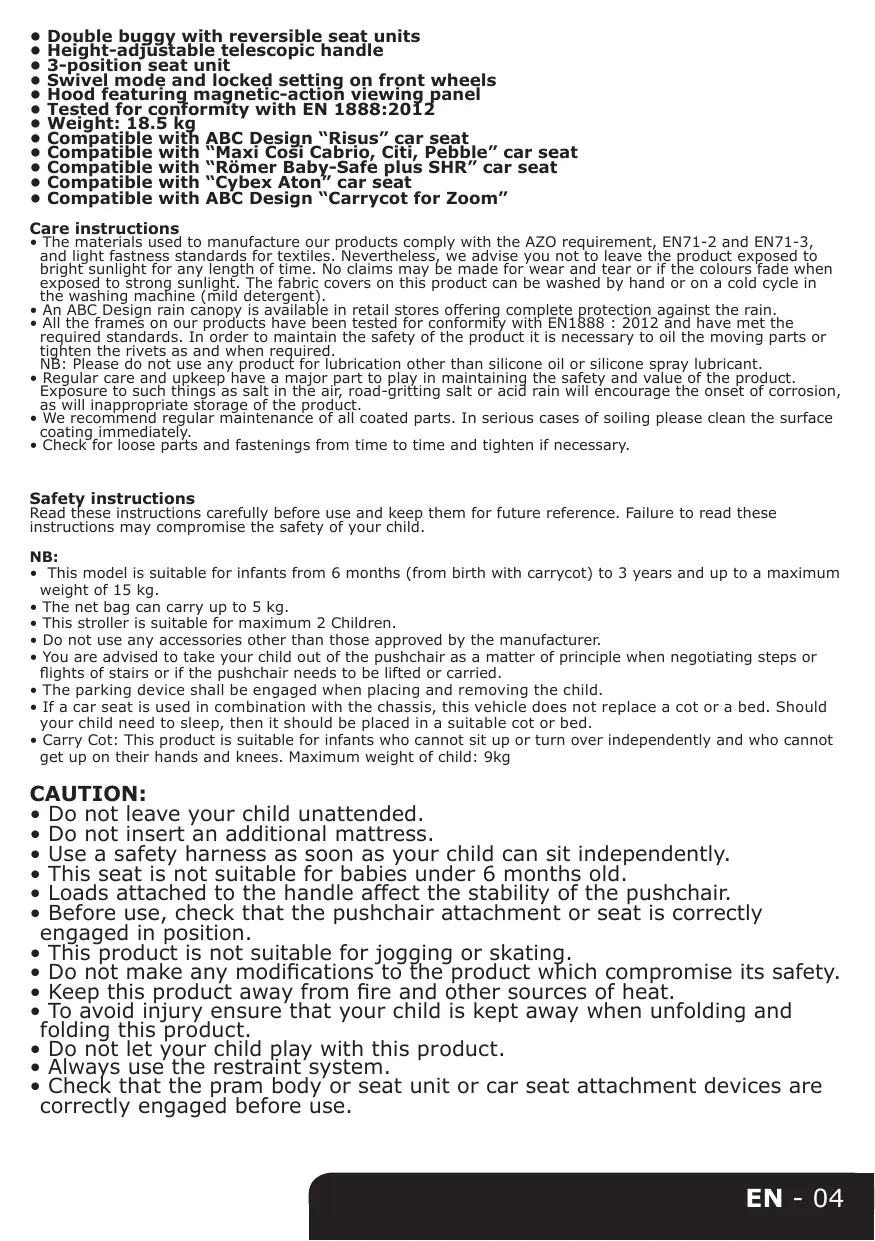

• Double buggy with reversible seat units
• Height-adjustable telescopic handle
• 3-position seat unit
• Swivel mode and locked setting on front wheels
• Hood featuring magnetic-action viewing panel
• Tested for conformity with EN 1888:2012
  Weight: 18.5 kg
• Compatible with ABC Design "Risus" car seat
• Compatible with "Maxi Cosi Cabrio, Citi, Pebble" car seat
• Compatible with "Römer Baby-Safe plus SHR" car seat
• Compatible with "Cybex Aton" car seat
• Compatible with ABC Design "Carrycot for Zoom"

Care instructions

The materials used to manufacture our products comply with the AZO requirement, EN71-2 and EN71-3, and light fastness standards for textiles. Nevertheless, we advise you not to leave the product exposed to bright sunlight for any length of time. No claims may be made for wear and tear or if the colours fade when exposed to strong sunlight. The fabric covers on this product can be washed by hand or on a cold cycle in the washing machine (mild detergent).
- An ABC Design rain canopy is available in retail stores offering complete protection against the rain.
- All the frames on our products have been tested for conformity with EN1888 : 2012 and have met the required standards. In order to maintain the safety of the product it is necessary to oil the moving parts or tighten the rivets as and when required.
NB: Please do not use any product for lubrication other than silicone oil or silicone spray lubricant.
- Regular care and upkeep have a major part to play in maintaining the safety and value of the product. Exposure to such things as salt in the air, road-gritting salt or acid rain will encourage the onset of corrosion, as will inappropriate storage of the product.
- We recommend regular maintenance of all coated parts. In serious cases of soiling please clean the surface coating immediately.
- Check for loose parts and fastenings from time to time and tighten if necessary.

Safety instructions

Read these instructions carefully before use and keep them for future reference. Failure to read these instructions may compromise the safety of your child.

NB:

• This model is suitable for infants from 6 months (from birth with carrycot) to 3 years and up to a maximum weight of 15kg .
• The net bag can carry up to 5kg .
• This stroller is suitable for maximum 2 Children.
• Do not use any accessories other than those approved by the manufacturer.
• You are advised to take your child out of the pushchair as a matter of principle when negotiating steps or flights of stairs or if the pushchair needs to be lifted or carried.
• The parking device shall be engaged when placing and removing the child.
• If a car seat is used in combination with the chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
• Carry Cot: This product is suitable for infants who cannot sit up or turn over independently and who cannot get up on their hands and knees. Maximum weight of child: 9kg

CAUTION:

• Do not leave your child unattended.
• Do not insert an additional mattress.
• Use a safety harness as soon as your child can sit independently.
• This seat is not suitable for babies under 6 months old.
• Loads attached to the handle affect the stability of the pushchair.
• Before use, check that the pushchair attachment or seat is correctly engaged in position.
• This product is not suitable for jogging or skating.
• Do not make any modifications to the product which compromise its safety.
• Keep this product away from fire and other sources of heat.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
  Always use the restraint system.
• Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use.

Customer complaints

• No claims may be made for natural wear and tear or for damage caused by undue demands on the product or by exceeding the permissible load.
• No claims may be made for damage caused by improper use.
• No claims may be made for damage caused by incorrect assembly or operation.
• No claims may be made for damage caused by improper modifications to the product.
• Areas of rust may appear through-lack of maintenance or improper care and do not constitute a fault with the product.
• Scratch marks are normal signs of wear and do not constitute a fault with the product.
• Mildew is likely to appear on textiles which are not dried out after getting wet and cannot be attributed to shortcomings in production conditions.
• The product may fade if exposed to sunlight, perspiration and detergents, or if subject to abrasion or excessive washing, therefore fading cannot be attributed to a fault with the product.
• No claims may be made for wheels which become worn out as a natural result of wear and tear.

1. Opening the pushchair

a. Release the transportation lock.
b. Pull the handle up.

CAUTION: Ensure that all the catches are engaged before use.

2. Fitting the wheels

a. Fit the rear wheels in the slots until they engage firmly.
b. To remove the wheels, press the button on the rear axle down to release the wheel. The wheel can then be removed from the axle.
c. Mount the front wheels by sliding the wheel assemblies onto the prongs until they click into place.
d. To remove the wheel assemblies, press the button underneath the blocks and remove the assemblies.

3. Wheel locking and swivel settings

Push the lever downwards to lock the wheels.

Push the lever upwards for swivel position.

4. Operating the brake

Press the lever down to engage the brake.

Press the lever up to disengage the brake.

NB: The brake must always be applied before lifting the children in and out of the buggy.

5. Attaching and converting the seat

Attach the seat by placing it on the frame until it clicks into place.

To remove and convert the seat, pull the levers on both seat unit adapters and lift up the seat.

6. Attaching the hood

Fit the hood on the seat frame with the two plastic brackets.

7. Fitting and removing the guard rail

Fit the guard rail by inserting it in the plastic mounts on both sides.

To remove the guard rail from the pushchair, press in the buttons on both sides and pull the guard rail off away from the pushchair.

8. Adjusting the leg rest

To adjust the leg rest, press in the buttons on both sides and then adjust the height. Let go of the buttons again so that the leg rest clicks into place.

9. Fastening the harness

To fasten the harness, bring the top two plastic catches together and interlock them.

Then insert the interlocked catches into the bottom part of the fastening.

Adjust the harness to a setting where the baby is held in the correct position.

10. Unfastening the harness

To open the harness, press the button on the side.

CAUTION: Always use the shoulder harness and lap belt together.

11. Adjusting the seat unit

To adjust the seat unit, pull the retainer on the rear of the backrest upwards and then adjust the height of the seat. When you have reached the required position, let go of the retainer to allow the seat to remain in that position.

12. Adjusting the handle

Push the button upwards to adjust the height of the handle.

When the handle is at the required height, let go of the button again so that the handle will remain locked in this position.

13. Folding the pushchair

NB: Remove the seat unit or carrycot before attempting to fold the pushchair.

Pull the two release catches on the left and right sides of the handlebar up.

Now use your foot to release the second catch which is on the left-hand rear wheel.

You can now fold down the push-bar.

Note: To unfold the pushchair, follow the instructions in point 1 "Opening the pushchair".

Article for baby and child

Dr. Rudolf-Eberle Str. 29

D - 79774 Albbruck

Tel. [phone]

Email. [e-mail]

www.abc-design.de
