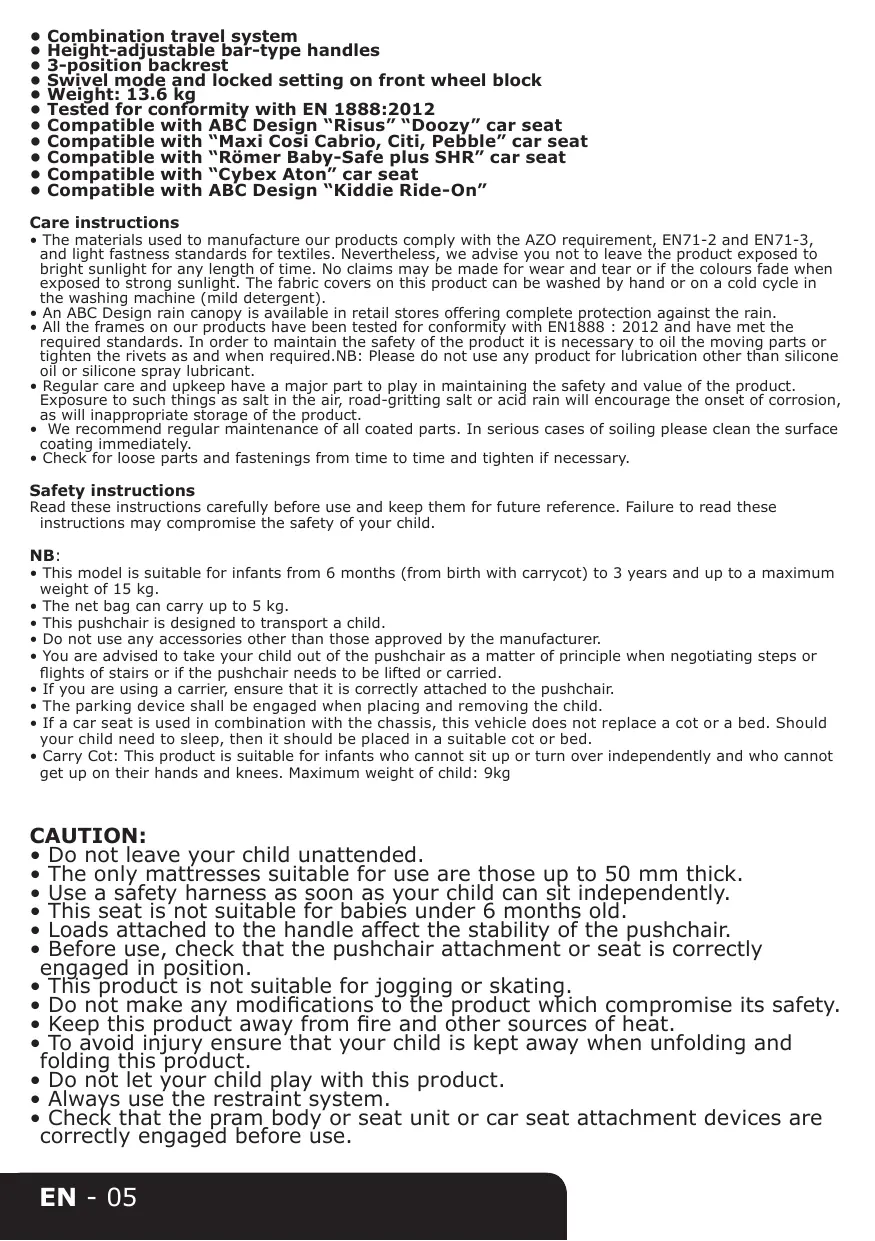

Instructions de service - FR (13-16) Combination travel system Height-adjustable bar-type handles 3-position backrest Swivel mode and locked setting on front wheel block Weight: 13.6 kg Tested for conformity with EN 1888:2012 Compatible with ABC Design “Risus” “Doozy” car seat Compatible with “Maxi Cosi Cabrio, Citi, Pebble” car seat Compatible with “Römer Baby-Safe plus SHR” car seat Compatible with “Cybex Aton” car seat Compatible with ABC Design “Kiddie Ride-On” Care instructions

• The materials used to manufacture our products comply with the AZO requirement, EN71-2 and EN71-3, and light fastness standards for textiles. Nevertheless, we advise you not to leave the product exposed to bright sunlight for any length of time. No claims may be made for wear and tear or if the colours fade when exposed to strong sunlight. The fabric covers on this product can be washed by hand or on a cold cycle in the washing machine (mild detergent).
• An ABC Design rain canopy is available in retail stores offering complete protection against the rain.
• All the frames on our products have been tested for conformity with EN1888 : 2012 and have met the required standards. In order to maintain the safety of the product it is necessary to oil the moving parts or tighten the rivets as and when required.NB: Please do not use any product for lubrication other than silicone oil or silicone spray lubricant.
• Regular care and upkeep have a major part to play in maintaining the safety and value of the product. Exposure to such things as salt in the air, road-gritting salt or acid rain will encourage the onset of corrosion, as will inappropriate storage of the product.
• We recommend regular maintenance of all coated parts. In serious cases of soiling please clean the surface coating immediately.
• Check for loose parts and fastenings from time to time and tighten if necessary. Safety instructions Read these instructions carefully before use and keep them for future reference. Failure to read these instructions may compromise the safety of your child. NB:

• This model is suitable for infants from 6 months (from birth with carrycot) to 3 years and up to a maximum weight of 15 kg.
• The net bag can carry up to 5 kg.
• This pushchair is designed to transport a child.
• Do not use any accessories other than those approved by the manufacturer.
• You are advised to take your child out of the pushchair as a matter of principle when negotiating steps or flights of stairs or if the pushchair needs to be lifted or carried.
• If you are using a carrier, ensure that it is correctly attached to the pushchair.
• The parking device shall be engaged when placing and removing the child.
• If a car seat is used in combination with the chassis, this vehicle does not replace a cot or a bed. Should your child need to sleep, then it should be placed in a suitable cot or bed.
• Carry Cot: This product is suitable for infants who cannot sit up or turn over independently and who cannot get up on their hands and knees. Maximum weight of child: 9kg CAUTION:
• Do not leave your child unattended.
• The only mattresses suitable for use are those up to 50 mm thick.
• Use a safety harness as soon as your child can sit independently.
• This seat is not suitable for babies under 6 months old.
• Loads attached to the handle affect the stability of the pushchair.
• Before use, check that the pushchair attachment or seat is correctly engaged in position.
• This product is not suitable for jogging or skating.
• Do not make any modifications to the product which compromise its safety.
• Keep this product away from fire and other sources of heat.
• To avoid injury ensure that your child is kept away when unfolding and folding this product.
• Do not let your child play with this product.
• Always use the restraint system.
• Check that the pram body or seat unit or car seat attachment devices are correctly engaged before use. EN - 05 Customer complaints

• No claims may be made for natural wear and tear or for damage caused by undue demands on the product or by exceeding the permissible load.
• No claims may be made for damage caused by improper use.
• No claims may be made for damage caused by incorrect assembly or operation.
• No claims may be made for damage caused by improper modifications to the product.
• Areas of rust may appear through lack of maintenance or improper care and do not constitute a fault with the product.
• Scratch marks are normal signs of wear and do not constitute a fault with the product.
• Mildew is likely to appear on textiles which are not dried out after getting wet and cannot be attributed to shortcomings in production conditions.
• The product may fade if exposed to sunlight, perspiration and detergents, or if subject to abrasion or excessive washing, therefore fading cannot be attributed to a fault with the product.
• No claims may be made for wheels which become worn out as a natural result of wear and tear.

1. Opening the pushchair

Pull the front fork forward until it clicks into place. Pull the bar-type handle up until the frame engages. CAUTION: Ensure that all the catches are engaged before use.

2. Fitting the wheels

Undo the catch by pulling the metal bracket outwards. Insert the wheel in the fitting and release the metal bracket again. Fit the front wheel block onto the wheel block fitting. To take the wheels off, undo the catch by pulling the metal bracket outwards. Then pull the wheels out of the fitting. To remove the wheel block, turn the knob on the wheel block fitting clockwise and remove the wheel block from the fitting.

3. Front wheel block lock and swivel settings

Push the lever to the left to lock the wheels. Push the lever to the right for the swivel position.

4. Operating the brake

Press the lever down to engage the brake. Press the lever up to disengage the brake.

5. Attaching the seat

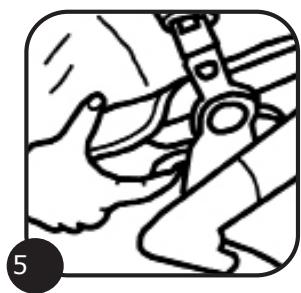

Attach the seat by placing it on the frame until it clicks into place. To remove the seat, pull the levers on both seat unit adapters and lift up the seat. CAUTION: The seat unit may only be used in the driving direction.

6. Attaching the hood

Fit the hood on the seat frame with the two plastic brackets. EN - 06

7. Fitting and removing the guard rail

Fit the guard rail by inserting it in the plastic mounts on both sides. To remove the guard rail from the pushchair, press in the buttons on both sides and pull the guard rail off away from the pushchair.

8. Adjusting the leg rest

To adjust the leg rest, press in the buttons on both sides and then adjust the height. Let go of the buttons again so that the leg rest clicks into place.

9. Fastening the harness

To fasten the harness, bring the top two plastic catches together and interlock them. Then insert the interlocked catches into the bottom part of the fastening. Adjust the harness to a setting where the baby is held in the correct position.

10. Unfastening the harness

To open the harness, press the button on the side. CAUTION: Always use the shoulder harness and lap belt together.

11. Adjusting the seat unit

To adjust the seat unit, press and hold down the catches on both sides of the seat unit and adjust the height of the seat. When you have reached the required position, let go of the catches to allow the seat to remain in that position. Carrycot

12. Opening the carrycot

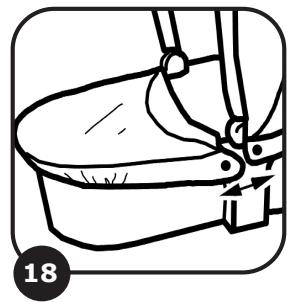

Lift the side panels of the carrier. Extend and secure the side panels by pushing the two retainers outwards into the mountings. Make sure that the retainers are securely engaged.

13. Attaching the cot bumper

Lay the bumper in the cot, folding the top part over the edge of the carrycot. Fasten the four press studs on the rear.

14. Attaching the hood to the cot bumper

Fasten the velcros studs on the bottom of the hood onto the bumper.

15. Fitting the adapter to the carrycot

Fit the adapter onto the carrycot from below until it engages in the brackets provided. Make sure that the adapter is securely engaged. EN - 07

16. Inserting the mattress

Insert the mattress in the cover. Lay the mattress on the base. NB: The mattress is wedge-shaped. Make sure that the raised part is at the head end.

17. Adjusting the handle

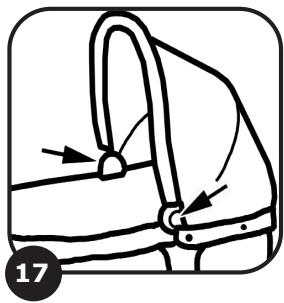

To adjust the handle, press the buttons on both sides. Now you can adjust the handle.

18. Fitting the apron

Fit the closed end of the apron over the lower end of the carrycot. Extend the apron over the cot. Secure the ends of the apron with the Velcro fastening provided on the outside of the hood

19. Mounting the carrycot on the pushchair

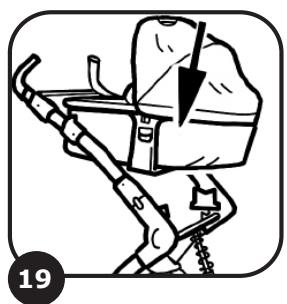

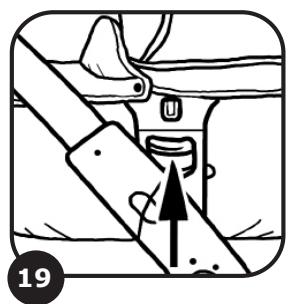

The adapter is fitted to the long side of the carrycot. Place the carrycot onto the pushchair so that the catch mechanism engages. To remove the carrycot, press the buttons on the adapter on both sides of the cot and lift the cot up to release it from the catches. CAUTION: Always check before use that the carrycot is correctly secured to the pushchair.

20. Adjusting the bar-type handle

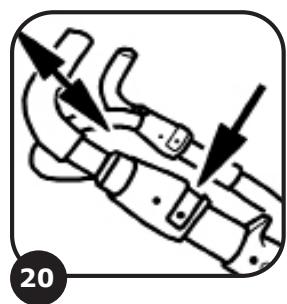

Press and hold down the button on the bar-type handle and set to the required height.

21. Folding the pushchair

Press the round button (1) on the right-hand release catch in order to unlock the folding mechanism. Then pull both release catches (2) up and lower the handle. Pull the two release catches on the front fork backwards and lower the fork inwards. Note: To unfold the pushchair, follow the instructions in point 1 “Opening the pushchair”. EN - 08
