USER MANUAL HBA6700W BEKO

Please read this user manual first! Dear Customer, Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

C A Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property. Do not immerse the appliance in water. Protection class for electric shock.

This product has been produced in environmentally-friendly, state-of-the-art facilities.

This appliance conforms to the WEEE regulation.

It does not contain PCB.

Made in P.R.C CONTENTS

1 Important safety and environmental instructions

Hand Blender/User Manual

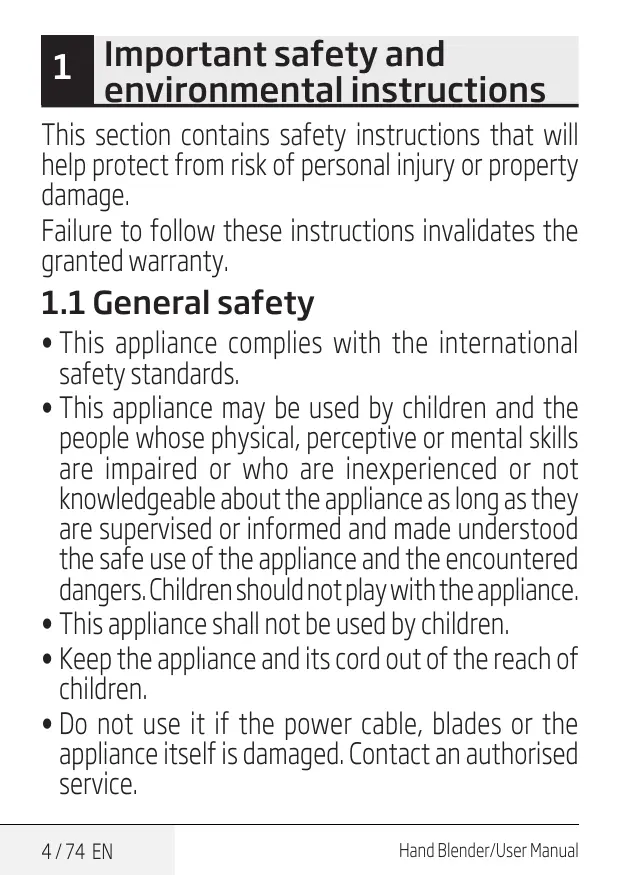

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions invalidates the granted warranty.

• This appliance complies with the international safety standards. • This appliance may be used by children and the people whose physical, perceptive or mental skills are impaired or who are inexperienced or not knowledgeable about the appliance as long as they are supervised or informed and made understood the safe use of the appliance and the encountered dangers. Children should not play with the appliance. • This appliance shall not be used by children. • Keep the appliance and its cord out of the reach of children. • Do not use it if the power cable, blades or the appliance itself is damaged. Contact an authorised service.

4 / 74 EN Hand Blender/User Manual

1 Important safety and environmental instructions

• Only use the original parts or parts recommended by the manufacturer. • Do not attempt to dismantle the appliance. • Your mains power supply should comply with the information supplied on the rating plate of the appliance. • Do not use the appliance with an extension cord. • Do not pull the power cable when unplugging the appliance. • Wait for moving accessories to stop and unplug the appliance when left attended, while installing/ removing accessories or before cleaning. • Do not touch the plug of the appliance with damp or wet hands. • Do not use the device for hot food. • To prevent overheating, do not use the appliance continuously for more than10 seconds. Leave to cool for 1 minute in between each 10 seconds of operation. • Use the appliance only with the supplied rubber base and glass container. Hand Blender/User Manual

1 Important safety and environmental instructions

• Do not operate the appliance without the ingredients in the bowl. • Remove bones and stones from food to prevent the blades and the appliance from getting damaged. • This appliance is not suitable for dry or hard foods as this will quickly cause the blades to become dull. • Follow all warnings to prevent injuries due to incorrect use. • When emptying the container, during cleaning and grabbing chopping blades with bare hands serious injuries could result due to incorrect use. Use the plastic section trying to hold the chopping blade. • After cleaning, dry the appliance and all parts before connecting it to mains supply and before attaching the parts. • Do not immerse the appliance, power cable, or power plug in water or any other liquids. • Do not operate or place any part of this appliance or its parts on or near hot surfaces. • If you keep the packaging materials, store them out of the reach of children.

6 / 74 EN Hand Blender/User Manual

1 Important safety and environmental instructions

1.2 Compliance with the WEEE Directive and disposal of waste products This product does not include harmful and prohibited materials specified in the “Regulation for Supervision of the Waste Electric and Electronic Appliances” issued by the Ministry of Environment and Urban Planning. Complies with the WEEE Regulation. This appliance has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the appliance with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Help protect the environment and natural resources by recycling used products.

1.3 Package information

Package of the product is made of recyclable materials in accordance with our national legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

1.4 Things to do for energy saving

Follow the times recommended in the manual during use. Unplug the appliance after use.

Hand Blender/User Manual

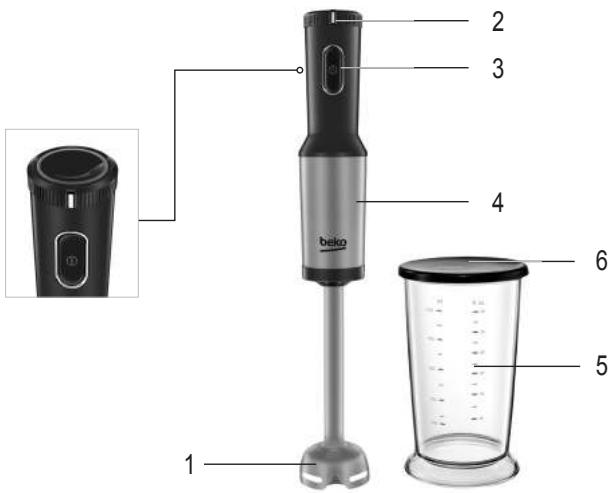

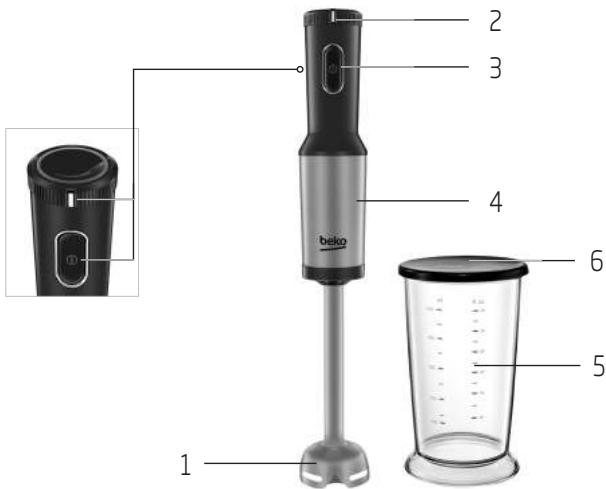

7 / 74 EN Blending shaft

Speed adjustment button Operating switch Motor unit Measuring beaker Non-slip rubber base (cover)

This appliance complies with the European Directives 2004/108/EC, 2006/95/EC, 2009/125/ EC and 2011/65/EU. Voltage: 220-240 V~, 50/60 Hz Power: 750 W Technical and design modifications reserved.

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

8 / 74 EN Hand Blender/User Manual

3.1 Intended use This appliance is intended only for household use; it is not suitable for professional use. It is designed for chopping and whisking small amounts of solid food only.

C When you do not exceed 10 seconds in intermittent uses, you can operate the appliance until the end of the process by waiting for a couple of seconds.

1. Clean the appliance parts before chopping with the blending shaft initial use (see 4.1). 3.2 Initial use

2. Use the appliance upright on 1. Insert blending shaft (1), by aligning ( ) symbol on motor unit a balanced, flat, clean, dry and

(4) with ( ) symbol and turning non-skid surface. clockwise. 3. Do not use the appliance continuously for more than 10 – Make sure ( ) symbol is seconds. Turn off the device aligned with ( ) symbol. Fit it when used for more than 10 into its place, do not apply too seconds and wait for 1 min. much force. before operating again. 2. Put processed ingredients (in small pieces) in measuring container or a container that you will use. 3. Immerse blending shaft (1) into the container. 4. Plug in the appliance. 5. Run the appliance by pressing operation button (3).

Hand Blender/User Manual

C C C Turn speed adjustment button (2) to gradually increase speed.

Start mixing in low speed while mixing ingredients. Ingredients may be spattered when you start with high speed. You can get better results if you make circular movements with the appliance during processing.

6. Release the operation switch when the operation is finished.

Unplug the appliance and wait for it to stop completely. 7. Turn blending shaft (1) counterclockwise and remove from motor unit (4) when it is aligned with ( ) symbol.

Do not touch the blades with your bare hands.

Hand Blender/User Manual

• If you do not intend to use the appliance for a long time, store it carefully.

• Unplug the appliance before lifting it. • Store the appliance in a cool and dry place. 1. Unplug the appliance before • Keep the appliance and cable out cleaning. of the reach of children. 2. Make sure the appliance is at complete stop and remove 4.3 Handling and blending shaft. transportation 3. Wipe appliance motor unit (4) • During handling and with a damp cloth. transportation, carry the 4. Chopper blade can be wasappliance in its original hed using a sponge and dishpackaging. The packaging of washing detergent. the appliance protects it against 5. Dry all parts of the appliance afphysical damages. ter cleaning. • Do not place heavy loads on the WARNING: Do not appliance or the packaging. The wash the blending appliance may be damaged. shaft in dishwasher. • Dropping the appliance may WARNING:Never render it non-operational or immerse inner part cause permanent damage. of blending shaft, the motor unit or power cable in water or in any other liquid.

A WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

A A Hand Blender/User Manual
