R752IN - Microwaves SHARP - Free user manual and instructions

Product Type	Microwave with grill
Oven Capacity	25 liters
Microwave Power	900 W
Grill Power	1,000 W
Microwave Power Levels	11
Finish / Color	Stainless steel (silver)
Power Supply	220-230 V - 50 Hz
Net Weight	15 kg
Defrost	By weight and by time
Child Lock	Yes

Frequently Asked Questions - R752IN SHARP

What is the power of the Sharp R752IN?

The Sharp R752IN has a microwave power of 900 W and a grill power of 1,000 W. It offers 11 microwave power levels to adjust cooking for each food.

Does the Sharp R752IN have a grill function?

Yes, this oven is equipped with a 1,000 W quartz grill. It allows you to brown, crisp, and grill food. You can also combine microwave and grill for quick simultaneous cooking.

How do I start defrosting on the Sharp R752IN?

The R752IN offers two defrost modes: by weight (enter the weight of the food, the appliance calculates the duration) and by time (you manually enter the time). Select the defrost mode via the control panel, then confirm.

How do I activate the child lock on the Sharp R752IN?

To activate the child lock, hold the stop button for about 3 seconds. A beep confirms activation. All controls are then locked. Repeat the procedure to deactivate.

The turntable of my Sharp R752IN no longer turns, what should I do?

Check that the glass turntable is properly placed on the drive wheel and that nothing is blocking it. Clean the wheel and the bottom of the cavity. If the problem persists despite these checks, the turntable motor may be faulty and requires a technician.

Can metal containers be used in the Sharp R752IN?

In microwave-only mode, never use metal utensils: they cause sparks and can damage the appliance. In grill-only mode, an appropriate metal dish can be used. Prefer glass, ceramic, or microwave-safe plastic.

Sparks appear inside the microwave, is it dangerous?

Sparks often indicate the presence of a metallic object (cutlery, aluminum foil, gold-rimmed dishes) or a damaged interior coating. Stop the oven immediately, remove the food, and check the container. If sparks reappear with suitable containers, have the appliance checked by a professional.

How do I clean the inside of the Sharp R752IN?

Unplug the appliance before any cleaning. Wipe the interior with a soft damp cloth and a little dish soap. Avoid abrasive sponges and harsh chemicals that can damage the coating. For stubborn splatters, place a bowl of water with lemon and heat for 3 minutes: the steam will help loosen them.

The display of the Sharp R752IN is flashing or blank, what should I do?

A blank or flashing display often occurs after a power outage: reset the time according to the instructions in the manual. If the screen remains off despite being plugged in, check your installation's fuse. For persistent issues, contact Sharp's after-sales service.

The door of the Sharp R752IN no longer closes properly, what should I do?

A poorly closing door prevents the oven from starting (built-in safety). Check that no food or foreign object is blocking the seals or locking hooks. Clean the seals. If a hook is broken, compatible R752IN spare parts are available from specialized retailers.

What containers are recommended for combined grill and microwave cooking?

In combined mode, use only containers suitable for grill and microwave: borosilicate glass, metal-free ceramic, or plastic specifically marked "grill + microwave." Avoid ordinary plastic that melts with grill heat.

Is the Sharp R752IN compatible with apartment use (electrical power)?

Yes, the R752IN operates on a standard 220-230 V - 50 Hz outlet. Its power consumption is compatible with typical domestic installations. However, avoid plugging it into an overloaded power strip with other high-consumption appliances.

USER MANUAL R752IN SHARP

Exterior view of a Sharp microwave oven with digital display and control buttons (no text or symbols on main body)

R-922STWE

This operation manual contains important information which you should read carefully before using your microwave oven.

Important: There may be a serious risk to health if this operation manual is not followed or if the oven is modified so that it operates with the door open.

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

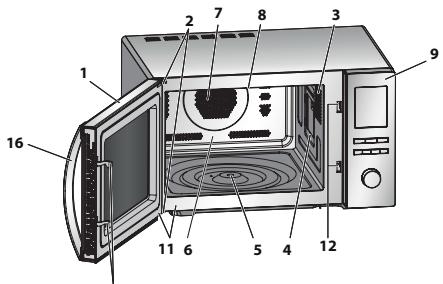

Technical diagram of a microwave oven with numbered parts for identification

88:88 °C g Pizza Potato Meat Fish Vegetable Beverage Pasta Popcorn Cake Chicken 9 STOP 30min 10 11 7 Auto Menu 8

h A5 Auto

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Labeled diagram of a microwave oven with numbered parts for identification

10 13 14 15

Eje (dentro)

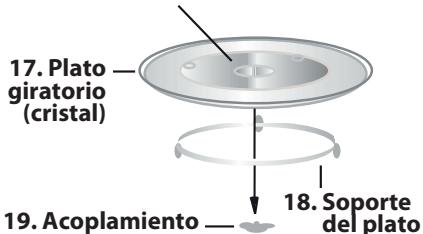

17. Plato giratorio (cristal) 18. Soporte del plato 19. Acoplamiento

1. Parrilla


Simple line drawing of a circular metal grate with three handles (no text or symbols)

HORNO

88:88 °C g Pizza Potato Meat Fish Vegetable Beverage Pasta Popcorn Cake Chicken 9 STOP 30min 10 11 7 Auto Menu 8

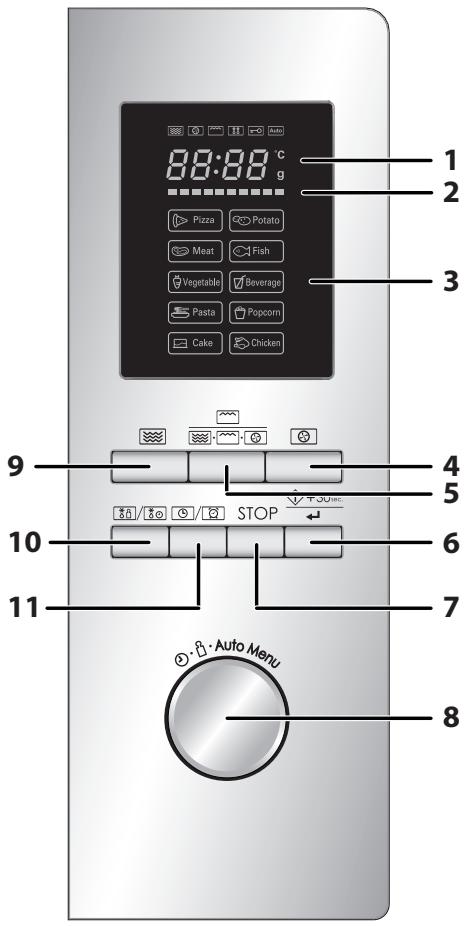

1. PANTALLA DIGITAL e INDICADORES

h A5 Auto

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

INFORMATIONS SUR LA MISE AU REBUT ....1

TABLE DES MATIÈRES....2

FICHE TECHNIQUE....2

FOUR ET ACCESSOIRES....3

PANNEAU DE COMMANDE....4

INSTRUCTIONS IMPORTANTES DE SÉCURITÉ 5-12

INSTALLATION....13-14

AVANT LA MISE EN SERVICE 15

RÉGLAGE DE L'HORLOGE....15

FONCTION MINUTERIE....15

NIVEAUX DE PUISSANCE MICRO-ONDES....16

FONCTIONNEMENT MANUEL....16

CUISSON AU MICRO-ONDES 17

CUISSON AU GRIL / CUISSON COMBINÉE 17-19

CUISSON PAR CONVECTION....19-20

AUTRES FONCTIONS PRATIQUES ....20-21

FONCTIONS DE DÉCONGELATION PAR POIDS ET PAR TEMPS....21-22

FONCTION MENU AUTO 22

TABLE DU MENU AUTO 23-24

BIEN CHOISIR LA VAISSELLE 25

ENTRETIEN ET NETTOYAGE....26

ADRESSES D'ENTRETIEN......I

FICHE TECHNIQUE

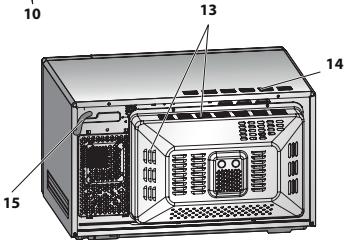

Labeled diagram of a microwave oven with numbered parts for identification

10 13 14 15

Base (intérieure)

to 20. Grille

FOUR

88:88 °C g Pizza Potato Meat Fish Vegetable Beverage Pasta Popcorn Cake Chicken 9 STOP 30min 10 11 7 Auto Menu 8

1. AFFICHAGE NUMERIQUE et VOYANTS INDICATEURS

5. Touche GRIL/COMBINÉ

6. Touche DÉMARRAGE/+30sec./ENTRÉE

7. Touche ARRÊT/EFFACER

8. Bouton SÉLECTION

FONCTIONNEMENT MANUEL

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

FORNO E ACCESSORI....3

PANNELLO DI CONOTROLLO 4

ISTRUZIONI IMPORTANTI SULLA SICUREZZA 5-12

INSTALLAZIONE 13-14

PRIMA DI USARE IL FORNO 15

IMPOSTARE L'OROLOGIO 15

FUNZIONE TIMER DA CUCINA....15

LIVELLI DI POTENZA DELLE MICROONDE....16

OPERAZIONI MANUALI....16

COTTURA A MICROONDE 17

COTTURA GRILL/COTTURA COMBINATA....17-19

COTTURA AD ARIA VENTILATA....19-20

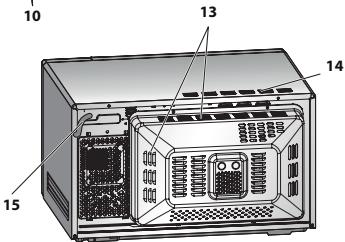

Labeled diagram of a microwave oven with numbered parts for identification

10 13 14 15

Perno (dentro)

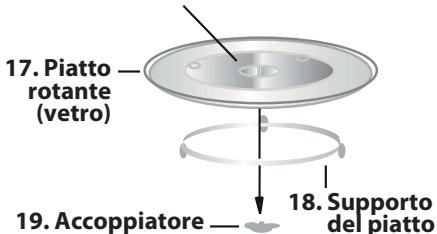

Simple line drawing of a circular metal grate with three handles (no text or symbols)

FORNO

88:88 °C g Pizza Potato Meat Fish Vegetable Beverage Pasta Popcorn Cake Chicken 9 STOP 30min 10 11 7 Auto Menu 8

1. DISPLAY DIGITALE e INDICATORI

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

KOOKWEKKERFUNCTIE....15

VERMOGENSSTANDEN VAN DE MAGNETRON 16

HANDMATIGE BEDIENING....16

VOEDSEL BEREIDEN MET DE MAGNETRON....17

GRILLEN / COMBI KOKEN 17-19

CONVECTIE KOKEN 19-20

ANDERE HANDIGE FUNCTIES 20-21

GEBRUIK VAN DE FUNCTIES ONTDOOIEN OP GEWICHT EN ONTDOOIEN OP TIJD......21-22

AUTO MENU-FUNCTIE 22

AUTO MENU-TABEL 23-24

Labeled diagram of a microwave oven with numbered parts for identification

10 13 14 15

Naaf (binnenin)

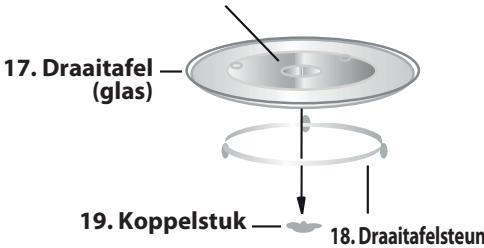

17. Draaitafel — (glas) 19. Koppelstuk — 18. Draaitafelsteun

20. Rek

OVEN

88:88 °C g Pizza Potato Meat Fish Vegetable Beverage Pasta Popcorn Cake Chicken 9 STOP 30min 10 11 7 Auto Menu 8

1. DIGITALE DISPLAY en INDICATOREN

h A5 Auto

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

UGN OCH TILLBEHÖR....3

KONTROLLPANEL 4

VIKTIGA SÄKERHETSANVISNINGAR....5-12

INSTALLATION....13-14

FÖRE ANVÄNDNING 15

STÄLLA IN KLOCKAN 15

KÖKSTIMER FUNKTION....15

MIKROVÅGSEFFEKTNIVÅER 16

MANUELL DRIFT....16

MIKROVÅGSTILLAGNING....17

GRILL MATLAGNING / KOMBI MATLAGNING 17-19

KONVEKTION MATLAGNING 19-20

ANDRA PRAKTISKA FUNKTIONER 20-21

VIKTUPPTINING OCH TIDUPPTINING....21-22

AUTOMENYFUNKTION 22

AUTOMENYTABELL....23-24

LÄMPLIGA UGNSHUSGERÅD 25

SKÖTSEL OCH RENGÖRING....26

SERVICEADRESSER....I

SPECIFIKATIONER

Modellnamn:		R-922STWE
Nätspänning		: 230-240 V~, 50 Hz enfas
Distributionsnätssäkring/kretsskydd		: 20 A
Nödvändig effekt:	Mikrovågsugn	: 1550 W
Uteffekt:	Mikrovågsugn	: 1000 W
	Toppgrill (infraröd)	: 1100 W
	Konvektion	: 2500 W
	Av-läge (Energisparläge)	: mindre än 1,0 W
Mikrovågsfrekvens		: 2450 MHz*
Yttermätt (B) x (H) x (D)** mm		: 519 x 315 x 510
Innermätt (B) x (H) x (D)*** mm		: 351 x 249 x 361
Ugnsvolym		: 32 liter***
Roterande tallrik (glas)		: ø 315 mm
Vikt		: cirka 18,5 kg
Ugnslampa		: 25 W/230 V~

Labeled diagram of a microwave oven with numbered parts for identification

10 13 14 15

Nav (inuti)

17. Roterande tallrik (glas) 19. Koppling 18. Vändfot

20. Stativ

UGN

88:88 °C g Pizza Potato Meat Fish Vegetable Beverage Pasta Popcorn Cake Chicken 9 STOP 30min 10 11 7 Auto Menu 8

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

MANUEL BETJENING....16

MIKROB∅LGETILBEREDNING....17

GRILLTILBEREDNING/KOMBITILBEREDNING....17-19

KONVEKTIONSTILBEREDNING....19-20

ANDRE NYTTIGE FUNKTIONER 20-21

BRUG AF OPT∅NING EFTER VÆGT OG OPT∅NING EFTER TID....21-22

AUTO MENU-FUNKTION 22

AUTO MENU-OVERSIGT....23-24

OVNFAST PORCELÆN OG EGNEDE BEHOLDERE 25

PLEJE OG RENG∅RING 26

SERVICEADRESSER....I

SPECIFIKATIONER

Technical diagram of a microwave oven with numbered parts for identification and assembly reference.

Nav (indvendig)

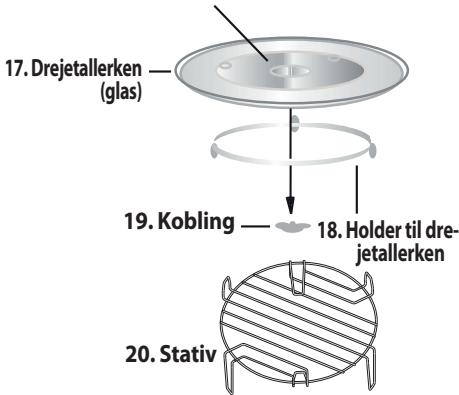

17. Drejetallerken (glas) 19. Kobling 18. Holder til dre- jetallerken 20. Stativ

OVN

88:88 °C g Pizza Potato Meat Fish Vegetable Beverage Pasta Popcorn Cake Chicken 9 STOP 30min 10 11 7 Auto Menu 8

1. DIGITAL DISPLAY og INDIKATORER

MIKROB∅LGE-indikator

KONVEKTION-indikator

GRILL-indikator

Optøningsindikator

B∅RNESIKRING-indikator

AUTO MENU-indikator

TEMPERATUR-indikator

VÄGT-indikator

For at undgå risiko for brand.

MANUEL TILBEREDNING/MANUEL OPTÖNING

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Obs: Produktet er markert med dette symbolet. Det betyr at brukte elektriske og elektroniske produkter ikke skal blandes med generelt husholdningsavfall. Det er atskilte innsamlingssystem for disse produktene.

SPESIFIKASJONER....2

OVN OG TILBEH∅R....3

KONTROLLPANEL 4

VIKTIGE SIKKERHETSINSTRUKSJONER....5-12

INSTALLASJON 13-14

F∅R BRUK 15

STILLING AV KLOKKEN 15

KJ∅KKENTIDSUR-FUNKSJON....15

MIKROB∅LGEEFFEKTNIVÅER....16

MANUELL BRUK 16

MIKROB∅LGETILBEREDNING....17

GRILL-TILBEREDNING / KOMBI-TILBEREDNING....17-19

TILBEREDNING MED VARMLUFT 19-20

ANDRE PRAKTISKE FUNKSJONER 20-21

FUNKSJONENE TINEVEKT OG TINETID 21-22

AUTOMENY-FUNKSJON 22

AUTOMENY-TABELL 23-24

PASSENDE KOKEKAR 25

STELL OG RENGJ∅RING....26

SERVICEADRESSER....I

SPESIFIKASJONER

Modellnavn:		R-922STWE
Spenning		: 230-240 V ~, 50 Hz enfaset
Sikring / kretsbryter		: 20 A
Vekselstrøm påkrevet:	Mikrobølge	: 1550 W
Effekt:	Mikrobølge	: 1000W
	Topp-grill (Infrarød)-	: 1100 W
	Varmluft	: 2500 W
	Av-modus (Energisparemodus)	: mindre enn 1,0W
Mikrobølgefrekvens		: 2450 MHz*
Utvendige dimensjoner (B) x (H) x (D)** mm		: 519 x 315 x 510
Dimensjoner i ovnsrommet (B) x (H) x (D)*** mm		: 351 x 249 x 361
Ovnskapasitet		: 32 liter***
Dreieskive (glass)		: ø 315 mm
Vekt		: ca. 18,5 kg
Ovnslampe		: 25 W/230 V~

88:88 °C g Pizza Potato Meat Fish Vegetable Beverage Pasta Popcorn Cake Chicken 9 STOP 30min 10 11 7 Auto Menu 8

KJ∅KKENTIDSUR-FUNKSJON

MANUELL TILBEREDNING/MANUELL TINING

1. Bruk INNSTILLINGSHjulet for å sette inn grilltiden (20 minutter).

TILBEREDNING MED VARMLUFT

1. TINING I HENHOLD TIL VEKT

Noter for TINING I HENHOLD TIL VEKT:

Noter for TINING PÅ TID:

\* Klargjøring for sukkerbrød (A9):

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

TEKNISET TIEDOT....2

UUNI JA LISÄVARUSTEET 3

SÄÄTÖPANEELI....4

MIKROAALLOILLA KYPSENNYS....17

GRILLIKYPSENNYS- / YHDISTELMÄTOIMINTO....17-19

KIERTOILMAKYPSENNYS....19-20

MUUT HELPOT TOIMINNOT 20-21

SULATUS PAINON MUKAAN JA SULATUSTOIMINTO 21-22

AUTOM. VALIKKO -TOIMINTO 22

AUTOM. VALIKKOKAAVIO 23-24

SOVELTUVAT KEITTOASTIAT 25

HOITO JA PUHDISTUS....26

HUOLTO-OSOITTEITA......I

TEKNISET TIEDOT

Technical diagram of a microwave oven with numbered parts for identification

Simple line drawing of a circular metal grate with three handles (no text or symbols)

UUNI

9. MIKROTEHO-painike

Paina valitaksesi mikroaallon tehotaso.

1. PAINON/AJAN SULATUSTOIMINTO-painike

2. KELLO/KEITTIÖN AJASTIN -painike

LUE HUOLELLISESTI JA SÄILYTÄ MYÖHEMPÄÄ TARVETTA VARTEN

MANUAALINEN KYPSENNYS/ MANUAALINEN SULATUS

MUUT HELPOT TOIMINNOT

1. PERÄKKÄINEN KYPSENNYS

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by members states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*.

In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details. If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

INFORMATION ON CORRECT DISPOSAL....1

CONTENTS....2

SPECIFICATIONS....2

OVEN AND ACCESSORIES 3

CONTROL PANEL 4

IMPORTANT SAFETY INSTRUCTIONS....5-12

INSTALLATION....13-14

BEFORE OPERATION 15

SETTING THE CLOCK....15

KITCHEN TIMER FUNCTION 15

CONVECTION COOKING....19-20

OTHER CONVENIENT FUNCTIONS ....20-21

WEIGHT DEFROST AND TIME DEFROST FUNCTION 21-22

AUTO MENU FUNCTION....22

AUTO MENU CHART 23-24

SUITABLE OVENWARE 25

CARE AND CLEANING 26

SERVICE ADDRESSES ....I

SPECIFICATIONS

Model name:	R-922STWE
AC Line Voltage	: 230-240V~, 50Hz single phase
Distribution line fuse/circuit breaker	: 20A
AC Power required: Microwave	: 1550W
Output power: Microwave	: 1000W
Top Grill (Infrared)	: 1100W
Convection	: 2500W
Off Mode (Energy Save Mode)	: less than 1.0W
Microwave Frequency	: 2450MHz*
Outside Dimensions (W) x (H) x (D)** mm	: 519 x 315 x 510
Cavity Dimensions (W) x (H) x (D)*** mm	: 351 x 249 x 361
Oven Capacity	: 32 litres***
Turntable (glass)	: ø 315mm
Weight	: approx. 18.5kg
Oven lamp	: 25W/230V~

* This product fulfils the requirement of the European standard EN55011.

In conformity with this standard, this product is classified as group 2 class B equipment.

Group 2 means that the equipment intentionally generates radio-frequency energy in the form of electromagnetic radiation for the heat treatment of food.

Class B equipment means that the equipment is suitable to be used in domestic establishments.

** The depth does not include the door opening handle.

*** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.

AS PART OF A POLICY OF CONTINUOUS IMPROVEMENT, WE RESERVE THE RIGHT TO ALTER DESIGN AND SPECIFICATIONS WITHOUT NOTICE.

Labeled diagram of a microwave oven with numbered parts for identification

10 13 14 15

Hub (inside)

17. Turntable — (glass) 18. Gonding

1. Coupling — 18. Turntable

support 20. Rack

OVEN

1. Door
2. Door hinges
3. Oven lamp
4. Waveguide cover (DO NOT REMOVE)
5. Coupling
6. Oven cavity
7. Convection fan (covered)
8. Grill heating element (under the ceiling)
9. Control panel
10. Door latches
11. Door seals and sealing surfaces
12. Door safety latches
13. Ventilation openings
14. Outer cabinet
15. Power supply cord
16. Door handle

ACCESSORIES:

Check to make sure the following accessories are provided:

(17) Turntable (18) Turntable support (19) Coupling (20) Rack

• Place the coupling into the turntable motor shaft and then place the turntable support in the centre of the oven floor so that it can freely rotate around the coupling. Place the turntable onto the turntable support so that it locates firmly into the coupling.
• To avoid turntable damage, ensure dishes and containers are lifted clear of the turntable rim when removing them from the oven.
• For use of the rack, refer to the grilling sections on page GB-17-19.

Never touch the grill when it is hot.

NOTE: When you order accessories, please mention two items: part name and model name to your dealer or SHARP authorised service agent.

NOTES:

• The waveguide cover is fragile. Care should be taken when cleaning inside the oven to ensure that it is not damaged.
  • After cooking fatty foods without a cover, always clean the cavity and especially the grill heating element thoroughly, these must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.
  • Always operate the oven with the turntable and turntable support fitted correctly. This promotes thorough, even cooking. A badly fitted turntable may rattle, may not rotate properly and could cause damage to the oven.
• All food and containers of food are always placed on the turntable for cooking.
• The turntable rotates clockwise or anti-clockwise. The rotary direction may change each time you start the oven. This does not affect cooking performance.

WARNING:

The door, outer cabinet, oven cavity, accessories and dishes will become very hot during operation. To prevent burns, always use thick oven gloves.

88:88 °C g Pizza Potato Meat Fish Vegetable Beverage Pasta Popcorn Cake Chicken 9 STOP 30min 10 11 7 Auto Menu 8

1. DIGITAL DISPLAY and INDICATORS

MICROWAVE indicator

CONVECTION indicator

GRILL indicator

DEFROST indicator

CHILD LOCK indicator

Auto AUTO MENU indicator

°C TEMPERATURE indicator

9 WEIGHT indicator

1. TEMPERATURE PROGRESS indicator The segments gradually light up to show the temperature reached in CONVECTION mode. Each segment represents 10^ C of the set temperature level (For example, the first one indicates 150^ C and the last one 240^ C). When you set the temperature the corresponding segment illuminates while the respective segments to the left of it illuminate respectively one by one during the preheating process.

3. Auto Menu options:

Pizza

Potato

Meat

Fish

Vegetable

Beverage

Pasta

Popcorn

Cake

Chicken

1. CONVECTION button

2. GRILL/COMBI. button

3. START/+30sec./ENTER button

4. STOP/CLEAR button

5. ENTRY dial

Rotate to enter the cooking time, time, power level, temperature, weight and select auto menu

1. MICRO.POWER button: Press to select microwave power level.

2. WEIGHT/TIME DEFROST button

3. CLOCK/KITCHEN TIMER button

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

1. This oven is designed to be used on a countertop only. It is not designed to be built into a kitchen unit. Do not place the oven in a cabinet.
2. The oven door may become hot during cooking. Place or mount the oven so that the bottom of the oven is 85 cm or more above the floor. Keep children away from the door to prevent them burning themselves.
3. Ensure there is a minimum of free space above the oven of 30 cm.
4. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
5. Keep the appliance and its cord out of reach of children less than 8 years.
6. WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
7. WARNING: When the appliance is operated in the GRILL/COMBI. and CONV.(°C) modes, children should only use the oven under adult supervision due to the temperature generated.
8. WARNING: Accessible parts may become hot during use. Young children should be kept away.

9. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

10. WARNING: Never adjust, repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

11. If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised SHARP service agent.
12. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
13. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
14. Do not cook eggs in their shells, and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven.
15. Utensils should be checked to ensure that they are suitable for use in the oven. See Page GB-25. Use only microwave safe containers and utensils on microwave modes.
16. The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
17. The door, outer cabinet, oven cavity, dishes, accessories and especially the grill heating elements will become very hot during operation.

18. Care should be taken to avoid touching these areas. To prevent burns, always use thick oven gloves. Before cleaning make sure they are not hot. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

19. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

20. Clean the oven at regular intervals and remove any food deposits.
21. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
22. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass on the oven door since they can scratch the surface, which may result in shattering of the glass.
23. Steam cleaner is not to be used.
24. See instructions for cleaning door seals, cavities and adjacent parts on page GB-26.
25. This appliance is intended to be used in household and similar applications such as:
26. staff kitchen areas in shops, offices and other working environments;
27. by clients in hotels, motels and other residential type environments;
28. farm houses;
29. bed and breakfast type environments.
30. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
31. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
32. Accessible parts may become hot during use. Young children should be kept away.

To avoid the danger of fire.

1. The microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fire.
2. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency.
3. The AC power supply must be 230V\~, 50Hz, with a 20A distribution line fuse, or a 20A distribution circuit breaker.
4. A separate circuit serving only this appliance should be provided.
5. Do not place the oven in areas where heat is generated. For example, close to a conventional oven.
6. Do not install the oven in an area of high humidity or where moisture may collect.
7. Do not store or use the oven outdoors.
8. Clean the waveguide cover, the oven cavity, the turntable and turntable support after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.
9. Do not place flammable materials near the oven or ventilation openings.
10. Do not block the ventilation openings.
11. Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire.
12. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire.
13. To make popcorn, use only special microwave popcorn makers.
14. Do not store food or any other items inside the oven.

15. Check the settings after you start the oven to ensure the oven is operating as desired.

16. To avoid overheating and fire, special care must be taken when cooking or reheating foods with a high sugar or fat content, for example, sausage rolls, pies or Christmas pudding.

17. See the corresponding hints in the operation manual.

To avoid the possibility of injury

1. WARNING:

Do not operate the oven if it is damaged or malfunctioning. Check the following before use:

a) The door; make sure the door closes properly and ensure it is not misaligned or warped.
b) The hinges and safety door latches; check to make sure they are not broken or loose.
c) The door seals and sealing surfaces; ensure that they have not been damaged.
d) Inside the oven cavity or on the door; make sure there are no dents.
e) The power supply cord and plug; ensure that they are not damaged.

1. Do not operate the oven with the door open or alter the door safety latches in any way.

2. Do not operate the oven if there is an object between the door seals and sealing surfaces.

3. Do not allow grease or dirt to build up on the door seals and adjacent parts. Clean the oven at regular intervals and remove any food deposits. Follow the instructions for "Care and Cleaning" on page GB-26.

4. Individuals with PACÉMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

To avoid the possibility of electric shock

1. Under no circumstances should you remove the outer cabinet.
2. Never spill or insert any objects into the door lock

openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately, and call an authorised SHARP service agent.

1. Do not immerse the power supply cord or plug in water or any other liquid.
2. Do not let the power supply cord hang over the edge of a table or work surface.
3. Keep the power supply cord away from heated surfaces, including the rear of the oven.
4. Do not attempt to replace the oven lamp yourself or allow anyone who is not an electrician authorised by SHARP to do so. If the oven lamp fails, please consult your dealer or an authorised SHARP service agent.

To avoid the possibility of explosion and sudden boiling:

1. Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off.
2. Take care when microwaving liquids. Use a wide mouthed container to allow bubbles to escape.

Never heat liquids in narrow necked containers such as baby bottles, as this may result in the contents erupting from the container when heated and cause burns.

To prevent sudden eruption of boiling liquid and possible scalding:

1. Do not use excessive amount of time.
2. Stir liquid prior to heating/reheating.
3. It is advisable to insert a glass rod or similar utensil (not metal) into the liquid whilst reheating.

4. Let liquid stand for at least 20 seconds in the oven at the end of cooking time to prevent delayed eruptive boiling.

5. Pierce the skin of such foods as potatoes, sausages and

fruit before cooking, or they may explode.

To avoid the possibility of burns

1. Use pot holders or oven gloves when removing food from the oven to prevent burns.
2. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns and eruption of boiling.
3. To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly. Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature.
4. Always stand back from the oven door when opening it to avoid burns from escaping steam and heat.
5. Slice stuffed baked foods after heating to release steam and avoid burns.

To avoid misuse by children

1. Do not lean or swing on the oven door.
2. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g. self-heating materials) designed to make food crisp, as they may be extra hot.

Other warnings

1. Never modify the oven in any way.
2. Do not move the oven while it is in operation.
3. This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

To promote trouble free use of your oven and avoid damage

1. Never operate the oven when it is empty except where recommended in the operation manual. Doing so may

damage the oven.

1. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable and turntable support due to heat stress. The preheating time specified in the dish's instructions must not be exceeded.
2. Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Use only the turntable and the turntable support designed for this oven. Do not operate the oven without the turntable.
3. Do not place anything on the outer cabinet during operation.

NOTE:

If you are unsure how to connect your oven, please consult an authorised, qualified electrician. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

BUILT-IN KIT

No built-in kit is available for this oven.

This oven is designed to be used on a countertop only.

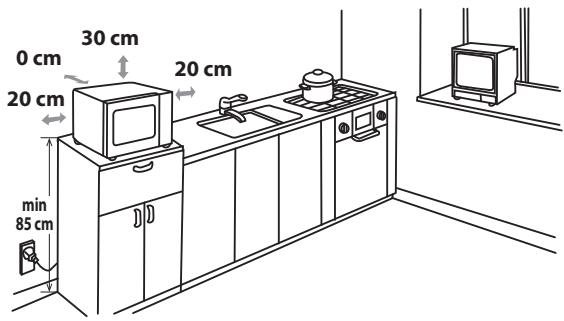

1. Remove all packing materials from the inside of the oven cavity and remove any protective film found on the microwave oven cabinet surface. Check the oven carefully for any signs of damage.
2. Place the oven on a secure, level surface, strong enough to take the oven weight, plus the heaviest item likely to be cooked in the oven. Do not place the oven in a cabinet.
3. Select a level surface that provides enough open space for the intake and/or outlet vents. The rear surface of appliance shall be placed against a wall.
4. A minimum space of 20cm is required between the oven and any adjacent walls.
5. Leave a minimum space of 30cm above the oven.
6. Do not remove the feet from the bottom of the oven.
7. Blocking the intake and/or outlet openings can damage the oven.
8. Place the oven as far away from radios and TV as possible. Operation of the microwave oven may cause interference to your radio or TV reception.

0 cm 30 cm 20 cm 20 cm min 85 cm

1. The oven door may become hot during cooking. Place or mount the oven so that the bottom of the oven is 85cm or more above the floor. Keep children away from the door to prevent them burning themselves.

2. Securely connect the plug of the oven to a standard earthed (grounded) household electrical outlet.

WARNING: Do not place the oven where heat, moisture or high humidity are generated, (for example, near or above a conventional oven) or near combustible materials (for example, curtains).

Do not block or obstruct air vent openings.

Do not place objects on top of the oven.

ELECTRICAL CONNECTION

• Do not allow water to come into contact with the power supply cord or plug.
• Insert the plug properly into the socket.
• Do not connect other appliances to the same socket using an adaptor plug.
• If the power supply cord is damaged, it must be replaced by a Sharp approved service facility or a similarly qualified person to avoid a hazard.
• When removing the plug from the socket always grip the plug, never the cord as this may damage the power supply cord and the connections inside the plug.
• If the plug fitted to your oven is a rewireable type and in the event of the socket outlet in your home not being compatible with the plug supplied, remove the plug properly (do not cut off).
• If the plug fitted to your oven is a non-rewirable type and in the event of the socket outlet in your home not being compatible with the plug supplied, cut-off the mains plug.

Plug in the oven. The oven display will display: "0:00", an audible signal will sound once.

This model has a clock function and the oven uses less than 1.0 W in stand by mode. To set the clock, see below.

SETTING THE CLOCK

Your oven has a 24 hour clock feature.

1. Press the CLOCK/KITCHEN TIMER button once. The hour figure will flash and the clock indicator will illuminate.
2. Rotate the ENTRY dial until the correct hour is displayed, the input time should be within 0-23.
3. Press the CLOCK/KITCHEN TIMER button, the minute figure will flash.
4. Set the minutes. Rotate the ENTRY dial until the correct minutes are displayed, the input time should be within 0-59.
5. Press the CLOCK/KITCHEN TIMER button to start the clock. The icon ":" of the digital time will be flashing on the display and the clock indicator will disappear.

NOTES:

• If the clock is set, when cooking is complete, the display will show the correct time of day. If the clock has not been set, the display will show "0:00".
• To check the time of day during a cooking process, press CLOCK/KITCHEN TIMER button and the LED will display the time of day for 2-3 seconds. This does not affect the cooking process.
• If in the process of setting the clock, the STOP/CLEAR button is pressed, the oven will revert back to the former setting.
• If the electrical power supply to your microwave oven is interrupted, the display will intermittently show "0:00" after the power is reinstated. If this occurs during cooking, the programme will be erased. As will the time of day.

KITCHEN TIMER FUNCTION

You can use the kitchen timer function in instances where microwave cooking is not involved for example to time boiled eggs cooked on conventional hob or to monitor the standing time for cooked/defrosted food.

Example:

To set the timer for 5 minutes.

1. Press CLOCK/ KITCHEN TIMER button twice.

2. Rotate ENTRY dial to select time.

3. Press the START/+30sec/ENTER key to start the timer.

4. Check the display. (The display will count down through the programmed time.)

When the timer arrives at 0:00, an audible signal will sound 5 times and the LED will then display the time of day.

You can enter any time up to 95 minutes. To cancel the KITCHEN TIMER whilst counting down, simply press the STOP/CLEAR button.

NOTE: The KITCHEN TIMER function cannot be used whilst cooking.

Power Level	Press theMICRO. POWERbutton	Display(Percentage)
HIGH	x1	P100(100%)
MEDIUM HIGH	x2	P80(80%)
MEDIUM	x3	P50(50%)
MEDIUM LOW (DEFROST)	x4	P30(30%)
LOW	x5	P10(10%)

• Your oven has 5 power levels, as shown.
• To change the power level for cooking, press the MICRO.POWER button or rotate the ENTRY dial key until the display indicates the desired level. Press the START/+30sec./ENTER button to confirm, enter the cooking time and then press the START/+30sec./ENTER button to start the oven.
• To check the power level during cooking, press the MICRO.POWER button, the current power level will be displayed for 2-3 seconds. The oven continues to count down although the display will show the power level.

Generally the following recommendations apply:

P100 - (HIGH output = 1000W) used for fast cooking or reheating e.g. for casseroles, hot beverages, vegetables etc.

P80 - (MEDIUM HIGH output = 800W) used for longer cooking of dense foods such as roast joints, meat loaf and plated meals, also for sensitive dishes such as sponge cakes. At this reduced setting, the food will cook evenly without over cooking at the sides.

P50 - (MEDIUM output = 500W) for dense foods which require a long cooking time when cooked conventionally, e.g. beef casserole, it is advisable to use this power setting to ensure the meat will be tender.

P30 - (MEDIUM LOW output = 300W) Defrost setting to defrost, select this power setting, to ensure that the dish defrosts evenly. This setting is also ideal for simmering rice, pasta, dumplings and cooking egg custard.
P10 - (LOW output = 100W) for gentle defrosting, e.g. cream gateaux or pastry.

MANUAL OPERATION

Opening the door:

To open the oven door, pull the door opening handle.

Starting the oven:

Depending on the food type and the required end results, either place food into a suitable container, then place the container onto the turntable, alternatively place foods directly onto the turntable. Close the door and press the START/+30sec./ENTER button after selecting the desired cooking mode.

Once the cooking programme has been set and the START/+30sec./ENTER button is not pressed in 5 minutes, the setting will be cancelled.

The START/+30sec./ENTER button must be pressed to continue cooking if the door is opened during cooking. An audible signal will once when pressing the button, if the button is inefficiently pressed there will be no sound detected.

Use the STOP/CLEAR key to:

1. Erase a mistake during programming.
2. Stop the oven temporarily during cooking.
3. Cancel a programme during cooking, press the STOP/CLEAR key twice.
4. To set and to cancel the child lock (refer to page GB-21).

Your oven can be programmed for up to 95 minutes (95:00).

The input unit of cooking (defrosting) time varies from 5 seconds to 95 minutes. It depends on the total length of the cooking (defrosting) time as shown on the table.

Cooking Time

0-1 minute

1-5 minutes

5-10 minutes

10-30 minutes

30-95 minutes

Increasing Unit

5 seconds

10 seconds

30 seconds

1 minute

5 minutes

MANUAL COOKING/MANUAL DEFROSTING

• Enter the cooking time and use the microwave power levels P100 to P10 to cook or defrost (see example below).
• Stir or turn the food, where possible, 2 - 3 times during cooking.
  • After cooking, cover the food and leave to stand, where recommended.
  • After defrosting, cover the food in foil and leave to stand until thoroughly defrosted.

Example:

To cook for 2 minutes and 30 seconds on 80% microwave power.

1. Input the power level by pressing the MICRO. POWER button twice for P80 or turn the ENTRY dial to select the microwave power to P80.

MICRO.POWER x2 or

1. Press the START/+30sec./ENTER button to confirm the selected power level.

At the same time the microwave indicator will illuminate on the display.

1. Enter desired cooking time by rotating the ENTRY dial.

1. Press the START/+30sec./ENTER button to start the timer. (The display will count down through the programmed cooking time.)

NOTE:

• When the oven starts, the oven lamp will light and the turntable will rotate clockwise or anticlockwise. If the door is opened during cooking/defrosting to stir or turn over food, the cooking time on the display stops automatically. The cooking/defrosting time starts to count down again when the door is closed and the START/+30sec./ENTER button is pressed.
• When cooking/defrosting is complete, the time of day will reappear on the display, if the clock has been set.
• If you wish to know the power level during cooking, press the MICRO.POWER button. The current power level will be displayed for 2-3 seconds.

IIMPORTANT:

- Close the door after cooking/defrosting. Please note that the light will remain on for 10 minutes when the door is open, this is for safety reason to remind you to close the door.

GRILL COOKING/COMBI COOKING

1. GRILL ONLY COOKING

The grill at the top of the oven cavity has one power setting only. The grill is assisted by the turntable which rotates simultaneously to ensure even browning. Use the rack for grilling small items of food such as bacon, gammon and teacakes. Food can be placed either directly onto the rack, or into a flan dish/heat-resistant plate on the rack.

Example:

To grill for 20 minutes, using GRILL/COMBI. button.

1. Press GRILL/COMBI. button once. G-1 and the grill indicator will illuminate on the display.

GRILL/COMBI.x1

1. Press the START/+30sec./ENTER button to confirm the cooking mode.

1. Use the ENTRY dial to input the grilling time (20 minutes).

1. Press the START/+30sec./ENTER button once more to start the grilling. (The display will count down through the programmed grilling time.)

Note:

Halfway through the grilling time an audible signal will sound twice this will remind you to turn the food over to ensure even browning. Please be aware that the oven will not stop automatically during grilling. Turnover the food halfway through, close the door and then press the START/+30sec./ENTER button to continue grilling.

2. GRILL/COMBI. COOKING

The GRILL/COMBI. COOKING feature enables a combination microwave power with grill or/and convection as well as the combination of grill and convection. GRILL/COMBI. means to cook by microwave power, grill power and/or convection power alternately. The combination cooking reduces cooking time and provides a crisp, brown finish giving you the convenience of fast cooking with a traditional appetising appearance.

There are 4 choices for the combination as shown in the chart below:

Press GRILL/COMBI. button	Display	Microwave	Grill	Convection
twice	C-1	•		•
3 times	C-2	•	•
4 times	C-3		•	•
5 times	C-4	•	•	•

• = available

Example for Microwave and Convection:

To cook for 30 minutes using the combination of microwave and convection (C-1).

1. Press GRILL/COMBI. button once. G-1 will illuminate on the display.

GRILL/COMBI. x1

1. Select C-1 by pressing the GRILL/COMBI button once more or turn the ENTRY dial until the display shows C-1. At the same time microwave and convection indicator will illuminate.

1. Press the START/ +30sec./ ENTER button to confirm the cooking mode.

1. Use the ENTRY dial to input the cooking time (30 minutes).

2. Use the ENTRY dial to input the cooking time (30 minutes).

3. Press the START/+30sec./ENTER button to start the cooking. (The display will count down through the programmed cooking time.)

NOTES for GRILL and COMBI COOKING:

• It is not necessary to preheat the grill.
• When browning food place it either on the low or high rack or in a deep container on the trunctable.
• You may detect smoke or a burning smell when using the grill for the first time. This is normal and not a sign that the oven has malfunctioned. To avoid this problem, when first using the oven, heat the oven without food for 20 minutes on grill and then on convection at 240^ .

IMPORTANT: During operation, to allow smoke or smells to disperse open a window.

WARNING:

The door, outer cabinet, oven cavity and accessories will become very hot during operation. To prevent burns, always use thick oven gloves.

CONVECTION COOKING

Your oven can be used as a conventional oven using the convection facility, there are 10 pre-set oven temperatures. Preheating is recommended for better results. The temperature can be chosen from 150^ C to 240^ C in 10^ C increments.

Press CONVECTION button	1	2	3	4	5	6	7	8	9	10
Oven Temp (°C)	150	160	170	180	190	200	210	220	230	240

Example 1: To cook with preheating

To preheat to 200^ C and cook for 25 minutes at 200^ C.

1. Press the CONVECTION button once and the temperature indicator will flash on the display and the convection indicator will illuminate.

CONVECTION x1

1. Press the START/+30sec./ENTER button once more to start preheating. When the preheated temperature has been reached an audible signal will sound twice to remind you to put the food into the oven. The current temperature will flash in the display.

1. Enter the desired preheat temperature by pressing the CONVECTION button (five more times) or turn the ENTRY dial until the display shows 200.

1. Open the door, place the food inside the oven and close the door. Use the ENTRY dial to input the cooking time (25 minutes).

1. Press the START/+30sec./ENTER button to confirm the temperature.

1. Press the START/+30sec./ENTER button to start cooking. The display will count down through the programmed cooking time. The convection indicator will flash.

Example 2: To cook without preheating

To cook at 230^ C for 20 minutes.

1. Open the door, place the food inside the oven and close the door. Press the CONVECTION button once and the temperature indicator will flash on the display and the convection indicator will illuminate.

CONVECTION x1

1. Enter the desired temperature by pressing the CONVECTION button (eight more times) or turn the ENTRY dial until the display shows 230.

1. Press the START/ +30sec./ ENTER button to confirm the temperature.

1. Use the ENTRY dial to input the cooking time (20 minutes).

2. Use the ENTRY dial to input the cooking time (20 minutes).

3. Press the START/+30sec./ENTER button to start cooking.

Notes :

1. The cooking time cannot be input until the preheating temperature arrives. When the oven arrives at desired temperature, the door must be opened to input the cooking time.
2. The convection heater will stop automatically; if there is no input of the cooking time within 5 minutes. An audible signal will sound five times to remind you and the LED will display the time of day, if the clock has been set. If the clock has not been set, the display will only show "0:00".
3. When the oven is preheating, the turntable should remain in the oven. During preheating and convection cooking, you will hear the cooling fan cycling on and off. This is completely normal and does not affect the cooking.
4. Food manufacturers instructions are only a guideline, so cooking times may need to be adjusted
5. After cooking is complete the cooling fan will continue working for a short time to lower the temperature of the electrical and mechanical parts.
6. You may detect smoke or a burning smell when using convection for the first time. This is normal and is not a sign that the oven has malfunctioned. To avoid this problem, when first using the oven, heat the oven without food for 20 minutes on grill and then convection at 240^ C.

IMPORTANT: During operation, to allow smoke or smells to disperse open a window.

WARNING:

The door, outer cabinet, oven cavity and accessories will become very hot during operation. To prevent burns, always use thick oven gloves.

OTHER CONVENIENT FUNCTIONS

1. SEQUENCE COOKING

This function quickly defrosts food while enabling you to choose a suitable defrost period, depending on the food type. Follow the example below for details on how to operate this function. The time range is 0:05 – 95:00. This function allows you to cook using up to 2 different stages which can include manual cooking time or time defrost as well as weight defrost function. Once programmed there is no need to interfere with the cooking operation as the oven will automatically move onto the next stage. An audible signal will sound once after the first stage. If one chosen stage is defrosting, this should be the first stage of sequence cooking.

Note: AUTO MENU cannot be set as one of the multiple sequences.

Example: If you want to defrost the food for 5 minutes, then to cook with P80 microwave power for 7 minutes. The steps are as follows:

• 1. Press the WEIGHT/TIME DEFROST button twice, in the LED display d-2 will appear.
• 1. Enter the defrosting time by rotating the ENTRY dial until the display shows "5:00" minutes.
• 1. Press the MICRO.POWER button once.
• 1. Input the power level by pressing the MICRO.POWER button once more for P80 or turn the ENTRY dial to select the microwave power to P80.
• 1. Press the START/+30sec./ENTER button to confirm the setting.
• 1. Enter the cooking time by rotating the ENTRY dial until the display shows "7:00" minutes.
• 1. Press the START/+30sec./ENTER button to start cooking.

2. +30sec FUNCTION (Direct start)

The START/+30sec./ENTER button allows you to operate the following function:

a. Direct start

You can directly start cooking on P100 microwave power level for 30 seconds by pressing the START/+30sec./ENTER button. The cooking process will start immediately and each time the button is pressed this will increase the cooking time by 30 seconds.

b. Extend the cooking time

You can extend the cooking time during manual, grill, convection, combi cooking and time defrost in multiples of 30 seconds if the START/+30sec./ENTER button is pressed while the oven is in operation. During weight defrost and auto menu function and sequence cooking, the cooking time cannot be increased by pressing START/+30sec./ENTER button.

NOTE: The cooking time may be extended to a maximum of 95 minutes.

3. CHILD LOCK:

Use to prevent unsupervised operation of the oven by children.

a. To set the CHILD LOCK:

In the stand-by mode, press STOP/CLEAR button for 3 seconds. There will be a long beep denoting entering the children-lock state and the ✉○ indicator will illuminate together with the current clock time. If the clock has not been the display will show "0:00".

b. To cancel the CHILD LOCK:

In the stand-by mode, press STOP/CLEAR button for 3 seconds. There will be a long "beep" denoting that the lock is released.

WEIGHT DEFROST AND TIME DEFROST FUNCTION

1. WEIGHT DEFROST

The microwave oven is pre-programmed with a timer and power levels so that foods such as pork, beef and chicken can be easily defrosted. The weight range for this is from 100g – 2000g in 100g steps. Follow the example below for guidance on how to operate these functions.

Example: To defrost a meat joint weighing 1.2kg using WEIGHT DEFROST.

Place the meat in a flan dish or alternatively on a microwave oven defrost rack on the turntable.

1. Select the menu required by pressing the WEIGHT/TIME DEFROST button once. The display shows:

1. Enter the desired weight by rotating the ENTRY dial until the display shows:

1. Press the START/+30sec./ENTER button to start defrosting. The microwave and defrost indicators will illuminate and "g" indicator will disappear. (The display will count down through defrosting time).

Frozen foods are defrosted from -18°C.

Notes for WEIGHT DEFROST:

• Before freezing foods, ensure food is fresh and of good quality.
• Place food with a weight less than 200g at the edge of the turntable try to avoid placing it in the centre of the turntable.
• Food weight should be rounded up to the nearest 100g, for example, 650g to 700g.
• If necessary, shield small areas of meat or poultry with flat pieces of aluminium foil. This will prevent the areas from becoming warm during defrosting. Ensure the foil does not touch the oven walls.

2. TIME DEFROST

This function quickly defrosts food while enabling you to choose a suitable defrost period, depending on the food type. Follow the example below for details on how to operate this function. The time range is 0:05 – 95:00.

Example: To defrost food for 10 minutes.

1. Select the menu required by pressing the WEIGHT/TIME DEFROST button twice.

The display shows:

1. Enter the desired cooking time by rotating the ENTRY dial until the display shows:

1. Press the START/+30sec./ENTER button to start defrosting. The microwave and defrost indicators will illuminate.

Frozen foods are defrosted from -18°C.

Notes for TIME DEFROST:

• After cooking an audible signal will sound five times and the LED will then display the time of day, if the clock has been set. If the clock has not been set, the display will only show "0:00" when cooking is complete.
• The preset microwave power level is P30 and cannot be changed.

AUTO MENU FUNCTION

The AUTO MENU programmes automatically work out the correct cooking mode and cooking of the foods (details on page GB-23). Follow the example below for guidance on how to operate this function.

Example: To cook 350g carrots by using the AUTO MENU function for fresh vegetables (A5).

1. Rotate the ENTRY dial clockwise and select the desired auto menu.

h A5 Auto

1. Press the START/+30sec./ENTER button to confirm the setting.

1. Enter the desired weight by rotating the ENTRY dial until the display shows:

1. Press the START/+30sec./ENTER button to start cooking. (The display will count down through defrosting time)

NOTES:

• The weight or quantity of the food can be input by rotating the ENTRY dial until the desired weight/quantity is displayed.
  Enter the weight of the food only. Do not include the weight of the container.
• For food weighing more or less than the weights/quantities given in the AUTO MENU chart on page GB-23 cook by manual operation.

Auto Menu	Display	Cooking method	Weight/portion/ utensils	Procedure
Frozen pizza (oven ready pizza → preb-aked)	A1	C-4	200g, 300g, 400g (initial temp. -18°C) Low Rack	Remove packaging and place directly on the low rack. No standing time is required.
Jacket Potato	A2	100% Micro	1, 2, 3 potatoes (pieces)1 potato = approx. 230g (initial temp. 20°C)	Please use potatoes with a similar size of approx. 230g. Pierce each potato in several places and place towards the edge of the turntable. Turn over and re-arrange halfway through cooking. Stand for 3 - 5 minutes before serving.
Meat (boneless meat e.g.)	A3	C-2	150g, 300g, 450g, 600g (initial temp 5°C)	Cut the meat into small strips and place it in a flan dish. Use vented microwave cling film or a suitable.
Fish (Only fish fillet is recommended for this pro-gramme)	A4	80% Micro	150g, 250g, 350g, 450g, 650g (initial temp. temp 20°C)Flan dish and vented microwave cling film or suitable lid	Place in a single layer in a flan dish. Use vented microwave cling film or a suitable lid to cover.
Fresh vegetables e.g. cauliflower, carrots, broc-coli, fennel, leek, pepper, cour-gettes etc.	A5	100% Micro	150g, 350g, 500g (initial temp 20°C) Bowl and lid	Cut, chop or slice fresh vegetables into evenly sized pieces. Place the fresh vegetables in a suitable con-tainer. Place on the turntable. Add the required amount of water (1 tbsp per 100 g). Cover with a lid. Sir after cook-ing and let the food stand for approx. 2 minutes.
Beverage	A6	100% Micro	1 (cup) 240ml2 (cups) 480ml3 (cups) 720ml (initial temp. 5°C)	Place the cup(s) on the turntable and stir after heating.
Pasta (dried pasta e.g. Fussili, Farfalle, Rigatoni)	A7	80% Micro	Pasta Water 50g 450 ml100g 800 ml150g 1200 ml (initial temp. for the water: 20°C) large, wide bowl	Place pasta in an appropriate sized bowl and add the water. Do not cover. Place the bowl in the centre of the turntable.After cooking, stir well and stand for 2 minutes before draining.
Popcorn	A8	100% Micro	0.05kg, 0.1kg	Place the popcorn bag directly on the turntable(Please see the note below: 'Important Information About Microwave Pop-corn Feature')
Sponge cake* Ingredients: 4 eggs100g flour110g sugar, 10g corn starch60g milk60g vegetable oil	A9	Preheat at 180°C	475g (initial temp. 20°C) Spring form tin (about 26 cm diameter) Low rack	The oven will preheat to 180°C. When the temperature is reached, open the door and place the cake on the low rack inside. Press the START/+30sec./ ENTER button to start the baking.
Roast chicken	A10	C-4	500g, 750g, 1000g, 1200g (initial temp. 20°C) Low Rack	If desired, season with salt, pepper and paprika. Pierce the skin of the chicken a few times. Place the chicken, breast side up, onto the low rack.

* Preparation of the sponge cake (A9):

1. Separate the eggs.
2. Cream the egg yolks, milk and vegetable oil with a hand blender (low speed) until light and fluffy.
3. Add the flour and mix well.
4. In a separate dish, beat the egg whites, sugar and corn starch with a hand blender (high speed) until stiff. Carefully fold into the cake mixture.
5. Spoon the mixture into a greased spring form tin and smooth the surface.
6. After preheating place the spring form tin on the rack.

Notes:

• The final temperature will vary according to the initial food temperature. Check food is piping hot after cooking. If necessary, you can extend the cooking manually.
• The results when using auto cook depend on variances such as the shape and size of the food and your personal preference as regards cooking results. If you are not satisfied with the programmed result, please adjust the cooking time to match your requirement.

Important Information about Microwave Popcorn Feature:

1. When selecting 0.1 kg of popcorn, it is suggested that you fold down a triangle on each corner of the bag before cooking. Refer to the picture at right.

2. If/When the popcorn bag expands and no longer rotates properly, please press STOP/CLEAR key once and open the oven door and adjust the bag position to ensure even cooking.

BOPCON

POPOCON

To cook/defrost food in a microwave oven, the microwave energy must be able to pass through the container to penetrate the food. Therefore it is important to choose suitable cookware.

Round/oval dishes are preferable to square/oblong ones, as the food in the corners tends to overcook.

A variety of cookware can be used as listed below.

Cookware	Microwave Safe	Grill	Convection	Mix Cook	Comments
Aluminium foil Foil containers	√ / ✗	√	√	√ / ✗	Small pieces of aluminium foil can be used to shield food from overheating. Keep foil at least 2cm from the oven walls, as arcing may occur. Foil containers are not recommended unless specified by the manufacturer, e.g. Microfoil®, follow instructions carefully.
Browning dishes	√	✗	✗	✗	Always follow the manufacturers instructions. Do not exceed heating times given. Be very careful as these dishes become very hot.
China and ceramics	√ / ✗	✗	√	√Mix Conv. only	Porcelain, pottery, glazed earthenware and bone china are usually suitable, except for those with metallic decoration.
Glassware e.g. Pyrex®	√	√	√	√	Care should be taken if using fine glassware as it can break or crack if heated suddenly.
Metal	✗	√	√	✗	It is not recommended to use metal cookware as it will arc, which can lead to fire.
Plastic/Poly-styrene e.g fast food containers	√	✗	√	√ / ✗	Care must be taken as some containers warp, melt or discolour at high temperatures.
Cling film	√	✗	✗	✗	It should not touch the food and must be pierced to let the steam escape.
Freezer/Roasting bags	√	✗	√ / ✗	✗	Must be pierced to let steam escape. Ensure bags are suitable for microwave use. Do not use plastic or metal ties, as they may melt or catch fire due to the metal'arcing'.
Paper - plates, cups and kitchen paper	√	✗	✗	✗	Only use for warming or to absorb moisture. Care must be taken as overheating may cause fire.
Straw and wooden containers	√	✗	✗	✗	Always monitor the oven when using these materials as overheating may cause fire.
Recycled paper and newspaper	✗	✗	✗	✗	May contain extracts of metal which will cause 'arcing' and may lead to fire.
Rack	√	√	√	√	The metal racks supplied have been specially designed for all cooking modes and will not damage the oven.

WARNING:

When heating food in plastic or paper containers, monitor the oven due to the possibility of ignition.

CAUTION: DO NOT USE COMMERCIAL OVEN CLEANERS, STEAM CLEANERS, ABRASIVE, HARSH CLEANERS, ANY THAT CONTAIN SODIUM HYDROXIDE OR SCOURING PADS ON ANY PART OF YOUR MICROWAVE OVEN.

Before cleaning, make sure the oven cavity, door, oven cabinet and accessories are completely cool. CLEAN THE OVEN AT REGULAR INTERVALS AND REMOVE ANY FOOD DEPOSITS – Keep the oven clean, or the oven could lead to a deterioration of the surface. This could adversely affect the life of the appliance and possibly result in a hazardous situation.

Oven exterior

The outside of your oven can be cleaned easily with mild soap and water. Make sure the soap is wiped off with a moist cloth, and dry the exterior with a soft towel.

Oven controls

Open the door before cleaning to de-activate the oven controls. Care should be taken when cleaning the oven control. Using a cloth dampened with water only, gently wipe the panel until it becomes clean. Avoid using excessive amounts of water. Do not use any sort of chemical or abrasive cleaner.

Oven Interior

1. For cleaning, wipe away any splatters or spills with a soft damp cloth or sponge after each use while the oven is still warm. For heavier spills, use a mild soap and wipe several times with a damp cloth until all residues are removed. Built-up splashes may overheat and begin to smoke or catch fire, and cause arcing. Do not remove the waveguide cover.

2. Make sure that the mild soap or water does not penetrate the small vents in the walls which may cause damage to the oven.

3. Do not use spray type cleaners on the oven interior.

4. Heat up your oven regularly by using the convection and grill. Remaining food or fat splashed can cause smoke or bad smell.

5. Food will release steam during cooking and cause condensation inside the oven and door. It is important to wipe the oven dry. A build up of condensation will eventually lead to rust forming on the oven interior.

SPECIAL NOTE for WAVEGUIDE COVER: Keep the waveguide cover clean at all times. The waveguide cover is constructed from a fragile material and should be cleaned with care (follow the cleaning instructions above).

Excessive soaking may cause disintegration of the waveguide cover. The waveguide cover is a consumable part and without regular cleaning, will need to be replaced.

Accessories

The accessories like turntable, turntable support, rack and crisp plate should be washed in a mild washing up liquid solution and dried. They are dishwasher safe.

SPECIAL NOTE for TURNTABLE SUPPORT:

After cooking, always clean the turntable support, especially around the rollers. These must be free from food splashes and grease. Built-up splashes or grease may overheat and cause arcing, begin to smoke or catch fire.

Door

To remove all traces of dirt, regularly clean both sides of the door, the door seals and adjacent parts with a soft, damp cloth. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass oven door since they can scratch the surface, which may result in shattering of the glass.

NOTE: A steam cleaner should not be used.

Cleaning tip - For easier cleaning of your oven:

Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% for 10 - 12 minutes.

Wipe the oven clean using a soft, dry cloth.

IMPORTANT:

- If you cook food for more than the standard time (see chart below) using the same cooking mode, the oven's safety mechanisms automatically activate. The microwave power level will be reduced or the grill heating element will turn on and off.

Cooking Mode	Standard time
Microwave 100 P	30 minutes
Grill/ Convection/ Combi cooking mode	Intermittent operation, temperature and time controlled

KUNDEN-SERVICE • ONDERHOUDSADRESSEN • ADRESSES DES SAV • CENTRI DI ASSISTENZA • DIRECCIONES DE SERVICIO

Centralized hotline is 800.826.111

ESPANA - http://www.sharp.es

Stockey Park, Uxbridge, Middlesex

UB11 1EZ

United Kingdom

Gedruckt in China

Impreso en China

Imprimé en Chine

Stampato in Cina

Gedrukt in China

Tryckt i Kina

Trykt i Kina

Trykt i Kina

Painettu Kiinassa

Printed in China
