Product Type	Professional LCD color monitor
Brand	EIZO
Model	COLOREDGE CG276W-BK
Screen Size	27 inches (68.6 cm)
Native Resolution	2560 x 1440 (WQHD)
Panel Type	IPS, LED backlight
Viewing Angle	Horizontal 178°, Vertical 178° (CR≥10)
Color Gamut	99% Adobe RGB, 98% DCI-P3
Color Depth	10 bits (1.07 billion colors)
Input Connectors	DVI-I x 2, DisplayPort x 1
USB Hub	USB 2.0: 1 input, 2 outputs
Main Functions	ColorNavigator, Auto EcoView, 6 color modes (Custom, sRGB, EBU, REC709, SMPTE-C, DCI), built-in calibration, portrait/landscape display
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption (max)	Approx. 100 W (with USB)
Power Consumption (standby)	≤ 0.9 W
Dimensions (with stand)	Approx. 640 x 400-550 x 230 mm
Weight (with stand)	Approx. 11.5 kg
Ergonomic Adjustments	Tilt, swivel, height, rotation (portrait)
Care and Cleaning	Soft dry or slightly damp cloth; do not use solvents or abrasive cleaners
Security	Kensington lock, main power switch, TCO compliance
General Information	5-year warranty (depending on region), ColorNavigator software included

Frequently Asked Questions - COLOREDGE CG276W-BK EIZO

How to calibrate the EIZO CG276W-BK monitor?

Use the ColorNavigator software provided on the CD-ROM. Connect the monitor to the computer via the USB cable, then launch the software. Follow the instructions to calibrate brightness, color temperature, and gamma.

What color modes are available?

The available modes are: Custom, sRGB, EBU, REC709, SMPTE-C, DCI and up to 3 CAL (calibrated) modes. Each mode is optimized for a specific use (photography, video, printing, etc.).

How to clean the monitor screen?

Use a soft, dry cloth (microfiber). For stubborn stains, lightly dampen the cloth with water or use the provided ScreenCleaner. Never use alcohol, ammonia, or abrasive products.

What to do if the screen remains black after power-on?

Check that the power cable is plugged in, the main switch is ON, and the video cable is properly connected. If the indicator is orange, the monitor is in standby; press the power button or a key on the keyboard.

How to enable automatic power saving?

In the OSD menu, go to PowerManager and set Standby to On. The monitor will enter power saving mode when no signal is detected. You can also enable Auto EcoView to automatically adjust brightness according to ambient light.

Can I use the monitor in portrait position?

Yes, the monitor can rotate 90° to the right. Go to the Orientation menu to set the OSD display to portrait mode. Make sure your graphics card supports this orientation.

How to connect two computers to the same monitor?

Connect each computer to the DVI-I or DisplayPort connectors on the back. Use the S button on the front to switch between sources. In the Input Selection menu, choose Auto for automatic switching or Manual.

What does the 'No Signal' message on the screen mean?

This message indicates that no video signal is received. Check that the computer is on, the video cable is properly connected, and the input source is correct. Press the S button to change the input if necessary.

How to restore factory settings?

In the OSD menu, go to Tools then Factory Reset. Confirm with Execute. All settings (color, display, power) will return to default values.

Does the monitor have a warranty and where to find the serial number?

The standard EIZO warranty is 5 years (depending on the country). The serial number is on the label on the back of the monitor. Keep your proof of purchase for claims.

USER MANUAL COLOREDGE CG276W-BK EIZO

Setting Resolution 13

Windows 7. 13
Windows Vista 13
Windows XP 13
Mac OS X. 13

FCC Declaration of Conformity 49

2 Réglage/Configuration

DVI DMPM (DVI Digital Monitor Power Management)

HDCP (High-bandwidth Digital Contents Protection)

TMDS (Transition Minimized Differential Signaling)

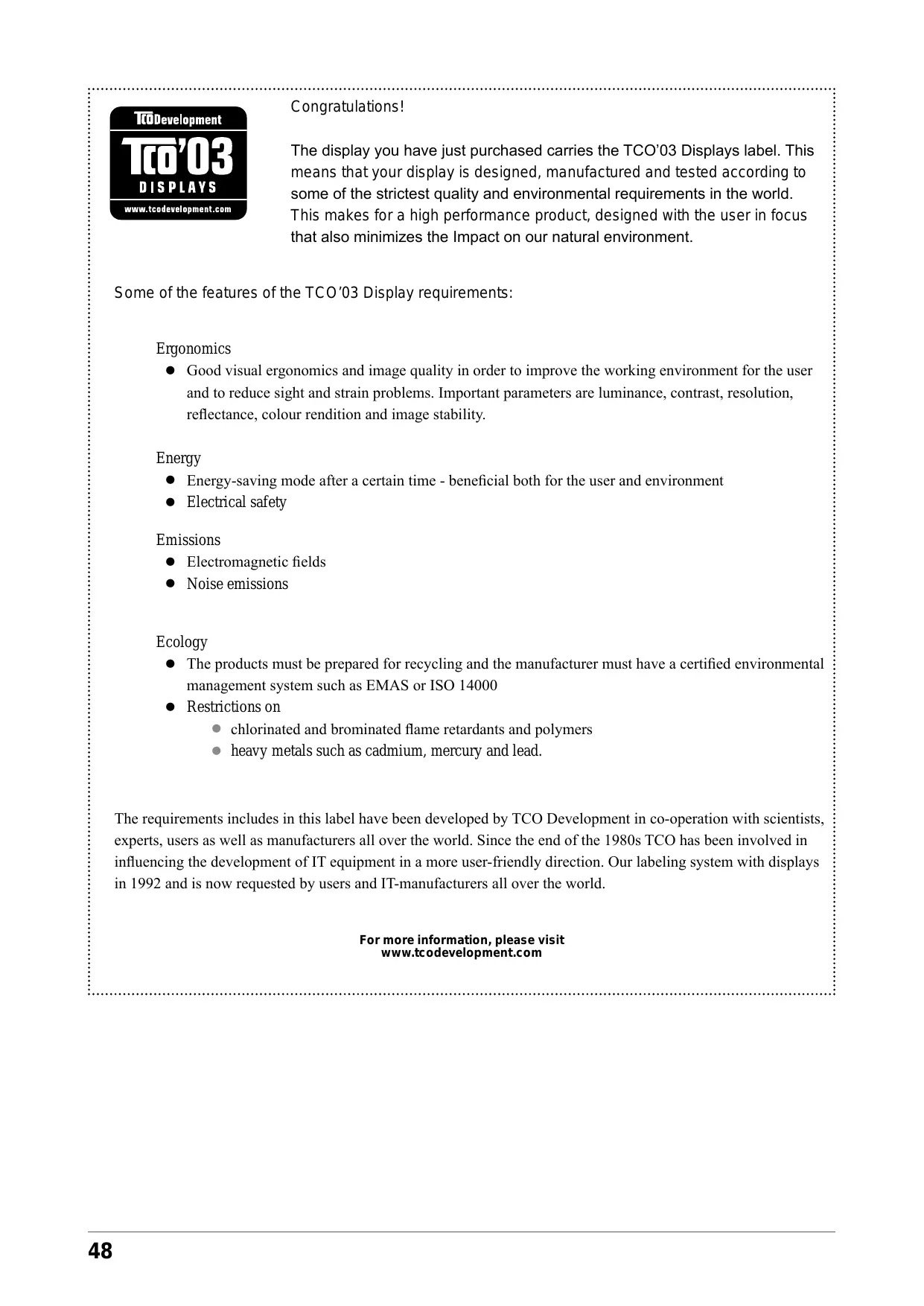

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The products must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14000

• Restrictions on

• chlorinated and brominated flame retardants and polymers

• heavy metals such as cadmium, mercury and lead.

The requirements include in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

For U.S.A., Canada, etc. (rated 100-120 Vac) Only
FCC Declaration of Conformity
We, the Responsible Party	EIZO NANAO TECHNOLOGIES INC.
	5710 Warland Drive, Cypress, CA 90630
	Phone: [phone]
declare that the product	Trade name: EIZO
	Model: ColorEdge CG223W / CG243W
is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note
Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.
- AC Cord
- Shielded Signal Cable (Enclosed)
Canadian Notice
This Class B digital apparatus complies with Canadian ICES-003.
Cet appeil numérique de le classe B est conforme à la norme NMB-003 du Canada.
