COLOREDGE CG243W - Professional Monitor EIZO - Free user manual and instructions

Product Type	Professional LCD color monitor
Brand	EIZO
Model	COLOREDGE CG243W
Screen Size	24.1 inches (610 mm)
Native Resolution	1920 x 1200 pixels
Panel Type	Color TFT LCD with hardened anti-glare coating (hardness 3H)
Viewing Angle	178° horizontal and vertical (CR ≥ 10)
Pixel Pitch	0.270 mm
Response Time	13 ms (typical)
Recommended Brightness	120 cd/m²
Displayable Colors	1.07374 billion (10 bits via DisplayPort)
Input Connectors	2 x DVI-I (HDCP), 1 x DisplayPort (HDCP)
USB Ports	1 upstream (Type B), 2 downstream (Type A) - USB 2.0
Power Supply	100-240 VAC, 50/60 Hz
Power Consumption (max)	95 W (with USB), 85 W (without USB)
Power Consumption (standby)	0.9 W
Power Consumption (off)	0 W (main switch)
Dimensions (with stand)	566 x 456-538 x 230 mm
Dimensions (without stand)	566 x 367 x 85 mm
Weight (with stand)	10.7 kg
Weight (without stand)	7.1 kg
Ergonomic Adjustments	Tilt (40° up, 0° down), swivel (35° left/right), height (82 mm), portrait rotation (90° right)
Main Functions	Color modes (Custom, sRGB, EBU, Rec.709, SMPTE-C, DCI), ColorNavigator calibration, Auto EcoView, Overdrive, key lock, portrait/landscape display
Maintenance and Cleaning	Use a soft cloth or the supplied ScreenCleaner. Do not use solvents (alcohol, thinner).
Security	Kensington lock slot
Spare Parts and Repairability	VESA-compatible arm (100x100 mm) available as an option. The stand can be removed for arm mounting.
General Information	Monitor designed for graphics applications and image processing with accurate color reproduction.

Frequently Asked Questions - COLOREDGE CG243W EIZO

How to adjust the monitor brightness?

You can adjust brightness via the Adjustment menu by selecting Color then Brightness. Use the ▲/▼ keys to adjust the value from 0 to 100%. It is recommended to wait 30 minutes after power-on to stabilize performance. You can also use the direct + and - keys on the front of the monitor.

How to use ColorNavigator software?

The ColorNavigator software is on the supplied CD-ROM. Install it on your computer and connect the monitor via the supplied USB cable (USB upstream port). The software allows you to calibrate the monitor settings and generate ICC (Windows) or ColorSync (Mac) profiles. Refer to the software manual for detailed procedures.

What to do if the screen displays no image?

First check that the power cord is plugged in and the main switch is on. If the power indicator is orange, the monitor is in standby: press a keyboard key or move the mouse. If the indicator is blue but no image, increase brightness or contrast in the menu. Also try changing the input signal with the S key. Ensure the computer is on and the signal cable is properly connected.

How to switch to portrait (vertical) mode?

To use the monitor in portrait orientation, rotate the screen 90° to the right. Then set the menu orientation via Adjustment > OSD Configuration > Orientation and select Portrait. Your graphics card must also support portrait display – modify the display settings in the operating system.

How to clean the screen without damaging it?

Use a soft cloth, such as a cotton cloth or lens cleaning cloth. For stubborn stains, lightly dampen the cloth or use the supplied ScreenCleaner. Never use solvents (alcohol, benzene, thinner) or abrasive products that could damage the anti-glare coating.

What color modes are available?

The monitor offers several preset modes: Custom, sRGB, EBU (European standard), Rec.709 (ITU-R standard), SMPTE-C, DCI (digital cinema), and up to three CAL modes for calibration settings. Change mode using the M key on the front of the monitor.

How to lock the keys to prevent changes?

Turn off the monitor with the power key, then turn it on again while holding the M key for 2 seconds. An optional menu appears: select Lock and choose Menu (locks menu keys) or All (locks all keys except power). To unlock, repeat the operation.

How to activate Auto EcoView function?

Go to Adjustment > PowerManager > Auto EcoView and select On. The sensor on the front detects ambient brightness and automatically adjusts screen brightness for visual comfort and energy savings. This function is not available in CAL mode.

How to connect multiple computers?

The monitor has three inputs: two DVI-I and one DisplayPort. Connect each computer to a different input. Use the S key to switch between signals. In the menu Adjustment > Tools > Input Selection, you can choose Auto (automatically switches when a computer is turned off) or Manual (manual selection).

What to do if afterimages appear?

Afterimages are normal on LCD screens after prolonged display of a static image. To mitigate, use a screen saver or enable power saving. If marks persist, display a white or black screen for a few minutes – this may resolve the issue. Avoid displaying fixed images for long periods.

USER MANUAL COLOREDGE CG243W EIZO

Setting Resolution 13

Windows 7. 13
Windows Vista 13
Windows XP 13
Mac OS X. 13

FCC Declaration of Conformity 49

2 Réglage/Configuration

DVI DMPM (DVI Digital Monitor Power Management)

HDCP (High-bandwidth Digital Contents Protection)

TMDS (Transition Minimized Differential Signaling)

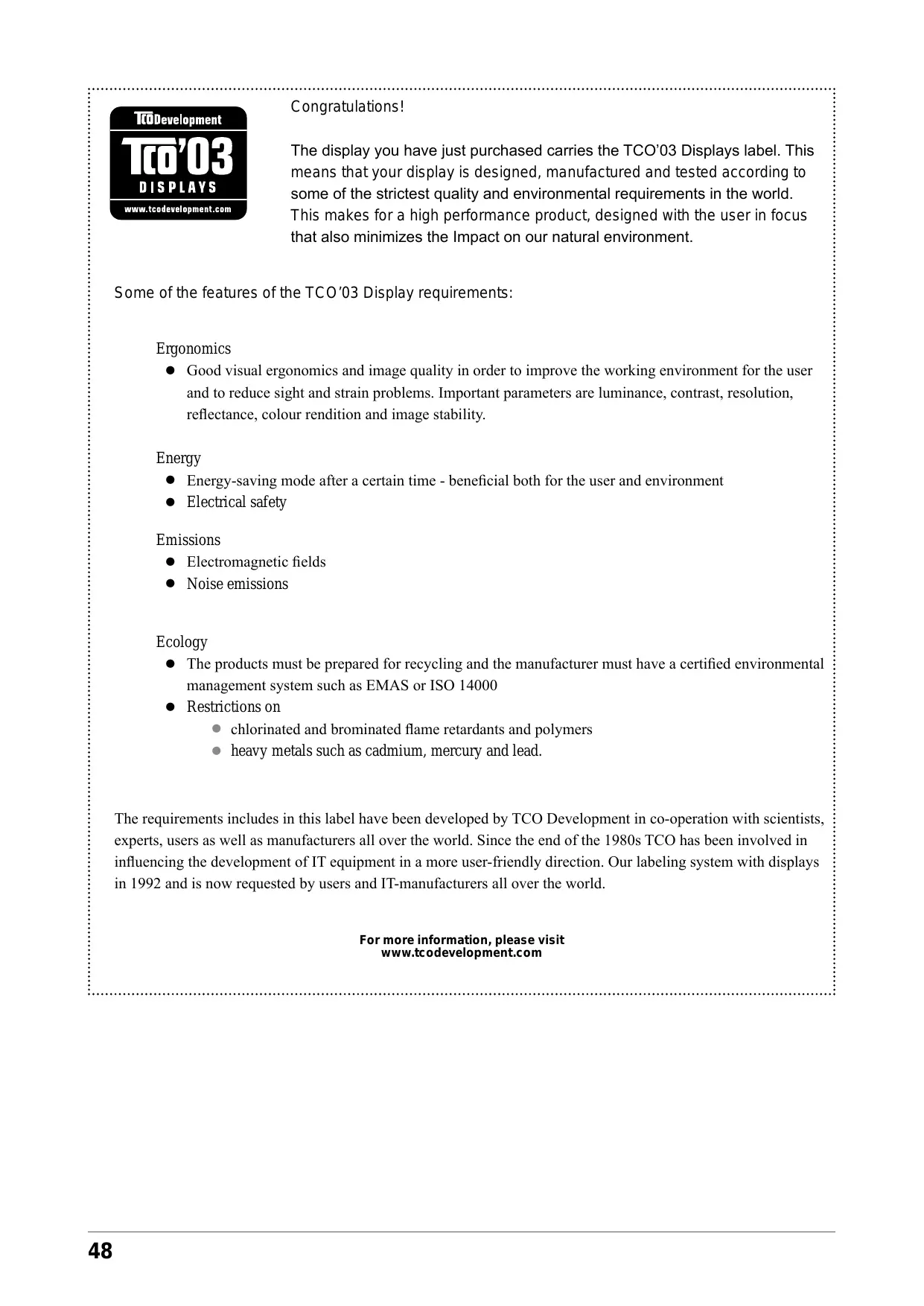

The display you have just purchased carries the TCO'03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the Impact on our natural environment.

Some of the features of the TCO'03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time - beneficial both for the user and environment
• Electrical safety

Emissions

• Electromagnetic fields
• Noise emissions

Ecology

• The products must be prepared for recycling and the manufacturer must have a certified environmental management system such as EMAS or ISO 14000

• Restrictions on

• chlorinated and brominated flame retardants and polymers

• heavy metals such as cadmium, mercury and lead.

The requirements include in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in influencing the development of IT equipment in a more user-friendly direction. Our labeling system with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit www.tcodevelopment.com

For U.S.A., Canada, etc. (rated 100-120 Vac) Only
FCC Declaration of Conformity
We, the Responsible Party	EIZO NANAO TECHNOLOGIES INC.
	5710 Warland Drive, Cypress, CA 90630
	Phone: [phone]
declare that the product	Trade name: EIZO
	Model: ColorEdge CG223W / CG243W
is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
Note
Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device.
- AC Cord
- Shielded Signal Cable (Enclosed)
Canadian Notice
This Class B digital apparatus complies with Canadian ICES-003.
Cet appeil numérique de le classe B est conforme à la norme NMB-003 du Canada.
