| Type | Bookshelf bass-reflex 2-way speaker |
| Drivers | 18 cm Polyglass woofer/midrange, 25 mm inverted dome TNV tweeter (aluminum/magnesium alloy) |
| Frequency response | 50 Hz - 28 kHz (±3 dB) |
| Sensitivity | 92 dB (2.83 V/1 m) |
| Nominal impedance | 8 Ω |
| Maximum / nominal power | 160 W / 110 W |
| Dimensions (H x W x D) | 390 x 222 x 293 mm |
| Weight (unit) | 8.2 kg |
| Technologies | Polyglass (cellulose fiber cone + glass microspheres), Inverted dome TNV tweeter, Optimized phase crossover OPC®, Non-parallel MDF sides, Powerflow vent, High-efficiency acoustic damping |

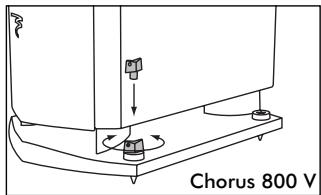

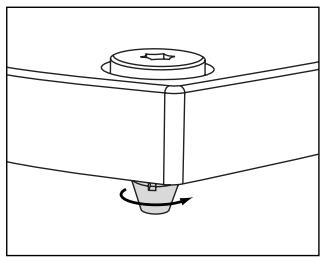

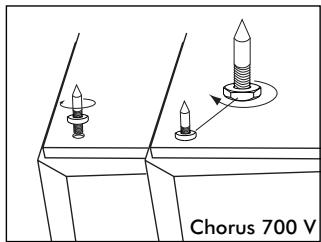

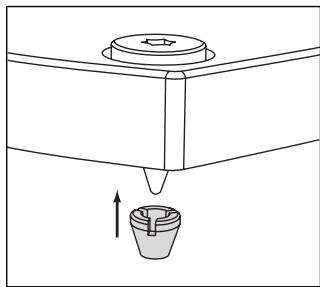

| Box content | 1 speaker, 1 user manual, 1 microfibre cloth (for 806V), unscrewing spikes |
| Connections | Connectors accept bare cables (up to 4 mm) or spades; banana plugs obstructed (electrical standards). Observe polarity (+/-) |
| Break-in period | Approximately 20 hours of operation to stabilize characteristics |

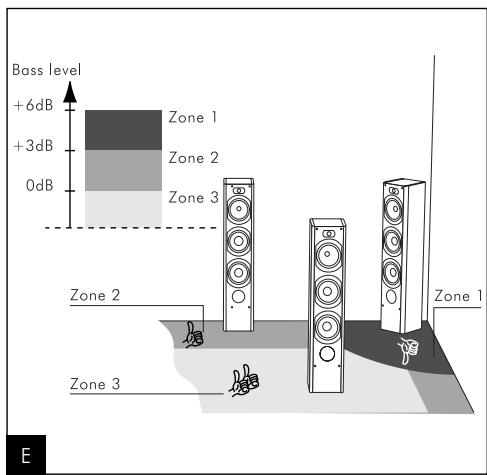

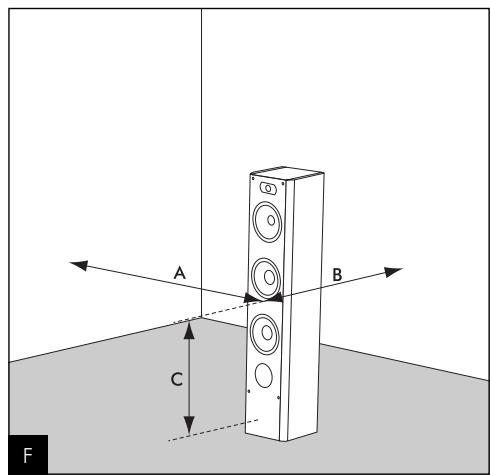

| Recommended positioning | Symmetric relative to listening area, tweeter at ear height, avoid corners and nearby walls. Ideal: distance from rear wall 50 cm, lateral wall 72 cm (formula B²=AC) |
| Usage precautions | Keep protective grilles in place to protect the tweeter. Clean with a dry or damp cloth, never with solvents. Avoid heat sources. |
| Warranty | 10 years non-transferable, valid in France. Return the warranty card within 10 days. |
| Maintenance and cleaning | Dust with a dry cloth; if stained, damp cloth. Do not use corrosive or abrasive products. |
| Safety | Do not place within 50 cm of a TV (magnetic field). Do not obstruct banana connectors. Use a suitable power amplifier. |
| Spare parts and repairability | Contact the Focal dealer for any problem. Warranty covers manufacturing defects, not damage due to misuse. |
Frequently Asked Questions - CHORUS 806V FOCAL
What is the break-in period for Chorus 806V speakers?
The drivers require an adaptation period of about 20 hours to perform at their best. Break-in may vary depending on temperature and humidity conditions.
How to properly connect the Chorus 806V speakers?

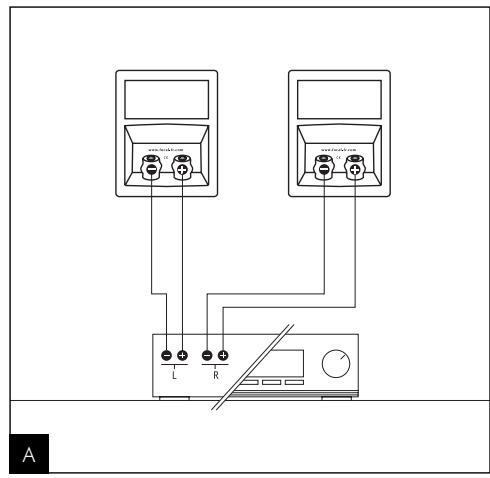

Use quality cables (section adapted to length). Observe polarity: + connector to amplifier positive terminal, - to negative. Banana plugs are obstructed for compliance.

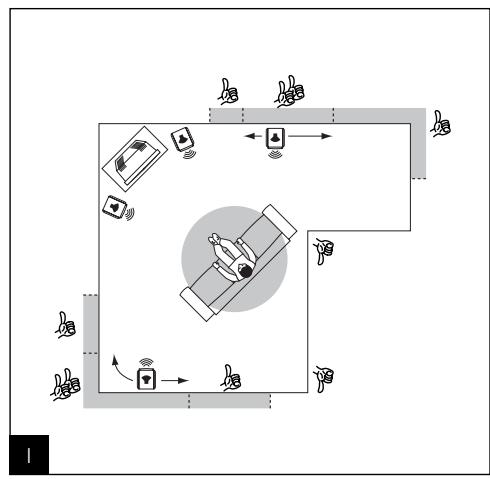

What is the best placement for Chorus 806V?

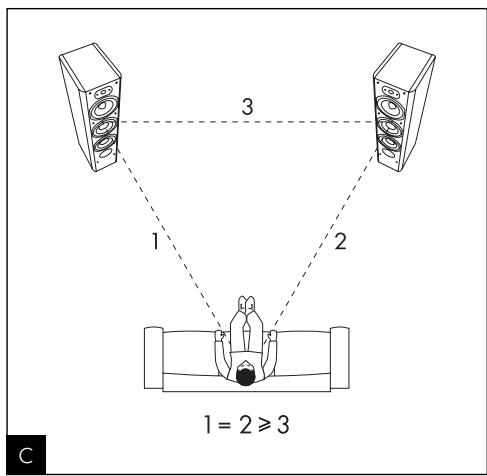

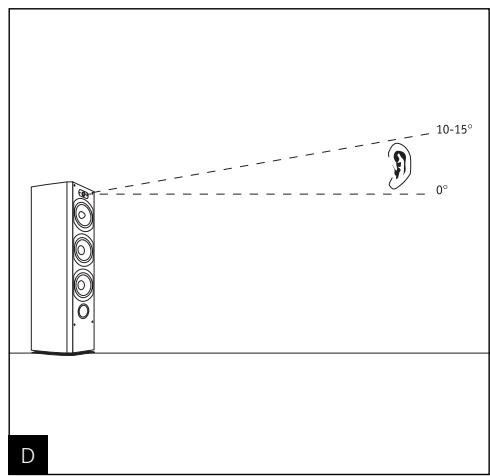

Place the speakers symmetrically relative to the listening area, forming an equilateral triangle. The tweeter should be at ear height. Avoid corners and nearby walls. Use the formula B² = AC for optimal positioning.

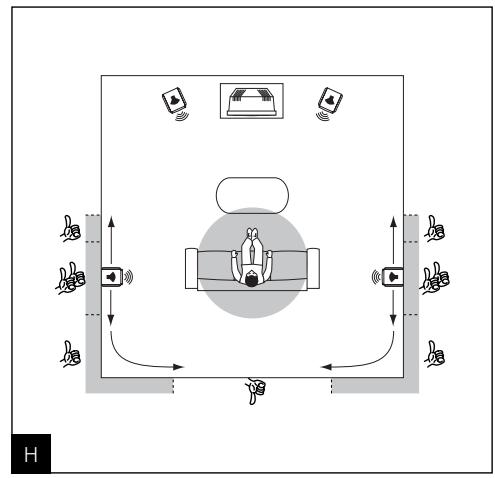

Can I use the Chorus 806V in home theater?

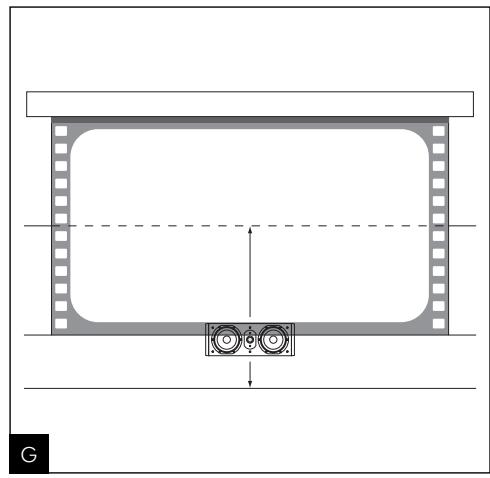

Yes, but for perfect tonal matching, use exclusively Chorus V speakers for center and surround. The center speaker should be placed near the screen.
How to protect the tweeter from damage?

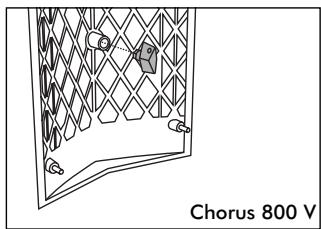

Keep the fabric protective grilles in place. The TNV tweeter is made of soft aluminum/magnesium alloy and can be easily marked. Do not touch the dome.
Which amplifier to choose for Chorus 806V?
A sufficiently powerful amplifier (between 110 and 160 W nominal) is recommended. An amplifier with too low power can saturate and destroy the tweeter. Consult your dealer.
How to clean the Chorus 806V speakers?
Dust with a dry cloth. For stains, use a damp cloth. Never use solvents, alcohol, or corrosive products.
What is the warranty on Focal Chorus 806V speakers?
The warranty is 10 years non-transferable in France. Return the warranty card to Focal-JMlab within 10 days. The warranty covers manufacturing defects, not damage due to misuse.
What to do if the sound is harsh or aggressive?
The room acoustics are probably too reverberant. Add absorbent materials (carpet, curtains, sofa) to absorb resonances.
Are the Chorus 806V speakers magnetically shielded?

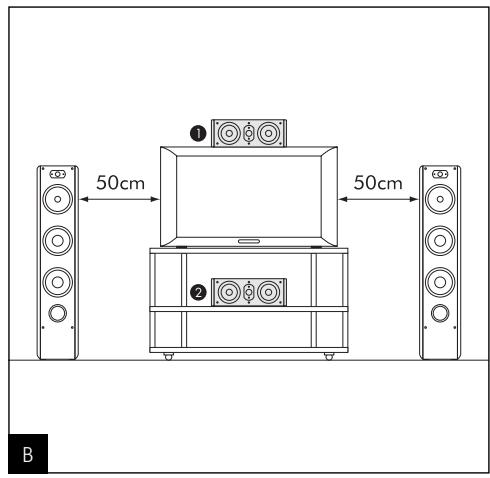

No, these speakers are not shielded. Do not place them within 50 cm of a TV to avoid picture distortion.
