USER MANUAL BO1700EX BRANDT

You have just purchased a BRANDT electronic kettle and we would like to thank you.

We have placed in this appliance all our passion and know-how in order to meet at best your need. Innovative and efficient: we designed it to be always easy to use.

In the BRANDT products line, you will also find a wide range of small domestic appliances that can be coordinated to your new BRANDT electronic kettle.

Of course, in a permanent wish to satisfy as best as possible your expectations toward our products, our after-sales service department is at your disposal and at your listening to answer to all your questions and suggestions.

You can also visit our website www.brandt.com where you will find all our products, as well as additional and useful information.

BRANDT

As part of our commitment to constantly improve our products, we reserve the right to make technical, functional or esthetical properties modifications linked to their technological development

Be careful : Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation

www.brandt.com

TABLE OF CONTENTS

1) INFORMATION FOR THE USER. 16

a) Safety recommendations 16
b) Technical Data 19
c) Protecting the environment 20

2) PREPARING YOUR APPLIANCE 20

a) Kettle description 20
b) Before the first use 21

3) USING YOUR APPLIANCE 21

a) Filling the kettle 21
b) Using the kettle and choosing programs 21
c) Stopping and disconnecting the kettle 22

4) CLEANING AND MAINTENANCE 22

a) Cleaning 22
b) Maintenance tips 23

5) WARRANTY AND CUSTOMER RELATIONS 24

a) Warranty 24
b) Customer relations 24

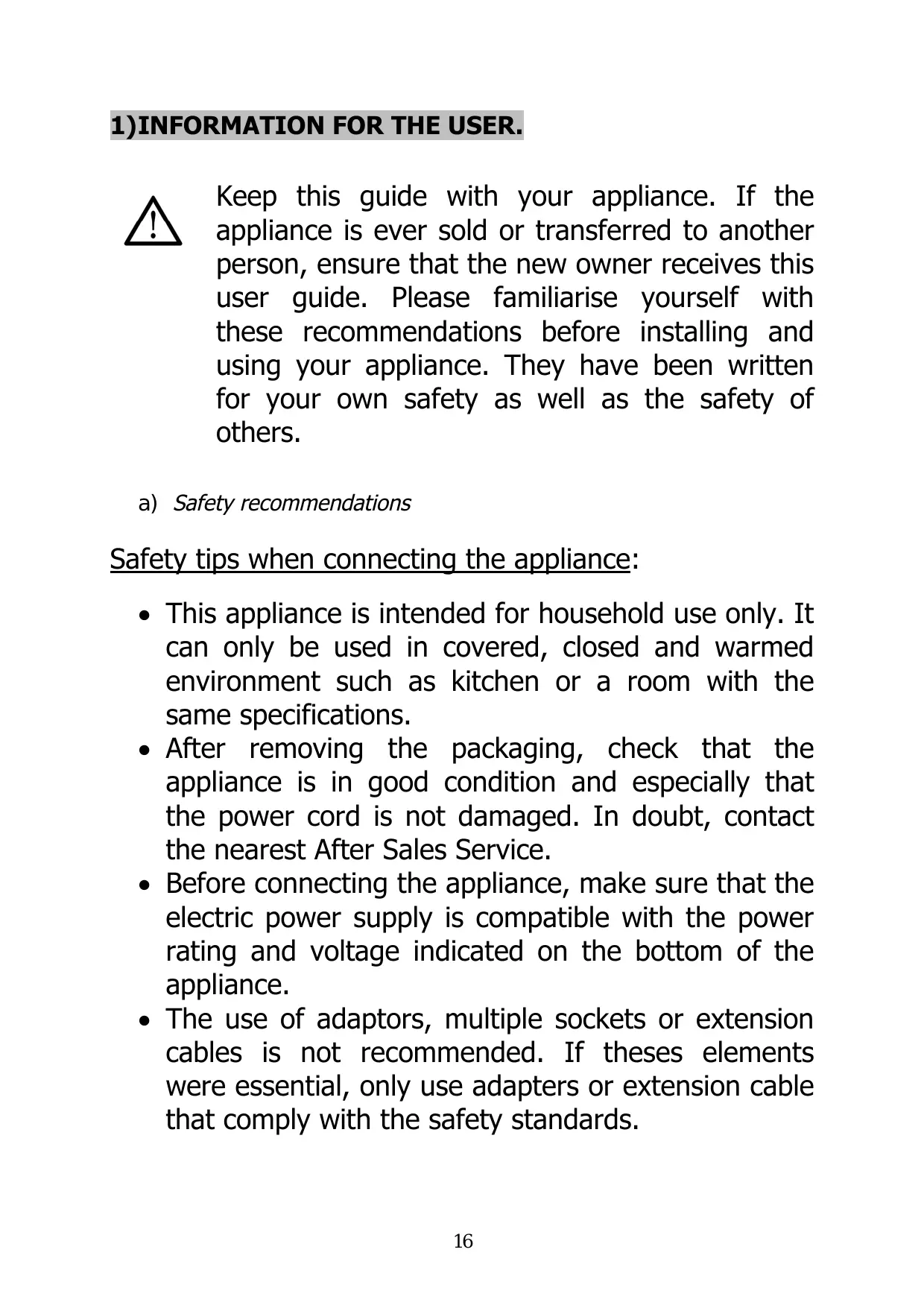

1)INFORMATION FOR THE USER.

Keep this guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives this user guide. Please familiarise yourself with these recommendations before installing and using your appliance. They have been written for your own safety as well as the safety of others.

a) Safety recommendations

Safety tips when connecting the appliance:

• This appliance is intended for household use only. It can only be used in covered, closed and warmed environment such as kitchen or a room with the same specifications.
• After removing the packaging, check that the appliance is in good condition and especially that the power cord is not damaged. In doubt, contact the nearest After Sales Service.
• Before connecting the appliance, make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

• The use of adaptors, multiple sockets or extension cables is not recommended. If theses elements were essential, only use adapters or extension cable that comply with the safety standards.

• This appliance is not intended to be operated by an external timer or separate remote control system.

• Place the appliance on a dry, stable and smooth surface.
• Keep the appliance and its cord out of reach of children under 8 years.
• Do not insert any objects into slots or holes of the kettle.
• Do not use the base unit of another kettle. Only use the supplied base unit.
• Children shall not play with the appliance.

Safety tips when using the appliance:

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and it they understand the hazards involved.
• The appliance and its accessible parts become hot during the use. Children under the age of 8 years should not use this appliance unless continuous supervision by a responsible adult is given. Always grasp the kettle by the handle.

• Use this kettle only for heating water. Any other use may cause fire or injury.

• Warning: Do not remove the lid while the water is boiling. Be aware of steam being emitted from spout or lid during refilling.

• Do not touch the appliance with wet or damp hands.
• Do not put the appliance on/near a hot surface (kitchen gas, electric hobs, and ovens).
• Do not leave the appliance unattended when it is turned on because it can be dangerous.
• Do not fill the kettle when it is positioned on the base.
• Do not fill above the "MAX" level. If the kettle is overfilled, boiling water may be ejected. Do not operate kettle if water is below "MIN" level.
• Do not remove the plug when the kettle is in process.
• Never pull the cord but unplug by holding the plug.
• The use of accessory attachments not recommended by the appliance's manufacturer may cause hazard or injury.

Cleaning and Maintenance:

• Unplug the appliance before cleaning and allow the appliance to cool down.
• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped. This product is covered by your distributor. For more details, please refer to the warranty conditions supplied.

• To protect against electric shock, do not place the base unit of this kettle in water or other liquid.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean your kettle.

• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Improper use:

• Use this appliance only for its intended uses as described in manual.
• The manufacturer shall not be liable for any damage resulting from improper use.
• The appliance is intended for domestic use only in private housing environments. The use of this appliance in common or professional's area such as staff kitchen areas in shop, offices and other working environments; by clients in hotels, motels and restaurants or any other shops; by clients in kitchen areas or campsite; are not a proper use as defined by the manufacturer.

Be careful: external surfaces become hot during the use.

b) Technical Data

Model no	BO1700EX
Power supply	220-240V 50/60Hz
Power	1850-2200W
Dimensions	H251xL210XW215mm
Net wt.	1.3Kg

c) Protecting the environment

At the end of its working life, the product must not be disposed with household waste. It must be taken to a special local authority waste collection centre or to a company providing this service. Disposing household appliances separately avoids possible negative effects on the environment and health and enables the constituent materials to be recycled which saves energy and resources.

To remind you that you must dispose of this appliance correctly the symbol shown above appears on the product warning you not to dispose of it with household waste. For further information, contact your local authority or the shop where you bought the product.

2) PREPARING YOUR APPLIANCE

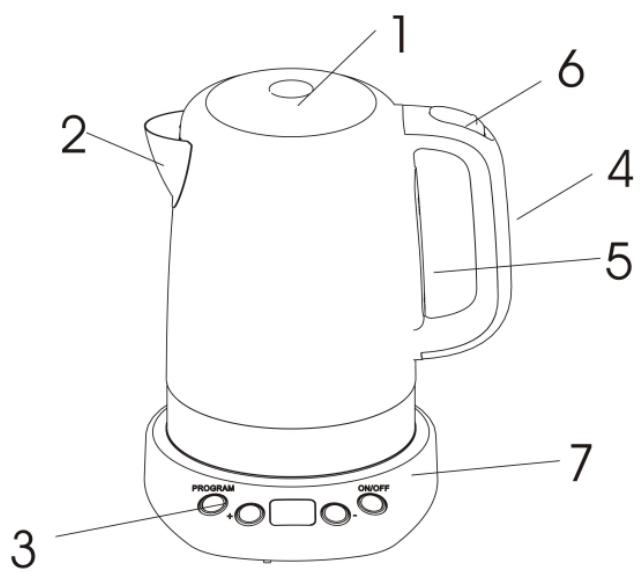

a) Kettle description

1. Lid
2. Spout
3. Button (temperatures, programs, on/off)
4. Handle
5. Water gauge
6. Lid opening button
7. Power base

b) Before the first use

Before using the first time or after a prolonged period of storage, it is recommended to operate the kettle for 2 or 3 times following the instructions detailed in the next section.

3) USING YOUR APPLIANCE

a) Filling the kettle

• Place the appliance on a dry, flat and stable surface.
• Remove the appliance from its base. Open the lid by pressing the opening button and fill the kettle with water.
• The amount of water is visible through the water level indicator and it should never be less than the MIN mark and above the MAX mark. Be careful, if the kettle is overfilled, the water may be ejected during boiling.
• Close the lid and place the kettle on its base unit.

Do not open the lid when the water is boiling. Contact with steam must be avoided.

b) Using the kettle and choosing programs

Press ON/OFF button to turn on the kettle. If you don't select a program, the kettle will boil automatically until 100^ . Once the temperature is reached, the kettle will beep and stop automatically.

To select a particular program, press "Prog" button and choose the desired temperature:

o "Chaud" for keeping warm: 70^ C
o "T.vert" for Green tea: 75^
o "T.noir" for Black tea: 85^
o “Café” for Coffee : 90^ C
o “Tisane" for Herbal Tea : 95^
o And "Ebul." for boil : 100^ C

Then press the ON/OFF button to validate the temperature. During 3 seconds the LCD display will indicate the program temperature and then will indicate the actual water temperature. The kettle as the LCD display will not shut off until the water temp reaches pre-set temperature (except the keeping warm function). After reaching the pre-set temperature the kettle will shut-off, the program light will flash on display until the sensor did not work. If you pressed the ON/OFF button, the function light will stay at previously set position until you change it. When selecting keeping warm function "Chaud" the LED display indicates -by default- 70^ . It is possible to adjust the temperature 5^ by 5^ pressing "+" or "-" button. After reached the pre-set temperature, the system will shut-off and keep warm at the pre-set temperature (during about 20 minutes).

Water temperature and steep time of hot drinks:

(Steep times are indicative. It is recommended to adapt to your personal taste.)

	Water temperature	Steep time
White tea	80°C (max)
Bai Mu Dan		8 minutes
Silver Needle		7 minutes
Silver Bud		3 minutes
Thé des Songes Blancs		7 minutes
Others		8 minutes
Green Tea	80°C (max)
Gyokuro		2 minutes
Sencha		3 minutes
Jasmin		4 minutes
Gunpower		4 minutes
Ping Cha		4 minutes
Geisha's flowers		3 minutes
Others		4 minutes

	Water temperature	Steep time
Dark Tea	80-85°C
India, Assam		5 minutes
Darjeeling		5 minutes
Springtime darjeeling		4 minutes
China		4 minutes
Sri Lanka		5 minutes
Others		5 minutes
Others
Coffee	90°C
Oolongs Tea	95°C
Herbal Tea	95°C (max)

c) Stopping and disconnecting the kettle

• To stop the appliance, press the ON/OFF button for 3 seconds.
• When the appliance is in standby, the program light stay on the pre-set position, the heating element did not work and the display indicates actual water temperature.
• To completely shut off the appliance, lift it from the base.

If a short circuit occurs, the system stops automatically. Always grip the kettle by the handle

4)CLEANING AND MAINTENANCE

a) Cleaning

Before cleaning, unplug the connection base and allow the kettle to cool down.

• Clean the outside of the kettle and the connection base with a slightly damp cloth, ensuring that the electrical components remain dry.
• Do not use abrasive or degreasing agents.
• To prevent particles of lime from becoming detached in the liquid, the kettle incorporates a lime filter. To clean it, remove it by pulling upwards. Clean the filter by rinsing it under the tap and use a soft brush to remove any lime which has become.
• Clean the inside of the kettle with soapy water.

b) Maintenance tips

After a period of time, calcareous deposits accumulate on the inside of the kettle. An excessive amount of lime may affect the proper functioning of the kettle. Thus, a decalcification can be necessary:

• Half fill the kettle with water and white vinegar (2 doses of water for 1 dose of vinegar).
• Boil this mixture and allow it to stand for the night.
• The following day, rinse the kettle and boil water for 2 or 3 times to vanish vinegar.

If the amount of lime is excessive, use a commercially-available decalcifying solution. Never try to decalcify the kettle by chipping away or scratching.

5)WARRANTY AND CUSTOMER RELATIONS

a) Warranty

This product is covered by your retailer. For more details, please refer to the warranty conditions supplied.

Service calls

Any repairs that are made to your appliance must be handled by a qualified professional authorised to work on the brand.

When you call, mention your appliance's "Service" reference, as well as its serial number "Nr".

This information appears on the manufacturer's nameplate which can be found stuck behind the machine.

b) Customer relations

To find out more about all the brand's products you can visit our website: www.brandt.com

To communicate:

You may visit our website www.brandt.com and go to the "CONTACT" section
You may e-mail us: [e-mail]
You may write us at the following address:

Or phone us from Monday to Friday from 8:30 am to 6:00 pm :

BRANDT FRANCE –SAS with a capital of 1.000.000 euros –

89, bd Franklin Roosevelt –92500 Rueil-Malmaison
