USER MANUAL ASPIRE ONE D270-N261G326CK ACER

Aspire One Series Quick Guide

© 2011 All Rights Reserved.

Aspire One Series Quick Guide Original Issue: 06/2011

Model number: __________________________________

Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________

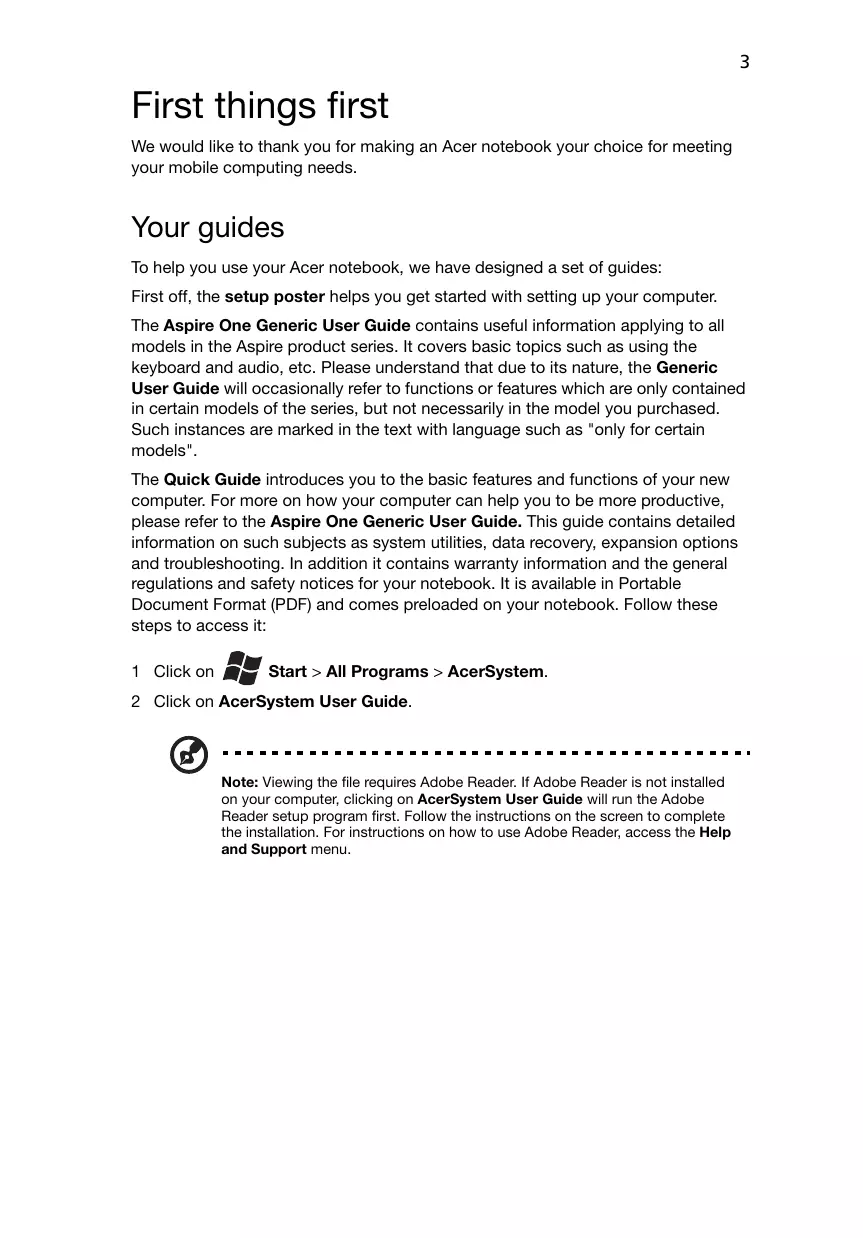

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

To help you use your Acer notebook, we have designed a set of guides: First off, the setup poster helps you get started with setting up your computer. The Aspire One Generic User Guide contains useful information applying to all models in the Aspire product series. It covers basic topics such as using the keyboard and audio, etc. Please understand that due to its nature, the Generic User Guide will occasionally refer to functions or features which are only contained in certain models of the series, but not necessarily in the model you purchased. Such instances are marked in the text with language such as "only for certain models". The Quick Guide introduces you to the basic features and functions of your new computer. For more on how your computer can help you to be more productive, please refer to the Aspire One Generic User Guide. This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook. It is available in Portable Document Format (PDF) and comes preloaded on your notebook. Follow these steps to access it: 1 Click on

2 Click on AcerSystem User Guide.

Note: Viewing the file requires Adobe Reader. If Adobe Reader is not installed on your computer, clicking on AcerSystem User Guide will run the Adobe

Reader setup program first. Follow the instructions on the screen to complete the installation. For instructions on how to use Adobe Reader, access the Help and Support menu.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer notebook.

Web camera for video communication

(configuration may vary by model).

Also called Liquid-Crystal Display (LCD), displays computer output (configuration may vary by model).

Turns the computer on and off.

For entering data into your computer.

Touch-sensitive pointing device which functions like a computer mouse.

Light-Emitting Diodes (LED) that light up to show the status of the computer's functions and components.

Click buttons (left and right)

The left and right buttons function like the left and right mouse buttons.

Comfortable support area for your hands when you use the computer.

Internal microphone for sound recording.

1. The front panel indicators are visible even when the computer cover is closed.

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output. To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination. Hotkey

Enables/disables the computer’s communication devices.

(Communication devices may vary by configuration.)

Puts the computer in Sleep mode.

Switches display output between the display screen, external monitor 

(if connected) and both.

Turns the display screen backlight off to save power. Press any key to return.

Turns the internal touchpad on and off.

Turns the speakers on and off.

When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /).

Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad. <Fn> + <F11> only for certain models.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

Increases the screen brightness.

Decreases the screen brightness.

Increases the sound volume (only for certain models).

Decreases the sound volume (only for certain models).

Using the communication key*

Here you can enable and disable the various wireless connectivity devices on your computer. Press <Fn> + <F3> to bring up the Launch Manager window panel. A red toggle indicates the device is off. Click On to enable Wi-Fi/Bluetooth connection. Click Off to disable connection.

* Communication devices may vary by model.

Indicates the computer's power status.

Indicates the computer's battery status.

1. Charging: The light shows amber when the battery is charging.  2. Fully charged: The light shows blue when in AC mode.

Indicates the status of 3G / Wi-Fi communication

Communication indicator

3G off / Wi-Fi on 3G off / Wi-Fi off 3G on / Wi-Fi off

Houses the computer’s battery pack.

Note: Your computer may be equipped with a different battery to the one in the picture.

Connects to an AC adapter.

Ethernet (RJ-45) port

Connects to an Ethernet 10/100 based network.

External display (VGA) Connects to a display device (e.g., external port monitor, LCD projector).

Supports high-definition digital video connections.

Connects to USB devices (e.g., USB mouse, USB camera).

Multi-in-1 card reader

Accepts Secure Digital (SD), MultiMediaCard (MMC), Memory Stick (MS), Memory Stick PRO (MS PRO), xDPicture Card (xD). Note: Push to remove/install the card. Only one card can operate at any given time.

Headphone/speaker/ line-out jack

Connects to audio line-out devices 

(e.g., speakers, headphones).

Accepts inputs from external microphones.

Connect to USB devices 

(e.g., USB mouse, USB camera).

Kensington lock slot

Connects to a Kensington-compatible computer security lock.

Ventilation slots and cooling fan

Enable the computer to stay cool, even after prolonged use.

Note: Do not cover or obstruct the opening of the fan.

Battery release latch

Releases the battery for removal.

Accepts a 3G SIM card for 3G connectivity

(only for certain models).

Houses the computer's battery pack.

Locks the battery in position.

Emits audio from your computer.

Operating: 5 °C to 35 °C Non-operating: -20 °C to 65 °C Humidity (non-condensing):

Operating: 20% to 80%

Non-operating: 20% to 80%
