USER MANUAL 11492 MAGIMIX

Set up Rinsing Language selection Setting the clock Installing the filter Setting the water hardness level Selecting the temperature

Brewing a coffee Preparing the machine Espresso/double espresso/coffee lungo Grinding settings Ground coffee

Aftercare Weekly aftercare Rinsing the nozzle Cleaning the nozzle Changing the water filter Cleaning programme Descaling programme

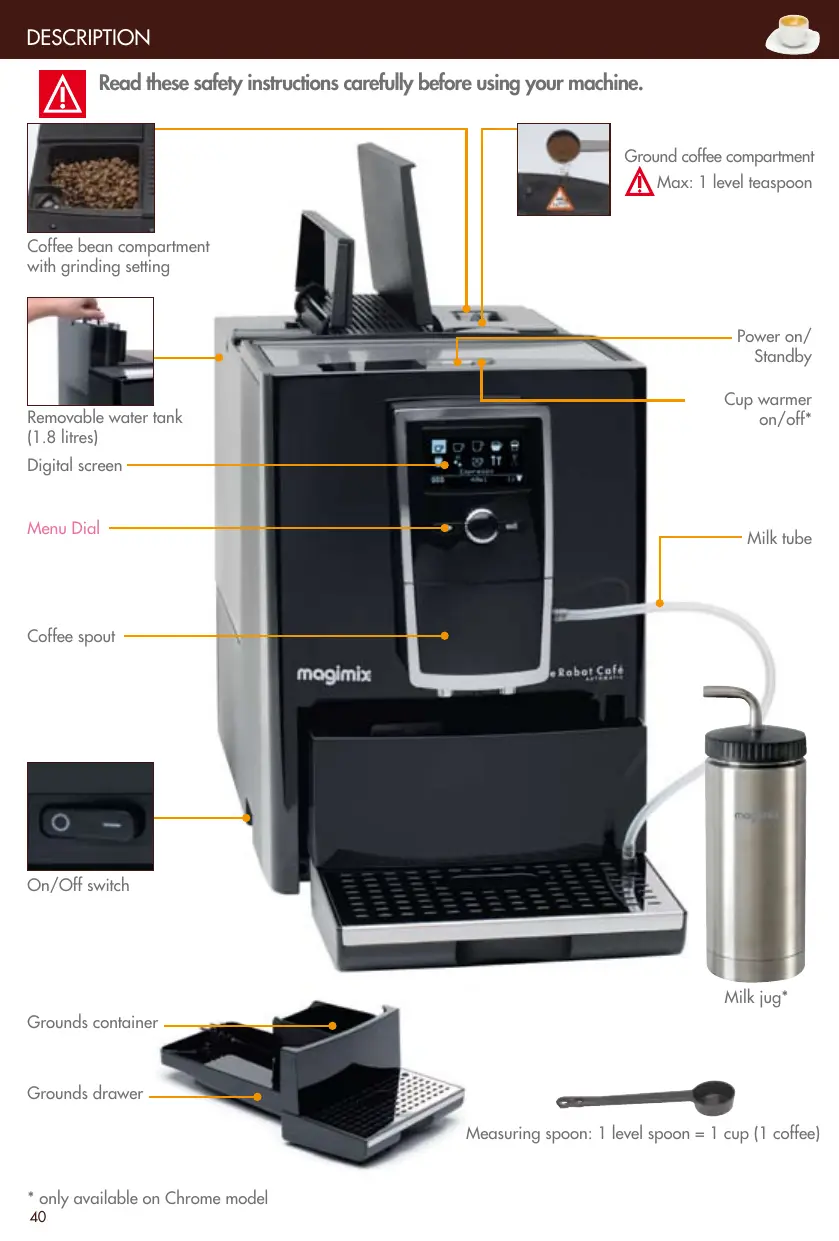

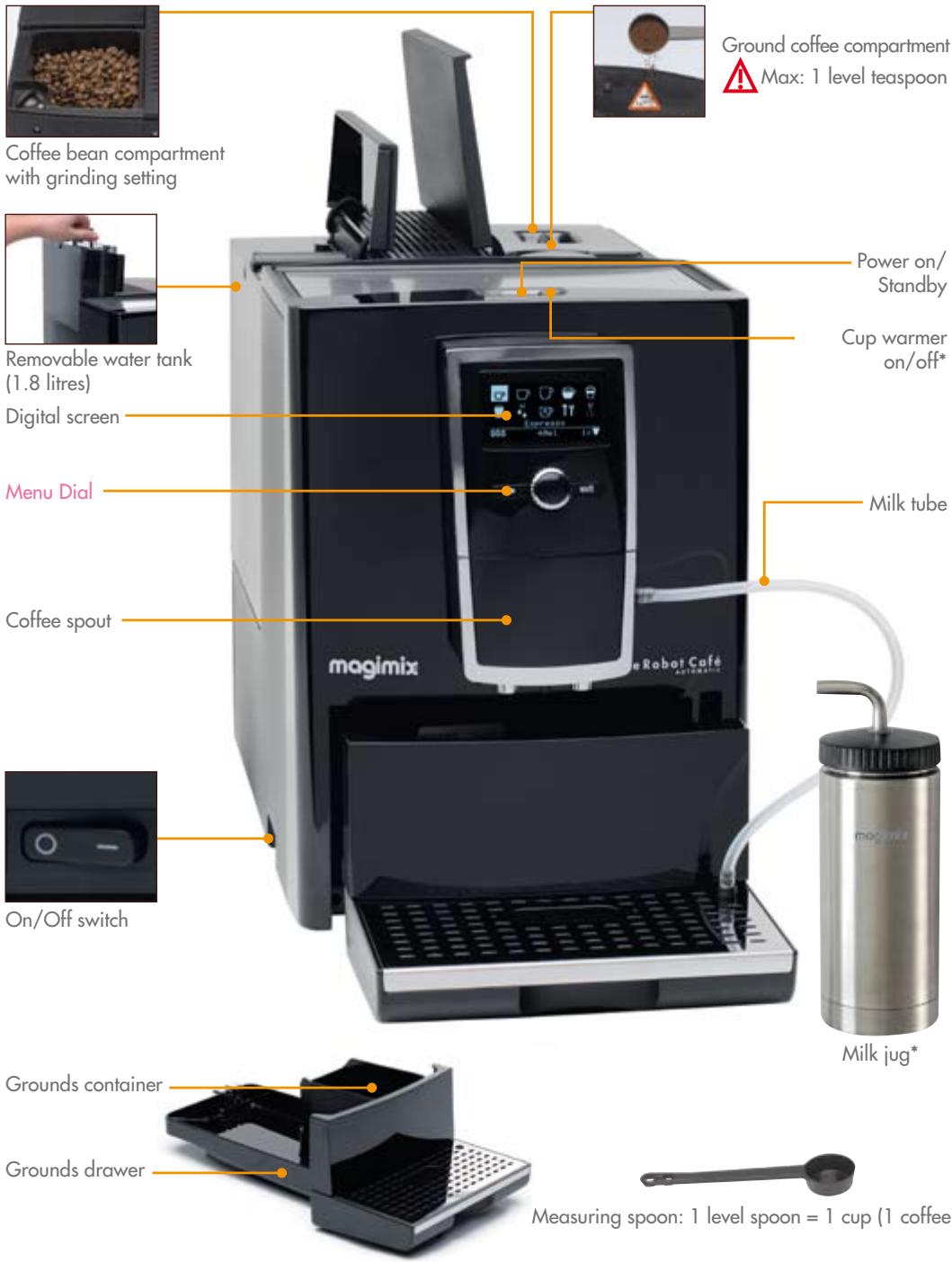

DESCRIPTION Read these safety instructions carefully before using your machine. Ground coffee compartment Max: 1 level teaspoon Coffee bean compartment with grinding setting Power on/ Standby Removable water tank (1.8 litres) Cup warmer on/off* Digital screen Menu Dial Milk tube Coffee spout On/Off switch Milk jug* Grounds container Grounds drawer Measuring spoon: 1 level spoon = 1 cup (1 coffee)

• only available on Chrome model

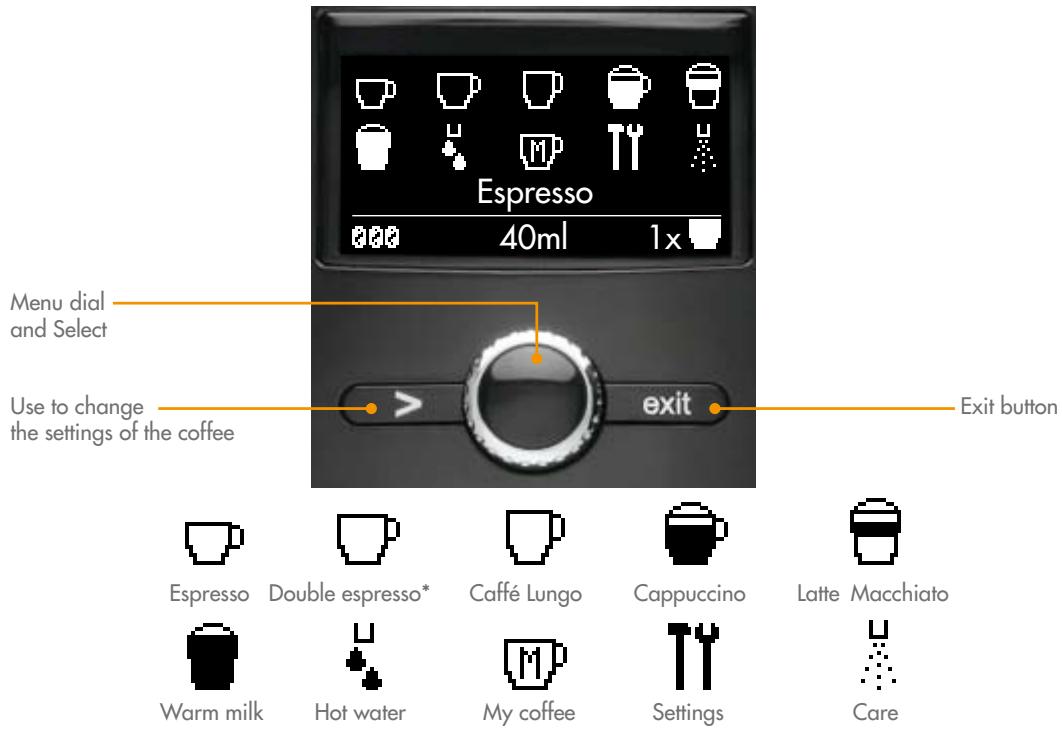

Menu dial and Select Use to change the settings of the coffee Exit button Espresso Double espresso* Warm milk Hot water Caffé Lungo Cappuccino Latte Macchiato My coffee Settings Care Settings Coffee recipes

You can change the pre-selection for each preparation Filter

Indicates whether or not you have chosen to install the water filter. (p. 44) Water hardness Temperature

You can set the machine to go into standby later Statistics

You can find out how many times each function has been used. Choose your water hardness setting (p. 45) Choose between three temperature settings for your coffee. The individual option allows you to set the temperature for each coffee Setting the on/off time. Select your language (p. 42) Rinsing the system The exit button enables you to return to the previous menu at any time.

SET UP Rinsing Before you use your machine for the first time, you must rinse the water circuit to remove any residual water in the system. Fill with water Plug into earthed socket. Turn the coffee machine Place a cup underneath the Fill the water tank with on by pressing the button spout. Switch the machine on. water. located on the top of the machine. Fill up system System filling up Heating Rinse Place a cup underneath the Press the menu dial. flow head. Press the menu dial. Note: Scroll through the menu by turning the menu dial. Language selection Language Language: English Settings Select ‘Settings’ using the menu dial.

Select ’Languages’. Select the desired language. Press the exit button until you return to the main menu. SET UP Setting the clock You can press the exist button at anytime to go back a step. Times Clock Set clock Settings Select ‘Settings’. Select ‘Times’. Select ‘Clock’. Select the hour and minutes using the menu dial. Setting the timer for the automatic switch-on You can press the exist button at anytime to go back a step. Times Unit auto ON at Set auto on Settings Select ‘Settings’ Select ‘Times’ using the menu dial. Select ‘unit auto on at’ using Select the hour and minutes the menu dial. using the menu dial. Setting the timer for automatic switch-off You can press the exist button at anytime to go back a step. Times Unit auto OFF after Unit auto OFF after

Settings Select ‘Settings’ using the menu dial. Select ‘Times’ using the menu dial. Select ‘Unit auto OFF after’. Select preferred time for the machine to switch off after last use.

SET UP Installing the water filter

• Option 1 If you use the filter option, the water hardness will no longer be displayed. Filter inserted? Filter YES Settings Select ‘Settings’ using the menu dial Select ‘Filter’ using the menu Place a cup underneath the Select YES. spout. dial. Insert filter Rinsing filter Fill with water Fill with fresh water. Empty the water tank. Place the cartridge in the water tank. Press the menu dial. Press exit to go back.

• Option 2 If you decide not to use the filter option, you will need to set the water hardness (p.) Filter Filter inserted?

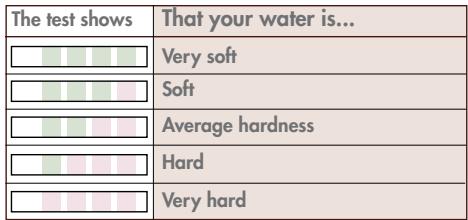

Select ‘Filter’ using the menu Select ‘NO’ using the menu dial. dial. Press exit to go back. SET UP Setting the water hardness If, and only if, you have not installed your filter, you must select the water hardness. The test shows Machine level That your water is... Very soft Soft Average hardness Hard

1 min Dip the test strip in cold water. Very hard

8-14° 15-21° > 21° Compare using the chart above. -------------Water hardness ------------Water hardness Settings Select ‘Settings’ using the menu dial. Level 2 : 8-14° Select ‘Water hardness’ using the menu dial. Select your water hardness Press the exit button until level using the menu dial. you return to the main menu. Selecting the temperature You can choose between four temperature settings for your coffee.

NORMAL – HIGH – MAXIMUM – INDIVIDUAL

The individual option allows you to choose the desired temperature for each type of coffee. Normal Temperature High Maximum Individually Settings Select ‘Settings’ using the menu dial. Select ‘Temperature’. Select the desired temperature using the menu dial. Press the exit button until you return to the main menu.

Preparing the machine Fill the water tank with fresh water. Fill the coffee bean compartment. Espresso / Coffee cream / Coffee Lungo You can make your coffee at anytime by pressing the menu dial. Espresso Espresso 40 ml 40 ml

Select your chosen coffee type. Press if you want to change the settings.

Select the desired intensity of Press. coffee. Espresso 40 ml Espresso

Select the desired level. 40 ml Press. Place one or two cups under the spout. Select one or two cups. Press. Note: The coffee settings you set ate remembered until you switch your coffee machine off standby mode.

Grinding settings The paler the beans (lightly roasted) the finer they must be ground. Only adjust the grind setting while the grinder is running. To set to a coarse grind, slide to the right. To set a finer grind, slide to the left. Open. Select your desired level. Close. Ground coffee Powder is ready Pour the ground coffee into Place 1 cup under the spout. Press the menu dial. the compartment. Close the lid. Never use more than one measuring spoon of ground coffee. Never insert anything other than ground coffee or cleaning tablets into the ground coffee compartment. If the ground coffee compartment is opened by mistake or a button has not been pressed within a minute of putting the ground coffee in, the machine will automatically be rinsed through via the spout. If this happens, close the lid and wait 1 minute.

BREWING CAPPUCCINO/LATTE MACCHIATO

Cappuccino/Latte Macchiato The settings for each coffee are pre-programmed. However, for each coffee type you can set the strength and volume of your coffee. It is not possible to prepare simultaneously 2 milk preparations (except on the chrome model). Fill the water tank. Fill the coffee bean compartment. Cappuccino Place 1 cup under the spout. Fill the jug 1/3 full of milk and place the milk tube in the jug. Cappuccino 200 ml 20% 1x 200 ml 20% 1x Select your chosen coffee type. Attach the milk tube. Press if you want to change the settings. Select the desired intensity. Press. It may take a few seconds for the process to begin. Cappuccino Cappuccino 200 ml 20% 1x 200 ml 20 % 1x Select the desired volume. Press. Select the desired amount of froth. Press. Rinse the nozzle and your milk jug*immediately after use (see p. 51)

• only available on Chrome model

WARM MILK / HOT WATER

Warm milk The settings for each preparation are pre-programmed. However, for each option you can set the strength and volume of your coffee. It is not possible to prepare milk for 2 coffees simultaneously (except on the chrome model). Warm milk 150 ml Attach the milk tube. Place 1 cup under the spout. Fill the jug 1/3 full of milk and place the milk tube in the jug. Select Warm milk. Press if you want to change the settings. Warm milk 150 ml Select the desired level. Press. Rinse the nozzle and your milk jug*immediately after use (see p.)

• only available on Chrome model Hot water Hot water Hot water 150 ml Select Hot water. Press if you want to change the settings.

Select the desired level. Press the menu dial.

AFTERCARE Always unplug the machine and wait for it to cool down before cleaning. Do not put any of the parts in the dishwasher. Do not use an abrasive sponge or aggressive detergent. Weekly aftercare

• Contacts Empty the drip tray and the grinds container. Clean and dry well using Wipe the exterior of the water + mild detergent. machine housing with a damp cloth. Remove the cover. Disassemble and clean under running water. Open the door. Raise the release handle, Remove the machine’s pressing the red button at central unit. the same time. Place the central unit back Lock into place by pushing in the machine. the handle down, pressing the red button at the same time. Screw the door shut.

Clean the inside a damp cloth and dry the compartment and the lid. Reassemble and replace. Clean the funnel + filter with a damp cloth. AFTERCARE Rinsing of the nozzle Rinse frother Select Care. Press the menu dial. Unclear when using machine for the first time. Place a cup underneath the Select Rinse frother. Press. spout. Attach the milk tube on the flow head and the drip tray. Rinsing frother Do not remove milk tub Once the milk tube has been connected press the menu dial. Cleaning of the nozzle Clean frother Select Care. Press the menu dial. Connect hose pipe with spout and put in cleaner Place a cup underneath the Select Clean frother. Press spout. menu dial. Attach the milk tube to the side of the spout and put the other end in cleaner. Cleaning frother Do not remove h.p Press menu dial.

AFTERCARE Changing the filter Filter inserted? Filter Select Settings. Press menu dial. Select Filter. Press menu dial. YES Place a cup underneath the Select ‘YES’. Press the spout. menu dial. Replace filter Replace filter Select ‘Replace filter’. Press Empty the water tank. Change the filter. the menu dial. Rinse filter Press menu dial again. Cleaning programme A message on the screen informs you when the machine needs cleaning. Never interrupt the cleaning programme once it has started. Clean system Select Care. Press the menu dial. Place a cup underneath the Select ‘Clean system’. spout. Start cleaning Empty trays System cleans 15 min. Press menu dial. Empty the trays and put them back.

• Cleaning tablets are available from Magimix Customer care.

Cleaning tablet in powdershaft Put a cleaning tablet* in the ground coffee compartment. Close the lid. AFTERCARE Descaling programme A message will appear on the screen when you need to descale your coffee machine. Never interrupt the descaling programme once it has started. Never use vinegar or a vinegar-based product for descaling. Always remove the water filter before descaling. Descale system Select Care. Press the menu dial. Empty tanks Place a cup underneath the Press the menu dial. spout. Fill up water Empty trays Empty the trays. Start descaling Descaling takes about 20 minutes. Empty the water tank. Empty trays Empty the trays. Fill the tank with fresh Press the menu dial. water + descaling product up to 0.5 l mark. Fill with water Fill the water tank with fresh water. Start rinsing Select using the menu dial.

RECIPES Espresso Espresso coffee is characterised by the colour of its creamy golden top, midway between russet and hazel, and by its extremely rich aroma…Espresso coffee represents roughly 40 or 50 ml of black coffee served in a 60 ml cup. Cappuccino Fill a large cup 1/3 full with frothed milk (see “Cappuccino” chapter, p. 49). Froth the milk using the cappuccino attachment. You can either spoon the froth onto your espresso coffee and sprinkle it with cocoa powder or pour the coffee on top of your frothed milk. Ristretto This is concentrated espresso coffee, made from the same quantity of ground coffee, but only half the water. It never exceeds 30 ml. Macchiato “Macchiato” means “spotted” in Italian. It closely resembles cappuccino coffee, but is stronger and has a more powerful aroma. Make a cup of espresso coffee and top it with a spoonful of milk froth.

SCREEN MESSAGES Screen messages Actions Fill up pipe-sys Press the central switch. Remove or change the water filter. Fill water Fill the water tank with fresh water. Ensure the water tank is fitted correctly. Fill beans Pour coffee beans into the coffee bean compartment. This message will remain on the screen until you grind some more coffee. Empty trays Empty the trays. Clean the contacts at the bottom of the drip tray and dry thoroughly. Trays missing Ensure the drip tray is correctly positioned. Clean the silver contacts at the back of the drip tray and dry thoroughly. Please clean Clean the machine (see p. 52). System Calcif Descale the machine (see p. 53). Filter change Replace the filter (see p. 52). Close the door Check that the central unit is properly positionned (see p. 50). Check the door is closed properly. Please rinse Place a cup under the spout. Press the central switch.

Troubleshooting Question Answer No coffee flow. Check the water tank is fitted properly. Fill the water tank with fresh water. Ensure trays are correctly fitted. Descale your machine (see p. 53) Clean the central unit filter (see p. 52) Coffee flow reduced to a dribble. Coffee ground too finely: adjust the setting to a coarser grind. Coffee too watery, not strong enough. Refill the coffee bean compartment. Reduce the volume of coffee in ml. Select a stronger coffee. Reduce the fineness of the grind. Unpleasant taste. Coffee: stale? Acidic?: replace the coffee beans.. Chlorinated water?: use the filter cartridge or bottled water (low mineral content). After descaling, fill the water tank and rinse the machine through, ½ via the nozzle, ½ via the flow head. Coffee not hot enough. Adjust the coffee temperature setting (see p. 45). Insufficient coffee flow. Refill the coffee bean compartment. Grinder making unusual noise. Refill the coffee bean compartment. Call Magimix Customer Care 0844 5738655. Milk not frothy enough. Rinse your pipe and the cappucino device. We recommend using cold, full fat milk. Milk tube not working. Clean the tube (see p. 51). Ensure it is correctly assembled. No water supply. Ensure the water tank is full. Rinse the machine (see p. 52). Water around the base of the machine. Empty the drip tray. If problem continues contact Magimix Customer Care on

Machine not working at all. Check all the connections. Close the ground coffee compartment and wait for one minute. Rinse (see p.). Call Magimix Customer Care 0844 5738655. Where can I buy cleaning tablets? Call Magimix Customer Care on 0844 5738655. This symbol means that this product must not be treated as household waste. It must be taken to a suitable collection point for the recycling of electrical or electronic equipment. To find out where your nearest collection points are, contact your local council or the local waste reception centre. We reserve the right to modify the characteristics of this machine at any time and without prior notice. The information contained in this document is not legally binding. All rights reserved for all countries by Magimix.

• Check that the voltage of your power supply corresponds to that shown on the identification plate of your machine.
• Never leave children near the machine unattended. The machine has not been designed for use by children.
• This machine has not been designed for use by persons (including children) with physical, sensory or mental impairments or who are lacking in knowledge or experience, unless they have the necessary supervision or have received instructions as to how to use the machine by a person responsible for their safety.
• The machine must always be connected to an earthed socket.
• Never allow the power cord to dangle over the work surface.
• Never allow the machine or its power cord to come into contact with a hot or wet surface.
• Always unplug the machine after using it, before you fill the water tank and move or clean the machine. Never tug on the power cord to unplug it.
• Never leave the machine and/or its power cord near heat.
• While using the machine, avoid touching certain parts which can become extremely hot (spout, nozzle, etc.).
• Never heat flammable liquids with the steam.
• Always fill the tank with cold water and never add other types of liquid.
• Malfunctions due to failure to descale the machine or the use of a descaling method other than that described in the Instructions for Use are not covered by the guarantee.
• Never use your machine if it has fallen, been dropped or if it is not working properly. If the power cord has been damaged, it must be repaired by an agent approved by Magimix. For further information please contact Magimix Customer Care on 0844 5738655, in order to avoid all possible danger.
• Never use your machine outside.
• This machine is intended solely for domestic use. The following usages are not covered by the guarantee: in kitchen areas reserved for personnel in shops, offices and other workplace environments, on farms, by the patrons of hotels, motels and other commercial environments of a residential nature, and in bed and breakfast-type environments.
