USER MANUAL FIM 88 K GP.A IX INDESIT

FIM 88 KGP.A S FIM 88 KGP.A IX S Français

Operating Instructions

OVEN Operating Instructions,1

Warnings,3 Assistance,8 Description of the appliance,10 Description of the appliance,12 Installation,23 Start-up and use,25 Cooking modes,25 Precautions and tips,28 Maintenance and care,28

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass. “Before initiating the automatic cleaning cycle: • clean the oven door; • remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents; • remove all accessories and the sliding rack kit (where present); • do not place tea towels”

Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot.

Never use steam cleaners or pressure cleaners on the appliance. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. ! When you place the rack inside, make sure that the stop is directed upwards and in the back of the cavity.

The appliance is fitted with an automatic diagnostic system which detects any malfunctions. Malfunctions are displayed by messages of the following type: ”F” followed by numbers. Call for technical assistance should a malfunction occur. ! Never use the services of an unauthorised technician. Please have the following information to hand: • The type of problem encountered. • The appliance model (Mod.). • The serial number (S/N). The latter two pieces of information can be found on the data plate located on the appliance.

Description of the appliance

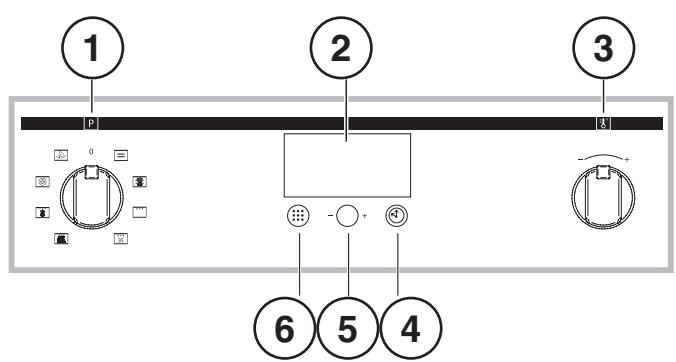

Control panel 1 2 3 4 5 6

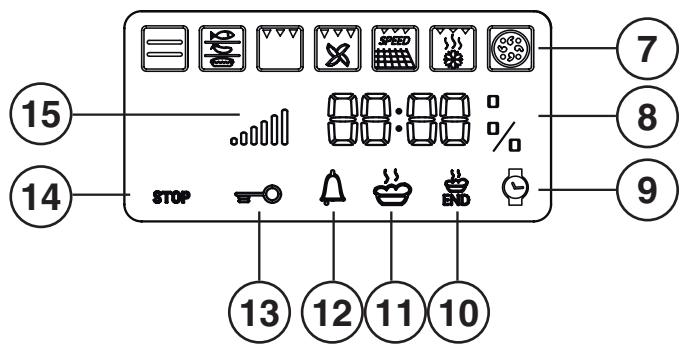

7 MODE Icons 8 TEMPERATURE and TIME digits 9 CLOCK Icon 10 END OF COOKING Icon 11 DURATION Icon 12 TIMER Icon 13 DOOR LOCK Indicator 14 STOP Icon 15 Preheating indicator

! Please keep this instruction booklet in a safe place for future reference. If the appliance is sold, given away or moved, please make sure the booklet is also passed on to the new owners so that they may benefit from the advice contained within it.

! Please read this instruction manual carefully: it contains important information concerning the safe operation, installation and maintenance of the appliance.

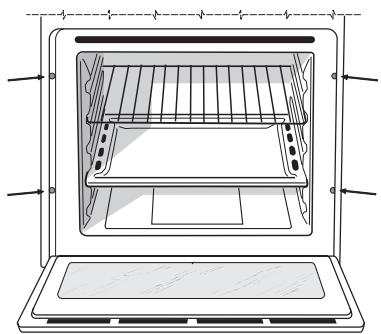

Secure the appliance to the cabinet by opening the oven door and inserting 4 screws into the 4 holes on the outer frame.

! Do not let children play with the packaging material; it should be disposed of in accordance with local separated waste collection standards (see Precautions and tips).

! The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may damage property or cause harm to people or animals. Built-in appliances Use an appropriate cabinet to ensure that the appliance operates properly: • The panels adjacent to the oven must be made of heatresistant material.

! All parts which ensure the safe operation of the appliance must not be removable without the aid of a tool.

• Cabinets with a veneer exterior must be assembled with glues which can withstand temperatures of up to 100°C.

Electrical connection

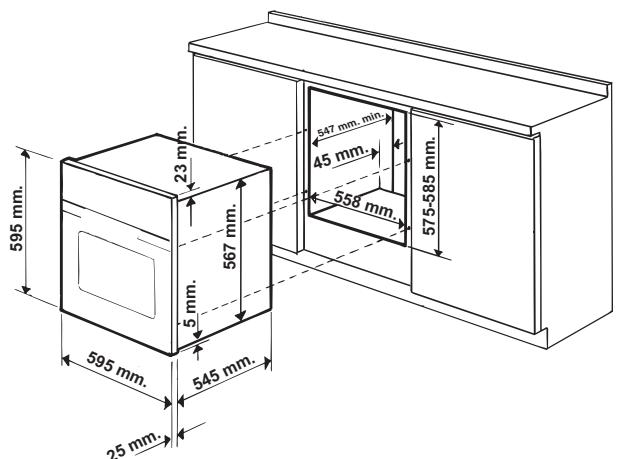

• To install the oven under the counter (see diagram) or in a kitchen unit, the cabinet must have the following dimensions:

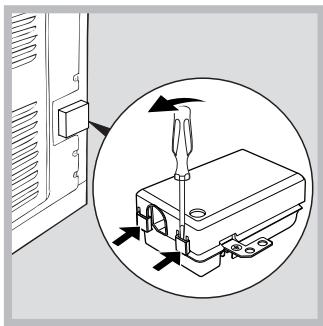

1. Open the terminal board by inserting a screwdriver into the side tabs of the cover. Use the screwdriver as a lever by pushing it down to open the cover (see diagram).

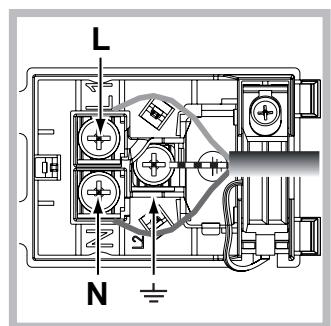

Fitting the power supply cable

Ovens equipped with a three-pole power supply cable are designed to operate with alternating current at the voltage and frequency indicated on the data plate located on the appliance (see below).

* Stainless steel models only

! The appliance must not come into contact with electrical parts once it has been installed. The indications for consumption given on the data plate have been calculated for this type of installation. Ventilation To ensure adequate ventilation, the back panel of the cabinet must be removed. It is advisable to install the oven so that it rests on two strips of wood, or on a completely flat surface with an opening of at least 45 x 560 mm (see diagrams).

2. Install the power supply cable by loosening the cable clamp screw and the three wire contact screws

L-N. Connect the wires to the corresponding terminals: the Blue wire to the terminal marked (N), the Brown wire to the terminal marked (L) and the Yellow/Green wire to the terminal marked (see diagram).

3. Secure the cable by fastening the clamp screw.

4. Close the cover of the terminal board.

GB Connecting the supply cable to the mains

Install a standardised plug corresponding to the load indicated on the data plate (see table). The appliance must be directly connected to the mains using an omnipolar switch with a minimum contact opening of 3 mm installed between the appliance and the mains. The switch must be suitable for the charge indicated and must comply with current electrical regulations (the earthing wire must not be interrupted by the switch). The supply cable must be positioned so that it does not come into contact with temperatures higher than 50°C at any point (the back panel of the oven, for example). ! The installer must ensure that the correct electrical connection has been performed and that it is fully compliant with safety regulations. Before connecting the appliance to the power supply, make sure that • The appliance is earthed and the plug is compliant with the law. • The socket can withstand the maximum power of the appliance, which is indicated on the data plate. • The voltage is in the range between the values indicated on the data plate. • The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. ! Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. ! The cable must not be bent or compressed. ! The cable must be checked regularly and replaced by authorised technicians only (see Assistance). ! The manufacturer declines any liability should these safety measures not be observed.

APPLIANCE SPECIFICATIONS Dimensions*

voltage: 220 - 240 V~ 50 Hz

(see data plate) maximum power

absorbed 2800 W Directive 2002/40/EC on the label of electric ovens. Standard EN 50304

ENERGY LABEL Energy consumption for Natural convection – heating mode:

Traditional mode Declared energy consumption for Forced convection Class mode: Gratin This appliance conforms to the following European Economic Community directives: - 2006/95/EEC dated 12/12/06 (Low Voltage) and subsequent amendments. - 2004/108/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent amendments. - 93/68/EEC dated 22/07/93 and subsequent amendments. - 2012/19/EC and subsequent amendments. - 1275/2008 standby/off mode.

* Only for models with drawn rails.

** Only for models with wire rails.

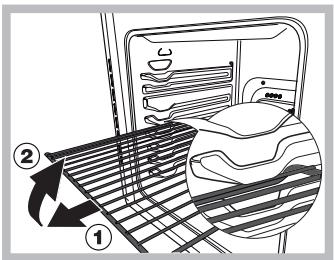

WARNING! The oven is provided with a stop system to extract the racks and prevent them from coming out of the oven (1). As shown in the drawing, to extract them completely, simply lift the racks, holding them on the front part, and

! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door.

The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away. ! In order to optimise the cooking performance, when starting the selected function, product settings will be applied that could cause a delayed start of the fan and heating elements.

! The clock may be set when the oven is switched off or when it is switched on, provided that a the end time of a cooking cycle has not been programmed previously.

1. Press the button several times until the icon and the first two digits on the display start to flash. 2. Turn the TIMER KNOB towards “ ” and “ ” to adjust the hour value. 3. Press the button again until the other two digits on the DISPLAY begin to flash. 4. Turn the TIMER KNOB towards “ ” and “ ” to adjust the minute value. 5. Press the

button again to confirm.

! This function does not interrupt cooking and does not affect the oven; it is simply used to activate the buzzer when the set amount of time has elapsed.

1. Press the button several times until the icon and the three digits on the display begin to flash. 2. Turn the TIMER KNOB towards “ ” and “ ” to adjust the minute value. 3. Press the button again to confirm. The display will then show the time as it counts down. When this period of time has elapsed the buzzer will be activated.

1. Select the desired cooking mode by turning the

SELECTOR knob. 2. The oven begins its preheating stage and the preheating indicator lights up. The temperature may be changed by turning the THERMOSTAT knob 3. When the preheating indicator

buzzer sounds the preheating process is complete: you may now place the food in the oven.

4. During cooking it is always possible to: - change the cooking mode by turning the SELECTOR knob - change the temperature by turning the THERMOSTAT knob - set the cooking duration in addition to the cooking end time (see Cooking modes) - stop cooking by turning the SELECTOR knob to the “0” position. 5. If a blackout occurs while the oven is already in operation, an automatic system within the appliance will reactivate the cooking mode from where it was interrupted as long as the temperature has not dropped below a certain level. Programmed cooking modes which have not started will not be restored and must be reprogrammed. ! There is no preheating stage for the GRILL mode. ! Never put objects directly on the bottom of the oven; this will avoid the enamel coating being damaged. ! Always place cookware on the rack(s) provided. ! The oven will begin its preheating phase after 2 seconds from selecting the desired cycle. Cooling ventilation In order to cool down the external temperature of the oven, a cooling fan blows a stream of air between the control panel and the oven door. At the beginning of the AUTOMATIC CLEANING cycle, the cooling fan operates at low speed. ! Once cooking has been completed, the cooling fan continues to operate until the oven has cooled down sufficiently. Oven light When the oven is not in operation, the lamp can be switched on at any time by opening the oven door.

! All cooking modes have a default cooking temperature which may be adjusted manually between 40°C and 250°C as desired. In the GRILL mode, the default power level value is indicated as a percentage (%) and may also be adjusted manually. TRADITIONAL mode When using this traditional cooking mode, it is best to use one cooking rack only. if more than one rack is used, the heat will be distributed unevenly. MULTILEVEL mode Since the heat remains constant throughout the oven, the air cooks and browns food in a uniform manner. A maximum of two racks may be used at the same time. GRILL mode By turning the THERMOSTAT knob, the different power levels which may be set will appear on the display; these range between 50% and 100%. The high and direct

temperature of the grill is recommended for food which requires a high surface temperature. Always cook in this mode with the oven door closed.

GRATIN mode This combination of features increases the effectiveness of the unidirectional thermal radiation provided by the heating elements through forced circulation of the air throughout the oven. This helps prevent food from burning on the surface and allows the heat to penetrate right into the food. Always cook in this mode with the oven door closed. SPEEDY BARBECUE mode This mode can be used to cook the perfect barbecue in your oven. It quickly produces flawless results when grilling meat, fish and vegetables, without creating smoke. The temperature is set by default to 270°C; cooking durations, which may be set as desired, are recommended for various dishes and are listed in the cooking advice table (see Cooking advice table). FREASY COOK mode Preheating is not necessary for this cooking mode. This mode is particularly suitable for cooking pre-packed food quickly (frozen or pre-cooked). The best results are achieved using one cooking rack only.

digits on the DISPLAY begin to flash.

3. Turn the TIMER KNOB towards “ ” and “ ” to adjust the hour value. 4. Press the button again until the other two digits on the DISPLAY begin to flash. 5. Turn the TIMER KNOB towards “ ” and “ ” to adjust the minute value. 6. Press the button again to confirm. 7. When the set time has elapsed, the text END appears on the DISPLAY, the oven will stop cooking and a buzzer sounds. Programming has been set when the and buttons are illuminated. The DISPLAY shows the cooking end time and the cooking duration alternately. To cancel programming, turn the SELECTOR knob to the “0” position.

Practical cooking advice

! Do not place racks in position 1 and 5 during fan-assisted cooking. This is because excessive direct heat can burn temperature sensitive foods.

! In the GRILL and GRATIN cooking modes, particularly when using the rotisserie spit, place the dripping pan in position 1 to collect cooking residues (fat and/or grease).

MULTI-COOKING PIZZA mode

This combination heats the oven rapidly by producing a considerable amount of heat, particularly from the element at the bottom. If you use more than one rack at a time, switch the position of the dishes halfway through the cooking process. KEEP WARM mode This type of cooking mode can be used to keep hot, previously-cooked foods warm, or to reheat dishes. The temperature is set by default to 65°C and cannot be adjusted.

! A cooking mode must be selected before programming can take place.

1. Press the button several times until the icon and the three digits on the DISPLAY begin to flash.

2. Turn the TIMER KNOB towards “ ” and “ ” to adjust the duration. 3. Press the button again to confirm. 4. When the set time has elapsed, the text END appears on the DISPLAY, the oven will stop cooking and a buzzer sounds. • For example: it is 9:00 a.m. and a time of 1 hour and 15 minutes is programmed. The programme will stop automatically at 10:15 a.m. Setting the end time for a cooking mode ! A cooking duration must be set before the end cooking time can be scheduled. 1. Follow steps 1 to 3 to set the duration as detailed above.

• Place the dripping pan on the bottom and the rack on top.

GRILL • Place the rack in position 3 or 4. Position the food in the centre of the rack. • We recommend that the power level is set to maximum. The top heating element is regulated by a thermostat and may not always operate constantly.

SPEEDY BARBECUE Programming the cooking duration

• Use positions 2 and 4, placing the food which requires more heat on 2.

• Position the rack on level 4 and the dripping pan on level 1.

• This is the accessory configuration you should use if you wish to achieve perfect barbecued results for every type of dish, without creating smoke or making the appliance dirty. When you have finished cooking, all excess fat will have collected in the dripping pan with the water and the accessories will be very easy to clean.

• Use a light aluminium pizza pan. Place it on the rack provided.

For a crispy crust, do not use the dripping pan as it prevents the crust from forming by extending the total cooking time. • If the pizza has a lot of toppings, we recommend adding the mozzarella cheese on top of the pizza halfway through the cooking process.

Cooking advice table

Standard Sliding guide guide rails rails 2 1 2 1 2 1 2 1 2 1 2 1 2 and 4 1 and 3 2 and 4 1 and 3 2 and 4 1 and 3 1 and 2/3 1 and 3 2 1 1 or 2 1 2 1 2 and 4 1 and 3 2 and 4 1 and 3 2 and 4 1 and 3 1 and 3 1 and 3

1,5 Yes 200-210 70-80 Chicken 1,5 Yes 200-210 60-70 Roast veal or beef 1 Yes 200 70-75 Convection Roast pork 1 Yes 200-210 70-80 Biscuits (shortcrust pastry) Yes 180 15-20 Pies / Tarts 1 Yes 180 30-35 Pizza on 2 racks Yes 220-230 20-25 Pies on two racks/cakes on 2 racks Yes 180 30-35 Sponge cake on 2 racks (on the dripping Yes 170 20-25 pan) Yes 200-210 65-75 Roast chicken + potatoes 1+1 Yes 190-200 45-50 Lamb 1 Yes 180 30-35 Multilevel Mackerel 1 Yes 190-200 35-40 Lasagne 1 Yes 190 20-25 Cream puffs on 2 racks Yes 190 10-20 Biscuits on 2 racks Yes 210 20-25 Cheese puffs on 2 racks Yes 200 20-30 Savoury pies Mackerel 1 4 3 No 100% 15-20 Sole and cuttlefish 0,7 4 3 No 100% 10-15 Squid and prawn kebabs 0,7 4 3 No 100% 8-10 Cod fillet 0,7 4 3 No 100% 10-15 Grilled vegetables 0,5 3 or 4 2 or 3 No 100% 15-20 Veal steak 0,8 4 3 No 100% 15-20 Grill Sausages 0,7 4 3 No 100% 15-20 Hamburgers 4 or 5 4 3 No 100% 10-12 Toasted sandwiches (or toast) 4 or 6 4 3 No 100% 3-5 Spit-roast chicken using rotisserie spit 1 No 100% 70-80 (where present) 1 No 100% 70-80 Spit-roast lamb using rotisserie spit (where present) Grilled chicken 1,5 2 2 No 210 55-60 Cuttlefish 1 2 2 No 200 30-35 Spit-roast chicken using ro tisserie spit 1,5 No 210 70-80 (where present) 1,5 No 210 60-70 Gratin Spit-roast duck using rotisserie spit 1 2 2 No 210 60-75 (where present) 1 2 2 No 210 70-80 Roast veal or beef 1 2 2 No 210 40-45 Roast pork Lamb Mackerel 1 4 3 No 250 11-16 Sole and cuttlefish 0,7 4 3 No 250 6-11 Squid and prawn kebabs 0,7 4 3 No 250 4-6 Speedy Cod fillet 0,7 4 3 No 250 6-11 Barbecue* Grilled vegetables 0,5 3 or 4 2 or 3 No 250 11-16 Veal steak 0,8 4 3 No 250 11-16 Sausages 0,7 4 3 No 250 11-16 Hamburgers 4 or 5 4 3 No 250 6-8 Frozen food 0.3 2 1 250 12 Pizza 0.4 2 1 200 20 Courgette and prawn pie 0.5 2 1 220 30-35 Country style spinach pie 0.3 2 1 200 25 35 Turnovers 0.5 2 1 200 Lasagne 0.4 2 1 180 25-30 Golden Rolls 0.4 2 1 220 15-20 Freasy cook Chicken bites Pre-cooked food Golden chicken wings 0.4 2 1 200 20-25 Fresh Food Biscuits (shortcrust pastry) 0.3 2 1 200 15-18 Sponge cake made with yoghurt 0.6 2 1 180 45 Cheese puffs 0.2 2 1 210 10-12 Pizza 0,5 2 1 Yes 220 15-20 Pizza Focaccia bread 0,5 2 1 Yes 200 20-25 Defrosting 2 or 3 2 No 65 Proving 2 or 3 2 No 65 60-90 Keep warm Dish reheating 2 or 3 2 No 65 Pasteurisation 2 or 3 2 No 65 ! The cooking times listed above are inten ded as guidelines only and may be modified according to personal tastes. Oven preheating times are set as standard and may not be modified manually. * Position the dripping pan, with the water, on shelf level 1.

GB Precautions and tips

! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. • When moving or positioning the appliance, always use the handles provided on the sides of the oven. • Do not touch the appliance while barefoot or with wet or damp hands and feet. • The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is dangerous. The manufacturer may not be held responsible for any damage caused as a result of improper, incorrect and unreasonable use of the appliance. • Do not touch the heating elements or certain parts of the oven door when the appliance is in use; these parts become extremely hot. Keep children well away from the appliance. • Make sure that the power supply cables of other electrical appliances do not come into contact with the hot parts of the oven. • The ventilation and heat dispersal openings must never be obstructed. • Always grip the oven door handle in the centre: the ends may be hot. • Always use oven gloves when placing cookware in the oven or when removing it. • Do not use aluminium foil to line the bottom of the oven. • Do not place flammable materials in the oven: if the appliance is switched on accidentally, the materials could catch fire. • Always make sure the knobs are in the “●”/“○” position when the appliance is not in use. • When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable. • Do not perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains. • If the event of malfunctions, under no circumstances should you attempt to perform the repairs yourself. Contact an authorised Service Centre (see Assistance). • Do not rest objects on the open oven door. • Do not let children play with the appliance. • The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. • The appliance is not intended to be operated by means of an external timer or separate remotecontrol system. 28

• When disposing of packaging material: observe local legislation so that the packaging may be reused.

• The European Directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimise the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Respecting and conserving the environment

• You can help to reduce the peak load of the electricity supply network companies by using the oven in the hours between late afternoon and the early hours of the morning.

The cooking mode programming options, the “delayed cooking” mode (see Cooking modes) and “delayed automatic cleaning” mode (see Care and Maintenance) in particular, enable the user to organise their time efficiently. • Always keep the oven door closed when using the GRILL and GRATIN modes: This will achieve improved results while saving energy (approximately 10%). • Regularly check the door seals and wipe clean to ensure they are free of debris so that they stick properly to the door and do not allow heat to disperse. ! This product complies with the requirements of the latest European Directive on the limitation of power consumption of the standby mode. If no operations are carried out for a period of 2 minutes, the appliance automatically switches to the standby mode. The standby mode is visualised by the high luminosity “Watch Icon”. As soon as interaction with the machine resumes, the system’s operating mode is restored.

Maintenance and care

Switching the appliance off

Disconnect your appliance from the electricity supply before carrying out any work on it.

Cleaning the appliance

• The stainless steel or enamel-coated external parts and the rubber seals may be cleaned using a sponge that has been soaked in lukewarm water and neutral soap.

Use specialised products for the removal of stubborn stains. After cleaning, rinse and dry thoroughly. Do not use abrasive powders or corrosive substances. • The inside of the oven should ideally be cleaned after each use, while it is still lukewarm. Use hot water and detergent, then rinse well and dry with a soft cloth. Do not use abrasive products.

• All accessories - with the exception of the sliding racks

- can be washed like everyday crockery, and are even dishwasher safe. • We recommend that detergents are not sprayed directly onto the control panel, but that a sponge is used instead.

Replacing the light bulb

! Never use steam cleaners or pressure cleaners on the appliance.

Seal (only on a few models)

Cleaning the oven door

Clean the glass part of the oven door using a sponge and a non-abrasive cleaning product, then dry thoroughly with a soft cloth. Do not use rough abrasive material or sharp metal scrapers as these could scratch the surface and cause the glass to crack. For more thorough cleaning purposes, the oven door may be removed:

1. Open the oven door fully (see diagram);

2. Lift up and turn the small levers located on the two hinges (see diagram);

3. Grip the door on the two external sides and close it approximately half way. Pull the door towards you, lifting it out of its slot (see diagram).

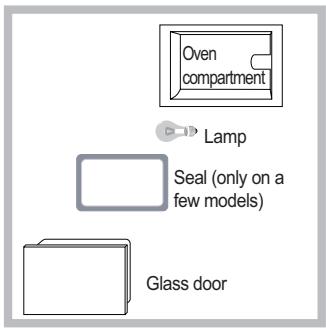

GB To replace the oven light bulb:

1. Remove the glass cover using a screwdriver. 2. Unscrew the light bulb and replace it with a similar one: Wattage 15 W, cap E 14. Replace the glass cover, making sure the seal is positioned correctly (see diagram).

! Do not use the oven lamp as/for ambient lighting.

During the AUTOMATIC CLEANING cycle, the internal temperature of the oven reaches 500°C. The pyrolytic cycle is activated, burning away food and grime residues. Dirt is literally incinerated.

Keep children away from the appliance during the automatic cleaning cycle as surfaces may become very hot. Particles may ignite inside the oven as a result of the combustion process. There is no cause for concern: this process is both normal and hazard-free. Before initiating the AUTOMATIC CLEANING mode: • remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents; • remove all accessories and the sliding rack kit (where present); • Do not place tea towels or pot holders over the oven handle. • Turn the SELECTOR knob to the “0” position. ! If the oven is too hot, the pyrolytic cycle may not start. Wait for the oven to cool down. ! The programme may only be started once the oven door has been closed. To activate the AUTOMATIC CLEANING cycle press and

To replace the door, reverse this sequence.

Inspecting the seals Check the door seals around the oven regularly. If the seals are damaged, please contact your nearest Service Centre (see Assistance). We recommend that the oven is not used until the seals have been replaced.

hold the button for approximately 4 seconds. The TIMER KNOB may be used to select the desired cleaning level; there are three default time settings which cannot be modified.

1. Economy (ECO): turn the knob towards “ ”. Duration 1 hour. 2. Normal (NOR): initial level. Duration 1 hour and 30 minutes. 3. Intensive (INT): turn the knob towards “ ”. Duration 2 hours. 4. Press the

An end time for the AUTOMATIC CLEANING cycle (as for a normal cooking cycle) may be programmed (see

Programming the automatic cleaning end time).

• The icon on the display, when lit, indicates that the oven door was automatically locked as soon as the temperature reached a high value. • The

icon indicates that the cleaning cycle may

be cancelled at any time by pressing the

• If a malfunction occurs, the heating elements will be switched off.

• Once the oven door has been locked, you cannot change the duration and cycle end time settings. Programming the automatic cleaning end time 1. Press the button until the icon and the two digits on the DISPLAY begin to flash. 2. Turn the TIMER KNOB towards “ ” and “ ” to adjust the hour value. 3. Press the button again until the other two digits on the DISPLAY begin to flash. 4. Turn the TIMER KNOB towards “ ” and “ ” to adjust the minute value. 5. Press the button again to confirm. 6. When the set time has elapsed, the text END appears on the display and a buzzer sounds. • For example: it is 9:00 a.m. and the Economy (ECO) AUTOMATIC CLEANING level has been selected, with the default duration of 1 hour. 12:30 is scheduled as the end time. The programme will start automatically at 11:30 a.m. Programming has been set when the and buttons are illuminated. The display shows the AUTOMATIC CLEANING end time and duration alternately. Once the automatic cleaning cycle is over You will have to wait until the temperature inside the oven has cooled down sufficiently before you can open the oven door. You will notice some white dust deposits on the bottom and the sides of your oven; remove these deposits with a damp sponge once the oven has cooled down completely. Alternatively, you can make use of the already heated oven, in which case it is not necessary to remove the deposits, they are completely harmless and will not affect your food in any way.
