USER MANUAL M2232D LG

Please read this manual carefully before operating the your TV and retain it for future reference.

LED LCD TV MODEL

M2232D

M2432D

M2732D

TABLE OF CONTENTS

3 LICENSES

4 INSTALLATION PROCEDURE

5 ASSEMBLING AND PREPARING

5 Unpacking
7 Parts and buttons
8 Lifting and moving the TV
9 Setting up the TV
9 - Attaching the Stand
12 - Mounting on a table
13 - Tidying cables
14 - Detaching the Stand
16 - Mounting on a wall

18 WATCHING TV

18 Turning the TV on for the first time

20 MAKING CONNECTIONS

20 Connecting an antenna
21 Connecting to a HD receiver, DVD, VCR player or Gaming device
21 - HDMI connection

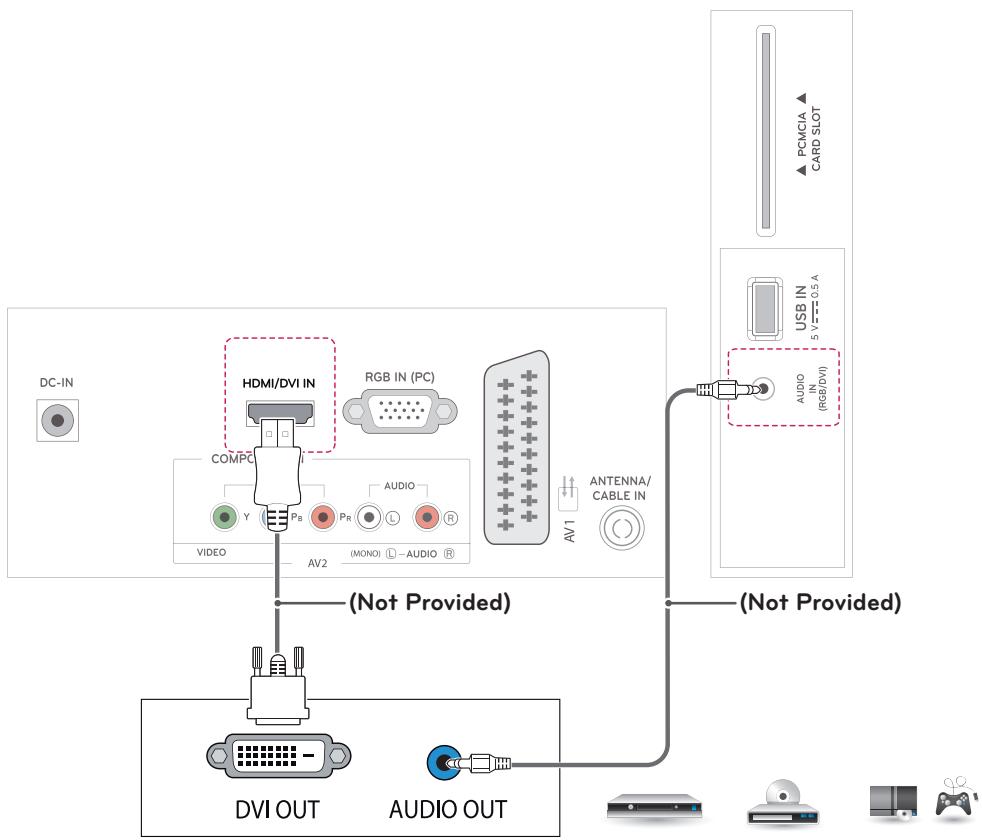

22 - HDMI to DVI connection
23 - Component connection
24 - Composite connection
25 -EuroScart connection

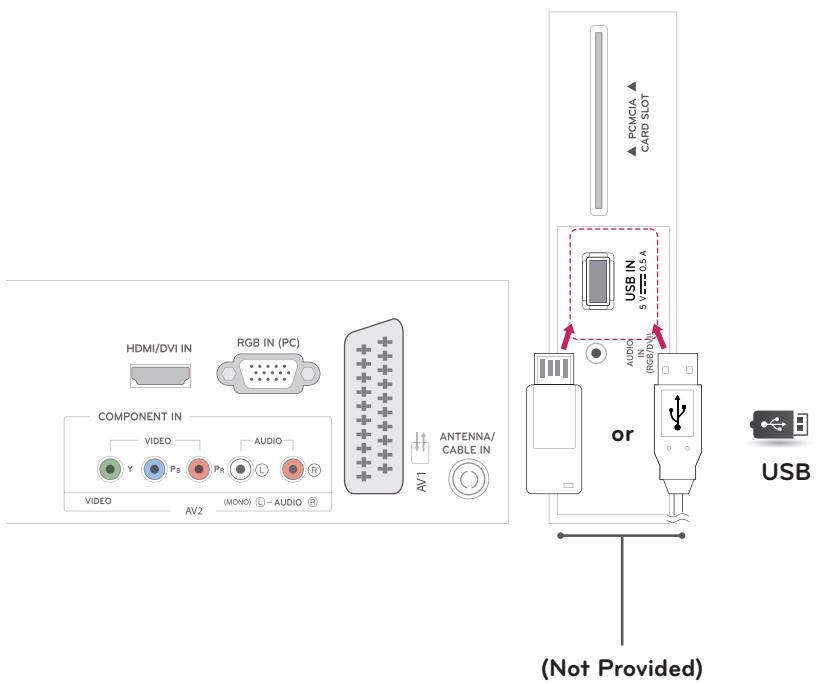

26 Connecting to a USB

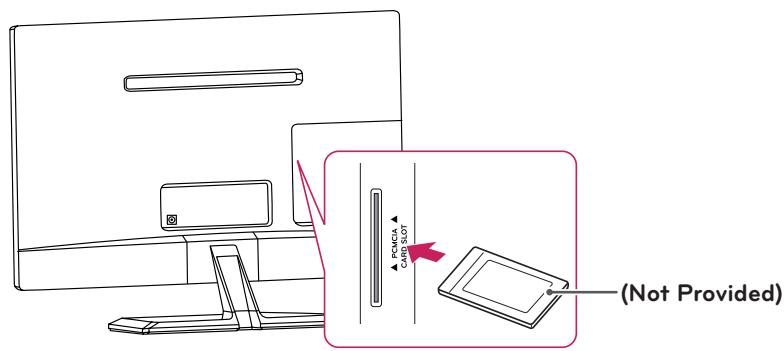

26 Connecting to a CI Module
27 Connecting to a PC

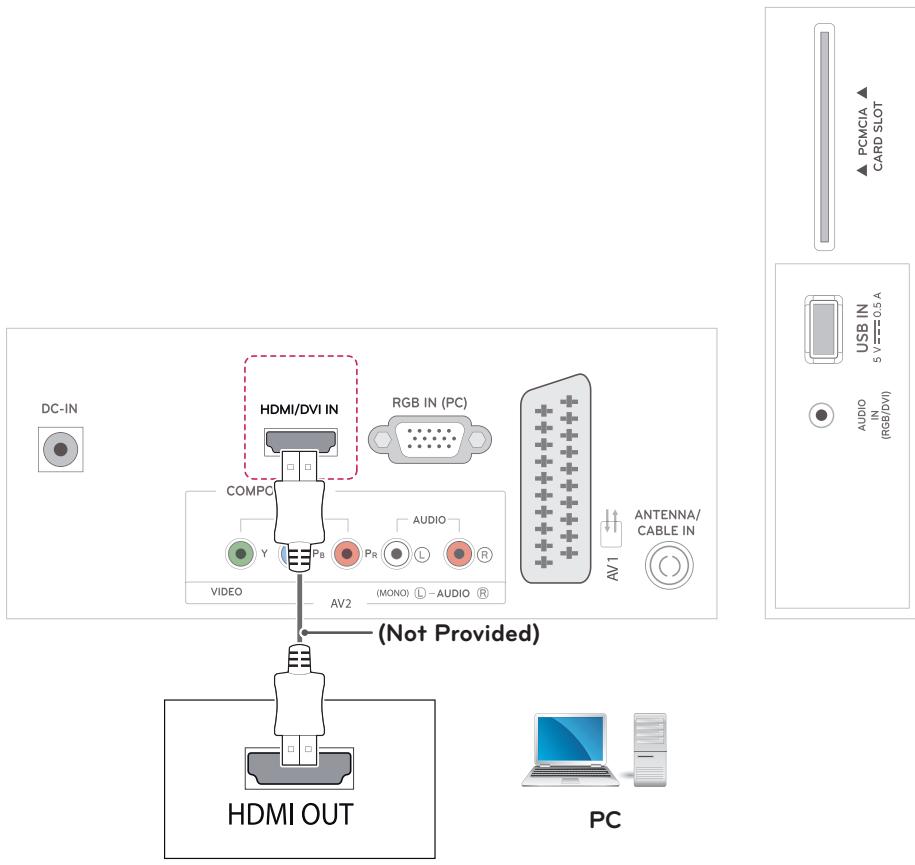

28 - HDMI connection
29 - HDMI to DVI connection
30 - RGB connection

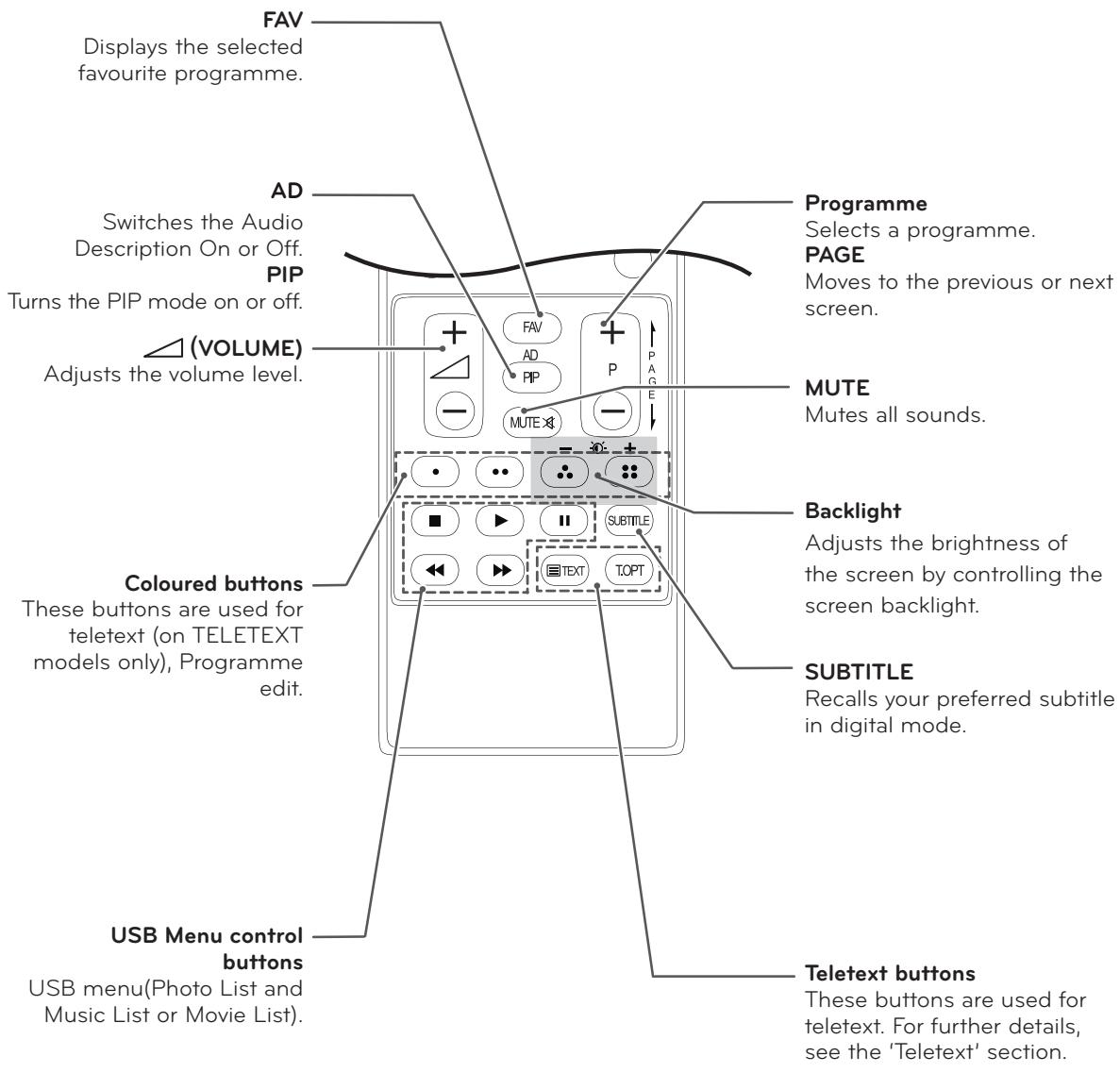

31 REMOTE CONTROL

33 CUSTOMIZING SETTINGS

33 Accessing main menus

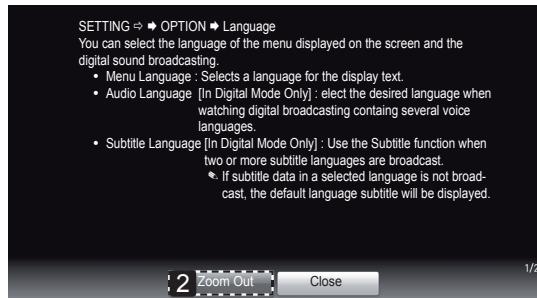

34 USING THE USER GUIDE

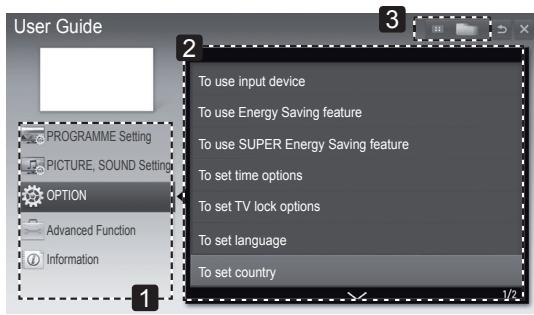

34 Accessing User Guide menu.
34 - Using the TV menu

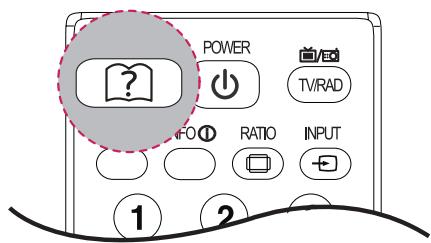

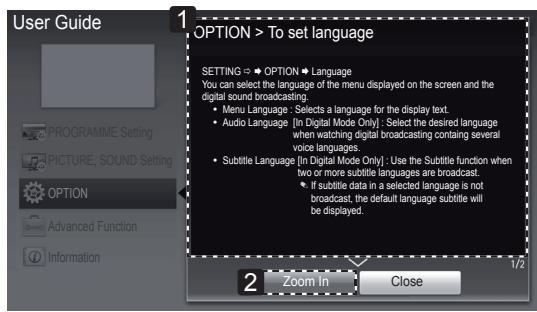

34 - Using the Remote Control

35 MAINTENANCE

35 Cleaning Your TV
35 Screen and frame
35 Cabinet and stand
35 Power cord
36 Preventing "Image burn" or "Burn-in" on your TV screen

37 TROUBLESHOOTING

38 SPECIFICATIONS

37 General

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

DIGITAL PLUS

PULSE

Manufactured under license from Dolby Laboratories. "Dolby "and the double-D symbol are trademarks of Dolby Laboratories.

HIGH-DEFINITION MULTIMEDIA INTERFACE

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

HD

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX, DivX Certified and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV.
3 Connect an external device to the TV.

NOTE

• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.

ASSEMBLING AND PREPARED

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and accessories.

NOTE

• The accessories supplied with your product may vary depending on the model.
• Product specifications or contents in this manual may be changed without prior notice due to upgrade of product functions.

CAUTION

• Do not use any pirated items to ensure the safety and product life span.
• Any damages or injuries by using pirated items are not covered by the warranty.

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10mm thick and 18mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

^A≤ 10 mm
^B≤ 18mm

M2232D M2432D M2732D

Remote control.

Batteries (AAA).

(See p.31, See p.32)

CD (Owner's Manual). Cards.

Stand Base.

(See p.9, See p.14)

(See p. 10, See p. 15)

Stand Body.

(Only M2232D, M2432D)

(See p.9, See p.14)

Stand Body.

(Only M2732D)

(See p. 10, See p. 15)

Screws for Assembly.

2 EA

(Only M2732D)

(See p. 10, See p. 15)

Power Cord.

AC-DC Adapter.

Depending on the country

(See p.12)

(See p.12)

or

AC-DC Adapter.

Depending on the country

(See p.12)

O O O O O O O O

Cable Tie.

(See p.13)

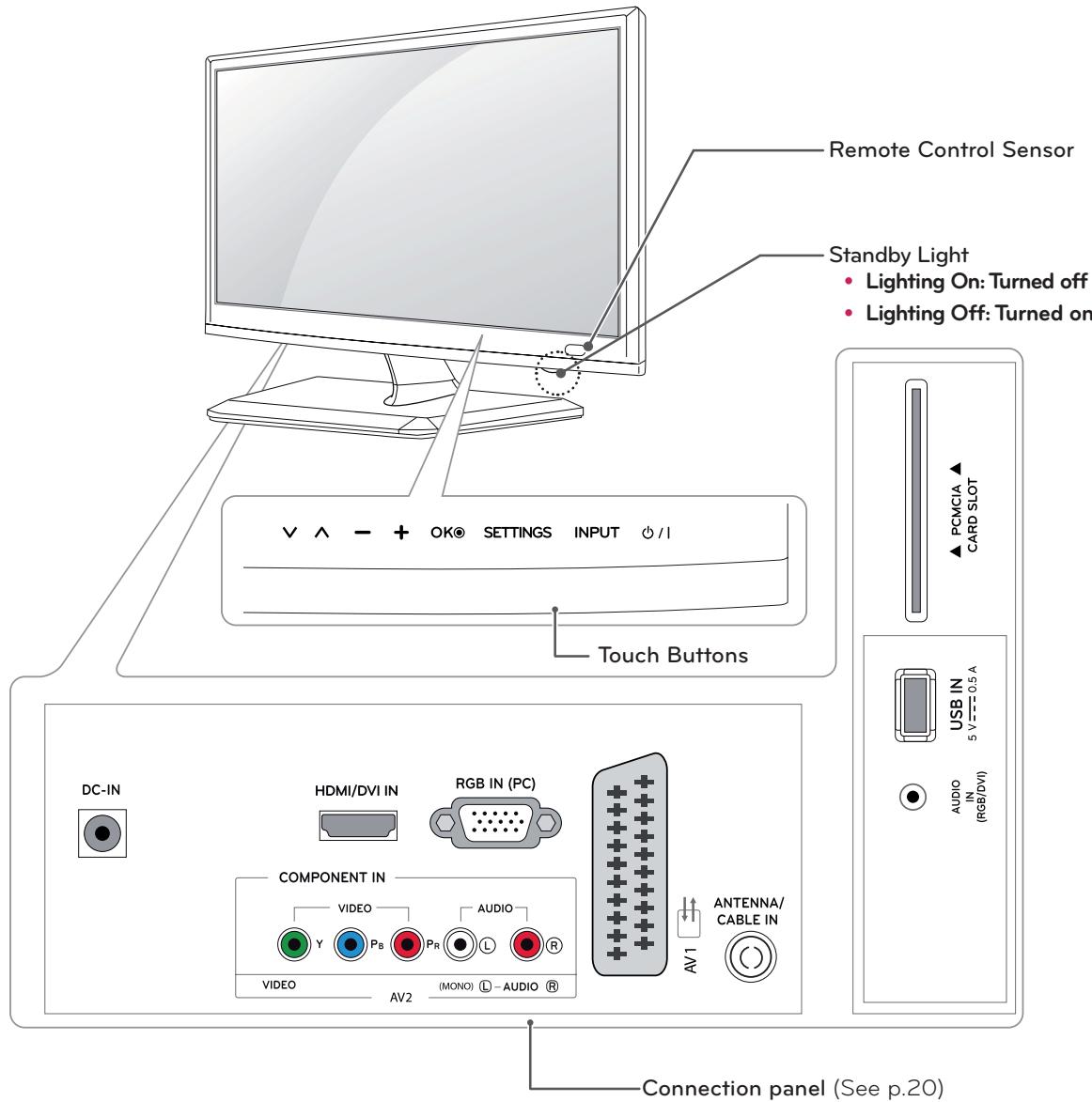

Parts and buttons

Touch button	Description
∨ ∧	Scrolls through the saved programmes.
- +	Adjusts the volume level.
OK	Selects the highlighted menu option or confirms an input.
SETTINGS	Accesses the main menus, or saves your input and exits the menus.
INPUT	Changes the input source.
◎ / I	Turns the power on or off.

NOTE

All of the buttons are touch sensitive and can be operated through simple touch with your finger.

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for save transportation regardless of its type and size.

CAUTION

Avoid touching the screen at all times, as this may result in damage to the screen or some of the pixels used to create images.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
• Before moving or lifting the TV, disconnect the power cord and all cables.

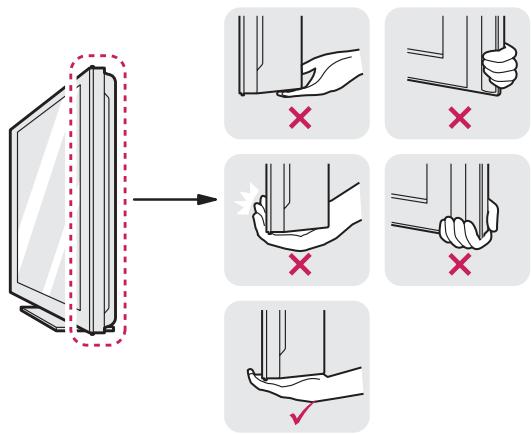

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When holding the TV, the screen should face away from you to prevent the screen from scratches.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright, never turn the TV on its side, or tilt towards the left or right.

Setting up the TV

M2232D M2432D

Attaching the Stand

If you are not mounting the TV to a wall, use the following instructions to attach the stand.

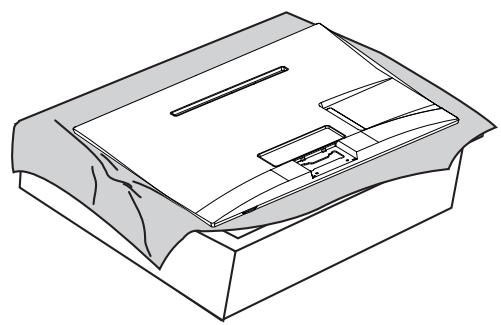

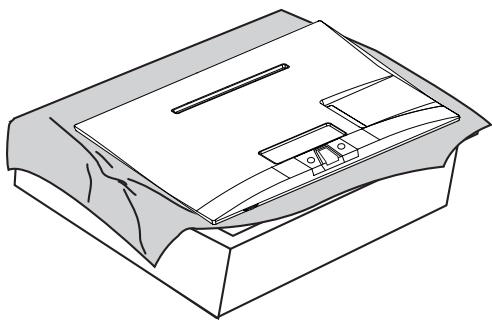

1 Place the TV with the screen side down on a flat and cushioned surface.

CAUTION

• Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
• When attaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

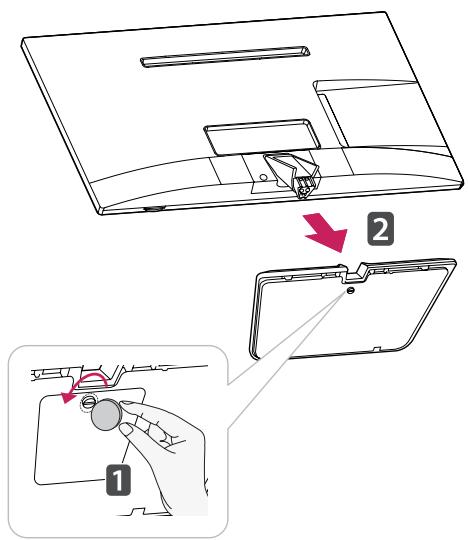

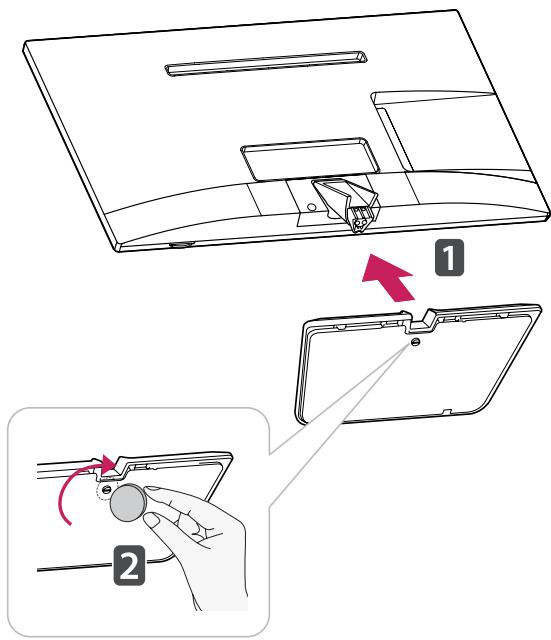

3 Attach the Stand Base from the Stand Body by turning the screw to the right with a Coin.

CAUTION

Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

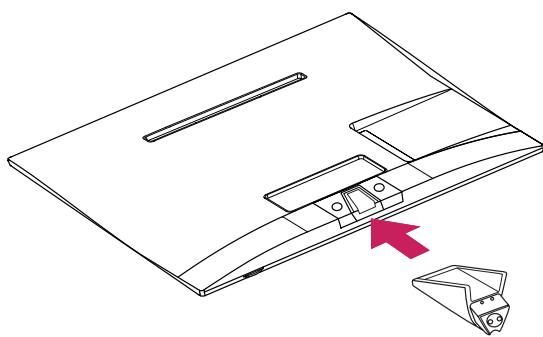

2 Attach the Stand Body from the TV.

M2732D

If you are not mounting the TV to a wall, use the following instructions to attach the stand.

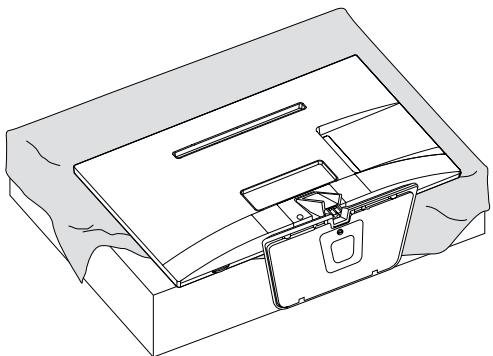

1 Place the TV with the screen side down on a flat and cushioned surface.

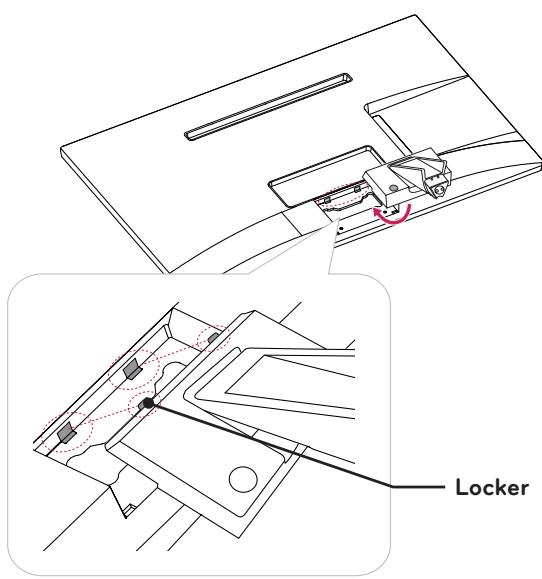

2 Attach the Stand Body from the TV.

Insert the two Lockers of the Stand Body right into the groove of the TV head and secure them by pressing the left and right bottom sides.

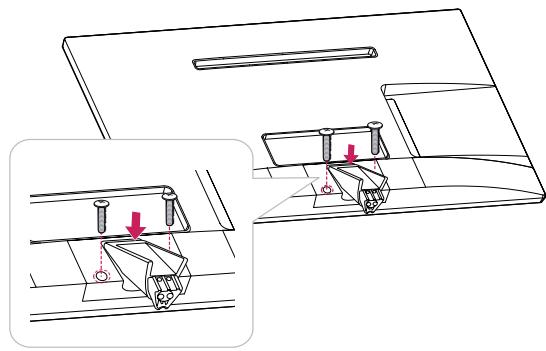

3 Secure the TV and the Stand Body with the 2 screws.

WARNING

If you don't fasten the screw tightly, TV will fall down and get damaged.

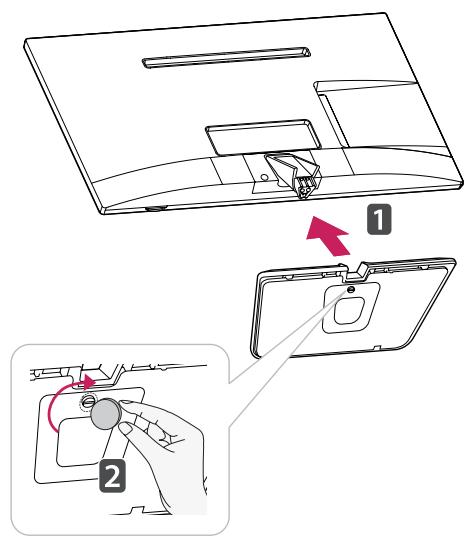

4 Attach the Stand Base from the Stand Body by turning the screw to the right with a Coin.

CAUTION

Tighten the screws firmly to prevent the TV from tilting forward. Do not over tighten.

CAUTION

• Do not carry the monitor upside-down as this may cause it to fall off its stand, resulting in damage or injury.
• The illustration shows a general example of installation and may look different from the actual product.

• Do not carry the monitor upside-down by holding the stand body as this may cause it to fall off, resulting in damage or injury.
• The illustration shows a general example of installation and may look different from the actual product.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table.

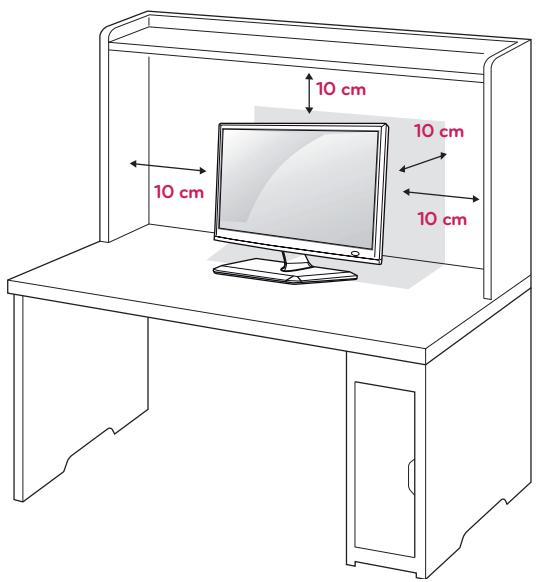

Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation.

WARNING

When you adjust the angle, do not hold the bottom of the TV frame as shown on the following illustration, as may injure your fingers.

CAUTION

Disconnect the power cord first, and then move or install the TV. Otherwise electric shock may occur.

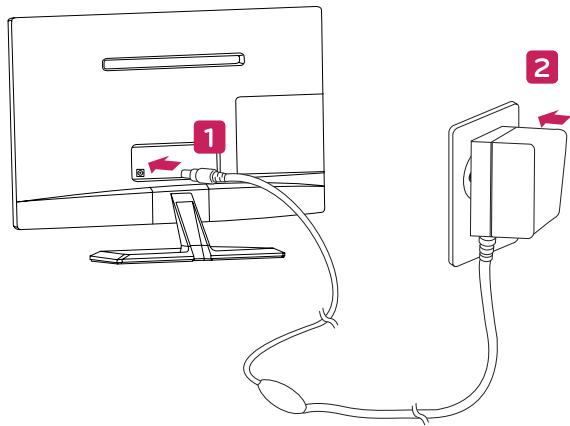

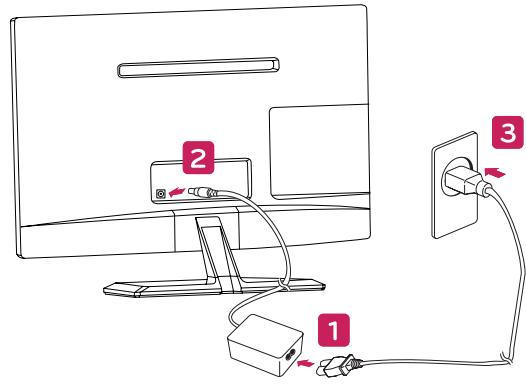

2 Connect the AC-DC Adapter and Power Cord to a wall outlet.

or

CAUTION

Do not place the TV near or on sources of heat, as this may result in fire or other damage.

NOTE

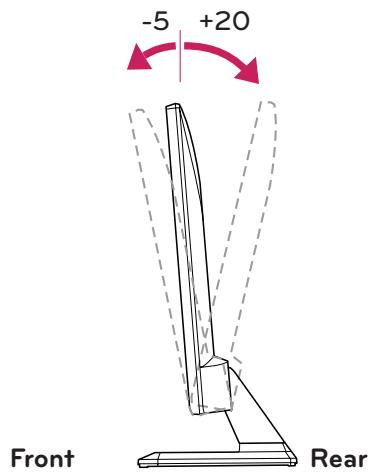

Tilt from +20 to -5 degrees up or down to adjust the angle of the TV to suit your view.

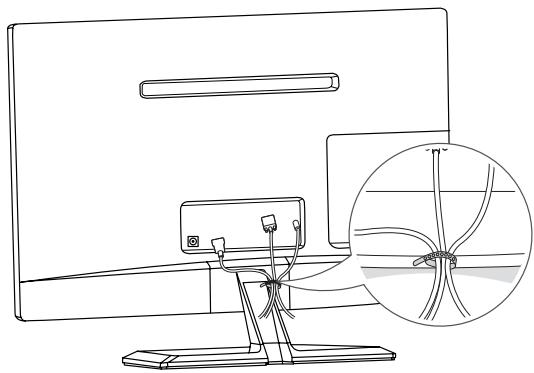

Tidying cables

Gather and bind the cables with the supplied cable tie.

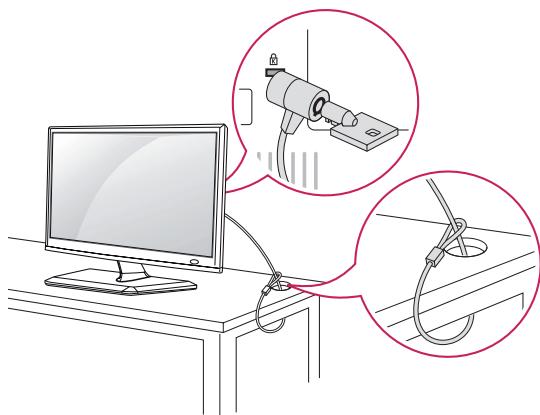

Using the Kensington security system

The Kensington security system connector is located at the back of the TV. For more information of installation and using, refer to the manual supplied with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

NOTE

The Kensington security system is optional. You can obtain additional accessories from most electronics stores.

Detaching the Stand

M2232D M2432D

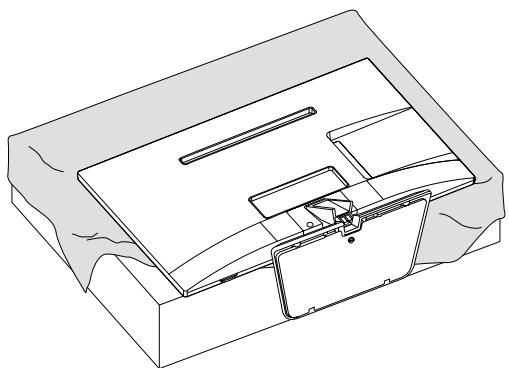

1 Place the TV with the screen side down on a flat and cushioned surface.

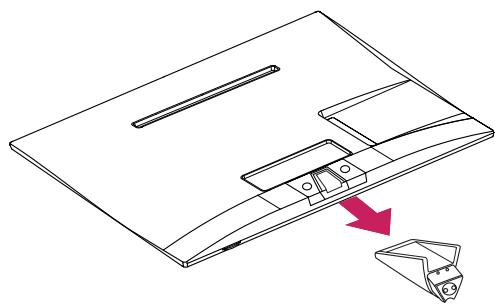

3 Pull out the Stand Body from the TV.

CAUTION

• Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
• When detaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

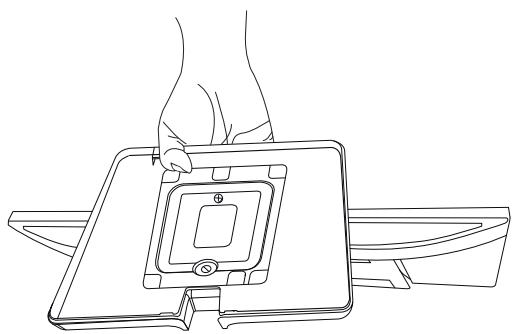

2 Turn the screw to the left, and then pull out the Stand Base from the Stand Body.

M2732D

1 Place the TV with the screen side down on a flat and cushioned surface.

CAUTION

• Lay a foam mat or soft protective cloth on the surface to protect the screen from damage.
• When detaching the stand to the TV, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

2 Turn the screw to the left, and then pull out the Stand Base from the Stand Body.

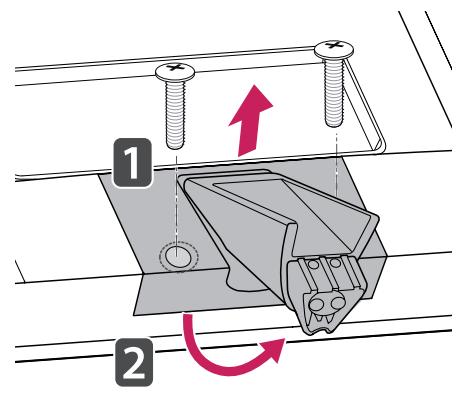

3 Remove 2 screws and pull out the Stand Body from the TV.

Mounting on a wall

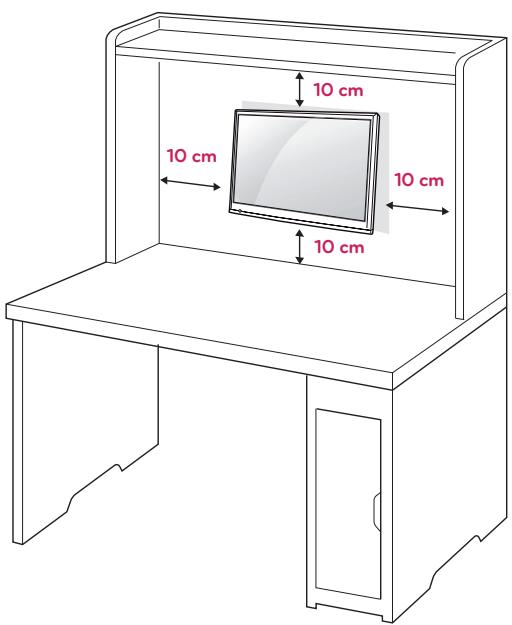

For proper ventilation, allow a clearance of 10 cm on each side and from the wall. Detailed installation instructions are available from your dealer, see the optional Tilt Wall Mounting Bracket Installation and Setup Guide.

If you intend to mount the TV to a wall, attach Wall mounting interface (optional parts) to the back of the TV.

When you install the TV using the wall mounting interface (optional parts), attach it carefully so it will not drop.

1 Please, Use the screw and wall mount interface in accordance with VESA Standards.
2 If you use screw longer than standard, the TV might be damaged internally.
3 If you use improper screw, the product might be damaged and drop from mounted position. In this case, LG Electronics is not responsible for it.
4 VESA compatible only with respect to screw mounting interface dimensions and mounting screw specifications.

5 Please use VESA standard as below.

• 784.8 mm (30.9 inch) and under
• Wall Mount Pad Thickness : 2.6 mm
• Screw : Φ 4.0 mm x Pitch 0.7 mm x Length 10 mm

787.4 mm (31.0 inch) and above

• Please use VESA standard wall mount pad and screws.

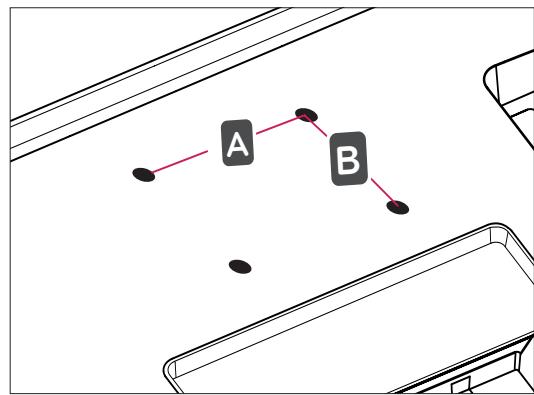

VESA (A x B)	100 x 100
Standard screw	M4
Number of screws	4
Wall mount bracket (optional)	RW120

• VESA (A x B)

CAUTION

• Disconnect the power cord first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury.
• Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is optional. You can obtain additional accessories from your local dealer.
• The length of screws may differ depending on the wall mount. Be sure to use the proper length.
• For more information, refer to the instructions supplied with the wall mount.

WATCHING TV

Turning the TV on for the first time

When you access the TV for the first time, the initial setting screen appears. Select a language and customize the basic settings.

1 Connect the power cord to a power outlet.
2 Press / on the TV or power button on the remote control to turn the TV on.

The Standby Light is turned off.

NOTE

When the TV is in Power saving mode, the Standby Light turns amber.

3 The initial setting screen appears if you access the TV for the first time.

NOTE

If you do not operate the TV within 40 seconds when the setting menu screen appears, the setting menus will disappear.

4 Follow the on-screen instructions to customize your TV according to your preferences.

Language

Mode Setting

Power Indicator

Country

Time Zone

Set Password

Auto Tuning

Selects a language for the display.

Selects Home Use for the home environment.

Selects the Standby Light. If you select On, the TV turns on the Standby Light in the front panel when the TV is off.

Selects a country to display.

Selects the time zone and daylight saving.

(When Russia is selected for Country)

Set the password.

(When France/Italy is selected for Country)

Scans and saves available programmes automatically.

NOTE

• For those countries without confirmed DTV broadcasting standards, some DTV features might not work, depending on the DTV broadcasting environment.
• When France is selected for Country, the initial password is not '0', '0', '0', '0' but '1', '2', '3', '4'.
• To display images in the best quality for your home environment, select Home Use mode.
• Store Demo mode is suitable for the retail environment.
• If you select Store Demo mode, the previously customized settings will switch to the default settings of Store Demo mode in 2 minutes.

5 When the basic settings are complete, press OK.

NOTE

If you do not complete the initial setting, it will appear whenever you access the TV.

6 To turn the TV off, press /1 on the TV.

The Standby Light is turned on.

CAUTION

Disconnect the power cord from the power outlet when you do not use the TV for a long period of time.

NOTE

You can also access Factory Reset by accessing OPTION in the main menus.

MAKING CONNECTIONS

Connect various external devices to the TV and switch input modes to select an external device. For more information about an external device's connection, refer to the manual supplied with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, camcorders or cameras, gaming devices, and other external devices.

NOTE

• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the manual supplied with the connected device.
• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.

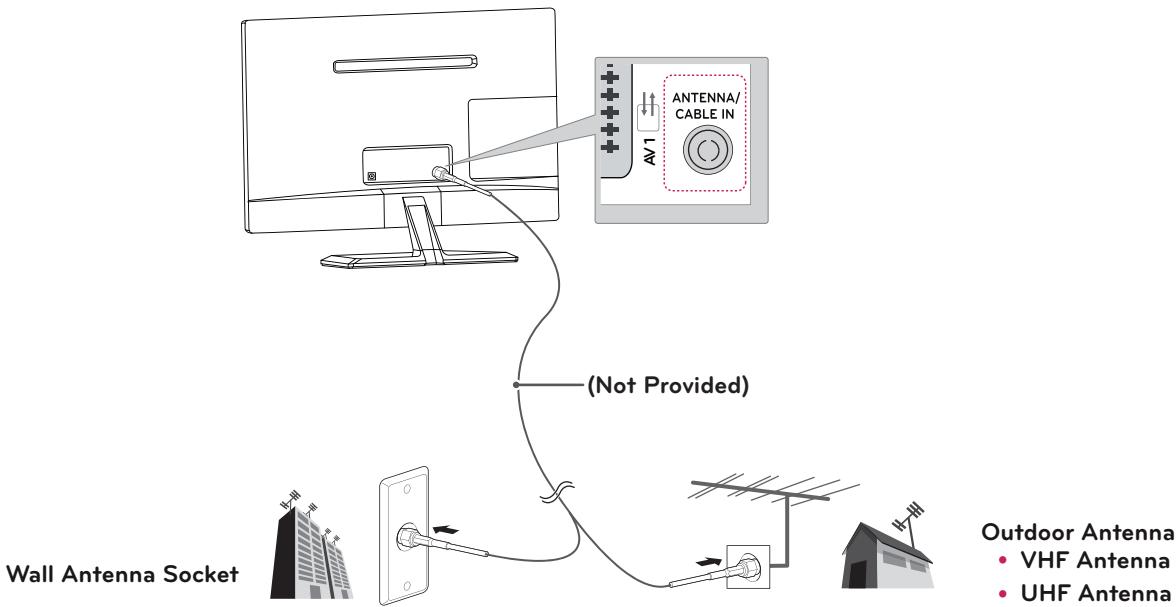

Connecting an antenna

Connect an antenna, cable or cable box to watch TV referring to the following. The illustrations may differ from the actual accessories and an RF cable is optional.

Connect the TV to a wall antenna socket with an RF cable (75).

NOTE

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, aim the antenna to the proper direction.
• Visit http://AntennaWeb.org for more information about the antenna and cable connection.

CAUTION

• Make sure not to bend the copper wire of the RF cable.

Copper wire

• Complete all connections instructions between devices, and then connect the power cord to the power outlet to prevent damages to your TV.

Connecting to a HD receiver, DVD, VCR player or Gaming device

Connect a HD receiver, DVD, VCR player or Gaming device to the TV and select an appropriate input mode.

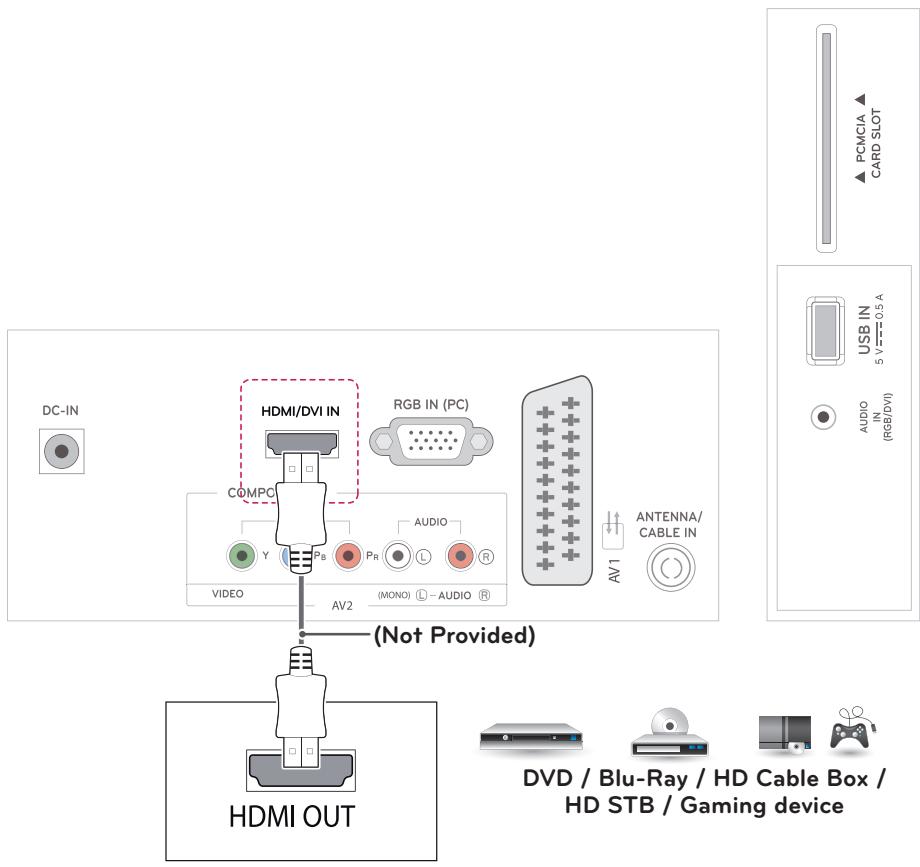

HDMI connection

HDMI is the best way to connect a device.

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown on the following illustration.

NOTE

• Use a High Speed HDMI™ Cable.
• High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
  Supported DTV Audio: MPEG, Dolby Digital.
• Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/192k, DTS Not supported.)

HDMI to DVI connection

Transmits the digital video signal from an external device to the TV. Connect the external device and the TV with the HDMI to DVI cable as shown in the following illustration. To transmit an audio signal, connect an optional audio cable.

NOTE

If you do not use an optional external speaker, connect the external device to the TV with the optional audio cable.

DVD / Blu-Ray / HD Cable Box / HD STB / Gaming device

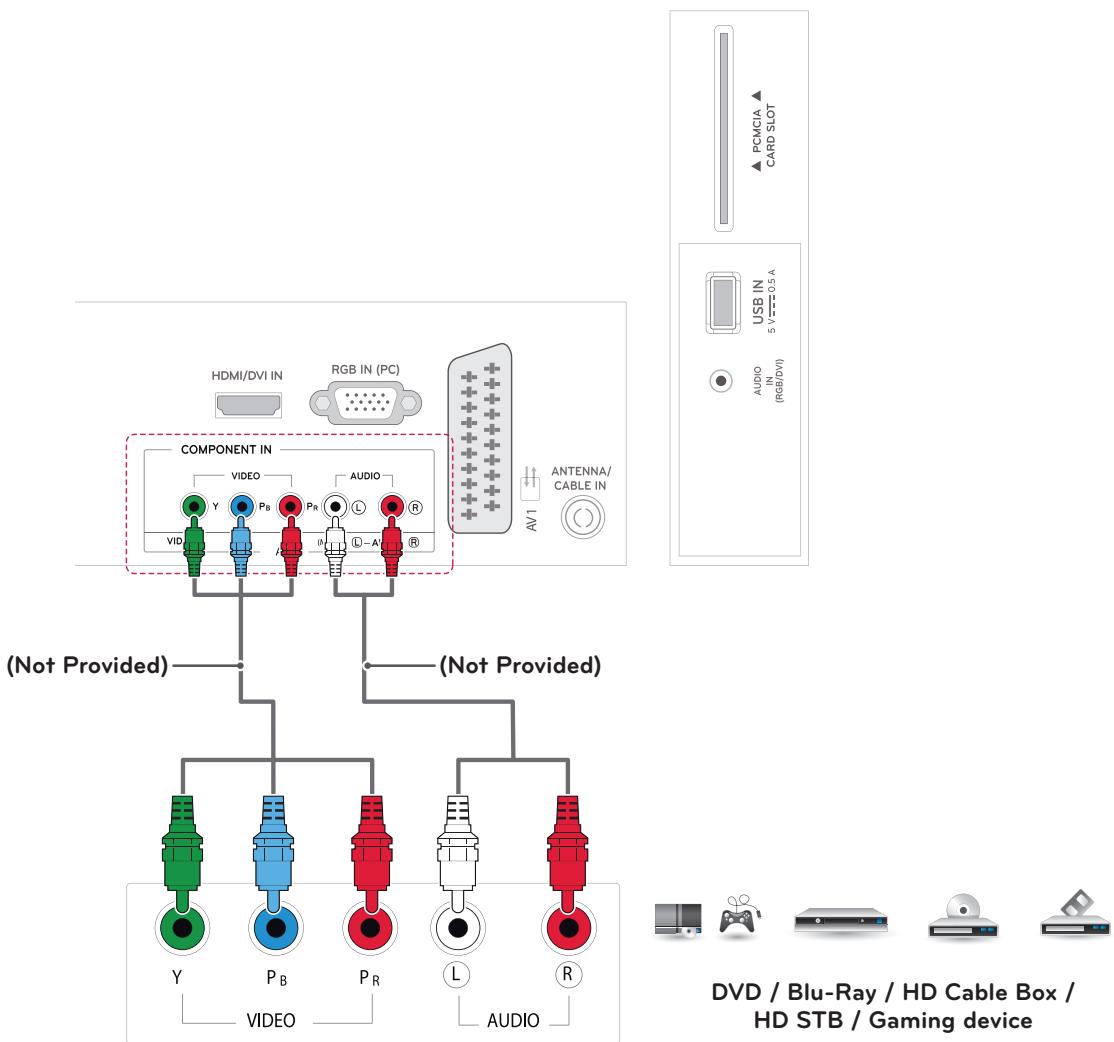

Component connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the component cable as shown on the following illustration. To display images by using progressive scan, make sure to use the component cable.

NOTE

• If cables are installed incorrectly, it could case the image to display in black and white or with distorted color.
• Check to ensure the cable are matched with the corresponding color connection.

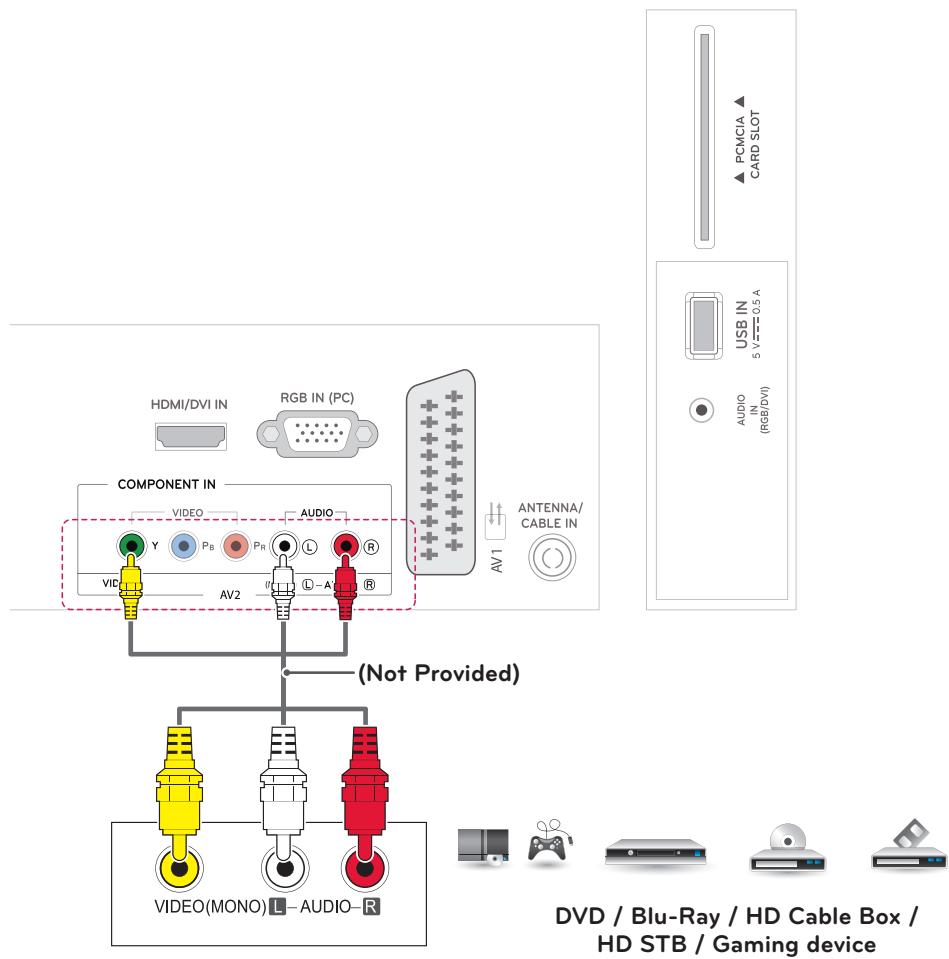

Composite connection

Transmits the analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown on the following illustration.

NOTE

Check to ensure the cable are matched with the corresponding color connection.

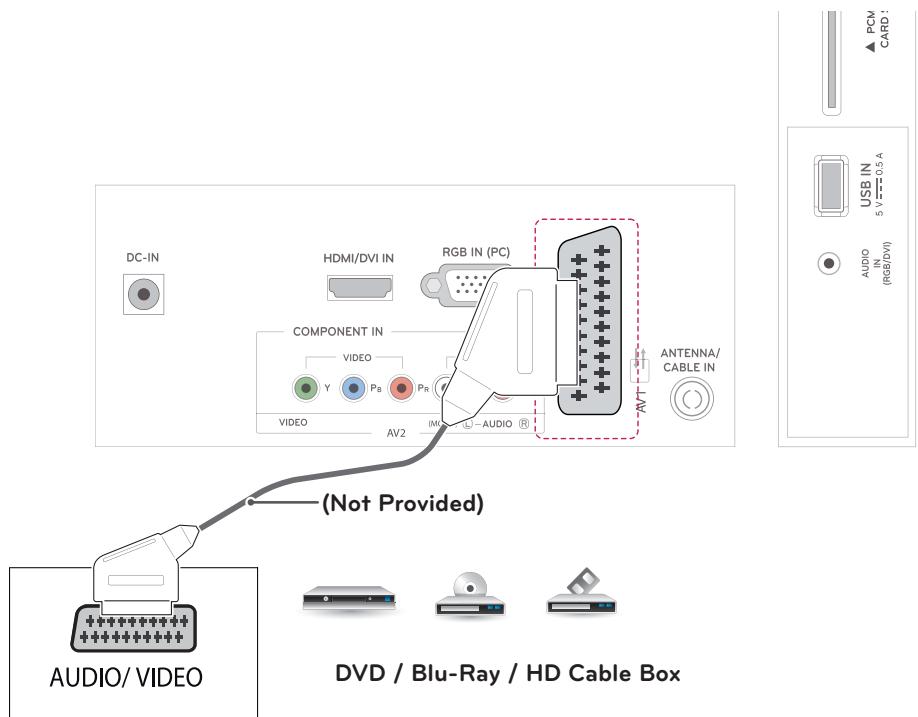

Euro Scart connection

Transmits the video and audio signals from an external device to the TV. Connect the external device and the TV with the Euro Scart cable as shown on the following illustration. To display images by using progressive scan, make sure to use the Euro Scart cable.

Output Type Current input mode	AV1 (TV Out¹)
Digital TV	Digital TV
Analogue TV, AV	Analogue TV
Component/ RGB
HDMI

NOTE

Any Euro scart cable used must be signal shielded.

Connecting to a USB

Connect a USB storage device such as s USB flash memory, external hard drive, MP3 player or a USB memory card reader to the TV and access the USB menu to use various multimedia files.

Connecting to a CI Module

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

NOTE

Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

PCMCIA Card

Connecting to a PC

Your TV supports the Plug & Play* feature and has the built-in speakers with Infinite Surround that reproduces sound clearly with a rich bass.

• Plug & Play: The function when a PC recognizes a connected device that users connect to a PC and turn on, without device configuration or user intervention.

NOTE

It is recommended to use the TV with the HDMI connection for the best image quality.
- If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.
- If you turn the TV on when the set becomes cold, the screen may flicker. This is normal.
- Use a shielded signal interface cable, such as D-sub 15 pin signal cable and HDMI to DVI cable, with a ferrite core to maintain standard compliance for the product.
- Some red, green, or blue spots may appear on the screen. This is normal.
- Connect the signal input cable and tighten it by turning the screws clockwise.
- Do not press the screen with your finger for a long time as this may result in temporary distortion on the screen.
- Avoid displaying a fixed image on the screen for a long period of time to prevent image burn. Use a screenshot if possible.

NOTE

• If you want to use HDMI-PC mode, you must set the input label to PC mode.
• The OSD (On Screen Display) is displayed on the screen as shown below.

» When turning the product on in HDMI input.
» When switching to HDMI input.

• If you select "Yes" the size and image quality are optimised for your PC.
• If you select "No" the size and image quality are optimised for the AV device (DVD player, set-top box, gaming device).
• If you select "Do not show message again" this message does not appear until the TV is reset. You can change the set value in SETTINGS▶INPUT▶Input Label.

HDMI connection

Transmits the digital video and audio signals from your PC to the TV. Connect the PC and the TV with the HDMI cable as shown in the following illustrations. You should set PC as an input label to connect the PC to the TV with an HDMI connection.

NOTE

• Use a High Speed HDMI™ Cable.
• High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher.
• If you want to use HDMI-PC mode, you must set the input label to PC or DVI mode.
  Supported DTV Audio: MPEG, Dolby Digital.
• Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k/88k/96k/176k/192k, DTS Not supported.)

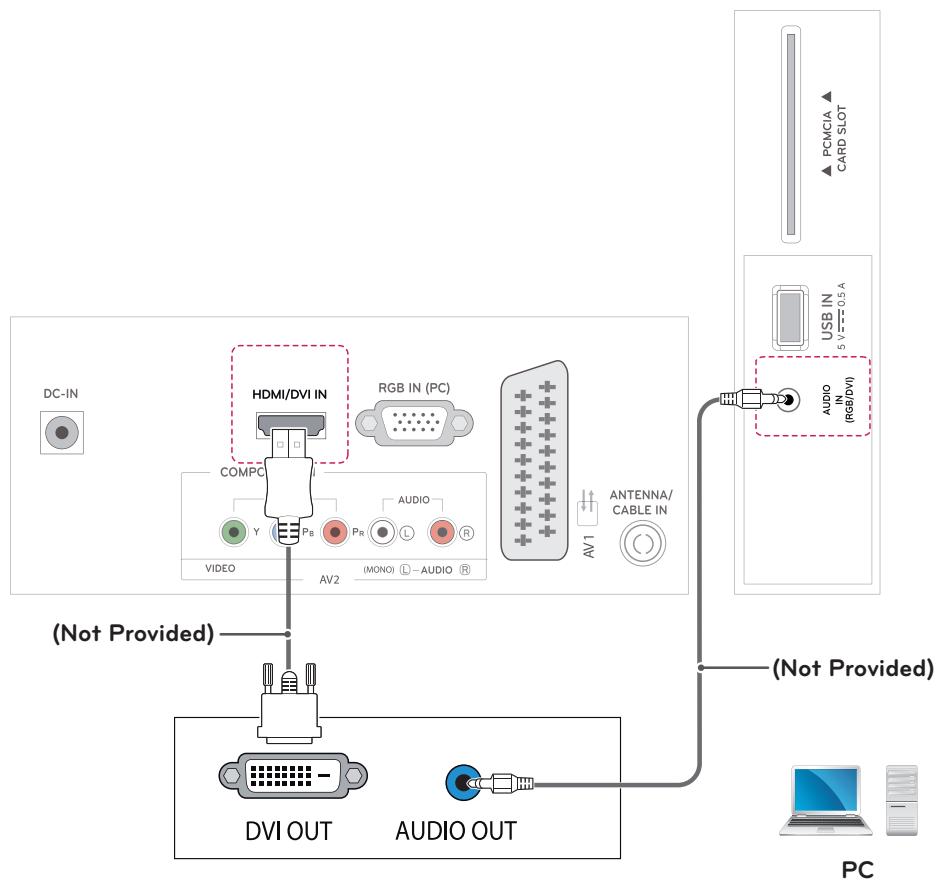

HDMI to DVI connection

Transmits the digital video signal from your PC to the TV. Connect the PC and the TV with the HDMI to DVI cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.

NOTE

• If you want to use HDMI-PC mode, you must set the input label to DVI mode.
• If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.

RGB connection

Transmits the analog video signal from your PC to the TV. Connect the PC and the TV with the D-sub 15 pin cable as shown the following illustrations. To transmit an audio signal, connect an optional audio cable.

NOTE

If you do not use an optional external speaker, connect the PC to the TV with the optional audio cable.

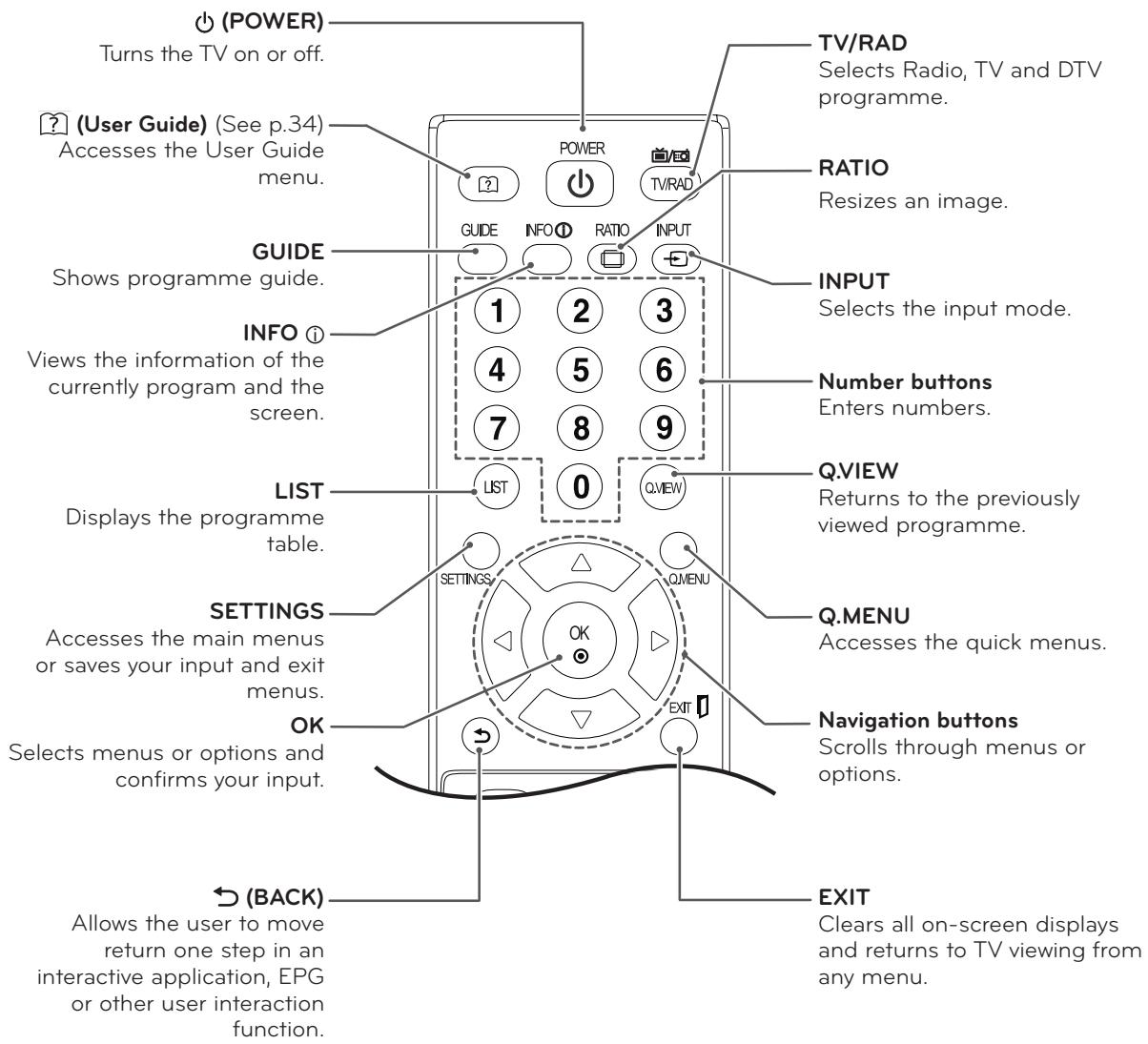

REMOTE CONTROL

M2232D

M2432D

M2732D

The descriptions in this manual are based on the buttons of the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the label inside the compartment, and close the battery cover.

To remove the batteries, perform the installation actions in reverse.

CAUTION

Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control to the remote control sensor on the TV.

NOTE

On MHEG channel, you cannot adjust the backlight with the yellow or blue key.

CUSTOMIZING SETTINGS

Accessing main menus

1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to one of the following menus and press OK.
3 Press the Navigation buttons to scroll to the setting or option you want and press OK.
4 When you are finished, press EXIT. When you return to the previous menu, press (BACK).


Adjusts the image size, quality or effect.

AUDIO

Adjusts the sound quality, effect or volume level.

SETUP

Sets up and edit programmes.

TIME

Sets the time, date or Timer feature.

LOCK

Locks or unlocks channels and programs.

OPTION

Customizes the general settings.

INPUT

Views the input sources with their labels.

MY MEDIA

Using integrated media feature.

• Press RED button to access the Customer Support menus.
• Press GREEN Button to access the FAQ menus.

Press OK(8) to set programme settings.

Customer Support

Using Customer Support feature.

• Software Update
• Picture Test
  Sound Test
• Signal Test
  Product/Service Info.
• User Guide

FAQ

Shows answers to frequently asked questions about TV viewing and sets the related menus.

USING THE USER GUIDE

Accessing User Guide menu.

Using the TV menu

1 Press SETTINGS to access the main menus.
2 Press the RED button to access the Customer Support menus.
3 Press the Navigation button to scroll to User Guide and press OK.
4 Press the Navigation buttons to scroll to the option you want and press OK.
5 When you are finished, press EXIT. When you return to the previous menu, press BACK).

Using the Remote Control

1 Press (User Guide) to access the User Guide.
2 Press the Navigation buttons to scroll to the option you want and press OK.
3 When you are finished, press EXIT. When you return to the previous menu, press BACK).

• Image shown may differ from your TV.

1 Allows to select the category you want.
2 Allows to select the item you want. You can use / to move between pages.
3 Allows to browse the description of the function you want from the index.

1 Shows the description of the selected menu. You can use / to move between pages.
2 Zooms in or out the screen.

MAINTENANCE

Cleaning Your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen and frame

To remove dust, wipe the surface with a dry and soft cloth.

To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a clean and dry cloth.

CAUTION

• Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions.
• Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, lubricants, as these may damage the screen's finish and cause discolorations.

Cabinet and stand

To remove dust, wipe the cabinet with a dry and soft cloth.

To remove major dirt, wipe the cabinet with a soft cloth dampened in a clean water or water containing a small amount of mild detergent.

CAUTION

• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
• Do not use any chemicals as this may deteriorate the surface.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

Preventing "Image burn" or "Burn-in" on your TV screen

• If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is "image burn" or "burn-in" and not covered by the warranty.
• If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen.
• Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD) to prevent image burn.

TROUBLESHOOTING

General

Problem	Resolution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again. Check if there is any obstacle between the product and the remote control. Check if the batteries are still working and properly installed (⊕ to ⊕, ⊙ to ⊙).
No image display and no sound is produced.	Check if the product is turned on. Check if the power cord is connected to a wall outlet. Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted. Check if the Auto sleep feature is activated in the Time settings. If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

SPECIFICATIONS

M2232D

Panel	Screen Type	546.1 mm Wide (21.5 inch)Visible diagonal size : 546.1 mm
	Pixel Pitch	0.25 mm (H) x 0.25 mm (V)
Video Signal	Max. Resolution	1920 x 1080 @ 60 Hz
	Recommended Resolution	1920 x 1080 @ 60 Hz
	Horizontal Frequency	30 kHz to 83 kHz
	Vertical Frequency	56 Hz to 75 Hz
	Synchronization Type	Separate Sync, Digital
Input Connector		TV, D-Sub Analog, SCART, PC Audio In, Component, CVBS, HDMI, USB, PCMCIA
Power	Rated Voltage	19 V --- 1.6 A
	Power Consumption	On Mode : 30 W (typ.)Off Mode ≤ 0.4 W
AC/DC Adapter		Manufacturer: Lien Chang, Model LCAP16A-EManufacturer: Lien Chang, Model LCAP25A
Tilt	Tilt Range	-5 to 20°
Dimensions (Width x Depth x Height) Weight		With Stand
		508.6 mm x 180.9 mm x 386.5 mm3.2 kg
		Without Stand
		508.6 mm x 62.9 mm x 314.8 mm2.9 kg
Environmental conditions	Operating TemperatureOperating Humidity	10 °C to 35 °C20 % to 80 %
	Storage TemperatureStorage Humidity	-10 °C to 60 °C5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

M2432D

Panel	Screen Type	609.6 mm Wide (23.6 inch)Visible diagonal size : 609.6 mm
	Pixel Pitch	0.27 mm (H) x 0.27 mm (V)
Video Signal	Max. Resolution	1920 x 1080 @ 60 Hz
	Recommended Resolution	1920 x 1080 @ 60 Hz
	Horizontal Frequency	30 kHz to 83 kHz
	Vertical Frequency	56 Hz to 75 Hz
	Synchronization Type	Separate Sync, Digital
Input Connector		TV, D-Sub Analog, SCART, PC Audio In, Component, CVBS, HDMI, USB, PCMCIA
Power	Rated Voltage	19 V --- 2.0 A
	Power Consumption	On Mode : 33 W (typ.)Off Mode ≤ 0.4 W
AC/DC Adapter		Manufacturer: Lien Chang, Model LCAP16B-EManufacturer: Lien Chang, Model LCAP25B
Tilt	Tilt Range	-5 to 20°
Dimensions (Width x Depth x Height) Weight		With Stand
		556.5 mm x 180.9 mm x 414.7 mm3.88 kg
		Without Stand
		556.5 mm x 62.9 mm x 343.0 mm3.6 kg
Environmental conditions	Operating TemperatureOperating Humidity	10 °C to 35 °C20 % to 80 %
	Storage TemperatureStorage Humidity	-10 °C to 60 °C5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

M2732D

Panel	Screen Type	685.65 mm Wide (27 inch)Visible diagonal size : 685.65 mm
	Pixel Pitch	0.31 mm (H) x 0.31 mm (V)
Video Signal	Max. Resolution	1920 x 1080 @ 60 Hz
	Recommended Resolution	1920 x 1080 @ 60 Hz
	Horizontal Frequency	30 kHz to 83 kHz
	Vertical Frequency	56 Hz to 75 Hz
	Synchronization Type	Separate Sync, Digital
Input Connector		TV, D-Sub Analog, SCART, PC Audio In, Component, CVBS, HDMI, USB, PCMCIA
Power	Rated Voltage	19 V --- 2.0 A
	Power Consumption	On Mode : 35 W (typ.)Off Mode ≤ 0.4 W
AC/DC Adapter		Manufacturer: Lien Chang, Model LCAP16B-EManufacturer: Lien Chang, Model LCAP25B
Tilt	Tilt Range	-5 to 20°
Dimensions (Width x Depth x Height) Weight		With Stand
		641.3 mm x 203.3 mm x 458.8 mm5.3 kg
		Without Stand
		641.3 mm X53 mm X 391.2 mm4.7 kg
Environmental conditions	Operating TemperatureOperating Humidity	10 °C to 35 °C20 % to 80 %
	Storage TemperatureStorage Humidity	-10 °C to 60 °C5 % to 90 %

Product specifications shown above may be changed without prior notice due to upgrade of product functions.

RGB (PC) / HDMI (PC) supported mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 400	31.468	70.080
640 x 480	31.469	59.940
640 x 480	37.500	75.000
800 x 600	37.879	60.317
800 x 600	46.875	75.000
1024 x 768	48.363	60.004
1024 x 768	60.023	75.029
1152 x 864	67.500	75.000
1280 x 720	45.000	60.000
1280 x 800	49.702	59.810
1280 x 1024	63.981	60.020
1280 x 1024	79.976	75.025
1400 x 1050	65.317	59.978
1440 x 900	55.935	59.887
1600 x 900	60.000	60.000
1680 x 1050	64.674	59.883
1680 x 1050	65.290	59.954
1920 x 1080	67.500	60.000

Component supported mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 480	15.730	59.940
720 x 480	15.750	60.000
720 x 576	15.625	50.000
720 x 480	31.470	59.940
720 x 480	31.500	60.000
720 x 576	31.250	50.000
1280 x 720	44.960	59.940
1280 x 720	45.000	60.000
1280 x 720	37.500	50.000
1920 x 1080	33.720	59.940
1920 x 1080	33.750	60.000
1920 x 1080	28.125	50.000
1920 x 1080	56.250	50.000
1920 x 1080	67.432	59.940
1920 x 1080	67.500	60.000

HDMI (DTV) supported mode

Resolution	Horizontal Frequency(kHz)	Vertical Frequency(Hz)
720 x 480	31.469	59.940
	31.500	60.000
720 x 576	31.250	50.000
1280 x 720	37.500	50.000
1280 x 720	44.960	59.940
	45.000	60.000
1920 x 1080	33.720	59.940
	33.750	60.000
1920 x 1080	28.125	50.000
1920 x 1080	27.000	24.000
1920 x 1080	33.750	30.000
1920 x 1080	56.250	50.000
1920 x 1080	67.430	59.940
	67.500	60.000

Component port connecting information

Component ports on the TV	Y	PB	PR
Video output ports on DVD player	Y	PB	PR
	Y	B-Y	R-Y
	Y	Cb	Cr
	Y	Pb	Pr

NOTE

• Avoid keeping a fixed image on the set's screen for prolonged periods of time. The fixed image may become permanently imprinted on the screen. Use a screen saver when possible.
• There may be interference relating to resolution, vertical pattern, contrast or brightness in PC mode. Change the PC mode to another resolution or change the refresh rate to another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.
• The synchronization input waveform for Horizontal and Vertical frequencies are separate.
• Connect the signal cable from the RGB output port of the PC to the RGB (PC) port of the TV or the signal cable from the HDMI output port of the PC to the HDMI/DVI IN port on the TV.
• Connect the audio cable from the PC to the Audio input on the TV. (Audio cables are not included with the TV).
• If using a sound card, adjust PC sound as required.
• If the graphic card on the PC does not output analogue and digital RGB simultaneously, connect only one of either RGB or HDMI/DVI IN to display the PC output on the TV.
• If the graphic card on the PC does output analogue and digital RGB simultaneously, set the TV to either RGB or HDMI. (The other mode is set to Plug and Play automatically by the TV.)
• DOS mode may not work depending on the video card if you use an HDMI to DVI cable.
• If you use too long an RGB-PC cable that is too long, there may be interference on the screen. We recommend using under 5m of cable. This provides the best picture quality.

When does switchover happen?

Visit us at digitaluk.co.uk call us on 0845 6 50 50 50†

†Calls charged at BT rate of 3p per minute daytime and 1p per minute evenings and weekends.

Rates may vary for calls from non-BT lines.

Keep this important information about how to re-tune your TV during the digital TV switchover

Keep this leaflet and your instruction manual safe - you'll need them

Television in the UK is going digital, bringing us all more choice and new services. Starting in late 2007 and ending in 2012, television services in the UK will go completely digital, TV region by TV region.

Please see overleaf to find out when your area switches to digital. Digital UK is the independent, non-profit organisation leading the process of digital TV switchover in the UK. Digital UK provides impartial information on what people need to do to prepare for the move to digital, and when they need to do it.

How the switchover affects your TV equipment:

Your new TV has a digital tuner built in, which means it is ready to receive the Freeview signal by simply plugging it into your aerial socket (check if you can get digital TV through your aerial now, or whether you'll have to wait until switchover, at www.digitaluk.co.uk).

When the TV switchover happens in your area, there are at least two occasions when you will need to re-tune your TV in order to continue receiving your existing TV channels, and also to pick up new ones. Digital UK, the body leading the digital TV switchover, will advise you when you need to re-tune during the switchover.

If you choose to connect your TV to satellite or cable with a digital box then it will not be affected by switchover, and you won't need to re-tune.

How to re-tune:

To find out how to re-tune your TV, check your manufacturer's instructions for details. Or see below for a typical sequence:

1. With your TV in digital TV mode, press 'Menu' on your remote control. (Some TVs will ask you for a code. If you have not already changed it, the default code is usually 0000, or check your instruction book.)
2. From the Menu options on screen, select 'SETUP'. Select 'Auto Tuning'* to re-tune your digital TV (not 'add channels'). You may have to wait a couple of minutes for the re-tune to complete.

*Also sometimes referred to as 'Update', 'Rescan', 'Replace', 'AutoTuning', 'Channel Search', 'First Time Install', or 'Store Channels'.
3. If you do not re-tune your channels when advised to do so by Digital UK, you may lose some or all of your channels until you do re-tune. You should re-tune your TV every few months to check for any new channels.

If you are missing any channels, it may be that they are not available in your area, or that your aerial needs upgrading.

If you have any questions, please contact your equipment supplier or call Digital UK on 0845 6 50 50 50 or visit www.digitaluk.co.uk

Make sure to read the Safety Precautions before using the product.

Keep the Owner's Manual (CD) in an accessible place for future reference.

The model and serial number of the TV is located on the back and one side of the TV. Record it below should you ever need service.

MODEL

SERIAL

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http:// opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.
