USER MANUAL SRU5110/86 PHILIPS

Register your product and get support at www.philips.com/welcome

Universal remote control

SRU 5110/86

EN Remote control 3

FR Telekomande 9

DE Fernbedienung 16

NL Afstandsbediening 23

DK Fjernbetjeningen 30

SV Fjarrkontrollen 37

NO Fjernkontrollen 43

Fl Kaukosaatimen 49

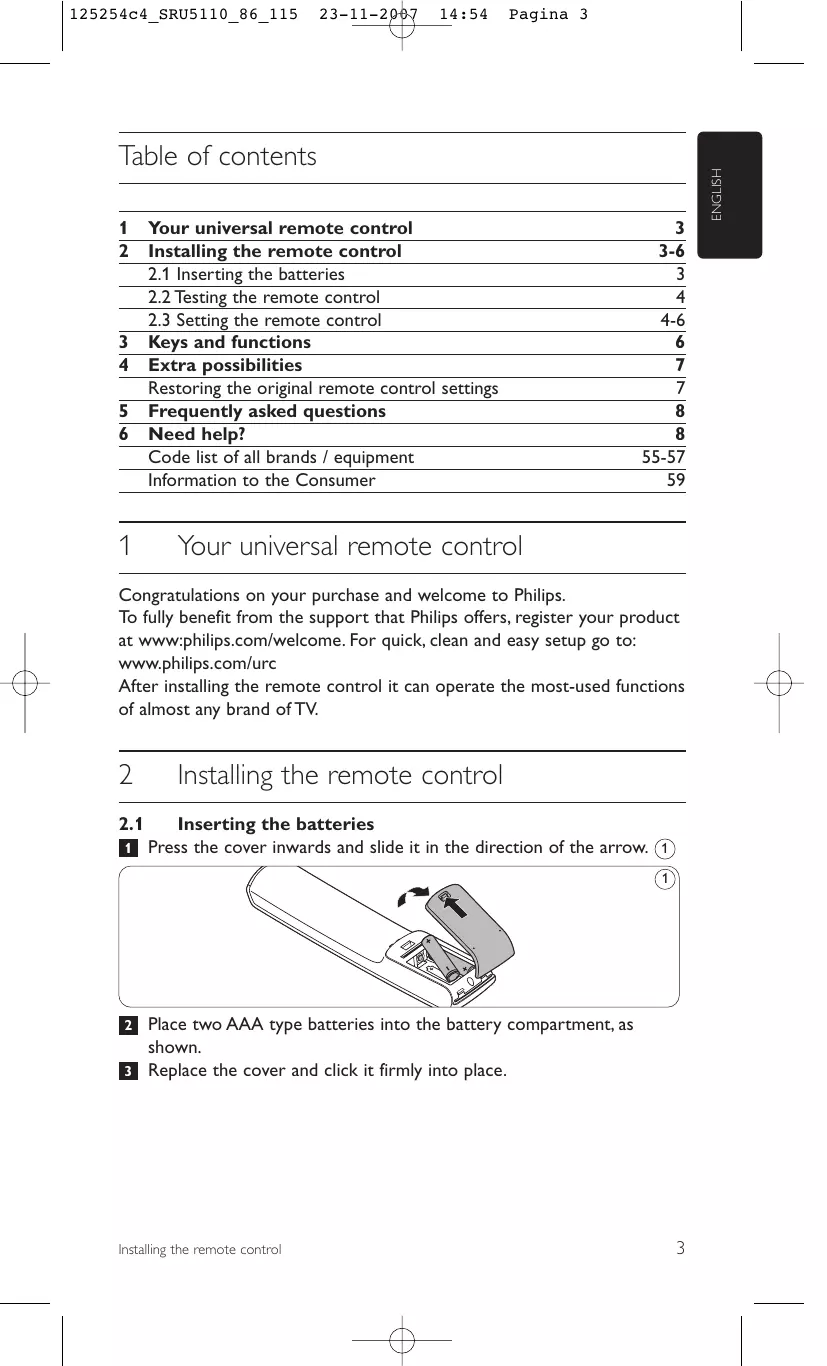

Table of contents

1 Your universal remote control 3
2 Installing the remote control 3-6

2.1 Inserting the batteries 3
2.2 Testing the remote control 4
2.3 Setting the remote control 4-6

3 Keys and functions 6
4 Extra possibilities 7

Restoring the original remote control settings 7

5 Frequently asked questions 8
6 Need help? 8

Code list of all brands / equipment 55-57

Information to the Consumer 59

1 – Your universal remote control

Congratulations on your purchase and welcome to Philips.

To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. For quick, clean and easy setup go to: www.philips.com/urc

After installing the remote control it can operate the most-used functions of almost any brand of TV.

2 Installing the remote control

2.1 Inserting the batteries

1 Press the cover inwards and slide it in the direction of the arrow. ①

2 Place two AAA type batteries into the battery compartment, as shown.
3 Replace the cover and click it firmly into place.

2.2 Testing the remote control

The remote control has been programmed to operate the most-used functions of almost any brand of TV. Because the SRU 5110 may use different signals for each brand and even for different models of the same brand, it is advisable to test whether your device responds to the SRU 5110.

The example below instructs you how to do this.

1 Turn your TV on manually or use the original remote control. Tune to channel 1.
2 Check whether all the keys are working. ② For an overview of the keys and their functions see '3. Keys and functions'.

• If the TV responds as it should to all of the key commands the SRU 5110 is ready for use.

Tip

If the TV does not respond at all or not to all of the key commands, follow the instructions under '2.3 Setting the remote control', or for online setup go to: www.philips.com/urc.

2.3 Setting the remote control

This is only necessary if your TV does not respond to the SRU 5110. If that is the case, the SRU 5110 does not recognize the brand and/or model of your TV and you need to program the remote control to do so.

1 Turn on the TV manually or use the original remote control. Tune in to channel 1.
2 Look up the brand of your TV in the code list at the back of this manual. A four-figure code is shown for each brand. Note the code for your brand. ③

3

Press the SET UP key until the LED flashes twice and then remains lit. ④

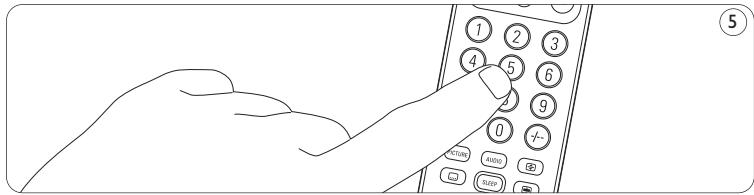

4 Then enter the code noted in step 2 using the numeric keys. (5)

• The LED now flashes twice.
• If the LED flashes once for an extended period, the code has not been entered properly or the wrong code has been entered. Start again from step 2.

Press and hold the Standby key of the SRU 5110 until your TV switches off (standby). ⑥ Then release the key immediately.

• The SRU 5110 is now set to operate your TV.

6 Check if you can operate all functions on your TV with the SRU 5110.

• If a key does not function properly, keep it pressed until it works. Then release the key immediately.

Repeat this for every key that does not work.

• If the TV responds to all of the key commands, the SRU 5110 is ready for use.

Do not forget to note your code.

7 Keep the SET UP key pressed for 5 seconds to exit setup mode. (7)

• When no key is pressed for 2 minutes or more the remote control will exit setup mode automatically.

Full search setup

If your code does not work or if the brand of your device is not mentioned in the code list, you can try setting the remote control with full search setup.

Press the SET UP key until the LED flashes twice and then remains lit. ⑧

Press and hold the Standby key of the SRU 5110 until your TV switches off (standby). ⑨ Then release the key immediately.

• The SRU 5110 is now set to operate your TV.

Full search setup takes about 5 minutes.

3 Keys and functions

The illustration on page 2 gives an overview of all keys and their functions.

1 SET UP

2

3

enters setup mode.

Text TV on/off.

Electronic Program Guide.

Wide screen TV.

Text TV off.

Text TV color keys. Used in text mode and in some on-screen menus.

4 MENU
5 Cursor keys
6 INFO
7
8 -VOL +
9 Numeric keys
10 A/V

turns the menu on and off.
cursor up, down, left, right in a menu.
displays on-screen channel information.
mutes the TV sound.
adjusts the TV volume.
direct choice of channels and other functions.
switches between external inputs of your equipment.

11	PICTURE	changes picture / screen settings.
	AUDIO	changes audio settings.
		enlarges Text TV picture.
		shows subtitle text.
	SLEEP	activates / deactivates sleep timer.
		holds current Text TV page.
12	-/-	selects between one- and two-figure channel numbers.
13	P-P	selects previous programme / channel
14	- PROG +	selects a previous or following channel.
15	OK	confirms your selection.
16	BACK	jumps back one level in the menu or turns off the menu.
17	◎ Standby	switches TV on or off.
18	LED	• blinks in setup mode.
		• lights up when a remote control command is sent.

Note

If the device does not respond at all, or not to all of the key commands, follow the instructions under '2.3 Setting the remote control.

4 Extra possibilities

Restoring the original functions of your remote control

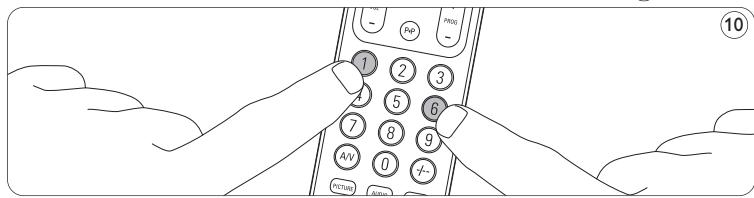

1 Keep keys 1 and 6 on the SRU 5110 pressed simultaneously for three seconds, until the LED flashes twice and then remains lit. (10)

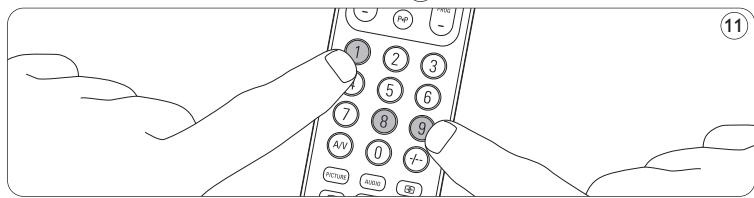

2 Press keys 9, 8 and 1, in that order. (11)

• The LED flashes twice.

All original functions have now been restored and any extra functions have been deleted.

5 Frequently asked questions

In this chapter you find answers to the most frequently asked questions about your universal remote control.

The TV does not respond and the LED key does not flash when I press a key.

Replace the old batteries with two new AAA batteries.

The TV does not respond but the SET UP key does flash when a key is pressed.

Point the SRU 5110 at the TV and make sure that there are no obstructions between the SRU 5110 and the TV.

The SRU 5110 does not respond properly to commands.

Try programming the SRU 5110 again.

If the TV still does not respond, call our helpline.

The Text TV keys do not work.

Find out whether your TV is equipped with Text TV.
- Maybe the SRU 5110 has to be adapted to the model of the device.

Call our helpline for details.

6 Need help?

If you have any questions about the SRU 5110, you can always contact us. You will find our contact details after the code list at the back of this manual.

Read this manual carefully before you make a call.

You can solve most of the problems yourself. If you cannot find any answers to your problems, write down the details of your device in the code list at the back of this manual.

This will help our operators to assist you better and more quickly. Look up the numbers of the models in the instructions accompanying the device or on the back of your device. When you call our helpline, make sure the device is to hand so that our operators can help you determine whether your remote control is working properly.

The model number of your Philips universal remote control is SRU 5110/86.

Date of purchase: ..../....

(day/month/year)

Table des matieres

11 PICTURE skifter indstlinger for billed/skarm.

AUDIO ander lydindstillinger.

SLEEP aktiverer/deaktiverer sleep-timer.

中

CS Electronics .0663

CTC. 0664

CTC Clatronic. 3527

Cybertron. 0675

Daewoo 0692

Dainichi .0694

Dansai 0699

Dantax. 0702

Dawa. 0707

Daytron. 0710

De Graaf. 0716

Decca 0718

Denver 0733

Desmet. 0738

Diamant 0746

Diamond. 0747

Dixi 0807

DTS. 0837

Dual. 0838

Dual-Tec 3528

Dumont 0840

Dux 0843

Dynatron. 0855

Elbe 0880

Elbe-Sharp 3529

Elcit 0883

Electa. 3530

ELECTROTECH. 3531

Elektra. 0896

Elin 0902

Elite 0903

Elman. 0907

Elta. 0910

Emerson .0917

Emperor .0921

Epson. 0937

Erres 0942

ESC .0945

Etron 0949

Eurofeel. 0954

Euroline. 0955

Euroman .0956

Europhon .0959

Expert. 0976

Exquisit . 0978

Fenner. 0994

Ferguson. 0996

Fidelity. 0998

Filsai 1000

Finlandia. 1003

Finlux 1004

Firstline 1008

Fisher. 1009

Flint 1014

FNR. 1016

Formenti 1023

Formenti/

Phoenix. 3532

Fortress. 1027

Fraba 1030

Friac. 1040

Frontech 1042

Fujitsu. 1052

Fujitsu General. 1053

Funai 1056

Galaxi. 1068

Galaxis. 1069

GBC. 1078

Geant Casino. 1082

GEC. 1083

Geloso. 1087

General Technic. 1095

Genexxa. 1097

Giant 1113

A

GoldHand. 1136

Goldline. 1138

GoldStar 1140

Goodmans 1142

Gorenje. 1144

GPM 1149

Graetz 1152

Granada 1154

Grandin. 1156

Gronic. 1160

Grundig. 1162

Halifax. 1179

Hampton. 1183

Hanseatic 1190

Hantarex. 1192

Hantor. 1193

Harwood 1204

HCM. 1210

Hema. 1222

Hemmermann. 1223

Hifivox. 1233

Higashi. 1234

HiLine 3533

Hinari. 1243

Hisawa. 1247

Hitachi. 1251

Hornyphon. 1277

Hoshai. 1278

Huanyu 1292

Hygashi 1308

Hyper 1309

Hypson 1312

Iberia 1320

ICE. 1324

ICeS. 1325

Imperial. 1346

Indiana. 1350

Ingelen. 1354

Ingersol 1355

Inno Hit. 1358

Innovation. 1360

Interactive. 3534

Interbuy. 1376

Interfunk 1377

International. 1380

Intervention. 1386

Irradio 1396

Isukai 1402

ITC. 1404

ITS 1405

ITT. 1406

ITV. 1408

JEC. 1426

JVC. 1464

Kaisui 1471

Kamosonic 3535

Kamp. 1475

Kapsch. 1483

Karcher 1484

Kawasho 1489

Kendo 1500

Kennedy 1504

KIC. 1512

Kingsley 1520

Kneissel 1535

Kolster. 1543

Konka. 1548

Korpel 1552

Korting 1554

Kosmos. 1557

Koyoda 1561

KTV 1572

Kyoto. 1585

Lasat. 1597

Lenco. 1615

Lenoir 1617

Lesa 1622

Leyco. 1627

LG 1628

LG/GoldStar. 3536

Liesenk. 3537

Liesenkotter 1631

Life 3538

Lifetec 1633

Lloyds 3539

Loewe. 1660

Loewe Opta. 3540

Logik 1661

Luma 1674

Lumatron 1676

Lux May 1680

Luxor. 1683

M Electronic. 1688

Magnadyne. 1702

Magnafon 1703

Magnum 1709

Mandor. 1717

Manesth. 1718

Marantz. 1724

Marelli 1729

Mark 1731

Masuda 1744

Matsui 1750

Matsushita. 1751

McMichael. 1768

Mediator. 1784

Medion 1787

M-Electronic. 3541

Melvox. 1799

Memorex 1800

Memphis. 1802

Mercury. 1804

Metz. 1810

Micromaxx. 1822

Microstar. 1827

Minerva. 1838

Minoka. 1840

Mitsubishi 1855

Mivar 1857

Motion. 1877

MTC 1889

Multi System. 3542

Multistandard 1904

Multitech. 1907

Murphy 1911

NAD 1926

Naonis. 1936

National. 1942

NEC. 1950

Neckermann 1951

NEI. 1952

Nesco 1960

Network. 1968

Neufunk 1970

New Tech. 1979

NewWorld 1980

Nicamagic. 1994

Nikkai. 1998

Nobliko 2014

Nogamatic 2016

Nokia 2017

Nordic 2021

Nordmende. 2022

Nordvision 3543

Novatronic. 2035

Oceanic. 2061

Okano 2065

ONCEAS 3544

Onwa 2087

Opera 2090

Orbit 2103

Orion. 2111

Online 2113

Ormond 2114

Orsowe. 2116

Osaki 2118

Osio. 2121

Oso 2122

Osume 2123

Otto Versand 2126

Pael 2140

Palladium. 2145

Palsonic 2147

Panama 2149

Panasonic 2153

Panavision 2154

Pathe Cinema. 2168

Pathe Marconi 2169

Pausa 2171

Perdio 2185

Perfekt. 2186

Philco. 2192

Philharmonic. 2194

Philips. 2195

Phoenix. 2199

Phonola. 2201

Pioneer 2212

Plantron. 2219

Playsonic 2224

Poppy. 2236

Prandoni-Prince. 2242

Precision 2244

Prima. 2253

Prinz. 2260

Profex 2269

Profilo 2272

Profi-Tronic. 3545

Proline 2274

Prosonic 2282

Protech 2284

Provision 2291

Pye. 2302

Pymi. 2304

Quandra Vision 3546

Quasar. 2320

Quelle 2322

Questa. 2324

Radialva. 2329

Radio Shack 3547

Radiola. 2330

Radiomarelli 2331

Radiotone. 2334

Rank. 2345

RBM. 2350

RCA. 2351

Recor. 2359

Rediffusion 2364

Redstar 2366

Reflex. 2368

Revox 2383

Rex. 2385

RFT 2386

Rhapsody 2387

R-Line 2327

Roadstar 2398

Robotron 2401

Rowa. 2416

Royal Lux 2420

RTF 3548

Saba. 2429

Sagem 2434

Saisho 2437

Salora. 2443

Sambers 2445

Samsung 2448

Sandra 2454

Sansui. 2458

Sanyo. 2462

SBR 2492

Schaub Lorenz. 2500

Schneider 2501

SEG 2522

SEI 2524

SEI-Sinudyne. 2525

Seleco 2528

Sencora. 2531

Sentra 2534

Serino 2539

Sharp. 2550

Shorai 2569

Siarem 2573

Siemens. 2574

Sierra. 3549

Siesta 2577

Silva 2591

Silver 2594

Singer. 2599

Sinudyne 2601

Skantic. 2605

Sogera. 2649

Solavox 2654

Sonitron 2671

Sonoko 2675

Sonolor 2676

Sontec. 2677

Sony. 2679

Sound & Vision. 2680

Soundwave. 2689

Standard 2713

Starlight 2727

Starlite 2728

Stenway. 2739

Stern 2741

Strato. 2745

Stylandia 2752

Sunkai 2762

Sunstar. 2768

Sunwood. 2772

Superla 2782

SuperTech. 2789

Supra. 2792

Susumu 2797

Sutron 2798

Sydney. 2808

Sysline 2815

Sytong. 2820

Tandberg. 2842

Tandy. 2843

Tashiko. 2850

Tatung 2852

TCM 2857

Teac 2860

Tec. 2861

Technema. 2866

Technics. 2869

TEDELEX 2889

Teleavia 2901

Telecor. 2910

Telefunken. 2914

Telegazi 2917

Telemeister 2924

Telesonic 2930

Telestar 2931

Teletech. 2934

Teleton 2935

Television. 2938

Televiso 2941

Temco 2946

Tensai. 2954

Tenson. 2955

Tesmet. 3550

Tevion 2962

Texet 2963

Thomson 2972

Thom 2974

Tokai 3001

Tokyo. 3004

Tomashi. 3006

Toshiba 3021

Towada 3028

Trakton 3036

Trans Continens. 3037

Transtec. 3042

Trident. 3054

Tristar. 3057

Triumph. 3058

Uher 3089

Ultravox 3095

Unic Line. 3100

United 3106

Universum 3115

Univox. 3116

Vestel 3148

Vexa. 3149

Victor. 3155

VIDEOLOGIC. 3165

Videologique 3166

Videosat 3170

VideoSystem. 3172

Videotechnic. 3173

Videotron 3174

Viewsonic. 3186

Visiola 3197

Vision. 3198

Vistar 3207

Vortec. 3217

Voxson 3220

Waltham. 3230

Watson 3233

Watt Radio. 3234

Wega. 3238

Wegavox. 3239

Weltblick. 3245

Weston. 3251

White.

Westinghouse 3258

Windstar. 3266

Xrypton 3317

Yamishi 3328

Yokan. 3335

Yoko. 3336

Yorx. 3340

Zanussi 3349

Helpline

Country	Phone number	Tariff
Australia	1300 363 391	Local tariff
Belgien/Belgique	070 253 011	€ 0,17
Danmark	35258758	Local tariff
France	08 9165 0007	€ 0,23
Deutschland	0180 5 007 533	€ 0,12
Espana	902 889 343	€ 0,15
'Élleηνας	00800 3122 1219	Local tariff
Ireland	01 6011158	Local tariff
Italia	199 404 043	€ 0.25
Luxemburg	40 6661 5645	Local tariff
Nederland	0900 0400 062	€ 0,20
New Zealand	0800 625 224	Local tariff
Norge	22 70 82 58	Local tariff
Östereich	0820 901116	Local tariff
Portugal	2 1359 1441	Local tariff
Suisse/die Schweiz/Svizzera	044 212 0045	Local tariff
Suomi	09 2294 8258	Local tariff
Sverige	08 7505196	Local tariff
United Kingdom	0906 1010 018	£ 0.15

EN Information to the consumer

Disposal of your old product

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 1902/96/EC.

Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old

product will help prevent potential negative consequences for the environment and human health.

All rights reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice.

No liability will be accepted by the publisher for any consequence of its use. Publication there of does not convey nor imply any license under patent- or other industrial or intellectual property rights.

Document order number: 3128 145 2189

November 2007

www.philips.com

Printed in Portugal

C

N'MW/RR/RD/4407
