USER MANUAL H61M-PS4 ASROCK

Version 1.0 Published April 2011 Copyright@2011 ASRock INC. All rights reserved.

No part of this manual may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis- tered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.

Specifications and information contained in this manual are furished for informa- tional use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warran- ties or conditions of merchantability or finess for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the manual or product.

FE This device complies with Part 15 ofthe FCC Rules. Operation is subject to the fol-

lowing two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

CALIFORNIA, USA ONLY The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in Cali- fornia, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see wuww.dtsc.ca.gov/hazardouswaste/perchlorate"

ASRock Website: http:/www.asrock.com

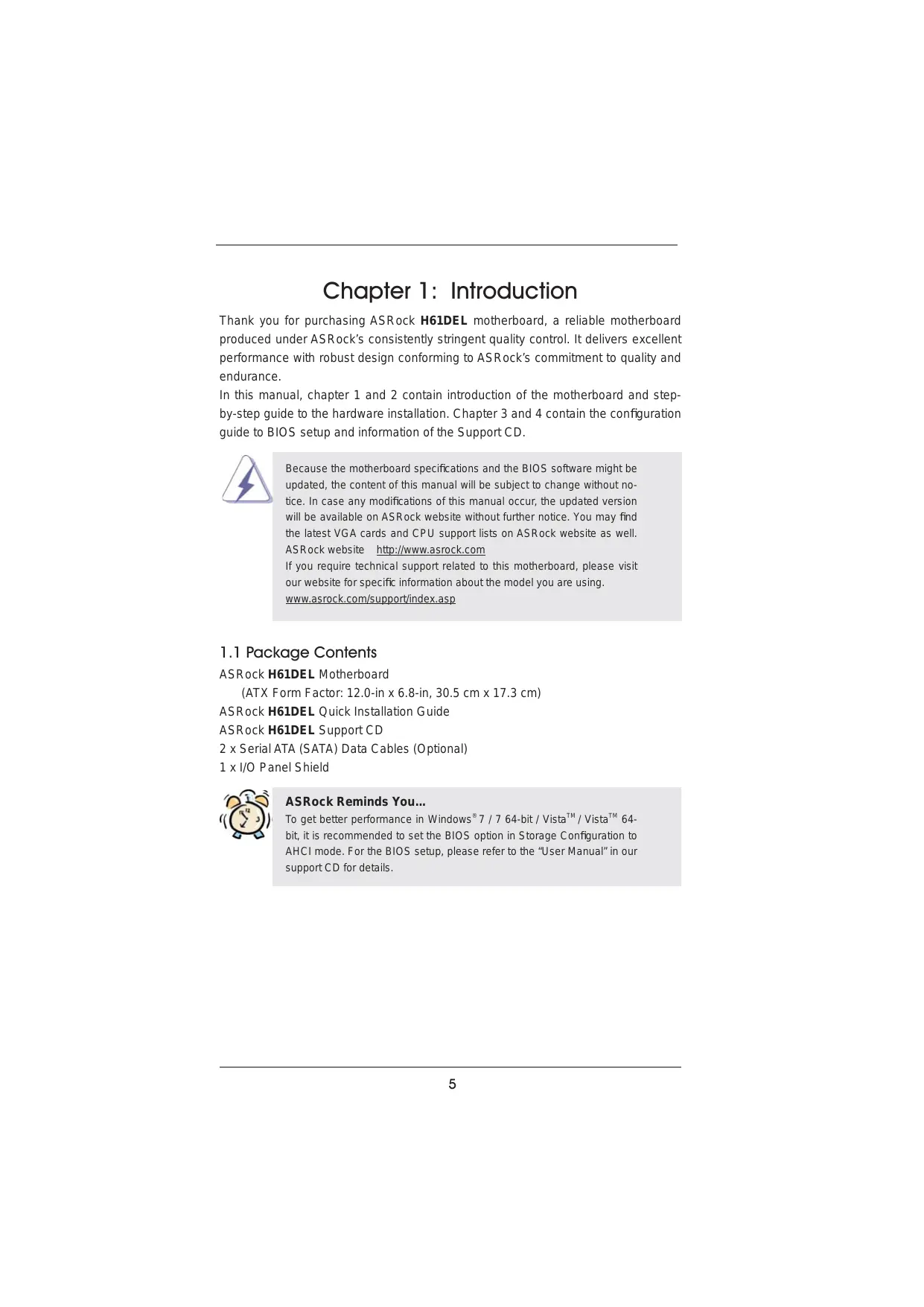

Chapter 1: Introduction

Thank you for purchasing ASRock H61DEL motherboard, à reliable motherboard produced under ASRock's consistenti stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.

In this manual, chapter 1 and 2 contain introduction of the motherboard and step- by-step guide to the hardware installation. Chapter 3 and 4 contain the configuration guide to BIOS setup and information of the Support CD.

Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without no- tice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website _htip:/www.asrock.com

If you require technical support related to this motherboard, please visit our website for specific information about the model you are using.

wwwasrock.com/supportindex.asp

1.1 Package Contents ASRock H61DEL Motherboard {ATX Form Factor: 12.0-in x 6.8-in, 30.5 cm x 17.3 cm) ASRock H61DEL Quick Installation Guide ASRock H61DEL Support CD 2 x Serial ATA (SATA) Data Cables (Optional) 1x1/0 Panel Shield

Ra DS ASRock Reminds You « > D ): To get better performance in Windows” 7 / 7 64-bit / Vista""/ Vista'* 64-

bit itis recommended to set the BIOS option in Storage Configuration to AHCI mode. For the BIOS setup, please refer to the “User Manual” in our support CD for details

- ATX Form Factor: 12.0-in x 6.8-in, 30.5 cm x 17.3 cm - Solid Capacitor for CPU power

= Supports 2nd Generation Intel” Core" i7 15 /i3 in LGA1155 Package

- Supports Intel® Turbo Boost 2.0 Technology

- Supports K-Series unlocked CPU

- Supports Hyper-Threading Technology (see CAUTION 1)

- Dual Channel DDR3 Memory Technology (see CAUTION 2) -2 x DDR3 DIMM slots - Supports DDR3 1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB (see CAUTION 3)

- Pixel Shader 4.1, DirectX 10.1

- Max. shared memory 1759MB (see CAUTION 4)

- Dual VGA Output support HDMI and D-Sub ports by independent display controllers

- Supports HDMI 1.4a Technology with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 2048x1536 @ 75Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required) (see CAUTION 5)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports HDCP function with HDMI port

- Supports Full HD 1080p Blu-ray (BD) / HD-DVD playback with HDMI port

- Supports Wake-On-LAN

- Supports LAN Cable Detection

- Supports Energy Efficient Ethernet 802.3az

- 6 x Ready-to-Use USB 2.0 Ports

-1XRJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

- 4 x SATA2 3.0 Gb/s connectors, support NCQ, AHCI and Hot Plug functions

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2x USB 2.0 headers (support 4 USB 2.0 ports)

- AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play"

-ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

-IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment

- Drivers, Utilities, AntiVirus Software (Trial Version), ASRock Software Suite (CyberLink DVD Suite - OEM and Trial; Creative Sound Blaster X-Fi MB - Trial)

- ASRock Extreme Tuning Utility (AXTU) (see CAUTION 6) - Instant Boot -ASRock Instant Flash (see CAUTION 7) -ASRock APP Charger (see CAUTION 8) - SmartView (see CAUTION 9) -ASRock XFastUSB (see CAUTION 10) - Hybrid Booster:

-ASRock U-COP (see CAUTION 11)

- Boot Failure Guard (B.F.G.) - Combo Cooler Option (C.C.O.) (see CAUTION 12)

- Good Night LED Hardware Monitor

- CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)

-FCC, CE, WHQL - ErP/EuP Ready (ErP/EuP ready power supply is required) {see CAUTION 13)

+ For detailed product information, please visit our website: bttp:/ww.asrock.com

WARNING Please realize thatthere is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the third-party overclocking tools. Overclocking may affect your system stability, or even cause damage to the components and devices of your system. Itshould be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.

About the setting of “Hyper Threading Technology", please check page 39.

This motherboard supports Dual Channel Memory Technology. Before you implement Dual Channel Memory Technology, make sure to read the installation guide of memory modules on page 18 for proper installation. Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 7 / Vista!" / XP. For Windows® OS with 64-bit CPU, there is no such limita- tion.

The maximum shared memory size is defned by the chipset vendor and is subject to change. Please check Intel” website for the latest informa- tion.

xwYCC and Deep Color are oniy supported under Windows” 7 64-bit / 1. Deep Color mode will be enabled only if the display supports 12bpc in EDID. HBR is supported under Windows® 7 64-bit { 7 / Vista!" 64-bit / Vista".

ASRock Extreme Tuning Utility (AXTU) is an allin-one tool to fine-tune different system functions in a user-friendly interface, which is including Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hardware Monitor, it shows the major readings of your system. In Fan Control, it shows the fan speed and temperature for you to adjust. In Overclocking, you are allowed to overclock CPU frequency for optimal system performance. In OC DNA, you can save your OC settings as a profie and share with your friends. Your friends then can load the OC profile to their own system to getthe same OC settings. In IES (Intelligent Energy Saver), the voltage regulator can reduce the number of output phases to improve efficiency when the CPU cores are idle without sacrificing computing performance. Please visit our website for the operation procedures of ASRock Extreme Tuning Utility (AXTU).

ASRock website: http:/www.asrock.com

ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update system BIOS without entering operating systems fist like MS-DOS or Windows”. With this utility, you can press <F6> key during the POST or press <F2> key to BIOS setup menu to access ASRock Instant Flash. j ust launch this tool and save the new BIOS file to your USB flash drive, floppy disk or hard drive, then you can update your BIOS only in a few clicks without prepar- ing an additional floppy diskette or other complicated flash utility. Please be noted thatthe USB flash drive or hard drive must use FAT 32/16/12 fie system.

If you desire a faster, less restricted way of charging your Apple devices, such as iPhone/iP od/iP ad Touch, ASRock has prepared a wonderful solution for you - ASRock APP Charger. Simply installng the APP Char- ger driver, it makes your iPhone charged much quickly from your com- puter and up to 40% faster than before. ASRock APP Charger allows you to quickly charge many Apple devices simultaneousiy and even supports continuous charging when your PC enters into Standby mode (S 1), Sus- pend to RAM (53), hibemation mode (S4) or power off (55). With APP Charger driver installed, you can easily enjoy the marvelous charging experience than ever.

ASRock website: htip:/mww.asrock.com/Feature/AppChargerindex.a5p SmartView, a new function of intemet browser, is the smart start page for IE that combines your most visited web sites, your history, your Facebook friends and your real-time newsfeed into an enhanced view for a more personal Internet experience. ASRock motherboards are exclusively equipped with the SmarWView utility that helps you keep in touch with friends on-the-go. To use SmartView feature, please make sure your OS version is Windows” 7 / 7 64 bit / Vista!" / Vista!" 64 bit, and your browser version is IE8. ASRock website: htip:/Mww.asrock.com/F eature/ SmartView/index.asp

ASRock XFast USB can boost USB storage device performance. The performance may depend on the property ofthe device.

While CPU overheat is detected, the system will automatically shutdown: Before you resume the system, please check ifthe CPU fan on the motherboard functions properiy and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC sys- tem.

Combo Cooler Option (C.C.O.) provides the flexible option to adopt three different CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156. Please be noticed that not all the 775 and 1156 CPU Fan can be used.

13. EuP, stands for Energy Using Product, was a provision regulated by Eu- ropean Union to define the power consumption for the completed system. According to EuP, the total AC power of the completed system shall be under 1.00W in off mode condition. To meet EuP standard, an EuP ready motherboard and an EuP ready power supply are required. According to Intel's suggestion, the EuP ready power supply must meet the standard of 5v standby power efficiency is higher than 50% under 100 mA current consumption. For EuP ready power supply selection, we recommend you checking with the power supply manufacturer for more details.

1.3 Motherboard Layout

ATX 12V Power Connector (ATX12V1) 2x240-pin DDR3 DIMM Slots

(Dual Channel: DDR3_A1, DDR3_B1, Blue) ATX Power Connector (ATXPWR1) Chassis Fan Connector (CHA_FAN1) 32Mb SPI Flash

Clear CMOS Jumper (CLRCMOS1)

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. LAN Port LED Indications

Activity/Link LED SPEED LED ACTILINK_ SPEED LED LED Stus | Descripüon Satus Descripüon Of No Link Of TOMbps connection Blinking| Data Acüviy | | Orange | 100Mbps connection On Tink Green | 1Gbps connection LAN Port

To enable Mult-Streaming function, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find “VIA HD Audio Deck" tool on your system. Please follow below instructions according to the OS you install.

For Windows° XP / XP 64-bit OS:

Please click “VIA HD Audio Deck'icon | & , and click ‘Speaker". Then you are allowed to

a select"? Channel” or “4 Channel". Click Power” to save your change. For Windows® 7 / 7 64-bit/ Vista"” / Vista!” 64-bit OS: Please click “VIA HD Audio Deck” icon , and click “Advanced Options" on the left side

on the bottom. In “Advanced Options" screen, select ‘Independent Headphone”, and click “OK"to save your change.

Chapter 2: Installation.

This is an ATX form factor (12.0" x 6.8", 30.5 x 17.3 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fis into it

Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components

2.1 Screw Holes Place screws into the holes indicated by circles to secure the motherboard to the chassis.

/p\ Do not over-tighten the screws! Doing so may damage the motherboard.

2.2 Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings

Unplug the power cord from the wall socket before touching any component. 2. To avoid damaging the motherboard components due to static electricity, NEVER place your motherboard direct on the carpet or the like. Also remember to use à grounded wrist strap or touch a safety grounded object before you handle components. Hold components by the edges and do not touch the ICS. 4. Whenever you uninstall any component, place it on à grounded antistatic pad or in the bag that comes with the component.

Before you install or remove any component, ensure that the power is switched off or the power cord is detached from the power supply.

Failure to do so may cause severe damage to the motherboard, peripherals, and/or components

2.3 CPU Installation For the installation of Intel 1155-Pin CPU, please follow the steps below.

1155-Pin Socket Overview

Before you insert the 1155-Pin CPU into the socket, please check ifthe

/ CPU surface is unclean or if there is any bent pin on the socket. Do not force to insertthe CPU into the socket if above situation is found. Other- wise, the CPU will be seriously damaged.

Step 1. Open the socket: Step 1-1. Disengaging the lever by depressing down and out on the hook to clear

Step 1-2. Rotate the load lever to fully open po- sition at approximately 135 degrees.

Step 1-3. Rotate the load plate to fully open po- sition at approximately 100 degrees.

Step 2. Remove PnP Cap (Pick and Place Cap).

1. Itis recommended to use the cap tab to handle and avoid kicking offthe PnP cap.

2. This cap must be placed if retuming the motherboard for after service.

Step 3. _Insertthe 1155-Pin CPU: Step 3-1. Hold the CPU by the edge where is marked with black line

Step 3-2. Orient the CPU with IHS (Integrated Heat Sink) up. Locate Pin and the two orientation key notches.

orientation key notch alignment key

* alignment key orientation key notch 1155-Pin Socket 1155-Pin CPU For proper inserting, please ensure to match the two orientation key notches ofthe CPU with the two alignment keys ofthe socket.

Step 3-3. Carefully place the CPU into the socket by using a purely vertical mo- tion.

Step 3-4. Verify thatthe CPU is within the sock- et and properiy mated to the orient keys.

Step4. Close the socket: Step 4-1. Rotate the load plate onto the IHS Step 4-2. While pressing down lightiy on load plate, engage the load lever.

24 Installation of CPU Fan and Heaïsink

This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin CPU. Please adopt the type of heatsink and cooling fan compliant with Intel 1155- Pin CPU to dissipate heat. Before you installed the heatsink, you need to spray thermal interface material between the CPU and the heatsink to improve heat dis- sipation. Ensure that the CPU and the heatsink are securely fastened and in good contact with each other. Then connect the CPU fan to the CPU_FAN connector (CPU_FANI, see page 12, No. 2)

For proper installation, please kindly refer to the instruction manuals of your CPU fan and heatsink.

Below is an example to illustrate the installation of the heatsink for 1155-Pin CPU. Step 1. Apply thermal interface material onto center of IHS on the socket surface.

Step 2. Place the heatsink onto the socket. Ensure fan cables are oriented on side closest to the CPU fan connector on the motherboard (CPU. FAN, see page 12, No. 2).

Step 3. Align fasteners with the motherboard through- holes.

Step 4. Rotate the fastener clockwise, then press down on fastener caps with thumb to install and lock. Repeat with remaining fasteners.

If you press down the fasteners without rotating them clockwise, the 1 heatsink cannot be secured on the motherboard.

Step 5. Connect fan header with the CPU fan connector on the motherboard. Step 6. Secure excess cable with tie-wrap to ensure cable does notinterfere with fan operation or contact other components.

Option (C.C.0.), which provides the flexible option to adoptthree dif- ferent CPU coolertypes, Socket LGA 775, LGA 1155 and LGA 1156. The white throughholes are for Socket LGA 1155/1156 CPU fan.

: Please be noticed that this motherboard supports Combo Cooler

2.5 Installation of Memory Modules (DIMM)

This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you always need to install two identical (the same brand, speed, size and chip- type) memory modules in the DDR3 DIMM slots to activate Dual Channel Memory Technology. Otheruise, it will operate at single channel mode

1. tis notallowed to install a DDR or DDR2 memory module into DDR3 siototherwise, this motherboard and DIMM may be damaged.

2. lfyouinstall only one memory module or two non-identical memory modules, itis unable to activate the Dual Channel Memory Technology.

3. Some DDR3 1GB double-sided DIMMS with 16 chips may not work on this motherboard. Itis not recommended to install them on this motherboard.

Installing a DIMM Please make sure to disconnect power supply before adding or

/4\ removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such thatthe notch on the DIMM matches the break on the slot.

The DIMM only fits in one correct orientation. Itwill cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

Step 3. Firmly insertthe DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properiy seated.

2.6 Expansion Slots (PCI Express Sois)

There are 6 PCIE slots:

Step 2. Step 3. Step 4.

PCI Express slots on this motherboard.

PCIE1/PCIE3/PCIE4 /PCIES / PCIE6 (PCIE x1 slot; White) is used for PCI Express cards with x1 lane width cards, such as Gigabit LAN card, SATA2 card, etc.

PCIE2 (PCIE x16 slot; Blue) is used for PCI Express x16 lane width graphics cards.

Before installing the expansion card, please make sure thatthe power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you startthe installation

Remove the system unit cover (if your motherboard is already installed in a chassis).

Remove the bracket facing the slot that you intend to use. Keep the screws for later use.

Align the card connector with the slot and press fimly until the card is completely seated on the slot.

Fasten the card to the chassis with screws.

Replace the system cover.

2.7 Dual Monitor and Surround Display Features

Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal VGA output sup- port (HDMI and D-Sub), you can easily enjoy the benefits of dual monitor feature without installing any add-on VGA card to this motherboard. This motherboard also provides independent display controllers for HDMI and D-Sub to support dual VGA output so that HDMI and D-sub can drive same or different display contents.

To enable dual monitor feature, please follow the below steps:

1. Connect HDMI monitor cable to VGA/HDMI port on the 1/0 panel, and connect D-Sub monitor cable to VGA/D-Sub port on the 1/0 panel.

VGA/D-Sub port VGA/HDMI port

2. If you have installed onboard VGA driver from our support CD to your system already, you can freely enjoy the benefis of dual monitor function after your system boots. If you haven'tinstalled onboard VGA driver yet, please install onboard VGA driver from our support CD to your system and restart your computer.

Surround Display Feature This motherboard supports surround display upgrade. With the intemal VGA output support (HDMI and D-Sub) and extemal add-on PCI Express VGA cards, you can easily enjoy the benefits of surround display feature.

Please refer to the following steps to set up a surround display environment:

. Install the PCI Express VGA card on PCIE2 slot. Please refer to page 19 for proper expansion card installation procedures for details.

Connect HDMI monitor cable to VGA/HDMI port on the 1/0 panel, and connect D-Sub monitor cable to VGA/D-Sub port on the 1/0 panel. Then connect other monitor cables to the corresponding connectors oftthe add-on PCI Express VGA card on PCIE2 slot.

Boot your system. Press <F2> or <Del> to enter UEFI setup. Enter “Onboard VGA Share Memory” option to adjust the memory capability to [32MB], (64MB]. [128M8] [256MB] or [512MB] to enable the function of VGA/D-sub. Please make sure that the value you select is less than the total capability of the system memory. If you do not adjustthe UEFI setup, the default value of "Onboard VGA Share Memory”, [Auto], will disable VG A/D-Sub function when the add-on VGA card is inserted to this motherboard.

Install the onboard VGA driver and the add-on PCI Express VGA card driver to your system. If you have installed the drivers already, there is no need to install them again

. Setup a multi-monitor display.

so that you can adjustthe parameters ofthe multi-monitor according to

A. Click the ‘Identify” button to display a large number on each monitor.

B. Right-click the display icon in the Display Properties dialog that you wish to be your primary monitor, and then select “Primary”. When you use multiple monitors with your card, one monitor will always be Primary, and all additional monitors will be designated as Secondary,

C. Selectthe display icon identified by the number 2.

D. Click ‘Extend my Windows desktop onto this monitor”.

E. Right-click the display icon and select ‘Attached'” if necessary.

F. Setthe “Screen Resolution” and “Color Quality” as appropriate for the second monitor. Click “Apply” or “OK” to apply these new values.

G. Repeat steps C through E for the diaplay icon identified by the number one, two, three and four.

For Windows° 7 / 7 64-bit / Vista" / Vista'" 64-bit OS: Right click the desktop, choose ‘Personalize", and select the “Display Settings” tab so that you can adjust the parameters of the multi-monitor according to the steps below. A. Click the number "2" icon. B. Click the items ‘This is my main monitor” and “Extend the desktop onto this monitor”. C. Click "OK" to save your change D. Repeat steps À through C for the display icon identified by the number three and four. 6. Use Surround Display. Click and drag the display icons to positions representing the physical setup of your monitors that you would like to use. The placement of display icons determines how you move items from one monitor to another.

HDCP function is supported on this motherboard. To use HDCP function with this motherboard, you need to adoptthe monitor that supports HDCP function as well. Therefore, you can enjoy the superior display quality with high-definition HDCP encryption contents. Please refer to below instruction for more details about HDCP function.

HDCP stands for High-Bandwidth Digital Content Protection,

a specification developed by Intel” for protecting digital entertainment content that uses the DVI interface. HDCP is a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the video source, or transmitter - such as a computer, DVD player or set-top box - and the digital display, or receiver - such as à monitor, television or projector. In other words, HDCP specification is designed to protect the integrity of content as it is being transmitted

Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display. Due to the increase in manufacturers employing HDCP in their equipment, itis highly recommended thatthe HDTV or LCD monitor you purchase is compatible.

2.8 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap La

is placed on pins, the jumper is “Open”. The

illustration shows à 3-pin jumper whose &ÿ G LE pinl and pin2 are “Short” when jumper cap Short Gr

is placed on these 2 pins

Jumper Setting Description Clear CMOS Jumper 12 23

(CLRCMOS1) T T O o (58e p.12, No.9)

Defaut Clear CMOS Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please tum off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS ac- tion. Please be noted that the password, date, time, user default profie, 1394 GUID and MAC address will be cleared only ifthe CMOS battery is removed.

2.9 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

/\ jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage ofthe motherboard!

Serial ATAII Connectors These four Serial ATAII SATA2_0 (SATAII) connectors support SATA data cables for internal (SATA2_2:5ee p.12, No. 11) storage devices. The current (SATA2_3:see p.12, No. 14) SATAZI SATA2 3 SATAII interface allows up to 3.0 Gb/s data transfer rate.

(SATA2_0:see p.12, No. 12) (SATAZ_1: see p.12, No. 15)

Serial ATA (SATA) Either end of the SATA data Data Cable cable can be connected to the {Optional) SATA / SATAII hard disk or the

SATAII connector on this motherboard.

USB 2.0 Headers (S-pin USB6_7)

Besides six default USB 2.0 ports on the 1/0 panel, there are to USB 2.0 headers on this motherboard. Each USB 2.0 header can support to USB 2.0 ports.

and receiving infrared module.

Front Panel Audio Header

(S-pin HD_ AUDIO (see p.12 No. 20)

A This is an interface for front panel audio cable that allows convenient connection and control of audio devices.

1. High Defnition Audio supports ] ack Sensing, butthe panel wire on the chassis must support HDA to function correct. Please follow the instruction in our manual and chassis manual to install your system.

. if you use AC'97 audio panel, please install itto the front panel audio header as below A. Connect Mic_IN (MIC) to MIC2_L. B. ConnectAudio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L. C. Connect Ground (GND) to Ground (GND). D. MIC_RET and OUT. RET are for HD audio panel only. You don't

need to connect them for AC'97 audio panel.

System Panel (9-pin PANEL1) (see p.12 No. 16)

A Header This header accommodates several system front panel

Connectthe power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may configure the way to tum off your system using the power switch.

RESET (Reset Switch}:

Connect to the reset switch on the chassis front panel. Press the reset switch to restartthe computer ifthe computer freezes and fails to perform a normal restart.

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys- tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (55).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. À front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assign-ments are matched correctiy.

Chassis Speaker Header Please connectthe chassis {arpin SPEAKER 2) | speaker to this header. (see p12 No. 10) Ju Chassis and Power Fan Connectors Please connect the fan cables {a-pin CHA_FAND) | ow to the fan connectors and (see p12 No.6) CAR Fan srer0 match the black wire to the FAN SD CONmROL € ground pin:

Fan ser conrRoL (pin PWR_FAN) PWR FAN SPEED (se p12 No. 27) Vev |

CPU Fan Connectors FAN SPEED CONTROL Please connectthe CPU fan

{a-pin CPU_FAN1) (see p.12 No. 2)

A SPEARS cable to the connector and

2 Éss match the black wire to the SSI ground pin

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function. If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect itto Pin 1-3. Pin1:3 Connected < 3-Pin Fan Installation

Please connect an ATX power

F . C2k-pin ATXPWR) El supply to this connector. (see p.12 No. 5) (e]

Though this motherboard provides 24-pin ATX power connector, it can st work if you adopt a traditional 20-pin ATX power supply. To use the 20-pin ATX power supply, please plug your

power supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

ATX 12V Power Connector (8-pin ATX12V1) (see p.12 No. 3)

Please connect an ATX 12V power supply to this connector.

Though this motherboard provides 8-pin ATX 12V power connector, it can still work if you adopt a traditional 4-pin ATX 12V power supply. To use the 4-pin ATX power supply, please plug your power supply along with Pin 1 and Pin 5.

4-Pin ATX 12V Power Supply Installation

2.10 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks Installation This motherboard adopts Intel” H61 chipset that supports Serial ATA (SATA) / Serial ATAII (SATAII) hard disks. You may install SATA / SATAII hard disks on this mother- board for intemal storage devices. This section will guide you to install the SATA / SATAII hard disks

STEP 1: STEP 2: STEP 3:

Install the SATA / SATAII hard disks into the drive bays of your chassis. Connectthe SATA power cable to the SATA / SATAII hard disk.

Connect one end of the SATA data cable to the motherboard's SATAII con- nector.

Connect the other end of the SATA data cable to the SATA / SATAII hard disk.

2.11 Hot Plug Function for SATA / SATAII HDDs

This motherboard supports Hot Plug function for SATA / SATAII in AHCI mode. Intel” H61 chipset provides hardware support for Advanced Host controller Interface {AHCI), à new programming interface for SATA host controllers developed thru à joint industry effort.

ZA NOTE What is Hot Plug Function?

Ifthe SATA / SATAII HDDs are NOT setfor RAID configuration, itis called “Hot Plug" forthe action to insert and remove the SATA / SATAII HDDs while the system is stil power-on and in working condition.

However, please note that it cannot perform Hot PIug ifthe OS has been installed into the SATA / SATAII HD.

2.12 SATA / SATAII HDD Hot Plug Feature and Operation Guide This motherboard supports Hot Plug feature for SATA / SATAII HDD in AHCI mode Please read below operation guide of Hot Plug feature carefully. Before you process the SATA / SATAII HDD Hot Plug, please check below cable accessories from the motherboard gift box pack.

A. 7-pin SATA data cable

B. SATA power cable with SATA 15-pin power connector interface

A. SATA data cable (Red) B. SATA power cable

SATA 7-pin The SATA 15-pin power 1x4-pin conventional connector connector (Black) connect power connector (White)| to SATA / SATAII HDD connect to power supply Caution

1. Without SATA 15-pin power connector interface, the SATA / SATAII Hot Plug cannot be processed.

2. Even some SATA / SATAII HDDSs provide both SATA 15-pin power connector and IDE 1x4-pin conventional power connector interfaces, the IDE 1x4-pin conventional power connector interface is definitely not able to support Hot Plug and will cause the HDD damage and data loss

Points of attention, before you process the Hot Plug: 1. Below operation procedure is designed only for our motherboard, which supports

SATA / SATAII HDD Hot Plug.

* The SATA / SATAII Hot Plug feature might not be supported by the chipset because of its limitation, the SATA / SATAII Hot Plug support information of our motherboard is indicated in the product spec on our website: www.asrock.com

. Make sure your SATA / SATAII HDD can support Hot Plug function from your dealer or HDD user manual. The SATA / SATAII HD, which cannot support Hot Plug function, will be damaged under the Hot Plug operation

Please make sure the SATA / SATAII driver is installed into system properiy. The latest SATA / SATAII driver is available on our support website: www.asrock.com Make sure to use the SATA power cable & data cable, which are from our motherboard package.

Please follow below instructions step by step to reduce the risk of HDD crash

How to Hot Plug a SATA / SATAII HDD:

Points of attention, before you process the Hot Plug: Please do follow below instruction sequence to process the Hot Plug, improper procedure will cause the SATA / SATAII HDD damage and data loss.

EF] Picase connect SATA power cable 1x4-pin end FA Connect SATA data cable to (White) to the power supply 1x4-pin cable. the motherboard's SATAII connector.

| SATA power cable 1x4- as power connector (White)

AE Connect SATA 15-pin power cable connector Connect SATA data cable to (Black) end to SATA / SATAII HDD. the SATA / SATAII HDD.

How to Hot Unplug a SATA / SATAII HDD:

Points of attention, before you process the Hot Unplug: Please do follow below instruction sequence to process the Hot Unplug, improper procedure will cause the SATA / SATAII HDD damage and data loss.

Unplug SATA data cable from SATA / SATAII HDD side.

To install the drivers to your system, please insert the support CD to your optical drive fist. Then, the drivers compatible to your system can be auto-detected and listed on the support CD driver page. Please follow the order from up to bottom side to instal those required drivers. Therefore, the drivers you install can work properiy.

2.14 _Installing Windows® 7 / 7 64-bit / Vista’ "/ Vista!” 64-bit / XP 1 XP 64-bit Without RAID Functions

If you want to install Windows® 7 / 7 64-bit/ Vista’ / Vista" 64-bit/ XP / XP 64- bit OS on your SATA / SATAII HDDSs without RAID functions, please follow below procedures according to the OS you install.

2.14.1_ Installing Windows® XP / XP 64-bit Without RAID Functions

If you want to install Windows® XP / XP 64-bit OS on your SATA / SATAII HDDs without RAID functions, please follow below steps.

AHCI mode is not supported under Windows® XP / XP 64-bit OS.

Using SATA / SATAII HDDs without NCQ function

2.14.2 Installing Windows® 7 / 7 64-bit / Vista!" Vista!” 64-bit Without RAID Functions

If you want to install Windows° 7 / 7 64-bit/Vista"" / Vista" 64-bit OS on your SATA 1 SATAII HDDs without RAID functions, please follow below steps.

Using SATA / SATAII HDDs with NCQ function

STEP 1: Set Up UEFI.

This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP UTILITY, otherwise, POST will continue with its test routines.

If you wish to enter the UEFI SETUP UTILITY after POST, restart the system by pressing <Cti> + <AÏt> + <Delete>, or by pressing the reset button on the system chassis. You may also restart by turning the system off and then back on.

Because the UEFI software is constantiy being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on

The top of the screen has a menu bar with the following selections: Main To set up the system time/date information

OC Tweaker To setup overclocking features

Advanced To setup the advanced UEFI features

H/W Monitor To display current hardware status

Boot To set up the default system device to locate and load the Operating System

Security To set up the security features

Exit To exitthe current screen or the UEFI SETUP UTILITY Use <«— > key or <—+ > key to choose among the selections on the menu bar, and then press <Enter> to get into the sub screen. You can also use the mouse to click your required item.

3.1.2 Navigation Keys Please check the following table for the function description of each navigation

key. Navigation Key{s) Function Description <> Moves cursor left or right to select Screens

AU Moves cursor up or down to select items

+l- To change option for the selected items <Enter> To bring up the selected screen <F1> To display the General Help Screen <F9> To load optimal default values for all the settings <F10> To save changes and exitthe UEFI SETUP UTILITY <ESC> To jump to the Exit Screen or exit the current screen

3.2 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview.

3.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features.

Load GPU EZ OC Setting Use this item to load GPU EZ overclocking setting. Please note that overclocking may cause damage to your GPU and motherboard. It should be done at your own risk and expense.

CPU Ratio Setting Use this item to change the ratio value of this motherboard.

GT Over Clock Use this to enable or disable GT Over Clock by Internal Graphics Device. The default value is [Disabled].

Intel SpeedStep Technology Intel SpeedStep technology is Intel's new power saving technology. Pro- cessor can switch between multiple frequency and voltage points to en- able power savings. The default value is [Enabled], Configuration options: [Enabled] and [Disabled]. If you install Windows® Vista""” / 7 and want to enable this function, please set this item to [Enabled], This item will be hid- den if the current CPU does not support Intel SpeedStep technology.

Please note that enabling this function may reduce CPU voltage and lead to system / stability or compatbiliy issue with some power supplies. Please setthis item to _ [Disable]if above issue occurs

Intel Turbo Boost Technology Use this item to enable or disable Intel Turbo Boost Technology. Turbo Boost allows processor cores to run faster than marked frequency in specific condition. The default value is [Enabled].

Turbo Boost Power Limit Use this item to adjust Turbo Boost power limit. Configuration options: [Auto] and [Manual]. The default value is [Auto]

Core Current Limit Use this item to add voltage when CPU is in Turbo mode.

DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assigns appropriate frequency automatically.

CAS#Latency (tCL) Use this item to change CAS # Latency (tCL) Auto/Manual setting. The default is [Auto]

RAS#to CAS# Delay (tRCD) Use this item to change RAS #to CAS # Delay (RCD) Auto/Manual setting. The default is [Auto].

Row Precharge Time (tRP) Use this item to change Row Precharge Time (tRP) Auto/Manual setting. The default is [Auto].

RAS#Active Time (tRAS) Use this item to change RAS# Active Time (tRAS) Auto/Manual setting. The default is [Auto].

Command Rate (CR) Use this item to change Command Rate (CR) Auto/Manual setting. Min: IN. Max: 2N. The default is [Auto].

Write Recovery Time (tWR) Use this item to change Write Recovery Time (tWR) Auto/Manual setting. The default is [Auto].

Refresh Cyle Time (tRFC) Use this item to change Refresh Cyle Time (tRFC) Auto/Manual setting. The default is [Auto].

RAS to RAS Delay (tRRD) Use this item to change RAS to RAS Delay (tRRD) Auto/Manual setting. The default is [Auto].

Write to Read Delay (WTR) Use this item to change Write to Read Delay (tWTR) Auto/Manual setting. The default is [Auto].

Read to Precharge (tRTP) Use this item to change Read to Precharge (tRTP) Auto/Manual setting. The default is [Auto].

[Auto], [Slow] and [Fast]. The default value is [Auto].

ODT WR (CHA) Use this item to change ODT WR (CHA) Auto/Manual setting. The default is [Auto].

ODT NOM (CHA) Use this item to change ODT NOM (CHA) Auto/Manual setting. The de- fault is [Auto].

ODT WR (CHB) Use this item to change ODT WR (CHB) Auto/Manual setting. The default is [Auto].

ODT NOM (CHB) Use this item to change ODT NOM (CHB) Auto/Manual setting. The de- fault is [Auto].

User Default In this option, you are allowed to load and save three user defaults according to your own requirements

In this section, you may set the configurations for the following items: CPU Configu- ration, North Bridge Configuration, South Bridge Configuration, Storage Configura- tion, Super 10 Configuration, ACPI Configuration and USB Configuration:

Setting wrong values in this section may cause d the system to malfunction.

ASRock Instant Flash

ASRock Instant Flash is a UEFI flash utility embedded in Flash ROM. This convenient UEFI update tool allows you to update system UEFI without entering operating systems fist like MS-DOS or Windows”. J ust launch this tool and save the new UEFI file to your USB flash drive, floppy disk or hard drive, then you can update your UEFI only in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Please be noted that the USB flash drive or hard drive must use FAT32/16/12 fie system. If you execute ASRock Instant Flash utility, the utility will show the UEFI fles and their respective information. Select the proper UEFI file to update your UEFI, and reboot your system after UEFI update process completes.

3.4.1 CPU Configuration

Intel Hyper Threading Technology To enable this feature, it requires a computer system with an Intel processor that supports Hyper-Threading technology and an operating system that includes optimization for this technology, such as Microsoft® Windows® XP / Vista" / 7. Set to [Enabled] if using Microsoft” Windows® XP, Vista", 7, or Linux kernel version 2.4.18 or higher. This option will be hidden if the installed CPU does not support Hyper-Threading technology.

Active Processor Cores Use this item to select the number of cores to enable in each processor package. Configuration options: [All] [1], [2] and [3]. The default value is AID.

Hardware Prefetcher Use this item to turn on/offthe MLC streamer prefetcher.

Adjacent Cache Line Prefetch Use this item to turn on/off prefetching of adjacent cache lines.

Enhance Halt State (C1E) All processors support the Halt State (C1). The C1 state is supported through the native processor instructions HLT and MWAIT and requires no hardware support from the chipset. In the C1 power state, the processor maintains the context of the system caches

CPU C3 State Support Use this to enable or disable CPU C3 (ACPI C2) report to OS.

CPU C6 State Support Use this to enable or disable CPU C6 (ACPI C3) report to OS.

Package C State Support Selected option will program into C State package limit register. The default value is [Auto].

CPU Thermal Throting You may select [Enabled] to enable CPU internal thermal control mechanism to keep the CPU from overheated!

Intel Virtualization Technology When this option is set to [Enabled], a VMM (Virtual Machine Architecture) can utlize the additional hardware capabilities provided by Vanderpool Technology. This option will be hidden ifthe installed CPU does not support Intel Virtualization Technology.

No-Excute Memory Protection No-Execution (NX) Memory Protection Technology is an enhancement to the IA-32 Intel Architecture. An 1A-32 processor with No Execute (NX) Memory Protection” can prevent data pages from being used by malicious software to execute code. This option will be hidden if the current CPU does not support No-Excute Memory Protection

Local x2APIC Use this to enable or disable Local x2APIC. The default value is [Disabled]. Please be noted that some OS do not support this function.

3.4.2 Norih Bridge Configuration

Low MMIO Align Low MMIO resources align at 64MB/1024MB. The default value is [64MB] VT-d Use this to enable or disable Intel” VT-d technology (Intel” Virtualization Technology for Directed 1/0). The default value of this feature is [Disabled]. Primary Graphics Adapter This allows you to select the boot graphic adapter priority. Configuration options: [Onboard] and [PCI Express]. The default value is [PCI Express]. Onboard VGA Share Memory This allows you to set onboard VGA share memory feature. The default value is [Auto]. Configuration options: [Auto], [32MB], [64MB], [128MB], L256MB] and [512MB]. Render Standby Use this to enable or disable Render Standby by Internal Graphics Device The default value is [Enabled] 1GD Multi-Monitor Use this to enable or disable 16 D Mult-Monitor by Internal Graphics Device. The default value is [Disabled]. DVMT Mode Select Use this option to adjust DVMT mode. The default value is [DVMT Mode]. DVMT (Dynamic Video Memory Technology) is an architecture that offers breakthrough performance for the motherboard through efficient memory utilization. In DVMT mode, the graphics driver allocates memory as needed for running graphics applications and is cooperatively using this memory with other system components. This item will not be used under Windows® Vista" /7 OS because the driver will intelligent detect physical memory available and allocate necessary video memory.

DVMT Memory You are allowed to adjustthe shared memory size in this item. Configuration options: [128M8] [256M8] and [Maximum]. The option

[Maximum] only appears when you adoptthe memory module with 1024MB or above.

3.4.3 South Bridge Configuration

Restore on AC/Power Loss This allows you to setthe power state after an unexpected AC/power loss. If [Power Off]is selected, the AC power remains off when the power recovers. If [Power On] is selected, the AC/power resumes and the system starts to boot up when the power recovers. Deep Sx Mobile platforms support Deep S4/S5 in DC only and desktop platforms support Deep 54/55 in AC only. Configuration options: [Disabled], [Enabled in S5]and [Enabled in S4 and S5] The default value is [Enabled in S5]. Onboard LAN This allows you to enable or disable the “Onboard LAN” feature. Onboard HD Audio Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If you select [Auto], the onboard HD Audio will be disabled when PCI Sound Card is plugged. Front Panel Select [Auto] or [Disabled] for the onboard HD Audio Front Panel. Onboard HDMI HD Audio This allows you to enable or disable the “Onboard HDMI HD Audio” feature. ACPI HPET Table Use this item to enable or disable ACPI HPET Table. The default value is {Enabled], Please setthis option to [Enabled] if you plan to use this motherboard to submit Windows” Vista!” certification Good Night LED Enable this option to turn off Power LED, Lan LED and Port80 LED when the system is power on. The keyboard LED will also be tumed off in S1, 53 and 4 state. The default value is [Disabled].

3.4.4 Storage Configuration

SATA Mode Use this to select SATA mode. Configuration options: [IDE Mode], [AHCI Mode] and [Disabled]. The default value is [IDE Mode]. f\ AHCI (Advanced Host Controller Interface) supports NCQ { and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages.

SATA Controller 0 Please select [Compatible] when you install legacy OS. Ifnative OS (Win- dows® XP / Vista"" / 7) is installed, please select [Enhanced].

SATA Controller 1 Use this item to enable or disable SATA Controller 1

Hard Disk S.M.A.R.T. Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analy- sis, and Reporting Technology) feature. Configuration options: [Disabled] and [Enabled].

3.4.5 Super IO Configuration

Serial Port Use this item to enable or disable the onboard serial port. Serial Port Address Use this item to set the address for the onboard serial port. Configuration options: [3F8 /IRQ4] and [3E8 / IRQA4] Infrared Port Use this item to enable or disable the onboard infrared port. Infrared Port Address Use this item to setthe address for the onboard infrared port. Configuration options: [2F8 / IRQ3] and [2E8 / IRQ3].

3.4.6 ACPI Configuration

Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature ifthe OS supports it

Check Ready Bit Use this item to enable or disable the feature Check Ready Bit.

PS/2 Keyboard Power On Use this item to enable or disable PS/2 keyboard to tum on the system from the power-soft-off mode.

PCI Devices Power On Use this item to enable or disable PCI devices to tum on the system from the power-soft-off mode.

Ring-in Power On Use this item to enable or disable Ring-n signals to tum on the system from the power-soft-off mode.

Use this item to enable or disable RTC (Real Time Clock) to power on the

Legacy USB Support Use this option to select legacy support for USB devices. There are four configuration options: [Enabled], [Auto], [Disabled] and [UEFI Setup Only]. The default value is [Enabled]. Please refer to below descriptions for the details of these four options: IEnabled] - Enables support for legacy USB [Auto] - Enables legacy support if USB devices are connected. IDisabled]- USB devices are not allowed to use under legacy OS and UEFI setup when [Disabled] is selected. If you have USB compatibilty is- sue, itis recommended to select [Disabled]to enter OS [UEFI Setup Only]- USB devices are allowed to use only under UEFI setup and Windows / Linux 05.

3.5 Hardware Health Event Monitoring Screen

In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.

CPU Fan Setting This allows you to setthe CPU fan speed. Configuration options: [Full On] and [Automatic Mode]. The default is value [Full On].

Chassis Fan Setting This allows you to set the chassis fan speed. Configuration options: [Full On] and [Automatic Mode]. The default is value [Full On].

Power Fan Setting This allows you to set the power fan speed. Configuration options: [Full On] and [Manual Mode]. The default is value [Full On].

Over Temperature Protection Use this item to enable or disable Over Temperature Protection. The default value is [Enabled].

3.6 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority.

Setup Prompt Timeout This shows the number of seconds to wait for setup activation key. 65535(0XFFFF) means indefinite waiting.

Bootup Num-Lock Ifthis item is set to [On], it will automatically activate the Numeric Lock function after boot-up.

Full Screen Logo Use this item to enable or disable OEM Logo. The default value is [Enabled].

AddOn ROM Display Use this option to adjust AddOn ROM Display. f you enable the option “Full Screen Logo” but you want to see the AddOn ROM information when the system boots, please select [Enabled]. Configuration options: [Enabled] and [Disabled] The default value is [Enabled].

Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature.

Boot Failure Guard Enable or disable the feature of Boot F ailure Guard.

Boot Failure Guard Count Enable or disable the feature of Boot Failure Guard Count

3.7 Security Screen In this section, you may set or change the supervisor/user password for the system. Forthe user password, you may also clear it.

Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exitthe UEFI SETUP UTILITY.

Discard Changes and Exit When you selectthis option, itwill pop-outthe following message, ‘Discard changes and exit setup?" Select [OK] to exit the UEFI SETUP UTILITY without saving any changes.

Discard Changes When you selectthis option, itwill pop-outthe following message, ‘Discard changes?” Select [OK] to discard all changes

Load UEFI Defaults Load UEFI default values for all the setup questions. F9 key can be used for this operation.

Launch EFI Shell from filesystem device Attempts to Launch EFI Shell application (Shellé4.efi) from one of the available fiesystem devices

Chapter 4: Software Support

4.1 Install Operating System

This motherboard supports various Microsoft® Windows® operating systems: 7 / 7 64-bit / Vista" / Vista!" 64-bit / XP / XP 64-bit. Because motherboard settings and hardware options vary, use the setup procedures in this chapter for general refer- ence only. Refer to your OS documentation for more information.

4.2 Support CD Information The Support CD that came with the motherboard contains necessary drivers and useful utiities that enhance the motherboard features

42.1 Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. The CD automatically displays the Main Menu if "AUTORUN" is enabled in your computer. If the Main Menu did not appear automatically, locate and double click on the fie “ASSETUP.EXE" from the BIN folder in the Support CD to dis- play the menus.

4.2.2 Drivers Menu The Drivers Menu shows the available devices drivers if the system detects installed devices. Please install the necessary drivers to activate the devices.

4.2.3 Uïilities Menu The Utilities Menu shows the applications software that the motherboard sup- ports. Click on a specific item then follow the installation wizard to install it.

4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, welcome to visit ASRock' website at http:/}www.asrock.com; or you may contact your dealer for further information.

Installing OS on a HDD Larger Than 2TB This motherboard is adopting UEFI BIOS that allows Windows” OS to be installed on à large size HDD (>2TB). Please follow below procedure to install the operating system.

1. Please make sure to use Windows® Vista" 64-bit (with SP1 or above) or Windows” 7 64-bit.

Press <F2> or <Delete> at system POST. Set AHCI Mode in UEFI Setup Utility > Advanced > Storage Configuration > SATA Mode

Choose the item “UEFI:xxx" to boot in UEFI Setup Utility > Boot > Boot Option #1. (xxx" is the device which contains your Windows” installation files. Normally it is

an optical drive.) You can also press <F11> to launch boot menu at system POST

and choose the item “UEFI:xxx" to boot.

Start Windows” installation

. If you install Windows° 7 64-bit OS, OS will be formatted by GPT (GUID Partition Table). Please install the hotfix file from Microsoft”:
