USER MANUAL TRANSIT 5 LMU BECKER

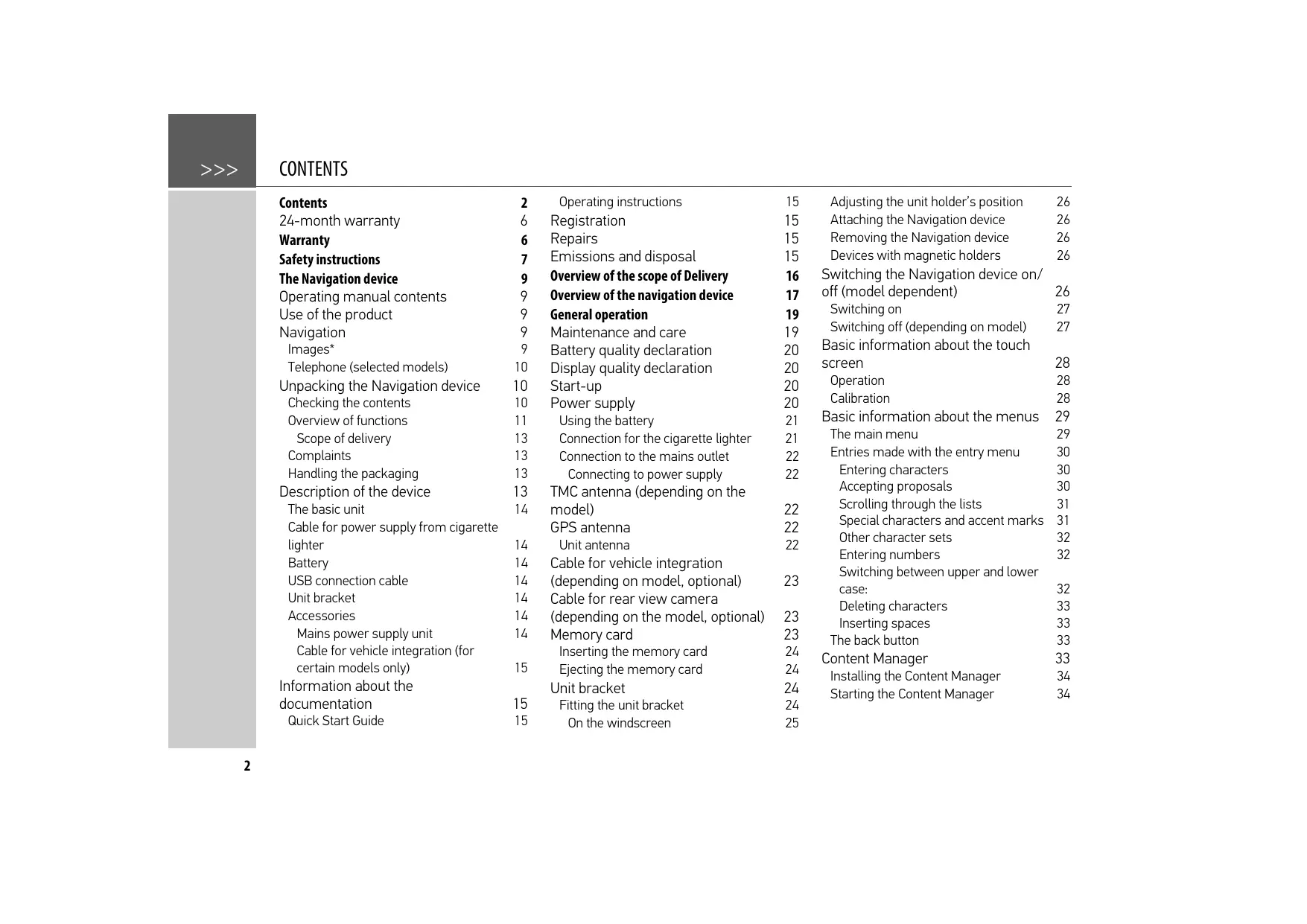

CONTENTS Contents 24-month warranty Warranty Safety instructions The Navigation device Operating manual contents Use of the product Navigation Images* Telephone (selected models) Unpacking the Navigation device Checking the contents Overview of functions Scope of delivery Complaints Handling the packaging Description of the device The basic unit Cable for power supply from cigarette lighter Battery USB connection cable Unit bracket Accessories Mains power supply unit Cable for vehicle integration (for certain models only) Information about the documentation Quick Start Guide Operating instructions Registration Repairs Emissions and disposal Overview of the scope of Delivery Overview of the navigation device General operation Maintenance and care Battery quality declaration Display quality declaration Start-up Power supply Using the battery Connection for the cigarette lighter Connection to the mains outlet Connecting to power supply TMC antenna (depending on the model) GPS antenna Unit antenna Cable for vehicle integration (depending on model, optional) Cable for rear view camera (depending on the model, optional) Memory card Inserting the memory card Ejecting the memory card Unit bracket Fitting the unit bracket On the windscreen Adjusting the unit holder's position Attaching the Navigation device Removing the Navigation device Devices with magnetic holders Switching the Navigation device on/ off (model dependent) Switching on Switching off (depending on model) Basic information about the touch screen Operation Calibration Basic information about the menus The main menu Entries made with the entry menu Entering characters Accepting proposals Scrolling through the lists Special characters and accent marks Other character sets Entering numbers Switching between upper and lower case: Deleting characters Inserting spaces The back button Content Manager Installing the Content Manager Starting the Content Manager

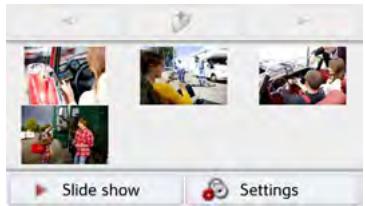

CONTENTS Transferring pictures Faults Navigation Mode What is navigation? Selecting Navigation Home address Smart Guess Last destinations list The destination list Icons used Operating the last destinations list Start with existing destination Scrolling through stored destinations Displaying or editing a destination Personal destinations Contacts Selecting a destination from Personal destinations Editing Personal destinations Selecting a destination from Contacts The New destination menu Layout of the New destination menu Enter address Select Point of Interest Travel Guide (model dependent) Select on map Enter geo-coordinates Route planning Entering the address Selecting a country Selecting an address and starting route guidance Entering address by speech (selected models) Speech Dialogue System (selected models) Explanation of symbols Objective Route More... Live POI Search (model dependent) Points of interest Point of interest in the vicinity Point of interest near to an address Point of interest near to destination POI on route Entering a point of interest directly Calling special destination phone number (depending on the model) Additional point of interest information Travel Guide (model dependent) Selecting a destination from the map Coordinate entry Route planning Simulation of the route Creating a new route Editing a route Optimising a route Navigation settings The Map view button Auto zoom Select POI categories

Selecting Info box data fields 3D city view The Route overview button The Guidance info button The Route options button Selecting the vehicle profile (depending on model) Truck and mobile home functions (depending on model) Setting truck profiles Selecting vehicle category and name Selecting the route type Time-dependent route guidance Avoiding particular types of road The TMC button The Traffic Button (model dependent) The Voice guidance button Setting the Voice Setting the Volume The Warnings button Setting Driver alerts Setting environmental zones (depending on model) Truck warnings (depending on model) Setting Speed info The Blocked roads button The Vehicle data button The Format button The Time button The Reset button

>>> CONTENTS Traffic announcements using TMC SituationScan 95 Calling up the telephone mode (only (depending on the model) 83 The detour assistant 95 selected models) 107 Live Traffic - Traffic The Park Assistant 95 Telephone menu (only selected Announcements via Data The departure assistant 96 models) 108 Connection (model dependent) 84 Map display options 96 Dialing a number 108 Displaying TMC messages onthe map 84 Displaying the whole route 97 Phonebook 109 Using TMC 85 Move route (model-dependent) 97 Call list LL Reading a message 86 Selecting alternative routes 99 Icons used nl Taking announcements into Change route options 99 Scrolling through the call list mi consideration when calculating routes 86 Canceling route guidance 99 Dialing an available number 112 Automatic recalculation 86 Entering/deleting a stopover 100 Displaying or editing entries 112 Manual recalculation 86 Blocking route temporarily 100 Lists loaded from cell phone 112 The map display 87 Setting day/night display 101 Connecting Bluetooth® telephones 113 Calling up the map display 87 Displaying current position Calling up a device list 113 Structure of the map display 87 (Where am 1?) 101 Automatic connection 114 Map display without route guidance 87 Entering the destination 103 Searching for cel phones on Map display with route guidance 88 Skipping a destination 103 Connect new devices ns The Information box 88 Connecting a mobile phone 115 Supplementary functions for trucks and Split screen with route guidance 89 à Disconnecting a connected telephone 115 Route quidance with arrow display 90 "opetomes GeltelmoteenW) TE Telephone calls 116 Lane Assistant Pro 3D (model z th 104 Estæblishinga call né dependent) 90 Warninge with plamned route 104 Accepting a cal 116 Map display with Junction view al Wernings without plamedroute 105 Endrgacal n7 Tunnel view al Show route 105 Duringacall n7 Using the map display 92 " : Telephone settings 118 Repeating the last announcement 92 Mtheradeitional functions (only selected 106 Puetooth® 119 Changing the announcement volume 92 Models) Automatic connection 119 Display height profile 106 Map zooming 93 Teleph d 107 Automatic call acceptance 119 Moving the map 93 lelephonemoce Telephone volume 119 Map orientation 73 Updating the phonebook 120 The Route overview 94 Bluetooth® name 120

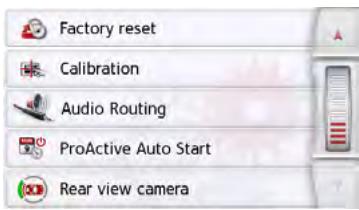

CONTENTS Tools Travel Guide (model dependent) Rear View camera Displaying Rear view camera (depending on the model) Image viewer* The image viewer menu Selecting an image Enlarging the image Rotating the picture Displaying image information Slide show Settings Where am 1? Traffic forecast (depending on model) Country information Blocking a section of the road permanently Trip computer (depending on model) Settings Selecting system settings The system settings menu Operation Selection options Closing the settings menu The individual menu items Battery Automatic on/off Day/night display Brighiness Design by day Design by night Setting the colour Language Keyboard layout Sounds Rear view camera (depending on the model) Screen animations Driver profiles (depending on model) Renaming driver profile Deleting driver profile Driver profile Pro (model dependent) Service information Factory settings Calibration (model dependent) WiFi settings (model dependent) Technical terminology index Model overview and technical specifications NOTICE EU Declaration of Conformity Disposal of the unit Disposal of the battery Duty to supply information according to battery legislation (BattV) Removing the battery

The information and data contained in these documents are subject to change without prior notice. No part of these documents may be du- plicated or transmitted for any purpose whatsoever without express written per- mission of United Navigation GmbH. AL technical information, drawings etc. are subject to copyright law. © Copyright 2014, United Navigation GmbH All rights reserved. The Bluetooth® word mark is a registered trademark owned by Bluetooth SIG, Inc. and any use of such marks by United Navigation GmbH is under license.

WARRANTY 24-month warranty The company United Navigation GmbH, Marco-Polo-Str. 1, 73760 Ostfildern, Germany, provides a world-wide, 24-month warranty (battery: 6 months) for BECKER units, beginning on the day of delivery to the final customer (buyer). Within the framework of the warranty, functional defects will be eliminated free-of-charge, provided that these can be shown to be the result of material or manufacturing faults and this shall be ef- fected either by elimination of the fault or by provision of a new unit, at the discre- tion of the manufacturer. Warranty claims must be registered by the buyer immediately after defects are discovered and must be accompanied by the initial buyer's purchase contract. The warranty expires after 24 months (battery: 6 months); neither warranty claims nor fulfilment shall effect an ex- tension of the warranty period. Faults resulting from improper handling, incorrect installation of the unit, improper noise suppression of the vehicle, static charge or mechanical damage are exclud- ed from the warranty. The warranty is invalidated in the case of repairs or tampering on the part of the buyer or unauthorised third parties. Repairs may only be performed by per- sons and service centres expressly au- thorised by the manufacturer or by the manufacturer himself. This warranty does not affect or restrict the legal warranty rights of the buyer.

SAFETY INSTRUCTIONS |

Operating manual contents This operating manual contains the description of your Becker navigation equipment. This manual contains descriptions for different model versions in a single document. Therefore, some of the functions described here might not be available for your equipment under certain circumstances. All pictures are similar. Use of the product This product is a high performance PND (Personal Navigation Device) for use in vehicles. Protect the product and the accessories from moisture and dirt. Navigation The use of the GPS = Global Positioning system eliminates the tedious process of Looking in street maps. The receiver antenna integrated into the product allows constant access to the navigation services outside buildings. Within buildings, it is currently not possible to access any navigation functions. When using in vehicles, it might not possible to receive sufficent GPS data depending on the installation position of the Navigation device. Images* The Navigation device has a Picture Viewer with a lot of image display functions. “depending on model, must be activated via the Content Manager

Telephone (selected models) Your Navigation device is equipped with Bluetooth® wireless technology. Via Bluetooth®, you may connect to a cell phone equipped with Bluetooth® wireless technology. Your Navigation device can then be used as a very comfortable hands-free unit. You also have the option to read out the address book or phonebook of the cell phone and to read any received short messages. Unpacking the Navigation device Note: Your Navigation device is delivered in a stable packaging. If the packaging or its contents show the signs of serious damages, you must not continue to unpack the product. In such case, please contact your dealer. Checking the contents Before you start Using the Navigation device, the scope and condition of the contents must be thoroughly checked (see also page 16). > Unpack the contents carefully and check them thoroughly.

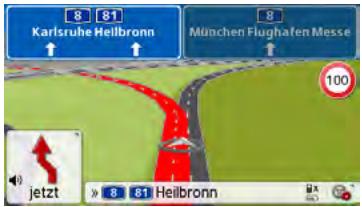

Lane assistant Pro 3D Reversing camera Connection for vehicle integration WiFi Becker Link2Live Live Traffic Live POT Search Oelele.ee : LÉLREER

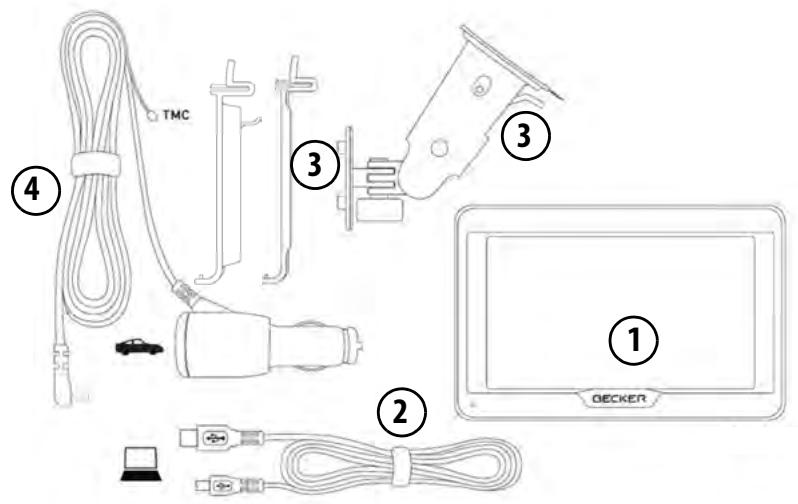

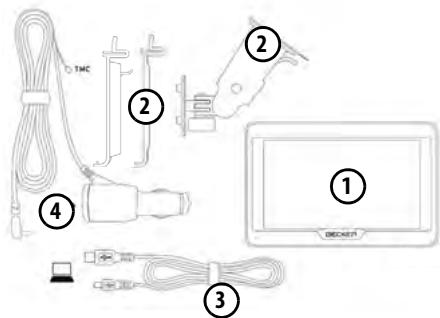

Scope of delivery Navigation device Device console with carrier plate (depending on model) © USB cable (O) Motor vehicle adapter power supply 12/24 V for cigarette lighters with built-in TMC antenna (depending on model) In the case of devices with magnetic holders, the carrier plate © and car adapter cable © form one unit. Complaints In case of complaints, please consult your dealer. The equipment may be sent directly to United Navigation in its original packaging. Handling the packaging Keep the original packaging in a dry place, at least for the warranty period. Note: The disposal must be performed in a professional manner, according to the country-specific regulations. The packaging must not be combusted. Depending on the country of delivery, it might be possible to the packaging to the dealer. return Description of the device The navigation device consists of the basic unit and the accessories included in the scope of delivery. For descriptions of the individual parts, see: + "Overview of the scope of Delivery" on page 16 Note: The basic unit and accessories must not be opened or modified in any way. LE)

The basic unit The basic unit consists of the complete electronic unit: Integrated antenna a TMC receiver for receiving traffic messages (depending on the model), Touchscreen an integrated loudspeaker a microphone (dependingon the model). On the side of the unit, there are also various connections and ports. You will find more details of the unit under: + "Model overview and technical specifications" on page 144 Cable for power supply from cigarette lighter This cable allows the unit to be connect- ed up to the car's cigarette lighter. The power supply must satisfy the following requirements: -+ DC current 12/24 volts 1 amps Battery When depleted, the integrated rechargeable battery can be recharged by connecting the Navigation device to the power supply. For this purpose, connect the unit via a car power adapter to a 12/24 V socket in a vehicle or via the optional mains power supply unit to the 230 V mains. Note: You can charge the Navigation device via the car charger cable included in the scope of delivery or via the optionally available mains power supply unit. When the Navigation device is connected to a PC, it is supplied with power via the PC and does not consume battery power. USB connection cable With the USB connection cable provided, it is possible to connect the Navigation device to a standard PC with a USB interface. The integrated flash memory of the navigation device and a micro SD card that may eventually be inserted can then be addressed by the PC like a removable storage device. Note: Switch the navigation device completely off, see "Devices with magnetic holders" on page 26, before connecting the navi- gation device to the computer. Unit bracket The Navigation device can be mounted in the vehicle using the unit bracket. Accessories Mains power supply unit This power supply allows connection of the Navigation device to a mains outlet.

The power supply must satisfy the following requirements: + Alternating current 100-240 volts 50-60 Hertz Cable for vehicle integration (for certain models only) With a 4-pin 3.5mm jack cable you can integrate your Navigation device seamlessly into your vehicle. Details of the connection can be found under "Cable for vehicle integration (depending on model, optional)" on page 23. Information about the documentation Quick Start Guide The Quick Start Guide is designed to provide a brief introduction to operating your Navigation device. The most important basic functions of the Navigation device are explained in the Quick Start Guide. Operating instructions A comprehensive explanation of the Navigation device functionalities is contained in these operating instructions. Registration You can register your product using our software service. We will then inform you of any new updates and other news. Registration is performed in the "Content Manager" - see page 33. Repairs The unit must not be opened if damaged. Please contact your dealer. Emi ions and disposal You will find details on emissions and electromagnetic compatibility and disposal in "NOTICE" on page 146.

Basic device - PND (Personal Navigation Device) USB connection cable Unit holder with carrier plate (the design depending on the model) Cable for power supply via the vehicle cigarette lighter (12/24 Volt) with integrated TMC-antenna (depending on the model) In the case of devices with magnetic holders, the carrier plate © and car adapter cable (@) form one unit.

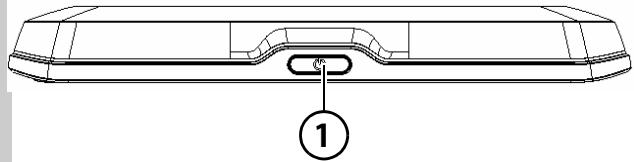

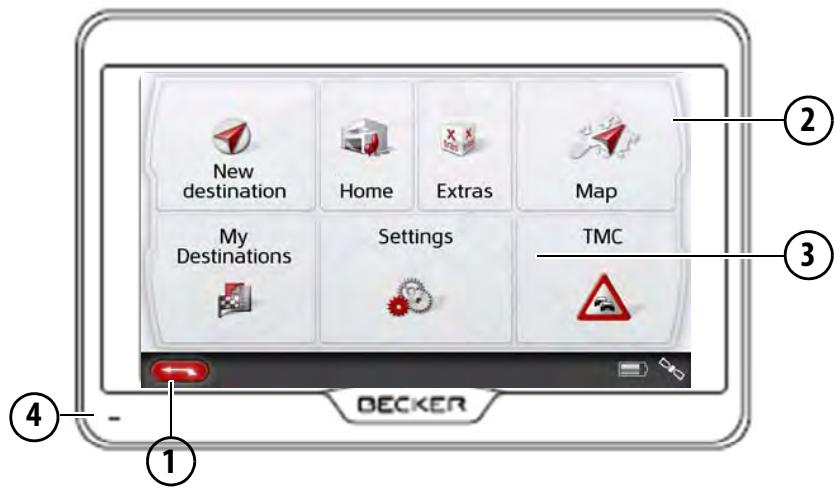

Front of unit with controls and displays

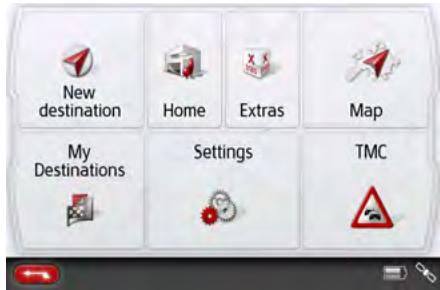

Back button Model dependent: either on the left bottom side of the screen or in the left top corner of the housing. Press = Back function in most applications Press and hold = Open the main menu 3 Touchscreen key Press = activates the corresponding key command Touch screen showing the main menu selected 4 Microphone (depending on the model, sometimes in the right top corner, too))

>>> OVERVIEW OF THE NAVIGATION DEMHGH! dependent) Model dependent, the arrangement of the connections can differ on the bottom side of the device. LL LR ia

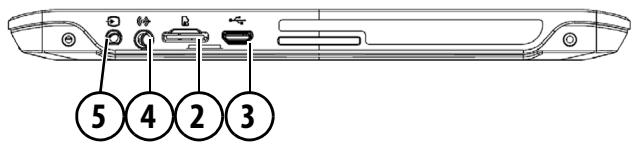

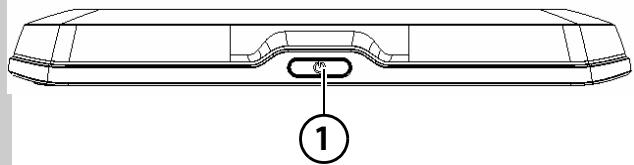

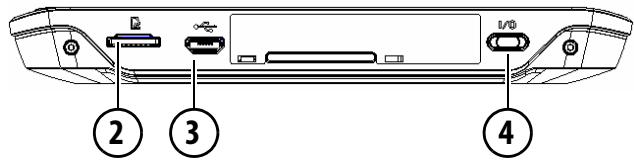

Top of the unit Underside of the unit 1 ON/OFF switch 2 Slot for Micro SD card 3 Mini USB connection / connection for power supply

4. Connection for reversing camera

5 Connection for vehicle integration O) © @ Q) Underside of the unit 2 Slot for Micro SD card 3 Mini USB connection / connection for power supply 4 On/Off switch (1/0) Top of the unit 1 Standby switch (sleep mode)

GENERAL OPERATION Maintenance and care The unit is maintenance-free. For proper care, a commercially available cleansing fluid for electrical devices may be applied using a soft damp cloth. À Danger! Danger to life by electrocution. Always switch off the unit and disconnect the mains power supply unit before cleaning the unit, supplied components, or accessories. Note: Do not use any aggressive or abrasive substances or cloths which may damage the surface. A micro-fibre cloth suitable for the display. The unit must not be exposed to water. is particularly Your mobile navigation system was designed and manufactured with great care and should be treated with equal care. You will enjoy your mobile naviga- tion system for a long time to come if you observe the recommendations listed in the following: + Protect your mobile navigation unit and the accessories from water and moisture. If your unit has been exposed to moisture, switch it off immediately and disconnectthe power supply. Allow to dry at room temperature. Do not operate your mobile navigation system in a dusty or dirty environment and do not store it in such an environment. Do not store your mobile navigation system in hot environments. High temperatures can shorten the service life of electronic components in your unit, damage the rechargeable batteries and cause certain plastics to warp or melt. + Do not store your mobile navigation system in cold environments. During operation, when the unit warms up to operating temperature, moisture may form internally, causing damage to electronic components. Do not drop your mobile navigation system unit, protect it from shocks and do not shake it. Improper handling can damage components within the unit. Never use corrosive or aggressive chemicals, cleaning solutions or aggressive detergents for cleaning. Allthe above information applies equally to the mobile navigation system, the rechargeable battery, the mains charg- ing and car power adapters as well as all accessories. Should one of these parts not work properly, please contact your authorised dealer.

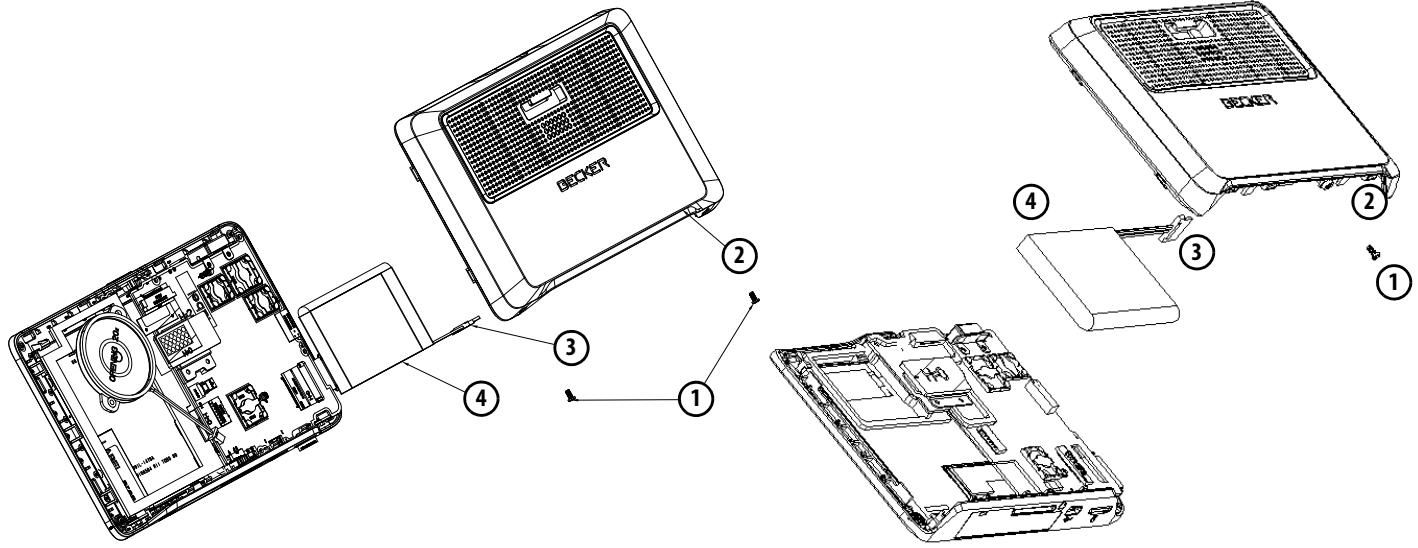

Battery quality declaration The capacity of the rechargeable battery in your mobile navigation system decreases With every charging/ discharging cycle. Improper storage at excessively high or low temperatures may also cause a gradual deterioration of capacity. Consequently, the operating time may be substantially reduced even in the case of a fully charged battery. Display quality declaration In some cases, for technical reasons, a few discoloured dots (pixels) may be visible on the display. Some pixels may also appear brighter or darker. However, such instances do not represent a product flaw. Start-up Once the Navigation device has been unpacked and checked for damage, the unit can be started up. The individual start-up steps are: + _ connect to power supply. + switching on the unit. +_ensuring antenna reception (if navigation is desired) Power supply Note: You can charge the Navigation device via the car charger cable included in the scope of delivery or via the optionally available mains power supply unit. When the Navigation device is connect- ed to a PC, itis supplied with power via the PC and does not consume battery power.

GENERAL OPERATION Using the battery The internal power supply is via the integrated rechargeable battery. The rechargeable battery is maintenance- free and does not require any particular care. You are alerted by a warning message when the battery should be recharged. After the alert, the device can still be used for approximately 10 minutes before switching off automatically. Note: Note that if the battery is completely discharged, it may take up to a minute before the device can be switched on again. Note: In the event of a defective battery, please contact your authorised dealer. Please do not attempt to remove the battery yourself. Connection for the cigarette lighter Note: Ifthe cigarette lighter has recently been used andis still hot, wait until the lighter socket has cooled down. Connect the power supply via the vehicle battery and the cable provided for the cigarette lighter as follows: > Grasp the connector of the connection cable and insert it gently without force into the connector socket of the navigation device up to the stop, or in the case of a device with an active cradle, on the underside of the supporting plate. (Model dependent, this step is not required on navigation devices with magnetic holders) > Insert the adapter into the cigarette lighter. Note: When the engine is switched off, the power supply slowly discharges the vehicle battery via the cigarette lighter! Do not therefore operate the Navigation device for long periods with the engine switched off. To receive TMC messages (depending on the model), the power supply must be connected to the supporting plate in the case of a device with an active cradle.

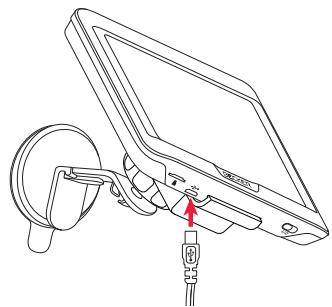

GENERAL OPERATION Connection to the mains outlet À Danger! Make sure that your hands are not wet and that the power supply unit is dry. Only connect the power supply unit to a permissible mains power supply. Connecting to power supply Connection to the public mains grid is achieved using the optionally available mains power supply unit. Please proceed as follows to connect to the mains: > Hold the connector and push it all the way into the connecting socket in the Navigation device without using excessive force. > Insert the plug of the power supply unit into the socket. Note: Remove the power supply unit when not using the Navigation device for longer periods of time. TMC antenna (depending on the model) The supplied TMC antenna is integrated into the cable for power supply. The TMC antenna runs in parallel with the the cigarette lighter cable in the delivered condition. If the TMC reception is poor, you must remove the cable of the TMC antenna from the cable for the cigarette lighter. (Model dependent, the cable cannot be disconnected on navigation devices with magnetic holders) Note: The TMC antenna must be installed in such a way that it does not distract you while driving. GPS antenna Unit antenna The GPS antenna is integrated into the housing. Note: The integrated GPS antenna is not suitable for use in vehicles with anti- glare windows (metalised thermo- glass or metal foil, indicated by the window label - SIGLA SOL, SIGLA CHROM, SIGLA, KOOL-0F, SUNGATE, etc) and vehicles with fine-meshed heating wires in the windows.

GENERAL OPERATION Cable for vehicle integration (depending on model, optional) With a 4-pin 3.5mm jack cable you can integrate your Navigation device seamlessly into your vehicle. connect your Navigation device to the phone mute function of your audio system. If the cable is connected correctly, your audio system will mute the car radio during navigation announcements. connect your Navigation device to your audio system for output of the audio signal. GND Telephone Mute: Audio-R — Audio-L = > Plug the cable into the designated 3.5 socket on the underside of the device. Note: Once the cable is connected, the loudspeaker of the basic device is switched off. Cable for rear view camera (depending on the model, optional) You can connect your rear view camera to your navigation device using a 4-pin 2.5mm AV cable. Insert the cable into the socket provided on the back of the basic unit, also see page 18. GND Video Audio-R — Audio-L You can make the necessary settings in the chapter “Rear View camera” on page 121. Memory card Your Navigation device has a slot for a micro SD memory card. As the map data is stored in an internal memory on the Navigation device, the slot for a micro SD memory card is used for updates and for viewing images. The memory card can also be used for supplementing the map data.

The card slot is located on the bottom side of the device. The card slot is equipped with a spring-actuated locking and ejector mechanism.

Inserting the memory card > Remove the memory card from its packaging without touching or soiling the contact bar. > Hold the memory card so that the contact strip is facing towards the rear ofthe unit. > Guide the memory card into the card slot. > Exert a little pressure and slide the memory card into the card slot until it snaps in. Ejecting the memory card The card slot ejects the card so that you can pull it out with two fingers. > Use your finger to gently press the memory card against the spring force into the card slot and then release it. The card is ejected. > Remove the memory card and place it in the packaging while ensuring not to touch contact bar. Unit bracket The Navigation device can be attached directly to the windscreen with the unit holder. Note: The Navigation device and unit bracket must not be exposed to long periods of direct sunlight. Temperatures inside the vehicle of +70°C and higher may damage parts of the bracket. Fitting the unit bracket Note: Fasten the unit holder such that your field of vision is not impaired when the Navigation device is installed and ensure that the unit is outside the deployment area of the airbag. Ensure that the electrical connection cable does not hamper you from accessing the vehicle's controls. Clean the attachment surface on the windscreen to ensure that it is clean and free of grease. Do not use greasy or soapy cleaning agents.

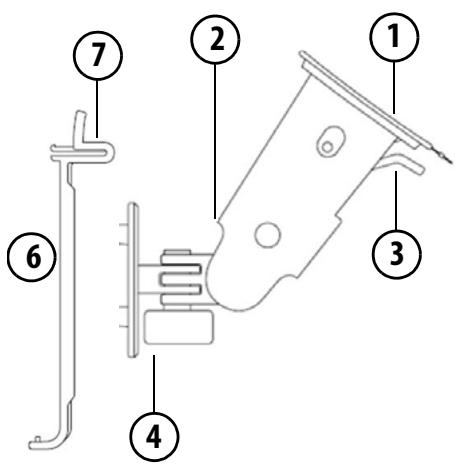

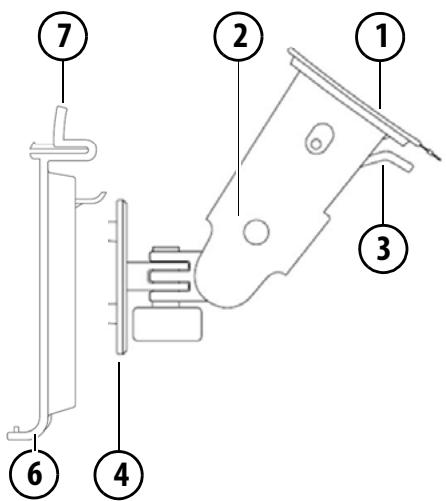

GENERAL OPERATION (a) Fastening screw (6)Carrier plate (7) Release button Similar to figure, on devices with magnetic holders no unlocking button is present (7). On the windscreen The unit holder can be attached directly to the windscreen using the suction mechanism. > Press the carrier plate onto the four retaining lugs of the unit holder. > Select a suitable spot to attach. > Loosen the fastening screw © slightly. > Press the base (@)} with its suction surface (O] against the windscreen. Turn the unit holder such that the carrier plate is positioned roughly in the desired viewing direction. > Press the lever (3) down. The holder has attached itself firmly to the windscreen. It can now be adjusted with precision. In order to remove it, operate the © lever again.

Adjusting the unit holder’s position > Loosen the fastening screws © and @ until the carrier plate (€) can be moved without using excessive force. > Move the carrier plate © to the required position and hold it in this position. > Tighten the fastening screws © and © sufficiently so that the Navigation device is held securely in place when the vehicle is in motion. Attaching the Navigation device > Position the Navigation device with the attachment point on the bottom of the housing, onto the carrier plate ©: > Without using excessive force, press the Navigation device onto the carrier plate ©: The Navigation device locks into place. Removing the Navigation device Press the button O on the top of the carrier plate ©. This unlocks the Navigation device which can be removed from the carrier plate. Devices with magnetic holders The unlocking button © is not present. First place the navigation device with the upper mounting point onto the carrier plate © and fold down the navigation device. The magnet holds the navigation device securely on the carrier plate. To remove the navigation device, first take it off from the carrier plate at the bottom.

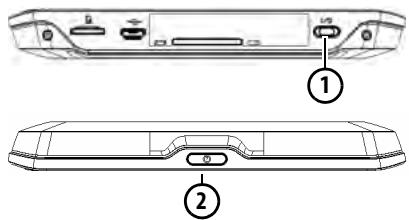

Switching the Navigation device on/off (model dependent) With the ON/OFF switch (1/0) (D) you can switch the Navigation device on or off completely. With the (@] button on the upper side of the Navigation device you can switch the device to sleep mode or switch it from sleep mode again. Res 67 For devices without the © button on the underside (model dependent): With the (@] button you can switch the device off, on or to the sleep mode.

GENERAL OPERATION Switching on > Press the button on the top of the Navigation device. The unit is switched on. The manufacturer's logo appears on the touchscreen. When the Navigation device is started for the first time, the language selection is displayed automatically. Dansk = Deutsch — æ Eestikeel œ \z Usingthe 4 y buttons or the scroll wheel, it is possible to scroll through the list in the direction of the relevant arrow. > Press the button for the required language. > The selection is confirmed by pressing ok. Em Eee à English (UK) HE pomme - John English (UK ge English (UK) homme » James = ou ——

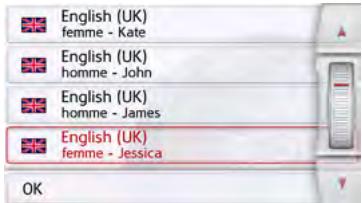

œ U > Then select the desired voice. Note: for models with TTS Voices with a (TTS) tag support the text- to-speech function (e.g. announcing roads and reading out text messages). A short example announcement is given. > Confirm your selection by pressing the ok button. The following prompt appears shortly afterwards:

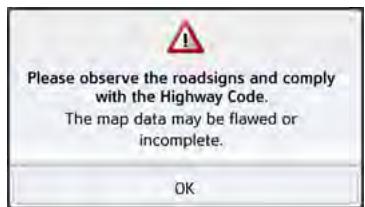

Please observe the roadsigns and comply with the Highway Code. The map data may be flawed or incomplet.

> If you agree to the request contained in this prompt, press the ok button. Note: Use of the Navigation device is only permitted in accordance with the national road traffic regulations applicable at the time. Switching off (depending on model) You can switch the unit off at any time. > Press the button on the top of the Navigation device. The Navigation device switches to sleep mode. > Before finally switching off the naviga- tion device, press the 1/0 switch on the underside of the device to 0.

For devices without the 1/0 switch on the underside: > Press the switch on the top of the navigation device for longer than 3 seconds to finally switch it off. Note: We recommend that you place the Navigation device in sleep mode in the event of short interruptions to operation (of up to a week). This significantly reduces the switch-on time and the Navigation device finds the satellites required for navigation much faster. If route guidance was active when sleep mode is activated, it is automatically resumed if the Navigation device is switched back on again within approx. 4 hours. If the device cannot be switched off anymore or no longer works reliably, it is possible to switch off devices without 1/0 switches completely by pressing the button on the top for longer than 7 seconds. Basic information about the touch screen The Navigation device is fitted with a touch screen. Note: To ensure that the display's surface is not damaged, you may only touch it with your fingers or a blunt, non-smearing object. Operation When you touch a button on the touch screen, the button in question is briefly shown outlined in red to confirm the selection. If you touch a button that is not active at the moment, a short signal tone sounds. Glibration If the touch screen starts responding imprecisely, calibration should be undertaken. The calibration function is started from the & menu (see also page 137).

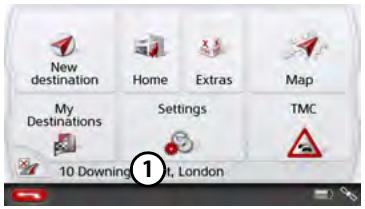

GENERAL OPERATION Basic information about the menus During operations, you are assisted by various menus and entry windows. The main menu The top menu level is the main menu. The individual applications are started from the main menu. A sa 4.

desiraton & & VAN You will find information about the indi- vidual applications in the corresponding main chapters. In addition to the individual applications, the main menu also contains further information and operating options. You can tell whether a telephone is already connected by the symbol on the Phone button. So 4 Phone Phone © Telephone connected (O)} Telephone not connected A satellite symbol at the right of the status line shows you whether there is currently GPS reception or not. EC So GPS reception No GPS reception If route guidance is already active, the current destination address and a button for cancelling route guidance will be displayed between the two rows of buttons. Ÿ. à / New destination Home Extras Map M Settings TMC Desthätions z) 1 10 00m Press the button © to cancel route guidance to the displayed destination directly in the main menu.

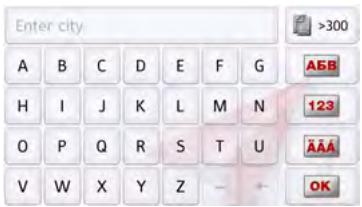

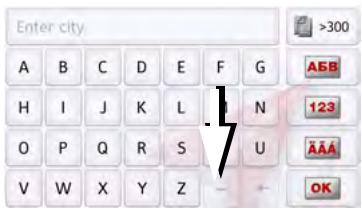

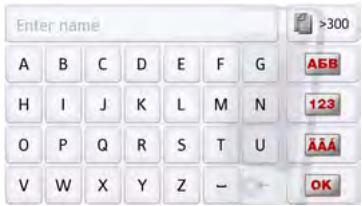

Entries made with the entry menu Some applications require entries to be made via the entry menu. The entry menu is operated in a similar way to a keypad. The keyboard layout can be switched between ABC and QWERTZ, see page “Keyboard layout” on page 134 1-30 A8 co er) Us Hlilolkle mb te op a ris | r|u) & vw x v z Lol The character entered on the keypad is displayed in the top line of the entry menu. The central area is used to enter characters. Help functions are provided in the right line. Descriptions of how to operate the menu are provided below. Entering characters Characters are entered by pressing the keys in the central area. 1-30 AlBlco € Fr 6 (ss Hiilolkie min Q Gal olrlalris ru) la vulrx riz Once the entry is complete, the process is concluded by pressing the |oxj key and the entry passed on to the Navigation device for processing. When a navigation destination is entered, the Navigation device compares the data with the stored data. Only those letters that are still possible area vailable for selection. Characters that cannot be selected are displayed greyed out. Accepting proposals During entry, the Navigation device makes proposals in the uppermost line. The proposals take into account your usage habits. For example, if you enter the city of Hamburg often, then after you enter the letter “H" the proposal “Hamburg” is automatically displayed. Ifno preferences are known for the Letter entered, then cities/locations suitable for the entry are displayed as proposals. Be ion) Æi>0 abc d ef 9) (ass ï kK 1 mon a ° risltpul \a vw x z -1+ Lg > To accept the proposal, you may press either the input field or the loxj button.

GENERAL OPERATION Scrolling through the lists If you have already entered some of the letters of the selection you want, you can use the selection list to display all the destinations containing the combination of letters in question. Ber 8 00 abc d ef 9) (ass i k 1 min) Ga ° ris tu vw x z -[+ LC >To call up the selection list, press the &i-10 key. Note: The quantity of selection options is dis- played in the form of the number on the button. When there are more than 300 options, the precise number is not dis- played. In the list, all the entries corresponding to the letters already entered are dis- played. The letters entered are coloured red in the case of the individual entries. The selection list appears. Bedin 12249 Germany A Bergisch Gladbach 51427 Rhanisch-Bergischer Kres, Germany Bergkamen —

59192 Uona, Germany > Press the 4 y arrow keys on the right hand side of the screen to scroll through the list. > Press the destination you want. The destination is adopted and the selection list is closed. Special characters and accent marks Special characters and accent marks do not have to be used when entering the names of towns and streets. The Navigation device will change entries from AE, OE and UE if necessary. > If, for example, you are looking for the location "Würzburg”, then simply press "WUERZBURG" or "WURZBURG". Special characters can be useful when naming destinations and routes. Be Æi>0 abc d ef 9) (ass i k 1 min) Ga î se viwlx z2\- >in order to switch to the special characters keyboard, press the button marked with an arrow. The special characters keyboard is displayed. alelc{olelr|c!| ca Hlilsik ce min Ga op a Rs = Gi VW x v 2 - K > Enter the desired special character. After you enter a character, the Naviga- tion device automatically switches to the normal input menu. To exit the special character keypad without an entry, press the button marked with the arrow.

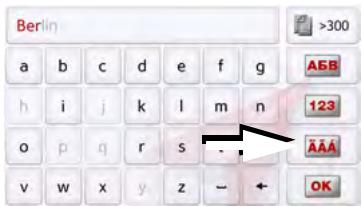

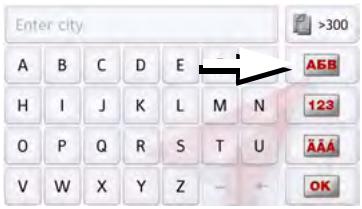

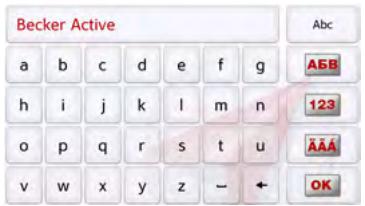

Other character sets Different character sets can be selected for the keyboard of the Navigation device. 1-30 A181|c}0le . — ns H 1 J K L'MIN ea 0 PQ RS TU) (A VIW OX Y 2z Lond > Press the button marked with an arrow repeatedly until the desired character set is selected. Entering numbers Switch to the numbers keyboard in order to enter figure: > Press the button. The numbers keyboard is displayed. 1HE ; ass 7/89! Ke) ta *[olrlel: 1: ” >in order to return again to the keyboard for entering letters, press the button marked with an arrow. Switching between upper and lower case: During free text entry, it is possible to switch between upper/lower case and the automatic function.

alslciolelr|c) Us Hlilslk ce mbnt Gi oral ris ru) my ANEE Te > Press repeatedly on the button in the top right-hand corner of the display until the desired method of entry is activated. The inscription on the button symbolises the method of entry. - The Abc button represents automatic mode. This means that, on entry, the first letter is automatically in upper case and subsequently changes automatically to lower case. The ABC button represents the entry of upper case letters. + The abc buüttonrepresentsthe entry of lower case letters.

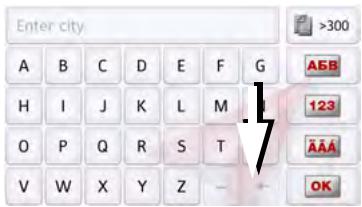

GENERAL OPERATION Deleting characters To delete the last character, use the back key. Æi 30 A8 co er) Us Hiililikie m0 Gi op a ris Tr Er] vw x v z Lol > To delete the character to the left ofthe cursor, press the + key. Inserting spaces If you have an entry with two words, e.g. for names of towns, the words should be separated by a space. 1-30 A8 co er) Us nonear N. Gi op a ris u vw x v z Lol > To enter a space, pressthe = key. The back button button is located on the bottom left of the device. À dd % 4. New destination Home | Extras Map My Settings TMC Destinations Al à It has various functions: + Depending on the menu context, if pressed briefly, you will be returned to the previous entry level. + The main menu is displayed by pressing and holding the button. Content Manager The Content Manager is a PC-based application containing a number of important functions to help you manage the content on your Navigation device. With the Content Manager you can: + back up the content saved on the Navigation device to your PC and restore it later to your Navigation device, + download current content from the Internet and install it on the Navigation device. To use the Content Manager, you will need the USB cable provided as well as a computer that meets the following minimum requirements: Minimum Operating system [Windows Processor 300 MHz clock frequency Main memory 256 MB Free storage space |2 GB

Installing the Content Manager You can install the Content Manager on your computer with the following steps: > Switch the navigation device comple- tely off, see “Devices with magnetic holders” on page 26. > Connect the USB interface of the de- vice directly to a USB port of the com- puter using the USB cable supplied. > Switch on the navigation device. > lfthe application does not start automati- cally, please start the file "CONTENT- MANAGER" manually in the folder “Becker_Content_Manager_Setup'. > Select a language from the list and then click on ok. > Read the welcome page and click on Next to continue. > Select the installation folder. À default installation folder is already specified. To select another folder, either type in the path name or click on Browse and define another folder. > Click on Install to start the copying procedure. Click on Details to see the details during copying. The Content Manager is automatically started immediately after installation. Remove the check mark from the box if you do not want this. This completes the installation proce- dure. > Click on Finish to exit the installation program. Starting the Content Manager Execute the following actions to start the Content Manager: > Switch the navigation device comple- tely off, see “Devices with magnetic holders” on page 26. > Connect the USB interface of the de- vice directly to a USB port of the com- puter using the USB cable supplied. Switch on the Navigation device. Note: When you connect the Becker Navigation device to the PC for the first time, the PC installs all the necessary drivers and then displays the message “Your unit is now ready to use”. After a short time, the Navigation device is displayed as a removable storage medium on the computer.

GENERAL OPERATION > Click on Start > All Programs on the computer. > Select Becker. > Click on Content Manager. When the Content Manager is started, the program executes a number of steps before you can start to manage your navigation software content. Each time the program is called, a connection is established to the Internet to check whether a new version of the ContentManager is available. If a new software version is found, the Content Manager gives you the option of installing it. We recommend that you always agree to the upgrade, if one is available. If a new software version is found, you have the following options: + Click on Yes to accept the new software version. The new version is downloaded and installed before you can start the Content Manager. + Click on No to start the Content Manager with the version already installed. Ifthe new version is a critical update, the Exit button will be shown instead of the No button. You must install the new version, otherwise you have to exit the application. If you have not yet made a backup of the navigation unit, the Content Manager will ask you each time it starts whether you would like to make a complete or partial backup copy. Note: We recommend that you always create the backup. Otherwise you will not be able to restore the content in the event of loss of data. Transferring pictures Images*, music and videos* can be stored on a separate Micro SD memory card (not included in the scope of delivery) or in the internal memory of the Navigation device in the "Media' folder. Files can be transferred via a card reader or a USB connection. Note: Switch off the navigation device com- pletely, see “Devices with magnetic holders” on page 26, before connecting the navigation device to the computer. We recommend that you give files and directories self-explanatory names so that it is simpler to find these again, if needed. “depending on model, must be activated via the Content Manager

GENERAL OPERATION Faults Malfunctions in the operating system or in the unit are displayed accordingly. If the function you want cannot then be executed, you should restart the Navigation device using the On/Off switch. If the messages reappear or the unit doesnot function correctly for any other reason, please contact your local dealer. You can also try to find a solution to your problem in the FAG in the Support area on the Becker homepage (www.mybecker.com). Note: Never attempt to open the unit yourself. Please contact your authorised dealer if you are unable to remedy the fault.

NAVIGATION MODE What is navigation? The term “navigation (lat. navigare = to travel by sea) is generally understood to mean the determination of a vehicle's location, the determination of its direction and its distance from the desired destination and the required route to get there. Stars, prominent landmarks, compasses and satellites etc. are used as navigation tools. With the Navigation device, the location is determined by the GPS receiver. The Global Positioning System (GPS) was developed during the 1970s by the US military as a weapons guiding system. GPS is based on a total of 24 satellites which orbit the Earth and transmit signals. A GPS receiver receives these signals and calculates its distance to the individual satellites based on the signal travel times, and then determines your current geographical position. Signals from at least three satellites are required to determine your position; your height above sea level can be calculated if signals are received from four or more satellites. The Navigation device determines the direction and distance from the destination using a navigation computer and a digital street map held in its internal memory. For safety reasons, route guidance is given predominantly in spoken form. This is supported by a direction indicator and a map display on the touch screen. À Safety instructions -+ Road traffic regulations always take priority. The navigation system is merely an aid, data/information may in select cases be incorrect. The driver must decide in each situation by him- or herself if he or she will follow the directions. No liability will be assumed for incorrect directions provided by the navigation system. When first put into use it can take up to 30 minutes to fix the position. Observation of traffic signs and local traffic regulations must always take priority. Traffic guidance is restricted to passenger vehicles. Special driving recommendations and regulations for other vehicles (e.g. commercial vehicles) are not included. Destinations may only be entered when the vehicle is stationary.

Selecting Navigation Navigation mode is called up from the main menu. New destinations can be entered in the menu "New destination’. Destinations that have already been visited or saved can be selected in the menu My destinations. > Inthe main menu, press the button My destinations. Note: If an address is displayed in the lower edge of the main menu, this means that route guidance has already been started to the displayed address. Home Heimatadresse

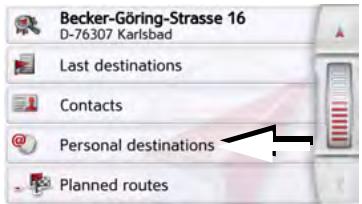

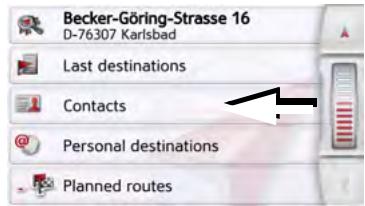

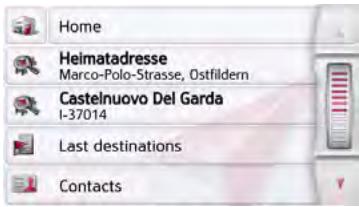

Last destinations Contacts Home address When you press the Home button you Will be asked to enter an address if no home address has yet been entered. Set address now? > Press the yes to enter the address. You can then enter a destination as described under ‘The New destination menu on page 43. Note: The menu items Set current position and Select from last destinations (fast access mode) can also be used to select a destination. If you have already entered your home address, you can start route guidance to your home address in the first line. À home address once entered can be modified later. In the "My destinations’ menu, next to the Home option press the «x button. Home address: Marco-Polo-Strasse 1 D-73760 Ostfildern, Kemnat Close Change > Press the Change button to enter a new home address. The menu for selecting the destination appears.

NAVIGATION MODE À) Enter address M Last destinations ME Hal Point of Interest mi Œi chy Guides - nmaneo e #58 QUE = x Here you can set the new home address for example using an intelligent text entry field. Smart Guess The two addresses that can be selected with the button, @%, is a selection of the addresses last visited. Depending on the time of day and your current position, the two most likely destinations are displayed and can be selected directly. Last destinations list The last destinations visited and saved destinations are displayed in the Last destinations list and can be selected directly. The menu for entering destinations can also be called up using the fast access function. A) Enter address If Select Point of Interest MN rravel Guide sf. Select on map (4) Enter geo-coordinates The destination list The destination list displays, line by line, all destinations available for fast dialling. Each line of the destination list is divided into two fields. Each list field is designed as a button. The destination is shown on the right-hand button and the properties of the destination are displayed using the left icon. Note: Up to 200 of the most recent destina- tions are automatically stored in the destination list. If the storage capacity is reached, the oldest destination in the list is automatically deleted to make room for each new destination. However, im- portant destinations may be protected. If you select your home address and it has not yet been defined, you will be re- quested to enter the address.

Icons used The following icons are used in the destination list: Icon Meaning This destination is a standard destination with no special features. This destination is protected. Ifthe destination memory is full, this destination will not automatically be deleted. This can be performed manually, if required. In the case of a protected entry, you can also determine the position using the fast access function. Operating the last destinations list Start with existing destination The existing destinations are listed in the destinations list. > Press the button for the desired destination to start route calculation. The calculation begins. When the calculation is complete, the map appears and the route guidance begins. Scrolling through stored destinations Usingthe 4 »_ buttons or the scroll wheel, it is possible to scroll through the list. Displaying or editing a destination Any destination stored in fast access mode can be displayed and edited. > Press the button to the left of the desired destination. > A selection menu appears. Option Show details Meaning The data for the destina- tion are displayed. From this screen you can dis- play the destination on the map, display the route or start the route guidance. The destination can be renamed. If the destina- tion is given anameitis automatically protected. Protect entry |The destination is pro- tected from automatic deletion. This function is only available for unpro- tected destinations.

NAVIGATION MODE Option Meaning Remove protection The protection is re- moved from the desti- nation. This function is only available for pro- tected destinations. The destination is moved forwards by one position. If the destina- tion is moved it is auto- matically protected. Move down The destination Îs moved back by one po- sition. lfthe destination is moved it is automati- cally protected. Delete entry The destination is delet- ed from the fast access mode. All destinations (except for the protected desti- nations and your home address) are deleted from the list. Personal destinations Using the Personal destinations button you can call up Google" points of interest that have been imported into the Navigation device and start route guidance to one. + See "Selecting a destination from Personal destinations" on page 41. Contacts Using the Contacts button you can call up Microsoft® Outlook® contacts that have been imported into the Navigation device and start route guidance to the address listed in the contact. + See "Selecting a destination from Contacts on page 42. Selecting a destination from Personal destinations You can call up Google" points of inter- est that have been imported into the Navigation device and start route guid- ance to one. Note: To display custom Google" points of interest, the Google" KML files must be stored in the Navigator\con- tent\userdata\mydest directory of the Navigation device. > In the main menu, press the button My destinations. @ Becker-Gôring-Strasse 16 0-76307 Karisbad Pl Last destinations SA Contacts @) Personal destinations - FA Planned routes > Press the Personal destinations button.

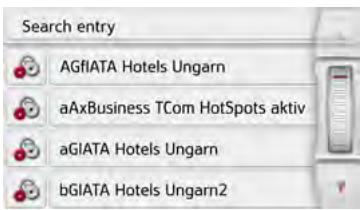

Search entry 6 AGNATA Hoteis Ungem 6D | antäusiness TCom Hotspots aktiv >| aGIATA Hotels Ungam A la | S2 | bGIATA Hotets Ungarm2 A list of the available destinations will be displayed. Usingthe a » buttons or the scroll wheel, it is possible to scroll through the list. Note: If the list contains numerous entries, it may be a good idea to search for the desired destination by selecting Search entry and using the input menu. A maximum of 1000 destinations can be imported. Newly imported destinations are filed at the start of the list. > Select the desired destination. Route guidance to the destination will be initiated. selected Editing Personal destinations >In the list of your own destinations, press the & button in front of the destination that you wish to edit. Select Delete entry if you wish to delete the destination from the list. Select Delete all entries if you wish to delete the entire list. Select Show details if you wish to display details about the destination. B Reichstag Platz Der Republik 1 _n : 10557 Tiergarten 1+49-30-22737453 La Press the Start button to begin route guidance to the destination straight away. You can also display your chosen destination on the map (On map), store it in fast access mode (Save), display the route to the destination (Show route) or call the number if a telephone is connected and a phone number is available by pressing the button with the & symbol. Selecting a destination from Contacts You can call up Microsoft® Outlook® contacts that have been imported into the Navigation device and start route guidance to one. Note: The Microsoft® Outlook® contacts are imported via the Content Manager. > In the main menu, press the button My destinations. Becker-Güring-Strasse 16 076307 Korsoes n Last destinations SA Contacts @) Personal destinations - Ra Planned routes > Press the Contacts button.

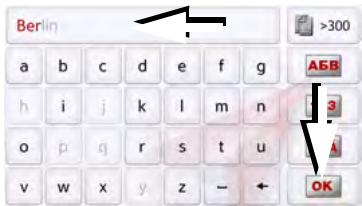

alslcio re rc Le Hiilsk im C3 olrlalr s ru ANATAE Lg An input menu appears if there are more than 10 contacts. If there are fewer than

NAVIGATION MODE 10 entries, a list of contacts is displayed straight away. >in the input menu, select the first letters of the entry you are looking for. > Press the |oxj button when the name you want is displayed in the top line. If there are 5 or fewer entries available With the letter combination entered, a list containing these entries will automatically be displayed. Note: You may also first have a list displayed that corresponds to the letter combination entered. For this purpose, press the @j button in the input menu. > Select the desired entry in the list. Roland Füleki FE,

+ _oimp sega 100 © É Budapest [+ Show roue 1B+36 (20) 9715251 © San Press the Start button to begin route guidance to the address displayed for this contact straight away. You can also display the address shown for the contact on the map (On map), store itin fast access mode (save), display the route to the destination (Show route) or call the number displayed if a phone number is provided (button with the 1 symbol). If there are a number of addresses provided for the chosen contact, you can select one of them after pressing the button (D). Ifthere are a number of phone numbers provided for the chosen contact, you can select one of them after pressing the button (2). The New destination menu New destination ations > In the main menu, press the button New destination. The menu for new destinations appears.

W._ Select Point of Interest [1 city Guides

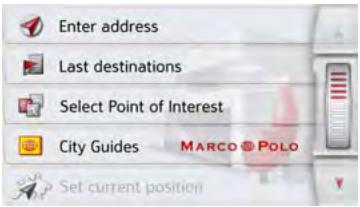

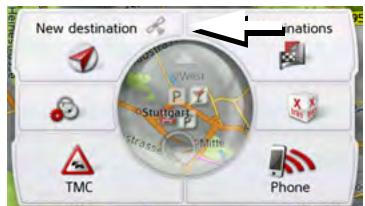

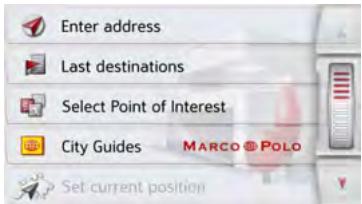

NAVIGATION MODE Layout of the New destination menu Enter address The various steps from selecting an address to starting route guidance can be carried out using the Enter address button. + See "Entering the address” on page 44. Select Point of Interest Points of interest such as airports and ferryports, restaurants, hotels, petrol stations or public buildings can be selected and route guidance started using the Select Point of Interest button. + See "Points of interest" on page 52. Travel Guide (model dependent) With the travel guide, you can select, for example, MARCO POLO Top-Highlights or MARCO POLO Insider Tips and start the guide destination there. See ‘Travel Guide (model dependent)" on page 56. Select on map With the button Select on map, you can select a destination directly on the map and start route guidance. + See "Selecting a destination from the map" on page 57. Enter geo-coordinates The geographic coordinates for a destination can be entered and route guidance started via the Enter geo- coordinates button. + See "Coordinate entry" on page 58. Route planning A route with several waypoints can be planned using the Route planning button. + See "Route planning" on page 58. Entering the address The Enter address button in the destination input menu opens the menu for entering addresses. À Enter address El Last destinations W._ Select Point of Interest Œ cty Guides marco e Pots Es, à x > In the destination input menu, press the Enter address button. The menu for entering addresses appears. dÉ | Germany a chy Code Note: By pressing the Clear form button (top right) you can delete all entered data apart from the country.

NAVIGATION MODE Selecting a country You can select a country from those available using the button for the country of destination. À country is adopted automatically in the address input menu after selection. If a country of destination has already been entered it will remain until you select a different country. U£ | Germany C] Pre ay À code

> Press the button containing the country of destination to access the country selection list. The selection list appears. Sweden Switzerland A Ukraine United Kingdom 2-1 Vatican City > Press the button for the desired country. Note: If required, press the arrow keys À y or use the scroll wheel on the right of the screen to scroll through all available countries of destination. The ,€ symbol indicates the countries for which an address can be entered using speech. (depending on the model) Selecting an address and starting route guidance You can enter the exact destination address in the address input menu. &É | Germany n] (Geo torm chy Code The following settings can be made in the address input menu: + Town + Zip code (or postal code) + Street and house number + Junctions as an orientation aid Itis also possible to: search for a point of interest near to the address entered (POI search). This can be entered as described under “Point of interest near to an address" on page 54. save the destination in fast access mode, show the route on the map. For details please see page 97. start the route guidance straight away.

NAVIGATION MODE Selecting a town The destination can be entered by either using the name or ZIP code. When you enter the letters of a place, the navigation device displays suggestions (See "Accepting proposals" on page 30). If you do not want to accept the proposal, just enter the other Letters of the location you want. The Navigation device excludes all impossible letter combinations and ZIP codes and activates only letter fields or numerical fields that lead to an existing location or ZIP code. > Select the option of entering the town or postcode. Ber Æi 0 abc d ef 9) (ass i k 1 min) Ga ° ris tu vw x z -[+ LC > Enter the letters of the destination town or the numbers of the postcode consecutively. Note: If two words need to be entered you must separate them with the character When sufficient letters have been entered it will automatically switch to a list from which you can select the town. However, you can switch to the list before this by pressing the @j 20 button. Note: If you have entered a postcode, the name of the town will be hidden in the input menu to start with. If you then enter the street name, the name of the town will then also be displayed. Using the town list Once a few letters of the desired town have been entered you can display a list of all the towns with the relevant letter combinations or this list will be displayed automatically. > Press the @j10 button on the right of the screen to call up the list. Bedin 12249 Germany A Bergisch Gladbach 51427 Rhanisch-Bergischer Kres, Germany Bergkamen —

59192 Uona, Germany Usingthe 4 »_ buttons or the scroll wheel it is possible to scroll through the list. > Press the button for the required town.

NAVIGATION MODE Selecting the street In the Street menu field the street and house number can be entered separate- ly using a letter and number field. The Navigation device excludes all impossible letter combinations and activates only those letters that could give an existing street name. A house number can only be chosen once the street has been selected and if house numbers are included in the data. > Enter the letters of the destination street consecutively. When sufficient letters have been entered it will automatically switch to a list from which you can select the street. However, you can switch to the list before this by pressing the 8j 20 button. Using the street list Once a few letters of the desired street have been entered you can display a list of all the streets with the relevant letter combinations or this list will be displayed automatically. > Press the 80 button on the right of the screen to call up the street List. Unter Den Birken 12555 Berlin, Kôpeniek Unter Den Eichen 12203/12205 Berlin, Lichterfelde Unter Den Linden 10117 Berim, Mate 0 You can scroll through the displayed list usingthe A y buttons. > Press the button for the desired street. Selecting the Intersection After entering the destination town and street, you can enter a junction so as to further limit the choice. Note: Instead of entering a junction, you can also enter a house number. However, it is not possible to enter both at the same time. > Press the Intersection button. The input menu for the name of the junction will appear. > Enter the name of the junction. Once a few letters of the desired street have been entered a list will automati- cally be displayed. > Press the button for the desired street.

Selecting a house number After entering the destination town and street, you can enter a house number so as to further limit the choice. Note: Instead of entering the house number, you can also enter a junction. However, it is not possible to enter both at the same time. > Press the No. button. The input menu for the house number Will appear. > Enter the house number and then press the |oxj button. Displaying the route Once the address has been entered, the address input menu allows the route to the destination to be displayed on the map. > Press the Show route button to display the route on the map. The route is calculated. Sur You can start the route guidance directly from this screen using the Start button. The other options on this screen are described under "Displaying the whole route" on page 97. Storing a destination In the address input menu, the Save button opens a menu where a name can be entered for the specified destination. If the desired name has been entered and |oxj has been pressed to accept it, the destination is transferred to fast access mode and protected. Starting navigation The Start button starts the guidance. IL data entered thus far is processed when calculating the route. > Press Startto start the route guidance. route Fast route is being calculated using historical traffic data: Berat

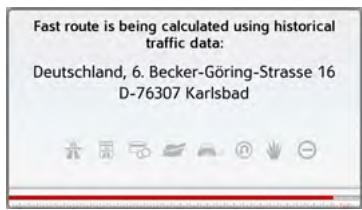

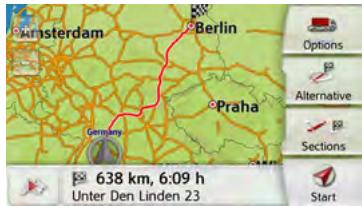

The route is calculated. The map will then be displayed and the route guidance will begin.

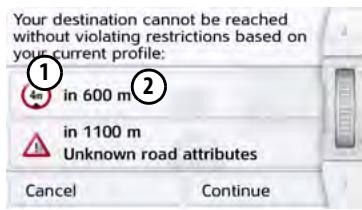

NAVIGATION MODE Note: The symbols above the progress bar refer to restrictions that you may have activated (eg. unpaved roads, toll roads). If the route guidance is already running you will be asked whether the new destination should replace the old destination or if the new destination should be regarded as a waypoint. 1 Downing Street London GB-SWIA 2 Add as stopover Add as new destination Replace old destination > Select between Add as stopover, Add as new destination 0" Replace old destination. If the route guidance is already running and a waypoint has already been entered you will be asked whether the new destination should replace the old destination or the waypoint. Birkenstrasse 23 D-76307 Karlsbad Replace stopover Replace old destination: > Select Replace stopover Of Replace old destination. Note: Ifthere is no GPS signal when the route is calculated, the following will be displayed: No GPS. Calculation starts when GPS is available. Select Last position’ to caleulate from last known position. Show route Last position Cancel When a GPS signal is available, the route calculation will start automatically. When the Last position button is pressed, the last known position is used and the route calculated from this position.

NAVIGATION MODE Entering address by speech (selected models) You can start the spoken address entry from the address entry menu by press- ingthe 6 button. Notes: Only one address can be entered using the voice entry function. Lists for more precise selection cannot be operated using speech. The destination country cannot be entered using speech. The ,€ symbolinthe list of countries indicates the countries for which address entry using speech is possible. If entry using speech is not possible, the 6. button will be displayed greyed out. An address and the street number must be spoken in the language ofthe destination country. After pressing the 6 button, a menu that shows you how to say an address Will be displayed. _ Say the address, eg | Berlin, KantstraBe 12, À 4 A Berlin, KantstraBe LB Or just say Berlin. Saÿfhe address in German. You can say the address as soon as you see the lines next to the stylised face. Notes: + If a number of languages are spoken in the destination country (as is the case in Switzerland, for example), you can set another language by pressing the Change language button. You can say the complete address or just a part of it. Possible entries include: - street number - street - town - Street - town - town > Say the address. If your entry is unique, after a short time the menu for entering addresses will be displayed with your entry filled in. WÉ | Germany Le Um 89077 ra Süflinger Strasse 100 ee M Intersection L_ Show route HE POI search 2 If the address displayed does not match the address you said, you can make appropriate changes. If the address is correct, you can start route guidance, display the route or store the address as described on page 48.

NAVIGATION MODE If your entry was not unique or the Navigation device was not able to uniquely assign your entry, you will be shown appropriate lists. You can then select the address you want from these lists. Depending on your entry, lists with town names, lists with street names or combined lists with town and street names can be displayed. Note: Voice entry can be restarted at any time in the lists by pressing the ,£ button. The following example shows a list in which a town can be selected. Anger & tree lE | Entries identified with the Æj symbol open up a further list when they are selected. This can be necessary if, for example, the same town name occurs a number of times in the set country. Once you have selected the town or street you want in the lists, the menu for entering addresses is displayed after a short time with your entry filled in. You can then start route guidance, display the route or store the address as described on page 48. Speech Dialogue System (selected models) The Speech Dialogue System is an ex- tension of the spoken address entry. As well as entering addresses directly, se- lected device functions can be operated via speech dialogue. This function is available in the following languages: German, English, Italian, Spanish and French. Explanation of symbols The following symbols are displayed on the left-hand side of the screen: Please speak Please listen Please click = (to start voice control) Objective Please say a command | Destination (Address Point of interest Rout 3er Last destinations More... Home You can enter the following destinations via speech entry: + Address + Point of Interest + Last destinations + Home To enter an address, see page 58. If you have not yet entered a destination,

or you have not set a home address (be- cause this is the first time you have used the device), these fields are greyed out. Petrol station Ga hace Parting 3e Near destination Restaurant Accommodation Points of interest are divided into differ- ent categories. Route guidance is also activated in the screenshot above, so the device asks ifthe petrol station should be located on the route or near the destina- tion. Route Please say a command Destination Show route Delete route bu | Dés Block Road More... When you enter a destination, the follow- ing options are available: + Show route + Delete route + Block road Ifthere is not currently a route activated, this field is greyed out. More... Please say a command Destination Where Am 1? Country Into nm Route Help When you click on More, you can choose between three menu items. Under Where Am l?, you can determine the current GPS position. If you select Country info, you will be giv- eninformation about the country you are currently in. Help gives you useful information about speech entry. For example, it lists all phrases which can be used as soon as the speech dialogue is started. As well as these global commands, you will also find help for entering addresses or for points of interest. Live POI Search (model dependent) With the Live POI Search your Becker navigation device establishes a connec- tion to our live Server. You have access to millions of addresses in Europe. You can choose between: + A Live POI Search in the vicinity, + A Live POI Search near to an address + A Live POI Search near to a destination Subsequent operation is similar to how it is described in the chapter entitled Points of interest on page 52, except that no categories can be selected. Points of interest Points of interest (POI) are included in the map and can be displayed there. Points of interest include airports and ferry ports, restaurants, hotels, petrol stations, public buildings. You can use points of interests as navigation destinations.

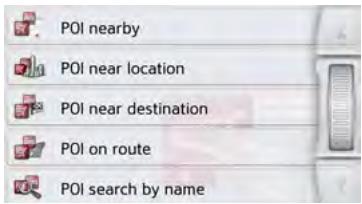

NAVIGATION MODE Note: You can only select points of interest in the area in question if the GPS reception is adequate for determining a position. Otherwise, the last position stored will be used. You can extend the places of interest stored on the device by installing additional POIs in KML format on your device via the Content Manager. >In the main menu, press the button New destination. À) Enter address Htf{ Select Point of Interest M rravel Guide

{) Enter geo-coordinates > Press the Select Point of Interest button. M. POI neorby dla POI near location Bones dr Polon route GR POI search by name [E=] You can choose between: + a point of interest in the vicinity, +_a point of interest near to an address, + apointofinterest near to a destination, + a point of interest along the route or + _entering a point of interest directly. Point of interest in the vicinity > Press the POI nearby button.

X]_ Restaurant Medical -|[E xl PI Parking Press the arrow keys A y oruse the scroll wheel to scroll through the list displayed. > Select one of the available categories. Note: You can also press the All categories button. An input menu will then open and you can enter the name of a point of interest directly and confirm it. For some categories, e.g. petrol stations, a further selection menu is displayed in which you can narrow down the choice further, e.g. by brand.

If you have selected the category, any points of interest belonging to the relevant category and available within the area in question will now be displayed. 5 Aa SE DE LR F Katharinenstrasse 29, 70182 Mitte 20m ©) }LJ wm op — Kriegsbergstrasse 55, 70174 Mie M00m ""@ ’ The name, distance as the crow flies and the address is displayed for each entry. > Select the desired point of interest. ® Are | 1_ imp Cannstatter Strasse 46 70190 Ost FE

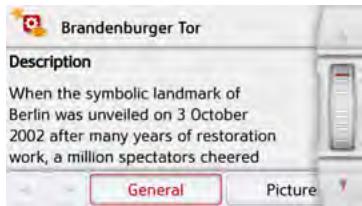

I+49-711-2625648 Sun You will now receive additional information about your chosen destination. > Press the Start button to begin route guidance to the point of interest directly. In addition, the selected point of interest can be: displayed on the map (On map), saved in fast access mode (save), used for displaying a route to the POI (Show route), if a telephone is connected and a phone number is available by pressing the button with the L# symbol. (depending on the model) Point ofinterest near to an address > Press POI near location. vÉ | Germany Q (Geo torm chy Code > Select the desired country. > Inthe city or Codefield, enter the town where you wish to search for a point of interest. Note: If you have already entered an address, this address will appear by default. > Press the Select category button. The available Points of interest categories for the city entered will be displayed. > Select the desired point of interest as described under "Point of interest in the vicinity" on page 53.

NAVIGATION MODE Germany ll ar to Berin oo Ty. Street HE tree : M Select category l Stemrate M svt | à 2 sun > Press the Start button to begin route guidance to the point of interest directly. However, you can also store your chosenpoint of interest in fast access mode (Save) or display the route to the point of interest (Show route). Note: Your can also press the Select Point of! Interest button. An input menu willthen open and you can enter the name of a point of interest directly and confirm it. By pressing of the button next to the selected POI, you can display the additionally available information for the destination. Point ofinterest near to destination > Press the POI near destination button. "Al Categories

X)_ Restaurant Medical e] P Parking ’ The categories available near to the destination are displayed. > Select the desired point of interest as described under "Point of interest in the vicinity" on page 53. POI on route > Press the POI on route button The available Point of Interest categories available on the whole route will be displayed. > Select the desired point of interest on the route as described under "Point of interest in the vicinity" on page 53. Entering a point of interest directly > Press the POI search by name button.

I+49-711-2625648 You will now receive additional informa- tion about your chosen destination.

> Press the Startto begin route guidance to the point of interest straight away. However, you can also display your chosen point of interest on the map (on map), store it in fast access mode (Save) or display the route to the point of interest (Show route). Calling special destination phone number (depending on the model) You can dial directly phone numbers specified in the information on a point of interest The prerequisite here is that a cell phone is connected via Bluetooth® wireless technology with the Navigation device. $ hr re. EEE Cannstater Strasse 46 5 70190 Ost Sel “Show route

I+49-711-2625648 > Press the button with the & symbol shown at the bottom of the point of interest information screen. The call will be initiated. Additional point of interest information Any additional information that is provided for a point of interest can also be displayed. EL srandenburger Tor FE, Pariser Paz 5 10117 Berin u Dee ÿ More Sur To display the additional information, press the More button shown at the bottom of the point of interest information screen. “ erondenburger Tor Description When the symbollc landmark of Berlin was unvelled on 3 October 2002 after many years of restoration work, millon spectators cheered You can scroll through the displayed text using the arrow buttons or the scroll wheel.

Picture 1 Travel Guide (model dependent) The Travel Guide acts in a similar fashion to the "Enter point of interest" function (see also page 44). The Travel Guide for Berlin is already pre-installed. Al travel guides are available in 5 languages (D, E, 1, S, F). Other languages are represented in English. Additional cities can be purchased from the ContentManager (see also page 33).

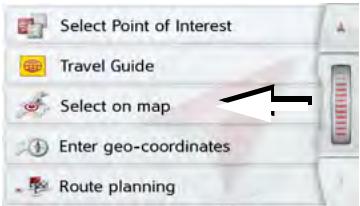

NAVIGATION MODE Selecting a destination from the map You may also select a destination directly from the displayed map. Et} Select Point of Interest “ Ii rrovel Guide

- si Route planning > Press the Select on map button. The map display appears. Note: You may need to make the area larger using the zoom buttons [2 and {= in order to find the desired point. You can also move the map to the desired point. Mercedesstrasse, Stuttgart, Bad C.. æ > Press the desired point lightly on the surface of the screen. A flashing red cross will be displayed at this point. Note: By pressing the GPS Position YOU can display your current position again. > Press the Selectbutton. POI near. Mercndemtesse 5 D-10572 Sue Bad amnstat Ÿ— 2 Sète

Where available, the address of your chosen point is displayed. > Press the Start button to begin route guidance to the destination straight away. You can also search for points of interest in the vicinity of your chosen point using the POI nearby button. However, you can also store your chosen point in fast access mode (save) or display the route to the point of interest (Show route). You can select a new destination by touching the map even during the route guidance in progress, in order to insert a stopover or to replace the old destination. When touching the display, a compass appears with arrows to adjust the horizontal display and the vertical display angle of the map. This function is described on page 93.

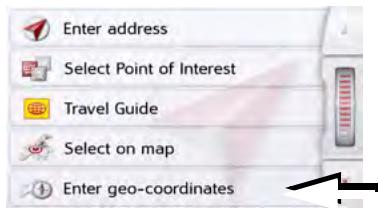

NAVIGATION MODE Coordinate entry You can also enter your destination using geographic coordinates. >In the main menu, press the button New destination. A) Enter address Hf Select Point of Interest Æ Travel Guide «Select on map ) Enter geo-coordinates > Press Enter geo-coordinates. Lat gs" GES 57.645" + lt > Using (@) select the value you wish to change. > Using the two buttons indicated ÔTO) select the direction required for the geographic longitude and latitude (east/west or north/south). > Then enter the desired values using thebuttons 1 to 0 The entry field at the beginning may be displayed greyed out. Delete any entries in the field with the backspace button, in order to use the entry field. You can enter coordinates in three different ways. The following formats can be used: + Degrees Minutes Seconds.Decimal seconds e.g. 42°52'46.801" + Degrees Minutes.Decimal minutes e.g. 48° 53.56667 + Decimal degrees e.g. 48.89277778 Notes: + The coordinates entered must correspond to WGS84 (World Geodetic System 1984). + If you press button © your current geographic position will be entered into the fields. > Press the [oxj button. Where possible, an address matching the coordinates will be displayed. You can view the destination on the map, store it, display the route to the destination or start the route guidance straight away. Route planning The route planning menu allows you to create and select individual routes. To do this, enter the individual destination points for the desired route. It is then possible to travel to these points consecutively without having to enter any further information. You can also optimise the destination points entered and in so doing change their order. >In the main menu, press the button New destination. Hi Select Point of Interest à Ii Travel Guide

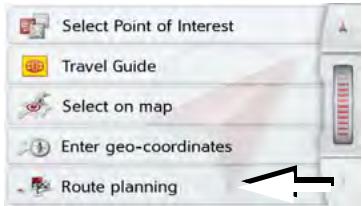

- Æ Route planning > Press the Route planning button. In the route menu you can create a new route by pressing the Create new route button. Previously stored routes are shown in a list below this.

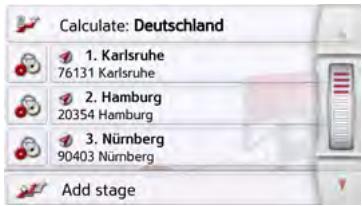

NAVIGATION MODE #7 Create new route À | serin > Hemburg 6 Deutschland le] Note: If no routes have yet been stored, the route menu is empty. Scrolling through stored routes > Press the arrow keys A y or use the scroll wheel on the right of the screen to scroll through the stored routes. Editing stored routes You can add additional stages to a stored route, change the name of the route or delete it. > Press the & button in front of the route you wish to edit. By pressing Add stage you can now add a stage to the route. After pressing Rename route you can give the route a new name. Pressing Delete route Will allow you to delete the route from the stored routes. Selecting and starting a route > Press a route to select it. The route is loaded and displayed in the stage menu. 27 Calculate: Deutschland # 1. Korsruhe 76131 Karlsruhe % 2 Hamburg 20354 Hamburg

227 Add stage > Press the top button. Note: You can also select a leg of the route. The route is started as of this leg. Deutschland: please select starting point from current position Karlsruhe 76 Kate sêt a starting point > Select the start point or your current position as the start point for route guidance. Note: If a start point is selected, this is only used to view a route. The individual stages are calculated. A map of the stages will then be displayed.

Simulation of the route There is a play button ° on the left under the map, used to start a simulation of the route. If you touch the display after starting, a control bar is displayed at the top with control buttons for the simulation. You can pause the simulation with the ff button, and continue it with the button. The button allows you to fast forward the simulation by a 16x speed. You can move from route section to route section with the æ and » buttons. If there is no further action, the control bar disappears after a few seconds. Creating a new route > Drücken Sie in der Routenplanung die Taste Create new route. Enter stage A) Enter address Ml Last destinations Hÿ_ Select Point of Interest el Œ ctyGuides MarcoæroLo À ! You can now enter an intermediate des- tination as described under "The New destination menu on page 43 (Enter ad- dress, Select from last destinations, Se- lect Point of Interest, Travel Guide, Con- tacts, Personal destinations, Select on map Or Enter geo-coordinates). You also have the option of quickly selecting a destination using the Select from last destinations button. > In the input menu, press the ok button to accept the relevant intermediate destination. Notice (depending on model): Here you can define a loading time. This, in turn, has an impact on the calcu- lations of the arrival time for the subse- quent destinations of the route. > Enter the loading time in hours and minutes using the buttons. If you do not want to set any loading time, press the No loading time button. Loading time No loading time

Bécker-Gorng-Su. 16, 76307 Karsbod le] Def Add stage Done > Press Add stage to enter further intermediate destinations as described above. > When you have entered all intermedi- ate destinations, press the Done button. alslcloledhr fe Hilo ik min op a ris) rTlu vw x v 2 - > Give the route a name of your choice. The stage menu for the new route will be displayed. Editing a route > Select the route you wish to edit. > Press the & button in front of the stage you wish to edit. Show details Set loading time Move doun Délete stage " The edit menu will be displayed. The following options are available: Option Meaning Move down _ |The stage is moved backwards by one position. Delete stage |The stage is deleted from the route. Replace You can replace the stage selected stage with another intermediate destination. Option Meaning Show details |The data relating to the intermediate destination is displayed. From this screen, you can display the intermediate destination on the map. Entering loading time You can define the ex- pected loading time. This is necessary in or- der to display the most accurate expected arriv- altime possible. The stage is moved for- wards by one position. Move up

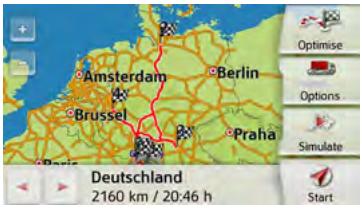

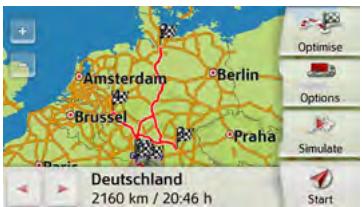

NAVIGATION MODE Optimising a route If you have entered several destinations for a route, you can use the Navigation device to optimise the order of the destinations for the journey distance. The route stored is retained even after optimization, however. Call up the map display for the stages of the route. Deutschland 2160 km /2046 h

> Press optimise The route is optimised and recalculated. 2160 km /2046 h Deutschland \ © The optimised route is displayed. Navigation settings The navigation settings contain all the settings that are relevant to the navigation functions. Note: Al your settings must be confirmed by pressing the button. Only in a few cases it is possible to confirm selections in the menu using the ok button or the Yes button. >ln the main menu, press the & button. & Navigation settings M Phone settings D System settings > Press the Navigation settings button. This will take you to the navigation settings menu. Configuration Various pages containing functions are available in the menu: Map view Route overview Guidance info Route options TMC Voice guidance DhBRrEKE Warings BL. Vehicle data dt Format You can go to the next or previous page of the settings by pressing the À and buttons or the scroll wheel.

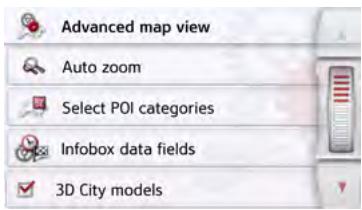

The following setting options are available in the extended settings: + Auto zoom You can select how the map changes when approaching an action point or at different speed. Select POI categories You can select which symbols are displayed for points of interest on the map. +_Infobox data fields In this menu you can define the data to be displayed in the Info box in the top left corner of the map view. You can select between Speed, Speed limit, Time and Height. 3D City models You can select whether or not 3D buildings available in towns should be displayed in 3D mode AA or not [°]. This option is only available with the 3D view active. Street names 2D/Street names 3D You can select whether the street names should be displayed (4) or not (ID in 3D or 2D mode. 2D heading up You can select whether the map should always be orientated to the direction of travel (R4) or to the north ([2) in 2D mode. This option is only available with the 2D view active. Auto zoom > Press the Auto zoom button in the extended settings. Auto zoom M Auto zoom © Low-level zoom (E=] © Medium zoom © High-level zoom Pressing the Auto zoombutton switches the zoom function on (4) or off ([-). When the zoom function is switched on, you can select whether the autozoom action should be weak, medium or strong.

NAVIGATION MODE Select POI categories You can select which POI symbols are to be displayed on the map. > Press the Select POI categories button in the extended settings. -B pol on mep [I] Show all POIs Show no POIs [as | M User defined selection Select POIs Selecting Show all POIs displays all points of interest on the map. Selecting Show no Pois displays no points of interest on the map. Selecting User defined selection and then pressing the Select POIS button allows you to determine for yourself in the menu which then appears whether each individual points of interest category is displayed or not. A select POIs Er M Petrol Station LA o| Restaurant Œ | Shopping u E [I Sports & Lx > You can then switch the display of entire categories on (R#) or off ([:). After pressing the [j button beside a category you can switch subcategories in further menus on or off. > Confirm all your settings by pressing the button. Selecting Info box data fields In this menu you can define the data to be displayed in the Info box in the top left corner of the map view. > Press the Info box data fields button. É: infobor data ils The Info box data field selection window appears. 2 Select Infobox data fields DES m ® 161 F 2e = Touch the first field to select one of the possible options. An options list appears on the right side over the window. ‘Without route " @ Speed Limit © Time 2 Atitude After selecting a route (cell with route), the following display options are availa- ble: Distance, Remaining time, Arrival time, Speed, Speed limit, Time and Height. With route == Distance Ÿ Time Remaining A Fi Arrivoi Time ® ok Speed U

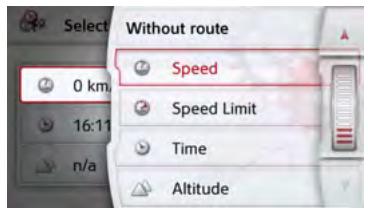

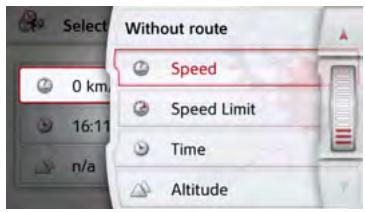

Under these options, you can select displays for the travel without a selected route. Here you can only select between Speed, Speed limit, Time and Height. ‘Without route

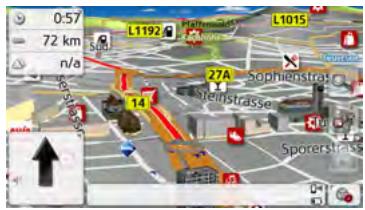

@ Speed Limit ® Time 2 Atitude 3D city view With this option, you can select whether or not 3D buildings available in towns should be displayed in 3D mode or not. In the Advanced menu, press the 3D city view button to turn the function on or off. > Confirm your setting in the Advanced menu by pressing the Note: This setting is only available in the 3D view. The Route overview button With the options in this setup menu you can select the Points of Interest to be displayed and whether TMC reports are displayed in the map view when pressing the Route overview Bf button. > Activate the option All Destinations. M Al stages The Route Overview displays the Points of Interest selected in the POI Categories menu. The display is recalculated every two minutes. > Activate the option TMC On Route. M TMC on route The Route Overview in the map view displays TMC announcements. > Press the Select POI Categories button. Select POI categories The Select POI Categories window is opened. Three point of interest catego- ries can be selected.

NAVIGATION MODE Select POI categories POI 1: 4) Petrol Station [A POI 2: X) Restaurant

POI 3: P) Parking If you touch the preset option of one of the POI Categories (POI 1, 2 and 3), a selection list with 20 POI types appears. select POIs

X} Restaurant C1 Medical & ‘lu P) Parking & L* The Guidance info button Setting Meaning In the Guidance info settings Window |signposts When this function is you can select which additional activated, you receive information you would like displayed additional important during route guidance. information at traffic > Press the Guidance info button in the junctions about the settings menu. sign you should follow. CORPS S Detour If this function is acti- Assistant vated, the Assistant will The Guidance info settings window help you to avoid traffic appears. jams or traffic disrup- DE Guidance into tions. The responsive- ze ness can be adjusted Lane info with 3 sensitivity set- M Sign posts tings. M SituationScan e Parking IF this function is acti- M Country info " Assistant vated, the Assistant will . help you to choose a The following settings are available: car park at the destina- Setting Meaning tion. Lane info When this function is ExitAssistant | lfthis function is acti- enabled, a small arrow indicates which Lane you should move into in the case of multi- lane roads. vated, the Assistant will help you if you leave the motorway unex- pectedly.

NAVIGATION MODE Setting Meaning Setting Meaning Countryinfo [When this function is Tunnel View |Ifthis function is enabled, you will activated, you willsee a automatically receive three-dimensional generally applicable tunnel view when traffic information for entering a longer the relevant country tunnel. when you cross a Note: national border (e.g. speed limits). This information can only be displayed if Lane Assistant this functions acte itis contained in the map material. Pro 3D vated, you will see an > Press the relevant button to switch the animated, realistic rep- required function on F# or off [1. resentation of your > Confirm your selection by pressing lane at many junctions the button. if available. Junction IF this function is view activated, you will see realistic views of the current lane situation, if available, at many motorway intersections. The Route options button You can edit your driving profile in the Route options settings window. The settings made here have an effect on the route selection and on the calculation of the estimated journey times. > In the settings menu, press the Route options button. 2 Route options The Route options settings window appears. 2 Route options Vehicle: Profile 1 Route type: Fast route =m04 IA Time dependent routing Ca Avoid

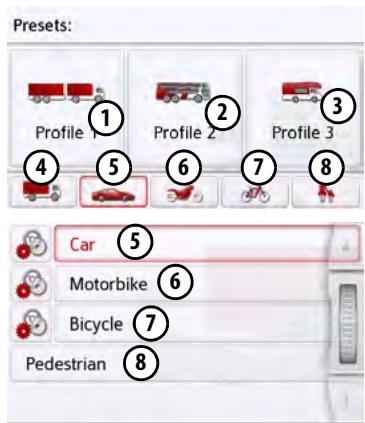

NAVIGATION MODE Selecting the vehicle profile (depending on model) This setting influences the calculation of the expected time of arrival and blocks e.g. motorways for the bicycle setting. > Select the mode of travel or the required vehicle profile after pressing the Vehicle button. Presets:

92:99 | ce (6 > Mororbie (6) ce

À soc (7) Pedestrian The different profiles are displayed and you can select the desired profile by pressing the appropriate button. Saved profile truck with trailer 8 Saved bus profile G) Saved mobile home profile (4) General truck profile (6) Car profile (6) Motorcycle profile () Bicycle profile (&) Pedestrian profile After selecting the desired profile, it is displayed. You can now change the selected profile, as described under ‘Truck and mobile home functions (depending on model)" on page 70 (only for selected models). Car 430 km/h Gèr ok Change profile >Press the settings button & or 130 km/h button. The window for selecting the maximum speed is displayed. @ maximum Speed 120 km/h 130 km/h 140 km/h -|E 150 km/h Select a speed and exit the speed menu With the back button > Exit the vehicle selection menu, too, with the back button =). The selected vehicle type displayed. The required profile is displayed once selected. is now

Truck and mobile home functions (depending on model) You can select or set the vehicle profile. For the truck profiles (depending on the model), you can define or select dimen- sions, weight, number of axles etc. Once the appropriate profile is set, a route is calculated on the basis of these settings. See also the chapter on supplementary functions for trucks and mobile homes on page 104. Â\Danger of accident! The information in the map material could be incorrect on account of sudden changes (e.g. construction sites)! The traffic situation and the signposts on site have priority over the informa- tion given by the navigation system. Notes: In the map display, roads are displayed with a light red contour if no specific in- formation for trucks is available. You must therefore be particularly careful here. With the GPS navigation activated the À symbol displays that there is no specific truck information available be- fore the current road or the road to which the next driving manoeuvre is leading. > Call up the option menu for the map screen. > Route options > Press the Route options button (de- pending on model). > Press the Vehicle button Vehicle: Car Different menus are now displayed de- pending on the vehicle profile previously set. > Confirm the profile currently set by se- lecting ok or select Change profile to change the profile. You have different operation options in the car or truck profile menus displayed. You do not have any further setting op- tions for all other profiles. For the car profile: Car 430 km/h Gèr ok Change profile For the general truck profile or saved truck profiles (depending on the model): Lorry @ 80kmn Trailer / 4 Axes ® 3000t/ 40.00€ 1200m/250m/. no hazard % Change protile Here you can set the profile settings di- rectly by pressing the buttons in the right-hand area as described on the fol- lowing pages.

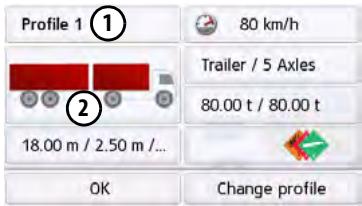

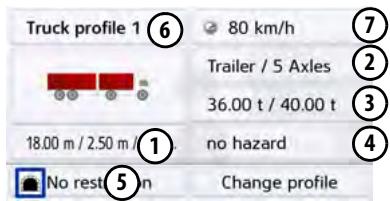

NAVIGATION MODE Setting truck profiles Notes: This function is only available with mod- els with optimized route navigation for trucks, busses and mobile homes. > Select one of the saved truck profiles or the general truck profile. ‘Truck profile 1 © 2 80 km/h O TC) EE)

36.00 t / 40,00 t (@)

1800 m / 250 m (Q) NON You can now set the selected profile: © With this button you can set the size ofthe truck. © With this button you can set whether the truck has a trailer and how many axles there are. (@) With this button you can set the maximum permissible weight as well as the actual weight. (O] With this button you can set the haz- ardous materials class of the truck. Use this button to select tunnel rest- rictions. ADR tunnel categories B to E are available for selection. no hazard Change profile With the three saved truck profiles you have the option to customize the truck symbol 6) and name (6) © The window is displayed for select- ing the maximum speed Setting size > In the profile settings, press the button for setting the size. 884 Dimensions Length: 18.00 m =] Width: 2.50 m | Height: 4.50 m E] > Press the button next to the dimension to be entered. An entry menu will appear. > Enter the desired dimension. > Confirm the entry in the entry menu by pressing Loxj . Once you have made all the required set- tings, confirm your settings by selecting Setting trailer and axles > In the profile settings, press the button for the trailer and axle settings. 8 railer / Axes # Trier (1) O 2axes © 3Ades © 4 axes ’ > Use the button to select whether there is a trailer (R4) or not ([ 1). > Select the total number of axles. > Confirm your settings by selecting Setting weight > In the profile settings, press the button for setting the weight. SEA weight Max. allowed: 80.00 t Actual: 80.00 t [en] |

NAVIGATION MODE > Press the button next to the weight to be entered. An entry menu will appear. > Enter the desired weight. > Confirm the entry in the entry menu by pressing |oxj. Once you have made all the required set- tings, confirm your settings by selecting Setting hazardous materials class > In the profile settings, press the button for setting the hazardous materials class. M No hazardous material

lacs | > Select the required hazardous materi- als class. Set tunnel category (ADR) > In the profile settings, press the button for setting the tunnel categories [a]: > Select the required tunnel category. If you do not select any of the available restrictions (B to E), all tunnels will be used for your route. Once you have made all the required settings, confirm your settings by se- lecting Selecting vehide category and name Once you have changed one of the truck profiles, you have the option to enter the displayed truck symbol and name. @ 80imh Trailer / 5 Axles ® #ot/soot

18.00 m / 2.50 m / L 2

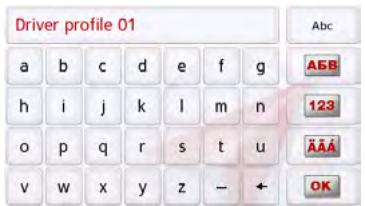

ok Change profile > Press the (O} button to enter another name. The entry menu will appear. > Enter the desired name. > Confirm the entry in the entry menu by pressing |okj. The name is changed.

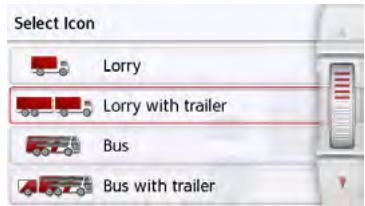

NAVIGATION MODE > Press the @) button to change the displayed symbol. Select Icon CE e ARS us with trailer ' > Select the desired symbol. The new ve- hicle category is displayed in the profile. Selecting the route type > After pressing the Route type button, select one of the following options. Option Meaning Fast route With this option, the fastest route in terms of travel time is calculated. Economical route With this option, the most economical route in terms of travel time and mileage is calculated taking into consideration further parameters such as gradients, for example. Short route _ |With this option, the shortest route in terms of mileage is calculated. Easy route | With this option, a route With as few manoeuvres as possible is calculated. This may result in larger detours. Time-dependent route guidance If this function is switched on (R#), information (statistical information) on the possible speed on certain segments at certain times of the day is also taken into account in the route calculation, provided this is available. This provides a more accurately calculated arrival time and may even result in a different route being selected.

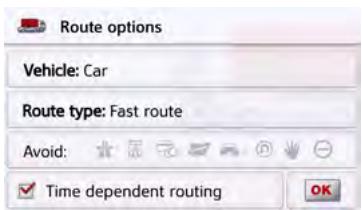

NAVIGATION MODE Avoiding particular types of road After pressing the button Avoïd you can exclude various types of road (eg. motorways, ferries and toll roads), from the route calculation. You can set one of the following options for each of these road types. Option Permitted Meaning With this option, the road type in question is included in calculating the route. With this option, the road type in question is not included in calculating the route. Prohibited > Confirm your selection in the Route options Window ny pressing the ok button. The TMCbutton You can configure settings for the reception of traffic announcements in the Tmc settings window. > Press TMC in the settings menu. & Tmc The rmc settings window appears. æ& mc Rerouting: Manually no

0 Traffic events avaiable Setting Meaning This button allows you to choose whether the route change should be made Never, Automatically Or Manually. (See "Taking announcements into consideration when calculating routes" on page 86.) The setting Never is equivalent to switching off the TMC Rerouting function. > Confirm your settings by pressing button. An automatic search procedure presets the transmitter with the best reception. The currently received TMC-transmitter appears on the display. The TMC announcements can be spoken by the voice, if the navigation settings in the Voice guidance menu the Announce TMC events option is activated.

NAVIGATION MODE The Traffic Button (model dependent) When the navigation device has access to the server, the heading Traffic and an- other icon are displayed instead of TMC. The traffic announcements will always then be retrieved updated from the serv- er. The settings are the same as de- scribed in the chapter entitled TMC. A Traffic Rerouting: Manually

173 Traffic events avalable Notice: The data transmission via your mobile phone may involve additional costs de- pending on the mobile phone contract. Please find out from your mobile phone provider before activating. If a connec- tion to the server is not possible, e.g. be- cause no mobile phone network is available for a longer period of time, then the system switches over auto- matically to TMC until a connection to the server is possible again. The Voice guidance button In the Voice guidance settings window you can make settings relating to the voice guidance of the Navigation device. > Press the Voice guidance button in the settings menu. #_ Voice guidance The Voice guidance settings window appears. #1 Voice guidance Si Voice € volume M Speed dependent volume Qi Interior noise level ' The following setting options are then available: + Voice You can select the voice that will make the navigation announcements for the language that has been set. + Volume You can select the standard volume for voice announcements for each start of the Navigation device, or switch off voice announcements completely. *_ Interior noise level With the Interior noise level button, you can adjust the speed-dependent volume control. To do this, select the interior volume level suitable for your vehicle. With the Dynamic setting (selected models), the interior noise is meas- ured with the aid of the integrated mi- crophone, the volume is then continually adjusted depending on the noise level. Notice: If the announcements of you navigation device are too loud at high speed, you should select a quieter interior noise. If the announcements are too quiet, you should select a louder interior noise.

NAVIGATION MODE Announce streets Using the Announce streets button you can switch the announcement of the names of streets into which you are to turn on (ff) or off ([J). Announce time of arrival Using the Announce time of arrival button you can switch the automatic announcement of the expected arrival times on (ff) or off (1). Note: The Announce streets and Announce time of arrival functions are only supported by speakers with the TTS function. Setting the Voice In the Voice settings window you can set the voice that will make the navigation announcements for the language that has been set. >in the Voice guidance settings window, press the Voice button. The Voice settings window appears. #1 Voice guidance Si Voice € volume M Speed dependent volume Ê. Qi Interior noise level U > Select the desired voice. Note: Voices with a (TTS) tag support the text- to-speech function (e.g. announcing roads and reading out text messages). A short example announcement is given. > Confirm your selection by pressing the button. Setting the Volume With the Volume settings window, you can set the standard volume for voice announcements for each start of the Navigation device, or switch off voice announcements completely. Depending on the situation, this setting can be fitted into the map display. >in the Voice guidance settings Window, press the Volume button. The Volume settings window appears. & Volume + Navigation: 7 Tones: 3 Wamings: 10 s > Select the desired volume with the — and + buttons or the scroll wheel. > The voice output can be switched off completely or turned back on by pressing the Mute button. > Confirm your settings by pressing the button.

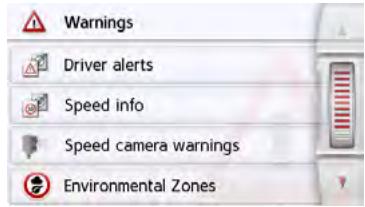

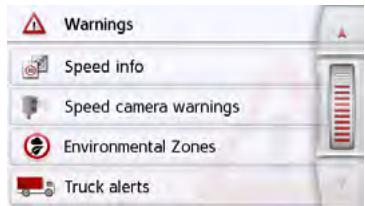

NAVIGATION MODE The Warnings button In the Wamings settings window you can select which warnings are to be displayed by the Navigation device or which warning sounds are to be output. >in the settings menu, press the Wamnings button. À Womings The Wamings settings window appears. Warnings Driver alerts Speed info Speed camera wamnings

Environmental Zones ’ À Wings F (SA Speed info Speed camera wamings © Environmental Zones MA; Truck alerts The following setting options are then available: Driver alerts (depending on the model) You can have signs displayed, for example for dangerous curves or steep gradients, provided this information is stored in the map data. + Speed info You can select whether speed limits are displayed in parallel to the navigation. You can also receive an audible warning about exceeding the speed limit. + Speed camera wamnings* You can receive a warning about permanent speed checks. Note: There is no standardised rule in Europe on the use of this function (warning about speed checks). Please check the legal situation in the respective country. In Germany, for example, it is an offence to use this function while driving. + Environmental zones (depending on model) You can let yourself be warned about environmental zones. + Truck Navigation (depending on model) You can let yourself be warned about loading and vehicle-specific restrictions (e.g. height, weight, restrictions for haz- ardous materials).

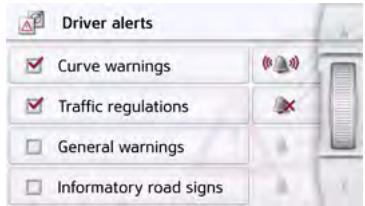

Setting Driver alerts If this information is saved in the map material and is supported by your navigation device, you can display information signs, e.g. for dangerous bends or descending gradients. In addition, you can define whether the display of the sign is also to be accompanied by a warning sound. >in the Wamings settings window, press the Driver alerts button. The Driver alerts settings window appears. af] Driver alerts M Curve womings CR) M Trafic regulations x !| General wamnings ® Informatory road signs The available driver alerts are divided into 4 categories. The four categories can be enabled FA or disabled [7] individually. The warning sound can be set individual- ly for each of the four categories by pressing the symbol with the bell ( vas warning sound switched on). The following signs are available in the individual categories: + Curve wamings This category includes warning signs that relate to sharp curves. Traffic regulations This category includes other traffic regulations, such as no passing zones. + General wamnings This category includes all other warning signs, such as steep gradients, falling rocks. Informatory road signs This category contains the available information signs. > Confirm your settings by pressing the button. Setting environmental zones (depending on model) © Environmental Zones M Show waming x Era|| You can let yourself be warned about en- vironmental zones provided that this in- formation is saved in the card material and is supported by your navigation sys- tem. This function can be activated A or deactivated [[]. By pressing the symbol with the bell, you can set the audible warning signal (ea © audible warning signal activated). > Confirm your settings by pressing the =) button. Truck warnings (depending on model) You can let yourself be warned about en- vironmental zones provided that this in- formation is saved in the card material and is supported by your navigation sys- tem. The function can be adjusted sepa- rately for journeys with and without ac- tive navigation. The function can be activated Ff or deactivated [] respec-

NAVIGATION MODE tively. By pressing the symbol with the bell, you can set the audible warning sig- nal (sas © audible warning signal acti- vated). > Confirm your settings by pressing the Mæ; Truck alerts «2! Li vas

M With plamned route Sf Without plamned route Setting Speed info The Speed info settings window allows to select whether speed limits are displayed in parallel to the navigation. You can also receive an audible warning about exceeding the speed limit. Note: This information can only be displayed if itis contained in the map material. À Risk of accident! The information in the map material may be incorrect as a result of short- term changes (road works, for example). The traffic situation and the local road signs take precedence over the navigation system information. >in the Wamings settings window, press the Speed info button. The Speed info settings window appears. SA Speedinto Show signs: Always 6% In city 10 km/h 69 Out of city: 15 km/h

® Alert The following settings are available. Setting Meaning Select whether speed limits are never displayed, always displayed or only displayed if the limit is exceeded. Furthermore, you can select whether the sign should blink when exceeding the speed limit, by selecting Always or If speed limit is exceeded. Show signs Select the amount over the speed limit at which you wouldlike to receive an acoustic warning Within built-up areas. In city

Setting Meaning Select the amount over the speed limit at which you would like to receive an acoustic warning within built-up areas. Out of city Alert An audible signal is to sound when exceeding speed limits. Voice output A speakers voice warns you of exceeding the speed limit. > Confirm your selection by pressing the button. The Blocked roads button In the Blocked roads settings window you can unblock previously permanently blocked roads (See "Blocking a section of the road permanentlÿ" on page 126) or modify the block (time and days of week of block). >in the settings menu, press the Blocked roads button. ÊT Blocked roads A window is displayed containing the roads that have previously been blocked. 2 Blocked roads Delete all blockings

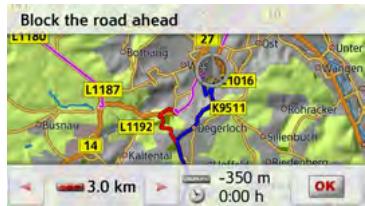

7.8 km length from Hauptsttter tros.

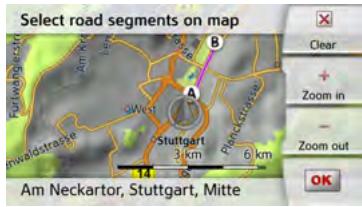

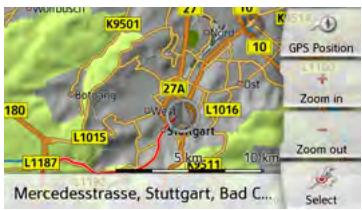

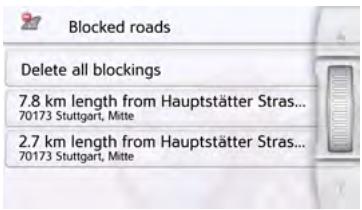

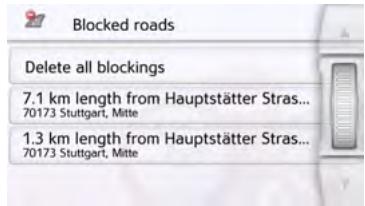

27 em lengih rom eut Star Rp Ep rom Heu UE Note: To delete all blocked roads from the list, press the Delete all blockings button followed by the Yes button in the display that then appears. > Select the blocked road you want. Hauptstätter Strasse dn Setbiocking: 70173 Stuttgart, Mitte Mon | Tue Wed Thu Fri Sat | Sun Sa | & | Lo !| La || La | La | Ra #> Showon Map | 5 Delete blocking: The road is currently blocked for all days of the week, for the whole day @. You can now set whether or not the road should be blocked for each day of the week. > Press the buttons with the days onwhich the road should not be blocked @. > Press the clock symbol under one of the days and limit the block of this day to the required time of the day. 7 Set blocking time Mon | Tue Wed Thu | Fri | Sat | Sun Sa | Ra | Lo !, La /| La | Lo | a > Show on Map Done

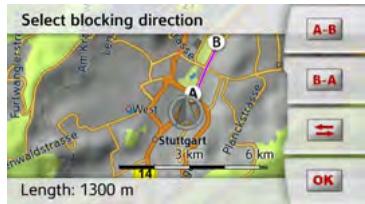

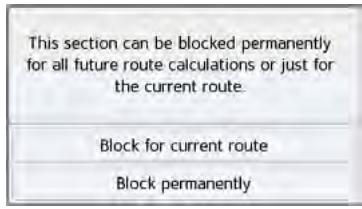

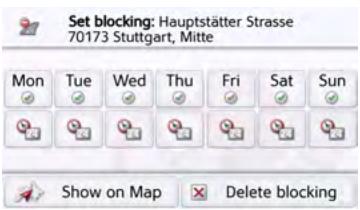

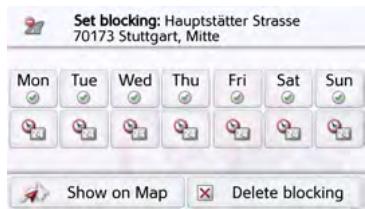

NAVIGATION MODE You can now set whether or not the road should be blocked for each day of the week. > Confirm your settings by pressing the back button

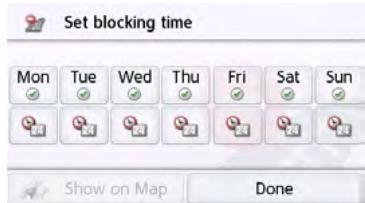

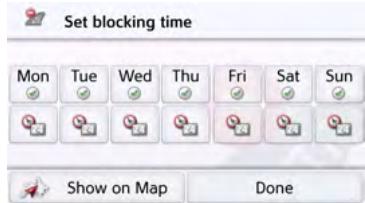

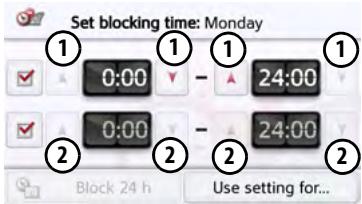

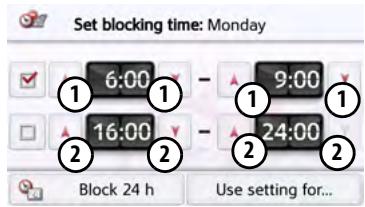

> Press the @. button under one of the days and set up to two times when the road should be blocked. Br Set blocing time: Mondey Sa Bok2ah Use setting for... > Using the buttons © set the first period when the road is to be blocked on this day. > Using the buttons © set the second period when the road is to be blocked on this day if necessary. Note: Press the Block 24 h, button to set a block for an entire day. Press the Use setting for. button to also use the block on other days. > Confirm your settings by pressing the back button The Vehicle data button This menu allows the calculation of an economic route by using the fuel consumption of the vehicle. > Press the Vehicle data button. BL Vehicle data The Vehicle data window is displayed. EL. vehicle data Urban: 8.0 1/100 km Extra-urban: 6.5 1/100 km

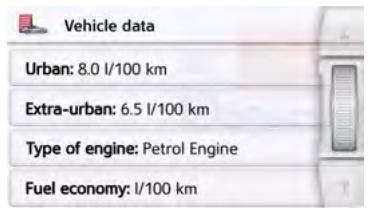

Type of engine: Petrol Engine Fuel economy: 1/100 km The following settings can be made: Urban: 8.0 1/100 km > Press the Urban button to enter the av- erage fuel consumption of the vehicle Within cities. The input menu for num- bers appears. Any existing inputs can be deleted with the arrow buttons. En- ter the fuel consumption value with the number keys. The value can be giv- en to one decimal point. Confirm your entry by pressing the ok button.

Extra-urban: 6.5 1/100 km > Press the Extra-urban button to enter the average fuel consumption of the vehicle outside cities. This can be entered as described for the In city value. Type of engine: Petrol Engine > Press the Type of engine button to set your engine type. The display changes by pressing the button repeatedly. You can select Petrol, Diesel and Hybrid as the engine type. Fuel economy: 1/100 km > Press on the Fuel economy button to change to the consumption unit. Pres- sing this button repeatedly will change the display. You can choose from the consumption units 1/100 km, MPG (UK) and MPG (US). The Format button In the Format settings window you can set the measurement units to be used for times and distances. > Inthe settings menu, press the Format button. A Format The Format settings window appears. dt Format Time: 24h (17:12) = Distance: km

> Press the Time button to switch be- tween the 12 hour clock and the 24 hour clock. > Press the Distance button to switch between kilometres and miles. > Confirm your settings by pressing the CD button. The Time button You can select the time zone relevant for your location in the Time settings window. This setting is important for the correct calculation of the estimated time of arrival. > Press Time in the settings menu. ®) Time The Time settings window appears. Ÿ Time Zone M Use auto time zone Using the Time zone you can set whether the time zone should be set automati- cally by the Navigation device or not (Use auto time zone on A or Use auto time zone off [:). L If the automatic function is switched off, you can select the desired time zone by pressing the button below Use auto time zone.

NAVIGATION MODE The Reset button You can reset the navigation settings to their factory settings. The settings will then be reset. The fast access mode data, stored routes, blocked routes, voice and home address are retained. & rue > Press the Resetbutton. Reset all navigation settings? > Press the Yes button. The navigation settings are reset to their factory settings. Trafficannouncements using TMC (depending on the model) Your Navigation device can receive traffic announcements (TMC messages) from radio stations. The power supply With the integrated TMC antenna must be connected to the carrier plate for this function. Note: TMC is not available in all countries. Traffic announcements are transmitted by radio stations via the TMC (Traffic Message Channel) in addition to the radio programme and are received and analysed by the navigation system. Receiving traffic announcements is free of charge. Note: As the traffic announcements are transmitted by radio stations, we cannot assume responsibility for the completeness or accuracy of the announcements. Austria: The location and event code was made available by ASFINAG and BMVIT. The Navigation device constantly checks whether there are any relevant announcements for the route that has been set. Al traffic problems that have been received are shown on the map. If the continuous checks determine that a traffic announcement is relevant to route qguidance, the unit can automatically recalculate a new route to the destination (See "The TMC button" on page 74).

Live Traffic- Traffic Announce- ments via Data Connection (model dependent) Your navigation device can receive traffic announcements from a server via a data connection. These announcements are more up-to-date than data received via TMC and are also available more quickly. There must also be an appropriate data connection. Subsequent use of the traffic announcements is the same as de- scribed below for TMC. If a connection to the server is not possi- ble, the system then tries to switch over to TMC traffic announcements (model dependent). As soon as TMCis displayed, there is no connection to the Life Traffic server. In the Chapter entitled WiFi Settings on page 138 we describe how to create a data connection. Notice: The data transmission via your mobile phone may involve additional costs de- pending on the mobile phone contract. Please find out from your mobile phone provider before activating. If a connec- tion to the server is not possible, e.g. be- cause no mobile phone network is available for a longer period of time, then the system switches over auto- matically to TMC until a connection to the server is possible again. Displaying TMC messages on the map Current TMC messages are displayed on the map graphically. Sections of the route where there are traffic problems are highlighted blue. Arrows indicating the traffic direction which is affected by the traffic problem continue to be displayed. In addition to the coloured mark, a warning sign is displayed on the stretch of road affected. Mercedesstrasse, Stuttgart, Bad C. | sa

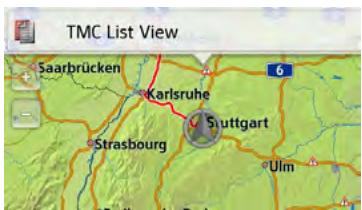

NAVIGATION MODE Using TMC When the Navigation device has been at- tached to the carrier plate (power supply With the integrated TMC antenna con- nected), your Navigation device will re- ceive up-to-date traffic announcements. It is then possible to calculate dynamic routes (traffic jam diversion). You can also view traffic announcements directly. Settings for TMC can be made as described under ‘The TMC button on page 74. >In the main menu, press the À button. The map overview appears. Æ TMCList View À In163km Æ Frankfurt » Kassel à mn — GX (yon iümberg (bot... 5x3 [É À in123km mn Sugar» Müncren —(7) 1)

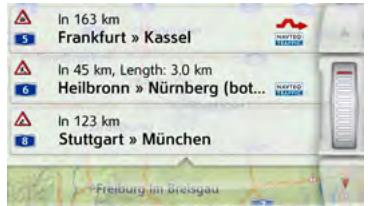

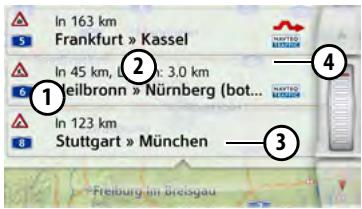

The message list appears when you press Æ] TMC List view. You can scroll through the list using the arrow keys A y or the scroll wheel on the right-hand edge of the screen. The following is displayed for each traffic announcement: (O] The type of problem and the street number (motorway, A-road or district road) (@] The distance as the crow flies from the current position, and the length and duration of the problem if applicable (@] The part of the route with the travel direction © fa TMC message lies on your route, the message is indicated by the sign Traffic announcements received via Premium-TMC are indicated by the symbol. A red twisted arrow next to the traffic report Ag Warns for traffic jams that need to be avoided. If the arrow is crossed out in grey and red , the route does not go around the traffic jam. À bn163km Æ Frankfurt » Kassel À in 45 im, Length 30 km À h123km #3 Stutigart » München

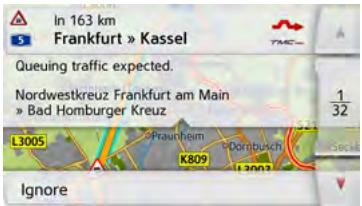

Reading a message > Press on the desired message in the list. The message display appears on the top of the screen, while a map is displayed below it with the related route section. Press on the message again to display more information on the traffic obstruction. By pressing it again, the extra information disap- pears. The message display appears. A in163km Æ Frankfurt » Kassel Queuing trafic expected lgnore » > Press the arrow buttons A y to scroll in the messages. > Press the button to return to the message list. Taking announcements into consideration when calculating routes Your Navigation device can take traffic announcements into consideration when calculating a route. You have the option of setting this function to automatic, manual or never in the & menu in the navigation settings with the TMC option (see ‘The TMC button" on page 74). Automatic recalculation If the traffic on your route is obstructed, the Navigation device checks whether an expedient detour of the obstruction is possible. If an expedient detour is possible, then an alternative route is calculated and you are guided via the alternative route. Manual recalculation If a traffic announcement affects your route, a window with detailed informa- tion on the traffic announcement ap- pears. À him 9 Stuttgart » Um à Resurfacing work Trafic problem expected. [7 ochinger Del » RachenbechMochéot | 1,

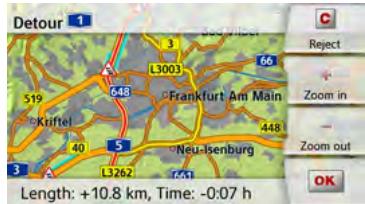

If, after displaying the traffic message, the navigation system detects that a sensible alternative route is possible, the following display appears. Note: This display may also appear if, for example, a previously obstructed route is now free again. Detour ÆE { er] The display provides you with an overview of the alternative route calculated. Length: +108 km, Time: -0-07 h

NAVIGATION MODE The red route or route marked blue for an obstruction shows the previous route. The route marked yellow displays the alternative route calculated. In the right section of the display, you can see how much the route changes and how much time you will likely save if you use the alternative route. > Now either press the ok button to use the alternative route or press the Reject button to continue using the existing route. The map display The map display is used primarily for route guidance. However, you can also use the map display without route guidance to show your current position and, for example, to receive warnings about exceeding the speed limit. Calling up the map display The map display is called up automatically when you start route guidance. Without route guidance, you can call up the map display from the main menu. The map display will then appear and, if GPS reception is available, will show your current position. If route guidance is already active, the map will be displayed with route guidance. Structure of the map display The structure depends on the settings made in “Map display options" on page %6 or in "The Map view button" on page 63 and whether route guidance is active or not. Map display without route guidance

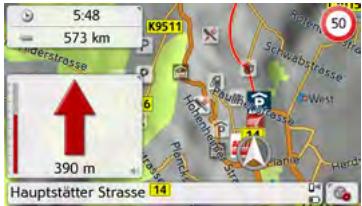

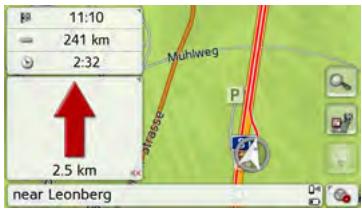

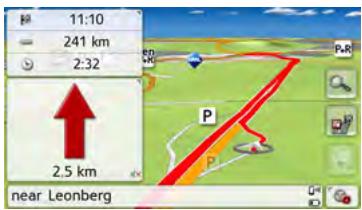

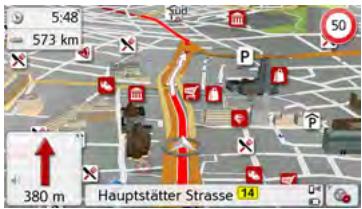

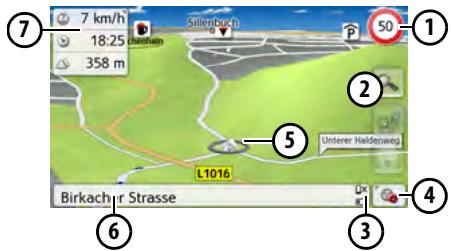

Ifthe navigation is not active, almost the whole area of the touch screen will be taken up by the map.

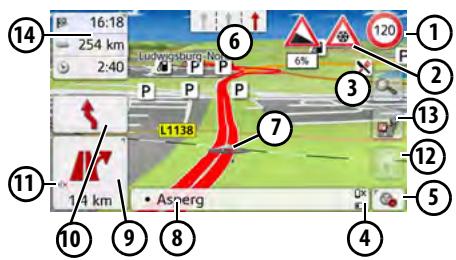

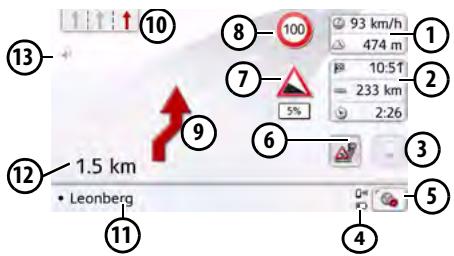

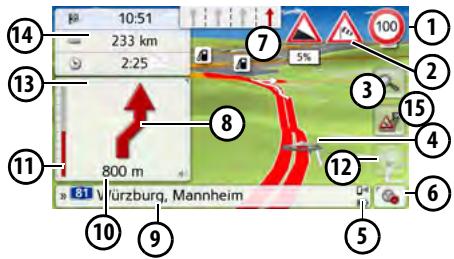

NAVIGATION MODE O Speed limit on the road currently being driven on (display not available for all roads), signs for the driver alerts will also be displayed Zoom buttons Power level/telephone (depending on the model) Button for calling up the options 8 Vehicle position (6) Current road (?) Information box (if displayed) showing vehicle speed and altitude above sea level status Map display with route guidance © Speed limit of the street currently being driven on (display is not available for all streets) Driver alerts (depending on the model) @) Zoom buttons Power level/telephone status (depending on the model) (5) Button for calling up the options (6) Traffic lane recommendation (only appears on some multi-lane roads; green arrows = recommended lanes) Note: If you follow the Lane recommendation, the next driving maneuver is possible without changing lanes. © Vehicle position Current street or street to which the next driving maneuver leads (9) Distance to the next driving maneuver Next driving maneuver

1) Calls up volume settings

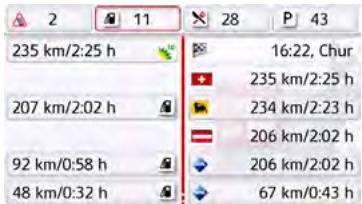

(2) Button for SituationScan (3) Button for Route overview (only with the selected route active. If TMC announcements are activated on the route, a traffic jam warning sign appears on the button.) @) Information box Your current position is displayed on the map via the position icon. The Information box During route guidance you can have information displayed in the Info box. 053 CT) = 78km © à BE à n/a

NAVIGATION MODE If you press the Info box again, more or less fields are displayed. At least one field and a maximum of three fields can be displayed. The information displayed depends on the settings that are selected in the Navigation settings in the map view menu > Advanced > Info box data fields. The following can be selected: With selected route (O} Remaining distance to destination, remaining travel time, arrival time at the destination, speed, speed limit, time and and height above sea level. Without selected route @ Speed, Speed limit, Time and Positionheight Information is also displayed in the bottom left corner in the preview area. "Le S

500 mis. The next manoeuvre is displayed as an arrow, With a distance indication underneath it. If two driving manoeuvres are to be performed in succession within a short time, another smaller arrow indicating the second driving manoeuvre is displayed above the first arrow. You can adjust the volume of the navigation announcements by pressing the button with the speaker symbol in the preview area (See "Changing the announcement volume" on page 92). Split screen with route guidance

© Speed limit on the road currently be- ing driven on (display not available for all roads), signs for the driver alerts will also be displayed (@) Driver alerts (depending on the model) Zoom buttons Vehicle position Power level/telephone (depending on the model) (6) Button for calling up the options (?) Traffic lane recommendation (only appears on some multi-lane roads; green arrows = recommended lanes) status

Note: If you follow the Lane recommendation, the next driving maneuver is possible Without changing lanes. (@) Next driving maneuver Current street or street to which the next driving maneuver leads Distance to the next driving maneuver @ Bar display to illustrate the distance to the next driving maneuver @) Button for situationScan (3) Calls up volume settings Information box (E] Button for Route overview (only with the selected route active. If TMC announcements are activated on the route, a traffic jam warning sign appears on the button.) Route guidance with arrow display 1@ Cha @- ®-Q 20

(6) Button for Route overview (only with the selected route active. If TMC announcements are activated on the route, a traffic jam warning sign appears on the button.) © Driver alerts (depending on the model) Speed limit of the street currently being driven on (display is not available for all streets) © Next driving maneuver Traffic Lane recommendation (only appears on some multi-lane roads; green arrows = recommended lanes) Note: If you follow the Lane recommendation, the next driving maneuver is possible without changing lanes. (@] Current street or street to which the next driving maneuver leads (@) Distance to the next driving maneuver (E] Calls up volume settings Lane Assistant Pro 3D (model dependent) You can display an animated realistic representation of the Lane at many junc- tions. To do this, switch on the function Lane Assistant Pro 3D as described un- der ‘The Guidance info button" on page 67. At selected complex junctions you willbe shown exactly which lane you have to change to. You can leave the Lane Assistant Pro 3D again by touching the display.

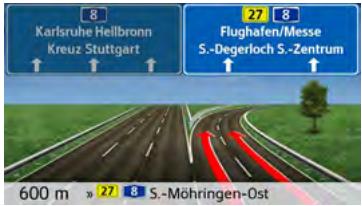

NAVIGATION MODE Map display with Junction view You can display a detailed and realistic view of the lane situation at many motorway junctions. To do this, switch on the J unction view function as described under ‘The Guidance info button" on page 67. If you are then directed through a motor- way junction by the Navigation device, you will see a corresponding display. > Follow the lanes indicated with the arrows. Tunnel view When your enter a longer tunnel, a three dimensional tunnel view appears. If there is no maneuvres performed in the next 1000m in the tunnel, the Lane of the current road section is displayed. An overview of the tunnel is displayed in the bottom on the right. When you touch the display, the tunnel view disappears. If any maneuvres are performed in the tunnel, or if the next maneuvre is performed outside the tunnel, a tunnel view is displayed in full image mode with the coming maneuvre. Note: The tunnel view and the intersection view can be deactivated by touching the display. The map view is displayed again. |f you would like to deactivate the tunnel view permanently, de-select the “Tunnel view" option in the "Settings > Navigation settings > Route guidance" menu. Note: The tunnel view provides a schematic view of the route layout of the tunnel. The whole tunnel layout, the first route section and the vehicle position are displayed. Since there is no GPS signal during the travel through the tunnel, the displayed position is only calculated.

Using the map display Repeating the last announcement During route guidance, the system announces important information, e.g. the next driving manoeuvre. The last announcement can be repeated with updated information.

500 mis > Press the speaker symbol in the preview area while route guidance is active. The last announcement is be repeated with updated information. The volume is also displayed. If the preview area is reduced and no speaker symbol is displayed, the announcement can be spoken again if you press the preview area. Changing the announcement volume The volume of announcements can be adjusted. > Press the speaker symbol in the preview area while route guidance is active. On the top edge of the image, the Mute button is displayed with a speaker symbol. À bar diagram and the + and — buttons are displayed on the right. FAnschiussstelle Stuttgart-Degerloch

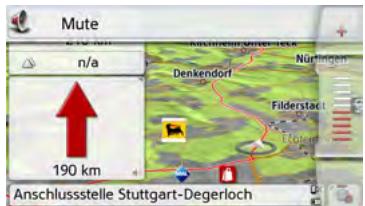

The bar diagram represents the volume. > Press + or = or pull your finger over the scroll strip to increase or decrease the volume. > Press Mute in order to mute the announcements. An x now appears next to the 5 symbol & . With pressing th button, you can make the volume control elements disappear. > Press again the speaker symbol in the preview area to mute the voice again. A\Warning! Always adjust the volume so that you can still hear any ambient noise while driving. The bar display disappears again automatically after a short while if no button is pressed.

NAVIGATION MODE Map zooming The map can be zoomed into in steps by using the zoom buttons. > Press the [& button. The zoom buttons are displayed. Ce [= > Press zoom in EH to “zoom in on the map" and therefore to get closer to the details displayed. > Press zoom out [E} to ‘zoom out from the map” and therefore to obtain a larger overview. > Press the [@ button to switch back to the set zoom step after a change. Note: The zoom steps are altered in quick succession by pressing and holding the {3 or [3 button. If you change the zoom step, a button with two red lenses & are displayed. > Press the button to restore the originally set zoom step. Moving the map You can move the map to any point. > To do this, press the map briefly. Mercedesstrasse, Stuttgart, Bad. | € > Then press any point on the map and move it in the required direction. The map is then moved accordingly. Note: By pressing the GPS Position YOU can display your current position again. You can also select a point as a destina- tion as described under "Selecting a des- tination from the map" on page 57. Map orientation When a route is activated, the map view can be oriented in different ways. If you have selected a 2D view in the Navigation settings in the map view (see page 64), this pertains to the compass direction only. > Press the 2D map view on the display a little longer. 295, near Weil Der Stadt Apart from the pulsating point, a compass and two arrow buttons pointing to the left and right appear on the top edge of the screen. > Press the and buttons to rotate the map towards the desired compass direction.

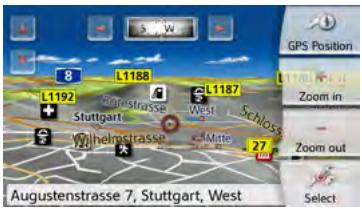

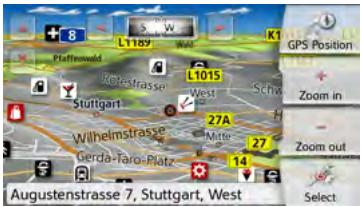

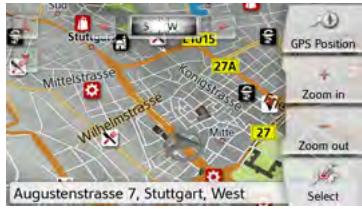

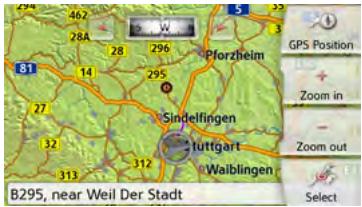

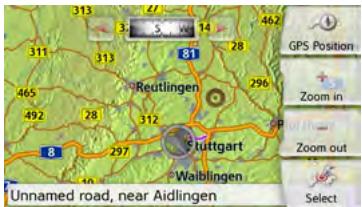

You can orient the map for example in the direction of travel. If you have selected a 3D display for the map view, the vertical display angle can be adjusted, too. > Press the 3D map view on the display a Little longer. Augustensrasse 7, Sugar West 1 sue Apart from the pulsating point, a com- pass and two arrow buttons and pointing to the left and right appear on the top edge of the screen, and on the left edge of the screen, two arrow buttons pointing up and down are displayed. > Press the [M button. The viewing angle will be lower and the horizon is moved back after a while into the image. > Press the Ji] button. Augustenstrasse 7, Stuttgart, West The viewing angle will be steeper. If the angle is exactly 90°, you are viewing the map in the 2D view from the top. The Route overview With the Route overview, you can have Points of Interest (POIs) and, if the TMC on route option is activated in the Navigation settings > Route overview menu, TMC events displayed on the selected rou > Press the a] button. À list of POIs and traffic events are displayed. In the top edge of the screen, four single buttons are displayed for TMC announcements on the route and the three selected POI Categories are also displayed. Apart from the symbols, the number of TMC announcements and POIs are displayed. > Press one or more buttons to display TMC events or POIs. A list of POIs and, if applicable, TMC events is displayed with the expected arrival time and distance from the current vehicle position. > Press the desired Point of Interest or TMC event. Information such as the address and the telephone number of the POIs or the type of traffic obstruction are displayed. From this view, all actions already described in the chapter Points of Interest on page 52 can be accessed, such as displaying POIs on the map, inserting or storing stopovers on routes. à 2 X)28 |P) 43 207 km/2:02 h LI 234 km/2:23 h = 206 km/2:02 h 92 km/0:58 h + 206 km/2:02 h 48 km/0:32 h + 67 km/0:43 h

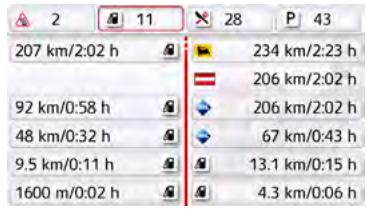

1600 m/0:02 h #14 4.3 km/0:06 h

NAVIGATION MODE The red line in the middle of the screen represents your route. |f this line ends with two points, then the list continues and you can scroll through the complete list by moving your finger. a 2 X)28 |P) 43 235km225h «| 1622, Chur Em 25km2235h 207 km/202 h CNE 234 km/2:23 h = 206kw202h 92km/0S8h 4lll& 206km/202h 48 km/0:32h sé 67km043h At cross-border destinations, the border crossing is displayed with the appropri- ate national flag. If you select the petrol station button, a petrol station is dis- played before and after the border if available. Note: If there is a traffic jam announcement on the route, the TMC symbol À appears on the |A! button. If there are no traffic jams reported on the route, the POI symbol oÿ. is displayed instead. de SituationScan If this function is activated AA in the Navigation settings in the Route guidance menu, three assistants support the driver during the travel with useful information and help in case of unexpected traffic situations. The detour assistant This function reacts to the reduction of the speed. If there are no POIs such as resting places or filling stations in the vicinity, the assistant assumes that the driver is in a traffic jam. lfthe symbol is displayed in colour and begins to blink, the assistant suggests a detour. > Press the Le] symbol. A message is displayed with the question "You are probably standing in a traffic jam. Would you like to avoid the jam using a detour?". Now you can have the suggested detours displayed and select or reject them. If the vehicle is not on a motorway, the detour assistant calculates possible alternative routes before the next crossing in case of strong stop-and-go traffic to get you there faster. If the assistant can calculate an alternative route before the vehicle passes the crossing, the symbol is blinking. The alternative routes can be displayed and selected similar to the identically named function described on page 84. The Park Assistant This assistant will be activated when you are near the destination or passed by the destination. In the case when the driver is looking for a parking place, the symbol is activated as soon as it 1S possible to park in the given point of interest. Up to eight parking possibilities may be displayed, where the route to there and the footpath from the parking

lot to the destination are governing for the selection. > Touch a parking possibility on the map to select it. You can then have the route leading there displayed and the route guidance started. You can have the device Lead you to the destination in pedestrian mode at the arrival at the parking place. The departure assistant This assistant reacts when you leave the suggested route, and asks your intentions with a list of options. Depending on whether you are looking for a resting place or a parking place, or would like to avoid a visual traffic obstruction, a tunnel or a toll road, the assistant displays the appropriate POIs in the vicinity or calculates a detour that supports the driver in avoiding the given route section. If the assistant has calculated a detour, the symbol is activated and blinking. Map display options In the map display options, you can change the settings for route guidance, the map display and the route.

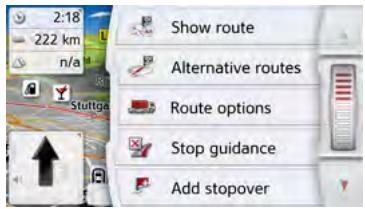

On the map display, press the button on the bottom right. Show route Alternative routes. Route options Stop guidance Bi Add stopover U This opens the options menu for the map display. You can go to the next or previous page of the options by pressing the A and y buttons or by using the scroll wheel. Note: The scope of the displayed functions depends on whether route guidance or a route with several destinations is active. The options menu is exited either by selecting a function or by pressing the button.

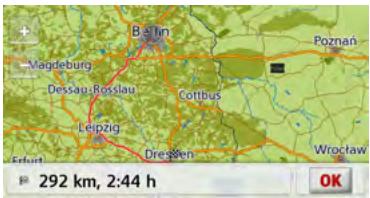

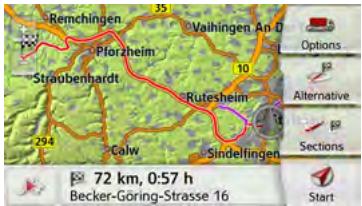

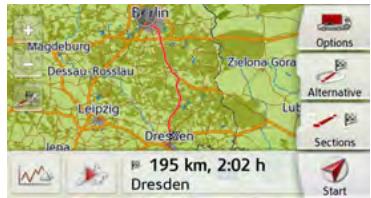

NAVIGATION MODE Displaying the whole route (Only available when route guidance is active.) You can have the whole route to the destination displayed on the map. Additionally, you can have a complete route description displayed. As a further option, you can display and, if needed, select the different routes that can be set in the Route options. > Call up the options menu for the map display. :# Show route > Press the Show route button. , Æ72km057h | © 7 | Becke-Géring-Sirasse 16 À Sun The complete route is displayed. Move route (model-dependent) Becker RouteMove allows you to move your route with a single movement of your finger, providing a rapid means of adjusting your current route guidance with just one hand. After you switch to the Show route screen, the icon is displayed on the left-hand side. It takes just a short time for the function to be- come available and the icon to change. As soon as this icon J% is displayed and you select it, the route displayed can be moved. Press and hold your finger down any- where on the route displayed on the screen and drag the route to where you want it to be. The device will immediately calculate the updated route. Original route » 195 km, 02h Dresden New route # 292km, 2:44h The distance and journey time of the new route are displayed immediately under- neath. You can set the route options using the Options button. By pressing the Play Là button, the whole route can be simulated. The control elements, that are displayed by touching the screen shortly, allow you to play the simulation in up to 16x speed, or to step from route section to route section. The simulation can be stopped by pressing the back button. Route description > When the whole route is displayed, press the Sections button.

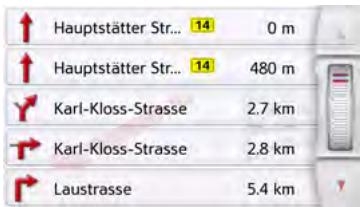

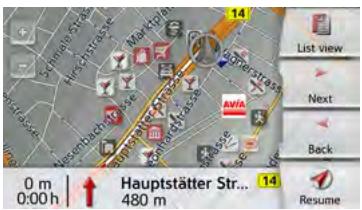

NAVIGATION MODE dun | t #30! The first point of the route description is displayed on the map. You can scroll through the whole route description with the Next » and Back « buttons. You can also display a list version of the route description. For this press the List view button. The simulation is continued by pressing the Resume 4) button. t Hauptstätter Sur. M 0m t Hauptstätter Str.. Ml 480m E] Y_ Kor-kloss-Strasse 27km | 7 Kart-Kloss-Strasse 28km Vs ES sain 2 > Press the 4 y arrow keys on the right hand side of the screen to scroll through the list. If you press an entry in the route description, it is displayed on the map. Blocking route sections/roads You can block individual route sections/ roads. The Navigation device then calcu- lates a sensible diversion to avoid the blocked section. > Use the | < and > buttons in the route directions to select the section of the route to be blocked. > Press the Blockbutton. This section can be blocked permanentiy for al future route calculations or just for. the current route Block for current route Block permanently > Select Block for current route to block the section of the route for the current route guidance session only. Note: Ifthe route section is more than 10 kilo- metres long, you can choose, in another menu, whether to block the entire sec- tion or just part of it. > Select Block permanenty to block the section of the route for future route guidance sessions too. 7 _ Set blocking time Mon Tue Wed Thu Fri Sat elelele]S Le le | ©) ©) & | © F EL me Changing of the blocking times is descri- bed on page 127.

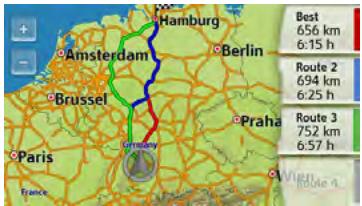

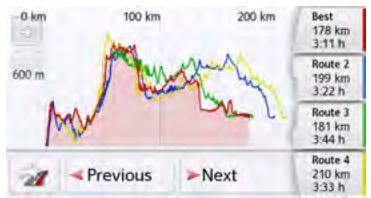

NAVIGATION MODE Selecting alternative routes You can have the different routes displayed by the navigation device. > When the whole route is displayed, press the Alternative routes button. (This function can be selected in the Route overview, too.) After a short time, the map is displayed. Each route is calculated after each other and displayed on the map. On the right- hand side, you can see the coloured list of the singe routes, according to the kilometres to be travelled and the expected duration of the travel. You can select the desired route by pressing the buttons on the right. Change route options (Only available when route guidance is active.) You can change the route options (route selection etc.) during route guidance. > Call up the options menu for the map display. Æ Route options > Press the Route options button. > Route options Vehicle: Car Route type: Fast route Avoid M Time dependent routing Loi > Set the route options as described under ‘The Route options button" on page 68. After a modification, the recalculated. route is Canceling route guidance (Only available when route guidance is active.) You can cancel the active route guidance. > Call up the options menu for the map display. Mr Abbrechen > Press the Stop guidance button. This cancels route guidance to all destinations. Note: You can also cancel route guidance as described in ‘The main menu" on page 29.

NAVIGATION MODE Entering/deleting a stopover (Only available when route guidance is active.) With this function, you can enter a stopover, or you can delete an entered stopover. > Call up the options menu for the map display. Î Æ Delete stopover > Press the Add stopover button. À) Enver address Hf Select Point of Interest M travel Guide sf. Select on map ) Enter geo-coordinates You can now enter a stopover as described under “The New destination menu' on page 43 (Enter address, Select Point of Interest, Personal destinations, Contacts, Select on map Of Enter geo- coordinates). You also have the option of quickly selecting a destination using the Select from last destinations button. If you have entered the desired stopover, the route is recalculated. Fast route is being calculated using historical traffic data: Deutschland, 6. Becker-Güring-Strasse 16 D-76307 Karisbad The stopover is indicated on the map by a red flag. Deleting a stopover > Call up the options menu for the map display. F_ belete stopover > Press the Delete stopover button. Delete stopover? Becker-Gôring-Strasse 16 Yes No > Press the Yes button. The stopover is deleted. Blocking route temporarily Using the Block road ahead option, you can block a stretch of road ahead temporarily. This determines a certain stretch of road that should not be used. The Navigation device will now try to calculate a detour. Notes: + The selected length of the block is only an approximation since the actual distance blocked depends on the availability of an exit. > Call up the options menu for the map display. 2 Block the road aheall > Press the Block the road ahead button. Block the road ahead = 0m jo + 30h» 2500 | (on > Select the length of block you want by pressing the arrow buttons.

NAVIGATION MODE If route guidance is active, you can select a road length between 200 m and 50 km. As soon as you selected the stretch, a new route Will be calculated. Furthermore, the distance and time difference are also displayed in the lower part of the display. Notes: + lfroute guidance is not active, you can only select between 200 and 500 m (250 and 500 yards). You can then define directly the days and times when the route should be blocked. After the temporary blocking of a section, the Clear blockings option appears in the option menu of the map view. Press this button to delete all temporary blockings. If a route guidance is active, the former route is restored. Setting day/night display You can switch the Navigation device display from day to night and vice versa. > Call up the options menu for the map display. & Dey/Night > Press the Day/Night button. The display changes from day to night and vice versa. ji laying current position ere am |?) Ve can y your current position, make an emergency call (depending on model), select a hospital or filling station and save this position. Furthermore, you can display information regarding the current GPS reception and the current country. > Call up the options menu for the map display. D Where Am! > Press the Where Ambutton.

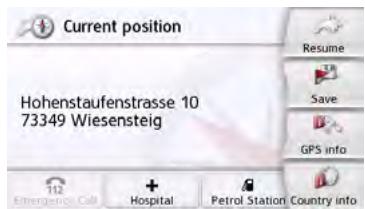

Hohenstaufenstrasse 10 73349 Wiesensteig 3 + 0 Hosts | Patrol StanonlCounry into The current position is displayed. If possible, an address is displayed. If no address is available for the current position, the geographic coordinates are displayed. With the Emergency call button you can make an emergency call under the Eu- rope-wide standard emergency call

number 112 (depending on model) if a mobile telephone is connected to your navigation system and has reception. Before dialling the emergency call number, you must confirm this once again. Do you want to set up an Emergency call? Cancel 5 ca The emergency call number is dialled using the call button. Caling Emergency Call

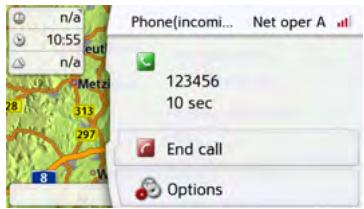

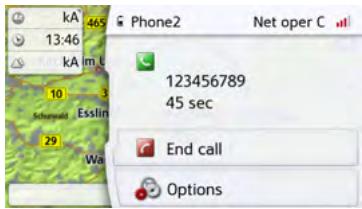

1 End call C An address or the GPS position will be displayed depending on availability. If possible, you can change between the views using the buttons D, Show GPS position or D, Show address . In addition, you have other telephone functions at your disposal. Also see chapter "Tele- phone calls" on page 116. With the Hospital button, you can change directly to the places of interest category Hospital in the current vicinity. Also see chapter "Points of interest" on page 52. With the Petrol Station button, you can change directly to the places of interest category Filling station in the current vi- cinity. Also see chapter "Points of inter- est" on page 52. You can return to the map using the Resume button. By pressing Save you can store your current position in the fast access list. By pressing the Country info button you can display country-specific information such as the maximum permitted speed for the country you are currently in. Click on the relevant icon to display additional information. By pressing GPS info you can view information regarding the GPS reception. GPS-reception: No GPS Satellites: 0/0 Local Time: 9:55:04 Latitude: Longitude: You can see how many satellites are being received, and whether the satellite reception is good enough for navigation. The current time and the geographic position are also displayed.

[M travel Guide «#. Select on map ) Enter geo-coordinates You can now enter a destination as described under ‘The New destination menu" on page43 (Home Enter address, Select Point of Interest Personal destinations, Contacts, Route planning, Select on map Or Enter geo- coordinates). Displaying/selecting different routes You can use the Navigation device to display various routes. > With the entire route displayed, press the Alternative button. This function can also be selected in the options of the map display, See “Map display options" on page 96. After a short time, the map is displayed. Each route is calculated after each other and displayed on the map. The area on the right-hand side shows the colour key for the individual routes, the mileage for each route and the estimated driving time. You can select the desired route by pressing the buttons on the right. Skipping a destination If a planned route with several destina- tions is active, you may delete the cur- rent destination of the route. Route guid- ance to the next destination is then started. This may be necessary if a destination was not driven to directly. The Navigation device otherwise tries to guide you to the current destination. > Call up the options menu for the map display. Ka Next destination > Press the Next destination button. Route guidance to the next destination is started.

Depending on the selected settings (see page 71 onwards), a number of helpful supplementary functions are made available to you. Feedback after route calculation When calculating the route, the best pos- sible route is selected by taking the vehi- cle or loading specifications into consid- eration if possible. The route might vary considerably from the car route as re- gards distance, journey time or routing. If a destination cannot be reached with- out taking the predefined restrictions into consideration, this will be displayed after the route calculation. You can scroll through the list using the arrow key A »_ or scroll wheel on the right-hand side of the screen. Press the Cancel button or turn to the last entry. Press the Nextbutton to start the naviga- tion. to re- Your destination cannot be reached without violating restrictions based on Yopsurent profile: Lo) in 600 Ke) El AM" | Unknown road attributes Cancel Continue The following is displayed for each re- striction: 8 A graphic for the restriction The distance from the current posi- tion When you select a restriction, the corre- sponding section will be displayed on the map. @) in 58 km

Zooming in on the map You can gradually zoom in and out of the map using the Zoom buttons. > Press Zoom in [El to ‘zoom into the map" and thus zoom in closer to the displayed details. > Press Zoom out [1 to "zoom out from the map” and thus get a greater over- view. > Press the LE button to display the en- tire section of the route. Warnings with planned route When the driver warnings function is ac- tivated in the navigation settings, you will be warned about road sections where there are relevant restrictions. 1000! = 900m (&) in 300 m 3: © If there are road sections on your route that are subject to a restriction, your nav- igation system will warn you shortly be- fore reaching the road sections affected. The layout of the message is similar as

SUPPLEMENTARY FUNCTIONS FOR TRUCKS AND MOBILE HOMES (SELECTED MODELS ONLY) described in the chapter "Feedback after route calculation". You have the following options: © Press the « button to close the message. © enlarge the display area if another restriction lies ahead of you. The message will close automatically once you have left the critical area. In ad- dition, the message closes automatically when you approach a new road section with a restriction. Warnings without planned route When the driver warnings function is ac- tivated in the navigation settings, you will be warned about road sections where there are relevant restrictions. The function is similar as described in the chapter "Warning with planned route”. Furthermore, the navigation system will display in which direction you can or can- not drive at intersections, provided that the information is available. Show route You can display the route on the screen once you have entered a destination. If a different route has been selected on the basis of a profile setting (vehicle dimen- sions, weight, dangerous goods), the section of road being avoided because of this is shown in blue. m 61km, 1:11h Deggingen On the avoided (blue) route, the restric- tions are displayed with signs. Select a traffic sign on the map to display a de- tailed view of the section of road con- cerned. 53 km A If there are further restrictions on your route, you can use the arrow keys À y to scroll through the list ofre- strictions that are being avoided because of the vehicle settings you have made.

Display height profile You can display a height profile from the Show route or Alternative routes view. To do this, selectthe kw», button. Height profile for a route: on im im = open tam : Mérate Sectes » 178 km, 311h 24 F1 Undau (Bodensee) You can use the [EX and EE! buttons to adjust the zoom level and move to the Left or right to shift the height profile. If you select a point by touching the pro- file, the corresponding height and dis- tance from the starting point are dis- played for it. Press the ,Z button to go back to the route view. Height profile for alternative routes: om 01m om {Be

Feria ET) <Previous | >Nex Tom 4 à Fm Yet more functions are available for al- ternative routes. Press the Next » and Previous æ buttons to highlight the in- dividual height profiles. The height pro- files and their associated alternative routes on the right-hand side of the screen are displayed in the same colour. Once you have decided on a route, use the buttons on the right to select it.

TELEPHONE MODE If your navigation device has an integrated Bluetooth® wireless technology interface, you can connect it to a mobile phone equipped with Bluetooth® wireless technology. Your Navigation device can then be used as a very comfortable hands-free unit. Note: For some cell phones equipped with Bluetooth® wireless technology, it is possible that some of the functions described are not available. The following descriptions assume that Bluetooth® is activated on the cell phone. You can find out how to activate Bluetooth® wireless technology on your cell phone in the cell phone's description. This function must also be activated on the mobile phone for an automatic connection to the mobile phone. Calling up the telephone mode (only selected models) You can call the telephone mode from the main menu. > To call the telephone mode, press the Phone button in the main menu. If Bluetooth® wireless technology is activated and the Navigation device is already connected to a cell phone, the telephone menu is displayed. a Dscomect 1 nil Windows Phone Voafone.de CRT SA Phone Book M Last cais BK Devices If Bluetooth® wireless technology is not activated upon calling up the telephone function, the system will prompt you to switch Bluetooth® wireless technology on. Bluetooth is not active. Activate now? Yes No > Press the Yes button to activate Bluetooth® wireless technology.

The Navigation device now attempts to reconnect the cell phone last connected. When the connection is established, the telephone menu is displayed after a short period. If no cell phone has been connected yet or if the device last connected is not available, the following display is generated. No phone connected Connect phone now? Yes No >Press the Yes button to find Bluetooth® cell phones as described in “Searching for cell phones" on page

Telephone menu (only selected models) From the telephone menu, you have the option: + Numbers to be dialled or selected from the phonebook, + to display the telephone book + to call up the call list, + To search for Bluetooth® telephones + To disconnect the connection to a cell phone. If Bluetooth® is activated and the Navigation device is already connected to a cell phone, the telephone menu is displayed after the telephone function is called up. a Dscomect 1 nil Windows Phone Voafone.de CRT SA Phone Book M Last cais BK Devices In the upper area of the telephone menu, the signal strength of the cell phone, the charging level of the cell phone, the tele- phone name and the network provider are displayed, if available. Dialing a number You can enter a telephone number and start a call to this number or select a number from the phonebook. > In the telephone menu, press the Dial button. REA = [il Se CRE

TELEPHONE MODE Note: Press the + button to delete the characters entered. > Press the Dial button. The Navigation device then attempts to establish a connection to the phone number entered. You can find out how to continue operation in "Telephone calls” on page 116. Phonebook In the phonebook, the system displays the phonebook entries Loaded from the SIM card and from the memory of the cell phone. After selecting the desired entry, you can call the respective phone number. Note: + Be aware that it may take several minutes to transfer the phonebook. + _lfthe cell phone whose phonebook was already loaded is reconnected, the phonebook is not loaded again. If entries were changed or entered while the cell phone was not connect- ed, then the phonebook of the Naviga- tion device must be loaded manually for the update. See "Updating the phonebook" on page 120. > In the telephone menu, press the Dial button. 01771123456789 + 1 2 3 S abc dt Ceres oh À mo nl 7 8 9 Pause pars tr we à £ ei > Press the Phone book button. Æi>30 alslcioe Fc Hlhilslk oc min) Ga orlalr s ru, a vwxivz- Lo Ifthere are more than 10 entries in the phonebook, an input menu is displayed. If there are less than 10 entries, a list with the entries will be displayed directly.

>in the input menu, select the first letters of the entry you are Looking for. Note: + For example,if you entered the letters "M'and"l", the entries are displayed whose last names or firstnames start With"Ml". That means, “Miller John" or “Bauer Michael”. You may enter the first letter of the last name and then enter the first letter of the first name separately using a space (button - ). > Press the |oxj button when the name you want is displayed in the upper line. As soon as just 5 or fewer hits are available, a list is displayed from which you can select the correct entry. Note: You may also first have a list displayed that corresponds to the letter combination entered. For this purpose, press the @j:3 button in the input menu. > Select the desired entry in the list. Ifthere is more than one phone number available for the entry selected, you may then select the respective number.

ann + 4 n A 2222222222 Um 3333333333 Li The different numbers are indicated by icons. Meaning Private phone number Business phone number Cell phone number > Select the desired phone number. The Navigation device then attempts to establish a connection to the phone number selected. You can find out how to continue operation in ‘Telephone calls” on page 116.

TELEPHONE MODE Calllist In the call list, the last dialled, answered or unanswered numbers or names are displayed in chronological order. If possible, the numbers or names of the list stored in the cell phone are also displayed in different lists. > In the telephone menu, press the Last calis button. Missed & vus & vus Received | Dialled lE=z| Using the buttons Missed, Received and Dialled, you may retrieve the lists Loaded from the cell phone. The call list of the dialled, answered or unanswered numbers or names on the Navigation device is displayed in the rows below. Each row of the call list is divided into fields. Each list field is designed as a button. On the right button, the number/ name is displayed and the features of the entry are displayed with the Left icon. Notes: + The last 100 numbers/names are saved automatically in the call list. Ifthe storage capacity of 100 numbers is reached, the oldest number is automatically deleted for each new number. Using the buttons Missed, Received and Dialled, you may retrieve the lists Loaded from the cell phone, if available. Icons used The following icons are used in the call list. Icon Scrolling through the call list Using the 4 y buttons, you can scroll through the call list in the corre- sponding direction of the arrow. Meaning This entry is a standard entry without any special features.

Dialing an available number You can dial the numbers/names in the call list directly. > To initiate the call, press the button with the entry you want. The call will be initiated. Displaying or editing entries Each entry contained in the call list can be displayed or edited. > Press the button field on the Left next to the entry you want. A selection menu appears. Missed Show details n (l ous2xe mu : D or Mono D 01723. Deite ent Ll SD are Delete al entries ' Selection Meaning Show details |The data for the entry is displayed (number and name, time and date of call, if available). Move up / The entry is moved Move down |one position forwards/ backwards. Delete entry |The entry is deleted from the call list. Delete ail Allentries (even the pro- entries tected ones) are deleted from the call list. Lists loaded from cell phone >in the call list cal up the corresponding list using the Missed, Received and Dialled buttons. Name [in)

lE 2] Using the A y buttons, you can scroll through the list in the corresponding direction of the arrow. > Toinitiate a call, press the button with the entry you want. Note: Press the jÿ button in front of an entry to display the data for that entry {number and name, time and date of call, if available).

TELEPHONE MODE Connecting Bluetooth® telephones So that you may make and receive calls with your Navigation device, a cell phone that is equipped with Bluetooth® wire- less technology must be connected to the Navigation device. The following de- scribes the various options for establish- ing a connection. Calling up a device list >in the main menu, press the Telephone button. Œ Search Bluetooth phones Yi. Phone | rrone le] The device list is displayed. From the device list, you may search for or connect cell phones. Note: If you have not yet established any connections to cell phones, then the list is empty. The device list shows line by line all cell phones that were already connected to the Navigation device. Each line of the device list is divided into two fields. Each list field is designed as a button. On the right button, the device is named and its features are displayed with the left icon. Icon Meaning

This device is a standard device without any special features.

This device is the cell phone currently connected. Selection Meaning Move up / The device is moved one Move down _ |position forwards/back- wards. Delete pairing|The device is deleted from the device list. Delete all Al entries (even the pairings protected ones) are deleted from the call list. You can call up a menu by pressing the icon. A sen toeup ŒS optimu Move doun (é>]| under Deite panng Delete al pairings

Automatic connection After activation, your Navigation device attempts to establish a connection to the cell phone last connected. You can switch this function on or off as described in "Automatic connection" on page 119. Prerequisites for a successful connec- tion are: + On your Navigation device, Bluetooth® wireless technology is switched on. (See "Bluetooth®" on page 119.) + The cell phone is switched on, is within range, and Bluetooth® wireless technology is activated. Searching for cell phones Note: Prior to a search, switch on Bluetooth® on the cell phone to be searched for. > Call up the device list. Œ Search Bluetooth phones Yi. Phone | rrone lea] > Press the Search Bluetooth® phones button. The search starts. During the search, any devices found are displayed and you may cancel the search by pressing the Stop search button. After the search or after you press the Stop search, a list of the devices found is displayed. Phone Phone2 MA Phone (br) Phone3 (slow) a Phonelconn w pair) 1 > Then select the name of the cell phone to be connected. The Navigation device will then attempt to establish the connection. On the cell phone, the password prompt should then occur. This password is fixed by Navigation device. Connecting phone. Phone PIN 0000

> Enter the password displayed on the cell phone. The connection will be established. With a successful connection, the telephone menu will be displayed.

TELEPHONE MODE Connect new devices You can initiate a connection to another mobile phone using the Devices button located in the telephone menu at the lower right hand corner of your screen. If a cell phone is already connected, that connection is automatically disconnect- ed and the new device is connected. > Click on Devices Œ Search Bluetooth phones Yi. Phone | rrone le] > Select the cell phone you want in the list. The connection is established to the cell phone selected. With a successful con- nection, the telephone menu will be dis- played. Connecting a mobile phone You can also attempt to establish a connection to the Navigation device from the mobile phone. If a request is received from a mobile phone that has not yet been connected, you will be asked whether you wish to allow the connection. > Press the Yes button to permit the connection. > Enter the displayed password (four zeros) on the mobile phone. The connection will be established. With a successful connection, the telephone menu will be displayed. Disconnecting a connected telephone You may disconnect the connection to a cell phone currently connected via Bluetooth® wireless technology. a Dscomect 1 nil Windows Phone Voafone.de CRT SA Phone Book M Last cais BK Devices > Press the Disconnectbutton. The connection to the cell phone current- ly connected is disconnected.

Telephone calls In the telephone calls section, you can find a summary of the control options that are available for establishing a call, accepting a call, and ending a call. Establishing a call > Enter the telephone number or select an entry from the call list or telephone book. If the call is accepted by the party called, the display changes and you are con- nected to the other party. & Phone2 Net oper Cnil

45 sec @ End call & options Accepting a call For an incoming call, a ringing tone will sound. Also the following is displayed. Incoming cal:

El Accept M Reject @ ignore If available, the phone number and name of the caller are displayed. For incoming calls, you have several operating options: Selection Accept Meaning The callis accepted. The call screen is displayed. The call will be declined. The caller hears the busy signal. The screen last active is displayed. Reject Ignore The ringing tone is switched off. The screen last active is displayed. The call is ended if the caller hangs up. If you have switched on the automatic call acceptance as described in “Automatic call acceptance" on page 119, the time to call acceptance is also displayed for the Acceptbutton.

TELEPHONE MODE Ending a call You can end an active call. à End cal > In the call screen, press the End call button. The call is ended. The screen last active is displayed. Note: The call is also ended if the other party hangs up. The screen last active is also displayed. During a call During a call, you have various control options. mal Phonefincomi. s «] g

10 sec Net oper A @ End coll ss | 1 In the call display, the signal strength of the cell phone, the charging level of the cell phone, the telephone name and the network provider are displayed if availa- ble in the upper area. Beneath, the call time and, if available, the phone number or name the name of the other party are displayed. If route guidance is active, then you will receive the navigation instructions with arrows on the call screen. > To call the options menu of the call screen, press the Options button.

A Volume [À Microphone off Hands free 1E

+ Volume By pressing the Volume, you can call the volume adjustment. See "Telephone volume" on page 119. Microphone off/Microphone on For a private conversation in a vehicle, you can switch off the microphone of the Navigation device. The other party on the phone will not hear anything. Press the Microphone off button to switch off the microphone. Press the Microphone on button to switch the microphone back on.

+ Private mode/Hands free You can transfer a call back to the cell phone. The hands-free function is then ended. After the call is ended, the connection to the cell phone is automatically re- established. Press the Private mode button. The hands-free function is ended. Press the Hands free button to make and receive calls again via the Navigation device prior to ending the call. Telephone settings The telephone settings include all the settings relevant for the telephone mode. >in the main menu, press the & button. @ Navigation settings #3 Phone settings À System settings > Press the Phone settings button. You will branch to the menu for the telephone settings. Start In the menu, various pages with the functions are available: > uctoo à Havane A auto-accept ca #t Volume & roresh CPS * 8e Volume À rorresn À Bluetooth name Version:1.4.20140321 “ You can access the next or previous page of the settings by pressing the À and Y buttons.

TELEPHONE MODE Bluetooth® With the Bluetooth® button, you can switch Bluetooth® on or off. Automatic connection With the Auto-connect button, you can switch on or off whether an automatic connection to a cell phone is attempted after switching on the Navigation device. > In the settings menu, press the Auto- connectbutton. Depending on the previous setting, you can switch the function on or off. sl nuto-connect sh Auto-connect + Top icon: function on + Bottom icon: function off Automatic call acceptance With this function, you can set whether or not or after which time an incoming call is accepted automatically. 14 Auto-accept cal >in the settings menu, press the Answer call automatically button. 14 Automatically accept calls " © of n © atter 3 seconds D ana vs ù © after 10 seconds ' > Select whether incoming calls will be accepted automatically after 3, 5 or 10 seconds. If you select off, the function is switched off. Telephone volume With this function, you can set the volume of the ringtone and the volume ofthe call. Volume >in the settings menu, press the Volume button. € Mutesoit - > Select the desired volume with the - and + buttons. > Press the Mute 4$ button to mute the volume. By pressing the button again, the telephone volume is switched back on. > Confirm your settings by pressing the back button =).

Updating the phonebook With this function, you can update or retransfer the stored phonebook entries in the Navigation device. M Rorresh >in the settings menu, press the Refresh button. Be aware that it may take several minutes to load the phonebook. Bluetooth® name With this function, you can assign a name for your Navigation device. This assigned name will then be displayed by other Bluetooth® devices. Bluetooth name >in the settings menu, press the Bluetooth® name button. Becker Active ne a bc d ef 9 (ass nlililk time Gi op a ris tu) viwix y 2 -l+ (eg > Enter the desired name. >Confirm the name entered by pressing the ok button.

TOOLS Under Tools, the following functions are grouped together, depending on the model: + Marco Polo City Guides + Image viewer + Country information + Overview of functions + Blocking a section of the road + Trip computer The Tools menu is called up from the main menu. > In the main menu, press Extras. El Travel Guide Block Road Where Am |

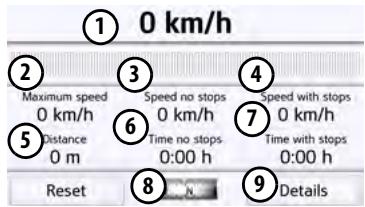

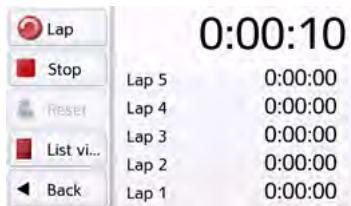

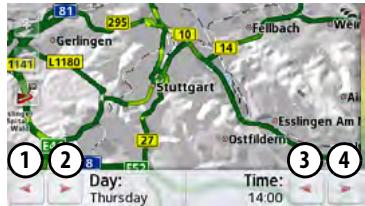

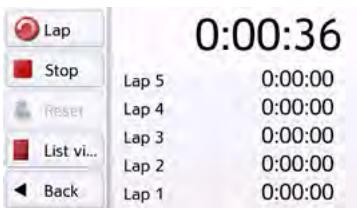

Traffic Forecast > Country information If Features Overvieur Pictures © Trip Computer This displays the extras menu. > Select the desired function by pressing one of the buttons. Travel Guide (model dependent) With the travel guide, you can select, for example, MARCO POLO Top- Highlights or MARCO POLO Insider Tips and start the guide destination there. See ‘Travel Guide (model dependent)" on page 56. Rear View camera HS Travel Guide ÆM Camping and Caravanning Guidel Br Block Road #, Where Am A2 Country information Displaying Rear view camera (depending on the model) When a reversing camera is connec- ted to your navigation system, and the reversing camera setting is set to Ma- nual (see “Rear view camera (depen- ding on the model)” auf Seite 134) you can display the image of the reversing camera on your navigation system via the button Show rear view camera. button and then re- turn to the screen last viewed. De- pending on the model, the [ÆJ button WilLbe on the map. En Image viewer* Note: The image viewer cannot be called up when route guidance is active. The Image Viewer can display pictures saved on an inserted micro SD memory card or on the internal memory. The jpg and bmp image formats are supported. 1 city Guides marcoæporo Pictures Country information Features Overview Block Road 1] CRLOE DL: > Press the Pictures button. “depending on model, this must be activated via the Content Manager.

TOOLS For safety reasons you may not use this, Function while driving œk Stop quidance À message is displayed stating that the image viewer must not be used when driving. Please observe this warning. > Confirm the message by pressing the ok button. #_ Slide show & sens The image viewer menu appears.

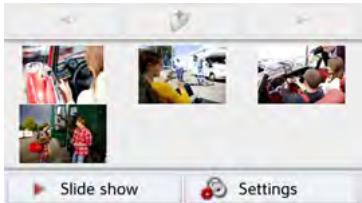

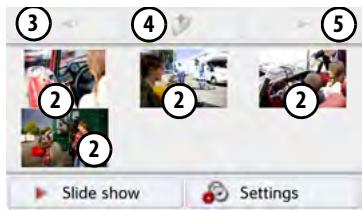

The image viewer menu In the image viewer menu, you can select images, start a slide show and call up the settings.

(OO) # Slide show À sers [O) Folder containing images Thumbnails of the images in the current folder © View the previous page of images/ folders Go up one level in the directory hierarchy © View the next page of images/ folders Selecting an image 9 LE af & Settings > In the image viewer menu, select the desired folder, and then the desired image. You can use the æ and % buttons to scroll through the pages of images and folders. The selected image is displayed along with an image menu. # Slide show Zoom Rotate UF You can use the menu buttons to rotate or enlarge the image or to display information.

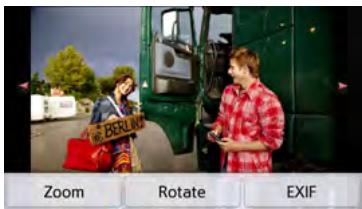

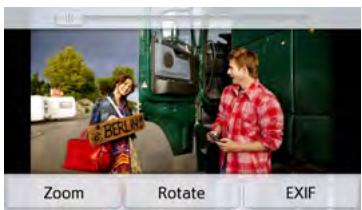

TOOLS Press the buttons to the Left and right of the image to move to the next or previous image. Press the centre of the image to hide the image menu. Press the right- or left-hand side of the screen to move to the next or previous image. Press the centre of the image to show the image menu again. Enlarging the image > Show the image menu. > Press the Zoombutton. Rotate Eur Zoom > Move the control on the top of the screen to the desired level of magnifi- cation. The image can then be moved around. Press the centre of the image to cancel the enlargement. Rotating the picture > Show the image menu. > Press the Rotate button until the image is in the desired orientation. Press the centre of the image to hide the image menu again. Displaying image information > Show the image menu. > Press the EXIF button. M Trucker_Hippie_1 jpg Full Path sdmmeTrucher Hippie_109 File Size 8398435 bytes File Date 2011-05-11 114741

- |E Image Size A212 x 2808 purs Information on the current image is displayed. > Press the information. button to close the

Slide show In the slide show, all the pictures in the current folder level are automatically displayed sequentially. > Press Slide show in the image viewer menu. The image display changes to full screen display and initiates the slide show according to the settings made, with the first image in the current folder level. The slide show will end once all images have been displayed. Press the utton to stop the show before the end. Settings In the settings, you can choose the speed at which the images are displayed, whether certain effects are used when a new image is shown, and whether the images should be loaded at a higher quality. > Press Slide show settings in the image viewer menu. h Slide show settings Interval time: 1 sec n] Effects: No effect M Load pictures in high quality (slo.. À Æ=} > You can use Interval time to set the display duration. >In Effects you can choose transition effects for the images. >In Load pictures in high quality (slower) you can choose whether images should be loaded at high resolution (F4) or not ([). Loading the images at high resolution makes the display slower. > Confirm your settings by pressing the back button the Where am |? >See "Displaying current (Where am |?) on page 101. position Traffic forecast (depending on model) With the traffic forecast, you can observe the expected flow of traffic. The data is based on historical traffic data collected over a longer period of You can determine the expected flow of traffic by the colour of the road. Green signifies a clear road, red signifies con- gestion. All possible colours are dis- played on the right-hand side of the screen. If you now change the time of day, you will see how the expected flow of traffic changes. > Press the Traffic forecast button + With the (D) and (2) buttons you can change the weekday + With the (3) and (4) buttons you can change the time in hourly increments

TOOLS + With the EE and EN buttons you can change the section of the map. + With the [EF button you can display the complete route on the screen if available. You can select another section of the map by dragging. Country information The country information enables you to display country-specific information for numerous countries (maximum permit- ted speed, alcohol limits, etc.). I Travel Guide Br Block Road E #, Where Am A2 Country information Êl If Features Overview | > Press the Country information button. Sweden

Ukraine United Kingdom d Vatican City The list of countries is displayed. > Press the button for the desired country. EH Country info: United Kingdom Eo) r OZ 0e The country-specific information is displayed (maximum permitted speed, alcohol limits, etc). Click on these symbols to display additional information. Note: Please note that the information may not be complete and other regulations may apply in the various countries. Below you will find a description of the symbols used:

Meaning | Speed limit in built-up areas — /<|Speed limit outside built-up we © areas Speed limit on motorways Speed limit on main roads Alcohol limit Reflective jacket requirement Driving lights requirement during daytime Tow rope must be carried Spare bulbs must be carried Fire extinguisher must be (ul carried Winter tyres must be fitted in

Snow chains must be fitted o in winter Press the ok button or the button to exit the menu. Blocking a section of the road permanently With the Block option you can block indi- vidual route sections permanently. The Navigation device then calcu-lates a di- version to avoid a traffic obstruction. Furthermore, existing blockages can be removed |. *… (with the Delete block- age button) or be displayed on a map À: Seven > Press the Block button. A map of the vicinity near your location is displayed. Select road segments on map

00m Am Neckartor, Stuttgart, Mitte > Define the start and end point of the section to be blocked by touching the map. The points will be marked by the letters A andB. > Define the direction of blockage for the road section (from À to B or from B to A). Select blocking direction { Length: 1300 m \ Additionally, you can display a list of permanent blockages already defined on the map. 27 Blocked roads Delete all blockings

mnapenanpeuuns | Select the desired blocked road by pressing, in order to set the blockage times.

TOOLS dr Setbiocking: Hauptstatter Strasse 70173 Stuttgart, Mitte Tue Wed Thu Fa | Sat | Sun Sa | Ro | Co | La || La | Lo | © > Showon Map | % Delete blocking The road is currently blocked for all days of the week, for the whole day @. You can now set whether or not the road should be blocked for each day of the week. > Press the buttons with the days onwhich the road should not be blocked 69. > Press the clock symbol under one of the days and limit the block of this day to the required time of the day. Sr _set 00 Monday -°e° °°

Use setting for... You can set up to two times when the road shall be blocked. > Using the buttons O set the first peri- od when the road is to be blocked on this day. > Using the buttons © set the second period when the road is to be blocked on this day if necessary. Press the Block 24 hbutton to set a block for an entire day. Press the Use setting for... button to also use the block on other days. Use setting for... > Press again the confirm the settings and to exit the menu. Note: The duration of the blockages can be defined also in the Blocked roads menu in the Navigation settings. Trip computer (depending on model) The Trip computer provides a data display with average speeds, maximum speeds, etc. and a stopwatch with the option to record laps. > In the main menu, press Extras. © Trip Computer > Press the Trip computer button. (O) 0 km/h DC re O km/h O km/h O km/h MORE URS 0m 0:00 h 0:00 h Reset petaits (Oo) The data display appears. The data display contains the following information: (O) Current speed (as a number and in the form of a bar graph) @ Maximum speed (O)} Average speed without breaks in the journey (O) Average speed with breaks in the journey © Total distance

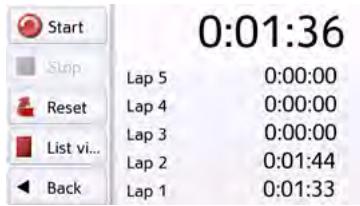

© Travel time without breaks in the journey © Travel time with breaks in the journey Compass (O] Calls up the stopwatch with lap recording Press the Reset button to reset the values to zero. To display the stopwatch with the lap recording, press the button (O} @:» 0:00:10 ms | Los 0:00:00 E Lap 4 0:00:00 Lap3 0:00:00 LISE pes 0:00:00 4 Back Lap 1 0:00:00 > Press the Start button to start the recording. © 0:00:36 Bo || 0:00:00 ù Lap 4 0:00:00 Lop 3 0:00:00 LIESS es 0:00:00 4 Back | Lapt 0:00:00 > Press the Lap button to stop the current recording and start a new lap recording. CE 0:01:36 Lap5 0:00:00 & reset | Lopa 0:00:00 Lap 3 0:00:00 BE ct F4 4 Back | Lap1 :01:33 You can record up to 300 laps in the same way. Notes: + The second value displayed in the top section shows the total time for the laps driven. + Pressing the Backbutton on the left- of the display or pressing utton switches back to the data display. Press the Stop button to stop the recording. The time continues if you press the Start button again after stopping the recording. Press the Reset button to delete all recordings and reset all times to zero. You can display the individual laps in list form using the List view button. Delete list Lepi 00133 Lep2 00144 [ms ) > Press the Delete list button to delete the recorded laps.

SETTINGS Selecting system settings You can change various basic settings for all applications on the Navigation device. >in the main menu, press the & button. @ Navigation settings #3 Phone settings D System settings > Press the System settings button. The system settings menu is displayed. The system settings menu You can select the various settings optionsfrom the system settings menu. + Battery Im) Automatic on/off £A Day/Night KO Brightness < [ee | Lis Day Skin Theme Es Night Skin Theme À Colour schemes © Language

(2%, Animations lee | > &) Factory reset D information Operation Selection options Select the desired menu item by press- ing the appropriate button. The function- ality of the buttons varies depending on the selection and is described under "The individual menu items" on page1 30. You can go to the next or previous page of the settings by pressing the A and x buttons. Closing the settings menu Press o close the settings menu.

The individual menu items Battery Your Navigation device may be operated using an external power supply unit or an integrated rechargeable battery. Note: The current charging state is important when operating with a battery. If the battery is low on power, it may not be possible to continue navigation right to the destination. The energy supply and status are shown on a display. Displaying the power supply You can call up the status display using the following button: “1 Battery > Press the Battery button. The status display appears and shows the power supply. Battery status: 35%

The power level is shown in the charge display. In the example, the battery still has around two-thirds charge. The charging operation is indicated by the mains socket symbol in the status display. Charging.

Closing the status display Pressing the ok button closes the status display and shows the settings menu. Automatic on/off The Navigation device can switch automatically to sleep mode when the vehicle ignition is switched off. Prerequisite for this: + The Navigation device must be connected to the vehicle cigarette lighter (see also page 21). - The cigarette lighter is de-energized after the ignition is switched off. + The relevant function can be switched on at the Navigation device. Switching the function on/off > Press the Automatic on/off button. Depending on the previous setting, you can switch the function on or off. The current setting is shown by the icon. Ib Automatic on/of 1 Automatic on/off + Top icon: The function is switched on, the Navigation device switches off automatically.

SETTINGS + Bottom icon: The function is switched off, the Navigation device does not switch off automatically. The following display is shown during automatic switch-off. Unit goes into sleep mode in 4 seconds, You can cancel the automatic switch-off procedure by pressing the Cancel button. Day/night display You can set the Navigation device display to day, night or automatic. The automatic setting changes automat- ically between day and night display de- pending on the time, the current position and the time of year. With the following button, you can call up the setting: A Doy/Night > Press the Day/Nightbutton. Automatic > Select from Automatic, Day and Night The desired function is activated and the system settings are displayed. Brightness You can set the brightness of the display separately for day and night display. With the following button, you can call up the setting: I Brightness > Press the Brightness button. [D Display brightness ai Im Dey7 ξ Nighe2 > Use the = and + buttons to set the desired brightness for the day and night display. > Confirm your settings by pressing the back buttor

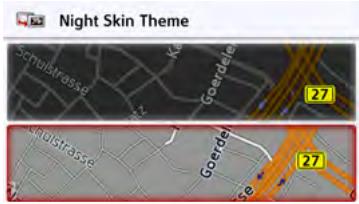

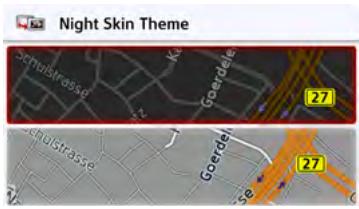

Design by day With this option, the menu and map display during the day can be switched to the colours and contrast of night display. Es Dey Skin Theme > Press the Design by day button. Es Day Skin Theme

Standard Design ES hs > Select the Dark design option for a dark display during the day. > Select the Normal design option for a normal display during the day. ME Day Skin The: Confirm your selection by pressing the back button Design by night Two schemes with different contrasts are available to select for the map display at night. Press the Design by night button. Ga Night Skin Theme Select the option on the bottom to set a lighter night display for the map view. Es Night Skin Theme Select the option on the top to reset the darker, standard preset night display for the map view. Es Night Skin Theme > Confirm your selection by pressing the back button The new night display will take effect when activating the night mode.

SETTINGS Setting the colour You can change the colour of the icons and other design elements. Æ Colour schemes > Press the Colour schemes button. 4 Colours e ee e e De se > Select one of the eight predefined colours.

> Select the required colour using the slider (@] atthe bottom of the display. Note: The colour of the button © corre- sponds to the red colour set at the factory. > Confirm your back button ttings by pressing the Language The texts on the touch screen can be displayed in a variety of languages. Opening language selection You can choose between the various languages using the following button: & Language > Press the Language button. The language selection appears. Em Deutsch mm Eesti keel EM English (UK) | Œ Español El! IX Français ’ The language selection shows the available languages in a list several pages long. Each list field is in the form of a button. Each button is Labelled with the language name and the associated national flag. Scrolling Usingthe 4 »_ buttons or the scroll wheel it is possible to scroll through the list in the direction of the relevant arrow. Selecting the language > Press the button for the required language. > The selection is confirmed by pressing the back button. The selection list for the voice is displayed. > Using the 4 y buttons or the scroll wheel, scroll through the selec- tion list. > Select a voice by touching the button. > Press the Back button. A prompt appears indicating that the software has been re-started, and you are asked whether you really want to change the language. > Confirm the prompt using ok. Cancelling the language selection Pressing the Cancel button cancels the language selection and shows the settings menu.

Keyboard layout You can switch the sequence of the keyboard layout by selecting the corresponding key. Keyboard Layout Sounds You can switch the Navigation device signal tone on and off. This also includes the clicking of the touch screen buttons. > Press the Tones button. Depending on the previous setting, the signal tones are switched on or off. ds Tones xfs Tones + Topicon: Tones switched on + Bottom icon: Tones switched off Rear view camera (depending on the model) Once you have connected your navigati- on system to a rear view camera using a suitable cable, (see “Cable for rear view camera (depending on the model, optio- nal)" on page23) you can display the image of the rear view camera on your navigation system. SD) Factory reset " #8 Calibration A Audio Routing | ÆŸ ProActive Auto Start El

> Press the button rear view camera Rear view camera © Automatic @ Manual [en] | You can choose from the following options: Selection |Meaning Automatic |The navigation system swit- ches over to the image of the reversing camera as s00n as an image signal is sent. Nor- mally, this is always the case once the reverse gear has been engaged Selection Manual Meaning Itis possible to manually switch over to the reversing camera. In the Tools menu, a corresponding menu item is then available Screen animations You can switch the animated screen changes on and off. > Press the animations key Depending on the previous setting, you Will either switch the animated screen changes on or off. 1% Animations 154 Animations + Top icon: animations switched on + Bottom icon: animations switched off

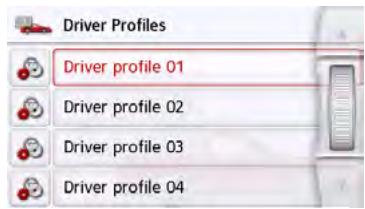

SETTINGS Driver profiles (depending on model) You can select 4 different driver profiles. “dim Driver Profiles > | Driver protie 01 ni > vriver profile 02 | & Driver profile 03 &> | vriver profile 04 You select the corresponding profile by pressing the Profile 1 - Profile 4 button. You must then restart the navigation system. To switch to Driver profile O2 it is necessary to restart your navigation system. Yes No You restart the system by pressing on the Yes button. The driver profiles can now be named in- dividually. This function can be useful, for example, if several drivers use the same navigation system. Many settings and regular destinations are stored in the driver profiles. The following .. are stored in the driver profiles: + Home address Last destinations Planned routes Blocked roads Last calls Data in the journey computer Last GPS position Navigation settings Phone settings System settings Renaming driver profile Name entry [ne voie pote You can rename the selected profile by pressing the Name entry button. Driver profile 01

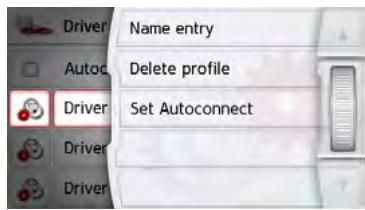

Deleting driver profile Delete data of Driver profile 01? Yes No You can delete the saved profile data by pressing the Delete profile button. The profile itself will still remain. If the profile was renamed previously, it will then be renamed to the original name again (Profile 1 — Profile 4). Name entry [62 | orivet,| velete profite (mn

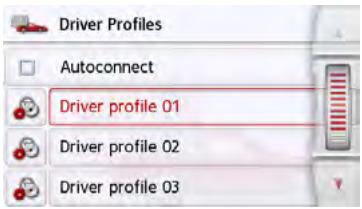

…. Driver Profiles [Ji Autoconnect 6 | Driver profile 01 $> Driver profile 02 > nriver profile 03 ' Driver profile Pro (model dependent) Besides the functions described in the previous chapter, a Bluetooth® tele- phone can be used for automatically changing the profile on devices with Driver Profile Pro. Whenever the naviga- tion device is switched on and the last connected phone is not found, your navi- gation device checks whether another telephone is within reach that was se- lected as a trigger for changing the pro- file. Notice: In order to use a telephone as a trigger for changing to another driver profile, you must first connect the telephone in the profile to the navigation device in which the telephone is to be used as a trigger, (also see "Connecting Blue- tooth® telephones" on page 13). Furthermore, the Auto-connect setting must be activated, see "Automatic con- nection” on page119. Name entry Delete profile Driver] | Set Autoconnect

Press the Set Auto-connect button. À list of possible telephones is displayed that you can use as a trigger for this profile, select the corresponding telephone by pressing the appropriate button.

Service information By pressing the Service information but- ton, you can display further information such as used licences, installed contents and map material. Always quote these details in enquiries to the service provid- ed by United Navigation GmbH. Factory settings You can reset your Navigation device to the factory settings. The following updated data is deleted: saved destinations, saved routes, the home address, telephone data, images, videos etc. saved on the internal memory. & Factory reset > Press the Factory resetbutton. ‘Continue with factory reset? All data will be deleted. Yes No > Press the Yes button. The Navigation device is reset to the factory settings. Calibration (model dependent) If the touch screen responds incorrectly when buttons are pressed, it needs to be calibrated. Starting the calibration You can start the calibration using the following button: k&. Calibration > Press the Calibration button. The calibration procedure will be started. You willbe guided through the procedure by means of text instructions.

You can establish a data connection to a WiFi network (a telephone, for example) from your navigation system. This func- tion requires that there is a mobile de- vice in range which can be used as a WiFi hotspot. Please refer to the operating instructions for your smartphone to see if/how you can use your smartphone as a mobile hotspot. Press the WiFi settings button in the Set- tings menu. Press the (y) button to activate and deactivate the WiFi function. Press the (à) button to display the list of available networks. Select the net- work you wish to access from the list. Networks belonging to other people which you cannot access without a cor- responding password might also appear in the list. If you are connecting to a network for the first time, you must enter a password for this device. Enter the correct password for your WiFi hotspot here. If you have previously connected to a network, you can select it from this list Without having to enter a password again. If you have previously connected with a WiFi hotspot, the system will automati- cally try to re-establish the connection the next time you activate WiFi. If you select the & button in this menu, you can establish or disconnect a connection, delete this network from the list or delete all networks displayed from the list. The (4) button is used to modify or dis- play specific settings. Wi-Fi Network Settings SSID: Office Encryption: AES Enabled Authenfication: WPA2-PSK -|e Password: You can view the encryption, authentica- tion and name of the WiFi network, for example, or enter the password for your WiFi hotspot. Notice: The data transmission via your mobile phone may involve additional costs de- pending on the mobile phone contract. Please find out from your mobile phone provider before activating. If a connec- tion to the server is not possible, e.g. be- cause no mobile phone network is available for a longer period of time, then the system switches over auto- matically to TMC until a connection to the server is possible again.

TECHNICAL TERMINOLOGY GMT (Greenwich Mean Time) Central European Time standard Standard time at 0 degree longitude (the longitude intersecting Greenwich, Great Britain). This time is used worldwide for synchronization of data collection. Bluetooth® wireless technology Technology for wireless data transmis- sion at short range up to 10 metres. GPS (Global Positioning System) GPS determines your actual geographi- cal position by the use of satellites. It is based on a total of 24 satellites which or- bit the Earth and transmit signals. The GPS receiver receives these signals and calculates the distance to each satellite from the running time differences and thus evaluates its actual current position in terms of geographical length and width. In order to determine the position, signals from at least three satellites are required, and the fourth one allows the height to be determined. JPG/JPEG (Joint Photographic Experts Group) The JPEG is the most common type of storage format for dissipating picture compression, ie. when compressing, details of the picture are lost. Still pro- vides good picture quality despite com- pression, compression stages are se- lectable. It is the most common format for representation and exchange of pic- tures on the internet. SD card (Secure Digital) The Secure Digital Card was developed in 2001 by SanDisk on the basis of the older MMC standard. An SD cards a re- writable change-over storage card.

Stylus A stylus is an input pointer which is used for the operation of touch-screens, mo- bile phones or PDAs. The stylus consists basically of a plastic pointer with a softer plastic core. The sleeve is hard and can be gripped and the softer core emerges at the tip and is de- signed to touch the screen as softly as possible (ie. without the danger of scratching the screen). The stylus is more accurate than opera- tion using the fingers, since only the thin tip touches the screen. In addition, dirty marks on the screen caused by finger- prints are avoided. TMC (Traffic Message Channel) Traffic announcements transmitted by most FM stations via RDS. Basis for dynamic navigation. USB (Universal Serial Bus) The Universal Serial Bus (USB) is a bus sytem for interconnection of a computer with external USB peripherals for the exchange of data.

Block Blocked roads Blocking a section of the road Blocking a section of the road permanently Bluetooth® wireless technology ...113,

Easy route ......................... Economical route Eco-route Entering address by speech . Entering an address .… Entering the town ..….

Hazardous materials class Home address House number

1D3 tag Image viewer intended purpose Intersection

Phonebook Update . Photo Point of Interest on the route Points of interest Call entering directly . in the vicinity near the destination near to an address ... 108,109

Restrictions Ferries Motorways . Tollroads .... Route calculator .…. Route description . Route guidance starting .. terminating . Route options . Route planning Route types

Safety instructions . Satellites .….. SD card Searching for a telephone . Selecting a country Selecting a town Selecting destination Entering an address Selecting the street Setting the volume .. Settings Navigation System … Telephone .…

Vehicle profile selecting setting Voice

Dear customer, In conformance with current EC guidelines, any person may operate this unit. This unit conforms to the current valid European or harmonized national regulations. This designation is your guarantee that the unit conforms to the applicable specifications concerning electromagnetic compatibility. Interference caused by your unit affecting other electrical/electronic devices, as well as interfering influences on your unit from other electrical/electronic devices are largely prevented. EU Declaration of Conformity The United Navigation GmbH hereby declares that the navigation device described here isin compliance with the essential requirements of the EC directives and in particular is incompliance with the essential requirements and other relevant regulations of the R&TTE directive 1999/5/EG. You can find a comprehensive EU Declaration of Conformity on our website http://www.mybecker.com under the "Downloads" area for the respective product.

NOTICE Disposal of the unit Customer information on the disposal of electrical and electronic devices (private households) According to the self-proclaimed corporate principles of United Navigation GmbH, your product has been developed and manufactured from high-quality, recyclable materials and components. This symbol on the product and/or accompanying documentation means that electrical and electronic products must be disposed of separately from the houshold garbage at the end of its service life. Please bring this product to the appropriate collection sites for processing and recycling. The units will be accepted there free of charge. The proper disposal of this product serves the purpose of environmental protection and prevents the harmful effects to persons and the environment that may be caused by improper disposal. For further information on the nearest collection points, please contact your local municipal authorities. For commercial customers in the European Union Please contact your dealer or supplier if you wish to dispose of this electrical/electronic device. Information on disposal in countries outside the European Union This symbol is only valid within the European Union.

Disposal of the battery Duty to supply information according to battery legislation (BattV) Batteries must not be disposed of in household waste. It is the duty of the user to return used batteries. Please only dispose of batteries via specialised dealers or at battery collection points. In this way, you make a positive contribution to environmental protection. Since 1998, German battery legislation obligates all citizens to dispose of used batteries exclusively via the retail or at collection points specially equipped for this purpose (statutory obligation to return). It is the duty of the retail and of manufacturers to take back these batteries free of charge and to correctly recycle them or to dispose of them as hazardous waste (statutory obligation to take back). The lithium ion battery in the Navigation device is marked with the adjacent symbol, consisting of a crossed-out waste bin, and the type of battery used. Removing the battery Li-lon Before you hand in your old unit for disposal, the battery must first be removed. Note: Please note that in following the removal instructions for the battery described here, your unit may be destroyed. You should only remove the battery if your unit is old and is to be handed in for disposal.

NOTICE >>> > Completely discharge the battery (leave the unit switched on with no power supply until it automatically switches off). > Unscrew and remove the housing screws(T) (model dependent) using a small screwdriver. > Lever off the rear of the housing(2) using a flat-blade screwdriver (placed at the slits on the sides of the housing). > Remove the circuit board if necessary; to do this, you first have to remove the screws of the circuit board (model dependent). > Pull out the connector of the battery connecting cable [O} > Remove the battery (2). Note: Do not reconnect a unit that you have opened to the power supply.

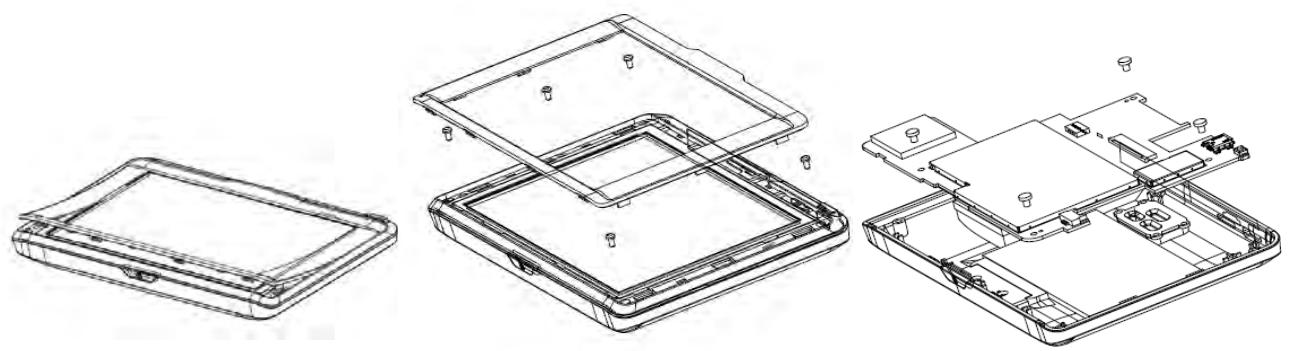

For devices without screws on the bottom side of the device (model dependent): > Completely discharge the battery (leave the unit switched on with no power supply until it automatically switches off). > Lever off the front cover using a flat-headed screw driver (placed between the display and display frame). > Remove the 5 screws. > You can now lever off the front of the device from the back panel using a flat-headed screw driver. > Then remove the circuit board; to do this, you first have to remove the screws of the circuit board. > Disconnect the plug of the battery connection cable. > Remove the battery. Note: Do not reconnect a unit that you have opened to the power supply.
