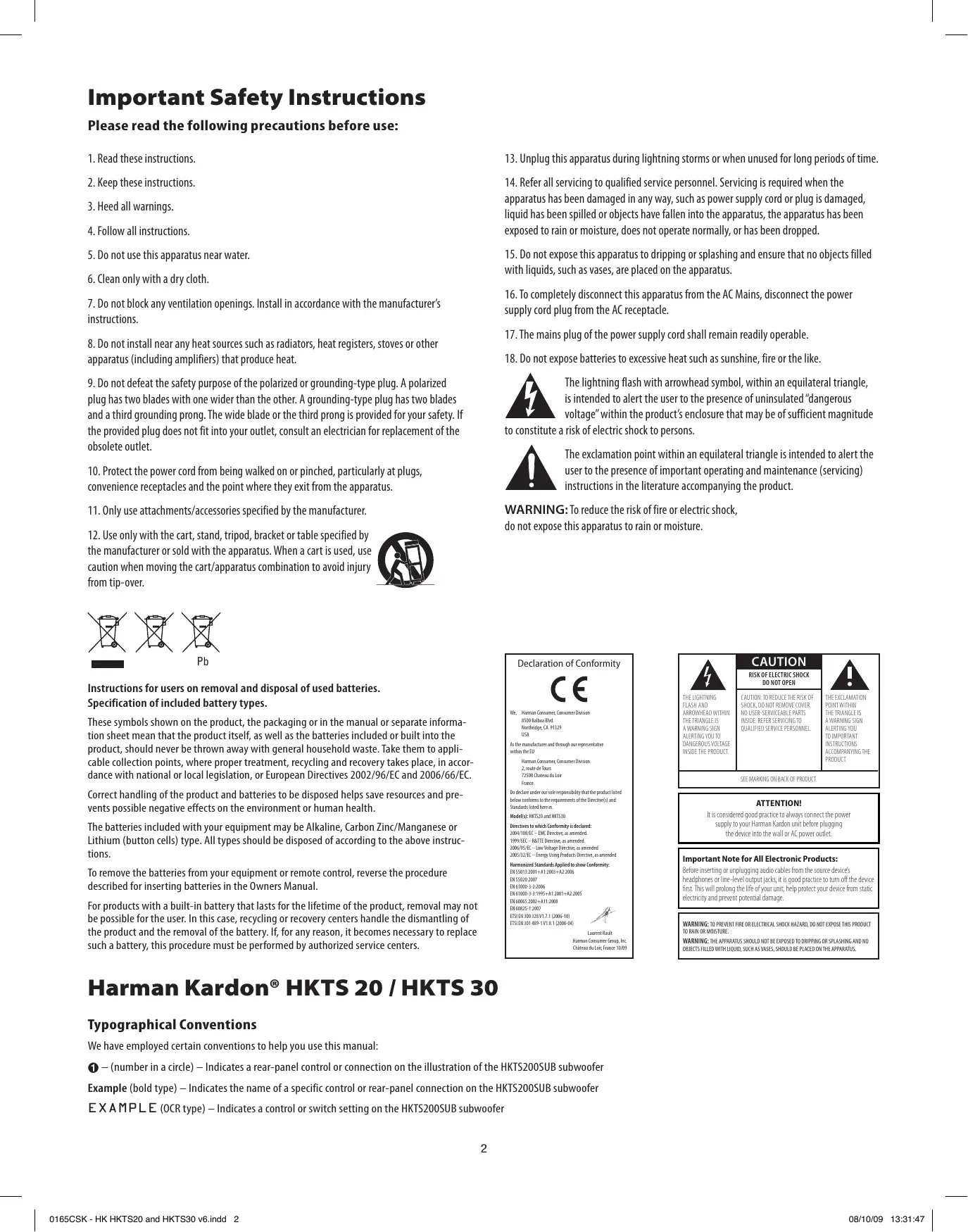

Important Safety Instructions

Please read the following precautions before use:

1. Read these instructions. 2. Keep these instructions.

3. Heed all warnings.

4.Followr al instructions.

5. Do not use this apparatus near water. 6. Clean only with a dry doth.

7.Do not block any ventilation openings. Install in accordance with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heat registers, toves or other apparatus (induding amplifiers) that produce heat.

9.Do not defeat the safety purpose ofthe polarized or grounding-type plug. À polarized plug has to blades with one wider than the other, À grounding-type plug has two blades and a third grounding prong. The wide blade or the third prongis provided for your safety. the provided plug does not into your outlet, consult an electricin for replacement ofthe obsolete outlt.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the point where they exit from the apparatus.

T1. Only use attachments/accessories specified by the manuracturer.

12. Use only with the cat, stand, tripod, bracket or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Instructions for users on removal and disposal of used batteries. Specification of induded battery types.

These symbols shown on the product, the packaging orin the manual or separate informa- tion sheet mean that the product itself, as well as the batteries included or built into the product, should never be thrown away with general household waste. Take them to appli- cable collection points, where proper treatment, recycling and recovery takes place, in accor- dance with national or local legislation, or European Directives 2002/96/EC and 2006/66/EC.

Correct handling of the product and batteries to be disposed helps save resources and pre- vents possible negative effects on the environment or human health.

The batteries induded with your equipment may be Alkaline, Carbon Zinc/Manganese or Lithium (button cells) type. All types should be disposed of according to the above instruc- tions.

To remove the batteries from your equipment or remote control, reverse the procedure described for inserting batteries in the Owners Manual.

For products with a built-in battery that lasts for the lifetime of the product, removal may not be possible for the user. In this case, recyding or recovery centers handle the dismantling of the product and the removal of the battery. £, for any reason, it becomes necessary to replace such à battery, this procedure must be performed by authorized service centers.

Harman Kardon° HKTS 20 / HKTS 30

Typographical Conventions

We have employed certain conventions to help you use this manual

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Referall servicing to qualifie service personnel. Servicng i required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquid, such as vases, are placed on the apparatus.

16.To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC receptace.

17.The mains plug ofthe power supply cord shall remain readily operable. 18. Do not expose batteries to excessive heat such as sunshine, fre or the like.

The lightning flash with arrowhead symbol within an equilateral triangle, i intended to alert the user to the presence of uninsulateddangerous voltage” within the products enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: To reduce the risk offire or electric shock, do not expose this apparatus to rain or moisture.

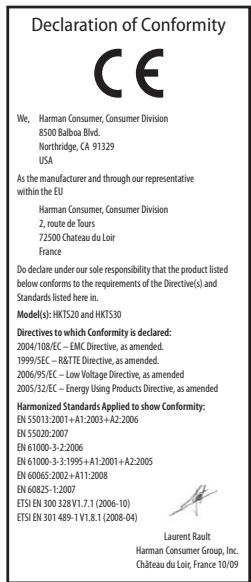

Declaration of Conformity

Important Note for AU Electronic Products: Bfrensriag or upluggng audi cb on te sure den phone rie el ouput hs good practice tu of

MAR ee RL SGAM DOS HS TOUT aan cu he MARGE: LS EDG SD RPG RFA DO Cornet ALU SIGMA GES HD CE PAS,

© - (number in à circle) — Indicates à rear-panel control or connection on the illustration of the HKTS200SUB subwoofer

Example (bold type) — Indicates the name of a specific control or rear-panel connection on the HKTS200SUB subwoofer E XAMPLE (OCR type) — Indicates a control or switch setting on the HKTS200SUB subwoofer

0165CSK - HK HKTS20 and HKTS30 vBindd 2

Introduction Thank you for purchasing the Harman Kardon’ HKTS20/HKTS30 speaker system, with

which youfre about to begin many years of listening enjoyment. The HKTS20/HKTS30 has been custom designed to provide al the excitement and power of the cinema experience

in your own living room.

While sophisticated electronics and state-of-the-art speaker components are hard at work within the HKTS20 and HKTS30, hookup and operation are simple. Color-keyed cables and

connections, and simple controls make the HKTS20/HKTS30 easy to use.

To obtain maximum enjoyment from your new home theater speaker system, we urge you to take à few minutes to read through this manual. This will help ensure that the

connections you make to your receiver or preamp/processon), amplifier and other devices are correct. In addition, a few minutes spent learning the functions of the various controls will enable you to take advantage of all the power and refinement the HKTS20/HKTS30 is

If you have any questions about this product, its installation or its operation, please contact your dealer, the best local source of information.

Description and Features

The HKTS20/HKTS30 is à complete six-piece home theater speaker system that indudes:

+ An8-inch, 200-watt powered subwoofer

+. Fouridentical twro-way video-shielded satellite speakers (the HKTS30 satellite speakers feature dual drivers) for the left and right front, and left and right rear (surround) speaker positions

+ Adedicated, voice-matched, video-shielded, dual-driver center speaker

+ Removable bases and wall-mount brackets for the satellite speakers and a wall- mount bracket for the center speaker

+ Allofthe cables you need to connect all of the speakers to your receiver or preamp/

processor and amplifier.

The speaker cables all use à color-coding system to conform to the Consumer Electronics

Association (CEA) standard. This color-coding system minimizes confusion when

connecting the speakers, especially when you are connecting them to à Harman Kardon

The HKTS200SUB subwoofer is equipped with a special LFE input that simplifies connection to receivers and preamp/processors with dedicated subwoofer outputs that

carry low-frequency signals. Other conveniences indude a level control, à phase switch for fine-tuning bass response to suit your listening environment and taste, and an efficient switching system that senses the presence of an audio signal and automatically switches

the subwoofer from standby mode to on.

Wall-mount brackets are induded for the satellite and center speakers, and shelf stands are induded for the satellite speakers. Optional HKFS3 floorstandks are available separately from your Harman Kardon dealer. Harman Kardon invented the high-fidelity receiver fifty years ago. With state-of-the-art features and time-honored circuit designs, the HKTS20/

HKTS30 is a perfect complement to à Harman Kardon receive, or any home theater system.

0165CSK - HK HKTS20 and HKTS30 vBindd 3

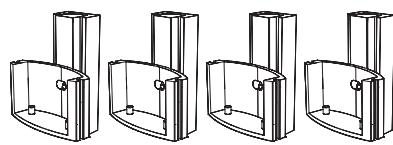

Four wall-mount brackets for satellite speakers

One powered subwoofer

One wall-mount bracket for center speaker

Four metal stop plates and screws (for satellite speaker wall-mount brackets)

One combination LFE and trigger cable for __# connection to the subwoofer (LEE cable has purple connectors)

One 4-meter (13.1-foot) speaker cable for center speaker (green color bands)

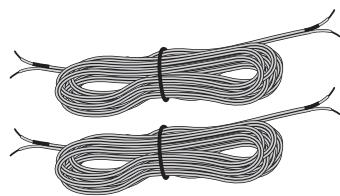

À Two 5-meter (16.4-foot) speaker cables for front satellites (red and white color bands)

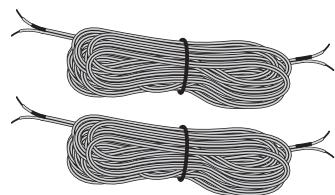

To 10-meter (32.8-foot) speaker cables for rear satellites (gray and blue color bands)

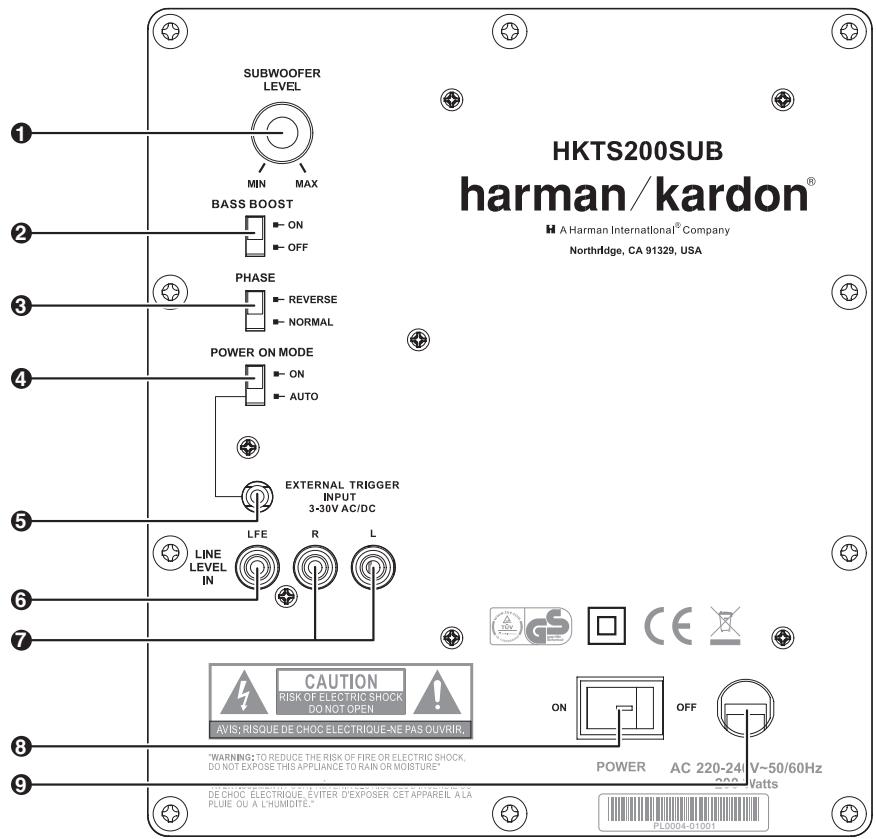

HKTS200SUB Rear-Panel Connections

@ e— © Le HKTS200SUB se harman/kardon @———{\;" us mon À e ' ” @) LULU @)

© Subwoofer Level Control: Use this control to adjust the HKTS200SUB' volume. Turn dockwise to increase the volume; turn counterclockwise to decrease the volume.

@ Bass Boost Switch: Set this switch to © N to enhance the HKTS200SUB' low-frequency performance. Set this switch to O F F for normal low-frequency performance.

© Phase Switch: The Phase Switch © determines whether the HKTS200SUBS piston-like action moves in and out in phase with the satellite speakers. Ifthe subwoofer were to play out of phase with the satellite speakers, the sound waves produced by the subwoofer could be canceled out, reducing bass performance and sonic impact. This phenomenon depends in part on the relative placement of all the speakers in the room. In most cases the Phase Switch © should be left in the NO RM AL. position. However, it does no harm to experiment, and you can leave the Phase Switch © in the position that maximizes bass response and impact.

© Power On Mode Switch:When set in the AU T © position and when the Power Switch © is set to O N, the HKTS200SUB will automatically tum itself on when it receives an audio signal, and will enter the standby mode once no audio signal has been received for about 15 minutes. When this switch is set in the © N position, the HKTS200SUB will remain on whether or not it is receiving an audio signal. An LED on the HKTS200SUB' top panel indicates whether the subwoofer is in the on or standby state: - When the LED is illuminated white, the HKTS200SUB is turned on. - When the LED is not illuminated, the HKTS200SUB is in standby mode. When the Master Power Switch @ is setto OFF, the LED will not be illuminated, no matter what setting the Power On Mode Switch @ is in.

© External Trigger Input: Use the mini-plug of the supplied combination LFE and trigger cable to connect the External Trigger Input to the trigger output of another compatible component. Whenever a trigger signal between 3 and 30V (AC or DC) is detected, the HKTS200SUB' amplifier will turn on. The HKTS200SUB's amplifier will turn off after the trigger signal ceases. (This will occur even when the Power On Mode Switch @ is in the AU T © position.)

0165CSK - HK HKTS20 and HKTS30 vBindd 4

© Line-Level LFE In Connector: Use the LFE (purple) connector ofthe supplied combination LFE and trigger cable to connect the Line-Level LFE In to the dedicated subwoofer output of a receiver or preamp/processor. This input bypasses the HKTS200SUBS internal crossover drcuitry, so it should only be used with a subwoofer output that has been low-passfiltered. If your receiver or preamp/processor does not have a dedicated subwoofer output that is low-pass filtered you should use the HKTS200SUB Line- Level L/R In Connectors @ instead.

© Line-Level L/R In Connectors: Use these connectors if your receiver or preamp/processor does not have digital surround sound decoding or a subwoofer output that is low-pass filtered. = If your receiver or preamp/processor has à separate subwoofer output, use the LFE purple) connector of the supplied combination LFE and trigger cable to connect it to either one ofthe HKTS200SUBS Line-Level L/R In Connectors.

= If your receiver or preamp/processor does not have a separate subwoofer output, use two Y-adapters (not supplied). Connect an adapters single end to the units preamp output for that channel. Connect one of the adapter dual ends to the main amp input for that channel, and connect the adapters other dual end to one of the HKTS200SUB Line-Level L/R In Connectors. Repeat with the other Y-adapter, preamp channel, main amp input and HKTS200SUB Line-Level L/R In Connector.

© Power Switch: Set this switch in the O N position to turn the HKTS200SUB on. The subwoofer will then either be on or in standby mode, depending on the setting of the Power On Mode Switch @.

© Power Cord (Non-Detachable): After you have made and verified all subwoofer and speaker connections described in this manual, plug this cord into an active, unswitched electrical outlet for proper operation of the HKTS200SUB. DO NOT plug this cord into the accessory outlets found in some audio components.

NOTE: The following speaker placement, mounting and connection instructions are identical for the HKTS20 and HKTS30 systems. Color-Coding System

The HKTS20 and HKTS30 use the channel color-coding system established by the CEA to make setting up your home theater speaker system as easy as possible. The HKTS20/ HKTS30 systems indlude speaker wires with color bands on each end.

peaker Position Front Left Front Right Center

Placing the Front Speakers

=) The front speakers should be placed the same Lafont | P'ghrfnnt | distance from each other as they are from the She N Saket | listening position. They should be placed at about

the same height from the floor as the listeners ears will be. They also can be angled toward the listener.

(RE Placing the Center Speaker

The center speaker should be placed slightly Cener behind (farther away from the listener) the front

Sue left and right speakers. ts center should be no 5.) mor than 2feet (tem) aboe orbelowthe Û E 17 | _tweeters ofthe front left and right speakers. Ifyou have a CRT television, it may be convenient to set Lt gite | the center speaker on top ofthe television set. Se Per Placing the Subwoofer S S Since our ears do not hear directional sound Sue ren PP atthe low frequencis where te subwoofer a | oPerates, itwill have good performance from

just about any location in your room. However, the best bass reproduction is likely to be heard when the subwoofer is placed in à comer along the same wall as the front left and right speakers. You can experiment with subwoofer placment

by temporarily placing it in the listening position and playing music with strong bass content. Move around to various locations in the room while

the system is playing and listen until you find the location where the bass performance is best. Place the subwoofer in that location:

Placing the Surround Speakers

létSurand RghSuround E Sand Sans E

The two surround speakers should be placed slightiy behind the listening position, facing each other and, ideally, should be 5-6 feet (1.5m-1.8m) from the floor. An alternate location would be on à wall behind the listening position, facing forward. The surround speakers should not call attention to themselves while they/re playing.

Experiment with their placement until you hear à diffuse, ambient sound accompanying the program material heard from the front left and right and center speakers.

Mounting Options for Satellite and Center Speakers

Shelf Placement Lift Base Straight

You can place the satellite and center speakers on shelves. The satellite speakers have built-in bases for shelf placement. You can also remove the bases if desired.

To remove à satellite speakers base, pull it Straight off the speaker, as shown in the illustration. Applying even pressure to both sides ofthe base will allow it to slide off smoothly.

IMPORTANT: Read the Speaker Connections section, on page 7, before wall-mounting the satellite speakers. You will need to insert the speaker wires through the wall mounts and connect the wires to the speakers during the process of installing the wall-mounts.

NOTE: if you are using your own speaker wire, it must be no thicker than the wire supplied with the speakers. Thicker à wire will prevent the wall-mount bracket from sliding onto the

1. Decide on the location for the speaker (see Speaker Placement, opposite).

2. Remove the speaker's base as explained in Shelf Placement, above.

3. Disassemble the wall-mount bracket by sliding the two sections apart, as shown in the illustration.

4. Attach the wall portion of the wall-mount onto the wall using hardware that is appropriate for the wall construction and materials. We recommend first anchoring the mount using its keyhole, then attaching it with another anchor through its top opening, as shown in the illustration. Note that the satellite speakers weigh 3.3 1b {1.5kg). Be sure to use hardware that can support this weight.

NOTE: if you're running the speaker wire through the wall you can bring it out directly 8. Connectthe speaker wire to the speaker terminals as shown in the illustration: behind the bracket location and insert it through the bottom opening in the wall portion ofthe wall-mount, as shown in the illustration. This will keep the wire completely hidden from view once the installation is complete.

a) Press down on the top ofthe terminal to open the connection hole. b) Insert the wire bare end all the way into the hole. <) Release the terminal to secure the wire.

Insert the conductor with the colored band into the speakers red (+ ) terminal, and insert the other conductor into the speaker's black (— ) terminal.

Insert rente Botom Opening

5. Ifyoure notrunning the speaker wire through the wall, insert it through the wall portion ofthe wall-mount bracket as shown in the illustration. |

A Push Dour on Capto Bert are irento Release Capo Secure ire Open Hole

IMPORTANT: Make sure the ( + ) and (— ) bare wires do not touch each other or the other terminal Touching wires can cause a short circuit that can damage your receiver or amplifier.

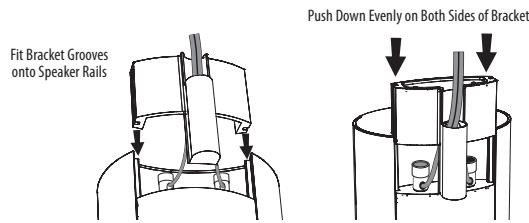

9. Slide the speaker portion of wall-mount onto the speaker as shown in the illustration. Fit the grooves on the mount onto the rails in the speaker, and apply even pressure on both sides of the mount so it slides straight onto the speaker.

Push the mount all the way onto the speaker until it snaps into place. - Pull any slack speaker wire back through the mount as you slide the mount onto the speaker.

Push DoumÉveny an Both Sides fBracket

6.. Pass the speaker wire through the speaker portion of the wall-mount as shown in the Fibre Goes illustration. ont Spirale

|| || Bring ire Out Le

10. Slide the speaker onto the mount’ wall section as shown in the illustration. Pull any slack speaker wire back through the mount's wall section.

7. Hyou have not already removed the speaker base, do so by pulling it straight offthe speaker as shown in the illustration. Applying even pressure to both sides of the base villallow it to slide off smoothly.

Side Speaker omteMl:-Meunt

Apph Pressure Even Lift Base Straight to Both Side ofBase of Speaker

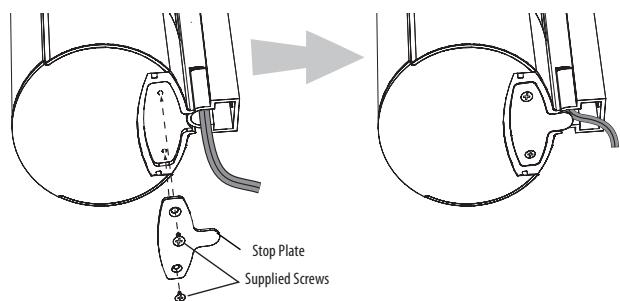

11. Fitthe metal stop plate into the recess on the bottom of the mount with the pad facing the mount, and fasten it to the mount using two of the supplied screws. This will prevent The speaker from detaching from the bracket and will hold the speakers position as you rotate it on the mount.

CAUTION: Before making speaker connections, be sure that your receiver or amplifier is turned OFF and preferably, its AC cord is unplugged from the AC outlet.

0165CSK - HK HKTS20 and HKTS30 v6.indd 6 08/10/09 13:81:57

Wall-Mounting: Center Speaker

Decide on the location for the speaker (see Speaker Placement, on page 5)

2. Attach the center speaker wall-mount bracket to the wall using hardware that is appropriate for the wall construction and materials. Attach the anchors through the holes shown in the illustration.

Use These des TT .. cha iade ù

NOTE: The center speaker weighs 3.2 Ib (1.45kg). Be sure to use hardware that can support this weight.

CAUTION: Before making speaker connections, be sure that your receiver or amplifier is turned OFF and preferably, its AC cord is unplugged from the AC power source.

3. Connectthe speaker wire to the speaker terminals. Press down on the top ofthe terminal 0 open the connection hole, insert the wire bare end all the way into the hole and release the terminal to secure the wire, Insert the conductor with the colored band into the speaker red ( + terminal, and insert the other conductor into the speakers black (— } terminal, as shown in the illustration

A. Push Doun en Capa Cle ap Secure re

Speakers and receivers/amplifiers have corresponding (+ ) and (—) connection terminals. Most electronics manufacturers, including Harman Kardon, use red to denote the (+ ) terminal and black for the (—) terminal. Newer Harman Kardon receivers conform to the CEA standard and therefore use a color other than red to denote the (+) terminal for some speaker positions. See the table in Color-Coding System, on page 5.

Each speaker wire induded with your system has colored bands at both ends of the (+ ) conductor, and the subwoofer cable has purple connectors that correspond to the color of the HKTS200SUB' LFE jack. This system helps ensure that the speaker in each location is connected to the correct receiver or amplifier terminal. In addition to the colored bands at each end, each speaker wire (+ ) terminal has ribs molded into its insulation to help identify it.

I is very important to connect each speaker identically: (+ ) on the speaker to (+ ) on the receiver or amplifier, and (— ) on the speaker to (—) on the receiver or amplifier. Miswiring one or more speakers results in thin sound, weak bass and a poor stereo image. With the advent of multichannel surround-sound systems, connecting all of the speakers in your system correctly is very important to achieving the proper ambience and directionality of the program material.

To connect the speaker wire to the terminals on the satellite and center speakers, press down on the top of the terminal to open the connection hole, insert the wire bare end allthe way into the hole and release the terminal to secure the wire. Insert the conductor with the colored band into the speakers red (+ ) terminal, and insert the other conductor into the speakers black (— ) terminal, as shown in the illustration.

IMPORTANT: Make sure the (+ ) and (— ) bare wires do not touch each other or the other terminal. Touching wires can cause a short circuit that can damage your receiv er or amplifier.

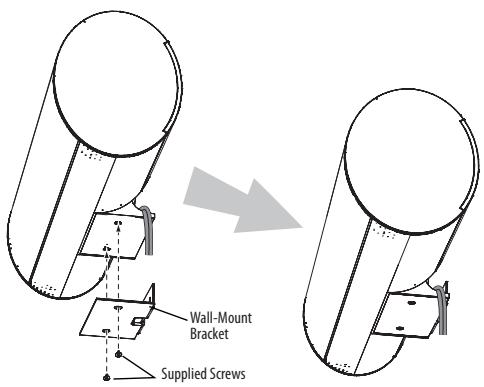

4. Using two of the supplied screws, attach the center speaker to the wall-mount bracket, as shown in the illustration.

CAUTION: Before making speaker connections, be sure that your receiver or amplifier is turned OFF and preferably, its AC cord is unplugged from the AC power outlet.

BsertBare Wei Openole

A. Push Doun en Capta Open Hole

Release Cp Secure ire

IMPORTANT: Make sure the (+) and (— ) bare wires do not touch each other or the other terminal. Touching wires can cause a short circuit that can damage your receiver or amplifier.

Connecting Satellite Speakers With Supplied Wall-Mount Brackets

Follow the instructions in Wall-Mounting Satellite Speakers, on page 5, and Wall-Mounting: Center Speaker, opposite.

Connecting Satellite Speakers with Supplied Bases

1. Remove the speaker base (see Shelf Placement, on page 5) Pass the speaker wire through the opening in the speaker base. |

Connect the speaker wire as described above. £

8 w R Reattach the speaker‘ base as shown in the illustration.

Front Right Speaker Gble \ (Red Band)

Connecting the Subwoofer to a Receiver or Preamp/Processor

Use this installation method for receivers and preamp/processors that have a dedicated subwoofer output with low-pass filtering (also called bass management). Ithe dedicated subwoofer output does not have low-pass filtering, follow the instructions in Connecting the Subwoofer to a Receiver or Preamp/Processor With Line Outputs, on page 9.

Use the LFE (purple) connector ofthe supplied combination LFE and trigger cable to connect the HKTS200SUBS Line-Level LFE In Jack @ to the dedicated subwoofer output (or LFE output) of your receiver or preamp/processor.

0165CSK - HK HKTS20 and HKTS30 v6.indd 8

Sureundfighe Speaker Cable (Gray Bands)

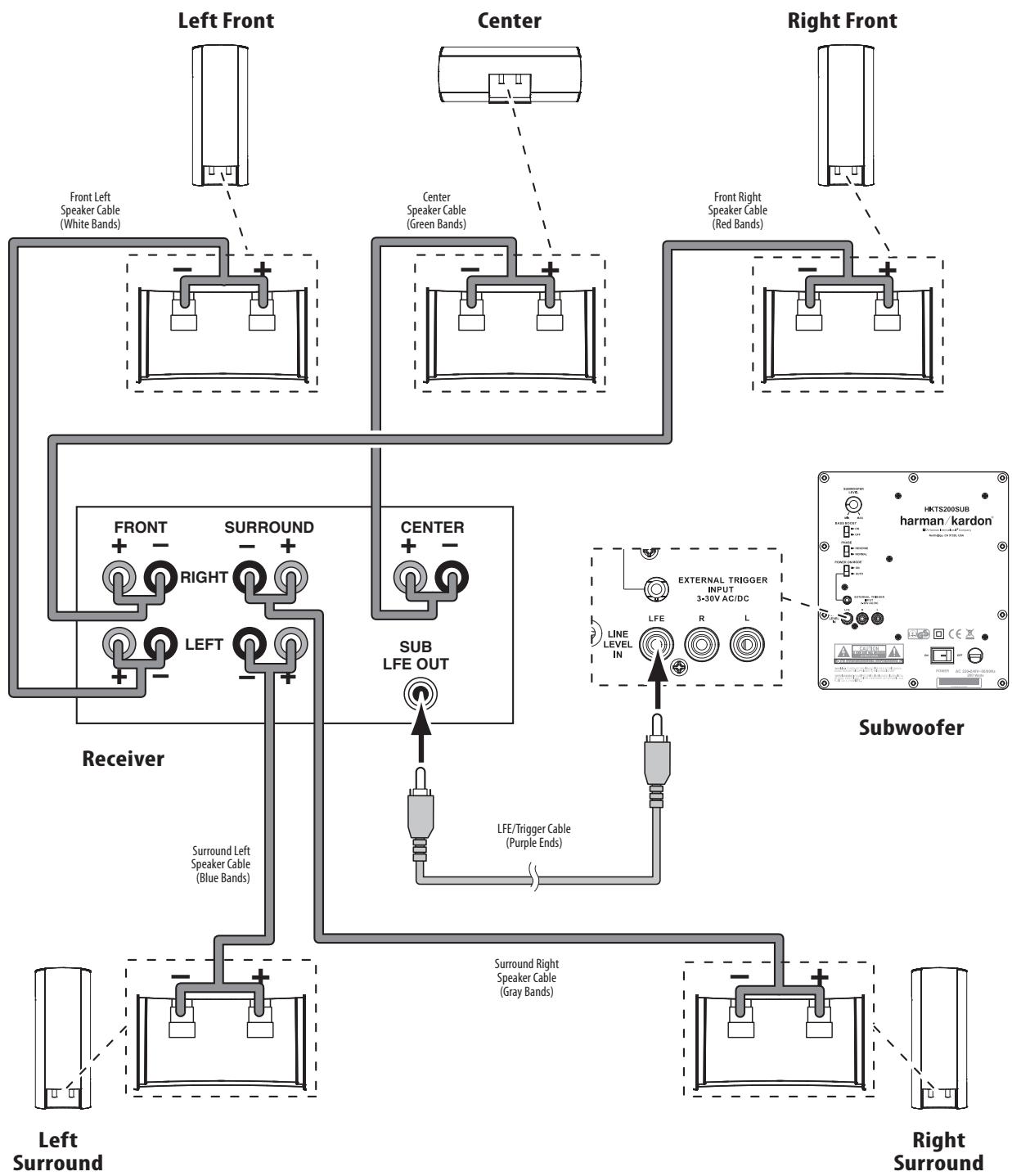

With a Dedicated Subwoofer Output

Connect each satellite speaker and the center speaker to the corresponding speaker terminals on your receiver or amplifier.

In your receiver or preamp/processor$ setup menu, configure it for Subwoofer ON, and set the front left, front right, center, and surround speakers to Small. After you have made and verified all connections, plug the HKTS200SUBS AC Power Cord © into an active AC outlet.

Center Speaker Gble \ {Green Bands) \

LINE-LEVEL QUTPUTS Receiver

Front Right Speaker Gble (Red Band)

Sureund fight Speaker Cable (Gray Bands)

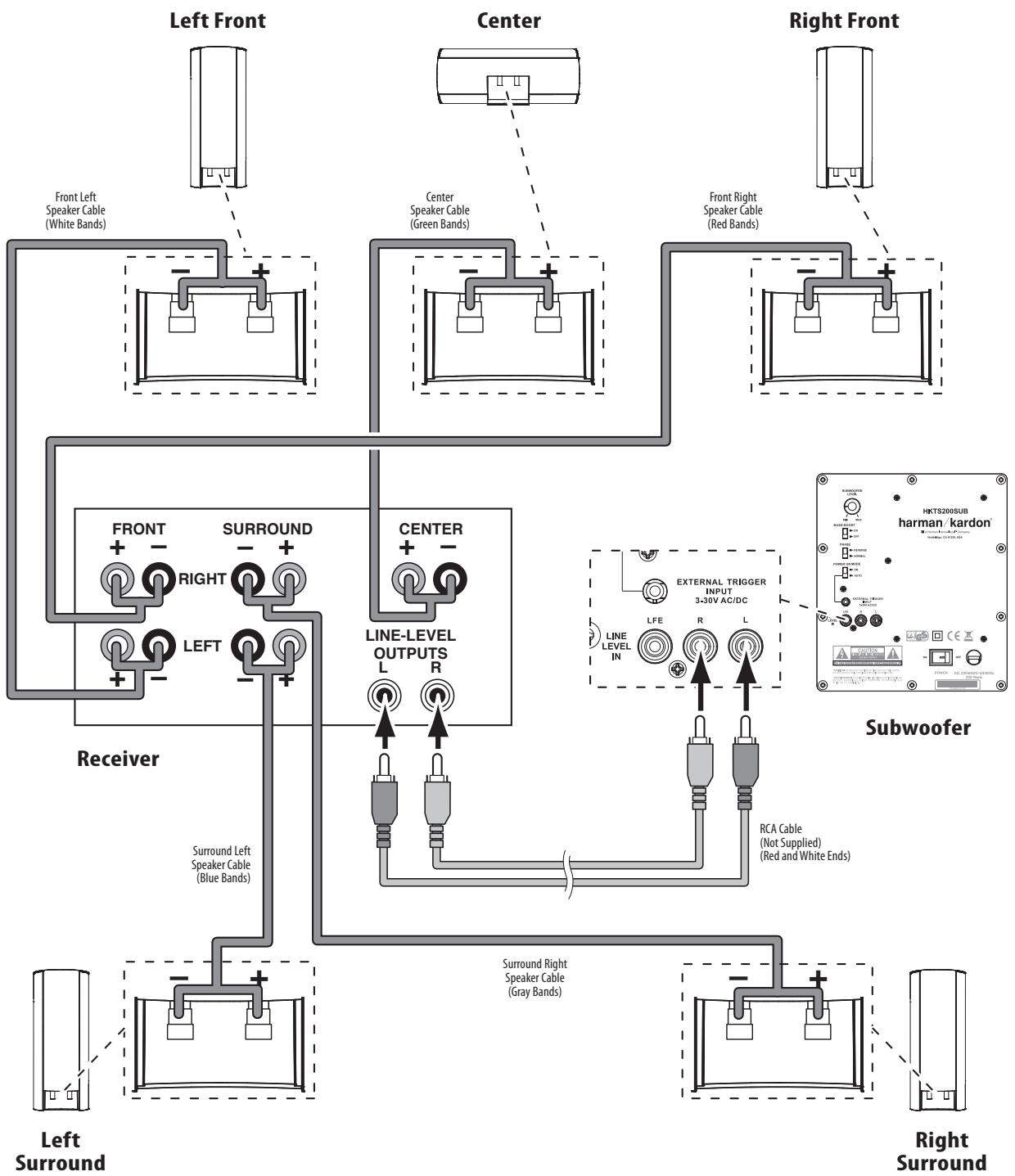

Connecting the Subwoofer to a Receiver or Preamp/Processor With Line Outputs

Use this installation method for receivers and preamp/processors that do not have à dedicated subwoofer output, but do have preamp-level (volume-controlled) line outputs. Ithe receiver or preamp/processor has à dedicated subwoofer output with low-pass

filtering, see Connecting the Subwoofer to a Receiver or Preamp/Processor With a Dedicated

Subwoofer Output, on page 8.

If yourre connecting to a receiver with left and right line outputs that are not connected to amplifier inputs, connect the LFE (purple) connector of the supplied combination LFE and trigger cable to one of those outputs and to either of the HKTS200SUB' Line-Level L/R In Connectors @. Use a second RCA cable (not supplied) to connect the other receiver or preamp line output to the other of the HKTS200SUB' Line-Level L/R In Connectors @.

0165CSK - HK HKTS20 and HKTS30 vBindd 9

Subwoofer BA Gble (hot supplied) (Red and White Ends) DE [ [ ! [ i ' N n ! N i i N Û N EE Right Surround

If you're connecting to a receiver or preamp/processor with left and right line outputs that are connected to amplifier front left and right inputs, connect the single ends of Y-adapters (not supplied) to the receivers or processor left and right line output. Connect one of the Y-adapters double ends to the HKTS200SUBS Line-Level L/R In

Connectors @, and connect the other double end to your amplifier front left and right

Connect each satellite speaker and the center speaker to the corresponding speaker terminals on your receiver or amplifier.

In your receiver or preamp/processor setup menu, configure it for Subwoofer ON, and set the front left, front right, center, and surround speakers to Small.

After you have made and verified all connections, plug the HKTS200SUB' AC Power Cord © into an active AC outlet.

SUBWOOFER LEVEL FAN) FE ] © LUN BASS BOOST

= NORMAL POWER ON MODE on

POWER AC 220-240V-50/60Hz 200 Watts

LULU Connecting to a Trigger Voltage Source

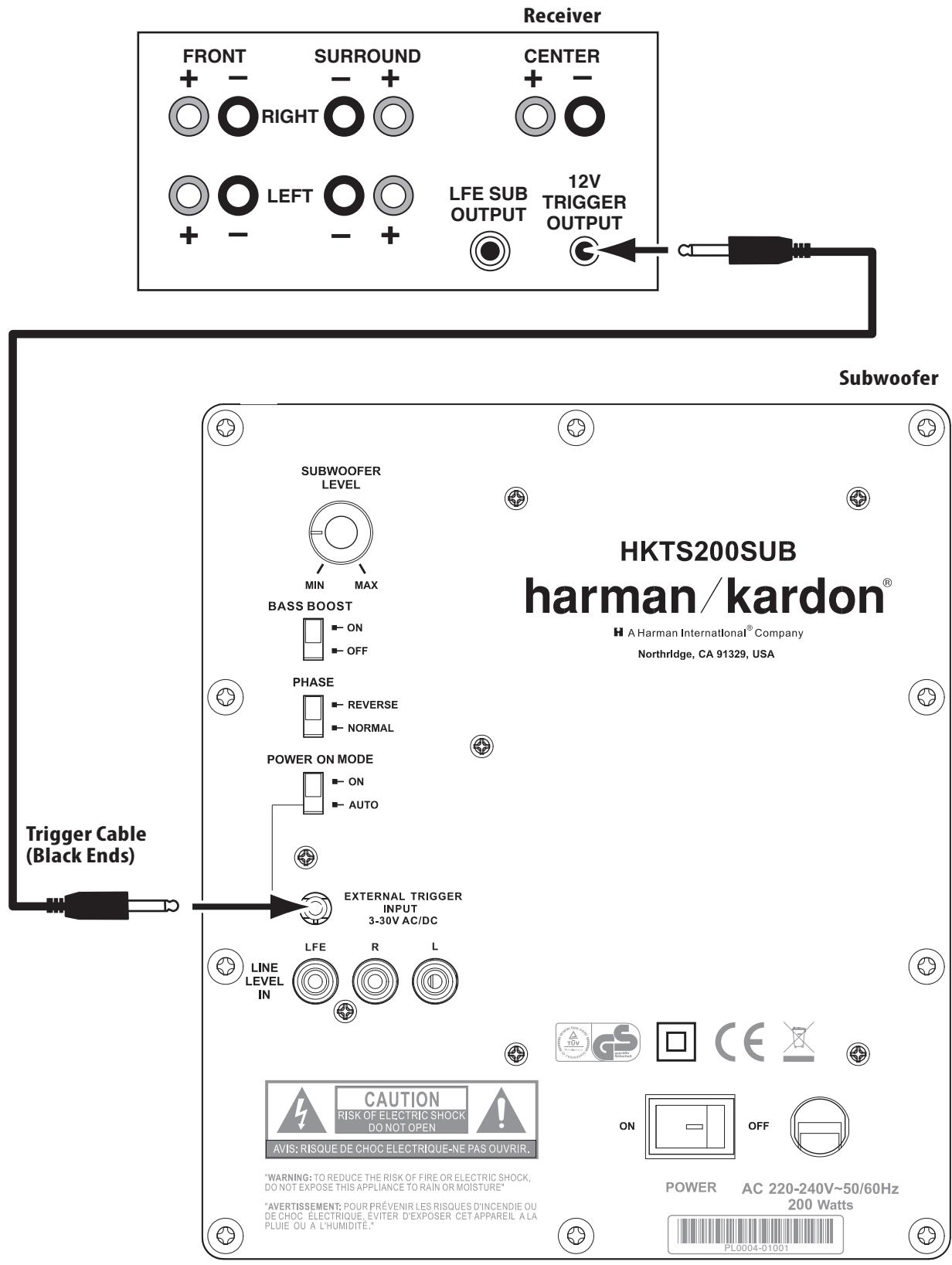

If your preamp/processor or another audio/video component has a trigger voltage

connection that supplies between 3 and 30V (AC or DC), connect it to the HKTS200SUB'S External Trigger Input Connector ©. If the components trigger voltage connection has

à 3.5mm mini jack you can use the supplied combination LFE/trigger cable to make the

Operation Troubleshooting

Setthe HKTS200SUBS Power Switch @ to the O N position. + Check that the receiver/amplifier is on and a source is playing.

+ _Ifthe Power On Mode Switch @ is set to AU T ©, the HKTS200SUB will +" Make sure that all wires and connections between the receiver/amplifier and the automatically turn itself on when it receives an audio signal, and it will go into speakers are connected properly. standby mode when it has received no audio signal for 15 minutes. The HKTS200 + Make sure none ofthe speaker wires is frayed, cut or punctured

SUB LED will illuminate white when the subwoofer is on, and will not be illuminated R : A m when the subwoofer sin standby. + Reviewrthe proper operation of your receiver/amplifier.

+ Ifthe Power On Mode Switch @ is set to O N, the HKTS200SUB vil remain on tail RSR LEE ECS

times. The HKTS200 SUB LED will illuminate white. + Check that the balance control on your receiver/amplifier is not set all the way to

one channel. + lfthe External Trigger Input Connector @ is connected to a trigger voltage source,

the HKTS200SUB will turn on whenever a trigger voltage is present, and will turn off + Check your receiver/amplifiers speaker setup procedure to make sure that he after the tigger voltage ceases, regardless of the position ofthe Power On Mode speaker in question has been enabled and its volume level has not been turned all Switch ©. the way down.

+ Make sure that all wires and connections between the receiver/amplifier and the

Ifyou will be away from home for an extended period of time, or if you will not be speaker are connected properly.

using the subwoofer for an extended period, switch the Power Switch @ tothe OFF Position. + Make sure the speaker wires are not frayed, cut or punctured.

Subwoofer Adjustments: Volume If there is no sound coming from the center speaker:

Use the Subwoofer Level Control @ to set the HKTS200SUBS volume. Turn the knob dlockwise to increase the subwoofer’ volume; turn the knob counterclockwise to decrease the subwoofer’ volume.

+ Check your receiver/amplifiers speaker setup procedure to make sure that the center speaker has been enabled and its volume level has not been turned all the way down.

+ Make sure that all wires and connections between the receiver/amplifier and the

Subwoofer Adjustments: Phase center speaker are connected properly.

The Phase Switch © determines whether the HKTS200SUBS piston-like action moves + Make sure the speaker wires are not frayed, cut or punctured.

in and out in phase with the satellite speakers. IFthe subwoofer were to play out of 2 Hfyour receiver is operating in Dolby® Pro Logic® mode, make sure that the center phase with the satellite speakers, the sound waves produced by the subwoofer could be speaker is not set to Phantom.

canceled out, reducing bass performance and sonic impact. This phenomenon depends in s x

part on the relative placement of all the speakers in the room. Ifthere is no sound coming from the surround speakers:

Although in most cases the Phase Switch © should be left in the NORMAL position, | * Check your receiver/amplifiers speaker setup procedure to make sure that the there is no absolute correct setting for the Phase Switch ©. When the HKTS200SUB surround speakers have been enabled and their volume levels have not been

is properly in phase with the satellite speakers, the sound will be clearer and have turned all the way down.

maximum impact. This will make percussive sounds like drums, piano and plucked strings | «Make sure that all wires and connections between the receiver/amplifier and the sound more liflike. The best way to set the Phase Switch © is to listen to music that you surround speakers are connected properly.

are familiar with and set the switch in the position that gives drums and other percussive | » Make sure the speaker wires are not frayed, cut or punctured.

sounds maximum impact. + Review proper operation of your receiver/processor and its surroundsound features.

Subwoofer Adjustments: Bass Boost + Make sure the movie or TV show you're watching has been recorded in a surround- sound mode. [fit is not, check to see if your receiver/amplifier has a different

When set to the O N position, the Bass Boost Switch @ enhances low-frequency surround-sound mode that you can use.

performance, resulting in bass with more impact, which you may prefer while watching

movies or listening to music. There is no harm in experimenting with this control — + Review the operation of your DVD player and the DVD jacket to make sure the DVD

setting the switch to the OF F position will return normal low-frequency performance. features the desired Dolby Digital or DTS® surround-sound mode, and that you have properly selected that mode using both the DVD players menu and the disc's menu.

If there is no sound coming from the subwoofer:

+ Check that the subwoofer Power Cord © is plugged into a working AC outlet.

+ Check that the subwoofers Power Switch © is inthe © N position.

+ Check that the Subwoofer Level Control @ is not turned all the way down (fully counterclockwise).

+ Check the audio connection between your receiver/processor and the subwoofer.

+ Check your receiver/amplifier speaker setup procedure to make sure that the subwoofer has been enabled and its volume level has not been turned all the way down

Ifthe system plays at low volumes but shuts off as volume is increased:

+ Make sure that ll wires and connections between the receiver/amplifier and the speakers are connected properly.

+ Make sure none of the speaker wires is frayed, cut or punctured.

+ Hfyourre using more than one pair of main speakers, check to be sure that you're not operating the system below the receiver/amplifiers minimum impedance requirements.

0165CSK - HK HKTS20 and HKTS30 v6ndd 11 08/10/09 13:32:09

Recommended Power 10- 80 watts

Sensitivity 83dB @ 2.83V/1 meter

One 3/4" (19mm) dome, video-shielded

Midrange One 3° (75mm) driver, video-shielded

Dimensions — including stands (H x W x D)

8-12"x4-11/32%3-15/32" {216mm x 110mm x 88mm)

Weight 2.11b (0.95kg)

Frequency Response 45Hz — 20kHz (-6dB)

Recommended Power 10-120 watts

Sensitivity 86dB @ 2.83V/1 meter

One 3/4" (19mm) dome, video-shielded

Dual 3" (75mm) drivers, video-shielded

Dimensions — including stands (H x W x D)

11-25/32"x4-11/32"x3-15/32" (299mm x 110mm x 88mm)

© 2009 Harman International Industries, Incorporated. AI rights reserved.

Features, spedfications and appearance are subject to change without notice.

Recommended Power 10-120 watts

Sensitivity 86dB @ 2.83V/1 meter

One 3/4" (19mm) dome, video-shielded

Dual 3" (75mm) drivers, video-shielded

Dimensions (H xW x D) 41132" x 10-11/32" x3-15/32" (110mm x 272mm x 88mm)

Weight 321b (1.45kg)

Harman Kardon is à trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries. Designed to Entertain is à trademark of Harman International Industries, Incorporated.

Dolby and Pro Logic are registered trademarks of Dolby Laboratories.

DTS is a registered trademark of Digital Theater Systems, Inc.

H Harman International

Harman Consumer Group, Inc.

200 watts RMS Bass 8" woofer, sealed enclosure

External Trigger Input Voltage

3 - 30 volts AC/DC Dimensions (H x W x D) 13-29/32" x 10-1/2" x 10-1/2" {353mm x 267mm x 267mm)

Gross Weight 19.8 Ib (9kg)
