USER MANUAL 55VLE5523BG GRUNDIG

GENERAL INFORMATION Special features of your TV Receiving digital channels Grundig SCR system Important notes on environmental protec- tion Notes on still images PACKING CONTENTS Standart accessory Optional accessory

CONNECTION AND PREPARATION

Connecting the antenna and the power adapter Setting up or hanging Setting up with stand Preparing for mounting on the VESA bracket Inserting batteries into the remote control OVERVIEW Connections on the television set Control elements Turning the TV to standby Adjusting the volume or changing the sta- tion The remote control - Main functions The remote control - All functions INITIAL SET-UP Initial setup and tuning channels Selecting language, operating mode and country Tuning the channels from satellite (DVB-S/ 52) Tuning terrestrial channels (DVB-T) Tuning channels from the cable provider (DVB-C) Changing the program table for the digi- tal channels [2_ ENeusH

PICTURE /SOUND SETTINGS

FUNCTIONS Switching on and off Selecting channels Selecting channels from lists Selecting a preset AV channel Adjusting the volume Switching sound on/off Displaying information Freezeframe Audio language Subtitles Zapping function

Electronic TV guide TELETEXT OPERATION TOP text or FLOF text mode Additional functions USB RECORDING Information on recording and playing television programmes Possible limitations when using an exter- nal data medium Connecting external data media Settings for USB recording “Pausing” time shift programmes Recording programmes Presetting programmes to be recorded Playback

48 Opening the SETTINGS menu 48 Automaïic setting 48 Manual setting 49 TIMER FUNCTIONS 49 Opening the SETTINGS menu 49 Entering the switch-off time (sleep timer) 49 Switchon timer 50 Switch-off timer 50 Automatic switch-off (Auto Sleep) 51 PARENTAL SETTINGS 51 Opening the SETTINGS menu 51 Authorising programmes 51 Locking menus 52 Locking keys (Parental lock] 52 Changing the PIN code 52 Locking television channels 52 Waïching a blocked television channel

RESET FUNCTIONS Restoring the television to the default set- tings

OPERATION USING EXTERNAL

DEVICES DIGI LINK The DIGI LINK functions on your televi- sion Device operation Switching the device to standby High definition HD ready Connection options Connecting external devices Using a DVD player, DVD recorder, video recorder or sektop box Headphones Hifi system/AV receiver

OPERATION WITH A COMMON

INTERFACE What is a Common Interface? Inserting the CA module Access control for CI module and smart card

SETTING FURTHER CHANNELS

Update for digital channels from a satel- lite automatically Searching for digital channels from a satellite manually on a transponder Antenna settings and searching for digital channels from a satellite automatically Antenna seHings, SCR system and search- ing for digital channels from a satellite automatically Antenna seHings for DiSEqC 1.0/1.1and searching for digital channels from a satellite automatically Searching for channels from the cable provider automatically Searching for channels from the cable provider manually Searching for digital terrestrial TV chan- nels automatically ENGLISH _3|

Searching for digital terrestrial TV chan- nels manuall Automatic service update Tuning analogue television channels Changing stored analogue channels Displaying signal information INFORMATION Service information for dealers Environmental note Note for the Product Package Cleaning the TV set Explanation of the symbols which may be present on back side of the television set Troubleshooting GLOSSARY INDEX |[4_ ENœusH

About your TV set m With your TV set, you can receive and watch digital TV programmes over DVB-S, DVB-T and DVBC, along with analogue TV. m The TV set can record programmes. For this feature you need a USB storage device, such as an external hard drive {not included). Re- corded programmes can only be played on the same TV set. After the TV st is repaired, it is possible that recorded programmes may no longer be able to be played back. Intended use = The TV set is designed for use in dry rooms. m Use the TV set with the supplied stand or a suitable VESA bracket. m The TV set is primarily intended for the play- back of TV programmes, streaming content and audio/video material from external de- vices. Any other use is stricily prohibited. It is not intended as an information display or for predominant use as a computer monitor. If a still image or a non-ullformat image is dis- played for an extended period, visible traces may remain on the screen for some time. This is not a defect that can be used as the basis for a warranty claim. Safety À WARNING Risk of electrical accident m# Do not open the TV set. Safety risk may arise and also the guarantee of the product can be void ifthe television set is opened. m# The TV set can only be operated with the power cable or the AC/DC adapter supplied with the product. m# Do not operate the TV set with a damaged power cord/AC/DC adaptor (if supplied). # Ifthe plug on the TV set has an earthing con- tact, only insert the plug into a socket with an earthing contact. # Plug the TV set into the mains socket only after you have connected the external devices and the antenna. # Protect the TV set from moisture. Do not place any vessels filled with water (such as vases) onthe TV. Fire hazard m Do not cover the ventilation slots on the TV set. To prevent the spread of fire, keep candles or other open flames away from this product at all times. # Always unplug the power plug and antenna plug during a thunderstorm. æ Keep candles or ofher open flames away from the TV set. # Do not expose the batteries to extreme heat such as sunshine, fire or the like. m Only use batteries of the same type (brand, size, properties]. Do not use used and new batteries together. ENGLISH _5|

À WAR! G Injuries caused by falling TV set Never place the TV set on an unstable surface. The TV set may fall, causing serious injury, pos- sibly leading to death in isolated cases. Observe the following precautions: # Only use the manufacturer's recommended cabinets or stands. # Only use furniture that can safely support the TV set. # Make sure that the TV set does not protrude beyond the dimensions of the furniture on which it is resting. # Do not place the TV set on tall furniture (such as kitchen cabinets, bookshelves) without securely anchoring the furniture and TV set. # Do not place the TV set on fabric or other materials located between the TV set and furniture. 2 Instruct children that there is danger associ- ated with climbing on furniture when the TV set is to be reached. LNOTICE Shortened service life due to high oper- ating temperature # Do not place the TV set next to heating units or in direct sunlight. # To ensure adequate ventilation, maintain clearance of at least 10 cm around the TV set. |[é_ ENœuSH Discolouration of furniture due to rub- ber feet m Some furniture surfaces may discolour when they come in contact with rubber. To protect furniture, you can place a sheet made of glass or plastic under the stand. Do not use textile underlays or mais such as doilies. Environmental information C] Do not dispose of batteries in the household waste. Used bat- teries must be returned to retail stores or public collection points. You help to protect the environment in this way. # Be sure to dispose of packaging materials for your product separately according to the guidelines of local authorities so that they can be recycled in an environmentally safe manner. m If you are not using your TV set for a while, turn it to standby mode. In standby mode, the TV set uses very little energy (< 0.5 W). If you do not use the TV set for an extended period, turn it off with the power switch or unplug the power cord from the socket. If you turn off the device or disconnect it from the power supply, the switch-on timer and pro- grammed recordings will not work. # Select a location for the TV set so that no direct sunlight falls on the screen. This allows a lower backlight to be selected, which saves energy.

Do not dispose of the product along with normal household waste at the end of its service life. Take it to a recycling centre for electrical and electronic equipment.

GENERAL INFORMATION Special features of your TV # You can receive and watch digital TV chan- nels using your television set [via DVB-S/S2, DVBT and DVB-C) - including High Definition programmes (HD). However, the reception of digital TV channels in HD is currently limited to a few countries in Europe. Although this television set complies with the current DVB-S/S2, DVB-T and DVB-C stan- dards (status: August 2012), the compatibility with future DVB-S/S2 satellite transmissions as well as terrestrial DVB-T and DVB-C cable programmes cannot be guaranteed. Your television set can receive and process all analogue and non-encrypted digital TV chan- nels. The television set is also equipped with digital and analogue receivers. The electronic TV guide (for digital chan- nels only) informs you about any schedule changes at short notice, and provides an over- view of all the broadcasters' schedules for the next few days. Detailed information on the individual television programmes are - when provided by the broadcasting station - are also available in the electronic TV guide. You can connect various data media, such as an external hard drive, a USB memory stick or a digital camera, to the USB socket. Using the file browser, you can then select and play the file formats of your choice [for example, MP4, MP3 or JPEG data Using the time shift function, you can quickly and easily pause a programme using the remote control and resume it at a later stage. The programme is recorded in an external data medium. m You can record any digital TV channels you choose. The TV channels are converted by the televi- sion and saved on an external data medium which is connected to the USB socket. The saved programmes can be called up and played from the archive on the external data medium at any time. You can also play a programme from the archive while recording another. More information on recording and playing TV programmes can be found from page 34. Receiving digital channels m# You require a satellite antenna to receive digital satellite channels (DVB-S/S2). # You require a digital roof antenna or indoor antenna (passive or active indoor antenna With its own power supply] to receive digital television channels (DVB-T). m If you wish to receive digital television chan- nels via your cable system (DVB-C], the an- tenna cable for your cable operator must be connected to the television set. # Unlike analogue broadcasting, not every channel has its own transmission frequency. Instead, several channels are grouped into what are known as bouquets on a regional or national level. You can find the current trans- mission information on teletext from various broadcasters, or by consulting a current TV guide or the Internet. # Various digital television channels from private broadcasters are encrypted (DVB-5/S2, DVB- T and DVB-C). Waïching these channels and the recording and playback functions are only possible with the appropriate CI module and a SmartCard. Ask your specialist dealer. The range of channels available from the public broadcasting institutions (ARD with Ein- sExtra, EinsFestival or ZDF with ZDF Info and all third party broadcasters) are not encrypted and can be received without a SmartCard. Grundig SCR system m Your TV supports SCR system [Satellite Chan- nel Router]. If your antenna installation is equipped with an Single Cable Distribution multiswitch, all television sets which are con- nected on this antenna can receive the televi- sion channels stand-alone. ENGLISH _7|

GENERAL INFORMATION Important notes on environmen- tal protection The following information will help you to save resources - and money as well m If you are not using your television set for several days, you should pull out the mains plug for environmental and safety reasons. This way the television does not consume any electricity. m IFthe device is equipped with a power switch, switching it off using this switch will be suf- ficient. The energy consumed by the television set is reduced to virtually O W. m In standby mode, the television set uses very little energy. However, it may be necessary to leave the television set in standby mode for certain functions (for example automatic switch-on and switch-off and for timer func- tions). m The television set uses less energy when the brighiness is reduced. [8_ ENœuSH Watching the same image for a long time on the screen may cause a still image remains feebly on the background. Feeble image(s] on the background is originated from LCD/LED technology and does not require any action under guarantee. To avoid such cases and/or minimize the impact, you may observe the tips below. # Do not allow the same TV channel to stay on the screen for a very long time. Channel logos may cause this situation. # Do not allow the images, which are not full screen, to constanily stay on the screen; if not streamed in full screen format by the broad- caster, you can convert the images to full screen by changing picture formats. 2 Higher brighiness and/or contrast values will lead this impact to appear faster; therefore, you are recommended to watch your TV in the lowest brighiness and contrast levels.

Standart accessory Optional accessory T TV Easy-Use Remote Control 2 Stand Batteries for Easy-Use remote controls 3 Remote control Cleaning cloth 4 Batteries for remote controls 5 Screws and mounting instructions for stand 6 Screws for VESA bracket 7 Brief Instruction ENGLISH _9|

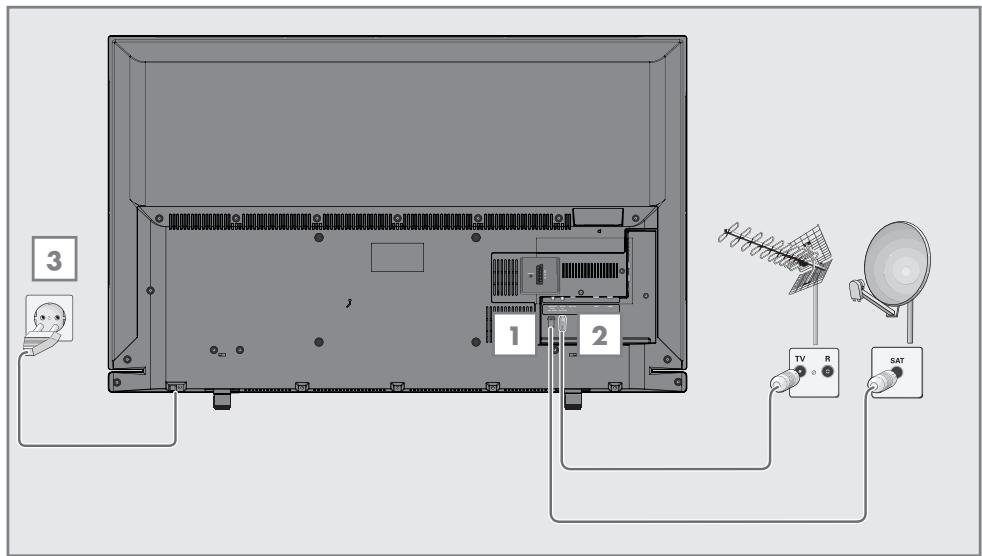

Connecting the antenna and the power adapter 1 To receive digital satellite channels (DVB-S/ S2), connect the satellite antenna cable to the antenna socket SATELLITE on the televi- sion set. And/or 2a To receive terrestrial digital broadcasters (DVBT) connect the cable for the rooftop or indoor antenna (passive or active indoor antenna with its own power supply] to the antenna socket ANT IN on the television set;

2b To receive digital cable channels (DVB-C) connect the cable for the rooftop antenna to the antenna socket ANT IN on the television set;

2e To receive analogue TV channels, connect the cable for the rooftop antenna to the antenna socket ANT IN on the television set Note: m When connecting an indoor antenna you may have to try it out at different positions until you get the best reception. [10 eNeusH 3 Plug the power cord of the power adapter into a wall socket. Notes: # Do not plug in the power adapter until you have connected the external equipment and the antenna. m# Do not use an adapter plug or extension lead which does not meet the applicable safety standards. Do not tamper with the power cord.

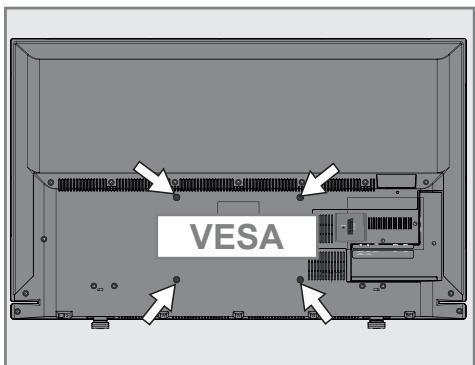

Setting up or hanging m Select a location so that no direct sunlight falls on the screen. Setting up with stand # To mount the stand, refer to the installation instructions included. # Place the TV set on a hard, level surface. Preparing for mounting on the VESA bracket You will need: M À pair of scissors, # À crosstip screwdriver. Follow the installation instructions for the VESA bracket. 1 Place the TV set in the film on a smooth surface with the screen facing down. 2 Cut open the film on the back side using the scissors. 3 Connect the required cables to the connec- tors on the TV set. See the “Connections” section in this manual. 4 Tie the cables so they do not hang down onto the floor. 5 Screw the VESA bracket onto the TV set and mount it according to its installation instructions. ENGLISH 11

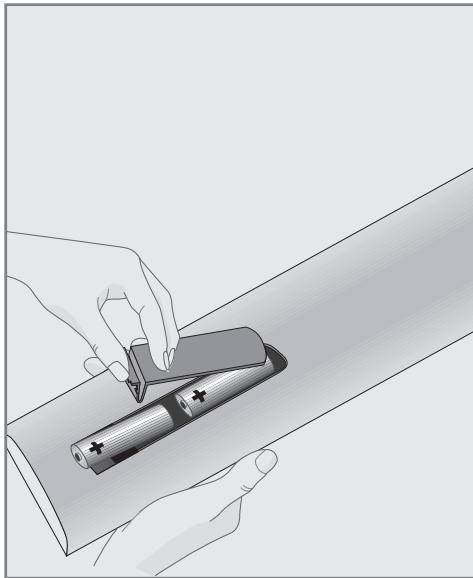

Inserting batteries into the remote control Î A 1 Open the battery compartment by removing the lid. 2 Insert the batteries (2 x 1.5 V micro, for example RO3 or AAA). Observe the polar: ity marked in the bottom of the battery compartiment.

3 Close the battery compartment. Note: m lFihe television no longer reacts properly to remote control commands, the batteries may be flat. Always remove used batteries. m The manufaciurer accepis no liability for damage caused by leaking batteries. [12 EeNeusH Environmental note This symbol on recharge- Et able batteries/batteries or on the packaging indi- Pb cates that the recharge- able battery/battery may not be disposed of with regular household rubbish. For certain rechargeable batteries/batteries, this symbol may be supplemented by a chemical symbol. Symbols for mercury (Hg) or lead (Pb) are provided if the rechargeable bat- teries/batteries contain more than 0.0005% mercury or more than 0.004% lead. Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the applicable dis- posal regulations where you live.

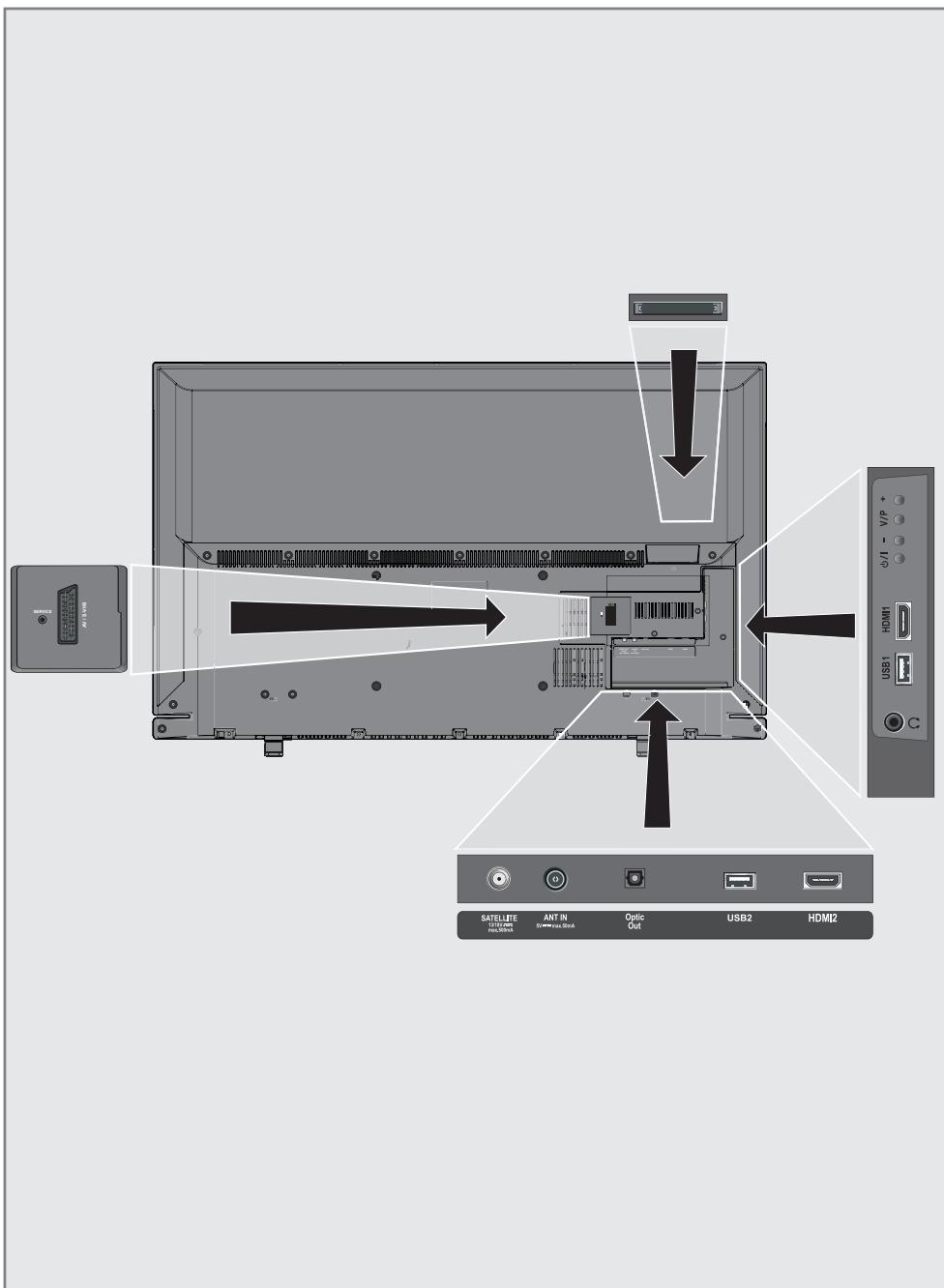

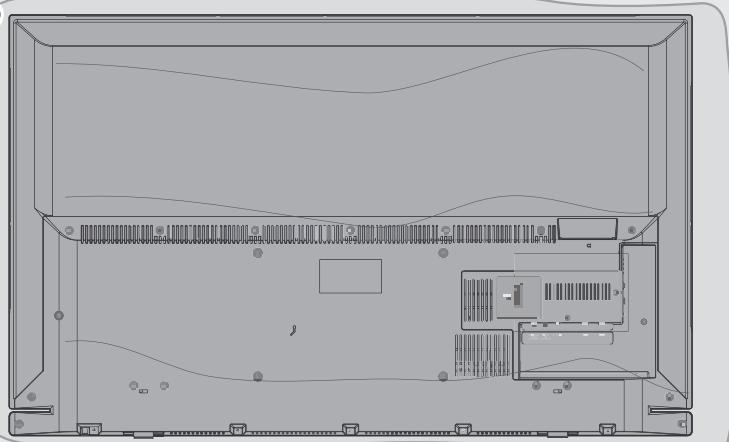

OVERVIEW Connections on the television set ENGLISH 13|

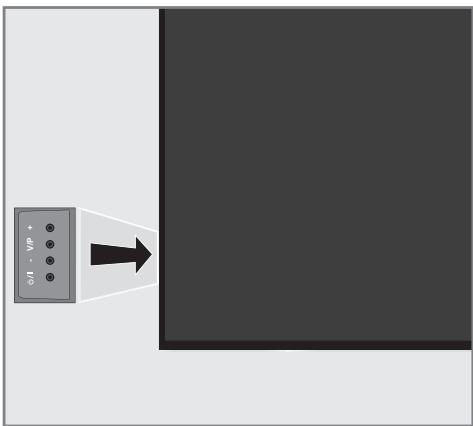

[14 eNeusH Service only. SCART socket, audio/video input and output; S-VHS socket, audio/video input for S-Video camera using a SCART-S-VHS adapter cable; Component socket, audio/ video input (YUV signal) us- ing a SCART-YPbPr adapter cable. For satellite antenna. Suit able for single-cable GSCR system For antenna cable [terres- trial antenna, cable connec- tion or analogue antenna). Optical audio output. For digital multichannel audio/video amplifier or AV receiver connections. Connect data media for re- cording programmes, such as an external hard disk. Input for digital audio and image data: Headphone jack or line output via adapter. External audio output (with headphoneRCA con- verter) USB socket for external data medium and PVR func- tion Input for digital audio and image data: For CA modules for receiv- ing encrypted stations. Control elements Turning the TV to standby »D/l« Switches the television on and back into standby mode. Adijusting the volume or changing the station »V/P« Pre-selection for volume or channel selection »=« Adjusts the volume; Selects channels in steps. »+« Adjusts the volume; Selects channels in steps.

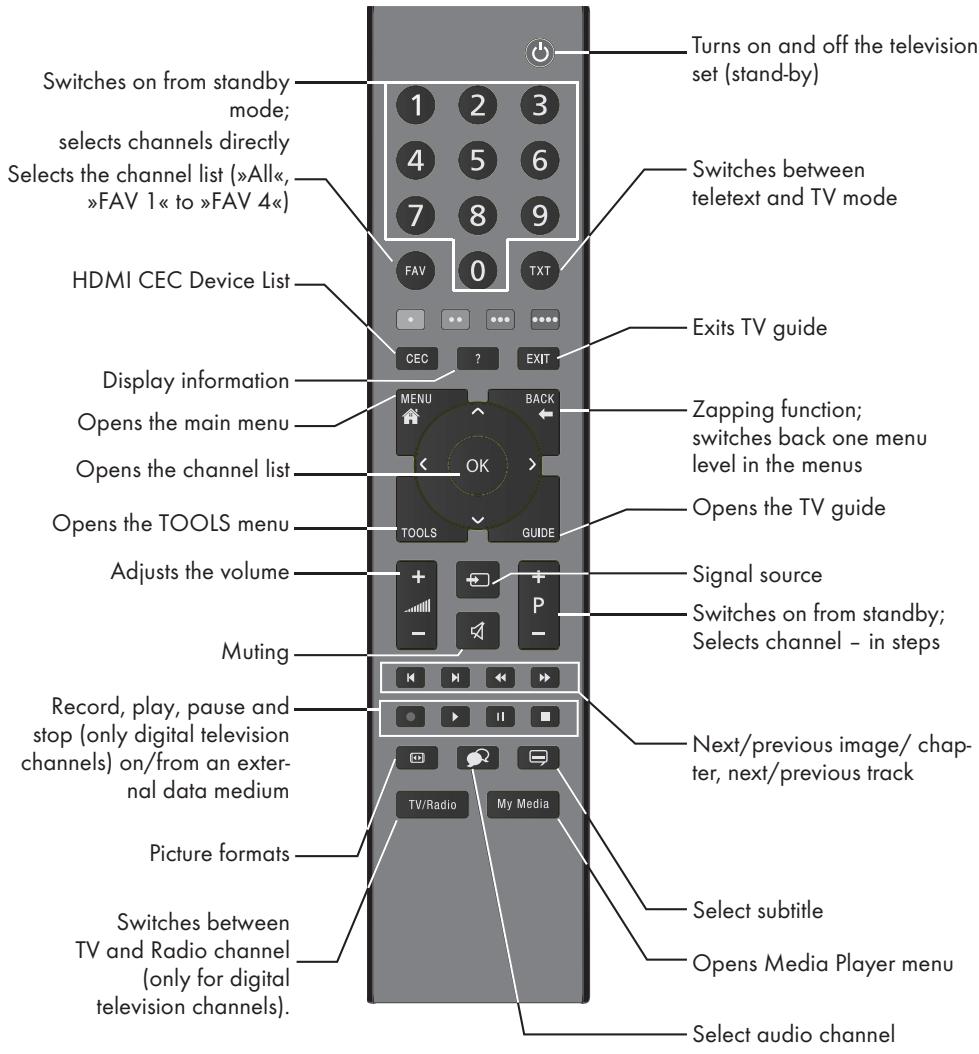

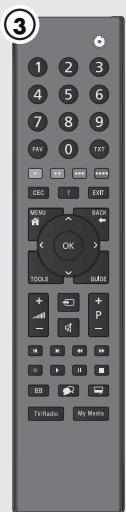

OVERVIEW The remote control - Main functions Turns on and off the television Switches on from standby set (stand-by) mode; selects channels directly Selects the channel list (»All«, Switches between »FAV Te to »FAV 4«) teletext and TV mode HDMI CEC Device List Exits TV guide Display information Zapping function; switches back one menu Opens the channel list | _ les level in the menus Opens the TV guide Opens the main menu Opens the TOOLS menu Adjusts the volume Signal source Switches on from standby; Selects channel - in steps Muting Record, play, pause and stop (only digital television channels) on/from an exter- nal data medium Next/previous image/ chap- ter, next/previous track Picture formats Switches between Select subtitle TV and Radio channel {only for digital television channels). Opens Media Player menu Select audio channel Navigation in the menus Moves the cursor up and down in the menus. Moves the eursor to the left and right in the menus. Activates various functions and save functions/settings. ENGLISH 15|

OVERVIEW The remote control - All functions + (red) (green) Selects/activates various functions (yellow) in the menus. + (blue)

Selects pages in teletext; Switches to double character size in teletext; selecis the previous title/previous picture in the Media Player. Refreshes a teletext page; selects the next track/next picture in the Media Player. Stops scrolling through pages in teletext; starts a fast reverse search in the Media Player. Reveals answers in teletext; starts a fast forward search in the Media Player. Starts the recording (only for digital television channels, the recording is made on an external data medium). Starts playing a programme from an external data medium; repeais a recorded programme; starts playback in the Media Player. Freeze frame, if no external data medium is connected; playback pause; time shift mode (only for digital television channels and when an external data medium is connected); Pauses the file executed in the Me- dia Player. Ends playback of a programme from an external data medium; ends a recording or playback in time shift mode; splits the screen in teletext; stops the file executed in the Media Player. Selects different audio languages {only for digital television channels). Selects different subtitles {only for digital television channels). l16 ENeusH

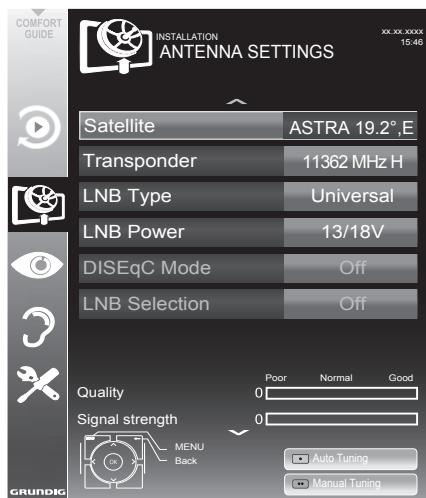

INITIAL SET-UP Initial set-up and tuning channels The television set is equipped with automatic channel search, which searches for satellite channels (DVB-S/S2), terrestrial channels (DVB- T}, cable channels [DVB-C) and analogue chan- nels. You start the search and the channels will be stored into the different Program Tables. Follow- ing, you can sort the channels in the Program Tables. The various settings Depending on the type of antenna connected, you can decide which channels you would like the television to search for. # DVB-S/S2 - Tunes digital channels from the satellite, from page 18. You have two options for this search: - the basic installation which presets a stan- dard selection, e.g. the satellite Astra 19.2° East; you need only start the search; - the professional installation, which allows you to make all required settings and set parameters for your receiver system. # DVB-T - Tunes digital terrestrial channels, on page 20. = DVB-C - Tunes digital channels from the cable provider, on page 20. # Tunes analogue television channels, in the chapter "Special functions”, starting on page 70. # Further settings for digital channels after the initial setup can also be found in the chapter "Special Settings”, starting on page 61. Note: m Make the language and country selection for all types, then continue reading the respective chapter. Selecting language, operating mode and country 1 Switch on the television set from standby with »De, »1...0« or »P+« or »P-«. - During initial setup, the »Installation Guide« will be displayed. Help: m IFthis menu is not displayed, restore the television set to its default settings (see page 54). 2 Select the menu language with »€«, »3«, »V« or »A« and press »OK« to confirm. 3 Select the mode with »€« or »ÿ« and press »OK« to confirm. - The settings used in Home Modex help lo save energy. - Alternatively, the menu item »Shop Mode« can be selected which the retailer can use for demonstrating the device functions. Note: m End the »Shop Modex by restoring the television set to its default settings (see page 54). 4 Select the country in which the television set is operated with »€e, »2«, »W« or »A« and press »OK« to confirm. - The »Source Setup« menu appears with the »Connection Type« line marked. Note: m You can find a description of how to tune the channels of your choice - depending on the antenna connected - in the follow- ing chapters. ENGLISH 17|

INITIAL SET-UP Tuning the channels from satellite (DVB-S/S2) You have two options for tuning digital satellite channels. AThe easy installation, which pre-configures all antenna setings for the satellite channels on Astra 19.2° East. B The advanced installation can be used if you wish to receive satellite Advanced installation In the »Source Setup« menu, in the »Con- nection Type line, select the option »Satel- lite« with »« or »D«. Select the line »Advanced Installation« with »V« or »A« and press »OK« to confirm. - The menu appears. channels from various satellites. To do so, you must make the antenna settings (Satellite, LNB Power, LNB Type, DISEqC Mode, LNB Selec- Sata ASTRA 19.2°E| tion) for the satellites chosen. Easy installation 1 inthe »Source Setup« menu, in the »Con- nection Type+ line, select the option »Satel- litec with »« or »®« and press »OK« to confirm. 2 Select the line »Easy Installation« with »W« or »A« and press »OK« to confirm. - Other menu options will be displayed, the satellite Astra 19.2° East is preset. 3 Startthe scan with »ee« (green). = The »Search resulis« menu appears, and the scan for channels begins. - Depending on the number of television channels received, this can easily take a few minutes. - The scan is complete as soon as the »PROGRAM TABLE« appears. Note: # You can abort the scan by pressing PSS2MAZH Transponder Universal

Use »€« or »>« to select whether you want to search for television channels only (TV), radio stations only [Radio] or both (Radio + TV). Note: m lis possible, that some TV channels (tran- sponders] cannot be found. This is caused by a change in satellite parameters made by the broadcaster, e.g. new channels have been added. Set the »Network Search« option to »Onc. 11 Start the scan with »e« (red). - The »Resultst menu appears, and the scan for channels begins. - Depending on the number of channels re- ceived, this can easily take a few minutes. - The scan is complete as soon as the »PROGRAM TABLE« appears. Note: m# You can abort the scan by pressing »MENUK. 12 Press » MENU to end the setting. Note: m lFother television channels are to be tuned from a second satellite, proceed as follows: Open the menu with »MENUK, select the line »SOURCE SETUP« with »W« or » Ac and press »OK« to confirm. Then select the »Automatie Channel Search« with »W« or »A« and press »OK« to confirm. Confirm the line »Select Satellite« with »OK« and select the preferred satellite with »W«, » Ac, »C« or »®«. Start the scan with »e« (red). Continue the adjustment by step 4 ofthe chapter. Note: m Before recording HD channels, please check signal quality and Strength, see chapter "Displaying signal information" on page 72. IFthe level is displayed in green, you can record HD channels without any problems. ENGLISH 19|

Use »€« or »D« to set the required scan type: = »DTV&, scan for digital television channels; = »ATV«, scan for analogue television channels; - »ATV & DTVe, scan for analogue and digital television channels. Caution: m The antenna power supply [SV —) may only be switched on ifthe antenna is an active indoor antenna with a signal amplifier and it is not already supplied with a voltage via a mains plug (or similar supply]. Otherwise you may cause a short circuit and irreparably damage your antenna. 3 Select the line »Active Antenna Power« with »V« or »A«. Switch on the antenna power supply for the antenna with »€« or »2« (»On«). 4 Startthe scan with »ee« (green). - The »Search Results menu appears, and the search for channels begins. - Depending on the number of channels re- ceived, this can easily take a few minutes. - The scan is complete as soon as the »PROGRAM TABLE« appears. Note: m You can abort the scan by pressing »MENUK. 5 Press »MENUX to end the setting. Note: m Before recording HD channels, please check signal quality and Strengih, see chapter "Displaying signal information" on page 72. IFthe level is displayed in green, you can record HD channels without any problems. [20 EeNeusH Tuning channels from the cable provider (DVB-C) 1 Inthe »Source Setup« menu, in the »Connection Type« line, select the option »Cable« with »€« or »D«. 2 Select the line »Scan Typex with »W« or L7AUA Use »@« or »D« to set the required scan type: = »DTV, scan for digital channels; = »ATV<, scan for analogue television channels; - »ATV & DTV«, scan for analogue and digital television channels. 3 Select the line »Cabel Scan Type« with »Ve« or » A. Select the preferred option bQuicke or »Fulle) with »€x or »3«. - The search function »Quick« sets up the channels according to the information provided by your cable provider in the transmission signal. - IFthe option »Full« is selected, the entire frequency range will be scanned. The search can take a long time with this op- tion. This option is recommended if your cable provider does not support the scan type »Quicke. Note: # You can accelerate the search. To do this, you need information about the frequency and network ID. You are usually able to get this data from your cable operator or find it in forums on the Internet. 4 Startthe scan with »ee« (green). - The »Search Results menu appears, and the search for channels begins. - Depending on the number of channels re- ceived, this can easily take a few minutes. - The scan is complete as soon as the »PROGRAM TABLE appears. Note: m You can abort the scan by pressing »MENUK. 5 Press »MENUX to end the setting.

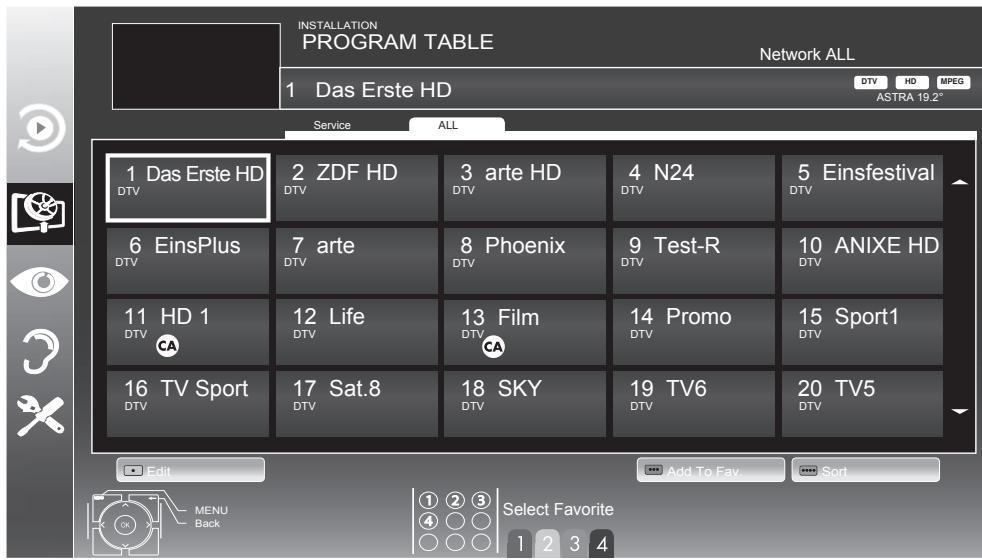

INITIAL SET-UP Changing the program table for the digital channels Channels which are found using the scan are saved in the »PROGRAM TABLEx. You can delete channels which are not required from the programe table, you can change the order of channels within the programe table and lock individual channels (Parental control). You can also add channels to the favourites list: in addition, you can change the order of chan- nels within the favourites list. Switch to the next page in the programe table with »P+« and to the previous page with »P-«. With »e.e« [yellow] you can open the »LIST MANAGEMENT within the programe table In this List Management you can create your own favourites lists. With »e.se« (blue) you can sort the channels according different criteria. PROGRAM TABLE 2 ZDF HD 6 EinsPlus 7 arte 11 HD1 12 Life

16 TV Sport 17 Sat8 3 arte HD 8 Phoenix 13 Film 18 SKY Selecting channel lists 1 Open the menu with »MENU« 2 Select the »SOURCE SETUP« menu with »V« or »A« and press »OK« to confirm. - The »SOURCE SETUP« menu appears. 3 Select the line »Programe Table« with »W« or »A« and press »OK« to confirm - The menu »PROGRAM TABLE« appears. Important: # Programe table and favourites lists are saved separately according to the different input sources (satellite, cable, air]. # When opening the program table, the respective channel list for the current input signal appears Notes: m fin the program table A appears added to the name ofthe channel, you need a CI module and a Smart-Card for watching these channels. m As the received data channels are not displayed in the program table, number channels displayed in the program table may be less than 6000 5 Einsfestival Test-R ANIXE HD 14 Promo 15 Sporti 19 TV6 0 TV5 ENGLISH 21|

INITIAL SET-UP Deleting channels in the program table 1 _Inthe »PROGRAM TABLEx men, select the Edit mode by pressing »+« (red). 2 Select the television channel to be deleted With » Wa, » Ac, »G« or »D« and press »ese« (yellow) to delete. Note: m You can delete all channels with ». (blue). 3 Confirm the deletion process with »ee« (green);

cancel the deletion process with »e« (red); 4 Quitthe program table with »MENUX. Change the order of the channels in the program table {only satellite channels and digital television channels from the cable provider] 1 Inthe »PROGRAM TABLE« menu, select the Edit mode by pressing »e« [red). 2 Select the channel which should be moved with » We, » Ac, »G« or »D« and mark it with »e« (red). 3 Move the channel to its new position with D Ve, » Ac, »É« or »D« and press »OK« to confirm. Note: m Repeat steps 2 and 3 if you would like to change other channels. 4 Quitthe program table with »MENUX. [22 EeNeusH Sorting channels in the program table {only satellite channels and digital television channels from the cable provider] You can sort the order of the channels in the program table according different criteria. 1 Inthe »PROGRAM TABLE« menu, select the Sort mode by pressing »=++e« [blue]. 2 Select the sort criteria for satellite chan- nels with nee [red), sex [green] or neseu yellow};

INITIAL SET-UP Creating lists of favourites You can save your favourite channels in up to four favourites lists [FAV 1 to FAV 4). Notes: # Favourites lists must be created separately for all input sources (satellite, cable, air]. m You can select the favourites list by pressing »FAV<. 1 Inthe »PROGRAM TABLE« menu, switch over to the list view with »..e« (yellow). 2 Select the channel of your choice with »W« or» Ac. 3 “Push” the channel into the favourites lists 1 to 4 with »€« or »ÿ« and press »OK« to confirm. - The position in the favorites list is marked with we. - You can enter the same channel in more than one favourite list. - Each favourite list can store up to 250 channels. Notes: # Channels can also be deleted from the favourites lists. Select the channel to be deleted with » Wa, »Ax, »€« or »3« and press »OK« to delete it. m When deleting a channel from the favou- rites list, the order within the favourites list will be updated. 4 Quitthe program table with »MENUX. Sorting channels in the favourite list You can change the order of channels in the favourites list. 1 Inthe »PROGRAM TABLE« menu, select the favourites list »1« to »4«. 2 Selectthe channel which should be moved with » We, » Ac, »G« or »D« and mark it with »e« (red). 3 Move the channel to its new position with DV, » Ac, »G« or »ÿ« and press »OK« to confirm. Notes: m Repeat steps 2 and 3 if you would like to change other channels within the same favourites list. m Repeat steps 1 to 3 if you would like to change channels in a different favourites list.

4. MENU the current favourites list with »e.

(blue). - The entire programe table will appear again. 5 Quitthe program table with »MENU«. ENGLISH 23 |

PICTURE /SOUND SETTINGS

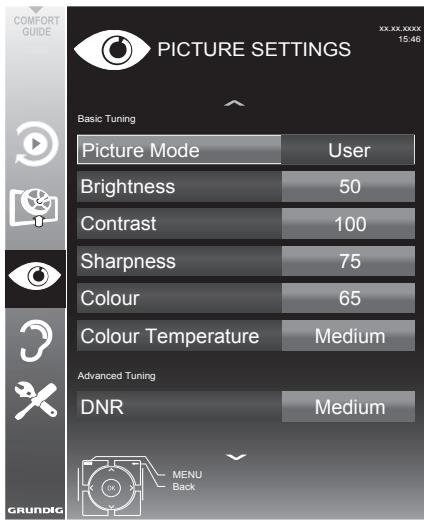

Select the line »Picture Mode, »Brighiness«, »Contrast, »Sharpnesse, »Colour«, or »Colour Temperature« with »Wa or » A. Select the value with »€« or »ÿ« and press »OK« to confirm. Note: m In the »PICTURE SETTINGS« menu you can also find other additional settings. 4 Select the line »DNRe, »Mpeg NR«, »Vibrant Colour, »Perfect Cleare, »Film Modex, »Gammac, »Dynamic Contraste, »Dynamic Backlighte or »Backlight with »V« or »A«. Select the value with »€« or »ÿ« and press »OK« to confirm. 5 Press »MENUX to end the setting. [24 EeNeusH Advanced picture settings The “advanced picture settings" are in principal digital image improvements which, however, should be only used when necessary when pic- ture quality and transmission is excellent. They may well improve the display with poor mate- rial, but may adversely affect the display where transmission and picture quality are excellent. m »Nois Reduction« - Reduces the visible snow by displaying the picture a little less sharply and creating a slight blurring. Should therefore be used minimally with good picture material. m »Block Noise Reduction« - This function can only be selected with digital reception sources and AV presets. lt reduces any in- terference from artefacts [pixel blocks) from digital programmes due to MPEG compres- sion (such as from DVB.T receivers and lower transmission rates or DVD players). m »Vibrant Colour« - Increases the colour contrast and the contrast adjustment. This setting is mosily too strong for use with nor- mal pictures and should only be used where necessary (low or off] otherwise nuances in he image can be suppressed. m# »Perfect Clear« - Improves the general im- age by means of a gentle blue hue (giving the appearance of greater sharpness) and improves the black level by setting this en- tirely to black from specific shade of back. This reduces the visible grey values in the dark areas of the picture. m »Film mode« detects and processes feature films automatically for all channel sources. This means you will always receive an optimal picture. This functions in the modi 480i, 576i and 1080i in TV playback and for other chan- nel sources. IFthe »Film mode is switched on for pro- grammes without a feature film signal, minor problems such as picture freeze, defective subiitles or fine lines in the picture could oceur.

PICTURE /SOUND SETTINGS

m »Gammac - This setting establishes which brighiness value should be displayed for which digital transmission value. Most recordings are transmitted with a gamma value of 2.2 (all Windows PCs and newer PCs with a MAC operating system work With this, older MAC systems and transmis- sions without colour profile mosily operate with a gamma value of 1.8]. »Dynamie Contrast« - The function dynami- cally and optimally adjusts the contrast for the respective picture content by analysing images and then altering this depending in a change in contrast. This increase the con- tract, however may also reduce the visible brighiness levels in the picture. »Dynamic Backlight« - Here the device optimally adjusts the back lighting for the picture content by regulating the back lighting depending on the average picture brighiness. If a picture has predominately dark areas, then the black level displayed is improved by downward adjustment of the back lighting (in this case the display ofthe dark areas is improved), and with predomi- nantly bright picture material the back light- ing is maximised in order to display these areas more brightly. m »Backlighte - Manual seing for back light- ing (only active if dynamic back lighting is switched to “OFF"). This setting also directly impacts power consumption. ENGLISH 25 |

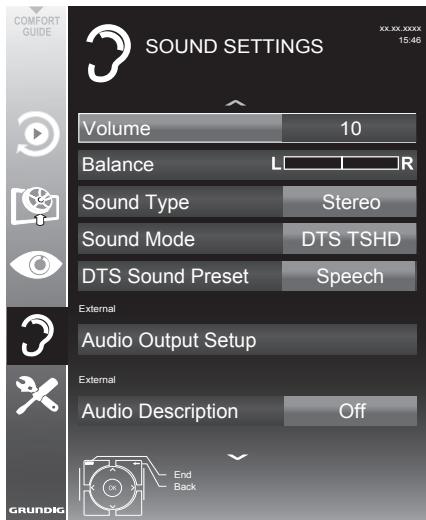

PICTURE /SOUND SETTINGS

PICTURE /SOUND SETTINGS

Switching on and off 1 Press »De, » 1... O« or »P+« or »P-« to switch on the television from standby mode. 2 Press »Ü« to switch the television to standby. Selecting channels O« to select preseis directly. T Press » 2 Select television channels step by step with »P+« or »P-«. 3 Open the channel list with »OK«, select the preferred television channel with » Wa, » Ac, »É« or »D« and press »OK« to confirm. Exit the channel list with »MENU«. Notes: # Informations appears automatically for a short time. m Switch over to the radio programmes, press »TV/Radio«. Select the Channel List with »OK«. The Radio List appears. Select the radio programme with » W« or »A« and press »OK« to confirm. Use »TV/Radios to switch back to the Channel List for television channels. Selecting channels from lists You can select channels from various lists [e.g. all channels, FAV 1 to FAV 4). 1 Press »FAV« to open an overview of pro- grame tables. = The overview is displayed. 2 Select a channel list with »A« or »W« and open it with »OK«. 3 Select a television channel with »W4«, » A, »€« or »D« and press »OK« to confirm. 4 Press »MENU to MENU the channel list. [28 ENeusH Selecting a preset AV channel 1 Open the »Select Source« menu with a] . 2 Select an AV preset with »We, » Ac, »€« or »3« and press »OK« to confirm. 3 Use »1..0O to switch back to the television channel. Adijusting the volume 1 Adjust the volume with »+ aff -«. Switching sound on/off 1 Press » 4 « to mute the sound or switch it on again. Displaying information 1 Display information, press »?« repeatedly. - The display disappears automatically after a short while. Freeze-frame IF you wish to view a particular scene for longer, you can “freeze” the frame of the current pro- gramme. 1 Activate the freezeframe function with » I 2 End the freeze-frame function with »[] Note: # lf an external data medium is connected to the television, the time shift function is activated with »WE«. The time shift function is described on page 37. Audio language Various languages are available on digital television channels. This depends on the pro- gramme being broadcast. 1 Open the selection menu with »@2 «. 2 Select the language by pressing »W« or »Ak« and press »OK« to confirm.

Subtitles Various subtiles are available on digital televi- sion channels. This depends on the programme being broadcast. 1 Open the selection menu with »=X. 2 Select the subtitles with »W« or »A« and press »OK« to confirm. Zapping function This function remembers the channel you are currently watching while you switch over to other ones (zapping). 1 Press »1...O« or »P+4, »P-« to select the channel to be stored in the zapping memory and press »BACK = to confirm. 2 Press »1...0O« or » Ac, » Wa to switch to another television channel. 3 Press »BACK mx to switch between the saved television channel and the last televi- sion channel viewed. 4 Endthe function with »MENUK. ENGLISH 29|

Entering the switch-off time (sleep timer) In the »Sleep Timer« menu you can enter a time for the television to switch off. After this time has elapsed, the television switches to standby mode. 1 Open the Tools menu with »TOOLS+«. 2 Select the line »Sleep Timer« with »W« or

Changing the picture format Basic setting is 16 : 9. 1 Select the picture format with »[@»k. = The picture format [for example » 16:94] is displayed. - You can choose between the following picture formats: »Autox format The picture format is automatically switched to »16:9« for 16:9 programmes. The picture format is automatically switched to »4:3« for 4:3 programmes. »16:9« and »14:9« formats For programmes in 4:3 forma, the picture is stretched horizontally if the »16:9« format or »14:9« format is selected. The picture geometry is stretched horizontally. With actual 16:9 input sources [from a set- top box on the SCART socket) the picture fills the screen completely and with the correct geometry. »4:3« format The picture is shown in 4:3 format. »LetterBox« format The letterbox format is especially suitable for programmes in 16:9 format. The black borders which are usually at the top and botiom of the screen are eliminated, 4:3 pictures fill the screen. The transmitted pictures are enlarged, but are slighily cropped at the top and bottom. The picture geometry remains unchanged. »Subtitle« format If you cannot see the subtitles at the bottom of the screen, select »Subtitle«. »Overscan off« format In this mode, HD pictures are not cropped by the HDMI sockets or component sockets, and are displayed in their original size. This only applies in HDMI mode and for resolutions of 720p or above. ENGLISH 31|

Electronic TV guide The electronic TV guide provides an overview of all programmes that will be broadcast in the next week (for digital channels only]. 1 Press »GUIDEK to display the TV guide. Notes: m Not all channels supply provide a detailed TV guide. m Many broadcasters transmit the current schedule, but do not offer detailed descrip- tions. = There are broadcasters which do not pro- vide any information at all. 2 Press »V« or »A« to select a television channel. - Today's programmes on the television channel selected are displayed. 3 Switch to the information about the current programme with »2«. Notes: m You can open and switch off the extensive programme information with »2«. m You can can added the selected broadcast to the memory timer by pressing »OKx«. æ You can record programmes by pressing

4 Press »V« to select information on the next programme and »A« to return to the infor- mation for the current programme. 5 Select programmes on over the coming days with »ee« [green], and switch back to the current day with »e« (red). 6 Switch back to the channel selection with

Note: # Filter for certain programmes with » {blue}, select the channel type with »&x, »D«, »Ve or » Ac and press »OK« to con- firm. Programmes which match the selected channel type are displayed. 7 Quitthe electronic TV guide with »EXIT«. [32 ENeusH

TELETEXT OPERATION TOP text or FLOF text mode 1 Press »TXT« to switch on teletext. 2 Select teletext pages directly with »1 or step by step with »W« and » Ac. Return to teletext page 100 with »?«. Note: m# Atthe bottom of the screen there is an info bar with red, green and - depending on the channel - yellow and blue panels. Similarly, the remote control also features buttons with different colours with which these pages can be selected. 3 Go back a page with »e« (red). Go to the next page with »++« (green). Select a particular chapter with »e+e« [yel- low). 6 Select a particular subject with »esse« {blue}. 7 Quit teletext with »TXT«. Normal text mode 1 Press »TXT« to switch on teletext. 2 Press »1...O« to select teletext pages directly. Return to teletext page 100 with »?«. 3 Go back a page with »W«. Go to the next page with » A«. Quit teletext with »TXT«. Additional functions Skipping the waiting time While a page search is progressing, you can switch to the TV programme. 1 Enter the teletext page number with »1...O« and then press »bl«. - As soon as the page is found, the page number is displayed. 2 Press »|« to switch to the teletext page. Enlarging the character height IF you have difficulty reading the text on the screen, you can increase the character height. 1 To enlarge the character height of a teletext page, keep pressing »4«. Page hold A multiple page may contain several sub-pages, which are automatically scrolled by the broad- casting station. 1 Stop the automatic scrolling of the sub- pages with »44«. 2 Quitthe function with »44«. Revealing answers Certain teletext pages contain hidden answers or information. 1 Display information with »b}«. 2 Press »b}« to conceal the information. Split screen This functions allows you to display the television channel on the left side, the teletext on the right side. 1 Switch the function on with » Ie. - The television channel and teletext are displayed next to each other. 2 Switch the function off with » Ie. ENGLISH 33 |

USB RECORDING Information on recording and playing television programmes æ Recording and playback of television pro- grammes is only possible with digital televi- sion channels (DVB-S/S2, DVB-T and DVB-C). The digital television channels (DVB-S/S2, DVBT and DVB-C] you are able to record and playback also depends on the broadcaster. Recording and playback of programmes, as well as the time shift function, can only be carried out using an external data medium (hard drive or USB stick). Recordings can be made with most data me- dia on the market. However, we cannot guar- antee operation for all data media. m If a programme was recorded on an external data medium, it can only be played back on your television set. The playback of these programmes is not possible on other devices. If you send your television to be repaired and hardware components need to be replaced, you might not be able to play the recordings again on the repaired television. Reception for SKY broadcasting service is currently only possible in Germany with a suit able settop box or suitable CA module. Grundig does not accept liability for any loss of saved data on an external data medium. The USB Multimedia Player might not support some recorded events. For proper playback please use the PRnP player. To avoid problems in recording and time shifting features of your television, using a high-speed USB disk or Hard Disk is recom- mended. Otherwise, distortions or jams may be encountered in video playback. [34 ENœusH Possible limitations when using an external data medium Depending on the broadcaster, you may experi- ence various restrictions on some of the functions from some television channels. GRUNDIG has no influence on these restrictions. m# Recording a programme on the external data medium can be disabled by the broadcaster. IFthe message »URI* protectedi PVR func- tion is blocked« appears on the screen, then recording or timeshift is restricted [one record- ing possible] or disabled (recording not pos- sible) by the broadcaster.

• URI = User right information (Copyright infor- mation). m If you record and save a programme on the archive of an external data medium, playback can be restricted. The broadcaster can allow you to view this programme one or more times, but it may on- Iyv be available for a certain period of time. # Programmes not suitable for minors will re- quire the input of a PIN number immediately before recording starts. If this authorisation is not given, the recording may not start. m Copying a programme from a digital televi- sion channel onto a video or DVD recorder using the AV/S-VHS socket (analogue picture/sound signal) can also be restricted by the broadcaster. Prerequisite is that your device supports the copying function.

USB RECORDING Connecting external data media Notes: # Before connecting the external data medium it is recommended to switch the television to stand-by mode. # Before removing the external data medium, the television must be switched to standby, so that no data loss oceurs. m Your television features two USB sockets, USB1 and USB2. USB2 is used to connect data media, which require an additional power supply. - for example, external hard disks. 1 Connect the USB2 socket of the television and the corresponding socket of the data medium (external hard disk) using a USB cable;

insert the USB plug of the USB memory stick into the USB1 socket of the television. Notes: # The USB1 socket of the television supplies a maximum power of 500 mA in accor- dance with USB specifications. External hard disks which require more power may therefore only be connected to the USB2 of the television. m lf you use a network cable for external hard disks which have been connected to the USB2 socket of the television, this network cable must also be disconnected from the power supply when the television is switched off. m External data media may not be discon- nected from the television while files on the data medium are being accessed. Settings for USB recording Selecting the menu 1 Open the menu with »MENUK«. 2 Select the menu item »USB RECORDING« with »W« or » A and press »OK« to confirm. - The »USB RECORDING« menu appears. USB RECORDING PRAP Safely Remove Disk Format Partition Disk STOREN"CO Parition MC) Partition ENGLISH 35 |

USB RECORDING “Pausing” time shift pro- grammes You can pause the programme you are watch- ing. This is a useful function, for example ifthe telephone rings while you are watching a film and you do not want to miss anything. À freeze-frame display of the last scene appears on the screen and the programme is recorded in the time shift memory of the external data medium. Note: m The external hard disk or the USB memory stick you connected to the TV should be formatted by the TV before recording or doing time shift. 1 Press »DE« to pause the current programme. - The picture is frozen, the time shift and the remaining recording time are displayed. 2 Press »B « to resume the programme. - The programme will continue to be recorded. Note: m The following functions are possible when in time shift mode: - Rewind, press »{« several times according to speed [the picture freezes while rewinding). - Fast forward, press »b}« several times according to speed. - Select pause with »E«. 3 Press »I« to quit the time shift function. - The message »Live programmex appears, and you will see the current programme without time shift. - The scenes in the “time shift memory” are deleted. Recording programmes You can record programmes. The data for these programmes is recorded on an external data medium and this archive is administered via the television. You need 44 MB fill 110 MB of memory capac- ity on the external data medium for 1 minute recording time. While recording, you can watch another pro- gramme from the archive. Note: m The external hard disk or the USB memory stick you connected to the TV should be formatted by the TV before recording or doing time shift. One-touch programme recording 1 Select the television channel to be recorded with » »1...0« or »P+4, »P-« and press » MM to start the recording. - Information on the recording is displayed: the recording symbol, the channel name, the programme, the recording time and he available memory space. - After a short time this information disap- pears. 2 Endthe recording with » «x 3 Confirm the display with »ee« [greenl;

press »e« (red) to continue the recording. Notes: m After the recording is complete, the record ing will be automatically saved on the external data medium. m IFthe external data medium is disconnected from the USB socket during recording, the recording will be stopped automatically and will not be saved. ENGLISH 37|

USB RECORDING Recording a programme from the chan- nel list 1 Open the »CHANNEL LIST« with »OK«. 2 Select a television channel with » We, » A, »€« or »D« and press »OK« to confirm. 3 Press »MENUX to exit the channel list. 4 Press »@« to start recording. - Information on the recording is displayed: the recording symbol, the channel name, the programme, the recording time and the available memory space. - After a short time this information disap- pears. 5 Press »]« to stop recording. Confirm the display with »es« (green);

press »e« (red) to continue the recording. Set the lead/follow-up time With this function you can change the recording time set by the electronic TV guide. If you think that a program will start a few min- utes earlier or will end several minutes later, you can ,add” up to 60 minutes to this time. 1 Display channel information with »GUIDEL. 2 Switch to the timer function with »seex [yel- low) and then select the »Personel recording time edite menu with »ee« (green). 3 Change the start time with »€« or »D«.

4. Use »V« to switch to the »Ende row and

change the end time with »€« or »>«. 5 Save the setting with »ee« (green). Switch off the program information with »GUIDE<. [38 ENeusH Presetting programmes to be recorded .… using the electronic TV guide You can use data from the electronic TV guide for recording. 20 programmes can be preset for the timer recording or as a reminder. 1 Press »GUIDEL to display channel informa- fon. - The electronic TV guide appears. 2 Select the preferred channel with »W« or L7AUA 3 Switch to the information about the current programme with »D«. 4 Select the programme of your choice with »V« or »A«. 5 Confirm the programme with » x. - The symbol RO appears after the name ofthe programme, and the data has been added to the timer. Note: # IFthe data for the recording is to be changed, use see [yellow] and » (blue) to switch to the »SCHEDULED EVENTS«, press »es« (green), change the data and save it with »ee« (green). 6 Press »MENUX to exit the menu. Notes: # Before the timer recording begins, a warn- ing message appears with a 20-second countdown. You can switch over to the programmed television channel. m IFthe timer recording starts during play- back, playback is not interrupted: Recording takes place automatically in the background as long as you do not select »Yes« when the timer countdown message is shown. m# Note for UPC customers only: When a pro- gram is recorded, it can happen that a part ofthe previous or next program is included in the recording schedule due to possible electronic TV guide inaccuracies. Please be advised that in this case, when one or more ofthese programs are parental rated, the highest access level will be applied for the entire recording.

USB RECORDING .… by manual data entry You can preset up to 20 programmes for timer recording. 1 Press »GUIDEK to display channel informa- fion. - The electronic TV guide appears. 2 Open the »MAKE SCHEDULE« menu by pressing »+« (yellow) twice. 3 Select the line »Type« with » Wa or »A« and select the option »Recording« with »€« or »D«. 4 Select the line »Channele with »W« or »A« and select the channel with »€« or »3«. 5 Select the line »Modex with »W« or » A and select the preferred mode (»Oncex, »Every Dayc or »Weekly«] with »€x or »D«. 6 Select the line »Starte [Start recording) with »V« or » Ac and enter the date/time with »1...0«. 7 Select the line »End« (Stop recording) with »V« or » Ac and enter the date/time with »1...0«. 8 Save the data with »ee« (green). - The programme is preset. 9 Press »MENUX to exit the menu. Notes: # Before the timer recording begins, a warn- ing message appears with a 20-second countdown. You can switch over to the programmed television channel. m lfthe timer recording starts during play- back, playback is not interruptedi: recording takes place automatically in the background as long as you do not select »Yes« when the timer countdown message is shown. Editing recording data in the timer menu You can edit the data for programmed timer recordings. 1 Select the timer menu by pressing »GUIDE, »ec (yellow) and »-=ee« [blue] in succession. - The »SCHEDULED EVENTS« menu ap- pears. 2 Select the title of the programme to be changed with »W« or » A and activate the fimer position with »es« (green). = The input menu is displayed. 3 Select the required option with »W« or »A« and edit the data with »1...O« and »c or »D«. Save the changes with »ee« (green). = The timer has been changed. 5 Press »MENUk to close the menu. Deleting recording data in the timer menu You can delete the data for programmed timer recordings. 1 Select the timer menu by pressing »GUIDEK, »++e« [yellow) and ».e+e« (blue) in succession. - The »SCHEDULED EVENTS« menu ap- pears. 2 Select the title of the programme to be de- leted with »W« or »Ax and delete the timer position with »eee« (yellow). 3 Press "MENU to close the menu. ENGLISH 39|

during playback, select the rewind speed (2x, 4x, 8x or 16x) with »4{« (the picture freezes when rewinding). Playback during a recording During a recording, you can either watch the programme you are currently recording or waïch a different one that you have already recorded. 1 Select the channel to be recorded with »1...0« or »P+4, »P-« and press » lc to start the recording. 2 Open the menu with »MENUx. Select the men item »USB RECORDING« With »W« or » A and press »OK« to confirm. 4 Confirm the menu item »PRnP-Archive with »OK« button. - The menu appears. [40 ENœusH 5 Select the programme you want with »V« or »A« and press »+« (red) to start playback. - The recording continues in the back- ground. 6 Press »I« to end playback. 7 Press »]« to stop recording. Deleting programmes in the recording list You can delete programmes from the recording list. 1 Open the menu with »MENUK«. 2 Select the menû item »USB RECORDING« with »W« or » A and press »OK« to confirm. 3 Confirm the menu item »PRnP-Archive with »OK« button. - The menu appears. 4 Select the programme to be deleted with »Ve or» Ac. 5 Press »eesex (blue) to delete the pro- gramme. 6 Confirm the security query with »ee« (green). Note: m# You cannot delete programmes in the »Recorded Event« menu which are currenily being recorded or played back. 7 Press »MENUk to close the menu.

USB OPERATION File formats Your television can work with the following file formats using the USB sockets: Video data Special codecs for video compression and decompression provide more memory space without compromising the picture quality exces- sively. Your television plays video files in the formats XVID, H.264/MPEG-4 AVC [L4.1, 4 reference pictures), MPEG-4, MPEG-2, MPEG-1, MPEG and MOV. The following file name extensions are also supported: “avi”, “mkv”, "mp4", "ts", “.mov’, “mpg”, "-dat”, “vob”, divx”. Format [codec] information is embedded within the file content and may differ depending on the file extension. “avi”, “.mkv” or “divx” files con- taining divx codec within are not playbacked. Image data Your television can display pictures in the for- mais JPEG, PNG and BMP. JPEG stands for Joint Picture Experts Group. lt denotes a process for compressing picture files. PNG and BMP are process used to save image data with no, or very litile, losses. Piciure files can be stored with other types of files on one medium. These files can be organised into folders and subfolders. Audio data Your television can play audio data in the for- mats MP3, AAC. MP3 is the abbreviation for MPEG-1 Level 3 and is based on the MPEG-1 standard, which was developed by the MPEG [Motion Picture Expert Group). AAC stands for Advanced Audio Coding and was also developed by MPEG. AAC provides better sound quality at an identical data rate. These formats allow audio files to be recorded and played which sound as good as a CD, while taking up only a fraction of the memory space. File name extensions which are supported: MP3, MP2, MA, AAC. MP3 files can be organised into folders and subfolders, as on the computer. ENGLISH 41|

USB OPERATION Connecting external data media Before connecting the external data medium itis recommended to switch the television to stand- by mode. Before removing the external data medium, the television set must be switched to standby, so that no data loss oceurs. Notes: m# The USB1 socket of the television set supplies a maximum power of 500 mA in accordance with USB specifications. Exter- nal hard disks which require more power may therefore only be connected to the USB2 of the television set. m If you use a network cable for external hard disks which are connected to the USB2 socket on the television, this network cable must also be disconnected from the power supply when the television is switched off. m External data media may not be discon- nected from the television set while files on the data medium are being accessed. # A bi-directional data transfer as defined for ÎTE (Information Technology Equipment) devices in EN 55022/EN 55024 is not possible. # USB transfer is not in itself an operating mode. lt is only an additional function. [42 ENœusH Press »De, »1...O« or »P+« or »P-« to switch on the television from standby mode. Connect the USB2 socket of the television and the corresponding socket on the data device (external hard drive, digital camera, card reader or MP3 player) using a USB cable;

insert the USB plug of the USB memory stick into the USB1 socket of the television set. Removing the external data me- dia Before removing the external data medium, log offthe data medium.

USB OPERATION The media player The media player displays video, audio and picture files stored on external data media. If an external data medium contains files in different formats, you can, when necessary, filter out the formats not required. Main menu of the media player

1. Selected data format.

Total number of folders on the data medium.

3 Preview ofthe selected file.

USB OPERATION Basic playback functions 1 Press »My Media to select the external data medium. - The media player appears. 2 Select the file format [video files, audio files, picture files) with »W« or »Ax. 3 Switch to the folder/file list with »OK«. Notes: # fiwo USB data media are connected, select the desired data media with »W« or »A« and open with »OK«. æ USB data medium with several partitions is connected to the USB sockets, the letter for the respective drive (e.g. C) appears behind the folder symbol. Select the letter of the drive with »W« or » A and press »OK« to confirm. 4 Select the folder or file with »W« or »A« and press »OK« to open it. - A list of subdirectories appears. Note: # Switch back to the main folder with »BACK <=. 5 Select the track or picture with »W« or »A« and press »B> « to start playing. Notes: # You can view information on the film data by pressing »?«. m When playing MP3 data, information on he album, track and singer is displayed at the left of the menu. m When playing picture files, you can use »?« to display information about the resolution and size. m When playing picture data, the file browser switches off. Press »« to display the file browser again. Press »I« to pause playback. Press »B> « to resume normal playback. 8 Press »Ic to end playback. The file browser appears. [44 ENœusH Notes: m Use »Ax to select »Up Folder«, when you would like to return to the last folder. Use »Root [and then press »OK«] to return to the main folder. lt is possible that files which are actually supported do not function correcily in USB mode. This is because certain files are not recorded with standardised compression processes, although they feature the “right” file ending. If a video file features several audio tracks (audio streams}, you can switch these over during playback in full screen mode with »h<. When playing music files, you can use other options in the USB mode at the same time. This way, you can, for example, enhance a slideshow with music. For films, only subtitles in the .SRT, ASS, SSA, .SMI format are supported. The names of the subtitle and film files must be identical. Otherwise, no subtitles will be shown.

USB OPERATION Additional playback functions Depending on the file format, the following additional functions are available: Selecting chapters files {only video files] 1 During playback, select the next chapter with »D«. 2 During playback, select the previous chap- ter with »«. Note: m# You can also select chapters by entering the chapter number with »1...O«. Selecting titles files {only video files] 1 During playback, select the next title with

2 During playback, select the previous title With » We. Playing selected titles Only the marked tracks are played. 1 Select the titles with »W« or »Ax and press »OK« to mark it. 2 Select the next title with »W« or »A« and press »OK« to mark it. 3 Start playback with »B> «. 4 Press »Il« to end playback. Note: m To remove the marking, select the title with »V« or »A« and press »OK« to remove the marking. Selecting a track or picture in steps (SKIP) 1 During playback, select the next track/ picture with »b«. 2 During playback, select the previous track/ picture with »[4«. - Playback begins with the track or picture you selected. Selecting a certain passage for playback {video files only) 1 During playback, press »OK«. 2 Enter the passage [time) with »1...O« and press »es« [green] or »OK« to confirm. Fast forward {for video and audio files only] You can select different speeds (2-fold, 4fold, 8-fold,16-old and 32-fold forwards and back- wards). 1 Select the playback speed during playback With »44« or »bh«.

ACCESSIBLED FUNCTIONS Changing the subtitle language and subtitle mode {only for digital television channels) You can switch the subtitles on and off, select the subtile language and allocate a second subiitle language.

7 Press »MENUX to end the setting. Audio description (Audio sub- titles) Audio description is an additional audio chan- nel for visually-impaired persons. Descriptions are provided of activities, surroundings, changes of scene, gestures and actors' facial expressions. This audio channel is transmitted simultaneously with the normal sound on digital channels. Avail ability depends on the respective channel and broadcaster. 1 Open the menu with »MENUK. 2 Select the menu item »SOUND SETTINGS« menu with »W« or »A« and press »OK« to confirm. ) SOUND SETTINGS Volume 10 Balance DR Sound Type Stereo DTS TSHD Speech Sound Mode DTS Sound Preset Audio Output Setup 3 Select the line »Audio Descriptione with »V« or »A« and select the option »On« with »@« or »3«.

3 Select the input box with »W« or » Ac, enter the data for Date and Time with »1.…O« and press »se« (green) to confirm. [48 ENœusH Manual setting You can also set the difference in time manu- ally - for example, when the correct time is not detected automatically or does not correspond to local time for other reasons. 1 Select the line »Time Adjustmente with » We, then select the option »Manual« with »@x or »D«. — The lines »Time Zonee and »Daylight Sav- inge are active. 2 Select the line »Time Zone« with »W« and press »OK« to confirm. - The »Select Time Zonec menu appears. 3 Select the appropriate time zone with »@«, »D«, » Ve or » Ac and press »OK« to confirm. 4 Select the line »Daylight Savinge with »V« and use »€« or »ÿ« to set the option »Autoc, »Off« or »On«. 5 Press »MENUK to finish the setting. Note: m IFthe option »Auto« is selected in the line »Time Adjustment, the television set auto- matically adapts the time to the time signal from the respective broadcaster. However, different channels may also use time bases which are different to those of your country; e.g. foreign broadcasters. In these cases, reminders and planned recordings may be annulled due to the time difference.

TIMER FUNCTIONS Opening the SETTINGS menu Switch-on timer 1 Open the menu with »MENUx. In the »Auto On« menu you can enter a switch- 2 Select the menu item »SETTINGS« menu on time for the television. After the preset time With » Ve or » Ac and press »OK« to has elapsed, the television switches on from bare Pi standby - at the preselected volume and the = The »SETTINGS« menu appears preselected television channel. 1 Select the line »Auto On« with »W« or »A« and press »OK« to confirm. TTINGS 2. Select the line »Mode« with »W« or »Ax and use »@« or »ÿ« to select when the television should switch on. English 3 Select the line »Input Source« with »W« or »Ak« and use »€« or »ÿ« to select the input fATAIE en source. StRME English 4 Select the line »Service Type« with »Ve Subtitle Mode of or » Ac and use »€« or »>« to select the ele ne off preferred option (ATV, DTV, Radio or DATA). 5 Select the line »Channele with »W« or » A and use »€« or »« to select the preferred channel. Date & Time Time Adjustment Note: m The line »Channelk is only active when the input signal currently in use has been set. If no entry has been made, then the first chan- nel of the selected input source will be used. 6 Select the line »Volumee with »W« or »A« and use »€« or »D« to set the volume. following sections. Entering the switch-off time 7 Select the line »Set Houre with »We or »Ax (sleep timer) and enter the time with »1...Oc. In the »Sleep Timer« menu you can enter a time 8 Save the data with »ee« (green). for the television to switch off. After this time Note: has elapsed, the television switches to standby m You can abort the entry by pressing »e« mode. (red). 1 Select the line »Sleep Timer« with »W« or À. 9 Press »BACK x to go back one menu level or press »MENUX to end the setting. 2 Enter the switch-off time with »€« or »>«. Note: m To switch off the function, use »€« or »3« to set the switch-off time to »Off«. 3 Press »BACK x to go back one menu level or press »MENU to end the setting. ENGLISH 49|

TIMER FUNCTIONS Switch-off timer In the »Auto Off« menu, you can enter a time for the television to switch off. After this time has elapsed, the television switches to standby mode. 1 Select the line »Auto Off« with »W« or »A« and press »OK« to confirm. 2 Select the line »Modex with »We« or » A and use »€« or »ÿ« to set the preferred mode. 3 Select the line »Set Hour« with »W« or »A« and enter the time with »1...O. 4 Save the data with »ee« [green]. Note: m You can abort the entry by pressing »e« (red). 5 Press »BACK <= to go back one menu level or press »MENU to end the setting Automatic switch-off (Auto Sleep) IF this function is activated, the television switches automatically to standby after 5 minutes if no video signal is broadcast or in accordance with the according to European regulations, the tele- vision switches automatically to standby after 4 hours provided that none of the buttons on the remote control or on the television is operated during this period. 1 Select the line »Auto Sleep« with »W« or

Open the menu with »MENUc. Select the menu item »SETTINGS« menu With »W« or » A and press »OK« to confirm. - The »SETTINGS« menu appears. SETTINGS English Audio English Subtitle English Subtitle Mode oi Hard of Hearing Of Date & Time Time Adjustment following sections. Authorising programmes There are films which may be wholly or partially unsuitable for children. These programmes contain information which marks the content or scenes with access levels of 4 to 18. You can select one of the access levels, thereby authorising playback. 1 Select the line »Parental Guidance« with »V« or »A« and press »®« to confirm. 2 Enterthe PIN code »1234« with »1 … Ok. 3 Select the access level with »€« or »>«. 4 Press »BACK x to go back one menu level or press »MENUX to end the setting. Note: m When the TVis in review buffer mode, the parental rating of the program in the live broadcast is applied on the content being watched (rather than the actual parental rating of the content being watched). As a result, a parental rated content being waiched in the review buffer mode will not necessarily show as parental rated and vice versa. This means that if parental rated program starts in live broadcast the PIN-pop up message will appear in review buffer, or the PIN-pop up message will be dismissed in review buffer as soon as a program without parental rating starts in live broadcast.” Locking menus This function allows you to lock the » Automatic Channel Search, »Digital Manual Tuninge, »Analogue Manual Tuning and »Program Table« menus so that they can be only accessed by entering a PIN code. 1 Select »Menu Locke with »W« or »Ax and press »D« to confirm. 2 Enterthe PIN code »12344« with »1...O«. 3 Activate the lock with »€« or »3« (»On«). Note: # To switch off the menu lock, use »€« or »ÿ« to select the setting (»Off«). 4 Press »BACK x to go back one menu level or press »MENU to end the setting. ENGLISH 51|

DIGI LINK Your television is equipped with the DIGI LINK function. IG] | sreicn were cc {Consumer Electronics Control) protocol. CEC allows external devices which are con- nected to the HDMI sockets by an HDMI cable {e.g. DVD player) to be operated with a remote control. Prerequisite is that the devices connected sup- port CEC. Read the operating manual for the external device to find out how to activate the corresponding function. The DIGI LINK functions on your television Switching on the television automati- cally from standby IFthe external device [e.g. Blu-ray player) is switched on, the television also switches on and the appropriate HDMI preset is selected auto- matically. Depending on the features of the external de- vice, the external device (e.g. AV receiver) can be switched on alone, the television stays in standby. Automatic selection of the HDMI preset on the television If your television is switched on and you then switch on the external device (e.g. DVD player], the appropriate HDMI preset on the television will be selected. Selecting the menu language The television menu language is automatically selected on the external device {e.g. DVD player]. The external device must support this function. Switching off the external device automatically IF you switch your television to standby, the external device (if it is switched on) will also be switched to standby. DIGI LINK is always active on your television set. Searching for and activating external devices You can connect up to 11 devices with DIGI LINK functions to your television. 1 Open the Tools menu with »TOOLS+«. 2 Select the menu item »CEC« with »W« or »Ak« and press »OK« to confirm. - The »HDMI CEC Device Liste appears. 3 Start the device search with »e« (red). - The devices found are displayed in the menu. 4 Select the device for operation with »W«, > A, »Ce or »D« and press »OK« to mark it. - lfthe selected device is connected to a different input to the current one, a switch to the respective input will oceur auto- matically. 5 Press »MENUX to end the setting. ENGLISH 55 |

High definition HD ready Connection options Connect the corre- m Which television socket{s) you connect your sponding input sources external devices to depends on the sockets (e.g. HDTV receiver the external device is equipped with and or HD-DVD player] to the signals which are available. the HDMI sockets (for # Please note: With many external devices, 1080p digital HDTV sources). the resolution of the video signal must This ensures that you be adjusted to the input sockets of the can view digital HDTV programmes, even if they television (see the operating manual of the are copy-protected (HDCP High Bandwidth external device]. You can find out which Digital Content Protection], without encountering values you need to set by referring to the problems. guidelines in the sections about the various connection options. m# Do not connect any other equipment while the device is switched on. Also switch off the other equipment before connecting it. # Do not plug in the power cord of the device until you have connected the external equipment and the antenna. ENGLISH 57|

6 Press »MENU« to end the setting. Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. ENGLISH 59|

What is a Common Interface? # Common Interface (CI) is an interface for DVB receivers. m Encrypted channels can only be viewed with a CA module suitable for the encryp- tion system and in conjunction with the corresponding smart card. m The television set is equipped with a Com- mon Interface slot into which CI modules from various providers can be inserted. m You can insert the provider's smart card into the CA module in order to enable the encrypted channels you wish to view. Inserting the CA module Note: m Switch the device off before you insert a CA module into the »Cle slot. 1 Insert the corresponding smart card into the CI module. 2 Insert the CI module with the smart card into the »Cl« slot on the television. Notes: m In the »CA Module sub-menu you can see which CA module has been inserted in the CI slot. m If you are inserting a CA module into the Cl slot of the television for the first time, you will need to wait a moment until the CA module is detected. [60 ENœusH Access control for CI module and smart card 1 Open the menu with »MENUK«. 2 Select the menu item » SOURCE SETUP« With »We or »Ax and press »OK« to confirm. - The »SOURCE SETUP« menu appears. 3 Select the line »CA-Modulex with »W« or »Ae and press »OKK« to confirm. Notes: m This menu provides operating instructions and - after you enter your PIN code - ac- cess to the PAY.TV provider's channels. m# The remaining settings are described in the operating manuals for your CI module and smart card. # The CA modul is not supported in certain countries and regions; please consult your authorised dealer. 4 Press »MENU« to end the setting.

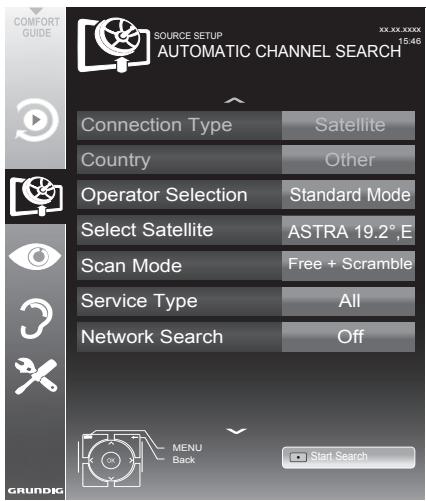

Select the line »Select Satellitese with »W« or »A« and press »OK« to confirm. - The »SELECT SATELLITE« menu appears. 6 Select a satellite with »C«, »D«, »Wa« or »Ak« and press »OK« to confirm. 7 Select the line »Scan Mode« with »W« or Select the scan mode with »€« or »D« (for unencrypted channels, for encrypted channels only, or both]. 8 Select the line »Service Type« with » We or L7AUA Use »€« or »D« to select whether you want to search for television channels (TV) only, radio stations only (Radio} or both (Radio + TV). 9 Select the line »Network Search with »W« or» Ac. Select the option »On« with »€« or »« - Ifthe »Network Search« is set to »On«, the data will be accessed via the new transponder of the network which has been set. 10 Start the scan with »e« (red). Note: æ Ifthe previously stored channels should be retained in the channel list and the new channels found be added to it, then press »eec (green). IF»e« (red) is pressed, the saved channels will be deleted from the current channel list. - The »Resultss menu appears, and the scan for channels begins. - Depending on the number of channels re- ceived, this can easily take a few minutes. - The search is complete as soon as the »PROGRAM TABLE« appears. Note: m# You can abort the search by pressing »MENUK. 11 Press » MENU to end the setting. ENGLISH 61|

Use »€« or »>« to select whether you want to search for television channels [TV] only, radio stations only (Radio) or both (Radio + TV). Start the scan with »e« (red). - The »Resulisx menu appears, and the scan for TV channels begins. Notes: æ When updating via the same satellites a security query is displayed at the start of a search. m Ifthe previously stored channels should be retained in the channel list and the new channels found be added to it, then press »esc (green). |é6 ENœuISsH m lf»e« (red) is pressed, the saved channels will be deleted from the current channel list. - The »Results« menu appears, and the scan for channels begins. - Depending on the number of channels re- ceived, this can easily take a few minutes. - The search is complete as soon as the »PROGRAM TABLE appears. Note: m You can abort the search by pressing »MENUK. 10 Press »MENU« to end the setting. Note: m Repeat the procedure from point 1 for the settings of the second satellite or any others. These channels will be added to the bottom ofthe channel table.

Searching for channels from the cable provider automatically

1. Open the menu with »MENUx.

2 Select the menu item »SOURCE SETUP« With »W« or » A and press »OK« to confirm. = The »SOURCE SETUP« menu appears. 3 Select the line »Sourcex with »W« or »A« and press »OK« to confirm. Select the option »Cable« with »@«, »2«, »V« or »A« and press »OK« to confirm. 4 Select the line »Automatic Channel Search« With »W« or » A and press »OK« to confirm. = The menu appears. Connection Typ Country UR Scan Type DTV& ATV | Cable Scan Type Quick Frequency (MHz) AUS Network ID AGO 5 Select the line »Scan Typ« with »W« or »Ax and set the option »DTV« with »@« or »>«. 6 Select the line »Cable Scan Type« with »W« or »A« and set the option »Quick« or »Fulle with »@« or »3«. - The search function »Quick« sets the channels according to the information provided by your cable provide in the transmission signal. - IFthe option »Fulla is selected, the entire frequency range will be scanned. The search can take a long time with this option. This option is recommended if your cable provider does not support the search type »Quicke. Note: # You can accelerate the search. To do this, you need information about the frequency and network ID. You are usually able to get this data from your cable operator or find it in forums on the Internet. For example, the frequency 402MHz and network ID 61441 can be entered for Germany. 7 Start the scan with »e« (red). - All channel and favourites lists will be deleted and compiled anew. Note: # After starting the scan, a security query will appear. Press »e« [green] to confirm the option »Yese. - The »Results« menu appears, and the scan for channels begins. Depending on the number of channels received, this can easily take a few minutes. - The scan is complete as soon as the »PROGRAM TABLE« appears. Note: m# You can abort the search by pressing »MENUK. 8 Press »MENUX to end the setting. ENGLISH 67|

Searching for channels from the cable provider manually

Tuning analogue television channels This setting is only necessary if you cannot re- ceive any digital channels and you have not car- ried out an analogue search during initial setup. The television channels can be set directly or using the scan. Switching the television to analogue reception Note: m Analogue channels can be selected if the option »Air« or »Cable« has been selected.

2 Depending on the antenna system, select the option »Air« or »Cable with »We, » Ac, »€« or »D« as the input source and press »OK« to confirm. Note: # Additional operations are explained in the following sections. Setting all analogue television channels Analogue channels are displayed in the channel list after the digital channels. Note: # Plug the rooftop antenna cable (for ana- logue television channels) into the ANT IN socket on the television. 1 Open the menu with »MENU«. 2 Select the menu item » SOURCE SETUP« with »W« or » A and press »OK« to confirm. - The »SOURCE SETUP« menu appears. 3 Select the line »Sourcex with »W« or » A and press »OK« to confirm. Select the option »Aire or »Cable« with pc, »3c, » Ve or »A« and press »OK« to confirm. [70 EeNeusH 4 Select the line »Automatic Channel Search with »W« or » A and press »OK« to confirm.

Source AttomaiV Channel Search x] Digital Manual Tuning Analogue Manual Tuning Program Table Signal Information ice Update 5 Select the line »Scan Typ« with »W« or »Ax and set the option »ATV« with »€« or »D«. 6 Start the scan with »e« (red). Note: # After starting the scan, a security query will appear. Press »e« (green) to confirm the option »Yesc. - All channel and favourites lists for the analogue channels will be deleted and compiled anew. - The »Resultss menu appears, and the scan for TV channels begins. Depending on the number of television channels received, this can easily take a few minutes. - The search is complete as soon as the »PROGRAM TABLE« appears. Note: m# You can abort the search by pressing »MENUK. 7 Press »MENUX to end the setting.

Tuning the television channels by enter- ing the channel numbers

Press »..ee« [blue] to save the setting. Note: m If you wish to remedy other television chan- nels, repeat steps 4 to 6. Press »MENUX to end the setting. Changing stored analogue channels If channels were stored with the automatic chan- nel search while tuning the television channels, you can delete them. You can also store chan- nels in a different preset, change or enter the name of a channel as well as skip channels. Selecting a channel list

In the »PROGRAME TABLE« menu, select the television channel to be deleted with » Ve, » Ac, »É« or »D« and press »e« (red) to confirm. Delete the selected channel by pressing pese (yellow). Note: m»e...« (blue) allows all television channels to be deleted. Press »e« [green] to confirm the deletion process. ENGLISH 71|

Skipping television channels You can highlight television channels to be skipped when you select with »A« or »W«. Selection is still possible using the number buttons. 1 Inthe »PROGRAME TABLE« menu, switch over to the list view with »..e« (yellow). 2 Select the preferred channel with »W« or» Ac. 3 Select the column »Skip« with »€« or »D« and use »OK« to mark the channel. - The channel is marked using »4/«. Note: # Channels can also be reactivated. Select the channel with »W« or » Au, then select the column »Skip« and reactivate the chan- nel with »OK«. Creating lists of favourites You can select your favourite channels and save them in up to four favourites lists (Fav 1 to Fav 4). 1 Inthe »PROGRAME TABLE« menu, switch over to the list view with »..e« (yellow). 2 Select the preferred channel with »W« or» Ac. 3 Use »€« or »>« to "push" the channel into one of the favourites lists 1 to 4 and press »OK« to confirm. - The position in the favorites list is marked with we. - You can enter the same channel in more than one favourite list. - Each favourite list can store up to 250 channels. Note: # Channels can also be deleted from favou- rites lists. Select the channel to be deleted With» Ve, » Ac, »G« or »®« and delete it with »OK«. Exiting the settings 1 Press »MENU« to end the setting. [72 ENœusH Displaying signal information for digital channels only) 1 Open the menu with »MENUk. 2 Select the menu item » SOURCE SETUP« with »W« or » A and press »OK« to confirm. 3 Select the line »Signal Information« with »V« or »A« and press »OK« to confirm. - Information on the channel, network, modulation, symbol rate, quality and signal strength is displayed. Notes: m The signal information changes in accord- ance with the current input source. m The signal properties are displayed in the lower section of the menu. The further the bars for »Quality« and »Signal Strenght« extend to the right, the better the reception signal. m The signal level not only depends on your receiver system, but also on the channel which is currently active. Remember this when aligning your antenna based upon the signal level display. 4 Press »MENUK to close the menu.
