USER MANUAL 48VLE7462 GRUNDIG

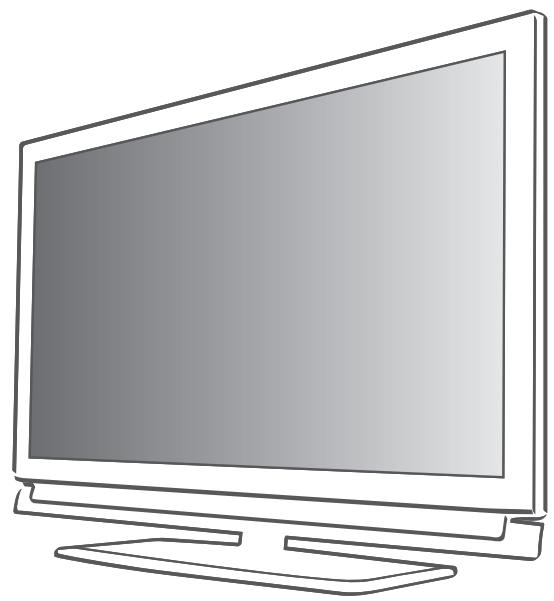

LCD TV with LED Backlight 48 VLE 7462 BL

GENERAL INFORMATION Special features of your television set Receiving digital stations GRUNDIG SCR System Important notes on environmental protec- tion 7 Notes on still images NNNO @ 8 CONNECTION/PREPARATION 8 Connecting the antenna and power cord 9 Inserting batteries in the remote control 10 OVERVIEW 10 Connections on the television set 11 Control buttons on the TV 12 Remote control - main functions 13 Remote control - all functions 14 SETTINGS 14 Initial setup 15 Initial setup - overview 16 Arrange Initial setup 19 Changing the Channel Editor for the digital channels 23 Picture settings 25 Sound settings 27 TELEVISION OPERATION 27 Basic functions 28 Zoom function 29 Zap function 29 Electronic TV guide (RoviGuideTM) 31 Changing the picture format 32 3D FUNCTION 32 Important information about 3D function 32 3D Function 33 3D Settings [2_ ENGLISH NETWORK SETUP Network connection Wired network Wireless network Change TV Name Connecting the TV to a “hidden” network SMART Inter@ctive TV 3.0 FEATURE SMART Inter@ctive TV 3.0 internet ap- plications Creating a Grundig Application Store account Logging in with Grundig Application Store account Grundig Application Store Playing the video, music and image files with home network connection Selecting the digital media server Playback Other playback options USB RECORDING Information on recording and playing television programmes Possible limitations when using an exter- nal data medium Connecting external data media USB recording settings “Pausing” time shift programmes Recording programmes Programme setting for recording Playback Deleting programmes from the recorded files menu USB OPERATION File formats Connecting external data media Removing the external data media The file browser Settings in the USB setup menu Playback basic functions Additional playback functions TELETEXT MODE TOP text or FLOF text mode Additional functions

76 DIGILINK 78 High definition - HD ready 78 Connection options 79 Connecting an external device 80 Using a DVD recorder, DVD player, video recorder or seHop box 80 Headphones 80 Hifi system 82 Whatis MHL? 82 Connecting a mobile device 82 Selecting the channel position for a mo- bile device 83 What is LIVESHAREZ 83 Screen share with Liveshare connection

84 Connecting a PC 84 Selecting the channel position for the PC 84 Settings for the PC

TERFACE What is common interface? Inserting the CA module Access control for CA module and smart cards SPECIAL SETTINGS Searching for all digital television chan- nels from a satellite automatically Searching for digital television channels from a satellite manually LNB Settings Motor antenna setup (DiSEqC 1.2) Searching for television channels from the cable provider automatically Searching for television channels from the cable provider manually Searching for digital terrestrial TV chan- nels automatically Searching for digital terrestrial TV chan- nels manually Automatic service update Tuning analogue television channels Changing stored analogue channels Displaying signal information Deactivate and activate HbBTV Deactivate and activate digital teletext INFORMATION Product plug Other data Service information for dealers Network interfaces Disposing of the packaging Environmental note Troubleshooting ENGLISH _3|

Please note the following information when set- ting up your television set. m This television set is designed to receive and display video and audio signals. Any other use is stricily prohibited. Best viewing distance is 5 times the diagonal length of the screen. External light falling on the screen impairs pic- ture quality. To assure sufficient ventilation make sure there is enough space around the television set in the wall unit. The television set is designed for use in in- doors. If you do use it at outdoors, please ensure that it is protected from humid environ- ments such as rain or splashing water as these will create risk of safety. m Never use the television set in humid environ. ments. Do not put objects containing liquid such as vase on the television set. The liquid in it may spill and cause risk of safety. Place the television set on a solid, level sur- face. Do not place objects such as newspapers on the television set or cloth or similar items be- neath it. Do not place the television set close to heating units or under direct sunlight, as this will impair cooling. Higher ambient temperature will shorten the service life of the television set. Do not open the television set under any cir- cumstances. Safety risk may arise and also the guarantee of the product can be void if the television set is opened. Make sure that the power cord or the AC/DC adaptor (if supplied) is not damaged. Television set can only be operated with the power cable or the AC/DC adapter supplied with the product. |[4_ ENGLISH m IFihe mains plug of the television is grounded, always make sure that it is connected to a grounded socket. Plug the device into the mains socket only after you have connected the external devices and the antenna. Make sure that the mains plug/socket of the television is comfortably accessible. Do not connect any other equipment while the device is switched on. Switch off the other equipment as well before connecting it. Thunderstorms are a danger to all electrical devices. Even if the television is switched off, it can be damaged by a lighining strike to the mains or the antenna cable. Always discon- nect the mains and antenna plugs during a storm. Clean the television screen and cabinet with a soft and dry or slighily damp cloth. Do not use wet cloth or detergent (glass cleaners, co- logne and all cleaning agents alike]. Only use plain water to dampen the cloth. When deciding where to install the television set, do not forget that most furniture surfaces are coated with various types of lacquer or plastic which contain chemical additives. These may cause corrosion to the feet of the television, thus resulting in stains on the surface of the furniture. Screen of your LCD/LED television conforms to the highest qaulity standards and has been controlled with regard to pixel faults. Despite the great care taken in manufacturing, technological reasons make it impossible to completely discount the possibility that some pixels may be faulty. Provided they are within the thresholds specified by the DIN norm, pixel faulis of this kind cannot be regarded as a defect as defined by the warranty.

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

m# Please use your television at a location as far as possible from cellular phones, microwave ovens and similar devices operating with high frequency waves. Otherwise your televi- sion may malfunction because of such radio waves. Do not expose the batteries to excessive heat such as direct sunlight, fire, etc. Do not use old and unused batteries together. Only replace the exhausted batteries with those having the same model, value and prop- erlies. By ensuring proper disposal of these batteries, you will have contributed in prevention of po- tential hazards on the environment and human health that may arise from inappropriate dis- posal of the batteries. Warning About the Device Package: The package of the product can be recycled. Please ensure that the packaging is disposed separately conforming with the local regula- tions to make sure that the product packaging is recycled environmentally. Caution: mlf you want to use a wall bracket for your television, make sure you read the assembly instructions for the wall bracket carefully or have your specialist dealer mount it for you. m When buying the wall bracket, make sure that all the fastening points needed on the television are there on the wall bracket and that they are all used when it is mounted. m If wall hanger is not going to be used, use your television only with the stand supplied in the box. As your television may tipover without a stand or with a different stand, this will create risk of safety. Things to do for energy saving m# Do not leave your television turned on if you are not watching it; switch itto standby. lf you will not use your television for a long time, leave it in off mode by switching off from the mains (if any] or by unplugging. m Prevent surrounding noises in the room where you watch your television. Keeping the volume of your television at regular levels will help you to save energy. m When determining the position of your tele- vision, try to place it so that the sunlight will not fall direcily onto the screen of the televi- sion but will come from behind of it. Thus, you can use your television without increasing the contrast setting and save energy. ENGLISH 5]

GENERAL INFORMATION Special features of your m Your television set enables you to receive and watch digital stations (via DVB-S, DVB-T and DVB-C|, including the High Definition (HD) ones. At present, reception for these digital television stations in High Definition is only possible in some countries in Europe. # Although this television meets the current DVB- S, DVB-T and DVB-C standards as of August 2012, its compatibility with future DVBS digi- tal satellite broadcasts, DVB-T digital terrestrial broadcasts and DVB-C digital cable broad- casis is not guaranteed. m This television can receive and process all analogue and all unencrypted digital stations. This television set has an integrated digital and analogue receiver. The digital receiver unit converis the signals from digital stations to pro- vide outstanding audio and picture quality. m The TV guide (only for digital stations] tells you of any schedule changes at short no- lice, and provides an overview of all the stations’ schedules for the next few days. Quite a lot of content such as programme data, channel logos, players, images, frag- ments, etc. can be reached via the inter- net through internet connection thanks to the online feature of the TV guide. Detailed information for each channel - if provided by the broadcasting channel - is in- cluded in the electronic programme guide. You can connect various data media, for ex- ample, an external hard drive, a USB memory stick or a digital camera to the USB sockets. Using the file browser, you can then select and play the file formats you want [for example, MP4, MP3 or JPEG data). With the Time Shift function, you can easily stop and resume a programme with the remote control in a fast and simple way. Programme is recorded to the external data medium. m You can record any digital TV channel you have chosen, if no limitation has been im- posed by the broadcaster. TV channel is transformed by your television and saved to a USB external data medium. |[é_ ENGLISH You can recall and play saved programs from the archive. While a recording is in progress, you can se- lect and watch another recording from the ar- chive. For detailed information about saving and playing TV programs, please see page 53. With the 3D function and 3D glasses of your TV, you can watch 3D movies in the comfort of your home with the reality of a theater. LED technology has been used in this televi- sion to provide you with the best experience in 3D feature. To join the 3D world, just put on the Grundig 3D glasses. Smart Inter@ctive TV 3.0 feature provides your TV with Internet applications when your TV is connected to Internet. You can surf through the web pages, visit popular video and photo sharing sites as well as social networks with these applications. Wireless USB keyboard and mouse support in the Web browsing of your television facilitates surfing through the internet pages for the user. DINA feature allows you to use a wired or wireless (with wireless USN network device] local network to access your content that were recorded with DLNA compatible devices we use at our daily lives such as a PC, mobile phone or NAS [Network Attached Storage] which are operated as DMS (Digital Medial Server]. While watching TV, you can play any content you like at any time by using DMC ap- plications on your mobile device or PC without starting DLNA application. By using DMR feature of your television, you can start playing contents on another mobile device or PC and you can perform controls from these devices in lieu of the TV. For this, you need to have DMC (Digital Media Con- froller] devices on your devices. In his way, by starting DLNA application on your TV with DMC-supported applications, or without hav- ing to start the same, you can start and control the content from your mobile devices or PCs.

GENERAL INFORMATION # Devices that contain and serve video, music or image files are called Server. This tele- vision receives video, music and image files from the server through home net- work, allowing you to access and play such media even when your television is located in a different room then the server. A DINA compatible device such as a PC, mobile phone, NAS or a NAS-like [Network attached storage] device which operates as a DMS (Digital Media Server) is required in order to use home network. Receiving digital stations m# To receive digital satellite stations (DVB-S) you need a satellite antenna. # To receive digital stations (DVB-T) you need a digital rooftop or indoor antenna (passive or active indoor antenna with its own power sup- ph. The antenna cable of the cable TV network that broadcast in DVB-C must be plugged into TV in order to receive the DVB-C broadcasts. Unlike analogue broadcasting, not every sta- tion has its own transmission frequency. In- stead, several stations are grouped into what are known as bouquets on a regional or na- tional level. You can find the current transmission informa- tion on teletext from various broadcasters, or look in a TV guide or on the Internet. Various digital television stations from private broadcasters are encrypted [DVB-S, DVB.T and DVB-C). Watching these stations and the recording and playback functions are only possible with the appropriate CI module and a SmartCard. Ask your specialist dealer. GRUNDIG SCR System m Your TV supports SCR system [Single Chan- nel Router). With SCR satellite system, several users can individually receive all signals from the satellite simultaneously. Important notes on environmen- tal protection Those items mentioned below will help you re- duce the consumption of natural resources as well as save your money by reducing electricity bills. m If you will not be using the TV set for several days, it should be disconnected from the mains for environmental and safety reasons. TV will not consume energy in this condition. m IFthe TV set has main switch, it will be enough to turn the TV off via main switch. TV will re- duce energy consumption almost to Zero Watt. m TV consumes less energy on stand by mode. However, some TV sets may have features such as on timer, that require the TV set to be left in standby to work correcily. m TV consumes less energy when brighiness is reduced. Notes on still images Watching the same image for a long time on the screen may cause a still image remain feebly on the background. Feeble image(s] on the back- ground is originated from LCD/LED technology and does not require any action under guaran- tee. To avoid such cases and/or minimize the impact, you may observe the tips below. # Do not allow the same TV channel to stay on the screen for a very long time. Channel logos may cause this situation. # Do not allow the images, which are not full screen, to constanily stay on the screen; if not streamed in full screen format by the broad- caster, you can convert the images to full screen by changing picture formats. 2 Higher brighiness and/or contrast values will lead this impact to appear faster; therefore, you are recommended to waich your TV in the lowest brighiness and contrast levels. ENGLISH _7|

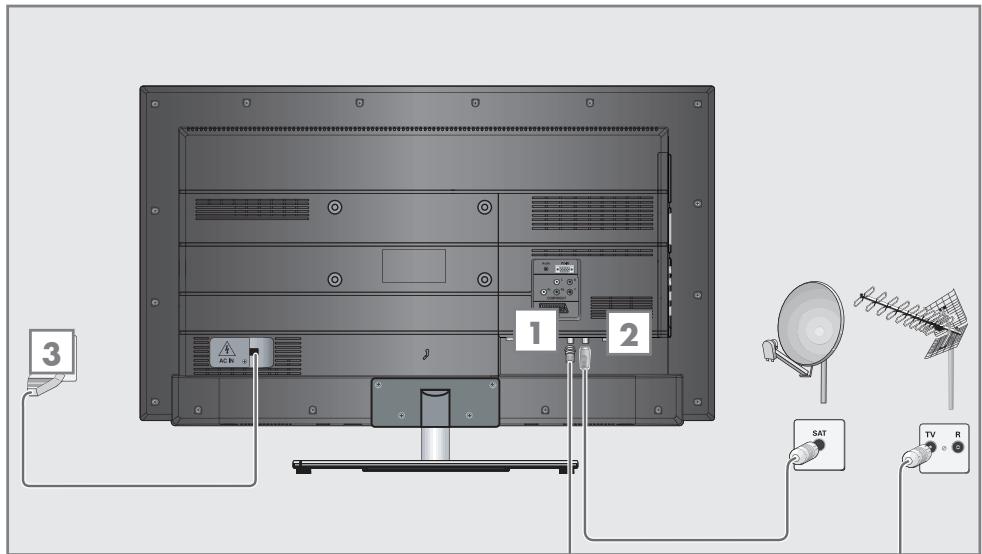

CONNECTION/PREPARATION Connecting the antenna and power cord 1 To receive digital satellite channels (DVB-S), connect the satellite antenna cable to the antenna socket »SATELLITE on the televi- sion set; and / or 2a To receive terrestrial digital broadcasters (DVBT) connect the cable for the rooftop or indoor antenna (passive or active indoor antenna with its own power supply] to the antenna socket »ANT IN« on the television set;

2b To receive digital cable channels (DVB-C) connect the cable for the rooftop antenna to the antenna socket »ANT IN« on the televi- sion set;

2c To receive analogue TV channels, connect the cable for the rooftop antenna to the antenna socket »ANT IN« on the television sel. [8_ ENGLISH Note: # When connecting an indoor antenna you may have to try it out at different positions until you get the best reception. 3 Plug the power cord into the wall socket. Note: # Only plug the device into the mains socket after you have connected the external de- vices and the antenna. m# Do not use an adapter plug or extension cable which does not meet the applicable safety standards. Do not make changes on the power cord.

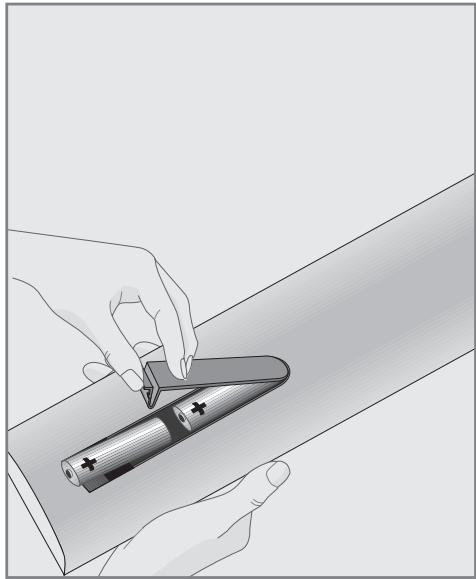

CONNECTION/PREPARATION Inserting batteries in the remote Environmental note control C] This symbol on the bat tery or on the packaging indicates that the battery Pb | ;scvided wih this product shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury [Hg] or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead. Batteries, including those which contain no heavy metal, may not be disposed of with household waste. Please dispose of used bat- teries in an environmentally sound manner. Find out about the legal regulations which apply in your area. 1 Open the battery compartment by removing the lid. 2 Insert the batteries (2 x 1.5 V micro; for example RO3 or AAA). Observe the polarity {marked on the base of the battery compart- ment). 3 Close the battery compartiment. Note: m Ithe television no longer reacis properly to remote control command, the batteries may be flat. Be sure to remove the exhausted bat- teries from the baïtery compartiment. mThe manufaciurer accepis no liability for damage resulting from used batteries. ENGLISH _9|

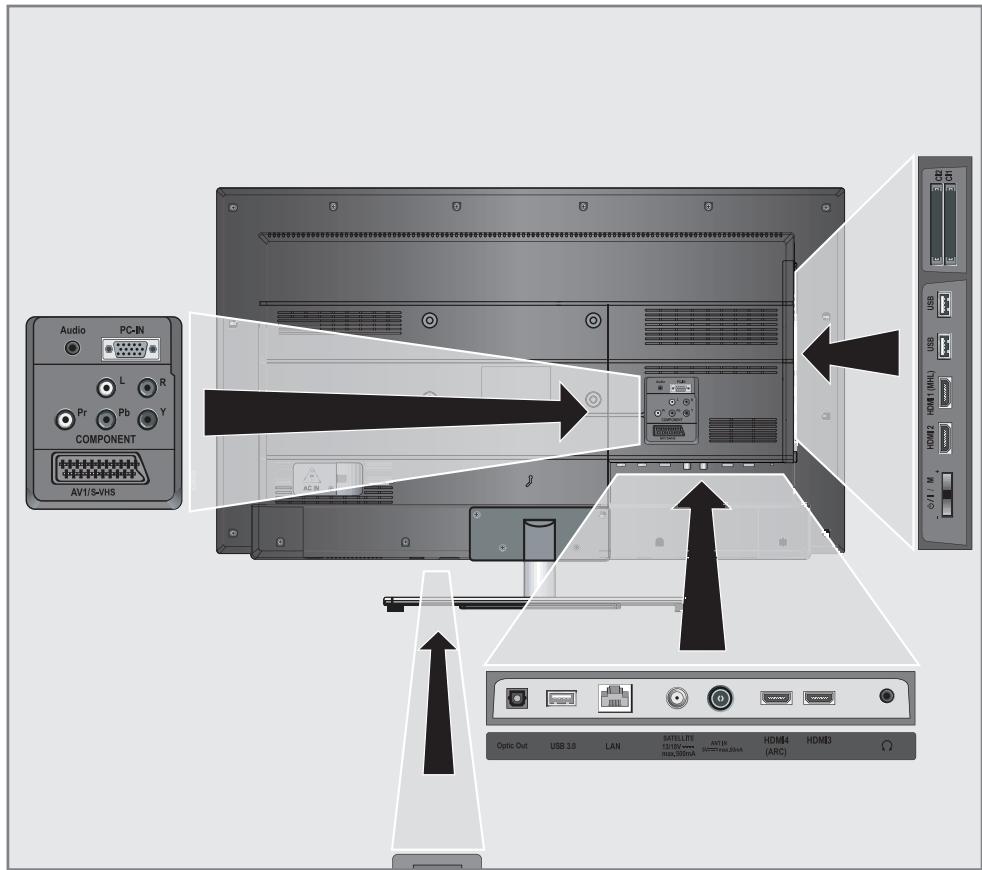

OVERVIEW Connections on the tele Audio PC-IN COMPONENT

ci2 Network cable connection socket. Satellite antenna socket. Antenna socket. HDMI socket, audio/video signal input (HDMI). HDMI socket, audio/video signal input (HDMI). Headphone connection (3.5 mm jack}; External audio output (with headphone-RCA converter). HDMI socket, audio/video signal input (HDMI). HDMI socket, audio/video signal input (HDMI). USB socket for external data medium and PVR function; Wireless keyboard, mouse socket. USB socket for external data medium and PVR function; Wireless keyboard, mouse socket. Common interface slot. Common interface slot. Control buttons on the TV ON : OFF Power switch, switches the television into standby mode and off. Multi function switch Using the multi function switch »0/1/SEL« on the television different settings can be made. There may be no menus visible on the screen. Pressing the switch, switches in the television from standby mode. In operation: Pressing the switch displays the navigation menu. Moving the switch up or down selects the desired menu item: - Set to Volume Navigation; - Set to Channel Navigation; - Open Input Source Menu; - Go to Standby. Access function/setting by pressing. Moving the switch up/down selects the func- tion/setting. ENGLISH 11

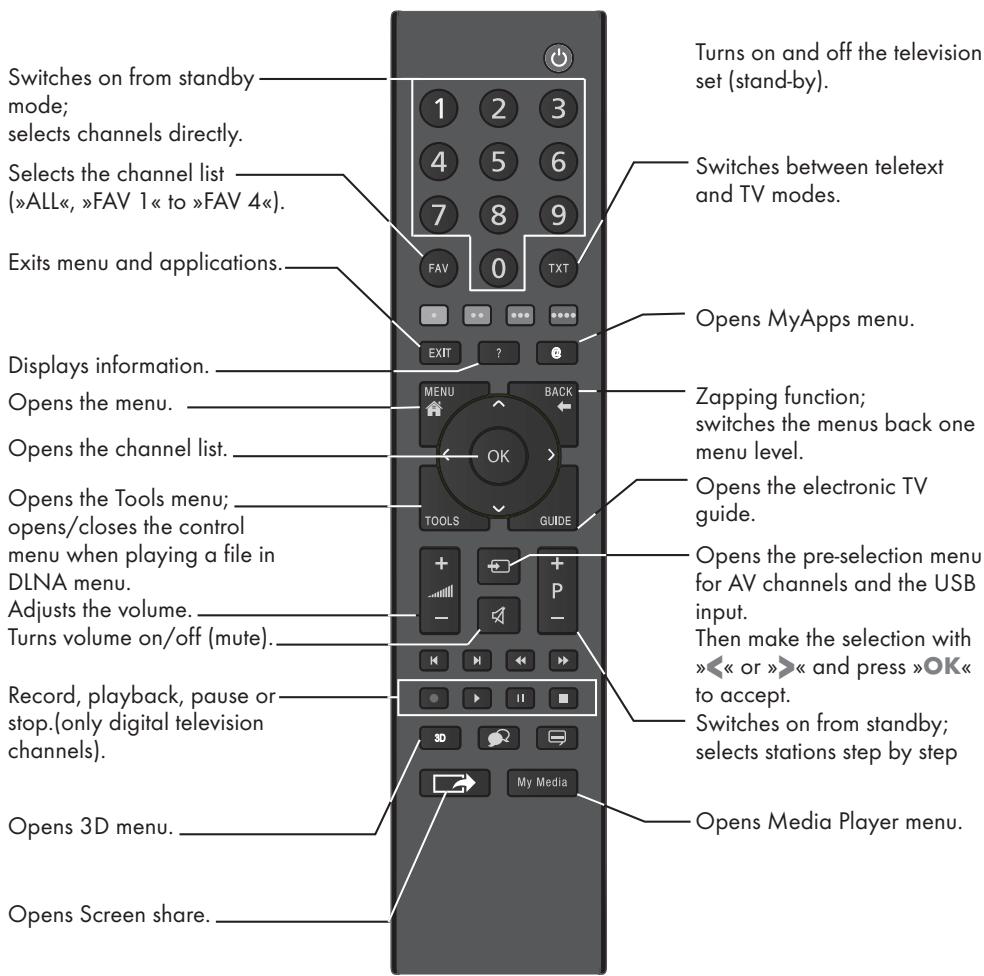

OVERVIEW Remote control - main functions Turns on and off the television set (stand-by). Switches on from standby mode; selects channels directly. Switches between teletext Selects the channel list (ALLe, »FAV T« to »FAV 44 \ and TV modes. Exits menu and applications. Opens MyApps menu. Displays information. Zapping function; switches the menus back one menu level. Opens the menu. Opens the channel list. Opens the electronic TV guide. Opens the Tools menu; opens/closes the control menu when playing a file in DLNA menu. Adiusts the volume. Turns volume on/off (mute). Opens the pre-selection menu for AV channels and the USB input. Then make the selection with »c or »D« and press »OK« to accept. Switches on from standby; selects stations step by step Record, playback, pause or stop.{only digital television channels). Opens Media Player menu. Opens 3D menu. Opens Screen share. Cursor Control A Moves the cursor up and down in the menus. < > Moves the cursor left/right in menus. Opens channel list; v À : activates various functions. ENGLISH

OVERVIEW Remote control - all functions + (red) Selects a page in teletext mode; ++ (green) Selects/activates various functions +. (yellow) in menus. eee (blue

Switches to double character size in teletext mode; selects the previous track/previous picture in the file browser. Updates a page in teletext mode; selects the next track/next picture in the file browser. Page hold in teletext mode; starts the reverse picture search in the file browser. Show answers in teletext mode; starts the forward picture search in the file browser. Starts recording (in digital TV op- eraïion, recording only via external data media). Starts playback in the file browser; Starts playback in the DLNA menu. pe)

Note: Time shift during live signal (in digital TV operation, only via external data media}; Pauses the file executed on the DINA menu. Selects the split screen function in teletext mode; ends playback in the file browser; ends recording or playback in the PVR mode; Stops the file executed on the DLNA menu. Selects different audio language (in digital TV operation). Selects different subtitles (in digital TV operation]. m Your TV supports remote control feature for Apple iPhones, Windows mobile phones and Android phones. Depending on the fea- tres of your TV, you may control your TV by your phone after downloading the free »GRUNDIG TV Remote application from Apple App. Store, Windows Phone Store or Google Play (Android Market]. ENGLISH 13|

SETTINGS Initial set-up The Television is fited with an “installation assis- tant”, which guides you step by step through the basic settings. Using the screen dialogue, the user guide en- ables supposedly complex settings and data entries to be presented simply and clearly for everybody. Pages and dialogue items appear on the screen, which identify the subsequent and likely operat- ing steps. To support this, you will also see the required button symbols of the remote control. The basic settings in detail: - language selection - country selection; - choice of user mode; - network settings [if desired); - Station settings (DVB-S, DVB-T, DVB-C and analogue channels). The detailed settings can be found on pages 16 and 18. Settings for connecting to the home network Depending on the connection to the home net- work, you connect your television to the home network: - via a LAN connection or - Without cable via WLAN There are two options with the LAN-connection: Automatic connection, all data regarding connection settings (»IP Ad- dresse, »Netmask«, »Gateway« and »DNS«) are obtained from modem automatically. Manual connection, all data regarding connection settings (»IP Ad- dresse, »Netmask«, »Gateway« and »DNS«) must be configured manually. [14 ENGLISH There are various options when using WLAN: Automatic connection, all data regarding connection settings (»IP Ad- dresse, »Netmask«, »Gatewayx and »DNS«) are obtained from modem automatically. Depending on the router, you can use the fol- lowing options: - Option “WPS-PBC" [Push Button Configura- tion}; - Connecting with a WPS PIN; - Connecting by entering the network pass- word. Manual connection, all data regarding connection settings (»IP Ad- dresse, »Netmaskx, »Gatewayx and »DNS«) must be configured manually. Tuning television channels Depending on the type of antenna connected, you can decide which channels you would like the television to search for. DVB-S - Tunes digital television channels from the satellite, from page 17. You have two options for this search: - the basic installation which presets a stan- dard selection, e.g. the satellite Astra 19.2° East; you need only start the search; - the professional installation, which allows you to make all required settings and set pa- rameters for your receiver system. DVB-C - For setting up digital cable channels see page 18. DVB-T - For setting up digital terrestrial channels see page 18. See "Special Settings" section on page 92 for searching analog television channels. Note: m See "Special Settings" section starting from page 86 for more information on digital tele- vision channel settings.

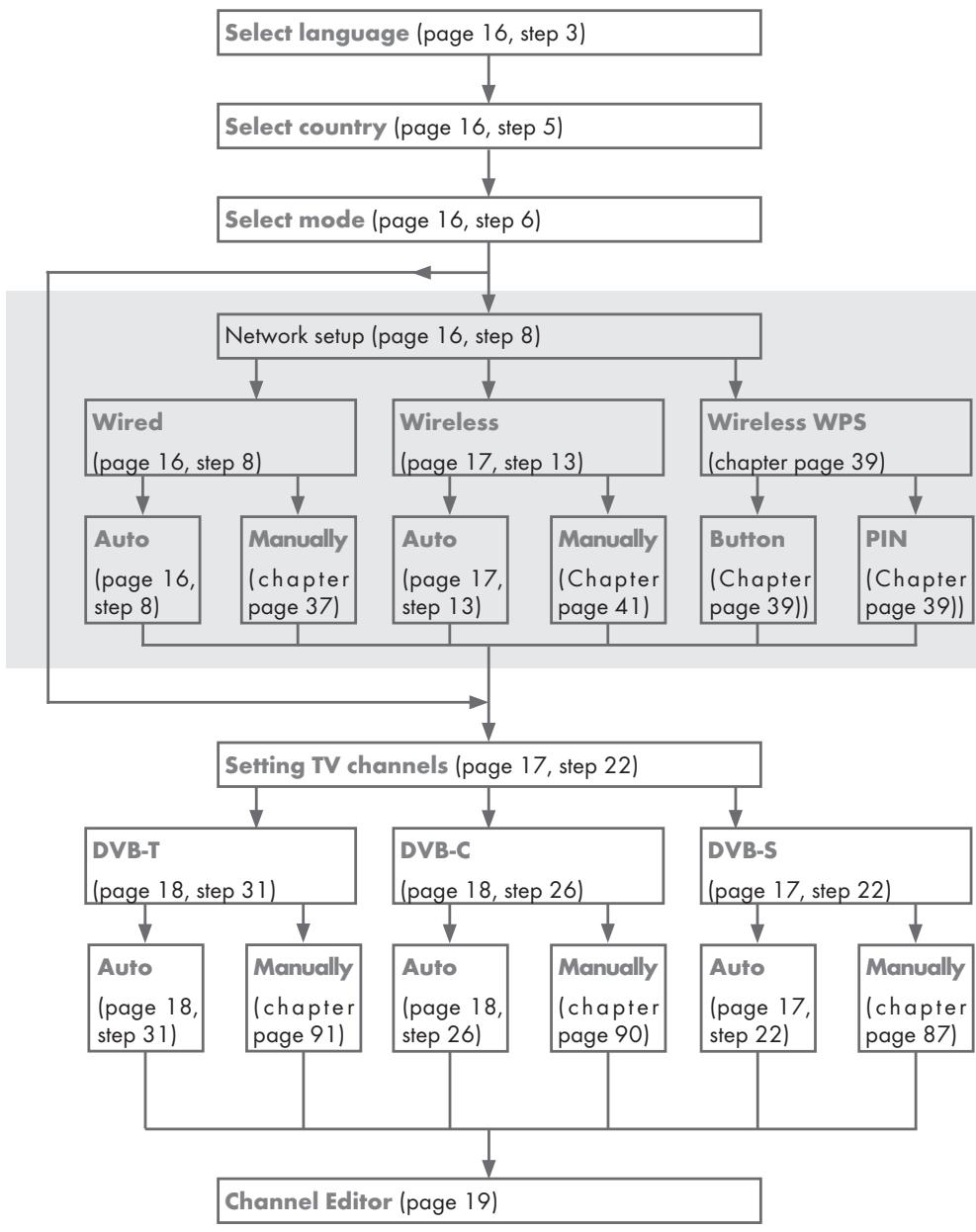

SETTINGS Initial set-up - overview [Select language (page 16, step 3] [Select country [page 16, step 5)

[Network setup (page 16, step 8) | Wired Wireless Wireless WPS {page 16, step 8) {page 17, step 13) {chapter page 39) Auto Manually| | Auto Manually| |Button PIN (page 16, (chapter (page 17, (Chapter (Chapterl (Chapter step 8) page 37) step 13) page 41) | [page 39))| [page 39) [ I I I I |

[setting TV channels (page 17, sep 221 r Î

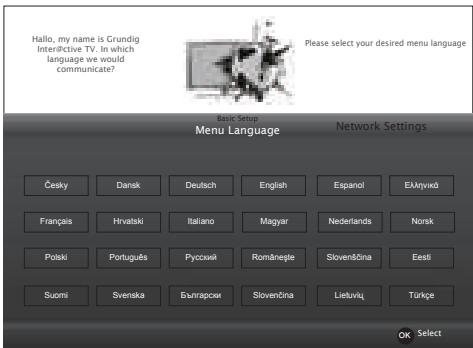

SETTINGS Arrange Initial set-up 1 Switch the television to standby with the power switch »ON + OFF«. 2 Switch on the television set from standby with »De, » 1.0, »P+e or »P-«. - Basic Setup« menu appears when the dvice is switched on for the first time. Help: m Ifthe »Basic Setup« menu does not appear on the screen, make the setting by following the instructions on returning the television to its factory settings on page 71. 3 Select the menu language with »€«, »3«, »V« or »A« and press »OK« to confirm. - »Welcome« menu appears. 4 Step-by-step installation will be made to be able to use the television. Press »OK« to start the installation. 5 Select the country in which the television set is operated with »@«, »3c, » We or »Ax and press »OK« to confirm. - »User Mode« menu appears, the option »Home Modex is selected. 6 Confirm the option »Home Modex with »OK«;

select the option »Enhanced« with »€« or »D« and press »OK« to confirm. - »Home Mode« contains preconfigured TV settings that provide energy savings conforming EUP. 6 ENGLISH - »Enhancede - if you will use the television for a demo presentation, increased image and volume settings are used in this mode. Increased mode consumes more energy. 7 Press »OK« to confirm »Nexte. - »Network Settings« is displayed. Note: m If you want to connect your television to the home network, - continue at point 8 for an automatic LAN connection, or - continue at point 13 for an automatic WLAN connection. Note: m# If connecting to a home network is not nec- essary, skip the sehting using »eseex [blue]. Continue seings at point. 22, 26 or 31. Connecting to a home network with a LAN cable 8 Press »W, the line »Change Connection Typex is selected and press »OK« to con- firm. 9 Select the option »Wired« with »€« or »D« and press »OK« to confirm. Note: m The settings for a manual LAN connection are on page 37. 10 Press »e« [red] to select »Connect« option to establish modem connection. - »Connecting … Please wait« message will be displayed, and if the connection is established »Connection To Gateway: Success« messages will be displayed. Press »+e« (green) to check the performed settings and also ifthe local network and internet connection has been established. - »Testing … Please wait« message will be displayed, and if the connection is established »Connection To Gateway: Successe, »Internet Connection: Success« messages will be displayed. 12 To switch to »Source Setup« menu press pese (blue).

SETTINGS Note: # Continue searching for TV channels with: - point 22 for DVB- reception; - point 26 for DVB-C reception; - point 31 for DVBT reception. Connecting automatically by enter- ing the network password

Press »W«, the line » Change Connection Typex is selected and press »OK« to con- firm. Select the option »Wireless« with »@« or »D« and press »OK« to confirm. Confirm the message »Do you want to turn on WiFi£e with »ee« (green). Select the line »Select Access Point with »Ve« or »A« and press »OK« to confirm. - »Select Access Pointe menu appears and available wireless networks are scanned and displayed in the menu. Select the network that you want to connect With » Va, » Ac, »G« or »D« and press »OK« to confirm. - Wireless connection password screen is displayed. Select the required character with »We, » Ac, »C« or »« and move to the next character with »OK«. - Using »Shifte = »OK«, you can switch between uppercase letters / numbers and lowercase letters / special characters. - Select »ŒÆK to delete the character entered and press »OKK« to confirm. Confirm the password with »ee« (green). - »Connecting … Please wait« message will be displayed, and if the connection is established »Connection To Gateway: Success messages will be displayed. Press »e+« (green) to check the performed settings and also ifthe local network and internet connection has been established. - »Testing … Please wait message will be displayed, and ifthe connection is established »Connection To Gateway: Success«, »internet Connection: Successe messages will be displayed.

To switch to »Source Setup« menu press pese (blue). Note: # Continue searching for TV channels with: - point 22 for DVBS reception; - point 27 for DVB-C reception; - point 32 for DVB-T reception. Searching television channels with satellite signal (DVB-S)

To select whether you want to search for only free digital television channels (Free), only scrambled digital television channels (Scrambled) or both [Free + Scrambled), press »€« or »2« and press »OK« to select and mark or unmark the »Free« and/or »Scrambled« items. Press »e« (red) to start searching. - »Automatice Channel Search« menu appears and the scan for TV channels begins. - The scan is complete as soon as the mes- sage »Search is completedll appears. Select the »Channel Editor« with »e« (red). ENGLISH 17|

Select the option »Quick« or »Fulle with »€« or »D«. - »Quicke scanning function sets the chan- nels according to the cable operator information in the broadcasting signal. - »Fulle scan function scans the entire fre- quency range selected. With this search option, search can take a long time. This search type is recommended. Some cable providers do not support »Quick scan. Note: m You can speed up the search. To do this, frequency and network ID information are required. You may get this data from your cable operator or find it in the Internet fo- rums. 28 Use »V« to select the push button »Next Pagec and confirm with »OK«. Note: m Perform Channel Type selection. Press »« or »« to select whether you want to search for only digital channels (Digital), only Ana- log channels (Analog) or both (Digital + Analog) and press »OK« to select and mark or unmark the »Digital« and »Analog« items. 29 Press »e« (red) to start searching. - The »Automatic Channel Search« menu appears, and the search for TV channels begins. - The scan is complete as soon as the »Search is completedl appears. 30 Select the »Channel Editore with »e« (red). [18 ENGLISH Tuning terrestrial digital television channels (DVB-T) 31 Select the option »Air« with »€« or »3« and press »OK« to confirm. Important: m The antenna power supply (5V ] may only be switched on if the antenna is an active indoor antenna with a signal amplifier and it is not already supplied with a voltage via a mains plug (or similar supply). Otherwise you may cause a short circuit and irrepara- bly damage your antenna. Select the line »Active Antenna Power« with »V« or »A«.

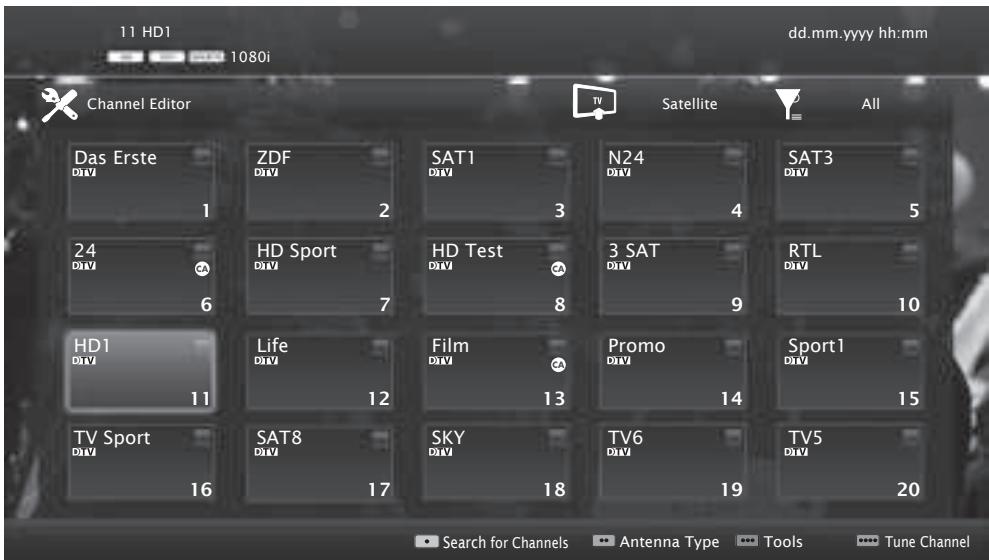

SETTINGS Changing the Channel Editor for the digital channels Channels found at the end of the search are stored in the »Channel Editor« You can delete channels which are not required from the programe table, you can change the order of channels within the programe table and lock individual channels (Parental control]. You can also add channels to the favourites list; in addition, you can change the order of chan- nels within the favourites list. In Channel Editor, press »P+« to switch the chan- nel list to the next page, press »P-« to switch it back to the previous page To perform searching in the Channel Editor menu by Channel names, press »e« (red). To display the channels in the Channel Editor menu by Antenna Type, press »es« (green) and »OK«. To use filters and tools in the Channel Editor menu, press »eeeu [yellow]. 1 Hot an mm eu 10501 3€ Chorus s Erste HD Test Film TV Sport 2 Search for Channels Opening the Programme Table

Activate the »Settingse menu with »OK« Select the option »Source Setup« with »3« or »€« and press »OK« to confirm Select the line »Channel Editor with »W« or »A« and press »OKk« to confirm. = »Channel Éditor« menu is displayed Important: m Programme table and favourite lists are stored separately for all sources (satellite, cable and air). m# Programme table of the current source will be displayed when you select programme table. Notes: m A CI module and smart card is required to watch the channel ifthere is a »€A« sign next to the channel name in Programme Table. m As the recorded data channels are not dis- played in the channel list, number of chan- nels displayed in the Channel list may be less than 6000 dd.mm.yyyy hhmm Satellie Sport TVS Qantenna Type © ENGLISH 19|

SETTINGS Searching channels by name in the Channel Editor While arranging the channels in the Channel Editor, you can search and select the channel name by the first three characters. 1 _Inthe »Channel Editor menu, select the search mode by pressing »+« (red). 2 Select the first character of the channel name you want to search with » We, » Ac, »€« or »D« and press »OK« to confirm. Repeat the entry for the next characters. - Channels found will be listed on the right side of the screen. 3 With »3« switch to result section, select the channel you are searching with »W« or »Akc, and highlight this with »OK«. Note: m To change the place of, delete or add the channels to favorites lists, continue reading the relevant section. 4 To return to the previous menu, press »BACK mc. 5 To exitthe »Channel Editor« menu, press »EXITe. Deleting channels in the Channel Editor 1 _Inthe »Channel Editor« menu, select the channel(s) you want to delete with »W«, » Ac, »6« or »ÿ«, and highlight the televi- sion channel by pressing »OK«. - Channel is marked with »7«. 2 Press »esex [yellow]. - »Toolse menu is displayed. 3 Select the line »Deletec with »W « or »A« and press »OK« to confirm. 4 To confirm deletion process, press mea (green);

to cancel deletion process, press »e« (red) button. 5 To exitthe »Channel Editor« menu, press »EXITe. [20 ENGLISH Moving the channels in the chan- nel organizer to different channel positions 1 _Inthe »Channel Editor menu, select the channel(s) you want to move with »W«, > Ac, »6e or »De, and highlight the televi- sion channel by pressing »OK«. - Channel is marked with »w«. 2 Press nee [yellow]. - »Toolse menu is displayed. 3 Select the line »Movec with »W « or »Ax and press »OK« to confirm. Notes: # In case of changing the order of the chan- nels, channel numbers sent by the broad- caster will be changed. # IF more than one channel is selected for mov- ing, channels will be moved one after the other according to the selection order of channels. 4 Select the new place ofthe channel with »Ve, » Ac, »G« or »ÿ« and press »OK« to confirm. 5 To exitthe »Channel Editor« menu, press »EXITe. Displaying channels in the Channel Editor by antenna type IF you have more than one antenna type, you can display channels in the Channel Editor by antenna type. 1 To display the channels in the »Channel Editor« menu by antenna type, press »ee« (green). 2 Select »Air«, »Cablec or »Satellite« with »€« or »D« and press »OK«. - Television will switch to the antenna sys- tem you have selected and channels will be displayed. 3 To exitthe »Channel Editore menu, press »EXITe.

SETTINGS Sequencing channels in the Channel Editor You can sequence the channels in the Channel Editor according to different criteria such as TV, radio or scrambled / unscrambled. 1 To sequence the channels according to dif. ferent criteria in the »Channel Editor« menu, press »ese (yellow). 2 Select the sequencing criteria you want with »Ve« or »A« and press »OK« to confirm. - Channels will be displayed in the »Chan- nel Editor« menu by the criteria you have selected. 3 To exit the »Channel Editore menu, press »EXITe. Creating a list of favourites You can select your favourite channels and save them in up to four lists [FAV1 to FAV4). Note: m# Favourite lists must be created separately for all sources (satellite, cable and air). m Press »FAV« to select the favorite list. 1 _Inthe »Channel Editor« menu, select the channel(s) you want to add in the favor- îtes list with » We, »Ax, »G« or »3«, and highlight the television channel by pressing »OK«. - Channel is marked with »7«. 2 Press vec (yellow). - »Toolse menu is displayed. 3 Select the line »Add to Fav.« with »W « or »Ak« and press »OK« to confirm. -»Add to Fav.« menu is displayed. 4 Select the favorite list you want to add the selected channels with »W « or »A« and store With »OK«. - The channels are marked in the Channel Editor with »@, »@«, »@« or »@«. - You can add the same channel in more than one favourites list. - Each favourite list can contain maximum 255 channels. Notes: m You can delete channels from the favourites list. Press »eee« (yellow), select the favorites list the channel is in with »W« or »A« and press »OK« to confirm. Select the channel(s) you want to delete with »We, » Ac, »€« or »3c, and highlight the channel by pressing »OK«. Press »e+e« [yellow] and select the line »Re- move from Fav.« with »W«, »A« and confirm with »OKK. The channel you have selected is now deleted from the favorites list. # When a channel stored in the favourite chan- nel list is deleted channel order in the favou- rite list is updated. 5 To exitthe »Channel Editor« menu, press »EXITe. Sorting channels in the favorites list You can change the channel sorting in the favor- îtes list. 1 To select favorites list in the »Channel Edi- tore press »ese« (yellow). 2 Select the favorites list you want to sort with »Ve« or »A« and press »OK« to confirm. - Selected favorites list channels will be displayed. 3 Select the channel(s) you want to move with Ve, » Ac, »Ge or »De, and highlight the television channel by pressing »OKk. - Channel is marked with »7«. 4 Press pese (yellow). - »Toolse menu is displayed. 5 Select the line »Movee with »W « or »Ax and press »OK« to confirm. Note: # IF more than one channel is selected for mov- ing, channels will be moved one after the other according to the selection order of channels. 6 Select the new place ofthe channel with »Ve, » Ac, »G« or »ÿ« and press »OK« to confirm. 7 To exitthe »Channel Editor menu, press »EXITe. ENGLISH 21

SETTINGS Enter own names for the favourites lists (max. 7 characters) You can rename all favorites lists. 1 To recall favorites list menu when no menu is opened on the screen, press »FAVe. 2 Select the favorites list you want to rename with »@« or »ÿ« and press»eeee« (blue) button. - Virtual keyboard will be displayed. 3 To delete the current name step by step, press »ee (red). 4 Select the required character/number with » Ve, » Ac, »É« or »« and move to the next character with »OK«. Repeat the same process for all characters/ numbers. - Using »Shifte = »OK«, you can switch between uppercase letters / numbers and lowercase letters / special characters. 5 To save the new name with »ee« (green). Press »EXIT« to end the setting. [22 ENGLISH Renaming AV channels You can rename AV channels according to the device you have connected. For example, for a PC which you have connected to HDMI1 source of TV with HDMI cable, you can name the source as PC. 1 Open »lnput Source menu with ».f je. 2 Selectthe AV source you will rename with »« or »D« and press »eses« (blue). - Rename menu is displayed. 3 Press »OK« and delete the “old” name step by step with »e« (red). 4 Select the required character/number with »V«, » Ac, »É« or »« and move to the next character with »OK«. Repeat the same process for all characters/ numbers. - Using »Shift« = »OK«, you can switch between uppercase letters / numbers and lowercase letters / special characters. 5 To save the new name with »ee« [green]. 6 Select the icon appropriate for the device type with »€« or »®« and press »OK« to confirm 7 To save the setting, press »eee« (blue). - Source name and icon will change. 8 Press »EXIT« to end the setting.

Open the menu with »MENUc. Activate the menu item »Settings« with »OK«. Activate the menu item »Picture Settings« With »OK«. - »Picture Settings« menu is displayed. Select the required line »Picture Mode« or »Backlighte with »W« or »Ax and press »OK« to confirm. Select the option with »€« or »ÿ« and press »BACK <=c to return to »Picture Setings« menu. Note: m Other settings are available under »Ad- vancedk. Select the line »Advanced with »W« and press »OK« to confirm. Select the required line/function with »W« or »A« and press »OK« to confirm. Select the value/option with »@« or »>« and press »OK« to confirm. Press »BACK mc to return to »Picture Set- fings« menu. Press »EXIT« to end the setting. Enhanced picture settings The “enhanced picture settings” are in principal digital image improvements which, however, should be only used when necessary when pic: ture quality and transmission is excellent. They may well improve the display with poor material, but may adversely affect the display where trans- mission and picture quality are excellent. m »Backlighe - Manual setting for back light- ing (only active if dynamic back lighting is switched to OFF"). This setting also directly impacis power consumption. »Dynamic Backlight« - Here the device opti- mally adjusts the back lighting for the picture content by regulating the back lighting de- pending on the average picture brighiness. If a picture has predominately dark areas, then he black level displayed is improved by downward adjustment of the back lighting (in this case the display of the dark areas is im- proved), and with predominantly bright pic- ture material the back lighting is maximised in order to display these areas more brighily. m »Vibrant Colour« - Increases the colour con- trast and the contrast adjustment. This setting is mosily too strong for use with normal pic- tures and should only be used where neces- sary [low or off] otherwise nuances in the image can be suppressed. m »Gammax - This setting establishes which brighness value should be displayed for which digital transmission value. Most re- cordings are transmitted with a gamma value of 2.2 (all Windows PCs and newer PCs with a MAC operating system work with this, older MAC systems and transmissions without colour profile mosily operate with a gamma value of 1.8]. m »Dynamic Contraste - The function dynami- cally and optimally adjusts the contrast for the respective picture content by analysing images and then altering this depending in a change in contrast. This increase the con- tract, however may also reduce the visible brighiness levels in the picture. ENGLISH 23|

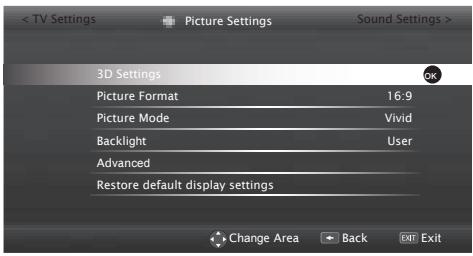

SETTINGS m »Perfect Clear« - Improves the general im- age by means of a gentle blue hue (giving the appearance of greater sharpness) and improves the black level by setting this entire- ly to black from specific shade of back. This reduces the visible grey values in the dark areas of the picture. m »Film mode« detecis and processes feature films automatically for all channel sources. This means you will always receive an op- timal picture. This functions in the modi 480i, 576i and 1080i in TV playback and for other channel sources. IF the »Film modex is switched on for pro- grammes without a feature film signal, minor problems such as picture freeze, defective subiitles or fine lines in the picture could oc- cur. »MEMC« - Improves the display of moving images through the additional computation of intermediate pictures and is only avail able for devices from 32”. It is displayed with a PPR of 400 (Picture Perfection Rate). If the adjustment value is too high, this may result in ghosting with poor transmission due to the incorrect computation of the intermedi- ate pictures. m»Nois Reductione - Reduces the visible ‘snow’ by displaying the picture a litile less sharply and creating a slight blurring. Should therefore be used minimally with good picture material. m»Block Noise Reduction« - This function can only be selected with digital reception sources and AV presets. lt reduces any in- terference from artefacts (pixel blocks] from digital programmes due to MPEG compres- sion (such as from DVBT receivers and lower transmission rates or DVD players). [24 ENGLISH Restore default settings

2 Press »@« or »®« to select the option »Stan- dart Modec, »Moviec or »Userc. SRS StudioSound HD SRS StudioSound HD is a patented audio tech- nology which is integrated into the television set and only requires the builtin speakers to gener- ate a Surround Sound effect. SRS StudioSound HD Technology is supported in Film, Natural, Speech and Music settings. 1 Select the line »Sound Modex with »W« or

TELEVISION OPERATION Zap function This function allows you to save the television channel which you are currently watching and switch to other channels (zapping). 1 Select the channel you want to save in the zap memory with »1...O« or »P+4, »P-« [for example, channel 1, BBC 1] and save with »BACK mc. 2 Change channels with »1...O« or »A« »V«. 3 You can now use »BACK <= to switch between the saved channel (in the example, BBC1) and the channel you were watching before. 4 Press »EXIT« to quit the zap function. Electronic TV guide has two operation modes: online and offline. In the offline mode, only the broadcast informa- tion is received via broadcast. A lot of content can be received via the Inter- net connection in the online mode such as, pro- gramme information, channel logos, information about players, pictures, fragments, etc. Log on to the ,RoviGuideTM‘” IF you use the Electronic TV guide for the first time, you must log on. 1 Press »GUIDEX to start Electronic TV guide. - »Terms and Conditions is displayed.

2. With »W4« display Terms and Conditions,

select the push button »l Agree« and press »OK« to confirm. 3 Enter the postal code with »1...O«. 4 Confirm the log on with »OK«. The Electronic TV guide in Offline mode In the offline mode, the electronic programme guide offers an overview of all programmes that will be broadcast in the next week [for digital stations only). 1 Press »GUIDEX to start Electronic TV guide. - À message is displayed. 2 Select the push button »Continue« with »W« and press »OK« to confirm. Notes: # Not all channels provide a detailed TV guide. m Many broadcasters supply the daily pro- gramme but no detailed descriptions. m There are broadcasters which do not pro- vide any information at all. 3 Select the television channel with »W« or L7AUA - Information about the actuel programme is displayed in the selected television chan- nel. ENGLISH 29|

TELEVISION OPERATION

4. Switch to the information about the current

TELEVISION OPERATION Changing the picture format The television automatically switches to the 16:9 format if this format is detected via the Euro-AV socket. 1 Open the Tools menu with »TOOLS+«.

3 Select the picture format with »€« or »2« and press »OK« to confirm. 4 Press »EXIT« to end the settings. Note: m You can choose between the following pic- ture formats. »Autox format The picture format is automatically switched to »16:9« for 16:9 programmes. The picture format is automatically switched to »4:3« for 4:3 programmes. »16:9« and »14:9« formats During programmes in 4:3 format, the picture is stretched horizontally if »16:9« or »14:94 is selected. The picture geomeltry is stretched horizontally. With actual 16:9 signal sources [from a settop box on the Euro-AV socket] the picture fills the screen completely and with the correct geom- etry. »4:3« format The picture is shown in 4:3 format. »LetterBox« format The letterbox setting is especially suitable for programmes in 16:9. The black borders which are usually at the top and bottom of the screen are eliminated, 4:3 pic- tures fill the screen. The transmitted pictures are enlarged, but are slighily cropped at the top and bottom. The pic- ture geometry remains unchanged. »Subtitlex format If you cannot read the subtitles which appear on the bottom of the screen, then select »Subtitle«. »Panoramax format This setting is suited to films with a large widih/ height ratio. During programmes in 4:3 format the picture is stretched horizontally if the »Panorama« func- tion is selected. The picture geometry is stretched horizontally. »Overscan off« format When this mode is selected, high defined pic- ture from HDMI and Component inputs is not cropped and it is displayed in its original size. This is only active in HDMI mode and for resolu- tions at or above 720p. Note: # Picture format selection is not supported in 3D mode. ENGLISH 31

3D FUNCTION Important information about 3D function Please pay attention to the following information when using the 3D function. # Watching TV from a close distance for a long time impairs the sense of sight. m Avoid watching 3D images for long dura- tions. # Watching TV with active 3D glasses for long durations may cause headache and fatigue. Stop watching TV if you feel dizziness, head- ache or fatigue. # Do not waïch 3D images if you are anxious, sleepy or tired. m Some people may experience epileptic pa- ralysis or stroke when they are subjected to the flashing images or light in certain televi- sion images or video games. Persons with a history of epilepsy or paralysis should consult a physician before using 3D function. m If you experience any of the following situa- tions, stop waiching 3D images and consult a medical expert. Change in sight, dizziness, instability, twitch in eyes or muscles, nausea, confusion, contraction or cramp, difficulty in concentration. Children must be asked whether they are experiencing any of the above conditions since they are more vulner- able to such conditions then the adults. m 3D images can stun audience. lt is sug- gested for elders, pregnant women, epilepsy patients and persons with serious physical disorders to avoid watching 3D images. # Do not use 3D Active glasses for purposes other than their intended use. Wearing 3D active glasses for any purpose (such as sun- glasses, protective glasses) may cause physi- cal damage or impair the sight of seeing. # Optimum distance of watching should be three or more times the height of the screen. [32 ENGLISH 3D Function GRUNDIG AS-3D G glasses provide the reality of theaters when you watch 3D movies at your home. This TV is equipped with LED technology to pro- vide you the best possible 3D images. To join the high definition 3D world, you just need to put on GRUNDIG AS-3D G glasses de- signed specifically. Notes: m This product is compatible with GRUNDIG AS-3D G glasses and may not support ac- tive glasses of different brands or models. # GRUNDIG AS-3D G glasses are also sold separately. Please contact your dealer from where you have purchased your TV in or- der to obtain more information for buying glasses. m Infrared transmitter is located at the lower left corner of the display and emits the sig- nals at 90 degrees in horizontal direction and 40 degrees in vertical direction. m li may not be possible to obtain 3D effects when there is an obstacle between the 3D transmitter and the glasses.

3D FUNCTION Watching 3D content Notes: # 3D function is only supported at »HDMlk, »YPbPre, »VGAx, »USB«, »DLNAx, »DVB-Te, »DVB-C« and »DVB-S« inputs. a With »HDMkk, »YPbPre and »VGAc in- puits, 3D mode is not active except resolu- tions at »1280 x 720p 50/60 Hzx, »1920 x 1080i 50/60 Hzx and »1920 x 1080p 24/30, 50/60 Hz. m 3D experience may change depending on the format and features of the picture (reso- lution, sharpness and etc) supplied from the external input. m 3D effect may degrade if you watch 3D im- ages under fluorescent light. In such cases, either reduce the light or turn off the lamp. = While 3D mode is active, if Program table, channel or source is changed, MyApps or Grundig Application Store are launched, file playback ends or next file is selected in USB and PVR mode your television will switch to 2D mode.

1. Open »Select Source« menu with »f5 ke.

2 Selectthe 3D playback AV source with »@« or »D« and press »OK« to confirm. 3 Open 3D menu with »3D«, use »É« or »D« to select »Side by Side, »Top Bottom or »2D — 3D« option according to the content to be played and press »OK« to confirm. - »2D — 3D«: Changes 2D picture to 3D. - »Side by Side: Displays a picture next to the other one. - »Top Bottom«: Displays a picture below the other one. - »Frame Packinge: Right and left images of the TV are displayed alternately. Note: m Frame Packing option can be displayed on 3D menu only if an HDMI 1.4 supported video signal is sent from an external device. Side by Side and Top Bottom options are not displayed. 4 Turn ofthe function by setting it to »Off« with »3D« and press »OK« to confirm. Note: m# Refer to the user manual of 3D Grundig AS- 3D G glasses for detailed information about usage, cleaning and care of the glasses. 3D Settings 1 Open the menu with »MENU«. 2 Activate the menu item »Settings« with »OK«. 3 Activate the menu item »Picture Settings« With »OK«. - »Picture Settings« menu is displayed. 4 Select the line »3D Settings« with » We and press »OK« to confirm. = »3D SeHings« menu is displayed. Note: # Additional operations are explained in the following sections. ENGLISH 33|

NETWORK SETUP To use the functions “GRUNDIG AppLiCA- TION store" and “Operation with Digital Media Server”, you must connect the television to your home network with internet access and log on. Grundig Application Store is a depot where you can find various applications that you may use on your Grundig TV. You can download many applications from Grundig Application Store. These applications include video, picture, music, social networking applications, news and sports applications, weather forecast applications and some specific applications. Your TV supports remote control feature for Apple iPhones, Android and Windows based phones. Depending on the features of your phone, you may control your TV by your phone after downloading the free »GRUNDIG TV Remote« application from Apple App Store, Google Play [Android Market) or Windows Phone Store. Network connection You can establish a wired or wireless connection between your television and the local network. IF you want to use a wired network connection, please start with the instructions here: If you use a wireless network connection, please follow the instructions in the "Wireless network connection" section on page 38. Note: = The following section describes connecting to the home network if you did not carry this out during the “initial setup”. Wired network Wired network connection

Note: m Connection cables are not supplied. ENGLISH 35|

NETWORK SETUP Wired network settings There are two ways of making the wired network settings. A Automatic connection, All data regarding connection settings (»lP Ad- dresse, »Netmask«, »Gateway« and »DNS«] are obtained from modem automatically. B Manual connection, all data regarding connection settings (»IP Ad- dresse, »Netmask«, »Gatewayx and »DNS«] must be configured manually. Automatic connection Most of the home networks are Dynamic. If you have a dynamic network, you must use a DSL modem that supports DHCP. Modems and IP sharers that support DHCP obtain the »IP Ad- dresse, »Netmaske, »Gateway« and »DNS« values required for internet access automatically, and thus you are not required to enter those val- ues manually.

NETWORK SETUP Wireless network Wireless network connection There are different ways of making the wire- less network settings. »Wireless« and »Wireless WPS« [WiFi Protected Setup].

1 Television includes a builtin Wireless WiFi Adapter to connect it to wireless network. Notes: m Wireless LAN adapter supports IEEE 802.11B/G and N communication pro- tocols. We recommend you to use IEEE 802.11N protocol to obtain the best perfor- mance in wireless HD video playback. mlf you use a modem that supports IEEE 802.11B/G, video playback performance may be poor when compared to a modem that supports IEEE 802.11N since the data transfer rate of IEEE 802.11B/G protocol is lower. m Please note that video playback perfor- mance in a DLNA application on a wireless local network and in a SMART Inter@ctive TV 3.0 application on a network with inter- net connection depends on the number of users on the network as itis the case in every wireless network. mltis recommended to switch off the equip- ment that are not in use in home network in order to avoid unnecessary network traffic. [38 ENGLISH m Placing the modem or wireless nehwork shar- er on an elevated location will increase the wireless connection reception strength. m Wireless connection reception strength may vary depending on the type of the modem and the distance between the modem and television. Wireless network settings You have several ways to connect your TV to your home network. A Automatic connection, all data regarding connection settings (»IP Ad- dresse, »Netmaskx, »Gateway« and »DNS«] are obtained from modem automatically. Depending on the router, you can use the fol- lowing options: - Option “WPS-PBC” [Push Button Configura- tion); - Connecting with a WPS PIN; - Connecting by entering the network pass- word. Manual connection, all data regarding connection settings (»IP Ad- dresse, »Netmaskx, »Gateway« and »DNS«] must be configured manually.

NETWORK SETUP Technical requirements Most of the home networks are Dynamic. If you have a dynamic network, you must use a DSL modem that supports DHCP. Modems and IP sharers that support DHCP obtain the »IP Ad- dresse, »Netmaske, »Gateway« and »DNS« values required for internet access automatically, and thus you are not required to enter those val- ues manually. Wireless WPS network connection through by pressing a button

NETWORK SETUP 8 Select the line »Select Access Pointe with »V« or »A« and press »OK« to confirm. - Present WPS-supported wireless networks are scanned to display in the »Select Ac- cess Point« menu. 9 Select the network that you want to connect With » Va, » Ac, »G« or »D« and press »OK« to confirm. = 8-digit pin code is displayed in the wire- less WPS menu. Note: mæ Refer to the manual of your router to find out how the PIN is entered via a PC. 10 Use a PC to enter the pin on the router (e.g. AVM FRITZIBox: menu item WLAN Set- tings... WPS) and save. Note: m The 8-digit PIN code must be entered in the modem interface in 2 minutes; otherwise, connection of television with the modem is cut. Press »+e« [green] to confirm the registra- fion. - The message “Connection to Gateway: Success” appears. 12 Press »ee« (green] to check the performed settings and also ifthe local network and internet connection has been established. - »Testing … Please wait« message will be displayed, and if the connection is established »Connection To Gateway: Successfulle, »internet Connection: Suc- cessfulle messages and MAC address will be displayed. 13 Press »EXIT« to end the setting. 40 ENGLISH Connecting automatically by enter- ing the network password Use this method for establishing a connection if your router does not support "WPS-PBC" or WPS PIN entry. 1 Open the menu with »MENU«. 2 Activate the menu item »Settings« with »OK«. 3 Select the menu item »Network Configura- tion« with »3« or »€« and press »OK« to confirm. - »Network configuration menu is dis- played. 4 Select the line »Change Connection Typex with »W« or » A and press »OK« to con- firm. 5 Select the option »Wireless« with »@« or »D« and press »OK« to confirm. = WiFi warning screen will be displayed. 6 Activate WiFi with »ee« (green). 7 Select the line »Network Configuration« with »W« or » A and select the option »AUTO« with »€« or »«. 8 Select the line »Select Access Pointe with »V« or »A« and press »OK« to confirm. - »Select Access Pointe menu is displayed by scanning available wireless neworks. 9 Select the network that you want to connect With » Va, » Ac, »É« or »D« and press »OK« to confirm. - Wireless connection password screen is displayed. Note: m For device to discover the wireless modem on the network, the network name should support ASCII characters.

Select the required character with »Wa«, » Ac, »C« or »« and move to the next character with »OK«. = Using »Shifte = »OK«, you can switch between uppercase letters / numbers and lowercase letters / special characters. - Select »@ŒÆk to delete the character entered and press »OK« to confirm. 13 Confirm the password by pressing »ee« (green). - »Connecting … Please wait« message will be displayed. 14 Press »ee« (green) to make sure that the network connection is established with the current seings. - »Testing … Please wait« message will be displayed, and if the connection is established »Connection To Gateway: Success, »internet Connection: Successe messages and MAC address will be displayed. 15 Press »EXIT« to end the setting. ENGLISH 43|

SMART Inter@ctive TV 3.0 inter- net applications Smart Inter@ctive TV 3.0 interactive applications provide your television with Internet services and pages. These applications are designed according to your television. With SMART Inter@ctive TV 3.0 feature you can run many local and global internet applica- tions. Thanks to Grundig Application Store, you can find many applications that you may use on your Grundig TV. You can download many ap- plications from Grundig Application Store. These applications include video, picture, music, social networking applications, news and sports appli- cations, weather forecast applications and some specific applications. Notes: m Availability of SMART Inter@ctive TV 3.0, inter@ctive applications may vary from one country to the other. m Smart Inter@ctive TV 3.0 cannot download and save files, cannot upload files to a web site and cannot install add-ins except Login pages of some applications for applications other than the ones in Grundig Smart Apps. # Grundig is not responsible for the content and the quality of content offered by the content providers. # Local and global internet applications pro- vided through your Smart Inter@ctive TV 3.0 comes with your TV within the framework of special limited duration agreements entered into with the application owners. Applica- tion owners may update, modify, restrict or entirely remove those applications with their own decision. Grundig cannot be held re- sponsible for such changes. Grundig reserves the right to make all chang- es such as modifications, restrictions, exten- sions, transfers and removals on internet applications provided through your SMART Inter@ctive TV 3.0. [44 ENGLISH # In Login process of some applications, it may be required to connect to the web page of the related application. Subject web pages may contain links not related to Login pro- cess. When connecting those links, TV may access open web and view contents that are not supported by your TV. As you are on open web, your TV cannot control those unsupported contents or cannot be held re- sponsible for them. Starting Smart Inter@ctive TV 1 Open the menu with »MENU«. 2 Select the menu item »Applications Storex with »€« or »3« and press »OK« to confirm - »inter@ctive Applications« menu will be displayed. During l login, registration screen for GRUNDIG Application Store will be displayed. Notes: æ IF you press »@x when no menu is open, you can access »Quick Apps menu. m If you attempt to start Inter@ctive applica- tions without a cable or wireless adapter connected, the related warning is displayed on the screen. If your wired or wireless adapter is connected but you cannot receive IP or internet is not connected, the Inter@ ctive applications cannot be started. In this case, check Network connection settings. see. page 35 or 38. USB keyboard and mouse You may connect a keyboard or mouse to both sockets »USB« or socket »USB3.0« to use in the Web browser. Keyboards and mice requiring special drive are not supported.

Navigation and entering text during registration 1 Press »@k to open »MyAppsc menu. - Grundig Smart Apps registry screen is displayed. Welcome to

Selecting internet applications

1. Press »@k to open »MyAppse menu.

- My Apps menu will be displayed. 2 Select the required application with »Wa«, » Ac, »É« or »@« and press »OK« to con- firm. - Main menu of the application will be displayed after a short while. Notes: # When you attempt to start any application without a cable or wireless network connec- tion, the related warning is displayed on the screen. # Applications will not start if your cable is dis- connected or you do not have an IP even if you're connected to a network or you do not have internet access. In this case, check Network connection settings. See. page 35 or 38. Grundig Application Store Grundig Application Store is an online depot where you can download many applications that you may use on your TV. Some applications in the »MyApps« menu are loaded in your device as factory settings. You can download a wide array or applications from Grundig Application Store.

press »+e« [green] to select the application by searching the application by name. Select the application you want to down- load with »We, » Ac, »€« or »ÿ« and press »OK« to confirm - Information on the application will be displayed. To download and install application press pese (blue). - Application will be downloaded and installed. To start application press »OK«:;

Smart Inter@ctive TV 3.0 browser main menu 1 Applications 2 Push button to the Application store Search bar. run Categories menu. Tools menu ou p © Exit. Navigating in the main menu 1 Press »e« (red) button in »My appse menu and select categories with »@« or »>« 2 Select the required application with »Wa«, » Ac, »É« or »D« and press »OK« to con- firm - Main menu of the application will be displayed after a short while 3 Usage of application mostly depends on application's own structure. Follow the notes on the screen. Playback and other options in the applications Note: # Some applications do not support all play- ing options, and playing options may vary among different applications. »b « starts playing in the applications; »H« pauses playing in the applications; » x stops playing in the applications; B & D — In the applications, press »44« or »b}« to start picture search. 5 Inthe applications, press »|{« or »b« to skip forward/backward CD caores CD cu 6-® DV, » A, »k, »D« allows sliding of the navigation keys in the applications and virtual keyboard Press »OK« to confirm the selections in virtual keyboard and applications: »1...0e peu (red), »esa [green], vec lyellow], »+++e« (blue) selects/activates various functions in applications. »@« switches off the application and goes back to »My apps« menu. »EXIT« switches off the application and goes back to the last broadcast source you were in ENGLISH 49|

9 - Virtual keyboard will be displayed.

ites. ns 4 Enter the address and confirm with »eee« 10 Home page (blue). T1 Setings Notes: 12 History. m Other functions are explained on the screen. 13 Search in Web. m You may connect a keyboard or mouse to both sockets »USB« or socket »USB3.0« 14 Zoom. socket to use in the Web browser. Keyboards 15 Close Web browser. requiring special driver are not supported. 16 Close tab. [50 ENGLISH

Playing the video, music and image files with home network connection With DLNA menu of your television, you can easily access Video, music and photo files on server; and thanks to DMR feaiure, you can au- tomatically start and stop media playing on de- vices with DMC feature. Notes: m You can share your video, music and image files through devices such as PC, mobile phone or NAS [Network Attached Storage] that function as DMS (Digital Media Server] compatible with DLNA. m fthe DMS device and the TV are connected to the wireless network at the same time, there may be lags and freezings during video playback. m TV can also operate with DMS software that can be installed on a computer but, it is not guaranteed that it will run in full compatibil ity with software without a DMS certificate. m Perform the following steps for a sample DMS setup. Open Windows Media Playerll on a PC with Windows operating system installed. In »Library« tab, select »Media Sharing, tick on the »Share my mediax box on the window that appears and then select »OK«. The new window displays the IP numbers of connect: ed devices. To enable the TV to detect the computer, you need to select the television's IP number. If IP is not listed in the window; from »Media Sharinge menu's »Seftings« op- tion, you can select the option »Allow new devices and computers automatically« in the pop-up menu. After completing these pro- cesses, the television can only view the sup- ported file formats in the Library. In order not to encounter any problems with media sharing, check the Firewall settings of your modem and computer. Selecting the digital media server 1 Open the menu with »MENUK«. 2 Select the menu item »DLNA« with »ÿ« or »€« and press »OK« to confirm. - »Media Playerc menu is displayed. Note: mlf no DMS device appears, check the net- work connection. See page 35 or 38. 3 Select any DMS device with »@« or »D« and press »OK« to confirm. - DMS device content is displayed. MA measruver Notes: m File and folder structure of the DMS device in menu may vary depending on the Digital Media Server software in use. # Subiitles are not supported on video files that are played through the DMS device. 2 Video files played through DMS device sup- port following formats that have obtained DLNA certificate: »MPEG_PS_NTSC«, »MPEG_PS_PAL«, »MPEG_TS_SD_EU« and »MPEG_TS_EU_ISOk. min videos with high bit rate, lag problem might be seen. # Folders that appear as unknown in DLNA application cannot be played by the TV. Installing the codec to your computer can sole this problem. ENGLISH 51

USB RECORDING Information on recording and playing television programmes m Recording and reproducing programmes, this can only be done with digital television stations (DVB-S, DVB-T and DVB-C). m The digital television stations (DVB-S, DVB- T and DVBC) you are able to record and playback also depend on the broadcasting station. m Recording and reproducing programmes, as well as the Time Shift function can only be carried out using an external data medium (hard drive or USB stick]. # Recordings can be made with most data me- diums on the market. However, we cannot guarantee operation for all data media. m If you record a programme on an external data medium, you can only watch it on your television. You cannot waïch this programme on any other device. m If you send your television to be repaired and hardware components need to be re- placed, you might not be able to play the recordings again on the repaired television. m Grundig isn't responsible for any loss of data stored on any external storage device. mt is recommended to play the files saved on DTV by PRnP player. Some recorded files may not play correcily on USB Media Player. Possible limitations when using an external data medium Depending on the broadcasting station, you may experience various restrictions on some functions from some television stations. GRUNDIG has no influence on these restrictions. m Recording a programme on the external data medium can be disabled by the broad- caster. IF »URI* protected! PVR function blocked« is displayed, then recording or time shift is re- stricted (one recording possible] or disabled {recording not possible] by the broadcaster. *URI = user rights information. m If you record and save a programme on the archive of an external data medium, play- back can be restricted. The broadcaster can allow you to see this programme one or more times but could also just make it available for a certain period of iime. # Stations from which children are protected, immediately require a PIN number before recording starts. IF this authorisation is not given, the recording may not start. m Copying a programme from a digital televi- sion station onto a video or DVD recorder using the »AV1/S-VHS« socket [analog audio/video signal) can also be restricted by the broadcaster. In order to do this, your device must support the copying function. ENGLISH 53|

USB RECORDING Connecting external data media Notes: mltis advised to put the television on stand-by mode before connecting the Skype camera. m Before disconnecting the external data me- dium, the television must first be switched to standby, otherwise files can be damaged. m# There are three USB inputs on the television, namely »USB«, »USB« and »USB 3.0. »USB 3.0 input is intended for USB devices that require additional power (e.g. external hard disk). 1 Plug the external hard disk to the »USB 3.0« USB interface of the television;

plug the memory stick in one of the »USB« sockets of the television. [54 ENGLISH Notes: m Both sockets »USB« of the television sup- ports 500 mA current according to the USB standard. Devices such as external hard disk and etc. that consume more power can only be connected to the »USB 3.0« USB inter- face of the television. m !f you are using a power cable for the exter- nal hard disk that you have connected to the »USB 3.0« USB interface, then the power cable of the external hard disk must also be unplugged when the TV is turned off. m You must not disconnect the USB Device from the TV while a file on the USB Device is being read by the TV. USB recording settings Selecting the menu 1 Open the menu with »MENUk. 2 Select the menu item »PRnP« with »>« or »€« and press »OK« to confirm. - »Media Playerc menu is displayed. 3 Select the option »PVR« with »3« or »€« and press »OK« to confirm. - The content is displayed. 4 Press »eec [green]. - »Media Options menu is displayed. Le ET Fu Screen €> 5 Select the line »Disk Management« with »V« or »A« and press »OK« to confirm. Note: # Additional operations are explained in the following sections.

USB RECORDING “Pausing” time shift pro- grammes You can pause any program you are watching. This is a useful function. For instance, ifthe phone rings when you are waïching a movie, you can pause the movie and resume it after the call with- out missing nothing. The last scene that was frozen is displayed and time shift is recorded into the external data media. In Time Shift mode, you can only record as much as the free memory space on the external data media. You can record current broadcast for approxi- mately 60 minutes. Note: # For undisturbed “Permanent Timeshift” use an external USB hard disk. 1 Press »H« during the broadcast. - Television picture is paused and delay time is displayed. 2 To resume the broadcast, press »B>«. - The system continues recording the broad- cast while you are watching it. Note: # Following functions can be used in time shift mode. - Fast rewind, press »4« several times for the desired speed, - Fast forward, press »b}« several times for the desired speed; - To pause press »Hl«. 3 Press »M« to exit the Time Shift function. - The message »Live Broadcaste appears. - The scenes in the “time shift memory” are deleted. [56 ENGLISH Recording programmes You can record the programmes. Programmes are recorded onto the external data media and the archive is managed via television. À memory of 44 MB up to 110 MB is required for a 1 minute record. Other recordings in the archive can be watched while a programme is being recorded. I is possible to shift channels during recording between unscrambled channels on the same frequency (DVB-T] or on the same transponder (DVB-S). When switched to channels other than (Terres- trial, Cable, Satellite and USB) during recording, the recording process is stopped. One-touch programme recording 1 Select the channel with »1...0« or »P+«, »P-« and press » WE to start the record- ing. - Recording information is displayed: Recording symbol, channel name, pro- gramme time and recording time. = This information will disappear shortly. 2 To endihe recording, press » 3 Press »ee« (green) to accept;

to resume recording press »ee [red]. Notes: m When recording is complete, it will automati- cally be stored on the external data media. m IF you remove the external data media during recording, then the recording is cancelled automatically and no data is recorded onto the external data media.

USB RECORDING Recording a programme from the channel list 1 Press »OK« to open the channel list. 2 Select a channel with »€« or »3« and press »OK« to confirm. 3 Press »EXIT« to exit from the channel list. 4 Press »@l« (red) to start recording. - Recording information is displayed: Recording symbol, channel name, pro- gramme time and recording time. - These information will disappear after a short while. Recording symbol and record- ing time will appear on the lower right corner of the screen. 5 To endihe recording, press »I«. Press »+e« (green) to accept;

press »e« (red) to continue the recording. Programme setting for record- ing .… With electronic programme guide Electronic programme guide data can be used for recording. 25 EPG reminder and/or recorder can be set in total. 1 Press »GUIDEX to open the electronic programme guide. 2 Select the preferred TV program with »W« or» Ac. - Information about the actual TV program is displayed. 3 Press »@« or »ÿ« to select the TV program you want to record. 4 To add broadcasis to the timer press »OK«. - Information for the TV program to be recorded will be displayed. 5 Select the line »Record« with »3« and press »OK« to confirm. - Recording data range appears. Press »OK« to confirm. 7 Press »EXIT« to end the menu. Note: m lfthe data for the recording isto be changed, open menu with »MENUK. Select the menu item »Schedule List« with »ÿ« and confirm with »OK«. Press »ee« (green), change the data and and save it with »e (blue). Notes: m À warning is displayed before the timer re- cording starts and counts down for 10 sec- onds to allow you to switch to the channel. At the end of 10 seconds, the channel to be recorded appears automatically. m IFthe timer recording starts during playback, playback stops. If you do not select »Yese in the warning prompt, recording will start auto- maïically at the end of the counidown. m Only for UPC customers Note: Parts of previ- ous or next files can be included into the re- cord while the programme is being recorded resulting from possible Programme Guide er- rors. In such cases, keep in mind that the high- est family protection level will apply for the whole recording if one or more of those pro- grammes have any level of family protection. Set the lead/follow-up time With this function you can change the recording time set by the electronic TV guide. IF you think that a program will start a few min- utes earlier or will end several minutes later, you can ,add" up to 60 minutes to this time 1 Open the menu with »MENUk. 2 Select the menu item »Schedule Liste with »D« or »€c and press »OK« to confirm. 3 Activade the »Padding Time« menu with pese (blue). Change the start time with »€« or »>«. 5 Use »V4« to switch to the line »Ende and change the end time with »€« or »>«. 6 Save the setting with »ee« (green). 7 Press »EXIT« to end the menu. ENGLISH 57|

USB RECORDING by entering the information manually 25 TV programmes can be preset for the timer recording or as a reminder.

press »4« repeatedly to select the play- back speed (2x, 4x, 8x, 16x or 32x]. Playback during a recording You can either watch the current programme that is being recorded or a previously recorded programme while recording takes place. 1 Selectthe channel with »1...O« or »P+«, »P-« and press » WE to start the record- ing. 2 To display PVR content press »++« (red) but- ton. 3 Select the programme you want to watch with »V« or »A« and start playback with Press » x to stop playback. 5 Press »]M« to stop recording. Confirm with »eex [green}:

to continue recording, press »e« (red). Deleting programmes from the recorded files menu You can delete recorded programmes from the Recorded Files list.

2 Select the menu item »PRnP« with »« or »€« and press »OK« to confirm. - »Media Player« menu is displayed. 3 Select the option »PVR« with »3« or »€« and press »OK« to confirm. - Recorded files are displayed. 4 Select the broadcasts to be deleted with »é« or »D«. 5 »To delete the broadcast, press »+« [red]. Press »e« [green] to confirm deletion pro- cess. Note: m Files that are being recorded or played back can not be deleted from the »Recorded Filese menu. 7 Press »EXIT« to end the menu. ENGLISH 59|

USB OPERATION File formats Your television can be operated via the USB input with the following file formats: Video data Video compression / decompression [codec] is intended for decreasing the storage area without sacrificing the picture quality. Your HD Digital Receiver allows you to play compressed video data with DIVX, XVID, H.264/MPEG-4 AVC(LA.1, Ref. Frames:4),

MPEG-4, MPEG-2, MPEG-1, MJPEG, MOV

standards. File extensions that the device supports: “avi”, “mkv”, “mp4”, ts", “mov”, "mpg”, “dat”, "vob". In addition to video data, these files also contain audio data compressed and "packaged" by using MP3, AAC or Dolby Digital. Audio data Your television can play audio data coded with MP3, AAC standards. MP3 stands for MPEG-1 Volume Level 3 and is based on the MPEG-1 standard developed by MPEG (Motion Picture Expert Group]. AAC indicates the Advanced Audio Coding and is developed by MPEG. AAC provides higher audio quality with the same data rate (bit rate). WMA [Windows Media Audio] is a compres- sion standard developed by Microsoft for audio data. These formats enable audio files to be saved on storage devices with a sound quality similar to that of a CD. File extensions supported by your device: “mp3”, "mp2", “wma”, "mda”, ”aac”, "wav" MP3 files can be organised into folders and sub- folders similar to the files on a computer. [60 ENGLISH Image data Your television can display picture data in JPEG, PNG and BMP formats. JPEG stands for Joint Picture Experts Group. This process is intended to compress picture files. PNG and BMP standards are intended to com. press picture data without loss. Picture files can be saved in a data storage me- dium together with other file types. Such files can be organized as folders and sub- folders.

USB OPERATION Connecting external data media lt is advised to put the television on stand-by mode before connecting the external data me- dium. Connect the device and then switch the television on again. Before disconnecting the data medium, the tele- vision must first be switched to standby, other- wise files can be damaged. Notes: # Both sockets »USB« at the side of the televi- sion supports 500 mA current according to the USB standard. Devices such as external hard disk and etc. that consume more power can only be connected to the »USB 3.0« interface of the television. m To get higher efficiency from your devices supporting USB 3.0 it is recommended to connect to »USB 3.0 interface. m If you are using a power cable for the exter- nal hard disk that you have connected to the »USB 3.0« USB interface, then the power cable of the external hard disk must also be unplugged when the TV is turned off. m You must not disconnect the USB Device from the TV while a file on the USB Device is being read by the TV. m À bidirectional data transfer as defined for ÎTE Information Technology Equipment) de- vices in EN 55022/EN 55024 is not pos- sible. # USB transfer is not an operating mode in it- self. lis only an additional function. 1 Connectthe »USB 3.0« USB interface on the television and the related data output on the external device (external hard disk, digital camera, card reader or MP3 player) with a USB cable;

USB OPERATION Selecting the display duration of the slide show 1 Select the line »Slide Show Intervale with »Ve or » Ac. 2 Select the time (3, 5, 10 seconds) with »@« or »D«. 3 Press »EXIT« to end the setting. Subtitle settings IF the film has subtiles, you can turn on and off this subtitle, change its size, colour or eliminate synchronisation shift with the subiitle. 1 From »Media Options« menu use »W« or »A« to select »Show Subtitle«, »Subtitle Size«, »Subtitle Color« or »Subtitle Offset Value«. 2 Adjust with »€« or »ÿ«. Press »EXIT« to end the setting. Note: m These adjustments can only be made for external subiitle files. These adjustments can- not be made in subtitles combined with the movie. DivX Plus® HD VOD You must have your device registered in order to play the protected video that you will buy from DivX®. 1 _Inthe Media Player menu press »eosa (blue). - Registration Code appears. 2 Visit “htp://vod.divx.com” and register the device with the registration code. 3 Press »EXIT« to end the setting. DIVX + DivX Certified® to play DivX®and +" DivX Plus® HD [H.264/MKV] up HD to 1080p HD, including high qual- ity content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corpora- fion. This is an official DivX Certfied® device that has passed rigorous testing to verify that it plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This device has to be registered with DivX Certfied® in order to play DivX Video-on-Demand [VOD] movies you have purchased Enter DivX VOD section on USB settings on your device to receive your registration code. Visit vod.divx.com for detailed information on completing your registration. Note: m# DivX®, DivX Certified®, DivX Plus® HD and associated logos are trademarks of Rovi Cor- poration or its subsidiaries and are used un- der license. Covered by one or more of îhe follow- ing U.S. patents: 7295,673; 7,460,668; 7515,710; 7,519,274. ENGLISH 63|

USB OPERATION Playback basic functions 1 Open the menu with »MENU«. 2 Select the menu item »Media Playere with 33e or »€« and press »OK« to confirm. - »Media Playere menu is displayed. 3 Select the external data medium with »€« or »>« and press »OK« to confirm. - Media Player menu of ihe selected exter- nal data medium is displayed. Note: m the content of the external data medium is not displayed, press »..e« (yellow) to re- fresh. 4 Select the push button »Type« with »A« and »D« and press »OK« to confirm. 5 Select the desired type (Movie, Music or Photo] with »€« or »2« and press »OK« to confirm. 6 Select the folder with »W« or »A« and press »OK« to open it. - A list of sub-directories appears. Note: # Go back to the previous folder with »BACK 4x. 7 Select the track or picture with »W«, »Ax, »€« or »D« and press »B> « to start playing. Notes: m When playing picture data, press »2« to view information about the resolution and the size. m For playing MP3 or WMA data, information on the album, track and singer is displayed at the left of the menu. m When playing picture data, to access DivX Settings menu press »?« and then use »2« to select »DivX®« and confirm with »OK«. m When playing picture data, press »?« to switch on a control panel. 8 Press »Il« to pause playback. 9 To resume playback press » «. 10 Press » x to end playback. - The file browser appears. [64 ENGLISH Notes: m Use »A« to select »Up Folder, when you would like to return to the last folder. mlt is possible that some files that are sup- ported in USB mode do not operate due to some problems that may arise depending on how such files are created [compression] although they contain the supported file ex- tension. mlfthere are more then one audio sources (audio stream) in the video files that are be- ing played, then you can switch between the audio sources with the ge while the file is played in full screen mode. m Movies you will be watching from the movie file only supports subtitles with .srt, sub, .ass, .ssa, .smi format. Names of the subtitle and movie files must be the same. Otherwise, subtitle can not be displayed. In films which you will watch in 3D mode only external subtile is supported. Internal subtiles in some movies appear correct if they are compatible with 3D format. If they are not compatible, a blurry image will ap- pear on screen.

USB OPERATION Additional playback functions Depending on the file formats used, the follow. ing additional functions are possible. Selecting partition in DivX Plus® HD files {only supported video files) 1 During playback, select the next chapter with »D«. 2 During playback, select the previous chap- ter with »@«. Selecting titles on DivX Plus® HD files {only supported video files) 1 During playback, select the next title with

2 During playback, select the previous title With » We. Playing selected tracks Only play the marked tracks. 1 Select the track you want with »We, » A, »€« or »D« and highlight with »ese« [yel. low). 2 Select the track you want with »We, » Ac, »€« or »D« and highlight with »ese« [yel. low). 3 Start playback with »B> «. 4 Press »I« to end playback. Note: m# To remove the highlighting, select the track With »W« or »A« and remove the marking with »eee« [yellow]. Selecting a track or picture in steps (SKIP) 1 During playback, select the next track/pic- ture you want with »b|e. 2 Select the previous track/picture with »|4«. - Playback begins with the track or picture you selected. Move to desired time {only video files) 1 Press »OK« during playback. 2 Enter the time that you want to move to with »1...0e and confirm with »es« (green). Searching forward {only video and audio files] You can select different speeds (2-fold, 4fold, 8-old, 16-fold and 32-old forwards and back- wards). 1 During playback you can select playback speed by pressing »4« or »b}«. 2 To resume playback press »b «. Turn the picture display {only picture files) The pictures can be rotated by 90°. 1 During playback, switch on the control panel with »OK«.

2. Use »€« or »>« to select »}>« and press

»OK«. - The picture rotates 90° clockwise. Repeat functions Options: - »Onek, the selected track is repeated once; - »Sequencek, selected tracks are repeated consecutively; - »Randome, selected tracks are repeated in a mixed order; - »Nonec, repetition off. 1 Press »B« to start playback. 2 During playback, switch on the control panel with »OK«. 3 Select »Gx with »@« or »ÿ« and press »OK« repeatedly. - The repeat function will change. ENGLISH 65 |

TELETEXT MODE Note: m If you only want to use this “normal” video text, disable the digital video text, see page

TOP text or FLOF text mode 1 Press »TXT« to switch to the Teletext mode. 2 You can select teletext pages directly with »1...0« or step by step with »W« or »A«. To return to page 100, press »?«. Note: m At the bottom of the screen, you will see an information line consisting of a red, green and, depending on the channel, yellow and blue text field. Your remote control has but- tons with the corresponding colours. 3 Press »e« fred) to scroll one page back. 4 Press »ee« [green] to scroll one page for. ward. 5 Press ».e« (yellow) to select section. 6 Press ».ee+4 (blue) to select topic. 7 Press »TXT« to exit the Teletext mode. Normal text mode 1 Press »TXT« to switch to the Teletext mode. 2 You can select teletext pages directly with »1...0«. To return to page 100, press »?«. 3 Press »P-« to scroll one page back. Press »P+« to scroll one page forward. Press »TXT« to exit the Teletext mode. Note: m# Teletext feature is not supported in 3D mode. Addi Skipping the waiting time While a page is being searched for, you can switch to the television channel. onal functions 1 Enter the teletext page number with »1 and then press »bl«. - As soon as the page is found, the page number is displayed. [66 ENGLISH 2 Press »|« to switch to the teletext page. Increasing character size IF you have difficulty reading the text on the screen, you can double the character size. 1 To enlarge the character size of a teletext page, press »[4« repeatedly. Page stop A multiple page may contain several sub-pages, which are automatically scrolled by the transmit- ting station. 1 Stop the sub-pages with »44«. 2 Press »44« to quit the function. Calling up a sub-page directly If the selected teletext page contains further pages, the number of the current sub-page as well as the total number of pages is displayed. 1 Coll up the sub-page with Je. 2 Press »e« (red) or ».+« (green) to select a sub-page. 3 Press Ex to quit the function. Reveal answer Certain teletext pages contain "hidden answers” or information which can be called up. 1 Display information with »b}«. 2 Conceal the information with »b}«. Splitting the screen (Split Screen) With this function you can see the television channel on the left and the teletext page on the right. 1 To activate the split screen function, press - Television channel and teletext page ap- pear side by side on the screen. 2 To deactivate the split screen function, press

INTERACTIVE PORTAL (HBBTV) What is HHETV? HbbTV provides next generation interactive tele. This service provided by ARD includes “Das Er- text broadcast with its modern structure, content stel Mediathek” along with teletext restructured and high definition (HD) image and videos. graphically with high definition images. ZDF service includes “ZDF mediathek” and other pro- To receive HbbTV broadcast, your television gramme information (as of July 2012) must be connected to the Internet. This feature is only available in countries where the service is provided. Das Erste* | Heute MEINTV THEMEN W Redo 4+[] Bic Br De Madahok Using HbbTV 3 Select the option you want with »We, »Ak, »€« or »>« in the selected topic field and When you switch to a TV program that supports confirm with »OK« HI, an info message will appear stating that HbbTV broadcast is available. 4 Press »e« (red) to close HbbTV. 1 Press »ee fred) to open HbbTV. . . . ee tante vil Additional functions for video pear on the screen. Additional}, colored indexes buttons necessary for browsing the menus 1 Start playback with »B> will also appear. Pause playback with » Note: = The range of subjects and selection of indi. vidual subjects depend on the programme provider. Resume playback with »D> «. Rewind by »44« forward by »b}« Stop playback with » II u B & N # Numeric buttons »1« through »0« are used for additional functions. 2 Press »eex (green), »e+e« (yellow) or »e {blue] to select the desired topic field. ENGLISH 67|

CONVENIENCE FUNCTIONS Resetting the television to its al state This function enables you to delete the station lists and all custom settings. 1 From the »About« menu use »W« or » Au to select the line »Restore Factory Defaults« and press »OK« to confirm. = Warning screen will be displayed. Note: m Ifthe loaded applications are also to be de- leted, select the line »installed applications by pressing »A« and remove the small tick with »OK«. 2 Press »ee« [green] to confirm the reset func- fon. - In a short while »nstallation Guidex is displayed. 3 Continue the settings as described in the chapter on first installation and searching for channels on page 16. Deleting channel history This function allows you to delete channel history stored in the Main menu. 1 From the »About« menu use »W« or » A to select the line »Delete Channel History« and press »OK« to confirm. 2 Press »ee« [green] to confirm the reset func- fon. - The preview images in the main menu are deleted. [72 ENGLISH Timer settings

CONVENIENCE FUNCTIONS 6 Press »BACK x to go back one menu level or press »EXIT« to end the setting. Note: mlfthe option »Auto is selected in the line »Time Adjustment«, the television set auto- matically adapts the time to the time signal from the respective broadcaster. However, different channels may also use time bases which are different to those of your country e.g. foreign broadcasters. In these cases, reminders and planned recordings may be annulled due to the time difference. Parental settings 1 Open menu with »MENU& button. 2 Activate the menu item »Settings« with »OK«. 3 Select the menu item »Parental Guidance« with »D« or »€« and press »OK« to con- firm. - »Parental Guidance« menu is displayed. m Additional operations are explained in the following sections. Parental Guidance There are movies with content or scenes which are not suitable for children. Certain programmes contain information which identifies such content or scenes and have been given an access level from 4 to 18. You can se- lect one of the access levels and thus authorise the playback. 1 From the »Parental Guidance« menu use »V« or »A« to select the line »Parental Guidance« and press »€« or »D« to con- firm. 4 ENGLISH 2 Enterthe PIN code »1234« with »1...O« in the password prompt. 3 Select the access level with »@« or »D«. 4 Press »BACK mx to go back one menu level or press »EXIT« to end the setting. Note: m When the TV is in review buffer mode, the parental rating of the program in the live broadcast is applied on the content being watched (rather than the actual parental rat- ing of the content being watched). As a re- sult, a parental rated content being watched in the review buffer mode will not necessarily show as parental rated and vice versa. This means that if parental rated program starts in live broadcast the PIN-pop up message will appear in review buffer, or the PIN-pop up message will be dismissed in review buffer as soon as a program without parental rating starts in live broadcast." Locking the menus By using this function, you can lock » Automatic Channel Searche, »Manual Channel Search« and »Channel Editor« menus as to be accessed only when the PIN code is entered. 1 From the »Parental Guidance« menu use »V« or »A« to select the line »Menu Lock« and press »€« or »D« to confirm. 2 Enterthe PIN code »1234« with »1...O« in the password prompt. 3 Activate the lock with »€« or »3« (»On«). Note: # To switch offthe menu lock, use »« or »2« to select the setting (»Off«). 4 Press »BACK mx to go back one menu level or press »EXIT« to end the setting. Blocking the multifunction switch When the key lock is activated, the multi function switch on the television does not function. 1 From the »Parental Guidance« menu use »V« or » A to select the line »Keypad Lock« and press »€« or »D« to confirm. 2 Enterthe PIN code »1234« with »1...O« in the password prompt.

DIGI LINK Your television is equipped with DIGI LINK feature. This feature @is: utilizes CEC (Consumer Elec- UNK) |tronics Control) protocol. CEC allows you to make an HDMI connection between your TV and DVD player, STB or video recorder and control such equip- ments with the remote control of the television. This feature must also be supported by the de- vice you will connect. You television supports the following functions. For detailed information about this function, read user manual of the external device. Turning on external device from standby mode When you switch on your external device (e.g. DVD player) from standby mode, your television will be turned on from standby mode as well and it will switch to the HDMI source that the ex- ternal device is connected to. Depending on the features of the external device {e.g. AV receiver) can start and your television can stay on stand-by mode. Selecting the HDMI source from the television When you switch on your external device (e.g. DVD player), your television will switch to the HDMI source that the external device is con. nected to. (your TV should be open]. Selecting the menu language When you select menu language on your TV, menu language of the external device will change as well. (If your DVD player supports) Switching off the device from standby mode After switching your television to standby, your external device (e.g. DVD player] will also switch to standby if it is switched on. DIGI LINK is always active on your television. Refer to the user manual of your external device to learn how to activate this feature on it. [76 ENGLISH Searching and selecting the active external device You can connect up to 11 devices that support DIGILINK to this television. 1 Open the Tools menu with »TOOLS+«. 2 Select the line »Digilink with »We or »Acand press »OK« to confirm. - Connected devices are searched and the ones that are found are displayed on the »Device Liste menu. 3 Select the device that you want to control With »W« or »A« and mark it with »OK«. - Ifthe selected device is connected to a different source than the current one, you will automatically switch to the source to which the device is connected.

High definition - HD ready Your television can playback high-defini- tion television signals (HDTV). You can connect the 1080p {ins sources (HDTV se-top box or High Definition DVD player) to the »HDMlx socket (digital HDTV signal). This ensures that you can view digital HDTV programmes, even if they are copy-protected {HDCP High Bandwidth Digital Content Protec- tion). Connection options m Which television socket(s) you connect your external devices to depends on the sockets the external device is equipped with and the signals which are available. Note that with many external devices the res- olution of the video signal must be adapted to the input sockets on the television (check the external device's instruction manual). You can find out which values you need to set by referring to the guidelines in the sec- tion about connection options. Do not connect any other equipment while the device is switched on. Switch off the oth- er equipment as well before connecting it. # Only plug the device into the mains socket after you have connected the external de- vice. [78 ENGLISH

2 Connect the »Optic Out« socket on the television to the corresponding socket on the AV receiver using a standard optic digital cable (digital audio signal}. Important: 2 Do not use a HDMI cable longer than 5 m for HDMI ARC connection.

CABLE SCREEN SHARE (MHL) What is MHL? m Your television supports MHL connection (Mo- bile High Definition Connection] thanks to a MHL cable or MHL adapter. # MHL connection allows you to share your mo- bile device screen with television by connect- ing your mobile device to television by a MHL cable. m MHL can only be used from »HDMI1 [MHL}« socket and only with a mobile device that sup- ports MHL feature. Connecting a mobile device 1 Connect the »HDMIT (MHL}« socket on your television with the corresponding socket of the mobile device by using an MH cable or HDMI adapter. Selecting the channel position for a mobile device 1 Press ».f Je and use »@« or »« to select input signal »HDMI 1, then confirm with »OK«. - Screen image of your mobile device will be displayed on the television. Note: m To find out if your mobile device supports MHL connection or not, please visit the Web- site of the manufacturer. [82 ENGLISH

What is LIVESHARE? = Liveshare is a wireless technology featured with Android operating system and used to reflect the screen of your mobile device which supports this feature to your television support ing Liveshare. By using this technology you can share your device's content, present a slide show or play your favorite game on a larger screen Screen share with Liveshare con- nection

1. Open the menu with »MENU«

2 Select the menu item »Screen Share« with »D« or »« and press »OK« to confirm - »Livesharec menu is displayed 3 Start Liveshare application from your laptop PC or mobile device and select your televi- sion - Liveshare will begin in a short while and the screen image of your laptop PC or mobile device will be reflected on the television. 4 Press »EXIT« to end Liveshare. Note: m To find out if your laptop PC or mobile device supports Liveshare feature or not, please visit the Website of the manufacturer. ENGLISH 83|

What is common interface? m Common Interface [CI] is an interface for DVB receivers. m Encrypted channels can only be viewed with a CA module suitable for the encryption system and the corresponding smart card. m The television set is equipped with a Common Interface slot into which CA modules from vari- ous providers can be inserted. # You can insert the provider's smart card into the CA module in order to enable the en- crypted channels you want to see. Inserting the CA module Note: æ Switch off the device before inserting the CA module in the »Cl'1« or »Cl24 slot. 1 Insert the smart card into the CA module. 2 Insertthe CA module with the smart card into the »CIT« or »CI24 slot on the televi- sion. Note: m To see which CA module is in the Common Interface slot, go to the »CA - Module« sub- menu. m When you insert a CA module into the CI slot on the television for the first time, wait a few moments until the television has regis- tered the CA module. Access control for CA module and smart cards 1 Open the menu with »MENUK«. 2 Activate the menu item »Settings« with »OK«. 3 Select the menu item »Source Setup« with »D« or »€« and press »OK« to confirm. —nSource Setupe menu is displayed. 4 Select the line »Advancede with »W« or »Ak« and press »OK« to confirm. 5 Select the line »CA-Module« with »W« or »Ak« and press »OK« to confirm. Notes: mThis menu provides operating instructions and - after you enter your PIN code - ac- cess to channels of the PAY-TV provider. m The remaining settings are described in the manuals for your CA module and smart card. mThe CA modul is not supported in some countries and regions. Please consult your authorised dealer. 6 Press »EXIT« to end the setting. ENGLISH 85 |

SPECIAL SETTINGS Searching for all digital televi- sion channels from a satellite automatically New satellite channels are added or satellite data is changed frequently. Therefore, we rec- ommend you to run auto search function from time to time. All transponders are scanned for new channels. 1 Open the menu with »MENU«. 2 Activate the menu item »Settings« with »OK«. 3 Select the menu item »Source Setup« with »D<« or »€ and press »OK« to confirm. - »Source Setup menu is displayed. 4 Select the line »Automatic Channel Search with »W« or » A and press »OK« to con- firm. - Menu is displayed. 5 Select the option »Satellite« with »@« or »»« and press »OK« to confirm. 6 Confirm the push button »Next Page« with »OK«. 7 Selectthe Channel Type. Press »€« or »>« to select whether you want to search for only digital channels (Digital) or only radio channels (Radio] or both {Digital + Radio] and press »OK« to select and mark or unmark the »Digitale and/or »Radio« items. 86 ENGLISH 8 Select Scan Type. To select whether you want to search for only free digital television channels (Free), only scrambled digital television channels (Scrambled) or both [Free + Scrambled), press »€« or »>« and press OK« to select and mark or unmark the »Free« and/or »Scrambled« items. 9 Press the »e« red button to start searching. Notes: # When updating via the same satellites a security query is displayed at the start of a search. m IFthe previously stored channels should be retained in the channel list and the new channels found be added to it, then press »ee« (green). m lF»e« (red) is pressed, the saved channels will be deleted from the current channel list. - The »Digital Searchinge menu appears, and the scan for TV channels begins. - The search is complete as soon as the message »Search is completedl« appears. Note: m The search can be aborted with »EXIT«. 10 Switch to the channel Editor with »..e« [yel- low) ;

SPECIAL SETTINGS Searching for digital television channels from a satellite manu- ally IF a certain channel cannot be found with au- tomatic search, you can search it manually by manual search function. You must enter all pa- rameters of the channel correcily. You can ob- tain the current transponder information from teletext page, satellite TV magazines or internet.

Note: m You can speed up the search. To do this, frequency and network ID information are required. You may get this data from your cable operator or find it in the Internet fo- rums. Select the push button »Next Page« with »V« to and press »OK« to confirm. Note: # Select whether to search for digital or ana- logue TV channels. To do this press »€« or »D« to select the option »Digitale or »Ana- logue and press »OK« to remove or apply the “small tick”. Press »e« (red) to start searching. Notes: m When updating via the same satellites a security query is displayed at the start of a search. m IFthe previously stored channels should be retained in the channel list and the new channels found be added to it, then press »ee« (green). If»e« (red) is pressed, the saved channels will be deleted from the current channel list. - The »Digital Searchinge menu appears, and the scan for TV channels begins. - The search is complete as soon as the message »Search is completedle appears. Note: m The search can be aborted with »EXIT&. Switch to the Channel Editor with »ese (yel- low) ;

SPECIAL SETTINGS Automatic service update IF this function is activated, possible changes of network operators are updated automatically. The unit must be located in stand-by mode. This updating affecis all types of reception - ter- restrial, cable and satellite. 1 Open the menu with »MENU«. 2 Activate the menu item »Settings« with »OK«. 3 Select the menu item »Source Setup« with »D« or »« and press »OK« to confirm. - »Source Setup« menu is displayed. 4 Select the line »Advanced Settings« with »Ve« or »A« and press »OK« to confirm. 5 Select the line »Automatic Service Update« With » We or »A« and select the automatic update with »€« or »®« (»On«]. 6 Press »EXIT« to end the setting. [92 ENGLISH Tuning analogue television channels This setting is only necessary if you cannot re- ceive any digital channels and you have not car- ried out an analogue search during initial setup. The television channel can be set directly or using the search. Setting all analogue televi: channels

The analogue television stations are listed in the channel list after the digital television stations. Note: = Plug the rooftop antenna cable (for ana- logue television stations] into the »ANT IN« socket on the television. 1 Open the menu with »MENUk. 2 Activate the menu item »Settings« with »OK«. 3 Select the menu item »Source Setup« with »D« or »c and press »OK« to confirm. - »Source Setup« menu is displayed. 4 Select the line »Automatic Channel Search with »W« or » A and press »OK« to con- firm. 5 Select the option »Air« or »Cable« with »@« or »D« and confirm the source you are re- ceiving analog broadcast from by pressing »OK«. 6 Select the option »Digital« with »« or »D« and press »OK« to remove the small tick. 7 Press »e« fred) to start searching. Notes: m After starting the scan, a security query will appear. Press »++« (green) to confirm the option »Yese. - All channel and favourites lists for the analogue channels will be deleted and compiled new. - The »Analog Searching« menu appears, and the scan for TV channels begins. Depending on the number of television channels received, this can easily take a few minutes. - The search is complete as soon as the »Search is completedll appears.

SPECIAL SETTINGS Note: = The search can be ended prematurely with »EXIT«. 8 Press »..e« (yellow) to switch to the Chan- nel Editor;

press »EXIT« to end the setting. Tuning the analogue television channels by entering the channel numbers

10 To save the setting press »eee« (blue). Note: m To set other television channels, repeat steps from 7 to 10. 11 Press »EXIT« to end the setting. Changing stored analogue channels If channels were stored with the automatic chan- nel search during the tuning of the television channels, you can delete them. You can also change or enter the name of a channel and skip a channel. Selecting channel lists Open the menu with »MENUX«. Activate the menu item »Settings« with »OK«. Select the menu item »Source Setup« with »D« or »€c and press »OK« to confirm. Select the line »Channel Editor« with »W« or »A« and press »OK« to confirm. - »Channel Éditore menu is displayed. Note: # Additional operations are explained in the following sections. ENGLISH 93|

In the »Channel Editor« menu, select the channel(s) you want to add in the favor- îtes list with » Ve, »Ax, »Gc or »3«, and highlight the television channel by pressing »OK«. - Channel is marked with »«. Activade the »Tools« menu with » low). Select the line »Add To Fav.« with »W « or »Ak« and press »OK« to confirm. -»Add to Fav.« menu is displayed. «yet Select the favorite list you want to add the selected channels with »W « or »A« and store with »OK«. - The channels are marked in the Channel Editor with »@«, »@«, »@« or »@«. - You can add the same channel in more than one favourites list. - Each favourite list can contain maximum 255 channels. Notes: m You can delete channels from the favourites list. Press »eee« (yellow), select the favorites list the channel is in with »W« or »A« and press »OK« to confirm. Select the channel(s) you want to delete with »We, » Ac, »€« or »3c, and highlight the channel by pressing »OK«. Press »ese« (yellow) and select the line »Remove from Fav.« with »W« or »A« and confirm with »OK«. The channel you have selected is now deleted from the favorites list. # When a channel stored in the favourite chan- nel list is deleted channel order in the favou- rite list is updated. 5 Press »EXIT« to close the menu.

Product Fiche Energy efficiency class Screen size: 121 cm/48 Zoll Power consumption: in operation mode 67 W / 120 W max. in off position O W Annual power consumption: 98 kWh Stand-by power consumption: <0.50W Max. resolution: WUXGA 1920 x 1080 Other data Operating voltage: 220-240 V- 50-60 Hz Screen Area (dm2): 63 dm? Rosh Limits: Pb (Lead) / Hg (Mercury) Pb (Lead) complies with ROSH directive / O Peak Luminance rate: 65% Audio out: 2 x 20 watt music 2 x 10 sinusoidal wave + 15 W sinusoidal wave (Subwoofer) Subwoofer feature is optional. Not available in all models. Default satellite: LNB Power: 13/18V, 14/19V optional, max.500mA LNB switching signal: 0/22 kHz 650mV +/- 250mVpp DiSEqC:

[96 ENGLISH Reception range: Satellite: Ku band 10700MHz - 12750MHz Modulation: DVBS @PSK, DVBS2 GPSK, 8 PSK IF band 950 MHz - 2150 MHz Signal level: -25dBm to -65 dm Cable: Full band 110MHz 862MHz Modulation:16GAM, 32GAM, 64QAM, 128QAM and 256GAM Symbol rate:4.0Msym/s to 7.2Msym/s Digital (DVB-T): VHE/UHF Band width 7 MHz and 8 MHz FFT size: 2k, 8k Modulation: … 16GAM, 64@AM,GPSK Security range: 1/4, 1/8, 1/16, 1/32 Digital (DVB-T2): VHE/UHF Band width 7 MHz and 8 MHz FFT size: 1k, 2k, 4k, 8k, 16k, 32k Modulation: 16@AM, 64GAM, 256QAM, QPSK Security range: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 This feature is optional. Not available in all mod- els. Analog: CO2 .… C80, special channels SO1 … S41 Default channels: TV/Radio 6000 (Satellite - DVBS), 1000 (Cable - DVBC) / 99 (analog) 1000 (Antenna-DVBT) / 99 (analog) 8 AV, 3 USB Weight: approx 14.5 kg Size: W H D 108,8 cm x 62,9 cm x 4,46 cm Right to make technical changes and errors re- served.

INFORMATION This product complies with European Union Service information for dealers directives and regulo- tions below: 2006/95/EC: Elec- trical equipment directive for use within certain voltage limits. 2004/108/EC: Directive relevant for electro magnetic suitability. 2009/125/EC: Directive and relevant for eco- design for products using energy as well as its following sub-directives; 278/2009: Regulation regarding eco friendly design requirements regarding energy consump- tion of uncharged external power sources and average active efficiency [for models with AC/ DC adapters}; 642/2009: Regulation regarding eco friendly design requirements for televisions. 2010/30/EU: Directive regarding Energy La- belling of Energy-Related products as well as its following sub-directives; 1062/2010: Regulation regarding energy la- belling of televisions. 2011/65/EU: Directive on limitations on use of certain hazardous materials on electric, elec- tronic domestic and office equipment. 1999/5/EC: Regulations on Radio and Tele- communications Terminal Equipment. To receive a copy of declaration of compliance {DoC) visit: htp://www.grundig.com/download/doc . You can access the declaration of compliance by running your television model on the product model search section by entering the model num- ber on the cover of the user's manual. Notes for customers: The following information is only applicable for devices hat are sold in the countries enforcing EU regulations. TV's wireless system can only be used in the countries given in the table below. AT | BE |BG|CH|CY | CZ | DE | DK EE |ES| F1 | FR |GB|GR])HU | IE IS FT | Li | LT LU | LV | MTI NL NO | PL! PT ROSE | Si | SK | TR This device can also be operated in the countries outside Europe. For the customers in Italy; Public use is subject to service provider's permis- sion. For the customers in Norway; Radio equipment use is not allowed in a graphi- cal area within 20 km diameter of Ny-Alesund, Svalbord. For the customers in Turkey; This device's WLAN (Wifi) feature is only used indoors. In Turkey, outdoor use is not allowed. Make sure WLAN (Wifi) feature is closed when using outdoors. For the customers in Russia; Short Range Device with FHSS Modulation Ap- plications. Maximum 2.5 mW e.i.r.p. for collecting telemetry information for auto- matic tracking and source calculation systems, 100mW e.i.r.p is the maximum allowed short range device density value permitted for use on outdoor applications without any limitation on installation height. For uses with other purposes, this applies to outdoor application in which this value does not exceed 10m above the ground. Short range device density for indoor applica- tions is 100mW e.i.r.p maximum. Short range device applications with broadband modulation with DSSS and other than FHSS. The maximum average density value for short range device applications with broadband modulation with DSSS and other than FHSS is 100mW ei.rp. For only the purpose of compiling telemetry data for automatic monitoring and source estimation systems, maximum short range device allowed to be used in outdoor applications is 20 mW/MHz or 100 mW eir.p. Maximum density value for indoor use of short range devices is 10mW/MHz or 100 mW eirp. For the customers in Ukraine; Maximum short range device density value for indoor uses, along with internal antenna with 6 dBi amplification factor, is 100 mW e..r.p. ENGLISH 97|

INFORMATION Network interfaces This product is intended for connection to the ADSL network. Disposing of the packaging The packing materials are dangerous for chil- dren. Keep the packing materials out of the reach of children. The packing of your product is manufactured from recyclable materials. Dispose by classify- ing in accordance with waste instructions. Do not dispose along with normal household waste. Environmental note This product has been made T from high-quality parts and ma- terials which can be re-used LL] and recycled. Therefore, do not dispose of the product with normal household waste at the end of its life. Take it to a collection point for recycling electri- cal and electronic devices. This is indicated by this symbol on the product, in the operating man- ual and on the packaging. Please find out about collection points operated by your local authorities. Help protect the environment by recycling used products. 98 ENGLISH

INFORMATION Troubleshooting If the remedies given below do not work, please consult an authorised GRUNDIG dealer. Please bear in mind that malfunctions can also be caused by external devices such as video recorders or satellite receivers. Problem Possible cause Remedy Screen lit (snow), but no station Poor picture contrast Interference to picture and/or sound Antenna cable Is the antenna cable connected? No TV station programmed Start a station search Picture settings incorrecily set Adjust the brighiness, contrast or colour setting Problem at station Test with a different station Interference from other devices Change the position of the device Ghosting, reflection No colour Picture but no sound Channel setting Automatic or manual channel set- ting/fine tuning Antenna Have antenna cable or system checked Colour intensity at maximum Turn up the colour TV standard setting (if setting op- tion is available] Select the correct colour standard Problem at station Test with an another channel Volume set to minimum Turn up or switch on the volume Teletext missing or faulty Problem at station Test with an another channel Television station | has no tele- text] or antenna system Test another channel for fine tun- ing and ghosts Station signal too weak Check the antenna system Remote control does not work No optical connection Point the remote control at the television set Remote control batteries Check the batteries, change if necessary Operating condition undefined Switch off the television with the main power button for approxi- mately 2 minutes Picture is dark in PC mode Incorrect setting for picture reso- lution and picture frequency on the PC Change the setting on the PC [for example, picture resolution 1280 x 768, picture frequency 60Hz] DMS device cannot be found DMS device is not switched on or not started Make sure that the DMS device is on and operating. Network connection settings are not made. Check the network settings. ENGLISH 99

INFORMATION Low image quality (pixel) _ | DMS (for example PC] is con- in WLAN mode nected to the wireless network and away from the modem Bring your DMS closer to the modem Warnings about the con- Network Cable or wireless USB nection problems on the network device may be discon- display nected Check network cable or wireless USB network device Modem do not have Internet connection or has problems Make sure that your modem has Internet connection Videos in video applica- Internet connection speed is low. tions are lagging during playback in wireless con- Low Internet speed is a problem that is related with the speed of your subscription or a failure in tions are lagging during playback in cable con- nection the Internet infrastructure. Contact with our service provided (ISP). Videos in video applica- Internet connection speed is low. | Low Internet speed is a problem that is related with the speed of your subscription or a failure in nection the Internet infrastructure. Contact with your service provided (ISP) There are connection This may occur due to temporary | Try connecting to the applications problems in Inter@ctive ap- | problems in servers ofthese ap- | again plications. plications Note: m This is a Class À product. During operation the device can cause radio interference. In this case the user may have to remedy this. Please contact your specialist dealer. 100 ENGLISH
