USER MANUAL 39VLE931BH GRUNDIG

6 GENERAL INFORMATION 6 Special features of your television set 7 Receiving digital channels 7 Important notes on environmental protection Notes on still images

Connecting the antenna and power cord 9 Inserting batteries into the remote control 10 OVERVIEW 10 Connections on the television set 11 Controls on the television set 12 The remote control - Main functions 12 The GRUNDIG , Voice Remote” 13 The remote control - All functions 14 SETTINGS 14 Initial setup and tuning television channels 14 Selecting language, country and operating mode 15 Tuning terrestrial television channels (DVB-T) 15 Tuning television channels from the cable provider (DVB-C) 16 Changing the program table for the digital channels 19 Picture settings 20 Sound settings

Playing the video, music and image files with home network connection USB RECORDING Information on recording and playing television programmes Possible limitations when using an external data medium Connecting external data media Settings for USB recording “Pausing” time shift programmes Recording programmes Preseting programmes to be recorded Playback Deleting programmes in the recording list USB OPERATION File formats Connecting external data media Removing the external data media The file browser Settings in the USB setup menu Basic playback functions Additional playback functions TELETEXT OPERATION TOP text or FLOF text mode Additional functions INTERACTIVE PORTAL (HBBTV) What is HbbTV2 Additional functions for video sequences

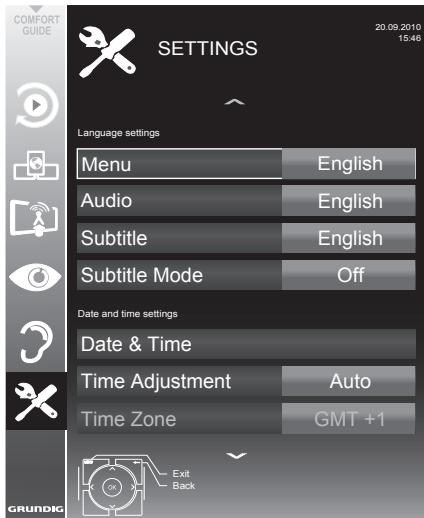

CONVENIENCE FUNCTIONS Opening the SETTINGS menu Language settings Setting the date and time Timer functions Parental control settings Updating software (OAD) Updating software [Online] Restoring the television to the default setings

OPERATION USING EXTERNAL

DEVICES DIGI LINK The DIGI LINK functions on your television Device operation High definition HD ready Connection options Connecting external devices Using a DVD player, DVD recorder, video recorder or settop box Headphones Hifi System

OPERATION AS À PC MONITOR

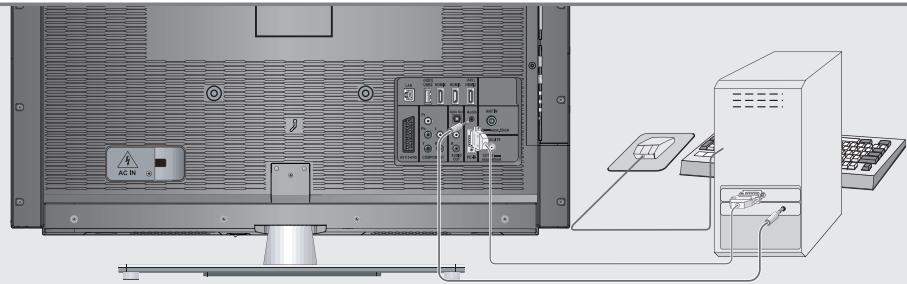

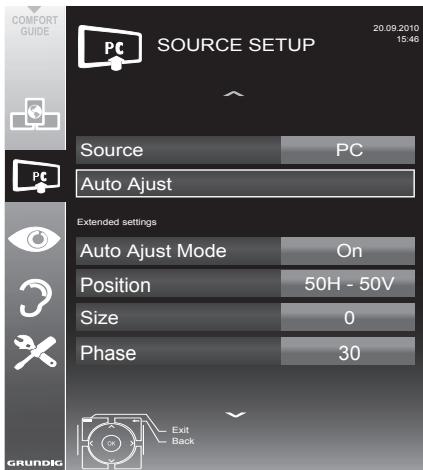

Connecting a PC Selecting presets for the PC Settings for PC mode

OPERATION WITH A COMMON

INTERFACE What is a Common Interface? Inserting the CA module Access control for CI module and smart card SPECIAL SETTINGS Searching for digital terrestrial TV channels automatically Searching for digital terrestrial TV channels manually Tuning analogue television channels Changing stored analogue channels Displaying signal information Deactivate and activate HBBTV Deactivate and activate digital teletext

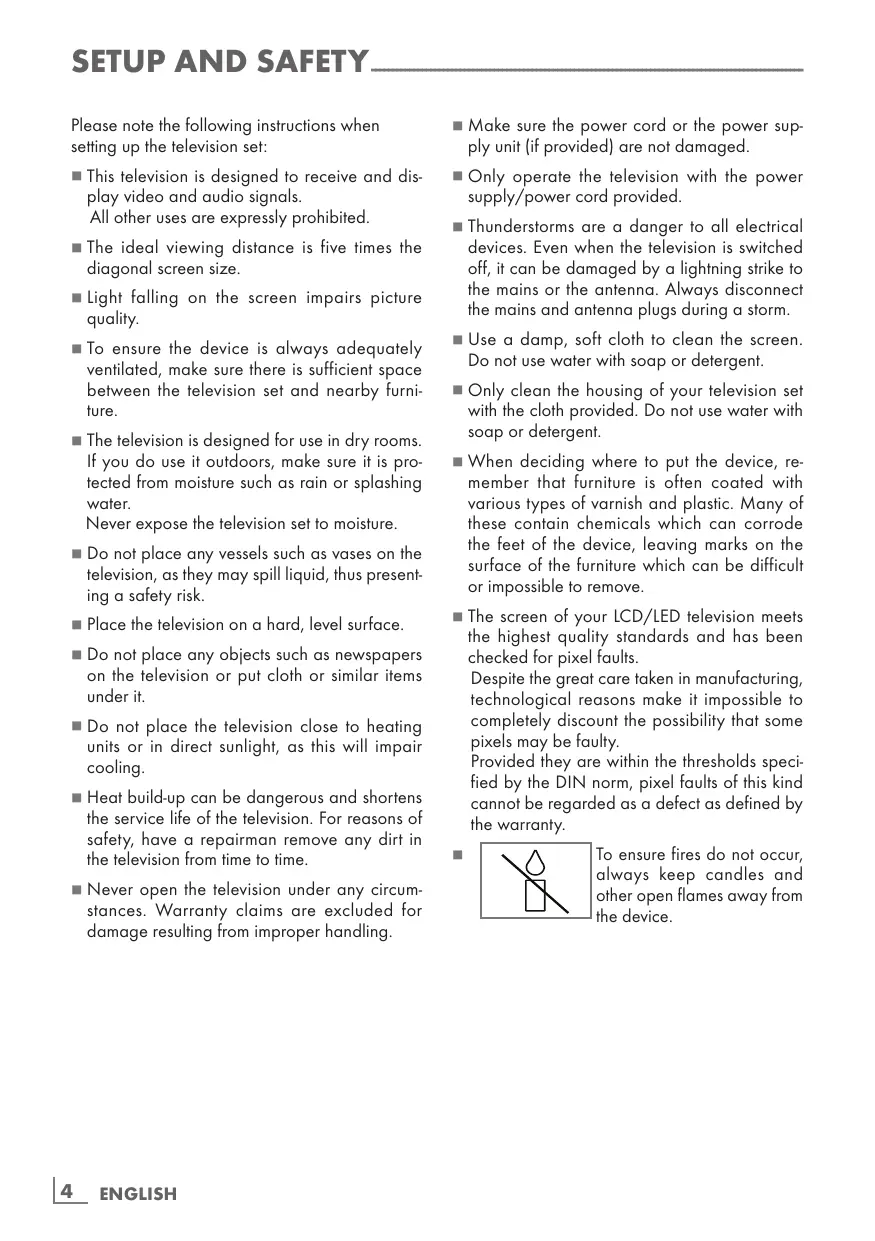

Please note the following instructions when setting up the television set: m This television is designed to receive and dis- play video and audio signals. All other uses are expressly prohibited. m The ideal viewing distance is five times the diagonal screen size. # Light falling on the screen impairs picture quality. m To ensure the device is always adequately ventilated, make sure there is sufficient space between the television set and nearby furni- ture. m The television is designed for use in dry rooms. IF you do use it outdoors, make sure it is pro- tected from moisture such as rain or splashing water. Never expose the television set to moisture. # Do not place any vessels such as vases on the television, as they may spill liquid, thus present ing a safety risk. # Place the television on a hard, level surface. m# Do not place any objects such as newspapers on the television or put cloth or similar items under it. # Do not place the television close to heating units or in direct sunlight, as this will impair cooling. m Heat build-up can be dangerous and shortens the service life of the television. For reasons of safety, have a repairman remove any dirt in the television from time to time. m Never open the television under any cireum- stances. Warranty claims are excluded for damage resulting from improper handling. |[4_ eneusH m Make sure the power cord or the power sup- ply unit (if provided) are not damaged. # Only operate the television with the power supply/power cord provided. m Thunderstorms are a danger to all electrical devices. Even when the television is switched off, it can be damaged by a lightning strike to the mains or the antenna. Always disconnect the mains and antenna plugs during a storm. m Use a damp, soft cloth to clean the screen. Do not use water with soap or detergent. # Only clean the housing of your television set With the cloth provided. Do not use water with soap or detergent. m When deciding where to put the device, re- member that furniture is often coated with various types of varnish and plastic. Many of these contain chemicals which can corrode the feet of the device, leaving marks on the surface of the furniture which can be difficult or impossible to remove. m The screen of your LCD/LED television meets the highest quality standards and has been checked for pixel faults. Despite the great care taken in manufacturing, technological reasons make it impossible to completely discount the possibility that some pixels may be faulty. Provided they are within the thresholds speci- fied by the DIN norm, pixel faults of this kind cannot be regarded as a defect as defined by the warranty. RAC To ensure fires do not occur, always keep candles and other open flames away from the device.

m# Do not connect any other equipment while the device is switched on. Also switch off other equipment before connecting it. Do not plug in the power cord of the device until you have connected the external equip- ment and the antenna. Make sure the mains plug is freely accessible. Keep the TV away from following devices as much as possible: cell phone, microwave and other devices that uses high frequency radio wave. Otherwise, TV may be malfunction due to radio wave interference. Do not expose the batteries to excessive heat such as direct sunlight, fire, etc. Do not use old and unused batteries together. Only replace the exhausted batteries with those having the same model, value and prop- erties. By ensuring proper disposal of these batteries, you will have contributed in prevention of po- tential hazards on the environment and human health that may arise from inappropriate dis- posal of the batteries. Warning for the Product Package: Packaging materials of your product are recy- clable. Please ensure that packaging materials of our product are disposed of separately in accordance with the regulations set by the local authorities in order to have the packag- ing materials included in the environmental friendly recycling process. Caution: æ If you plan on using a wall bracket for your television, make sure you read the assembly manual for the wall bracket or have a spe- cialist assemble it. = When purchasing the wall bracket, make sure that all the fastening points on the televi- sion are also on the wall bracket and that they are all used when mounting it. ENGuISH _5|

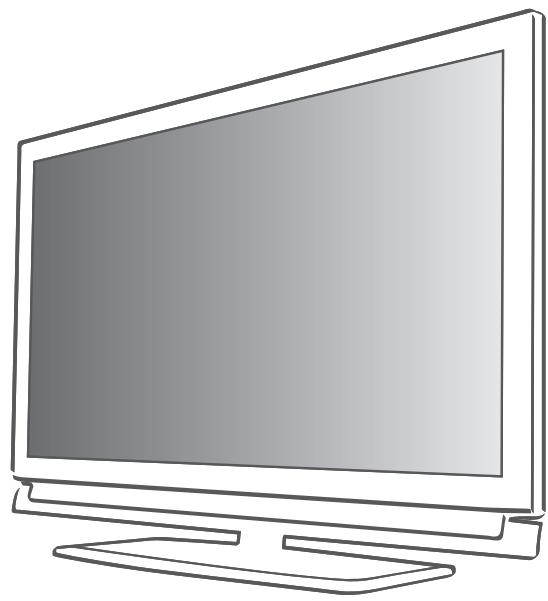

GENERAL INFORMATION Special features of your television set m You can receive and watch digital TV channels using your television set [via DVB-T and DVB- C) - including High Definition programmes (HD). However, the reception of digital TV channels in HD is currently limited to a few countries in Europe. # Although this television set complies with the current DVB-T and DVB-C standards (status: August 2010), the compatibility with future as terrestrial DVB-T and DVB-C cable pro- grammes cannot be guaranteed. m Your television set can receive and process all analogue and non-encrypted digi- tal TV channels. The television set is also equipped with digital and analogue receivers. m The electronic TV guide (for digital channels only] informs you about any schedule changes at short notice, and provides an overview of all the broadcasters' schedules for the next few days. Detailed information on the individual television programmes are - when provided by the broadcasting station - are also avail- able in the electronic TV guide. # You can connect various data media, such as an external hard drive, a USB memory stick or a digital camera, to the USB socket. Using the file browser, you can then select and play the file formats of your choice [for example, MP4, MP3 or JPEG data). m Using the time shift function, you can quickly and easily pause a programme using the re- mote control and resume it at a later stage. The programme is recorded in an external data medium. |[é_ eNcusH m You can record any digital TV channels you choose. The TV channels are converted by the televi- sion and saved on an external data medium which is connected to the USB socket. The saved programmes can be called up and played from the archive on the external data medium at any time. You can also play a programme from the archive while recording another. More information on recording and playing TV programmes can be found from page 45. Smart Inter@ctive TV 2.0 feature provides your TV with Internet applications when your TV is connected to Internet. You can surf through the web pages, visit popular video and photo sharing sites as well as social networks with these applications. Wireless USB keyboard and mouse support in the web browser application facilitates surfing through the internet pages for the user. # DINA feature allows you to use a wired or wireless local network to access your content that were recorded with DLNA compatible de- vices we use at our daily lives such as a PC, mobile phone or NAS (Network Attached Storage) which are operated as DMS (Digital Medial Server). Thanks to DMR feature, when DLNA application has been started, you can automatically start and stop media playing on devices with DMC feature. Devices that contain and serve video, music or image files are called Server. This television receives video, music and image files from the server through home network, allowing you to access and play such media even when your television is located in a different room then the server. A DLNA compatible device such as a PC, mobile phone, NAS or a NASlike (Net. work attached storage) device which operates as a DMS [Digital Media Server] is required in order to use home network.

GENERAL INFORMATION ital channels m You require a digital roof antenna or indoor antenna (passive or active indoor antenna with its own power supply] to receive digital television channels (DVB-T). m If you wish to receive digital television chan- nels via your cable system (DVB-C], the an- tenna cable for your cable operator must be connected to the television set. m Unlike analogue broadcasting, not every channel has its own transmission frequency. Instead, several channels are grouped into what are known as bouquets on a regional or national level. You can find the current trans- mission information on teletext from various broadcasters, or by consulting a current TV guide or the Internet. # Various digital television channels from private broadcasters are encrypted (DVB-T and DVB- C). Waïching these channels and the record- ing and playback functions are only possible with the appropriate CI module and a Smart Card. Ask your specialist dealer. The range of channels available from the pub- lic broadcasting institutions (ARD with EinsEx- tra, EinsFestival or ZDF with ZDF Info and all third party broadcasters) are not encrypted and can be received without a SmartCard. Important notes on environmental protection = The following information will help you to save resources - and money as well mlf you are not using your television set for several days, you should pull out the mains plug for environmental and safety reasons. This way the television does not consume any electricity. m IFthe device is equipped with a power switch, switching it off using this switch will be suffi cient. The energy consumed by the television set is reduced to virtually O W. mn standby mode, the television set uses very litle energy. However, it may be necessary to leave the television set in standby mode for certain functions [for example automatic switch-on and switch-off and for timer func- tions). m The television set uses less energy when the brighiness is reduced. Notes on still images Watching the same image for a long time on the screen may cause a still image remains feebly on the background. Feeble image(s) on the back: ground is originated from LCD/LED technology and does not require any action under guaran- tee. To avoid such cases and/or minimize the impact, you may observe the tips below. # Do not allow the same TV channel to stay on the screen for a very long time. Channel logos may cause this situation. # Do not allow the images, which are not full screen, to constanily stay on the screen; if not streamed in full screen format by the broad- caster, you can convert the images to full screen by changing picture formats. æ Higher brighiness and/or contrast values will lead this impact to appear faster; therefore, you are recommended to watch your TV in the lowest brighiness and contrast levels. ENGLISH _7|

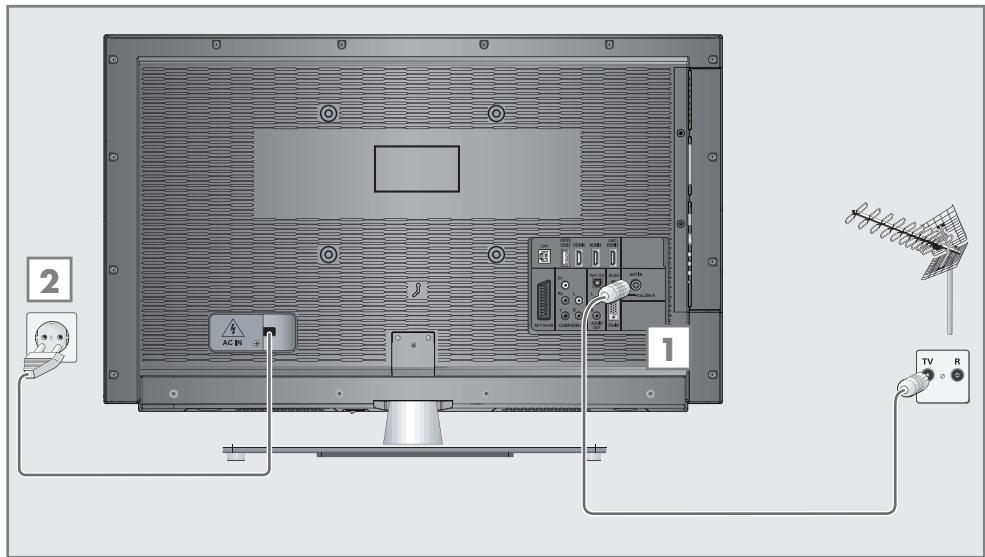

Connecting the antenna and power cord la To receive terrestrial digital broadcasters (DVBT) connect the cable for the rooftop or indoor antenna (passive or active indoor antenna with its own power supply] to the an- tenna socket »ANT IN« on the television set;

1b To receive digital cable channels (DVB-C) connect the cable for the rooftop antenna to the antenna socket »ANT IN« on the television set; 1e To receive analogue TV channels, connect the cable for the rooftop antenna to the an- tenna socket »ANT IN« on the television set Note: m When connecting an indoor antenna you may have to try it out at different positions until you get the best reception. [8_ eNeusH 2 Plug the power cord into a wall socket. Note: # Do not plug in the power cord of the device until you have connected the external equip- ment and the antenna. m# Do not use an adapter plug or extension lead which does not meet the applicable safety standards. Do not tamper with the power cord.

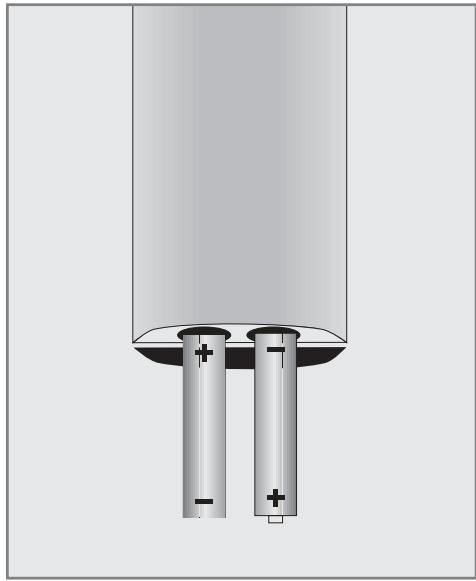

Inserting batteries into the remote control

Open the battery compartment by removing the lid. Insert the batteries (2 x 1.5 V micro, for example RO3 or AAA]. Observe the po- larity marked in the bottom of the battery compartiment. Close the baïtery compartment. Note: m the television no longer reacts properly to remote control commandés, the batteries may be flat. Always remove used batteries. mThe manufaciturer accepts no liability for damage caused by leaking batteries. Environmental note This symbol on recharge- able baïteries/batteries or on the packaging indicates that the rechargeable bat- tery/battery may not be disposed of with regular household rubbish. For certain rechargeable baïteries/batteries, this sym- bol may be supplemented by a chemical symbol. Symbols for mercury [Hg] or lead (Pb) are provided if the rechargeable batter- ies/batteries contain more than 0.0005% mercury or more than 0.004% lead.

Rechargeable batteries/batteries, including those which do not contain heavy metal, may not be disposed of with household waste. Always dispose of used batteries in accordance with local environmental regulations. Make enquiries about the appli- cable disposal regulations where you live. ENGLISH _9|

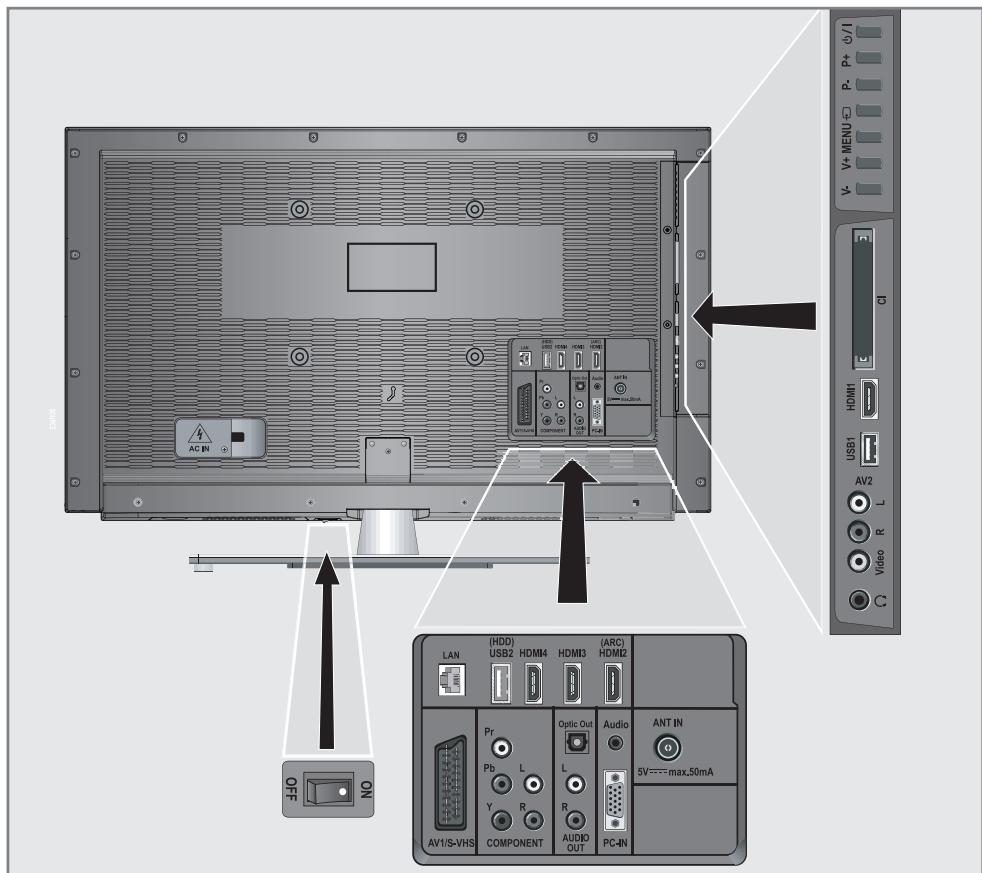

HDMI socket, audio/video input. USB socket for external data media and PVR function: Grundig WiFi USB dongle or wireless keyboard, mouse port. Network cable connection socket. Headphone jack (3.5 mm iack plug}; Sockeis for audio output. Video socket for camcorder Audio socket for camcorder. USB socket for external data media without a power supply of their own and PVR function: Grundig WiFi USB dongle or wireless keyboard, mouse port. HDMI socket, audio/video input. Common Interface Slot. Controls on the television set ON + OFF Power switch, switches the televi- sion into standby mode and off. d/1 Switches the television on and back into standby mode. V= V+ Adijusts the volume; selects menu functions. MENU Opens the menu. Select a menu option with »P+« or Pc. Activate the function with »V+e. Contfirm the function with »V+e or » Ve. Press »MENU« to quit the menu.

2) Opens the pre-selection for

AV channels. In the menu, press »P+« or »P-« to select and press »& J« to confirm. P- P+ Switches the television on from standby; selects channels in steps; selects function in the menu. ENGLISH mn!

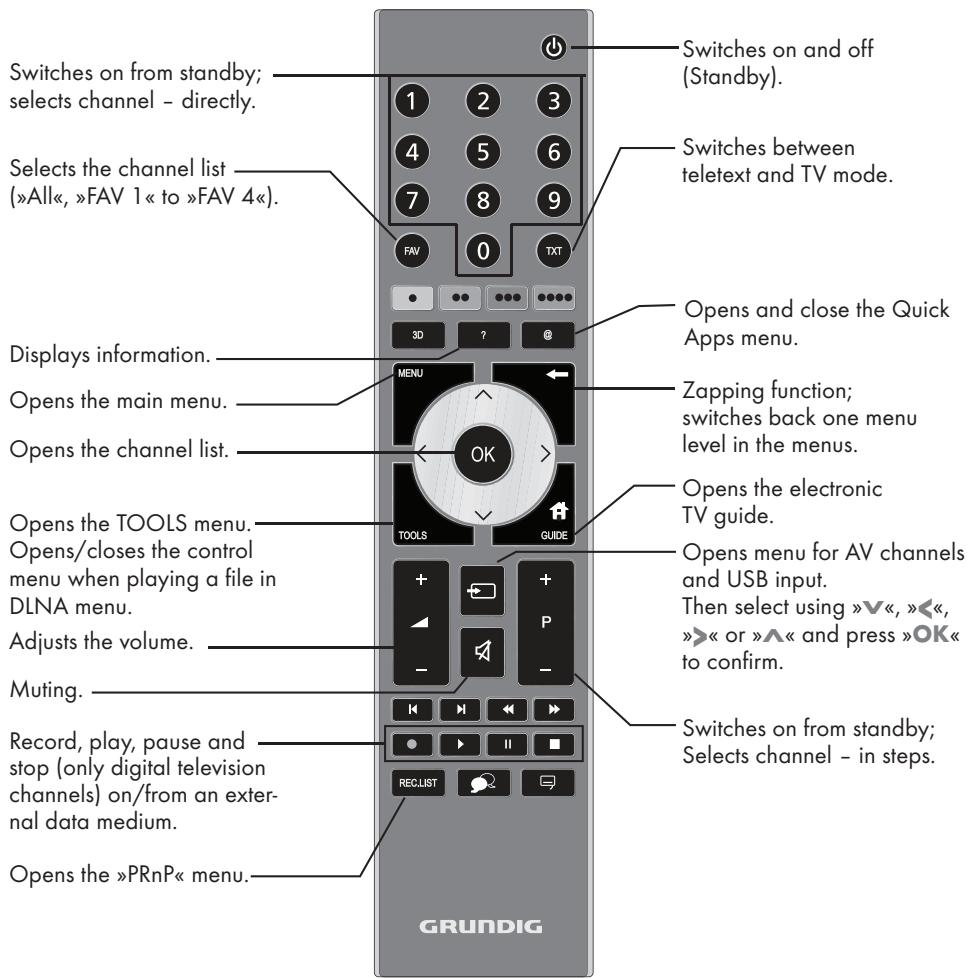

Switches on from standby; Selects channel - in steps. GRUNDIG The GRUNDIG , Voice Remote” a Moves the cursor up As an alternative to the included remote control, and down in the menus. you can also operate your television with the new GRUNDIG , Voice Remote”. < Lx] > Moves the cursor to the left and right in the menus. Your television is operated using simple voice v Activates various functions commands or the Gyro function. and save functions/settings. Additional information on the GRUNDIG , Voice [12 eneusH Remote” is available from your retailer.

OVERVIEW The remote control - All functions

• (red) (green) (blue)

Selecis pages in teletext; Selecis/activates various functions

• (yellow) in the menus. Switches to double character size in teletext; selecis the previous title/previous picture in the file browser. Refreshes a teletext page; selects the next track/next picture in the file browser. Stops scrolling through pages in teletext; starts a fast reverse search in the file browser. Reveals answers in teletext; starts a fast forward search in the file browser. Starts the recording (only for digi- tal television channels, the record- ing is made on an external data medium]. Starts playing a programme from an external data medium; repeais a recorded programme; starts playing in DLNA menu.

Note: Freeze frame, if no external data medium is connected; playback pause; Time shift mode (only for digital television channels and when an external data medium is con- nected); pauses the file being played in DINA menu. Ends playback of a programme from an external data medium; ends a recording or playback in time shift mode; splits the screen in teletext; ends playing in DLNA menu. Selects different audio languages {only for digital television chan- nels) Selects different subtitles {only for digital television chan- nels) m Your TV supports remote control feature for Apple iPhones and Android phones. Depending on the features of your TV, you may control your TV by your phone after downloading the free »GRUNDIG TV Remote« application from Apple App Store or Google Play (Android Market} and install it on the Apple iPhone/Android phone. ENGLISH 13

SETTINGS Initial set-up and tuning television channels The television set is equipped with automatic channel search, which searches terrestrial chan- nels (DVB-T), cable channels (DVB-C) and ana- logue channels. You start the search and the television channels will be stored into the different Program Tables. Following, you can sort the channels in the Pro- gram Tables. The various settings Depending on the type of antenna connected, you can decide which channels you would like the television to search for. m DVB:T - Tunes digital terrestrial television channels, on page 15. m DVB-C - Tunes digital television channels from the cable provider, on page 15. m Tunes analogue television channels, in the chapter “Special functions”, starting on page 77. # Further settings for digital television chan- nels after the initial set-up can also be found in the chapter “Special Settings”, starting on page 74. Note: m Make the language and country selection for all types, then continue reading the respective chapter. [14 eneusH Selecting language, country and operating mode 1 Switch the television to standby with the power switch »ON © OFF«. 2 Switch on the television set from standby with »D, »1...0c or »P+« or »P-«. - During initial setup, the »Installation Guidex will be displayed. Help: mlf this menu is not displayed, restore the television set to its default settings (see page 64). 3 Select the menu language with »é«, »>«, »V« or »A« and press »OK« to confirm. 4 Select the mode with »<« or »»« and press »OK« to confirm. - The settings used in »Home Mode« help to save energy. - Alternatively, the menu item »Shop Mode« can be selected which the retailer can use for demonstrating the device functions. Note: # Endthe »Shop Modex by restoring the televi- sion set to its default settings (see page 64). 5 Select the country in which the television set is operated with »@«, »3«, »V« or »A« and press »OK« to confirm. - The »Source Setup« menu appears with the »Connection Type« line marked. Note: m# You can find a description of how to tune the television channel of your choice - de- pending on the antenna connected - in the following chapters.

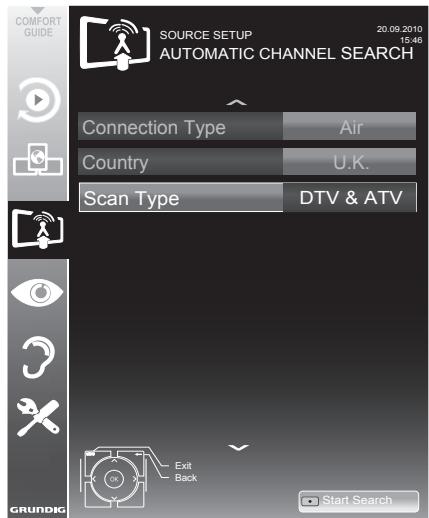

SETTINGS Tuning terrestrial television channels (DVB-T) the cable provider (DVB-C) 1 Inthe »Source Setup« menu, in the »Connec 1 tion Typex line, select the option »Air« with »cor »>«. 2 Select the line »Scan Typec with »We or 2 > Ace. Use »€« or »« to set the required scan type: = »DTV«, scan for digital television channels; -ATV& scan for analogue television channels; - »ATV & DTV«, scan for analogue and 3 digital television channels. Caution: m The antenna power supply [SV] may only be switched on if the antenna is an active indoor antenna with a signal amplifier and it is not already supplied with a voltage via a mains plug (or similar supply]. Otherwise you may cause a short circuit and irrepara- bly damage your antenna. 3 Selectthe line »Active Antenna Power« with >V« or Au. Switch on the antenna power supply for the antenna with »€« or »»« (»On«). 4 Startthe scan with »ee« (green). - The »Search Resulis« menu appears, and the search for TV channels begins. - Depending on the number of television channels received, this can easily take a 4 few minutes. - The scan is complete as soon as the »PRO- GRAM TABLE« appears. Note: mYou can abort the scan by pressing »MENUK. 5 Press »MENU to end the setting. Note: m Before recording HD channels, please check signal quality and Strengih, see 5 chapter "Displaying signal information" on page 80. IFthe level is displayed in green, you can record HD channels without any problems. In the »Source Setup« menu, in the »Connec- tion Type line, select the option »Cable« with »@« or »D«. Select the line »Scan Typex with »V« or »A«. Use »« or »« to set the required scan type: = »DTV«, scan for digital television channels; = »ATV«, scan for analogue television channels: - »ATV & DTV«, scan for analogue and digital television channels. Select the line »Cabel Scan Typex with »W« or »Aw. Select the preferred option (»Quick« or »Fulle] with »@« or »>«. - The search function »Quicke sets up the channels according to the information pro- vided by your cable provider in the trans- mission signal. - IFthe option »Full« is selected, the entire frequency range will be scanned. The search can take a long time with this op- tion. This option is recommended if your cable provider does not support the scan type »Quicke. Note: # You can accelerate the search. To do this, you need information about the frequency and network ID. You are usually able to get this data from your cable operator or find it in forums on the Internet. Start the scan with »e« (green). - The »Search Resulist menu appears, and the search for TV channels begins. - Depending on the number of television channels received, this can easily take a few minutes. - The scan is complete as soon as the »PRO- GRAM TABLE appears. Note: mYou can abort the scan by pressing »MENUK. Press »MENUX to end the setting. Note: m Before recording HD channels, please check signal quality and Sirengih, see chapter "Displaying signal information" on page 89. the level is displayed in green, you can record HD channels without any problems. ENGLISH a5|

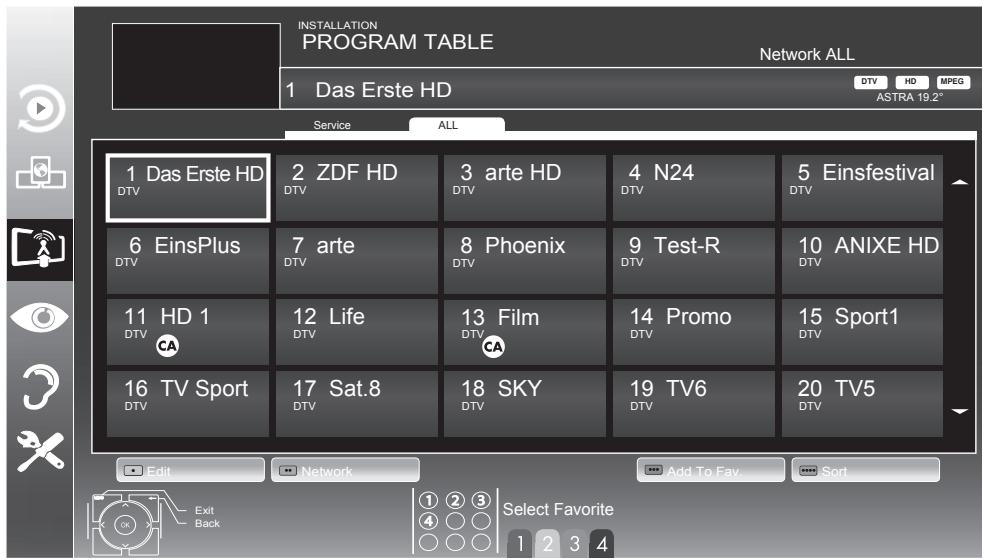

SETTINGS Changing the program table for the digital channels Channels which are found using the scan are saved in the »PROGRAM TABLE: You can delete channels which are not required from the programe table, you can change the order of channels within the programe table and lock individual channels (Parental control). You can also add channels to the favourites list; in addition, you can change the order of chan- nels within the favourites list. With »ee« (green) you can display the channels which belong to one network. Switch to the next page in the programe table with »P+« and to the previous page with »P-« With »ese« (yellow) you can open the »LiST MANAGEMENT within the programe table. In this List Management you can create your own favourites lists. With »s+.« [blue] you can sort the channels ac- cording different criteria. PROGRAM TABLE 2 ZDF HD 7 arte 6 EinsPlus 11 HD1 16 TV Sport 12 Life 17 Sat8 l16 eneusH 3 arte HD 8 Phoenix 13 Film 18 SKY Selecting channel lists

1. Open the menu with »MENUx

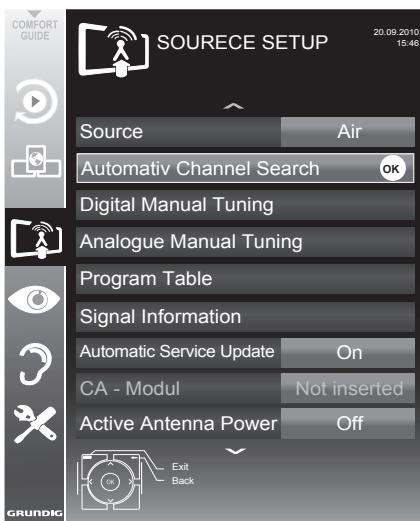

2 Selectthe »SOURCE SETUP« menu with »Ve or »A« and press »OK« to confirm - The »SOURCE SETUP« menu appears. 3 Select the line »Programe Table« with »W« or »A« and press »OKx« to confirm. - The menu »PROGRAM TABLEx appears. Important: m Programe table and favourites lists are saved separately according to the different input sources (cable, air). # When opening the program table, the respec- tive channel list for the current input signal appears. Notes: m If in the program table A appears added to the name of the channel, you need a CI module and a SmartCard for watching these channels. 5 Einsfestival Test-R ANIXE HD 14 Promo 15 Sporti 19 TV6 0 TV5

SETTINGS Deleting channels in the program table Tin the »PROGRAM TABLE« menu, select the Edit mode by pressing »+« (red). 2 Select the television channel to be deleted with »We, » Ac, »6« or »>« and press »ese« yellow] to delete. Note: mYou can delete all channels with »+ (blue). 3 Confirm the deletion process with »ee« (green);

cancel the deletion process with »e« (red); 4 Quitthe program table with »MENUX. Change the order of the channels in the program table (only digital television channels from the cable provider] Tin the »PROGRAM TABLE« menu, select the Edit mode by pressing »+« (red). 2 Select the channel which should be moved with »We, » Ac, »€ or »>« and mark it with pe (red). 3 Move the channel to its new position with »Ve, » Ac, »6« or »»« and press »OK« to confirm. Note: m Repeat steps 2 and 3 if you would like to change other channels. 4 Quit the program table with »MENUKX. Sorting channels in the program table (only digital television channels from the cable provider] You can sort the order of the channels in the pro- gram table according different criteria. T In the »PROGRAM TABLE« menu, select the Sort mode by pressing »e+eex (blue] 2 sort digital television channels from the cable provider with »ees« (blue). 3 Quitthe program table with »MENUKX. You can mark television channels which should be skipped when selecting with »A« or »Va. lt is still possible to select them using the number buttons. 1 In the »PROGRAM TABLE« menu, switch over to the list view with »..e« (yellow). 2 Select the preferred channel with »v« or »A«. 3 Select the column »Skipe with »&« or »>« and use »OK« to mark the channel. - The channel is marked by »/«. 4 Quit the program table with »MENUKX. Note: m# Channels can also be reactivated. Select the channel with »W« or »Ax, then select the column »Skip« and reactivate the channel with »OK«. Creating lists of favourites You can save your favourite channels in up to four favourites lists [FAV 1 to FAV 4). Notes: m Favourites lists must be created separately for all input sources (cable, air]. m You can select the favourites list by pressing »FAVe. T In the »PROGRAM TABLE« menu, switch over to the list view with »..e« (yellow). 2 Select the channel of your choice with »W« or »Ac. 3 “Push” the channel into the favourites lists 1 to 4 with »€« or »>« and press »OK« to confirm. - The position in the favourites list is marked with we. - You can enter the same channel in more than one favourite list. - Each favourite list can store up to 250 channels. ENGLISH az|

SETTINGS Notes: m Channels can also be deleted from the favourites lists. Select the channel to be deleted with »W«, »A«, »€« or »>« and press »OK« to delete it. m When deleting a channel from the favourites list, the order within the favourites list will be updated. 4 Quit the program table with »MENUX. Sorting channels in the favourite list You can change the order of channels in the favourites list. 1 Inthe »PROGRAM TABLE« menu, select the favourites list » 1« to »4«. 2 Select the channel which should be moved with »We, » Ac, »€ or »>« and mark it with pe (red). 3 Move the channel to its new position with »Ve, » Ac, »6« or »»« and press »OK« to confirm. Notes: m Repeat steps 2 and 3 if you would like to change other channels within the same favourites list. m Repeat steps 1 to 3 if you would like to change channels in a different favourites list. 4 Exit the current favourites list with nesce {blue}. - The entire programe table will appear again. 5 Quitthe program table with »MENU«. 18 ENGLISH Enter own names for the favourites lists (max. 6 characters) You can enter own names for all favourites lists. 1 Inthe »PROGRAM TABLE« menu, switch over to the list view with »e «ex (yellow). 2 Select the desired favourites list with »1« till 4e. - The Favorite Name screen is displayed. 3 Delete the ,old" name (FAVI), for this purpose select with »V4, »A«, »€« and »>« the push button »@mx and delete the character with »OK«. 4 Select the required character/numeric with DV, » Ac, »ée and »>« and confirm with »OK«. Repeat the procedure for further characters/ numerics. - Select »ABCk for uppercase and »abc« for lower case and confirm with »OK«. - Select »?@123« for numbers and symbols and confirm with »OK«. 5 Confirm the new name, select the push button »Submite with »We, » Ac, »€« or »>« and confirm with »OK«. 6 Press »MENU« to end the seting.

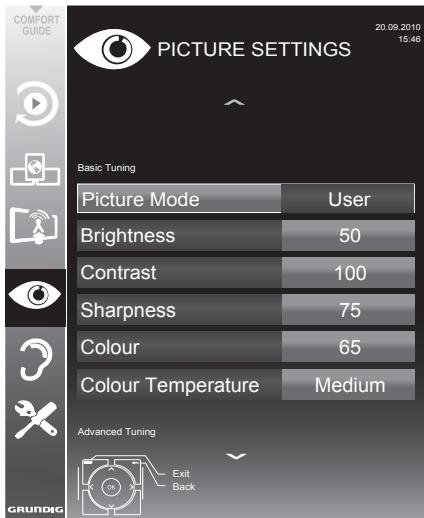

Picture Mode Brightness EU User Contrast 100 Sharpness 75 Colour 65 Colour Temperature Medium 3 Select the line »Picture Modex, »Bright- nesse, »Contraste, »Sharpness«, »Colour«, or »Colour Temperature« with »W« or » A. Select the value with »€« or »>« and press »OK« to confirm. Notes: # When changing the values with »€« or »>e, the screen will be split. You can see the current picture value on the left side, the new setting on the right side. m In the »PICTURE SETTINGS« menu you can also find other additional settings. 4 Select the line »DNRe, »Mpeg NRe, ibrant Colour«, »Perfect Clear«, »Film Modex, »Gamma, »Dynamic Contraste, »Dynamic Backlight«, »Backlight« or »MEMC« with >V« or » A. Select the value with »€« or »>« and press »OK« to confirm. Notes: # You can only select the »Mpeg NR« function on digital and AV presets. »Mpeg NRe reduces any interference from artefacts (pixel blocks) from digital programmes due to MPEG compression (such as from DVBT receivers or DVD players). mThe »Film Mode« detecis and processes feature films automatically for all channel sources. This means you will always receive an optimal picture. This functions in the modi 480i, 576i and 1080i in TV playback and for other channel sources. IF the »Film mode« is switched on for pro- grammes without a feature film signal, minor problems such as picture freeze, defective subtitles or fine lines in the picture could oceur. m The function »Dynamic Contraste adapts the contrast dynamically and optimally for the respective picture content. = With »Dynamic Backlight«, the device opti- mally adapts the background lighting to the picture content. m The »Backlighte can only be set manually when the function »Dynamic Backlight« is deactivated. m MEMC feature only appears in the menus of the products with 400 Hz PPR feature. 5 Press »MENUX to end the setting. ENGLISH aol

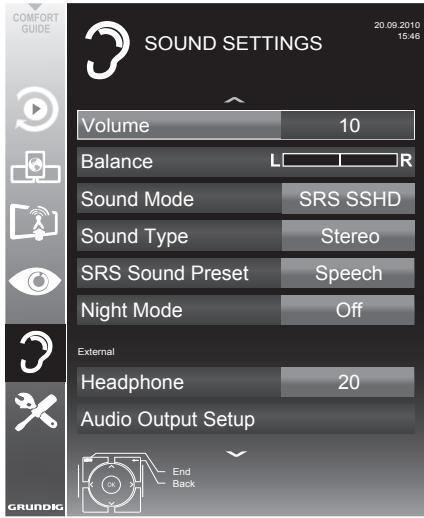

• Under licence from SRS Labs, Inc. StudioSound HD, SRS and the SFS® symbol are trademarks of SRS Labs, Inc. Equalizer Equalizer offers a sound setting “User” that you can create. Equaliser appears in the menu when »Sound mode is selected as »Spatial« or »Normalx, and »Sound Medium« as »User«. 1 Select »Equalizere with »V« or »A« and press »OK« to confirm. The »EQUALIZER« menu appears. Note: m IFthe »SRS SSHD« setting has been selected in the »Sound Modex line, the »Equalizere line will not indicate. 2 Select the frequency bandwidih »120Hzx with »W« or »A«. Set the preferred value with »€« or »>«. 3 Set the next frequency bandwidih with »w« or »A« and repeat the setting. 4 Press »é« to save the setting. Audio description (Audio subtitles) Audio description is an additional audio channel for visuallyimpaired persons. Descriptions are provided of activities, surroundings, changes of scene, gestures and actors' facial expressions. This audio channel is transmitted simultaneously with the normal sound on digital channels. Avail- ability depends on the respective channel and broadcaster. 1 Select the line »Audio Description« with »w« or »A« and select the option »On« with »@« or De. 2 Select the line »Volumec with »V« or »A« and change the volume with »€« or »>«. Exiting the setting 1 Press »MENU« to end the setting. ENGLISH 21|

Zapping function This function remembers the channel you are currently waiching while you switch over to other ones [zapping]. 1 Press »1...O« or »P+«, »P-« to select the channel to be stored in the zapping memory and press »@m« to confirm. 2 Press »1...0« or »A«, »V« to switch to another television channel. 3 Press »@m to switch between the saved tel. evision channel and the last television chan- nel viewed. 4 Endthe function with »MENUK. [24 eneusH Electronic TV guide The electronic TV guide provides an overview of all programmes that will be broadcast in the next week (for digital channels only). 1 Press »GUIDE& to display channel informa- fion. Notes: m Not all channels supply provide a detailed TV guide. m Many broadcasters transmit the current schedule, but do not offer detailed descrip- tions. m There are broadcasters which do not pro- vide any information at all. 2 Press »V« or »A« to select a television channel. - Today's programmes on the television channel selected are displayed. 3 Switch to the information about the current programme with »>«. Notes: m You can open and switch off the extensive programme information with »?«. m You can can added the selected broadcast to the memory timer by pressing »OK«. 4 Press »V« to select information on the next programme and, »A« to return to the infor- mation for the current programme. 5 Select programmes on over the coming days with »ee« (green), and switch back to the cur- rent day with »e« (red). 6 Switch back to the channel selection with »éc. Note: m Filter for certain programmes with »esee (blue), select the channel type with »&«, »>«, »Ve or »A« and press »OK« to con- firm. Programmes which match the selected channel type are displayed. 7 Quitthe electronic TV guide with »MENUKX.

Changing the picture format The television automatically switches to the 16:9 format if this format is detected via the SCART socket. 1 Open the Tools menu with »TOOLS+«. 2 Select the menu item »Picture Formate with »V« or »A« and press »OK« to confirm. 3 Selectthe picture format with »€« or »»« and press »OK« to confirm. - You can choose between the following picture formats: »Autox format The picture format is automatically switched to »16:9« for 16:9 programmes. The picture format is automatically switched to »4:3« for 4:3 programmes. »16:9« and »14:9« formats For programmes in 4:3 format, the picture is stretched horizontally if the »16:9« format or »14:9« format is selected. The picture geometry is stretched horizontally. With actual 16:9 input sources [from a set- top box on the SCART socket) the picture fills the screen completely and with the correct geometry. »4:3« format The picture is shown in 4:3 format. »LetterBox« format The letierbox format is especially suitable for programmes in 16:9 format. The black borders which are usually at the top and bottom of the screen are eliminated, 4:3 pic- tures fill the screen. The transmitted pictures are enlarged, but are slighily cropped at the top and bottom. The pic- ture geometry remains unchanged. »Subtitlex format IF you cannot see the subtitles at the bottom of the screen, select »Subtitle«. »Panoramax format This setting is suitable for films in an especially wide format. During programmes in 4:3 format, the picture is stretched horizontally if the »Panoramac function is selected. The picture geometry is stretched horizontally. »Overscan off« format In this mode, HD pictures are not cropped by the HDMI sockets or component sockets, and are displayed in their original size. This only applies in HDMI mode and for resolutions of 720p or above. ENGLISH 25|

NETWORK INSTALLATION To use the functions "GRUNDIG AppliCA- TION store" and "Operation with Digital Media Server", you must connect the television to your home network with internet access and log on. When you have logged your television onto the home network, it can also be operated remotely from an Apple iPhone or Android smartphone. The options available are dependent on the functions offered by the television. To enable this, you must download the free application »GRUNDIG TV Remotec from the Apple App Store or from Google Play (Android Market) and install it on your Apple iPhone/Smartphone. Network Connection You can establish a wired or wireless connection between your television and the local network. IF you want to use a wired network connection, please start with the instructions on this page. If you use a wireless network connection, please follow the instructions in the ,Wireless network connection” section on page 29. [26 eneusH Wired network Wired network connection

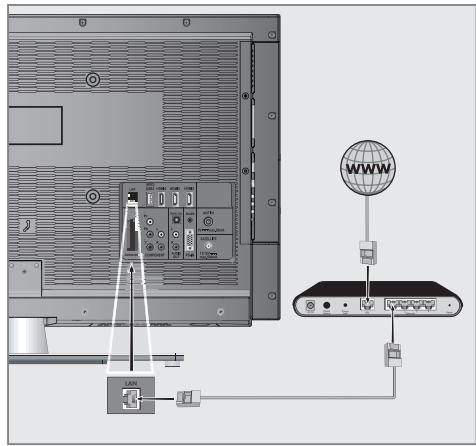

Connect the output of external model to »LAN« socket with Cat 5 cable. E-a— Note: # Connection cables are not supplied.

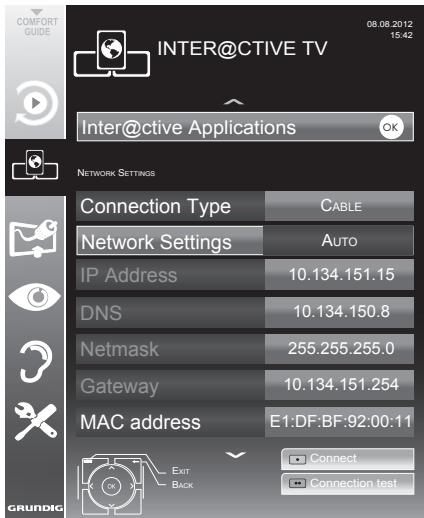

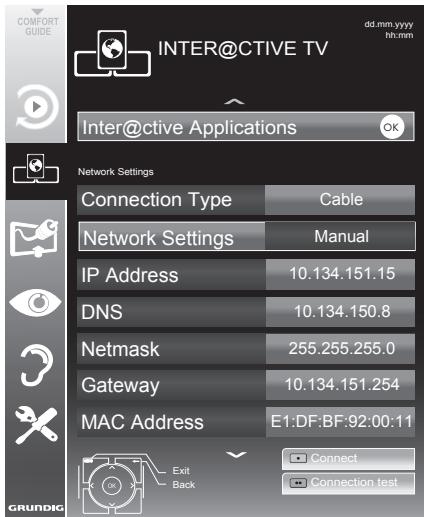

NETWORK INSTALLATION Wired network setting There are two ways of making the wired network settings. À Automatic connection, all data regarding connection settings (»lP Address«, »Netmaske, »Gateway« and »DNS+«) are obtained from modem automati- cally. B Manual connection, all data regarding connection settings (»lP Address«, »Netmaske, »Gateway« and DNS} must be configured manually. Automatic connection Most of the home networks are Dynamic. If you have a dynamic network, you must use a DSL modem that supports DHCP. Modems and IP sharers that support DHCP ob- tain the »lP Address, »Netmaskx, »Gatewayx and »DNS« values required for internet access automatically, and thus you are not required to enter those values manually.

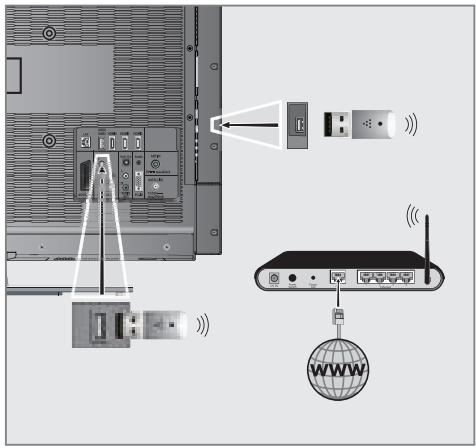

NETWORK INSTALLATION Wireless network connection Connect Grundig WiFi USB dongle G-WIFI-01 to the »USB T« or »USB2 (HDD)« socket of your television in order to connect the television to a wireless network. Note: m Grundig WiFi USB dongle is not supplied with the product but sold separately. Please contact your dealer from where you have purchased your TV to obtain more infor- mation about purchasing (order number: ZDVO00 / ZDHO00). Notes: m Wireless LAN adaptor supports IEEE 802.11B/G and N communication protocols. We recommend you to use IEEE 802.11N protocol to obtain the best performance in HD video playback. mlf you use a modem that supports IEEE 802.11B/G, video playback performance may be poor when compared to a modem that supports IEEE 802.11N since the data transfer rate of IEEE 802.11B/G protocol is lower. Please note that video playback performance in a DLNA application on a wireless local network and in a Smart Inter@ ctive TV 2.0 application on a network with internet connection depends on the number of users on the network as it is the case in every wireless network. ltisrecommended to switch offthe equipment that are not in use in home network in order to avoid unnecessary network traffic. Placing the modem or wireless network sharer on an elevated location will increase the wireless connection reception strength. Wireless connection reception strength may vary depending on the type of the modem and the distance between the modem and television. # Modem must be transmitting its SSID in order to establish a wireless connection. Television can not connect to a network without SSID. Wireless network settings There are two ways of making the wireless net- work settings. À Automatic connection, all data regarding connection settings (»lP Address«, »Netmask«, »Gateway« and »DNS+«] are obtained from modem automati- cally. B Manual connection, all data regarding connection settings (»lP Address«, »Netmaske, »Gateway« and »>DNS«) must be configured manually. ENGLISH 29|

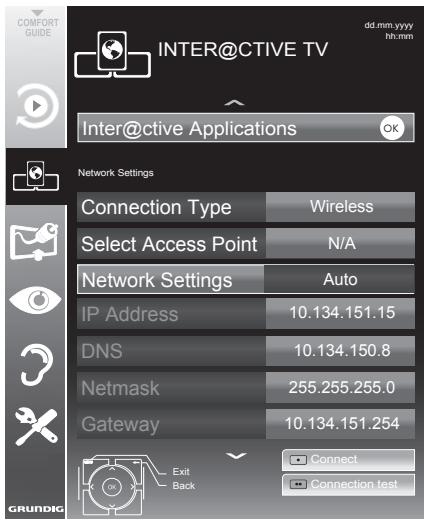

NETWORK INSTALLATION Automatic connection Most of the home networks are Dynamic. If you have a dynamic network, you must use a DSL modem that supports DHCP. Modems and IP sharers that support DHCP obtain the »IP Ad- dresse, »Netmaske, »Gateway« and »DNS« values required for internet access automatically, and thus you are not required to enter those val- ues manuallÿ.

Inter@ctive Applications © Connection Type Wireless Point NA ERRERE an NERO SERIngs Auto

Cas Los) 5 Select the line »Select Access Pointe with »V« or »A« and press »OK« to confirm. - »Select Access Pointe menu appears and available wireless networks are scanned and displayed in the menu. [30 eneusH 6 Select the network that you want to connect with oVe, »Ac, »6c or »3« and press »OK« to confirm. - Wireless connection password screen is displayed. 7 Selectthe required character with »W«, »A«, »€« or »>« and move to the next character with »OK«. - Select »ABC« for uppercase and »abex for lowercase and press »OK« to confirm. - Select »?@1234 or numbers and symbols and press »OK« to confirm. - Select »@ŒÆk to delete the character entered and press »OK« to confirm. - Enter the password and use »V«, »Ax, »é« or »>« to select » Submit and press »OK« to confirm. Notes: min WEP encryption system, more than one network password can be assigned to the network. Your television can connect the network only with the password in level one. m For TV to discover the wireless modem on the network, the network name should support ASCII characters. 8 Select »Connect« with »e« (red) to establish the modem connection. - »Connecting … Please wait« message will be displayed. 9 Press »ee« (green) to make sure that the network connection is established with the current seHings. - »Testing Please wait message will be displayed, and if the connection is established »Connection To Gateway: Success«, »nternet Connection: Successe messages will be displayed. 10 Press »MENU« to end the setting. Note: mlif you do not have a dynamic network, follow the instructions in manual connection section.

SMART INTER@ACTIVE TV 2.0 FUNCTION _

Smart Inter@active TV 2.0 Applikationen Smart Inter@ctive TV 2.0 provides your televi- sion with Internet applications when connected to Internet. Through Smart Inter@ctive TV feature you can run many local and global Internet applications. GRUNDIG AppLiCATION store is a depot where you can find various applications that you may use on your Grundig TV. You can down- load many applications from GRUNDIG AppLl- CATION store. These applications include audio and video conferencing, video, picture and music applications, social networks, news and sports, weaiher applications and doctor or phar- macy search, recipes and viewing traffic conges- tions depending on your local city. Notes: m Availability of Smart Inter@ctive TV

2.0 inter@ctive applications may vary

depending on the country. m Smart Inter@ctive TV 2.0 cannot download and save files, cannot upload files to a web site and cannot install add-ins except Login pages of some applications for applications other than the ones in GRUNDIG AppLiCATION store. m Under no circumstances, Grundig is not responsible for the content and the quality of content offered by the content providers. m Local and global internet applications provided through your Smart Inter@ctive TV

2.0 comes with your TV withinthe framework

of special limited duration agreements entered into with the application owners. Application owners may update, modify, restrict or entirely remove those applications with their own decision. Grundig cannot be held responsible for such changes. Grundig reserves the right to make all changes such as modifications, restrictions, extensions, transfers and removals on internet applications. [32 eneusH min Login process of some applications, it may be required to connect to the web page of the related application. Subject web pages may contain links not related to Login process. When connecting those links, TV may access open web and view contents that are not supported by your TV. As you are on open web, your TV cannot control those unsupported contents or cannot be held responsible for them. Open the »SMART INTER@CTIVE TV« menu

Open the menu with »MENUx. Select menu item »INTER@CTIVE TVe with »Va« or »Ac« and press »OK« to confirm. - »INTER@CTIVE TVe menu is displayed. Selectthe line »lnter@ctive Applications with »V« or »Ac« and press »OK« to confirm. - »inter@ctive Applications menu will be displayed. During initial login, registration screen for GRUNDIG AppLiCATION store will be displayed. Notes: m IF you press »@« when no menu is open, you can access »Quick Appsx menu. # lfyou attempt to start Inter@ctive applications without wire or wireless adapter connected, the related warning is displayed on the screen. If your wire or wireless adaptor is connected but you cannot receive IP or internet is not connected, the Inter@ctive applications cannot be started. In this case, check Network connection settings. See page 26 or 29. # You can find information on how to navigate in the menus and how to create an account on GRUNDIG AppLiCATION store in the next chapters. USB keyboard and mouse You can connect an USB keyboard with mouse for using the WebBrowser to the sockets »USB1« or »USB2 (HDD)«. The keyboard needs to be an USB one. Keyboards requirering a special driver are not supported.

6 Enter the location: Enter the data, after entry use »W, »A&, »€« and »« to select the button »@=x and confirm with »OK«. - The message »You are …« is displayed, registration was successful. 7 Enter the telephone number [optional]: Enter the data, after entry use »We, »A&, »€« and »« to select the button »@=x and confirm with »OKk. « [blue]. Read the Conditions of Use and accept with »OK«. - The »GRUNDIG appLiCATION store menu is displayed and the standard applications are loaded. 8 Confirm the entry with ». [34 encusH Log on to GRUNDIG AppLICATION store IF you reset the television to factory settings and have not set the ,check mark" in the field »Save installed applications« during reset, all installed applications will be deleted. When the »GRUNDIG appLiCATION store« menu is selected, the ,Log on menu“ is dis- played. Please enter your e-mail address and password. 1 Callthe »GRUNDIG appLiCATION store« menu with »@e. - The Log on menu is displayed. 2 Start Login with »...e« (blue). 3 Enter the e-mail address: Enter the data and close the keyboard with Dent. Select the next line with »we. 4 Enter the password: Enter the data and close the keyboard with Du. Note: mIf you have forgotten the password, press »ess« [yellow]. À new password is sent to your e-mail address within a short time. Enter this password. Confirm the entry with »eese« [blue]. Read the Conditions of Use and accept with »OK«. - An information is displayed. You can choose, if you want restore your applications or if you want download the default applications. 7 Select the desired line with »W« or »A« and confirm with »OKk. - The »GRUNDIG appLiCATION store menu is displayed and the standard applications are loaded. 8 After a short time, an information message is displayed, confirm it with »OK«.

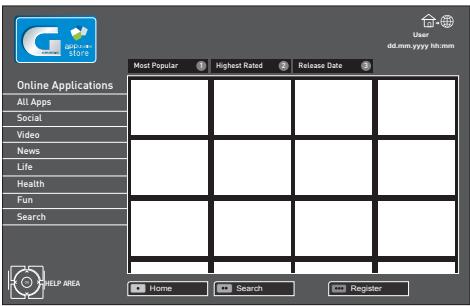

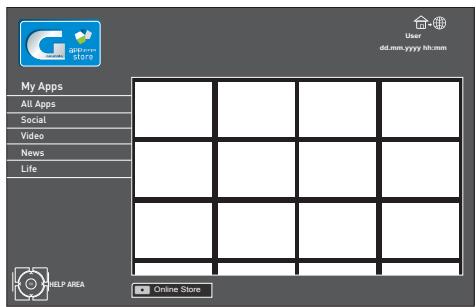

Selecting applications 1 Select the »Quick Appse menu with »@«. 2 Press »e« (red) button to enter the »GRUNDIG appLiCATION store« menu. Select application categories with »W« or »A« and press »>« to enter application field. 4 Select the required application with »V«, » Ac, »« or »ÿ« and press »OK« to confirm. - Main menu of the application will be displayed after a short while. Notes: m lfyou attemptto start Inter@ctive applications without wire or wireless adapter connected, the related warning is displayed on the screen. m If your wire or wireless adaptor is connected but you cannot receive IP or internet is not connected, the Inter@ctive applications cannot be started. In this case, check Network connection settings. See page 26 or 29. GRUNDIG Online Store GRUNDIG online store is an online depot where you can download many applications that you may use on your TV. In the »GRUNDIG appLiCATION store« menu, some applications are installed at the factory. The GRUNDIG online store includes a large selection of other applications which you can download. 1 Selectthe »Quick Appse menu with »@. 2 Press »es« [green] to enter the »GRUNDIG Online storex. Note: mPress »e« (red) to exit the »GRUNDIG Online Store. Downloading and installing internet applications 1 Select the desired category in GRUNDIG online store with »W« or »A« and press »>« to enter application field; select the application you want with the numbered buttons - »le - »Most Populare, - »2« - »Highest Rated«, - »3c - »Release Datec;

to search for a specific application, press »+e« (green) and use the virtual keyboard to enter a search term. ENGLISH 35|

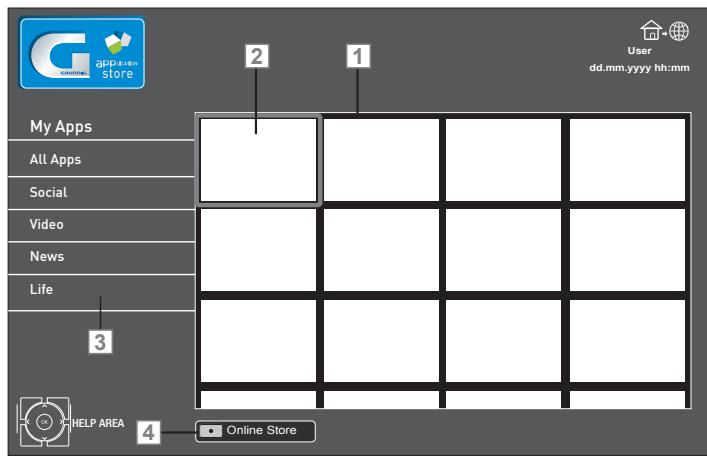

Application Store. Navigating in the main menu 1 Selectthe desired category with »W« or »A« and press »»« to enter application field. 2 Select the required application with »W«, »A«, »é« and »>« and press »OK« to confirm. = The Main menu of the application will be displayed after a short while. 3 The use of the application mainly depends on the structure of the application itself. Follow the notes on the screen. WebBrowser application The WebBrowser application offers you a suit- able access to the Internet. 1 Select the application with »V«, »Ax, »é« and »3« and press »OK« to confirm. 2 Select the URL entry field with »W« or »A« and press »OK« to confirm. = The virtual keyboard is shown 3 Enter the search criterion/address and press »e+ee« (blue) to confirm. Notes: # Further functions and additional operations are explained on the screen. mWe advise for easy navigating in the WebBrowser the GRUNDIG Easy-Use Remote Control with Gyro function. Please ask your retailer. Sn © Playing and other options in the applications Note: mSome applications do not support all playing options, and playing options may vary among different applications. »b « starts playing in the applications. »I« pauses playing in the applications. > stops playing in the applications. PB & D = During playback, press »44« or »)h« to search pictures. 5 During playback, press »[4« or »bl« to skip forward/backward. 6 »ve, » A, »ée and »p« allows sliding of the navigation keys in the applications and virtual keyboard. 7 Press »OK« to confirm the selections in virtual keyboard and applications. 8 Press »1...0a, »e« (red), »eox (green), » {yellow}, »essex [blue] to select/enable various functions in the applications. 9 »@« closes the menu »GRUNDIG appLiCATION storee. ENGLISH 37|

Plugged into Skype Your TV is Plugged Into Skype”. Plugged Into Skype" feature allows you to make audio and video calls from Skype" to Skype!” for free any. where in the world via internet connection You need internet access and a Grundig cam- era G-VCAM-01 with integrated microphones, please ask your specialist retailer You can use your Skype” account, if available, or create a new Skype!" account using your TV. Important information about Skype" m Skype" feature requires that your TV is connected to internet. m No emergency calls with Skype. Skype is not a replacement for your ordinary telephone and can't be used for emergency calling = Skype” calls made over wireless connection may have lower audio and video quality. Connect GRUNDIG G-VCAM-OT Camera and Microphone unit directly to »USB1« or »UUSB2 (HDD)« USB interface of the TV. Do not use a USB HUB. m Audio and video calls made with other Skype" users are free. For other Skype" services such as calling mobile or land phones with lower cost, Skype"" Credit or a subscription is required. mA noisy environment may lower audio quality of the microphone. Skype is deactivated and you cannot receive incoming calls when the TV is turned off. m Trade Mark Notification: Skype is a trade mark of Skype or its related companies. This product/application has not been approved or endorsed by Skype, Skype Communications S.a.rl. or any of their related companies. Skype IP Notice: This product includes SkypeKit Version 3.7 Copyright 2003-2011, Skype Patents Pending Skype, associated trade marks and logos are trade marks of Skype [38 eneusH Connecting and settings Connecting Skype Camera Note: mYour TV is compatible with GRUNDIG G-VCAM-OT camera unit and camera units of other brands are not supported. # GRUNDIG G-VCAM-OT camera unit is sold individually, it is not provided with your TV. Please contact your dealer from where you have purchased your TV in order to obtain more information for buying the camera m Before connecting the Skype camera it is recommended to switch the television to stand-by mode. Install the camera on the top side of the TV. 2 Connect the USB cable to »USB I or »USB2 (HDD)« to the USB interface of the TV.

cancel the setting with »@enc. 4 Switch back to the menu bar with »é«. Switch back to the Skype main menu with ée. Updating Skype application Skype application updates are performed with the TV software updates. For TV software up- dates, see page 64. [42 eneusH The application BABYWATCH The BABYWATCH application enables you to keep an eye on your children. You need internet access and a Grundig Baby- watch G-BCAM-01 with integrated microphones, please ask your specialist retailer. For more information on the camera functions, see the user guide for the GRUNDIG Babywatch GBCAM-OI. Select the application BABYWATCH 1 Select the »Quick Appse menu with »@. 2 Press »e« (red) button to enter the »GRUNDIG appLiCATION store« menu. 3 Select the »All Applicationse row with »w« or »A« and switch to the list of applications with »D«. 4 Select the »BABYWATCH« application with DV, » Ac, »ée and »>« confirm with »OK«. - After a short time, the main application menu is displayed. Note: = The settings and operating instructions for the BABYWATCH are available in the user guide for the camera.

Playing the video, music and image files with home network connection With DLNA menu of your television, you can easily access Video, music and photo files on server; and thanks to DMR feature, you can au- tomatically start and stop media playing on de- vices with DMC feature. Notes: m You can share your video, music and image files through devices such as PC, mobile phone or NAS [Network Attached Storage) that function as DMS (Digital Media Server) compatible with DLNA. m lfthe DMS device and the TV are connected to the wireless network at the same time, there may be lags and freezings during video playback. m TV can also operate with DMS software that can be installed on a computer but, it is not guaranteed that it will run in full compatibility with software without a DMS certificate. m Perform the following steps for a sample DMS set up. Open Windows Media Player1l'i on a computer with Windows operating system. In »Library« tab, select »Media Sharinge, tick on the »Share my media« box on the window that appears and then select »OK«. The new window displays the IP numbers of connected devices. To enable the TV to detect the computer, you need to select the television's IP number. IF IP is not listed in the window; from »Media Sharinge menu's »Settings« option, you can select the option »Allow new devices and computers automatically« in the pop-up menu. After completing these processes, the television can only view the supported file formats in the Library. In order not to encounter any problems with media sharing, check the firewall seings of your modem and computer. Selecting the Digital Media Server

Open the »Select Sourcee menu with »f je. Select »DLNA« with »V«, »Â«, »<e or »>« and confirm with »OK«. = »DLNA« menu is displayed. Press »essex (blue) to discover DMS devices on home network. - DMS devices that are discovered appears in the menu. Note: mif no DMS device appears, check the network connection. See page 26 or 29. You can select the DMS device you want with »We, » Ac, »6« or »3« and see its content with »OKk. - The content appears. Notes: # File and folder structure of the DMS device in menu may vary depending on the Digital Media Server software in use. # Subtitles are not supported on video files that are played through the DMS device. m Video files played through DMS device support following formats that have obtained DLNA certificate: »MPEG_PS_

NTSC«,_ »MPEG_PS_PAL«, »MPEG_TS_

SD_EU« and »MPEG_TS_EU_ISO«. m In videos wiïh high bit rate, lag problem might be seen. # Folders that appear as unknown in DINA application cannot be played by the TV. Installing the codec to your computer can solve this problem. ENGLISH 43

USB RECORDING Information on recording and playing television programmes m Recording and playback of television pro- grammes is only possible with digital television channels (DVB:S, DVB-T and DVB-C]. = The digital television channels (DVB.S, DVB-T and DVB-C) you are able to record and play- back also depends on the broadcaster. Recording and playback of programmes, as well as the time shift function, can only be carried out using an external data medium (hard drive or USB stick). m# Recordings can be made with most data media on the market. However, we cannot guarantee operation for all data media. 2 If a programme was recorded on an external data medium, it can only be played back on your television set. The playback of these pro- grammes is not possible on other devices. m IF you send your television to be repaired and hardware components need to be replaced, you might not be able to play the recordings again on the repaired television. # Reception for SKY broadcasting service is cur- renily only possible in Germany with a suitable seHtop box or suitable CA module. # Grundig does not accept liability for any loss of saved data on an external data medium. 2 it is recommended to playback recorded files via PRnP Player. USB Media Player may not support some recorded files. m The USB Multimedia Player might not support some recorded events. For proper playback please use the PRnP player. Pressing »REC. LIST« opens the menu »RECORDED FILES«, then select and playback the event. Possible limitations when using an external data medium Depending on the broadcaster, you may experi- ence various restrictions on some of the functions from some television channels. GRUNDIG has no influence on these restrictions. m Recording a programme on the external data medium can be disabled by the broadcaster. If the message »URI* protected! PVR function is blockedx appears on the screen, then re- cording or timeshift is restricted (one recording possible) or disabled {recording not possible] by the broadcaster.

• URI = User right information [Copyright in- formation). mIf you record and save a programme on the archive of an external data medium, playback can be restricted. The broadcaster can allow you to view this programme one or more times, but it may onlyv be available for a certain period of time. # Programmes not suitable for minors will require the input of a PIN number immediately before recording starts. If this authorisation is not given, the recording may not start. æ Copying a programme from a digital television channel onto a video or DVD recorder using the »AV l« socket (analogue picture/ sound signal) can also be restricted by the broadcaster. Prerequisite is that your device supports the copying function. ENGLISH a5|

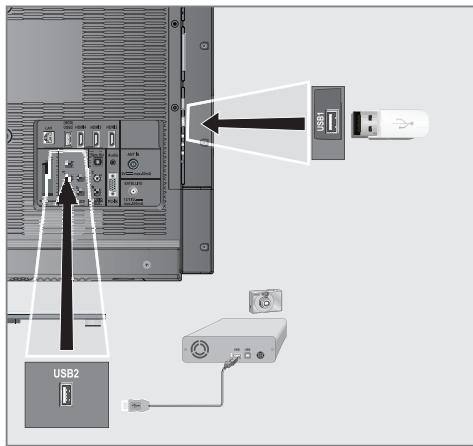

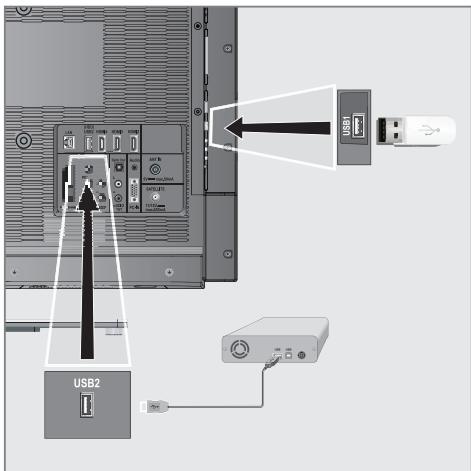

USB RECORDING Connecting external data media Notes: # Before connecting the external data medium itis recommended to switch the television to stand-by mode. # Before removing the external data medium, the television must be switched to standby, 50 that no data loss oceurs. m Your television features two USB sockets, »USB1« and »USB2 (HDD)«. »USB2(HDD)«isusedtoconnectdatamedia, which require an additional power supply - for example, external hard disks. 1 Connect the »USB2 (HDD)« socket of the television and the corresponding socket of the data medium (external hard disk} using a USB cable:

insert the USB plug of the USB memory stick into the »USB 1« socket of the television. [46 eneusH Notes: mThe »USB1« socket of the television sup- plies a maximum power of 500 mA in ac- cordance with USB specifications. External hard disks which require more power may therefore only be connected to the »USB2 (HDD)« of the television. m If you use a network cable for external hard disks which have been connected to the »USB2 (HDD)« socket of the television, this network cable must also be disconnected from the power supply when the television is switched off. m External data media may not be disconnect- ed from the television while files on the data medium are being accessed. Settings for USB recording Selecting the menu 1 Open the menu with »MENUK. 2 Select the menu item »USB RECORDING« with »V« or »A« and press »OKx« to confirm. - The »USB RECORDING« menu appears. Auto Preview Permane: Timeshift

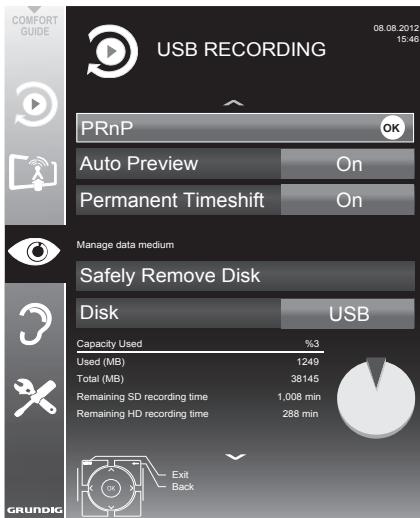

USB RECORDING Switching on automatic preview IF the automatic preview is switched on, a pre- view of the selected file appears in the file browser. 1 Select the line »Auto Previewe with »V« or > Ace. 2 Switch on the function with »€« or »3« (»On«). 3 Press »MENU« to end the setting. Safely remove disk 1 Select the line »Safely Remove Disk« with »V« or »A« and press »OK« to confirm. Note: m The disk can now be removed from the socket. Selecting external data media IF several external data media are connected to the television, you can select the preferred data medium. 1 Select the line »Diske with »V« or »A« 2 Select the preferred data medium with »g« or >. 3 Press »MENU« to end the setting. Switching to Permanent Timeshift The time shift memory has space for up to 1 hours of recordings, which means that after Thours of recording, the HDD DVD recorder continues recording but the start of the record- ing is lost. 1 Select the line »Permanent Timeshifte with >Ve or » At. 2 Press »é« or »>« to switch the function »On«. 3 Press »MENUc to end the setting. Selecting a partition on the external data medium IFthe external data medium features several par- fitions, select the partition you would like to use. 1 Select the line »Partition« with »V« or »A«. 2 Select the partition you wish to use with »@« or »>«. 3 Press »MENU« to end the setting. Testing the external data medium You can subject external data media to a test and establish whether they are suitable for the chosen functionality. 1 Select the line »Diske with »V« or »A«. If several data media are connected, select the preferred data medium with »€« or »3«. 2 Select the line »Partitionc with »V« or »A«. If several partitions are available, select the partition you wish to use with »é« or »>«. 3 Select the line »Check Disk with »V« or »Ac and press »OK« to confirm. - Information on the data medium is dis- played. 4 Press »MENU« to end the setting. ENGLISH a7|

USB RECORDING “Pausing” time shift programmes You can pause the programme you are watch- ing. This is a useful function, for example if the telephone rings while you are watching a film and you do not want to miss anything. À freeze-frame display of the last scene appears on the screen and the programme is recorded in the time shift memory of the external data medium. In time shift mode you can record a maximum of 60 minutes of the current programme. Note: m For undisturbed "Permanent Timeshift" use an external USB hard disk. 1 Press »B« to pause the current programme. - The picture is frozen, the time shift and the remaining recording time are displayed. 2 Press »B « to resume the programme. - The programme will continue to be recorded. Note: = The following functions are possible when in time shift mode: - Rewind, press »44« several times accord- ing to speed [the picture freezes while rewinding); - Fast forward, press »b}« several times according to speed; - Select pause with »HE«. 3 Press »I« to quit the time shift function. - The message »Live programme appears, and you will see the current programme without time shift. - The scenes in the “time shift memory” are deleted. [48 eneusH Recording programmes You can record programmes. The data for these programmes is recorded on an external data medium and this archive is administered via the television. You need 44 MB till 110 MB of memory capacity on the external data medium for 1 minute recording time. While recording, you can waich another pro- gramme from the archive. lt is only possible to change the program po- sition if the programs are broadcast on the same frequency (DVB-T) or if they are on the same transponder (DVB-S). li is also possible to change the source during recording to an exter- nal device, e.g. HDMII, AVI, etc, except the "USB" source. One-touch programme recording 1 Select the television channel to be recorded with » »1...0« or »P+«, »P-« and press > to start the recording. - Information on the recording is displayed: he recording symbol, the channel name, the programme, the recording time and the available memory space. - After a short time this information disap- pears. 2 Endthe recording with »II«. Confirm the display with »es« (green); press ».« (red) to continue the recording. Notes: m After the recording is complete, the record- ing will be automatically saved on the exter- nal data medium. m The »RECORDED FILES« menu, with the ar- chived programmes, can be opened with »REC.LIST«. m lFthe external data medium is disconnected from the USB socket during recording, the recording will be stopped automatically and will not be saved.

USB RECORDING Recording a programme from the channel list 1 Open the »CHANNEL LIST« with »OK«. 2 Select a television channel with »W«, » Ac, »é« or »« and press »OK« to confirm. 3 Press »MENUX to exit the channel list. 4 Press »Ml« to start recording. - Information on the recording is displayed: the recording symbol, the channel name, the programme, the recording time and the available memory space. - After a short time this information disap- pears. 5 Press »I« to stop recording. Confirm the display with »es« (green);

press »e« (red) to continue the recording. Presetting programmes to be recorded .… using the electronic TV guide You can use data from the electronic TV guide for recording. 25 programmes can be preset for the timer recording or as a reminder. 1 Press »GUIDEX to display channel informa- fion. - The electronic TV guide appears. 2 Select the preferred channel with »v« or »A«. 3 Switch to the information about the current programme with »>«. 4 Select the programme of your choice with >Ve or A. 5 Confirm the programme with »Æk. - The symbol »'@)« appears after the name of the programme, and the data has been added to the timer. Note: 2 !fthe data for the recording is to be changed, use »eesu (yellow) and »eses« (blue) to switch to the »SCHEDULED EVENTSK«, press »ee« (green), changethe data and save it with nee [green]. 6 Press »MENUK to exit the menu. Notes: # Before the timer recording begins, a warn- ing message appears with a 20-second countdown. You can switch over to the pro- grammed television channel. m lfthe timer recording starts during playback, playback is not interrupted: Recording takes place automatically in the background as long as you do not select »Yes« when the timer countdown message is shown. # Noie for UPC customers only: When a pro- gran is recorded, it can happen that a part of the previous or next program is included in the recording schedule due to possible electronic TV guide inaccuracies. Please be advised that in this case, when one or more of these programs are parental rated, the highest access level will be applied for the entire recording. Set the lead/follow-up time With this function you can change the recording time set by the electronic TV guide. IF you think that a program will start a few min- utes earlier or will end several minutes later, you can ,add" up to 60 minutes to this time 1 Display channel information with »GUIDEK. 2 Switch to the timer function with »esex (yellow) and then select the »Personel recording time edit« menu with »+e« (green). Change the start time with »€« or »>«. Use »V« to switch to the »End« row and change the end time with »€« or »>«. 5 Save the setting with »ee« (green). Switch off the program information with »GUIDE<. ENGLISH a9|

USB RECORDING .… by manual data entry You can preset up to 25 programmes for timer recording. 1 Press »GUIDEX to display channel informa- fion. - The electronic TV guide appears. 2 Open the »MAKE SCHEDULE« menu by pressing »eee« [yellow] fwice. 3 Select the line »Typec with »V« or »A« and select the option »Recording« with »é« or >. 4 Select the line »Channel« with »V« or »A« and select the channel with »€« or »»«. 5 Selectthe line »Mode« with »W« or »A« and select the preferred mode (»Oncex, »Every Daye or »Weekly«] with x or »>e. 6 Select the line »Start« (Start recording) with »V« or »A« and enter the date/time with »1...0«. 7 Select the line »End« (Stop recording) with »V« or »A« and enter the date/time with

8 Save the data with »ee« (green). - The programme is preset. 9 Press »MENUX to exit the menu. Notes: m Before the timer recording begins, a warn- ing message appears with a 20-second countdown. You can switch over to the pro- grammed television channel. m Fthe timer recording starts during playback, playback is not interrupted: recording takes place automatically in the background as long as you do not select »Yes« when the timer countdown message is shown. [50 eneusH Editing recording data in the timer menu You can edit the data for programmed timer recordings. 1 Select the timer menu by pressing »GUIDEXk, pese« (yellow) and »esee« [blue] in succes- sion. - The »SCHEDULED EVENTS« menu ap- pears. 2 Select the tile of the programme to be changed with »W« or »A« and activate the timer position with »ee« (green). - The input menu is displayed. 3 Select the required option with »V« or »A« and edit the data with »1...O« and »éc or »>« 4 Save the changes with »ee« (green). = The timer has been changed. 5 Press »MENUk to close the menu. Deleting recording data in the timer menu You can delete the data for programmed timer recordings. 1 Select the timer menu by pressing »GUIDEXk, pese« (yellow) and »esee« [blue] in succes- sion. - The »SCHEDULED EVENTS« menu ap- pears. 2 Selectthe title ofthe programme to be deleted with »V« or »A« and delete the timer posi- tion with »..e« (yellow). 3 Press »MENUk to close the menu.

USB RECORDING Playback The recorded programmes - whether started manually or using the timer function - are stored on the external data medium. You can open the archive on the external data medium by pressing »REC.LIST«. Selecting a programme from the archive 1 Open the »Recorded Event menu with »REC.LIST«. - The menu appears. 2 Select the programme of your choice with »V« or »A« and start playback with » Be «. 3 Press »I« to end playback. - The television switches over to the current television channel. Forward/reverse picture search 1 During playback, select the fast forward speed (2x, 4x, 8x, 16x or 32x) with »b}«;

during playback, select the rewind speed (2x, 4x, 8x, 16x or 32x] with »{« [the pic- ture freezes when rewinding). Repeating a scene (A-B) You can mark the starting and ending point of a scene. The scene is then repeated continuously. 1 Markihe starting point A by pressing »B> « at the required scene during playback. - This scene is marked as the starting point A. 2 Mark the end point B by pressing »B>« once again at the required scene during playback. - This scene is marked as the end point B. - The television repeats the programme be- tween these two points. 3 Quit the repeat function with »IB. Playback during a recording During a recording, you can either watch the programme you are currenily recording or watch a different one that you have already recorded. 1 Select the channel to be recorded with »1...0« or »P+«, »P-« and press »@ll« to start the recording. 2 Selectthe »Recorded Eveni« menu by press- ing »REC.LIST«. 3 Select the programme you want with »W« or »A« and press »B « to start playback. = The recording continues in the background. Press »BI« to end playback. Press »I« to stop recording. Deleting programmes in the recording list You can delete programmes from the record- ing list. 1 Open the »Recorded Evente menu with »REC. LIST. - The menu appears. 2 Select the programme to be deleted with >V« or » A. 3 Press »°++« (blue) to delete the programme. 4 Confirm the security query with »ee« (green) Note: m You cannot delete programmes in the »Recorded Evente menu which are currently being recorded or played back. 5 Press »MENUk to close the menu. ENGLISH s1|

USB OPERATION File formats Your television can work with the following file formats using the USB sockets: Video data Special codecs for video compression and decompression provide more memory space without compromising the picture quality exces- sively. Your television plays video files in the formats DIVS, XVID, H.264/MPEG-4 AVC (L4.1, 4 ref. erence pictures), MPEG-4, MPEG-2, MPEG-1, MIPEG and MOV. The following file name extensions are also sup- ported: AVI, MKV, MP, TS, MOV, MPG, DAT, VOB. These files can also contain audio files compressed using MP3, AAC or Dolby Digital. Audio data Your television can play audio data in the for- mats MP3, AAC. MP3 is the abbreviation for MPEG:-1 Level 3 and is based on the MPEG-1 standard, which was developed by the MPEG [Motion Picture Expert Group]. AAC stands for Advanced Audio Coding and was also developed by MPEG. AAC provides better sound quality at an identical data rate. WMA (Windows Media Audio] is a compres- sion standard for audio data developed by Microsoft. These formats allow audio files to be recorded and played which sound as good as a CD, while taking up only a fraction of the memory space. File name extensions which are supported: MP3, MP2, WMA, M4A, AAC. MP3 files can be organised into folders and subfolders, as on the computer. [52 eNeusH Image data Your television can display pictures in the formats JPEG, PNG and BMP. JPEG stands for Joint Picture Experts Group. li denotes a process for compressing picture files. PNG and BMP are process used fo save image data with no, or very litile, losses. Picture files can be stored with other types of files on one medium. These files can be organised into folders and subfolders.

USB OPERATION Connecting external data media Before connecting the external data medium it is recommended to switch the television to stand-by mode. Before removing the external data medium, the television set must be switched to standby, so that no data loss oceurs. Notes: mThe »USBl« socket of the television set supplies a maximum power of 500 mA in accordance with USB specifications. Exter- nal hard disks which require more power may therefore only be connected to the »USB2 (HDD)« of the television set. m lf you use a network cable for external hard disks which are connected to the »USB2 (HDD}« socket on the television, this net- work cable must also be disconnected from the power supply when the television is switched off. External data media may not be disconnect- ed from the television set while files on the data medium are being accessed. # À bi-directional data transfer as defined for ITE (Information Technology Equipment) devices in EN 55022/EN 55024 is not possible. m USB transfer is not in itself an operating mode. lt is only an additional function. 1 Press »Ü, » 1... Ox or »P+« or »P-« to switch on the television from standby mode. 2 Connect the »USB2 (HDD)« socket of the television and the corresponding socket on the data device [external hard drive, digital camera, card reader or MP3 player] using a USB cable;

USB OPERATION DivX® VOD You must have your device registered in order to play the protected video that you will buy from Divxe. 1 Select »DivX® VOD« with »V« or »A« and confirm with »OK«. - Registration Code appears. 2 Visit “http://vod.divx.com” and register the device with the registration code. 3 Press »MENU« to end the setting. DIVX +: Cerified® to play DivX® and DivX 7 Plus HD (H.264/MKV) video up to HD 1080p HD including premium content. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and sofiware tools to canvert your files into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® de. vice must be registered in order to play purchased DivX Video. onDemand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device USB setup menu. Go to vod.divx.com for more information on how to complete your registration. Basic playback functions 1 Select the data medium by pressing »@ Je, use » Ve, » Ac, »é or »p« to select the option »USB« and press »OK« to confirm. - The file browser appears. 2 Select the file format (video files, audio files, picture files} with »W« or »A«. 3 Switch to the folder/file list with »OK«. Note: # USB data medium with several partitions is connected to the USB sockets, the letter for the respective drive (e.g. C) appears behind the folder symbol. Select the letter of the drive with »V« or »A« and press »OK« to confirm. 4 Select the folder or file with »W« or »A« and press »OK« to open it. - A list of subdirectories appears. Note: = Switch back to the main folder with »é«. 5 Select the track or picture with »V« or »A« and press »B> « to start playing. Notes: # You can view information on the film data by pressing »?« mWhen playing MP3 or WMA data, information on the album, track and singer is displayed at the left of the menu. m When playing picture files, you can use »?« to display information about the resolution and size. # When playing picture data, press »?« twice to enter the DivX® Settings menu. # When playing picture data, the file browser switches off. Press »Il« to display the file browser again. 6 Press »I« to pause playback. 7 Press »B « to resume normal playback. 8 Press »Blc to end playback. The file browser appears. ENGLISH 55|

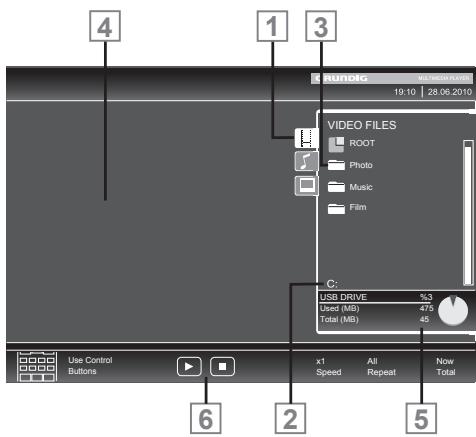

USB OPERATION Notes: m Use »A« to select »Up Folder, when you would like to return to the last folder. Use »Root (and then press »OK«} to return to the main folder. mltis possible that files which are actually supported do not function correcily in USB mode. This is because certain files are not recorded with standardised_ compression processes, although they feature the “right” file ending. If a video file features several audio tracks (audio streams), you can switch these over during playback in full screen mode with m When playing music files, you can use other options in the USB mode at the same time. This way, you can, for example, enhance a slideshow with music. mFor films, only subtiles in the .SRT, .ASS, .SSA, .SMI format are sup- ported. The names of the subtile and film files must be identical. Otherwise, no subiitles will be shown. [56 eNeusH Additional playback functions Depending on the file format, the following additional functions are available: Selecting chapters on DivX® files {only video files) 1 During playback, select the next chapter with »D«. 2 During playback, select the previous chapter with »é«. Note: m You can also select chapters by entering the chapter number with »1...O«. Selecting titles on DivX® files {only video files) 1 During playback, select the next title with > Ac. 2 During playback, select the previous title With »Ve. Playing selected titles Only the marked tracks are played. 1 Select the titles with »W« or »A« and press »OK« to mark it. 2 Select the next title with »W« or »A« and press »OK« to mark it. 3 Start playback with »B «. 4 Press »l« to end playback. Note: # To remove the marking, select the title with »Ve or »A« and press »OK« to remove the marking.

USB OPERATION Selecting a track or picture in steps (SKIP) 1 During playback, select the next track/ picture with »b«. 2 During playback, select the previous track/ picture with »[4«. - Playback begins with the track or picture you selected. Selecting a certain passage for playback {video files only) 1 During playback, press »OKk. 2 Enter the passage [time] with »1 … O« and press »e+« [green] or »OK« to confirm. Fast forward for video and audio files only] You can select different speeds (2-fold, 4-fold, 8-fold,1é-fold and 32-fold forwards and back- wards). 1 Select the playback speed during playback with » 4 or »b}«. 2 Press »B « to resume normal playback. Rotating pictures {picture files only] You can rotate pictures by 90°. 1 During playback, press »€« or »« to rotate the pictures by 90°. Repeat functions Options: - »One Repeat«: the current track will be repeated. - »All Repeat«: all tracks will be repeated. 1 Switch off the repeat function before play- back with »TOOLS«. 2 Start playback with »B>«. Deactivate the »TOOLS«. - The display changes to »None Repeat. repeat function with ENGLISH 57|

TELETEXT OPERATION Note: m IFyou only want to use this “normal” video text, disable the digital video text, see page 80. TOP text or FLOF text mode 1 Press »TXT« to switch on teletext. 2 Select teletext pages direcily with »1...O« or step by step with »W« and »Ax«. Return to teletext page 100 with »?«. Note: m# Atthe bottom of the screen there is an info bar with red, green and - depending on the channel - yellow and blue panels. Similarly, the remote control also features buttons with different colours with which these pages can be selected. 3 Go back a page with »e« (red). Go to the next page with »+« (green). 5 Select a particular chapter with »ese« (yellow). 6 Select a particular subject with »+e+ex [blue]. 7 Quit teletext with »TXT«. Normal text mode 1 Press »TXT« to switch on teletext. 2 Press »1..Ox to select teletext pages directly. Return to teletext page 100 with »?«. 3 Go back a page with »W«. Go to the next page with »A«. 5 Quit teletext with »TXT«. onal functions Skipping the waiting time While a page search is progressing, you can switch to the TV programme. 1 Enter the teletext page number with »1...0« and then press »b|«. - As soon as the page is found, the page number is displayed. 2 Press »b|« to switch to the teletext page. [58 eNeusH Enlarging the character height IF you have difficulty reading the text on the screen, you can increase the character height. 1 To enlarge the character height of a teletext page, keep pressing »[4«. Page hold A multiple page may contain several sub-pages, which are automatically scrolled by the broad- casting station. 1 Stop the automatic scrolling of the sub-pages with »44«. 2 Quitthe function with »44«. Opening a sub-page directly If the selected teletext page contains additional pages, the number of the current sub-page and the total number of pages are displayed. 1 Press 4x to open the sub-page function. 2 Use »é« or »>« to select the sub-page. 3 Quitthe function with =. Revealing answers Certain teletext pages contain hidden answers or information. 1 Display information with »bb«. 2 Press »}« to conceal the information. Split screen This functions allows you to display the televi- sion channel on the left side, the teletext on the right side 1 Switch the function on with » Ie. - The television channel and teletext are dis- played next to each other. 2 Switch the function off with » Ie.

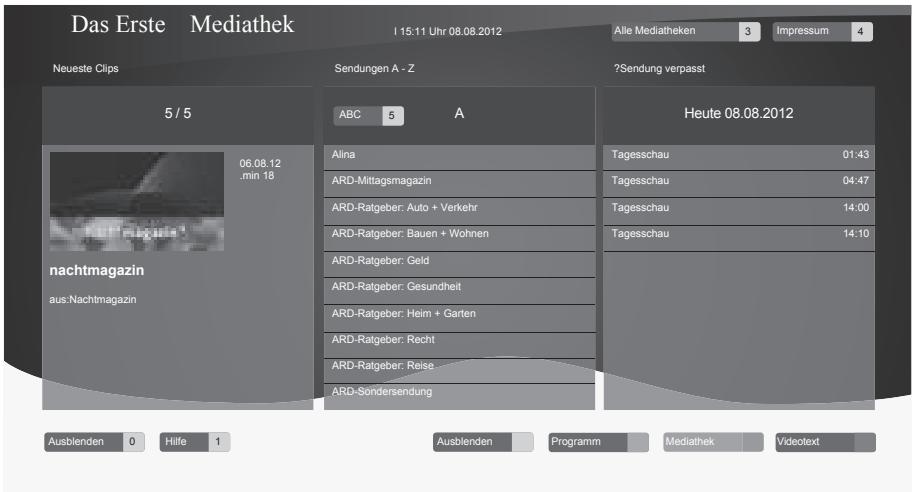

INTERACTIVE PORTAL (HBBTV) What is HHETV? To put it simply, HbTV provides next-generation interactive teletext with modern structured con- tent, high-definition pictures and video sequenc- es, and interactivity. To receive HbbTV, the television must be con- nected to the internet. ARD is currenily offering this new service with its "third programmes", as is ZDF. s Erste Mediathek

nachimagazin HbbTV Operation When you switch to a TV programme that sup- ports HbbTV, an information message is dis- played if HbbTV is available. 1 Switch on HbbTV with »ee (red). - Information about the service is displayed on the screen. In addition, the coloured keys required for navigation are also dis- played. Note: m# The range of subject areas and the selection ofthe individual subject areas is dependent on the each programme provider. m The number buttons »1« to »O« are used for additional functions. 2 Select your required subject area with »ee« (green), »+e« [yellow] or »+e« [blue]. The ARD offering includes, for example, a de- failed programme overview, the full offering of "Das Erste”Mediathek" as well as graphical re- structured teletext with high-definition pictures. The ZDF offering includes the "ZDF mediathek" and other programme information {as of jull 2012). The HBBTV Service is only available in some countries.

5 Press »MENUX to end the setting.

CONVENIENCE FUNCTIONS Setting the date and time Automatic setting Your television set detects the difference in time to Greenwich Mean Time (GMT) automatically, as long as the channel selected transmits a time signal. 1 Select the line »Date & Timec with »W« or »Ac and press »OK« to confirm. 2 Select the line »Auto« with »V« or »A« and press »OK« to confirm. - Date and Time will be updated automatically;

CONVENIENCE FUNCTIONS 6 Select the line »Volumec with »V« or »A« and use »€« or »>« to set the volume. 7 Select the line »Set Hour« with »W« or »A« and enter the time with »1...Ox. 8 Save the data with »ee« (green). Note: m You can abort the entry by pressing »e« (red). 9 Press »MENU« to end the setting. Switch-off timer In the »Auto Off« menu, you can enter a time for the television to switch off. After this time has elapsed, the television switches to standby mode. 1 Select the line »Auto Off« with »W« or »A« and press »OK« to confirm. 2 Select the line »Modec with »V« or »A« and use »€« or »« to set the preferred mode. 3 Select the line »Set Houre with »V« or »A« and enter the time with »1...Ox. 4 Save the data with »ee« (green). Note: m You can abort the entry by pressing »e« (red). 5 Press »MENUX to end the setting. Automatic switch-off (Auto Sleep) IF this function is activated, the television switches automatically to standby after 5 minutes if no video signal is broadcast or in accordance with the according to European regulations, the tel- evision switches automatically to standby after 4 hours provided that none of the buttons on the remote control or on the television is operated during this period. 1 Select the line »Auto Sleep with »W« or > Ace. 2 Enter the switch-off time with »@« or »»«. Note: m# To switch off the function, use »€« or »3« to select the setting »Offx. 3 Press »MENU« to end the setting. |62 eneusH Parental control settings Authorising programmes There are films which may be wholly or partally unsuitable for children. These programmes contain information which marks the content or scenes with access levels of 4 to 18. You can select one of the access levels, hereby authorising playback. 1 Select the line »Parental Guidance« with »V« or »A« and press »OK« to confirm. 2 Enterthe PIN code »12344 with »1 … O«. 3 Select the access level with »€« or »>«. 4 Press »MENU« to end the setting. Note: m When the TV is in review buffer mode, the parental rating of the program in the live broadcast is applied on the content being waïched [rather than the actual parental rating of the content being watched). As a result, a parental rated content being waiched in the review buffer mode will not necessarily show as parental rated and vice versa. This means that if parental rated program staris in live broadcast the PIN-pop up message will appear in review buffer, or the PIN-pop up message will be dismissed in review buffer as soon as a program without parental rating starts in live broadcast.” Locking menus This function allows you to lock the »Automatic Channel Searche, »Digital Manual Tuning, »An- alogue Manual Tuning« and »Program Table« menus so that they can be only accessed by entering a PIN code. 1 Select »Menu Lock« with »V« or » 2 Enterthe PIN code »12344 with »1 … O«. 3 Activate the lock with »&« or »»« (»On«]. Note: m To switch off the menu lock, use »<« or »>« to select the setting (»OH«). 4 Press »MENU« to end the setting.

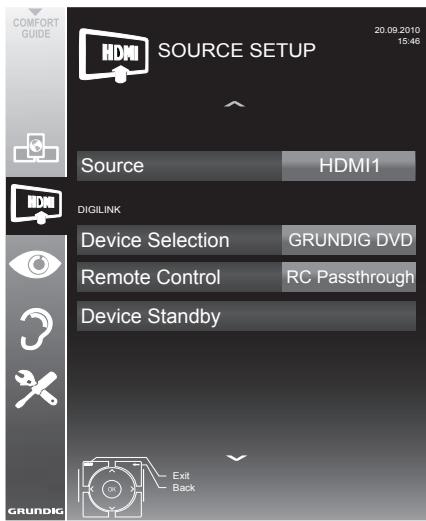

DIGI LINK Your television is equipped with the DIGI LINK function. This function uses the CEC (Consumer Electronics Control) protocol. CEC allows external devices which are connect. ed to the »HDMl« sockets by an HDMI cable {e.g. DVD player] to be operated with a remote control. Prerequisite is that the devices connected support CEC. Read the operating manual for the external device to find out how to activate the correspond- ing function. The DIGI LINK functions on your television Switching on the television automatically from standby If the external device (e.g. Blu-ray player) is switched on, the television also switches on and the appropriate HDMI preset is selected auto- matically. Depending on the features of the external de- vice, the external device (e.g. AV receiver) can be switched on alone, the television stays in standby. Automatic selection of the HDMI preset on the television IF your television is switched on and you then switch on the external device (e.g. DVD player), the appropriate HDMI preset on the television will be selected. Selecting the menu language The television menu language is automatically selected on the extenal device (e.g. DVD player). The external device must support this function. Switching off the external device automatically IF you switch your television to standby, the ex- ternal device [if it is switched on) will also be switched to standby. DIGI LINK is always active on your television set. Searching for and activating external devices You can connect up to 11 devices with DIGI LINK functions to your television. 1 Open the Tools menu with »TOOLS«. 2 Select the menu item »CEC« with »V« or »Ac and press »OK« to confirm. - The »HDMI CEC Device Liste appears. 2 Start the device search with »e« (red). - The devices found are displayed in the menu. 3 Select the device for operation with »We, » Ac, »e or »ÿ« and press »OK« to mark it. - IFthe selected device is connected to a different input to the current one, a switch to the respective input will occur auto- matically. 4 Press »MENU« to end the setting. ENGLISH 65|

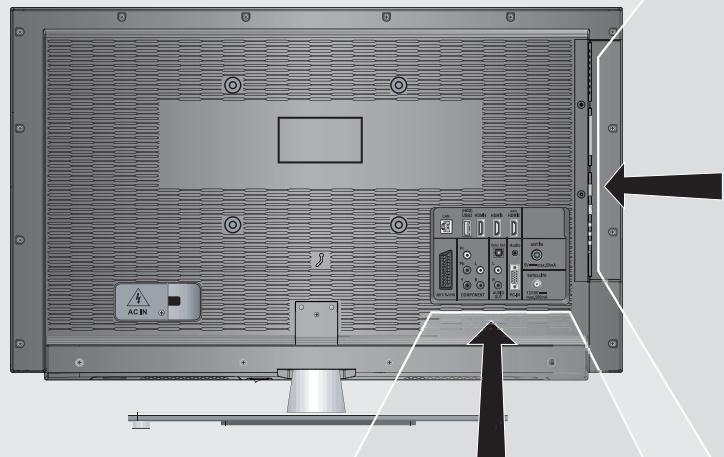

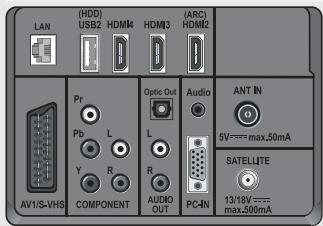

High definition HD ready Connection options Connect the corre- # Which television socket{s) you connect your sponding input sources external devices to depends on the sockets (e.g. HDTV receiver or the external device is equipped with and the HD-DVD player] to he signals which are available. »HDMIK sockets (for m Please note: With many external devices, 1080, digital HDTV sources]. the resolution of the video signal must be g ) gl adiusted to the input sockets ofthe television {see the operating manual of the external device]. You can find out which values you This ensures that you can view digital HDTV programmes, even if they are copy-protected {HDCP High Bandwidth Digital Content Protec- need to set by referring to the guidelines in tion}, without encountering problems. the sections about the various connection options. m# Do not connect any other equipment while the device is switched on. Also switch offthe other equipment before connecting it. # Do not plug in the power cord of the device until you have connected the external equip- ment and the antenna. ENGLISH 67|

Connecting external devices .… With digital audio/video signals m# Suitable devices: Digital satellite receivers, Playstation, BluRay player, DVD player/ recorder, setop box, notebook, PCs. # Video signal: Digital video; resolution: stand- ard 576p; HDTV 720p, 1080, 1080p. m Audio signal: digital audio (stereo, mult-chan- nel compression, uncompressed). m Presets »HDMI T«, »HDMI 24, »HDMI 3« or »HDMI4«. 1 Connect the »HDMIl«, »HDMI2 (ARCc, »HDMI3 or »HDMl4c socket on the televi- sion and the corresponding HDMI socket on the external device using a standard HDMI cable (digital video and audio signal). .… With analogue video signal (progressive) m Suitable devices: DVD recorders/players, games consoles. m Video signal: YUV; resolution: standard 576p; HDTV 720p, 1080i, 1080p. æ Audio signal: stereo, analogue. m Preset » Component. 1 Connect the »COMPONENT Y Pb Pr« sockets on the television to the correspond- ing sockets of the external device with RCA cables (video signal). 2 Connect the »COMPONENT L R« sockets on the television to the corresponding sock- ets of the external device with RCA cables {audio signal). |é8 eNeusH .… using the SCART socket (CVBS/RGB signal) m Suitable devices: Digital satellite receiver, DVD player/recorder, settop box, games con- sole, video recorder, decoder. m Video signal: CVBS/RGB. m Audio signal: stereo, analogue. m Preset »AVT«. 1 Connect the »AV1/S-VHS« socket on the television and the corresponding socket on the external device using a SCART cable {video and audio signal). Activating a decoder If a decoder is connected to the »AV1/S-VHS« socket, this must be activated to provide an unencrypted video/audio signal. 1 Open the menu with »MENUc. 2 Select the menu item »SETTINGS« with »w« or »A« and press »OK« to confirm. - The »SETTINGS« menu appears. 3 Select the line »Decoder« with »V« or »A«. Activate the function with »€« or »3« (»On«). 5 Press »MENUX to end the setting. .… With S-Video signal m Suitable devices: DVD player/recorder, video recorder, camera recorder, notebook, PC. 2 Video signal: Y/C. m Audio signal: stereo, analogue. m Preset »S-VHS«. 1 Connect the » AV1/S-VHS« socket on the television and the corresponding socket on the extenal device using an EURO/AV ca- ble [video and audio signal).

Plug the headphone jack (3.5 mm à jack plug] into the headphone socket on the tel evision. Changing the headphone volume

Connecting digital multi-channel amplifier/AV receiver System With this connection, you can playback the audio signal of the television channel via the HDMI cable sur the multi-channel amplifier or the AV receiver.

1. Connect the »HDMI2 (ARC)« (HDMI

Audio Return Channel) socket to the relevant socket on the HDMI ARC compliant Digital multichannel amplifier / AV receiver with a standard HDMI cable (digital audio signal);

2 Connect the »Optic Out« socket on the television to the corresponding socket on the AV receiver using a standard opitic digital cable (digital audio signal). Important: æ Do not use a HDMI cable longer than 5 m for HDMI ARC connection. Apply the device with HDMI ARC function and activate HDMI ARC 1 Switch on the the multi-channel amplifier or the AV receiver. If a Blu-ray Player is connected on the AV receiver, the player must be switched on, too. 2 Open the Tools menu with »TOOLS« button. 3 Select the menu item »CEC« with »V« or »A« and confirm with »OK«. - The »HDMI CEC Device Liste appears. 4 Start device search with »e« (red) button. - Audio device connected to the »HDMI2 (ARC)« source shall be displayed in the list. “Dolby” and the double-D logo are trademarks of Dolby Laboratories. Manufactured under licence from Dolby Laboratories. [70 eneusH Notes: æ IFihe audio system also has a playing function (e.g. Home theater system including DVD player function], two devices will be listed on the HDMI CEC list. The first one is the player, and the second one is the audio playback. m lfa Blu-ray Player is connected to the AV receiver, please remove the Disc from the Player during the registration. 5 Press »MENUK button to exit the HDMI CEC device list. 6 Open the menu with »MENU« button. 7 Select the menu item »SOUND SETTINGS« With »V« or »A« and confirm with »OK«. - The menu appears. 8 Select the line »Audio Output Setup« with »Ve or »A« and confirm with »OK«. - The menu appears. 9 Select the line »ARC« with Ve or »A«. 10 Select the setting »On« with »é or »3«. Notes: m The internal speakers of the television are switching off automaticaly. m The volume of the AV receiver you can adiust with the remote control of the television. # For switching off the HDMI ARC function select »Off« with »é« or »>«. m# The ARC function will be deactivated while switching off the television and the internal speakers are active again. 11 Press »MENU« to end the setting.

6 Press »MENU« to end the setting. ENGLISH z1l

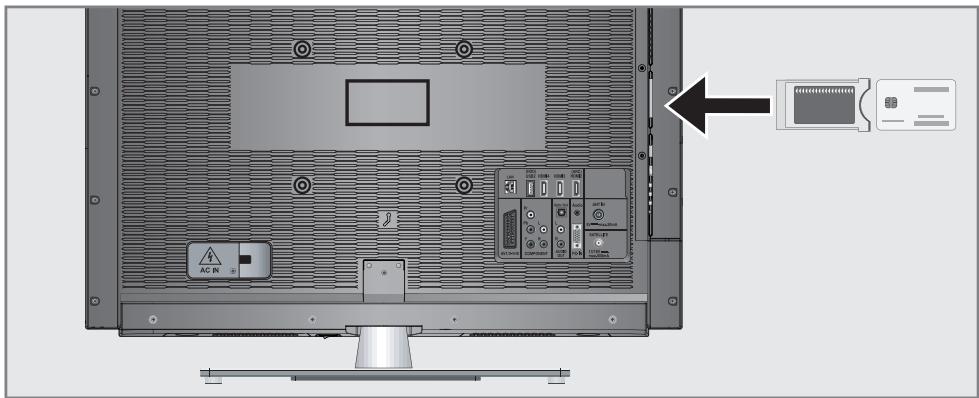

aa — What is a Common Interface? # Common Interface (CI) is an interface for DVB receivers. m Encrypted channels can only be viewed with a CA module suitable for the encryp- tion system and in conjunction with the corresponding smart card. m The television set is equipped with a Com- mon Interface slot into which CI modules from various providers can be inserted. m You can insert the provider's smart card into the CA module in order to enable the en- crypted channels you wish to view. Inserting the CA module Note: # Switch the device off before you insert a CA module into the »Cle slot. 1 Insert the corresponding smart card into the CI module. 2 Insert the CI module with the smart card into the »Cl« slot on the television. Note: min the »CA Module« sub-menu you can see which CA module has been inserted in the Cl slot. m If you are inserting a CA module into the Clslot of the television for the first time, you will need to wait a moment until the CA module is detected. Access control for CI module and smart card Open the menu with »MENUX«. Select the menu item » SOURCE SETUP« with »V« or »A« and press »OK« to confirm. - The »SOURCE SETUP« menu appears. Select the line »CA-Modulec with »W« or »Ac and press »OK« to confirm. Notes: mThis menu provides operating instructions and - after you enter your PIN code - ac- cess to the PAY.TV provider's channels. m The remaining setings are described in the operating manuals for your CI module and smart card. mThe CA modul is not supported in certain countries and regions; please consult your authorised dealer. 4 Press »MENU« to end the setting. ENGLISH 73

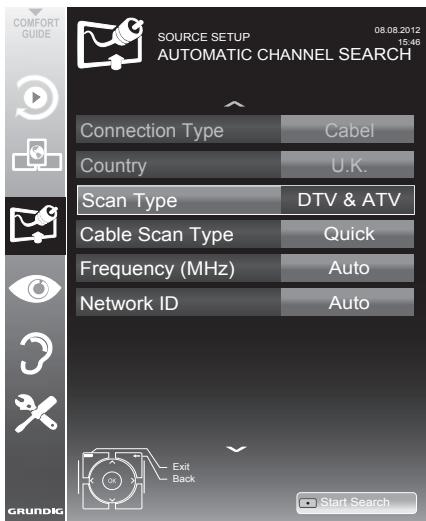

SPECIAL SETTINGS Searching for television chan- nels from the cable provider automatically

Select the line »Scan Typ« with »W« or »A« and set the option »DTV« with »€« or »»«. 6 Select the line »Cable Scan Types with »W« or »A« and set the option »Quick« or »Fulle with »@« or »>«. - The search function »Quick« sets the channels according to the information provided by your cable provide in the transmission signal. - Ifthe option »Full« is selected, the entire fre- quency range will be scanned. The search can take a long time with this option. This option is recommended if your cable pro- vider does not support the search type »Quicke. [74 eneusH Note: # You can accelerate the search. To do this, you need information about the frequency and network ID. You are usually able to get this data from your cable operator or find it in forums on the Internet. For example, the frequency 402MHz and network ID 61441 can be entered for Germany. 7 Start the scan with »e« (red). - All channel and favourites lists will be deleted and compiled anew. Note: # After starting the scan, a security query will appear. Press »e« [green] to confirm the option »Yese. - The »Resultst menu appears, and the scan for TV channels begins. Depending on the number of television channels received, this can easily take a few minutes. - The scan is complete as soon as the »PRO- GRAM TABLE« appears. Note: mYou can abort the search by pressing »MENUK. 8 Press »MENUX to end the setting.

SPECIAL SETTINGS Searching for television channels from the cable provider manu- ally

SPECIAL SETTINGS Tuning analogue television channels This setting is only necessary if you cannot re- ceive any digital channels and you have not car- ried out an analogue search during initial setup. The television channels can be set directly or using the scan. Switching the television to analogue reception Note: m Analogue channels can be selected if the option »Air« or »Cable« has been selected. 1 Open the »Select input source« menu with a je 2 Depending on the antenna system, select the option »Air« or »Cable« with »W«, » A, réx or »>« as the input source and press »OK« to confirm. Note: # Additional operations are explained in the following sections. Setting all analogue television channels Analogue channels are displayed in the channel list after the digital channels. Note: = Plugthe rooftop antenna cable [for analogue television channels) into the »ANT IN« socket on the television.

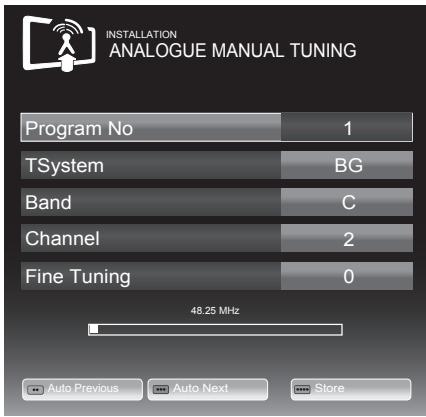

SPECIAL SETTINGS Tuning the television channels by entering the channel numbers

SPECIAL SETTINGS Entering channel names (8 di maximum) 1 In the »PROGRAME TABLE« menu, select the television channel with »W «, »Ax, »6« or »>« and press »e« (red) to confirm. 2 Openihe input keyboard with »++« (green). Note: mlf necessary, delete the current channel name. To do this, select the »<°x }« button with »@« or »>« and delete repeatedly using »OK«. 3 Select the required letters or numbers with »V«, »Ac&, »éc or »>« and confirm with »OK«. Repeat the entry for further letters/numbers. Note: m Use the »ABC« button to switch to upper case letters and use the »2@123« button to switch to symbols and numbers. 4 Save the channel name by using »V4, » Ac, »é« or »>« to select »Submite and confirm With »OK«. Note: mlf you wish to enter other channel names, repeat steps 1 to 4. Skipping television channels You can highlight television channels to be skipped when you select with »A« or »w«. Selection is still possible using the number buttons. 1 Inthe »PROGRAMETABLE« menu, switch over to the list view with »eee« (yellow). 2 Select the preferred channel with »V« or »Ac. 3 Select the column »Skip« with »é« or »3« and use »OK« to mark the channel. - The channel is marked using »4/«. Note: # Channels can also be reactivated. Select the channel with »W« or »Ax, then select the column »Skip« and reactivate the channel With »OK«. Creating lists of favourites You can select your favourite channels and save them in up to four favourites lists (Fav 1 to Fav 4). T In the »PROGRAME TABLE« menu, switch over to the list view with »..e« (yellow). 2 Select the preferred channel with »v« or » Ac. 3 Use »é« or »>« to “push” the channel into one of the favourites lists 1 to 4 and press »OK« to confirm. - The position in the favourites list is marked with we. - You can enter the same channel in more than one favourite list. - Each favourite list can store up to 250 channels. Note: # Channels can also be deleted from favour- îtes lists. Select the channel to be deleted With» We, » Ac, »6c or »3« and delete it with »OK«. Exiting the settings 1 Press »MENU« to end the setting. ENGLISH 79|

Product Fiche Energy Efficiency class: A++ Screen size: 98 cm/39 inch Screen (dm?2): 41 dm? Operating voltage: 220-240 V,-, 50-60 Hz Power consumption: On mode 32 W Standby <0.50 W OfMode O W Maximum power consumption On mode 110 W Annual power consumption 47 kWh Maximum resolution: WUXGA, 1920 x 1080 Rohs Limits: Pb (Lead}/Hg (Mercury) Pb meets ROHS directive / O mg Peak luminance ratio: 65% Other information Audio output: 2 x 20 W music power output 2 x 10 W Sine wave power + 10 W sine wave power (Subwoofer) Subwoofer is optional, it is not available in all products. Digital reception ranges Cable: Overall band: 110 MHz - 862 MHz Modulation: … 16QAM, 32GAM, 64GAM, 128@AM and 256QAM Symbol rate: 4.0 Msym/s to 7.4 Msym/s Terrestrial (DVB-T): VHE/UHF band, Bandwidih 7 MHz and 8 MHz FFT Size: 2k, 8k Modulation: … 16QAM, 64GAM, @PSK Guard Interval: 1/4, 1/8, 1/16, 1/32 Terrestrial (DVB-T2): VHE/UHF band, Bandwidth 7 MHz and 8 MHz FFT Size: Modulation: 1k, 2k, 4k, 8k, 16k, 32k 16QAM, 64QAM, 256QAM, QPSK Guard Interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128 As this feature is optional, it is not available in all products. Analogue reception ranges: CO02 … C80, special channels SO1 … S41 Preset channels: All Channels 1000 (Cable - DVB-C) or 99 [Analogue) 1000 (Terrestrial - DVB-T) or 99 [Analogue] 9 AV, 2 USB Weight: approx. 14 kg Dimensions: W HD 89,3cm 53,5 cm 5,6 cm Technical changes and errors reserved. ENGLISH 81|

INFORMATION The product complies with the Service information for dealers following EU directives and regulations: 2006/95/EC: Directive on the harmonisation of the laws of Member States re lating to designed for use within certain voltage limits. 2004/108/EC: Directive relating to electro- magnetic compatibility. 2009/125/EC: Ecodesign requirements for energy-using products; Implementing Reg (EC) No 642/2009: Ecodes- ingn requirements for Televisions; Implementing Reg (EC) No 278/2009: Ecodes- ingn requirements for no-load condition electric power consuplion and average active efficiency of external power supplies. (for models with AC/ DC external adaptor) 2010/30/EU: Directive on the indication by la- belling and standard product information of the consumption of energy and other resources by energy-related products; Supplementing Reg (EC) No 1062/2010 En- ergy Labelling of televisions. 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and elec- tronic equipment. Environmental note

This product has been made from high-quality parts and materials which can be re-used and recycled. Therefore, do not dispose of the product along with normal household waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Dispose of the used device at a collec tion point for electrical and electronic equipment. The symbol on the product, in the operating man- ual or on the packaging indicates that recycling is possible. Information on collection points is available from your local authoritie: Help protect the environment by recycling used products. [82 eNeusH Network interfaces This product is intended for connection to the ADSL network. Note for the Product Package Packaging materials of your product are recy- clable. Please ensure that packaging materials of your product are disposed of separately in accordance with the regulations set by the local authorities in order to have the packaging mate- rials included in the environmental friendly recy- cling process.

INFORMATION Troubleshooting If he information provided below does not help, please consult an authorised GRUNDIG dealer. Please bear in mind that malfunctions can also be caused by external devices such as video recorders or satellite receivers. Problem Possible cause Remedy Screen lit (snow), but no station visible Insufficient contrast in picture Picture and/or sound distorted Antenna cable Is the antenna cable connected? No TV channel tuned Start a channel scan The picture sehings are not correct Adjust the brighiness, contrast or colour setting Problem at station Try another channel Interference from other devices Place the device in a different position Ghosiing, reflection No colour Picture but no sound Channel setting Automatic or manual tuning/fine tuning Antenna Have antenna cable or system checked Colour intensity 100 low Turn up the colour ‘Adjust TV standard [if seing option is available) Select the correct colour standard Problem at station Try a different channel Volume is set to a minimum Turn up or switch on 1he volume Teletext impaired or absent Problem at station Try a different channel Television channel (no teletext} or antenna system Try with a different TV channel, carry out fine tuning Station signal 100 weak Check antenna The remote control does not work Obstacle between remote control and device. Point remote control at television Battery problem Check bateries and replace if necessary Operating mode undefined Switch off the television at the mains switch for two minutes Picture too dark in PC mode Incorrect setting for picture resolution and piclure frequency on the PC Change setings on Ihe PC (e.9. 1280 x 768 resolution, refresh rate 60 Hz) DMS device cannot be found DMS device is not switched on or not started Make sure that the DMS device is on and operating Network connection sehings are not made Check the nehwork settings ENGLISH 83|

INFORMATION Problem Possible cause Remedy Low image quality (pixel) in WLAN mode Signal is lost based on structural conditions. Place the modem so that the signal to the television is not interrupted, Internet connection speed low: Low Internet speed is a problem that is related with the speed of your sub- scription or a failure in the Internet in- frastructure. Contact with your service provided (ISP] DMS (for example PC] is connected to the wireless nehwork and away from the modem Bring your DMS closer to the modem Warnings about the connec- tion problems on the display Network Cable or wireless USB net- work device may be disconnected Check network cable or wireless USB network device Modem does not have Internet con- nection or has problems Make sure that your modem has In- terne connection Videos in video aplications are lagging during playback in wired connection Internet connection speed low Low Internet speed is a problem that is related with the speed of your sub- scription or a failure in the Internet in- frastructure. Contact with your service provided (ISP] There are connection prob- lems in inter@ctive applica- tions This may occur due to temporary problems in servers of these applica- tions Try connecting to the applications again Note: m This is a Class À product. During operation the device can cause radio interference. In this case the user may have to remedy this. Please contact your specialist dealer. [84 eNeusH
