RAC 2X4MG - Cooking appliance BRANDT - Free user manual and instructions

USER MANUAL RAC 2X4MG BRANDT

FR MANUEL D'INSTRUCTION

EN INSTRUCTION MANUAL

You have just purchased a BRANDT raclette and we would like to thank you.

We have placed in this appliance all our passion and know-how in order to meet at best your need. Innovative and efficient: we designed it to be always easy to use.

In the BRANDT products line, you will also find a wide range of small domestic appliances that can be coordinated to your new BRANDT raclette.

Of course, in a permanent wish to satisfy as best as possible your expectations toward our products, our after-sales service department is at your disposal and at your listening to answer to all your questions and suggestions.

You can also visit our website www.brandt.com where you will find all our products, as well as additional and useful information.

BRANDT

As part of our commitment to constantly improve our products, we reserve the right to make technical, functional or esthetical properties modifications linked to their technological development

Be careful : Before installing and using your appliance, please carefully read this Guide to Installation and Use, which will allow you to quickly familiarise yourself with its operation

www.brandt.com

TABLE OF CONTENTS

1) INFORMATION FOR THE USER 15

a) Safety recommendations 15
b) Technical Data. 18
c) Protecting the environment 18

2) APPLIANCE PRESENTATION 19

a) Raclette description 19
b) Assembling your raclette 19
c) Disassembling your raclette 21
d) Before the first use 21

3) USING YOUR APPLIANCE 22

a) Functioning 22
b) After cooking. 22

4) CLEANING AND MAINTENANCE 22

5) WARRANTY AND CUSTOMER RELATIONS 22

a) Warranty 22
b) Customer relations 23

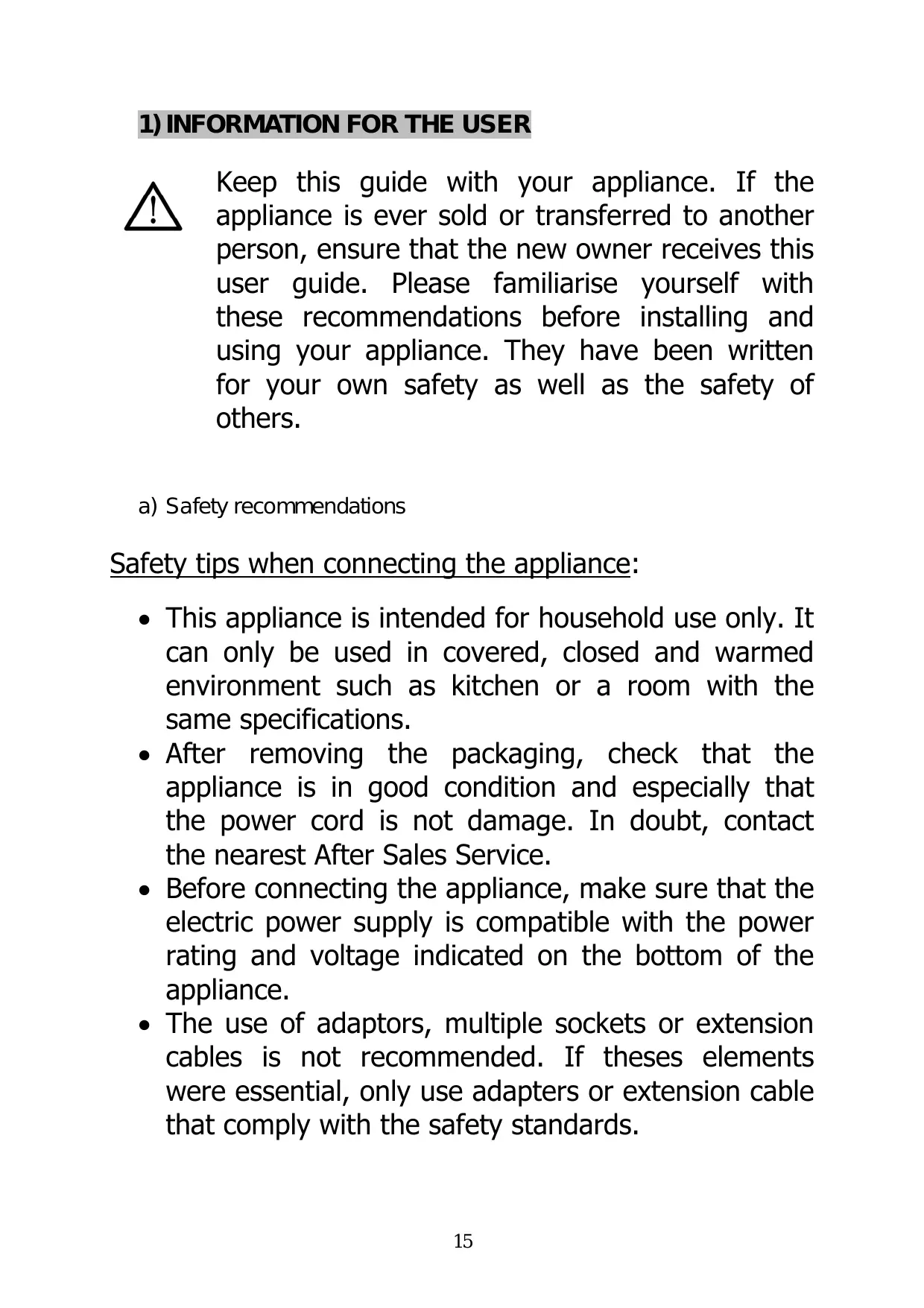

1) INFORMATION FOR THE USER

Keep this guide with your appliance. If the appliance is ever sold or transferred to another person, ensure that the new owner receives this user guide. Please familiarise yourself with these recommendations before installing and using your appliance. They have been written for your own safety as well as the safety of others.

a) Safety recommendations

Safety tips when connecting the appliance:

• This appliance is intended for household use only. It can only be used in covered, closed and warmed environment such as kitchen or a room with the same specifications.
• After removing the packaging, check that the appliance is in good condition and especially that the power cord is not damage. In doubt, contact the nearest After Sales Service.
• Before connecting the appliance, make sure that the electric power supply is compatible with the power rating and voltage indicated on the bottom of the appliance.

• The use of adaptors, multiple sockets or extension cables is not recommended. If theses elements were essential, only use adapters or extension cable that comply with the safety standards.

• This appliance is not intended to be operated by an external timer or separate remote control system.

• Place the appliance on a dry, stable and smooth surface.
• Keep the appliance and its cord out of reach of children under 8 years.
• Children shall not play with the appliance.

Safety tips when using the appliance:

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and it they understand the hazards involved.
• The appliance and its accessible parts become hot during the use. Children under the age of 8 years should not use this appliance unless continuous supervision by a responsible adult is given.
• Keep the power cord away from heated surface.
• Never pull the power cord when the appliance is used.
• Do not heat if there is no food inside pans.
• Never move the raclette when it is functioning.

• Never use this appliance as a heater.

• The use of accessory attachments not recommended by the appliance's manufacturer may cause hazard or injury.

Cleaning and Maintenance:

• Unplug the appliance before cleaning and allow the appliance to cool down.
• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped. This product is covered by your distributor. For more details, please refer to the warranty conditions supplied.
• To protect against electric shock, do not place the base unit of this appliance in water or other liquid.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean your raclette.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

Improper use:

• Use this appliance only for its intended uses as described in manual.
• The manufacturer shall not be liable for any damage resulting from improper use.
• The appliance is intended for domestic use only in private housing environments. The use of this appliance in common or professional's area such as staff kitchen areas in shop, offices and other

working environments; by clients in hotels, motels and restaurants or any other shops; by clients in kitchen areas or campsite; are not a proper us as defined by the manufacturer.

Hot surfaces during use

b) Technical Data

Model no	RAC2x4NR
Power Supply	230V~50/60Hz
Energy Consumption (W)	2x700W
Dimensions	H118xW290xL378mm
Net wt.	3.2 Kg

c) Protecting the environment

At the end of its working life, the product must not be disposed with household waste. It must be taken to a special local authority waste collection centre or to a company providing this service. Disposing household appliances separately avoids possible negative effects on the environment and health and enables the constituent materials to be recycled which saves energy and resources.

To remind you that you must dispose of this appliance correctly the symbol shown above appears on the product warning you not to dispose of it with household waste. For further information, contact your local authority or the shop where you bought the product.

2) APPLIANCE PRESENTATION

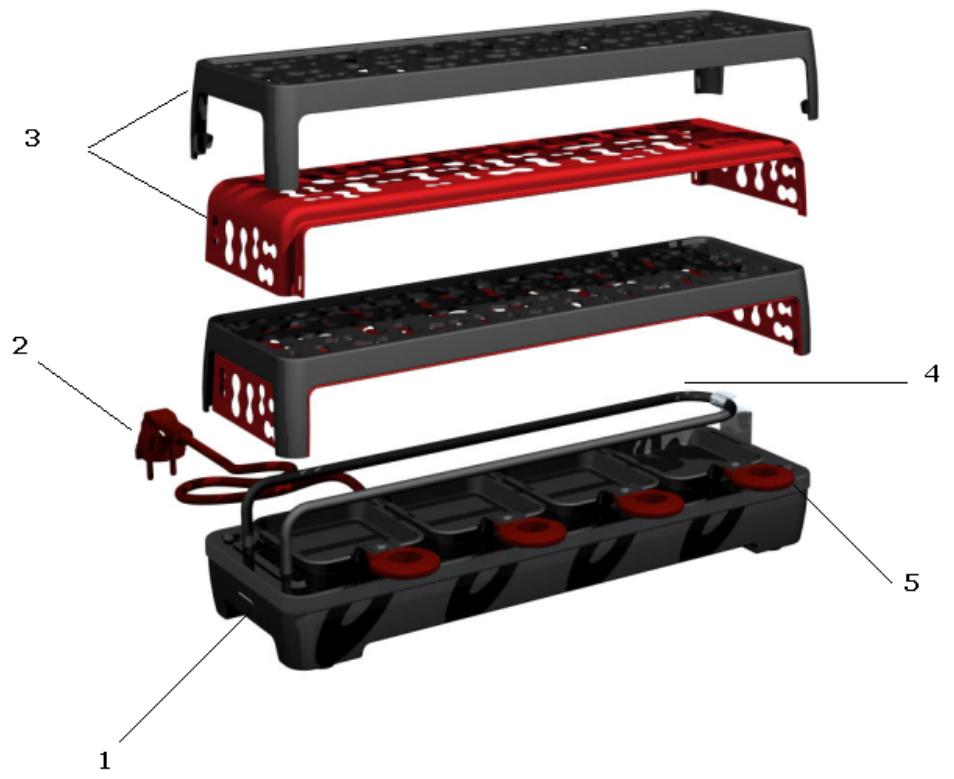

a) Raclette description

1. On/Off button with lighted indicator
2. Fix cord
3. Removable plate, dishwasher friendly
4. Heating element
5. Pans

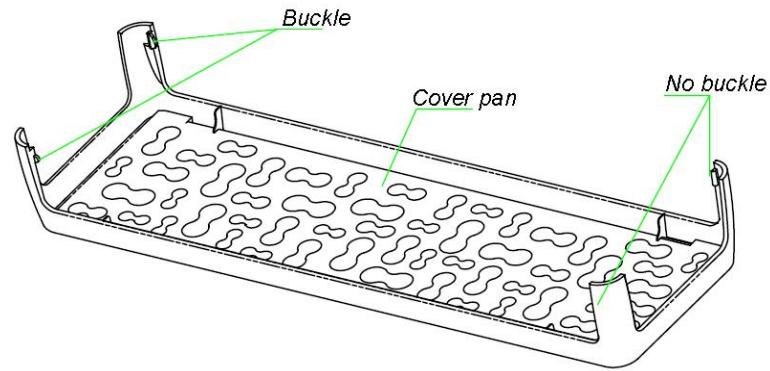

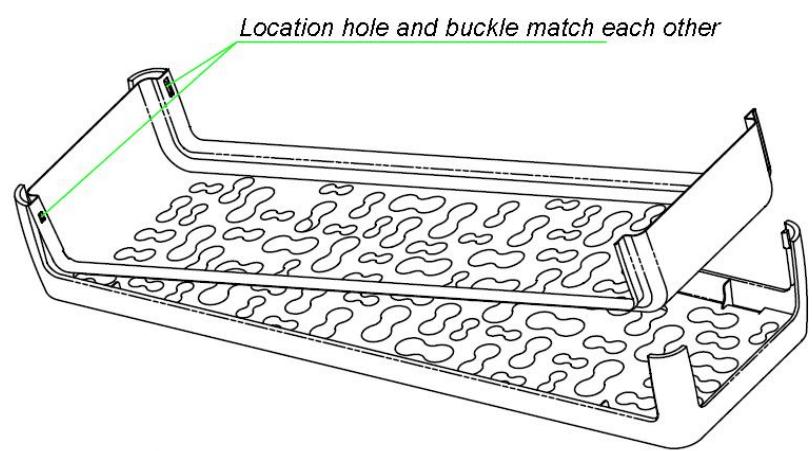

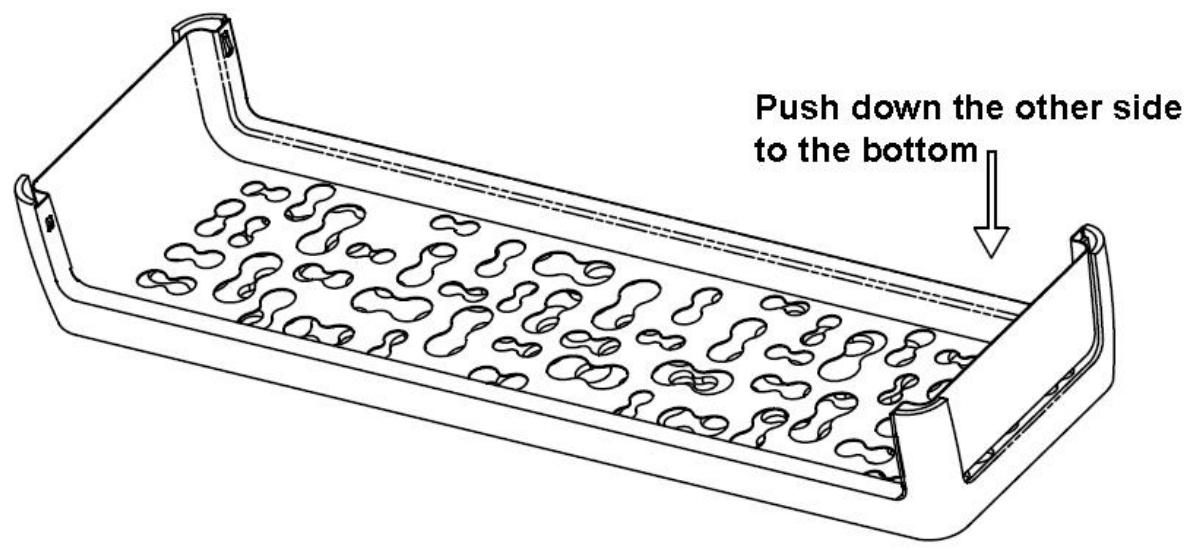

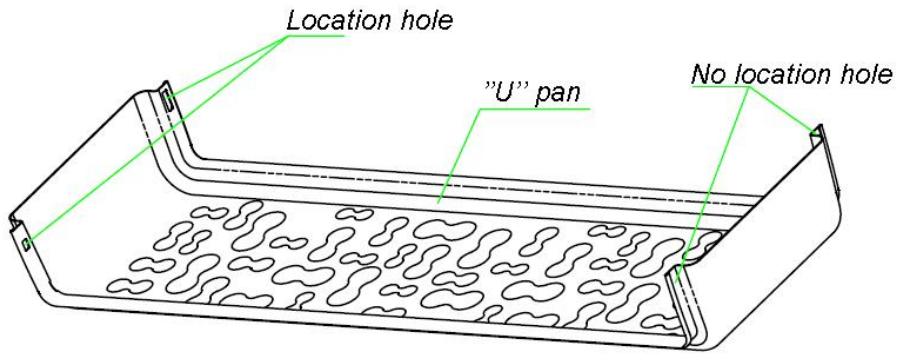

b) Assembling the upper part

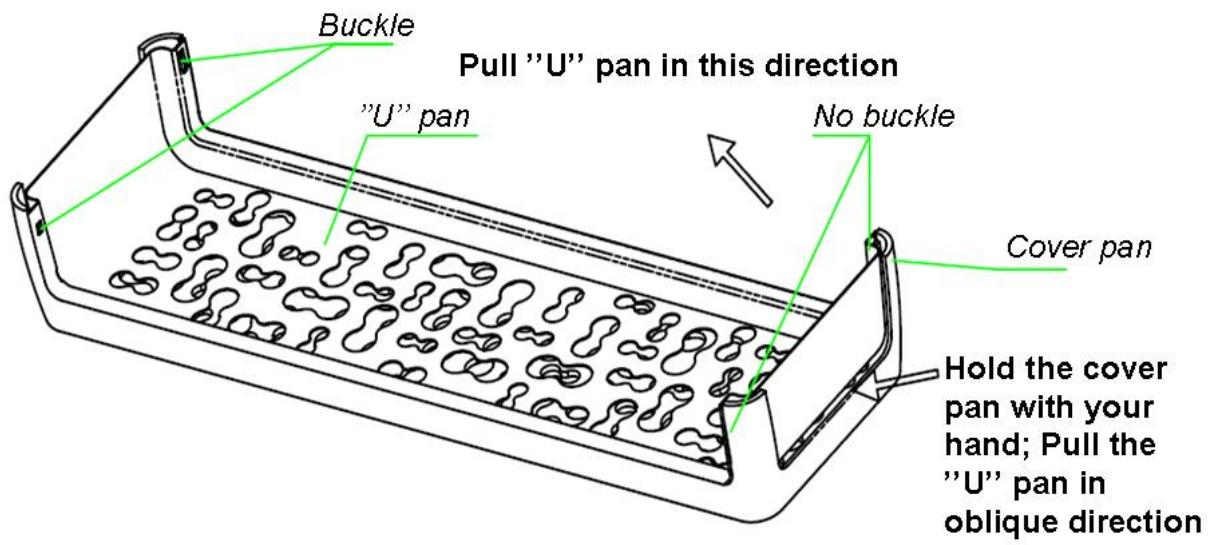

c) Disassembling your raclette

d) Before the first use

• When unpacking your unit, make sure that you carefully remove all of the packaging materials.
• Clean the appliance and its pans with a damp cloth. Then, dry them thoroughly.

The first time you use the appliance it may give off smoke and a smell caused by the protective grease burning.

Tip: To avoid this, you should heat up the appliance for around 10 minutes before using it to cook food, and ventilate the room.

3) USING YOUR APPLIANCE

a) Functioning

• To use the raclette grill in 8 people version, connect first the two raclettes grill with the red cord supplied with the appliance.
• Plug in the unit.
• Turn on the switch. The indicator will light up.
• Preheat your units for ten minutes before inserting pans.
• Put the cheese or other food like onion and bacon in the pans.

Note: Make sure the cheese is not too thick to prevent it from coming into contact with the heating elements.

• Put the pans in the unit.
• Remove when the cheese has melted and is lightly browned.

b) After cooking

• When cooking is over, press the On/Off button. The indicator light turns off.
  Unplug the power cord
• Wait for the complete cooling of the unit before cleaning or storing.

4) CLEANING AND MAINTENANCE

• Unplug the appliance and allow it to cool down to room temperature.
• Clean the grill plate and the pans with warm soapy water and a soft sponge. Do not use metal scouring pads or abrasive detergents, as these could damage the surface of the grill plate and mini pans.
  It's possible to clean the plates and the pans in the dishwasher.
• Clean the base with a damp cloth. Do not submerge the appliance in water, and make sure no water or any other liquids enter it.

5) WARRANTY AND CUSTOMER RELATIONS

a) Warranty

This product is covered by your retailer. For more details, please refer to the warranty conditions supplied.

Service calls

Any repairs that are made to your appliance must be handled by a qualified professional authorised to work on the brand.

When you call, mention your appliance's "Service" reference, as well as its serial number "Nr".

This information appears on the manufacturer's nameplate which can be found stuck behind the machine.

b) Customer relations

To find out more about all the brand's products you can visit our website: www.brandt.com

To communicate:

You may visit our website www.brandt.com and go to the "CONTACT" section
You may e-mail us: [e-mail]
You may write us at the following address:

Or phone us from Monday to Friday from 8:30 am to 6:00 pm :
