CLASSIA - Speaker INFINITY - Free user manual and instructions

Brand	INFINITY
Model	CLASSIA
Product Type	Wired and wireless audio speaker
Dimensions (W x H x D)	300 mm x 200 mm x 180 mm
Weight	3,5 kg
Power Supply	Mains 220-240 V, 50/60 Hz
Output Power	80 W RMS
Frequency Response	45 Hz - 20 kHz
Connectivity	Bluetooth 5.0, auxiliary input 3.5 mm, USB
Main Functions	Wireless audio playback, volume control, auto standby
Care and Cleaning	Clean with a soft, dry cloth; avoid solvents
Safety	Do not expose to water or excessive humidity
Spare Parts and Repairability	Removable power cable, speakers accessible by technician
General Information	Indoor use only, ambient temperature 5-40°C

Frequently Asked Questions - CLASSIA INFINITY

How do I connect my phone to the speaker via Bluetooth?

Enable Bluetooth on your phone, then put the speaker in pairing mode by holding down the Bluetooth button for 3 seconds. Select 'INFINITY CLASSIA' from the list of available devices.

What should I do if the sound is distorted or choppy?

Make sure the audio source is nearby (less than 10 m) and that no obstacles are blocking the Bluetooth signal. Restart the speaker and your source. If the problem persists, lower the volume of the source.

How do I use the auxiliary input?

Plug a 3.5 mm audio cable between your device and the AUX input on the back of the speaker. The speaker automatically switches to this input. Adjust the volume from your device.

Can I use the speaker continuously for a long period?

Yes, the speaker is designed for prolonged use. However, to preserve the components, we recommend turning it off when not in use.

How do I clean the speaker without damaging it?

Use a soft, dry cloth to wipe the surface. Never use chemicals, alcohol, or wet wipes. Avoid blowing compressed air into the grilles.

The speaker emits a background noise, is this normal?

A slight hiss may be audible at low volume. If the noise is loud, check that the power cable is properly connected and that the outlet is grounded.

How do I reset the speaker to factory settings?

Press and hold both the Volume + and Volume - buttons simultaneously for 5 seconds until the LED flashes white. The speaker will restart.

What types of audio files are supported via USB?

The speaker plays MP3, WAV, and FLAC files stored on a USB drive formatted in FAT32. Insert the drive into the USB port, playback starts automatically.

Can the speaker be used with a TV?

Yes, if your TV has a 3.5 mm audio output or Bluetooth. Use an AUX cable or pair via Bluetooth. Check your TV's manual for audio settings.

What should I do if the speaker does not turn on?

Check that the power cable is properly connected to the speaker and to a working outlet. If the LED remains off, try another outlet. Contact customer service if the problem persists.

USER MANUAL CLASSIA INFINITY

A higher truth, beautifully expressed.

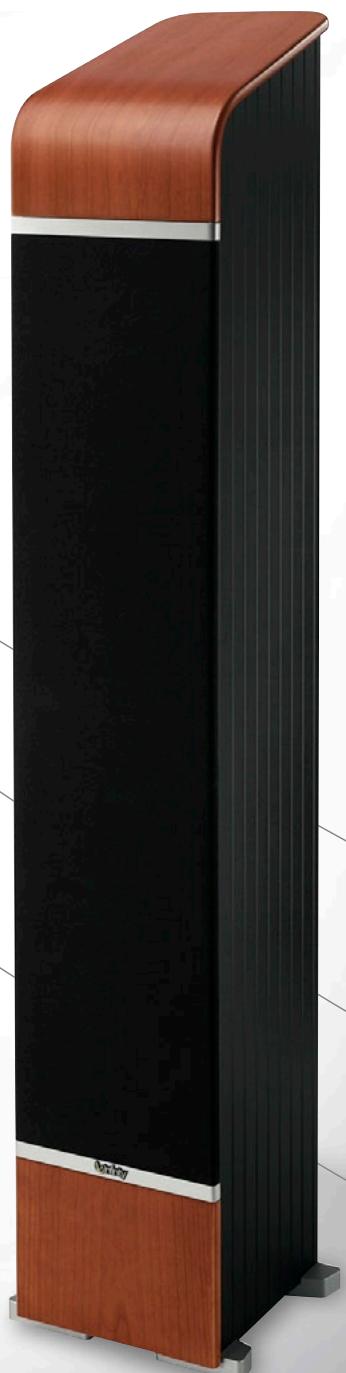

INTRODUCING THE INFINITY CLASSIA™ SERIES.

Infinity Classia loudspeakers share a heritage of technological and design excellence dating back 40 years. In multichannel home theater systems and stereo systems alike, they bring real power and exceptional sonic fidelity to both movies and music, elevating the home entertainment experience to a new level of realism.

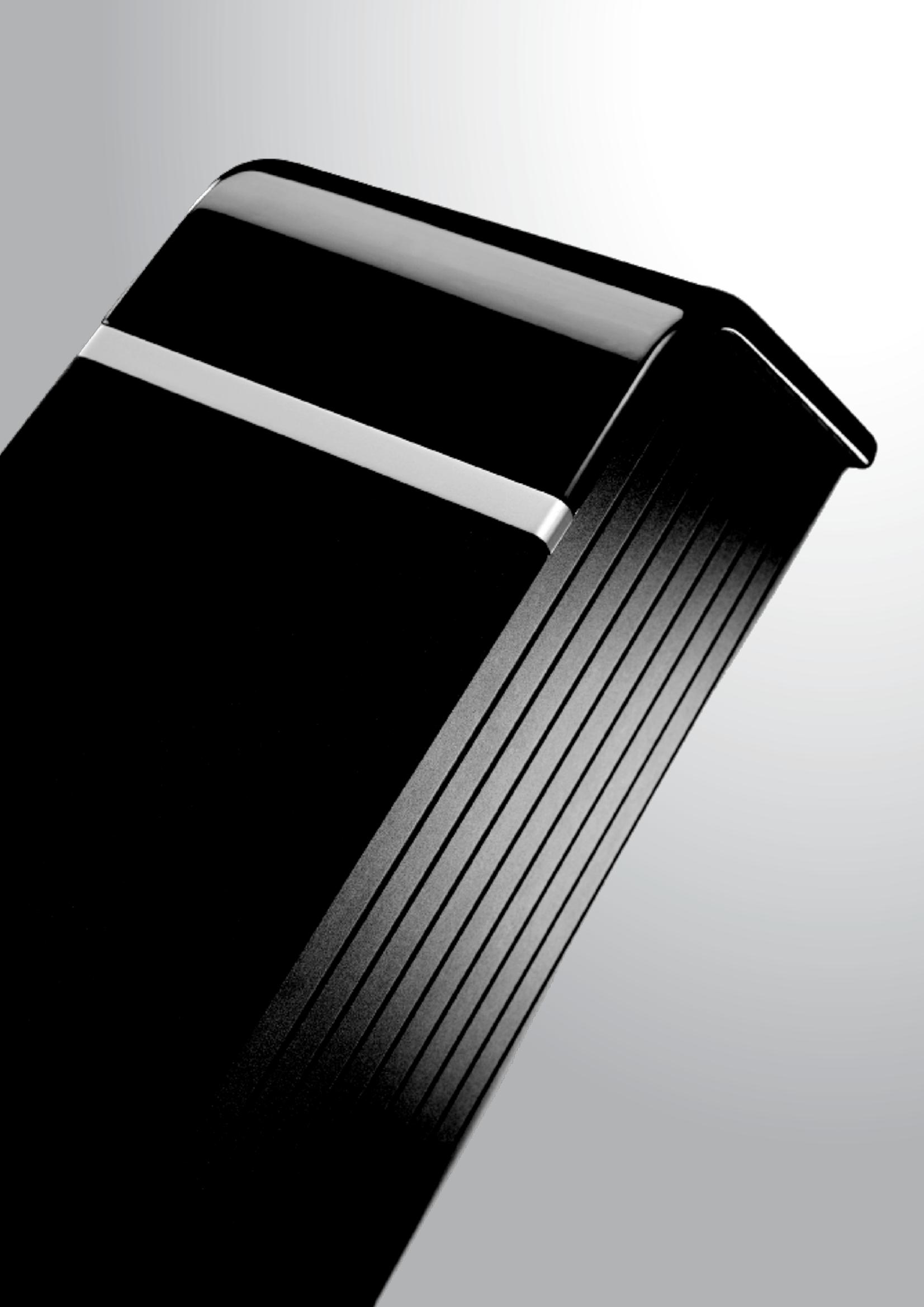

Infinity Classia loudspeakers deliver the resonance-free, full-spectrum performance needed to accurately reproduce today's high-definition digital sources. And their graceful, low-profile design, inspired by the Infinity Cascade™ Series, makes them an ideal complement for today's high-definition flat-panel monitors.

Infinity Cascade

PERFORMANCE IN THE

INFINITY® TRADITION.

Infinity Classia speakers were developed

with high-definition programming in

mind, delivering audio performance that

enhances today's stunning video images.

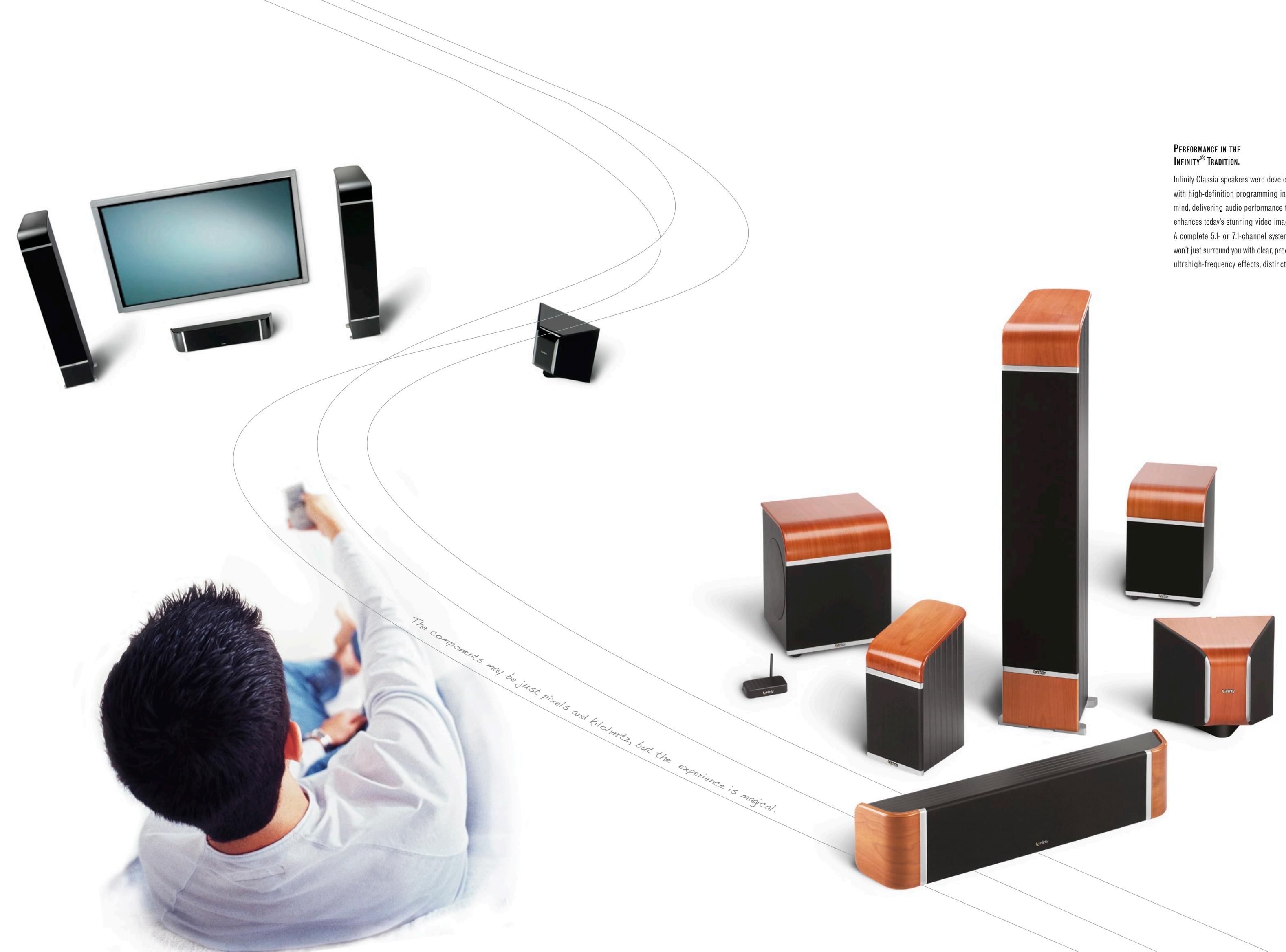

A complete 5.1- or 7.1-channel system

won't just surround you with clear, precise

ultrahigh-frequency effects, distinct

PATENTED, PROPRIETARY,

REVOLUTIONARY, REMARKABLE:

Magnified cross section of CMMD alumina layers.

CMMD® TRANSDUCERS

All Infinity Classia transducers

feature patented Infinity CMMD technology. Manufactured of a ceramic compound bonded to a metallic substrate, they are at once strong, rigid and fast - everything the ideal diaphragm should be. Delivering accurate pistonic response across the full frequency range of the driver, CMMD transducers produce a dramatically natural, distortion-free sound.

Ultrathick baffles provide a rigid, stable platform for the drivers while simultaneously minimizing unwanted edge diffractions off the baffle.

40KHz RESPONSE.

The audio portion of today's high-definition digital sources is pushing consumer audio beyond the limits of the human ear.

But Infinity Classia speakers feature high-frequency drivers that extend to 40kHz, delivering nuances you may never have experienced before in recorded audio.

With the Constant Acoustic Impedance (CAI) waveguide, the full effect of the CMMD tweeter can be realized, resulting in cleaner, more uniform sound throughout your listening environment.

CAI™ WAVEGUIDES.

Acoustic waveguides can improve a loudspeaker's on- and off-axis high-frequency response. But Infinity Classia Series speakers feature patented Infinity Constant Acoustic Impedance™ (CAITM) waveguides, which create more dynamic headroom by increasing the sensitivity of the high frequencies. That allows for a simpler, more effective crossover design, enabling a seamless sonic transition between the tweeter and the lower-frequency transducers in both two- and three-way designs.

The C255ES offers selectable monopole/bipole/dipole setting

The G255ES allows you to connect each side separately, giving you two discrete speakers from a single enclosure.

In addition to bookshelf and floorstanding loudspeakers, the Series includes the uniquely versatile C255ES surround speaker. Wallmountable, with selectable monopole, bipole or dipole configurations, the C255ES is capable of reproducing two discrete audio channels at once. So it can act as a single-point 2-channel loudspeaker in smaller rooms, or upgrade a 5-channel home theater to 7 channels all by itself.

The Infinity R.A.B.O.S.kit.

TUNED BASS RESPONSE.

The Infinity Bass Optimization System™ delivers deeper, more detailed low frequencies by reducing the exaggerated bass peaks that some listening rooms produce. Add the optional R.A.B.O.S. kit to more precisely calibrate bass response for your particular room.

WIRELESS LOWS.

Deep, realistic bass is an essential element of the cinematic experience. But it's just as essential in duplicating live musical performances. The Infinity PSW310W powered subwoofer features 2.4GHz technology for an effortless, wireless connection to your system, and easy placement anywhere in your listening room.

HIGH-BLOSS BLACK

REAL-WOOD GHERRY VENNER

Grossover design can be optimized with shortened signal paths, yielding cleaner sound reproduction.

All models utilize heavy-duty, gold-plated binding posts to ensure long-term signal transfer and easy connection to any system. The C336 is also bi-wirahle.

The sophisticated Infinity 72-point frequency-response measurement, conducted in one of our four anechoic chambers, allows for accurate analysis of a speaker's total performance before the listening tests even begin.

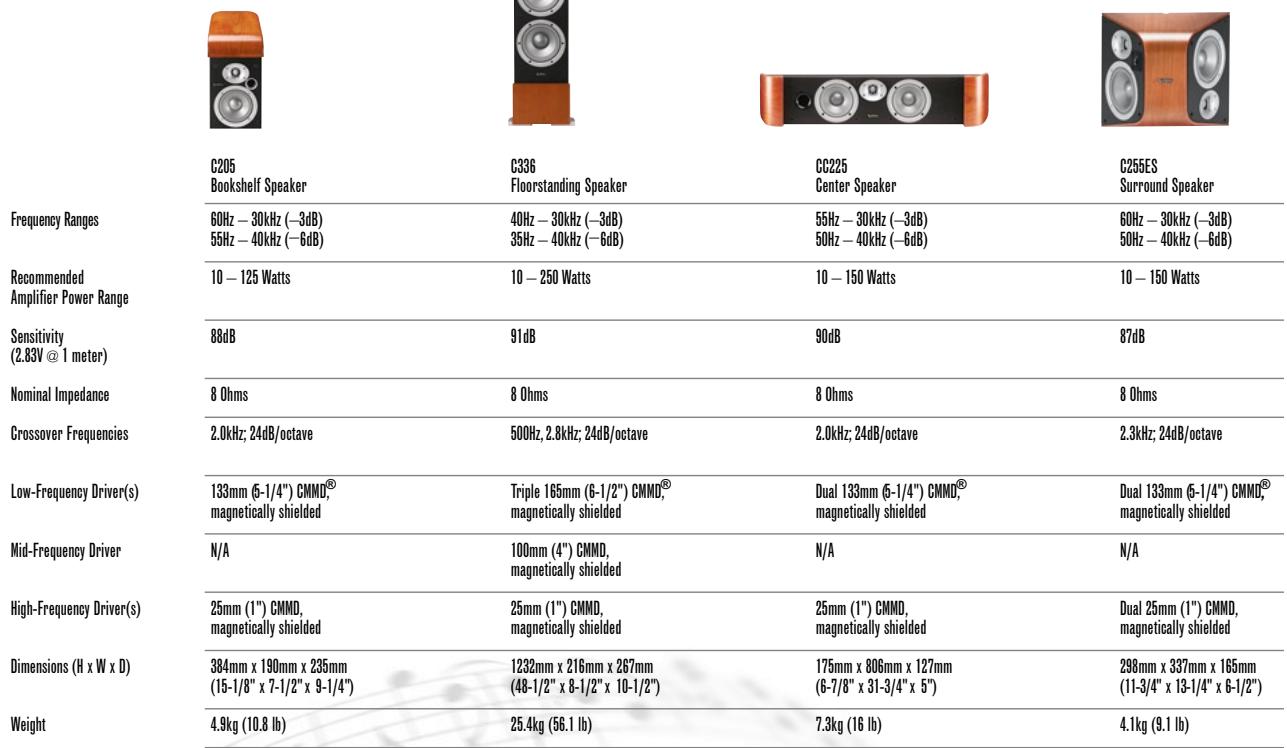

SPECIFICATIONS

POWERED SUBWOOFERS

Add an Infinity sub to maximize bass impact and excitement.

	PSW310W	PSW-8
Frequency Ranges	32Hz - 150Hz (-3dB)28Hz (-6dB)	35Hz - 150Hz (±3dB)
Amplifier RMS Power	400 Watts	150 Watts
Amplifier PeakDynamic Power*	700 Watts	300 Watts
Crossover Frequencies	50Hz - 150Hz,24dB/octave,continuously adjustable orLFE input	50Hz - 150Hz,24dB/octave,continuously adjustable
Driver(s)	250mm (10") CMMD®,dual 250mm (10") CMMD passiveradiators	200mm (8") MMD®
Dimensions(H x W x D)	445mm x 356mm x 375mm(17-1/2" x 14" x 14-3/4")	438mm x 279mm x 419mm(17-1/4" x 11" x 16-1/2")
Weight	22.6kg (49.8 lb)	14.4kg (31.7w lb)

*The peak dynamic power is measured by recording the highest center-to-peak voltage measured across the

output of a resistive load equal to minimum impedance of the transducer, using a 50Hz sine wave burst, 3 cycles on, 17 cycles off.
