USER MANUAL NOTEBOOK SECURITY DEFCON TARGUS

Visit our Website at www.targus.com/emea

Features and specifications subject to change without notice.

© 2006 Targus Group International, Inc. and Targus Group (UK) Ltd.

ASP03EU / 410-0070-003B

notebook security

DEFCON®

retractable

combination

cable lock

Targus

USERGUIDE

PMS Black

15%

PMS Black

100%

Table of Contents

English: 3
Deutsch: 12
Espanol: 21
Francais: 30
Italiano: 39
Nederlands: 48
Portugues: 57

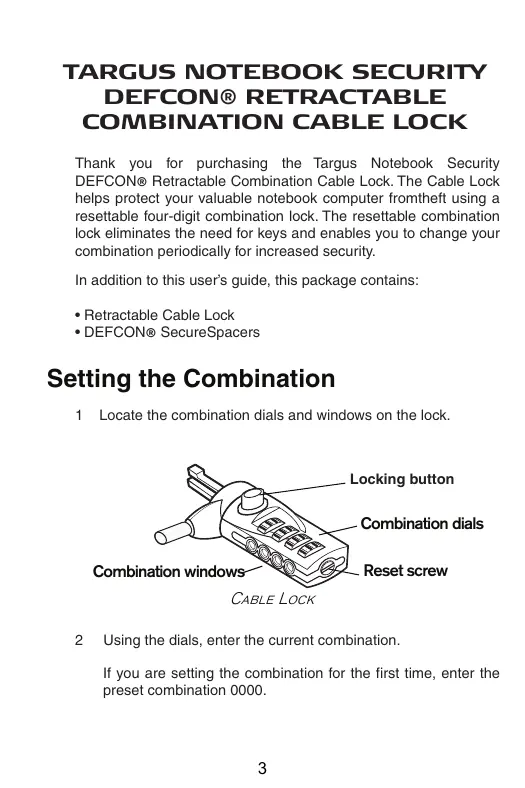

TARGUS NOTEBOOK SECURITY DEFCON® RETRACTABLE COMBINATION CABLE LOCK

Thank you for purchasing the Targus Notebook Security DEFCON® Retractable Combination Cable Lock. The Cable Lock helps protect your valuable notebook computer from theft using a resettable four-digit combination lock. The resettable combination lock eliminates the need for keys and enables you to change your combination periodically for increased security.

In addition to this user's guide, this package contains:

• Retractable Cable Lock
• DEFCON® SecureSpacers

Setting the Combination

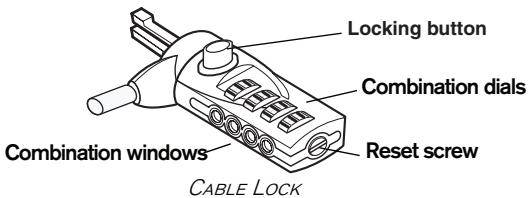

1 Locate the combination dials and windows on the lock.

2 Using the dials, enter the current combination.

If you are setting the combination for the first time, enter the preset combination 0000.

WARNING: To use the Cable Lock or reset the combination you must set the lock to the current combination.

The combination appears in the windows.

3 Using a small flat-head screwdriver or similar object, push in and rotate the reset screw 90 degrees clockwise so that the screw's groove appears horizontal.

4 Using the dials, enter the new combination.
5 Rotate the reset screw 90 degrees counterclockwise, back to its original vertical position, to save the new combination.

6 Record the combination in either the space provided at the end of this guide or another secure, easy-to-find place.

Testing the Combination

Before attaching the lock to your notebook computer:

1 Turn the dials to disguise the combination.
2 Return to the combination you set.
3 Check that the locking button (to the left of the combination windows) depresses completely.

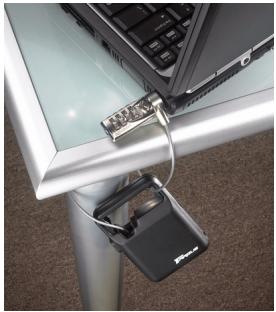

Securing the Cable Lock

Select an object in the room to which you will secure your notebook computer with the Cable Lock.

NOTE: Choose a large, heavy piece of furniture such as a table or desk, or an immovable fixture such as a closet hanging bar.

1 Press the release button to extend the cable and wrap it around the selected object.

NOTE: Wrap the cable around a part of the object that will deter an intruder from slipping the cable off (for example, a table or desk leg with a cross bar or a drawer handle).

2 Feed the lock through the handle of the cable housing.

Locking the Cable Lock to your Notebook Computer

1 Using the dials, enter the correct combination. The combination appears in the windows.
2 Press and hold the locking button to align the locking teeth.

NOTE: For the locking button to depress completely you must enter the correct combination.
3 Insert the Cable Lock into your notebook computer's lock slot and release the locking button.

NOTE: Due to the variation in the size of the security slots on various notebook models, you may find that there is some slack between the lock and the computer. The supplied DEFCON SecureSpacer is the best solution for optimal fit and security.

4 Turn the dials to conceal your combination.

Using the DEFCON SecureSpacers

1 Insert your DEFCON locking device into the computer's lock slot.

2 Pull the DEFCON locking device away from the computer and check whether the gap is excessive.

3 If so, try each of the SecureSpacers to determine which one fits the gap. The SecureSpacers come in three sizes: 1.6 ~mm , 0.8 ~mm , and 0.4 ~mm .

NOTE: DO NOT REMOVE THE ADHESIVE STRIP FROM ANY OF THE SECURESPACERS UNTIL YOU DECIDE WHICH ONE TO USE.

4 Once you know which SecureSpacer you are going to use, remove the locking device from the computer. Then remove the adhesive strip from the back of the SecureSpacer and attach the spacer to the DEFCON lock.

Unlocking the Cable Lock

WARNING: Do not attempt to remove the Cable Lock without using the combination. To do so will physically damage your notebook computer.

1 Using the dials, enter the correct combination. The combination appears in the windows.
2 Press and hold the locking button to realign the locking teeth.
3 Remove the Cable Lock from your notebook computer's lock slot.

Technical Support

For technical questions, please visit:

Internet http://www.targus.com/support.asp

English http://www.targus.com/uk/support.asp

German http://www.targus.com/de/support.asp

Spanish http://www.targus.com/sp/support.asp

Italian http://www.targus.com/it/support.asp

Our knowledgeable staff is also available to answer your questions through one of the following telephone numbers.

Austria 0179567642

Belgium 02-717-2451

Denmark 4535-25-8751

Finland 922948016

France 01-6453-9151

Germany 0211-6579-1151

Italy 02-4827-1151

Netherlands 02 0504 0671

Norway 022577729

Portugal [phone]

Spain 917456221

Sweden 08-751-4058

Switzerland 01-212-0007

United Kingdom 020-7744-0330

Eastern Europe & others [phone]

Product Registration

Targus recommends that you register your Targus accessory shortly after purchasing it. To register your Targus accessory, go to: http://www.targus.com/registration.asp

You will need to provide your full name, email address, phone number, and company information (if applicable).

Warranty

Targus warrants this product to be free from defects in materials and workmanship for two years. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to a computer; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does not affect your statutory rights.

DEFCON is a trademark of Targus Group International. All other trademarks are the property of their respective owners.

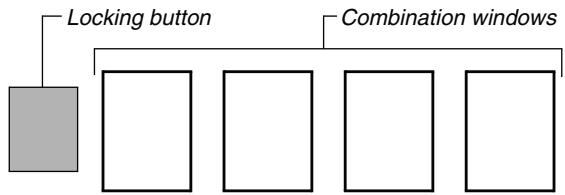

Recording Your Combination

For your convenience, record your combination in the space provided. When recording the combination, read from left to right using the number closest to the locking button as the starting point.

Targus assumes no responsibility for lost, misplaced or forgotten combinations.

Cable Lock combination
