USER MANUAL 1LE021SLX EDESA

APPLIANCE MAINTENANCE AND CLEANING

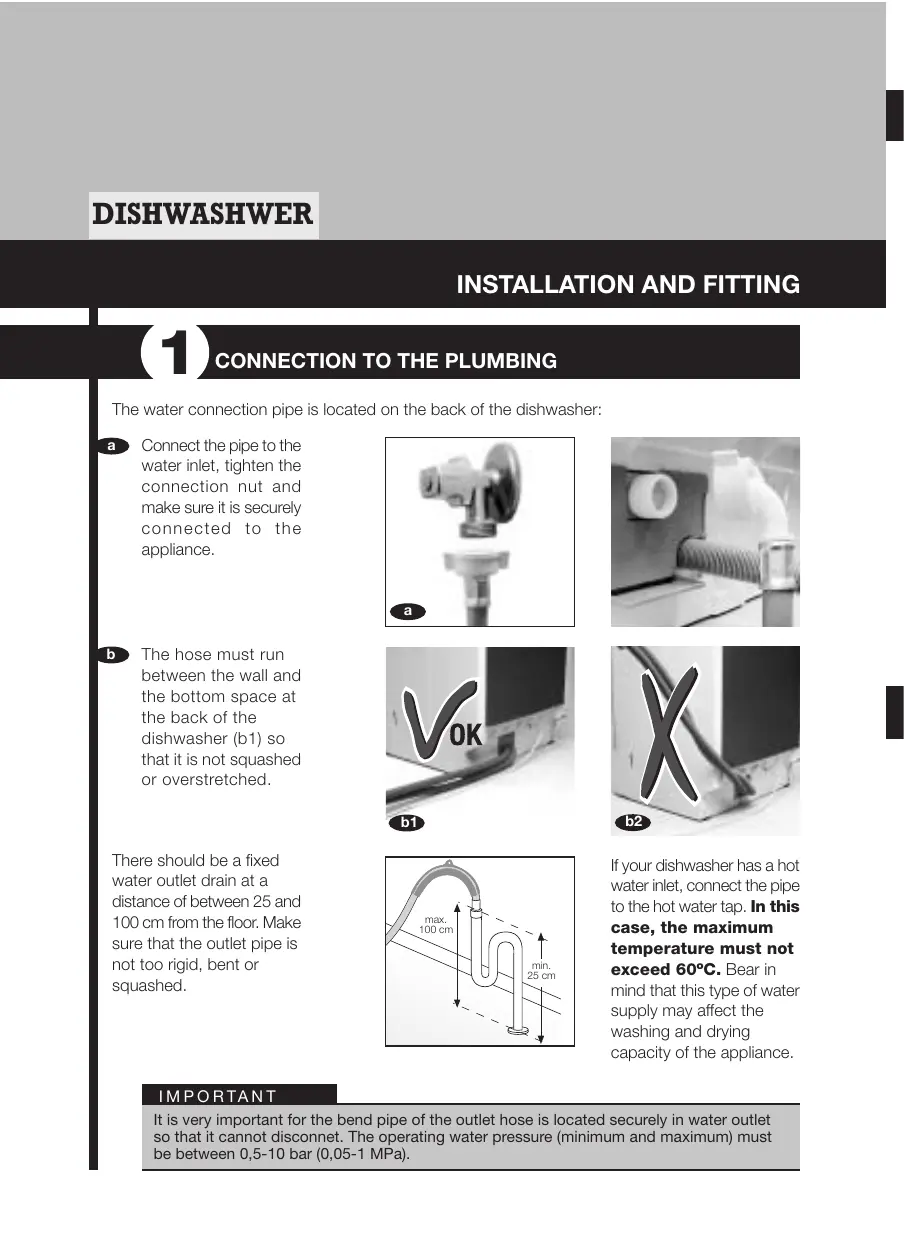

The water connection pipe is located on the back of the dishwasher: Connect the pipe to the water inlet, tighten the connection nut and make sure it is securely connected to the appliance. The hose must run between the wall and the bottom space at the back of the dishwasher (b1) so that it is not squashed or overstretched There should be a fixed I your dishwasher has a hot water outlet drain at a water inlet, connect the pipe distance of between 25 and to the hot water tap. In this 100 cm from the floor. Make case, the maximum sure that the outlet pipe is temperature must not not too rigid, bent or exceed 60°C. Bear in squashed. mind that this type of water supply may affect the washing and drying capacity of the appliance. IMPORTANT It is very important for the bend pipe of the outlet hose is located securely in water outlet so that it cannot disconnet. The operating water pressure (minimum and maximum) must be between 0,5-10 bar (0.,05-1 MPa).

English 2 ELECTRICAL CONNECTION Please refer to the specification label on the top edge of the door before making the electrical connections. Make sure that the power voltage connected to the plug socket is as shown on the label. Itis very important for the dishwasher to be connected to an earthed plug socket, The electrical installation, plug, socket, fuses or circuit breaker and meter must be capable of the maximum power shown on the specifications label. Ifthe power cable is damaged, it must be replaced exclusively by the manufacturers, aftersales service (TAS) or authorised personnel. the appliance is to be recessmounted and integrated, the plug must be accessible after installation.

3 LEVELLING AND POSITIONING

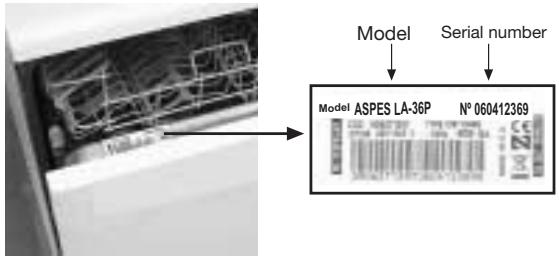

LEVELLING Model Serial number Mode ASPES LAHEP 1208041269 a Emi The specifications label is on the top edge of the interior of the door. This label must never be removed, since it provides information about the exact model of the dishwasher, required power supply, serial number and warranty. It is important for the dishwasher to rest frmly on the floor, in a perfectiy upright position. It shoulci then be levelled to rectify the effect of any unevenness of the floor. Use a spirit level. POSITIONING If you want to remove the cover, you can do so by removing the two screws from the back of the cover. Remove the rear counterwelght and pull out the insulating blanket, if the model has one. Ifthe appliance is to be positioned under a worktop, top can be removed or left in position:

Then pull the support blocks for the cover outwards and backwardks. Some integrated models have a rod for leveling the rear feet from the front of the dishwasher. Before fiting the dishwasher into the recess, move it up to the space and raise it by turning the rear foot to leave a space of some 3 milimetres from the worktop. Fit the dishwasher into the space. Adjust it to the worktop until the top part of the dishwasher is touching the lower part of the cabinet worktop. Fitting a dishwasher into a row of cupboards. When fitting the dishwasher into a row of kitchen cupboards with a continuos plinth: Unscrew and remove the base. Loosen and remove su- pport legs. Screw the adjustable legs into the dishwasher. Ref the base to the cupboards and, if necessary make any haight adjustment to plinth to the required height to allow the dishwasher to ft properiy behind

English PANELLING Simply fit the same decor panels or doors as the kitchen cupboards to the dishwasher door. Saïd panels must be more than 4 mm thick Remove the frame around the door by unfastening the screws. Cut the panel to size: 596 x 586 mm. Fitthe decor panel or door To fasten the new decorative panel in place, screw the frame back onto the door. Once the dishwasher has been installed correctiy, it should be first used on prewash programme: Select programme 1 (pre-wash), without utensils or detergent. Press the On/Off such [©] This is to check the installation, the connections and the drain outlet, as well as to completely wash the interior before running a wash pro-gramme SIT

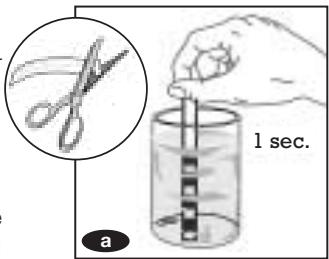

Water hardness adjustment. Water contains scale. The more scale, the harder the water. To prevent the scale in the water from damaging the dishwasher, it is equipped with a descaler to reduce the scale and leave it perfectiy clean for washing. The descaler uses salt to function Before starting up the dishwasher, you will need to know the water hardness in your area. You can find this out by either 1° Consulting the local Water Board, 2° m consulting the T.A.S. (Technical Assistance Service), or 3° m using the Aquadur strip included in the accessories bag, following the instructions below. To find out the water hardness: Place the strip in a glass of water for one second, and then take it out. Shake it and wait for one minute. The strip will show the water hardness. Check the result of the test against the table below. You will probably need to adjust your dishwasher.

Controlling the salt level Depending on the model, dishwashers will have a manual or electronic salt level control. MANUAL REGULATION Ifthere is a salt regulator like the one shown in the photographs (Mod. A-B) inside your dishwasher on the right- hand side, turn it to the number that corresponds to the hardness of the water in your area (see table). To tumnit to the correct position, use a coin (Mod. A) or a screwdhiver (Mod. BJ. Where to put the salt The dishwasher has a salt container in the bottom of the tub. Importai salt only. : use dishwasher The first time you fil the salt container, you must Pour in the salt but do not fil the container to the top. Top it up with water. Stir with a spoon. Close the lid tight and clean the sait around the container. When the salt container needb filing, you should always do it before a wash and not afterwards. English This simple adjustment of your dishwasher is vital for its correct functioning. Do not ignore it.

When does the salt need refilling? A pilot light will come on to © IMPORTANT show when more salt needs to be added You should not use or salt if your dishwasher does not need it. In this case, the pilot light will remain on at all times. {fl PILOT LIGHT û Important: If your dishwasher does not have a display or pilot light, you should periodically refil the salt that has been used (about every 20 washes for medium-hard water). The rinse-aid helps drying and prevents drops of water from clinging to utensils after washing The rinse-aid container is located on the inside of the door, next to the detergent container. It has a 4-position dispenser for adjusting the amount of rinse-aid to the water quality {the dispenser is set at position 2 at the factory). If you notice drops of water on utensils, increase the position of the rinse-aid dispenser. If the utensils have white or sticky RINSE-AID CONTAINER DISPENSER lines, lower the position. Once the level of the dispenser has been set, fill the container to the top, D'IMPORTANT DR

but do not overfill it. If this IMPORTANT À greater amount of rinse-aid does not occurs, clean the spillage with a cloth. necessarily mean better results. In fact, +00 much rinse-aid can lead to water marks. When do I need to add rinse-aid? EMPTY FULL The dishwasher tels youwhenyouneed MIE GRR S to add more rinse-aid. Depending on the model, there are two types ofindicator: window or pilot ight. É. Window Transparent window nextto à . the rinse-aid container id. he bottom ofthe windows alight colour youneed mm ms to add rinse-aid. Fi is dark, there is es sufficient rinse-aid in the container. DISPLAY WINDOW PILOT LIGHT Pilot light on the front of ne dishuwasher indicates when the rinse-aid container needs to be topped up.

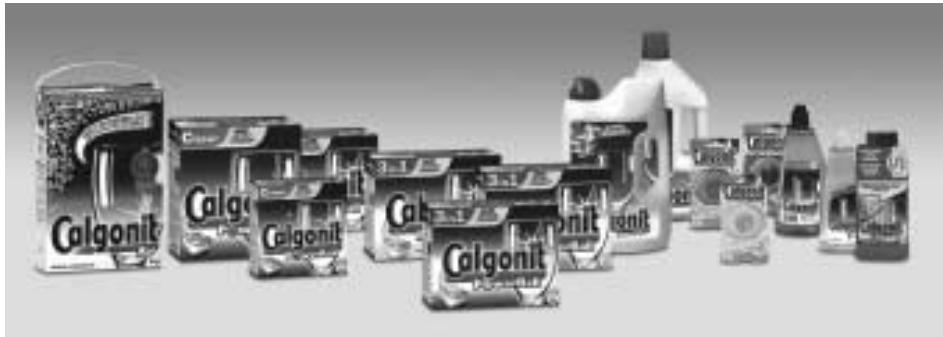

English Detergent The detergent is poured into a tank on the inside of the door, beside the rinse aid tank. Pour in the detergent, then close the tank cap. Some programmes also require part of the dose of detergent to be poured into the tank

cap compartment. ER SY DETERGENT CONTAINER Detergent comes in tablet, powder and liquid form. You can consul the amount of detergent needed on the programme chart. If you use detergent tablets instead of traditional products (granulated salt, pouver détergent, liquid rinse aich, you may notice a loss of efficiency, particular in the case of short programmes and/or programmes with low wash temperatures. If you notice any performance problems with your dishwasher, e.g. there is a white film on the tank or on the dishes, an accumulation of scale or poor drying efficiency, you should go back to using traditional products. We would remind you that if you go back to using traditional granulated salt, you will need to run a few programmes before the dishwasher performs perfectiy again, and there may stil be some residue left on the tank and dishes. If you wish to use combined tablet products, read the instructions and indications for use on the packet carefully. In case of doubt, consult the cleaning product manufacturer. We provide no guarantee for any complaints directly related to the use of this type of products.

Types of dishes Not al utensis can be washed in a dishwasher Do not attempt to wash items made of wood or earthenware or plastic that is not heat resistant. Stainless steel cutlery can be washed easy: however ensure that silver cutlery does not come into contact as they may stain. ltems made of aluminium may face in time. Pattems on decorated porcelain may wear off ithe quality is not good. Check with the manufacturer of China. Only wash glasses that are dishwasher-compatible. Cut glass should not be washed in dishuasher. À Please make sure your utensils are dishwasher-compatible. Placing the utensils in the dishwasher f Itis very important to place the utensis correctiy in the racks to guarantee a perfect wash. The lower rack is for dirtier, more resistant items: pans, oven dishes and plates Make sure there is sufficient space between each one for the jet of water. Pots must be placed upside down. YANN

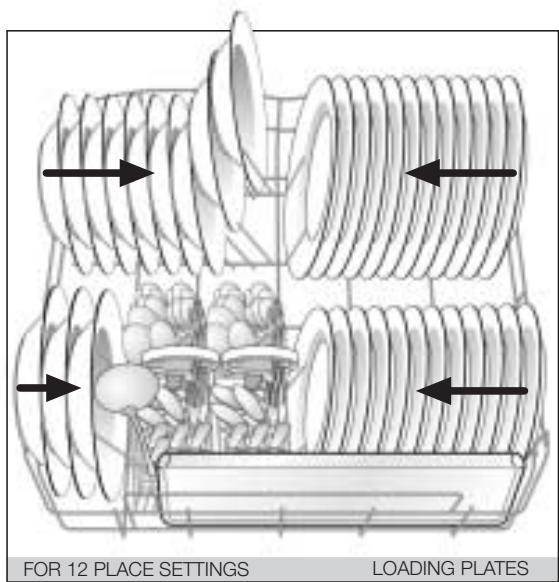

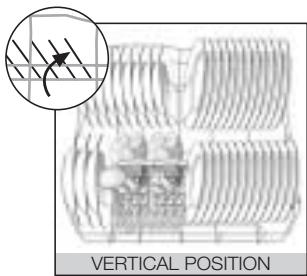

If your model has fold- down racks, you can use them in vertical position for washing plates or in horizontal FOR 12 PLACE SETTINGS LOADING PLATES position for large items EN-50242 such as saucepans r}h

IMPORTANT Bowis are placed on the left and plates on the right. Start loading plates from the outside of the rack to the inside. Plates should not be touching.

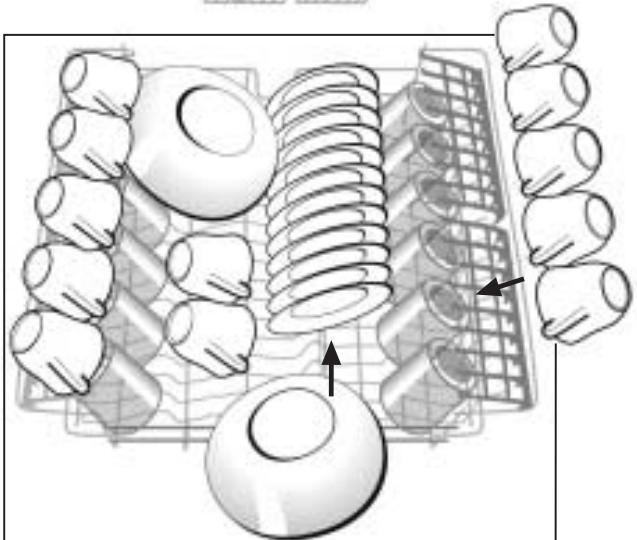

English Les couverts, Except for knives, cutlery should be placed in the cutlery rack, with the handles at the bottom. Place the more delicate items, such as cups, glasses, porcelain or crystal, and standard- size plates in the top Ts — rack. Long outlery has : a special place. There ) Ç S t: | are also racks which, | when vertical, are for À holding wine glasses. k If you have selected the à s 4 Express programme or < the Top Load function, the dishes are to be loaded into the top basket only. If you have selected the Bottom Load function, you should load the lower basket only. \ TOP LOAD When you have loaded the dishwasher, make sure the sprinklers can spin freely fT and that the cutlery will not (y prevent the detergent tank cap from opening.

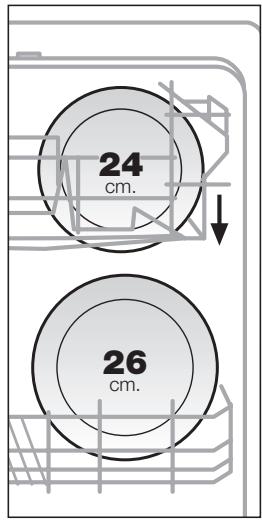

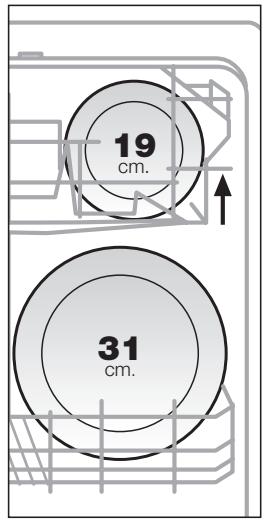

Adjusting the racks The racks can be adjusted in accord with the load. The top rack can be placed at two different heights for washing different-sized plates. In the upper position, the top rack holds standard- size plates of up to 19 cm and the bottom rack holds plates of up to 31 cm. In the lower position, the top rack holds plates of up to 24 cm and the bottom rack holds plates of up to 26 cm. Top rack model A: This can be adjusted without being removed from its rails, even when loaded with utensils. To raise or lower its position, pull the rack upwards by the side handles. Check that both sides are at the same height. If not, make them level. Top rack model B: Remove the stop that prevents the rack wheels from coming out of the ras. Pul the rack towards you and take it out. Position the basket at the height required. Replace the stop in its original position making sure it fts right in longitudinal on the ra: vouvil hear a cickwhen itlocks in place.

To select the wash programme proceed as follows Select the wash programme. Press the ON/OFF switch Additional function buttons. Depending on the model you have chosen, the dishwasher will have additional buttons which are pressed according to the programme selected There are several programme types depending on the model of dishwasher. It is very important to select the most suitable programme in accordance with how dirty the dishes are and the amount and type of dishes:

• Programme 3 is standardised in accordance with EN-50242

PROGRAMME TABLE - 3-BUTTON MODEL

Dia ADDMIONAL PROGRAM TEMPERATURE AMOUNT of posmon | eurrons ME TYPE © REG DETERGENT (or.) 1 = Prewash Cold Ford nono be Washed | No detergent 2 = intensive 65 FREE 25 +15 . For very dirty 3 = Normal 55 anale 25+5 4 e Economy 55 For slight dirty dishes: 25+5 [_ 4 Ld Delicate 45 Special glass 25 5 = Quick wash 55 For very slightiy dirty dishes: 25 [1] on dishwashers with no 1/2 load

DIAL. ADDITIONAL PROGRAM TEMPERATURE AMOUNT ot POSITION BUTTONS ME TYPE © TYPE OF DISHES DETERGENT (gr Û = Prewech cold Fordihes roliobewashed No detergent _ For very dity dishes and 2 Intensive 65 ES 25+15 3 = Normal 55 For very dirty 25+5 dishes and pans 4 e Economy 55 For slightly dirty dishes 25+5 4 bd Delicate 45 Special glass 25 5 = Quick wash 55 For very slightly dirty dishes 25

• Programme 3 is standardised in accordance with EN-50242 Half load If your dishwasher has a 1/2 button, you can use the dishwasher when it is only half full (6 place services). To do this, proceed as follows: 1) select the programme as shown in the corresponding boxes; 2) press the 1/2 button, and 3) place the dishes in the top basket. The amount of detergent to be added is 15+5 grs. for the Intensive Programme and 15 grs. for all other programmes.

PROGRAMME TABLE - 5-BUTTON MODEL

DIAL ADDITIONAL PROGRAM TEMPERATURE AMOUNT ot POSITION BUTTONS ME TYPE c TYPE OF DISHES DETERGENT (9 For dishes not to be washed

1 - Prewash Cold fe tete No detergent

For very dirty dishes and 2 = Intensive 65 EE 25+15 p For very di

5 - Quick wash 55 For very slightl dirty dishes 25

• Programme 3 is standardised in accordance with EN-50242

Ifthe dishwasher is 1. Press the On / Off functioning and... button. - You wish to add another 2. Place the dish in the dish dishwasher and/or - You wish to change the change the wash wash programme programme.

3. Press the On / Off

button. NOTE: For safety reasons IMPORTANT the programme will restart Do not open the dishwasher door during the washing process. after a few seconds. This could interfere with the programme phases. 5 POWER CUTS If a power cut occurs. machine will continue to when the electricity run from where it left off comes back on the washing 6 BASIC TIPS There a few things you should always bear in mind. If you do, your dishwasher will last longer and be more efficient the dishwasher: Try to make the most of your dishwasher’'s capacity. This will help you reduce water and electricity consumption and lead to quieter operation and be more economical Position utensils correctly. For best quality washes, the spray arms should be able to spin freely. Likewise, the utensils should be positioned correctly to ensure that they are reached by the jet of water. Programme selection. Select the correct wash programme as required (see the programme chart on pages 36-37)

APPLIANCE MAINTENANCE AND CLEANING

You should perform the + Clean the filter. PORTANT cleaning operations + Clean the spray arms. . H you are planning to regularly so that your + Ciean the inside Nénrtn dishwasher will last longer. + Clean the outside. pa “ed lea te 9 You should do the This wll make your nl fol th dishwasher last 1 CRESCE louing very ee ishwasher last longer. So thatthe, ea N ° circulate freely inside the machine.

1 LEANING THE WASH FILTER

The fier is made up of two or three parts (depending on model type): interior fier, exteriorfiter and fiter protector It is located at the bottom of the dishwasher under the bottom rack Take outthe bottom rack, remove the interior fier by tuning t anticlockwise and puling it upweards Remove the exterior fer. Remove the ter protector (some models). Itis essential that fiters are put back in place correct. Make sure the filter protector is in place. The exterior fiter fs into position. Put the interior filer in position and turn it clockwise as far as it will go.

The third sprinkler (depending on the model), the top sprinkler and the bottom sprinkler should be cleaned every three months. To remove the sprinklers for cleaning: The third sprinkler is removed by pressing upwards on it and then unscrewing it. The top sprinkler is fittecl tothe top basket. It should be totally unscrewed to remove it. The bottom sprinkler is removed by tuming the lower screw to the left to loosen it and then puling upwards on the sprinkler. Rinse the sprinklers under the tap and clean them with anon- scratch sponge. The water outlet holes must be kept clean. Unblock any holes that are obstructedl Then put the sprinklers back. Before any cleaning or maintenance operations, unplug the dishwasher from the mains.

3 CLEANING THE INSIDE OF THE APPLIANCE

The dishwasher should be Instead of detergent, use cleaned every three appliance cleaner (follow months to remove the dirt the manufacturer's lodged in the appliance. instructions).

4 CLEANING THE OUTSIDE OF THE APPLIANCE

Clean the outside with a Cloth and soapy water. Use non-scratch and non- abrasive products. Dry with a cloth. For safety reasons, make sure the appliance is not in operation while it is being cleaned.

DISHWASHER TROUBLESHOOTING If you find a problem when finis is not so, please using your dishwasher, you contact the TECHNICAL will probably be able to ASSISTANCE SERVICE solve it by consulting the and be ready to provide as following section. much information as possible.

1 TECHNICAL OR FUNCTIONAL PROBLEMS

+ Why won't the dishwasher start? This may be because — There is no power. — Itisn't plugged in correct. — The power fuses have bloun. — The dishwasher is not connected to the mains. — You havent pressed the On/Of button (the pilot light for this button must be on continuously) — The dishwasher door is not closed correctiy. — You have not pressed the Start button + The dishwasher starts up but no water comes into the appliance This may be because — There is no water supply — The stop tap is off. The water inlet electrovalve filter is blocked + The water does not drain off and stays in the dishwasher This may be because — The drain is blocked or badiy fitted — The drainage pipe is blocked or kinked — The filters are blocked — The selected programme has not ended. Wait until it finishes. + The low salt level pilot light does not go off This may be because — À low salt level. Add salt and stir with a spoon: — The water hardness is below 7DH, which means that salt is not necessary. In this case, the light will always be on

+ Traces of detergent are left in the dispenser or on the door. This may be because — One of the utensils is preventing the dispenser from opening, — The detergent is past its expiry date or is not appropriate: — The spray arms rub on a dish — The spray arm nozzles are blocked — The detergent container was damp when the detergent was added. The container must be dry. + Unusual foam appears: — You have used detergent for washing dishes by hand instead of special detergent for dishwashers. + The dishwashers uses a lot of salt. This may be because — The lid to the salt container is not closed correctiy. — The salt consumption level is not at the correct setting + The dishwasher makes strange noises. This may be because — The dishwasher was not installed correctly. — The spray arms rub on a dish 2 PROBLEMS WITH THE QUALITY OF THE WAS| + Remains of dirt or food on the utensils This may be because — The wash filter is dirty, blocked or not correctiy in place. — The spray arm nozzles are dirty or the arms are blocked by a utensil — The detergent is inappropriate or there is an insufficient amount — The utensils are not positioned correctiy. Some utensils are in contact with others — There are too many utensils in the racks — The wash programme is inappropriate. — The drain is blocked — The food remains on the utensils were too old and dry, + The utensils come out white This may be because — There was not enough detergent or rinse-aid — The salt container lid is not closed correctiy — The salt container has no water or salt — The water softener is not correc!ly adjusted to the water hardness level — You have used a phosphate-free detergent. Try with detergent containing phosphate. + The utensils do not come out dry This may be because — There is no rinse-aid “The rinse-aid control is not set correctly — The utensils are positioned incorrectiy. — The utensils have been taken out too soon. — The wash programme is inappropriate.

English + Glass or crystal comes out with a milky appearance or scratched. This may be because — They are not dishwasher-compatible — The detergent is inappropriate. + Glass or crystal comes out looking opaque — There is not enough rinse-aid! + The glasses and cutlery have a dull appearance and the glasses have a metallic shine. — Too much rinse-aid made of stainless or fine steel come out stained. This may be because “They are not dishwasher-compatible. — The utensils are positioned incorrectiy. — You have used too much detergent. — The steel is low quality — There is too much salt in the wash water. Close the salt container lid correctiy. FURTHER INFORMATION INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL

AND ELECTRONIC APPLIANCES

When the appliance reaches the end of its service life, you should not dispose of it with the general domestic waste. It can be taken free of charge to the local administrations’ specific selective collection centres, or to distributors who provide this service. Separating a domestic appliance before disposing of it means you will prevent possible negative consequences for the environment and health which may be given rise to by incorrect disposal, and it means the materials making it up can be treated and recycled, obtaining important savings on energy and resources. To remind you that you must collaborate with a selective collection scheme, there is a symbol on the product warning you not to dispose of it in traditional refuse containers. For further information, contact your local authority or the shop where you bought the product.
