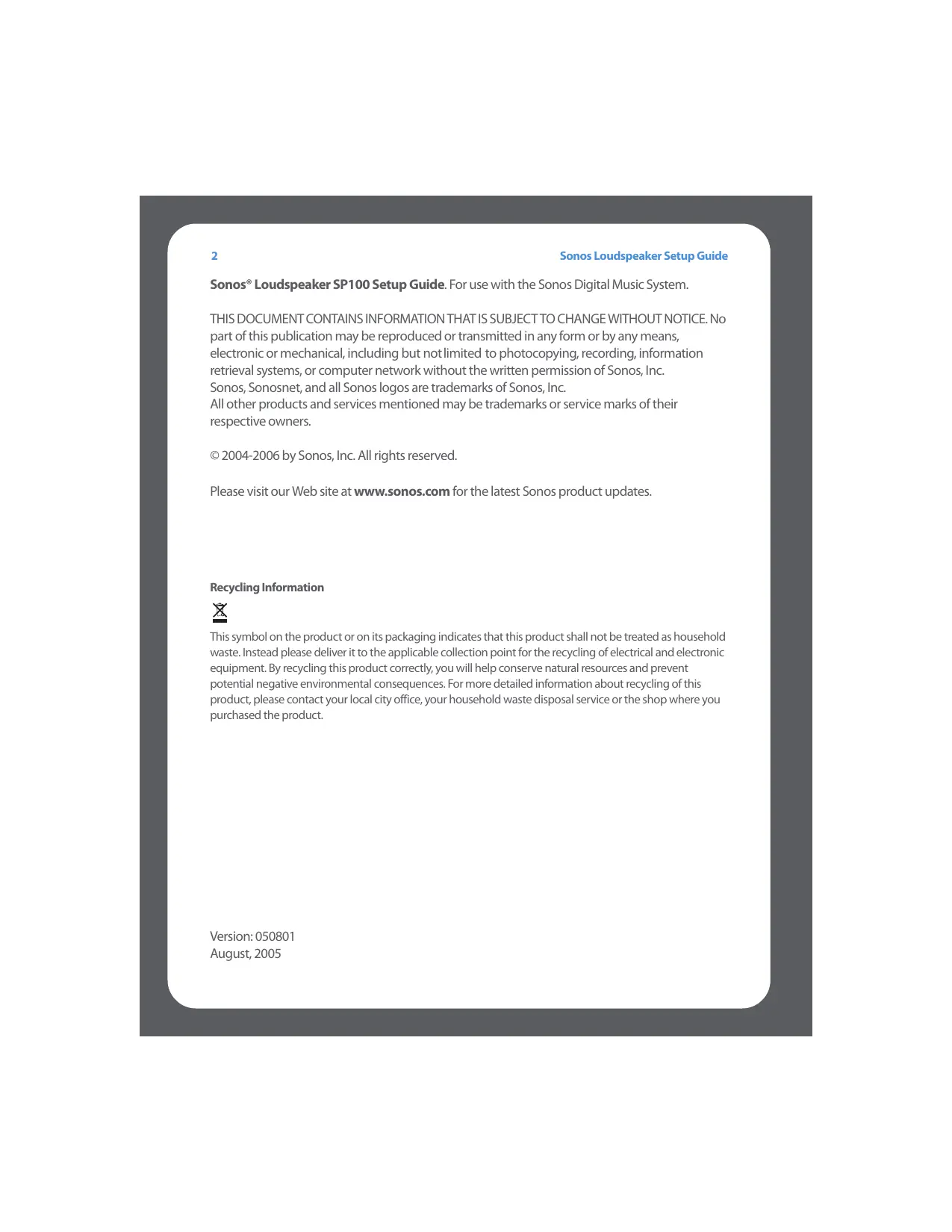

Sonos® Digital Music System Sonos® Loudspeaker SP100 Setup Guide. For use with the Sonos Digital Music System. THIS DOCUMENT CONTAINS INFORMATION THAT IS SUBJECT TO CHANGE WITHOUT NOTICE. No part of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, including but not limited to photocopying, recording, information retrieval systems, or computer network without the written permission of Sonos, Inc. Sonos, Sonosnet, and all Sonos logos are trademarks of Sonos, Inc. All other products and services mentioned may be trademarks or service marks of their respective owners. © 2004-2006 by Sonos, Inc. All rights reserved. Please visit our Web site at www.sonos.com for the latest Sonos product updates. Recycling Information This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead please deliver it to the applicable collection point for the recycling of electrical and electronic equipment. By recycling this product correctly, you will help conserve natural resources and prevent potential negative environmental consequences. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. Version: 050801 August, 2005 Introduction Sonos Loudspeakers are designed and manufactured using proprietary technology that enables them to deliver natural and accurate music reproduction. Please take a few minutes to read the instructions contained in this setup guide to make certain your speakers are properly placed and functioning correctly. Note: The tweeter and woofer membranes are sensitive materials. Direct contact with them should be avoided. Speaker Placement For best stereo imaging, the left and right speakers should be the same distance from their respective side walls. If the distance from one speaker to the listener is noticeably different from the other, it can affect the soundstage or stereo imaging. Therefore, it is best for the speakers to be placed at an equal distance from the listener. A general guideline for speaker placement is for the distance between speaker and listener to be approximately 1½ times the distance between the speakers. For example, if the speakers are placed 6 feet (1.8m) apart (the minimum recommended separation), the best listening position would be 9 feet (2.4m) away. Note: Your Sonos loudspeakers are magnetically shielded to allow them to be placed near a television or computer monitor. If you notice any discoloration or distortion of the television or monitor’s display, move the speakers away from the device.

Speaker Connection Follow the directions below to connect your speakers to your Sonos ZonePlayer. Be sure to connect the red ( + ) and black ( - ) terminals from each speaker to the corresponding terminals on the ZonePlayer. Mismatching of polarities will result in weak central sound, and a distorted sense of sound direction. If this occurs, check the wiring and re-connect as necessary.

When making connections, ensure that none of the strands of your speaker wire come in contact with an adjoining terminal on the rear panel.

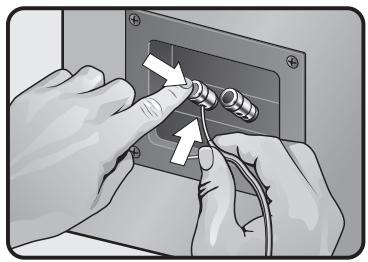

Use your thumb or finger to firmly push the spring-loaded speaker connector post inward to reveal the connection hole.

Insert the stripped end of the speaker wire into the hole, then release. The stripped portion should be caught firmly in the connector post.

Repeat to install the other speaker wires. Note: Not all speaker wire is the same. The speaker wire is the only contact the speaker has with the ZonePlayer; if thin, low-quality cable is used, the overall sound quality will suffer. Break-In Period We strongly advise that you do not play your speakers at their full capabilities, or experiment with critical placement and listening, until the speakers have been properly broken in. The breakin period should last approximately 50 to 100 hours of music playback. To break your speakers in quickly, you can simply leave a music queue playing in "repeat" mode. For best results, choose music with a wide dynamic range. Cabinet Care Household cleaners or solvents can damage the finish on your speakers. Clean only with a dry soft cloth. Amplifier Requirements Sonos Loudspeakers were specifically designed for the Sonos ZonePlayer. A Sonos ZonePlayer properly connected to your speakers may be played at maximum volume for extended periods of time with no damage to either the ZonePlayer or the speakers. If a receiver or an amplifier other than the Sonos ZonePlayer is used to drive the speakers, be certain that the amplifier is rated to handle 4-ohm loads. Do not over-drive the amplifier, as it could cause damage to your speakers that is not covered under the Sonos warranty (see Warning below).

Warning: If an amplifier is over-driven, the resulting distortion may be many times

greater than the amplifier's rated power. When an amplifier is over-driven, the distorted sound is referred to as "clipping". On many amplifiers and receivers, rated power is reached with the volume control only at the halfway position, with any further increase in the volume resulting in clipping. Increasing treble and bass controls at high volume levels can also increase power output well beyond the amplifier's rated power. The warranty on your speakers is void if the voice coils are burned or damaged as a result of overpowering or clipping. Original Packaging Materials Please retain the carton and packing material for your speakers to protect them in the event of a move, or if they need to be shipped to a service center. If you ship your speakers to a service center in something other than the original packaging, your speakers will be repaired, refurbished, and properly packaged for return shipment at your expense.

WARRANTY AND DISCLAIMER

Limited Warranty. Sonos warrants to You that, for a period of one (1) year after the date of original purchase of the Product, the Product will be free from defects in materials and workmanship. SONOS' SOLE LIABILITY, AND YOUR SOLE REMEDY, FOR BREACH OF THE FOREGOING WARRANTY WILL BE, AT SONOS' SOLE DISCRETION, REPAIR OR REPLACEMENT OF THE PRODUCT, OR, IF NEITHER OF THE FOREGOING ARE REASONABLY AVAILABLE, A REFUND OF THE AMOUNT YOU PAID, LESS AMOUNTS ATTRIBUTABLE TO YOUR PRIOR USE. Limitations. The foregoing warranty does not extend to problems in the Product that result from accident, abuse, misuse, neglect, unauthorized product modification, failure to follow instructions outlined in the owner's manual, damage resulting from unauthorized repairs, or claims based upon misrepresentations of the warranty by any party other than Sonos. Disclaimer. EXCEPT AS EXPRESSLY SET FORTH ABOVE, SONOS MAKES NO WA RRANTIES, WHETHER EXPRESS, IMPLIED, STATUTORY OR OTHERWISE, WITH RESPECT TO THE PRODUCT. SONOS AND ITS SUPPLIERS HEREBY SPECIFICALLY DISCLAIM ALL OTHER EXPRESS, STATUTORY AND IMPLIED WARRANTIES AND CONDITIONS, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT AND THE IMPLIED CONDITION OF SATISFACTORY QUALITY. EXCEPT AS EXPRESSLY STATED ABOVE, THE PRODUCT IS SUPPLIED ON AN "AS IS" BASIS WITHOUT WARRANTY. YOU ASSUME ALL RESPONSIBILITIES FOR SELECTION OF THE PRODUCT TO ACHIEVE YOUR INTENDED RESULTS, AND FOR THE INSTALLATION AND USE OF THE PRODUCT. Some jurisdictions do not allow a limitation on implied warranties, and so the foregoing disclaimer may not apply to You. In any event, any implied warranties that may exist under the laws of Your jurisdiction are limited to the one (1) year period set forth in the limited warranty given above.

LIMITATION OF LIABILITY

TO THE MAXIMUM EXTENT ALLOWED UNDER LAW, IN NO EVENT WILL SONOS OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES, INCLUDING BUT NOT LIMITED TO, INCIDENTAL, SPECIAL, CONSEQUENTIAL, EXEMPLARY, OR INDIRECT DAMAGES, AND INCLUDING BUT NOT LIMITED TO, COST OF COVER, LOSS OF DATA, LOSS OF PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR OTHER PECUNIARY LOSS ARISING FROM THE USE OF (OR INABILITY TO USE) THE PRODUCT, NO MATTER HOW CAUSED AND ON ANY THEORY OF LIABILITY. IF THE PROVISIONS OF ANY ADVERTISEMENT, PACKING CARTONS OR LITERATURE DIFFER FROM THOSE SPECIFIED IN THIS WARRANTY, THE TERMS OF THIS LIMITED WARRANTY PREVAIL. IN NO EVENT SHALL SONOS' TOTAL LIABILITY TO YOU FOR ALL DAMAGES IN ANY ONE OR MORE CAUSES OF ACTION EXCEED THE AMOUNT PAID BY YOU FOR THE PRODUCT. The limitations set forth above will apply even if Sonos, its suppliers or dealers have been advised of the possibility of such damage or of any type of use intended by You. These limitations shall apply notwithstanding the failure of essential purpose of any limited remedy. Installationshandbuch
