Journey through spatial coherency.

Expression.

Emotion.

Experience.

Dom25/13F15, BC12, BC13...these cold, technical names refer to the drive units that are the source of your emotional enjoyment of music. All the loudspeakers in the Idea ranges feature Cabasse's latest innovations in co-axial technology and spatial coherency.

Classical or modern; choose your loudspeakers for a perfect match with your interior décor. Whatever your choice, every system will offer the same sound signature, the one that has made Cabasse a worldwide reference among fans of live music for more than 60 years.

Listen to the SCS difference

Fidelity to original timbres and dynamic range, a wide, stable and full soundstage, these are the benefits of SCS (Spatially Coherent System) technology.

Imagine three stones hitting the surface of a lake at three different points. The created waves will mix and propagate erratically. Now imagine three stones hitting the surface at the same point, the waves grow and spread harmoniously. This single source emission is the benefit of the co-axial drivers and wide-range tweeters designed by the Cabasse R&D team.

The listening experience will take you to the heights of emotion.

ALTURA MC

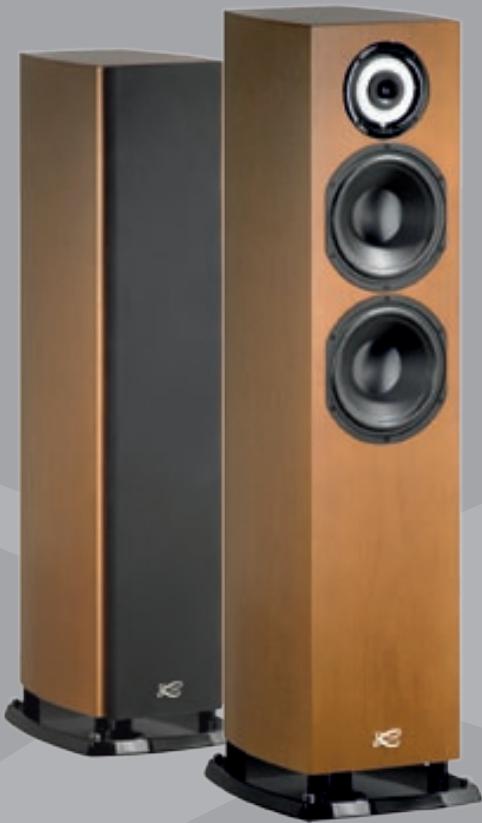

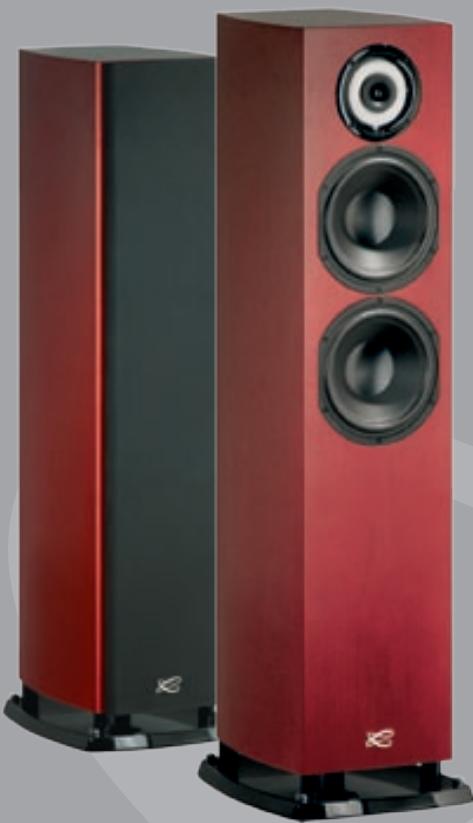

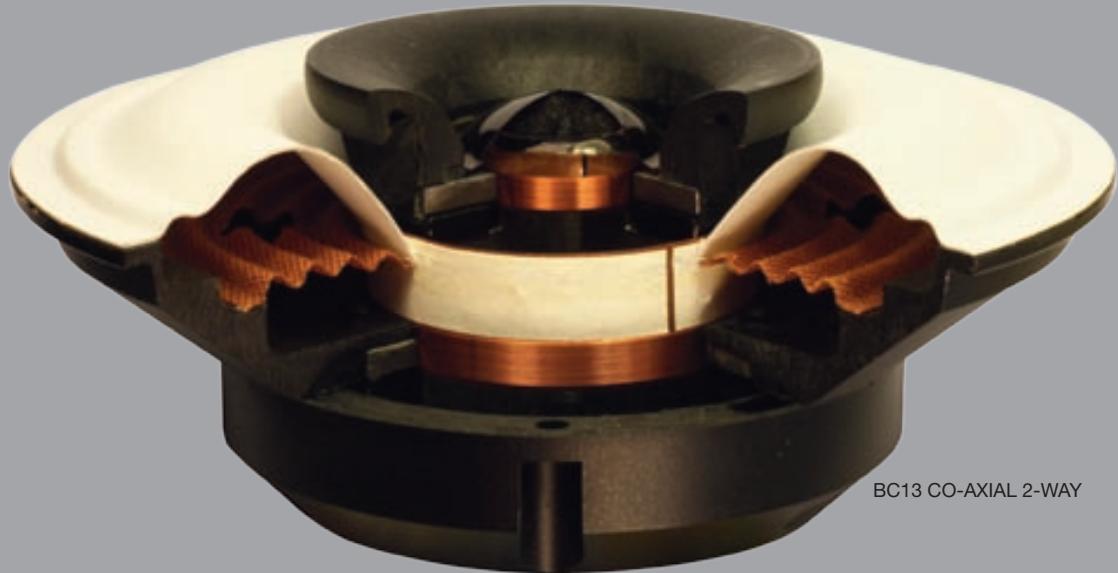

The new Bora, Egea 3 and Iroise 3 are fitted with a modified version of the BC13 coaxial midrange-tweeter used in the 4-way concentric driver of the "La Sphère" reference system. The coherency of the BC13 combined with the dynamic range and transparency of the Duocell woofers reproduces timbres with true fidelity, without fatigue and with a matchless realism and depth of soundstage. Altura MC, classical looking speakers with purity of design and innovative Cabasse technical solutions.

BORA

EGEA3

IROISE 3

ALTURA MC

Use	bookshaft / Stand	floorstanding	floorstanding	floorstanding
Ways	3	3	3	1
Drivers	1 x 2-way BC13 co-axial unit: 2.8 cm Kaladex® dome tweeter 12 cm P2C ring midrange 1 x 21 cm Duocell woofer	1 x 2-way BC13 co-axial unit: 2.8 cm Kaladex® dome tweeter 12 cm P2C ring midrange 2 x 17 cm Duocell woofer	1 x 2-way BC13 co-axial unit: 2.8 cm Kaladex® dome tweeter 12 cm P2C ring midrange 2 x 21 cm Duocell woofer	1 x 30 cm honeycomb dome woofer
Efficiency 1 W/1 m	90 dB	90 dB	93 dB	active
Filter	800 - 4,400 Hz	1 120 - 4,400 Hz	750 - 3,700 Hz	adjustable 40 - 200 Hz
Frequency response	52 - 24,000 Hz	55 - 24,000 Hz	50 - 24,000 Hz	29 - 200 Hz
Nominal impedance	8 ohms	8 ohms	8 ohms	active
Minimum impedance	4.1 ohms	3.8 ohms	3.1 ohms	active
Power handing / Peak power	120 / 840 W	110 / 770 W	150 / 1,000 W	400 W RMS / 800 W
Dimensions (H x W x D)	50 x 27 x 33 cm - 19.7 x 10.6 x 13 in	111 x 29 x 41 cm - 43.7 x 11.4 x 16.2 in	116 x 32 x 42 cm - 45.7 x 12.6 x 16.5 in	43 x 36 x 38 cm - 16.9 x 14.2 x 15 in
Weight	15 kg - 33 lbs	30 kg - 66 lbs	35 kg - 77 lb	28 kg - 62 lbs
Standard finish	Golden cherry, Santos, Glossy black	Golden cherry, Santos, Glossy black	Golden cherry, Santos, Glossy black	Pearl, Black pearl

SANTORIN 30I

Fitted with the bC12 co-axial unit between 2 Duocell midrange-woofers, Ki provides a truly engaging reproduction of voices wherever you are sitting - "SCS obliges again!" with the low-end support from a Thor 2 or a Santorin 30, the Ki system will provide every audio-video lover with high-definition looks and sound.

KI

THOR 2 SUBWOOFER

Ki
KI
Satellite
THOR 2

Use	floorstanding / bookshaft / on wall	floorstanding
Ways	3	1
Drivers	1 x 2-way BC12 co-axial unit: 2.7 cm Kaladex® dome tweeter 12 cm Kaladex® ring midrange 2 x 10 cm Duocell woofer	1 x 30 cm Duocell woofer
Efficiency 1 W/1 m	93 dB	active
Filter	1,200 - 4,200 Hz	adjustable 0° - 180°
Phase	-	adjustable 0° - 180°
Frequency bandwidth	80 - 22,000 Hz	22 - 200 Hz
Nominal impedance	8 ohms	active
Minimal impedance	3.2 ohms	active
Power handling / Peak power	100 / 700 W	250 / 750 W
Magnetic shielding on Ki under TV	yes	-
	Ki floorstander	THOR II
Dimensions (h x l x p)	125 x 30 x 30 cm - 49.2 x 11.8 x 11.8 in	56 x 37 x 58 cm - 21.7 x 14.6 x 22.8 in
Poids	15 kg - 33 lbs	24 kg - 53 lbs
	Ki TV on base
Dimensions (h x l x p)	81 x 13 x 17 cm - 31.9 x 5.1 x 6.7 in
Weight	7 kg - 16 lbs	24 kg - 53 lbs
Standard finish	Aluminium, Black aluminium	Aluminium, Black aluminium

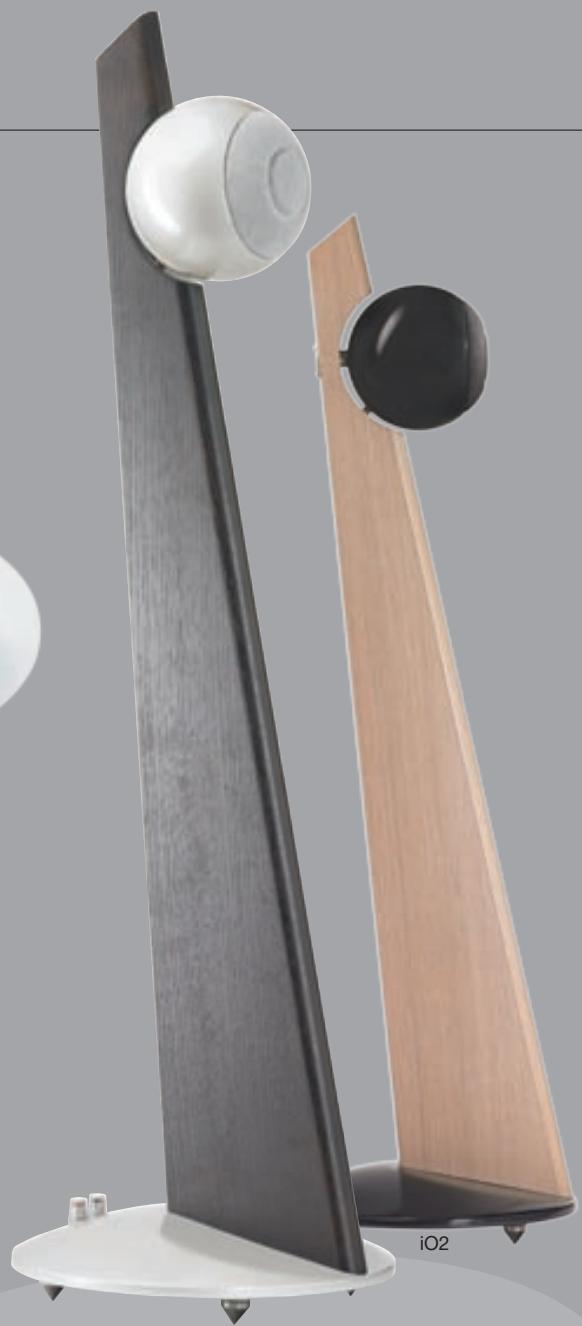

Only through the technological application of the SCS principles is it possible to endow such small satellites with the fundamental characteristics shared by all our loudspeakers: linearity, consistency, dynamic range, power handling and full spatial coherency. Fitted with a co-axial unit made of a 13 cm Duocell midrange-woofer and a rigid dome tweeter, iO2, combined with the Santorin 25 subwoofer, presents a truly compact audio-video system, with perfect interior design integration and absolute high-fidelity.

iO2 IN CEILING

SANTORIN 25 SUBWOOFER

iO 2

i02

satellite

Use

floorstanding

i02 ON BASE

satellite

booksheet / On wall

i02 IN CEILING

satellite

in ceiling

SANTORIN 25

Subwoofer

Drivers

1x2-wayco-axialunit:

2.7 cm Kaladex® dome tweeter 13 cm Duocell driver

1x2-wayco-axialunit:

2.7 cm Kaladex® dome tweeter 13 cm Duocell driver

1 x 2-way co-axial unit:

2.7 cm Kaladex® dome tweeter 13 cm Duocell driver

1x25cmICFwoofer

Sensitivity 1 W/1 m	93 dB	93 dB	93 dB	active
Filter	2 700 Hz	2 700 Hz	2 700 Hz	adjustable 0° - 180°
Cross-over points	-	-	-	adjustable 0° - 180°
Frequency response	150 - 22,000 Hz	150 - 22,000 Hz	150 - 22,000 Hz	34 - 150 Hz
Nominal impedance	8 ohms	8 ohms	8 ohms	active
Minimum impedance	3.8 ohms	3.8 ohms	3.8 ohms	active
Power handing / Peak power	80 / 580 W	80 / 580 W	80 / 580 W	250 / 750 W
Magnetic shielding	yes	yes	-	-
Dimensions (h x l x p)	112 x 33 x 33 cm - 44.1 x 13 x 13 in	Ø 16 cm - 6.3 in	Ø 26 cm - 10.2 in	42 x 36 x 38 cm - 16.5 x 14.2 x 15 in
Weight	6 kg - 13 lbs	1.8 kg - 4 lbs	1.9 kg - 4.2 lbs	19 kg - 42 lbs
Standard finish	Light oak / Black PearlWenge / Black PearlWenge / Pearl	Peal, Black pearlWhite, Mat greyMat charcoal	White	WhiteGlossy black
