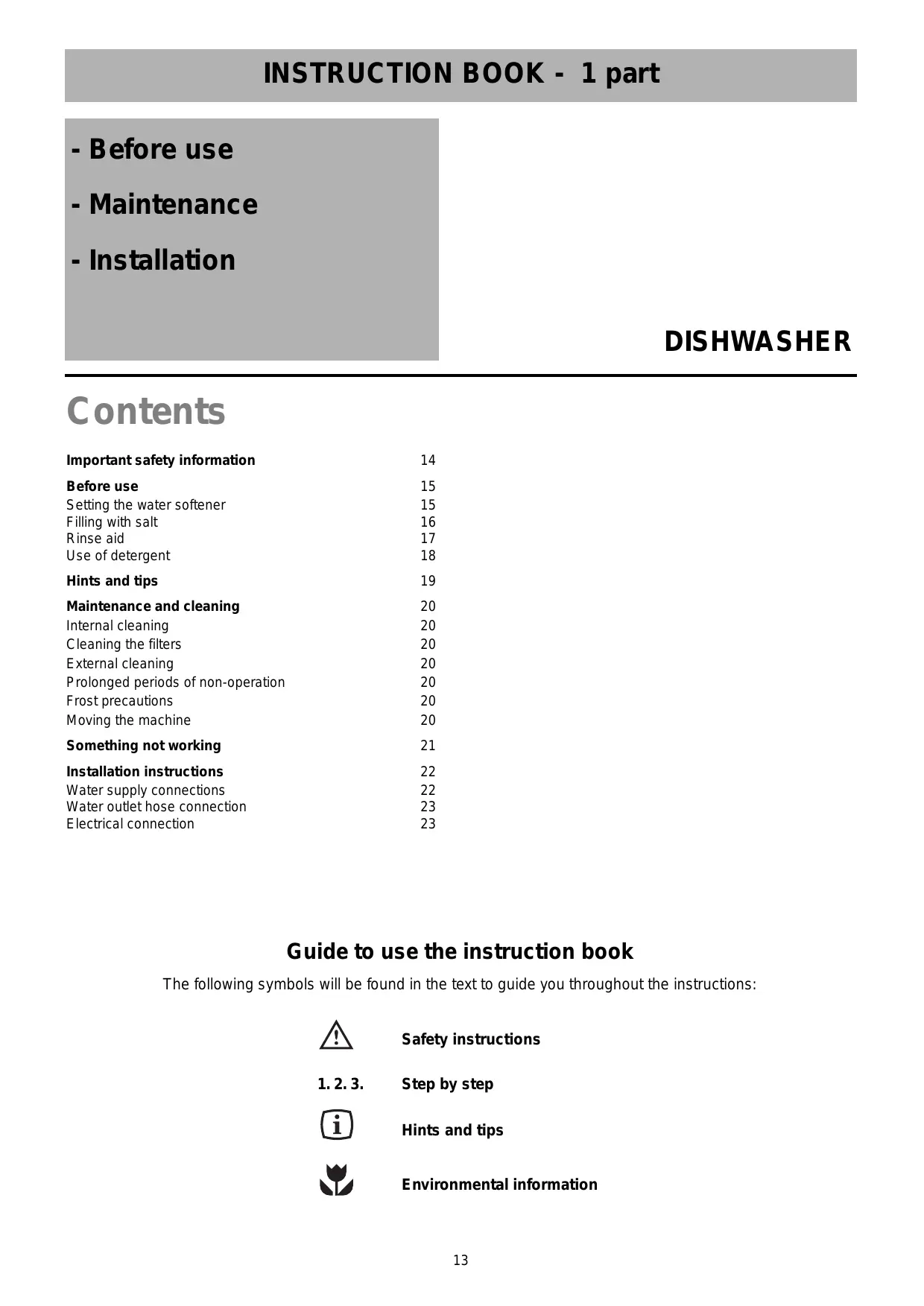

DISHWASHER Contents Important safety information Before use Setting the water softener Filing with salt Rinse aid Use of detergent Hints and tips Maintenance and cleaning Internal cleaning Cleaning the filters External cleaning Prolonged periods of non-operation Frost precautions Moving the machine Something not working Installation instructions Water supply connections Water outlet hose connection Electrical connection Guide to use the instruction book The following symbols will be found in the text to guide you throughout the instructions: Safety instructions Step by step Hints and tips Environmental information

À Important safety information Itis most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information. This information has been provided in the interest of your safety. You MUST read it carefully before installing or using the appliance. Installation @ This appliance is heavy. Care should be taken when moving it. @ ltis dangerous to alter the specifications or attempt to modify this product in any way. @ Care must be taken to ensure that the appliance does not stand on the electrical supply cable. @ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person @ Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person. Child Safety © This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product. © Keep all packaging well away from children. © Keep all detergents in a safe place out of children's reach. During Use @ items that are contaminated by petrol, paint, steel or iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher. @ Under no circumstances should you open the door whilst the appliance is in operation. Always turn off the appliance before opening the door. @ Only use detergent specifically designed for use in dishwashers. © Long bladed knives stored in an upright position are a potential hazard @ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. @ When finishing loading or unloading close the door, as an open door can be a hazard

@ Do not sit or stand on the open door. @ Isolate the appliance from the power supply and turn off the water supply after use. @ Care should be taken when cleaning the bottom door seal and hinge area as any exposed metal edges may cut if care is nottaken. © This product should be serviced by an authorised Service engineer, and only genuine spare parts should be used. @ Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts. Conservation In the interest of the environment: © Materials marked with the symbol à are recyclable. @ Check with your local Council or Environmental Health Office to see if there are facilities in your area for re-cycling this appliance. @ When the appliance is to be scrapped, cut off the power supply cable and make the door closing device unusable to prevent young children from being trapped inside. @ Help to keep your country tidy - use authorised disposal sites for your old appliance.

Before use Before using your dishwasher for the first time:

1. Ensure that the electrical and water connections comply

with the installation instructions

2. Remove all packaging from inside the appliance

3. Setthe water softener

5. Fillthe rinse aid dispenser.

6. Run a "Rinse and Hold" programme.

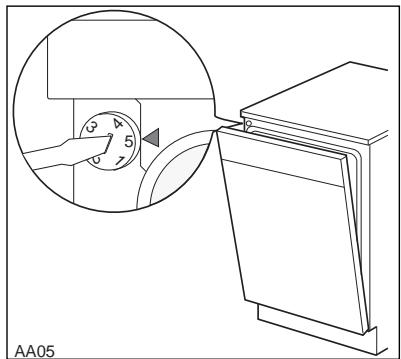

Setting the water softener The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these salts, the harder your water is. Water hardness is measured in equivalent scales, German, French degrees and PPM (parts per Million). The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. The dishwasher is factory set at level 2. If this level is not suitable for your area the softener should be adjusted. To adjust the water softener With a screwdriver turn the selector on the upper front corner of the machine until the level required corresponds with the marker.

If your water is level O it is already soft and therefore there is no need to use salt. Adjust the water softener on level 1 without using salt. In this case (only for models with salt refill indicator light) the salt refill indicator light on the control panel will always remain illuminated when the machine is switched on.

Filing with salt Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes.This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. The salt container will require topping up periodically. According to the model, an indicator reminds you when filling with salt: A) The salt cap has a refill indicator window in the centre. A green float is clearly visible when there is salt inside the container, and almost disappears when the salt has finished reminding you to add salt. B) A saltindicator light on the control panel comes on when the salt has finished. The salt indicator light on the control panel can remain illuminated for 2-6 hours after the salt has been replenished, assuming the dishwasher remains switched on. If you are using salts that take longer to dissolve then this can take longer. The function of the machine is not affected. C) For appliances not provided with salt indicator: top up periodically the salt container with salt (after about every 50 washing cycles with water softener setted on level 3). Do not worry if water over flows from the unit when filling with salt, this is quite normal.

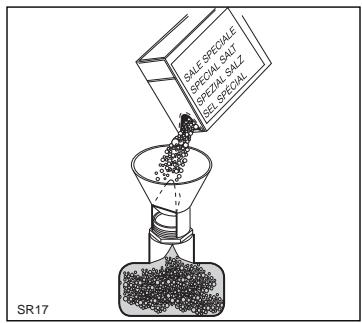

salt for the first time). until the container is full ses

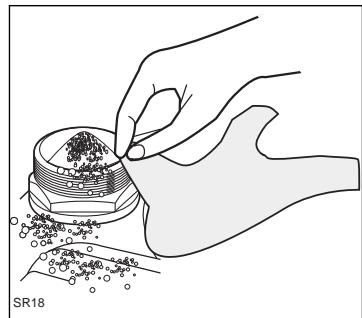

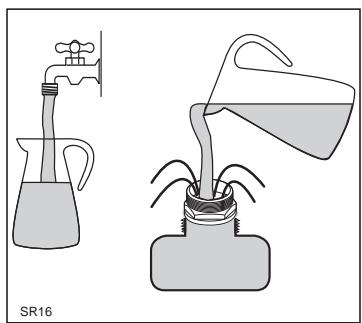

4. Remove any trace of salt on

or on the gasket. sR9

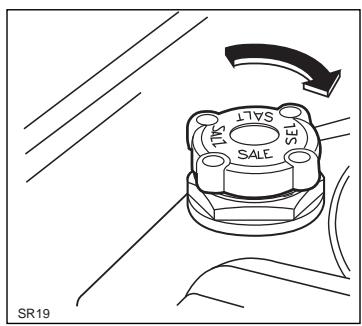

5. Screw on the cap tightly.

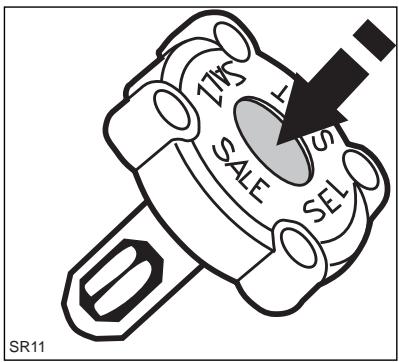

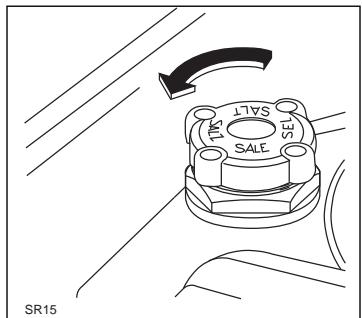

1. Unscrew the cap of the salt container.

e container (this is necessary only before filling with

Rinse aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting Filling with rinse aid

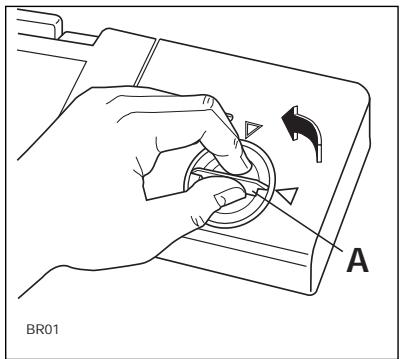

1. Open the container by turning the lid (A) anticlockwise.

2. Add the rinse aid until the container is completely full.

The indicator (B) will be completely dark.

3. Top up the rinse aid when the indicator (B) becomes clear.

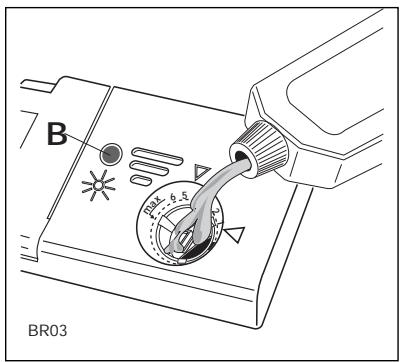

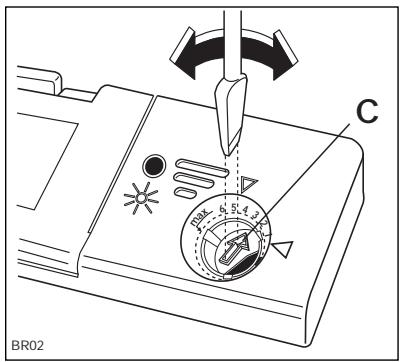

(Only for models with rinse aid indicator light) Top up the rinse aid when the rinse aid indicator light on the control panel illuminates. Ensure that the lid is closed after every refill. Do not put liquid detergent in the rinse aid compartment. Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash. Adjusting the dose According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (C) {position 1 minimum dosage, position 6 maximum dosage). Start from position 3. Gradually increase the dose ifthere are drops of water or lime spots on the dishes after washing. Reduce it ifthere are sticky whitish streaks on the dishes.

Use of detergent Only use detergents specifically designed for use in dishwashers. If using powder detergents proceed as follows:

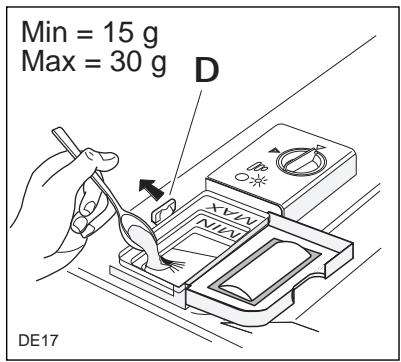

1. Open the dispenser lid by pulling the catch (D)

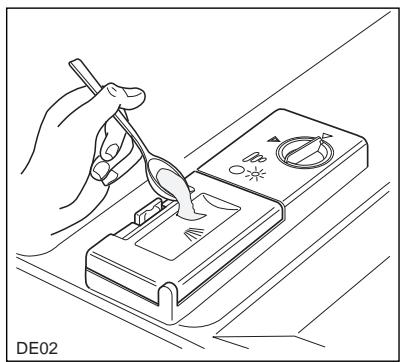

2. Add the detergent according to the recommended

quantity given in the "Washing programmes" chart {Instruction book - Part 2). As all detergents are not the same, you should also consult the instructions on the packet.

3. Always close the lid.

4. Ifthe programme has a prewash add a little amount

of detergent over the lid of the dispenser. Follow the recommended quantity of detergent given in the “Washing programmes" chart. If using detergent in tablets proceed as follows: L For all programmes; place 1 tablet inside the detergent dispenser.

2. Always close the lid.

3. For all programmes with prewash:; place a portion of a

further tablet on the lid of the detergent dispenser. A Insufficient quantities of detergent will produce \ poor washing results, whereas an excessive amount of detergent will not improve washing results and is also wasteful. Using no more than the correct amount also contributes to reducing pollution. Compact detergents with enzymes In these compact powders the environmentally O unfriendly components have been replaced by natural enzymes and other more biodegradable substances. The enzymes deploy their full dirt dissolving power at a temperature as low as 50°C. By choosing the "BIO" programmes (if foreseen with the model) you can therefore achieve the same cleaning results that would otherwise be achievable only with 65°C programmes and conventional detergents. These new compact powders are generally phosphate-free.

Hints and tips To save energy Place dishes in the machine immediately after every meal and wait until the dishwasher is full before washing. (Follow the instructions given in "Instruction Book" - Part 2). If necessary run the Rinse and Hold programme (see “Washing Programmes" chart) so that any food scraps do not become caked on the dishes while you are waiting to run the complete wash programme. Do not prewash dishes under running water. Select an economic programme when dishes are not very soiled, following the instructions given in the "Washing programmes" chart. For best washing and drying results Before loading, remove all scraps of food and soak very heavily soiled pots and pans. Arrange saucepans, cups and glasses etc. upside-down. Tiltitems with convex or concave surfaces so that the water drains off easily. Avoid contact between the dishes as far as possible.

Items not suitable for dishwashers The following items should not be washed in the dishwasher (unless they are sold as dishwasher proof): -_ Cutlery with wooden or horn handles or glued parts bronze cutlery -_ Saucepans with wooden handles - aluminium ware - crystal ware - leaded glass -_ plastic items - antique or fine decorated china Certain types of decoration can discolour when washed in a dishwasher. Crystal-ware and plastic objects, if not guaranteed dishwasher proof should be washed by hand Certain types of glass can also become opaque after being washed several times in a dishwasher. A chemical reaction can occur between silver cutlery and stainless steel cutlery. As a precaution, do not wash together. Iron and cast iron objects can rust and stain other items. Aluminium tends to go black, copper, pewter and brass tend to stain Fin doubt check with manufacturer of the item. When buying new dishes, ensure that they are dishwasher proof.

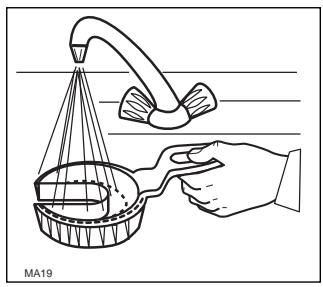

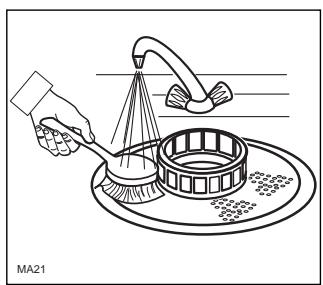

Maintenance and cleaning Internal cleaning Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth. We recommend every 3 months to run a 65°C wash programme without dishes using detergent. Cleaning the central filter (After each wash) Scraps of food may accumulate in the drain filter (A) and should be removed by rinsing the filter under running water. To remove the drain filter - simply pull it out by the handle. Once cleaned, refit the filter by pushing it back to its original position until it engages. Cleaning the large filter (every week) If necessary clean the large filter (B) on both sides under running water, using a brush. To remove the large filter

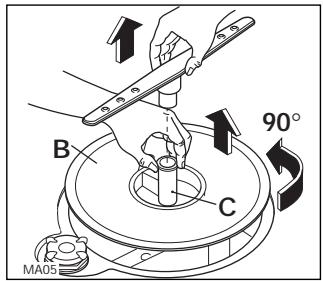

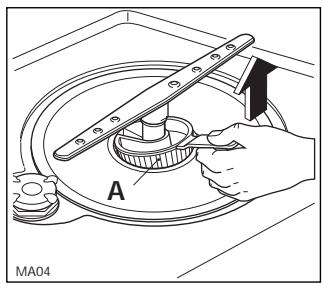

Remove the spray arm by pulling it upwards on one side. Turn the column (C) anticlockwise by 90° and then slide out the filter. . Once cleaned refit it following the above instructions in reverse order. Ensure the filter is in its original position, the handle of the drain filter should be pointing towards the front of the appliance The dishwasher must not be used without filters. Incorrect repositioning and fitting of the filters will produce poor washing results. Cleaning the filters is vital to ensure correct operation of the machine. External cleaning Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc...) Prolonged periods of non-operation If you are not using the machine for any period of time you are advised to:

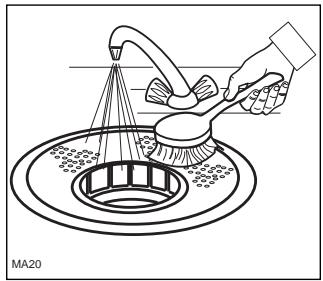

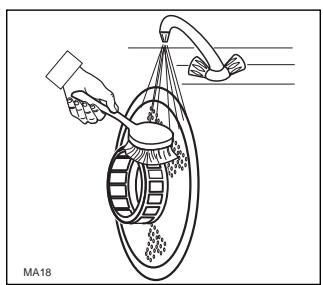

Unplug the appliance and then turn off the water. Fillthe rinse aid dispenser. Leave the door ajar to prevent the formation of any unpleasant smells. Leave the inside of the machine clean.

Mao Frost precautions Avoid placing the machine in a location where the temperature is below 0°C. If this is unavoidable, empty the machine, close the appliance door, disconnect the water inlet pipe and empty it. Moving the machine If you have to move the machine (moving house etc...):

Unplug it. Turn the water tap off. Remove the water inlet and discharge hoses. Pullthe machine out together with the hoses. Avoid over tilting the machine during transportation.

Something not working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry outthe checks listed below. Symptom Solution The machine will not start The door has not been properly closed. The plug is not properly inserted in the power socket. There is a power failure. The machine does not fill with water Ensure the water tap is open. Ensure the mains water supply has not been cut off. The inlet hose may be squashed or bent. Reposition the hose. The inlet hose may be blocked. Switch off the water supply and clean the filter. The filters are blocked e Clean the filters (refer to "Maintenance and cleaning"). The spray arms are not rotating e Ensure the crockery is loaded correctly. The dishwasher will not drain e The drain hose may be squashed or bent. Reposition the hose. The sink may be blocked. Clear any blockages. The drain hose extension is not correct. Follow the instructions for connecting to the waste. There is no vent in the end of the drain hose. The machine is noisy Dishes are rattling against each other, refer to “Loading your machine”. The spray arms are knocking against the dishes. Refer to "Loading your machine" The door is difficult to close The dishwasher is not level, or not properly built-in. Visible lime deposits or white film on the dishes Check that there is salt and that the salt cap is tight. Check that the right level of the water softener is set. The dishes are not quite dry The rinse aid has run out or too little is being used. The dishes are not clean (poor wash) The baskets are too full. The dishes have not been arranged properly. The spray arms do not rotate The spray arms are clogged. The filters are clogged. The filters are not in the correct position. Not enough detergent has been used oritis unsuitable. The detergentis old or has gone hard The salt container cap is not properly closed. The washing programme selected is too gentle. If after all these checks, the problem persists, contact your local Service Force Centre, quoting the model and serial number. This information can be found on the rating plate located on the right hand side of the dishwasher door Important! This product should be serviced by an authorised Service engineer and only genuine spare parts should be used. Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine spare parts.

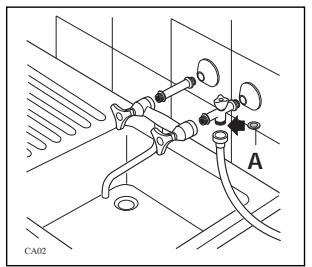

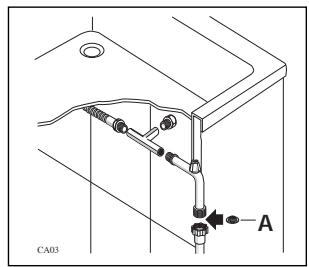

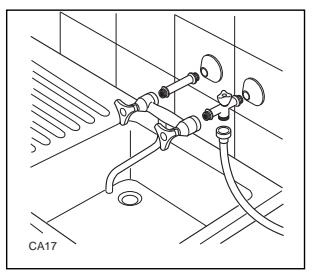

Installation instructions Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person. Remove all packaging before positioning the machine. If possible, position the machine next to a water tap and a drain. Levelling Good levelling is essential for correct closure and sealing of the door. When the appliance is correctly levelled, the door will not catch on the levelling spacers on either side of the cabinet. Ifthe door does not close correctly, loosen or tighten the adjustable feet until the machine is perfectly level Water supply connections This dishwasher must be plumbed into a cold or hot water supply (max. 60°). (See "Technical specifications" - Instruction Book - Part 2). Nevertheless we advise you a cold water supply, a hot water supply is not always efficient with very soiled crockery as it shortens the washing programmes time. The water pressure must be within the limits given in the technical specifications. Your local Water Authority will advise you on the average mains pressure in your area. The dishwasher features fill and drain hoses which can be turned either to the left or the right to suit the installation. The locknut must be correctly fitted to avoid water leaks. Avoid bends or kinks in the hose which could prevent or slow down the water supply. Ifthe machine is connected to new pipes or pipes which have not been used for a long time, you should run the water for a few minutes before connecting the inlet hose. This will prevent deposits of sand or rust clogging the inlet hose filter. Only for water fill hose with supplied filter! Be sure to incorporate the filter (A) onto the joint

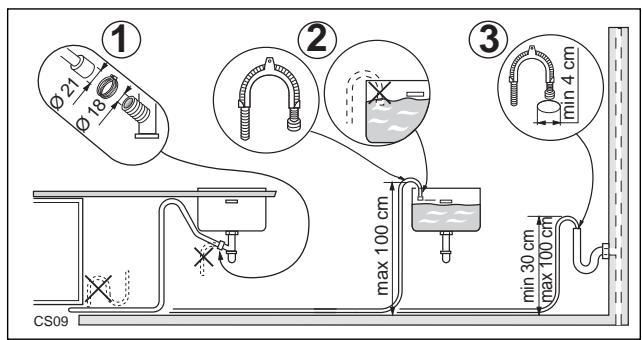

Water outlet hose connection The end of the drain hose can be connected in the following ways:

1. To the sink outlet siphon, securing it if necessary with a

clip. Attention! (E3) Our appliances are supplied with a security device to protect against the return of dirty water back into the machine. If the siphon of your sink has a "no return valve" incorporated this can prevent the correct draining of your dishwasher. We advise you therefore to remove it.

3. To a stand pipe provided with vent-hole, minimum internal

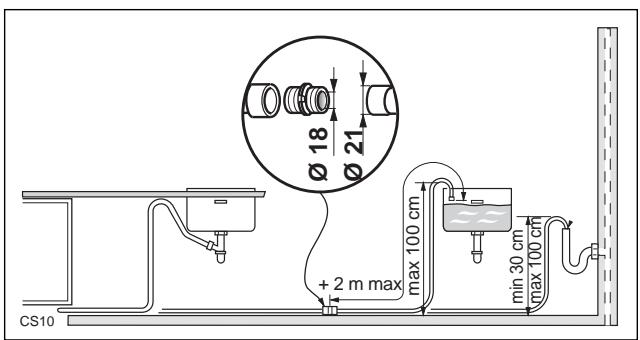

diameter 4 cm. The waste connection must be at a height of between 30 cm (minimum) and 100 cm (maximum) from the bottom of the dishwasher. The drain hose can face either to the right or left of the + dishwasher ==) Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water. in 30 cm If you use a drain hose extension it must be no longer than 2 metres and its internal diameter must be no smaller than the diameter of the hose provided. Likewise the internal diameter of the couplings used for connections to the waste outlet must be no smaller than the diameter of the hose provided. Electrical connection Before plugging the appliance into the wall socket, make sure that:

1. The mains voltage corresponds to the voltage given in

the "Technical specifications".

2. The meter, fuses, mains power supply and wall socket

can all take the maximum load required. Make sure that the socket and plug are compatible without having to use any type of adaptor. If necessary, have the domestic wiring system socket replaced. Safety standards require the appliance to be earthed. The manufacture accepts no liability for failure to observe the above safety precautions. This appliance complies with the following E.E.C. Directives: C € - 73/23 of 19.2.73 (Low Voltage Directive) and subsequent modifications; - 89/336 of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
