USER MANUAL G-SHOT HD520 GENIUS

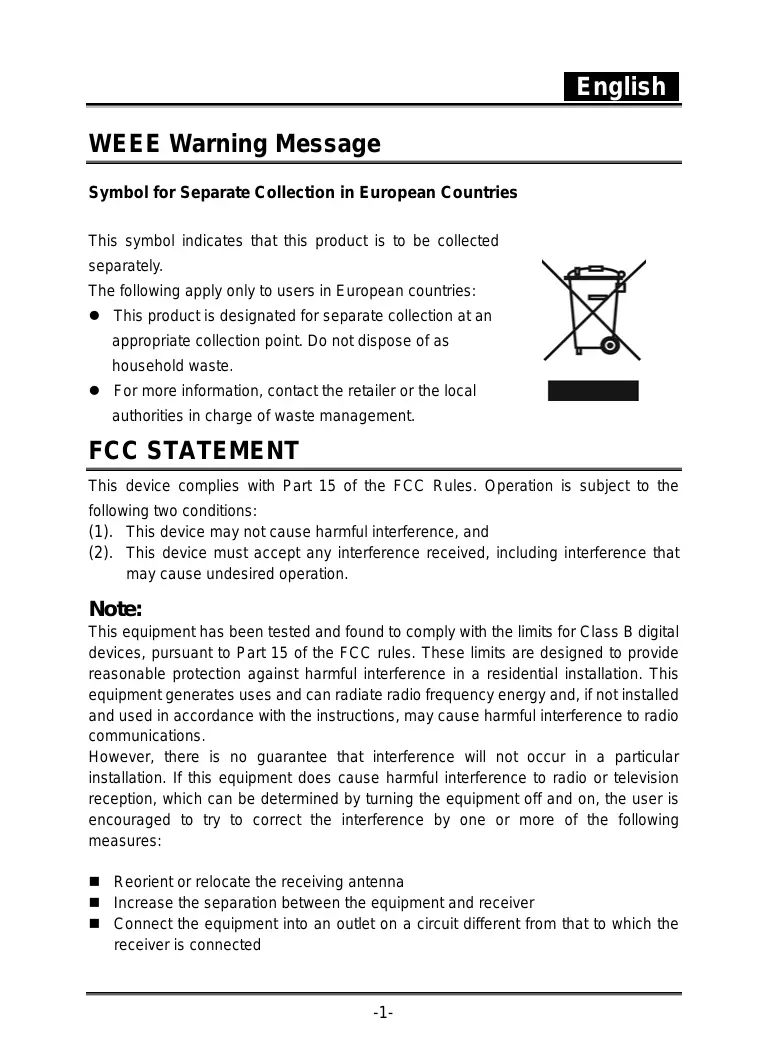

WEEE Warning Message Symbol for Separate Collection in European Countries This symbol indicates that this product is to be collected separately. The following apply only to users in European countries: © This productis designated for separate collection at an appropriate collection point. Do not dispose of as household waste © For more information, contact the retailer or the local [| authorities in charge of waste management. FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1). This device may not cause harmful interference, and (2). This device must accept any interference received, including interference that may cause undesired operation: Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in à residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications However, there is no guarantee that interference will not occur in à particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures m_Reorient or relocate the receiving antenna m_ Increase the separation between the equipment and receiver M Connect the equipment into an outiet on à circuit different from that to which the receiver is connected

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 ofthe FCC rules Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment. Product Information

1. Product design and specifications are subject to change without notice. This

includes primary product specifications, software, software drivers, and user's manual. This User Manual is à general reference guide for the product. The product and accessories that come with your camera may be different from those described in this manual. This is due to the fact that different retailers often specify slightiy different product inclusions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, memory cards, cables, carrying cases/pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories. The illustrations in this manual are for the purpose of explanation and may differ from the actual design of your camera. The manufacturer assumes no liability for any errors or discrepancies in this user manual. For driver updates, you can check the "Download" section of our website, www.geniusnet.com

SAFETY INSTRUCTIONS Read and understand all Wamings and Cautions before using this product Warnings = !f foreign objects or water have OKed the camera, tumn the power OFF and remove the battery. Continued use in this state might cause fire or electric shock. Consult & the store of purchase. m_ifthe camera has fallen or its case has been damaged, tu the power OFF and remove the battery. Éontinued use in this state might cause fre or electric shock. Consuit @ the store of purchase.

"Do notdisassemble, change or repair the camera. This might cause fire or electric shock. For repair or internal inspection, ® ask retailer where you purchased it # Do notuse the camera in areas near water. This might cause fire or electric shock. Take special care during rain, © snow, on the beach, or near the shore = _ Do not place the camera on inclined or unstable surfaces. This might cause the camera to fall or ti over, causing injury. O = Keep the batteries out of the reach of children. Swallowing batteries might cause poisoning. If the battery is accidentally O swallowed, immediately consult à physician " Do not use the camera while you are walking, driving or riding a motorcycle. (NS) This might cause you to fall over or result in a traffic accident. Cautions m_insertthe batteries paying careful attention to the polarity (+or-) of the terminals. Inserting the batteries with its polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking. = Do not fire the flash close to anyones eyes. This might cause damage to the person's eyesight. # Do not subject the LCD monitor to impact. This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid OKs your eyes or comes into contact with your body or clothes, rinse with fresh water. If the internal fluid has OKed your eyes, consult à physician to receive treatment. = A camerais a precision instrument. Do not drop it, strike Itor use excessive force when handling the camera. This might cause damage to the camera. "Do notuse the camera in humid, steamy, smoky, or dusty places. This might cause fire or electric shock. "Do not remove the battery immediately after long period of continuous use. The battery becomes hot during use. Touching a hot battery might cause burns. = _ Do notwrap the camera or place itin cloth or blankets. This might cause heat to build up and deform the case, resulting in fire. Use the camera in a well-ventilated place. m Do not leave the camera in places where the temperature may rise significantly, such as inside a car. This might adversely affect the case or the parts inside, resulting in fire. DD © CO

= Before you move the camera, disconnect cords and cables. Fallure to do this might damage cords and cables, resuling in fre and (Ç) electric shock. Notes on Battery Usage When you use the battery, carefully read and strictiy observe the Safety Instructions and the notes described below m Use only the specified battery M Avoid using the battery in extremely cold environments as low temperatures can shorten the battery life and reduce camera performance m When you are using the new rechargeable battery or rechargeable battery that has not been used for an extended period of time (the battery that passed the expiry date is an exception) might affect the number of images that can be captured. Therefore, to maximize its performance and lifetime, we recommend that you fully charge the battery and discharge it for at least one complete cycle before use. m The battery may feel warm after long period of continuous use of the camera or the flash. This is normal and not à malfunction. m_ The camera may feel warm after long period of continuous use. This is normal and not a malfunction. m_ifthe battery is not to be used for à long period of time, remove it from the camera to prevent leakage or corrosion: m_ifthe battery is not to be used for à long period of time, store it after no battery power left. If the battery is stored for à long time in à fully charged state, its performance may be impaired Always keep the battery terminals in à clean state. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. We recommend the battery should be charged 8 hours for first time use

Getting to Know Your Camera Overview Thank you for purchasing the new digital video camera! This mult-function digital video camera with à 5 Mega Pixel CMOS sensor can take H.264 movies which videos can be taken with in certain amount of memory. High quality images with up to 11 mega pixels can also delivered smoothly. With a color LCD monitor, users can compose images and examine them easily. The G-Shot HD520 can also connect DV to a HDTV by HDMI cable, and easily playback recorded high-definition videos on the wide screen of an HDTV. Other features provided by this camera include the following: © True 5.0 Mega pixel CMOS sensor H.264 Digital Video Camera Voice Recorder Music Player Security Motion Detection Web Camera Stabilization 5X Digital Zoom 2.5" LTPS LCD Supports up to 8GB SD Card Face Detection Z-Lighting Standard Accessories Unpack the package and make sure all standard accessories listed below are included: Digital Video Camera USB Cable AV out Cable HDMI Cable CD-ROM Lithium-ion Rechargeable Battery Power adaptor AC Plug Adaptor for EU to US Earphone Pouch & Strap Quick Guide

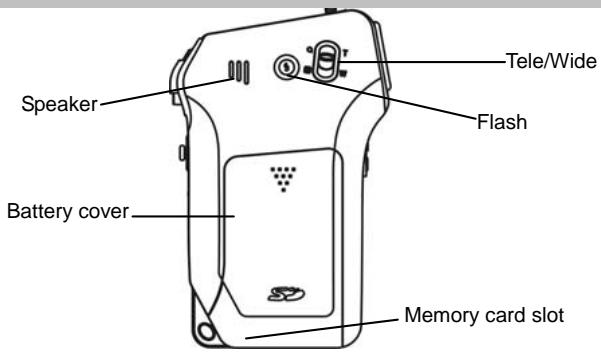

Side View -Tele/Wide Speak peaker Flash Battery cover. Memory card slot Top View Macro/Landscape F5] em Bottom View Tripod Slot DK ù

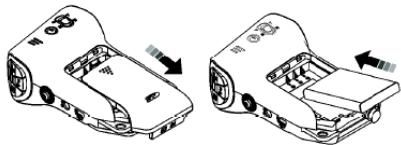

Getting Started | Installing the Battery Before using the camera, you must insert the NP 60 rechargeable Li-ion Battery.

1. Follow the arrow direction and slide it

outwards to remove the battery cover.

2. Insertthe batteries according to the correct

polarity marks ( + or -) Close the battery cover firmiy. Inserting and Removing an SD Card The camera comes with intemal memory (64MB) which allows you to store pictures, movies, recorded voice and music. You can expand the memory capacity by using an optional SD memory card up to 8GB. To insert à memory card!

1. Insert the memory card into the correct position.

2. To remove an installed SD card, press the card inwards to

3. When the card pops out, gentiy remove it from its slot

C4 NOTE © When a memory card is being used, movies and pictures are saved on the card rather than the built-in memory.

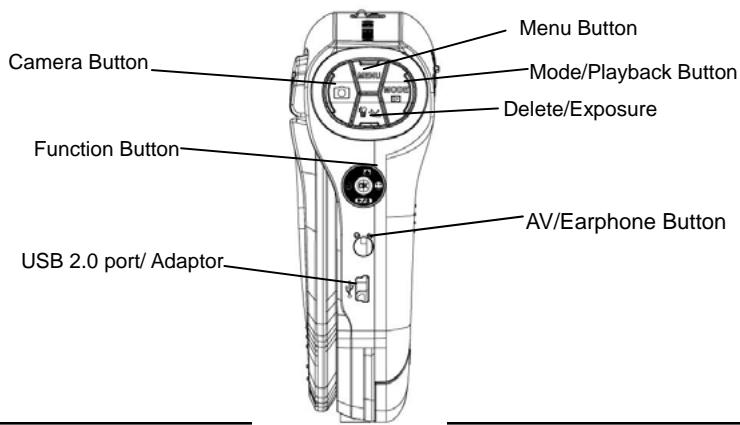

Record Mode Button Function Power Button: Press down for one second to turn on or turn off the camera. Movie Shutter Button:

1. Press Start to take a movie, or record voice.

2. To stop recording, press it again

©(0oKk)e OK Button: Used to move cursor to sub menu or confirm action. Down play and pause button: Press the OK button down to play and pause for playing Movie clip and voice © Selftimer enabled & Z-Lighting: Press the OK button up for Z-Lighting to deal with very high contrast scenes in dark and bright areas @ Face Detection Press the OK button to the right for the face detection function: MENU: Press menu to start the menu setting. MODE: Press Mode to select the sub menu functions Delete/+/-: Delete the file or adjust White Balance and exposure. Q: Take a picture (Tele/Wide Button: Digital Zoom in and out. Flash Mode: (‘Auto Flash: the flash fires automatically according to light conditions. Use this mode for general photography. Fill-in Flash: the flash will fire for every shot taken

@ Flash Off, the flash wil not fire under any circumstances. Use this mode when taking images in à place where flash photography is prohibited, or when the subject is distant (beyond the range of the flash) Æ Slow Sync: The flash will fre and the camera will set the shutter speed at proper speed.

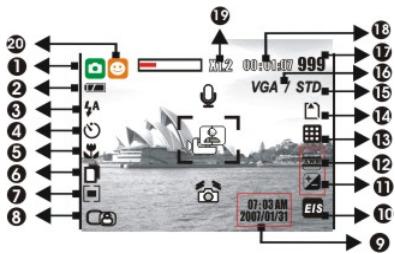

Mode. Focus range : Macro :20 cm Macro switch: Switch between Macro Mode and Normal Normal : 1.2m — Infinity LCD Monitor Information The indicators below will display on the LCD when movies and pictures are recorded:

Battery Status {um)Battery Ful. (en)Battery Hal ines {e=)Battery Drainea In Charging &)Gharging

Flash Mode (pau Frasn Etain {Bean On (gr|2 Seconds (1 Double Socus Range (Eacre

Shooting Mode {BSngle {NiContinuous —À. M 99ÿ°] Q vas

Z-ighting (œe-Lighting

H.264 Movie Recording to start recording. When à movie is recording, à monitor. To stop recording, press the Movie Press the Movie Shutter button time indicator will display on the Shutter Button (L_=}) again Picture Recording Press the Picture Shutter Button (QI) to take à picture. Using Digital Zoom The digital zoom magnifies the images when recording movies or taking pictures

1. To zoom in/out, press the Tele/Wide Button.

2. The digital zoom can be set from 1x to 5x and the magnification ratio is shown on

the LCD monitor. G T

1. Press the Menu button to open the menu setting,

2. Use the OK button up and down to move to the sub menu, and use press it right

and left to move between main menus Press OK to confirm the option you select. ccuBsss CT TNT

4. Press MENU to exit. =

5. There are four options. sors

° ŒAUTO ss e ŒPROGRAM e EDAWN e FAUCTION Video Size Select Video Size for Movie Clip size when CET recording. LMENU ° HD Sao e VGA a e WEB Possible recording time / sec (video clip) SD memory Card capaci Quality 256MB | 512MB 168 268 468 868 HD 00:05:09 | 00:10:33 | 00:21:11 | 00:42:39 | 01:23:22 | 02:47:25 TV 00:14:15 | 00:29:33 | 00:58:39 | 01:58:07 | 03:50:52 | 07:43:35 wes | 00:46:35 | 01:35:30 | 03:11:39 | 06:25:55 | 12:34:19 | 23:59:59 Possible number of shots (still image) 32M8 SD memory Card capacity Quality | intemal 128 256 512 _n un 7 _ memory _| MB MB MB ump 1 45 o1 187 377 759 | 1484 | 2980 smP 3 98 198 405 g1a | 1640 | 3206 | 6437 VGA 2 820 | 1650 | 3383 | 6788 | 9990 | 900 | 9909

IMAGE SIZE Select Image size for the image resolution e HIGH (11M) + STANDARD (5M) e LOW (VGA) e EXIT QUALITY Select Quality to setthe appropriate compression ratio for the captured and recorded images. e S.FINE e FINE e NORMAL e EXIT METERING Metering gives you more superior exposure conditions and a brighter picture. Multi Metering Exposure will be evaluated according to the average 3sore ofthe available light source in the image area; this is suitable for general use. ° SPOT Ifthe subject is against the light source or has litle contrast, use this function to make the subject brighter. e EXT SHOOTING ° SINGLE + CONTINUOUS You can have the continuous shooting by pressing and holding the shutter button and ending it by releasing the shutter button. e EXT

EFFECT Normal BAM Sepia Negative RGB EXIT OSD INF. OFF BASIC DETAIL GRID 3x3 GRID 6X4 EXIT EIS EIS can only be used in Movie Recording. If you prefer to record à movie not using EIS, turn itOFF to cancel the setting e OFF e ON e EXIT SET UP Enter SET UP mode by pressing the Menu Button and pressing the OK button to select SETUP. + _S.Sound/SH. Sound Select the sound you prefer and press the OK button to confirm the setting. Or you can select "OFF" to turn offthe start up sound. + SYS.VOLUME Select the volume you prefer and press the OK button to confirm the setting. Or you can select"OFF" to turn it off. e OVIEW Select the time you prefer and press OK button to confirm the setting. Or you can select *OFF"to turn off the Quick View Time. + _PWR SAVE Select the time you prefer for the power saving mode and press OK button to confirm the setting. Or you can select "OFF" to disable the power saving functions. eIMPRINT The function allows you to printthe date or date & time on the image.

e DATE &TIME Select the type of date and time. + _LANGUAGE L. English 6. ltalian 11.5. Chinese

2. Japanese TTurkish 12.T. Chinese

3. French 8. Russian 13. Arabic

5. Spanish 10. Portuguese

e FILE This setting allows you to name the files. IF RESET is selected, the next fle name will be set from 0001 even after formatting, deleting all, or inserting a new memory card. IFSERIES is selected, the file name wil follow the latest stored file name installed e_UsB Computer | If computer is selected, the camera turns off the LCD Monitor and automatically connects to your PC. Printer I printer is selected, the camera lets you to select the detail options of printer setting via the PictBridge function when the printer is connected PC CAM | Installthe PC CAM function after you open MSN Messenger or AMCAP e VIDEO NTSC U.S.À, Canada, Japan, South, Korea, Taiwan, Mexico PAL Australia, Austria, Belgium, China, Denmark, Finland, Germany, UK, ltaly, Kuwaït, Malaysia, New Zealand, Singapore, Spain, Sweden, Switzerland, Thailand, Norway. e FREQ 50Hz UK, Germany, Italy, Spain, France, Netherlands, China, Japan, Portugal GHz USA, Taiwan, Korea, japan e RESETALL The option resets all default settings except for Date, Time, Language and Light Freq e FORMAT This function allows you to formatthe memory card or the built-in flash memory. e EXIT

Mode/Playback | Playback Mode Press the Mode/P layback Button, then press the OK button to go to last still image, movie clips, or voice clip that are stored in the memory.

1. Select an image that you want to playback by moving the OK left or

button left or right to go backward/forward through the movie MP3/ PMP/ Voice Recording/Motion Detection /E Book Mode Press the Mode/P layback Button, and press the OK button up/down to selectthis mode. Press OK button again to enter the mode above you select. Transfer MP3 Music to the camera Connect your camera to the computer USB port. Transfer MP3 music to My ComputeñRemovable DiskMP 3. If you can't find the MP3 folder from the SD card, format the SD card first. Once allthe music is transferred, disconnectthe USB cable from the PC.

1. Press the mode button and select MP 3 mode by pressing the

OK button. Selectthe folder where you stored the digital music files. Selectthe music file you would like to play by pressing the OK button up or down and start playing the song by pressing the OK button.

4. The music can be played from the built-in speaker or an

earphone. If you use the earphone, connect the earphone to the earphone jack

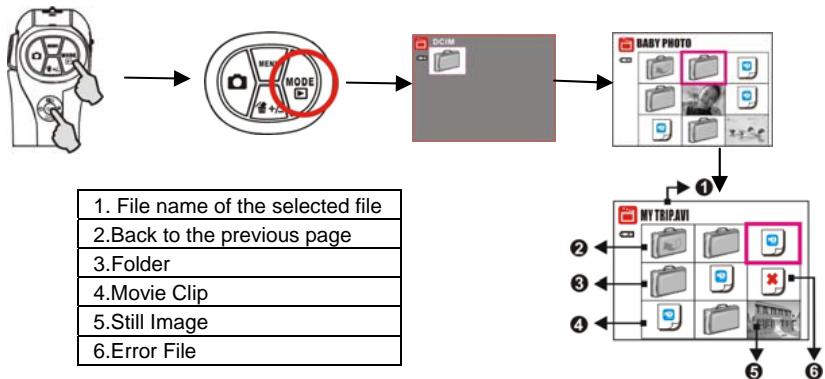

PMP Mode Under this mode you can view all the still images and movie clips recorded by this camera or other cameras or other devices (all fles must be converted by ArcSoft Medialmpression included in the CD-ROM.)

1. File name ofthe selected file

2.Back to the previous page e 3.Folder 4.Movie Clip e 5.5til Image e 6.Error File Motion Detection Mode Motion detection can record anything that happens when you are not around your camera. It will start recording when any movement is detected by AE bar.

1. In motion detection mode, press Menu button to set the

Tele/Wide, Video Size, EIS, Quality, Metering and Effect. —

2. After the above setting, Motion Detection is in standby mode and W =.

will start recording when the light value (LV) reaches LV 0.1-0.2 and varies for 3sec.

3. Stop the recording by pressing the OK button down and continue

recording by pressing the OK button down again

4. 1f you don't move the camera for 5 sec, Motion detection will stop L. 7

recording and save as a movie clip file. Or you can press the Movie Shutter button to stop recording.

2. Slide the T Button (@) or W Button (8) to select the size of the

to confirm the request.

4. The camera will save the trimmed image as à new image after you

confirm the request. Display image information

2. Press and hold the Flash Button (9) to show the image information.

2. Move to "Select" and press OK.

3. Select one image and press T (@) button, and protect will show on

the LCD display when the protection is set.

4. Press OK Button to confirm the request for the protection of the

5. To cancel the protection, press T Button or W Button again.

Slide Show Press the Menu Button to enter the menu and select “SLIDE”. There are three options: After you complete the Interval and Effect setting, go to Show and select PLAY/REPEAT to start the slide show Show: Start the slide show after you set Interval or Effect. Interval: Select the interval time between each still image. Effect Four kinds of effects (B&W, Sepia, Negative, RGB) are available. Move the OK button up or down to select the effect.

Delete You can delete the selected image or all images. Copy to Card Copy the images stored in the internal flash memory to the memory card. Resize Resize a still image

1. Selectthe image and select Resize.

Press OK button and select RESIZE.

3. Selectthe image size you prefer and press OK to confirm.

The resized image will be stored as a new image. SelectUSER IMAGE 1 & 2 as the start-up image and refer to “Start-Up Image” under set up mode. CES Rotate You can rotate the image in the following directions:

ECTS Delete Button | Press ## button to delete the photo you want to cancel under playback mode. To change White Balance / Exposure Value setting:

1. In menu mode, select MODE SET and move to PROGRAM

2. Press delete, and press OK to move UP/DOWN to choose white

balance or Exposure Value. Press OK button to move RIGHT/LEFT to select seven values of white balance between from -2.0 - +2.0. Press OK button to confirm the setting and exit.

Viewing Movie on PC When playing à movie for the first time, Video Codec should be installed in the PC. To do this: Insert the CD-ROM into the computer's CD-ROM drive. Click “Arcsoft Media Impression” and follow the on-screen instructions to complete the installation System Requirement Windows Windows 2000/XP /Vista, Pentium Ill 800MHz or higher 256MB RAM CDROM 1GB free HDD space Available USB port Macintosh Mac G3 or later MAC OS 10.0 above 256MB RAM CDROM 1GB free HDD space Available USB port

Viewing Pictures and Movies on a TV Connecting to a high-definition TV Connect HDMI cable to a HD TV Set video input source of a TV to “HDMI” option. The steps for viewing stored pictures and movie on a TV are exactly the same as for viewing them on the LCD monitor. w nn

Connecting to a non-high-definition 16:9 (Wide) or 4:3 TV Connect one end of the AV cable to your camera's AV out port. Connect the other end of the cable to a television. The option menu of Earphone/TV pops out on the LCD Screen. Choose TV option and press OK button to validate the setting. The steps for viewing stored pictures and movie on a TV are exactly the same as for viewing them on the LCD monitor. uewbe

ArcSoft Medialmpression swbe Install ArcSoft Medialmpression Click Start > Select Programs->ArcS oft Medialmpression Media Impression main Screen will appear on your desktop Select the Video file you want to play Fer Lo come ta AreSoft Medialmpression. 2 mms

Uploading Video Files to YouTube | The bundled software CD contains Arcsoft Medialmpression which features uploading the recorded videos to YouTube. ltwill help you can share them with your family and friends on YouTube website. Also bundled Youtube-Link software inside camera which allows uploading your favorite video to Youtube web site easily. Arcsoft Medialmpression To upload video filles to YouTube: L. Install Arcsoft Medialmpression

2. Click [Start] [ Select Programs ][ Acrsoft Medialmpression ]

3. Arcsoft Medialmpression main Screen will appear on your desktop.

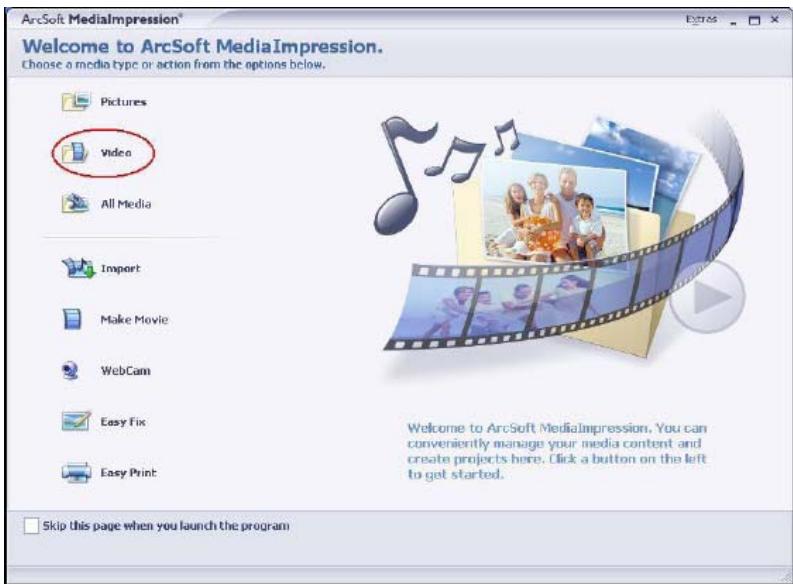

4. Click [ Video] Option:

ArSok Medimpressien FETE Welcome to ArcSoft Medialmpression. honte à med eype or tion fm he tion brio. 1e paires % nr D meet D micro D vec A corrx RS re rnt Shots page ven ou lune progran

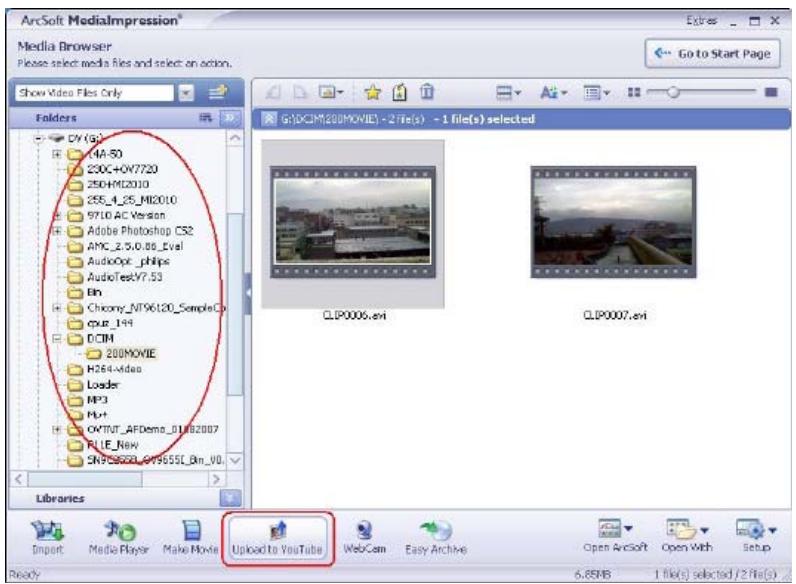

5. Selectthe video file you want to upload and click [ Upload to YouTube] option atthe

6. Ifthis is your first using this function, please follow the instruction on YouTube

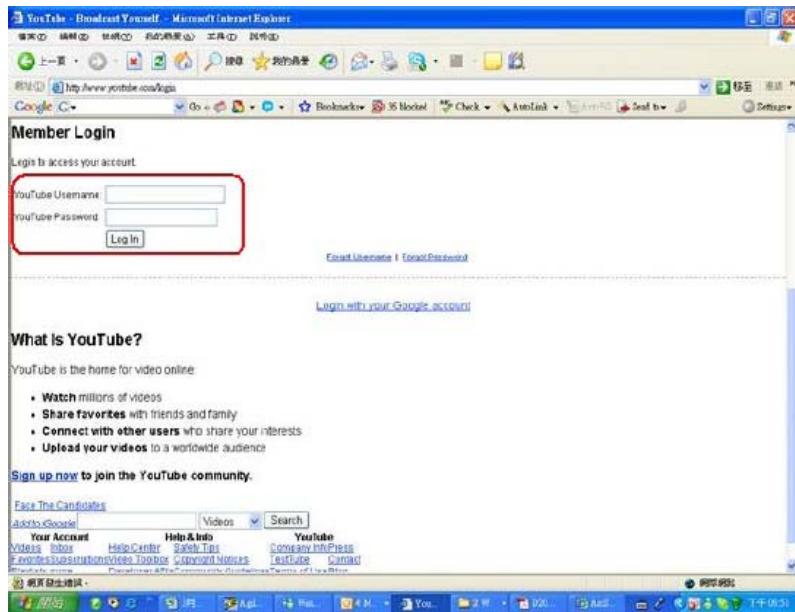

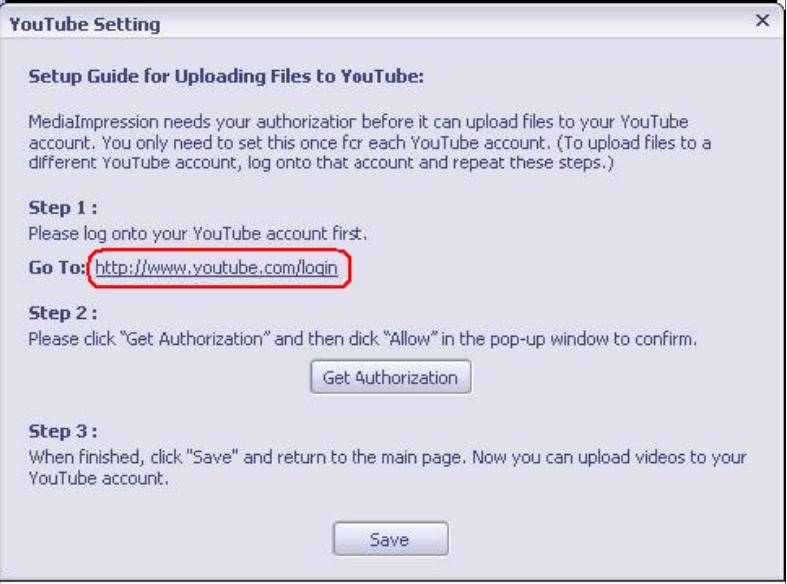

Setting Panel Setup Guide for Uploading Files to YouTube: Medialmpression needs your authorizatior before i can upload fies to your YouTube account, You only need to set this once fer each YouTube account. (To uplaad files to a dfferent YouTube account, log onto that account and repeat these steps.) Step 1: Please log onto your YouTube account first, Step 2: Please click “Get Authorization” and then dick “allow” in the pop-up window to confirm. {Get authorization Step 3: When finished, click "Save" and return to the main page. Now you can upload videos to your YouTube account. Save

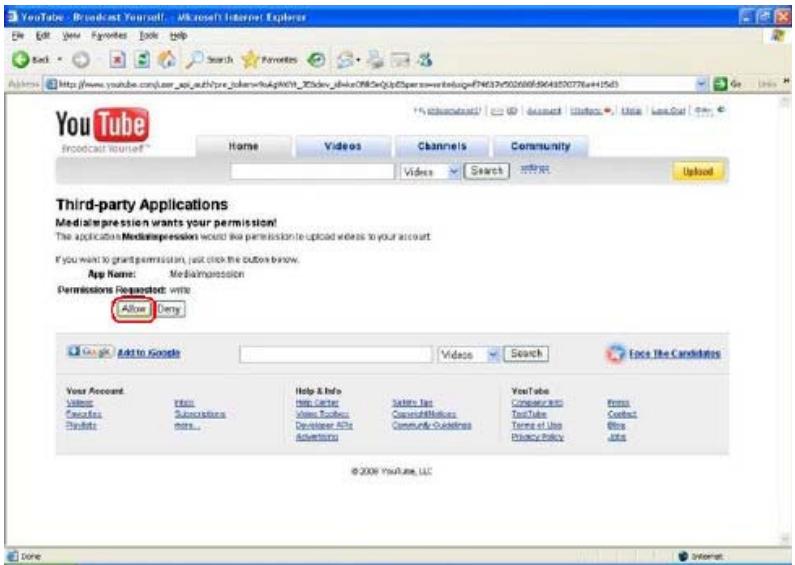

8. After you log onto your YouTube account, Click [ Get Authorization ] button below.

YouTube Setting js Setup Guide for Uploading Files to YouTube: Medialmpression needs your authorization before it can upload files ta your YouTube account, Vou on néed to set this once Far each YouTube account. (To uploëd fles to à different VouTube account, log ento that account and repeat these steps, ) Step 1: Please log onto your YouTube account first Ga To: bttp:j/suuv.voutube.comJlooin Step 2: Please click *Get authorization” and then click “Alow in the pop-up window to confirm. Step 3: When finished, click "Save" and return ta the main page. Now you can upload videos to your YouTube account. [sw

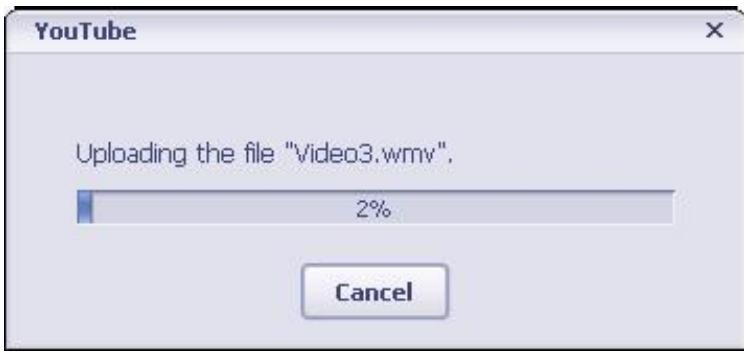

9. Click [Save] Button to upload the video.

YouTube Setting Setup Guide for Uploading Files to YouTube: Mediaimpression neeck your authorlzation béfors it can Lelosd files La your YouTube account, You onfy need te set His once for each YouTube accourk. (To uplond files to a different Youtube account, Ing orka that account and repeat these steps. } Step 1: Flease log onto yeur YouTube account first. Go To: http: fat youtube ,comficcin Step 2 lease click “set aurhonzæten" and then click “alow” n the pop-up window ta corfrm. G+ Authorication: Step 3: When Fnised dick ‘Save! and return te the man page. Now you can upload video: YoUTLbe 4CCOUNt, YouTube F Uploading the file "Video3.wrmv", X A Cancel

Connecting Your Camera to a Computer You can transfer pictures, movies or voice recordings stored on your camera to à computer and send them in emails to friends or post them on websites. To do this you should:

1. Connectthe computer and camera with the supplied mini USB cable

2. Default mode is Mass Storage Mode when the camera connects to PC

3. Transfer pictures or movies or MP 3 or voice recordings.

1. Install the PC Camera Driver in your computer.

2. Press the Menu button and go to Setup by select USB setting as PC Cam and

3. Connectthe camera with PC by the supplied USB Cable

4. The Camera will automatically go to the PC Cam mode and turn off LCD display.

Battery type Lithium-ion Rechargeable Battery Dimensions 40(H) x 73(W) x 113(D) mm Weight 160g (without battery) Troubleshooting Refer to the symptoms and measures listed below before sending the digital video camera for repairs. Ifthe problem persists, contact your local reseller or service OK Power Suppl The power does not come on The battery is not loaded. Load the battery correctiy. The battery is exhausted. Recharge or use he AC power adapter. The AC power adaptor is not connected correct. Reconnect it properly. Symptom Cause Measure The power cuts out during use. The digital video camera was left unattended and unused, so the auto powers off cuts it off. Tum the power back on The battery is exhausted. Recharge or use the AC power adapter The power does not go off. Digital video camera malfunction. Reload the battery. If using the AC power adapter, reconnect it. The battery runs out quickly Itis being used in extreme low temperature. Please don't use this camera under extreme low temperature. Many images are being captured in dark places inside, requiring flash Please prepare extra batteries if you need take a lot of images with flash The battery is not fully charged The battery is not used for an extended period of time Fully charge the battery and discharge it for atleast one complete cycle before use to maximize its performance

after charged. and lifetime. The battery or digital video camera feels warm. Long period of continuous use of the digital video camera or the flash Please turn off the camera if you don't use it Shooting Even ifl press the shutter button, the digital video camera does not shoot The battery is running low. Recharge or use the AC power adapter. The power is not on Tu the power on: The digital video camera is notin shooting mode. Slide the mode switch to shooting mode. The shutter button is not pressed all the way. Press the shutter button all the way. The internal memory or memory card does not have any free space. Load à new memory card, or delete unwanted files. End of memory card life Load à new memory card The flash is recharging. Wait until the system LED off. The memory card is unrecognized by the digital video camera. Format the memory card in this digital video camera before its first use or when it was used other than this digital video camera The auto power off function is activated Tu the power on again: Images do not appear on the LCD monitor. The power is not on. Tu the power on: The LCD monitor is dark. Adjust the brightness of the LCD monitor in the SYSTEM MENU Although itis setto Auto Focus, it does not focus. The lens or ; Selltmer LED is Mie clean with à soft, dry cloth or dirty paper. The distance to the subject is smaller than the effective range. Get your subject within the effective focus range

The flash does not fire. The flash cannot recharge The flash is setto Set the flash to something other than flash off. flash off mode Even though the flash fired, the image is dark. The distance to the subject is greater than flash effective range. Get closer to your subject and capture The image is too dark. The image was captured in à dark place while set to flash off. Set the flash to something other than flash off mode. Itis under-exposed Setthe exposure compensation to à larger value The image is too bright. Itis over-exposed Setthe exposure compensation to à smaller value The image lacks The image was captured in conditions that are hard for Add a white object to the natural color. Auto White Balance to composition adjust to. Playback Cannot playback Itis not setto playback Slide the mode switch to mode. playback mode. The contents of memory card cannot You played back à memory card that was not formatted Loaded à card that was formatted and stored on by be replayed by this device this device. Files cannot be The file is protected. Cancel protection deleted. You played back à memory card that was not formatted by this device Loaded à card that was formatted and stored on by this device.

Cannot format a The memory card is write- | Remove the write- memory card. protected. protection End ofmemory card life | Load a new memory card The playback image is Adjust the brighiness of dark though l used the qnercn monitor is too LCD monitor in the fish. ak SYSTEM MENU Other Problems Cannot load the The card is facing the wrong Load correctiy. memory card. way. Even when the digital Recharge or use the AC video camera's power adapter. buttons are pressed, it … p P Digital video camera Turn the power off and The battery is running low does not operate. remove the battery once, malfunction: and ty again The date and time is | The correct date and time is | Setthe correct date and wrong, not set. time. Hs Be pote removed Wih_ | Setthe date and time again. About —_— to _. computer/software Cannot download files. | The free space on the Check whether the hard disk hard disk drive of your drive has enough space for computer may be running Windows, and ifthe insuffcient. drive for loading files has à capacity at least that of the memory card inserted in the digital video camera. No power supply. Recharge the battery or use the AC power adapter or tu the power on.
