USER MANUAL CXT90C COBRA

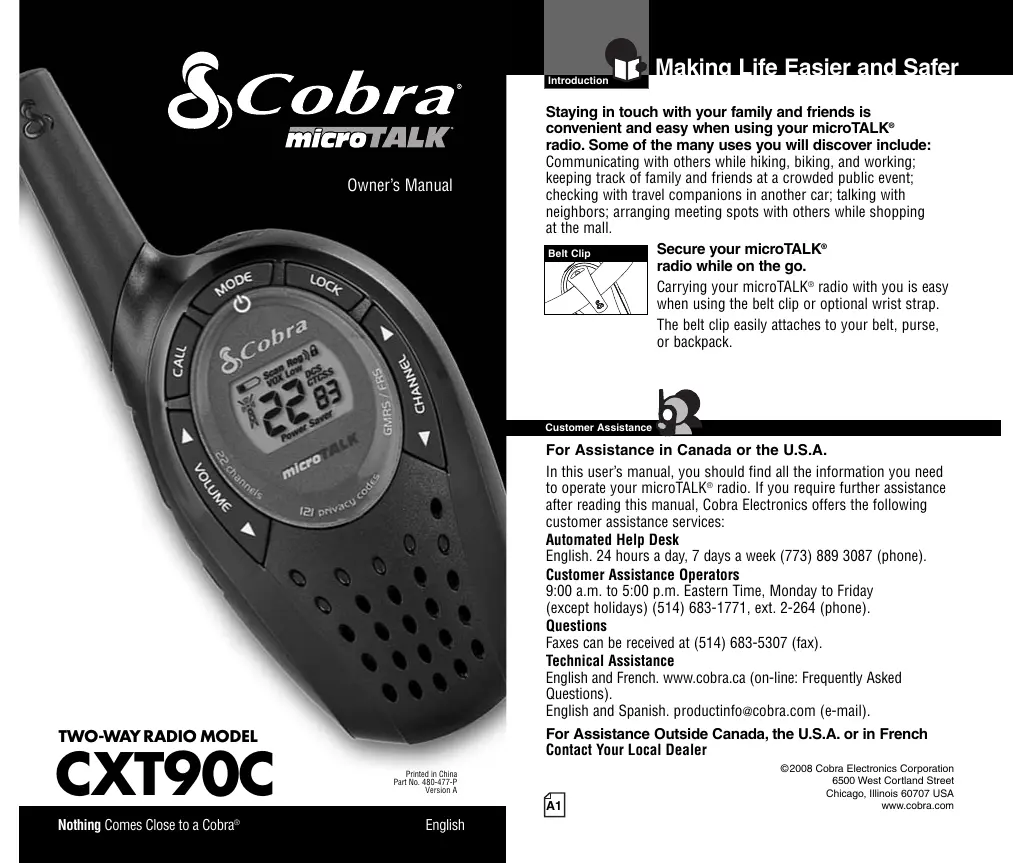

Manual English Staying in touch with your family and friends is convenient and easy when using your micro TALK® radio. Some of the many uses you will discover include: Communicating with others while hiking, biking, and working: Keeping track of family and friends at a crowded public event: checking with travel companions in another car: talking with neighbors; arranging meeting spots with others while shopping atthe mall, Secure your micro TALK® radio while on the go. Carrying your microTALK® radio with you is easy when using the belt clip or optional wrist strap. The belt clip easily attaches to your bel, purse, or backpack Customer Assistance For Assistance in Canada or the U.S.A. In this users manual, you should find all the information you need to operate your microTALK® radio. If you require further assistance after reading this manual, Cobra Electronics offers the following customer assistance services: Automated Help Desk English. 24 hours à day, 7 days a week [phone] (phone) Customer Assistance Operators 2:00 a.m. to 5:00 p.m. Eastern Time, Monday to Friday {except holidays) [phone], ext. 2-264 (phone) Questions Faxes can be received at [phone] (fax). Technical Assistance English and French. www.cobra.ca (on-line: Frequently Asked Questions) English and Spanish. productinfoæcobra.com (e-mail) For Assistance Outside Canada, the U.S.A. or in French Contact Your Local Dealer 22008 Cobra Electronics Corporation 6500 West Corlland Seat ‘Chicago, linols 60707 USA eobra.com

• Roger Beep Selectable On/Otf + Battery/Power Saver Maximum range may vary and is based on + Auto Squelch + Maximum Range Extender IC» belore the equipment certfication number + Beit Clip Signes that the Industry Canada technical specifations were met | does not guarantee Hat the certfied product vil operate Lo he users: satstaction. Important FCC Licensing Information This radio operates on General Moblle Radio Sorvice (GNRS) requencies which require a Faderal Communications Commission (FCC) license in the U.S À. Soe page 15 or icensing and other related information.

Caring for Your microTALK® Radio Your microTALK® radio will give you years of trouble-free service if cared for properly. Hande the radio gent. Keep the radio away from dust. Never put the radio in water or in a damp place. Avoid exposure to extreme temperatures. Rechargeable Batteries and Charger To install or replace batteries: SX | 1: Remove belt clip by releasing bel clip ( À | latch and sliding clip up. : 2. Pull up on the battery door latch to remove the battery compartiment cover.

3. Insert the supplied four AAA rechargeable

batteries or non-rechargeable alkaline batteries. Position batteries according to polarity markings.

4. Replace battery compartment cover and

belt clip. To charge batteries in radio:

1. Check to see that the batteries have been

inserted properiy. Insert the wall charger/adapter into the charge jack located at the top of the radio. The wall charger/adapter has to round connectors which enables you to charge either one or two radios at à time. . Plug the wall charger/adapter into electrical outiet. It normal takes 15 hours to fully recharge batteries. is not recommended to recharge batteries more than 24 hours. Estimated operation time on a full charge is 8 hours. Use only the supplied rechargeable batteries and wall charger/adapter for recharging your Cobra microTALK® radio.

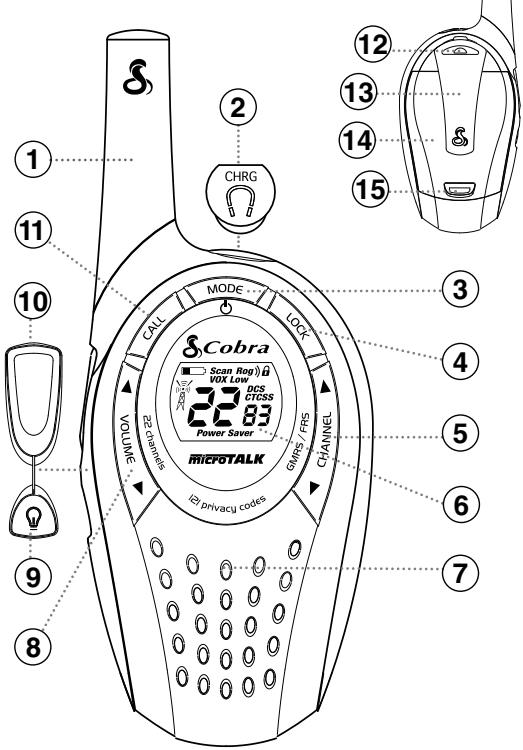

Speaker/Microphone/Charge Jack Operation Battery Low pepe To attach a speaker/microphone:

1. Open the speaker/microphone/charge

tab on top of your microTALK® radio.

2. Insert the speaker/microphone accessory

plug into the speaker/microphone/charge jack. To connect a wall charger/adapter:

1. Open the speaker/microphone/charge

tab on top of your microTALK® radio.

2. Insert the wall charge/adapter plug

into the speaker/microphone/charge jack Quick Start

1. Press and hold the Mode/Power button

to turn on your radio.

2. Press the Channel Up or Channel Down

button to select a channel Both radios must be tuned to the same hannel/privacy code to communicate and hold the Talk button while peaking into the microphone.

4. When finished talking, release the Talk

button and listen for a respons Turning on Your microTALK° Radio Press and hold the Mode/Power button until you hear a series of audible tones indicating the radio is on Your microTALK® radio is now in Standby mode, ready to receive transmissions. The radio is always in Standby mode except when the Talk Call or Mode/Power buttons are pressed

When battery power is low, the Battery Low icon will blink. Your batteries should be replaced or recharged, if using rechargeable batteries. Auto Battery Save Ifthere are no transmissions within 10 seconds, the radio will automatically switch to Battery Save mode and the Power Saver icon will flash in the display. This will not affect the radio's ability to receive incoming transmissions. Communicating with Another Person

1. Press and hold the Talk button

2. With the microphone about two inches

5 cm) from your mouth, speak in à normal voice.

3. Release the Talk button when you are

finished talking and listen for a response You cannot receive incoming calls while pressing the Talk button: Both radios must be tuned to the same channel/privacy code to communicate. To Select a Channel With the radio on, select any of the 22 channels by pressing the Channel Up or Channel Down button Both radios must be tuned to the same channel/privacy code to communicate. LE] Channels 1 through 7 are shared with FRS/ Fa GMRS. Channels 8 through 14 are FRS only Channels 15 through 22 are GMRS on. See page 14 for FRS/GMRS frequency allocations and compatibility charts.

Listening for a Response Release the Talk button to receive incoming transmissions. Vour microTALK® radio is always in Standby mode while the Talk or Call buttons are not pressed To Adjust Volume Press the Volume Up or Volume Down button: | A double beep sound is used to indicate the minimum and maximum volume levels {1 through 8). Press and release the Call button. The other person will hear a two second call tone. This tone is used only to establish voice communications. See page 13 on how to select between five call tone settings. To llluminate Display Press and release the Light/Max Range button to iluminate the display for 10 seconds. Auto Squelch/Maximum Range Your microTALK® radio will automatically shut off weak transmissions and unwanted noise due to terrain, conditions or if you've reached your Maximum Range limit You can temporarily turn off auto squelch or turn an maximum range extender, allowing all signals to be received and extending the maximum range of your radio (co Operation CEE To temporarily turn off auto squelch: Press the Light/Max Range button for less than five seconds. 0 turn maximum range extender on: — Press and hold the Light/Max Range button for at least five seconds until you hear two beeps which indicates the maximum range extender is on To turn maximum range extender oft: — Press and release the Light/Max Range button or change channels: Lock Function The Lock function locks the Channel Up Channel Down and Mode/Pawer buttons to prevent accidental operation To turn the lock on or aff: Press and hold the Lock button for two seconds. À double beep sound is used to confirm your lock on or off request. When in Lock mode, the Lack icon will be displayed microTALK® Range Your range will vary depending on terrain and conditions. In flat, open country your radio will operate at maximum range Buildings and foliage in the path of the Signal can reduce the range of the radio Dense foliage and hilly terrain wéil further reduce the range of the radio. On FRS Channels 8 through 14, your radio automatically switches to low power, which ill limit the range the radio can communicate. Reduced Range Remember, You can achieve maximum @® “eur extender. See page 4 for details.

g Through the Mode Function Operation Set CTCSS Privacy Codes By scrolling through the Mode function, you will be able to select or turn on preferred features of your microTALK® radio. When scrolling through the Mode function, your radio features will be displayed in the same predetermined order: NE M Set CTCSS Privacy Codes Set DCS Privacy Codes Set Vox On/Off Set Vox Sensitivity Set Channel Scan Set CTCSS Privacy Code Scan Set DCS Privacy Code Scan Set Call Tones © Set Roger Beep On/0 Privacy Codes Your microTALK radio incorporates two advanced coded squelch systems that can help to reduce interference from other users on any given channel. CTCSS (Continuous Tone Coded Squelch System) provides 38 privacy codes and DCS (Digitally Coded Squelch) provides 83 privacy codes. This provides a total of 121 Privacy Codes. Either system can be used on all channels, but both systems cannot be used on the same channel at the same time To successfully communicate using a privacy code, both the sending and receiving radios must be tuned to the same channel and to the same privacy code system (CTCSS or DOS) and privacy code number. Éach channel wil remember the last privacy code system and number you select. ‘The privacy code 00 is not a privacy code, but allows all © signäls to be heard on a channel that is set to 00 on both the CTCSS and DCS systems. GES To select a CTCSS privacy code:

1. After selecting a channel, press the

Mode/Power button until the CTCSS icon appears and the small numbers next to the channel number flash on the display. 1 DCS is turned on at the channel selected, the display will flash the CTGSS icon and “OFF.” To switch from DCS to CTCSS, press the Channel Up or Channel Down button while the display is flashing “OFF” The display will then show the small numbers flashing and you will then be able to proceed to step 2.

2. Press using the Channel Up or Channel Down

button to select a privacy code. Vou can hold the Up or Down button for fast advance.

3. When your desired CTCSS privacy code is

displayed, choose one of the following a. Press the Mode/Power button to enter the news setting and proceed to other functions b. Press the Lack button to enter the new setting and return to Standby mode £. Do not press any buttons for 15 seconds to enter the new setting and return to Standby mode. Nothing Comes Close to a Cobra®

Operation Voice Activated Transmit (VOX) To select a DCS privacy code: €] 4. After selecting a channel, press the Mode/Power button until the DCS icon appears and the small numbers flash on the display (Ot through 83) I CTCSS is turned on at the channel selected, the display will flash the DCS icon and “OFF” To switch from CTCSS to DGS, press the Channel Up or Channel Down button while the display is flashing “OFF” The display will then show the small numbers flashing and you will then be able to proceed to step 2.

2. Press using the Channel Up or Channel Down button to select a DCS

privacy code. You can hold the Up or Down button for fast advance

3. When your desired DCS privacy code is displayed, choose one of

a. Press the Mode/Power button to enter the new setting and proceed to other functions. b. Press the Lock button to enter the new setting and return to Standby mode. g. Do not press any buttons for 15 seconds to enter the new setting and return to Standby mode in VOX mode, your microTALK® radio can be used “hands-free," automatically transmitting when you speak. You can set the VOX sensitivity level to fit the volume of your voice and avoid transmissions triggered by background noise. To turn VOX mode on or off:

1. Press the Mode/Power button until the VOX

icon flashes on the display. The current On or Off setting is displayed

2. Press the Channel Up or Channel Down

button to turn VOX On or Oft.

3. Choose one (1) of the following

a. Press the Mode/Power button to enter the selected On or Off setting and proceed to other functions b. Press the Lock button to enter the selected On or Off setting and return to Standby mode To Set VOX Sensitivity:

1. Press the Mode/Power button until the VOX

icon flashes and the current sensitivity level is displayed ‘The current VOX sensitivity level is displayed with letters “LE” and a Number 1 through 5, with Number 5 being the most sensitive level and Number 1 being the least sensitive level.

2. Press the Channel Up or Channel Down

button to change the setting

3. Choose one (1) of the following

a. Press the Mode/Pawer button to enter the selected setting and proceed to other functions. b. Press the Lack button to enter the selected setting and return to Standby mode

Channel Scan Your microTALK® radio can automatically scan channels: CRE To scan channels:

1. Press the Mode/Power button until the

Scan icon and the channel numbers appear on the display.

2. Press the Channel Up or Channel Down button

to begin scanning channels The radio ignores specific privacy. codes while scanning channels. The Scan icon will continue to be displayed ® when scan is on. our radio will continue to scan all channels and stop if an incoming transmission is detected. Vour radio will remain on that channel for 10 seconds Wie setting channel scan, if you do not press any buttons for 15 seconds your radio will automatically return to Standby mode on the channel or channeUprivacy code displayed before you entered mode functions. During scanning (while receiving an incoming transmission), you can choose fram the following: a. Press and hold the Talk button to communicate on that channel. Your radio will remain on that channel and return to Standby mode. b. Press the Channel Up or Channel Down button to resume Scanning channels: If you press the Talk button while scanning and not within 40 seconds of receiving a transmission, you will transmit on the channel on which you last received a transmission. This will return the radio to Standby mode If you do not press any button within 10 seconds, your radio will automatically resume scanning channels. Enoen Operation During scanning (while not receiving a transmission), you can choose from the following: a. Press and hold the Talk button to communicate on the channel or channel/privacy code that was displayed before you entered mode functions or the channel on which, during scanning, you last received a transmission. This will return the radio to Standby mode. . Press the Mode/Pawer button to proceed to set privacy code scan on the channel that was either displayed before you entered mode functions or on which, during channel Scanning, you last received a transmission (see page 11 for further details) Press the Lock button to return to Standby mode on the channel/privacy code that was displayed before you entered mode functions or the channel on which, during scanning you last transmitted or received Privacy Code Scan Your microTALK radio can automatically scan the Privacy Codes {either CTCSS 01 through 38 or DCS 01 through 83) within one channel. Only one set of privacy codes (CTCSS or DCS) can be scanned at a time To scan privacy codes:

1. While in Standby mode, press the

Channel Up or Channel Down button to choose the channel on which you wish to scan privacy codes. Press the Mode/Power button until either the CTCSS or the DCS icon appears on the display and the Scan icon and the privacy code numbers flash on the display. Press the Channel Up or Channel Down button to begin scanning privacy codes within the channel you selected

The Scan icon will continue to be displayed when privacy code scan is an. Vour radio will continue to scan privacy codes and stop as an incoming transmission is detected. Your radio will remain on that channel/privacy code for 10 seconds. While setting privacy code scan, it you do not press any buttons for 15 seconds your radio will automatically return to Standby mode on the channel/privacy code that was displayed before you entered mode functions. During scanning (while receiving an incoming transmission), you can choose fram the following: a. Press and hold the Talk button to communicate on that channel/privacy code. Vour radio will remain on that channel/privacy code and return to Standby mode. b. Press the Channel Up or Channel Down button to resume scanning privacy codes. If you press the Talk button while scanning and not within 10 seconds of receiving a transmission, you will transmit on the channel/privacy code on which you last received a transmission. This wil return the radio to Standby mode If you do not press any button within 10 seconds, your radio will automatically resume scanning privacy codes. During scanning (while not receiving a transmission), you can choose fram the following: a. Press and hold the Talk button to communicate on the channel/privacy code that was displayed before you entered mode functions or the channel/privacy code on which, during scanning, ou last received a transmission. This wil return the radio to Standby mode. b. Press the Mode/Power button to proceed to other functions.

6. Press the Lack button to return to Standby mode on the

channel/privacy code that was displayed before you entered mode functions or the channel/privacy code on which, during scanning, you last transmitted or received

Operation Five Call Tone Settings You can choose between five different Call Tone Settings to transmit a call alert To change a call tone setting:

1. Press the Mode/Power button until the

letter “C” and the current call tone number O1 through 05) is displayed. The current call tone will sound for one second

2. Press the Channel Up or Channel Down

button to hear the other cal tone settings.

3. Choose one of the following

a. Press the Mode/Power button to enter the new setting and proceed to other functions b. Press the Lack button to enter the newr setting and return to Standby mode Roger Beep Confirmation Tone Your listener will hear an audible tone when you release the Talk button. This alerts the other party that you are finished talking and it is OK for them to speak. To turn roger beep on or off:

1. Press the Mode/Power button until the

Roger Beep icon flashes. The current on or off setting is displayed

2. Press the Channel Up or Channel Down

button to select roger beep on or off

3. Choose one of the following

a. Press the Mode/Power button to enter the new setting and return to Standby mode. b. Press the Lack button to enter the newr setting and return to Standby mode

General Specifications

Customer AsiShce LICENSING FRS/GMRS Frequency Allocation and Compat Important: Please note that Cobra GMRS models with 15 Channels may designate different channel numbers for the same frequency. For example, a Cobra 15 Channel GMRS model would need to be tuned to Channel 11 in order lo communicate with a 22 Channel GMRS tuned to Channel 15. Please refer lo the chart below for channel frequency number compatibility. A = Channel No. for 22 Channel FRS/GMRS Models B = Channel No. for 15 Channel GMRS Models C= Type of Radio Service D = Frequency in MHz E = Power Output B D E 1 1 FRSIGMRS 4625625 High 2 2 FRSIGMRS 4625875 High 3 3 FRSIGMRS 4626125 High 4 4 FRSIGMRS 462.675 High 5 5 FRSIGMRS 462.6625 High 6 6 FRSIGMRS 462.6875 High 7 7 FRSIGMRS 4627125 High 8 FRS 467.525 Low 9 FRS 4675875 Low 10 FRS 467.6125 Low 1 FRS 467.675 Low ni FRS 467.6625 Low 13 FRS 467.6875 Low 14 FRS 467.7125 Low 15 1 GMRS 462.550 High 16 8 GMRS 462.5750 High 17 12 GMRS 462.600 High 18 9 GMRS 462.6250 High 19 13 GMRS 462.650 High 20 10 GMRS 462.6750 High El 14 GMRS 462.700 High 2 15 GMRS 462.7250 High For Products Used in Canada Industry Canada Notice Operation is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. «IC» before the equipment certification number signifies that the Industry Canada technical specifications were met. It does not guarantee that the certified product will operate to the user's satisfaction. For Products Used in the U.S.A. FCC Licensing Required This two-way radio operates on GMRS (General Mobile Radio Service) frequencies which require an FCC (Federal Communications Commission) license. À user must be licensed prior to operating on channels 4 through 7 or 15 through 22, which comprise the GMRS channels of this radio. Serious penalties could result for unlicensed use of GMRS channels; operation of this radio is subject to additional rules specified in 47 C.FR. Part 5. Licensed users will be issued a cal sign by the FCC, which should be used for station identification when operating this radio. GMRS users should also cooperate by engaging in permissible transmissions only, avoiding channel interterence with other GMRS users, and being prudent with the length of their transmission time. For lcensing information and application forms, please call the FCC Hotine at 800-418-FORM. Request form #159 and form #605 Questions regarding the license application should be directed to the FCC at 888-CALL-FCC. Additional information is available on the FCC'S website at www.fcc.gov.

Safety Information for microTALK® Radios Product Service Your wireless handheld portable transceiver contains a low power transmitter. When the talk button is pushed, it sends out radio frequency (RF) signals. The device is authorized to operate at a duty factor not to exceed 50%. In August 1906, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for handheld wireless devices. Important: FCC RF Exposure Requirements: For body-worn operation, this radio has been tested and meets the FCC RF exposure guidelines when used with Cobra accessories supplied or designated for this product. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmiter and may violate FCC regulations. Normal Position: Hold the transmitter approximately five cm (two inches) from your face and speak in a normal voice, with the antenna pointed up and away. his device comales with part 15 af he FCG Ales. Operation is subject 10 the flag two conditions: 1) Mis device may not cause harmnti inererenc, and 2) is device must accept any trerence received, (C1) induäing inteerence nat may cause undesied aperaton. FC Warmings: Replacement or subtiuton of ansstrs, regular des or ter part f a urique nature, wi parts ather ina inose recommande by (Cobra may cause a ilaion af te technical regulations o! pat 95 the FC rules, or ilation of ype acceplance requrements 0 pat 2 fe rules. Trademark Acknowledgement Cobra”, microTALK?, Nothing Comes Close to a Cobra®, VibrAlert and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra Electronics Corporation” is a trademark of Gobra Electronics Corporation, USA The Cobra line of quality products includes CB Radios + microTALK® Radios + Radar/Laser Detectors + Safety Alert® Trafic Warning Systems + Handheld GPS Receivers + Mobile GPS Navigation Systems + HighGear® Accessories + CobraMarine® VHF Radios + Marine Chartplotters + Power Inverters + Accessories Eroen For any questions about operating or installing this new Cobra product, or if parts are missing.….PLEASE CALL COBRA FIRST...do not return this product to the store. See customer assistance on page A1 For Products Purchased in Canada I your product should require factory service, please call AVS Technologies Inc. at 514-683-1771 ex. 2-264 before sending your radio. For out of warranty service, ship this product prepaid to: AVS Technologies Inc. {A Division of SYNNEX Canada Limited), 3300 Côte-Veru, Ste 310 Ville St-Laurent, Québec, CANADA HAR 287, www.cobra.ca. We reserve the right to repair or replace the radio with an equivalent product. Please include the following information: Date of Purchase, Model Number, Dealer Purchased From, Dealer Address, Dealer Phone Number. For Products Purchased in the U.S.A. I your product should require factory service, please call Cobra first before sending your radio. This wall ensure the fastest turn-around time on your repair. You may be asked to send your radio to the Cobra factory. I wi be necessary t furish the following to have the product serviced and returned

1) For warranty repair include some form or proof-of purchase, such as a

mechanical reproduction or carbon of a sales receipt. I you send the original receipt, it cannot be returned

2) Send the entire product.

8) Enclose a description of what is happening with the radio. Include à

typed or clearly printed name and address of where the radio is to be returned.

4) Pack radio securely to prevent damage in transit. N possible, use the

original packing material.

5) Ship prepaid and insured by way of a traceable carrier such as United

Parcel Service (UPS) or Priority Mail to avoid loss in transit to Cobra Factory Service, Cobra Electronics Corporation, 6500 West Cortland Street, Chicago, Ilinois 60707 U.S.A.

6) Ie radio is in warranty, upon receipt of your radio, it will either be

repaired or exchanged depending on the model. Please allow approximately three to four weeks before contacting Cobra for status. If the radio is out of warranty, a letter will automatically be sent informing you of the repair charge or replacement charge. I you have any questions, please call 773-889-3087 for assistance. For Products Purchased Outside Canada or he U.S.A. Please contact your local dealer for product service information. Nothing Comes Close to a Cobra®

Warranty Limited One-Vear Warranty on Radio(s) & Charger For Products Purchased in Canada Your new Cobra GMRS radios and charger are covered by a one-year replacement warranty. If any manufacturing defect becomes apparent in this product within one year from the original date of purchase, it will be replaced. Please return the GMRS radio or charger to your dealer with original or copy of dated proof of purchase. This warranty does not cover damages due to careless handling, negligence, accident, abuse or failure to follow operating instructions. Alteration of this product or defacing of the Serial number cancels all obligations of this warranty. This warranty gives you specified legal rights. Additional warranty rights may be provided by law in some areas For Products Purchased in the U. Cobra Electronics Corporation warrants that is Cobra GMRS radios and charger, and the component parts thereof, il be free of defects in workmanship and materials for à period of one year from the date of first consumer purchase. This warranty may be enforced by the first consumer purchaser, provided that the product is utilized within the U.S.A. Cobra will, without charge, repair or replace, at its option, defective GMRS radios, chargers, products or component parts upon delivery to the Cobra Factory Service department, accompanied by proof of the date of first consumer purchase, such as a duplicated copy of a sales receipt You must pay any initial shipping charges required to ship the product for warranty service, but the return charges vel be at Cobra's expense, if the product is repaired or replaced under warranty. This warranty gives you Specific legal rights, and you may also have other rights which may vary from state to state. Exelusions: This limited warranty does not apply: 1) To any product damaged by accident; 2) In the event of misuse or abuse of the product or as a result of unauthorized alterations or repairs; 3) W the serial number has been altered, defaced, or removed, 4) If the owner of the product resides outside the U.S.A. Al implied warranties, including warranties of merchantabilty and fitness: for a particular purpose are limited in duration to the length of this warranty. Cobra shall not be liable for any incidental, consequential or other damages: including, without limitation, damages resulting from loss of use or cost of installation. Some states do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you: For Products Purchased Outside Canada or the U.S.A. Piease contact your local dealer for warranty information 90-Day Warranty on Rechargeable Batteries For products purchased in the U.S À. and Canada.
