USER MANUAL OCTIV AIR ALTEC LANSING

he lgining flash with amomthead, within an equlateral ange, intended 10 alert ha user 10 1e presence of insulte “dangerous voage” sin the products enclosure that may be Of sufcient magnitude 10 consttute a ik Of ct ahock 0 persons.

IMPORTANT SAFETY INSTRUCTIONS

1. Paad these eructions.

Koop these instructions.

Do not uea ts apparatus near water This apparatus shall at be expose

10 dipping ar splashng, and no object led with iquics, such as vases,

shaï be placed on the apparatus.

Do not block any ventilation openings. instal in accorlance with the

manufaclurers instructions. Tne apparatus shoud not be sie on à

bed, sol, rug or siniar surface that may iock 1h venition opening.

‘The apparatus must not be placed in a buit in instalation, such 25 à closed

ar cabinet nat may impec te flo af air trough the ventition

“apenings. Ventlaton shaud nat be impeden! by couerng tho apenings vh

Homs Such 25 newspagers, LablloIs, cure, at.

Do not instal near any hoat sources such as radlatars, heat registes,

sous, or other apparatus (nclucäng amplifier) nat produce heat.

No naked flame sources, such as ghtod canes, should be place on ne

Do no defeat the safety purpose of the polarzed ce groundng- type plug

AA polaized plug has 0 blades win one wide than the other, À grounding

1yPe plug has to blades ancl a third grouncing prong. The wide Blade or

the Ihr prang ar provided fr your safe}. the provided plug dis not ft io your out, coneuñ an elactclan for ne replacement of he obsolete out.

Protect th power cor from being ed on or pied paricuaey at

Plug, convenience receptacie, and th point war Ineÿ ex om 1e

2. Do not nstal in an area which impedes ne access 10 the power plug

Disconnectng ta power plug & the ony way 1 complete remote power Lo ie product and must be ready access at al tes.

3. Power source - Usa on power supplie of the ype specified in te

“opéraing stucions or ae marked on the applance. la saparate por

Sup is idea with His apparatus, do no substiUte win any power

Sup = use only manufacture provided power supples.

Unplug is apparatus during ighining stone or ven unused for long

Raler al sanicing to qualfied senc personnel. Seing required wénen

he apparatus has been damagedn any way, SUCh 25 pOur Sup} cord

or plug is damaged, lqua has been spied or objects have fan Into the

‘apparaïus, the appératus has been exposed 1 rain or mosure, does not

“operate normal, ar has bean dropped. Fr serie. reler Lo quai service

Personnel, return 10 the dealer, or cal ha Altec Lansing servie ina for

6. Ti product contains batteries, please recycla per local regulations.

17. On use attachments/accesaores specihed by he manufacturer.

#8. {Use onÿ with he car, stand, ipod, bracket ortahle speciied y he manufacturer or sold with the apparatus, Wan à cart used, use caution sen maung the car/apparatus combination ta avoid jury from lip-cver

Caution: Ta prevent ne ik of lectñ shock, do not remove cour (or back. Na user senicoaba pars inside. Reler serchg 10 quai service personnet

The exclamation point win an equiateral angle & imtanded to alert ha user Lo the presence of important operating and maintenance {sanicng) nstructins in the Ierature accompanyng le applance.

AALTEG LANSING ONE YEAR LIMITED WWARRANTY {TWO-YEAR LIMITED WARRANTY IN THE EUROPEAN UNION AND ASIA) What Does The Warranty Cover?

‘Acc Lansing warrants that s products shaï be fre from defects in materials or uorkmanenip, with to exceptions state balo

What Is The Period Of Coverage?

For units purcnsed in European Union or Asa th warranty runs for no years from he date o purchase. For uns not purcnasedin Europe ar Asa, ne. waranty runs far ane year om th date of purchase. The er of any warrants imoed by law shall expra wen your Imled waranty expire. Some states and or Member States in the European Union do nat low imitations on hour long an imoed warranty late, 80 the above Imitation may not apply 10 Yo.

What Does The Warranty Not Cover? hi vranty does nf cour any elec, malunction or falur that cœurs as a rit of impraper salation: misus or aura 1 fol ta product directions; abuse

or use th proper unimtended ar tauy equipment. (Forinformation en proper instalation, peraion and use con the manu supplied ah th product 1 you requre a rephcament manual, you may download a manual fem was em) Ako, consoquental and incidentl damage are not reconrable under

is araniy Same states do no loutre exdusion or Imaton cf node or conseqential damage, so th above Inition Or xs May no ape} 10 you. What él Altec Lansing Do To Correct The Problem?

Mec Lansing val, at optio, repair ar replace any product that proves to

be defectwe in materal or woemanshi. your product & no longer being manufacture, oris ut of stock, ts option, Altec Lansing may replace your product at a imlar or bete Alec Lansing product

How To Got Warranty Service To get a cavesed produetrepañed or replaced, you ust Contact Alec Lansing during ne warariy peñod by e-mal (support@atclaneing com) You must inde in your mal, your name, address, e-maï adress, tlgghon nur, date of purchase and a complete desschpio of the problem you re experencing In the Uned Stats, you may aematve) contact Atec Lansing by telephone at 1-800-ALTEG8S — please be prepared to proie ne same inermation. Nha problem appears Lo be rate 10 à defet n material or workmenship, Alec Lang vil providayou a rlum authorzatien and nsrutins or return eme, Relum shipments shal be at the customers expanee, and fe relum must De accompaniedl by the orna proof of purchase. You hou sure the stipment as appropriate because jou are responsible for ne product ur amves at Alec Lansing How Wil State Laws Affect Your Rights? This waranty gwves you speciclegal rights, and you may also have other fight vien sary from state to state. Pisase note ihat in he European Union, you as 2 consumer might have other legal ghts under national egsaton of European {non Member States gavernng tn sale of Altec Lansnge goods. Tnose rights ae nat afected by iis quarante. The above imted warantie and remadies are sole arranties and remeches avañable 10 purchasr, and one extent, valid and enforceabe under ne applicable law: Customer Service Te answers 10 most selup and performance questions can be found in the roubleshoo!ing guide. You can also consu ne FAGS in ne customer support socton of our Vieb ste at ww ateclansing com, you ha in North America and sl can't ind he information you need, plsase call ur customer serie team for assistance alor reurning to speakers 1 your retler ndlr ar relur po. Tek 800-258-2288 malt csuppor@atectansing com I you lu out af North America, please is our web Se at ww alain com and sect our rgjon local your count dtrbut, For ne most up-to-data information, be sure Lo chack our Web Ste at iwatoctaneing com. International Distribution Intmairal customers: For formation regarding te dsbuton of Alec Lanang raduets in our count, please vit wall con arc ik En your region. Disposal of Old Electrical & Electronic Equipment “Mis symbol on the produet or on ts packagng indicate ina is product sal not be treated as hausehoid waste. Istead it shal be and! over Lo 1na applicable colecion point for ha recycing of lectial and electronic equipment By ansurng ts product is “deposod of comecth, you ni help prevent potential negative MM conscquences {or he envronment and human health, which cou otherwise be causod by mappropriate waste handäng of this produet. The recyclng of materals il help o conserve naural resources. Fr mare ete information about recyeing Of hé praduc, please contact your local ct ofice or your household waste daposal serie.

‘Thank you for purchasing the Altec Lansing M812 Wireless Speaker System for iPod. The M812 includes one or two wireless, high-performance speakers and a transmitter base that allows you to listen to most iPod models, FM radio stations and auxliary audio sources. Music is wirelessly transmitted from the base to the speaker. Since the speakers are wireless, you can place them almost anywhere in your home. Basic playback functions for the iPod can be controlled with the suppliecl remote control.

Want audio throughout your house? Expansion is easy; you can use up to eight M812 Wireless Speakers in one System. Optional, add-on speaker units are available online at wwwalteclansing.com. Go to the M812 product page.

Set up and basic operation Basic controls and function Advanced operation . Specifications ‘Troubleshootin

Information And Support

For additional information and support, visit wwm.alteclansing.com or contact Customer Support. {See inside front cover for contact information.)

Your M812 system includes:

Remote control (2 AAA batteries includech) Power supply for transmitter base

AC power cord (for wireless speaker)

3.5 mm stereo audio cable

User guide and quick-connection instructions

Set up and basic operation

The wireless capabiities of the M812 make it easy and flexible to set up. The transmitter base can be located up 10 100 feet from the speaker, so you can place speakers for best sound and the base for convenient access.

See the 1M812 Quick Start Guide for step-by-step instructions for quick set up of your M812 system. In

this booklet, you’ find more detail on connections and operation. After making connections, tum on the speaker(s) first and then turn on the power to the transmitter base. This allows the base and speaker(s) to synchronize more

easily synchronization does not take place, see Wireless Connectiity for more information (page 4).

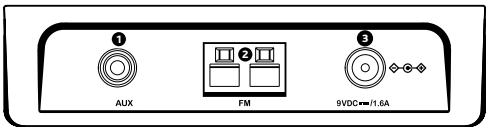

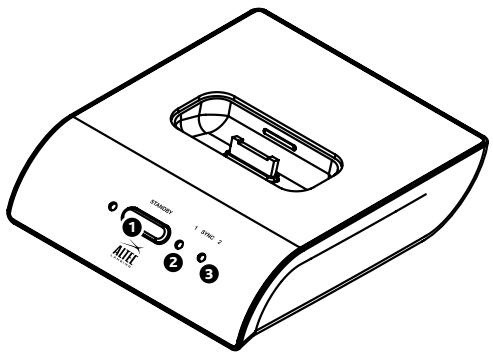

The transmitter base serves as an iPod dock and FM tuner. it has rear connectors for auxliary audio sources and the power adapter.

The M812 works with iPods that have a dock connector (Generation 8 iPods and newer) To use an iPod with

the M812, install the appropriate adapter plate into

the universal dock. Adapters for several different iPod models come with the M812. Other adapter sizes may be supplied with your iPod or be available from Apple.

Auxiliary Audio Devices

The M812 supports auxliary audio sources such as portable CD players.

Connect one end of the supplied 3.5 mm stereo cable into the auxliary input jack (AUX) located on the back ofthe MB12 transmitter base, and the other end to the headphone or line-out jack on your auxliary audio device.

RCA connectors. To connect a device that uses RCA- type output jacks, you must use an adapter to convert the RCA output to a 3.5 mm input. These adapters are available at most electronics-supply stores.

FM Antenna Attach the supplied FM antenna for FM reception.

The transmitter base is powered by the power supply that comes with the M812. Connect the power supply to the transmitter base, then plug the power supply into a wall outlet.

The supplied power cord attaches to the back of the wireless speaker.

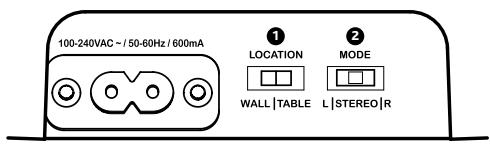

To switches are located on the back of the speaker. The location switch allows you to set the speaker for table-top or wall-mounted use. The factory defaut setting is for table-top use.

The mode switch allows you to set the speaker for stereo sound or as the left or right speaker in a pair of speakers. The factory default setting is stereo.

Wall Mounting À Speaker

The wireless speaker can be placed on an appropriate level surface or mounted on a wall using the optional wall- mounting bracket

The speaker should only be mounted on the wall using a wal-mounting bracket provided by Altec Lansing. You can order the wall-mounting bracket online at wwwalteclansing.com, Go to the M812 product page.

Wireless Connectivity

‘The transmitter base and speaker can communicate over three wireless radio frequency (RF) channels. The default

setting is AUTO. You may also manually select one of the three channels.

In AUTO, the transmitter base looks for and transmis. on the most interference-free of the three channels. The speaker searches the channels until i finds the base.

I is possible that the speaker and base may lose their synchronized connection from time to time. You may also experience interference with the connection.

If you experience interference or lose the connection between speaker and transmitter base, you can force the M812 to re-synchronize. To do so, press and hold down the STANDBY key on the transmitter base. After three seconds, the LED to the left of the STANDBY key will begin to flash. Continue to hold down the STANDBY key until the LED stops flashing (about six seconds).

If you continue to experience interference, check to see if you can elminate the source by moving other devices that use the same RF spectrum. For instance, laptop computers that use 802.11 wireless networking can contiict with your M812 wireless connection.

If problems persist, you can manual set the radio frequency (RF) channel to channel 1, 2 or 3. To do so, follow the instructions in Advanced Operations under the heading Set RF Channels (page 8).

Listening To Your M812

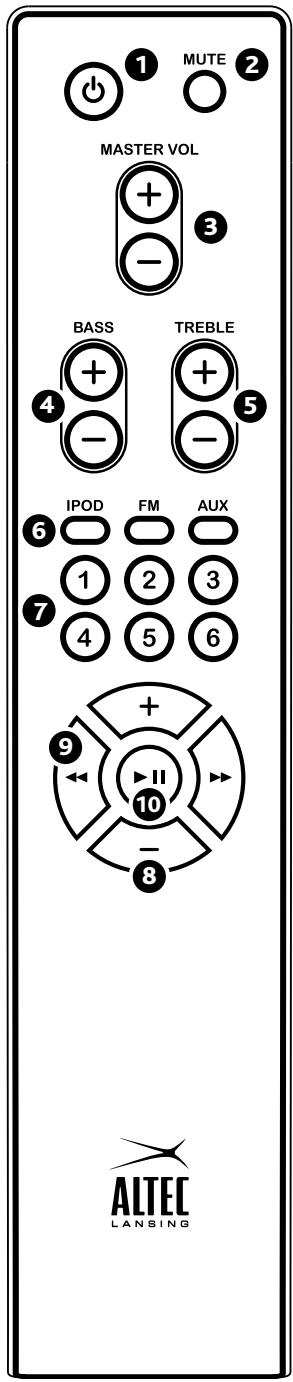

Remote Control Operation

To control the M812, the remote control must be pointed toward the front of the speaker. (In a multi-speaker System, any speaker that is synchronized can control the system.) The transmitter base does not have an IR sensor. Commands are transmitted to the base from the speaker. The M812 remote control uses two AAA-size batteries,

Power and Input Selection

To turn on the M812, press the STANDBY key on the transmitter base or the POWER key on the side of the speaker or the remote control. Select iPod, FM or AUX by pressing the input selector on the speaker or using the remote control.

iPod With your iPod docked in the transmitter base, turn on your iPod.

Press » Ilon the remote to start playing the iPod. (You can also press > II on the iPod itself.)

FM To change the radio tuning, press #4 or »x on the remote or the TÜNE +/- keys on he speaker. Hold the key down to make the tuner scan to the next strong signal. Press the key repeatediy to manually adjust the tuning.

The M812 can store up to six of your favorite FM stations. To PRESET a station, tune to the desired frequency, then press and hold the desired PRESET key on the remote until PRESET shows on the speaker display.

AUX To play music from an auxliary audio device, connect the device to the transmitter base. Control music play back Using the controls on the auxiary device.

There are two levels of volume control: local and master. The range for local and master volume is O to 80.

Local volume affects only one speaker at a time. To adjust local volume, use the + and - keys on the remote control while painting the remote control at the speaker that your want to adust. You can also adjust local volume using the VOLUME keys located on the side panel of the speaker.

Master volume allows you to adjust al speakers in a multi-speaker system from a single location. Master volume can be adjusted using the MASTER VOL keys on the remote control.

If you have a single-speaker system, you may use master and local volume interchangeably.

To control treble or bass levels, press the TREBLE or BASS keys on the remote control. The display on the speaker wil indicate the levels.

To reset your M812 settings, press and hold the POWER key (D on the side of the speaker for three seconds. See the Advanced Operation section for more information on the reset function.

Basic Controls and Functions

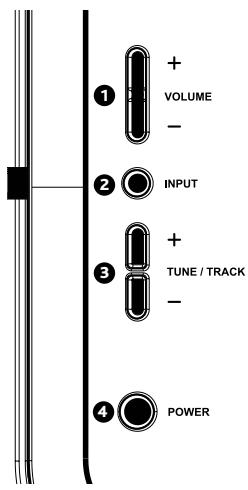

Wireless Speaker Side Panel

@ INPUT Changes the playback source (Pod, FM and AUX).

© LOCATION: WALL / TABLE This switch ajusts the sound to provide the best listening experience dependent upon whether {he speaker is positioned on a table top or mounted to the wall The factory default is TABLE.

@ IR SENSOR IR receiving sensor for use with supplied IR remote control.

@ SYNC 1 LED Iluminates to indicate that the transmitter base is synchronized with one wireless speaker unit.

ax Connect auxiiary devices (e.g., portable CD players) to 8.5 mm stereo, line-level input jack using supplied cable.

er Connect the supplied 75 Onm FM “T” antenna.

@ MUTE Mutes the speaker.

© MASTER VOL +/- keys Press to adjust the volume of several speakers when they are al synchronized with the transmitter base. If you have only one speaker, these keys operate the same as +/- Keys on the ring of controls on the lower part of the remote and the volume controls on the side of the speaker.

OBASS +/- keys Adjusts the bass tones of the speaker up or down from -6 to +6 decibels.

O1-6keys Used to select and set FM station presets. To preset an FM station: Tune to the desired FM Station. See “FM Tuning” below. Press and hold one of the preset keys for three second. The display wil show PRESET and the number of the preset key.

FM tuning: + Press once to tune to the next station. + Hold the key for a second to SEEK (tune to the next Station with a clear signal) + Hold for to seconds to SCAN (cycle through each channel until you release the key)

Muiti-Speaker Systems

With a single transmitter base, you can transmit audio to as many as eight wireless speakers. Speakers can be set to standard stereo mode or to serve as pairs of left and right speakers. By adding speakers to your system, you can create separate listening areas served by one or more speakers.

When you power up a multi-speaker system, turn on

the speakers first and then turn on the power to the transmitter base. This wil allow synchronization between the speakers and the base. If one or more speakers fail to synchronize or synchronization is lost during operation, you must re-synchronize the system.

To re-synchronize the transmitter base with the speaker(s), press and hold the STANDBY key on the transmitter base. After three seconds, the LED to the

left of the STANDBY key wil begin to flash, Continue to hold down the STANDEY key until the LED stops flashing (about six seconds).

‘The settings menu of the M812 allows you to adjust setup functions, such as RF channel, and audio functions, such as bass and treble. The menu on the M812 contains the following items:

BASS RF CHAN TREBLE 2AUTO + CH1 FM MODE + CH2 sUS + CH3 Lo DEFAULT + EUROPE EFAULT

+ FACTORY EXIT Menu Navigation Follow these steps to make changes to the settings:

Press and hold the INPUT key on he side panel of the wireless speaker to enter the menu (about three secondés).

To scroll through the menu use the VOLUME +/- keys

To select a menu item press the INPUT key.

To change the setting of a menu item scroll up or down with the VOLUME +/- key.

When you finish making an adjustment, the menu operation exits and returns to the previous operation. You can also exit by selecting EXIT on the menu.

Detailed Menu Operations

Set BASS and TREBLE This menu option lets you adjust bass or treble.

1. Select BASS or TREBLE from the menu.

Press the VOLUME +/- key to scrol through tone values from -6 to +6.

Press INPUT to select a value. The value is saved. The display exits the menu.

Set FM MODE Three FM modes are included to accommodite radio frequencies in different countries. Follow the steps below to set the M812 for your region.

NOTE: When you change FM MODE, station presets are erased.

Select FM MODE from the menu.

Press the VOLUME +/- key to scrol through the possible values — US, JAPAN or EUROPE.

Press INPUT to select a value. The value is saved and the display exits the menu.

This option allows you to adjust the radio frequency (RF) channel settings to eliminate interference from other nearby wireless devices, including other M812s. The AUTO setting allows the M812 to use the clearest of the three available channels. Or you may manually select channel 1, 2 or 8.

Select RF CHAN from the menu.

Press the VOLUME +/- key to scrol through the possible values - CH1, CH2, CH8 or AUTO.

Press INPUT to select one of the three channels or select AUTO.

+_ When using more than one speaker, ensure that all speakers are on the same channel prior to setting the transmitter.

When you change the channel setting on the speaker(s), you must also select the same channel on the transmitter to keep sync. To do this:

Press and hold the STANDBY key on the base transmitter for three seconds. The standby LED (on the left) wi blink. The SYNC and SYNC2 LEDS indicate the current channel setting.

+ LEDI iluminated - CH1 is selected (LED 2 is off.) + LED2 iluminated - CH2 is selected (LED1 is off.)

+ LED1 and LED2 iluminated - CH3 is selected {Both LED 1 and LED2 are on)

+ No LEDs iluminated - AUTO is selected Press the STANDBY key to change the RF channel

Press and hold STANDBY for three seconds to save your changes.

CES To Reset DEFAULT Settings The following list shows the factory settings:

This option allows you to restore some or all default 1. RF Channel = AUTO settings. LOCAL resets VOLUME, BASS and TREBLE to * En the default settings. À EN Mode = US FACTORY restores all options to the default settings. 5. FM Presots = 87.5 FM presets are also erasedi 6. Input = iPod

1. Select DEFAULT from the menu: 7. Volume = 60 2. Press the VOLUME +/- key to scroll through the

defaults - FACTORY or LOCAL.

3. Press INPUT to select one of the options.

Wireless Speaker 17.9 x 4.5 x 10 inches (457 x 115 x 255 mm)

Dimensions (W x D x H) Transmitier Base 4.7 x5.2x 1.2 inches (120 x 182 x 31 mm) 40 Watts continuous per channel Power Output 80 Watts continuous/160 peak (total) Signal-to-Noise Ratio @ 1 kHz 90 dB (‘A' weightec) Frequency Response (System) 42 Hz - 22 kHz (#/- 10 dB) Wireless Transmission Type 2.4 GHz digital transmission for stereo audio Wireless Transmission Range Range of approximately 100 feet (30 moters) Speakers Two 4-inch mid-bass drivers and two 1-inch sik dome twesters Remote Control Fül function, infrared

Wireless Speaker AC (as indicated on rear of speaker)

Power Source Transmitter Base 9 VDC/1.6A (from supplied AC adapter)

CAUTION: User changes or modifications not expressiy approved by the party responsible for compliance could void the users authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuming the equipment off and on, the user is encouraged to ty to correct the interference by one or more of the following measures:

+ Increase the separation between the equipment and receiver.

+ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. + Consult the dealer or an experienced radio/TV technician for help.

+ Select a different channel.

No power to speaker or to transmitter base.

The power cord is not connected to a wall outlet and/or the power cord

is not plugged into the AC inlet on the back of the M812 speaker. The power supply for the transmitter base is not connected to a wall outlet and/ or the DC connection is not made at the rear of the transmitter base.

Check that the AC power cord is full seated in the AC inlet on the rear of the M812 speaker. Also check that the power adapter for the transmitter base is plugged in and connected to the DC input on the rear of the transmitter base.

The surge protector (f used is not powered on.

Ifthe AC cord or transmitter base power Supply is plugged into a surge protector, make sure the surge protector is switched on.

The wall outlet is not functioning.

Plug another device into the same wall outlet to confirm the outlet is working

The power is not tumed on.

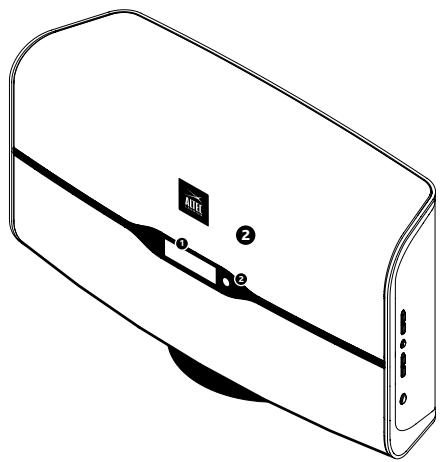

Turn on the speaker by pushing the power key located on right side of the unit or by using the supplied remote control. The display on the front ofthe speaker wil iluminate. Turn the transmitter base on by pressing the POWER key on the front ofthe transmitter base. The LED will iluminate.

No sound is coming from the speaker.

The volume is set too low. Wrong input is selected. System is muted.

The +/- keys on the side of the speaker control volume. Press and hold the + key to increase the volume. The volume can also be raised using the supplied remote control.

Check the volume level on the AUX source device and set at mid-level

The iPod is not correotly seated into the transmitter base.

Turn of the iPod, remove it from the transmitter base, reseat it, and turn it on again.

If using an AUX source, the audio source is not properly connected to the M812 or there is a problem with the alternate audio source.

+ Connect an alternate audio source - such as a CD player, MP3 player, or DVD player — to your M812 by plugging one end of a 3.5 mm stereo cable to the line out of your portable device (if it has one), or to the audio source’s audio out or headphone jack. Connect the other end to the input marked *AUX" on the back of the M812's transmitter base.

+ Set the volume on the audio source at mid-level.

+ Set the volume on the M812 at minimum level and adjust upward to a comfortable listening level.

Channels are not synchronized.

See Set RF Channels in Advanced Operations {page 8) to re-synchronize channels.

There is a cracking sound coming from the speaker.

The iPod is not correotly seated into the dock.

Turn off the iPod, remove it from the docking station, reseat it, and turn it on again.

If Using an alternate audio source, the audio source is not properÿ connected to the M812 or there is a problem with the alternate audio source.

+ Set the volume on the audio source at mid-level.

+ Set the volume on the M812 at minimum level and adjust upward to a comfortable listening level

There is a crackling sound coming from the speaker (when connected to PC

The operating system's volume level is set 100 high.

Check the operating system volume level and decrease it if necessary.

Move the unit to another location or select a different RF channel.

The sound is distorted.

The M8125 volume level is set too high.

Lower the volume level of the MB12 by using the supplied remote control or the VOLUME - key on the speaker.

The EQ function is enabled on the iPod and there is 100 much bass.

Disable the EQ function of the iPod or turn down the bass on the M812.

The WALL/TABLE switch on the bottom of the wireless speaker is in the wrong position.

Ensure the WALL/TABLE switch on the bottom of the M812 is set to the proper position.

Intermittent buzzing,

The unit is located too close to a GSM cell phone.

Move the GSM cell phone away from the unit.

The wireless speaker Stops playing or cuts out.

The M812 has gone into an over- current, protection mode.

Reduce the volume level. The M812 wil automatically reset itself after a short period of time. When the M812 resets it wil come back in the standby mode. Upon powering the unit back up reduce the volume level to prevent it from going into protection mode.

It appears that the wireless speaker is not reproducing a stereo signal.

The MODE switch on the bottom of the unit is in the wrong position.

Set the MODE switch to the correct position: STEREO, when one speaker is used. LEFT. or RIGHT when two speakers are used in the same room.

l'have three speakers connected to one transmitter base that lost sync and now it will not automatically re-synchronize.

In a mutti-speaker system if a single speaker loses synchronization that speaker unit will not be able to automatically regain synchronization:

To manually regain synchronization between the transmitter base and the speakers, hold doun the STANDBY key on the transmitter base for six seconds. The speakers will then synchronize with the transmitter base.

My speaker is picking up music from a different source.

Your speaker has synchronized to another transmitter base that is within range of your speaker.

You can manually re-synchronize the speaker by holding down the POWER key on the speaker for six seconds. The speaker will then synchronize with the transmitter base.

NO SYNC shows on speaker display.

Synchronization between speaker and transmitter base has failed.

Disconnect the speaker power cord from the wall outlet, wait 30 seconds, raconnect to the outlet and power on the speaker. Press and hold the STANDBY key on the transmitter base for six seconds. If situation persists, you may need to manual set the RF channel. See Set RF Channels in Advanced Operations (page 8).

The LCD displays "iPod," and the iPod is playing, but no sound is coming from the speaker.

The speaker and transmitter base have a poor connection.

Press and hold the STANDBY key on the transmitter base for six seconds. This will cause the speaker to re-synchronize with the transmitter base.

iPod does not function properly when docked to the transmitter base.

You may need to update the software on the iPod.

Go to the Apple Web site and follow the directions to upgrade your iPod to the latest software.

wuw.alteclansing.com HEADQUARTERS _ 535 Rie. 6 & 209, Miford, PA 1827-0277 » 800-ALTEC-88. 570-206-4434. » Fax 570-206-6887 EUROPE | 13 Rue Beaumont, L-1219 Luxembourg, Luxembourg

ASIA/PACIFIC _ 28/F, Office Tower, Shun Hing Square Diwang Commercial Centre, 5002 Shen Nan Dong Road. Shenzhen, China 518008

“Made or IPod means hat an alactroni accassory has been designed to connect specicaly lo (Pod and has been certfled by the developar to meet ‘Apple performance standards.

‘Apple is not responsible for he operation of is denica or ls compance si saety and roguator standards.

(22008 Plantronics, In. Al rights rcerved.

TES, ALTEC LANGINS, re At Lago, me ha dei, co AR and M1 re adm rragétrd adm ol Ac Lana

2 dvalon of Plantronics, M.

{Podié a trademark of Apple, Inc, regstered in the LS. and other countries. Al otner trademarks appeering hersin ar 1h property of ei respective aumer. Designed by Alec Lansngin the USA Made in China. At1964 Por

Platronis, 1e logo design, and Sound Innovation are trademarks or registered trademark of Pantronice, nc. &
