USER MANUAL WMK300E CUISINART

A. Assembling the unit B. Use

4. Advice from Chefs

5. Questions/Answers

6. Cleaning and storage

7. Safety precautions

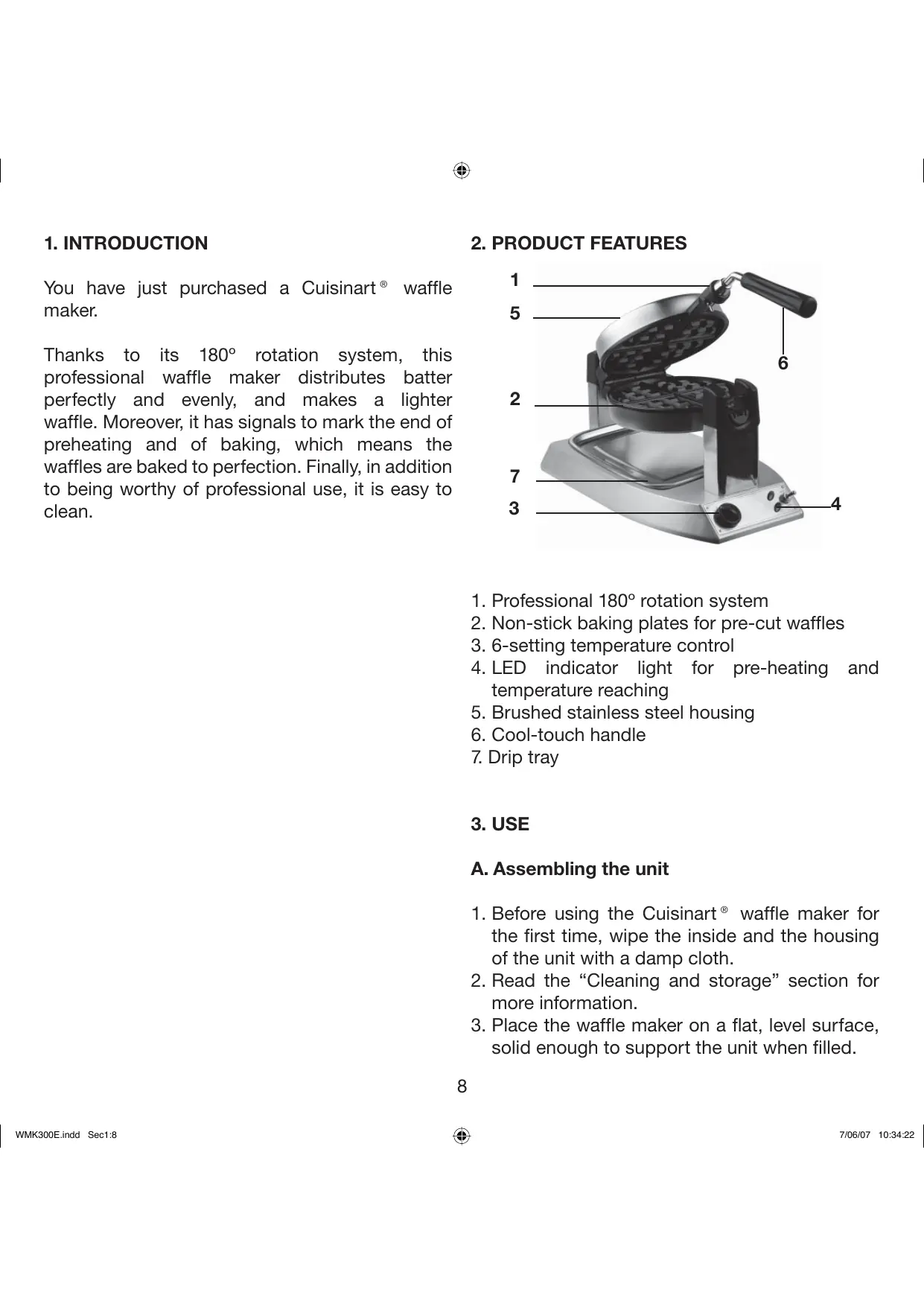

You have just purchased a Cuisinart® waffle maker.

Thanks to its 180º rotation system, this professional waffle maker distributes batter perfectly and evenly, and makes a lighter waffle. Moreover, it has signals to mark the end of preheating and of baking, which means the waffles are baked to perfection. Finally, in addition to being worthy of professional use, it is easy to clean.

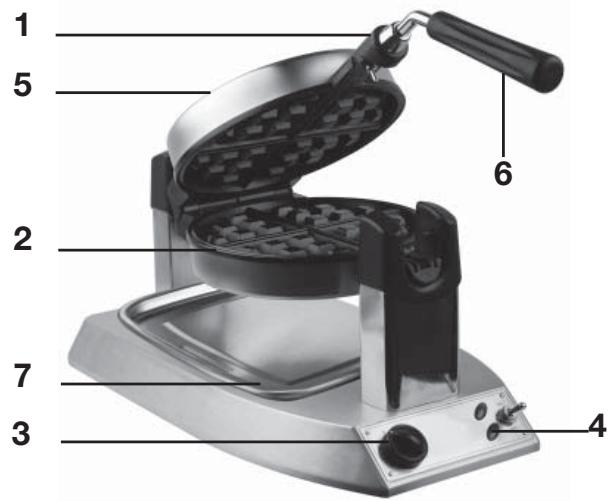

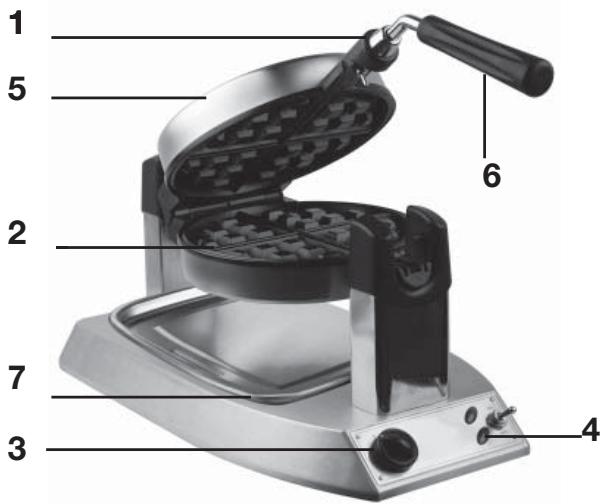

1. Professional 180º rotation system

2. Non-stick baking plates for pre-cut waffles

3. 6-setting temperature control

4. LED indicator light for pre-heating and

temperature reaching

5. Brushed stainless steel housing

6. Cool-touch handle

1. Before using the Cuisinart® waffle maker for

the first time, wipe the inside and the housing of the unit with a damp cloth.

2. Read the “Cleaning and storage” section for

3. Place the waffle maker on a flat, level surface,

solid enough to support the unit when filled. WMK300E.indd Sec1:8 7/06/07 10:34:22

4. ADVICE FROM THE CHEFS

4. Read the “Safety precautions” section for more

1. Grease the waffle plates before using them. Use

a slightly thick pastry brush for perfect results. B. Use

2. Always use the same appropriate measure to

pour out the waffle batters, your waffles will always be identical and the same size.

1. Set the thermostat according to your preference

3. Clean the waffle plates with a damp cloth after

2. When using for the first time and after the

pre-heating signal, lightly grease the waffle plates with vegetable oil using a pastry brush. 4. To remove any grease that may remain on the plates, place a piece of absorbent kitchen towel on the lower plate and close the waffle maker.

3. Pour the waffle batter onto the lower plate using

The grease will be easier to remove. a ladle. CAUTION: Use only plastic kitchen utensils.

4. Close and rotate the unit by turning the handle

to the left. Allow to bake.

5. When the unit makes another audible tone,

rotate the unit again by turning the handle to the right.

6. Open the unit and remove the waffles.

7. After use, turn the thermostat to 1 and unplug

the unit’s electrical cord.

8. Allow the unit to cool before storing.

What to do if: Answers: The batter flows over Use less waffle batter. the edge of the unit during baking. The waffles are not Check the thermosbaked enough. tat. It should be adjusted that the heat is high enough for perfect baking. The waffles stick The waffle maker needs during baking. to be hot enough for perfect baking. Lightly butter the plates for better results. waffle doesn’t work. maker Make sure the “on” button is properly engaged.

6. CLEANING AND STORAGE

• Clean the unit after use and before storing.
• Before cleaning, make sure the unit is turned off and unplugged and has cooled completely.
• Never dismantle the unit to clean it.
• Remove any crumbs on the grids using a brush, and any oil residue using a dry cloth.
• Gently wipe the grids using a damp cloth to prevent them from sticking and to remove any traces of batter. This will also prevent any accumulation of oil.
• Wipe the outside of the unit with a soft, dry cloth. Do not use an abrasive pad.
• Do not immerse the unit, its electrical cord or its plug in water or any other liquid.
• Close the unit before storing.

7. SAFETY PRECAUTIONS

Always follow the safety precautions to avoid injuring yourself or damaging the unit. Use this appliance only according to the instructions in this manual.

• Use this appliance only for the use described in this manual and following all instructions.
• Do not use outdoors.
• For household use only.
• Always check that there is no sign of damage before using. Do not use the unit if there is damage or if it has fallen.
• Do not use the unit if the electrical cord is damaged. If there is evident damage to the electrical cord, stop using the unit immediately. If the cord is damaged, it must be replaced by a special cord available from the manufacturer or one of its after-sales service centres.

WMK300E.indd Sec1:10 7/06/07 10:34:23

• When in use, the outside of the unit becomes very hot. Do not touch the hot surfaces. Always use the handle.
• Make sure the unit is unplugged when not in use and before cleaning. Allow the unit to cool before cleaning. To disconnect the unit, put the switch in the ‘OFF’ position and then unplug from the outlet.
• Be particularly careful if the unit is used near children. It must not be used by children. Store it out of the reach of children. Never leave this unit unattended when plugged in and turned on.
• Do not use any accessories not recommended by Cuisinart®.
• Do not immerse the electrical cord, the plug or the unit in water or any other liquid to prevent fire, electrical discharge or injury.
• Do not use this unit if it has fallen or appears to be damaged. Stop using immediately and contact Cuisinart.
• Do not let the cord hang over the work surface, and do not let it touch hot surfaces.
• Only use this unit to prepare food/drinks, as described in the accompanying manual. Keep these instructions for all future use.
• This appliance meets the essential requirements of Directives 89/336/EEC (electromagnetic compatibility) and 73/23/EEC (safety of domestic electrical equipment), as amended by Directive 93/68/EEC (CE marking). Electrical and electronic equipment at the end of life. In everybody’s interest and to participate actively in protecting the environment:
• Do not discard these products with your household waste.
• Use return and collection systems available in your country. Some materials can in this way be recycled or recovered.
