USER MANUAL Maverick MK1 Hybrid Chauvet Professional
MAVERICK
MK1 HYBRID
User Manual
| Edition Notes | The Maverick MK1 Hybrid User Manual Rev. 7 covers the description, safety precautions, installation, programming, operation, and maintenance of the Maverick MK1 Hybrid. Chauvet released this edition of the Maverick MK1 Hybrid User Manual in 2018. |
| Trademarks | CHAUVET, the Chauvet logo and Maverick MK1 Hybrid are registered trademarks or trademarks of Chauvet & Sons, LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies. |
| Copyright Notice | The works of authorship contained in this manual, including, but not limited to, all design, text and images are owned by Chauvet.© Copyright 2018 Chauvet & Sons, LLC. All rights reserved.Electronically published by Chauvet in the United States of America. |
| Manual Use | Chauvet authorizes its customers to download and print this manual for professional information purposes only. Chauvet expressly prohibits the usage, copy, storage, distribution, modification, or printing of this manual or its content for any other purpose without written consent from Chauvet. |
| Document Printing | For better results, print this document in color, on letter size paper (8.5 x 11 in), double-sided. If using A4 paper (210 x 297 mm), configure your printer to scale the content accordingly. |
| Intended Audience | Any person in charge of installing, operating, and/or maintaining this product should completely read through the guide that shipped with the product, as well as this manual, before installing, operating, or maintaining this product. |
| Disclaimer | Chauvet believes that the information contained in this manual is accurate in all respects. However, Chauvet assumes no responsibility and specifically disclaims any and all liability to any party for any loss, damage or disruption caused by any errors or omissions in this document, whether such errors or omissions result from negligence, accident or any other cause. Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. |
| Document Revision | The Maverick MK1 Hybrid User Manual Rev. 7 is the current edition of this manual. Go to www.chauvetprofessional.com for the latest version. |
Table of Contents
1. Before You Begin....1
What Is Included....1
Claims....1
Manual Conventions .... 1
Symbols....1
Safety Notes 2
2. Introduction......3
Description....3
Features 3
Overview....3
Dimensions 4
3. Setup....5
AC Power 5
AC Plug 5
Fuse Replacement 5
Mounting....6
Orientation....6
Signal Connections....7
Art-Net™ Connection 7
sACN Connection....7
4. Operation....8
Touchscreen Control Panel 8
Control Panel Description......8
Menu Map....8
Operating Settings Configuration 12
Start Address 12
Network Setup....12
Personality....13
Settings....14
Test Mode....18
System Information 18
Offset Mode 19
DMX Values....21
Gobo Designs – Rotating and Static Wheels....27
Color Wheels 28
5. Firmware Update....29
Product Maintenance 32
7. Technical Specifications....33

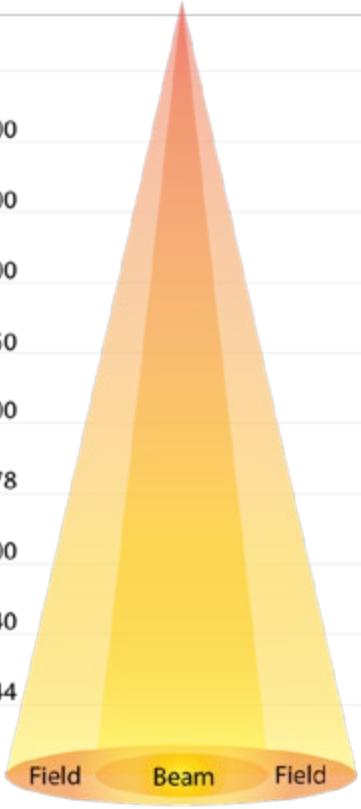

Photometrics Chart 35
Photometrics Chart 36
Photometrics Chart 37
Returns....38
1. BEFORE YOU BEGIN
What Is Included
- Maverick MK1 Hybrid
- Warranty card
- Seetronic Powerkon power cord
- Quick Reference Guide
• 2 Omega brackets with mounting hardware
Claims
Carefully unpack the product immediately and check the box to make sure all the parts are in the package and are in good condition.
If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.
For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within 7 days of delivery.
| Manual Conventions | Convention | Meaning |
| 1–512 | A range of values in the text |
| 50/60 | A set of mutually exclusive values in the text |
| A button on the product's control panel |
| Settings | A product function or a menu option |
| ON | A unique value to be entered or selected in a menu |
Symbols
| Symbols | Meaning |
 | Critical installation, configuration, or operation information. Failure to comply with this information may cause the product not to work, damage third-party equipment, or cause harm to the operator. |
 | Important installation or configuration information. Failure to comply with this information may keep the product from working. |
 | Useful information. |
The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol.
Safety Notes
Read all the following Safety Notes before working with this product. These notes include important information about the installation, usage, and maintenance of this product.
This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs.
Personal Safety
All applicable local codes and regulations apply to proper installation of this product.
Mounting And Rigging
- Avoid direct eye exposure to the light source while the product is on.
• Always disconnect this product from its power source before servicing.
• Always connect this product to a grounded circuit to avoid the risk of electrocution.
Do not touch this product's housing during operation because it may be very hot.
This product is not intended for permanent installation.
- This product is for indoor use only! To prevent risk of fire or shock, do not expose this product to rain or moisture. (IP20)
- CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
- Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Make sure there are no flammable materials close to this product while it is operating.
- When hanging this product, always secure to a fastening device using a safety cable.
- Never carry the product by the power cord or any moving part.
• Make sure the power cord is not crimped or damaged.
- Always make sure you are connecting this product to the proper voltage in accordance with the specifications in this manual or on the product's specification label.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- Never connect this product to a dimmer pack or rheostat.
• Make sure to replace the fuse with another of the same type and rating.
- Never disconnect this product by pulling or tugging on the power cable.
- Do not operate this product if you see damage on the housing, lenses, or cables. Have the damaged parts replaced by an authorized technician at once.
- Do not cover the ventilation slots when operating to avoid internal overheating.
- The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a higher temperature.
• In case of a serious operating problem, stop using this product immediately!
Power And Wiring
Operation
If your Chauvet product requires service, contact Chauvet Technical Support.
2. INTRODUCTION
Description Maverick MK1 Hybrid puts a world of options at your fingertips with advanced optics, overlapping 8 and 4-facet prisms, a versatile gobo package, a 3° - 18° zoom range in spot mode and 19° - 41° in wash mode, and a robust CMY color system. Powered by a 440 W Osram Sirius reflector lamp, this supercharged hybrid awaits your command to dazzle with stunning output and effects. Choose from DMX, sACN, Art-Net, or W-DMX for control.
Features · Fully featured, high powered Spot/Beam combination fixture with CMY color mixing and overlapping prisms
- Fast and precise movement of Pan and Tilt functions
• Variable CMY color mixing and static colors to create a wide range of color options
- Individually controllable and overlappable 8 and 4-facet prisms
- Frost and beam flattening options for even light distribution
- Zoom angle of 3° to 18° in spot mode and 19° to 41° in wash mode for multiple coverage options
- Tight 1° beam for extremely focused areal effects
- 6 rotating and 18 static gobos for massive visual impact
- DMX, WDMX, sACN, and Art-Net for full flexibility of control options
- True 1 compatible power input
- Battery backup touchscreen display with auto rotate depending on fixture orientation
Overview
Dimensions
3. SETUP
AC Power
Each Maverick MK1 Hybrid has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Maverick MK1 Hybrid, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.
The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the Chauvet website: www.chauvetprofessional.com.
• Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire.
- Never connect this product to a rheostat (variable resistor) or dimmer circuit, even if the rheostat or dimmer channel serves only as a 0 to 100% switch.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
AC Plug
The Maverick MK1 Hybrid comes with a power input cord terminated with a Seetronic Powerkon connector on one end and an Edison plug on the other end (U.S. market). If the power input cord that came with your product has no plug, or if you need to change the Edison plug, use the table below to wire the new plug.
| Connection | Wire (U.S.) | Wire (Europe) | Screw Color |
| AC Live | Black | Brown | Yellow or Brass |
| AC Neutral | White | Blue | Silver |
| AC Ground | Green/Yellow | Green/Yellow | Green |
Fuse Replacement
- Disconnect this product from the power outlet.
- Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
- Remove the blown fuse and replace with another fuse of the same type and rating (F 10 A, 250 V).
- Screw the fuse holder cap back in place and reconnect power.
Make sure to disconnect the product's power cord before replacing a blown fuse. Always replace the blown fuse with another of the same type and rating.
Mounting
Before mounting this product, read and follow the Safety Notes. For our CHAUVET Professional line of mounting clamps, go to http://trusst.com/products/.
Orientation
Always mount this product in a safe position and make sure there is adequate room for ventilation, configuration, and maintenance. The Maverick MK1 Hybrid should be suspended upright or upside down using the 2 Omega brackets included, or it can be placed on its rubber feet on a flat level surface.
Chauvet recommends using the following general guidelines when mounting this product:
- When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance.
- The product is not intended for permanent installation.
• Make sure to mount this product away from any flammable material as indicated in the Safety Notes.
- Never mount in places where rain, high humidity, extreme temperature changes, or restricted ventilation may affect the product.
- If hanging this product, make sure that the mounting location can support the product's weight. See the Technical Specifications for the weight-bearing requirements of this product.
- When hanging this product, always secure to a fastening device using a safety cable. For our CHAUVET Professional line of safety cables, go to http://trusst.com/products/.
- When mounting the product on the floor, make sure that the product and cables are away from people and vehicles.
- Place the Maverick MK1 Hybrid so that it can move freely without hitting anything or anybody. Leave enough slack on the cabled to prevent tension and pulling on the plugs.
DO NOT side mount this fixture.
Mounting Diagram
Signal Connections
The Maverick MK1 Hybrid can receive DMX, WDMX, Art-Net™, or sACN signal. The Maverick MK1 Hybrid has 2 Neutrik® etherCON® through ports, and 3- and 5-pin DMX in and out ports. For more information about DMX, read the DMX primer at: http://www.chauvetlighting.com/downloads/DMX_Primer_Rev9_ML_WO.pdf
Art-Net™ Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using an Neutrik® etherCON® RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com.
Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, streaming ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN compatible network. ACN is maintained by the Professional Lighting and Sound Association (PLASA).
The three LED indicators in between the Amphenol XLRnet ports indicate a connection to a network and activity on that network. They do not indicate whether or not the Maverick MK1 Hybrid is receiving a signal from a controller.
4. OPERATION
Touchscreen Control Panel
The Maverick MK1 Hybrid has a touchscreen display as well as 6 control buttons. Navigate the menu structure by pressing the buttons, touching the images of the buttons on the sides of the display, or touching the desired menu option on the display directly. The touchscreen can be locked and calibrated through the Setup options in the menu. (see Touchscreen Calibration and Touchscreen Lock)
| Control Panel Description | Button | Function |
| ↑ | Navigates upwards through the menu list or increases the numeric value when in a function |
| ≡ | Exits from the current menu or function |
| ↓ | Navigates downwards through the menu list or decreases the numeric value when in a function |
| ← | Navigates leftwards through the menu list |
| ← | Enables the currently displayed menu or sets the currently selected value into the selected function |
| → | Navigates rightwards through the menu list |
Battery Powered Press and hold until menu screen appears (approx 15 sec.).
Display
Menu Map
| Main Level | Programming Levels | Description |
| Address | 000-512 | Network Settings |
| Art-Net Setup | IP Mode | Manual | Selection of IP mode |
| DHCP |
| Static |
| Universe | 0 ~ 255 | Set the Universe |
| ArtNetIP | 002.243.075.222 | IP setting |
| SubMask | 255.000.000.000 | Subnet Mask |
| Personality | DMX 27CH | YES | Choose 27 channels of DMX |
| NO |
| DMX 30CH | YES | Choose 30 channels of DMX |
| NO |
| Settings | Control Mode | DMX | Signal Selection |
| WDMX |
| ArtNet |
| sACN |
| Pan Reverse | YES | Reverse the Pan |
| NO |
| Tilt Reverse | YES | Reverse the tilt |
| NO |
| Settings | Screen Reverse | NO | Manually or automatically reverse the screen |
| YES |
| AUTO |
| Pan Angle | 540 | Change the Pan angle |
| 360 |
| 180 |
| Tilt Angle | 270 | Change the tilt angle |
| 180 |
| 90 |
| BL. O. P/T Move | YES | Enable/disable XY blackout |
| NO |
| BL. O. Color Move | YES | Enable/disable color blackout |
| NO |
| BL. O. Gobo Move | YES | Enable/disable gobo blackout |
| NO |
| Calibration | YES | Turn on calibration |
| NO |
| Touchscreen Lock | YES | Lock the touchscreen |
| NO |
| Swap X/Y | YES | Swap the pan and tilt |
| NO |
| X/Y Mode | Fast | Pan and tilt speed |
| Slow |
| WDMX Reset | YES | Reset the wireless DMX |
| NO |
| Backlight Timer | 30S | Set the backlight to turn off automatically after a chosen time |
| 1M |
| 5M |
| ON |
| Loss of Data | HOLD | Loss of data settings |
| CLOSE |
| Safety Beam | OFF | Safety Beam mode |
| ON |
| Lamp Setting | On/Off | OFF | Lamp on or off |
| ON |
| State/Power On | OFF | Lamp status shown when lamp is on |
| ON |
| Off via DMX | NO | Control the lamp with DMX |
| YES |
| On if DMX On | NO | Lamp On when DMX is on |
| YES |
| Off if DMX Off | NO | Lamp off when DMX is off |
| YES |
| Settings | Lamp Setting | Ignition Delay | 10 ~ 255 | set delay time for lamp ignition |
| Low Power Delay | 0 ~ 255 | low power delay time |
| Reset Lamp Time | NO | Reset the remaining lamp time |
| YES |
| Special Set | Interval | 10 ~ 250 | Lamp maintenance reminder set |
| Remain Time | Remaining lamp time |
| Preset Select | PRESET A | Recorded preset menu options |
| PRESET B |
| PRESET C |
| Preset Sync | NO | Allows recorded preset menu options to be transferred to other Maverick MK1 Hybrids in the DMX daisy chain |
| YES |
| Reset Function | Pan/Tilt | Yes/No | Reset individual functions to factory |
| Head |
| All |
| Factory Settings | NO | Reset all functions to factory |
| YES |
| Test | Auto Test | Auto Test the product |
| Manual Test | Pan | 0 ~ 255 | Individually test each function/channel |
| Pan Fine |
| Tilt |
| Fine Tilt |
| P/T Speed |
| Cyan |
| Magenta |
| Yellow |
| Color1 |
| Color2 |
| Color3 |
| Shutter |
| Dimmer |
| Dimmer Fine |
| Gobo |
| Animation |
| Animation Rotate |
| Gobo |
| Gobo Rotate |
| Gobo Rotate Fine |
| Prism |
| Prism1 Rotate |
| Prism2 Rotate |
| Frost |
| Zoom |
| Focus |
| Fine Focus |
| Beam Mode |
| Special Function |
| Information | Fixture Information | Ver V1 | Current version |
| Running Mode DMX | Current mode |
| DMX Address 001 | DMX Address |
| Temperature 025 | Current temperature |
| Fixture Hours 00000 | Current active hours |
| ArtNetlp 002.243.075.222 | Current IP address |
| SubMask 255.000.000.000 | Current Subnet Mask |
| MAC 00.04.a3.08.00.00 | MAC address |
| Fan Information | Base Fan1 Speed 2000rpm | View speed setting |
| Base Fan2 Speed 2000rpm | View speed setting |
| Head Fan1 Speed 2000rpm | View speed setting |
| Head Fan2 Speed 2000rpm | View speed setting |
| Error Information | - - - - - - | Will appear on screen |
| Channel Information | Frequency | 0Hz | Status of individual channel |
| Pan | 0 ~ 255 |
| Pan Fine |
| Tilt |
| Fine Tilt |
| P/T Speed |
| Cyan |
| Magenta |
| Yellow |
| Color1 |
| Color2 |
| Color3 |
| Shutter |
| Dimmer |
| Dimmer Fine |
| Gobo |
| Animation |
| Animation Rotate |
| Gobo |
| Gobo Rotate |
| Gobo Rotate Fine |
| Prism |
| Prism1 Rotate |
| Prism2 Rotate |
| Frost |
| Zoom |
| Focus |
| Fine Focus |
| Beam Mode |
| Special Function |
Operating Settings Configuration
Home Screen The Maverick MK1 Hybrid has a home screen that shows the protocol mode, the IP address or DMX address, the DMX personality, and the current product temperature. To see the home screen, press
- Your name
- Your address
- Your phone number
- RMA number
• A brief description of the problem
Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended.
Chauvet reserves the right to use its own discretion to repair or replace returned product(s).
USA WORLD HEADQUARTERS
General Information – Chauvet
Address: 5200 NW 108th Avenue
Sunrise, FL 33351
Voice: (954) 577-4455
Fax: (954) 929-5560
Toll free: (800) 762-1084
EUROPE
General Information - Chauvet Europe BVBA
Address: Stokstraat 18
9770 Kruishoutem
Belgium
Voice: +32 9 388 93 97
General Information - Chauvet Europe Ltd.
Address: Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice: +44 (0)1773 511115
Fax: +44 (0)1773 511110
General Information - Chauvet France
Address: 3, Rue Ampère
91380 Chilly-Mazarin
France
Voice: +33 1 78 85 33 59
General Information - Chauvet Germany
Address: Bruno-Bürgel-Str 11
28759 Bremen
Germany
Voice: +49 421 62 60 20
MEXICO
General Information - Chauvet Mexico
Address: Av. de las Partidas 34, 3-B
(Entrance by Calle 2)
Zona Industrial Lerma
Lerma, Edo. de México, CP 52000
Voice: +52 (728) 690-2010
Technical Support
Voice: (844) 393-7575
Fax: (954) 756-8015
Email: chauvetcs@chauvetlighting.com
World Wide Web
www.chauvetprofessional.com
Technical Support
Email: Eutech@chauvetlighting.eu
World Wide Web
www.chauvetprofessional.eu
Technical Support
Email: uktech@chauvetlighting.com
World Wide Web
www.chauvetprofessional.eu
Technical Support
Email: FRtech@chauvetlighting.eu
World Wide Web
www.chauvetprofessional.eu
Technical Support
Email: uktech@chauvetlighting.com
World Wide Web
www.chauvetprofessional.eu
Technical Support
Email: servicio@chauvet.com.mx
World Wide Web
www.chauvetprofessional.mx
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details.
ETHERNET
UL 1573
CSA C22.2 No. 166
E113093
