| Product type | 2-way coaxial suspended loudspeaker |
| Brand / Model | FBT LIBRA 5CT |
| Frequency response | 80 Hz - 20 kHz (-6 dB) |
| Sensitivity | 86 dB (1W/1m) |
| Dispersion | 200° @ 500 Hz; 120° @ 1 kHz; 85° @ 2 kHz; 75° @ 4 kHz; 95° @ 8 kHz |
| Max SPL | 104 dB (1m) / 92 dB (4m) |
| Recommended amplifier power | 120 W RMS |
| Line transformer | 70/100V, power selector 10-64W |
| Low impedance | 15 Ω |
| Woofer | 5" with 1.5" voice coil |
| Tweeter | 1" HF driver with 1" voice coil |
| Enclosure material | ABS |
| Grille material | Aluminium |
| Net dimensions | φ 8.5 × 10.82 in |
| Net weight | 8.81 lb |
| Input connectors | 4-pin Euroblock (In & Thru) |
| Certification | EN54-24:2008 Type B |
| Operating temperature | -25 to +55 °C |
| Storage temperature | -40 to +70 °C |
| Relative humidity | <95% |
| Color variants | Black (45511), White (45483) |
| Supplied cord | 11.48 ft |
| Maintenance & cleaning | Clean with soft dry cloth; inspect suspension periodically |
| Safety | Professional installation; do not expose to rain; use FBT accessories |
| Repair & spare parts | No user-serviceable parts; contact qualified service personnel |
Frequently Asked Questions - LIBRA 5CT FBT
User questions about LIBRA 5CT FBT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Speakers in PDF format for free! Find your manual LIBRA 5CT - FBT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LIBRA 5CT by FBT.
USER MANUAL LIBRA 5CT FBT
EN 54-24:2008 - Type B
CPR & DOP 0068-CPR-212/2024
EN 54-24:2008
Loudspeaker for voice alarm system for fire detection and fire alarm system for building
Declaration of Performance (DoP) available on the website www.fbt.it
PENDANT POINT SOURCE
EN 54-24:2008
EN 54-24:2008 - Type B CPR & DOP 0068-CPR-212/2024
Loudspeaker for voice alarm system for fire detection and fire alarm system for building
Declaration of Performance (DoP) available on the website www.fbt.it
TAPPO SUPERIORE RIMOSSO PER CHIAREZZA
CONNETTORE EUROBLOCK - 4 POLI
Componenti
STEP 2b.
STEP 3b.
STEP 6.
1
STEP 7.
GENERALE
SCANSIONARE PER RICEVERE INFORMAZIONI SUL RICICLO
SI PREGA DI SEGUIRE LE DIRETTIVE DELLA PROPRIA ZONA
https://docs.fbt.it/filebrowser/share/l2CuWAX-
SACCHETTI
Polietilene
Bassa densità
RACCOLTA
PLASTICA
MANUALE
Carta
RACCOLTA
CARTA
General informations
LIBRA 5CT Manual
Versione: 1.1 ita, en | 11/2023 Code: 46790
MADE IN CHINA
Keep this document in a safe palce so that it is available for future reference. We recommend you to regularly check the FBT website for the latest version of this document. When reselling this product hand over this document to the new owner. To use the system properly, always consult the specific guides available on the product pages of the FBT website.
FBT Elettronica SpA - 62019 Recanati (Italy)
www.fbt.it | info@fbt.it
LIBRA
5CT
SAFETY PRECAUTIONS 20
Important safety instructions....20
GENERAL FEATURES ...... 21
Description 21
Specifications....21
DIMENSIONS....22
INPUTS & OUTPUTS....23
CONNECTIONS....24
Constant voltage systems....24
Low impedance systems ....24
INSTALLATION MODE 25
Ceiling installation steps....26
Concrete ceiling installation steps 28
TECHNICAL SPECIFICATIONS 32
WASTE & DISPOSAL....33
Product specifications....33
Packing specifications....33
WARNING
RISK OF ELECTRIC SHOCK DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.
This product conforms to applicable EU directive requirements.
This product conforms to all applicable Electromagnetic Compatibly Regulations 2016 and all other applicable UK regulations.
All informations included in this operating manual have been scrupulously controlled; however FBT is not responsible for eventual mistakes. FBT Elettronica SpA has the right to amed products and specifications without notice.
Important safety instructions
- Loudspeaker lines (amplifier outputs) can have a sufficiently high voltage (i.e. 100V) to involve a risk of electrocution; never install or connect this loudspeaker when the line is alive.
- Make sure all connections have been made correctly and the loudspeaker input voltage (in a constant voltage system) or its impedance is suitable for the amplifier output.
- Protect loudspeaker lines from damage; make sure they are positioned in a way that they cannot be stepped on or crushed by objects.
- To prevent inductive effects from causing hum, noise and a bad system working, loudspeaker lines should not be laid together with other electric cables (mains), microphone or line level signal cables connected to amplifier inputs.
- Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual. Contact your authorized service centre or qualified personnel.
- Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.) and the components used for attachment (screws, screw anchors, etc.).
- Use only the optional devices / accessories specified by the manufacturer.
- Never use the handles, brackets or other elements of the module to directly suspend the modules or the system.
This manual contains important about the correct and safe use of the device. Before connecting and using this product please read this instruction manual carefully and keep it on hand for future reference. The manual is to be considered an integral part of this product and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions. FBT SpA will not assume any responsibility for the incorrect installation and/or use of this product.
Description
The new FBT LIBRA suspended loudspeakers is an ideal solution for projects where the closed ceilings do not permit the use of embedded ceiling mounted loudspeakers. Its atypical design impresses thanks to its essential and clean lines. In terms of its sound, FBT LIBRA 5CT is irresistible for its excellent reproduction quality and sound fidelity, both in the rendering of speech and in the reproduction of high quality stereo recordings. The loudspeaker will no longer have to be an element to be hidden risking compromising the quality of the sound, but it becomes an integrated element in the environment, where the result is the union between form and function, between total disappearance and acoustics.
Following nature itself, where sound expands in all directions, a speaker has been developed that manages to reproduce a natural sound sensation. FBT LIBRA 5CT is of two way design incorporating a 5" coaxial low frequency woofer and 1" high frequency driver. FBT LIBRA 5CT incorporate a switchable transformer with power selector from 10W to 64W and low impedance connection (15Ω). FBT LIBRA 5CT is an excellent audio system at all frequencies for background music in small areas, diffusion in halls, public areas, boutiques, shops, passageways, galleries, museums, etc.
Specifications
- 2 - way coaxial
- 5" LF woofer with 1.5" voice coil
- 1" HF driver with 1" voice coil
• 120W RMS recommended amplifier - 70/100V line transformer with power selector from 10W to 64W and 15Ohm
• Sturdy ABS molded enclosures
• 11.48ft supplied cord - Euroblock "In & thru" connectors
• EN54-24 certification - Type B
• Available in black (45511) and white (45483)
EN 54-24:2008
EN 54-24:2008 - Type B CPR & DOP 0068-CPR-212/2024
Loudspeaker for voice alarm system for fire detection and fire alarm system for building
Declaration of Performance (DoP) available on the website www.fbt.it

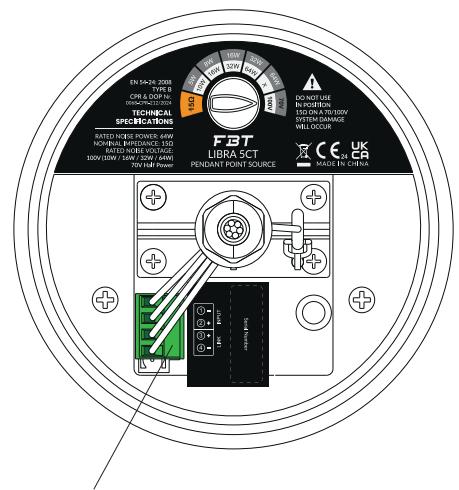

TOP CAP REMOVED FOR CLARITY
EUROBLOCK CONNECTOR - 4 PIN
Euroblock connector
LIBRA 5CT is equipped with a 4-pin Euroblock connector. Connect the positive wire (amplifier “+” output) to the pin “INPUT +” of the 4-pin EUROBLOCK connector. Connect the negative wire (amplifier “-” output) to the pin “INPUT -” of the 4-pin Euroblock connector. The “LINK +” and “LINK -” pins are useful to link another loudspeaker in parallel. The impedance value of each loudspeaker is 15Ω.
LIBRA 5CT is equipped with a line transformer, therefore the power amplifier must be equipped with constant voltage outputs at 100V or 70V. The input voltage of the loudspeaker must correspond to the output voltage of the amplifier and the sum of the nominal powers of all the loudspeakers connected to the line must not be higher than that of the amplifier. Before making the connections, adjust the input voltage and output power using the appropriate selector.
Warning
- The loudspeaker line shall be short (for long distances, it may be necessary to use cables with large cross-section wires).
- Always use cables having wires with an adequate cross-section, considering the cable lenght and the total loudspeaker power.
- Loudspeaker lines must be kept separated from the mains cables, microphone cables or others, in order to avoid inductive phenomena may cause hum or noises.
- Use loudspeaker cables with twisted wires to reduce hum caused by inductive effects due to coupling with electromagnetic fields.
- Do NOT connect the low impedance input directly to 70/100V constant voltage lines.
WARNING | Connect the cable, for the emergency system, to a junction box containing ceramic terminal and thermal fuse; as per fire regulations.
Constant voltage systems
This connection system requires that each speaker be equipped with a dedicated line transformer. The amplifier must have steady voltage outputs of 100V or 70V. Should it be necessary, the loudspeakers connected in parallel to the output of the amplifier allow you to extend the installation from any of the previously installed speakers, and also to remove the loudspeakers when no longer needed.
When making the connections, you have to observe the "phase" of speaker connection to its own transformer and also that of the parallel connection of the speakers. The input voltage of the speaker must match the output voltage of the amplifier; the total rating power of all speakers connected to the line must not be greater than that of the amplifier.
Low impedance systems
This connection system are generally used in the presence of lines with a small number of loudspeakers of a certain power placed at the minimum distance from the amplifier. The connection between the loudspeakers will be a mixed series/parallel, in such a way as to reduce the overall impedance of the loudspeakers to a non-critical value for the amplifier. A low impedance connection requires that the total impedance of the speakers be equal to or greater than that of the amplifier. The sum of the loudspeaker powers must be adequate for the maximum power that can be supplied by the amplifier.
Ex. The impedance of a single speaker is 16Ω ; parallel connection of two loudspeakers results in a total impedance of 8Ω (impedance = 16/number of loudspeakers).
IMPEDENZA TOTALE 8 OHM
Components
- Sheet metal plate - ceiling fixing
- Dome ceiling
- Cable
- Top cover
- Cable gland
- Screws for watertight closere
- Selector
- Carabiner for suspension cable
- Cabiner for safety cable
- Euroblock connector In & thru
- Libra 5CT shell
Warning
LIBRA 5CT sound speakers must be installed using the flying accessories described in this manual and following the special assembly instructions by qualified staff only, strictly complying with the current regulations and safety standards in force in the country of installation.
- FBT flying accessories are manufactured for their exclusive use with LIBRA 5CT systems and have not been designed for being used with any other speaker or device.
- FBT flying accessories are manufactured for their exclusive use with LIBRA 5CT systems and have not been designed for being used with any other speaker or device.
- The flying accessories in use are to be coupled and secured safety to both the sound speaker and the ceiling (or the other support).
- When components are fitted to ceilings, floors or beams, always make sure that all couplers and fixing elements are properly sized and have an adequate load capacity.
Special attention was paid to the selection of materials and the manufacturing so as to permit high safety levels. The staff in charge of hanging the array system must be skilled and qualified; the installer/user will be responsible of ascertaining limits and lifting procedures for the structures to which the array will be attached. An improper use of the array suspension system may cause major damage to persons and things.
WARNING | FBT ELETTRONICA SpA accepts no responsibility for any damage to people or objects if these instructions are not complied with or if the safety factor of all elements related to system suspension are not properly checked.
WARNING | The LIBRA speakers use only with FBT mount for wall installation. Use with other mounts is capable of resulting in instability causing possible injury.
STEP 1a.
Ceiling Installation
Secure the metal plate to the suspended ceiling using the provided screws. Insert the cables into the hole of the bracket
STEP 2a.
Ceiling Installation
Insert the cables (suspension and safety) into the appropriate cable clamp and wrap them around the support structure (e.g., beam); secure the cable using the cable clamp.

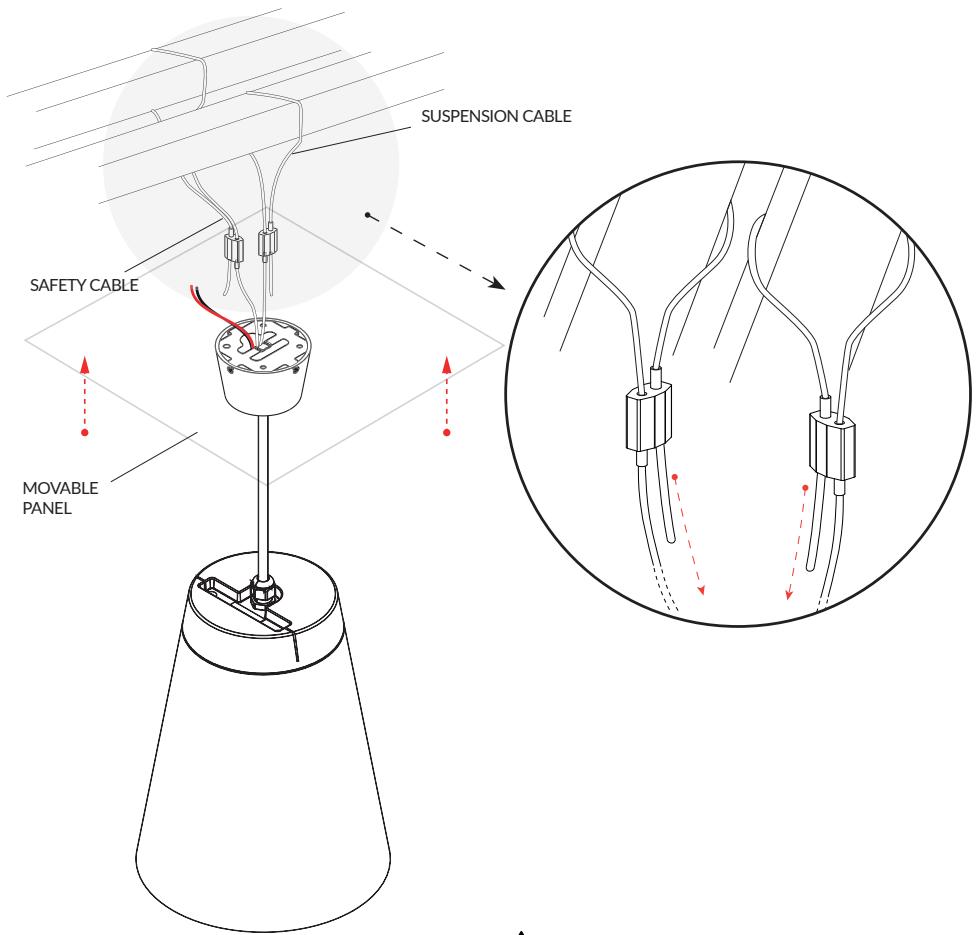

STEP 3a.
Ceiling Installation
Pull the free end of the suspension and safety cables to adjust the diffuser to the desired height.
STEP 4a.
Ceiling Installation
Reattach the ceiling panel and cover the hole with the dome by securing it onto the metal plate.
⚠ WARNING | Wrap and secure the safety cable on a separate or adjacent support structure to the suspension cable.
STEP 1b.
Concrete Installation
Attach the suspension cable to the metal plate using the cable clamp.
STEP 2b.
Concrete Installation
Insert the wall anchor with a ring (optional) into the hole of the metal plate and secure the safety cable.
STEP 3b.
Concrete Installation
Secure the metal plate to the concrete structure using the (optional) screws and cover it with the ceiling dome.
STEP 4b.
Concrete Installation
Cover the metal plate with the ceiling dome.
STEP 5.
Using the carabiner, fix the suspension cable in the central hole. Fix the safety cable in one adjacent hole of the support.
STEP 6.
Remove the EUROBLOCK connector, wire the connector and reinsert the connector into the loudspeaker.
1
STEP 7.
Rotate the selector to select the appropriate power tap setting on the top surface of the speaker.
STEP 8.
Close the back of the diffuser with the practical protective cap. Insert the screws supplied for watertight closure to the top of the speaker.
GENERAL
| Color code | Black | 45511 |
| White | 45483 | |
| Configuration | way | 2 coaxial |
| Low frequency woofer | inch | 5 - 1.5 coil |
| High frequency driver | inch | 1 - 1 coil |
| Line transformer | V / W | 70 - 100 / 64 |
| Operating / storage temperature | °C | -25 to +55 / -40 to +70 |
| Relative humidity | <95% |
ACOUSTIC SPECIFICATIONS
| Frequency response (@-6dB) | Hz | 80 - 20k |
| Sensitivity (@1W/1m) (bi-amp LF/HF) | dB | 86 |
| Dispersion (@-6dB)Narrow = Wide setting | 500Hz | 200° |
| 1kHz | 120° | |
| 2kHz | 85° | |
| 4kHz | 75° | |
| 8kHz | 95° | |
| MAX SPL (1m/4m) | dB | 104 / 92 |
| Recommended HP filter | Hz - db oct. | 70 - 24 |
INPUTS & OUTPUTS
| Input connectors | 4-pin Euroblock in & thru |
AMPLIFIER
| Recommended amplifier | W RMS | 120 |
| Rated noise power 100hrs (voltage) | W (V) | 64 (31) |
| Nominal impedance | Ohm | 15 |
| Nominal impedance 100V LINE | Ohm (W) | 156 - (64) |
| 312 - (32) | ||
| 625 - (16) | ||
| 1000 - (10) | ||
| Nominal impedance 70V LINE | Ohm (W) | 76 - (64) |
MECHANICAL SPECIFICATIONS
| Material | Cabinet | ABS |
| Grille | Aluminium | |
| Net dimensions (WxHxD) | inch | φ 8.5 × 10.82 |
| Transport dimensions (WxHxD) | inch | 12 × 13.58 × 12 |
| Net weight | lb | 8.81 |
| Transport weight | lb | 11.90 |
Product specifications
Packing specifications
Where affixed on the equipment or package, the barred waste bin sign indicates that the product must be separated from other waste at the end of its working life for disposal. At the end of use, the user must deliver the product to a suitable recycling centre or return it to the dealer when purchasing a new product. Adequate disposal
of the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes in preventing potentially negative effects on the environment and health and promotes the reuse and/or recycling of equipment materials. Abusive product disposal by the user is punishable by law with administrative sanctions.
BOX
Corrugated Cardboard
PAPER DISPOSAL
PROTECTIONS
Thermoformed Cellulose
PAPER DISPOSAL
Check the instructions of your municipality. Separate the components and disposal them properly.
AVOID RELEASE TO THE ENVIROMENT
SCAN FOR RECYCLING INFO
PLEASE FOLLOW YOUR AREA DISPOSITION
https://docs.fbt.it/filebrowser/share/l2CuWAX-
BAGS
Low-density Polyethylene
PLASTIC DISPOSAL
MANUAL
Paper
PAPER DISPOSAL
FBT
FBT ELETTRONICA SPA
Via Paolo Soprani 1 - 62019 RECANATI - Italy
Tel.071750591 - Fax.071 7505920
email: info@fbt.it - www.fbt.it
