USER MANUAL 1073 & 1084 AMS Neve
Contents
Introduction 1
High Pass Filter (resistor modification) 1
Important Note 1
Installation 2
Dimensions 3
Power Requirements 3
Mains Supply (rack units) 4
DC Power Supply Indicators (rack units) 4
Phantom Power 4
Output Level Control 4
Connector Details 5
Amplifier Controls 6
1073 Module 6
1084 Module 7
Specifications 8
1073 and 1084 Modules 8
Recall Sheets 9
1073 - Vertical Module 9
1073 - Horizontal Module 10
1084 - Vertical Module 11
1084 - Horizontal Module 12
Service Information 13
Schematic Drawing Index - 1073/1084 Racks 13
Schematic Drawing Index - 1073 Module 13
Schematic Drawing Index - 1084 Module 14
Introduction
These 45 series modules are the same as the original designs, and contain all of the original components.
1073 Channel Amplifiers
These very popular sounding mic pre's are considered by many to capture the very essence of the Neve sound. In manufacture since the early 1970s, the Class A design offers 3 bands of EQ with one fixed high frequency and a high pass filter.
1084 Channel Amplifiers
Based on the same technology as the 1073s, the 1084s again deliver the unique sound and quality of Neve. However, the 1084s offer additional features, including 3 switchable EQ bands with cut and boost, a high Q for presence and low pass/high pass filters.
High Pass Filter (resistor modification)
Important Note
The high pass filter in both the 1073 & 1084 modules is a passive design and as such must be correctly terminated to achieve a maximally flat response.
In order to achieve this there is a 5k1 resistor fitted inside the module on the back connector between pin E (0v) and pin K (fader send) see diagram below:
In situations where the fader connection is not used (most Neve 45 series consoles except BCM10's) then the resistor remains in place.
In situations where the fader connection is used (BCM10's and AMS Neve 1073/1084 racks) then the 5k1 resistor should be disconnected and replaced with a fader or potentiometer whose value is 4k7 / 5k ohms.
Failure to do so will result in incorrect levels and uneven frequency response.
Installation
The 1073s and 1084s are available as stand-alone modules, or in a choice of two housings.
The 3U rack houses two modules mounted horizontally in a 19" rack-mounting unit.
The 5U rack houses eight modules mounted vertically in a 19" rack-mounting unit.
Both have rear panels with XLRs for transformer balanced I/O.
The 3U rack rear panel has a fused, voltage selector IEC mains input connector. The 5U rack has a free standing AC supply with a fused, voltage selector IEC mains input connector and connects to the rack via a connector and a 1.5 meter cable.
Modules of any combination can be fitted into a rack unit.
Additional Information
*Rack Mount Instructions *_
A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.
B) Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.
C) Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.
D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.
E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).
Recommended Tma = 50 deg C
Mains Voltage Adjustment
1.) Switch off unit.
2.) Remove fuse.
4.) Replace fuse.
3.) Turn inner barrel with screwdriver or coin until correct voltage figure is under the white arrow on the housing.
Dimensions
| Stand-alone Modules | Width mm (inches) | Height mm (inches) | Depth mm (inches) | Approx. Weight kg (lbs) |
| 1073 Module | 45 (1.8) | 222 (8.75) | 254 (10) | 2.5 (5.5) |
| 1084 Module | 45 (1.8) | 222 (8.75) | 254 (10) | 2.5 (5.5) |
| 19" Rack Mounting | U | Depth mm (inches) | Height mm (inches) | Approx. Weight kg (lbs) |
| 2 Module Version | 3 | 405 (16) | 133 (5.25) | 11 (24.2) * |
| 8 Module Version | 5 | 405 (16) | 222 (8.75) | 30 (66) * |
* Fully populated rack
Power Requirements
| Rack Units | 3U | 5U |
| Rated Voltage | 100-230V AC | 100-230V AC |
| Rated Frequency | 50-60 Hz | 50-60Hz |
| Rated Current | 0.5A Max | 0.8A Max |
| Primary Protection Fuse: | ||
| Operating Voltage | 100-230V AC | 100-230V AC |
| Fuse Rating and Type | T0.5A H 250V20mm x 5mm CERAMIC | T1A H 250V20mm x 5mm CERAMIC |
| Location | IEC Mains connector | IEC Mains connector |
| Secondary Protection Fuse: | ||
| Output Voltage | 24V DC | |
| Fuse Rating and Type | T 2.0A L 250V20mm x 5mm GLASS | |
| Location | F1 | |
| Output Voltage | 48V DC | |
| Fuse Rating and Type | T 250mA L 250V20mm x 5mm GLASS | |
| Location | F2 | |
| Modules | Power |
| 1073 Module | 106mA 10mA at 24V DC. Negative Earth |
| 1084 Module | 106mA 10mA at 24V DC. Negative Earth |
Mains Supply (rack units)
The 3U rack has a fused, voltage selector IEC mains input connector.
The 5U rack has a free standing AC supply with a fused, voltage selector IEC mains input connector and connects to the rack via a connector and a 1.5 meter cable.
The mains switch on the rear panel of the 3U rack unit is non-illuminating.
The CH (chassis) and 0V are linked internally.
DC Power Supply Indicators (rack units)
The red LED on the front panel of both 3U and 5U rack units indicates +24V power healthy when illuminated.
The green LED on the front panel of both 3U and 5U rack units indicates +48V power healthy when illuminated.
Phantom Power
Phantom power can be supplied to each module by pressing the phantom power switch on the front panel of the 3U or 5U rack. The LED in the switch will illuminate confirming that phantom power is supplied.
Output Level Control
Each channel has an independent Output Level Control. The control is post-input, post-EQ and pre-output. This control can reduce the level at the output.
When the Output Control is fully clockwise the output gain is unity. The output is 20dB down with the control in the mid-position.
Modules In Transit
Please note that the designs of the AMS Neve classic modules and racks are to the original Neve specifications and are not designed to withstand transit.
Should you wish to move the rack from one location to another (for example shipping to another studio location or returning the rack to a repair center for servicing), please remove all installed modules from the rack and package the rack and each module separately in packaging suitable to withstand the intended transit.
If modules are installed in a rack while in transit, damage to the internal edge connectors may occur.
Standalone 1073 & 1084
Module Wiring to 18 way Free Plug
Amplifier Controls
1073 Module
High Frequency: Smooth +/-16dB fixed frequency shelving at 12kHz.
Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
Mid Frequency: Smooth +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz.
High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz.
EQL Button: Switches the equaliser in or out of circuit.
Phase Button: Gives 180° Phase change at Balanced Output.
1084 Module
High Frequency: Smooth +/-16dB shelving with selectable frequencies of 10kHz, 12kHz and 16kHz.
Low Frequency: Smooth +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz.
Mid Frequency: Smooth +/-12dB or +/-18dB peaking with switchable 'High Q', selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz.
High Pass Filter: 18dB per octave slope, switchable between 45Hz, 70Hz, 160Hz & 360Hz.
Low Pass Filter: 18dB per octave slope, switchable between 6kHz, 8kHz, 10kHz, 14kHz, & 18kHz.
EQL Button: Switches the equaliser in or out of circuit.
Phase Button: Gives 180° Phase change at Balanced Output.
Specifications
1073 and 1084 Modules
| Microphone Input: | Input Impedance 300 or 1200 , gain +80db to +20dB in 5dB steps. |
| Line Input: | Input Impedance 10,000 bridging, gain +20dB to -10dB in 5dB steps.Both inputs are transformer balanced and earth free. |
| Output: | Maximum output is >+26dBu into 600 . Output impedance is 75 @1kHz.Output is transformer balanced and earth free. |
| Distortion: | Not more than 0.07% from 50Hz to 10kHz at +20dBu output (80kHz bandwidth) into 600 . |
| Frequency Response: | +/-0.5dB 20Hz to 20kHz, -3dB at 40kHz Eq Out. |
| Noise: | Not more than -83dBu at all Line gain settings Eq In/Out (22Hz to 22kHz bandwidth).EIN better than -125dBu @ 60dB gain. |
Recall Sheets
1073 - Vertical Module
1073 - Horizontal Module
1084 - Vertical Module

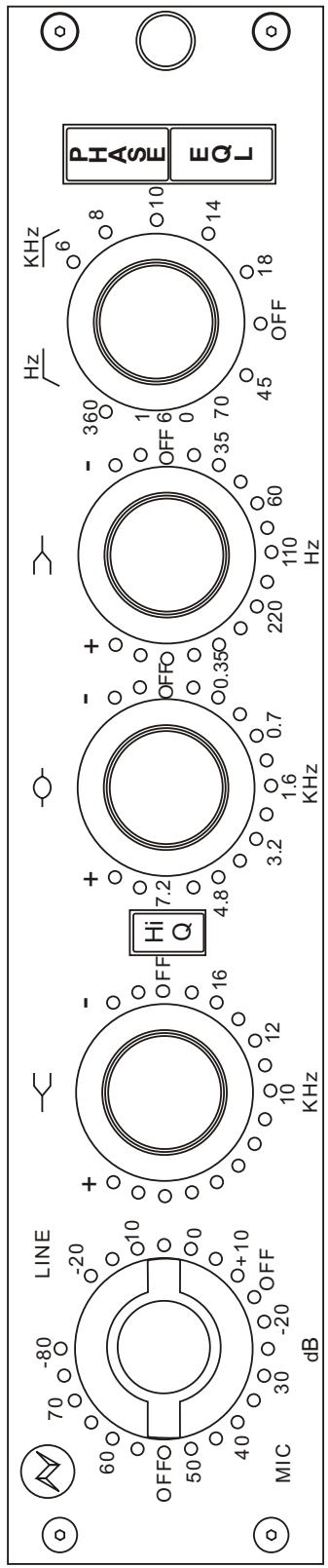

1084 - Horizontal Module
Service Information
Schematic Drawing Index - 1073/1084 Racks
| 3U Horizontal Rack (AM5028) | AM5028 Assembly Drawing AM5028 Wiring Diagram |
| 5U Vertical Rack (AM5033) | AM5033 Assembly Drawing AM5033 Wiring Diagram |
Schematic Drawing Index - 1073 Module
| 1073 Channel Amplifier (PL31073-C) | E10006 Block DiagramEH10023 Circuit Diagram |
| High Pass Filter (PL10182/C) | PL10182/C Assembly DrawingD/10019C Circuit Diagram |
| HF/LF EQ Frequency (PL10205) | PL10205 Assembly DrawingD/10042 Circuit Diagram |
| Presence Frequency (PL10211) | BA211 Assembly DrawingD/10048 Circuit Diagram |
| Mic Line Output (PL10283AV) | PL10283 Assembly DrawingEX10283 Circuit Diagram |
| Mic Amp/EQ Amp (PL10284) | PL10284 Assembly DrawingEX10284 Circuit Diagram |
| Sensitivity Switch (PL20033) | EK20033 Wiring Diagram |
| Low Frequency Switch (PL20065) | EK20065 Wiring Diagram |
| HP Filter Switch (PL20066) | EK20066 Wiring Diagram |
| Presence Switch (PL20105) | EK20105 Wiring Diagram |
Schematic Drawing Index - 1084 Module
| 1084 Channel Amplifier (PL31084-C) | EB20039 Block DiagramEH10036 Circuit Diagram |
| High Pass Filter (PL10182/A) | PL10182/A Assembly DrawingD/10019A Circuit Diagram |
| Low Pass Filter (PL10194/A) | PL10194/A Assembly DrawingD10031/A Circuit Diagram |
| HF/LF EQ Frequency (PL10205) | See 1073 drawing section |
| Presence Frequency (PL10211/A) | PL10211/A Assembly DrawingD/10048/A Circuit Diagram |
| Mic Line Output (PL10283AV) | See 1073 drawing section |
| Mic Amp/EQ Amp (PL10284) | See 1073 drawing section |
| Sensitivity Switch (PL20033) | See 1073 drawing section |
| Low Frequency Switch (PL20065) | See 1073 drawing section |
| Presence Switch (PL20105) | See 1073 drawing section |
| High Frequency Switch (PL20106) | EK20106 Wiring Diagram |
| HP/LP Filter Switch (PL20107) | EK20107 Wiring Diagram |
