USER MANUAL IIIi Cyrus Audio

User Instructions Cyrus IIIi

Cyrus Illi

IMPORTANT! Read before operating this equipment!

CAUTION: The exclamation mark is to draw your attention to important instructions and safety procedures in this manual.

ATTENTION: The lightning flash warns you of the risk of electrical shock presented by components inside this product. Unauthorised personnel must not open this unit.

WARNING: To reduce the risk of electrical shock do not remove any unit covers or panels. There are no user serviceable parts in this product.

WARNING: To reduce the risk of electric shock, do not expose this equipment to rain or moisture.

HEED WARNINGS: All warnings on the product and in the operating instructions should be adhered to.

READ ALL THE INSTRUCTIONS: All the safety and operating instructions should be read before the product is operated.

RETAIN INSTRUCTIONS: The safety and operating instructions should be retained for future reference.

FOLLOW INSTRUCTIONS: All operating and use instructions should be followed.

CLEANING: Unplug this product from the mains before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

WATER AND MOISTURE: Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement; or near a swimming pool and the like.

HEAT: The product should be situated away from heat sources such as radiators, stoves, or any other products (including amplifiers) that produce heat.

VENTILATION: Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product and to protect it from overheating and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

OBJECT OR LIQUID ENTRY: Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock.

ACCESSORIES: Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

ATTACHMENTS: Do not use attachments not recommended by the product manufacturer as they may cause hazards.

MOVING THE PRODUCT: A product and cart combination should be moved with care. Sudden stops, excessive force, and uneven surfaces may cause the product and cart to overturn.

POWER SOURCES: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

OVERLOADING: Never overload wall outlets, extension cords, or integral convenience receptacles. This can result in an increased risk of fire or electric shock.

POWER CORD PROTECTION: Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

LIGHTNING: For added protection for this product during a lightning storm, or when it is left unattended or unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

CAUTION! POLARISED CONNECTOR (CANADA and USA):

To prevent electrical shock, match wide blade of plug to wide slot, fully insert. Do not alter or remove this plug if it does not fit your mains power socket. Have a suitable socket installed by a competent electrician.

POWER SUPPLY: (Refer to Fig.1)

Connect the moulded IEC connector of the AC cord supplied plugs into the power inlet ⑮ on the rear of the unit. The mains fuse ⑯ is on the rear panel next to the power switch. It must only be replaced as follows:

U.K. / Europe 230V T1A 20mm

N. America / Far East - 115V T2A 20mm

The mains supply requirement for your Cyrus llll is marked on a label on the rear panel. Before connecting, check that this voltage is the same as your mains supply.

230V Products: Voltage Range 220V-240V

115V Products: Voltage Range 110V-120V

If you move to an area with a different mains voltage, contact your local Cyrus distributor to have your product converted.

NOTE FOR UK CUSTOMERS:

The Cyrus llll is supplied with a power cable terminated by a fused 13A mains plug. This plug should not be removed but if it is removed, dispose of it safely and do not re-use it. To connect a new 13A plug, proceed as follows: Connect the brown wire to the terminal marked L or coloured red. Connect the blue wire to the terminal marked N or coloured black. The internal plug fuse should be 5A.

SERVICING:

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

CONDITIONS REQUIRING SERVICE: Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• When the power supply cord or plug is damaged.
  • If liquid has been spilled, or objects have fallen into the product.
  • If the product has been exposed to rain or water.
  • If the product has been dropped or damaged in any way.

- If the product does not operate normally by following the operating instructions. (Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage requiring extensive work by a qualified technician to restore the product to its normal operation).

- When the product exhibits a distinct change in performance.

REPLACEMENT PARTS: When replacement parts are required, be sure the service technician has used replacements specified by the manufacturer or have the same characteristics as the original part. Unauthorised substitutions may result in fire, electric shock, or other hazards.

SAFETY CHECK: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

PRODUCT SERVICE CENTRES

For product service or technical advice, contact only authorised Cyrus service centres. The Cyrus distributors are listed at the end of this instruction manual.

Welcome to the world of Cyrus!

Congratulations on your choice of Cyrus Hi-fi products. Our state-of-the-art design technology and outstanding quality of manufacture has won countless awards around the world. We are confident that you will derive great pleasure from owning a product from one of the most recognised and respected manufacturers of hi-fi equipment.

Please read these instructions carefully before commencing installation. They provide full guidance to help you install your Cyrus llli safely and correctly.

Preparations for Installation

Before installing the Cyrus Illi check that the following items are included in the accessory box.

• Warranty Card (with instruction manual)
- Power Cable
- Remote Handset
• 4 Loudspeaker Plugs

After removing these items, please retain the packaging.

Install the Cyrus IIIi in a well ventilated location away from sources of high temperature, dust or humidity. Never stand the Cyrus IIIi under another unit or on any surface likely to hamper its cooling or ventilation.

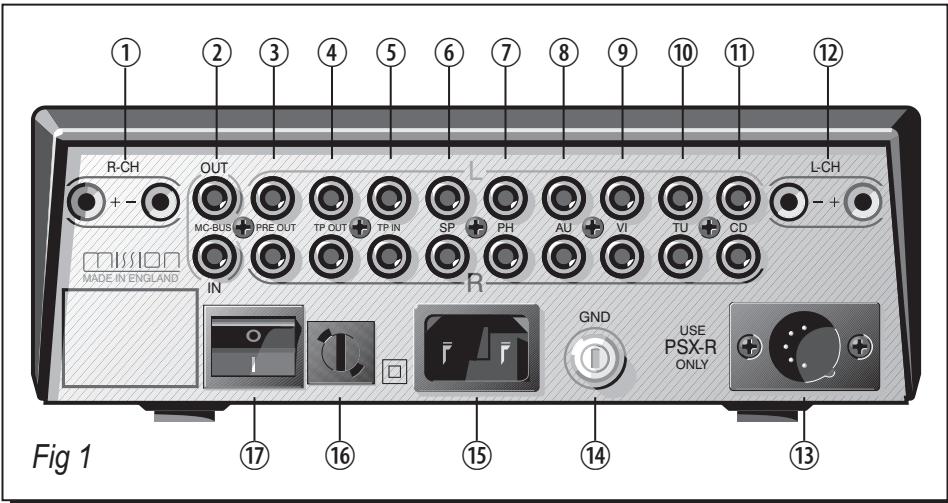

INSTALLATION (Refer to Fig 1)
Key to the rear panel drawing:

1.	Right Speaker Output	9.	Video Input
2.	MC-BUS System Connection	10.	Tuner Input
3.	Pre-Amplifier Output	11.	CD Input
4.	Tape Recorder Output	12.	Left Speaker Output
5.	Tape Input	13.	PSX-R Connection
6.	SP-Input	14.	Turntable Ground
7.	Phono Input	15.	Power Inlet
8.	Aux Input	16.	Mains Fuse Holder
		17.	Power Switch

Connecting to the AC Mains Supply

Connect the socket on the supplied AC Power cable to the Power inlet ⑮ on the rear panel of the Cyrus Illi. Now connect the cable to a suitable AC power point.

The mains power switch ⑰ on the rear panel of the Cyrus Illi should be left on for normal operation, except when left unattended for a long period when it should be switched off or disconnected from the AC supply.

Connecting Signal Inputs

Connect the output cable from the turntable to the phono input - PH ⑦. Follow the colour coding of the plugs. If the turntable has a ground wire fitted, connect this to the ground connection ⑭ of the Cyrus III.

The phono input of the Cyrus IIIi is suitable for use with either moving magnet or high output moving coil cartridges. If required, the phono input can be converted to an extra line input by your dealer.

Connect a phono cable between each component and the sockets as marked on the rear panel. Ensure left and right channels are correctly connected. The Cyrus IIIi has inputs for CD Player -CD ⑪, a tuner - TU ⑩, a Home Theatre decoder - VI ⑨ and two auxiliary inputs - AU ⑧ and SP ⑥ which can be used to connect a wide variety of products. Check the specification of these products before connecting to your Cyrus IIIi.

You will need two phono cables. Connect one cable from the Output or Playback sockets of the tape deck to the Tape Input - TP IN ⑤ of the Cyrus IIIi and a second cable from the Input or Record sockets of the tape deck to the Tape Record Output - TP OUT ④ sockets of the Cyrus IIIi.

Connecting Loudspeakers

Fit the supplied plugs to the loudspeaker cables making sure to line up + and - at each end. Most cables have polarity indicators and may also be marked for directionality. The + and - terminals of the Cyrus IIIi must be connected to the corresponding + and - terminals of the loudspeakers. Having ensured that your connections are secure, connect the left and right loudspeakers to the rear panel sockets ① and ⑫ of the Cyrus IIIi.

MC-BUS System (Refer to fig's 1 & 7)

Connecting the MC-BUS sockets ② of the Cyrus Illi in an MC-BUS system provides unified system control. An MC-BUS loop is established by connecting single phono cables from the MC-BUS output of one unit to the MC-BUS input of another in a daisy-chain. Complete the loop by returning the MC-BUS output of the final component to the MC-BUS input of the first.

With MC-BUS established you can control the power function of the entire system from the Cyrus IIIi, from the front panel or remote control. Selecting 'CD' from the front panel will switch on the Cyrus IIIi, the Cyrus Power and a Cyrus CD player. When the Cyrus IIIi is set to Standby, the entire system will also switch off.

When a Cyrus AV-master is in the MC-BUS loop, setting of the volume calibration level will take place automatically when Cyrus Illi's. VI input is selected. Refer to the Cyrus AV-master handbook for further details.

External Regulated Power Supply - PSX-R

The PSX-R is a unique DC power supply which will upgrade the sonic performance of your Cyrus IIIi and enhance its current drive. When a Cyrus IIIi / PSX-R combination is installed, analogue and signal related sections of the Cyrus IIIi are powered from this clean, stable power source while other requirements are supplied internally. This ensures complete isolation of control circuits and sensitive analogue sections reducing AC mains-borne noise and power supply ripple.

To connect the PSX-R to the Cyrus IIIi plug the connector on the umbilical cord of the PSX-R into the Multi-Pole socket on the rear of the Cyrus IIIi ( ^⑬ Fig.1) You will need a mains supply for both units.

NOTE- When you add a Cyrus PSX-R to your system it is essential for your Cyrus Illi to be modified by your dealer or an authorised Cyrus service organisation. Connecting the Cyrus PSX-R to a Cyrus Illi, which is not correctly modified will result in a fault condition display on the Cyrus Illi. (see page 4 for further details.)

OPERATION (Refer to fig 2)
Key to the front panel drawing:

1.	Mute Switch	8.	SP Input
2.	Standby Switch	9.	Auxiliary Input
3.	Standby Light	10.	Video (AV) Input
4.	Balance	11.	Tuner Input
5.	Remote Eye	12.	CD Input
6.	Level Control	13.	Phono
7.	Tape Monitor Switch

Power

When power is applied, the STANDBY key ② is used for power control. The Standby light ③ shows green when the Cyrus IIIi is operating and glows red when in standby mode. The Cyrus IIIi will switch from standby to on, when any input key ⑧-⑬ is selected.

When the Cyrus Illi is switched on from the rear panel mains switch, it will perform a self-test and sit in Standby mode. When first switched on from standby the CD input is automatically selected and the volume is set to minimum.

After the Cyrus IIIi as been operational and the unit is switched back into Standby mode, all settings for input selection and Volume/Balance are retained.

Selecting an Input

The INPUT SELECT keys ⑧-⑬ switch selected line level input sources. When an input key is selected, the red indicator above the key will turn on.

Recording and Playback

You can listen to a recording by selecting key ⑦, the TAPE MONITOR key - TP. The indicator above the TP key will light in addition to the selected source. To cancel, press the TP key again. If your tape deck has a three-head facility, you can use the TP key to monitor the recording directly from the third head, whilst recording.

To record, press the relevant Key ⑧-⑬ and follow the recording instructions in your tape deck manual.

Volume and Balance (Refer to fig 4)

The LEVEL CONTROL ⑥ of the Cyrus Illi performs the dual functions of volume and balance.

Volume: In normal mode the LEVEL CONTROL controls the volume in 1dB steps The light ring around the knob is calibrated to show the current loudness level. When the volume is at minimum the first indicator on the light ring will be RED. As the volume increases a GREEN light moves clockwise around the ring. The volume setting is always preserved when the unit is put into standby mode.

Balance: Press the BALANCE control key ④ to change the mode of the LEVEL CONTROL ⑥ to that of Left/Right Balance. The light ring works in "reverse video" with the unlit section indicating the position of L-R balance. You can alter L-R balance by up to +/-4dB and switch one channel off completely when the control is turned to an extreme.

Mute

Pressing the MUTE Key ① will fade the volume to minimum level without disturbing the existing setting. When muted the RED minimum level indicator will light as well as the existing GREEN light to show that the output is muted. Move the volume knob or press the Mute key to fade back up to the original volume setting.

Bi-amping / Tri-amping

The pre-amplifier output of the Cyrus Illi may be used in conjunction with added power amplifiers to upgrade your loudspeaker system through Bi-amping or Tri-amping. The Cyrus Power is recommended for this application.

Programmable Input Sensitivity (Refer to fig 5)

You may find an audible difference in level when switching from one input to another due to the differing outputs of your source components. The unique calibration memory of the Cyrus III can be programmed to match the sensitivity of all inputs with reference to the CD input. To program an offset:

1. Select CD input and set the volume control to a comfortable listening level.
2. Select the desired input and hold the input key down. The volume display switches to show input offset.
3. Adjust the level to the same audible volume as the CD player. The display will read the offset applied.
4. Press the input key again to store this setting.

Repeat Steps 2 - 4 for each input to set the appropriate sensitivity level.

Fig. 5(a) - 5(c) shows settings for Input Sensitivity levels set -2 dB, 0dB and +2dB relative to the CD input respectively.

CYRUS AUDIO COMMANDER (Refer to Fig 3)

To insert the batteries. Remove the battery cover on the rear of the handset. Insert the AAA batteries observing all the polarity markings. Replace the compartment cover.

Operating the Cyrus Audio Commander

Key to the Audio Commander drawing (Fig. 3)

Keys 1 -9 affect the operation of the Cyrus Illi

1. Select the VI input
2. Select CD and TU inputs If you have a Cyrus CD Player or Cyrus FM7 Tuner, pressing a key will switch the appropriate unit on together with the Cyrus Illi.
3. Select AUX or SP input
4. Toggle TAPE MONITOR On/Off
5. Adjust Volume
6. Select BALANCE
7. Select MUTE
8. Switch OFF all Cyrus units
9. Switch ON the Cyrus Illi.

If CD or TU inputs have been selected with the Audio Commander, the following keys 10-20 will control a Cyrus CD Player or the Cyrus FM7 Tuner-

1. Select Play ....Cyrus CD Players
2. Select Pause ....Cyrus CD Players
3. Select FAST FWD / REV......Cyrus CD Players Auto tune - SEEK UP / DOWN......Cyrus FM7
4. Select NEXT/PREVIOUS track ....Cyrus CD Players Select Preset UP / DOWN....Cyrus FM7
5. Select STOP / EJECT ......Cyrus CD Players
6. Store a Program......Cyrus CD Players Store a Preset......Cyrus FM7
7. Numeric Keypad...... Cyrus CD Players & FM7
8. Switch Display On / Off ...... Cyrus CD Players & FM7
9. Set Absolute Phase......Cyrus dAD3 CD Player Set Repeat......Cyrus dAD1 CD player
10. Select Elapsed Time / Time remaining ....Cyrus CD Players
11. Select MONO / STEREO ....Cyrus FM7

TROUBLESHOOTING GUIDE

If your Cyrus Illi is not operating properly, disconnect the power and check carefully all connections.

If you are in any doubt, consult your dealer.

No sound
Amplifier switched off or in Standby	Bring unit out of Standby(Standby light - GREEN)
Mute is on (RED light on Vol. Ring)	Deselect Mute
Tape Monitor on(RED tape light)	Operate Source
Source not working(e.g. CD not playing)	See ‘Fault Indication System’
No sound from one loudspeaker
BAL control at extreme limit	Centralise Balance
Does your speaker have fuses?	Check speaker, replace fuses
Speaker cables / interconnects faulty	Check connections, cables -replace if needed
Spurious noises from speakers
Interconnects or connections faulty	Check, replace where necessary
Phono Ground not connected	Make sure ground wire is firmlyconnected
No response from any keys
Switch off at rear panel, wait one minute and switch on.The problem should clear

The Cyrus Illi has a unique fault indication system to help you to diagnose problems. All fault indications appear on the Standby light on the front panel.

Fault indications at first installation of a Cyrus IIIi with a PSX-R

Flashing Red
The Cyrus IIIi is modified for PSX-R but the PSX-R is not properly connected	Check PSX-R is plugged into Cyrus IIIi and that both units are connected to the mains
Flashing Green
A PSX-R is connected to a Cyrus IIIi which has not been modified to take the PSX-R	Unplug PSX-R, check Cyrus IIIi. If Cyrus IIIi works OK, return to dealer for modification

Fault Indications during use

Flashing Green and Yellow
An overload condition usually caused by excessive level or a problem with your loudspeakers	Reduce level or Unplug speakers amplifier should restore
Flashing Green
A fault condition has been reported from the PSX-R	Switch off power to both units, wait one minute, switch on - amplifier should restore
Flashing Red
An internal problem with Cyrus IIIi or PSX-R	Switch off and on - amplifier should restore

Remote control not working

Remote control not operating	Check batteries
Remote control will not operate a Cyrus CD player or tuner	CD or TU button must be pressed before sending a command

If a fault condition still remains, return the Cyrus IIIi (together with the PSX-R if you are using one) to your Cyrus appointed dealer or an authorised Service Centre.

WARRANTY

The warranty card enclosed should be completed by the Dealer and the purchaser and returned to CYRUS or its Distributor within 8 days of purchase. No Dealer or Distributor may vary the terms of this warranty, which is personal to the original Purchaser and is not transferable.

Please retain the sales receipt as proof of purchase.

Warranty claims must wherever possible be made through the Dealer from whom the equipment was purchased.

This warranty excludes:

• Damage caused through neglect, accident, misuse, wear and tear, or through incorrect installation, adjustment or repair by unauthorised personnel. Any unauthorised servicing will result in loss of warranty.
• Liability for damage or loss occurring in transit to or from the purchaser.
• Consequential damage, loss or injury, arising from or in conjunction with this equipment.

Equipment for attention under warranty should be consigned return carriage paid. If returned equipment is found to comply with the published specification, CYRUS reserves the right to raise a charge.

The above conditions do not affect your statutory rights as a consumer.

SPECIFICATIONS

Power Supply
Voltage:	As plate on rear of unit
Power Consumption
Standby	(12W)
ON (No Load)	(23W)
ON (2 x 50W/Ch)	(185W)
Safety Requirements	CE, CSA and UL
Enclosure
Dimensions (WxHxD)	215 x 75 x 365mm
Weight	4.6Kg
Material	Die cast chassis

Audio Performance

Input Sensitivity (50W/8Ω)	Line	200mV
	Phono	2.75mV
Input Impedance	Line	50kΩ
	Phono	47 kΩ/50pf
Frequency Response (-3dB)	Line	4.5Hz, 80kHz
RIAA accuracy	Phono	+/-0.2dB
Signal to Noise Ratio (A-WTD)	Line	107dBA
	Phono	83dBA/5mV
Power Output (both channels driven)	8 Ohms	50W
THD+N (Pre-Amp) 1kHz	Line	<0.004%
	Phono	0.01%
THD+N (1kHz, 2/3 power)	8 Ohms	<0.005%
(both channels driven)

Cyrus reserves the right to change all specifications without notice. E &OE

Stonehill, Huntingdon, Cambridgeshire, PE18 6ED

Tel: [phone], Fax: [phone]

Internet: www.cyrus.co.uk

To the Purchaser: In order for us to bring you excellent customer support, please remember to register your purchase!

ARGENTINA: Wullich Audio Visual

Paraguay 1524, 1061 Buenos Aries

Tel: [phone], Fax [phone]

AUSTRALIA: Crestmore Pty Ltd.

Unit 4/42 Leighton Place, Hornsby NSW 2077

Tel: [phone] or (61) 29988 4555, Fax: [phone]

BELGIUM: Belram Hi-Fi nv/sa,

CANADA: Mission Electronics Inc.

400 Matheson Boulevard East, Unit 31, Mississauga, Ontario, L4Z 1N8

Tel: [phone] Fax: [phone]

CROATIA: SONATEL doo

A Heinza 3, 10 000 Zagreb

Tel: [phone] Fax: [phone]

CYPRUS: Nicos Hadjioannou & Sons Ltd.

No 14A Arch Makarios III Ave, PO Box 5478, Nicosia

Tel: [phone] Fax: [phone]

CZECH REPUBLIC: DATART International

Pernerova 35, Praha 8 - 186 00, Karlin

Tel: [phone] Fax: [phone]

DENMARK: Verity Scandinavia APS

Industrivej 30, DK 2605, Brondby

Tel: [phone], Fax: [phone]

FINLAND: SLO-Kondintekniikka

FRANCE: Audio Marketing Services

1 Rue Jean Perrin, 93150 Le Blanc Mesnil, Paris

Tel: [phone], Fax: [phone]

GERMANY: Mission Electronics, GmbH

Hindenburgstrasse 107, 22297 Hamburg

Tel: [phone], Fax: [phone]

GREECE: Kinotechniki Ltd.

47 Stournara Street, 106-82 Athens

Tel: [phone], Fax: [phone]

Acoustic House, John F Kennedy Drive, Naas Road, Dublin 12

Tel: [phone], Fax: [phone]

ISRAEL: S G Electronics Ltd.

59 Pinsker St, Tel Aviv 63568

Tel: [phone], Fax: [phone]

ITALY: MPI Electronic SRL

Via de Amicis 10/12, 20010 Cornaredo, Milan

Tel: [phone], Fax: [phone]

KENYA: Ashna Electronics AE

PO Box 18558, Nairobi

Tel: [phone], Fax: [phone]

KOREA: Sungmin Trading

653-17 Panghak Dong, Dobong-Gu, Seoul 132-020

Tel: [phone], Fax: [phone]

KUWAIT: Easa Husain Al-Yousifi

PO Box 126 Safat - 13002

Tel: [phone], Fax: [phone]

LEBANON: Top Ten

Phoenica Street, Ajram Bldg, PO Box 4680, Beirut

Tel: [phone], Fax: [phone]

LITHUANIA: Ogmios Pulsas

Verkiu 29, LT-2600 Vilnius

Tel: [phone] or (37) 02 722888, Fax: [phone]

MALTA: Cachia & Galea

Standard Buildings, De Brockdorf Street, Msida MSD-02, Malta

Tel: [phone], Fax: [phone]

MAURITIUS: Lo Thiap Hing Ltd.

Level 2, Labourdonnais Court Building, Cnr St Georges/Labourdonnais

Streets, Port Louis. Tel: [phone], Fax: [phone]

NEW ZEALAND: Crestmore Pty Ltd.

PO Box 99-111, New Market, Auckland

Tel: [phone], Fax: [phone]

NORWAY: Verity Norway a/s

Haslevn 28, Inng 3 (entrance 3) 0571 Oslo.

Tel: [phone], Fax: [phone]

POLAND: Misja Audio

Speridonevsky per, 17 Moscow

Tel: [phone], Fax: [phone]

SAUDI ARABIA: Ultimate Fidelity Trdg Est

Sameria Comm. Center, Roadah Dist. PO Box 7760 Jeddah 21472

Tel: [phone], Fax: [phone]

SINGAPORE: Pertama Audio Pte Limited

315 Outram Road, #01-01/02 Tan Boon Liat Bldg, Singapore 169074

Tel: [phone], Fax: [phone]

SLOVENIA: Bofex doo

Ljubljana, Smartinska 152, Hala 5, 61000 Ljubljana

Tel: [phone], Fax: [phone]

SOUTH AFRICA: Hi Fi Specialists (Pty) Ltd.

155 Durbon Road, Bellville 7530

Tel: [phone], Fax: [phone]

NOTES

SPAIN: EAR SA

Heraclio Fournier 5, Vitoria 01006

Tel: [phone], Fax: [phone]

SWEDEN:Verity Sweden AB

Kanotleden 1, 362 21 Tingsryd

Tel: [phone], Fax: [phone]

SWITZERLAND: F.S. Fidelity Sound AG

6F 148 Sung Kiang Road, Taipei

Tel: [phone], Fax: [phone]

THAILAND: Oriental Elecktrek Ltd.

155-163 Chulalongkorn 16, Patoomwan, Bangkok 10330

Tel: [phone], Fax: [phone]

UNITED ARAB EMIRATES: Ms Vithaldas V & Sons Ltd (LLC)

PO Box No. 105, Dubai

Tel: [phone], Fax: [phone]
