USER MANUAL Max-DCR Flush Mount Enclosure Heatstrip
HEATSTRIP®
FLUSH MOUNT KIT PRODUCT MANUAL
THX-DCR Flush Mount Enclosure
Take heating to the Max!
HEATSTRIP®
Flush Mount Enclosure
March 2022
The Flush Mount Enclosure is an ideal way to neatly install the HEATSTRIP ® Max-DCR into a ceiling. They are available for both HEATSTRIP ® Max sizes and are supplied as a one-piece unit for mounting of heaters. Flush mounting can be used with plaster or wood lined ceiling materials.
An ideal mounting height is 2.4m - 2.7m, with a maximum ceiling height of 3m in an outdoor environment. Maximum mounting heights should be strictly followed, otherwise the performance of the units may be reduced.
The facia of the enclosure is manufactured from 316 Stainless Steel and powder coated black and the rear casing is black zinc coated steel.
Please refer to the Installation Manual for more detailed installation information.
| SUITABLE FOR MODELS | PART No | HOLE CUTOUT DIMENSIONS (mm) | OVERALL DIMENSIONS (mm) | WEIGHT (kg) |
| THX2400DCR | THXAC-034 | 1088 x 234 | 1146 x 290 x 180 | 5 |
| THX3600DCR | THXAC-035 | 1278 x 234 | 1220 x 290 x 180 | 7 |
HEATSTRIP®
Flush Mount Enclosure dimensions
| PART No | MODEL | “A” (mm) | “B” (mm) | “C” (mm) |
| THXAC-034 | THX2400DCR | 1146 | 1088 | 1090 |
| THXAC-035 | THX3600DCR | 1336 | 1278 | 1280 |
HEATSTRIP®
Installation Clearance Dimensions
Shown in the diagrams below are the minimum clearance required for the installation of the Flush Mount Enclosure.
It is imperative that all cables, backing materials, insulation and other materials are keep clear of the back and the sides of the Flush Mount Enclosure.
View from side
View from above unit
HEATSTRIP®

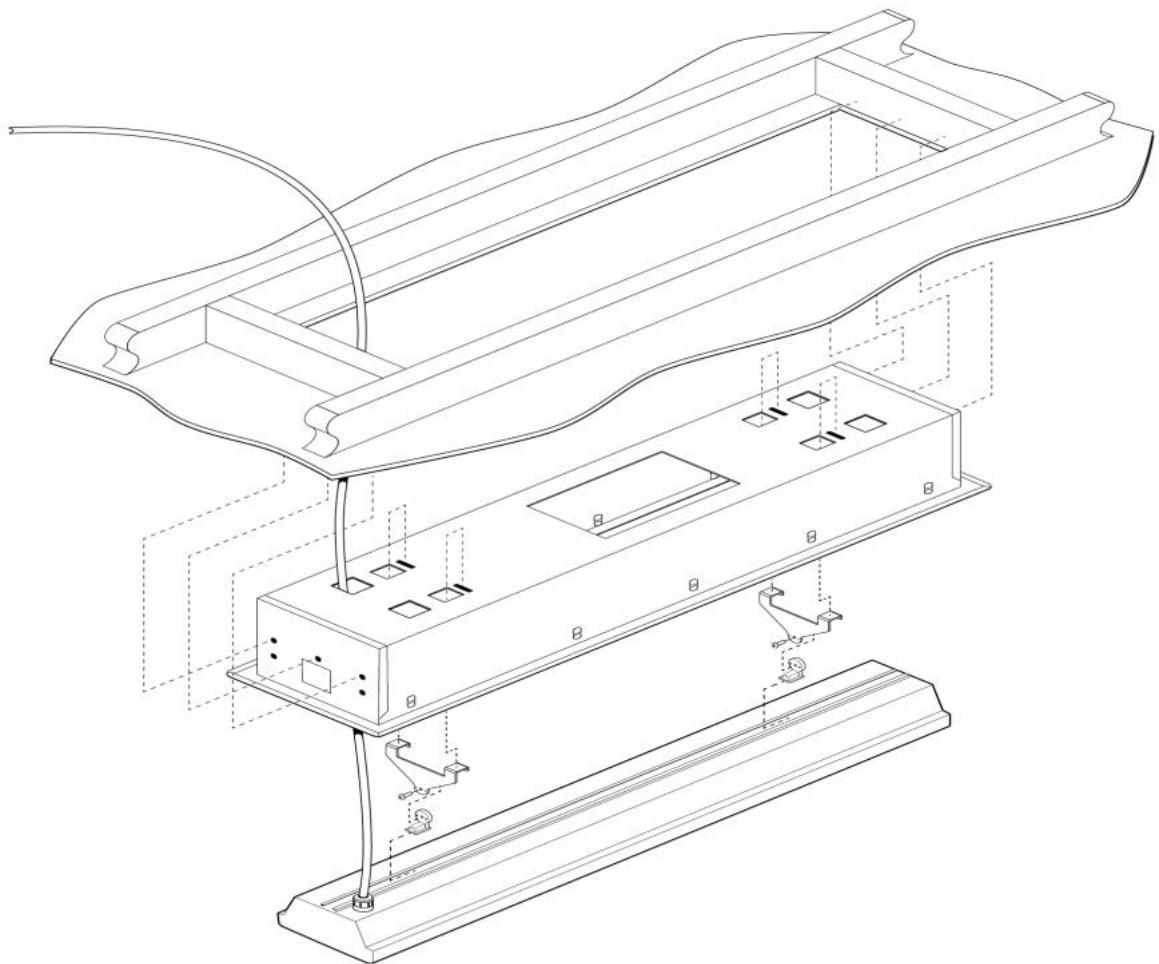

Installation Instructions
Ensure all minimum clearance requirements are met and the materials used are compliant to your local building codes.
Before installing the flush mount enclosure, ensure the site to be fixed is fully prepared with the hole cut the correct size and the mounting points securely in place.
| MODEL | “D” DISTANCE FROM END TO BRACKET (mm) |
| THX2400DCR | 234 |
| THX3600DCR | 174 |
STEP 1:
Attach the brackets to the rear of the heater. The dimensions for the spacing of the brackets is listed in the table.
STEP 2:
Screw the enclosure into the battens.
NOTE: screws are not included.
STEP 3:
If there is no roof access, connect the heater to the power source, ensure the power is OFF.
STEP 4:
Lift the heater into the enclosure ensuring the brackets are to the side of the mounts
STEP 5:
Push the heater to the left ensuring the brackets engage in the mounts. It will then drop in. Shake the heater to ensure that it is securely mounted.
HEATSTRIP®
Safety
In operation, this heater is VERY HOT — do not touch any part of the heater while it is turned on. Do not touch any part until 30 minutes after it is turned off.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or intellectual capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the appliance.
Do not allow any cables, furnishings, flammable materials or other items come in contact with any surface of the Flush Mount Enclosure.
If installed in wet areas, the heater switches or controls must be located so that they cannot be touched by persons in the bath or shower.
The Flush Mount Enclosure needs to be installed as per the installation instructions paying special attention to the minimum clearances. The heater needs to be mounted on a rigid bracket or fixing.
See the heater Operations, Installation and Maintenance Manual for the heater specific guidelines.
Maintenance
The Flush Mount Enclosure is made from durable materials, however regular care and maintenance of your product will help prolong its life.
It is recommended that you wipe down your Flush Mount Enclosure and with a soft cloth gently wipe the surfaces of the FME with a mild detergent to remove the built up contaminants from the environment. Then with a clean cloth ensure all detergent is removed.
All chemicals in the atmosphere including cigarette smoke, pollution etc. will tarnish the surface of the Flush Mount Enclosure. In this case, additional cleaning and maintenance may be required. The cleaning process at least every three months will reduce the amount of build up and keep it looking as best it can. If the Flush Mount Enclosure is in a corrosive environment eg. salt spray, we recommend that you clean the FME every week.
Before cleanings or inspection activity, the heater must be switched off and cooled down completely.
Do not use any abrasive materials or products to clean the Flush Mount Enclosure, this includes solvents, citrus based cleaners or other harsh cleaning products.
When handling the Flush Mount Enclosure, ensure that your hands are clean or that you use clean gloves as grease or dirt can mark the surface of the heater.
Do not use high pressure water to clean Flush Mount Enclosure. It is not recommended to hose down the FME and heater as water may get into the roof cavity.
HEATSTRIP®
Warranty Terms & Conditions
The below Warranty Terms and Conditions apply for New Zealand and Australia only. For international warranty please refer to international warranty terms and conditions.
Thermofilm warrants to the original owner that the FLUSH MOUNT ENCLOSURE product will be free from defects in materials and workmanship for a period of 12 months from the date of purchase in accordance with the following warranty terms and conditions.
Provision of this warranty is subject to:
- The HEATSTRIP ® FME product must be installed in accordance with the Installation Instructions and relevant electrical standards and codes.
- The HEATSTRIP ® FME product must be maintained and cleaned according to instructions detailed in the Installation Manual.
- There is no warranty expressed or implied with regard to capacity requirements. The selection of the unit or units depends entirely upon the system design and capacities as determined by the purchaser.
- The customer has not repaired, opened or altered the product in any unauthorised manner.
- This warranty excludes damage to the product or components arising from circumstances outside the control of Thermofilm, including, but not limited to, where the product is not used for intended purpose; where the product has been rectified in any way; incorrect installation; incorrect power supply; damaged caused during delivery; misapplication, misuse, abuse, vandalism, lack of maintenance or accident.
- Thermofilm's obligations under this warranty are limited to repair or replacement at Thermofilm's factory of any components of the product which Thermofilm identifies to its satisfaction to be defective.
- Transportation charges involved in return of the product to the Thermofilm factory (or any other location authorised in writing by Thermofilm) is the sole responsibility of the customer.
- All products are inspected and tested before despatch and are at the risk of the purchaser after the shipment from the Thermofilm factory, if not delivered by Thermofilm to destination.
• Discolouration of the surface may occur after a period of time, this does not constitute a warrantable event. - No products or components will be supplied in advance of an examination of the faulty product or components by Thermofilm or an authorized representative of Thermofilm.
- Thermofilm does not participate in any site related costs or labour expenses incidental to replacement of parts, repairing, removing, installing, servicing, transportation or handling of parts to complete products, and assumes no liability on parts repaired or replaced without written authorisation. Thermofilm shall not be liable for any default or delay in performance of its warranty obligations caused by any circumstances beyond its control, including, but not limited to, judicial or government restrictions, strikes, fires, floods, abnormal weather conditions, delayed supply of components.
Should products be determined as damaged on arrival, immediately notify the transport company of the condition and have them noted on the freight documents. If damage is discovered after unpacking, demand immediate inspection by the transportation company and insist that a record of the damage is made on the freight documentation.
The customer warrants using the product in accordance with:
• Any instructions provided to it by Thermofilm from time to time.
- All government and local regulations, including but not limited to all relevant electrical, environmental laws and regulations governing the installation, storage, use, handling and maintenance of the goods.
- All necessary and appropriate precautions and safety measures relating to the installation, storage, use, handling and maintenance of goods.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
All warranty requests for repairs or replacements must be accompanied by a complete “Warranty Claim Form” available from Thermofilm, together with proof of purchase (and where possible, photos of the installation) and the heater returned to the place of purchase. In the event of a warranty claim, the goods need to be returned to the distributor/retailer for repair/replacement. Contact
