USER MANUAL VT3745 VIEWSONIC
VT2645 VT3245 VT3745
LCD TV IMPORTANT. Please read this User Guide to obtain important infor- mation on installing and using your product in a safe manner, as well s registering your product for future service. Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http} wwwviewsonic.com in English, or in specific languages using the Regional selection box in the upper right comner of our website. “Before operating the equipment, read the
instructions in this manual carefully."
Dear ViewSonic customer,
Congratulations on your purchase of a ViewSonic TV display. For maximum benefit of your TV, please read these instructions before any operations.
For assistance, please contact ViewSonic service team at http://www.viewsonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775.
To purchase or inquire about any accessories and installation services for your TV, please visit www.viewsonic.com or call: United States 1-800-688-6688, Canada 1-866-463-4775.
Important! Please save the original box and all packing material for future shipping needs.
LL We recommend you to register your TV on the internet at: www.viewsonic.com
Product Registration
To meet your future needs, and to receive any additional product information as it becomes available, please register your product on the internet at: www.viewsonic.com.
For Your Records Product Name: [ ] VTxxxx (VT2645, VT3245, or VT3745) ViewSonic LCD TV Document Number: [ ] VTxxxx-1M_UG_ENG Rev. 1A mm-dd-yy Serial Number: Purchase Date:
Product disposal at end of product life
ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may pro- vide information about proper disposal.
The lamp in this product contains mercury. Please dispose of properly in accordance with environmental laws of your location.
For technical support or product service, see the table below or contact your reseller. Note: You will need the product serial number.
T (Toll-Free United States www.viewsonic.com T (Toll) = F = 1-909-468-1202 T (Toll-Free) = Canada WwWw.vieWwsonic.com T (Toll) = F- 1-909-468-1202 Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. T 1.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatän. Tel: 01.999.925.19.16
Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico
Name, address, of manufacturer and importers:
To find the perfect mount for VT2645, VT3245, and VT3745, please browse www.views- onic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775.
The symbol is intended to alert the user to presence of un-insulated “Hazardous A Voltage” within the product’s enclosure that may be of sufficient magnitude to consti- tute a risk of electric shock to persons.
product malfunction. The user should pay attention to avoid accidents or unnecessary
This symbol is intended to alert the user that improper use of the product may result in problems.
Wet Location Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
Outdoor Use WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Disconnect Device - The Mains Plug or An Appliance Coubpler
The mains plug or an appliance coupler is used as the disconnect device for disconnection from the mains, the disconnect device shall remain readily operable.
Product Registration
Turning the TV On and Off Changing Channels Adjusting the Volume Viewing the Displayed Information Cleaning the LCD TV To clean the screen: …..
To clean the case: Disclaimer
Troubleshooting nn Specifications sise Limited Warranty sise Mexico Limited Warranty ns 48

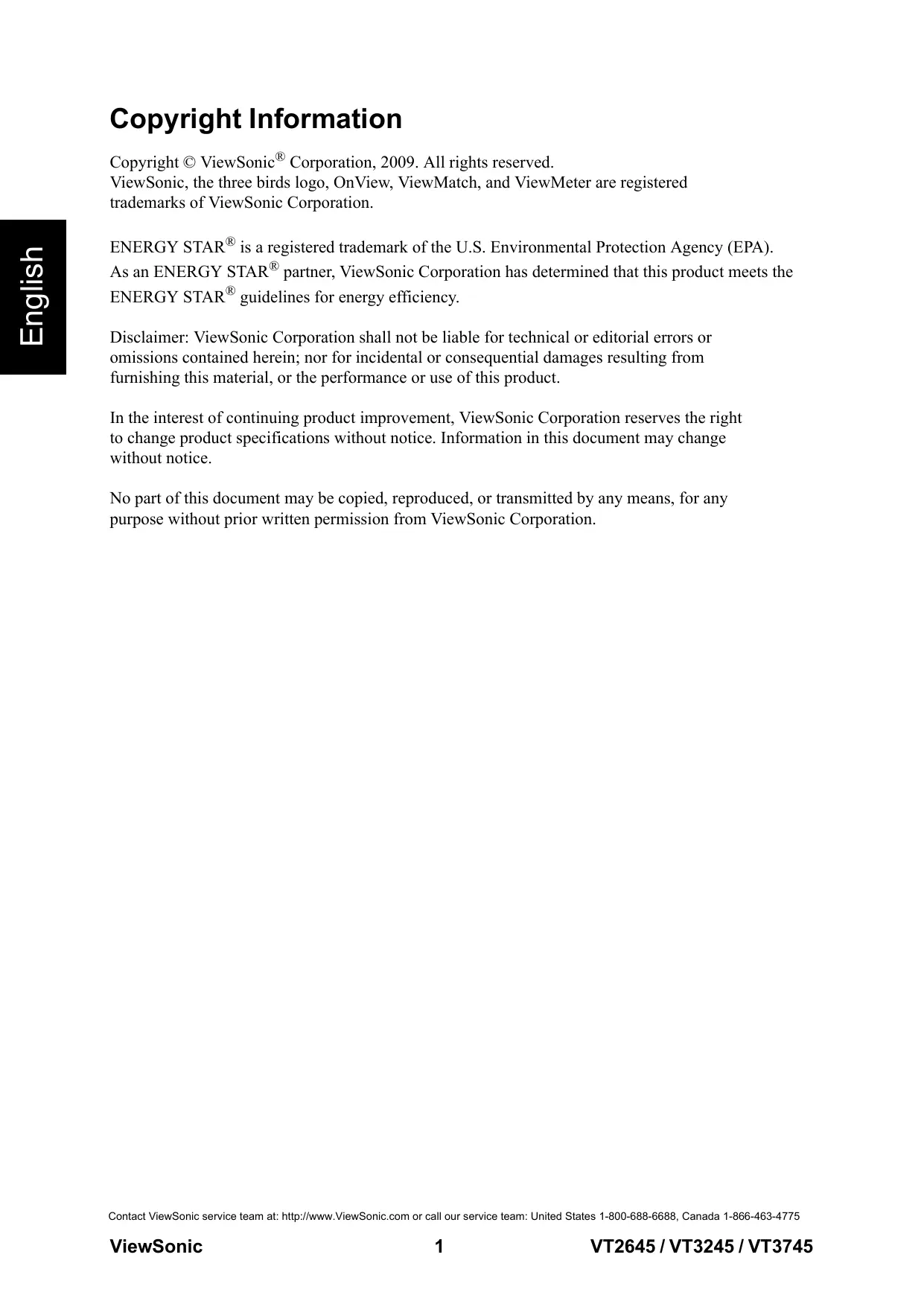

Copyright Information
Copyright © ViewSonic® Corporation, 2009. AII rights reserved. ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks of ViewSonic Corporation.
ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency (EPA). As an ENERGY STAR® partner, ViewSonic Corporation has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or s contained herein; nor for incidental or consequential damages resulting from ng this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to change product specifications without notice. Information in this document may change without notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any purpose without prior written permission from ViewSonic Corporation.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic 1 VT2645 / VT3245 / VT3745
WARNING Do not expose this TV to rain or mois- ture. It may increase the risk to fire or electronic shock.
ATTENTION PRECAUCION Dangerous Voltage: The lightning flash with arrowhead symbol, within an equilateral tri- angle, is intended to alert the user to the presence of dangerous voltage within the inside of the product that may be suf- ficient level to constitute a risk of electric shock to persons.
Instruction: The exclamation point within an equilateral triangle is intended to alert the user to the presence of impor- tant operating and servic- ing instructions in the literature accompanying the appliance.
The TV shall not be exposed to drip- ping or splashing. Do not put objects filled with liquids, such as vases, on the TV.
CAUTION To prevent electric shock, do not use this polarized AC plug with an exten- sion cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.
AN Declaration of Conformity Trade Name: ViewSonic Model: N1630w Responsible Party: ViewS- onic Corporation Address: 381 Brea Canyon Road, Walnut, CA. 91789 USA Telephone Numb: -800-688- 6688 This device complies with part 15] ofthe FCC rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2)
this device must accept any interfer- ence received, including interference that may cause undesired operation.
NOTIFICATION This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter- ference to radio communications. However, there is no guarantee that interference will not oceur in a particu- lar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
Increase the separation between the device and receiver.
Connect the device into an outlet on a circuit different from that to which the receiver is connected.
Consul the dealer or an experienced radio/TV technician for help.
Pursuant to FCC regulations, be cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.
Operate the TV on 120V and
Use the AC power cord specified by ViewSonic and suitable for the volt- age where you use it.
The plug is designed, for safety pur- poses, to fit into the wall outlet only one way.
If you are unable to insert the plug fully into the outlet, contact your dealer.
If any liquid or solid object should fall inside the cabinet, stop operat- ing, unplug the TV immediately and have it checked by qualified service technician.
If you will not be using the TV for a long time, disconnect the power by pulling the plug itself. Do not pull on the cord.
For details concerning safety precau- tions, refer to Important Safety instructions on page 4.
+ The TV should be installed near an easily accessible power outlet.
+ To prevent internal heat buildup, do not block the ventilation openings.
+ Do not install the TV in a hot or humid place, or in a place subject to excessive dust or mechanical vibration.
+ Avoid operating the TV at temperatures below 41°F (°C).
+ When the TV is transported directly from a cold to a warm location, or if the room temperature changes sud- denly, the picture may be blurred or show poor color due to moisture condensation. In this case, please wait a few hours before tuning on the TV, in order to let the moisture evaporate first. To ensure best picture quality, do not expose the screen to direct illumina- tion or sunlight. We recommend you use spot lighting directed down from the ceiling or to cover the windows that face the screen with opaque cur- tains. It is better that TV is installed where the floor and walls are not ofa reflective material.
To install the specified TV, sufficient expertise is required. Make sure you subcontract the installation to ViewS- onic dealer or licensed contractors and pay adequate attention to safety during the installation.
This television includes a QAM demodulator, which should allow you to receive unscrambled digital cable television programming via subscrip- tion service to a cable service provider. The type of programming and signal provided by your cable service pro- vider will affect the availability of digi- tal cable television programming in your arca.
Macintosh is a trademark of Apple Ine., registered in the U.S. and other countries. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered _trade- marks of Dolby Laboratories.
Blu-ray Disc is a trademark. Adobe is a registered trademark or a trademark of Adobe Systems Incorporated in United States and/or other countries.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
Important Safety Instructions
Read these instructions completely before using the equipment.
Keep these instructions in a safe place.
Follow all instructions.
Do not use this apparatus near water.
Clean with a soft, dry cloth.
Do not block any ventilation openings. Install the equipment in accordance with the manu- facturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other devices (including amplifiers) that pro- duce heat.
Do not attempt to circumvent the safety pro- visions of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. À grounding type plug has two blades and a third grounding prong. The wide blade and the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an elec- trician for replacement of the outlet.
Prevent the power cord from being tread upon or pinched, particularly at the plug, conve- nience receptacles, and the point where they exit from the device. Be sure that the power outlet is located near the equipment so that it is easily accessible.
Only use attachments/ accessories specified by the manufacturer.
Use only with the cart, stand, tri-
pod, bracket, or table specified by
the manufacturer, or sold with the
apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
Unplug this apparatus when it will be unused for a long period of time.
Refer all servicing to qualified service per- sonnel. Servicing is required when the appa- ratus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, or the unit does not operate normally, or has been dropped.
Keep the following guidelines to protect the AC power cord from being damaged. If the AV power cord is damaged, it may result in a fire or an elec- tric shock. Stop using it and ask your dealer or ViewSonic service center to exchange it.
+ Do not place the TV where the power cord is subject to wear or abuse.
Do not pinch, bend, or twist the cord exces- sively.
The core lines may be bared and cut, causing a short-circuit, and resulting in a fire or an electric shock.
Do not convert or damage the power cord.
Avoid power cord being rolled over or rested upon.
When the power cord is plugged in, do not move the TV.
Keep the power cord away from heat sources. When you disconnect the AC power cord, dis- connect it from the wall outlet first.
When disconnecting the power cord, grasp the plug instead of pulling the power cord.
Use only an original ViewSonic AC power cord, not other brands.
Do not use the supplied AC power cord on any other equipment.
The TV set with a three-wire ground-
ing type AC power cord plug must be Fa connected to an AC power socket
outlet with a protective grounding T2 connection.
Do not use an unfitting outlet. Insert
the plug fully into the outlet. If it is
loose, do not use it. Doing so may cause arcing and result in a fire. Contact your electrician to change the outlet.
For your safety, be sure to unplug the AC power cord when connecting cables.
Take care not to trip on the cables. It may cause damage to the TV set.
Do not touch the AC power cord or #
the TV with a wet hand. If you plug/ hf unplug the AC power cord from the “A TV with a wet hand, it may cause
During a lightning storm, unplug the TV from the wall outlet and disconnect the antenna to prevent damage to the TV.
If you will not be using the TV set for long peri- ods of time, the TV set should be disconnected from the AC power outlet to prevent power line surges. The TV set is not disconnected from the AC power source when the TV set is switched off. To disconnect the TV set completely, unplug from the AC power outlet.
This TV set is designed to operate on a 120 - 240 V AC supply only. If there are too many appliances con- nected to the same AC power outlet, it could result in a fire or an electric shock.
If optional equipment is to be installed, leave some space between optional equipment and the TV set. Picture distortion and/or noisy sound may occur if the TV set is positioned in close proxim- ity to any equipment emitting electromagnetic radiation.
Keep small accessories in a safe place where chil- dren are unable to reach.
ANTENNAS Outdoor antenna grounding
If an outdoor antenna is installed, follow the pre- cautions below.
Do not install the outdoor antenna system near of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM, EXTREME CARE SHOULD BE TAKEN TO KEEP FROM CON- TACTING SUCH POWER LINES OR CIR- CUITS AS CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so that it can provide some protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEO) in the U.S.A. and Section 54 of the Cana- dian Electrical Code in Canada provides informa- tion with in regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna dis- charge unit, connection to grounding electrodes, and requirements for the grounding electrode.

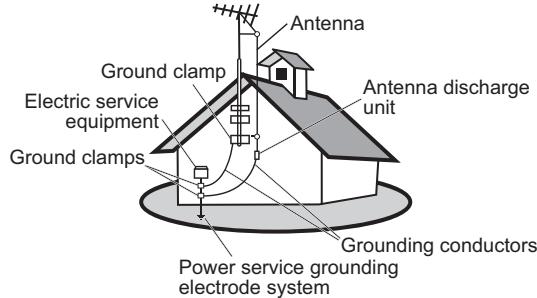

Antenna grounding according to the National Electrical Code, ANS/NFPA 70
Ground clamp Electric service
LS LI Q Antenna discharge 4 NS
\ * Grounding conductors Power service grounding electrode system
+ Do not cast away batteries in a fire.
+ Do not disassembled, overheat, or short-circuit the batteries.
+ Ifthe battery is replaced in the wrong way, it may cause danger of explosion. Replace only with the same or equiv- alent type.
Dispose used batteries
To preserve our environment, dispose of used
batteries according to your local laws or
CLEANING Cleaning the AC power plug Unplug the AC power plug and
its insulation may deteriorate and D cabinet of the TV set
result in electric shock. Use a dry
screen, wipe it gently with a soft cloth. Stubborn water. Never use strong solvents such as thinner vided on the package. The ventilation holes can to remove the dust periodically (once a month)
clean it regularly. If the plug is cov- ered with dust and gathers moisture,
Cleaning the screen surface/
When cleaning this TV, unplug the e AC power cord. If not, it may LA soft cloth to clean the cabinet of NE \ the TV. To remove dust near the
stains may be removed with a cloth slightly dampened with a solution of mild soap and warm or benzine for cleaning. If using a chemically pre- treated cloth, please follow the instruction pro- accumulate dust over time.
To ensure proper ventilation, we recommend you using a vacuum cleaner, while the LCD TV is powered off.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
MAGNETIC INFLUENCE This TV contains a strong magnet in the speaker unit that generates a magnetic field. Keep any items susceptible to magnetic fields away from the speaker.
SOUND If you hear snapping or popping sound comes from the TV continu- ously or frequently while the TV is operating, unplug the TV and consult your dealer or service technician. It is
normal for some TVs to make occasional snap- ping or popping sounds, particularly when being turned on or off.

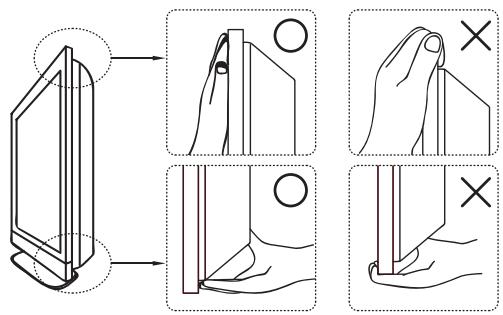

CARRYING THE TV Carry the TV as instructed
To prevent dropping the TV and causing serious injury, you must follow these guidelines: Disconnect all cables before carrying the TV.
Carrying the large size TV requires at least two or three people.
When you carry the TV, place your hands as illustrated and hold it securely. Do not put stress on the LCD panel and the frame around the screen.
When carrying the TV, do not subject it to shocks, vibra- tion, or excessive force.
When lifting or moving the TV, hold it securely from the bottom. Place your palm directly under the panel.

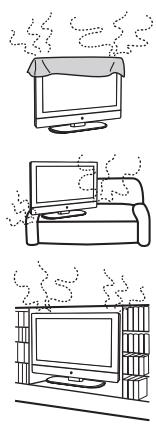

TN VENTILATION Slots and openings in TV are provided for ventila- tion. To ensure reliable operation of the TV and to protect it from overheating, be sure these open- ings are not blocked or covered.
The TV may accumulate dust and get dirty if proper ventilation is not provided. For proper ven- tilation, follow the following guidelines:
Never install the TV face up, down or » sideways. È Never install the TV turned over or upside down. LL Never cover the slots and openings with a cloth or other materials.
Never block the slots and openings by CL placing the TV on a bed, sofa, rug or other similar surface.
Never place the TV in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

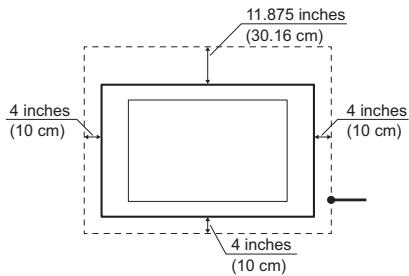

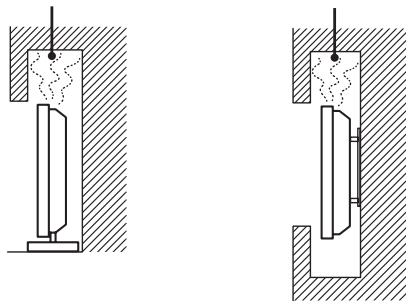

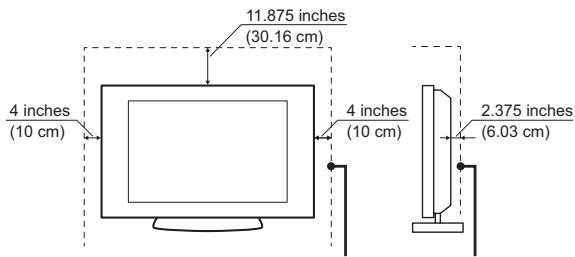

Leave some space around the TV set as shown below. Otherwise, air-circulation may be inade- quate and cause overheating, which may cause a fire or damage to the TV set.
Installed on the wall
6016 em) Ainches 1 inches
Installed with stand
[2 (io om) | | LL (608 om)
Leave at least this space around the set.
Do not install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
VT2645 / VT3245 / VT3745
Objects and ventilation holes
Never push any objects into the slots on the TV cabinet as they may touch dangerous voltage points or short out parts that could result in a fire or an electric shock. Do not place any objects on the TV.
MOISTURE Moisture and flammable objects Keep the product away from moisture. Do not expose this appliance to rain or
moisture. Do not place objects filled with liquids, such as vases, on the TV.
Do not use power-line operated V sets near water, such as in places like a bathtub, washbowl, kitchen sink, laundry tub, a wet basement, or near a swimming pool, etc. It may cause fire or electric shock.
Do not let this TV get wet. Never spill liq- uid of any kind on the TV. If water pene- trates into the product, unplug the power cord and contact ViewSonic.
Do not operate the TV when wet. It may result in electric shock or damage to the TV.
To prevent fire, keep flammable objects or open flame (e.g. candles) away from the TV.

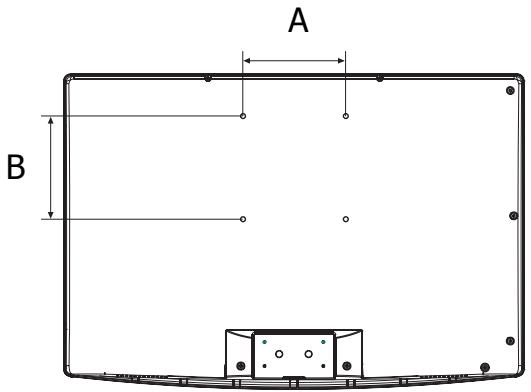

INSTALLATION To do Wall mount installation, you need a Wall- Mount Bracket. When installing or removing the TV using the Wall-Mount Bracket, be sure to use qualified contractors. If not properly secured dur- ing installation or removal from the Wall-Mount Bracket, the TV may fall and cause serious injury.
Optional wall mount.
When installing the TV using a Wall-Mount Bracket, make sure you follow the operating instructions supplied with the Wall-Mount Bracket.
Attach the brackets supplied with the Wall-Mount Bracket. The TV is not designed for hanging from the ceiling. It may fall and cause serious injury.
The TV should be installed near an easily accessi- ble AC power outlet.
Observe the following to prevent the TV from falling from the stand or wall mount. Place the TV on a stable, level surface.
Do not hang anything on the TV. Do not allow children to climb on the TV.
Do not install the TV in places subject to extreme temperature, such as in direct sun- light, near a radiator, or heating vent. Ifthe TV is exposed 10 extreme temperature, the TV may overheat and cause deformation of the enclosure or cause malfunction.
Do not install the TV in a place exposed to direct air condi- tioning. If the TV is installed in such a location, moisture may condense inside and may cause a malfunction.
Do not place the TV in hot, oily, humid or excessively dusty places.
+ Do not install the TV where insects may RS enter. DS Do not install the TV where it may be
exposed to mechanical vibration.
Do not install the TV in a location where it may spear up, such as on or behind a pillar, or where you might bump your head on it. It may cause injury.
Preventing the TV from toppling over To prevent the TV from toppling over, secure the TV to a wall or stand.
Placement for watching
We suggest you to watch the TV at a distance of 3-7 times that of the screen height, and not in excessive brightness. It is easy to cause eye fatigue if you watch TV for too long or in a dark room. To obtain clear picture, do not expose the screen to direct illumination or sunlight. Use spot lighting directed down from the ceiling if you can.
This TV is not designed for out- doors installation. Do not expose the TV to rain, as it may result in a fire or an electric shock. Also, do not expose the TV to direct sunlight, as it may heat up and become damaged.
Vehicle, ships and other vessels Do not install this TV in a vehicle. Car accidents may cause the TV to fall down and cause injury. © Do not install this TV in a ship or Se vessel. ES Ifthe TV is exposed to seawater, it DZ) may cause a fire or damage the TV.
Medical institutions
Do not place this TV in a place where medical equipment is in use. It may cause the medical equipment to malfunction.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
VOLUME ADJUSTMENT Adjust the volume to avoid disturbing your neighbors. Sound carries easily at night. Therefore, we suggest you close the windows or use headphones.
When using headphones, adjust the volume to appropriate levels, or hearing damage may result.
LCD SCREEN Although the LCD screen is made with high precision technology and has effective pixels of 99.99% or more, black dots or bright points or light (red, blue, or green) may appear constantly on the LCD screen. This is a struc- tural property of the LCD panel and is not a malfunction. The LCD screen is made with high-precision technology. To achieve a high level of performance and picture quality, this TV°s backlight setting is set to maximize the bright- ness of the TV. However, uneven brightness may be observed when the LCD TV is viewed in a dark environ- ment without an input source or a blank screen, This is a normal condition, not a malfunction of the TV. To improve this condition, change the Picture mode, Backlight setting, enable the Light Sensor, or turn on the Power manage- ment.
Avoid exposing the LCD screen surface to direct sunlight. It is likely to damage the LCD panel.
Do not push or scratch the LCD screen, or place objects on top of the TV. The image may be uneven or the LCD panel may be damaged.
Ifthe TV is used in a cold place, a smear may oceur in the picture or the picture may become dark. It is not caused by a failure, This condition will improve as the temperature rises.
When still pictures are displayed continuously, ghosting
may oceur. It should disappear after a short period of time.
The screen and cabinet get warm when the TV is in use. This is a normal condition.
Spraying insect repellent with volatile material on the screen will cause damage.
Do not make prolonged contact with rubber or plastic material.
Do not throw anything at the TV. Doing so may break the screen glass and cause serious injury.
Ifthe surface of the TV cracks, unplug the AC power cord before touching the TV. Otherwise electric shock may result.
Handling of broken glass and liquid crys- tal leakage
Ifthe LCD panel gets damaged, crystalline liquid leakage may occur, or scattered broken glass may result. Do not touch broken glass or crystalline liquid which is toxic, with bare hands as cuts, poi- soning or skin irritation may occur. Also do not glass fragments or leaked crystalline liquid get into your eyes or mouth. Should either contacted your eyes or mouth, rinse the contacted area thor- oughly with water and consult your doctor.
SERVICING Do not attempt to repair the TV yourself, since opening the cabinet may expose you to dangerous volt- age or other hazards. Ask qualified service personnel to do the servicing for your TV.
When replacement parts are required, be sure the service technician certifies in writing that he/she has used replacement parts specified by the manu- facturer that have the same characteristics as the original parts. Unauthorized substitutions may cause a fire, an electric shock or other hazards.
Upon completion of repairs to the TV, ask the ser- vice technician to perform routine safety checks (as specified by the manufacturer) to determine that the TV is safe for operating, and to so certify. Ask a qualified service technician to dispose of the TV.
For Customers in the United States
There is mercury in the lamp of this product. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance (http//www.eiae.org).
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
This device complies with part 15 of FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
+ Increase the separation between the equipment and receiver.
+ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
+ Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
Following information is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical and Electronic
Equipment Directive 2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment as unsorted
municipal waste, but use the return and collection systems according to local law. LL |
ENERGY STAR Information:
+ Keeping the TV at its factory default settings that meet ENERGY STAR criteria.
+ Enabling certain features and functionality of LCD TV will increase its energy consumption, possibly beyond the limits required for ENERGY STAR qualification.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic 8 VT2645 / VT3245 / VT3745
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC) as shown below:
Substance Proposed Maximum Actual Concentration Concentration Lead (Pb) 0.1% <0.1% Mercury (Hg) 0.1% <01% Cadmium (Cd) 0.1% <0.01% Hexavalent Chromium (Cr6+) 0.01% <0.1% Polybrominated biphenyls (PBB) 0.1% <01% Polybrominated diphenyl ethers (PBDE) 0.1% <0.1%
Certain components of product:
Directives as noted below:
Examples of exempted components are:
1. Mercury in compact fluorescent lamps not exceeding 5 mg per lamp and in other lamps not specifically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, fluorescent tubes, and electronic ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
stated above are exempted under the Annex of the RoHS Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic 9 VT2645 / VT3245 / VT3745
List of Features 1. Enjoy HDTV with 1366 x 768 (26°) / 1920 x 1080 (32” & 37°”) native image resolution.
Check the contents of your package. It should contain:
LCD TV Remote Control with batteries
Installing the LCD TV Disconnecting the stand
1. Place the TV face down on a soft cloth or cushion on a table.
2. Remove the base. It is attached to the stand with 1 screw. 3. Remove screws holding the stand to the hinge: VT2645 (x4), VT3245 (x4),
VT3745 (x5) 4. Remove the stand.
Installing the stand
1. Place the TV face down on a soft cloth or cushion on a table.
2. Connect the stand with the hinge at the back of TV with screws: VT2645 (xd), VT3245 (x4), VT3745 (x5)
3. Attach the base to the stand with 1 screw.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic 11 VT2645 / VT3245 / VT3745
Mounting ViewSonic LCD TV to the wall
The LCD TV can be used in a free standing position or wall-mounted. Before installing the product to the wall, please consider the following guidelines:
Read the Important Safety Instructions, at the start of this manual.
Do not install in a moist or wet environment. This equipment is intended for indoor use. Do not install near heat source, or strong magnetic fields.
Use only UL approved wall-mounting brackets to support the LCD TV weight.
Before attaching the wall mount plate to the back cover, ensure the product is working.
If your LCD TV is already set up for free-standing operation, you need to first remove the stand before mounting the device to the wall.
To attach the wall-mount bracket to LCD TV safely, please use the following guidelines:
Disconnect the power and any other cables that might hinder moving the LCD TV.
Set the LCD TV on a table or work surface, placing the screen face down on a towel or woolen blanket to protect the screen surface from damage while installing plate. Before installing the LCD TV on the wall, ensure you have recorded the product serial
number on page (i) of the User Guide, as you will need the serial number to request ser- vice should there be a service need.
Install the wall mount plate to the LCD TV using screws NO LONGER than 10mm, as longer screws found in universal (non-ViewSonic) wall mount kits may damage the power supply causing the unit to fail. The wall-mount screw type is M4 x L10.
Mount the wall mount bracket to the wall ensuring use of proper screws to support the installation. Ensure there is at least 3cm of space surrounding any air-vents of your LCD TV to allow adequate cooling during operation.
Hang the LCD TV wall mount plate to the wall mount bracket, completing installation. Enjoy your ViewSonic LCD TV!
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
When attaching to other building materials, please contact your nearest dealer.
A D se OS Product Family Model VESA Spec. (A x B) Standard Screw (C x D) | Quantity VT2645 200 x 100 mm M4xLI0 4 LCD TV VT3245 200 x 100 mm M6xLi4 4 VT3745 200 x 200 mm M6xLI5 4
+ ViewSonic provides the standard dimensions for wall mount kits as shown in the table
+ When purchasing our wall mount kit, a detailed install manual and all parts necessary for assembly are provided.
+ Do not use the screws that are longer than the standard dimension, as they may cause damage to the inside of the TV set.
To find the perfect mount for VT2645, VT3245, or VT3745, please browse www.views- onic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
Front View of VT2645, VT3245, and VT3745
O———9 ME Item Description 1 Remote Control Receives IR signals from the remote control. Receiver 2 Power LED Indicator Lights up in blue when the TV is turned on. Lights up in orange when the TV is in standby mode. 3 Power ON/OFF button Turn the power on from standby mode or turn the power off to return to the standby mode. 4 SOURCE Select input source. 5 MENU Turn OSD menu ON/OFF. Increase sound volume or select a control while in 6 Volume Up OSD menu. Decrease sound volume or or select a control 7 Volume Down no while in OSD menu. 8 CHU Channel up when source is TV, or adjust a high- P lighted control while in OSD menu. 9 CH Down Channel down when source is TV, or adjust a high-
Plug-in the supplied AC Power cord and connect to the AC input power source (110-120V).
Service only. Not available for users.
Connect this port to the HDMI/HDMI-DVI jack of the compatible equipment. *If you use HDMI-DVI connections, please use PC Audio In for audio input.
Connect the PC Audio Out on your computer to the PC Audio In on the rear of the LCD TV.
Connect a 15-pin D-sub RGB cable to the RGB output of your computer and the other end to the RGB input on the rear of the LCD TV.
Connect to an external device, such as a VCR, STB, or a
(YPbPr) DVD player. 7 YPbPr Connect to an external device, such as a VCR, STB, or a DVD player. 8 Coaxial Connect to a digital audio receiver supporting the
S/PDIF standard, such as a home theater receiver.
Connect to an external device, such as a VCR, STB, or a DVD player.
10 AV Connect to an external device, such as a VCR, STB, or a DVD player.
R/L Audio Input (AVIS-Video)
Connect to an external device, such as a VCR, STB, or a DVD player.
Connect to a cable or antenna TV.
Plug-in the supplied AC Power cord and connect to the AC input power source (110-120V).
Service only. Not available for users.
Connect this port to the HDMI/HDMI-DVI jack of the com- patible equipment. *If you use HDMI-DVI connections, please use PC Audio In for audio input.
Connect a 15-pin D-sub RGB cable to the RGB output of your computer and the other end to the RGB input on the rear of the LCD TV.
Connect to your headphones. By connecting the headphones, you can listen to the sound from the TV on headphones. *If you connect the headphones, the TV speakers will be muted.
Connect to Audio Out on your computer.
Connect to an external device, such as a VCR, STB, or a
8 YPbPr Connect to an external device, such as a VCR, STB, or a DVD player.
9 Coaxial Use a coaxial cable to connect to a digital audio receiver sup-
porting the S/PDIF standard, such as a home theater receiver.
Connect to an external device, such as a VCR, STB, or a DVD player.
11 AV Connect to an external device, such as a VCR, STB, or a DVD player.
R/L Audio Input (AVIS-Video)
Connect to an external device, such as a VCR, STB, or a DVD player.
Connect to a cable or antenna TV.
Plug-in the supplied AC Power cord and connect to the AC input power source (110V-120V).
Connect this port to the HDMI/HDMI-DVI jack of the com- patible equipment. *If you use HDMI-DVI connections, please use PC Audio In for audio input.
Connect to VGA Out on your computer.
Connect to Audio Out on your computer.
Use a coaxial cable to connect to a digital audio receiver sup- porting the S/PDIF standard, such as a home theater receiver.
Connect to an external device, such as a VCR, STB, or a DVD player.
Connect to an external device, such as a VCR, STB, or a DVD player.
8 AV Connect to an external device, such as a VCR, STB, or a DVD player.
R/L Audio Input (AVIS-Video)
Connect to an external device, such as a VCR, STB, or a DVD player.
R/L Audio Input 1/2 (YPbPr)
Connect to an external device, such as a VCR, STB, or a DVD player.
Connect to a cable or antenna TV.
Connect to your headphones. By connecting the headphones, you can listen to the sound from the TV on headphones. *If you connect the headphones, the TV speakers will be muted.
Service only. Not available for users.
AV connection Connect the composite video and audio input jacks to the corresponding output jacks of your A/V device. + VIDEO: Composite Video input [9] + AUDIO: AV/ S-Video signal Audio input [8] S-Video connection Connect the S-Video and audio input jacks to the corresponding output jacks of your VCR
or other video device that has S-Video. S-Video provides better picture quality than com- posite video connection. If both are connected, S-Video signal has priority.
+ VIDEO: S-Video input [10] + AUDIO: AV/ S-Video signal Audio input [8] Component (YPbPr) connection YPbPr provides better picture quality than the S-Video or the AV connection. *For YPbPr connection, connect the component video (YPbPr) and audio jacks to the corre- sponding output jacks of your A/V device. + VIDEO: YPbPr signal input [7] + AUDIO: YPbPr signal audio input [6] HDMI connection HDMI (High-Definition Multimedia Interface) is a licensable audio/video connector inter-
face for transmitting uncompressed, encrypted digital streams between this TV and any HDMI equipped audio/video equipment.
+ Be sure to use only an HDMI cable that bears the HDMI logo.
+ _Ifthe equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI Input Terminal (with DVI-to-HDMI cable or adapter), and connect the Audio cable to the Audio In jacks.
1. With HDMI cable: HDMI Input Terminal [4] 2. With HDMI-DVI cable
Connect the VGA cable and Audio cable from the VGA signal input and PC Audio input to the corresponding ports on your A/V device.
Connecting the LCD TV Cable System or VHF/UHF Antenna System
Enjoy the high-definition and standard-definition digital programming along with standard definition analog programming.
+ This TV is capable of receiving unscrambled digital programming for both cable and external VHF/UHF antenna.
+ We strongly recommend that you connect the antenna/cable input using a 75-ohm coax- ial cable (not supplied) to ensure the best picture quality.
75-ohm coaxial cable f- —"à] Rear of TV VHF/UHF/CABLE input
Cable System and VHF/UHF Antenna System
Use an optional A-B RF switch (not supplied) to switch between the cable and antenna pro- gramming, as shown below.
Cable ——"([} [| Rear of TV VHF/ [<= fm +) UHF/CABLE Antenna omm#0{[f}; > [| E input
+ Remember to set the TV Source setting in the CHANNEL menu to Air or Cable for the type you choose.
ViewSonic 19 VT2645 / VT3245 / VT3745
You can also enjoy high-definition programming by subscribing to a high-definition cable ser- vice or a high-definition satellite service. For the optimum picture quality, be sure to connect this device to your TV via the HDMI or component video (with audio) input on the back of your LCD TV.
+ _Ifthe equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI jack [4] and connect the audio jack to the AUDIO In jacks of HDMI [2].
Use the LCD TV as the monitor of your computer.
The picture below shows the connection for PC. The LCD TV can also be connected to PC with DVI or HDMI output.
Connect to an HDMI compatible PC with the HDMI cable
Rear of TV Audio cable
+ Connect the PC IN jack to the PC using a 15-pin cable and audio cable.
+ Ifthe PC is connected to TV and no signal has been input from PC for more than 5 sec- onds, the TV will enter standby mode automatically.
PC Timing Reference Chart
Compatibility Table Standard Resolution Composite | SVHS | YPbPr RGB HDMI DOS 720 x 400 @ 70Hz No No No Yes Yes VESA 640 x 480 @ 60Hz No No No Yes Yes VESA 640 x 480 @ 75Hz No No No Yes Yes VESA 800 x 600 @ 60Hz No No No Yes Yes VESA 800 x 600 @ 75Hz No No No Yes Yes MAC 832 x 624 @ 75Hz No No No Yes Yes VESA 1024 x 768 @ 60Hz No No No Yes Yes VESA 1024 x 768 @ 75Hz No No No Yes Yes VESA 1360 x 768 @60Hz No No No Yes Yes VESA 1280 x 1024 @ 60Hz No No No Yes Yesf VESA 1920 x 1080 @ 60Hz No No No Yes* Yesf
* Reduced Blinking mode (CV-RBT) Ÿ applicable only to VT3245 and VT3745
DVD Player *PC VCD Player/ Game System PC Blu-ray Dise Digital Satellite Player/PS3 Receiver Digital PC DVD Audio Cable Box Player System
DVD Player/ VHE/UHE VCD Player/ Cable Game System
DVD Player/ VCD Player/ Game System
DVD Player/ VCD Player/ Game System
Home DVD Player/ VHF/UHF Earphone *PC Theater VCD Player/ Cable PC ‘ Game System DVD Player! PC VCD Player/ Game System Blu-ray Disc Digital Satellite Player/PS3 Receiver Digital PC DVD Audio Cable Box Player Sytem
Remote Control and TV Controls Inserting Remote Control Batteries
1. Remove the battery cover by pulling then lifting the knob on the cover.
2. Insert the batteries, corresponding to the (+) and (-) markings on the battery compartment.
3. Reattach the battery cover.
+ Only use the specified AAA batteries.
+ Do not mix new and old batteries. This may result in creaking or leakage, which may pose a risk of fire or lead to personal injury.
*__ Insert batteries according to (+) and (-) markings. Inserting the batteries incorrectly may result in leakage, which may pose a risk of fire or lead to personal injury.
+ _ Dispose of the battery in accordance with local laws and regulations. + _ Keep the batteries away from children or pets.
+ _ When the remote control will not to be used for an extended period, remove the batteries.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic 25 VT2645 / VT3245 / VT3745
Remote Control and TV Controls
L Button Description
Press this button to turn the power on 1 POWER from standby mode. Press it again to return to the standby mode.
2 FAV 1-3 Press to select favorite channels
Press to direct to TV source when in any 3 TV other source.
HDMI Press to select source to HDMI mode.
AV Press to select source to AV mode
4 5 YPbPr Press to select source to YPbPr mode. 6 7
cc Press to turn Closed Caption On/Off
Press to activate Multichannel
8 MTS Television Sound, Stereo or Mono.
Press 0-9 and “-” to select a channel. 0-9, - After you input the channel numbers, 9 number press ENTER button to direct to the buttons channel immediately, or wait for 3 sec- onds to change automatically.
10 LAST Press to return to previous channel. Press this button to display the current 11 INFO state of the LCD TV.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic 26 VT2645 / VT3245 / VT3745
12 ACHY Press to change the channels up or down.
13 +VOL- Press to adjust the volume.
Press to turn off the sound. To restore the 14 MUTE sound, press this button again, or press the VOL+ / VOL- button.
Press to display the INPUT source list
and select the source with À / Y but- tons. To confirm the selection, press ENTER.
16 EXIT Press the button to exit the present menu.
A Press these buttons to navigate the OSD 17 D D 2 menus. À / Y is for function select, and M > is for function adjustment.
Press to confirm the selection in the OSD menu, or to enter the OSD menu
18 ENTER you select. Pressing ENTER after you input channel numbers will change chan- nels immediately.
Press to display the Electronic Program Guide (EPG). It contains the program
19 GUIDE information for the channel you’re watching. 20 MENU Press to turn the OSD (On-Screen Dis-
Press repeatedly to set the off timer. The function is used to automatically shut off the LCD TV after a preset period of time
21 SLEEP passed. There are several times for choice — Off, 15 Min, 30 Min, 45 Min, 60 Min, 75 Min, 90 Min, 105 Min, and 120 Min.
22 PICTURE Press to adjust Picture mode.
24 Sound Press to adjust Sound mode.
How to Set the Favorite Channel
There are total four Favorite Channels which you can set the TV program what you like. This favorite channel function can support analog (NTSC) and digital (ATSC) TV.
Step 1: Change the channel number what you want for the favorite channel.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic 27 VT2645 / VT3245 / VT3745
Step 2: Press FAV1, FAV2, or FAV3 on the remote control and hold this button for more than 3 seconds.
The current channel is saved as the favorite channel. How to Select the Favorite Channel
Press FAV1, FAV2, or FAV3 on the remote control and release it, then the TV will be change to the pre-stored channel number.
Operation Turning the TV On and Off
Press the POWER button on the remote control.
You can also use the Power button on the front of the panel.
1. Using Channel Buttons
Press À CH Y button to change channels, and the TV changes chan- nels in sequence. You will see all channels that have been memorized. Channels erased or not memorized will not be shown.
2. Using Number Buttons Using the remote control buttons 0-9, select channel for NTSC/ATSC/CATV.
To select 1, 2 or 3-digt channel number (e.g., Channel 110) Press 1 + 1 — 0. To select 4-digit channel number (e.g. Channel 23-1)
Adijusting the Volume
To restore volume, press MUTE again, or press VOL +/- directly.
Press INFO, and the current state will be displayed on the screen. (It shows all or some of the information about Input, Channel, Resolu- tion, Audio Type, etc., depending on what input source it is in)
Read this section to learn how to make adjustments to your TV settings.
1. Press POWER to to turn the LCD TV on.
2. Press MENU on the remote control to display the Main menu.
3. Use € D to highlight an OSD Menu and press ENTER to enter the OSD Menu.
4. Use € > to highlight an individual OSD option, then use € BR to change the setting.
* Press ENTER to enter next OSD layer, use € BR to change the setting, then press ENTER to confirm.
ViewSonic 29 VT2645 / VT3245 / VT3745
Customizing the Video Settings
Allows you to make adjustments to your video settings.
1. Press MENU on the remote control to display the Main menu and use € B> to select Video.
2. Use € > to highlight an individual Video option, then press ENTER to set up. Use € D to change the setting, then press MENU to exit the menu.
3. The Video menu includes the following options:
Brightness Controls the overall brightness of the picture.
Controls the difference between the brightest and darkest regions Contrast :
of the picture. Sharpness Increase this setting to see crisp edges in the picture; decrease it for
Selects the picture mode.
Color Controls the overall color of the picture.
Tint Controls the difference between the green and red regions of the picture. Changs the backlight of TV set.
Backlight There are 3 different modes available: Dark Room, Medium
Room, and Bright Room.
Adjusts the color temperature to achieve a warm or cool effect: Warm: Increases warm effect.
Cool: Increases cool effect.
Neutral: Panel native temperature.
Customizing the Audio Settings
Allows you to make adjustments to your video settings.
1. Press MENU on the remote control to display the Main menu and use € B> to select Audio.
2. Use € > to highlight an individual Audio option, then press ENTER to set up.
3. Use € D to change the setting, then press MENU to exit the menu.
4. The Audio menu includes the following options:
Bass Controls the relative intensity of lower-pitched sounds.
Treble Controls the relative intensity of higher pitched sounds.
Balance Adjusts the relative volume of the speakers in a multiple speaker system.
TV Speaker Turns the TV speaker on or off.
Audio mode Allows selection of an audio-enhancement technique from the fol-
ue lowing options: Rock / POP / Classical / Flat.
Adjusts the SRS surround sound settings:* SRS!: Turn the SRS on or off.
SRS TruBass: Adjust TruBass to on/off, low, medium, high. DialogClarity: Adjust Dialog Clarity to on/off, low, medium, high. #available only for VT3245 and VT3745
Audio Only Turns off video and gives out audio only. Press any key to show
Resets all settings of Audio.
Customizing the Screen Settings
Allows you to customize the screen settings.
1. Press MENU on the remote control to display the Main menu and use € B to select Screen.
2. Use € D to highlight an individual Screen option, then press ENTER to set up. 3. Use € D to change the setting, then press MENU to exit the menu.
4. The Screen menu includes the following options:*
Keeps the source display ratio. If the original input content is 4:3,
Normal then shows 4:3. If the original input content is 16:9, then shows 16:9. Full Enlarges the standard 4:3 source video to the 16:9 full screen video.
When the source video is 16:9 in ratio, no change will occur.
Enlarges the original picture horizontally and vertically to an equal Overscan aspect ratio that fills the screen. The redundant part of the upper, bottom, left and right of the image will be removed.
* NOTE: all options are applicable only to display of VGA source.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
Customizing the TV Program Settings
Allows you to make adjustments to your TV Program settings.
1. Press SOURCE on the remote control then use € B to select TV and press ENTER.
2. Press MENU on the remote control to display the Main menu and use € > to select TV Program.
3. Press ENTER to begin setup. 4. Use € > to highlight an individual TV Program option, then press ENTER to set up. 5. Use € > to change the setting, then press MENU to exit the menu.
6. The TV Program menu includes the following options:
1. Select Skip List from the TV Program menu and press ENTER. The Channel Skip List menu appears:
2. Press Y to select the desired channel and press ENTER repeatedly to add or clear the channel from the favorite list.
ViewSonic 33 VT2645 / VT3245 / VT3745
Allows you to assign a name to a channel.
1. Select Skip List from the TV Program menu and press ENTER. The Channel Skip List menu appears.
Texo Tera Test? Tea Tests Tests
Channel Edit Channel EI Tee
2. Press Y to select the desired channel and press ENTER to enter the Channel Name Edit screen.
3. Use À Y << D> to move the cursor to the character you want to enter and press ENTER to enter characters. Select Accept when finished.
Allows you to add channels manually.
1. Select Manual Add from the TV Program menu and press ENTER. The Channel Add screen appears:
2. Use the 0-9 to enter the channel number, select Enter on the screen, and press ENTER to confirm.
Allows you to listen to high-fi delity stereo sound while watching TV. * Stereo Use separate audio tracks for left and right speakers, if available. MTS *SAP You can enjoy a second audio program from the speakers while watching a scene in the original program. +Mono You can enjoy a second audio program from the speakers while watching a scene in the original program
Allows the user to select the audio language:
Audio Language : . English/French/Spanish.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
Press ENTER, the Auto Scan automatically creates a list of receivable channels for the source you select: *Cable Choose this setting if you are receiving TV channels with a CATV (cable TV) * AIR Choose this setting if you are receiving TV channels with an antenna (over the air)
Customizing the Setup Settings
Allows you to set up a variety of features: Date and Time, Close Caption, Parental Control, OSD Timeout, OSD Language, Reset AIL, and Version.
1. Press MENU on the remote control to display the Main menu and use € B> to select Settings.
2. Use € > to highlight an individual Settings option.
3. Use € > to change the setting, then press ENTER to confirm.
4. The Settings menu includes the following options:
Allows the user to set the current time. Auto Calibration: + ON: Selects to display the TV or cable system’s current time. + OFF: Selects to set the current time.
1. Press À Y to select the Date, Current Time or Time Zone.
Date and Time 2. Press À W € D to move each setting, and use 0-9 keys to set the current time.
3. Press À Y to select the regional TV systems of USA: Eastern Time/Indiana/Central time/Mountain Time/Arizona/Pacific Time/Alaska/Hawaïi/New- foundland/Atlantic Canada.
4. Press À Y to select Adjust for Daylight Saving Time and press ENTER repeatedly to set Daylight Saving on or off.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic 36 VT2645 / VT3245 / VT3745
Allows the user to select from analog or digital closed caption modes. 1. Select Closed Caption from the Setup menu and press ENTER. The Close Caption screen appears:
2. Press € B to turn the Close Caption on. The following options appear: Analog Type: Press € BR to select the basic analog closed caption options: CCI /CC2 /CC3 /CC4:
Display a printed version of the dialog and sound effects of the program being viewed. Digital Type: Press € D to select the digital closed caption options: Servicel/Service2/Service3/Service4/ServiceS/Service6/ OFF Font:
Press € B to select the font for your closed caption:
As Broadcaster/Style 1/Style 2/Style 3/Style 4/Style 5/Style 6/Style 7
Press € D to select the font size for your closed caption: As Broadcaster/Small/Medium/Large
Press € D to select the font color for your closed caption: As Broadcaster/Black/White/Green/Blue/Red/Cyan/Yellow/ Magenta
Press € B to select the background color for your closed caption:
As Broadcaster/Black/White/Green/Blue/Red/Cyan/Yellow/ Magenta
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic 37 VT2645 / VT3245 / VT3745
Parental Control can be used to block channels and change pass- word. 1. Select Parental Control from the Setup menu and press ENTER.
2. To use the Parental Control function you must enter a 6 digit password. The factory default is 999999,
3. The Parental Control menu appears.
5. Use À Y << }> to move the cursor, then press ENTER repeatedly to toggle between BLOCK or to UNBLOCK.
Please see “Customizing the Parental Control Settings” on page 39 for more details.
Allows the user to adjust the OSD duration on the screen:
OSD Timeout 10 sec/20 sec/30 sec. Allows the user to select the OSD language: OSD Language English/French/Spanish. Version Press ENTER to view the current TV version. DCR Press ENTER to turn on/off dynamic contrast ratio. Reset AIL Press ENTER to reset all settings and restore defaults.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
Customizing the Parental Control Settings
1. Press MENU on the remote control to display the Main menu, and use € D to select Setup. 2. Use Y to highlight Parental, then press ENTER.
3. Use the Parental function, you must enter a six-digit password. The factory password is
4. The Parental Control menu includes the following options:
Rating Select ON/OFF to activate/deactivate the Rating programs. Block Unrated Select ON/OFF to block/unlock all unrated programs. TVERStIng Select to customize US TV Rating programs. TV Ratings Use À Y > to select the rating you want and press ENTER repeat- edly to select BLOCK or UNBLOCK. TV RATING DESCRIPTION TV-Y All children TV-Y7 For children age 7 and older TV-G General Audience TV-PG Parental Guidance suggested TV-14 Parents strongly cautioned TV-MA Mature Audience only FV Fantasy violence D Suggestive dialogue L Strong language Sexual situations V Violence ALL All contents are blocked
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
Select to customize US Movie Rating programs.
MPAA Ratings Use À Y > to select the rating you want and press ENTER repeat- edly to select BLOCK or UNBLOCK. MPAA RATING DESCRIPTION G General Audiences. Movie is appropriate for all ages PG Parental Guidance Suggested. May contain material not suited for younger viewers Contains content that may not be appropriate for viewers under the PG-13 age of 13 R Restricted. Contains adult content, no one under 17 admitted with- out parent NC-17 No one 17 and under admitted X Adult programming CanadalEnglish Rating, Û : Use À Y @B> to select the rating . Canada English you want and press ENTER repeat- : Ratings edly to select BLOCK or UNBLOCK. MPAA RATING DESCRIPTION E Exempt shows G All children C8+ Children 8 years and older G General programming PG Parental guidance 14+ Viewers 14 and older 18+ Adult programming
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
Canada FrenchiRating]
Use À Y > to select the rating
Canada French you want and press ENTER repeat-
Ratings ra L pur BLOCK or MPAA RATING DESCRIPTION E Exempt shows G General programming 8 ans+ Not recommended for ages under 8 13 ans+ Not recommended for ages under 13 16 ans+ Not recommended for ages under 16 18 ans+ Programming restricted to adults. Channel Block allows user to block digital channels. Channel Block 1. Press À Y to select the channel.
2. Press ENTER repeatedly to select BLOCK or UNBLOCK.
Select to change the password. 1. Select Change Password from the Parental Control menu and press ENTER. 2. The Enter Password screen appears. Change Password 3. Use 0-9 to enter your current password and press ENTER. 4. Use 0-9 to enter the new password and press ENTER.
5. Use 0-9 to enter the new password again for confirmation then press ENTER.
+ Make sure the LCD TV is turned off. + Never spray or pour any liquid directly onto the screen or case.
To clean the screen: 1. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other parti- cles. 2. If still not clean, apply a small amount of non-ammonia, non-alcohol based glass cleaner onto a clean, soft, lint-free cloth, and wipe the screen. To clean the case: 1. Use a sofi, dry cloth.
2. If still not clean, apply a small amount of a non-ammonia, non-alcohol based, mild non- abrasive detergent onto a clean, soft, lint-free cloth, then wipe the surface.
ViewSonic” does not recommend the use of any ammonia or alcohol-based cleaners on the LCD TV screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners.
Please contact ViewSonic service team directly if you have questions, service needs, or require technical assistance related on the use of your television.
+ Make sure the power cord is properly connected to the LCD TV AC power socket.
+ Make sure the AC power cord is properly connected to the wall outlet.
+ Make sure the DC power button is ON (Blue LED).
+ Plug another electrical device (like a radio) to the power outlet to verify that the outlet is supplying the proper voltage.
+ The TV station may be experiencing problems. Try another channel.
+ The Cable TV signal may be scrambled or encoded. Please contact your local cable operator.
+ Make sure that connection to other components are correct referring to the user guide.
+ Make sure that setup has been done correctly after connections.
+ Make sure the correct input is selected and the input signal is compatible.
Strange color, light color, or color misalignment
+ Ensure that the video cable is securely connected.
+ The picture may appear dim in a brightly lit room.
+ Adjust brightness, contrast, saturation (color), and tint referring to the user guide.
+ Check the input signal setting.
Unit cannot be operated
+ External influences such as lightning or static electricity may cause improper operation. In this case, operate the unit after first turning on the power of the LCD TV and the AVC System, or unplug the AC cord for 1 to 2 minutes, then plug in again.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
Problem Possible Solution
+ Check your audio connections are properly connected referring to the user guide.
+ The MUTE button may have been pressed, try pressing this button again.
+ Check your audio settings, your TV audio may be set to minimum.
- Press the Volume + (Up) button on the remote control.
+ Make sure the directions of batteries are inserted correctly referring to the user guide. + Batteries could be weak or dead. Replace with new batteries.
- Is a fluorescent light illuminated near the remote control sensor?
+ The path of the remote control beam may be blocked. Make sure the path is clear and that
Remote control unit does not operate the remote control is aimed at the remote
control sensor on the TV.
+ Press the POWER button on the remote control to see if you can turn on the TV.
+ Press MENU button on the remote control to see if there is a MENU shown on the screen.
+ Press only one button at a time and it is the correct one for the operation you want to perform.
- Is the image positioned correctly?
- Are screen mode adjustments such as picture size set correctly?
+ Press WIDE button repeatedly on the remote control to see if you can get the picture you prefer.
Picture is cut off/with sidebar screen
* Is the sleep timer set in advance?
- Is there no signal in PC mode or HDMI mode?
+ The internal temperature of the unit has increased. Remove any objects blocking the vent or clean as necessary.
+ Is the AIR/CABLE option set correctly? Please set the AIR/CABLE option to CABLE referring to the user guide.
Power is cut off suddenly
No CATV reception (or no reception + CATV is connected improperly or not above CH13) connected; please check all the CATV connections.
+ The cable TV service is interrupted; please contact your cable operator.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
°F to + 140F °F to + 140°F ASF to + 140°F Storage Temperature | (-20°C to + 60°C) (20°C to + 60°C) (20°C to + 60°C) sors Humanity 10% to 90% 10% to 90% 10% to 90% condition n à : : Altitude (no condensation) (no condensation) (no condensation) To 40,000 feet (12,000m) | To 40,000 fect (12,000m) | To 40,000 feet (12,000m) . 657.7mm x 506.5mm 783.4mm x 580mm 900mm x 678mm — Physical Dimensions WDx(D) | 20m x 220mm x 255mm Ut 25.89"x19,94"x8.66" 30.84"x22.83"x8.66" 35.43"x26.69"x10.03" Weight Net 7.3 kg (16.07 1b) 10.5 kg (23.12 1b) 14.0 kg (30.83 1b) UL/cUL, FCC-B (Doc-B), | UL/cUL, FCC-B (Doc-B), | UL/cUL, FCC-B (Doc-B), Regulations BETS-7, NOM, BETS-7, BETS-7, ENERGY STAR, CEC ENERGY STAR®, CEC ENERGY STAR®, CEC. P 0 Max. 75 W (blue LED) Max. 135 W (blue LED) Max. 145 W (blue LED) D n <1 Wat 110 Vac only <1 Wat 110 Vac only <1 Wat 110 Vac only consumption | Standby (orange LED) (orange LED) (orange LED) Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent dam- age to the LCD TV.
Note: Product Specifications are subject to change without notice.
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
VIEWSONIC® LCD TV What the warranty cover ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will at its sole option repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
How long the warranty is effectiv ViewSonic LCD TV are warranted for one (1) year for all parts excluding the light source and one (1) year for labor from the date of the fi tomer purchase.
Who the warran This warranty is v
protec! id only for the first consumer purchaser
What the warranty does not cove 1. Any product on which the serial number has been defaced, modified or removed. 2. Damage, deterioration or malfunction resulting from: a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product b. Repair or attempted repair by anyone not authorized by ViewSonic. €. Any damage of the product due to shipment d. Removal or installation of the product. €. Causes external to the product, such as electric power fluctuations or failure. £. Use of supplies or parts not meeting ViewSonic”s specifications £. Normal wear and tear h. Any other cause which does not relate to a product defect 3. Any product exhibiting a condition commonly known a: extended period of time. 4. Removal, installation, and set-up service charges. 5. When you mount it on the wall, the following must be noticed a. The accessories attached with this product are applicable for this product only. b. When the product is mounted on the wall, holes and fixed screws will remain in the wall body. €. Wall face may discolor when this product has been mounted on the wall for a long time. How to get service: For information about receiving service under warranty, contact ViewSonie Customer Support. You will need to provide your products serial
mage burn-in” which results when s displayed on the product for an
2. To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (€) your address, (d) a description of the problem, and (e) the serial number of the product.
3. Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic
4. For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.
Limitation of implied warranties: There are no warranties, expressed or implied, which extend beyond the description contained herein including the implied warranty of merchant- ability and fitness for a particular purpose.
Exclusion of damage:
ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic s
1. Damage to other property caused by any defects in the product, damages based upon inconvenience, lo of profits, loss of business opportunity, loss of goodwill, interference with business relationsh the possibility of such damages
2. Any other damages, whether incidental, consequential or otherwise.
st the customer by any other party.
all not be liable for: of use of the product, lo: s, or other commercial loss, even if advised of
3. Any claim agai Effes This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow limita- tions on implied warranties and/or do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you.
Sales outside the U.S.A. and Canada:
For warranty information and service on ViewSonic products s dealer.
The warranty period for this product in mainland China (Hong Kong, Macao and Taiwan Excluded) is subject to the terms and conditions of the Maintenance Guarantee Card.
Id outside of the U.S.A. and Canada, conta
t ViewSonic or your local ViewSonic
For users in Europe and Russia, full details of warranty provided can be found in www.viewsoniceurope.com under Support/Warranty Information. 43: ViewSonic LCD TV Warranty LTV_LWO1 Rev. 1C 10-28-08
ViewSonic 47 VT2645 / VT3245 / VT3745
Mexico Limited Warranty
VIEWSONIC® LCD TV What the warranty cover ViewSonie warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components & a
How long the warranty is effectiv ViewSonic LCD TVS are warranted for 1 year for all parts excluding the 1 chase.
t source and 1 year for labor from the date of the fh
Who the warranty protect This warranty is valid only for the first consumer purchaser What the warranty does not cover:
1. Any product on which the serial number has been defaced, modified or removed.
2. Damage, deterioration or malfunction resulting from: a. Accident, misi
se, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, unauthorized attempted repair, or failure to follow instructions supplied with the product. b. Any damage of the product due to shipment.
€. Causes external to the product, such as electrical power fluctuations or failure.
d. Use of supplies or parts not mecting ViewSonic’s specifi €. Normal wear and tear. f. Any other cause which does not relate to a product defect
3. Any product exhibiting a condition commonly known as “image burn-in” which results when a s extended period of time.
atic image is displayed on the product for an
4. Removal, installation, insurance, and set-up service charges.
For information about receiving service under warranty, contact ViewSonic Customer Support (Please refer to the attached Customer Support
page). You will need to provide your products serial number, so please record the product information in the space provided below on your pur-
chase for your future use. Please retain your receipt of proof of purchase to support your warranty claim.
Product Name: Model Number:
Document Number. Serial Number:
Purchase Date: Extended Warranty Purchase? ŒN)
If so, what date does warranty expire?
1. To obtain warranty service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address. the problem, and (e) the serial number of the product.
2. Take or ship the product in the original container packaging to an authorized ViewSonic service center
3. Round trip transportation costs for in-warranty products will be paid by ViewSonic.
Limitation of implied warranties: There are no warranti
s, expressed or implied, which extend beyond the description contained herein including the implied warranty of merchant- ability and fitness for a particular purpose.
Exclusion of damage: ViewSonic’s liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:
Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, lo: of profit, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages
es, whether incidental, consequential or otherwise.
im agai Repair or attempted repair by anyone not authorized by ViewSonic.
st the customer by any other party.
