Product features:

High definition 15" LCD display;

Support picture view;

Support music play;

Support video play;

Support background music play;

Support SD/MMC/MS memory card

Connect external USB device, such as U disk and digital camera, through USB extension line;

Built-in 256M memory;

Connect computer through USB line and copy files, such as pictures, to the built-in memory.

Product List:

1. Digital photo frame 1 set
2. Stand 1 piece
3. Power adapter (DC 12V 3A) 1 piece
4. Remote control 1 piece
5. USB cable 1 piece
6. User guide 1 Copy

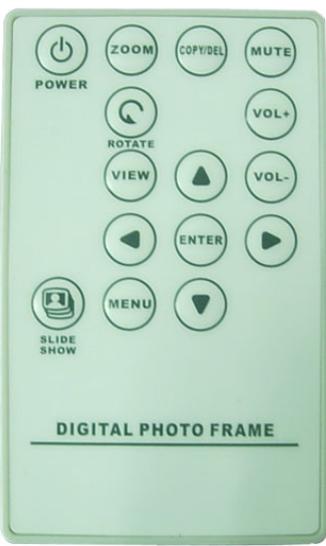

Functions of remote control:

Keypad Name	Function
POWER	Remote control power on/off
ZOOM	Picture zooming
COPY/DEL	Copy/delete files, such as picture under list folder
MUTE	Mute
ROTATE	Picture rotate
VOL+	Volume up
VOL-	Volume down
VIEW	Picture view
MENU	Enter into the main menu or back to the last menu
SLIDE SHOW	View picture and play music simultaneously
ENTER	Confirm or enter the chosen function item
UP,DOWN,LEFT,RIGHT	Up, down, left and right option keys, option key for menu icon or list

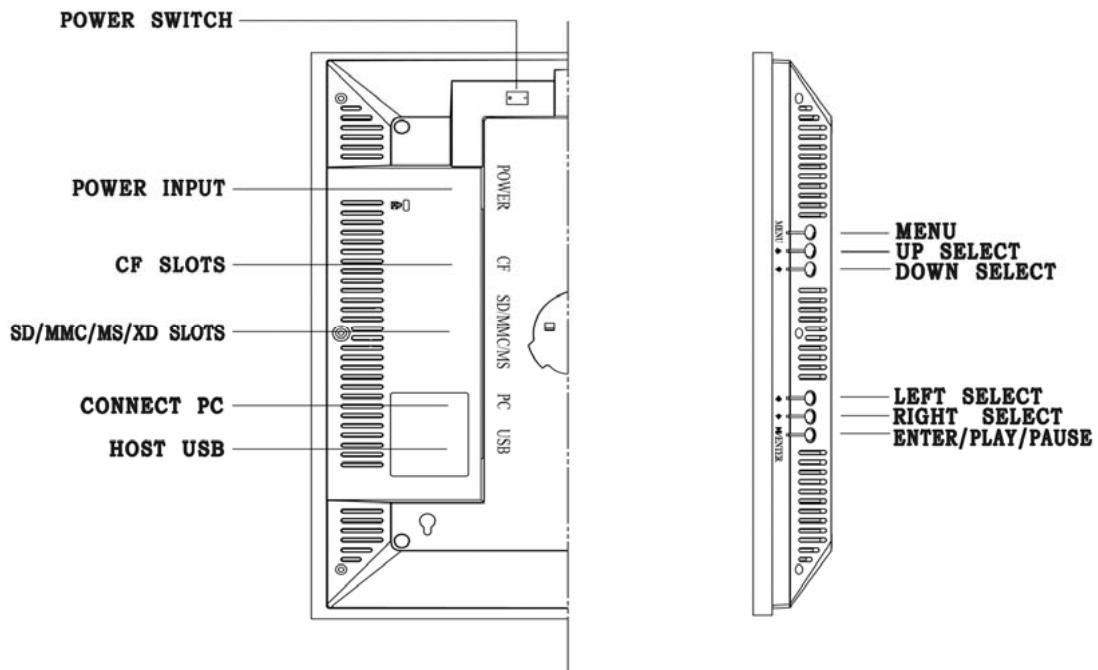

Basic Connection:

The following picture shows the product's basic installation and interface's basic connection and functions.

Insert one end of the power adapter into electrical outlet of the product and insert another end into AC electrical outlet up to standard.

Insert proper memory card with content into corresponding slot of the product (the product has copied part content while leaving factory, and the step can be omitted if there is no proper memory card or the card is not inserted temporarily);

Turn on power switch of the product;

After several seconds, start viewing pictures (the product has been set in automatic viewing picture state while leaving factory).

If the product has not been set in automatic playing state or it has no playing content, main menu displays after starting and then gradually operate by remote control or keying. (Refer to the following functional operation steps for the details)

View picture, play music and film:

Insert USB device suitable for the product, such as memory card or U disk (including picture, music or film file), then the name of the inserted storage device will be displayed under main menu interface (if you insert several memory devices, choose the storage device that you want to play by "Left/Right" key). Press "Enter" for next interface- Function Selection Interface.

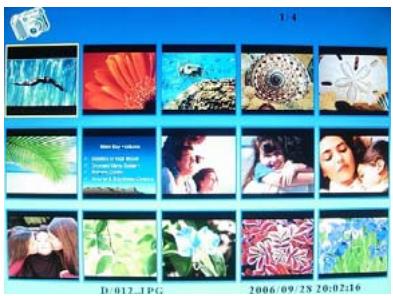

Photo view

Under the function selection interface, choose "photo" icon by "Left/Right" key, press "Enter" to confirm picture preview interface, choose the picture file that you want to play by "Up/Down" key and then press "Enter" to confirm picture view.

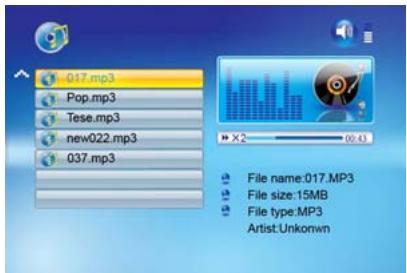

Music Play

Under the function selection interface, choose "Music" icon by "Left/Right" key, press "Enter" to confirm music play interface, choose the music file that you want to play by "Up/Down" key and then press "Enter" to confirm music play.

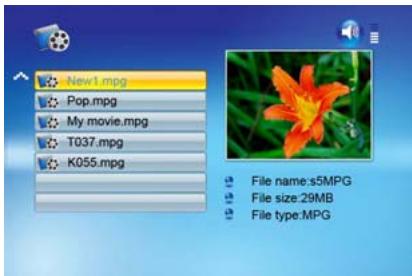

Movie play

Under the function selection interface, choose "Movie" icon by "Left/Right" key, press "Enter" to confirm film preview interface, choose the film file that you want to play by "Up/Down" key and then press "Enter" to confirm film play.

Other functions:

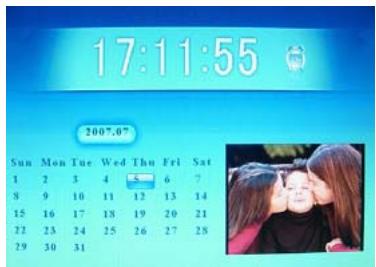

Calendar, clock and alarm clock function:

Under the main menu interface, choose "Calendar" icon by "Left/Right" key, press "Enter" for calendar display interface and show calendar, clock, alarm clock (if start) and small picture view. (Local date and time should be set at corresponding selection of the menu)

E-book

Insert USB device suitable for the product, such as memory card or U disk (including text file), then the name of the inserted storage device will be displayed under main menu interface (if you insert several memory devices, choose the storage device that you want to play by "Left/Right" key). Press "Enter" for next interface- function selection interface.

Under the function selection interface, choose "E-book" icon by "Left/Right" key, press "Enter" to confirm E-book file interface, choose the text file that you want to play by "Up/Down" key and then press "Enter" to enter text file reading.

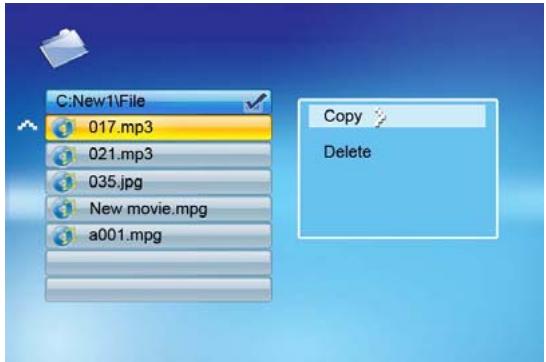

Files Copying or Deleting:

Insert USB device suitable for the product, such as memory card or U disk, then the name of the inserted storage device will be displayed under main menu interface (if you insert several memory devices, choose the storage device that you want to play by "Left/Right" key), and press "Enter" for next interface- function selection interface.

Under the function selection interface, choose "File" icon by "Left/Right" key, press "Enter" to confirm folder interface, choose the file you want to copy or delete by "Up/Down" key and then press "Right" to confirm selection (repeat if several files are required to be copied or deleted); press "Copy/Del" for copy/delete interface, choose Copy by "Up/Down" key and press "Enter" to choose the copied target folder; choose target disk by "Up/Down" key and press "Right" to confirm selection, and then press "Enter" to confirm copying till completion, press "Enter" to quit; choose Delete by "Up/Down" key, press "Enter" for delete interface, choose " ” or “X” by "Up/Down" key, choose " ” and press "Enter" to confirm deleting till completion, press "Enter" to quit.

Menu Setting:

Set Item	Set Value	Function
LANGUAGE	English /French/ Spanish	According to users’ local language or requirement
SLIDESHOW TIME	3s/5s/15s/1m/15m/1h	Set picture view switch speed according to users’ desire
TRANSITION Effect	Random / Sequential Bottom_To_TOP Top_To_Bottom Left_To_Right Right_To_Left Door_Close / Door_Open Hori_Cross / Verti_Cross Fading Vexpand_Top Vexpand_Bottom Vexpand.Middle Hexpand_Left Hexpand Right Hexpand.Middle FC_Ken_Burn / Off	Set picture view switch speed according to users’ desire
MUSIC REPEAT MODE	Repeat all/repeat one/repeat off	Set whether repeat file according to users’ requirement
MOVIE REPEAT MODE	Repeat all/repeat one/repeat off	Set whether repeat file according to users’ requirement
TIME	Set according to local time, choose by Left/Right key and set by Up/Down key	Set date and time according to users’ local date and time
ALARM	Set according to local time, choose by Left/Right key and set by Up/Down key	Set alarm clock time according to users’ requirement
AUTO PLAY	Photo/Music/Movie/Slideshow/Calendar/Off	Set automatic playing content after starting according to users’ fond
DEFAULT	Press “Enter” to confirm ex-factory setting	Recover ex-factory setting

Product specifications:

Item	Specification
Externality Size	426(W) x360(H) x 65(D) mm
LCD	15"
Resolution	1024×768
Adapter AC power input	110-240VAC, 50/60Hz
Adapter AC power output	12VDC@3A
Built-in speaker	Stereo
Support picture format	JPEG BMP
Support music format	MP3
Support video format	MPEG1, MPEG4(DIVX、XVID)
Support memory card	CF/MMC/SD/MS
Connect computer	Support
Support external USB device	Support
Built-in memory	256M
Remote control	Support

Customer Support

For technical support or product service, see the table below or contact your reseller.

Note: You will need the product serial number.
