Introduction
Features
Bright 8" (4:3) high-resolution color 3D TFT LCD panel
Easy to transfer 2D photo and video into to 3D automatically
- Compatible with ViewSonic 3DV5 3D camcorder and 3DSC5 3D camera
- Auto slideshow with your personal MP3 music in the background
- Quickly play video file of MPEG 4 format
Built-in battery for portable usage
Compatible with USB flash drive and SD/SDHC/MMC
Built-in speaker for music playback
- Direct USB connection to your PC for easy file transfers
Clock, alarm and date functions
Automatic Power Off
- Custom alarm clock settings - wake up to your favorite MP3 song
-
The screen is very delicate and can be damaged by pressing on it with excessive force.
-
Use a soft non-abrasive cloth, such as for cleaning camera lenses to gently wipe the screen.
Package Contents
Please check that the package contains the following items:
Picture frame
CD
Quick Start Guide
USB Cable
Power Adapter
Remote control
In case the package content is not complete, please contact your dealer immediately.

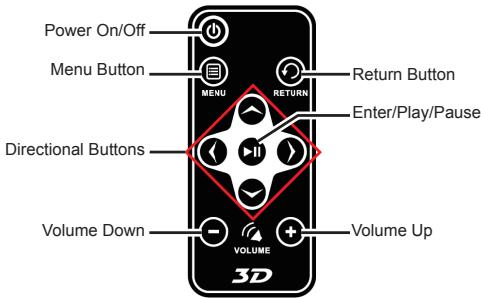

Remote Control
Press Power button on the remote control pointing at the remote control sensor of this unit.
Getting Started

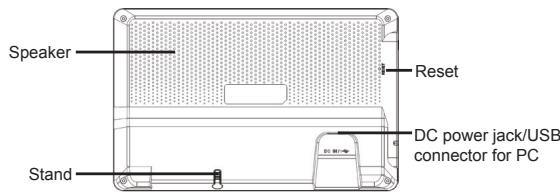

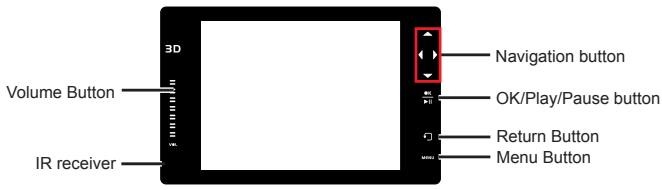

Picture Frame Overview
General Use
Base Installation
In the Photo Frame back, pull the stand out of the slot. After a "stuck" sound, lift the stand by turning 45^ . Then the installation is complete.
Operation
Before you can use the picture frame, it has to be connected to the power supply. Plug the connection cable ② of the power adapter into the respective plug of the picture frame and plug the power adapter into a wall outlet ①
Power on/off your picture frame
To power on the photo frame, please press the Power button longer than 3 seconds. To power off the photo frame, please press the Power button again.
The green indicator light will light up and the device will show the ViewSonic screen.
Again press the Power power button on the side of Photo Frame, or press on the remote control. The indicator light will turn off.
[Note] The Power key on remote controller can switch the set between On and Standby mode only when the Photo frame is activated by the Power button at the side of frame.
Insert memory card and USB drive
Push the memory card (not included) gently into the respective card slot until it stops. When inserting a SD/SDHC/MMC card, make sure that the contacts show to the back. You can also insert USB drive into USB slot instead.
Operations and Functions
Main Menu
When you power on the 3D Digital Photo Frame, you will see the Main Menu appearing on the screen, which allows you to quick access the PHOTO,VIDEO,MUSIC,TIME/DATE, STORAGE,and SETUP functions.
This chapter will guide you through how to use these functions of the device.
Photo Mode
- On the Main Menu, select the PHOTO item and press OK to enter the Thumbnail Mode. You can browse the thumbnails of all photos.
- Use the Navigation buttons to navigate through the pictures.
- Press OK on the selected thumbnail to view the picture in single view mode.
- While viewing a picture, you can return to the Thumbnail Mode by simply pressing Return.
-
In the Thumbnail Mode, you can:
-
press Return to Main Menu; or
- press Menu to enter the Photo Menu.

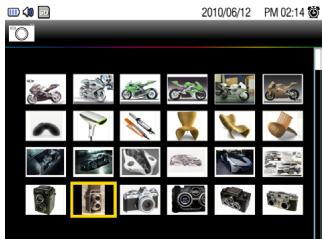

Thumbsail Mode

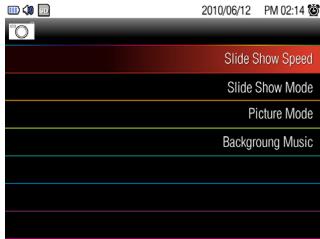

PHOTO MENU
PHOTO MENU allows you to configure the settings while viewing pictures, such as slide show speed, picture mode, background music playback, etc. See the next section for detailed information on configuring the settings.
Configuring the Photo View Settings
On the Photo List screen, press Menu button to enter the Photo MENU.
| Setting | Available Options |
| Slide show speed | Select the interval time between the pictures during the slide show: OFF, 5 sec, 10 sec, 15 sec, 30 sec, 1 min, 5 min, 10 min, 30 min, 1 hour, 4 hour, 8 hour or 12 hour. |
| Slide show mode | • Folder - Start slide show of the pictures in the selected folder. • All - Start slide show of all pictures in the device. • Shuffle - Display the pictures randomly during slide show playback. |
| Picture Mode | • Auto Fit - The selected picture will be displayed to fit the screen size automatically. • Full Screen - The selected picture will be displayed in full screen mode. |
| Background Music | • Off - Disable music playback during slide show. • All - Play all music files during slide show. • Album - Play the music files in the selected album during slide show. • Shuffle - Play music randomly during slide show. • Single - Play music in order during slide show. |
- On the Main Menu, select the VIDEO item and press OK to display the Video List. You can browse the list of all video files.
- Use the Navigation buttons to navigate through the video files.
- Press OK to start playing the video in full screen mode.
- Simply press Return button to stop the video playback. Then you can select next video to play.

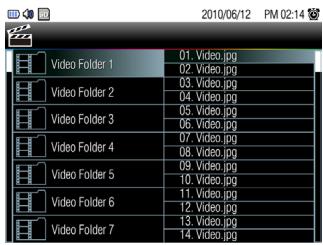

Video List
Configuring the Video Playback
On the Video List screen, press Menu to enter the VIDEO MENU.
| Setting | Description |
| Folder | Start playback of the videos in the selected folder. |
| All | Start playback of all videos in the device. |
Music Mode
- On the Main Menu, select the MUSIC item and press OK to display the Music List. You can browse the list of all music files.
- Use the Navigation buttons to navigate through the music files.
- Press OK to start playing the music.
- To stop the music playback and return to Music List, simply press Return. Then you can select next music to play.

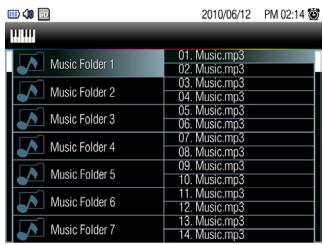

Music List
Configuring the Music Playback
On the Music List screen, press Menu to enter the MUSIC MENU.
| Setting | Option | Description |
| Play Mode | All | Start playback of all music files in the device. |
| Album | Start playback of the music files in the selected album. | |
| Shuffle | Play music randomly. | |
| Single | Play music in order. | |
| Save as the sound of alarm | Alarm 1~4 | Set the selected music file as the sound of alarm of the system. |
On the Main Menu, select the TIME/DATE item and press OK to set the date and time for the system. In addition, you can set up to four alarms for the system.
| Setting | Description |
| Time | Use the Navigation buttons UP / Down to set the correct time settings. |
| Date | Select the date format (M/D/Y, Y/M/D, or D/M/Y. M: month, D: day, Y: year) and then use the Navigation buttons UP / Down / Left / Right to set the correct date settings. |
| Alarm | Select the alarm item (1~4) and then complete the required settings: · ON/OFF - Enable or disable the alarm. · Time - Use the Navigation buttons UP / Down / Left / Right to set the alarm time. · Repeat - Select the repeat time for the alarm. |
If there is any inconsistency on time settings, the message "Conflict setting" will appear on the screen.
On the Main Menu, select the STORAGE item and press OK to select the storage media: SD/SDHC/MMC card, USB device, or Internal memory.
| Setting | Description |
| SD/MMC | Select the inserted SD/MMC card as the storage media. |
| USB | Select the connected USB device as the storage media. |
| Internal Memory | Select the internal memory as the storage media. |
SETUP MENU
On the Main Menu, select the SETUP item and press OK to customize your 3D Digital Photo Frame.
| Setting | Description |
| Language | Choose the preferred language for the system. |
| Auto Off | You can set this setting as Auto Off. |
| Icon | Enable or disable the icon for the system. |
| Brightness | Adjust the brightness level of the LCD screen. |
| Contrast | Adjust the contrast level of the LCD screen. |
| Default | Select to restore the factory default settings. |
Connecting
Connecting to PC
For copying data into the internal memory, you can connect the 3D Digital Photo Frame via the USB connection directly with the PC. Use the supplied USB cable and your PC, then turn it on by pressing POWER button at the side. Now, all necessary system drivers are installed and after a few seconds, a popup window will appear and display that the device can be used as the data storage.
Specifications
| Item | Description |
| Panel | Panel size: 8" Panel resolution: 800 x 600 |
| 3D display format | Photo: Support original 3D photo side by side format (*.JPG) Video: Support original 3D video "side by side" clip with *.MP4 (MPEG H.264) Max. Video Resolution: up to 720P/30fps. |
| Photo | Photo format: JPEG Max. resolution: 16 Megapixel Auto slide show: Yes |
| Video | Video format: *.MP4 (H.264) Clip: Up to 720P/30fps *.MP4 (H.264) |
| Audio | Audio format: MP3 |
| Functions | Background music: Yes Speaker: Yes Date: Yes Calendar: Yes Alarm: Yes Auto off: Yes |
| Storage | Internal memory: 128MB External memory card: SD/SDHC/MMC (up to 32GB) USB flash drive: Yes (USB 2.0 host & slave) |
| Power | External Power Supply: AC 100~240V, 50~60 Hz, 5V, 2A |
| Battery | Rechargeable Li-polymer 1200mAh, embedded |
Troubleshooting
| Problem | Cause | Solution |
| Power indicator is not lit. | Power is off or power indicator is broken. | Check whether the AC adapter is well connected and power supply is normal. |
| No start-up interface. | AC adapter is not well connected or does not power on normally. | Check whether the AC adapter is well connected and make sure the photo frame is powered on normally. |
| Can see start-up clock, but could not play (when a card or USB drive is present). | Card is not correctly inserted or card is corrupt or not fully compatible. | Insert the card correctly; format the card before copy files, or replace with a new card. |
| The order of image files is not what I wanted. | The order of files is sorted by file name. Numbers have higher priority than alphabets. | Rename the files. |
Since there are many brands of memory cards, please test the compatibility on the spot when you purchase the memory cards. This digital photo frame could not support pirate cards. If the memory card is correctly inserted, and the startup interface is displayed but the photo frame can not read the card, please turn off and restart the photo frame, or format the card and re-copy files.
Customer Support
For technical support or product service, see the table below or contact your reseller.
Note : You will need the product serial number.
| Country/Region | Website | T = Telephone F = FAX | |
| Australia/New Zealand | www.viewsonic.com.au | AUS= 1800 880 818 NZ= 0800 008 822 | service@au.viewsonic.com |
| Canada | www.viewsonic.com | T (Toll-Free)= 1-866-463-4775 T (Toll)= 1-424-233-2533 F= 1-909-468-3757 | service.ca@viewsonic.com |
| Europe | www.viewsoniceurope.com | www.viewsoniceurope.com/uk/Support/Calldesk.htm | |
| Hong Kong | www.hk.viewsonic.com | T= 852 3102 2900 | service@hk.viewsonic.com |
| India | www.in.viewsonic.com | T= 1800 11 9999 | service@in.viewsonic.com |
| Ireland (Eire) | www.viewsoniceurope.com/uk/ | www.viewsoniceurope.com/uk/support/call-desk/ | service_ile@ viewsoniceurope.com |
| Korea | www.kr.viewsonic.com | T= 080 333 2131 | service@kr.viewsonic.com |
| Latin America (Argentina) | www.viewsonic.com/la/ | T= 0800-4441185 | soporte@viewsonic.com |
| Latin America (Chile) | www.viewsonic.com/la/ | T= 1230-020-7975 | soporte@viewsonic.com |
| Latin America (Columbia) | www.viewsonic.com/la/ | T= 01800-9-157235 | soporte@viewsonic.com |
| Latin America (Mexico) | www.viewsonic.com/la/ | T= 001-8882328722 | soporte@viewsonic.com |
| Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico | |||
| Latin America (Peru) | www.viewsonic.com/la/ | T= 0800-54565 | soporte@viewsonic.com |
| Macau | www.hk.viewsonic.com | T= 853 2870 0303 | service@hk.viewsonic.com |
| Middle East | ap.viewsonic.com/me/ | Contact your reseller | service@ap.viewsonic.com |
| Puerto Rico & Virgin Islands | www.viewsonic.com | T= 1-800-688-6688 (English) T= 1-866-379-1304 (Spanish) F= 1-909-468-3757 | service.us@viewsonic.com soporte@viewsonic.com |
| Singapore/Malaysia/Thailand | www.ap.viewsonic.com | T= 65 6461 6044 | service@sg.viewsonic.com |
| South Africa | ap.viewsonic.com/za/ | Contact your reseller | service@ap.viewsonic.com |
| United Kingdom | www.viewsoniceurope.com/uk/ | www.viewsoniceurope.com/uk/support/call-desk/ | service_gb@ viewsoniceurope.com |
| United States | www.viewsonic.com | T (Toll-Free)= 1-800-688-6688 T (Toll)= 1-424-233-2530 F= 1-909-468-3757 | service.us@viewsonic.com |
Limited Warranty ViewSonic® Digital Photo Frame
What the warranty covers:
ViewSonic warrants its products to be free from defects in material and workmanship, under normal use, during the warranty period. If a product proves to be defective in material or workmanship during the warranty period, ViewSonic will, at its sole option, repair or replace the product with a like product. Replacement product or parts may include remanufactured or refurbished parts or components.
How long the warranty is effective:
ViewSonic Digital Photo Frame are warranted for 1 year for labor from the date of the first customer purchase.
Who the warranty protects:
This warranty is valid only for the first consumer purchaser.
What the warranty does not cover:
- Any product on which the serial number has been defaced, modified or removed.
- Damage, deterioration or malfunction resulting from:
a. Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.
b. Any damage of the product due to shipment.
c. Removal or installation of the product.
d. Causes external to the product, such as electrical power fluctuations or failure.
e. Use of supplies or parts not meeting ViewSonic's specifications.
f. Normal wear and tear.
g. Any other cause which does not relate to a product defect.
- Any product exhibiting a condition commonly known as "image burn-in" which results when a static image is displayed on the product for an extended period of time.
- Removal, installation, one way transportation, insurance, and set-up service charges.
How to get service:
- For information about receiving service under warranty, contact ViewSonic Customer Support (please refer to Customer Support page). You will need to provide your product's serial number.
- To obtain warranted service, you will be required to provide (a) the original dated sales slip, (b) your name, (c) your address, (d) a description of the problem, and (e) the serial number of the product.
- Take or ship the product freight prepaid in the original container to an authorized ViewSonic service center or ViewSonic.
- For additional information or the name of the nearest ViewSonic service center, contact ViewSonic.
Limitation of implied warranties:
There are no warranties, express or implied, which extend beyond the description contained herein including the implied warranty of merchantability and fitness for a particular purpose.
Exclusion of damages:
ViewSonic's liability is limited to the cost of repair or replacement of the product. ViewSonic shall not be liable for:
- Damage to other property caused by any defects in the product, damages based upon inconvenience, loss of use of the product, loss of time, loss of profits, loss of business opportunity, loss of goodwill, interference with business relationships, or other commercial loss, even if advised of the possibility of such damages.
- Any other damages, whether incidental, consequential or otherwise.
- Any claim against the customer by any other party.
- Repair or attempted repair by anyone not authorized by ViewSonic.
4.3: ViewSonic DPF Warranty
DPF_LW01 Rev. 1A 06-20-08
