Contents General information Equipment overview Important information Anti-theft protection General - operation Basic setting Switching the unit on and off Audio settings RADIO selector key Range selector key MEDIA Range selector key SETUP Range selector key PHONE

F7 s3pd.a.book Page 2 Friday, March 13, 2009 3:04 PM = Generalinformation General information Equipment overview

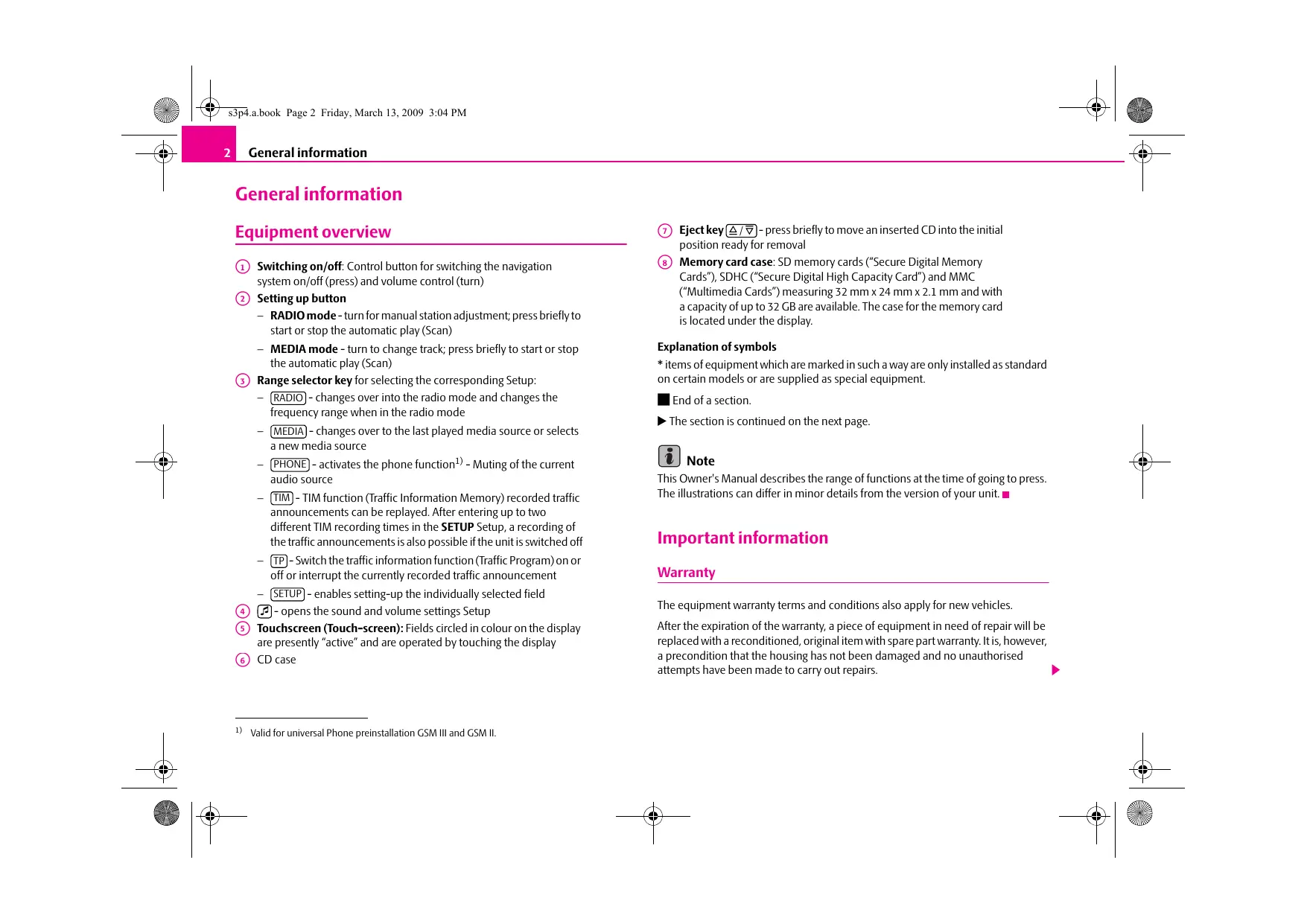

Switching on/off: Control button for switching the navigation system on/off (press) and volume control (turn) Setting up button — RADIO mode -turn for manual station adjustment; press brieflyto start or stop the automatic play (Scan) — MEDIA mode - turn to change track; press briefly to start or stop the automatic play (Scan) ange selector key for selectingthe corresponding Setup: - changes over into the radio mode and changes the frequency range when in the radio mode — (MEDIA) - changes over to the last played media source or selects a new media source activates the phone function!) - Muting of the current audio source TIM function (Traffic Information Memory) recorded traffic announcements can be replayed. After entering up to two different TIM recording times in the SETUP Setup, a recording of thetraffic announcements is also possible ifthe unit is switched off -Switchthe traffic information function (Traffic Program) on or of or interrupt the currently recorded traffic announcement enables setting-up the individually selected field opens the sound and volume settings Setup Touchscreen (Touch-screen): Fields circled in colour on the display are presently “active” and are operated by touching the display CD case 2 Valid for universal Phone preinstallation GSM Ill and GSM IL @ Ejectkey press briefly to move an inserted CD into the initial position ready for removal Œ) Memory card case: SD memory cards (“Secure Digital Memory Cards”), SDHC (‘Secure Digital High Capacity Card”) and MMC (‘Multimedia Cards”) measuring 32 mm x 24 mm x 2.1 mm and with a capacity of up to 32 GB are available. The case for the memory card is located under the display. Explanation of symbols *items of equipmentwhich are marked in such a way are only installed as standard on certain models or are supplied as special equipment MEndof a section. > The section is continued on the next page ED note This Owner's Manual describes the range of functions atthe time of going to press. The illustrations can differ in minor details from the version of your unit. m Important information Warranty The equipment warranty terms and conditions also apply for new vehicles. After the expiration of the warranty, a piece of equipment in need of repair will be replaced with a reconditioned, original tem with spare partwarranty. is, however, a precondition that the housing has not been damaged and no unauthorised attempts have been made to carry out repairs.

Ed 7 s3pha.book Page 3 Friday, March 13, 2009 3:04 PM

General information © note Damage within the meaning of the warranty must not be the result of improper handling of the system or from unprofessional repair attempts. is also essential thatthere is no external damage. m Device operation The unit should only be used, if the traffic situation permits it. The volume settings must be selected in such a way that audible signals from the outside, e.g. a Martins horn from utility vehicles (police cars, ambulances and fire brigade), can be heard at all times. JAN WARNING Please concentrate fully atalltimes on your driving! As the driver you are fully responsible for road safety. Only use the functions of the radio in such a way that you are always in full control of your vehicle in al traffic situa- tions! © Caution + Inserting a second CD while a CD is being ejected can destroy the CD drive in the unit. Please note that the CD ejection lasts a few seconds after pressing the uring this time the lock in front ofthe CD case is open. tis essen- tial that you wait until the CD has been fully ejected before you try to insert a new CD. + Press the buttons and the keys ofthe unit gentlyin order to avoid damaging them. Gentle pressure on the appropriate key is sufficient to operate the unit. Please note thatthe control buttons have predetermined breaking points, in order to reduce the risk of injury. + Do notuse any pointed or sharp-edged objects to operate the touch-screen. Slight finger pressure sufficient to operate the equipment. A text in the display, which cannot be called up by pressing the button, is therefore not available at that time.m Using the display Carefully handle the display because dents and scratches can occur through pres- sure of the finger or contact with sharp objects. The display can be cleaned with a soft cloth and finger marks can be wiped away with pure alcohol (D note Do not use solvent such as turpentine or petrol as they will corrode the display surface. m Anti-theft protection Anti-theft coding Yourradiois equipped with a convenience coding. Ifthe radio is being operated for PS the first time, the safety code is not only stored in the radio but also in the vehicle. After disconnecting and reconnecting the battery, first of all switch on the ignition and then the radio. 1 you wish to install the radio in another vehicle, the safety code must be entered. In this case, please do not hesitate to contact an authorised Skoda Service Partner or a Skoda importer. Asthe unit only functions after entering the safety code, this practically excludes its use after a theft - a contribution to increased anti-theft safety. G&) vote The code is stored in the instrument cluster. This ensures that it is automatically decoded (convenience coding). Manual input ofthe code is normallÿ not necessary. m

7 s3pla.book Page 4 Friday, March 13, 2009 3:04 PM

Enter code If a keypad appears after switching on with the command to enter the code, the unit can be unlocked by entering the correct four-digit code number, The number of the possible attempts is shown in the second display line. = Press directly a digit from (O)to (5) on the digit block displayed on the display. The digit is accepted in the entry line. -_ After a four-digit order has been entered, the group of digits will turn grey (inactive) and no further digits can be accepted in the entry line. —_ Press (@)on the display to erase the digits in the entry line from right to left and thereby correct your input, if necessary. = ifthe correct code number is displayed in the entry line, pres: Code number The code number can only be called up “online” via the Skoda system, as this guar- antees even more effective anti-theft protection. Please contact your authorized Skoda Service Partner, if necessary. Incorrect code number Ian incorrect code is confirmed after entry ofthe code, the procedure can be repeated once again. The number of attempts is shown in the second display line. Ifthe code number is entered incorrectly for the second time, the unit will be blocked for approx. one hour. is possible to enter again the safety code after one hour has expired, when the unit and the ignition have been switched on. two invalid attempts are then made again, the navigation system will be blocked again for an hour. The cycle - to attempts, blocked for an hour -will continue to apply.m General - operation The screen ofthe unit is a so-called touch screen (touch-screen). Fields circled in colour on the touch-screen are presently “active” and are oper- ated by touching the screen. “Function keys” on the screen = Active fields, which call up a function or a Setup, are called “function keys”. = Byusingthe function key{#) you can change back from each Setupto the previous Setup. Moving objects or regulators -_ Place your finger on the display of a moving object on the touch- screen, for example the “sliding regulator’ in a “scrollbar”. - Now move your finger over the touch-screen without interruption. The objectwill follow your movements, but can only be moved within the pre-defined range. = Liftthe finger from the touch-screen atthe desired position. = To viewrthe displayed Setup section, move the right sliding regulator in the scrollbar completely to the bottom —_ Alternatively, you can move the sliding regulator on the touch-screen to the bottom and top by touching the function keys (w) and (a). = Asliding regulator in a set-up bar ED) can alternatively be moved by pressing (J or “Scrollbar” The vertical bar on the right side ofthe display with a sliding regulator betweenthe arrow keys (4) and (w)is called a “scroll bar”. It indicates that further Setup entries become visible if the sliding regulator is moved completely to the bottom. >

Ed 7 s3pha.book Page 5 Friday, March 13, 2009 3:04 PM

General information Display settings In aset-up Setup aset-up orvalue isinfinitely ajustable. Move the slidingregulator or (J to change a setting. Press the function ke; changed setting and to switch back to the initial Setup. “Pop-up window” Afunction key with an arrow behind another function key shows the presentiy. selected set-up, eg. with an (Confirmation tone)(>OT). Ifyou press on the function key -OMon the display, a so-called “pop-up window” will open where all the set-up options are displayed. Briefly press the desired set-up option. The pop-up window is closed and the setting you have selected is displayed. To close the pop-up window without changing the set-up, press the function button in the pop-up window (€) “Check box” There is a so-called “check box" in front of a function which can only be switched on or off. A tick in the check box [M indicates that the function is switched on, an empty check box [], indicates that it is switched off. Briefly press the corresponding function key for switching on or off. m

7 s3pha.book Page 6 Friday, March 13, 2009 3:04 PM

setting Switching the unit on and off — The systemis switched on or off by pressing the control button (&). The last active audio source before switching off is repeated. Ifthe key is pulled out ofthe ignition lock while the unit is switched on, the unit will switch off automatically. You can then switch the unit on again. the ignition is switched off, the unit (discharge protection ofthe vehicle battery) switches off auto- matically after approx. one hour. This process can be repeated as often as necessary. m Audio settings By pressing the button () ou can select the following parameters: °° (EMI Esss)- Setting of height, middle and depth; . - Volume ratio (left and right = balance), (front and rear = fader); e_ (Woume)-(Sanupvolume) (Maficannouncements) an volume, traffic announcements and volume of park distance control signal; Speed dependent volume adaptation; Q - Switching on or off the tone signal when storing the radio stations. Reducing the volume when activating the parking aid (PDC)* I your vehicle is equipped with “parking aid”, the volume is automatically decreased to a pre-defined value, when the “parking aid” is active. GALA function Your radio increases automatically its volume with the increasing vehicle speed. À higher setting value results in a stronger volume increase. m RADIO selector key Selecting a radio station Call up main Setup RADIO and choose frequency range = Press the range selector key to call up the RADIO main Setup. The currently heard radio station is indicated at the top of the display. — To change the frequency range, press the button orthe func- the opening pop-up window The current frequency range is indicated at the top left of the display. Changing radio station = Bypressing the arrow keys on the display of the RADIO main Setup, you can change to the previous or the following station. Selecting a radio station from the station list —_ Press the function key to display all radio stations that can currently be received. The list"skips” directly to the display ofthe currently heard radio station. — Choose the desired station by pressing the respective selection. After about 20 seconds without operation the image of the station list will close automatically. Function keys in the Radio main Setup - Station keys for storing or calling up a stored radio station. Button for selecting the desired frequency range. Sons - opens the list of the presently receivable radio stations. - opens the list ofthe stored radio stations.

Ed F7 s3pda.book Page 7 Friday, March 13, 2009 3:04 PM NY7 œ & est & & Basic setting MH: - Button for calling up the automatic pla r forthe radio texttofade Function SCAN in Radio Tex) (Mn) - activates manual station finding.m The stations of a waveband can be played briefly one after the other (for ten seconds) The process of searching for and storing the radio stations = Press the set button (2), the radio searches automatically all available stations of the current waveband. Manual search inthe —_ Alternatively, press the function ke — Turn the Set button (2) in the RADIO main Setup or press on the func- opening pop-up window. tion key (Man.} The scale ofthe selected frequency range is inserted in the frequency band in the lower part of the display. and press = During the current automatic play the function key will change from — Briefly press the set button to terminate the manual frequency selec- tion and to display once again the function keys. —_ Press the set button (2) or function key again to end the auto- matic play of the currently heard radio station. m Storing a radio station on a displayed station key —_ Continue to press one ofthe six station key. (€) displayed in RDS functions Co the RADIO main Setup until a signal tone sounds. The currently heard es radio station is then stored on this station key. Switching radio text on and off Deleti dio station from th ist —_Inthe RADIO main Setup, press on the function key. eleting a radio station from the memory lis (Radio Te) in the opening pop-up window. Instead ofthe six station —_Inthe RADIO main Setup, press the function ke keys, the window for displaying the radio text is now opened in the memory list. lower half ofthe display. — Press the function key behind the station you wish to delete. —_ Thewindow for displayingthe radio text must fade out again to enable — Confirm the following safety interrogation by pressing the function îhe von ja to be displayed again. Briefly press on the display key to finally remove the station from the memory list. Window of ine radio tex ét “heard radio stations aready storedinth ist — Alternatively, press the function ke andthe function key e currently heard radio station is already stored in the memory list the memory RCE Res ° ue space number is displayed behind the description of the frequency range (FM or shown as highlighted in the opening pop-up window AM). RDS (“Radio Data System") serves to transmit program identification and additional Use the Setup Radio main Setup, to determine which of the six station keys are to services therefore also enabling automatic tracking of stations. be displayed in the main Setup RADIO. m Inthe event of sufficientiysatisfactory reception, the suitable RDS radio stations will display the station name instead of the station frequency. AN PS SA <® e + + | ®

PSSpla.book Page 8 Friday, March 13, 2009 3:04 PM & |. lc setti > Basic setting If a radio station sends additional information via the RDS function while a station is being stored, it can occur that the name of the radio station is later displayed incorrectly in the memory list. m Traffi nformation function - Press onthe button n order to switch the traffic information func- tion on or off. The display “TP” in combination with a station name (e. g. in the station or memory list), indicates a traffic information station. The operational readiness ofthe traffic information function is indicated by “TP” at the top right in the display, I no traffic information station can be received because, for example, radio recep- tions interrupted in general, "No TP” will be displayed instead of TP”. Remember that car parks, tunnels, high buildings or mountains can interrupt the radio signal up to the total loss of reception. Incoming traffic announcement When a traffic announcement is being received, a pop-up window will open. If you wish to interrupt the transmission of the traffic announcement, press on the: n the pop-up window Traffic announcement The traffic infor- mation function remains available and a following traffic announcement is made again while the audio mode is in operation. Pressing the function key will switch off the traffic information function permanent. m Traffic information memory Automatic recording of traffic reports Ithe traffic information function is switched on and a traffic information station is received, the incoming traffic reports will be recorded, as long as the ignition is switched on. This way you are informed at any time ofthe current traffic situation, even if you have your radio switched off for a lengthy period while driving, Hthe vehicle is notin use (ignition of) while atraffic information station is received andthe traffic information function is switched on, incoming traffic reports from this station are recorded for two hours. When suitching the ignition off the current traffic information station is displayed for about five seconds, from which the next 65 minutes of traffic reports will be recorded. During this display of five seconds, you can select another traffic infor- mation station using the arrow keys on the unit, which will be recorded If when the vehicle is not in use, the reception of the settraffic information station is too poor because of external influences, itwill automatically search for another traffic information station. Amaximum of nine traffic announcements with a total length of up to four minutes can be recorded. The oldest traffic report will always be ovenwritten ifthe memory is full. TIM recording times You also have the possibility to set two TIM recording times, to which the unit will also record traffic reports when the vehicle is not in use. Then the radio starts accordingto the setTIMrecordingtime with the recording of allthe incoming traffic reports on the set traffic information station. For example, when you drive your vehicle to work everyday at a certain time, only enter the approximate start time. The radio starts with the recording at the set start time and ends the recording 65 minutes afterwards. In this way, before you begin your journey, you can retrieve the lasttraffic reports and tune into the current traffic situation of the distance to be driven. Œ note + Incase of a message of over four minutes long, the beginning is overwritten. + _Ifthe vehicle has not been used for more than three days, no further traffic reports are recorded, in order to stop the vehicle battery from running down. m

Ed 7 s3pha.book Page 9 Friday, March 13, 2009 3:04 PM Basic setting Playing traffic reports — Press onthe button in order to listen to the stored traffic reports. The play function starts with the last recorded traffic report and runs through to the oldest recorded traffic report. —_ Press on the button (#) in order to switch to the beginning of the currently heard traffic report. —_ In order to skip a traffic report, press on the button (>) — You can interrupt the play function by pressing the button (M) The button changes to (). Pressing the button (®) will continue the play function from the last point. m Range selector key MEDIA MEDIA main Setup Calling up the main Setup MEDIA and changing the audio source = Bypressingthe button audio source will continue. he play function of the last played If audio sources are currently selectable at the unit, use the range selector key (0 change between the last audio sources. If a previously played media source is selected again, play will continue from the last played part. Ifa media source cannot be selected atthe presenttime because, for example, non is available (e.g no memory card) the function key will be displayed with a grey background Function keys for controlling the current audio sources (Q- pressing this briefly changes over to the beginning of the current title or chapter, repeated pressing changes over to the beginning of the previous title or chapter.

C»)- briefly pressing this changes over to the next title or chapter. (5)- Pause: the play function is stopped at the current position and the symbol changes to (>) - pressing (>) will continue the play function at this position. Selectable audio sources in the Setup MEDIA changes over to the last played CD from the internal CD changer. changes over to an inserted memory card. UD - changes over to a connected external audio source*. Operating an exter- nally connected audio source is possible with certain restrictions and depends largely on the type of the connection. Addi nal function keys in the MEDIA main Setup -starts the automatic play Scan. | is already displayed with the func- ‘ion key, the automatic play has started - press the button to terminate. starts the random play function Mi function key, the random play function has started - press the function key to termi- nate - opens the pop-up window for switching on the repeat function. In addi- tion, itis determined if only the current for the MP3 operation is repeated. Clection) - opens the title list of the current audio source in order to choose another title or source. m Inserting or ejecting a CD Insertingthe CD = Press the button Choose the location (1).…()for storing the CD in the internal CD changer. Wait until “Please insert CD” is displayed. —_ Push a CD withthe written side facingup as far as possible into the CD case until itis automatically drawn in. The play function will start auto- matically

7 s3päa.book Page 10 Friday, March 13, 2009 3:04 PM Taking out the CD = Press on the button he CD is driven to the initial position. Ia CDis nottaken outinthe initial position, itwill be reinserted after approximately 10 seconds for safety reasons. WMA Data (Windows Media Audio) The copyright of audio data compressed by Windows Media Audio, can also be protected by the DRM procedure (Digital Rights Management). Such WMA data is not supported by the unit. m Inserting or removing a memory card Inserting a memory card —_ Push the memory card into the memory card case with the trimmed edge to the front right, until itis locked in position. The play function will start automatically. Taking out a memory card = Press against the spring resistance of the inserted memory card, the memory card “skips” back into the Eject position. Only MP3 data and unprotected WMA data can be read from the SD card. All other data is ignored. Memory card empty or data not readable Ia memory card is inserted, on which no audio data has been stored, itwill not be switched over into the memoi ode after the loading procedure. In the Setup MEDIAthe function keyl remains inactive in the top display line and the function cannot be seleced Requirements of the memory card Memory cards measuring 32 mm x 24 mm x 2.1 mm or 1.4 mm can be inserted into the memory card case. Other memory cards of suitable size are not read by the unit. m Selecting a CD from the CD changer n order to open the MEDIA main Setup. = Iftheunitis not alreadyin the CD mode, press on the function ke in the top display line. —_ Press on the function key (Selection), in order to display the title list of the currently played CD. = Press onthe function ke tion Setup is displayed. 5 often as necessary until the CD selec- = Press on one ofthe buttons play function of the CD from o in order to startthe sponding position. I the currently played CD is selected in the CD selection Setup, the title list is opened. ACD compartment, in which no CDiisinserted, is marked by “Empty” andthe func- tion key is shown as inactive. The CD which is currently playing, is indicated in the MEDIA main Setup atthe top left of the display. - Random play function: the tracks will be played in a random order. Scroll through the CD. The first 10 seconds of each title are played. (D note CDs, which cannot be read by the CD changer, are also not selectable in the CD selection Setup of the radio (Display: Empty"). m Select track Press the range selector key 0 switch to the main Setup MEDIA. R

Ed 7 s3päa.book Page 11 Friday, March 13, 2009 3:04 PM Basic setting Audio CD: Select track —_ Press on the function key (Selection) in order to display the title list of the currently played audio CD. The currently played track is shown as highlighted. — Select one ofthetitles from the title list by briefly pressing the function key (Track). MP3 Data: Select track —_ Press onthefunctionke n orderto display the title listwith the currently played title essary, to display the sub-folder contained in this folder. The currently played track is shown as high- lighted —_ Press to choose another title. Ifthe title you are searching for is in another folder, you must first of all search the folder structure. Press on the display of a data folder to open it (in picture: (EFL-11). —_ Press the function key (#)to open the appropriate higher priority folder. Repeat title = Press the function key. the opening pop-up window the titles ofthe current CD orthe current folder are repeated automatically. Œ note You can also change titels in the Setup MEDIA by turning the set button (2). + lfa data carrier in the internal CD drive is ready to play, “CD int.” will be indi- cated at the top left in the display. + When playing MP3 data, the name of the artist the album and the title of the MP3 data will be displayed, if available, as ID3 tag, The list and data name will be displayed ifthere is no ID3 tag. + Some audio CDs support “CD Text”. With these CDs the title name is displayed instead of “Track”. m General information for MP3 operation

Fes Requirements for the MP3 data and data carrier + CD-ROM, CD-R, CD-RW with a capacity of 650 MB and 700 MB. _ The CDs must correspond to the ISO 9660 Level 2 standard as well as the Joliet data system (single and multi-session). + Data names must be no longer than 64 characters. + The list structure is restricted to a depth of 8 list levels The name of the artist, the album and the title of the reproduced MP3 data can be shown as ID3 tag, providing this information is available. The list and data name will be displayed if there is no ID3 tag. Playlists are supported. + WMA data (Windows Media Audio) can also be played even ifthe copyright is additionally protected by the DRM procedure (Digital Rights Management). Such WMA data is not supported by the unit. Bit rate (data flow per time unit) The system supports MP3 data with bit rates of 32 to 320 KB/s as well as MP3 data with variable bit rates. + Theindicated playing time data with variable bit rates is not reliable. m Information on how to use a CD CDtojump Uneven road surfaces and strong vibrations may cause the CD to jump

7 s3päa.book Page 12 Friday, March 13, 2009 3:04 PM

Formation of condensation External sources* When it is cold and after rain showers, moisture can deposit in the CD drive (condensation). This can effect the CD jump or impair the play function. In such cases wait until the moisture has dissipated Notes for the care ofthe CDs Ia CDis soiled, please never clean the CDinthe direction ofa circle butratherfrom inside to outside with a soft lint-free cloth. In case of severe layers of dirtwe recom- MDI mendto cleanthe CDwith a commercially available CD cleaner. Also inthis case do not clean the CD in the direction of a circle but rather from inside to outside and then let it dry of. Besse) Fig 1 Input MDI LÀ WARNING + TheCD playerisa 1stclass laser product. Thereis a definite risk ofinjury Input AUX-IN from invisible laser beams if it is opened. k P . ; —_ Activate the AUX-IN input in the Setup Setup Media by pressing the <_ The CD player contains no parts that have to be serviced or repaired. function ke Please contact your specialist garage if a mechanical defect occurs orthe CD A player has to be repaired. — The input for external audio sources AUX-IN is located under the armrest of the front seats. © Caution - External audio sources, which are connected to the AUX-IN input, + Neveruse liquids such as gasoline, paint thinner or disk cleaner, othenwise the cannot be operated via the radio. surface ofthe CD could get damaged! + Never expose the CD to direct sun rays! Input MDI - Multimedia socket © Please never write or affix the CD! — Activate the MDI input in the Setup Setup Media by pressing the func- tion key (PD) (&) Note — The input for the external audio sources MDI is located under the Dirt or damage of a CD can lead to difficulties when “reading”the information. The armrest of the front seats, in the storage compartment ofthe front difficulty in reading the error depends on the dirt or on the severity of the mechan- passenger side or in a storage compartment of the centre console ical damage. Severe scratches cause reading errors which can make the CD jump or (according to vehicle model) “get stuck”. AI CDs must be treated carefully and always be stored in a protective } . case.m — Audio data in MP3, WMA, OGG Vorbis and AAC format from the external data stickers, connected to the MDI input, can be played via the radio. >

Me à É 2 F7 s3pa.book Page 13 Friday, March 13, 2009 3:04 PM

—+|e Fr ic setti > > Basic setting <& —_ External audio sources, which are connected to the MDI input, can be + _ The version ofthe file allocation table FAT (File Allocation Table) ofthe operated via the radio => page 9, “MEDIA main Setup” connected device must be FAT16 (< 2 GB) or FAT32 (> 2 GB). +_Inordertoreplay from aunitwith a hard disk (HDD) which includes a large data Itis possible to play back external audio sources via the loudspeakers of the radio volume, it can lead to a time delay when reading in the overview of the music data. in the vehicle _ In order to replay from a unit, which includes a complicated folder structure, it You can select another audio source on the radio at any time. As longasthe external can lead to a time delay when reading in the overview of the music data. audio source is not switched off, it remains always active in the background + _ The folder structure in the connected unit must not exceed a depth of 8 levels. Please refer to the Owner's manual of the respective manufacturer for the opera- One folder must not contain more than 1000°data. tion of the external audio source. + AUSB extension cable or USB distributor (HUB) must not be used to connect dditionally installed, the button (PD)is displayed instead of the the unit. in the Audio Setup. Please note that an audio source connected to the AUX-IN socket can only be replayed, ifthere is currently no data carrier VAN WARNING connected to the MDI input. | k | + On no account place an external audio source on the dash panel. You Adjust the play function volume of the external audio source could make sudden manoeuvres in the passenger compartment an The play function volume of the external audio source can be changed via the the occupants. > volume control on the radio. + On no account place an external audio source close to the airbags. You À D Depending on the connected audi source, the output volume on the external could be thrown back in the passenger compartiment by the airbags being audio source can be changed. deployed andinjure the occupants. You can also change the input sensitivity of the external audio source, in order for You must not hold the external audia source in the hand or on the knees the play function volume of the external audio source to adapt to other audio while driving. You could make sudden manoeuvres in the passenger sources or to avoid distortions of the play function volume. compartment and injure the occupants. + Always guide the connection cable ofthe external audio source in such a Adapter way that is does not restrict you when driving. A 3.5 mm jack plug is required to connect external audio sources via the AUX-IN input. Ifthe external audio source does not have this jack plug, you must use an © . adapter. Caution ci ! A special adapter is required to connect audio sources via the input MDI. TheAUXAN Input must only be used for audio sources We recommend that you purchase an adapter for connecting the USB devices, the ® devices with Mini USB output or an iPod, at a Skoda Service Partner. Note h | The external audio source, which is connected via AUX-IN, can only be used if Conditions for proper connection no unit is connected via MDI at the same time. + Only USB devices with the specification 2.0 can be connected PS Frs SA ®

7 s3päa.book Page 14 Friday, March 13, 2009 3:04 PM +_ lan external audio source is connected via AUX-IN, which is equipped with an adapter for external power supply, it can occur that the audio signal is interrupted. This depends on the quality ofthe adapter which is used + The loudspeakers in the vehicle are matched to a power output ofthe radio of 4x20 W. © Forthe equipment sound system”, the loudspeakers are matched to a power output ofthe amplifier of 4x40°W + 6x20 W. m Range selector key SETUP Main Setup set-ups (Setup) = Press the range selector key 4 open the main Setup Setups. — Select the area for which you wish to change the set-ups or carry out set-ups by pressing on your selection. — Press on the function ke: Overview ofthe set-up Setups - When in the radio mode, carry out set-ups for the function ofthe arrow Keys, for the displayed memory keys, the memory list and the traffic reports. Determine the set-ups for the play and display of MP3 data and activate or deactivate the external audio sources. Change the system set-ups such as voice response and time and cancel or delete stored set-ups in individual areas. Traffic program) - Select referred TMC station and determine the area for TMC announcements. Adjustthe brighiness ofthe screen and select/deselect the confirmation one for the keystroke - Update the phone book in the unit, delete all call lists and modify the assignment of the shorteut keys. m to switch back to the last selected Setup. Setup Radio Call up the Setup Setup Radio by pressingthe selector key function key Press on the function key (Station ist) tion key. to determine from which list in the radio mode the stations are to be selected with the arrow keys. Ifthe is selected, only stored stations from the memory list are called up. “Memory” is displayed at the top left in the main Setup RADIO. Select station keys for display = Press on the function key behind the function key (Statfoneys)in the Setup Setup Radio. = Inthe pop-up window, press and select the station keys to be displayed in the main Setup RADIO. Switching the RDS function on or off (RDS regional) = Press on the function key (RDS regional and select a set-up inthe opening pop-up window. = Press on the function key doing so will always choose the frequency for the radio station heard, which offers the best reception atthe present time. = When pressing on the function key (Fix) the unit attempts to hold a radio station emitting regionally long enough until the reception quality is so bad, that there is a risk of a program loss. Delete memory list —_Inthe Setup Setup Radio move the sliding regulator to the bottom to display the function key (Delete memory), = Press the function key (Beletememanyis] and confirm the following safety interrogation in order to erase all radio stations stored in the memory list. m

Ed 7 s3päa.book Page 15 Friday, March 13, 2009 3:04 PM Traffic station set-ups Call up the TIM Setup recording time Setup by pressingthe range selector nd the function key (Trafficinformation). = Press onthe left of the display on TIM recording time, in orderto open the Time setting Setup. —_Inthe Time setting Setup, briefly press on the arrow keys (4)or(w)on the display, below the display of the hours or minutes, in order to gradually change the respective time unit down or up. = Keep pressing the corresponding arrow key, in order to continuously change the time unit. Release the button if the desired value has been reached. — Press on the function key ()in order to take over the indicated TIM recording time and to exit the Setup Time setting. = Inthis way you can set both desired TIM recording times. —_ Activate or deactivate the desired TIM recording time by pressing the the check-box is active M the accompanying TIM recording time is activated The unit starts with the recording 90 minutes before the set start time and ends the recording 30 minutes afterwards. m Setup Media Call up the Setup Media Setup by pressing the range selector key and the function key Function keys in the Setup - Setup Media for playback of an external audio source. Activate Bluetooth audio) - enables a wireless transfer of MP3 data from the Phone preinstallation. Deacivate performers/Tile names) - according to the set-ups the title and performer name or only the data and folder name will be displayed for audio CDs with CD texts and in the MP3 operation. Gcan/MEyRepeat including sub-folder)- plays all MP3 data one after the other according to the sequence on the played medium, which are stored in the folders and sub-folders. - the input sensitivity of the AUX-IN input for adjusting the play function volume of a connected external audio source can be adapted to other audio sources in three steps. Press on the function key (AUX Input level) and select the desired input sensitivity in the opening pop-up window. fa MDI input is addi- tionally installed, this setting also applies for the audio sources which are connected to this input. m System set-ups Call up the Setup System Setup by pressing the range selector key and the function key Change the system language manually = Press on the function key (System Tanguage) and select the desired language in the opening pop-up window. The system language is normally preset to the set language in the instrument cluster “Automatic”. desired, another language can be selected for the radio as described. Resetting the factory settings on the unit —_ Press on the function key (Factory settings). = Confirmthe following safety interrogation, the unit will be reset inthe as-delivered condition and all the stored data will be erased Rear lighting ofthe control buttons —_ Press on the function key (ILLUMINATION).

7 s3päa.book Page 16 Friday, March 13, 2009 3:04 PM — Onthe unit, you can switch the rear lighting of the control buttons (1) ifthe ignition is switched on. Display of the setting for the Climatronic unit* = Press on the function key (CHMATE POP-UPS) —_ You can switch the display of the Climatronic values on or off.m Phone set-ups Call up the Setup Phone Setup by pressing the range selector key and the function key Updating phone data in the unit - Press on the function key (Update phone book)? to update all entries in the unit, the phone book ofthe mobile phone orthe SIM card entered since the last connection. This procedure can take a few minutes. = Confirm the following safety interrogation. The “old” data in the phone book can still be selected at the unit while the data is being updated. —_Inthis case, consult the instruction manual applicable to your vehicle. Deleting call lists?) = Press the function key (Delete calTsts), -_Ifyou confirm the following safety interrogation by pressin the stored call numbers of all calls made and calls accepted in the unit will be deleted. 2° Only valid forthe universal Phone preinstallation GSM IL Modifying assigned shortcut keys = Press the function key to modify the assigned shorteut keys. = To change the assignment of a particular shorteut key, select the respective shortcut key by pressing the key in the following Setup. — Change the entry as described. Range selector key PHONE Main Setup PHONE Connect your mobile phone with the mobile phone program according to the instruction manual applicable to your vehicle. » = Press the selector key to call up the main Setup PHONE. After the connection process, it will take a few minutes (depending on the size of the Phone book) until the phone book data of the mobile phone connected to the radio unit is available. Function keys in the main Setup PHONE Take calls, establish or hold. After pressing the call list, the selected phone numbers are displayed in the main Setup PHONE. End conversation or reject call. ÿ) - establishes a connection to a an emergency number after further confir- mation, This function is also possible without a connected mobile phone. Itis, however, necessary that a connection can be established via a mobile phone company. >

à d Ed 7 s3päa.book Page 17 Friday, March 13, 2009 3:04 PM SA œ Æ ic setti 7 > Basic setting <& (Voice maibor)’) and to = Shorteut keys; these can be allo The special keys “Stars” (J and ‘Rhombus” (F) have the same function as those on catedto, in each case, one number. a phone keypad. These characters are primarily needed when transmitting sound

(ŒD- opens the number block for entering a call number. Signals during à call? m - opens à pop-up window for selecting a call list. Only call lists of missed, or accepted calls from the mobile phone preparation program can be Phone book displayed (ESS) and (Conference details)” or (Microphone of) switches off the microphone Opening the phone book during a conversation. Conversations held inside the vehicles cannot be heard by Press on the function key in the bottom right (æJin the main Setup the other party when the microphone is switched off. PHONE, in order to open the phone book. opens the phone book of the connected mobile phone for selecting a call number. m Select phone number from the phone book = When in the Setup Phone book move the sliding regulator in the Enter call number scrollbar to the bottom to view further stations. — Press on the function ke Enter a number and select search mask. & = Press on the function key (Ein the main Setup PHONE in order to = Press in the left column on the display of a phone book entry. The 8 open the number block for entering a call number. connection to the first call number stored for this entry in the phone —_ Press an inserted number key to acceptthe corresponding number in book, will now be established.5) the entry line. 0 select a phone book entry via a Displaying information relating to a phone book entry”) : ace Se nnon te CE in the entry line from right to left by = Press the function key(®) on the right next to the phone book entry pressing YL@ you which to display. The call numbers stored under this entry are —_ Press function key (Æwhen the desired call numberis indicated in the displayed. entry line. The connection to the entered call number is established. —_ lfyou press on the entry of a call number, the connection to this call You can select the character “+” instead of the first two digits (for example 00") number will be established. when entering a country code. For this step, hold the function key (@Jwith the little triangle “W” pressed until a pop-up windowwith the function keys (G)and in. Press to acceptthe desired character into the entryline-the pop-up windowwil lose. Ifno entries are entered, the pop-up window will close automatically after à few seconds. Onlyvalid for the universal Phone preinstallation GSM I Onlyvalid for the universal Phone preinstallation GSM Il e + + | ®

7 s3päa.book Page 18 Friday, March 13, 2009 3:04 PM Searching an entry in the phone book = Press on the function key phone book entry via a se n the Setup Phone bookto select a sk. = Press aselectable character on the keypad while inthe searchwindow to accept it in the entry line. — Press the function key (c%) to open the input window for digits and special characters. Press (A-Z) to change again to the letterinput mask. —_ You can delete the characters in the entry line starting from the posi- tion ofthe character insertion cursor from right to left by pressing the function key (&) = ifyou press on the button (F) the connection to the first call number is established, by doing so an assigned name is displayed in the entry line in the Phone. The upper and lower case which is used when searching for a phone book entry is not ofimportance. Editing field: Indicate specific characters Some letters are also marked with a small triangle “W". This indicates that specific characters based on this letter can be selected. Continue to press down on the corresponding button with your finger until a pop- up window with these specific characters fades in. Press to acceptthe desired char- acter into the entry line - the pop-up window will close. If no entries are entered, the pop-up window will close automatically after a few seconds. m Adapt a call number Open the display of a call number from the phone book or à call list as described in the corresponding chapter. = Press the arrow keys (9 or(#)to move the character entry cursor in the entry line. -_ Press on a character inserted into the keypad to accept it behind the character entry cursor in the entry line. umber will be established as = The connection to the displayed cal soon as you press the function key Call lists Only valid for the universal Phone preinstallation GSM III. Onlythe dialed numbers which are missed, selected and accepted bythe mobile phone preparation program in the vehicle are stored. The call lists stored in a mobile phone will not be transferred to the vehicle. in the main Setup PHONE. = Selectthe call list from which you wish to select a call number by pressing your selection in the opening pop-up windows The corre- sponding list is displayed. Call numbers, for which an entry exists in the phone book, will be displayed together with the corresponding name. You can use the function key stored call number. © (Mssed als) shows a list of the non-accepted calls from the mobile phone preparation program. © (Did numbers) - shows a list of call numbers, with which the mobile phone preparation program has attempted to establish a connection. + (GE tken)- shows a list of calls accepted by the mobile phone preparation program. to display further information relating to the Ithe call number from a call listis stored in the phone book the stored name in the phone book is displayed instead of the call number. Incoming calls rejected with the function key (=) will be stored in the call list of the accepted calls.

Ed 7 s3päa.book Page 19 Friday, March 13, 2009 3:04 PM

Basic setting Call lists are always assigned to a user profile and are only displayed once the corre- sponding SIM card is connected again with the mobile phone preparation. m Shortcut keys Atthe time ofthe first connection with the SIM card of your mobile Phone all shortcut keys have still not been assigned after the first call from the main Setup PHONE. Assigning free shortcut keys —_ Ifyou press briefly on a non-assigned shortcut key the Setup Shortcut will open to enable a name and phone number to be entered. -_Ifyou press the function keyl a name to be assigned. an input maskwill open to enable = Ifyou press the function key number to be assigned a maskwill open to enable a r (Phone book)to accepta call number for these shortcut keys from the corresponding list. = Press the function key (Æ)to erase all entries in all entry lines at once after confirmation with (OK) —_Ifyou have completed your entries in the Setup Shortcut, press the = The entered name will be displayed in the shorteut key of the main Setup PHONE. The call number entered will be assigned to a shortcut key. Calling up a connection viathe shorteut key —_ Briefly press an assigned shortcut key to establish the connection to the assigned call number. Modifying assigned shortcut keys —_ Ifthe assignment fa shortcutkey is to be modified, keep pressingthe corresponding shortcut key until the Setup shortcut has opened for modification. The assignment of the shorteut keys remains stored in the unit and will only be displayed again when the corresponding SIM cards connected again to the mobile phone preparation program. Shortcut key (Voice maïbox}®) The shortcut key has not yet been assigned a call number in the factory, as this depends upon the corresponding mobile phone company and country. The name for this shorteut key has, however, been specified and cannot be changed. You should nowstore your mail boxnumber so that you can quickly check your voice mail. Editing field: further input possibilities (@- changes from upper case to lower case and vice versa. ()- opens the editing field for the entry of digits and special characters. The to change again to the letter editing field. CD- space key for entering spaces. or (®)- moves the cursor in the entry line to the left or right. (&)- deletes characters in the entry line from right to left, starting from the position ofthe cursor. m Phone conversation If you have started the process of connecting to a call number or accepted a call, the main Setup PHONEwill change to the display Phone conversation. 9° Only valid forthe universal Phone preinstallation GSM II

F7 s3pa.book Page 20 Friday, March 13, 2009 3:04 PM Incoming phone call = Anincoming phone call will be indicated on the display by “Incoming all” followed by the call number of the caller. Ifthe number of the caller is stored in the phone book, the name of the caller will be displayed instead of the call number. = Press the function key = Press the function key (exJto reject the call. to accept the call. During a phone conversation’) = Ifyou press the function key (®) during a phone conversation the current conversation will be switched to “mute” (Display: “Call is held”). This means thatthe connection remains intactwhile the audio transmission is interrupted. = Hfyou press the function key continued. again the conversation can be = ifyou press the function key (ex) during a phone conversation, the connection to the current call number will be terminated and the unit will change to the main Setup PHONE. Carrying out an additional phone conversation?) — Press on the function key (#) during a phone conversation to put the current conversation on “hold” as described above. - Select a new call number or select a stored call number. -__Ifyouare holding an additional conversation, you can switch between both parties (‘alternate”). 2° Only valid forthe universal Phone preinstallation GSM IL “Call waiting” and changing between two parties (Alternate) = ifyou are called while holding a conversation, the number and the name of the caller will appear below the current conversation on the display (Function: “Call waiting”) — Press on the function key (æ)in the line “Incoming call” to reject the second call. —_ Press on the function key (£)in the line “Incoming call” to accept the second call. The connection to the first party will be interrupted but not broken (Display: “Call is held”). = ifyou press the function key (ŒJin the line “call is held”, the conver- sation with this party will continue and the other party will be “put on hold”. In this way you can alternate between two parties. 7) = Press the function key(s) to break the connection to the call number displayed in this line. DTMF key tones?) Aparticular DTMF key tone is assigned to each each key of a phone. DTMF key tones are used, for example, for the input of a password via the phone or for choosing a colleague in a “Call center” If a DTMF key tone has to be entered during a conversation, you can open the keypad field by pressing the function key atthe bottom left and follow the instruc- tions (for example: “For a private conversation with one of our co-workers, please press You can store a longer DTMF key tone on your mobile phone. If during a conversa- tion, this DTMF key tone has to be entered, call up the corresponding entry from the phone book as described. I you press in the input mask on the function key the displayed character sequence in the entry line will be played as DTMF key tone sequence. Please note that in a DTMF key tone sequence the character “+” must not appear, asitinterrupts the playing of a DTMEF key tone.m
