Quick Start Guide

1. Open battery door and install batteries observing polarity. Replace battery cover.
2. Open and fold down back rubber cover. Insert micro SD card observing proper direction. Close cover.
3. Move RECORD switch forward, recording will start in 8 seconds.
4. To stop recording, slide switch back to the off position.
5. Plug in camera to computer and download video.

Welcome to the XTC Action Camera Experience

Thank you for your purchase of the XTC-100/150 Action Camera. As someone who seeks adventure, we are proud to offer you the ultimate tool in capturing and recording your adventures. With easy to use one switch operation, 140 degree angle lens and 2 hour battery life you never miss a minute of the action. Once captured, simply connect to your computer and upload the videos to share with friends. It is that simple. Enjoy!

What's in the Box

XTC-100 Package Includes:

1. Midland XTC-100 Camera
2. USB Cable
   3.2 AAA Batteries
3. Goggle Mount
4. Helmet Strap Mount
5. Helmet Adhesive Mount (includes 23M adhesive pads)
6. Bicycle Handlebar Mount

XTC-150 Package Includes:

1. Midland XTC-150 Camera
2. USB Cable
   3.2 AAA Batteries
3. Visor Mount
4. Tree Mount
5. Bow Mount
6. Bicycle Handlebar Mount

*XTC-150 accessories not shown

XTC-100/150 Features and Controls

Features:

-640x480resolution
- 30 frames per second
-Records as AVI
- 140 degree angle lens
-4:3 aspect ratio

Getting to Know the XTC-100/150

Batteries

1. To insert the batteries, push down the battery door latch on the right side of the camera. Door will release. Push forward to remove.
2. Install 2 AAA batteries observing polarity.
3. Return battery door and click into place.

*Note: We recommend using Lithium batteries in cold weather.

Battery Status Indicator	Meaning
Solid Green	Indicates full battery life
Solid Red	Indicates half battery life
Blinking Red*	Indicates low battery life
No Light	Batteries are dead

*Note: When the red battery LED begins blinking, be prepared to change the batteries because the camera will stop recording at this point.

**Note: Quality of battery directly effects the record time.

Micro SD Card

1. Open and fold down the back rubber cover.
2. Insert Micro SD card into slot observing proper direction (shown below).
3. Return rubber flap into place.

Getting to Know the XTC-100/150

Recording

1. Move the RECORD switch forward. This turns the camera on.
2. The battery indicator will light from red to green. The SD card indicator will light green. The record indicator will begin flashing red after 8 seconds. This indicates the camera is capturing video.
3. To stop recording, move the RECORD switch back to the off position.

Note: The camera will continue recording for 3 seconds after toggling the switch to the off position.

SD card LED Status	Meaning
Green	1 GB or more available.
Orange	512 MB to1 GB available.
Red	Below 512 MB available or no micro SD card installed.
Flashing Red	Cannot read the card.
Flashing Green	Indicates card has been reformatted.

Memory Size	Record Time
512 MB	7.5 Minutes
1 GB	15 Minutes
2 GB	30 Minutes
4 GB	60 Minutes
8 GB	120 Minutes
16 GB	240 Minutes
32 GB	480 Minutes

Note: The camera automatically splits the video into 2 GB segments.

Camera Mounting and Aiming

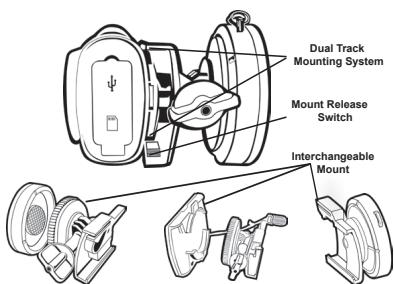

Mount on Dual Track System

The XTC-100/150 was innovatively designed with an identical dual track mount system on either side of the camera. This allows you to mount it on both sides of a helmet with ease. In addition, the main mount piece is interchangeable and can be moved from the helmet mount to the goggle mount. This eliminates the hassle of having to remount the camera every time.

To mount the camera on the main mount piece, slide the camera onto the dual track system with the two notches on the mount facing towards the back of the camera.

To detach the camera from the main mount, hold the camera with the lens facing away from you. Press down the mount release switch and pull the mount towards yourself.

Aiming the Camera when mounted with the dual track mount:

When mounting the camera on a helmet, you must do the following:

1. Consider what you would like to shoot and mount the camera accordingly-left side, right side or top.
2. Find a flat surface and ensure the area is clean of dirt and debris. Remove the cover of the adhesive pad and adhere to the helmet.
3. Once attached, adjust the camera to be sure you are not filming the sky or the ground.

Camera Mounting and Aiming

Mount using the Thread Mount

On the bottom of the XTC-100/150 is a standard thread mount that allows the camera to be mounted to a tripod or other fixture with a 1/4-20 (1/4" diameter, 20 threads per inch) 5/16 deep thread. The vented helmet strap mount is a screw type mount. To affix the camera, insert the screw on the mount into the camera thread and rotate the camera clockwise to lighten down onto the screw.

Over tightening may cause damage to the mount and/or camera
Aiming the Camera when mounted with the thread mount:

When mounting the camera on the handlebars of a bike or with the vented helmet strap mount follow these steps:

1. Consider what you would like to shoot and mount accordingly.
2. Ensure once attached that the camera is aimed straight and not towards the ground or at the sky.

Reformatting the Micro SD card

Ensure batteries are new or fully charged before formatting

The Micro SD card can be reformed while in the camera. This allows you to delete all the videos at one time. Follow these steps:

1. Move the RECORD switch to the record position.
2. When the battery indicator turns green, press and hold the Micro SD card reformat button.
3. Keep the Micro SD card reformat button down until the record indicator turns off and the SD card indicator begins blinking green.
4. Move the RECORD switch to the off position.

Note: The camera cannot reformat the Micro SD card if the low battery light is on.

Compatible Systems

The XTC-100/150 can be used on both a PC or MAC. Below are the compatible operating systems:

Windows XP SP2

Windows Vista

Windows 7

Macintosh OSX 10.4 and higher

For Windows we recommend Windows Media Player 9 or higher.

For Macintosh we recommend Quick Time 6.5 or higher.

Downloading Videos

There is no need to install any software with the XTC-100/150. It is a plug and play device. With this, follow the below instructions depending upon whether you have a PC or a MAC.

Ensure batteries are new or fully charged before downloading video.

Downloading Videos on a PC with a WINDOWS Operating System

1. Connect the camera to the USB port using the included cable.
2. Turn the camera on by moving the RECORD switch to the record position.
3. The device should automatically install.
4. Operating system

a. Windows XP
i. Open "My Computer". The camera will be listed under devices with removable storage.
b. Windows Vista
i. Open "Computer". The camera will be listed under devices with removable storage.
c. Windows 7
i. Open "Computer". The camera will be listed under devices with removable storage.
lick on the device.
6. Open DCIM Folder.
7. Open 100COACH folder.
8. Your videos will be in this folder.

Downloading Videos

Downloading Video on a MAC

1. Connect the camera to the USB port using the included cable.
2. Turn the camera on by moving the RECORD switch to the record position.
3. MAC will automatically recognize the camera external hard drive.
4. Click on the icon on the desktop.
5. Open DCIM Folder.
6. Open 100COACH folder.
7. Your videos will be in this folder.
8. Drag video files to your hard drive or double click to view.

Editing Videos

It's fun to edit video and share with friends. If you want to edit, we recommend the following software:

PC	Windows Movie Maker
MAC	i Movie

FCC Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with instructions, it may cause harmful interference to radio communication. The manufacturer that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase separation between equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Tips and Tricks

Problem	Solution
Batteries
Camera not turning on	Ensure the batteries are installed properly observing polarity. Make sure batteries are new or fully charged.
Recording
Camera not recording	Make sure the switch is pushed all the way forward. If the record LED does not come on, turn off the device and reinstall the batteries. Verify available memory.
Micro SD card
Micro SD card not reading	Ensure the Micro SD card is inserted properly. Plug camera into the computer to verify it has available storage. Attempt formatting process.
VideoPlayback
Slow or choppy video	Verify the camera is plugged into a USB 2.0 device. Remove other unused USB devices. Transfer video to computer before viewing. Close all unused programs.

Tips and Tricks

Problem	Solution
Video Downloading
Slow data transfer	Verify the camera is plugged into a USB 2.0 device. If registering as 1.1, unplug and the re-plug the device. Remove other unused USB devices.
Computer does not recognize camera	Ensure record switch is in the record position while connected to computer. Ensure the Micro SD card is inserted properly. Micro SD card may be corrupted. Attempt formatting process.
File won't transfer off memory card	In the run command type: chkdsk volume/.f then press enter
Sound
Excessive Wind Noise	Place piece of tape over microphone hole.

Service and Technical Support

• If you have a problem which you believe requires service, please call first and speak with a service technician. Many problems can be remedied over the phone without returning the unit for service.

For Technical Support Contact:

Midland Radio Corporation

5900 Parretta Drive

Kansas City, Missouri 64120

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

Web site: www.midlandradio.com

If after talking with technical support you still feel your unit needs to be returned for service, follow the below instructions:

1. Pack the unit in its original box and packing. Then pack the original box in a suitable shipping carton.

Caution: Improper packing may result in damage during shipment.

1. Include the following:

a. Full description of any problems

b.Daytime telephone number, name & address

1. For warranty service include a photocopy of the bill of sale from an authorized dealer or other proof of purchase showing the date of sale.

2. You do not need to return accessory items (USB Cable,

Various Mounts, Batteries and Owners Guide) unless they might be directly related to the problem.

1. A flat rate of $40.00 will apply to repairs not covered by warranty or units that are over one year old. Send only cashier's check, money order, Master Card or Visa card number.

Limited Warranty

Midland Radio Corporation will repair or replace, at its option without charge, any Midland XTC-100/150 action camera which fails due to a defect in material or workmanship within ONE Year following the initial consumer purchase. This warranty does not apply to accidents of any kind, exposure to pressure, extreme temperatures, and submersion water damage as this product is water resistant but not waterproof, battery leak or accessory. Accessories have a 90 day warranty from date of purchase, including any mounts and cables. This warranty does not include the cost of labor for removal or re-installation of the product in a vehicle or other mounting. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

Note: The above warranty applies only to merchandise purchased in the United States, not to any of the territories or possessions thereof, or from a U.S. Military exchange.

Accessories

Accessories can be purchased at www.midlandradio.com or fill in the form on the following page and mail it to our address.

XTA101

Windshield Suction Cup Mount

• Durable suction cup sticks to anything and stays in place.

•$29.99

XTA106

Tree Mount

• Mount can be screwed into a variety of different angles.

•$19.99

XTA102

Handlebar Mount

• Durable strap mount fits all sizes of handlebars.

•$19.99

XTA107

Visor Mount

• Clips onto the bill of a hat.

•$19.99

XTA103

Standard Mount

Heavy duty adhesive mount for helmets.

•$19.99

XTA108

Bow Mount

• Screws into the stabilizer on a bow.

•$19.99

XTA104

Vented Helmet Strap Mount

• Velcro strap mounts on vented helmets.

•$14.99

XTA301

Submersible Case

Waterlight case allows for unheater use of the camera.

• Has double track mount system so camera can still be used with accessories.

•$29.99

XTA105

Goggle Mount

• Mounts on the strap of goggles.

•$19.99
